Real-time Scale-invariant Object Recognition from Light Field Imaging

everine Cloix

1,2

, Thierry Pun

and David Hasler

Vision Embedded Systems, CSEM SA, Jaquet Droz 1, Neuch

atel, Switzerland

Computer Science Department, University of Geneva, Route de Drize 7, Carouge, Switzerland

Keywords:

Object Recognition, Object Classiﬁcation, Light Field, Plenoptic Function, Scale Invariance, Real-time,

Dataset.

Abstract:

We present a novel light ﬁeld dataset along with a real-time and scale-invariant object recognition system. Our

method is based on bag-of-visual-words and codebook approaches. Its evaluation was carried out on a subset

of our dataset of unconventional images. We show that the low variance in scale inferred from the speciﬁcities

of a plenoptic camera allows high recognition performance. With one training image per object to recognise,

recognition rates greater than 90 % are demonstrated despite a scale variation of up to 178 %. Our versatile

light-ﬁeld image dataset, CSEM-25, is composed of ﬁve classes of ﬁve instances captured with the recent

industrial Raytrix R5 camera at different distances with several poses and backgrounds. We make it available

for research purposes.

1 INTRODUCTION

The detection of “everyday objects” is still an active

area of research. Current algorithms that detect ob-

jects by category, for example keys, doors, cars, cats,

glasses, etc. are still not good enough for practical ap-

plications (Everingham et al., 2015) that require very

low false positive even nil according to the applica-

tion. While most of the works on classiﬁcation has

been dealing with 2D images over the last decades,

a number of public datasets has been made available

for the purpose of developing new methods. A sin-

gle 2D image however gives partial information of the

fronting scene since the sensor records a projection of

the 3D scene, losing the third spatial dimension.

The changes in distance of an object of known

real dimensions are represented by a change in size

on the 2D image. The scale is thus often dealt with

iteratively running the detector on downsampled im-

ages or with depth estimation (Gavrila and Munder,

2006) prior to the recognition step (Helmer and Lowe,

2010). Stereo-view strategies allow to extract the

third spatial dimension, resulting in either a sparse

3D point cloud (Cloix et al., 2014) or a range of dis-

tances to infer the size of the detection window in ob-

ject detection algorithms (Helmer and Lowe, 2010).

The depth map of the captured scene is computed by

triangulating over the scene points visible and identi-

ﬁed in both images. Commercial devices commonly

employed are stereo cameras like the Point Grey bum-

blebee2

and active sensors, e.g. Microsoft Kinect

and Asus Xtion

, developed to cope with textureless

scenes.

With more than two views, we can call the whole

capture a subset of the “light ﬁeld”. The deﬁnition of

light ﬁeld comes from the plenoptic function (Adel-

son and Bergen, 1991). For each point in the 3D

scene, the intensity distribution is

P(θ,φ,λ,t,V

), (1)

where θ and φ are the spherical coordinates of the di-

rection of the light ray, λ the wavelength and t the

time dimension. The viewpoint is deﬁned by V

, V

and V

. In practice, a conventional camera is capable

of recording a 2D slice of the scene irradiance. With

the multi-view strategy, we are able to add three other

dimensions describing the location of the view point.

Light ﬁelds are thus captured with an array of cam-

eras, a gantry (Levoy, 2011) or the use of a turntable

and a robot (Zobel et al., 2002). Another way to aug-

ment the conventional image capturing with two di-

mensions is the use of a microlens array. This 4D

parameterization (x,y,u,v) is done by two planes, the

http://www.ptgrey.com/bumblebee2-ﬁrewire-stereo-

vision-camera-systems

http://www.xbox.com/en-US/xbox-one/accessories/

kinect-for-xbox-one

http://www.asus.com/Multimedia/Xtion/

336

Cloix, S., Pun, T. and Hasler, D.

Real-time Scale-invariant Object Recognition from Light Field Imaging.

DOI: 10.5220/0005678603360344

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 336-344

ISBN: 978-989-758-175-5

viewpoints plane, (u,v), and the sensor plane, (x, y),

and allows the measurement of the directional distri-

bution of the light (Ng, 2005) (Figure 1). The latter

is named the 4D plenoptic camera with commercial

versions like Lytro

and Raytrix

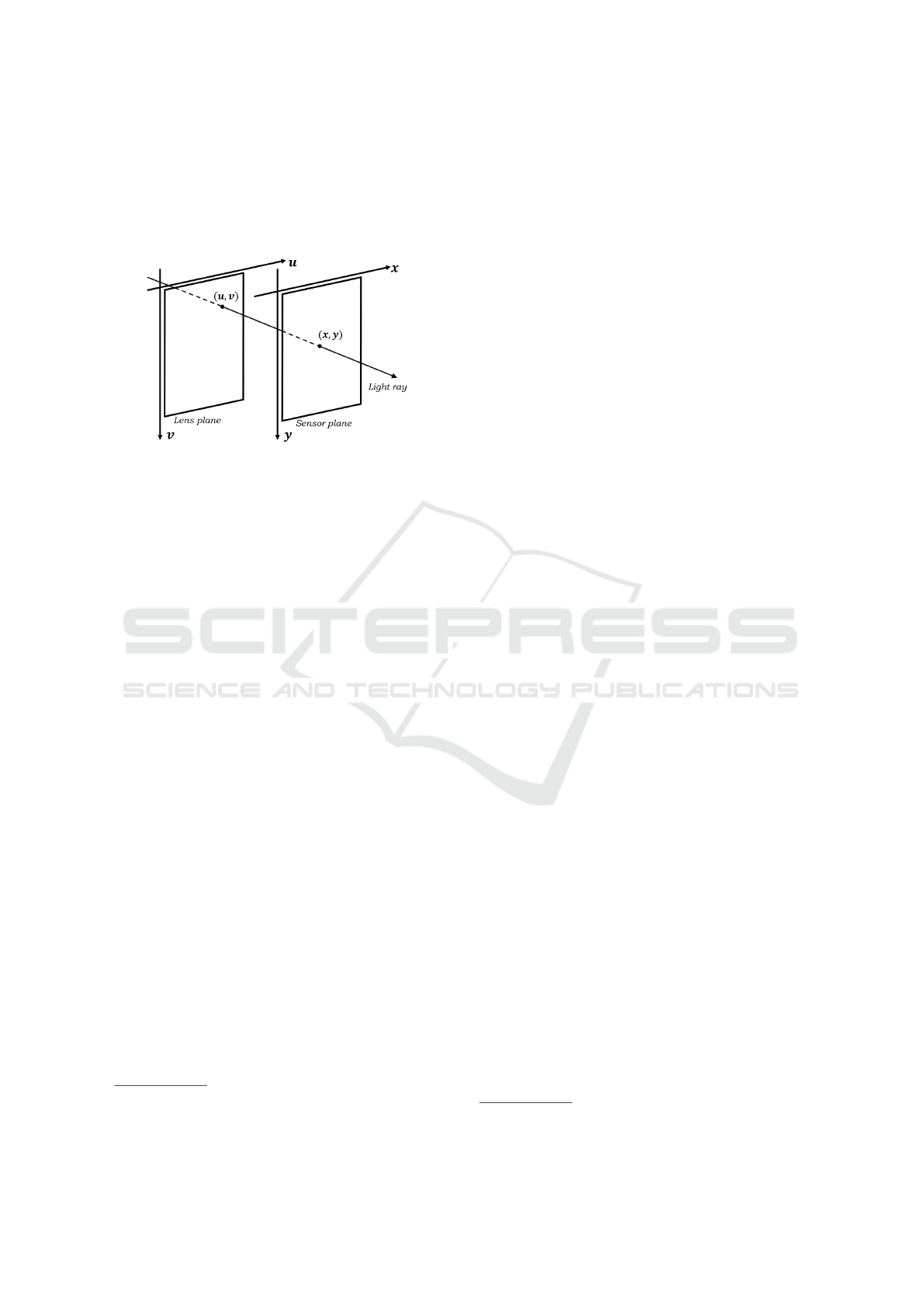

Figure 1: Two-plane parameterization of the 4D Light ﬁeld

as explained in (Ng, 2005).

In this article, we present a novel light ﬁeld dataset

as well as a scale-invariant object recognition sys-

tem based on bag-of-visual-words and codebook ap-

proaches. We assess our method on a subset of our

novel light ﬁeld dataset. To the best of our knowl-

edge, our dataset is the ﬁrst of its kind in the domain

of light ﬁeld for computer vision. We believe that our

approach is the ﬁrst work that shows how industrial

light ﬁeld imaging can be successfully employed in

object recognition. We thus expect it to become a

baseline in the community.

This paper is organized as follows. Section 2 de-

scribes the state-of-the-art in light ﬁeld vision related

to object classiﬁcation. A review on the existing light

ﬁeld image datasets is recalled in Section 3 followed

by an exhaustive description of our proposed dataset

(section 4), along with several intended usage scenar-

ios of the data. Section 5 explains the approach of

our scale-invariant recognition system from raw light

ﬁeld images captured by an industrial plenoptic cam-

era. The experimental results are detailed and dis-

cussed in Section 6 before concluding on the future

work in Section 7.

2 RELATED WORK

Object recognition and classiﬁcation is an old topic

in computer vision on which research keeps on pro-

gressing thanks to new algorithms and new sensors.

Light ﬁeld imaging is mainly employed for depth es-

timation and 3D scene or object reconstruction, al-

https://www.lytro.com/

http://www.raytrix.de/

though, as of today, it is still unclear in which domain

the light ﬁeld technology will stand out. The exist-

ing datasets were built according to the applications

they were dedicated to. The ﬁrst light ﬁeld datasets

were built by the Stanford Computer Graphics Lab-

oratory and are used for computer graphics research

. Their array of cameras (Wilburn et al., 2005) cap-

tures scenes for 3D reconstruction like (Levoy, 2011).

Disney research is also a big player in the domain

of scene reconstruction (Kim et al., 2013). These

datasets are however not used for classiﬁcation pur-

poses. To our knowledge the authors of (Ghasemi and

Vetterli, 2014) are the ﬁrst to exploit the light ﬁeld

images for object recognition. They present a scale-

invariant feature, called STILT, built from Epipolar

Plane Images (EPIs) to recognize buildings. An EPI,

initially introduced in (Bolles et al., 1987), is the rep-

resentation of the subset of the data in the x − u do-

main, where each point represents a line whose slope

is proportional to the depth. The STILT feature is

drawn on the Hough transform line detection method

and represents the signature of the entire light ﬁeld

captured, the invariance in scale being transposed in

a multiplicative scalar. In (Ghasemi et al., 2014),

this feature is used for object category classiﬁcation.

As far as classiﬁcation methods are concerned, recent

work of (Coates et al., 2012) shows state-of-the-art re-

sults in unsupervised feature learning on conventional

2D images. One of the learning phase is based on k-

means dictionary learning, similar to codebook learn-

ing from bag-of-visual-word models (Csurka et al.,

2004).

Looking at captures from the Raytrix camera, one

striking characteristic in the light ﬁeld images of an

object at two different distances is the redundancy of

a unique point of the scene on the ﬁnal image: the

closer the object, the greater the redundancy. We

aimed at taking advantage of this redundancy feature

to build a scale-invariant object recognition system.

In this paper we exploit the redundancy charac-

teristic of the Raytrix camera to build a recognition

system of objects at various distances without explic-

itly estimating the distance as a feature, nor down-

sampling the input capture. Another contribution is

the release of a new light ﬁeld images dataset for ob-

ject class recognition purposes as described in 4.4.

3 EXISTING LIGHT FIELD

DATASETS

In order to reduce the assumptions related to physical

http://lightﬁeld.stanford.edu/

Real-time Scale-invariant Object Recognition from Light Field Imaging

337

hardware and to keep focus on the development of

new algorithms, other datasets were made of synthetic

images using Blender

TM7

(Wetzstein,; Wanner et al.,

2013). Authors of (Wanner et al., 2013) also cre-

ated datasets capturing real scenes. Image matting is

also an application for which (Joshi et al., 2006) and

(Cho et al., 2014) created their own datasets from real

scenes.

As far as object classiﬁcation is concerned, it is

still a challenging research topic and several datasets

dedicated to competitions were built. (Ghasemi et al.,

2014) reviewed the most employed ones. The use of

light ﬁeld imaging for object class recognition is how-

ever rather new and to our knowledge, LCAV-31 is

the only dataset that shares several speciﬁcations with

ours. Dedicated to object class recognition, LCAV-

31 gathers 31 classes of household and ofﬁce objects

captured with a Lytro camera. Each instance is cap-

tured with 3 different viewpoints and several object

locations and angles. Each capture is converted from

the Lytro format to a JPG image and is a 3010 × 3030

pixel grid of 10 × 10 sub-views. While our dataset

detailed in Section 4 is based on a lens-grid repre-

sentation, the LCAV-31 captures are view-grid-based

ones, i.e. each light ﬁeld is represented by an array

of pictures. LCAV-31 does not offer metadatas such

as location and pose nor masks for segmentation pur-

poses.

4 PROPOSED DATASET

4.1 Goals and Speciﬁcations

We aim at building a multipurpose dataset of object

classes to address several aspects of computer vision

applications using light ﬁeld with a lens-grid-based

representation, namely:

• object classiﬁcation,

• object recognition,

• corner detection,

• feature point extraction and tracking,

• (3D) pose estimation,

• 3D reconstruction.

4.2 The Acquisition Setup

We built an automated set-up composed of a motor-

ized linear stage, a motorized rotary stage, a high res-

olution background screen and a Raytrix R5 camera.

http://www.blender.org/

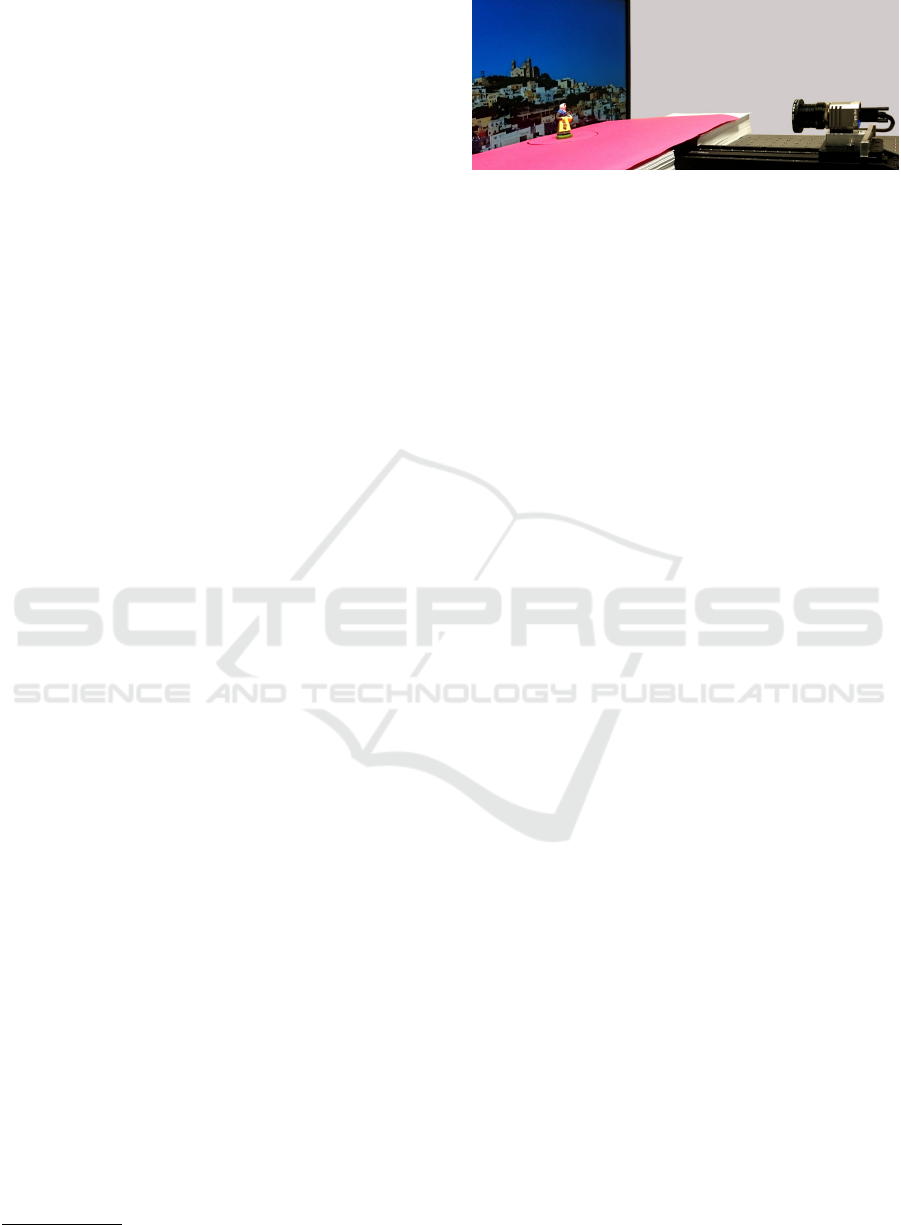

Figure 2: Acquisition setup. It is composed of a motor-

ized linear stage, a motorized turntable, a high resolution

background screen and a uniform colored ground. Here one

instance of the “person” category is being captured with a

randomly chosen background.

The ground is covered by a uniform colored paper.

Each object is located in the middle of the turntable.

It is captured from 0 to 355 degree with a 5 degree

pitch and at 21 distances from the camera (from 28 to

50 cm). The turntable has an accuracy of 0.2 millide-

grees, and the linear stage an accuracy of 2 microns.

Thus the relative object pose from one image to any

other in the dataset is known with high precision.

The object is placed in front of a background

screen, which is located 6 cm behind the object center

(Figure 2). For each object and each pose, four cap-

tures are acquired: two captures with a uniform back-

ground and two captures with a landscape background

randomly picked from a database of 380 high resolu-

tion images. The screen resolution is large enough

to avoid blur in the acquired image. The captures

on uniform backgrounds are for computing a mask

of the presence of the object, which can be used to

place the object into a virtual environment. This op-

eration of extracting the light ﬁeld of the object and

integrating it into the light ﬁeld of a virtual scene be-

ing a complicated operation, we added the two cap-

tures with a high resolution background to make the

database ready for object classiﬁcation or detection

on cluttered background. The dataset is composed of

5 classes of 5 instances of known size (less than 7 cm

width, and height) in order to be in the ﬁeld of view of

the camera for all the distances (Figure 3). The cate-

gories are : person, four-legged animal, fruit, box and

car.

The ground truth of our dataset, named CSEM-

25, gives: (i) the category whose name belongs to the

WordNet

lexical database, (ii) the angle, (iii) the

distance from the camera and (iv) the intra-class in-

stance number, (v) the number that refers to a miscel-

laneous background.

In order to enlarge the usage of our dataset, each

object and each pose acquisition comes with (i) the

raw colored images in PNG format and of size 2044×

2044 pixels, (ii) its mask on raw data and (iii) the best

“all-in-focus” image generated with the Raytrix SDK.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

338

Class

Box Car Four legged Fruit Person

Uniform background

Raw

All-in-

focus

Zoom

Random background

Raw

All-in-

focus

Zoom

Mask

Whole

Zoom

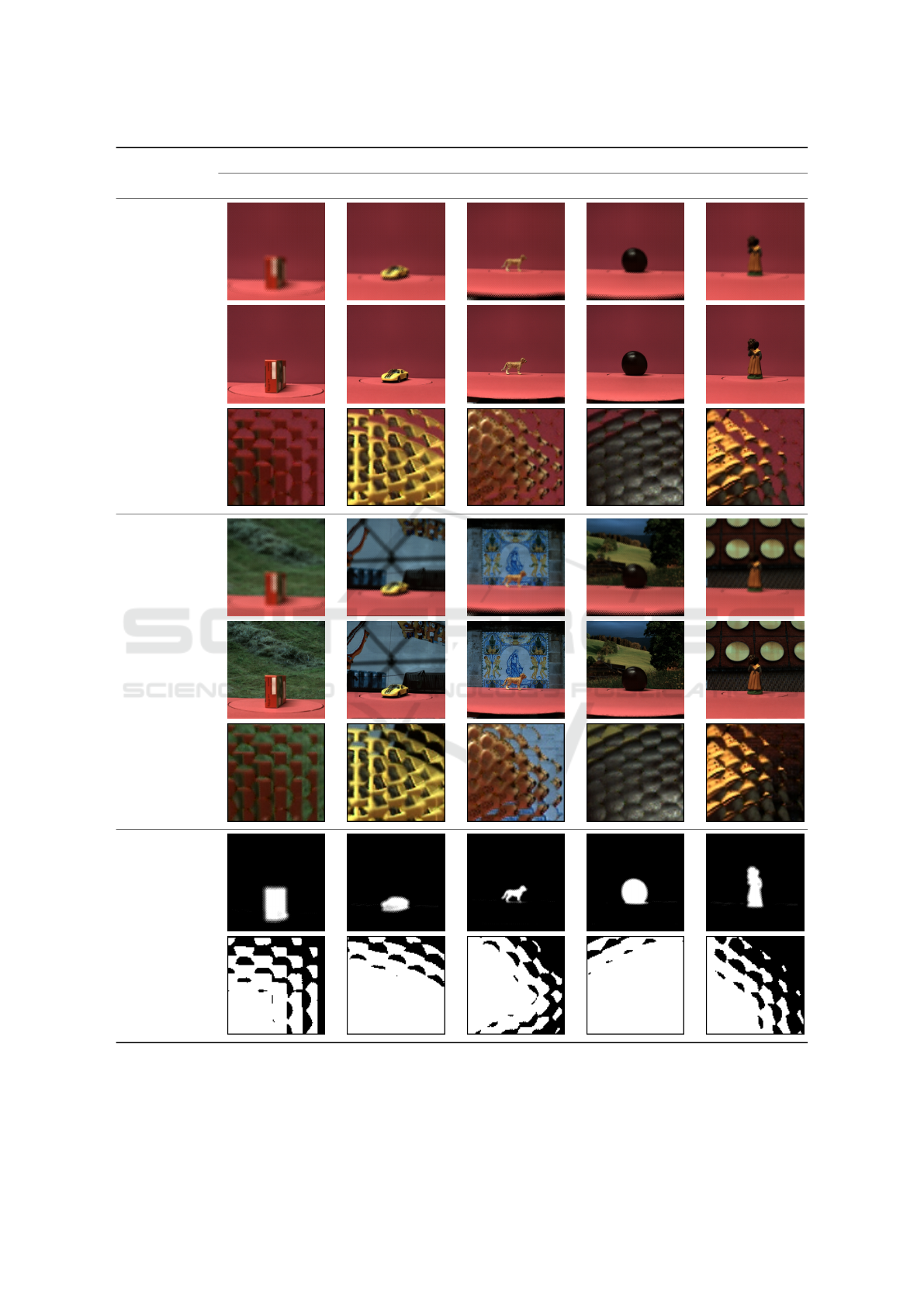

Figure 3: Dataset samples: on one of the uniform backgrounds and one of the random backgrounds, here are presented one

instance of each class in one of the poses. The “Raw” rows show the colored raw image produced by the Raytrix camera. The

“All-in-focus” rows show the processed image generated by the Raytrix SDK where each pixel is in focus. For each instance

and pose, we deliver a mask as shown in row “Mask”. The “Zoom” rows is a zoom in portion of the raw image or the mask.

Real-time Scale-invariant Object Recognition from Light Field Imaging

339

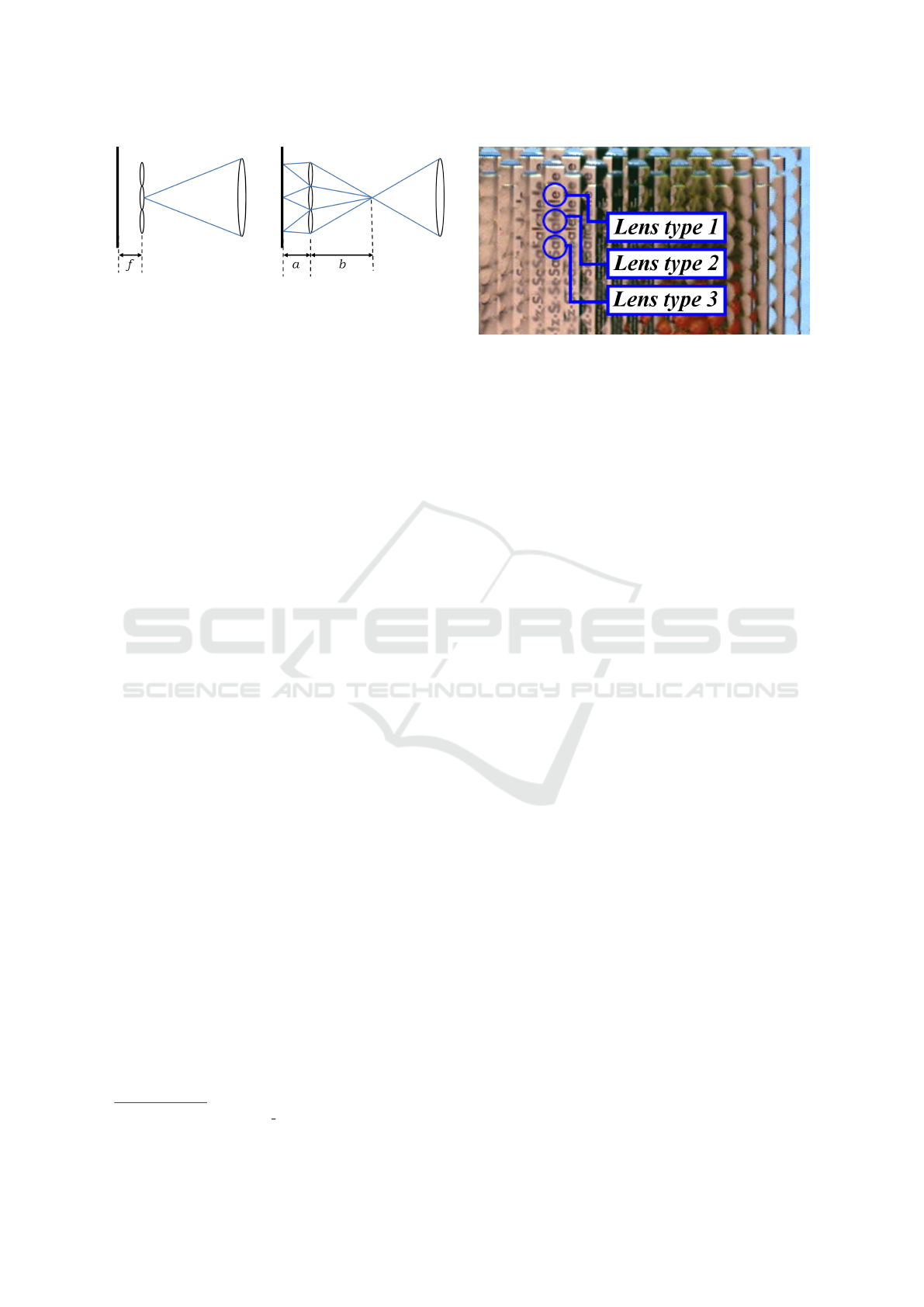

Figure 4: The difference between a Plenoptic 1.0 camera

(left) and a Plenoptic 2.0 camera (right) lies on the location

of the microlens array related to the main lens. In Plenoptic

1.0 the microlens array is on the image plane of the main

lens (1/a + 1/b = 1/ f where f is the focal length of the

microlenses) (Georgiev and Lumsdaine, 2009).

4.3 The Camera

In a standard 2D camera, the image is formed by the

main lens which projects the image of the scene onto

the sensor. In a light ﬁeld camera, there is an addi-

tional array of microlenses. The captures are lens-

grid-based representations of the light ﬁeld. As of to-

day, there are two types of cameras: The Plenoptic

1.0 cameras and the Plenoptic 2.0 cameras (Georgiev

and Lumsdaine, 2009) (Figure 4). In the Plenoptic

1.0 camera, the main lens projects the image into the

array of microlenses, which then form a set of micro-

images on the sensor. The 1.0 approach is character-

ized by a very simple relationship between the coor-

dinate on the sensor and the light ﬁeld (x, y, u, v) co-

ordinates, and the resulting reconstructed image has a

number of pixels equal to the number of microlenses

in the microlens array. An example of a commer-

cial Plenoptic 1.0 camera is the Lytro Camera. In a

Plenoptic 2.0 camera, the image formed by the main

lens is either in front or behind the microlens array.

This approach allows for better resolution, but the

price to pay is a complex relationship between the

light ﬁeld (x,y, u, v) and the sensor coordinates. The

Raytrix R5 camera

is a Plenoptic 2.0 camera (Per-

wass and Wietzke, 2012) composed of an array of

around 7900 microlenses and the image formed by the

main lens (called here the virtual image) falls behind

the microlens array.

It has an additional extended depth-of-ﬁeld prop-

erty by incorporating three types of microlens with

three different focal lengths (Perwass and Wietzke,

2012). The microlenses lie on a hexagonal grid that

optimizes the sensor coverage (Figure 5). A raw light

ﬁeld image is composed of a bubble-like pattern; each

bubble is the projection of the virtual image by a sin-

gle microlens. In the rest of the article, a bubble re-

gion is called a micro-image, referring to a microlens.

http://www.raytrix.de/tl ﬁles/downloads/R5.pdf

Figure 5: Raytrix technology : Three types of microlenses

on a hexagonal grid.

4.4 Possible Usage of The Dataset

The dataset can be used for object classiﬁcation: it

has several classes of objects (5 instances per class)

and 6048 captures per object so as to train a detec-

tor, which should be able to achieve excellent perfor-

mance. The 3D pose and the camera-to-object dis-

tance are varied and enable testing for scale and pose

invariance. The various backgrounds make the dataset

interesting for image matting and background sub-

traction as in (Cho et al., 2014). The range of an-

gles makes it attractive for 3D reconstruction, similar

to light ﬁeld captures done with a camera travelling

on a circular rail. Similarly to (Zobel et al., 2002),

the dataset can be employed in the domain of object

tracking and object pose estimation and prediction.

The accuracy of the (relative) poses given by stage

precision can be used to assess the accuracy of pose

estimators, as well as the accuracy and consistency

of corner detectors based on light ﬁeld data. Eventu-

ally the variety of distances can be used in domains

requiring scale-invariance.

5 OUR SCALE-INVARIANT

RECOGNITION SYSTEM

APPROACH

Today’s light ﬁeld object classiﬁcation approaches re-

quire pre-processing like the epipolar-plane images

(EPI) (Ghasemi et al., 2014; Ghasemi and Vetterli,

2014). As shown in Figure 6, the image recorded by

the plenoptic camera is a group of micro-images ly-

ing on a hexagonal grid, each micro-image being the

subset of the virtual image of the scene formed by the

main lens. The presence of redundancy allows depth

estimation (Perwass and Wietzke, 2012).

When we compare two images of the same object

with known dimensions taken at two different dis-

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

340

(a) (b)

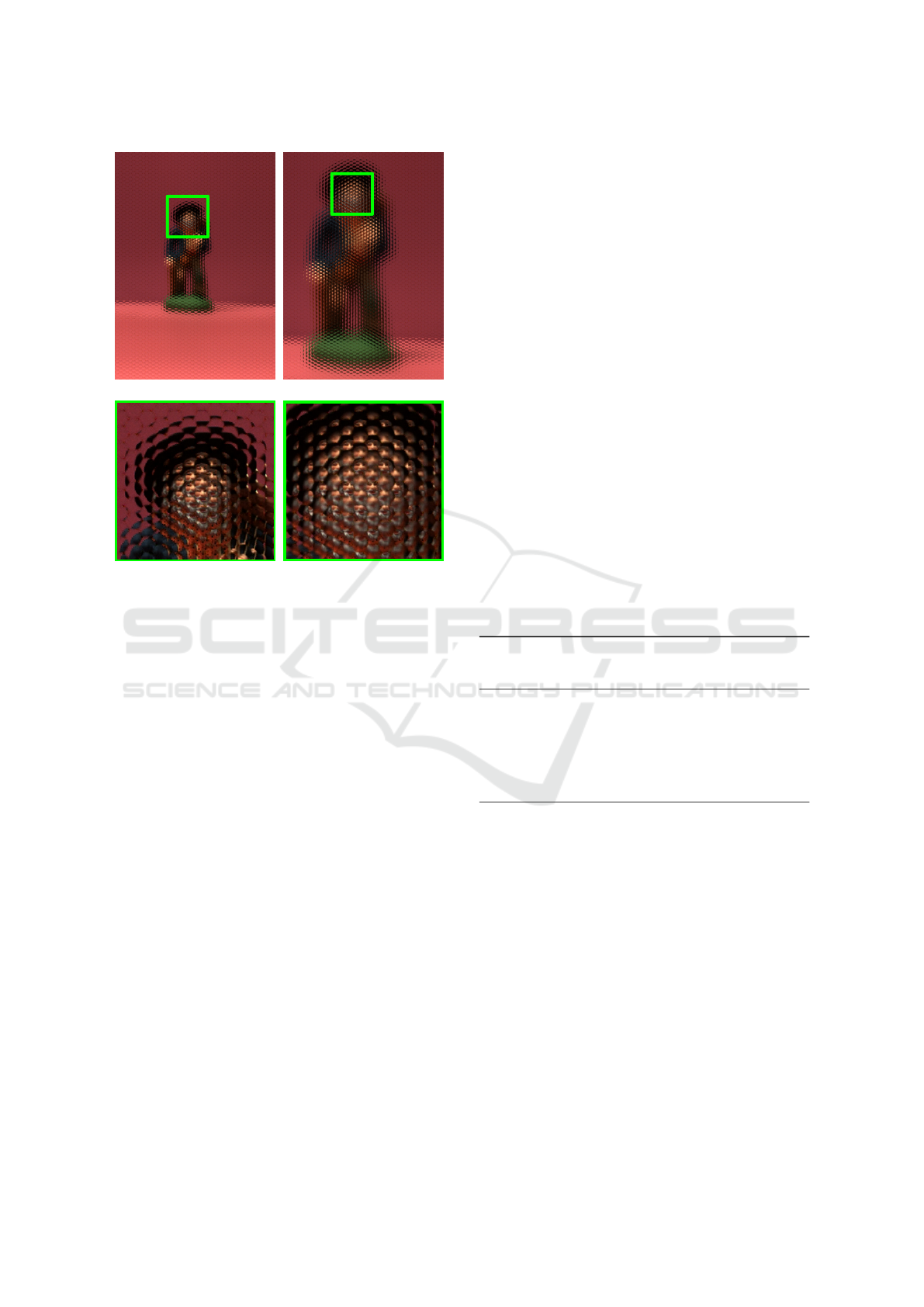

Figure 6: Captures of a ﬁgurine at two distances. On a uni-

ﬁed background, at the furthest distance from the camera

(a) with the corresponding zoomed-in part (b); respectively

at the closest distance (c) and (d).

tances, the pattern redundancy is more important on

the closest capture than on furthest away one (Figure

6). The existence of three types of microlenses, i.e.

three different focal lengths, allows the scene to al-

ways be in focus behind at least one type of microlens.

We also notice that the scale change within a micro-

image is very low. In our approach, we therefore aim

at taking advantage of these pattern repetitions and

the low scale variation within the micro-images in or-

der to develop a recognition system that is invariant

to the scale induced by the distance. Works based on

bag-of-visual-words showing interesting performance

on object recognition, the underlying intuition of our

approach is the counting of patches belonging to a de-

ﬁned dictionary (built at training). The collection of

counters results in a unique signature of the object.

We expect that the shape of this signature remains the

same at any distance, only its amplitude varying with

scale (the closer the object, the higher the amplitude).

We propose a baseline method of object recogni-

tion from light ﬁeld imaging to which future works

can be compared. It is based on the bag-of-visual-

word strategy: (i) a codebook is built from an unsu-

pervised clustering method and (ii) allows building a

histogram of each image, the histogram of the test im-

ages being compared to the histogram of the trained

image that deﬁnes the object. The advantage of such

a strategy is that histogram computation and compar-

ison are fast to process. Our approach is thus appro-

priate for real-time implementations.

5.1 Codebook Learning

The codebook is a set of whitened pixel patches learnt

from small patches extracted within each micro-

image of a training-image set. From a training set

made of the raw light ﬁeld captures of all the objects

at the closest distance from the plenoptic camera (one

capture per object), we extract n-pixel patches within

each micro-image that contains a large part of the ob-

ject with a deﬁned scanning stride on both axes. For

each training raw image, the set of micro-images is

extracted from the mask deﬁning the presence of a

part of the object. This allows to reduce the noise that

patches belonging to the background can introduce in

the training process.

The resulting set of patches x

(i)

∈ ℜ

,i = 1, ..., m,

forms the training vectors. These patches are pre-

processed by removing the mean before a PCA-

whitening. The ﬁnal codebook is then learnt by alter-

nating K-means clustering and a cluster-merging step:

Algorithm 1: K-means clustering algorithm. K is the num-

ber of clusters, c

the center of the i

cluster, i = 1, ...,K and

N the number of iterations.

1: Initialize the centers c

of the K clusters from the

data

2: Attribute the closest center to each data sample

3: Update each c

with the mean of all its belonging

data sample

4: Repeat N times

5.2 Histogram Extraction and

Classiﬁcation

The codebook is learnt from a set of objects captured

at the closest distance and tested on captures at farther

distances. Once the codebook learnt, we obtained K

centers c

∈ ℜ

,i = 1,...,K. We then extract a nor-

malized histogram of each object containing as many

bins as centers.

The test phase is applied within a ﬁxed test region

of interest and without any image re-scaling. As a

result, the test ROI is composed of micro-images of

background and part of the object to recognise. Each

n-pixel patch is extracted within each micro-image

of the ﬁxed ROI with strides greater than at training

phase (Figure 7). The patches can then either belong

Real-time Scale-invariant Object Recognition from Light Field Imaging

341

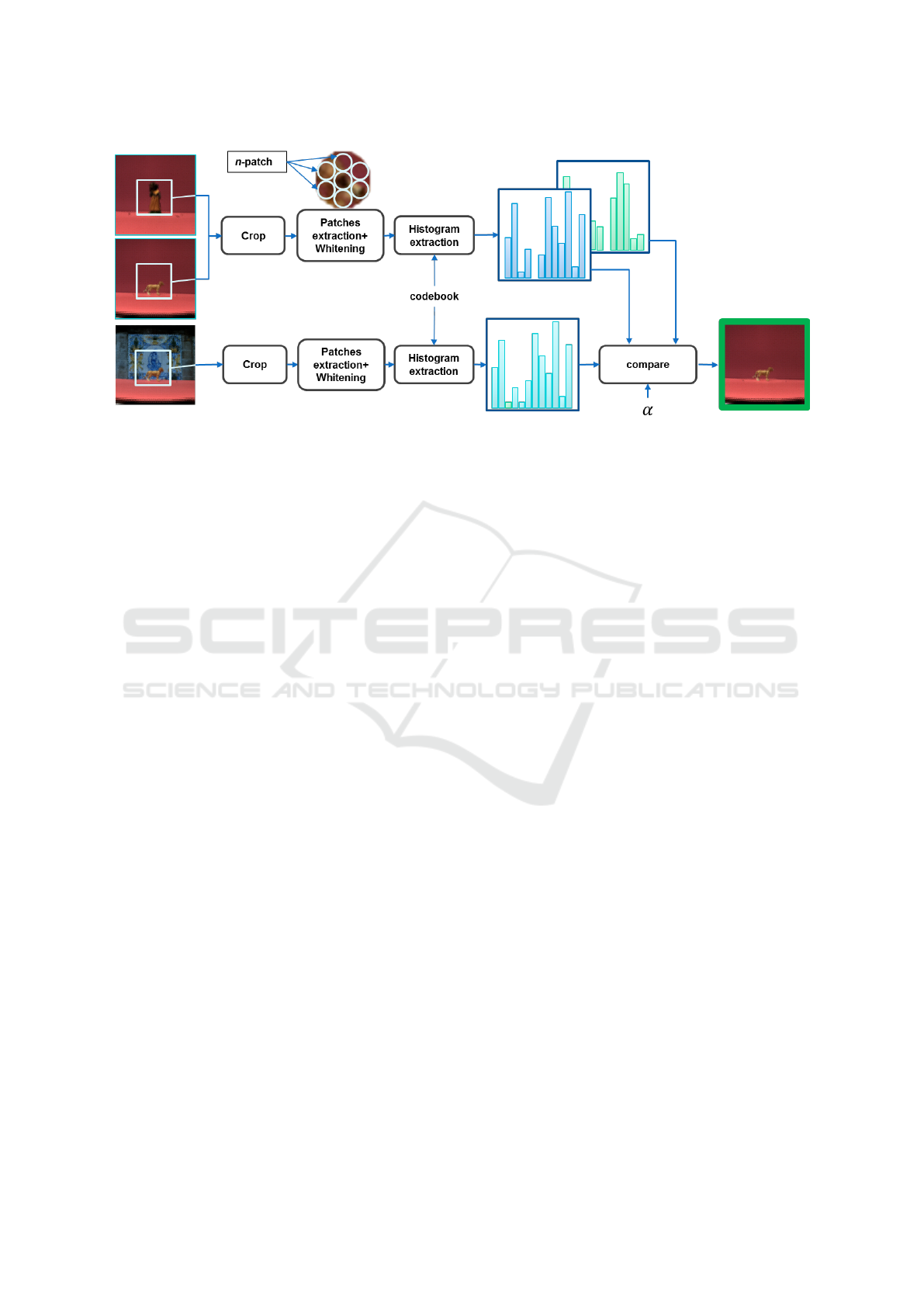

Figure 7: Block diagram of the test scheme. Within a region of interest, each micro-image is used to extract non-overlapping

n-patches. The n-patches are PCA-projected according to the training and attributed the closest K-means cluster for building

the histogram.

to the object or to the background. After being PCA-

whitened, they are attributed a cluster. Each bin of the

histogram represents the number of occurrence of the

corresponding code in the region of interest. For far

object captures, the number of visual words belong-

ing to the object is smaller than for close objects. We

expect the histogram of a test image to have its am-

plitude lower than the one of the training image. We

thus scale up the test histogram and compare it with

the histogram of the training image of the same object

captured at the closest distance. The histograms are

compared by minimizing the following thresholded

distance,

argmin

∑

i=1

(i) − α ∗ H

(i)| (2)

where K is the number of histogram bins, α a scaling

factor, H

and H

the histogram of respectively the

training image and the test image. The construction

of the histograms and their comparison make our ap-

proach compatible with a real-time implementation,

the execution time being related to the number of K-

mean centers.

6 EXPERIMENTAL RESULTS

We evaluate our scale-invariant object recognition ap-

proach on ﬁve objects, one instance from each class

of our light ﬁeld dataset, CSEM-25, and with a unique

angle. The codebook is trained on the objects located

at 28 cm from the camera with the implementation of

K-means from (Arthur and Vassilvitskii, 2007). The

training set is made of as many images as the num-

ber of objects to recognise i.e. ﬁve in our evaluation.

These images are the ones where the background is

uniform and we test on the four subsets, the two ﬁrsts

with a uniform background and the two seconds with

random landscape backgrounds. The training sub-

patches are extracted from objects segmented accord-

ing to the mask provided by the dataset. While the

histogram of trained samples is built from the seg-

mented region, the test is applied by extracting the

histogram from a ﬁxed window for all the 21 distances

(from 28 to 50 cm).

For the experiments, we set a number of clusters

to 80 and from 100 to 900, with a step of 200. At

training phase, a sub-patch is discarded from the train-

ing samples when 25 pixels or more belong to the

background. The sub-patch extraction within a micro-

image is done with a stride of 1 pixel over the x-axis

and 2 pixels over the y-axis. The three RGB color

channels are extracted to build the training vectors.

At test phase, the detection window is kept constant

despite the scale change induced by the camera-to-

object distance. We expect the background to intro-

duce noise in the histograms making the recognition

challenging for large distances.

The experimental results are presented in table

1. The values represent the average on the detection

done with the four backgrounds. At the closest dis-

tance, we obtain a recognition rate of 100 %, the back-

ground not having a large impact. Using a ﬁxed-sized

detection window, the farther the objects, the lower

the recognition rate is, due to the noise introduced by

the background that ﬁlls an increasing proportion of

the micro-images. With a few number of bins, we ex-

ceed 90 % of correct recognition for each tested dis-

tance, the recognition rate expectedly decreasing with

the distance.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

342

Table 1: Object recognition on light-ﬁeld raw images.

Recognition rate for 21 tested distances and various num-

ber of visual words.

Distance

Number of visual words (K)

80 100 200 300 400 500

28 1 1 1 1 1 1

28.6 1 1 1 1 1 1

29.2 1 1 1 1 1 1

29.8 0.95 1 1 1 1 1

30.4 0.95 1 1 1 1 0.95

31.1 0.95 0.95 0.95 0.95 1 0.95

31.9 1 1 1 1 1 0.95

32.7 0.95 1 1 1 0.95 0.95

33.5 0.95 1 1 1 1 0.95

34.4 1 1 1 0.95 0.9 0.9

35.3 1 1 1 0.95 0.9 0.95

36.3 0.95 1 1 1 0.95 0.9

37.4 0.9 1 1 0.95 0.95 0.95

38.6 0.95 1 1 0.9 0.95 0.95

39.8 0.9 0.95 1 0.9 0.9 0.9

41.2 0.95 1 0.75 0.8 0.85 0.85

42.7 0.9 1 0.95 0.8 0.8 0.8

44.3 0.85 0.9 0.95 0.75 0.75 0.7

46 1 1 0.95 0.85 0.8 0.75

47.9 0.95 0.9 0.75 0.65 0.6 0.6

50 1 1 0.8 0.6 0.5 0.45

The results also show an overﬁtting effect when

building a codebook with too many visual words.

While the recognition rate remains high for distances

close the one of the training set, it drops drastically

for farther distances, the cluster means being depen-

dent on the scale of training set of patches.

For a comparative evaluation of our scale-

invariant object recognition approach, we tested the

corresponding all-in-focus images with a bag-of-

feature-based object classiﬁer. As the invariance in

scale is our main concern, the SIFT features were em-

ployed. After the detection of SIFT keypoints, the

SIFT descriptors belonging to the objects were ex-

tracted from the all-in-focus training images and clus-

tered to get a k-mean codebook that allows the build-

ing of histograms to describe an image. Each all-in-

focus test image histogram was compared to the all-

in-focus training image histograms with the L2-norm.

Figure 8 shows the evaluation results. The experi-

ments were carried out on four and ﬁve objects, the

ﬁfth object being the fruit. Indeed, we noticed that

very few keypoints were extracted from the last object

that is not textured enough. The performance of the

BOF-based classiﬁer over the ﬁve objects are there-

fore penalized, the fruit not being predictable at test

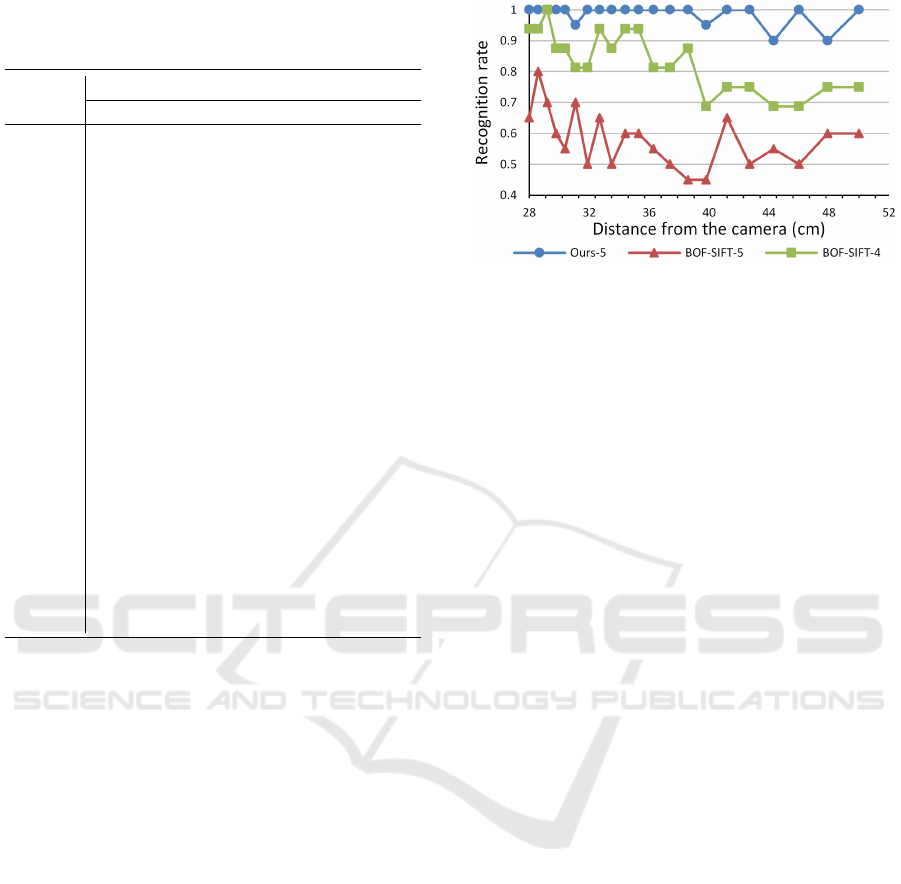

Figure 8: Comparative results showing the performance of

our method on light-ﬁeld images (best results with K = 100)

and of a bag-of-feature-based approach on standard 2D im-

ages (best results with K = 60 for 5 objects, BOF-SIFT-5,

and K = 40 for 4 objects, BOF-SIFT-4).

phase due to insufﬁcient number of SIFT features.

Our scale-invariant object classiﬁer outperforms a

2D BOF-based classiﬁer on three situations: (i) when

the distance is known and ﬁxed, (ii) when the scale

varies and (iii) on images where scale-space-based

features can hardly be extracted.

7 CONCLUSION AND FUTURE

WORK

We presented a new approach of scale-invariant ob-

ject recognition from light ﬁeld images of our new

light ﬁeld dataset. From our industrial plenoptic cam-

era that has the properties of an extended depth-of-

ﬁeld and micro-images redundancy with low scale

variance, we built a real-time recognition system that

is robust to large scale variation of almost twice the

size of the object when furthest from the camera.

With a codebook of a few words (100 visual words)

built with a few number of images (one per object

to recognise), we reach a recognition rate greater

than 90 % despite the scale variation, outperform-

ing a bag-of-feature classiﬁer on standard 2D images.

As next steps, we aim at scaling up the system to

recognise more objects and also to classify object by

category. The dataset is available for download at

http://www.csem.ch/csem-25-db.

ACKNOWLEDGEMENTS

The authors thank Pierre-Alain Beuchat, Silvia Marcu

and Elio Abi Karam for their assistance with the ac-

quisition set-up automatization, Dr. Amina Chebira

for the constructive discussions on the algorithms and

Real-time Scale-invariant Object Recognition from Light Field Imaging

343

Dr. Guido Bologna for his helpful guidance in the

project. This work is supported by the Swiss Hasler

Foundation SmartWorld Program, grant Nr. 11083.

REFERENCES

Adelson, E. H. and Bergen, J. R. (1991). The plenoptic

function and the elements of early vision. Computa-

tional models of visual processing, 1(2):2–20.

Arthur, D. and Vassilvitskii, S. (2007). k-means++:

the advantages of careful seeding. In Proceed-

ings of the Eighteenth Annual ACM-SIAM Symposium

on Discrete Algorithms, SODA 2007, New Orleans,

Louisiana, USA, January 7-9, 2007, pages 1027–

1035.

Bolles, R. C., Baker, H. H., and Marimont, D. H. (1987).

Epipolar-plane image analysis: An approach to deter-

mining structure from motion. International Journal

of Computer Vision, 1(1):7–55.

Cho, D., Kim, S., and Tai, Y.-W. (2014). Consistent mat-

ting for light ﬁeld images. In Computer Vision–ECCV

2014, pages 90–104. Springer.

Cloix, S., Weiss, V., Bologna, G., Pun, T., and Hasler, D.

(2014). Obstacle and planar object detection using

sparse 3d information for a smart walker. In VISAPP

(2)’14, pages 292–298.

Coates, A., Karpathy, A., and Ng, A. Y. (2012). Emer-

gence of object-selective features in unsupervised fea-

ture learning. In Pereira, F., Burges, C., Bottou, L.,

and Weinberger, K., editors, Advances in Neural In-

formation Processing Systems 25, pages 2681–2689.

Curran Associates, Inc.

Csurka, G., Dance, C. R., Fan, L., Willamowski, J., and

Bray, C. (2004). Visual categorization with bags of

keypoints. In In Workshop on Statistical Learning in

Computer Vision, ECCV, pages 1–22.

Everingham, M., Eslami, S., Van Gool, L., Williams, C.,

Winn, J., and Zisserman, A. (2015). The pascal vi-

sual object classes challenge: A retrospective. Inter-

national Journal of Computer Vision, 111(1):98–136.

Gavrila, D. M. and Munder, S. (2006). Multi-cue Pedestrian

Detection and Tracking from a Moving Vehicle. Inter-

national Journal of Computer Vision, 73(1):41–59.

Georgiev, T. G. and Lumsdaine, A. (2009). Resolution in

plenoptic cameras. In Computational Optical Sensing

and Imaging, page CTuB3. Optical Society of Amer-

ica.

Ghasemi, A., Afonso, N. J., and Vetterli, M. (2014). LCAV-

31: a dataset for light ﬁeld object recognition. In Pro-

ceedings of the SPIE, volume 9020, San Francisco,

California, USA. International Society for Optics and

Photonics.

Ghasemi, A. and Vetterli, M. (2014). Scale-invariant repre-

sentation of light ﬁeld images for object recognition

and tracking. In Proceedings of the SPIE, volume

9020 of Proceedings of SPIE, San Francisco, Califor-

nia, USA. International Society for Optics and Pho-

tonics.

Helmer, S. and Lowe, D. (2010). Using stereo for ob-

ject recognition. In Robotics and Automation (ICRA),

2010 IEEE International Conference on, pages 3121–

3127.

Joshi, N., Matusik, W., and Avidan, S. (2006). Natu-

ral video matting using camera arrays. ACM Trans.

Graph., 25(3):779–786.

Kim, C., Zimmer, H., Pritch, Y., Sorkine-Hornung, A., and

Gross, M. H. (2013). Scene reconstruction from high

spatio-angular resolution light ﬁelds. ACM Trans.

Graph., 32(4):73.

Levoy, M. (2011). The (old) stanford light ﬁelds archive.

http://graphics.stanford.edu/software/lightpack/lifs.html.

[Online, accessed 30-March-2015].

Ng, R. (2005). Fourier slice photography. In ACM Transac-

tions on Graphics (TOG), volume 24, pages 735–744.

ACM.

Perwass, C. and Wietzke, L. (2012). Single lens 3d-camera

with extended depth-of-ﬁeld. In IS&T/SPIE Elec-

tronic Imaging, pages 829108–829108. International

Society for Optics and Photonics.

Wanner, S., Meister, S., and Goldluecke, B. (2013).

Datasets and benchmarks for densely sampled 4d light

ﬁelds. In Vision, Modelling and Visualization (VMV).

Wetzstein, G. Synthetic light ﬁeld archive. http://web. me-

dia.mit.edu/gordonw/SyntheticLightFields/index.php.

[Online, accessed 30-March-2015].

Wilburn, B., Joshi, N., Vaish, V., Talvala, E.-V., Antunez,

E., Barth, A., Adams, A., Horowitz, M., and Levoy,

M. (2005). High performance imaging using large

camera arrays. ACM Trans. Graph., 24(3):765–776.

Zobel, M., Fritz, M., and Scholz, I. (2002). Object track-

ing and pose estimation using light-ﬁeld object mod-

els. In Proceedings of the Vision, Modeling, and Vi-

sualization Conference 2002 (VMV 2002), Erlangen,

Germany, November 20-22, 2002, pages 371–378.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

344
