Streamlining Extraction and Analysis of Android RAM Images

Simon Broenner, Hans Höfken and Marko Schuba

Department of Electrical Engineering and Information Technology,

Aachen University of Applied Sciences, Aachen, Germany

Keywords: Digital Forensics, Android, Smartphone, LiME, Memory, RAM Forensics.

Abstract: The Android operating system powers the majority of the world’s mobile devices and has been becoming

increasingly important in day-to-day digital forensics. Therefore, technicians and analysts are in need of

reliable methods for extracting and analyzing memory images from live Android systems. This paper takes

different existing, extraction methods and derives a universal, reproducible, reliably documented method for

both extraction and analysis. In addition the VOLIX II front-end for the Volatility Framework is extended

with additional functionality to make the analysis of Android memory images easier for technically non-adept

users.

1 INTRODUCTION

Extraction of information from smartphones is

becoming progressively more important as the

ubiquity of mobile devices, such as smartphones and

tablets, increases ever further. Law enforcement

agencies, technicians and even end users are in need

of reliable methods for extracting data from mobile

devices when extraction of data from nonvolatile

memory is not possible or insufficient. One possible

source for data is the RAM (Random Access

Memory) of such devices.

Possible scenarios for the analysis of RAM

extracted from an Android device include typical law

enforcement situations, such as the forensic analysis

of devices seized during the course of investigations,

as well as situations often encountered by IT support

technicians, such as a first response analysis of a

malware infestation. The potential applications are

similar to those of live memory analysis for

traditional desktop (Windows, Mac, or Linux)

systems and are important due to the sheer amount of

personal information stored on a smartphone or

tablet.

Android is, in essence, a Linux-based system

(Begun, 2011). It runs a Linux kernel, generally

compiled for the mobile processors usually found in

smartphones, tablets and other low-power devices.

The lion’s share of mobile processing for Android

devices takes place on the ARM microprocessor

architecture, which necessitates cross-compilation of

any native code for use on these devices.

The common core with modern Linux distributions

ensures the existence of software tools for extraction

and analysis of Android memory images, such as the

LiME (Linux Memory Extractor) kernel module

(Sylve, 2015) and the Volatility Framework for

analysis of memory images from multiple operating

systems (Hale, 2013a).

This paper describes the leverage of the

aforementioned tools LiME and Volatility resulting

in a reproducible, reliable approach for the extraction

and analysis of memory images from Android

devices.

2 TECHNICAL CHALLENGES

PRESENTED BY ANDROID

The Android operating system, while based on a

Linux core, presents multiple new challenges for

forensic analysis when compared to traditional

desktop operating systems. The analysis of data

stored in RAM on a target device can be very

beneficial in addressing these problems.

2.1 Encryption of Non-volatile Storage

Devices

The first of these challenges is FDE (Full Disk

Encryption) as well as general encryption of storage

Broenner, S., Höfken, H. and Schuba, M.

Streamlining Extraction and Analysis of Android RAM Images.

DOI: 10.5220/0005652802550264

In Proceedings of the 2nd International Conference on Information Systems Security and Privacy (ICISSP 2016), pages 255-264

ISBN: 978-989-758-167-0

255

devices on Android systems (cf. Android Open

Source Project). Starting with Android 4.0 ICS (Ice

Cream Sandwich), Android has offered an option for

complete encryption of the device’s file system.

Activating FDE is a matter of ticking a single

checkbox in the Android security settings menu:

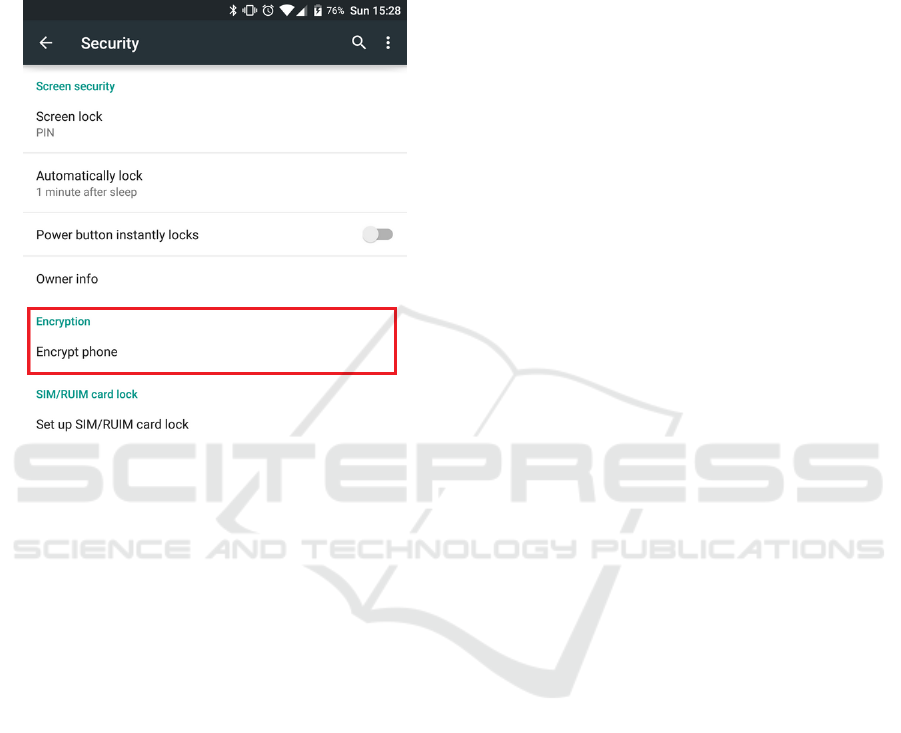

Figure 1: Activation of FDE on a smartphone running

Android 5.0 Lollipop.

After the user has activated FDE, the device

automatically encrypts internal storage devices using

128-bit AES (Advanced Encryption Standard) with

cipher-block chaining (CBC) and an ESSIV

(Encrypted salt-sector initialization vector) using

SHA256. Starting from Android 5.0, this encryption

can optionally be limited to the data partition in order

to reduce performance penalties during the boot

process (Android Open Source Project).

RAM, on the other hand, is generally not

encrypted, as this is ill-advised from a performance

standpoint. Therefore, if the data from an encrypted

device’s RAM were available, it would likely be

possible to ascertain the encryption type and

parameters of both standard and user-implemented

encryption methods (such as LUKS). In some cases it

may even be possible to circumvent encryption

measures and decrypt the data on the device’s

encrypted volumes by obtaining the decryption key

from within RAM.

Proofs of concept for the decryption of Android

devices with storage encrypted by both dm-crypt

(Elatov, 2015), the default device encryption solution

used by Android starting from version 4.0, and LUKS

have been published (Elatov, 2015; Müller and

Spreitzenbarth, 2013). Both proofs of concept hinge

upon the extraction of encryption parameters from a

running device’s RAM.

2.2 Locker/Vault Apps

The second challenge presented by Android is the

ubiquity of locker/vault type apps (short: locker

apps), which offer password-secured protection of

sensitive data placed within them. These apps,

ranging from simple and easy to circumvent to

absolute state-of-the-art, are easily available from the

Google Play Store or as downloadable APK files for

manual installation (Begun, 2011) In addition, ADB

and terminal emulators make it easy for advanced

users to script their own security measures for

sensitive data to be stored on the phone.

Similarly to attacks on FDE, analysis of RAM from

devices running Android locker apps can provide

valuable information as to the type and parameters of

data protection methods used. In many cases, due to

the simplicity of the methods used and an unhealthy

reliance on security through obscurity, extracting data

protected by locker apps is a simple matter of

knowing where to look. The locker app’s data in

RAM often provides hints as to locations of files

hidden by the app.

2.3 Android Malware

For support technicians and first responders, malware

represents an additional problem in the Android

ecosystem. Due to the sandboxing of Android

applications (i.e., by the Dalvik VM used by Android

for running its Java-based apps (Android

Developers)) it is difficult to build malware scanning

and protection apps which are able to analyze running

code as well as any data apps may write to the

device’s internal storage.

Analysis of RAM from devices infected with

malware can aid in detection, identification and even

determining the origin of certain malware.

3 EXTRACTION OF MEMORY

IMAGES

Multiple well-documented approaches for the

extraction of memory images from Linux system

exist (Caban, 2014). However, these approaches all

present additional challenges when confronted with

an Android system.

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

256

3.1 Android Kernel Version

Fragmentation

Unlike desktop Linux distributions, which consist of

known, largely homogenous quantities (i.e., large

blocks of users of a single Linux distribution, such as

Ubuntu LTS (Long Term Support) releases or Debian

Stable), Android devices are very heterogeneous in

terms of the kernel versions they run (Linux Profiles,

2012).

Android devices are generally updated OTA (Over

The Air) by their manufacturers or software providers

(these may include creators of custom ROMs, which

are customized versions of the Android operating

system for advanced end users). Any one of these

updates can bring a minor kernel version change.

Major kernel version changes, on the other hand, are

generally reserved for major Android version

updates, i.e., from Android 4.4 KitKat to Android 5.0

Lollipop.

This has led to large levels of fragmentation of the

Android software ecosystem, due to nearly every

device running its own custom compiled version of

the Android kernel. Even two kernels with the same

version number may not be alike due to custom

compile flags used by the manufacturer to enable or

disable functions and tweak the kernel towards the

System on a Chip (SoC) and other hardware

components in the device for performance and

efficiency reasons.

3.2 Loadable Kernel Modules

for Memory Extraction

Most Linux memory extraction strategies, including

the approach presented here, are implemented

through the use of LKMs (Loadable Kernel Modules

(Caban, 2014)). The extraction of RAM from a Linux

system requires compilation of an LKM specifically

for the device in question. The LKM version number

needs to match the kernel version number, the

toolchain and compiler used to create the LKM need

to be compatible with those used to compile the

kernel, and the running kernel’s source code is

required for compilation of the LKM.

On desktop Linux systems, this is generally not an

issue – one would simply install the same distribution,

running the same kernel, on separate hardware, and

then use that system to compile an LKM (Tilbury,

2013). Using the same distribution and kernel version

as the target device makes compilation simple and

generally rules out any compatibility issues. If a

compromise in the level of forensic purity on the target

system is acceptable, it is also possible to compile the

LKM directly on the target system, ensuring

compatibility. Tools which implement this for desktop

systems automatically already exist – a prime

example1 is Linux Memory Grabber by Hal Pomeranz

(Hale, 2013b; Pomeranz, 2014).

Unfortunately, due to hardware constraints as well

as a lack of software tools for the compilation

process, this is not possible on Android devices.

Instead, when compiling an LKM for Android,

compilation takes place on a separate system running

a desktop Linux operating system. The compiler uses

a cross compilation toolchain for CPU architecture

compatibility (Hale, 2013a). Due to the availability of

multiple toolchains and multiple compilers, the

possibility of building incompatible LKMs exists. In

general, using the toolchain and compiler used for

compilation of the running device’s kernel will likely

lead to a working kernel module.

Multiple LKMs for the extraction of memory

images are available, including fmem, pmem and

LiME. In most cases, these LKMs work by creating a

device such as /dev/fmem as a parsable entry point for

memory extraction (Hale, 2013b).

3.3 General LKM Compilation Process

for Android Devices

Summarily, the compilation process consists of the

following steps:

1. Initialization of the build environment: This

step consists of the installation of prerequisites

such as the required Java version and various

libraries required for the Android build

process, as well as the setting of required

environment variables. ADB (Android Debug

Bridge) access to devices via USB from within

a Linux system also requires additional steps.

2. Procurement of a toolchain, such as the linux-

arm-androideabi-toolchain included in the

Android NDK.

3. Procurement of the target device’s kernel

source code.

4. Procurement of the LKM source code

5. Editing the Makefile included in the LKM

source code to compile against the target

device’s kernel source code and use the correct

toolchain

6. Issuing the make command

3.4 Linux Memory Extractor Lkm

LiME (Linux Memory Extractor) is a loadable kernel

module used to extract memory from Linux-based

systems. It has previously been used to successfully

Streamlining Extraction and Analysis of Android RAM Images

257

extract the contents of RAM from Android devices

and generates memory dumps compatible with the

Volatility Framework (Sylve, 2011).

LiME was chosen as extraction tool due to the fact

that it represents the most viable approach for

Android devices. LiME is a well-documented project

which is well-known to the developers of the

Volatility Framework and hence provides a good

starting point for the extraction of Android RAM

images (Hale, 2013a).

During the course of this work, LiME was

successfully used to extract memory dumps from both

simulated and physical Android devices running

Android versions up to 5.1 (Android Lollipop second

release).

3.5 Extracting Memory with Lime

The use of LiME in order to extract memory from

Android devices is much simpler than the compilation

of the corresponding kernel module.

First, the LKM, in form of a .ko file, is copied to

the device’s internal memory or SD card. Then, from

a terminal emulator app or an active ADB connection,

the user executes the insmod command to inject the

LKM into the running kernel and extract the device’s

memory to either a local file or over TCP. An

example insmod command is the following:

insmod /sdcard/lime.ko

“path=/sdcard/lime.dump format=lime”

Here the lime.ko LiME LKM file was placed on the

device’s internal memory (due to historical reasons,

the mount point /sdcard/ is used for the user-

accessible part of the internal memory on Android

devices). The additional parameters path and format

determine the location of the newly generated

memory image and its structure, respectively (Sylve,

2015).

The process of dumping memory can take

anywhere between a few seconds and multiple

minutes, depending on the size of the device’s RAM

and the speed of the storage device being written to.

After the memory dump has been generated, it can be

transferred to the forensic workstation for analysis.

4 ANALYSIS OF PREVIOUSLY

EXTRACTED MEMORY

IMAGES

The analysis of memory images using Volatility

requires a Volatility profile. The profile contains

information about both the memory image as well as

the system the image was extracted from. This

includes information about the location of kernel

debug symbols and the kernel’s data structures (Hale,

2013b).

The Volatility Framework includes several

precompiled profiles for popular operating systems

(Linux Profiles, 2012) However, these are mostly

limited to common major versions of Windows. The

Volatility foundation also provides several optional

profiles for Mac and Linux systems, available for

download and manual installation. These optional

profiles come in the form of a ZIP archive containing

a precompiled Dwarfdump file, which contains the

kernel data structure information, and the system.map

file, which contains the kernel debug symbol

information. The list of available profiles is small,

including only a small number of the available Linux

distributions and only a limited subset of each

distribution’s recent releases (Linux Profiles, 2012).

Precompiled profiles for Android devices may be

listed in the future. However, the fragmentation of the

Android software ecosystem will likely necessitate

the custom compilation of a profile for each target

device due to the sheer amount of possible

combinations. The 10 most popular Android devices

alone each run multiple different kernel versions over

the course of multiple manufacturer updates, already

offering up an incredible number of permutations.

4.1 Generating a Volatility Profile

Generating the Volatility profile requires the

compilation of a module against the target device’s

kernel source to create the vtypes (kernel data

structures). The Makefile included in the Volatility

framework uses DwarfDump to pack the vtypes in a

format which is readable by Volatility, generating a

module.dwarf file (Hale, 2013b).

The resulting file is then packed in a ZIP archive

together with the target device kernel’s system.map

file (Sylve, 2015). For Android devices the

system.map is generally supplied along with the

kernel source code, or can be manually assembled

from information extracted from /proc/kallsyms/

using a cat command. The latter requires advanced

knowledge of Linux kernel structures.

The following steps are necessary to generate a

Volatility profile for an Android target device:

1. Procurement of the Volatility source code

2. Editing the included Makefile to use the target

device’s kernel source code as well as the

correct toolchain for cross compilation

3. Issuing the make command

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

258

4. Procurement of the system.map file

5. Adding both the module.dwarf file generated

by make and the system.map file to a ZIP

archive

The newly created ZIP file can then either be placed

in the volatility/plugins/overlays/linux directory of

the Volatility package root directory or referenced via

the –plugins flag during execution of Volatility from

the command line (Raman, 2014).

4.2 Using Volatility to Analyze Android

Memory Images

The Volatility framework is a simple command-line

based tool. The plugins to be run are passed as

parameters, i.e.:

python ~/android-volatility/vol.py

--profile=Android_Profile -f

~/lime.dump

linux_pslist >> results_pslist.txt

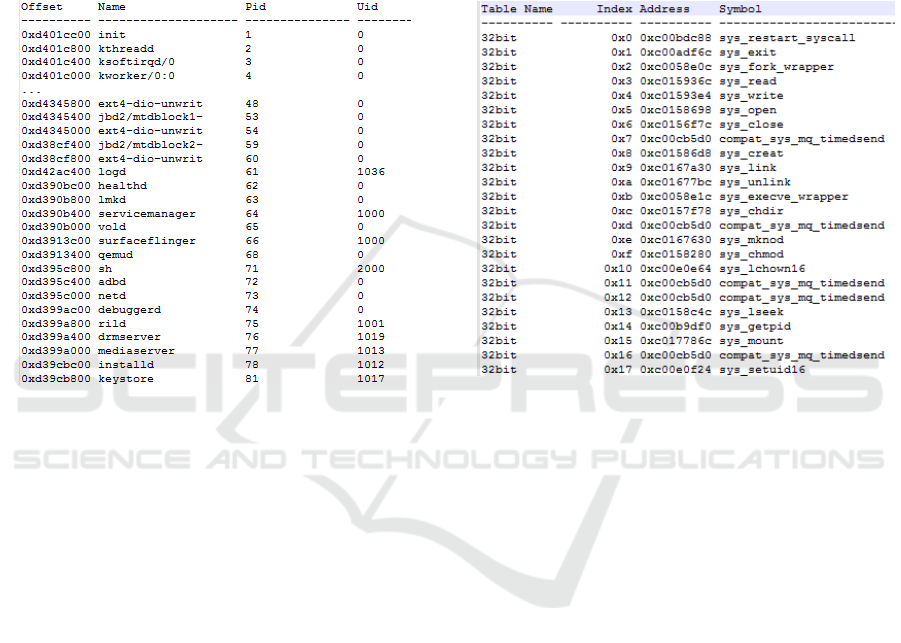

This command analyzes a memory image

(lime.dump) using the linux_pslist plugin and outputs

the generated list of running processes to a text file

(results_pslist.txt).

Some plugins, such as linux_volshell, require

additional parameters and input from the user.

5 THE VOLIX II VOLATILITY

FRONTEND

In essence, the Volatility framework consists of a

collection of Python scripts which are executed from

the command line using a compatible version of the

Python (a high-level object-oriented programming

language with an on-the-fly interpreter) software

package. The Volatility Foundation also provides

standalone executable versions of Volatility for

Windows, which are also run from the command line.

In an effort to simplify the operation of the

Volatility framework, especially for less experienced

users, the VOLIX Volatility frontend was developed

(Logen et al., 2012). The latest version VOLIX II is

built with a standard Windows Forms GUI, which

should be familiar to most users of standard Windows

software (VOLIX II, 2014).

As part of this work, the software of VOLIX II was

extended to include functions pertaining to the

analysis of Android memory images, as well as

making the analysis of general Linux memory images

simpler and more accessible to novice users. Changes

include the addition of a Volatility profile selection

mechanism for Linux and Android, additional

Android-specific automated extraction routines for

common tasks and an overhaul of the English

language interface.

The user supplies the extracted memory image

from the target device along with the Volatility

profile. VOLIX II can then be used for execution of

specific Volatility commands from within the GUI, or

to execute automatic routines such as finding hidden

processes or installed locker apps.

6 PRACTICAL

CONSIDERATIONS FOR

PHYSICAL ANDROID DEVICES

Due to the nature of the extraction methods presented

here, target devices must fulfill certain prerequisites

in order to be considered for successful extraction of

an accurate memory image.

First and foremost, the injection of a kernel module

such as LiME requires root access to the device. This

means that unless the device has already been rooted

for general use by its owner, the forensic investigator

needs to find a viable root method and execute it on

the device (Sylve, 2011).

Second, access to a console/command line is

necessary for execution of the insmod command.

There are two possible ways to access a command

line: An ADB session or an app installed on the

device (such as a terminal emulator or a remote

command line app e.g. SSH server or similar).

Being able to open an ADB session requires either

a USB or WiFi connection to the target device, the

former of which is generally trivial unless there is

physical damage to the device’s USB port. However,

in order to successfully connect to the device via

ADB, the device must be set up to allow ADB

connections in the developer options. In addition,

recent Android versions have an ADB fingerprinting

feature which requires the manual authorization of the

connected PC on the target device itself.

Third, the injection of kernel modules via insmod

requires that the kernel be configured to load modules

at runtime. This requires three specific compilation

flags (Hale, 2013b):

CONFIG_MODULES=y

CONFIG_MODULES_UNLOAD=y

CONFIG_MODULES_FORCE_UNLOAD=y

These flags are enabled by default for kernels

running on many developer systems, as well as those

included in many custom ROMs for Android devices.

Streamlining Extraction and Analysis of Android RAM Images

259

This is not the norm, however, for factory standard

devices sold to the general public.

Ideally, a target device would be previously rooted,

have an insmod-friendly kernel configuration, and be

unlocked for ADB connections from new PCs. In the

real world, this is generally not the case. In order to

root the device and allow ADB connections from a

workstation, the forensic investigator must first gain

access to the physical device, bypassing the device’s

PIN or pattern lock. Modifying the kernel to allow the

injection of kernel modules generally requires a

reboot, which may compromise system integrity

(Ligh et al., 2014).

7 FORENSIC CONSIDERATIONS

Due to the nature of the extraction approach put

forward here, a certain measure of forensic

contamination of the target system is inevitable. Most

devices encountered in the wild will not correspond

to the ideal scenario introduced in Section 6, meaning

they will need to be modified (root access, kernel

modification, command line access) in order to

extract memory images.

These modifications, in some cases, require a

reboot of the system. This makes it difficult to

preserve the exact memory state of the Android

device for extraction and may lead to loss of useful

data. Running applications and open files relevant to

the investigation may not automatically run/open

again after a reboot, and many caches and temporary

files are purged during boot.

When applying the methods presented here, it is

important to keep in mind that any extracted data may

be incomplete and/or inaccurate.

In many cases, though, these shortcomings are

irrelevant. Many Android applications start

automatically at launch, as is the case for a lot of

malware applications such as malicious RAT

(Remote Administration Tool) apps.

8 EXTRACTION AND ANALYSIS

OF MEMORY IMAGES FROM

ANDROID DEVICES

As part of the research project memory images were

extracted from multiple hardware devices including a

Samsung Galaxy Nexus running Android 4.3 and 4.4,

an AVD (Android Virtual Device) running Android

5.1, and a Google (LG) Nexus 5 running Android 5.1.

While the Galaxy Nexus running Android 4.3 or 4.4

realistically represents a large portion of the currently

available Android devices, extraction of a memory

image from Android 5.1 running on Google’s AVD

emulator is largely a measure to ascertain that

Android 5.1, as the most recent Android release at this

time, contains no changes which would prevent the

extraction method from working.

8.1 Android 5.1 Android Virtual

Device

Building the LiME LKM, a Volatility profile and a

compatible kernel for the standard version of Android

5.1 running on the AVD emulator is a straightforward

affair. The kernel source code for the Android 5.1

version running on the emulator is easily obtainable

directly from Google’s code repository, and the

Android system images included with the Android

SDK (which contains the AVD emulator) are highly

compatible with the arm-linux-androideabi-

toolchains included in the Android NDK.

Cross-compilation of the LiME LKM required

only small modifications to the Makefile included in

the LiME source code, such as modification of the

path to the Android NDK arm-linux-androideabi-

toolchain and the path to the previously downloaded

Android kernel source code.

Compilation of a kernel with the compilation flags

needed for the use of insmod required the generation

of a .config kernel configuration file using make

goldfish_armv7_defconfig. The flags were then added

to the kernel configuration file by hand before the

kernel was compiled.

Generation of the Volatility profile for the Android

5.1 AVD was similarly simple, as was extraction

using insmod, due to AVD system images providing

root access by default.

After a successful extraction and transfer of the

memory image to a forensic workstation via adb pull,

the Volatility framework was successfully used to

extract data from the image. Plugins used to extract

data include linux_pslist, which provides a list of

processes running at the time of extraction,

linux_dmesg, which outputs the kernel message

buffer, and linux_lsof, which lists open files at the

time of extraction (cf. figure 2).

8.2 Samsung Galaxy Nexus

Both compilation of the LiME LKM and generation

of the Volatility profile for Android 4.3 and 4.4 on the

Galaxy Nexus proved more difficult.

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

260

8.2.1 CyanogenMod 11 (Android 4.4)

The first attempt to extract memory from this device

was made using a nightly build of the CyanogenMod

11 custom ROM (based on Android 4.4), due to the

fact that these systems present an easy target for the

extraction methods detailed here. They offer enabled

USB debugging (which means the device is ready for

ADB connections), the ability to inject kernel

modules and root access by default (see 6).

Figure 2: Excerpt from the output of linux_pslist on an

AVD Android 5.1 memory image.

Two problems were encountered during this

approach: 1. The use of a nonstandard toolchain to

build CyanogenMod and 2. the fact that

CyanogenMod strips its kernel debug symbols to save

space. The toolchain problem was solved by

switching to a toolchain included in the

CyanogenMod source code for full compatibility with

the CyanogenMod custom ROM, enabling the

successful extraction of a memory image from the

Galaxy Nexus.

Obtaining the kernel debug symbols for the

Volatility profile was possible only by using cat to

extract a list of debug symbols from /proc/kallsyms

on the running system. After modification of the

extracted list before integrating it in a Volatility

profile, only rudimentary analysis of the extracted

memory image proved possible.

Due to missing debug symbols, many important

Volatility plugins, such as linux_pslist or

linux_dmesg would output only empty files or a short

string unrelated to the usual output of these plugins.

Other plugins, such as linux_check_syscall, run

without issue (cf. figure 3).

8.2.2 Galaxy Nexus Factory Image

(Android 4.3)

In a more standard approach, the extraction and

analysis method was also tested on the Galaxy Nexus

running the standard Android 4.3 factory image. In

this case, recompilation of the kernel with the

compilation flags necessary for injection of kernel

modules was required, but was otherwise

straightforward.

Figure 3: Excerpt from the output of linux_check_syscall

on a Galaxy Nexus CyanogenMod 11 memory image.

Similar to the approach for the Google AVD

emulator, the kernel source code for the Galaxy

Nexus factory image is readily available, as the

Galaxy Nexus was part of the Google Nexus

developer device program. For this reason, the

Galaxy Nexus factory image is also highly

compatible with the toolchains supplied by Google’s

NDK. Cross-compilation of the LiME LKM as well

as the module.dwarf file for the Volatility profile

were completed without any problems.

Extraction of the memory image from the device

additionally required gaining root access on the

device, which was accomplished using the Nexus

Root Toolkit.

After the successful extraction of the memory

image and transfer to the forensic workstation via

ADB, analysis of the image with Volatility proved

successful, allowing the recovery of information with

most of the Linux plugins included with Volatility.

8.3 Google (LG) Nexus 5

The Nexus 5 is part of Google’s current Nexus lineup

of developer smartphones (soon to be replaced by a

Streamlining Extraction and Analysis of Android RAM Images

261

successor known as the Nexus 5 2015), and has, at

time of publication, received an update to the latest

Android release: Lollipop 5.1.1.

Like the Galaxy Nexus, it runs a standard factory

image. Hence, cross-compilation of the LiME LKM

as well as creation of the corresponding Volatility

profile were straightforward and analogous to the

process for the Google AVD emulator. Gaining root

access was also possible using the same Nexus Root

Toolkit used for the Galaxy Nexus.

After successful extraction of the memory image

from the Nexus 5 device and transfer to the forensic

workstation via adb pull over a USB connection,

nearly all of the Volatility framework’s Linux plugins

were found to be useable, even with this very latest

version of Android.

8.4 Simplifying Memory Extraction

and Analysis

Successful extraction of a memory image using the

LKM approach, as well as subsequent analysis using

the Volatility Framework, depends on a number of

factors which may vary according to the

manufacturer, the version of the installed operating

system, user settings, and the device’s security and

root status.

While the extraction and analysis of memory

images from standard developer devices such as the

Google Nexus series or the Google AVD Emulator

follows a standard, documented routine, extracting

and analyzing memory from any of the myriad

available consumer devices requires a more

specialized approach with time-consuming

experimentation.

8.4.1 LKM and Volatility Profile Repository

At the lowest level, it is the generation of the LKM as

well as the Volatility profile that differs from device

to device. Since both the LKM and the Volatility

profile only need to be generated once for a given

device running a given Android version, a repository

of kernel modules and ready-to-use Volatility profiles

could greatly simplify the extraction of memory

images from popular devices.

While the creation of a repository would require

physical access to all the devices in question and, in

some cases, multiple hours of work per device,

crowdsourcing the modules and profiles is a

possibility.

The Volatility Foundation already provides a basic

set of Linux and Mac OS profiles for use with the

Volatility Framework on Github at

https://github.com/volatilityfoundation/profiles. This

repository could be extended to include profiles for

Android devices, preferably bundled with the

corresponding LiME kernel modules. The kernel

modules and profiles generated for the purposes of

this research will be submitted shortly.

The availability of a LKM and Volatility profile for

a given device would not guarantee a successful

extraction – it would, however, greatly accelerate the

process.

8.4.2 Different Versions of Android on the

Same Device

While the generation of the LKM and the Volatility

profile is a process that differs greatly from device to

device, the process is generally very similar when the

device is the same, but a different Android version is

used.

In many cases, the only difference is the kernel

source code that the LKM and Volatility profile

vTypes are compiled against – simply replacing the

source code directory with the appropriate version for

the kernel now running on the device is often

sufficient to generate a working LKM and Volatility

profile.

In part, this is due to the significant changes

manufacturers make to the kernels shipped on their

devices (which generally do not change as heavily

when the OS version is simply upgraded), but also

simply due to differing kernel source code folder

structures and incompatbile cross-compilation

toolchains.

9 MALWARE ANALYSIS USING

MEMORY IMAGES

The Linux plugins for the Volatility Framework

provide multiple possible methods for the detection

and analysis of malware in Android memory images.

These range from the simple detection of a running

process known to be associated with malware (using

linux_pslist, for instance) to more complex methods

such as using linux_yarascan for pattern matching

malware detection (Luttgens et al., 2014), as well as

ways to ascertain the addresses of remote

communication servers if in use.

Well known Android malware such as the Remote

Administration tool AndroRAT, for instance, was

easy to detect running in memory even with the

simplest detection routines, showing up in

linux_pslist without any attempt at hiding itself (cf.

figure 4)

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

262

While it is relatively simple for a malware

developer to hide a malware application from the

Android task switcher or DDMS (Dalvik Debug

Monitor Service), hiding the application process so

that it is not detectable in pslist is very difficult.

Therefore, many malware apps rely on simple

security by obscurity to avoid detection – such as the

process name chosen by the developers of AndroRAT

as seen in Figure 5.

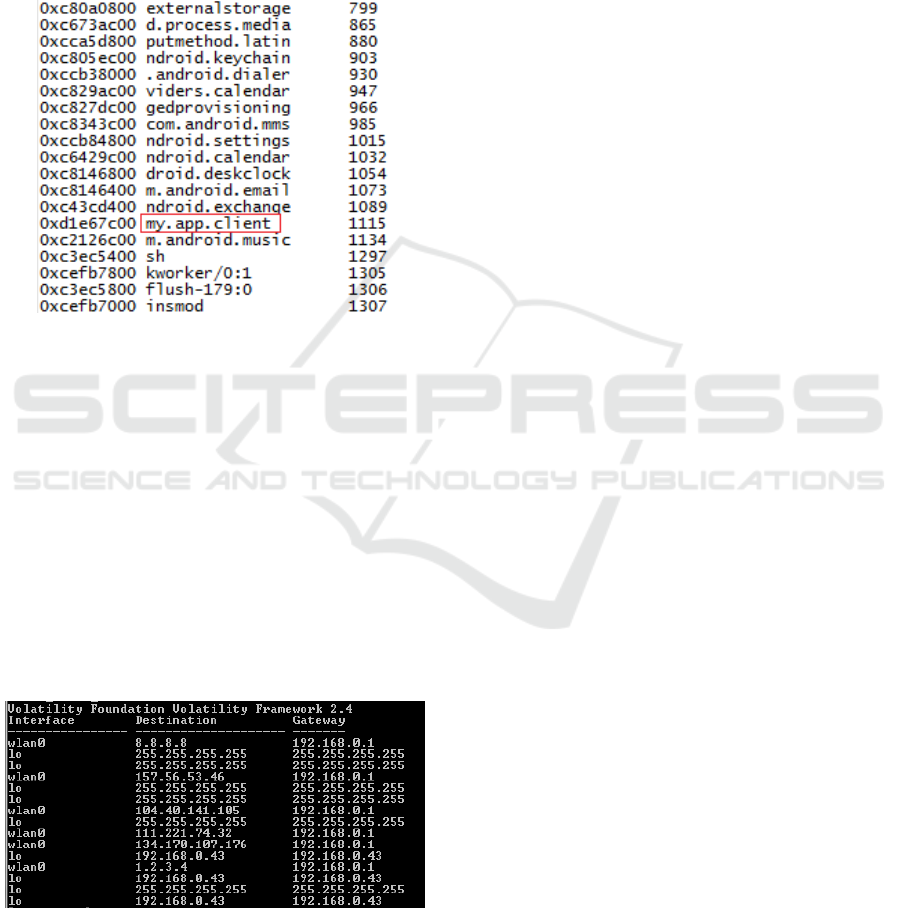

Figure 4: Excerpt from the output of linux_pslist from a

system with a running AndroRAT installation – the process

name chosen by the developers of AndroRAT is very

generic and could correspond to any number of applications

a user has installed.

After detection, it may be useful to ascertain the

servers and/or nodes the malware communicated with

– this can be achieved by reading the data in the

routing table cache using linux_route_cache (Pryor,

2013). The routing table cache can contain a record

of systems a Linux machine has communicated with

in the past:

If the malware was transmitting at the time the

memory image was extracted, it may also be useful to

extract packets stored in the send and receive queues

Figure 5: Excerpt from the output of linux_route_cache

from a Google Nexus 5 running Android 5.1.1 - note the

destination IP addresses accessed through gateways

192.168.0.1 and 192.168.0.43 for access via WiFi and

mobile data respectively.

at the time of extraction. This can be achieved using

linux_pkt_queues, which recovers packets from the

queues and can save them directly to disk (Pryor,

2013).

Additionally, linux_sk_buff_cache can be used to

recover and save packets which were in kernel

memory at the time of extraction, but is currently

incompatible with SLUB (Unqueued Slab Allocator

– a memory management mechanism which allows

the retention of certain allocated data objects for later

reuse (Cinar, 2015)), the current default allocator in

Linux since kernel 2.6.23 (Case, 2012).

Last but not least, the Volatility framework also

provides Linux plugins which allow the detection of

active rootkits, such as linux_check_creds, which can

detect rootkits piggypacking on the credentials of

processes with root privileges (often PID 1),

linux_check_idt, which lists the addresses and

symbols contained within the IDT (Interrupt

Descriptor Table), including those hooked by

rootkits, and linux_check_syscall, which lists the

system call tables and checks them for functions

hooked by rootkits (Linux Profiles, 2012).

Rootkits may also inject kernel modules which are

hidden in the loaded module list (as called by lsmod).

The Volatility plugin linux_check_modules can

detect these modules, as long as they are still present

under /sys/modules/ (Pryor, 2013).

10 CONCLUSION

The extraction and analysis of RAM images from

Android devices remains a relatively young field.

While possibilities for both extraction and analysis

exist for a multitude of Android device and software

constellations, the application of the currently known

and documented methods generally require extensive

knowledge of both Linux systems and the use of

Make for the compilation of kernel modules. In

addition, many of the existing approaches are

documented only for specific devices running

specific versions of Android, making it difficult to

apply them to other devices which a forensic

investigator may encounter during investigations.

The methods described here provide a universal

approach for the extraction of RAM images from

Android devices, as well as the generation of a

corresponding Volatility profile for subsequent

analysis using the Volatility framework. In addition,

the extension of the VOLIX II Volatility frontend for

Android memory images greatly simplifies the

analysis of these memory images with the previously

generated Volatility profiles.

Streamlining Extraction and Analysis of Android RAM Images

263

In the future, automatic (scripted) generation of

LiME LKMs and Volatility profiles for a given

device would greatly simplify the process of memory

extraction and analysis. This could, for instance, be

achieved via distribution of a Linux VM (virtual

machine) containing the required scripts, to be

launched on the investigator’s forensic workstation.

With a target device that fulfills the requirements

set forth in section 6, the investigator would need to

supply only the source code for the kernel running on

the device and quickly be able to compile a working

LiME LKM for the device, as well as generate a

Volatility profile for memory extracted from the

device with the LKM.

A cleaner forensic approach for memory extraction

from Android devices, free from the limitations

shown in section 7, would require a completely new

approach which does not hinge upon the injection of

a kernel module. This would, however, require the

discovery of a vulnerability in Android which can be

triggered without modification of the running system.

Even if such a vulnerability were located, it would

only be a matter of time until Android was patched to

remove the vulnerability.

REFERENCES

Android Developers, Security Tips, [Online], Available:

http://developer.android.com/training/articles/security-

tips.html [4 Sep 2015].

Android Open Source Project, Encryption, [Online],

Available: https://source.android.com/devices/tech/

security/encryption/index.html [4 Sep 2015].

Begun, D., A., 2011, Amazing Android Apps for Dummies,

Wiley & Sons.

Caban, D., 2014, Acquiring Linux Memory from a Server

Far Far Away, [Online], Available: http://blog.

opensecurityresearch.com/2014/05/acquiring-linux-

memory-from-server-far.html [4 Sep 2015].

Case, A., 2012, Phalanx 2 Revealed: Using Volatility to

Analyze an Advanced Linux Rootkit, [Online], Available:

http://volatility-labs.blogspot.de/2012/10/ phalanx-2-

revealed-using-volatility-to.html [4 Sep 2015].

Cinar, O., 2015, Android quick APIs reference, Apress.

Elatov, K., 2015, Recover LUKS Password from Android

Phone, [Online], Available: http://elatov.github.io/

2015/03/recover-luks-password-from-android-phone/

[4 Sep 2015].

Hale, M., 2013a, AndroidMemoryForensics - Instructions

on how access and use the Android support, [Online],

Available: https://code.google.com/p/volatility/wiki/

AndroidMemoryForensics [4 Sep 2015].

Hale, M., 2013b, LinuxMemoryForensics - Instructions on

how to access and use the Linux support, [Online],

Available: https://code.google.com/p/volatility/wiki/

LinuxMemoryForensics [4 Sep 2015].

Ligh, M., H., Case, A., Levy J., Walters, A., 2014, The Art

of Memory Forensics: Detecting Malware and Threats

in Windows, Linux, and Mac Memory, Wiley.

Linux Profiles, 2012, LinuxProfiles - Linux Profile

Reference, [Online], Available: https://code.google.

com/p/volatility/wiki/LinuxProfiles [4 Sep 2015].

Logen, S., Höfken, H., Schuba, M., 2012, Simplifying RAM

Forensics - A GUI and Extensions for the Volatility

Framework, Proceedings of 5th International

Workshop on Digital Forensics, Prague, Czech

Republic.

Luttgens, J., T., Pepe, M., Mandia, K, 2014, Incident

Response & Computer Forensics, 3rd edition,

McGraw-Hill Education.

Müller, T., Spreitzenbarth, M., 2013, FROST – Forensic

Recovery of Scrambled Telephones, in Applied

Cryptography and Network Security, 2013, Eds.

Jacobson, M., Locasto, M., Mohassel, P., Safavi-Naini,

R., Springer.

Pomeranz, H., 2014, Linux Memory Grabber - A script for

dumping Linux memory and creating Volatility(TM)

profiles, [Online], Available: https://github.com/halpo

meranz/lmg/blob/master/README [4 Sep 2015].

Pryor, K., 2013, Volatility Linux Profiles, [Online],

Available: http://digiforensics.blogspot.de/2013/12/

volatility-linux-profiles.html [4 Sep 2015].

Raman, S., 2014, Installing Linux Profile in Volatility

[Online], Available: https://shankaraman.wordpress.

com/2014/05/23/installing-linux-profile-in-volatility/

[4 Sep 2015].

Sylve, J., T., 2011, Android Memory Capture and

Applications for Security and Privacy, M.S. Thesis,

University of New Orleans, New Orleans.

Sylve, J., T, 2015, LiME ~ Linux Memory Extractor,

[Online], Available: https://github.com/504ensicsLabs

/LiME/blob/master/README.md [4 Sep 2015].

Tilbury, C., 2013, Getting Started with Linux Memory

Forensics, [Online], Available: http://forensicmethods.

com/linux-memory-forensics [4 Sep 2015].

VOLIX II, 2014, Volatility Interface and Extensions,

[Online], Available: http://www.it-forensik.fh-

aachen.de/projekte/volixe, [4 Sep 2015].

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

264
