Evaluation of the CORAL Approach for Risk-driven Security Testing

based on an Industrial Case Study

Gencer Erdogan

1,2

, Ketil Stølen

1,2

and Jan Øyvind Aagedal

Department for Networked Systems and Services, SINTEF ICT, PO Box 124 Blindern, N-0314, Oslo, Norway

Department of Informatics, University of Oslo, PO Box 1080 Blindern, N-0316, Oslo, Norway

Equatex, Martin Linges vei 25, N-1364, Fornebu, Norway

Keywords:

Case Study, Security Testing, Risk Assessment.

Abstract:

The CORAL approach is a model-based method to security testing employing risk assessment to help security

testers selectand design test cases based on the available risk picture. In this paper we present experiences from

using CORAL in an industrial case. The results indicate that CORAL supports security testers in producing

risk models that are valid and threat scenarios that are directly testable. This, in turn, helps testers to select

and design test cases according to the most severe security risks posed on the system under test.

1 INTRODUCTION

We have developed a method for risk-driven secu-

rity testing supported by a domain-speciﬁc language

which we refer to as the CORAL approach, or just

CORAL (Erdogan et al., 2014b). It aims to help se-

curity testers to select and design test cases based on

the available risk picture.

In this paper we present experiences from apply-

ing CORAL in an industrial case. We evaluate to

what extent CORAL helps security testers in select-

ing and designing test cases. The system under test

is a comprehensive web-based e-business application

designed to deliver streamlined administration and re-

porting of all forms of equity-based compensation

plans, and is used by a large number of customers

across Europe. The system owner, which is also the

party that commissioned the case study (often referred

to as party in the following), require full conﬁdential-

ity. The results presented in this paper are therefore

limited to the experiences from applying CORAL.

The paper is organized as follows. In Section 2

we give an overview the CORAL approach. In Sec-

tion 3 we present our research method. In Section 4

we give an overview of the case study, and in Sec-

tion 5 we present the obtained results organized ac-

cording to our research questions. In Section 6 we

discuss these results, and ﬁnally in Section 7 we re-

late our work to other approaches and conclude by

highlighting key ﬁndings.

The CORAL

method to risk-

driven security

testing

Description

of the

system

under test

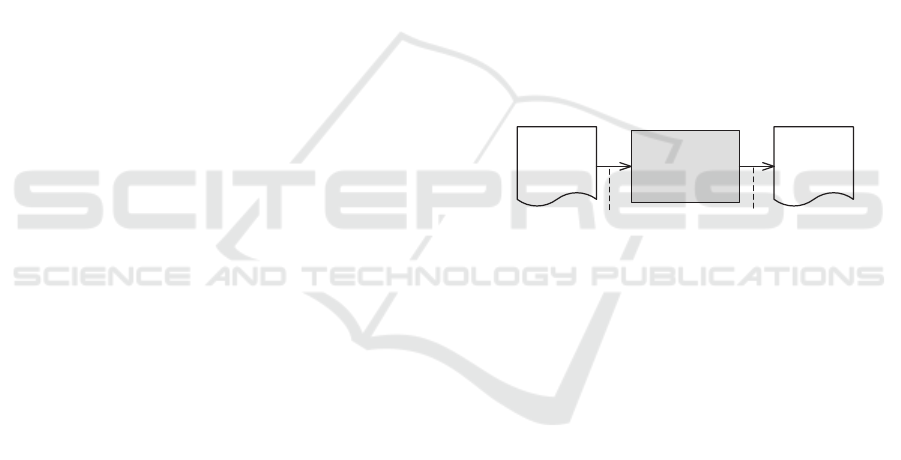

Test report

to party

Input

Output

Figure 1: Input and output of the CORAL method.

2 THE CORAL APPROACH

The CORAL approach consists of a domain-speciﬁc

risk analysis language based on UML interac-

tions (OMG, 2011) and a method for risk-driven se-

curity testing within which the language is tightly

integrated. As illustrated in Figure 1, the CORAL

method expects a description of the system under test

(SUT) as input. The description may be in the form

of system diagrams and models, use case documenta-

tion, source code, executable versions of the system,

and so on. The CORAL method involves seven steps

grouped into three phases: Test planning, security risk

assessment, and security testing. The output from ap-

plying CORAL is a test report.

In Phase 1 we prepare the system model, iden-

tify security assets to be protected, deﬁne frequency

and consequence scales, and deﬁne the risk evaluation

matrix based on frequency and consequence scales.

In Phase 2 we carry out risk modeling in three

consecutive steps. First, we identify security risks by

analyzing the system description with respect to the

relevant security assets and describe threat scenarios

Erdogan, G., Stølen, K. and Aagedal, J.

Evaluation of the CORAL Approach for Risk-driven Security Testing based on an Industrial Case Study.

DOI: 10.5220/0005650902190226

In Proceedings of the 2nd International Conference on Information Systems Security and Privacy (ICISSP 2016), pages 219-226

ISBN: 978-989-758-167-0

219

that may cause the security risks. Second, we esti-

mate the frequency and the consequence of the iden-

tiﬁed risks by making use of the frequency and con-

sequence scales, respectively. Third, we evaluate the

risks with respect to their frequency and consequence

and select the most severe risks to test.

In Phase 3 we conduct security testing in three

consecutive steps. First, for each risk selected for

testing, we select its associated threat scenarios and

specify test objectives for that threat scenario. To ob-

tain a test case fulﬁllingthe test objective, we annotate

each threat scenario with stereotypes from the UML

Testing Proﬁle (OMG, 2013) according to the test ob-

jective. Second, we carry out security testing with

respect to the test cases. Finally, based on the test

results, we produce a test report.

3 RESEARCH METHOD

We conducted the case study in four main steps. First,

we designed the case study by deﬁning the objective,

the units of analysis, as well as the research questions.

Second, we carried out the CORAL approach within

an industrial setting. Third, we collected the relevant

data produced by executing the CORAL approach.

Finally, we analyzed the collected data with respect

to our research questions.

The test report delivered to the party that commis-

sioned the case study describes, in addition to the test

results, risk models and security tests designed with

respect to the risk models. Our hypothesis was that

the report is good in the sense that (1) the risk mod-

els are valid, and (2) the threat scenarios are directly

testable. Recall that the CORAL language is based

on UML interactions (OMG, 2011). By a directly

testable threat scenario, we mean a threat scenario that

can be reused and speciﬁed as a test case based on its

interactions. Thus, the units of analysis in this case

study are the risk models.

With respect to point (1), we deﬁned two research

questions (RQ1 and RQ2). With respect to point (2),

we deﬁned one research question (RQ3). Addition-

ally, we carried out both black-box and white-box

testing of the SUT, because we were interested in in-

vestigating the usefulness of the CORAL approach

for both black-box and white-box testing (RQ4).

RQ1. To what extent is the risk level of identiﬁed

risks correct?

RQ2. To what extent are relevant risks identiﬁed

compared to previous penetration tests?

RQ3. To what extent are the threat scenarios that

causes the identiﬁed risks directly testable?

RQ4. To what extent is the CORAL approach use-

ful for black-box testing and white-box testing,

respectively?

4 OVERVIEW OF CASE STUDY

The system under test was a web-based application

providing services related to equity-based compen-

sation plans. The web application was deployed on

the servers of a third party service provider and main-

tained by the same service provider with respect to in-

frastructure. However, the web application was com-

pletely administrated by the client commissioning the

case study for business purposes, such as customiz-

ing the web application for each customer, as well as

patching and updating its various features.

In order to limit the scope of the testing, we de-

cided to test two features available to customers: a

feature for selling shares (named Sell Shares), and a

feature for exercising options for the purpose of buy-

ing shares in a company (named Exercise Options).

In the following, we explain how we carried out the

CORAL approach by taking you through a fragment

of the case study. We consider only Exercise Options

and two potential threat scenarios: one from a black-

box perspective and one from a white-box perspec-

tive.

4.1 Test Planning (Phase 1)

We modeled Exercise Options from a black-box per-

spective by observing its behavior. That is, we ex-

ecuted Exercise Options using a web browser, ob-

served its behavior, and created the model based on

that. We also modeled Exercise Options from a white-

box perspective by executing and analyzing its source

code. Figures 2a and 2b show the black-box model

and the white-box model of Exercise Options, respec-

tively.

Together with the party we decided not to con-

sider security risks related to infrastructure because

this was a contractual responsibility of the service

provider hosting the web application. Instead, we fo-

cused on security risks that may be introduced via the

application layer. Thus, the threat proﬁle is some-

one who has access to Exercise Options, but who re-

sides outside the network boundaries of the service

provider. We identiﬁed security assets by consulting

the party. The security asset identiﬁed for Exercise

Options was integrity of data.

We also deﬁned a frequency scale and a conse-

quence scale together with the party. The frequency

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

220

sd Exercise Options (black-box)

:Client web

browser

exercise(options)

:Exercise

Options form

selectExerciseMethod

continue(exerciseMethod)

exerciseRequestConfirmation

sd Exercise Options (white-box)

:Client web

browser

:Exercise Options form

:New

exercise

controller

:Abstract

controller

:Client

specific

controller

getExerControl()

exerControl

this.setHtml(this.getExerControl().getHtml())

exerciseRequestConfirmed

pageOutput=ctrl.getHtml()

this.getExerControl().doBusiness(exerciseMethod,null)

this.newExResultPage(confirmed)

exercise(options)

selectExerciseMethod

continue(exerciseMethod)

(a)

(b)

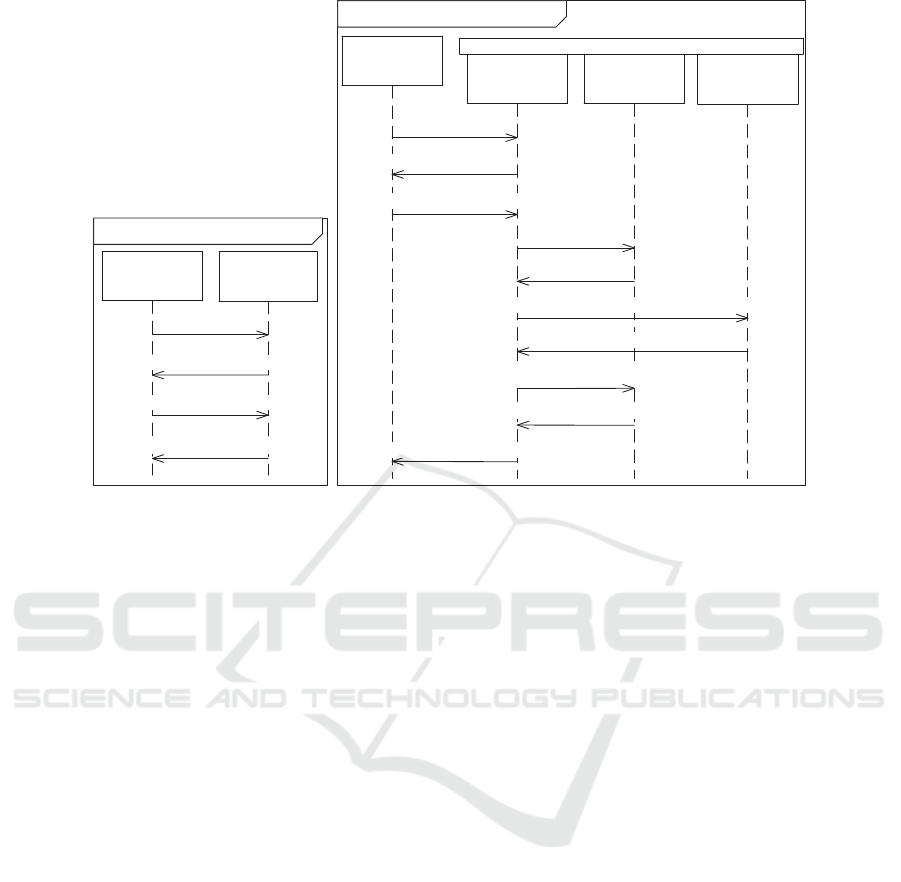

Figure 2: (a) Black-box model of feature Exercise Options. (b) White-box model of feature Exercise Options.

scale consisted of ﬁve values (Certain, Likely, Possi-

ble, Unlikely, and Rare), where each value was de-

ﬁned as a frequency interval. For example, the fre-

quency interval for likelihood Possible was [5,20i:1y,

which means “from and including 5 to less than 20

times per year.” The consequence scale also consisted

of ﬁve values (Catastrophic, Major, Moderate, Minor,

and Insigniﬁcant), where each value described the im-

pact by which the security asset is harmed. For exam-

ple, consequence Major with respect to security asset

integrity of data was deﬁned as “the integrity of cus-

tomer shares is compromised.” The scales were also

used to construct the risk evaluation matrix illustrated

in Figure 4.

4.2 Security Risk Assessment (Phase 2)

We identiﬁed security risks by analyzing the models

in Figure 2 with respect to security asset integrity of

data. We did this by ﬁrst identifying unwanted in-

cidents. Unwanted incidents are messages modeling

that an asset is harmed or its value is reduced, and

they are represented by a yellow explosion sign at the

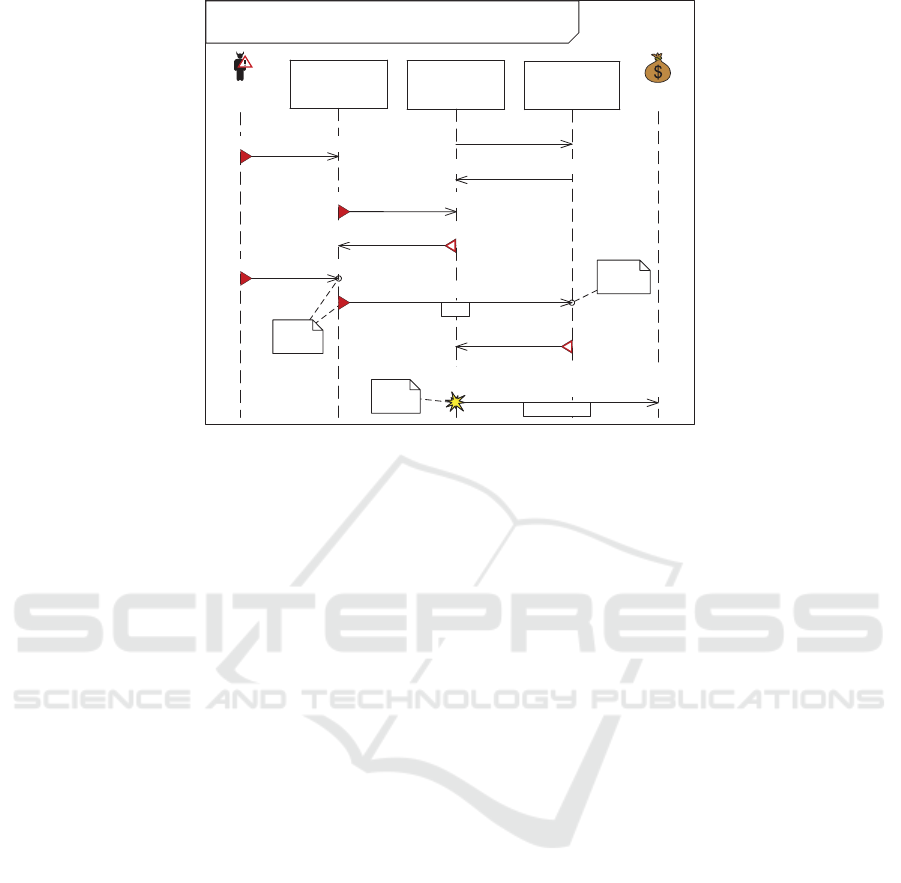

transmission end (see Figure 3). Second, we identi-

ﬁed alterations that have to take place in the messages

in order to cause the unwanted incidents (referred to

as altered messages). Altered messages are messages

in the SUT that have been altered by a threat to de-

viate from their expected behavior, and they are rep-

resented by a triangle with red borders and white ﬁll.

Third, we identiﬁed messages initiated by the threat

which in turn could cause the alterations. These are

referred to as new messages and are represented by a

red triangle.

Let us consider a threat scenario for the black-box

model of Exercise Options. Assume that a malicious

user attempts to access another system feature, say

an administrative functionality, by altering certain pa-

rameters in the HTTP request sent to Exercise Op-

tions. The malicious user could achieve this, for ex-

ample, by ﬁrst intercepting the request containing the

message continue(exerciseMethod) using a network

proxy tool such as OWASP ZAP (OWASP, 2015),

and then altering the parameter exerciseMethod in the

message. This alteration, could in turn give the mali-

cious user access to another system feature. This un-

wanted incident occurs if the alteration is successfully

carried out, and Exercise Options responds with an-

other system feature instead of the expected message

exerciseRequestConﬁrmation. Thus, the unwanted in-

cident may occur after the reception of the last mes-

sage in the black-box model (Figure 2a). The result-

ing threat scenario is shown in Figure 3. We carried

out a similar analysis during white-box testing by an-

alyzing the model in Figure 2b. The reader is referred

to the technical-report version of this paper (Erdogan

et al., 2015) for details on risk modeling based on the

white-box model of Exercise Options.

In order to estimate how often threat scenarios

may occur, in terms of frequency, we based ourselves

Evaluation of the CORAL Approach for Risk-driven Security Testing based on an Industrial Case Study

221

[20,

50>:1y

exercise(options)

:Client web

browser

:Exercise

Options form

Integrity

of data

Malicious

user

:Network tool

sd Malicious user accesses another system feature by

changing parameter exerciseMethod (black-box)

interceptRequest

Another system feature is accessed

by changing parameter exerciseMethod

respOtherSysFeat

setExerciseMethod(otherSysFeat)

continue(otherSysFeat)

selectExerciseMethod

interceptHTTPRequest

continue(exerciseMethod)

Moderate

[16,

40>:1y

[16,

40>:1y

0.8

Figure 3: A threat scenario for the black-box model of feature Exercise Options.

on knowledge data bases such as OWASP (OWASP,

2015), reports and papers published within the soft-

ware security community, as well as expert knowl-

edge within security testing. We see from Figure 3

that the malicious user successfully alters the parame-

ter exerciseMethod with frequency [20,50i:1y. Given

that parameter exerciseMethod is successfully altered

and transmitted, it will be received by Exercise Op-

tions with conditional ratio 0.8. The conditional ratio

causes the new frequency [16,40i:1y for the reception

of message continue(otherSysFeat). This is calculated

by multiplying [20,50i:1y with 0.8. Given that mes-

sage continue(otherSysFeat) is processed by Exercise

Options, it will respond with another system feature.

This, in turn, causes the unwanted incident (security

risk) to occur with frequency [16,40i:1y. The un-

wanted incident has an impact on security asset in-

tegrity of data with consequence Moderate.

Figure 4 shows the obtained risk evaluation ma-

trix. The numbers in the matrix represent the 21 risks

identiﬁed in the case study. Each risk was plotted

in the matrix according to its frequency and conse-

quence. Risks are grouped in nine levels horizontally

on the matrix where Risk Level 1 is the lowest risk

level and Risk Level 9 is the highest risk level. The

risk level of a risk is identiﬁed by mapping the un-

derlying color to the column on the left-hand side of

the matrix. For example, Risks 11 and 19 have Risk

Level 8, while Risk 20 has Risk Level 4. The risk ag-

gregation did not lead to an increase in risk level for

any of the risks. The suspension criterion in this case

study was deﬁned as “test all risks of Risk Level 6 or

more.” Based on this criterion, we selected 11 risks to

test from the risk evaluation matrix.

4.3 Security Testing (Phase 3)

The test objective for the threat scenario in Figures 3

was deﬁned as: “Verify whether the malicious user

is able to access another system feature by changing

parameter exerciseMethod into a valid system param-

eter”. Based on this test objective, we annotated the

threat scenario with stereotypes from the UML test-

ing proﬁle (OMG, 2013). The resulting security test

case for the threat scenario in Figure 3 is shown in

Figure 5. Needless to say, the security tester takes the

role as “malicious user” in the test case.

We carried out all black-box tests manually and

used the OWASP Zed Attack Proxy tool (OWASP,

2015) to intercept the HTTP requests and responses.

We carried out all white-box tests semi automat-

ically supported by the debug mode in Eclipse

IDE, which was integrated with a web-server and

a database. We also carried out automatic source

code review using static source code analysis tools

for the purpose of identifying potential threat scenar-

ios. The tools we used for this purpose were Find

Security Bugs V1.2.1 (FindBugs, 2015), Lapse plus

V2.8.1 (LapsePlus, 2015), and Visual Code Grepper

(VCG) V2.0.0 (VCG, 2015).

5 CASE STUDY RESULTS

We group the results with respect to our research

questions.

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

222

Certain

Likely

Possible

Unlikely

Rare

Catas

trophic

Major

Moderat

Minor

Insignificant

6, 12

11, 19

Risk level 1

Risk level 2

Risk level 3

Risk level 4

Risk level 5

Risk level 6

Risk level 7

Risk level 8

Risk level 9

15,

16,

10, 14,

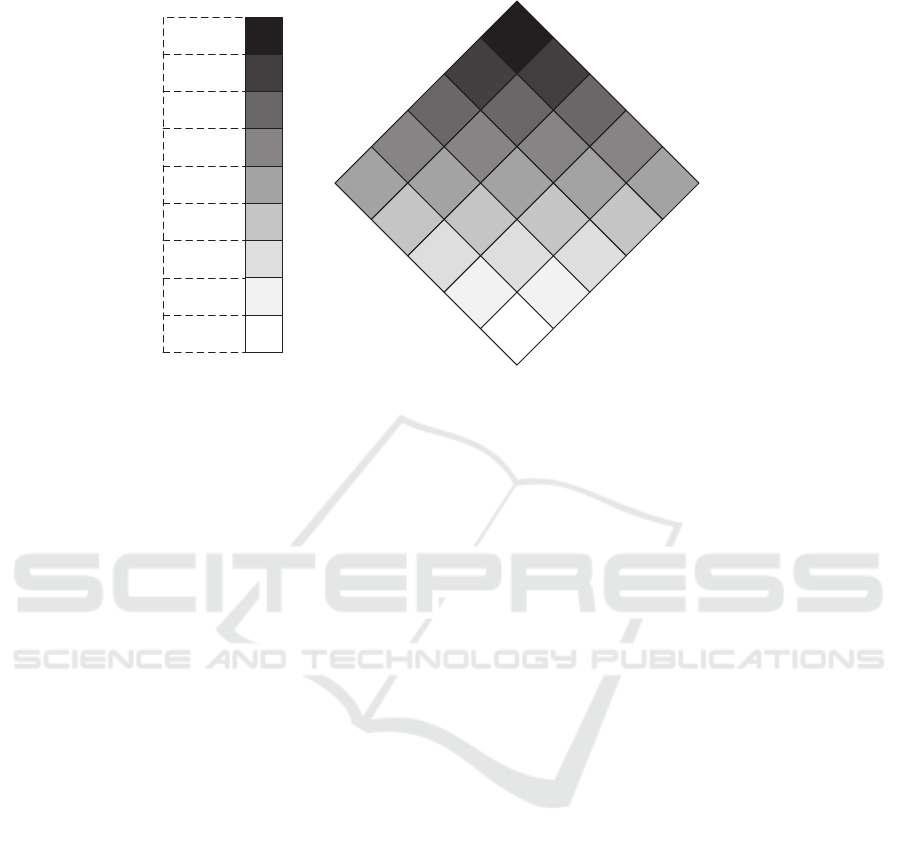

Figure 4: Risk evaluation matrix.

RQ1 To what extent is the risk level of identi-

ﬁed risks correct? As shown in the risk evaluation

matrix in Figure 4, we identiﬁed in total 21 security

risks. The risk aggregation did not lead to an increase

in risk level for any of the risks. Based on the suspen-

sion criterion deﬁned by the party, we tested 11 risks

(all risks of Risk Level 6 or more).

The testing of these 11 risks revealed 11 vulnera-

bilities. The vulnerabilities were assigned a severity

level based on a scale of three values (Low, Medium,

and High). High severity means that the vulner-

ability should be treated as soon as possible, and

one should consider taking the system ofﬂine while

treating the vulnerability (“show stopper”). Medium

severity means that the vulnerability is serious and

should be treated based on available time and re-

sources. Low severity means that the vulnerability is

not serious and it should be treated if this is seen as

necessary. Four vulnerabilities were assigned sever-

ity Medium, and the remaining 7 vulnerabilities were

assigned severity Low.

We also tested the 10 risks initially not selected

for testing, in order to have a basis for comparison.

This testing revealed only 2 vulnerabilities of severity

Low.

RQ2 To what extent are relevant risks identi-

ﬁed compared to previous penetration tests? The

party commissioning the case study had previously

executed commercial penetration tests. We did not

get access to the reports or results from these penetra-

tion tests due to conﬁdentiality reasons. However, it

was conﬁrmed by the party that we had identiﬁed 16

security risks which had also been identiﬁed by previ-

ous penetration tests. Additionally, we had identiﬁed

5 new security risks which had not been identiﬁed by

previous penetration tests. Moreover, the party also

conﬁrmed that we had not left out any risks of rele-

vance for the features considered in the case study.

RQ3 To what extent are the threat scenarios

that causes the identiﬁed risks directly testable?

The identiﬁed 21 security risks were caused by 31

threat scenarios. The 11 risks initially selected for

testing were caused by 18 threat scenarios, while the

remaining 10 risks were caused by 13 threat scenar-

ios. We identiﬁed 18 security test cases based on the

18 threat scenarios causing the 11 risks. Similarly, we

identiﬁed 13 security test cases based on the 13 threat

scenarios causing the remaining 10 risks.

RQ4 To what extent is the CORAL approach

useful for black-box testing and white-box testing,

respectively? Table 1 gives an overview of results

obtained from the testing. The row “risks tested” rep-

resents the number of risks initially selected for test-

ing, as well as those not initially selected for testing

(in parentheses). The row “vulnerabilities identiﬁed”

represents the number of vulnerabilities identiﬁed by

testing the risks initially selected for testing, as well as

the number of vulnerabilities identiﬁed by testing the

risks not initially selected (in parentheses). The four

rows at the bottom of Table 1 provide statistics on the

use of the various modeling constructs of CORAL to

express threat scenarios.

6 DISCUSSION

The two variables that determine the risk level of a

risk, that is, the frequency value and the consequence

Evaluation of the CORAL Approach for Risk-driven Security Testing based on an Industrial Case Study

223

exercise(options)

<<TestComponent>>

:Client web browser

<<SUT>>

:Exercise

opt. form

Malicious

user

<<TestComponent>>

:Network tool

sd Test Case Malicious user accesses another system feature by

changing parameter exerciseMethod (black box) : Verdict

interceptRequest

respOtherSysFeat

setExerciseMethod(otherSysFeat)

continue(otherSysFeat)

selectExerciseMethod

interceptHTTPRequest

continue(exerciseMethod)

<<TestComponent>>

<<validationAction>>

fail

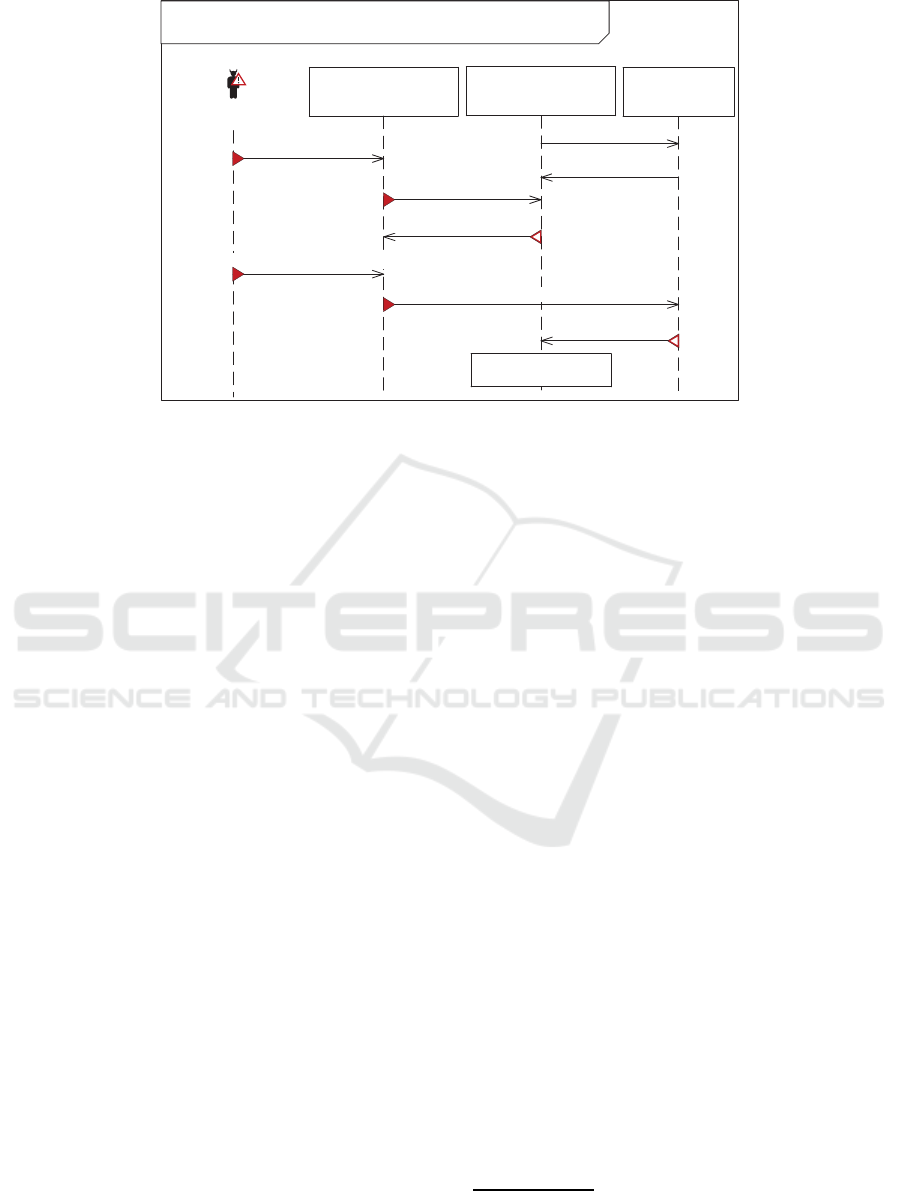

Figure 5: Security test case based on the threat scenario in Figure 3.

value, are estimates based on data gathered during the

security risk assessment. In other words, these esti-

mates tell us to what degree the identiﬁed risks exist.

Thus, in principle, the higher the risk level, the more

likely it is to reveal vulnerabilities causing the risk.

The same applies the other way around. That is, the

lower the risk level, the less likely it is to reveal vul-

nerabilities causing the risk.

The results obtained for RQ1 show that 11 vulner-

abilities were revealed by testing the risks considered

as most severe, while only 2 vulnerabilities were re-

vealed by testing the risks considered as low risks.

Additionally, the 2 vulnerabilities identiﬁed by test-

ing the low risks were assigned low severity (see Ta-

ble 1). These ﬁndings indicate that the risk levels of

identiﬁed risks were quite accurate. In contrast, if we

had found 2 vulnerabilities by testing the most severe

risks, and 11 vulnerabilities by testing the low risks,

then that would have indicated inaccurate risk levels,

and thus a risk assessment of low quality. The results

obtained for RQ2 show that we identiﬁed all relevant

security risks compared to previous penetration tests.

In addition, we identiﬁed ﬁve new security risks and

did not leave out any risks of relevance for the fea-

tures considered. In summary, the results obtained for

RQ1 and RQ2 indicate that the produced risk models

were valid and of high quality, and thus that CORAL

is effective in terms of producing valid risk models.

The results obtained for RQ3 point out that all

threat scenarios were directly testable. We believe

this result is generalizable because, in the CORAL

approach, risks are identiﬁed at the level of ab-

straction testers commonly work when designing test

cases (Dias Neto et al., 2007). This is also backed

up by the fact that we made direct use of all threat

scenarios as security test cases. Thus, the CORAL

approach is effective in terms of producing threat sce-

narios that are directly testable. However, it is impor-

tant to note that the CORAL approach is designed to

be used by individual security testers, or by a group

of security testers collaborating within the same test-

ing project. The risk models produced by a tester, or

a group of testers working together, will most likely

be used by the same tester(s) to design test cases, and

consequently execute the test cases.

In general, the CORAL approach seems to work

equally well for black-box testing and white-box test-

ing. Based on the results obtained for RQ4, we see

that it is possible to carry out the complete CORAL

approach both in black-box and white-box testing.

The reason why Table 1 shows lower numbers in the

white-box column compared to the numbers in the

black-boxcolumn, is because we had fewerwhite-box

models to analyze compared to black-box models.

Table 1 also shows that the threat scenarios mostly

consisted of new messages and altered messages.

Only 17 out of 272 messages were deleted messages

This may be an indication that threat scenarios can

be sufﬁciently expressed without the usage of deleted

messages. Nevertheless, they are important to docu-

ment that an interaction is deleted by a threat. Note

that the number of unwanted incidents (34) is greater

than the number of identiﬁed risks (21). This is be-

cause some of the risks reoccurred in several threat

scenarios, and thus had to be repeated in every threat

A deleted message is a message in the SUT that has

been deleted by a threat. Deleted messages are represented

by a triangle with red borders and a red cross in the middle.

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

224

Table 1: Results obtained during black-box testing and white-box testing.

Black-box White-box Total

SUT diagrams analyzed 11 2 13

Threat scenarios identiﬁed 27 4 31

Risks identiﬁed 19 2 21

Test cases identiﬁed 27 4 31

Risks tested 10 (plus 9) 1 (plus 1) 11 (plus 10)

Vulnerabilities identiﬁed 4 medium and 5 low (plus 0) 2 low (plus 2 low) 4 medium and 7 low (plus 2 low)

New messages 144 17 161

Altered messages 52 8 60

Deleted messages 10 7 17

Unwanted incidents 30 4 34

scenario in which they reoccurred.

Another important observation is that the threat

scenarios identiﬁed during white-box testing helped

us locate where in the source code risks occurred, al-

though the threat scenarios were initiated at the appli-

cation level.

7 RELATED WORK AND

CONCLUSIONS

In the following we relate CORAL to other risk-

driven testing approaches focusing on security. The

reader is referred to the technical-report version of

this paper (Erdogan et al., 2015), as well as our sys-

tematic literature review (Erdogan et al., 2014a), for

a detailed discussion on related work and state of the

art risk-driven testing approaches in general.

The risk-driven security testing approaches pro-

vided by Botella et al. (Botella et al., 2014), Groß-

mann et al. (Großmann et al., 2014), and See-

husen (Seehusen, 2014) make use of the CORAS risk

analysis language (Lund et al., 2011) for the purpose

of security risk assessment. The graphical notation

of the CORAL risk analysis language is based on the

CORAS language. CORAL is therefore closely re-

lated to these approaches. However, there are some

fundamental differences. First, CORAS risk models

represent threat scenarios and risks at a high-level of

abstraction, while we represent these at a low-level of

abstraction. Second, CORAS risk models are repre-

sented as directed acyclic graphs, while we represent

risk models as interaction diagrams, which are bet-

ter suited for model-based testing (Dias Neto et al.,

2007). Third, these approaches use the risk estimates

assigned to a CORAS risk model to make a priori-

tized list of threat scenarios which in turn represent

a prioritized list of high-level test procedures (See-

husen, 2014). The high-level test procedures are then

used as a starting point for identifying/designing test

cases either manually or by instantiating certain test

patterns. In CORAL we map the risks to a risk eval-

uation matrix based on the risk estimates, and then

we make a prioritized list of risks. We then select the

most severe risks that the system under test is exposed

to, and design test cases by making use of the CORAL

risk models in which the selected risks occur.

Other approaches focusing on security are pro-

vided by Wendland et al. (Wendland et al., 2012) and

Zech et al. (Zech et al., 2012). The former approach

focuses on high-level qualitative risk assessment and

does not explicitly model test cases, but instead pro-

vides guidelines testers may use to model test cases.

The latter approach identiﬁes security risks and asso-

ciated models by matching attack patterns on the pub-

lic interfaces of a system. However, the risk models

do not contain information regarding the threat initi-

ating the attacks, and the chain of events causing the

security risks. The approach transforms risk models

into misuse case models used to generate test cases.

What is common for all the approaches discussed

above is that they model risks and the system under

test in separate models using separate modeling lan-

guages. This makes it difﬁcult to get an intuitive un-

derstanding with respect to exactly howand where the

risks affect the system under test. CORAL risk mod-

els represent speciﬁc threat scenarios, security risks

caused by the threat scenarios, and the relevant as-

pects of the system affected by the risks, within the

same model. This enables testers to identify exactly

how and where certain security risks may occur.

In this paper, we have presented an evaluation of

CORAL based on our experiences from applying the

approach in an industrial case study. The SUT in

the case study was a web application designed to de-

Evaluation of the CORAL Approach for Risk-driven Security Testing based on an Industrial Case Study

225

liver streamlined administration and reporting of all

forms of equity-based compensation plans. The ob-

jective was to evaluate to what extent CORAL helps

security testers in selecting and designing test cases.

In CORAL we select and design test cases based on

risk models produced during security risk assessment.

Our hypothesis was that the produced risk models are

valid, and that the threat scenarios represented by the

risk models are directly testable.

The case study results indicate that CORAL is ef-

fective in terms of producing valid risk models. This

is backed up by two observations. First, we identiﬁed

in total 21 risks, and 11 of these risks were considered

as severe, while the remaining 10 risks were consid-

ered as low risks. By testing these 11 risks we identi-

ﬁed 11 vulnerabilities, while by testing the remaining

10 risks we identiﬁed only 2 vulnerabilities. Second,

we identiﬁed all relevant security risks compared to

previous penetration tests. In addition, we identiﬁed

ﬁve new security risks and did not leave out any risks

of relevance for the features considered.

The CORAL approach seems to work equally well

for black-box and white-box testing. One point worth

noting for white-box testing is that the threat scenar-

ios help locating risks at the source code level al-

though they are initiated at the application level.

Finally, one of the most important ﬁndings we did

in the case study is that the CORAL approach is very

useful for identifying security test cases. We used all

threat scenarios identiﬁed in the case study for the

purpose of security test case design and execution.

ACKNOWLEDGEMENTS

This work has been conducted as a part of the

DIAMONDS project (201579/S10) and the AGRA

project (236657) funded by the Research Council of

Norway, as well as the RASEN project (316853)

funded by the European Commission within the 7th

Framework Programme.

REFERENCES

Botella, J., Legeard, B., Peureux, F., and Vernotte, A.

(2014). Risk-Based Vulnerability Testing Using Secu-

rity Test Patterns. In Proc. 6th International Sympo-

sium on Leveraging Applications of Formal Methods,

Veriﬁcation and Validation (ISoLA’14), pages 337–

352. Springer.

Dias Neto, A., Subramanyan, R., Vieira, M., and Travas-

sos, G. (2007). A Survey on Model-based Testing Ap-

proaches: A Systematic Review. In Proc. 1st ACM

International Workshop on Empirical Assessment of

Software Engineering Languages and Technologies

(WEASELTech’07), pages 31–36. ACM.

Erdogan, G., Li, Y., Runde, R., Seehusen, F., and Stølen,

K. (2014a). Approaches for the Combined Use of

Risk Analysis and Testing: A Systematic Literature

Review. International Journal on Software Tools for

Technology Transfer, 16(5):627–642.

Erdogan, G., Refsdal, A., and Stølen, K. (2014b). A Sys-

tematic Method for Risk-driven Test Case Design Us-

ing Annotated Sequence Diagrams. In Proc. 1st In-

ternational Workshop on Risk Assessment and Risk-

driven Testing (RISK’13), pages 93–108. Springer.

Erdogan, G., Stølen, K., and Aagedal, J. (2015). Evalua-

tion of the CORAL Approach for Risk-Driven Secu-

rity Testing Based on an Industrial Case Study. Tech-

nical Report A27097, SINTEF Information and Com-

munication Technology.

FindBugs (2015). Find Security Bugs V1.2.1.

http://h3xstream.github.io/ﬁnd-sec-bugs/. Accessed

April 30, 2015.

Großmann, J., Schneider, M., Viehmann, J., and Wendland,

M.-F. (2014). Combining Risk Analysis and Secu-

rity Testing. In Proc. 6th International Symposium

on Leveraging Applications of Formal Methods, Ver-

iﬁcation and Validation (ISoLA’14), pages 322–336.

Springer.

LapsePlus (2015). Lapse Plus Console V2.8.1.

https://code.google.com/p/lapse-plus/. Accessed

April 30, 2015.

Lund, M., Solhaug, B., and Stølen, K. (2011). Model-

Driven Risk Analysis: The CORAS Approach.

Springer.

OMG (2011). Uniﬁed Modeling Language (UML), super-

structure, version 2.4.1. Object Management Group.

OMG Document Number: formal/2011-08-06.

OMG (2013). UML Testing Proﬁle (UTP), version 1.2. Ob-

ject Management Group. OMG Document Number:

formal/2013-04-03.

OWASP (2015). Open Web Application Security Project.

https://www.owasp.org/index.php/Main

Page. Ac-

cessed April 30, 2015.

Seehusen, F. (2014). A Technique for Risk-Based Test Pro-

cedure Identiﬁcation, Prioritization and Selection. In

Proc. 6th International Symposium on Leveraging Ap-

plications of Formal Methods, Veriﬁcation and Valida-

tion (ISoLA’14), pages 277–291. Springer.

VCG (2015). Visual Code Grepper V2.0.0.

http://sourceforge.net/projects/visualcodegrepp/.

Accessed April 30, 2015.

Wendland, M.-F., Kranz, M., and Schieferdecker, I. (2012).

A systematic approach to risk-based testing using

risk-annotated requirements models. In Proc. 7th In-

ternational Conference on Software Engineering Ad-

vances (ICSEA’12), pages 636–642. IARA.

Zech, P., Felderer, M., and Breu, R. (2012). Towards

a Model Based Security Testing Approach of Cloud

Computing Environments. In Proc. 6th International

Conference on Software Security and Reliability Com-

panion (SERE-C’12), pages 47–56. IEEE Computer

Society.

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

226
