Search for Latent Periodicity in Amino Acid Sequences with

Insertions and Deletions

Valentina Pugacheva

1

, Alexander Korotkov

2

and Eugene Korotkov

1,2

1

Institute of Bioengineering, Research Center of Biotechnology of the Russian Academy of Sciences, Leninsky

Ave. 33 bld. 2, 119071, Moscow, Russia

2

National Research Nuclear University “MEPhI”, Kashurskoe shosse, 31. Moscow 115409, Russia

Keywords: Genetic Algorithm, Latent Periodicity, Dynamic Programming, Amino Acid Sequences.

Abstract: The aim of this study was to show that amino acid sequences have a latent periodicity with insertions and

deletions of amino acids in unknown positions of the analyzed sequence. Genetic algorithm, dynamic

programming, and random weight matrices were used to develop the new mathematical algorithm for latent

periodicity search. The method makes the direct optimization of the position-weight matrix for multiple

sequence alignment without using pairwise alignments. The developed algorithm was applied to analyze the

amino acid sequences of a small number of proteins. This study showed the presence of latent periodicity

with insertions and deletions in the amino acid sequences of such proteins, for which the presence of latent

periodicity was not previously known. The origin of latent periodicity with insertions and deletions is

discussed.

1 INТRODUCTION

The development and application of mathematical

methods in the study of symbolic sequences is of

particular importance to achieve great success in the

sequencing of various genomes. It also increases the

accumulation of information about the complete

genomes of many species (Ekblom and Wolf, 2014).

If mathematical methods are not applied, a big part

of the known nucleic and amino acid sequences will

be stored away in computer data banks, without

significant usage. This is especially true for

eukaryotic genomes. The task of developing new

mathematical methods entails finding new

mathematical laws to explain sequence organization

and the relationship of these laws with the biological

functions of various parts of the genome (Almirantis

et al., 2014). These studies show the relationship

between certain mathematical regularities observed

in sequences with their biological properties.

Latent periodicity is one of the structural

regularities of sequences and is widely represented

in amino and DNA sequences (Korotkov et al.,

2003a, 2003b). A periodicity is considered as latent

if the similarity between any two periods is not

statistically significant or if it belongs to the twilight

zone (Durbin et al., 1998). Perfect periodicity can

become latent periodicity if it accumulates over 1.0

mutations per amino acid in the studied sequence

(Suvorova et al., 2014). The distinctive property of

latent periodicity is that it cannot be detected by

pairwise comparisons of amino acid sequences

(Turutina et al., 2006). However, latent periodicity

can be found if we apply a mathematical method to

directly detect the multiple alignment of amino acid

sequences without constructing pairwise alignments.

The periods of a sequence with latent periodicity are

sequences for multiple alignment and the multiple

alignment can be statistically significant. The goal of

this study was to find multiple alignments of amino

acid sequences (periods) in the absence of

statistically important pairwise alignments.

There is a significant gap in the mathematical

approaches presently used to search for latent

periodicities in symbolic and numeric sequences.

Spectral approaches enable the discovery of enough

"fuzzy" periodicity in protein sequences without

insertion(s) or deletion(s) of amino acids. Fourier

transform, wavelet transform, information

decomposition and some other methods can be

attributed to a number of spectral methods (Tiwari et

al., 1997; Lobzin and Chechetkin, 2000;

Kravatskaya et al., 2011; Korotkov et al., 2003a; de

Pugacheva, V., Korotkov, A. and Korotkov, E.

Search for Latent Periodicity in Amino Acid Sequences with Insertions and Deletions.

DOI: 10.5220/0005630401170127

In Proceedings of the 9th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2016) - Volume 3: BIOINFORMATICS, pages 117-127

ISBN: 978-989-758-170-0

Copyright

c

2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

117

Sousa Vieira, 1999; Meng et al., 2013; Suvorova et

al., 2014; Sosa et al., 2013; Kumar et al., 2006).

However, these approaches have a significant

limitation, such as the fact that they do not allow the

detection of periodicity with insertions and

deletions.

On the other hand, methods based on dynamic

programming can accurately find insertions and

deletions (Pellegrini, 2015). However, methods

based on dynamic programming cannot detect latent

periodicity, in a situation where the statistical

significance of similarity between any two periodic

sequences is small (Korotkov et al., 2003; Turutina

et al., 2006). This is due to the fact that the

periodicity of amino acid sequences (with the

number of periods greater than or equal to 4) was

detected by pairwise alignment between periods. In

the absence of statistically significant pairwise

alignments, these approaches are incapable of

finding latent periodicity. First of all, it concerns

algorithms and programs such as REP (Andrade et

al., 2000), Internal Repeat Finder (Marcotte et al.,

1999), Prospero (Mott, 1999), RADAR (Heger &

Holm, 2000), REPRO (Heringa & Argos, 1993)

TRUST (Szklarczyk & Heringa, 2004) and

PTRStalker (Pellegrini et al., 2012). It is also

difficult to detect latent periodicity by the programs

XSTREAM (Newman & Cooper, 2007) and T-

REKS (Jorda & Kajava, 2009) because the similarity

between different periods is very low in the case of

latent periodicity. This leads to lack of seeds and

identical short strings. The Markov models and

neural networks are inefficient for finding latent

periodicity, since there are no training samples. The

following programs were used in previous studies

HHrep (Söding et al., 2006), HHRepID (Biegert &

Söding, 2008) and the approaches developed in the

works of Palidwor et al. (2009) and Rubinson &

Eichman (2012).

Therefore, in this study a mathematical method

was proposed that considers this gap and finds the

latent periodicity of any symbolic sequence in the

presence of insertions and deletions (in unknown

positions of the analyzed sequence) and in the

absence of a known position-weight matrix.

Any periodicity of the sequence S with length N

can be characterized by either the frequency matrix

(Korotkov et al., 2003b) or the position-weight

matrix M (Shelenkov et al., 2006) calculated from

frequency matrix. Amino acids are the signs of the

rows of this matrix while period positions serve as

the signs of the columns. The element of this matrix

m(i,j) indicates the weight which has the amino acid

i in position j of the period. The positions of the

period changed from 1 to n. The sequence S

1

of

length N, which is an artificial periodic sequence

1,2,...,n, was introduced. Here, the numbers were

treated as symbols and columns in the matrix M

were consistent with them. For a period equal to n,

the sequence S corresponds to a certain frequency

matrix and weight matrix M(20,n). The problem was

formulated as follows. We have a sequence S with

length N. It is necessary to find such optimal

weighting matrix M

0

, where the local alignment of

sequences S

1

and S have the greatest statistical

significance. Under the statistical significance, the

probability P is that F

r

> F

max

, where F

max

is the

maximum weight of a local alignment of sequences

S

r

and S

1

, using the some optimal matrix M

0

. Here,

F

r

is the maximum weight of a local alignment of

randomly mixed sequences S

r

and S

1

using the some

optimal matrix M

r

. We search a matrix M

0

, which

have the lowest probability P. It is always possible

to set the threshold level of the probability P

0

and if

the probability P(F

r

>F

max

) is less than P

0,

then a

local alignment of sequences S and S

1

is found

,

using

the some optimum matrix M

0

and this alignment can

be considered as statistically significant.

It is possible to use the local alignment

algorithm, for alignment of the amino acid sequence

S and an artificial periodic sequence S

1

, relative to

the known weight matrix (Smith and Waterman,

1981). It is necessary to find the optimal weight

matrix M

0

. The objective of this study was to

develop a mathematical approach for finding the

matrix M

0

, as well as a method for assessing the

probability P. To find the optimal weight matrix, a

genetic algorithm was used, as well as a local

alignment algorithm. The Monte Carlo method was

used to estimate the probability P.

A mathematical method was developed in this

paper to find more than 3 tandem repeats in amino

acid sequences. The method was used for direct

optimization of the position-weight matrix for

multiple sequence alignment without using pairwise

alignments. This means that for each n, a matrix M

0

is found, the probability P is estimated and we build

the alignment of the sequences S and S

1

using M

0

matrix. It is not the goal of this study to analyze all

the known amino acid sequences, since the

developed method requires very large computer

resources. The developed algorithm was applied to

search for latent periodicity with insertions and

deletions in the amino acid sequences of a small

number of proteins This study showed the presence

of latent periodicity with insertions and deletions in

the amino acid sequences of proteins, for which the

presence of latent periodicity was not previously

BIOINFORMATICS 2016 - 7th International Conference on Bioinformatics Models, Methods and Algorithms

118

known.

2 MATHEMATICAL METHODS

AND ALGORITHMA

A genetic algorithm was used to search for the

optimal weight matrix M

0

for period n. A genetic

algorithm is a heuristic search algorithm for solving

optimization problems and is a form of direct

random search (Mitchell, 1998). It is often used to

optimize the functions of several variables. The

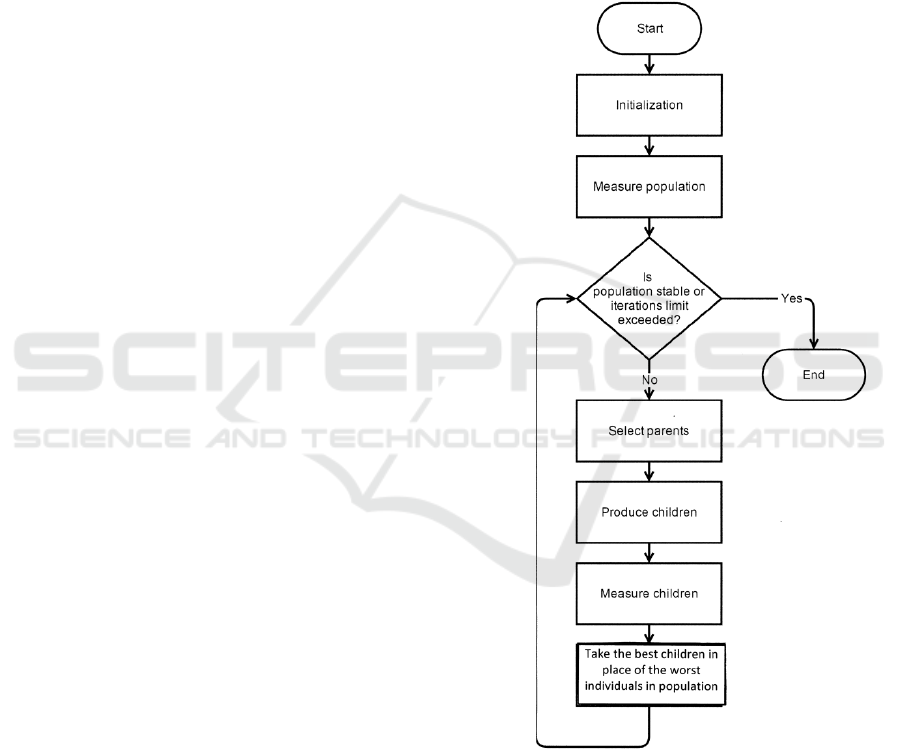

general view of the algorithm is as shown in Figure

1. Usually, the problem is formalized, so that a

solution could be found as a vector, where each

element can be a bit, a number, or some other object.

This vector is considered as an "organism." Usually,

a set of initial organisms are randomly created

(Gondro and Kinghorn, 2007). Each of these

organisms was measured using an objective

function, which is regarded as a "fitness function."

As a result, every organism is associated a certain

fitness value, which determines how well the

organism solves the problem. Organisms are

selected from this set of organisms (it can be called

“generation”) for application of the "genetic

operators" (“crossing” and “mutation”, taking into

account the value of “fitness”). The new organisms

were gotten as a result of the application of these

operators. The value of fitness was also calculated

for new organisms, and then selection of the best

organisms to the next generation was done. This set

of actions was repeated iteratively, and thereby

simulating the "evolutionary process". This process

was allowed to continue for several life cycles

(generations), before executing the stop criterion of

the algorithm. Such a criterion can be either finding

the global or suboptimal solutions or exhaustion of

the number of generations released for evolution. In

this study, the organisms are the weighting matrix of

the periodicity. This set was called Q

n

or population.

Each matrix has 20 rows and n columns. Matrix

elements m(i,j) are some numbers that show the

weight amino acids i to column number j. A larger

weight of the element m(i,j) corresponds to a high

probability of the presence of the amino acid i at

position j of the period. As the assessment of fitness

(objective function) for the organism (weight matrix

M), the maximum value of the similarity function

F

max

was considered for the local alignment

(Altschul et al., 1990). A local alignment was built

between the sequences S

1

and S, using a weight

matrix M to calculate the objective function. The

calculation of F

max

was conducted for each organism

(weight matrix M). The process was repeated after

applying genetic operators to the organisms. The

process was stopped after a stable population was

achieved, that is, increase in the values of F

max

was

stopped. As a result, the matrix M

0

was defined for

the period length n with the greatest F

max

. The

alignment of sequences S

1

and S was well built using

the matrix M

0

. The algorithm discussed is as shown

in Figure 1. The algorithm was repeated for n from 2

to 100.

Figure 1: The main stages of the genetic algorithm used in

the study.

2.1 Initialization

The first step of the algorithm is to provide a zero

generation of organisms (weight matrix in our case)

for the local alignment. A random population of

organisms was selected as zero generation. The zero

generation of organisms must be maximally diverse

Search for Latent Periodicity in Amino Acid Sequences with Insertions and Deletions

119

in order to more quickly achieve a stable population

and find matrix M

0

, maximum of F

max

. Organisms

(matrix of the size 20×n) can be viewed as points in

space with a size of 20×n. It is possible to achieve

the maximum diversity of organisms, if the points

are selected in space 20×n spaced at a distance

D>D

0

. The coordinates of these points are the initial

matrices (organisms). The distance between both

matrices (organisms), the Euclidean distance

between the two points in space 20xn, was taken.

20

2,0

1 2

1 1

( ( , ) ( , ))

n

i j

D m i j m i j

(1)

where m

1

(i,j) and m

2

(i,j) are elements of the two

matrices (M

1

and M

2

) compared. The population size

should be large enough. Organisms having a high

fitness function are distributed too quickly in

populations with a small size. The population

becomes homogeneous and the probability of

continuation of the evolution becomes very small.

This means that the algorithm can find the local

rather than the global maximum of F

max,

in the case

of a small population size. At the same time,

descendants produced in large populations are likely

to be more varied, although an increase in F

max

is

much slower. A population size equal to 10

4

was

used for all the results presented here. These 10

4

weight matrices were chosen so as to cover the space

20×n, as fully as possible. Each matrix M (organism)

was created by comparing the sequence S

1

with a

random sequence of length N. The random sequence

Sr

i

was obtained by mixing the original sequence S,

with i varied from 1 to 10

4

. The frequency matrix

V(20,n) was completed as follows. To elements of

the matrix v(sr(k),s

1

(k)), a value of 1 was added for

all k from 1 to N, where sr(k) is an element of the

sequence Sr

i

. Then, based on the matrix V, the

weighting matrix M(20,n) was calculated as:

( , ) ( , )

( , )

( , ) 1 ( , )

v i j Np i j

m i j

Np i j p i j

(2)

where the partial sums for lines are

( ) ( , )

j

x i v i j

and for columns are

( ) ( , )

i

y j v i j

,

,

( , )

i j

N v i j

and probabilities

2

( , ) ( ) ( )

p i j x i y j N

. If this

matrix is the first in the population, then it is

automatically included in the initial population. If

this matrix is not the first matrix, it is compared with

all the matrices (organisms) already included in the

population and the distance from each matrix was

calculated using Formula 1. If the distances are

greater than the D

0,

then the matrix is included in the

initial population. Otherwise, this matrix is rejected

and a new matrix is created. The level of D

0

was

chosen so that the initial population will have from

10

4

to 1.05×10

4

from 5×10

5

random matrices. Let us

call the population of organisms (matrices) as Q

n

.

2.2 Calculation of Fitness and

Statistical Significance of the

Organism

After the birth of a new organism (creating a new

matrix M), the first step is to assess the fitness of the

organism. This is the determination of F

max

of the

local alignment (Smith and Waterman, 1981) for

sequences S

1

and S, using a weighting matrix M. The

higher the value, F

max

corresponds to a better

alignment and to a lower probability P(F

r

>F

max

).

The fitness of the organism (chapter 2) is higher for

larger values of F

max

. In more detail, the construction

of a local alignment is discussed subsequently in

paragraph 2.6. After completion of the genetic

algorithm, an argument of the normal distribution

for the organism M

max

(which have the highest F

max

)

was calculated using the formula:

max

max

mk

F M F

Z

D F

(3)

where

1 2

max

max max max

, ,...,

N

F F F F

are the maximum

weights of the local alignments between random

sequence Sr

i

and the sequence S

1

, is determined

using the best weight matrix M

max

.

Calculation of the vector

max

F

was performed

using random sequences Sr

i

derived from the amino

acid sequence S by random mixing. In total, 200

random sequences were created (N

R

= 200). The

necessity of using values Z

mk

instead of F

max

at the

end of the calculation, is due to the fact that the

direct calculation of the probability P(F

r

>F

max

) is

difficult, because of the very large amount of

computations. Furthermore, while reducing the

probability P(F

r

>F

max

), the amount of computations

grew very quickly and for a good periodicity in the

sequence S, the calculations could not be performed

within a reasonable time. Therefore, it is convenient

to use Z

mk

as a measure of statistical significance of

F

max

for the matrix M

max

. A similar calculation was

performed for all the investigated period of length n

and the dependence Z

mk

(n), was obtained.

BIOINFORMATICS 2016 - 7th International Conference on Bioinformatics Models, Methods and Algorithms

120

2.3 Completion of the Genetic

Algorithm

Proofs that the genetic algorithm necessarily reach

the global optimum, even for an infinite number of

iterations, are currently non-existent (Mitchell,

1998). This necessitated the decision to stop the

algorithm adopted by the heuristic criteria.

Therefore, a decision was reached to use a

combination of the two most common genetic

algorithm stopping criteria (Banzhaf et al., 1998).

The evolutionary process was continued as long as

the best organism (matrix with the highest F

max

) will

not be repeated for several generations, or will limit

the number of iterations reached (10

4

). In this paper,

the resulting solution is considered as the found

global optimum. Figure 2 shows an example of the

growth of F

max

for the best organism in the

population.

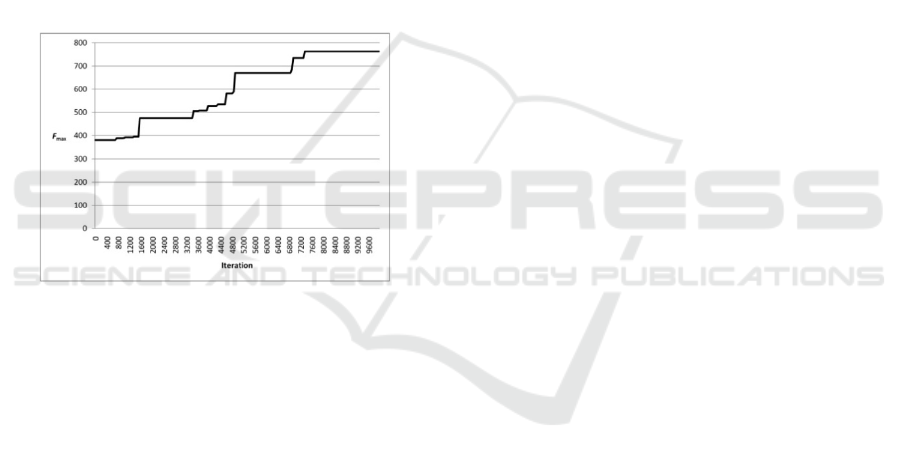

Figure 2: The graph of growth of the fitness F

max

for the

best individual in the population in the process of

evolution.

2.4 Choice of Parents in the Genetic

Algorithm

The choice of parents was made using a combination

of approaches: the elite and fitness proportionate

selection, also known as roulette-wheel selection

(Bäck, 1996). To do this, firstly, all organisms were

sorted on the degree of F

max

increase and then, 20%

of organisms with the highest F

max

, were selected.

Thereafter, two parents were selected among them

with a probability that depends on the F

max

. If

i

max

F

is the fitness of the organism i in the population,

then the probability of the organism selection is as

follows:

1

/

K

i i

i max max

k

P F F

where K is the size of the

population. It is more likely that more adapted

organisms will be selected as parents, if this

approach is used. However, for the less fit

individuals, there is still a chance of being selected

for reproduction and survival during evolution. This

is an advantage over the purely elite strategy, despite

the impracticality, an organism (weighting matrix)

can contain successful portions (successful matrix

elements). Then, these properties of the organism

can be taken up by evolution and can contribute to

the global maximum.

2.5 Reproduction of Organisms

The recombination operator was used immediately

after the selection of parents for the creation of

descendants. The essence of recombination is that

created descendants should inherit genetic

information from both parents. Then, the mutation

operator was applied for each descendant.

2.5.1 Recombination of Organisms and the

Creation of Descendants

A combination of the two-point crossover and

differential crossing was used to create descendants.

In this case, the organisms (matrix) were considered

as a linear vector. This means that the matrix rows

were built one behind the other in a line. These

vectors were then closed in a ring formed by a

compound at the ends of these vectors. Then, the

random selection of two points on the ring was

performed and the segment from one ring was used

to replace the segment of the other ring (Fogel,

1998; Fogel, 2010). Two-point crossover showed an

improvement over the single point crossover.

Further addition of crossover points impairs the

activity of the genetic algorithm as the increased

destruction of organisms and evolutionary process

slows down (Spears and De Jong, 1991; Sywerda,

1989).

Afterwards, the intermediate recombination was

used. The values of "genes" of the organism (weight

matrix elements) other than the value of the parental

"genes", occur at an intermediate recombination.

This leads to the emergence of new organisms with

fitness that could be better than that of the parents.

Such recombination operator in the literature is

sometimes called differential crossing. If

x

and

y

are two organisms in a population (two weight

matrix with elements x(i,j)

и y(i,j)), then the

descendant is calculated by the formula (Radcliffe,

1991):

ij ij ij ij

z x x y

where i=1,2,...,20,

j=1,2,...,n and

0,1

are random values with a

uniform distribution. Here, the matrix of weights

(organism) was considered as a vector. To create

Search for Latent Periodicity in Amino Acid Sequences with Insertions and Deletions

121

descendants after the two-point crossover, two

parents were involved. Then, two descendants (w

and v) were formed using Formulae 4 and 5:

( , ) ( , ) 1 ( , )

w i j x i j y i j

(4)

( , ) 1 ( , ) ( , )

v i j x i j y i j

(5)

2.5.2 Creation of Mutations

By one of two methods, mutations were introduced

in the descendants W and V. The initial method of

introducing mutations (probability for each method

was 0.5) was randomly chosen. The first method

replaced the randomly selected element of the

weight matrix on a random number that is uniformly

distributed in the range from -1 to 1. The probability

for a replacement p

1

is equal to 0.01. All elements of

all descendants exposed a random change of values.

Changes were made to the whole matrix (all its

values) on some small value, in the second method

of making mutations. The intensity of the whole

matrix mutation was determined by the probability

p

2

, which was randomly selected from the range of

0.001 to 0.03. Each descendant element

( , )

w i j

of

the matrix

W

was replaced with a new element,

calculated according to the formula:

2

( , ) ( , ) ( , )

v i j w i j p w i j

where i=1,2,...,20 and j =

1,2, ..., n. After making mutational changes, the

fitness of descendants (W and V) was evaluated, that

is, F

max

was calculated for them. The descendant

with a maximum value of F

max

was added to the

population Q

n

. Concurrently, the worst organism

with the smallest value of F

max

was removed from

the population Q

n

. This method of replacing

organisms in the population maintains the

population size.

2.6 Construction of the Alignment and

Choice of Weight for Deletion

2.6.1 Alignment of Amino Acid Sequence

using the Random Matrices

A local alignment of sequences S

1

and S was

conducted using the weight matrices (organisms)

and affine function penalty for insertions and

deletions, to search F

max

and the matrix M

0

(Durbin

et al., 1998). To construct the alignment, the

matrices for similarity functions F, F

1

and F

2

were

filled for each matrix M from the population (set

Q

n

). Matrix M changed and turned into a matrix M'.

1

1

2

1

1

2

2

0

( 1, 1) '( ( ), ( ))

( , ) max

( 1, 1)

( 1, 1)

( 1, )

( , ) max

( 1, )

( , 1)

( , ) max

( , 1)

F i j m s i s j

F i j

F i j d

F i j d

F i j d

F i j

F i j e

F i j d

F i j

F i j e

(6)

where s

1

(i) and s(i) are letters from the sequences S

1

and S, d is the price for opening insertion or deletion

in the sequences S

1

and S, e is the price for the

continued insertion or deletion in the sequences S

1

and S. Here, i and j changed from 1 to N. The

matrices F, F

1

and F

2

have a dimension equal to

N×N, where N is the length of sequences S

1

and S.

F

max

was selected as the maximum element of the

matrix F. The coordinates of this element are i

m

and

j

m

.

Simultaneously, by calculating the matrixes F, F

1

and F

2

inverse transition matrix F' (same dimensions

as the matrix F) were also filled. Each element of the

matrix F’(i,j) contains the number of the matrix (1

for F, 2 for F

1

and 3 for F

2

) and the number of

element of the matrix F or F

1

or F

2

, which has a

maximum value in Formula 6. Using the inverse

transition matrix F’, the alignment of the sequences

S

1

and S was built. The path in the matrix F’ from

the point (i

m

, j

m

) to the point (i

0

, j

0

), corresponds to

the created alignment. At the first instance, the point

(i

0

, j

0

) F’ is equal to zero and serves as the beginning

of the alignment. The matrix M (organisms) from the

set Q

n

(population) was used to create the alignment

of sequences S

1

and S. For every matrix M from the

set Q

n

, the values R and K

d

were calculated before

carrying out the alignment as:

20

2 2

1 1

( , )

n

i j

R m i j

(7)

20

1 1

( , ) ( ) ( )

n

d

i j

K m i j f i t j

(8)

where f(i)=b(i)/N, b(i) is the number of amino acids

of type i in the sequence S, t(j)=1/n, N is the total

number of amino acids in the sequence S. For

calculation of the alignment, a changed matrix

'

M

has to satisfy two conditions. The first condition is

that R for the matrix

'

M

with the same period length

n would be identical and equal to 5(20n)

1/2

. The

dependence R~n

1/2

allows a similar distribution for

F

max

to be obtained, for a study of the different

BIOINFORMATICS 2016 - 7th International Conference on Bioinformatics Models, Methods and Algorithms

122

random sequences Sr

i

. These random sequences

were obtained by mixing the original sequence S.

The second condition is that the distribution

functions for F

max

for each matrix from the set Q

n

should be close to each other. Such a distribution

function can be determined for each matrix from the

set Q

n,

if this matrix is used to calculate the

alignments of the sequence S with each random

sequence from the set Sr

i

. K

d

was selected for each

matrix from the set Q

n

which would provide

maximum identity

l

(see below this paragraph).

The above two conditions enabled the

replacement of the matrix M by the matrix that

satisfies Equations 7 and 8. Equation 7 is the

equation of the sphere in space 20×n and Equation 8

is an equation of the plane. If the matrix satisfies

these conditions, then it lies on the circle C formed

by the intersection of the sphere (Equation 7) by the

plane (Equation 8). Matrix M was considered as a

point in space 20×n and from this point, the nearest

point was taken which lies on the circle C. The

coordinates of this point are the desired matrix

'

M

.

It is possible to use Equations 7 and 8 and to

calculate the matrix

'

M

. Actually, it means that if

we have the constant R, K

d

, matrix M and calculate

f(i) for the sequence S, then the matrix

'

M

(if there

is the circle C) can be clearly defined. Matrix M’ is

used in Equation 6.

The next task was to choose the constant K

d

for

each matrix from the set Q

n

, which would provide

the maximum identity of the distribution function of

the F

max

. The average length of a random alignment

l

for each matrix from the Qn set, as the average

for difference (j

m

-j

0

) along with the calculation of the

distribution function of the F

max

. Here, j

m

is the

coordinate of F

max

in sequence S, j

0

is the coordinate

where F=0.0 in the calculation of the alignment

(coordinate of the beginning of the alignment in the

sequence S). The average length of the random

alignment chosen is equal to N/5. This value

provides the best determination of the alignment

boundaries with respect to the actual boundaries for

the model sequences of length N. As model

sequences, random sequences were selected for the

insertion of a local alignment with periodicity for

which Z> 10.0 (Korotkov et al,. 2003a) and length is

from N/10 to N/2.

The constant K

d

was selected iteratively. K

d

provides

l

to be approximately N/5 and obviously

lies in the range from K

1

=0 to K

2

=-20. Then, the

middle of this interval was taken. If

l

was more

than N/5, then K

1

=(K

1

+K

2

)/2 is calculated and if

l

is

less than N/5, K

2

=(K

1

+K

2

)/2 is calculated and the

process was repeated. Upon reaching the value

l

=N/5±20, selection of the constant K

d

stopped.

Random sequences were created by the

following algorithms. A number sequence was

generated using a random number generator of the

same length as the amino acid sequence. Thereafter,

the sequence of random numbers was arranged in

ascending order and the permutations made were

memorized. These changes were applied to the

amino acid sequence. Random amino acid sequences

of good quality were created by this algorithm.

2.6.2 Weights of the Deletions and Other

Constants

The constant d for each period n was determined

separately. The constant e was selected as 0.25d. A

total of 100 test sequences were analyzed which

were created for the period n as follows. Artificial

sequences were created with length equal to 1000

amino acids and contained a period n. The statistical

significance of this periodicity Z(n) defined by the

information decomposition method is equal to 7.0

(Korotkov et al., 2003a). Insertions or deletions were

introduced into the sequence randomly for every 50

amino acids. A constant d was chosen which

provides the greatest value Z

mk

by using Formula 3.

This value was applied for alignments using

weighting matrices from the set Q

n

.

2.7 Selection of the Threshold Z

0

Initially, Z

0

was estimated as the threshold for Z

mk

(n)

to cut the influence of statistical noise. The method

of this study was used to analyze 300 amino acid

sequences. Therefore, the estimation of Z

0

for 300

random amino acid sequences was done. The

sequence had a length equal to 600 amino acids and

a period equal to 19 amino acids with 1.5 random

changes per amino acid. To create the mutation,

random positions were chosen in the sequence.

Then, we changed the amino acid in a selected

position that was randomly chosen (with probability

which is equal for all amino acids). This was done

900 times for each sequence. From 4 to 15 inserts

having the length, one amino acid was added in each

sequence at random locations. This set was called

Q

19

. The ability of the developed approach to detect

periodicity in a multitude Q

19

was tested. The results

showed that periodicity can be detected in 93% of

cases. We believe it is possible to achieve 100%

result, but the number of iterations should be

increased to approximately 10

5

(see paragraph 2.3).

Then, these 300 sequences were analyzed and

Search for Latent Periodicity in Amino Acid Sequences with Insertions and Deletions

123

Z

mk

(19) was calculated for each of them. Next, these

300 sequences were shuffled and a random sequence

was obtained. Then, the random sequences were

analyzed and a set of values Z

mk

(19) were obtained.

Then, Z

0

equal to 10.0 was chosen since

N

random

(10.0)/N

real

(10.0) < 5%. It means that the

number of errors of the first kind is less than 0.05.

Therefore, N

random

(10.0) shows a number of

R

mk

Z

(19)

with values equal to or more than 10.0; N

real

(10.0)

indicates the number of Z

mk

(19) equal to or greater

than 10.0. The level of 10.0 was chosen for all n.

The computational complexity of the algorithm is

the reason why only 300 amino acid sequences were

analyzed. An analysis of 300 sequences required

about 6 months of calculations on a computer cluster

with 10 AMD FX-8350 processors. Therefore, the

task of analyzing the entire Swiss-prot database was

not done, because it would require a lot of computer

resources. The intention of the authors was to show

that periodicity exists in amino acid sequences with

many substitutions as well as where there are amino

acid insertions and deletions. This periodicity can be

detected by the approach developed in this study,

despite being combined with other methods. The

300 amino acid sequences are enough to solve this

problem.

3 EXAMPLES OF AMINO ACID

SEQUENCES

In total, 300 amino acid sequences randomly

selected from the Swiss-prot data bank (Boeckmann

et al., 2003) were studied. In the process of

selection, any sequence having already known

amino acid repeats or repetitive domains (Kajava,

2012) were excluded from the set. As a result, 71

sequences were detected by our algorithm (any

Z(n)>10.0) of having regions with the periodicity of

various lengths. Lengths of regions with periodicity

are more than 40 amino acids and number of periods

is more than 3. Three typical examples of sequences

having insertions and deletions were considered and

were found to have latent periodicity.

Figure 4 shows a second example of the

spectrum Z(n) for the sequence Q1D823 (Yang et

al., 2004), which contains the adventurous-gliding

motility protein. The region from 35 to 1373 amino

acids contains periodicity with length equal to 7

amino acids, which can be revealed with deletions

and insertions only. The Z(7) of this region has a

maximum value for all period lengths and is equal to

15.6. This region contains 4 extended coiled coil

regions. Alignment containing 20 deletions and

insertions of different lengths, that is, the average

length between the insertions and deletions is about

67 amino acids. Periodicity equal to 7 amino acids is

typical for the coiled coil regions. This periodicity

has the form HPPHCPC, where the positions of the

period is referred to as abcdefg. Here, H represents

hydrophobic residues, C represents typically charged

residues, and P represents polar (and therefore,

hydrophilic) residues. The positions of the heptad

repeat are commonly denoted by the lowercase

letters a through g. These motifs are the basis for

most coiled coils, particularly leucine zippers, which

have predominantly leucine in the d position of the

heptad repeat. The periodicity observed in sequence

Q1D823, is different from the periodicity specific

for the coiled coil. It can be assumed that there are

different heptad repeats, capable of forming a coiled

coil. It is also likely that such a difference is due to

insertions or deletions of amino acids. The findings

of the present work indicate that the resulting matrix

probably can be used to locate regions with long

coiled coils.

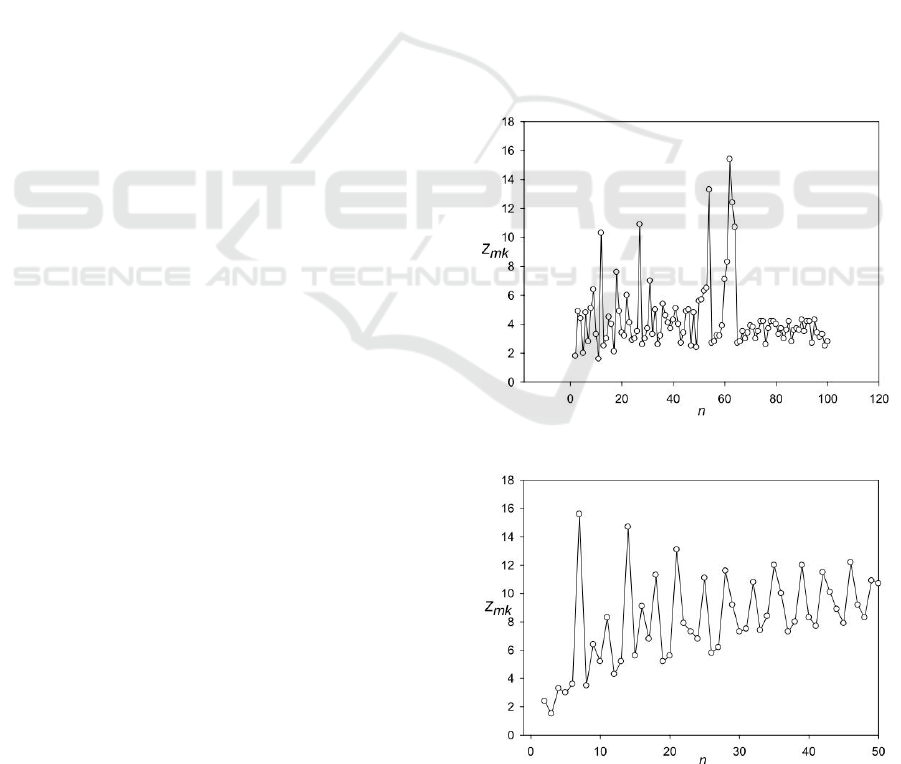

Figure 3: Spectrum Z(n) for the sequence O42918.

Figure 4: Spectrum Z(n) for the sequence Q1D823.

BIOINFORMATICS 2016 - 7th International Conference on Bioinformatics Models, Methods and Algorithms

124

Figure 5 shows the Z(n) for the amino acid sequence

P48681 (Dahlstrand et al., 1992) in a region from

182 to 1248 amino acids. The period which is equal

to 11 amino acids is clearly visible. The periods of

22 and 33 amino acids are induced by the main

period which equals 11 amino acids. The sequence

with periodicity includes some coil regions and tail.

The periodicity was discovered only in the presence

of 24 amino acid insertions or deletions of various

lengths. In the absence of insertions and deletions,

this periodicity is not detectable.

We analyzed 71 amino sequences by the

programs REP (Andrade et al., 2000), Internal

Repeat Finder (Marcotte et al., 1999), Prospero

(Mott, 1999), RADAR (Heger & Holm, 2000),

REPRO (Heringa & Argos 1993), TRUST

(Szklarczyk & Heringa 2004) and PTRStalker

(Pellegrini et al., 2012). These programs found

periodicity in these sequences, if Z is more than

18.2. If Z lies in the interval from 18.2 to 15.5, these

programs found only ~34% of our results. Also, if

10.0<Z<15.5, then these methods found nothing.

Totally, these methods found 6 regions with latent

periodicity from 71 which was found in this work.

As is written above (see paragraph 1), it is the

consequence of using pairwise alignments between

periods for the detection of latent periodicity

(number of periods is more than 3).

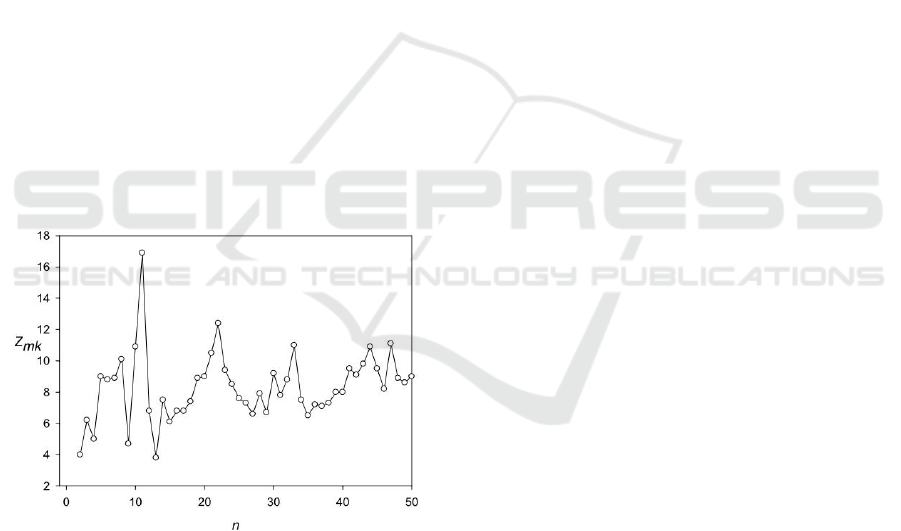

Figure 5: Spectrum Z(n) for the sequence P48681.

The question arises about the role of the observed

periodicity in the structure and functions of proteins.

Two assumptions were put forward about the

functional role of the detected periodicity. Firstly,

the periodicity found could be some property which

provides a certain secondary structure (Jernigan and

Bordenstein, 2015). This assumption has been

expressed for the amino acid repeats, which were

found earlier (Jorda et al., 2010; Kajava, 2012). In

this study, there are periods of length 6 and 7 amino

acids which may participate in the formation of α-

helixes. Secondly, the periodicity found may reflect

a certain spatial repeatability of protein parts

belonging to 3D structures. For known repeats, this

can be observed for the Zn-finger domains (Lee et

al., 1989), Ig-domains (Sawaya et al., 2008) and the

human matrix metalloproteinase (Elkins et al.,

2002). In the work of Kajava (2012), "the structural

classification of the repetitive proteins based on the

length of their repeats" provides additional

information.

The origin of multiple tandem repeats in proteins

can be associated with the processes of multiple

tandem duplications in DNA (De Grassi and

Ciccarelli, 2009). It may come to the formation of

new proteins (Björklund et al., 2006). Further

evolution and accumulation of mutations (amino

acid substitutions, deletions and insertions) could

lead to the creation of latent periodicity with many

amino acid substitutions, insertions and deletions.

Periodicity was detected in the present work.

In the future, the computation time for this

algorithm can be reduced and all known amino acid

sequences accumulated in the Swiss-prot database

will be analyzed again. Increase in performance is

possible due to the use of other methods instead of a

genetic algorithm for optimization of the weight

matrix M or application for calculations using large

computing clusters.

ACKNOWLEDGEMENTS

This work was supported by the grant 2014-04-

00164 of the Russian Fund of Fundamental

Research.

REFERENCES

Almirantis, Y. et al., 2014. Editorial: Complexity in

genomes. Computational biology and chemistry, 53 Pt

A, pp.1–4.

Altschul, S.F. et al., 1990. Basic local alignment search

tool. Journal of molecular biology, 215(3), pp.403–

410.

Andrade, M. a et al., 2000. Homology-based method for

identification of protein repeats using statistical

significance estimates. Journal of molecular biology,

298(3), pp.521–537.

Bäck, T., 1996. Evolutionary Algorithms in Theory and

Practice: Evolution Strategies, Evolutionary

Programming, Genetic Algorithms, Oxford University

Press.

Search for Latent Periodicity in Amino Acid Sequences with Insertions and Deletions

125

Banzhaf, W. et al., 1998. Genetic programming: an

introduction: on the automatic evolution of computer

programs and its applications.

Biegert, a & Söding, J., 2008. De novo identification of

highly diverged protein repeats by probabilistic

consistency. Bioinformatics (Oxford, England), 24(6),

pp.807–14.

Björklund, A.K., Ekman, D. & Elofsson, A., 2006.

Expansion of protein domain repeats. PLoS

computational biology, 2(8), p.e114.

Boeckmann, B. et al., 2003. The SWISS-PROT protein

knowledgebase and its supplement TrEMBL in 2003.

Nucleic acids research, 31(1), pp.365–370.

Custer, M. et al., 1997. Identification of a new gene

product (diphor-1) regulated by dietary phosphate. The

American journal of physiology, 273(5 Pt 2), pp.F801–

F806.

Dahlstrand, J. et al., 1992. Characterization of the human

nestin gene reveals a close evolutionary relationship to

neurofilaments. Journal of cell science, 103 ( Pt 2,

pp.589–97.

Durbin, R. et al., 1998. Biological Sequence Analysis:

Probabilistic Models of Proteins and Nucleic Acids,

Cambridge University Press.

Ekblom, R. & Wolf, J.B.W., 2014. A field guide to whole-

genome sequencing, assembly and annotation.

Evolutionary Applications, 7(9), pp.1026–1042.

Elkins, P.A. et al., 2002. Structure of the C-terminally

truncated human ProMMP9, a gelatin-binding matrix

metalloproteinase. Acta crystallographica. Section D,

Biological crystallography, 58(Pt 7), pp.1182–92.

Fogel, D.B., 2010. EVOLUTIONARY COMPUTATION

Toward a New Philosophy of Machine Intelligence,

Fogel, D.B., 1998. Evolutionary Computation: The Fossil

Record.

Gondro, C. & Kinghorn, B.P., 2007. A simple genetic

algorithm for multiple sequence alignment. Genetics

and molecular research : GMR, 6(4), pp.964–82.

De Grassi, A. & Ciccarelli, F.D., 2009. Tandem repeats

modify the structure of human genes hosted in

segmental duplications. Genome biology, 10(12),

p.R137.

Heger, A. & Holm, L., 2000. Rapid automatic detection

and alignment of repeats in protein sequences.

Proteins: Structure, Function and Genetics, 41(2),

pp.224–237.

Heringa, J. & Argos, P., 1993. A method to recognize

distant repeats in protein sequences. Proteins, 17(4),

pp.391–41.

Jernigan, K.K. & Bordenstein, S.R., 2015. Tandem-repeat

protein domains across the tree of life. PeerJ, 3,

p.e732.

Jorda, J. et al., 2010. Protein tandem repeats - the more

perfect, the less structured. The FEBS journal,

277(12), pp.2673–82.

Jorda, J. & Kajava, A. V, 2009. T-REKS: identification of

Tandem REpeats in sequences with a K-meanS based

algorithm. Bioinformatics (Oxford, England), 25(20),

pp.2632–8.

Kajava, A. V, 2012. Tandem repeats in proteins: from

sequence to structure. Journal of structural biology,

179(3), pp.279–88.

Korotkov, E.V., Korotkova, M.A. & Kudryashov, N.A.,

2003. The informational concept of searching for

periodicity in symbol sequences. Molekuliarnaia

Biologiia, 37(3), pp.436–451.

Korotkov, Korotkova & Kudryashov, 2003. Information

decomposition method to analyze symbolical

sequences. Physics Letters, Section A: General,

Atomic and Solid State Physics, 312(3-4), pp.198–210.

Kravatskaya, G.I. et al., 2011. Coexistence of different

base periodicities in prokaryotic genomes as related to

DNA curvature, supercoiling, and transcription.

Genomics, 98(3), pp.223–231.

Kumar, L., Futschik, M. & Herzel, H., 2006. DNA motifs

and sequence periodicities. In silico biology, 6(1-2),

pp.71–8.

Lee, M.S. et al., 1989. Three-dimensional solution

structure of a single zinc finger DNA-binding domain.

Science (New York, N.Y.), 245(4918), pp.635–7.

Lobzin, V. V. & Chechetkin, V.R., 2000. Order and

correlations in genomic DNA sequences. The spectral

approach. Uspekhi Fizicheskih Nauk, 170(1), p.57.

Marcotte, E.M. et al., 1999. A census of protein repeats.

Journal of molecular biology, 293(1), pp.151–160.

Meng, T. et al., 2013. Wavelet analysis in current cancer

genome research: a survey. IEEE/ACM transactions

on computational biology and bioinformatics / IEEE,

ACM, 10(6), pp.1442–59.

Mitchell, M., 1998. An Introduction to Genetic

Algorithms.

Mott, R., 1999. Local sequence alignments with

monotonic gap penalties. Bioinformatics (Oxford,

England), 15(6), pp.455–62.

Newman, A.M. & Cooper, J.B., 2007. XSTREAM: a

practical algorithm for identification and architecture

modeling of tandem repeats in protein sequences.

BMC bioinformatics, 8, p.382.

Palidwor, G.A. et al., 2009. Detection of alpha-rod protein

repeats using a neural network and application to

huntingtin. PLoS computational biology, 5(3),

p.e1000304.

Pellegrini, M., 2015. Tandem Repeats in Proteins:

Prediction Algorithms and Biological Role. Frontiers

in bioengineering and biotechnology, 3, p.143.

Pellegrini, M., Renda, M.E. & Vecchio, A., 2012. Ab

initio detection of fuzzy amino acid tandem repeats in

protein sequences. BMC Bioinformatics, 13, p.S8.

Radcliffe, N.J., 1991. Equivalence Class Analysis of

Genetic Algorithms. Complex Systems, 5(2), pp.183–

205.

Rubinson, E.H. & Eichman, B.F., 2012. Nucleic acid

recognition by tandem helical repeats. Current opinion

in structural biology, 22(1), pp.101–9.

Sawaya, M.R. et al., 2008. A double S shape provides the

structural basis for the extraordinary binding

specificity of Dscam isoforms. Cell, 134(6), pp.1007–

18.

BIOINFORMATICS 2016 - 7th International Conference on Bioinformatics Models, Methods and Algorithms

126

Shelenkov, A., Skryabin, K. & Korotkov, E., 2006. Search

and classification of potential minisatellite sequences

from bacterial genomes. DNA research : an

international journal for rapid publication of reports

on genes and genomes, 13(3), pp.89–102.

Smith, T.F. & Waterman, M.S., 1981. Identification of

common molecular subsequences. Journal of

Molecular Biology, 147, pp.195–197.

Söding, J., Remmert, M. & Biegert, A., 2006. HHrep: de

novo protein repeat detection and the origin of TIM

barrels. Nucleic acids research, 34(Web Server issue),

pp.W137–42.

Sosa, D. et al., 2013. Periodic distribution of a putative

nucleosome positioning motif in human, nonhuman

primates, and archaea: mutual information analysis.

International journal of genomics, 2013, p.963956.

de Sousa Vieira, M., 1999. Statistics of DNA sequences: a

low-frequency analysis. Physical review. E, Statistical

physics, plasmas, fluids, and related interdisciplinary

topics, 60(5 Pt B), pp.5932–5937.

Spears, W.M. & De Jong, K.D., 1991. On the Virtues of

Parameterized Uniform Crossover,. Proceedings of the

Fourth International Conference on Genetic

Algorithms, Morgan Kaufmann Publishers Inc. San

Francisco, CA, USA, pp.230–236.

Suvorova, Y.M., Korotkova, M.A. & Korotkov, E. V,

2014. Comparative analysis of periodicity search

methods in DNA sequences. Computational biology

and chemistry, 53 Pt A, pp.43–48.

Sywerda, G., 1989. Uniform crossover in genetic

algorithms. Proceedings of the third international

conference on Genetic algorithms, Morgan Kaufmann

Publishers Inc. San Francisco, CA, USA ©1989, pp.2–

9.

Szklarczyk, R. & Heringa, J., 2004. Tracking repeats using

significance and transitivity. Bioinformatics (Oxford,

England), 20 Suppl 1, pp.i311–7.

Tiwari, S. et al., 1997. Prediction of probable genes by

Fourier analysis of genomic sequences. Computer

applications in the biosciences CABIOS, 13(3),

pp.263–270.

Turutina, V.P. et al., 2006. Identification of Amino Acid

Latent Periodicity within 94 Protein Families. Journal

of Computational Biology, 13(4), pp.946–964.

Yang, R. et al., 2004. AglZ is a filament-forming coiled-

coil protein required for adventurous gliding motility

of Myxococcus xanthus. Journal of bacteriology,

186(18), pp.6168–78.

Search for Latent Periodicity in Amino Acid Sequences with Insertions and Deletions

127
