Modelling of Quantum Key Distribution Protocols in Communicating

Quantum Processes Language with Veriﬁcation and Analysis in PRISM

Satya Kuppam

University of Massachusetts, Amherst, U.S.A.

Keywords:

PRISM, Modelling, Analysis, Veriﬁcation, Quantum Cryptography, Communicating Quantum Processes,

π-calculus.

Abstract:

Proof of security of cryptography protocols theoretically establishes the strength of a protocol and the con-

straints under which it can perform, it does not take into account the overall design of the protocol. In the past

model checking has been successfully applied to classical cryptography protocols to weed out design ﬂaws

which would have otherwise gone unnoticed. Quantum key distribution protocols differ from their classical

counterparts, in their ability to detect the presence of an eavesdropper while exchanging the key. Although

unconditional security has been proven for both BB84(Mayers, 2002) and B92(Quan and Chaojing, 2002) key

distribution protocols, in this paper we show that identifying an eavesdropper’s presence is constrained on the

number of qubits exchanged. We ﬁrst model the protocols in Communicating Quantum Processes (CQP)(Gay

and Nagarajan, 2005)(Davidson, 2012) and then explain the mechanism by which we have translated this into

a PRISM model and how we analysed the protocols’ capabilities. We mainly focus on the protocols’ ability

to detect an active eavesdropper and the extent to which an eavesdropper can retrieve the shared key without

being detected by either party. We then conclude by comparing the performance of the protocols.

1 INTRODUCTION

Quantum cryptographic protocols have garnered

much acclaim in the last two decades for their ability

to provide unconditional security, which is not prac-

tically assured by their classical counterparts. Com-

mercial availability of quantum infrastructure in the

last decade has placed even more emphasis on de-

veloping methodologies to ascertain the reliability of

protocols in practice. Even though, protocols are the-

oretically secure, our experience with classical proto-

cols has shown that security can be compromised dur-

ing implementation. Since modelling, analysing and

verifying classical protocols have worked so well, de-

veloping techniques along these lines seems prudent

for quantum cryptography protocols as well.

The cornerstone of quantum cryptography proto-

cols is the inherent probabilistic nature. Unlike classi-

cal key distribution protocols (KD) which accommo-

dates a passive eavesdropper, wherein the eavesdrop-

per can copy the bits and analyse them later, quantum

key-distribution protocols (QKD) mandate an active

eavesdropper. This constraint is promulgated by the

no-cloning(Bu

zek and Hillery, 1996) theorem which

handicaps the eavesdropper from copying qubits. In

trying to extract the bit value from the qubit the eaves-

dropper will make some ’measurements’ which will

’corrupt’ the qubits and make her presence known to

parties trying to establish a key (section 2). More-

over, quantum protocols also involve both classical

and quantum channels. Therefore we need a lan-

guage that is capable of modelling probabilistic phe-

nomenon and also takes into account both classical

and quantum communications.

Communicating Quantum Processes (CQP)(Gay

and Nagarajan, 2005) is a language developed with

the expert purpose of modelling quantum proto-

cols. CQP uses the communication primitives of pi-

calculus(Milner, 1999) and has capabilities for apply-

ing unitary operators, performing measurements, and

a static type system that differentiates between classi-

cal and quantum communications. Hence CQP seems

an obvious choice for modelling quantum protocols.

PRISM allows us to model probabilistic transitions,

as we show later, this allows to seamlessly translate a

CQP model into a PRISM model.

Previous work on analysis of BB84 by Papaniko-

laou (Gay et al., 2005) has reasoned about the prob-

ability of detecting an eavesdropper and corroborates

the claim made by Mayers in his proof of uncondi-

Kuppam, S.

Modelling of Quantum Key Distribution Protocols in Communicating Quantum Processes Language with Veriﬁcation and Analysis in PRISM.

DOI: 10.5220/0006834500750082

In Proceedings of 8th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2018), pages 75-82

ISBN: 978-989-758-323-0

tional security of BB84. However, this work does not

model BB84 in CQP. We ﬁrst model BB84 in CQP,

convert the CQP model into PRSIM and check the va-

lidity of the observations made by Papanikolaou(Gay

et al., 2005). We then proceed to show that B92’s

eavesdropping detection capabilities can be reasoned

along the same lines.

To ensure brevity we have refrained from explain-

ing Quantum Mechanical primitives like unitary op-

erators, measurements and no-cloning theorem. One

good resource is Nielsen and Chuang’s work(Nielsen

and Chuang, 2010). Also, we have only provided

an elementary introduction to CQP, only to the ex-

tent to which we use it in this paper. A better and

comprehensive resource would be Thimothy David-

son’s(Davidson, 2012) doctoral thesis.

2 PRELIMINARIES

The quantum counterparts of the classical bits are

called ’qubits’. We can consider bits as being voltages

with a high voltage representing a ’1’ bit and a low

voltage representing a ’0’ bit or vice-versa. Qubits on

the other hand represent some quantum mechanical

property of a photon, atom or a subatomic particle.

For example one can say that in a hydrogen atom if

the electron is in the ground state then it encodes a ’0’

bit, but if it is in an excited state it encodes a ’1’ bit. It

is not necessary that the electron has to reside in either

of these two states, it can also reside in a superposi-

tion of the ground state and the excited state. One can

perform a ’quantum measurement’ to determine if the

electron is present in the ground state or the excited

state.

2.1 Quantum Measurement

It is inherent with any quantum mechanical system

that any measurement done on the system will in-

duce some irreversible disturbances. We are going to

rely on this property of qubits heavily in any quantum

cryptographic protocols. Any quantum system can be

represented as a vector in an n dimensional complex

Hilbert space. Measuring this quantum system can

only give a set of priviliged results namely those as-

sociated with the basis vectors of the state space.

For example, consider a 2-dimensional complex

Hilbert space with

and

as basis vectors. Lets

say the vector

= α

+ β

describes the sys-

tem where α, β ∈ C. If we try to measure the system

in the basis {0,1}, then the system changes to a new

state, either

permanently. It

has a probability |α|

of changing into

and

a probability |β|

of changing into

. Also,

|α|

+ |β|

= 1. We can also measure the system in

whichever basis that we choose. Lets measure the sys-

tem in another basis {+,−}, where

√

(

and

−

√

(

−

, then

the quantum state can be represented as

(α+β)

√

(

) +

(α−β)

√

(

−

Measuring this system in the basis {+, −} will yield

and

−

with probability

(α+β)

and

(α−β)

re-

spectively.

2.2 BB84 QKD Protocol

A and B want to establish a secret for secure com-

munication. A sends the encoding of some bits in the

+,×basis to B on the quantum channel. The +basis is

called the rectilinear basis and the ×basis is called the

diagonal basis. B then chooses a random sequences of

bases and measures the qubit sent by A in that basis.

If the basis of Alice and Bob are equal then the B ob-

tains the classical bit chosen by Alice other wise she

randomly gets {0,1}. A and B then use the classical

channel to exchange some of the basis from the ran-

dom sequence and the corresponding measurements

of qubits to decide upon a shared key or to detect the

presence of an eavesdropper.

2.3 B92 QKD Protocol

Unlike BB84 where each classical bit has two differ-

ent encoding depending on the basis used, B92 has

only one. In other words there is a one to one cor-

respondence between the classical bits and qubits ex-

changed. If Alice wants to send a classical bit 0 to

Bob she sends →and if she wants to send 1 she sends

%. The rest of the steps involved are the same as in

BB84.

2.4 Eavesdropping Attacker

As mentioned earlier, whenever Eve measures the

qubits that are in transit to Bob from Alice, she

makes a permanent change to the state of qubits if she

doesn’t use the same basis as that of Alice. In BB84

protocol if on some qubits both Alice and Bob use the

same basis to encode and measure but Bob decodes

a classical bit different from what Alice encoded,

suggests the presence of Eve. In B92 as well, Al-

ice and Bob should obtain the opposite results when

the encoding basis is the same, then an attacker is

present. We are assuming the qubit channel shared

by all the participants noiseless. The eavesdropping

SIMULTECH 2018 - 8th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

attacker has two capabilities, ﬁrst of those is random-

substitution wherein the attacker’s main aim is to dis-

rupt the key exchange process by randomly dropping

qubits and introducing new ones and the second is

called intercept-resend wherein the attacker takes a

qubit makes an observation and re-sends the qubit to

the intended destination. In this type of attack the

main motive is to gain information about the key be-

ing exchanged. We analyse how the protocols per-

form in both these settings.

3 FORMALISING IN CQP

A brief overview of CQP calculus is provided and

then we proceed to formalise both the protocols in

CQP. An example of BB84-Bit Commitment Proto-

col in CQP(Gay and Nagarajan, 2005) was given by

Simon and Gay and our formalisation uses the same

techniques.

A protocol at any given point of time has mul-

tiple participants, like Alice and Bob which are le-

gitimate entities involved and also adversaries like

Eve. These entities are collectively known as agents.

Agents communicate with each other via communi-

cation channels to exchange information. The work-

ing of the agents is encapsulated by processes. Every

agent has more than one process, and at any given

time its possible that more than one process is in ac-

tion. These processes can be reasonably thought of as

states in ﬁnite state automata and every process tran-

sitions to another or terminates. CQP allows us to

impose a probabilistic distribution across these tran-

sitions. Also processes in CQP can be parameterised.

1. channels are declared by the new keyword.

For example to declare a new qubit channel, we

write (new qubitChannel:ˆ[Qbit]), where Qbit is

the data type qubitChannel is constrained to and

’ˆ’ identiﬁes it as a channel.

2. variables can be declared within a process like so,

(qbit q).

3. Process Output: c![x].P

i+1

to send the data stored

by variable x along channel c and then proceed

with process P

i+1

4. Process Input: c?[x].P

i+1

to receive along channel

c and then proceed with process P

i+1

5. Process action: e.P

i+1

evaluates expression e and

then proceeds with process P

i+1

6. Process decision: if e thenP

i+1

elseP

i+2

if the

expression e evaluates to true then proceed with

process P

i+1

else P

i+2

7. Terminate: P

.0 the process terminates after P

3.1 Formalising BB84

We identify that Alice, Bob are the primary agents of

the protocol and to analyse the effects of an eaves-

dropper, Eve becomes an agent of the system as well.

As described above channels can only transport mes-

sages of a particular type. We have qubitChannel

to transport qubits, intChannel for integers and deci-

sionChannel, decisionFlagChannel, randomBitChan-

nel for bits. Technically one bit channel would suf-

ﬁce.

However having two different channels that are

used at two different stages in the protocol helps us to

convert the CQP-model into PRISM as will be elab-

orated in the next section. We have also made use of

List type, with its associated functions of hd, tl, [] and

@ for reading the ﬁrst element, dropping the ﬁrst ele-

ment, an empty list and placing data at the tail of the

list respectively. The use of these functions is demon-

strated by Gay et al.(Gay and Nagarajan, 2005).

• System is parameterised by a bitList, which consti-

tutes the classical bits that need to be exchanged

between Alice and Bob Random agent creates a

random bit and sends it via the radomBitChannel

Alice ﬁrst sends the length of the number of bits

to be exchanged with Bob, i.e the length of bitList.

Upon sending the length of the bit list, Alice con-

tinues with the process AliceSend. This is a recur-

sive process which terminates after sending all the

bits in bitList. AliceSend ﬁrst receives a random

bit from randomBitChannel, if the value received

is equal to zero then the qubit q is encoded in the

rectilinear basis else it is encoded in the diagonal

basis. (qubit q) creates a new qubit q initialised to

. Hence an operation of X on q to create

and X or X,H to convert it into

and

−

re-

spectively. AliceSend then sends the qubit q via

qubitChannel to be received by Bob. The random

bits are stored in encodeBitList to be used later

when both the entities decide upon the key.

• Bob receives the length of the bitList and then con-

tinues with BobReceive process. Like AliceSend,

this is a recursive process which terminates after

receiving all the bits. BobReceive then uses a ran-

dom bit from randomBitChannel, if this bit is zero

then Bob measures the received qubit in the recti-

linear basis else in the diagonal basis. We used a

list that stores a couplet, where we store the ran-

dom bit and the corresponding measurement.

• After exchanging the qubits, Alice and Bob con-

tinue with AliceReveal and BobFinal respectively.

AliceReveal sends the basis that she used for en-

coding via the decisionBitChannel. BobFinal upon

Modelling of Quantum Key Distribution Protocols in Communicating Quantum Processes Language with Veriﬁcation and Analysis in

PRISM

receiving this basis elements checks whether the

basis he measured in the same as of that of Alice in

which case, he sends an acknowledgement via de-

cisionFlagChannel to Alice and the corresponding

bit he measured. Alice checks if the measurement

that Bob made is the same as that of the intended

bit. Since we are dealing with channels without

any noise, if the measurement Bob made does not

match, Alice straight away conﬁrms the presence

of an attacker and sends an eveDetect ﬂag to Bob.

3.2 Formalising B92

Since B92 and BB84 only differ in how they encode

the qubits, we can modify the CQP formalisation of

BB84 for B92. AliceSend does not encode the qubit

in a random basis. If the bitList element is equal to

zero then she sends

else if the element in equal to

one then

is exchanged. With few modiﬁcations to

AliceSend in BB84, we can adopt it model B92.

4 MODELLING AND ANALYSIS

IN PRISM

Conversion from CQP to PRISM is a step by step

process. This conversion for a subset of commands

has been done by Ware in his Master’s thesis(Ware,

2008). We are going to use the same procedure. In

the previous section we have mentioned that we have

used List type. Unfortunately a parallel for this type

does not exist for PRISM. To overcome this handicap

we will have to modify the model, in both the proto-

cols the public discussion starts after both the parties

have exchanged all the qubits. Instead in the PRISM

model after every qubit exchange, both the parties

proceed to exchange the encoding basis and measured

bit to establish the validity of the qubit. This way we

can ensure that the original characteristics of the pro-

tocol remain intact.

• all the channels in the CQP model are deﬁned as

global variables in the PRISM model.

• the PRISM model constitutes of three modules

representing the different agents in the CQP mod-

elling

• on the qbitChannel the messages to be exchanged

are limited to [0..3] with 0 representing

, 1 for

, 2 for

and 3 for

−

• when Eve is detected, both Alice and Bob cease

to exchange any more qubits and reach their end

state.

• like in the CQP model we do not create a module

for Random, rather all the parties create their own

random bits either zero or one with equal proba-

bility.

• after choosing a random basis to measure in there

is a one-fourth probability of any of the four out-

comes.

• the number of bits to be exchanged is set by N the

global variable. We check the properties of the

model by varying the value of N. Alice and Bob it-

erate constrained by the value N and are synchro-

nised by the label loop.

• Alice and Bob modules terminate either after ex-

changing N qubits or after detecting Eve and are

synchronised by stop.

4.1 Analysis of BB84

With the models we have made in PRISM we are

going to show there is a non zero probability with

which the eavesdropper can be detected and how

this probability varies with the number of photons

exchanged.

PRISM is capable of calculating probabilities of the

form P

σ,Φ

= Pr{σ |= Φ}, i.e, given a PRISM model

σ, we can calculate the probability with which the

property Φ holds. Φ is expressed in PCTL. We have

two models σ

and σ

for random-substitution and

intercept-resend, respectively. Both these models are

parametrised by N the number of qubits that both the

parties exchange.

Let P

= Pr{σ

(N) |= Φ

} for n ∈ {1,2}, for

the probability of eavesdropper detection and

= Pr{σ

(N) |= Φ

} for n ∈ {1, 2} for the

probability of the eavesdropper making correct mea-

surements for more than half of the qubits. n = 1 for

random-substitution and n = 2 for intercept resend.

We also have N ∈ [1, 20], i.e, we start to ﬁnd these

probabilities starting from one qubit being exchanged

to twenty.

and Φ

are to be expressed in PCTL. Φ

is the

PCTL formula corresponding to when the eavesdrop-

per is detected. From the PRISM model for BB84,

whenever an eavesdropper is detected Alice is in al-

iceState=15 and Bob is in state bobState=10. The

corresponding expression for Φ

and their property

expression in PRISM:

= {(aliceState = 15) ∧(bobState = 10)} (1)

P=?[F(aliceState=15)&(bobState=10)] (2)

SIMULTECH 2018 - 8th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

Similarly for Φ

which gives the probability of eaves-

dropper measuring more than half of the exchanged

qubits correctly is

= true U (correctMeasurement > N/2) (3)

P=?[F(correctMeasurement>

)] (4)

Table 1: Probability of detecting eavesdropper for BB84-

QKD.

N P

5 0.822 0.5512

10 0.9577 0.7698

15 0.9899 0.8819

20 0.9976 0.9394

TABLE I and TABLE II have probabilities that are

observed from PRISM. Using the Curve Fitting tool

of MATLAB, and using the Marquardt-Levenberg

nonlinear least squares algorithm for curve-ﬁtting we

have come up with the equation that best ﬁts these

probabilities.

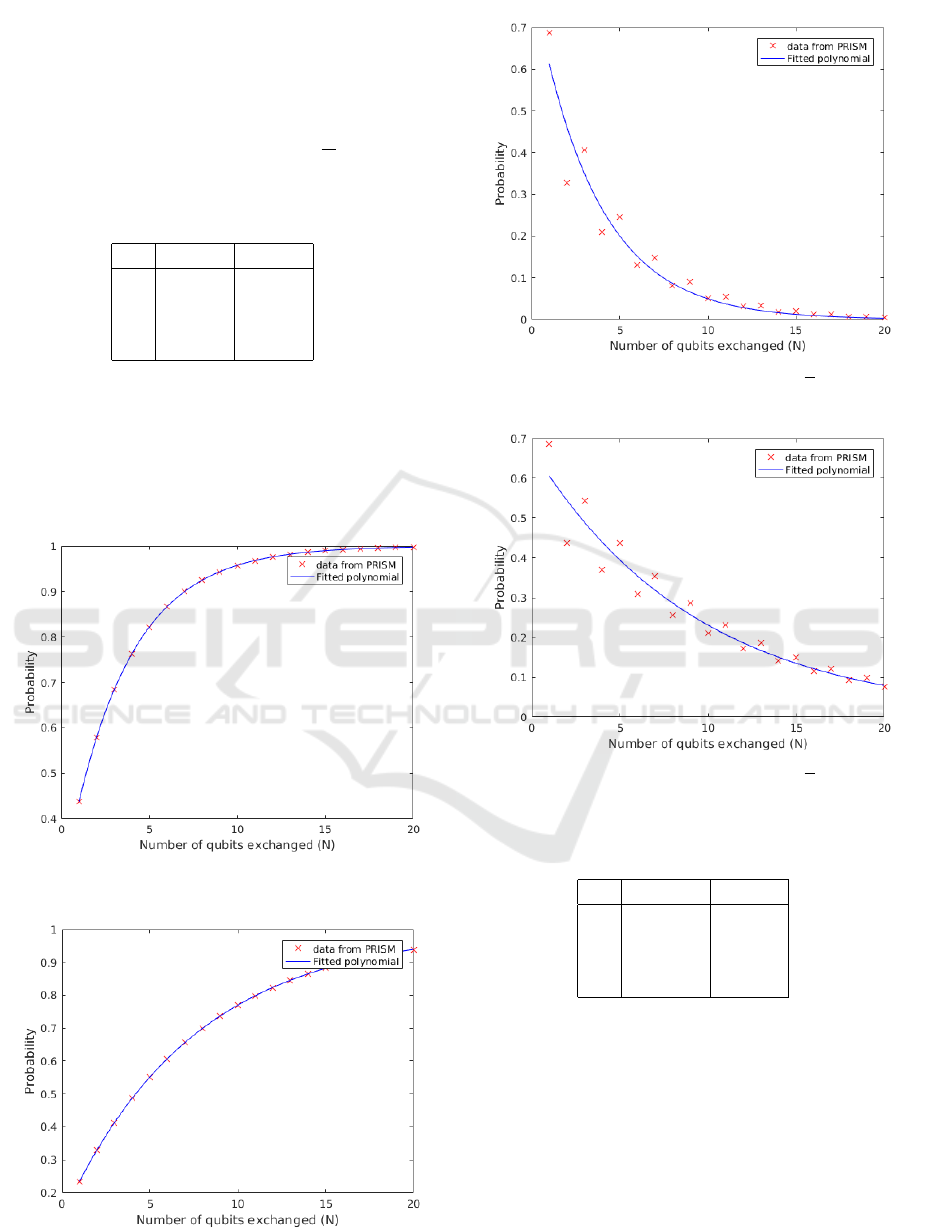

Figure 1: Probability of detecting eavesdropper for BB84

Random Substitution.

Figure 2: Probability of detecting eavesdropper for BB84

Intercept Resend.

Figure 3: Probability of measuring more than

qubits cor-

rectly for BB84 Random Substitution.

Figure 4: Probability of measuring more than

qubits cor-

rectly for BB84 Intercept Resend.

Table 2: Probability of eavesdropper measuring more than

half of the qubits correct for BB84-QKD.

N P

5 0.2458 0.4370

10 0.0501 0.2111

15 0.0188 0.1510

20 0.00425 0.0756

We observed that

≈ Pr{σ

(N) |= Φ

} = 1 −(0.75)e

−0.2877N

(5)

≈ Pr{σ

(N) |= Φ

} = 1 −(0.8750)e

−0.1335N

(6)

and

≈ Pr{σ

(N) |= Φ

} = (0.8108)e

−0.2795N

(7)

≈ Pr{σ

(N) |= Φ

} = (0.6750)e

−0.1072N

(8)

Modelling of Quantum Key Distribution Protocols in Communicating Quantum Processes Language with Veriﬁcation and Analysis in

PRISM

Since P

> P

, the probability of eavesdropper

getting detected is higher when the eavesdropper re-

sorts to random-substitution.

Also it has to be noted that:

lim

N→∞

= lim

N→∞

= 1 (9)

which suggests as the number of qubits exchanged in-

creases so does the chances of detecting an eavesdrop-

per.

lim

N→∞

= lim

N→∞

= 0 (10)

reafﬁrms the theoretical results obtained by May-

ers(Mayers, 2002), wherein he states

”amount of Shannon’s information available to Eve

must decrease exponentially fast as N increases.”.

Both these observations reafﬁrm the results obtained

by Papanikolaou(Gay et al., 2005).

4.2 Analysis of B92

We use the same notations as in the previous subsec-

tion. The only change being the PCTL expressions.

Referring to PRISM model for B92, eavesdropper is

detected when aliceState=11 and bobState=10.

= {(aliceState = 11) ∧(bobState = 10)} (11)

P=?[F(aliceState=15)&(bobState=10)] (12)

= true U (correctMeasurement > N/2)

(13)

P=?[F(correctMeasurement>

)] (14)

Table 3: Probability of detecting eavesdropper for B92-

QKD.

N P

5 0.8665 0.7123

10 0.9683 0.89812

15 0.9924 0.96392

20 0.9976 0.98722

Table 4: Probability of eavesdropper measuring more than

half of the qubits correct for BB84-QKD.

N P

5 0.2458 0.3345

10 0.0501 0.1083

15 0.0201 0.0592

20 0.0042 0.0199

After using the curve ﬁtting algorithm to approxi-

mate the results to an equation we have:

≈ Pr{σ

(N) |= Φ

} = (1 −(0.75)e

−0.2877N

)

(15)

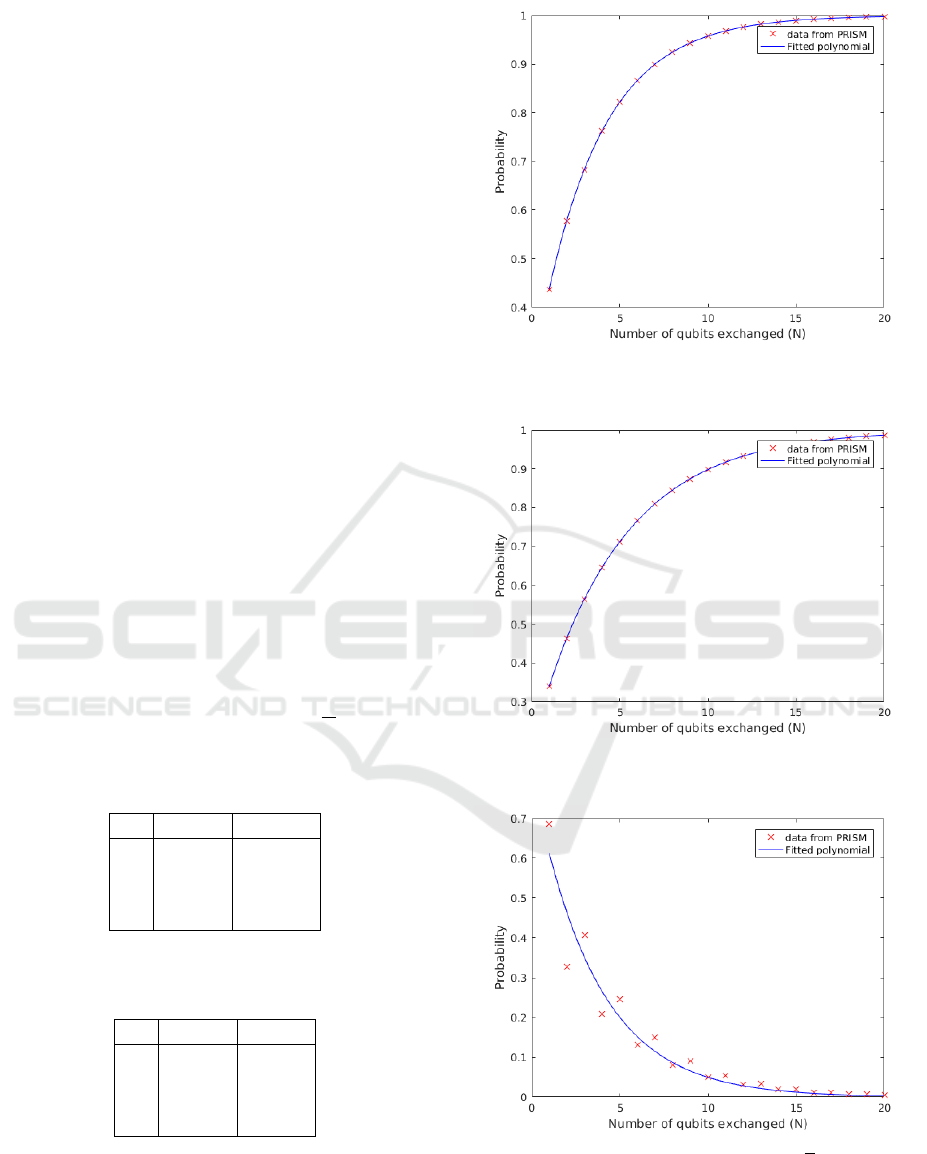

Figure 5: Probability of detecting eavesdropper for B92

Random Substitution.

Figure 6: Probability of detecting eavesdropper for B92 In-

tercept Resend.

Figure 7: Probability of measuring more than

qubits cor-

rectly for B92 Random Substitution.

≈ Pr{σ

(N) |= Φ

} = (1 −(0.8125)e

−0.2795N

)

(16)

SIMULTECH 2018 - 8th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

Figure 8: Probability of measuring more than

qubits cor-

rectly for B92 Intercept Resend.

and

≈ Pr{σ

(N) |= Φ

} = (0.8108)e

−0.2795N

(17)

≈ Pr{σ

(N) |= Φ

} = (0.7272)e

−0.1821N

(18)

We make the following observations:

lim

N→∞

= lim

N→∞

= 1 (19)

lim

N→∞

= lim

N→∞

= 0 (20)

Like the inferences made for BB84, the chances

of detecting an eavesdropper increases with the num-

ber of qubits exchanged and also the number of cor-

rect measurements that an eavesdropper can make

decreases exponentially with the number of qubits

exchanged. But unlike in BB84, for B92 we have

< P

, hence the probability of eavesdropper de-

tection is higher during intercept-resend than in ran-

dom substitution.

4.3 Comparison between BB84 and B92

Quite strangely we observe that with respect to ran-

dom substitution type of attack, both the protocols

perform identically. This is substantiated by the equa-

tions

≈ Pr{σ

(N) |= Φ

} = (0.8108)e

−0.2795N

(21)

and

≈ Pr{σ

(N) |= Φ

} = (1 −(0.75)e

−0.2877N

)

(22)

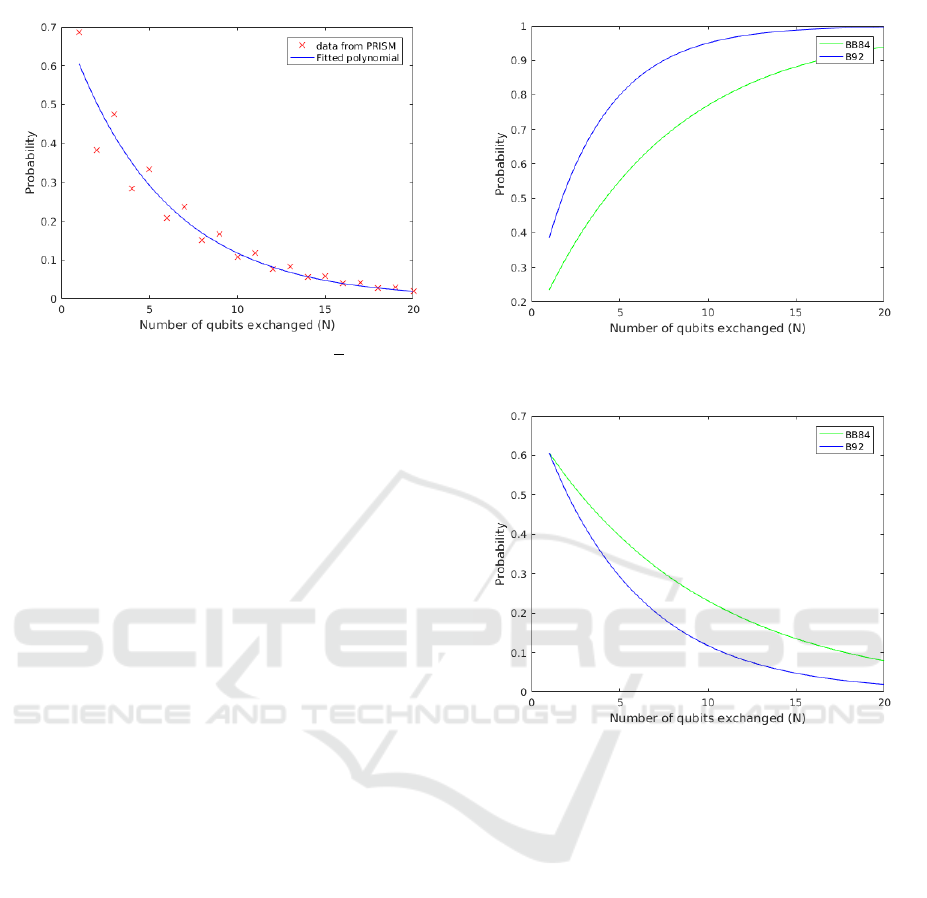

However with respect to intercept resend style attacks

they differ markedly, as evidenced by Fig. 12 and Fig.

13.

B92 performs better in terms of eavesdropper de-

tection as the probability approaches unity faster than

B92 and in terms of decreased number of correct mea-

surements that can be made by the eavesdropper.

Figure 9: BB84 and B92 Comparison for Intercept Resend

eavesdropper detection.

Figure 10: BB84 and B92 comparison for Intercept Resend

correct measurements by eavesdropper.

5 CONCLUSION

We have successfully modelled BB84 protocol in

CQP, showed the process in which we have created

PRISM models from the CQP models and analysed

the properties using PCTL. We also corroborate the

theoretical observations made in earlier research with

our analysis, namely the probability of correctly as-

certaining the presence of an eavesdropper increases

with the number of qubits exchanged. We also com-

pared the performance of BB84 and B92 and infer that

B92 is more resilient against an eavesdropper, with

its ability to take fewer qubits than BB84 in identi-

fying an eavesdropper and then potentially reducing

the number of correct measurements the eavesdropper

can make. Hence in practise B92 seems to be a more

viable protocol than BB84 because it is less complex

to implement and performs better.

Modelling of Quantum Key Distribution Protocols in Communicating Quantum Processes Language with Veriﬁcation and Analysis in

PRISM

REFERENCES

zek, V. and Hillery, M. (1996). Quantum copying: Be-

yond the no-cloning theorem. Physical Review A,

54(3):1844.

Davidson, T. A. (2012). Formal veriﬁcation techniques us-

ing quantum process calculus. PhD thesis, University

of Warwick.

Gay, S., Nagarajan, R., and Papanikolaou, N. (2005). Prob-

abilistic model–checking of quantum protocols. arXiv

preprint quant-ph/0504007.

Gay, S. J. and Nagarajan, R. (2005). Communicating quan-

tum processes. In ACM SIGPLAN Notices, volume 40,

pages 145–157. ACM.

Mayers, D. (2002). Shor and preskill’s and mayers’s se-

curity proof for the bb84 quantum key distribution

protocol. The European Physical Journal D-Atomic,

Molecular, Optical and Plasma Physics, 18(2):161–

170.

Milner, R. (1999). Communicating and mobile systems: the

pi calculus. Cambridge university press.

Nielsen, M. A. and Chuang, I. L. (2010). Quantum compu-

tation and quantum information. Cambridge univer-

sity press.

Quan, Z. and Chaojing, T. (2002). Simple proof of

the unconditional security of the bennett 1992 quan-

tum key distribution protocol. Physical Review A,

65(6):062301.

Ware, C. J. (2008). Modeling and analysis of quantum cryp-

tographic protocols. PhD thesis.

SIMULTECH 2018 - 8th International Conference on Simulation and Modeling Methodologies, Technologies and Applications
