Formal Modelling Approach of Enterprise Architecture

Hypergraph based Representation of Business Information Systems

Dóra Őri

, Bálint Molnár

and Zoltán Szabó

Department of Information Systems, Corvinus University of Budapest. Budapest, Hungary

Department of Information Systems, ELTE, Eötvös Loránd University, Budapest, Hungary

Keywords: Enterprise Architecture, Business Information System, Strategic Alignment, Formal Modelling, Hypergraph.

Abstract: The complexity of strategic alignment is an overwhelming issue in the digital age for organizations. Enterprise

Architecture Management (EAM) is a major tool that facilitate the alignment efforts, providing several

methods for planning and analysis. There are several methodologies that need a formal and systematic

approach. The artefacts describing an Enterprise Architecture can be perceived as documents that can be

represented in hypergraphs. The graph-based approach lays the groundwork for formal analysis that can assist

to identify discrepancies, gaps, security, integrity and consistency issues. The paper depicts a high-level model

for artefacts representing Enterprise Architecture in a hypergraph formalism. This approach can be a

promising solution for EAM-based analysis of information systems and their organizational context.

1 INTRODUCTION

Information strategy planning is a complex and

especially important activity of organizations, an

exercise through which an organization utilizes its

technological resources (Earl, 1989). Information

strategy is a major tool to integrate information

technology (opportunities and concerns) into

business planning, harmonizing the business and IT

domains. The overall goal of IT planning, as part of

the broader concept of IT governance is the alignment

of information systems (IS) and business plans. In the

era of digitalization, the growing organizational

complexity, emerging disruptive technologies, and

rapid technological changes make strategic planning

of IS extremely challenging. Classic planning

approaches (Peppard and Ward, 2016) are still used,

but recently the enterprise architecture management

(EAM) based approaches are the major facilitators of

the planning initiatives (Hanschke, 2009).

Several well-known methods can be used for the

harmonization of IT initiatives with business goals,

but complexity and uncertainty of the technical and

business domains has become an overwhelming issue

with the traditional approaches of strategic IT

planning. The planning cycle, integrated with

implementation and monitoring activities requires the

support of EAM. Competition is technology-

dependent, new IT-based innovative models increase

the pressure for organizational changes. In addition,

legal constraints, compliance requirements and

ethical issues make planning more and more difficult.

Planning has no sense without implementation – but

the burden of legacy systems, organizational inertia

(products, processes, sales channels, partners,

regulation, etc.), interdependencies of IT services

make the development projects (and maintenance

too) cumbersome. Strategic harmonization of

business and IT domains is more relevant than ever

before, and EAM can be a major facilitator of

strategic alignment by discovering, analysing and

avoiding misalignment problems and achieving

competitiveness (Versteeg and Bouwman, 2006).

EAM provides tools and methods to reduce

organizational complexity (Strnadl, 2006), promotes

agility, and controls uncertainties (Choi et al., 2013).

EAM helps the alignment of the organisation with

strategic goals, the control of interdependencies in

business and IT, and it enables organisations to agility

and fast reaction. Strategic EAM facilitates strategy

formulation too, by analysing the current (business

and IT) situation, by assessing strategic options, by

formulating strategic initiatives, by developing an

architectural vision, by planning roadmap migration

activities, by evaluating project portfolio, by

monitoring architecture evolution (Lankhorst, 2013;

Ahlemann et al., 2012).

Öri, D., Molnár, B. and Szabó, Z.

Formal Modelling Approach of Enterprise Architecture.

DOI: 10.5220/0006804607270735

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 727-735

ISBN: 978-989-758-298-1

727

The complexity of infrastructures of IT and

Information Systems (IS) coerces the exercise of

modeling of Enterprise Architecture within

companies. There are several approaches of

Enterprise Modeling (Zachman 1987; Bent et al.,

2008) that provide opportunities for semi-formal

modeling through exploiting visual representations

and specifications of various pre- and post-

conditions. The central concept of Enterprise

Architecture Modeling is the artefact that is the

outcome of some modeling, designing and analysis

activity. The artefacts can be considered as

documents that describe architectures through

complex relationships among the elements of

artefacts. As the documents allow for depicting

multifaceted relations among components that reflect

the intricate relationships among the building blocks

of architecture, the representation by a formal

approach requires a flexible descripting method in

which there are no restrictions on enhancing and

extending the representation with new type of

relationships, concepts, hierarchies, and networks.

The hypergraph theory provides a very elastic

mathematical structure that has the capability, on the

one hand, to mirror the multifarious dependencies

among constituents, and on the other hand, to exploit

the graph structure for analysis utilizing the tool set

of mathematics. This paper is intended to discuss the

topic of EAM-based analysis of misalignment

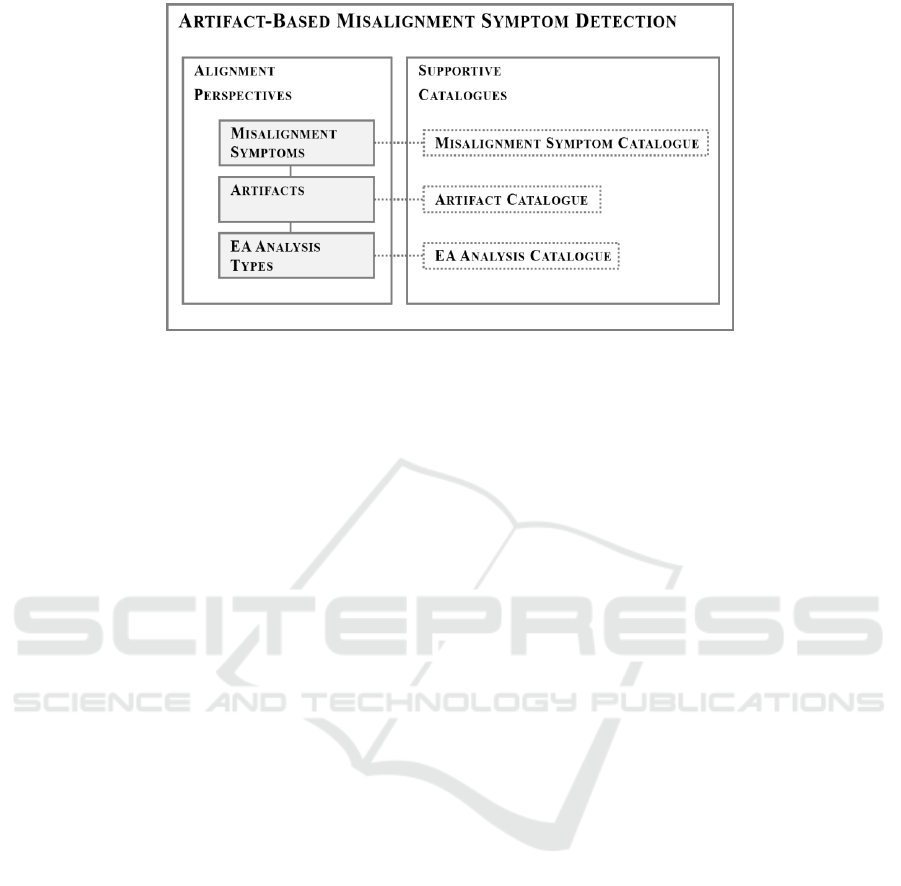

problems, introducing an existing method (Őri,

2017). The EAM-oriented analysis model is extended

with a hypergraph-based approach, and the

foundations of the extended conceptual framework is

described. Our research objective was to provide a

solid foundation for the extended, more

comprehensive EAM-based analysing framework,

and prepare the future implementation.

The rest of the paper is structured as follows:

Section 2 summarizes the theoretical background to

the subject. The hypergraph-based approach is

introduced in Section 3. Section 4 presents an

illustrative example for the proposed formalism in

form of a case study. At the end of the paper

conclusions are drawn.

2 THEORETICAL CONTEXT

The theoretical foundation of the paper consists of 2

parts. Firstly, alignment and misalignment

assessment approaches will be summarized.

Secondly, enterprise architecture analysis methods

will be presented.

There are four dominant alignment perspectives,

so-called cross-domain relationships in the Strategic

Alignment Model (SAM): 1) Strategy Execution, 2)

Technology Transformation, 3) Competitive

Potential and 4) Service Level (Henderson and

Venkatraman, 1993). Process models of alignment

accent the process-like nature of alignment (vs. end

state). Several process models of alignment deal with

the evolution of alignment (i.e. how alignment has

changed over time). In the literature there are several

examples of alignment assessment methods. Many

attempts have been made in order to classify and

analyze alignment evaluation techniques. In general,

alignment can be measured by different approaches,

including e.g. typologies and taxonomies, fit models,

mathematical calculations, survey items, qualitative

assessments and psychological measures (Chan and

Reich, 2007). In recent years a growing body of

literature has examined alignment evaluation

methods. Most of the introduced approaches for

alignment measurement build on strategic and/or

functional level assessment and include top-down

construction approach (Chan and Reich, 2007).

There are a few misalignment models mentioned

in the literature. The most famous ones are the

BISMAM model (Business and Information Systems

MisAlignment Model) by Carvalho and Sousa (2008)

and the BITAM method (Business IT Alignment

Method) by Chen et al. (2005). The former provides

different classification schemes for the indicators of

misalignment. One of them, misalignment symptoms

are considered as evidences of inefficiencies,

difficulties or inabilities that encumber alignment

achievement. Misalignment symptom detection deals

with the identification of such indicators. Several

misalignment symptom collections have been

proposed in recent literature on misalignment. These

collections contain different types of misalignment

symptoms, e.g. Carvalho and Sousa (2008).

Symptoms can be found e.g. in EA models. However,

other kinds of sources can also be used in the analysis

(see Purao and Desouza, 2010).

Enterprise architecture (EA) is the construction of

an enterprise, described by its entities and their

relationships. EA is an organising logic for business

processes and IT infrastructure in order to review,

maintain and control the whole operation of an

enterprise (Zachman, 1987, Kossak 2016). Enterprise

architecture management is a management

philosophy concerned with corporate change. EAM

provides several benefits by improving IT efficiency

(reducing redundancy, ensuring homogeneity,

integration, consistency, reusability); by enabling IT

effectiveness (ensuring goals, strategy and means

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

728

conformity, results orientation, schedule orientation);

by improving IT reliability (reducing risk) (Niemann,

2006). An enterprise architecture framework is a

collection of descriptions and methods to create and

manage enterprise architecture. The most recognised

frameworks are the Zachman Framework (for rather

theoretical purposes) (Zachman, 1987) and the

TOGAF framework (for rather practical usage)

(TOG, 2015).

TOGAF (The Open Group Architecture

Framework) is a commonly used architecture

framework. It is a holistic approach which describes

a metamodel for enterprise architecture. TOGAF

provides 4 architecture layers: 1) Business

Architecture, 2) Data Architecture, 3) Application

Architecture and 4) Technology Architecture.

TOGAF metamodel is a reference model which sets

up the formal structure of an EA model as well as

provides implementation guidance on core building

blocks (metamodel entity) and their relationships.

TOGAF describes different viewpoints for enterprise

architecture. TOGAF provides a minimum set of

necessary EA models, called artefacts (TOG, 2015).

Architecture principles and patterns are used for

framing the architecture content (Pessi et al., 2011).

Enterprise architecture analysis types are methods

that are capable of assessing EA models, e.g.

evaluating dependencies, isolated objects, complexity

or heterogeneity. A number of research efforts have

focused on proposing models for EA analysis, i.e.

EA-based analysis types that are capable of assessing

EA models. Ullberg et al. (2010) introduced general

process models for EA analysis. Several authors [e.g.

Wagter et al. (2012)] proposed EA analysis

collections. According to the object being

investigated (e.g. Dependency, Coverage, Interfaces,

Heterogeneity, Complexity and Conformity)

different analysis procedures are introduced. Tools

for supporting the process of EA analysis are

expounded by e.g. Ramos et al. (2015). Automated

collection of EA models is supported by e.g. Holm et

al. (2014). Őri (2017) provided a detailed comparison

of possible formal approaches for implementation.

3 A HYPERGRAPH-BASED

APPROACH

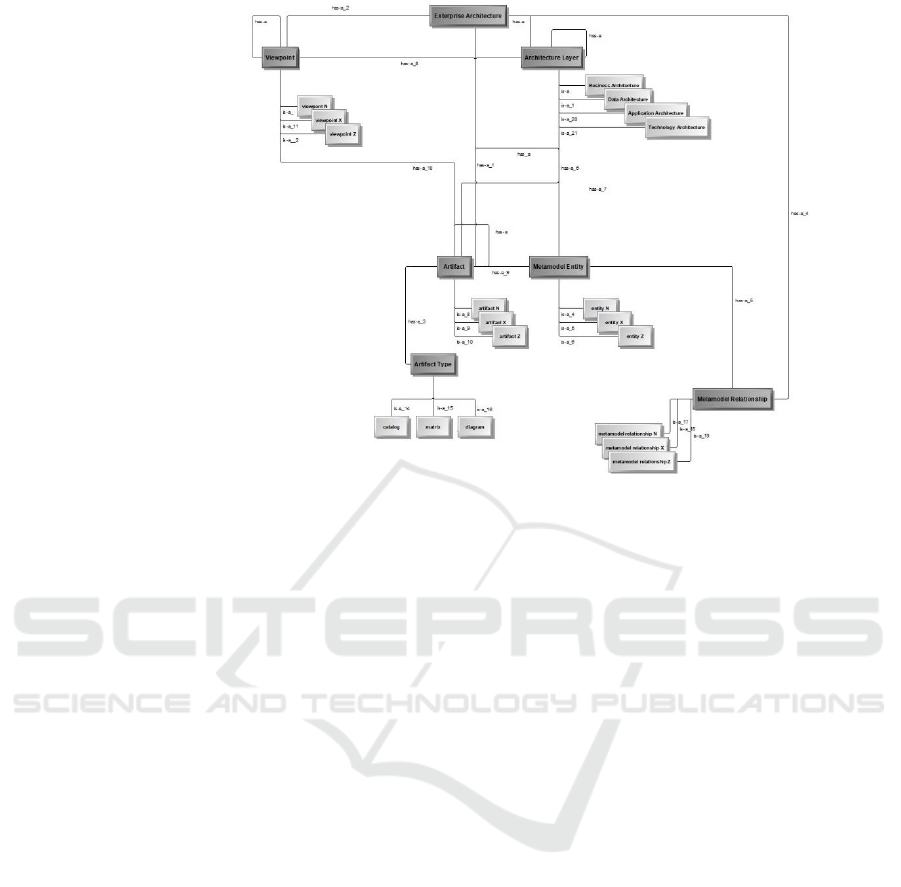

The hypergraph structure provides a generic model

for representing very complex relationships between

"things" as component of Information Systems,

Description of Enterprise Architecture. The

adequately formulated conditions and properties

make possible to leverage the set of graph algorithms

to discover gaps, discrepancies, misalignment

between the realized Enterprise and Information

Architecture and the ideal typic one required by the

Enterprise IT strategy (Molnár, 2017).

The representations of artefacts for architecture

materialize as documents in XML and / or JSON

document format typically. The hypergraphs,

especially the generalized hypergraphs provide a

flexible structure to describe complex relationships

that can be explored among models during analysis

and design of IS (Bretto, 2013).

Deﬁnition 1. The concept of the directed hypergraphs

is an ordered pair of vertices and hyperarcs that are

directed hyperedges, i.e. each hyperarc is an ordered

pair that contains a tail and a head.

Deﬁnition 2. The generalized or extended

hypergraph. The notion of hypergraph may be

extended so that the hyperedges can be represented –

in certain cases – as vertices, i.e. a hyperedge e may

consist of both vertices and hyperedges as well. The

hyperedges that are contained within the hyperedge e

should be different from e.

The hypergraphs as a tool for describing

Information Systems from various viewpoints yields

a formal method to analyze the system, and to check

the conformance, compliance, and consistency of the

set of models (Molnár, 2017). An hypergraph is

structured as:

● 𝑉 is the set of vertices

● 𝐴 is the set of arcs, i.e. directed edges, an arc

is an ordered pair j,i , where 𝑉

𝑗,𝑖

● 𝐸 is the set of hyperedges

● 𝐸

𝐷

is a set of hyperarcs

A hypergraph is a generalization of an ordinary

graph where edges, called hyperedges, can connect

any number of nodes. Formally, let 𝐺 (𝑉, 𝐸, 𝑤)

denote a hypergraph, where 𝑉 denotes a finite set of

nodes 𝑣, 𝐸 denotes the set of hyperedges e, w is a

weight function defined as: 𝑤 ∶ 𝐸 ⇒ 𝑅. Each

hyperedge 𝑒 ∈ 𝐸 is a subset of 𝑉 and is assigned a

positive weight 𝑤(𝑒).

Deﬁnition 3. A directed hyperedge or hyperarc is an

ordered pair, 𝐸 = (𝑋, 𝑌), of (possibly empty) disjoint

subsets of vertices; X is the tail of E while Y is its

head. In the following, the tail and the head of

hyperarc E will be denoted by 𝑇(𝐸) and 𝐻(𝐸),

respectively.

Formal Modelling Approach of Enterprise Architecture

729

Deﬁnition 4. Architecture Describing Hypergraph is

a generalized hypergraph that can be extended by

some functions and operations:

nodenode

LVlabel :

; where L is a set of labels, it is

a vertex labeling function;

edgeedge

LElabel :

; where L is a set of labels, it is

an edge labeling function;

;VEsource

:

;VEtarget

:

these functions return the source

and target vertices of an edge E;

;VAttrattr :

attribute assignment function;

;VAttrsource

Attr

:

The vertex that owns the

attribute is returned;

;DAttrtarget

Attr

:

The data values of attributes

are yielded; D represents the set of data;

D can be grasped (efficiency of the representation

is left out of the investigation) again as vertices

within the hypergraph and it can be interpreted as

variables.

Over D as a set of variables, set of operations (OP)

can be defined that can be used to describe

constraints and rules within formulas.

Table 1 describes our concept for representing an

enterprise architecture in a hypergraph structure

(Molnár 2013). Figure 1 presents our high-level

description about the overall construction and the

components that will be transformed into hypergraph

structure. The description builds on the

ISO/IEC/IEEE 42010 software and systems

engineering international standard for architecture

description. Figure 1 can be interpreted as follows:

An enterprise architecture can be described using the

TOGAF content metamodel. 1) An enterprise

architecture contains architecture layers (has-a

relationship). Business Architecture, Data

Architecture, Application Architecture and

Technology Architecture are architecture layers (is-a

relationship). An architecture layer contains

metamodel entities, artifacts, viewpoints and other

architecture layers (has-a relationship). 2) An

enterprise architecture contains metamodel entities

(has-a relationship). Actual entities are metamodel

entites (is-a relationship). Metamodel entities has

relationships (has-a relationship). 3) An enterprise

architecture contains relations between metamodel

entities (has-a relationship). Actual relationships are

relationships (is-a relationship). A relationship

contains metamodel entities (has-a relationship). 4)

An enterprise architecture contains artifacts (has-a

relationship). Actual models are artifacts (is-a

relationship). An artifact contains metamodel entities,

artifact type and other artifacts (has-a relationship). 5)

An enterprise architecture contains artifact types

(has-a relationship). Catalogs, matrices and diagrams

are artifact types (is-a relationship). 6) An enterprise

architecture contains viewpoints (has-a relationship).

Actual viewpoints are viewpoints (is-a relationship).

A viewpoint contains artifacts, metamodel entities,

artifact types and other viewpoints (has-a

relationship).

Constraints for building a hypergraph-based

representation of enterprise architecture include the

following: 1) An enterprise architecture consists of

architecture layers. An architecture layer may

connect to other architecture layers. An architecture

layer contains artifacts. An architecture layer

contains metamodel entities. An architecture layer

contains metamodel relations. An architecture layer

contains viewpoints. 2) An enterprise architecture

consists of metamodel entities. A metamodel entity

may connect to other metamodel entities. A

metamodel entity connects to an architecture layer. 3)

An enterprise architecture consists of artifacts. An

artifact contains metamodel entities. An artifact

contains metamodel relations. An artifact belongs to

a disjoint artifact type: catalog/matrix/diagram. 4) An

enterprise architecture consists of viewpoints. A

viewpoint contains artifacts. A viewpoint may

connect to other viewpoints.

Figure 2 can be interpreted as follows: An

enterprise architecture consists of enterprise

architecture models. Models belong to an architecture

layer: Business Architecture Layer, Data Architecture

Layer, Application Architecture Layer and

Technology Architecture Layer. Artifacts of the

enterprise architecture are handled as documents, and

consist of the same groups as the enterprise

architecture, namely the Business Architecture model

base, the Data Architecture model base, the

Application Architecture model base and the

Technology Architecture model base. To provide

transition between artifacts and enterprise

architecture models, the layers and the model base

classifications are linked. Finally, documents can be

in different states: Free/ Finalized/ Ground/

Intensional. Document states can be connected to the

artifacts.

4 CASE STUDY

This part of the paper presents a case study for

utilizing the hypergraph-based approach to analyse

strategic misalignment.

While organisations address alignment

achievement, they are continually suffering from

misalignments. These difficulties (the

misalignments) encumber the achievement of

alignment.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

730

Figure 1: Conceptual Model for Enterprise Architecture Description.

Misalignment analysis (detecting, correcting and

preventing misalignment) is an important step in

achieving alignment since it helps to understand the

nature and the barriers of alignment. Our conceptual

analysis relates to the concept of strategic alignment,

and aims to approach strategic alignment from the

perspective of misalignment. The problem of

revealing the typical symptoms of misalignment will

be addressed in order to assess the state of alignment

in an organisation.

4.1 Organisational Context

The empirical investigation focuses on a road

management authority. The study was carried out in

a fragment of the road management authority’s EA

model structure. It describes a road control initiative,

showing the relevant EA models and artifacts to be

modified during the progression of the project.

The road management authority is a non-profit

government corporation that handles matters relating

to road safety, road traffic management and

transportation for around 32000 kilometers national

public road network. The scope of activities spans

from road operation and road maintenance over

professional services to providing road information.

In its actual form the authority was set up in 2006 as

a successor of a previous road management

government authority. The head quarter and three

sites are located in Budapest, and the authority has

approx. 170 branches around Hungary. In 2016 the

authority employed around 8200 employees.

Road control initiative is a pilot project for setting

up the EA practice in the authority. The initiative is

part of an integrated road network development

project which aims to transform the internal operation

as well as to optimize processes in order to increase

operational efficiency and transparency within the

road management authority. As part of the above

introduced integrated road network development

project, the road control project is concerned with the

implementation of a traveling warrant system. The

goal of the project was manifold: to achieve real-time

road control information forwarding, to deliver up-to-

date information and control specifications onboard,

to provide exact information retrieval about past

activities and coordinates by place and by date, to

provide electronic administration about road control,

to provide an expandable and integral solution for

road control support, to decrease paper administration

related to road control tasks. The project was set up

to eliminate the following problems related to the

previous road control solution: 1) administration

overload, 2) too many isolated information systems,

3) slow escalation of road control-related

information, 4) non-automated read-in of road

control-related data, 5) non-electronic retrieval of

previous road control routes and coordinates.

The road control project was set off to outline the

process of road control with EA methods over 2 set

of changes. The as-is state (OV) presents the actual

Formal Modelling Approach of Enterprise Architecture

731

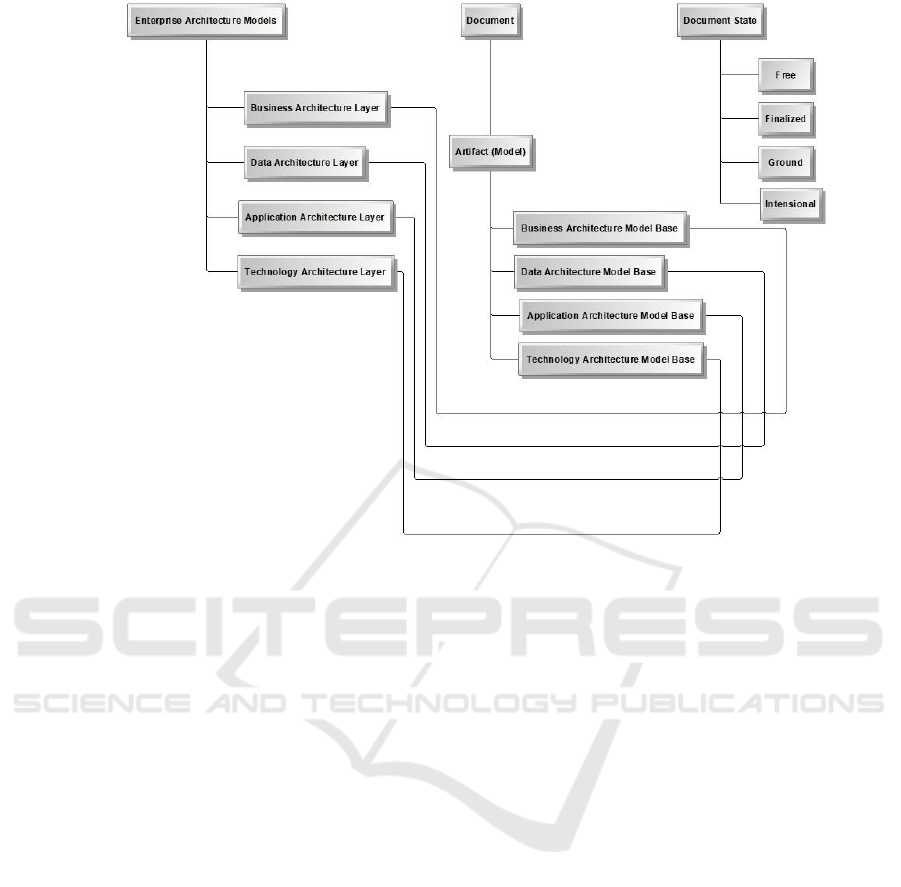

Figure 2: Enterprise Architecture Models Described as Documents.

state of road control activities. To-be No. 1.0 and To-

be No. 2.0 phases deal with the changes in process

execution, supportive applications and underlying

technological infrastructure.

4.2 Hypergraph-based Analysis

Preliminary reviews on the case consisted of the list

of influential areas to review and the analysis of

assumed malfunctioning areas. It was followed by the

categorisation of perceived misalignment symptoms.

Non-analysable symptoms were excluded from

further analysis. The remaining analysable symptoms

were assessed in the case study.

In a former approach (Őri, 2017; Őri and Szabó,

2017) an XML-based analysis tool was created,

which detected the symptoms of misalignment with

rule assessment techniques. The applied research

methodology used an alignment perspective-driven

approach. In the first step, traditional alignment

perspectives were connected with typical

misalignment symptoms. In the second step, relevant

artefacts were provided with the misalignment

symptoms, i.e. the models which may contain the

symptom in question. In the third step, suitable EA

analysis types were suggested to the misalignment

symptoms. These EA analysis types were able to

detect the symptoms in the recommended containing

artefacts. Misalignment symptoms, containing

artifacts and recommended EA analysis types came

from catalogs that were based on recent literature.

Figure 3 illustrates the components of the artifact-

based methodology. Discussion on the results of the

symptom detection was given by Őri (2017) and Őri

and Szabó (2017). To translate the above introduced

methodology into the hypergraph-based approach, we

need the following concepts: 1) Alignment

perspectives: This list contains the corresponding

alignment perspective for symptom detection. 2)

Misalignment symptom catalog: This list comprises

the perceived misalignment symptoms. 3) Artifact

catalog: This list encompasses the possible containing

EA models. 4) EA analysis catalog: This list includes

the possible EA analysis types to recommend. 5)

Presence in the artifact: This concept describes the

sign of the symptom in the EA models.

6) Occurrence on model entity level. This concept

defines how the symptom is manifested on model

entity level. 7) Occurrence in XML model export:

This item describes how the symptom is manifested

in the XML export of the EA model. 8) XML-based

query.

The hypergraph-based description, representation

of EA models provides extended opportunities for

analysis based on a formalized, solid conceptual

framework. While the original rule-based framework

was appropriate to discover the misalignment

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

732

Table 1: Representation of Enterprise Architecture by Hypergraph.

Concept of Enterprise

Architecture

Representation of concept in the domain of hypergraph theory

Enterprise Architecture

The outcome of a project dedicated to description and development of Enterprise Architecture. The

building blocks of the architecture are realized in artifacts. The components of artifacts can be

represented as hyperarcs, generalized hyperedges, and the atomic elements as vertices.

Information System (IS)

A result of a system-development exercise that created a set of design artifacts. The set of elements

and a relationships among them can be represented as nodes and edges within the graph. We can map

the model elements to a hypergraph that consists of nodes and hyperedges.

Node/vertex in a hypergraph

Each vertex corresponds to an element within the content metamodel, e.g. architecture layers,

metamodel entities, entities of architecture layers (constituting a tree structure), etc. The documents

may represent one of the aspects for the information flow both inwards and outwards.

Edge in a hypergraph

Edge is a specific hyperedge with cardinality equal to two. Edge denotes binary relationships between

two nodes, as e.g. a descriptive relationship between two metamodel entities, an entity belongs to an

architecture layer, an architecture layer connects to another architecture layer, etc.

Hyperedge

A hyperedge represents a relationship among a subset of nodes as e.g. entities belonging to a specific

architecture layer, entities belonging to core content, entities belonging to extension content, etc.

System graph

A hypergraph that includes a disjoint node for modeling the environment of the system, plus all the

nodes and hyperedges of the content metamodel.

Sub-system

A subset of nodes and their incident hyperedges. A node/vertex is incident to a hyperedge if the

hyperedge contains the node/vertex. A sub-system may be composed of core metamodel entities, core

content metamodel, extensions, etc.

Interconnecting sub-systems -

hyperedges graph of the

generalized hypergraph

A graph consisting of all the nodes in a sub-system and all hyperedges connecting together

subsystems.

problems represented in the EA models, the results

were limited by the quality of the models. By

extending the approach using the hypergraph concept

a more detailed and formalized description and

representation of enterprise architecture can be

implemented. This approach enables organizations to

explore and analyse misalignment symptoms, but

workflow patterns, implementation phases related

issues, dynamic changes, broader business and

management concepts can also be involved. One of

the possible approaches when processes, workflows,

data and documents are handled together under the

notion of "case" or "case management" (Bouafia et

al., 2017) as an overarching concept, even this

approach can be dealt with proposed models giving

ways to automatized and algorithmic analysis.

5 CONCLUSIONS

The outlined approach provides the opportunity to

make use of formal and mathematical based analytic

methods for discovering misalignment among IT

strategies, existing Information Systems, Information

Architecture.

The Business Processes and Workflows are

immanent component of the Enterprise Architecture

so that the integrity, coherence, and consistency with

the other elements of Enterprise Architecture is

critical. The Information Architecture that contains

the representation of data in entity format and

documents should fit to the Business Processes

(Business Architecture). The hypergraph modeling

and representing offers the chance to check and

control the discrepancies in a complex enterprise

architecture model base. The approach outlined in

Formal Modelling Approach of Enterprise Architecture

733

Figure 3: Artifact-Based Method for Misalignment Symptom Detection.

this paper can be mapped onto an appropriate

hypergraph structure. The graph theoretical tool set

permits the complex analysis of the represented

model, e.g. exploiting the graph mining algorithms.

There is an ongoing project for developing an

adequate hypergraph database that fits to modelling

both Information Systems and Enterprise

Architecture (Iordanov, 2010; Béleczki, 2016). The

next step of the research is to provide a more detailed

description about the hypergraph-based formalism,

including labeled hyperedges and formalized

constraints for defining an enterprise architecture.

ACKNOWLEDGEMENTS

This work was partially supported by EFOP-3.6.3-

VEKOP-16.

Supported by the ÚNKP-17-4 New National

Excellence Program of the Ministry of Human

Capacities.

REFERENCES

A. Ramos, J.P. Sáenz, M. Sánchez, and J. Villalobos, 2015.

“On the Support of Automated Analysis Chains on

Enterprise Models” Enterprise, Business-Process and

Information Systems Modeling. Springer International

Publishing, pp. 345-359.

Ahlemann, F. Stettiner, E., Messerschmidt, M., Legner, C.,

2012. “Strategic enterprise architecture management:

challenges, best practices, and future developments”,

Springer Science & Business Media.

Bent, H. V. D., Sante, T. V., Kerssens, D., & Kemmeren, J.

2008. TOGAF, the open group architecture framework.

Zaltbommel: Van Haren Publishing. Retrieved from

http://www.opengroup.org/togaf/

Béleczki, A; Molnár, B. 2016. "Modeling framework for

designing and analyzing document-centric information

systems based on HypergraphDB" CEUR Workshop

Proceedings (ISSN: 1613-0073) 2046: pp. 17-22.

Iordanov, B. 2010. Hypergraphdb: a generalized graph

database, in: Web-Age Information Management. pp.

25-36, Springer Berlin Heidelberg

Bouafia, Khawla; Molnár, Bálint; Khebizi, Ali,A 2013.

Functional approach for transformation to abstract

specifications for Web services from BPEL Programs

Characteristics of the approach, winter school, at pecs

– Hungary , February 2017.

Bretto, A, Hypergraph theory: An introduction. Berlin:

Springer, pp. 111-116.

Choi, J., Nazareth, D. L., Jain, H. K. 2013. “The impact of

SOA implementation on IT-business alignment: A

system dynamics approach”, ACM Transactions on

Management Information Systems (TMIS), 4(1), 3.

Earl, M.J. 1989. Management Strategies for Information

Technology, London: Prentice-Hall.

G. Carvalho and P. Sousa, 2008. “Business and Information

Systems MisAlignment Model (BISMAM): An

Holistic Model leveraged on Misalignment and

Medical Sciences Approaches” Proceedings of the

Third International Workshop on Business/IT

Alignment and Interoperability (BUSITAL’08),

CEUR, vol. 336, CEUR-WS, Aachen, pp. 104-119.

H. Holm, M. Buschle, R. Lagerström, M. Ekstedt, 2014.

"Automatic data collection for enterprise architecture

models" Software & Systems Modeling, 13(2) pp. 825-

841.

H.M. Chen, R. Kazman, and A. Garg, 2005. “BITAM: An

engineering-principled method for managing

misalignments between business and IT architectures”

Science of Computer Programming, 57(1), pp. 5-26,

Hanschke, I. 2009. Strategic IT management: a toolkit for

enterprise architecture management. Springer Science

& Business Media.

J. Ullberg, U. Franke, M. Buschle, and P. Johnson, 2010.

“A Tool for Interoperability Analysis of Enterprise

Architecture Models using Pi-OCL” Enterprise

Interoperability IV. Making the Internet of the Future

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

734

for the Future of Enterprises, Springer, London, pp. 81-

90.

J.C. Henderson and N. Venkatraman, 1993. “Strategic

Alignment: Leveraging information technology for

transforming organizations” IBM Systems Journal,

32(1), pp. 4-16.

K. D. Niemann, 2006. “From enterprise architecture to IT

governance” (Vol. 1). Springer Fachmedien.

K. Pessi, T. Magoulas, and M.A. Hugoson, 2011.

“Enterprise Architecture Principles and their impact on

the Management of IT Investments” The Electronic

Journal of Information Systems Evaluation, 14(1),

ECIME 2010 Special Issue, pp. 53-62.

Kossak, F., Illibauer, C., Geist, V., Natschläger, C.,

Ziebermayr, T., Freudenthaler, B., Schewe, K. D.

Hagenberg 2016. Business process modelling method

(pp. 1-255). Springer.

Lankhorst, M. 2013. “Enterprise Architecture at Work.

Modelling, Communication and Analysis”, Springer,

Heidelberg.

Molnár, B, Benczúr, A.. 2013. Facet of modeling web IS

from a document-centric view. International Journal of

Web Portals (IJWP), 5(4), 57-70. DOI: 10. 4018/ijwp.

2013100105

Molnár, B., Béleczki, A., & Benczúr, A. 2017. Information

systems modelling based on graph-theoretic

background. In: Journal of Information and

Telecommunication,

10.1080/24751839.2017.1375223, pp. 1-23. Taylor &

Francis.

Őri, D. 2017. On exposing strategic and structural

mismatches between business and information systems:

Misalignment symptom detection based on enterprise

architecture model analysis, PhD Thesis, May 2017

Őri, D., Szabó, Z. 2017. Pattern-Based Analysis of

Business-IT Mismatches in EA Models: Insights from

a Case Study. In: Sylvain Hallé; Remco Dijkman;

James Lapalme (Eds.) Proceedings of the 2017 IEEE

21st International Enterprise Distributed Object

Computing Conference workshops and demonstrations

(EDOCW 2017), pp. 92-99, 2017

Peppard, J., and Ward, J. 2016. Strategic Planning for

Information Systems, 4th Ed., Chichester, John Wiley

and Sons Ltd.

R. Wagter, H.A. Proper, and D. Witte, 2012. “A Practice-

Based Framework for Enterprise Coherence” PRET

2012. LNBIP 120, Springer, Heidelberg, pp. 77-95.

S. Purao and K. Desouza, 2010. "An enterprise-wide

intervention at IRS: A longitudinal analysis of

stakeholder sentiments" International Workshop on

Trends in Enterprise Architecture Research, Springer

Berlin Heidelberg, pp. 30-43.

Strnadl, C. F. 2006. “Aligning business and it: The process-

driven architecture model”, Information systems

management, 23(4), 67-77.

TOG: The Open Group, 2015. TOGAF Version 9. The

Open Group Architecture Framework (TOGAF).

http://theopengroup.org/.

Versteeg, G. and Bouwman, H. 2006. “Business

architecture: A new paradigm to relate business strategy

to ICT”, Information systems frontiers, 8(2), pp. 91-

102.

Y.E. Chan and B.H. Reich, 2007. “State of the Art. IT

alignment: what have we learned?” Journal of

Information Technology, 22(4), pp. 297-315.

Zachman, J. A. 1987. A framework for information systems

architecture. IBM Systems Journal, 26(3), 276–292.

Formal Modelling Approach of Enterprise Architecture

735
