Citizen Empowerment by a Technical Approach for Privacy

Enforcement

Sascha Alpers

, Stefanie Betz

, Andreas Fritsch

, Andreas Oberweis

1, 2

, Gunther Schiefer

and

Manuela Wagner

FZI Forschungszentrum Informatik, Karlsruhe, Germany

Karlsruher Institut für Technologie (KIT), Karlsruhe, Germany

Keywords: Data Protection, Mobile Apps, Privacy Enhancing Technologies, Data Sovereignty, Legal Conformity,

Usability.

Abstract: It is a fundamental right of every natural person to control which personal information is collected, stored

and processed by whom, for what purposes and how long. In fact, many (cloud based) services can only be

used if the user allows them broad data collection and analysis. Often, users can only decide to either give

their data or not to participate in communities. The refusal to provide personal data results in significant

drawbacks for social interaction. That is why we believe that there is a need for tools to control one's own

data in an easy and effective way as protection against economic interest of global companies and their

cloud computing systems (as data collector from apps, mobiles and services). Especially, as nowadays

everybody is permanently online using different services and devices, users are often lacking the means to

effectively control the access to their private data. Therefore, we present an approach to manage and

distribute privacy settings: PRIVACY-AVARE is intended to enable users to centrally determine their data

protection preferences and to apply them on different devices. Thus, users gain control over their data when

using cloud based services. In this paper, we present the main idea of PRIVACY-AVARE.

1 INTRODUCTION

Our life is characterized by connected services and

ubiquitous internet. Businesses are connected via the

Cloud, citizens use available services via the global

network. This leads to fundamental changes in

society and business life as well as communication

in general. Internet of things, digital social networks,

commercial rebate systems, cloud applications and

ubiquitous services lead to an increasing value of

personal information. This information is collected,

stored, used and exploited (partly without the user

being aware of it) although European data protection

provisions require an adequate level of transparency

(Christl and Spiekermann, 2016, p. 121).

Currently, many services require more privileges

than they actually need. It is a legal obligation to

minimize data collection, but this is not actual

practice (Felt et al., 2011a, 2011b). Moreover, it is

not always necessary, that users are clearly

identifiable via IDs (for instance, in case of iOS the

Unique Device Identifier), but many applications use

this information and transfer it only partially

encrypted to the respective provider (Smith, 2010).

More problems occur, if users disclose also third

persons' personal information (like photos or contact

data) without their consent. This can lead to data

protection infringement (Local Court Bad Hersfeld

15.05.2017 - F 120/17 EASO, 2017).

This situation shows the problems for users to

protect their privacy, especially on different devices.

Moreover, researchers face the so called privacy

paradox: On the one hand users and industry often

express their concerns on phenomena like Big Data

or Internet of Things and the desire for enhancing

privacy. But, on the other hand they use privacy

infringing services without applying privacy

protecting solutions (Vervier et al., 2017). There

exist several approaches to explain this paradox, like

for example the users' missing awareness of privacy

risks due to a lack of proper information (Leibenger

et al., 2016). Or the possible low availability of

privacy preserving solutions and the high effort or

expenses involved (Forum Privatheit, 2014). Also

discussed in research are network effects that

determine which network is used. Think for example

about more privacy sensitive alternatives to

Alpers, S., Betz, S., Fritsch, A., Oberweis, A., Schiefer, G. and Wagner, M.

Citizen Empowerment by a Technical Approach for Privacy Enforcement.

DOI: 10.5220/0006789805890595

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 589-595

ISBN: 978-989-758-295-0

589

WhatsApp like e.g. Threema. They fail to get a big

market share as they enter the market after the big

player (Schreiner and Hess, 2015). Taking this

example, users can decide to either give their data to

the service provider or not to participate in

communities. So it is possible that the refusal to

provide personal data results in drawbacks

participating in digitalized social interaction.

Therefore, it is important to help users to protect

their personal data through user-friendly privacy

enhancing technologies, while still allowing them to

benefit from the full range of useful services – often

only offered for free in “exchange” for personal

data.

In Europe, the upcoming General Data

Protection Regulation (GDPR) empowers the

citizens' self-determination and obliges providers to

apply privacy by design. These obligations also

apply to international companies outside the EU, if

they offer goods and services to people located

within the EU or monitor their behaviour. If

providers violate these obligations, technical control

and enforcement mechanisms can empower users to

claim their right to data protection. But, they need to

be legally compliant because if users risk legal

consequences they might feel discouraged from

using privacy solutions. Moreover, the technology

should be user friendly and users should be able to

centrally define privacy settings in accordance to

their individual preferences once, which afterwards

are distributed and enforced on (all) devices of the

user. Thus, in this position paper we are presenting

such an approach: PRIVACY-AVARE

The outline of the paper is as follows: We first

present existing approaches for privacy

enforcements (in section two), then we present our

approach: PRIVACY-AVARE in section three (The

Idea). Finally, we end the paper with a short

summary and outlook.

2 DATA PRIVACY

PREFERENCES

It is already possible to allow or deny access to

certain categories of data on many systems. For

example, since Android 6 it is possible to allow or

deny apps the access to address book, calendar,

location and sensors. But it is not possible to set fine

granular preferences. In a typical address book for

each contact forename, surname, birthdate, email

address, postal address, telephone numbers, mobile

numbers, company information and maybe role

information are stored. For a network application

like WhatsApp or Threema only a few of this

information is needed, typical users need name and

mobile number (and for Threema also mail address).

So users need the possibility to allow apps to access

only certain fields of each address. Additionally, the

users want to hide selected contact information for

example, if the relationship is socially taboo.

Fine granular preferences also exist for other

data categories, e.g. for the location information.

There are some apps / services like turn-to-turn-

navigation that need the exact location. But, for

other apps it is enough to know the position in a

wider radius. For a weather forecast app for example

a lower accuracy would be enough.

We miss this functionality in existing solutions.

Three kinds of approaches do exist from a technical

viewpoint:

1. Remove authorizations via the modification

of the manifest file (e.g. Advanced Permission

Manager)

2. Add a security library (e.g. SRT AppGuard)

3. Make a modification at the operating system

level (e.g. XPrivacy)

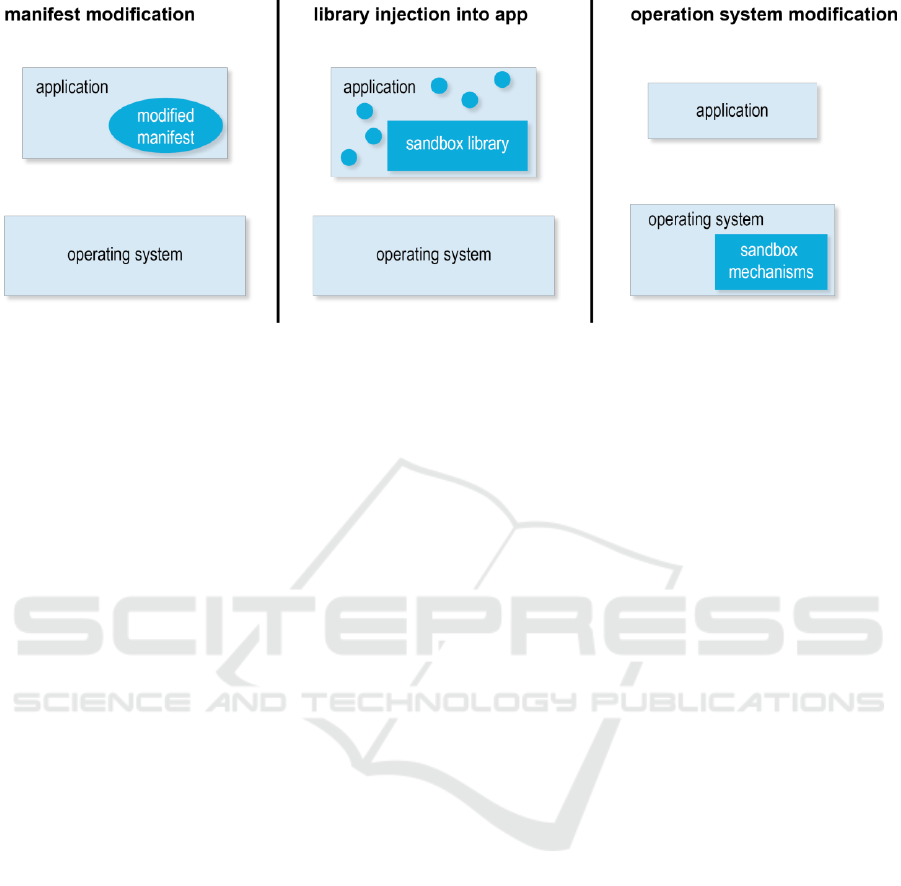

Figure 1 shows these three approaches, visualizing

modifications of the (source) code in dark colour.

The latter two solutions use sandboxes. A sandbox is

referred to as environment, which restricts actions

by an application according to defined rules (Bishop,

2012). By an access restriction the risk of a violation

of the defined rules is reduced (Goldberg et al.,

1996). This concept, derived from IT security, was

adopted to data protection, e.g. by Backes et al.

(2015).

We have published an overview of our analysis

on existing solutions regarding access management

for user support (Alpers et al., 2017a), including a

comprehensive assessment concerning usability and

functionality aspects. In the following, we shortly

present the main limitations of the examined existing

solutions:

a) Only few solutions enable the user to reveal

just selected parts of information (e.g.,

chosen contacts (from all) or only telephone

numbers hiding further information).

b) Currently, only a few solutions grant the

option to provide substitute data to ensure

the ongoing performance of the used

services. Existing solutions are for example

PDroid or MoboClean (partially).

c) Users are not supported when applying

privacy settings. For example, very few

solutions provide group settings.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

590

d) Overall, basic usability should be provided,

however it is often overlooked in existing

privacy solutions.

e) Users need to have a relatively high level of

technical proficiency to use the existing

solutions, especially when using those with

more functionalities than just blocking the

data access.

f) Legal compliance is often not ensured for

existing solutions (see 3.3).

Thus, a new, more comprehensive solution for

privacy enforcement is needed.

3 THE IDEA

To empower users to decide themselves about their

own data we suggest more privacy settings options.

A typical user utilizes different apps (like

WhatsApp, Threema, Maps, etc.) and services

(routing, mail, internet, etc.) on different operating

systems (Android, iOS, Windows, Linux) and

devices (smartphones, tablets, notebooks, SmartTVs,

cars, etc.). Many of these devices, systems, services

and apps have access to stored personal information

or the chance to collect information by sensors or

user tracking. For every app and service, a user has

an idea which data may be shared or collected. Even

if every system would allow the user to control the

access, he will not describe the preference manually

on each system for each service or app. It should be

possible to describe them once (for a category of

apps and services) and enforce them on every

device.

The best way would be that system

manufacturers develop a standard for fine-grained

privacy settings and their privacy friendly

distribution. But they seem not motivated enough to

do so. So states (governments) or confederation of

states should help their citizens and enforce such a

concept by law. It remains to be seen, whether the

concept of privacy by design and by default

combined with the increase of sanctions by the

upcoming GDPR will have the effect to foster such

solutions. Until policies like this exists we want to

help users to describe and enforce their privacy

preferences. Based on the requirements described

above, we have developed a concept for a distributed

privacy management solution, named PRIVACY-

AVARE. In the following, we first refine the basic

functional requirements and then describe a system

concept that implements these refined

functionalities. We also describe in more detail, how

such a system can account for the defined

compliance and usability requirements.

3.1 Refined Functional Requirements

In order to enhance privacy our software application

PRIVACY-AVARE will have the following three

essential functionalities:

(1) Enter the user’s preference profile:

PRIVACY-AVARE can be used to record the user’s

privacy preferences. The user of PRIVACY-

AVARE is supported by suitable explanations for

technical and legal laypersons. It creates a personal

preference profile. Therefore, we need a user-

friendly comprehensive GUI (see section 3.5) and

local data storage capabilities.

(2) Distribute the user’s preference profile: The

preference profile can be distributed via a central

service to all devices of the user. In order to secure

the exchange, a technical requirement is an end-to-

end encryption. Therefore, the user uses a locally

created symmetric key to encrypt the preferences

Figure 1: Different mechanisms for right management (Alpers et al., 2017b).

Citizen Empowerment by a Technical Approach for Privacy Enforcement

591

(e.g. using AES-256). The key is distributed to other

devices by embedding it into a QR code, displayed

on the first device and photographed by the second

one. This means that the user does not have to

entrust his preferences to a central service in plain

text; the key itself is not known to the central

service.

(3) Enable the user to control data access:

PRIVACY-AVARE enables the user to allow fine-

grained data access. Therefore, PRIVACY-AVARE

has different levels of data access control. Data

access can be blocked or filtered. Furthermore,

PRIVACY-AVARE provides the possibility to use

substitute data (no data or specially generated data)

in case the app stops working otherwise. This leads

to the following technical requirements:

a) PRIVACY-AVARE has to monitor data

access requests at runtime and block data

flows corresponding to the blockage rules

set by the user (privacy profile).

b) PRIVACY-AVARE has to extract data from

resources (e.g. address book) as defined by

filtering rules at runtime.

c) PRIVACY-AVARE has to deliver substitute

data to an application that would react with

failure to a denied data access otherwise.

Thus, PRIVACY-AVARE has to be able to

generate plausible substitute data.

d) PRIVACY-AVARE has to incorporate

permission settings of existing applications.

Those data flow filtering and blockage mechanisms

are executed during runtime.

3.2 System Concept

From the refined technical requirements, we derive

the following architecture: Figure 2 shows an

overview of the operating principle.

PRIVACY-AVARE is based on client server

architecture. The server is responsible for storage

and delivery of encrypted privacy profiles. The

client enables the user to set his privacy preferences

in three different levels of granularity. The privacy

settings result in rules for data flow control.

Furthermore, the client enforces these privacy data

flow rules. It controls which data flows from

hardware, sensors or other data sources to an app

using blocking, filtering or substitute data. The

client’s architecture is designed independently from

specific platforms (i.e. Android, iOS, Windows).

This facilitates the usage of PRIVACY-AVARE on

several devices (mobiles, tablets, smart homes, cars,

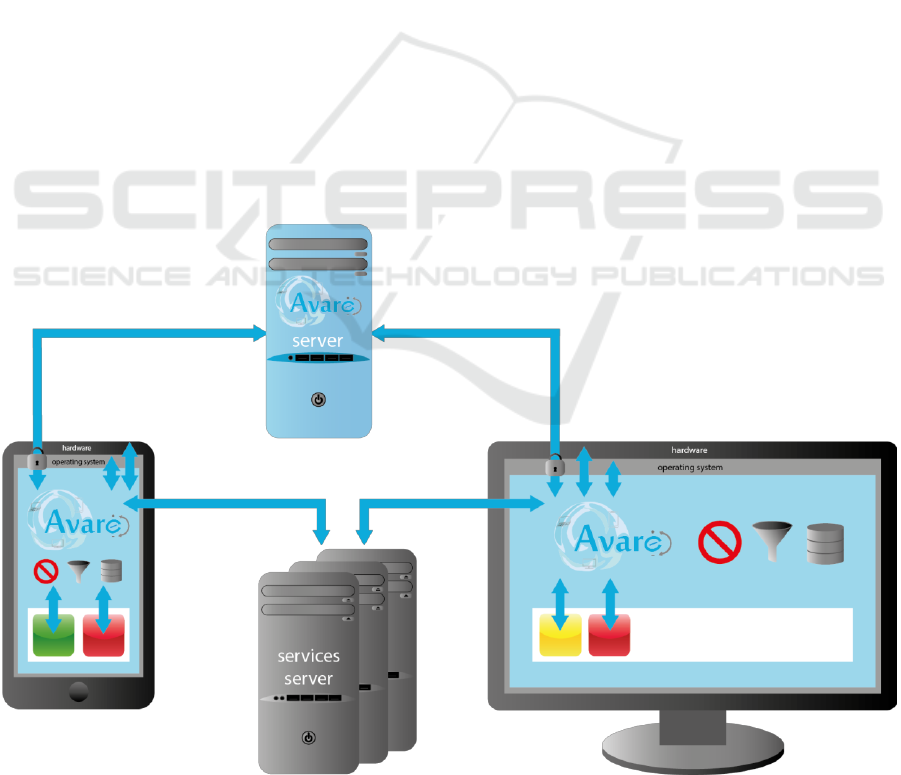

Figure 2: Operating Principle of PRIVACY-AVARE (Alpers et al., 2017b).

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

592

etc.) with different operating systems in various

versions.

3.3 Compliance

As it should not be the obligation of the user to

decide on complex legal questions, our concept

addresses potential legal infringements. First, the

chosen technical solution should not interfere with

copyrights. Computer programmes are mostly

protected as long as the programming required an

act of certain creativity. While the functionality of a

programme is not protected, there is a dispute

whether only the programme code itself or also the

programme routine is protected under copyright law,

so that every change of programme sequences would

require a licence by the author or an exemption by

law (Spindler, 2012). Regarding Android, alterations

are permitted under the Apache licence, except

manufacturers’ modifications. The privacy solution

might alter such programme components, which fall

within an open source licence, so that other

proprietary components are just not triggered. Thus,

this could be considered as an interference with the

function of a programme, but not an alteration of the

proprietary code (KG Berlin 17.03.2010 - 24 U

117/08, 2010). Even if an infringement of code is

inevitable, an exemption by law provides the

possibility to alter computer programmes in order to

achieve the intended usability, which is especially

necessary, if flaws in the programming must be

corrected. A “correction” of data protection

infringements could be subsumed under this

provision (Bodden et al., 2013), but still legal

uncertainty remains.

If modifications of the operating system require

users to root their device, they face the risk of losing

the guarantee or warranty. While warranty claims

have to be fulfilled under the respective legal

obligations unless the defect was the result of the

modification, a voluntarily provided guarantee can

be revoked in case users violate contractual

conditions (as long as these conditions comprise no

unreasonable disadvantage to the customer). So,

from a user’s point of view rooting comprises

certain drawbacks which should be avoided.

The best solution to prevent copyright

infringements would be to avoid permanent

modifications of the proprietary code and to limit

alterations of the programme routine to a minimum,

using existing interfaces redirecting communication

between app and operating system.

Regarding substitute data, potential legal

infringements should be minimized by using

escalation steps. Even if apps are provided "for

free", users enter a contractual relationship. Whether

or not users risk to violate rights of their contractual

partners when they provide wrong information,

depends on the individual case. A “right to lie”

might apply in case of data protection infringements,

but a privacy solution should not require the user to

evaluate the legality of data collection as this would

require certain legal skills. Thus, the solution should

minimize implications by design choices. Only if the

blocking of data access leads to a loss in the

functionality of the app, empty data is provided (like

an empty address book and calendar, no sound, etc.),

so that the opponent cannot learn anything (wrong)

from such data. If the app detects this protective

measure, substitute data consisting of publicly

available information is provided, in order to reveal

no personal information about the user or third users

and meanwhile reduce potential damages due to

false data. Substitute data could be e.g. public

holidays (calendar), public authorities / companies

(address book), background noise (microphone),

image noise (camera). Special cases are location

data and IDs, as providing false location data could

also lead to negative consequences for other users,

e.g. when data is used by the app provider for traffic

jam prediction. To solve this, we propose a solution

that does not provide false location data, but blurred

substitute locations. These substitute locations are

randomly selected within a given radius. This radius

can then be given to the app provider as a

corresponding uncertainty. The app provider will

only receive the substitute location and uncertainty

information information that is not false, but

blurred.

3.4 Categorization

As Kelley et al. (2012) have shown, smartphone

users have difficulties to understand the implications

of their privacy settings. The goal of PRIVACY-

AVARE is therefore to reduce the complexity of

privacy decisions. We propose a categorization of

apps with similar profile of privacy settings based on

expert judgements. For example, one category

consists of applications providing navigation

functionality. Apps within the category navigation

need the location of the user, but can generally be

restricted, say, when accessing other sensor data.

Apps can be sorted within these predefined

categories, reducing the cognitive load for the user.

This way, the user does not need to make a decision

for every single app and every single privacy setting.

The predefined categorization can also be supported

Citizen Empowerment by a Technical Approach for Privacy Enforcement

593

by explanatory text to teach the user about sensible

settings regarding possible privacy risks. To provide

the necessary flexibility for apps that do not fit

within one category, the user still has the possibility

to overwrite specific settings for one app or to create

custom categories.

3.5 UI Prototype

We have developed an early UI prototype to

illustrate our idea. Initially, the user is shown a list

of predefined app-categories, as explained above.

Figure 3 shows exemplary screenshots of the

available settings within one category. On the left

side, the user has selected the app-category “Social

Networks and Communication” (containing Apps

like, for example, Facebook or WhatsApp). The

currently selected tab lists all available privacy

settings, like access to personal files, location,

sensors, contacts, and so on. Another tab “Apps”

allows adding and removing apps from the category,

which is not shown here.

The screenshot on the right in Figure 3 shows an

example, how the user could manipulate the settings

for contacts within one app-category (similar

possibilities are available for the other privacy

settings). The user may choose to block access to

contacts altogether, or to provide substitute date, in

case the app does not work without access to

contacts. As explained in section 3.3, this could be

addresses of public authorities or companies. The

user may also choose to filter data access. In this

example, the user decides to share the contact data

of “Gunther Schiefer” and “Stefanie Betz”, but to

hide the contact data of “Max Mustermann” and

“Martina Musterfrau”. These settings are then

applied to all apps within the category “Social

Networks and Communication”. Additionally, there

is the possibility for the user to create custom

categories or to override the settings for one app

within a category (not shown in the screenshots).

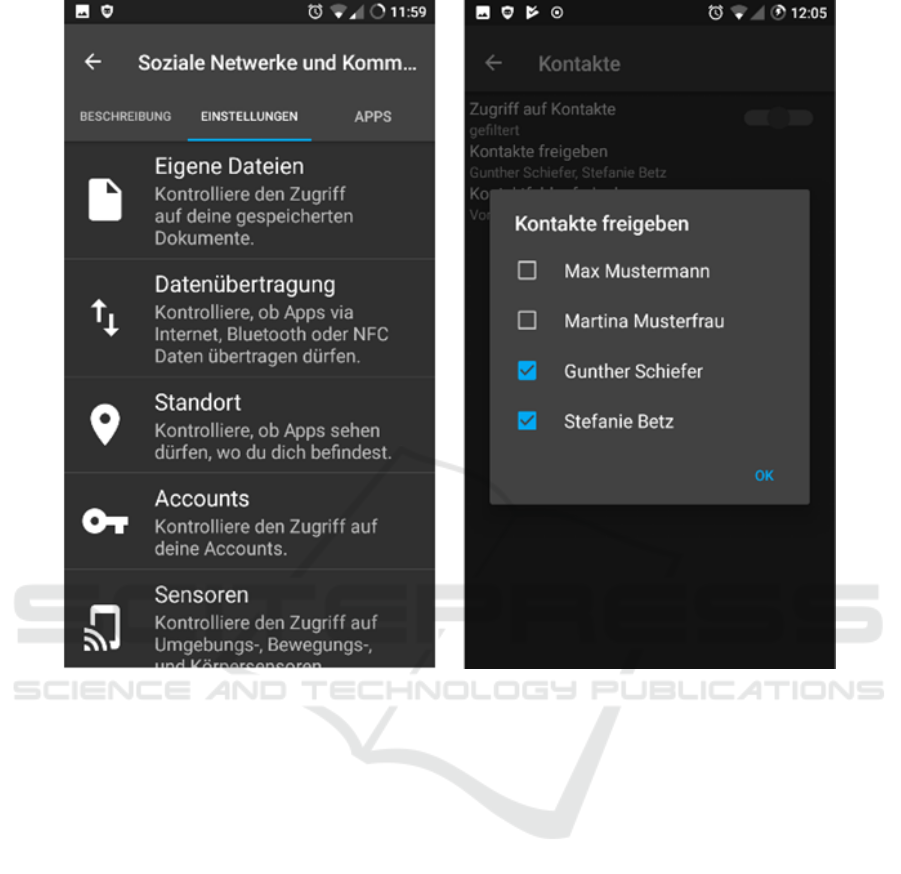

Figure 3: Screenshots of UI Prototype.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

594

4 SUMMARY AND OUTLOOK

In this position paper, we presented an approach

(PRIVACY-AVARE) to empower the privacy

enforcements of citizens. The approach is based on

an analysis of existing solutions for privacy

enhancement and the main functional requirements

are presented. We presented the general operating

principle of PRIVACY-AVARE and discussed some

non-functional compliance and usability

requirements. PRIVACY-AVARE enables users to

gain control over their data and thus enhances

confidence in cloud based services.

Currently, we are implementing our approach

(for Android devices) with a focus on privacy

enforcement for German citizens. The code is Open

Source (Apache 2.0) and available on GitHub

ACKNOWLEDGEMENTS

This work has been financed by the Baden-

Württemberg Stiftung gGmbH within the project

‘AVARE’.

REFERENCES

Alpers, S., Betz, S., Fritsch, A., Oberweis, A., Pieper, M.,

Schiefer, G., Wagner, M., 2017a. Existing Software

[WWW Document]. URL http://projects.aifb.kit.edu/

avare/existing_software/ (accessed 24.01.2018).

Alpers, S., Oberweis, A., Pieper, M., Betz, S., Fritsch, A.,

Schiefer, G., Wagner, M., 2017b. PRIVACY-

AVARE: An Approach to Manage and Distribute

Privacy Settings, in: 3rd IEEE International

Conference on Computer and Communications. pp.

1460–1468.

Backes, M., Bugiel, S., Hammer, C., Schranz, O., Von

Styp-Rekowsky, P., 2015. Boxify: Full-fledged App

Sandboxing for Stock Android, in: Proceedings of the

24th USENIX Conference on Security Symposium,

SEC’15. USENIX Association, Berkeley, CA, USA,

pp. 691–706.

Bishop, M., 2012. Computer security: art and science.

Addison-Wesley, Boston ; Munich

Bodden, E., Rasthofer, S., Richter, P., Roßnagel, A., 2013.

Schutzmaßnahmen gegen datenschutz- unfreundliche

Smartphone-Apps: Technische Möglichkeiten und

rechtliche Zulässigkeit des Selbstdatenschutzes bei

Apps. Datenschutz Datensicherheit - DuD 37, 720–

725. https://doi.org/10.1007/s11623-013-0300-1

https://github.com/fzi-forschungszentrum-

informatik/PRIVACY-AVARE

Christl, W., Spiekermann, S., 2016. Networks of control: a

report on corporate surveillance, digital tracking, big

data & privacy. Facultas, Wien.

Felt, A.P., Chin, E., Hanna, S., Song, D., Wagner, D.,

2011a. Android permissions demystified, in:

Proceedings of the 18th ACM Conference on

Computer and Communications Security. ACM, pp.

627–638.

Felt, A.P., Greenwood, K., Wagner, D., 2011b. The

effectiveness of application permissions, in:

Proceedings of the 2nd USENIX Conference on Web

Application Development. pp. 7–7.

Forum Privatheit, 2014. White Paper Selbstdatenschutz.

Goldberg, I., Wagner, D., Thomas, R., Brewer, E.A.,

1996. A Secure Environment for Untrusted Helper

Applications Confining the Wily Hacker, in:

Proceedings of the 6th Conference on USENIX

Security Symposium, Focusing on Applications of

Cryptography - Volume 6, SSYM’96. USENIX

Association, Berkeley, CA, USA, pp. 1–1.

Kelley, P.G., Consolvo, S., Cranor, L.F., Jung, J., Sadeh,

N., Wetherall, D., 2012. A conundrum of permissions:

installing applications on an android smartphone, in:

International Conference on Financial Cryptography

and Data Security. Springer, pp. 68–79.

KG Berlin 17.03.2010 - 24 U 117/08, 2010.

Leibenger, D., Möllers, F., Petrlic, A., Petrlic, R., Sorge,

C., 2016. Privacy Challenges in the Quantified Self

Movement – An EU Perspective. Proc. Priv.

Enhancing Technol. 2016.

https://doi.org/10.1515/popets-2016-0042

Local Court Bad Hersfeld 15.05.2017 - F 120/17 EASO,

2017.

Schreiner, M., Hess, T., 2015. Examining the role of

privacy in virtual migration: The case of whatsapp and

threema.

Smith, E., 2010. iPhone applications & privacy issues: An

analysis of application transmission of iPhone unique

device identifiers (UDIDs). URL Www Pskl Uswpwp-

Contentuploads201009iPhone-Appl.-Priv.-Issues Pdf.

Spindler, G., 2012. Grenzen des Softwareschutzes.

Comput. Recht 28. https://doi.org/10.9785/ovs-cr-

2012-417

Vervier, L., Zeissig, E.-M., Lidynia, C., Ziefle, M., 2017.

Perceptions of Digital Footprints and the Value of

Privacy: SCITEPRESS - Science and Technology

Publications, pp. 80–91.

https://doi.org/10.5220/0006301000800091

Citizen Empowerment by a Technical Approach for Privacy Enforcement

595
