Exploiting BPMN Features to Design a Fault-aware TOSCA

Orchestrator

Domenico Calcaterra, Vincenzo Cartelli, Giuseppe Di Modica and Orazio Tomarchio

Department of Electrical, Electronic and Computer Engineering, University of Catania, Catania, Italy

Keywords:

Cloud Provisioning, Cloud Orchestration, Fault Tolerance, TOSCA, BPMN.

Abstract:

Cloud computing is nowadays a consolidated paradigm that enables scalable access to computing resources

and complex services. One of the greatest challenges Cloud providers have to deal with is to efﬁciently

automate the service “provisioning” activities through Cloud orchestration techniques. By relying on TOSCA,

a well-known standard speciﬁcation for the interoperable description of Cloud services, we developed a fault-

aware orchestrator capable of automating the workﬂow for service provisioning. The BPMN notation was used

to deﬁne both the workﬂow and the data associated with workﬂow elements. To corroborate the proposal, a

software prototype was developed and tested with a sample use case which is discussed in the paper.

1 INTRODUCTION

Nowadays, Cloud computing is gaining an increasing

popularity over traditional systems in terms of ﬂexi-

bility, which brings both great opportunities and chal-

lenges. One of the critical challenges is resiliency,

deﬁned as the capacity of a system to remain reliable,

fault tolerant, survivable, dependable, and secure in

case of any malicious or accidental malfunctions or

failures that result in a temporary or permanent ser-

vice disruption (Colman-Meixner et al., 2016). Then,

resiliency strongly relates to fault tolerance, meaning

that a system can provide its services even in the pres-

ence of faults. As for service provisioning, a num-

ber of special activities need to be put into place with

proper timing in order to build up a Cloud service.

If any of them fails, in the absence of fault-tolerance

mechanisms, the system might not be able to provide

the required service.

In this work we analyse faults that occurr at provi-

sioning time. Considerations stemmed from the anal-

ysis drove the design of a fault-aware orchestrator

capable of pipelining the service provisioning activi-

ties according to fault-tolerant schemes. The provi-

sioning activities scheduled by the orchestrator can

detect faults when they occur, and automatically put

in force counteractions to recover from faults, thus

minimizing the recourse to human intervention. In

order to operate on top of different Cloud platforms,

we leveraged the Cloud application model description

of the TOSCA speciﬁcation (OASIS, 2013).

The remainder of the paper is organized in the

following way. In Section 2 we report some litera-

ture works addressing fault management in the Cloud

context. Section 3 provides a bird’s eye view of the

OASIS TOSCA standard. In Section 4 we delve into

faults in Cloud service provisioning, while in Section

5 the design of the proposed fault-aware TOSCA or-

chestrator is presented. We provide a sample use case

in Section 6 and conclude the work in Section 7.

2 RELATED WORK

When it comes to fault tolerance, there is a distinc-

tion made among fault, error and failure (Agarwal and

Sharma, 2015). A fault is deﬁned as the inability of

a system to do its required task caused by an anoma-

lous state or bug in one or more than one parts of a

system. An error is a part of a system’s state that may

lead to a failure, which refers to misconduct of a sys-

tem that can be observed by a user. Faults can be

of various types including: network faults, physical

faults, media faults, processor faults, process faults

and service expiry faults (Sivagami and EaswaraKu-

mar, 2015). Faults may also be generally classiﬁed as

transient, intermittent and permanent ones. Various

fault tolerance techniques can be used at either task

level or workﬂow level to resolve the faults, which are

classiﬁed into two types: proactive and reactive (Patra

et al., 2013) (Amin et al., 2015) (Poola et al., 2017).

Calcaterra, D., Cartelli, V., Di Modica, G. and Tomarchio, O.

Exploiting BPMN Features to Design a Fault-aware TOSCA Orchestrator.

DOI: 10.5220/0006775605330540

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 533-540

ISBN: 978-989-758-295-0

533

By leveraging on the policies of proactive and reactive

methods, several architecture models have also been

proposed to provide fault tolerance (Cheraghlou et al.,

2016).

Different challenges in the context of Cloud com-

puting can be encountered both during and after the

deployment of applications. Speciﬁcally, manual de-

ployment of large-scale distributed systems is time-

consuming and error-prone (Hamilton, 2007) (Leite

et al., 2014). That’s the reason why the deployment

process must be automated and resilient. Speaking

of automation, BPEL and BPMN are the most ap-

plied standards for service composition and orchestra-

tion (Vargas-Santiago et al., 2017). Three basic fault

handling concepts are provided by the BPEL engine:

compensation handlers, fault handlers, and event han-

dlers. Nevertheless, BPEL only manages predeﬁned

faults speciﬁed by application designers. Similarly,

the BPMN engine provides error events, cancel events

and compensation events.

The scientiﬁc community has also taken an in-

terest in research proposals for fault-tolerant frame-

works. In (Varela-Vaca et al., 2010), a framework

for developing business processes with fault tolerance

capabilities was provided. The framework presents

different mechanisms in the fault tolerance scope,

contemplating both replication solutions and soft-

ware fault-tolerant techniques. In (Jayasinghe et al.,

2013), the authors presented a fault-tolerant runtime

(AESON) to recover applications from failures that

could possibly happen during and after deployment.

Three types of failures are supported: node crashes,

node hangs and application component failures. Even

though deployment failures were addressed, this work

suffers from two major drawbacks: a) AESON was

designed as a P2P system, and b) application mod-

els are not TOSCA-compliant. In (Giannakopoulos

et al., 2017), a deployment methodology with error

recovery features was proposed. It bases its function-

ality on identifying the script dependencies and re-

executing the appropriate conﬁguration scripts. Nev-

ertheless, this approach can only resolve transient fail-

ures occurring during the deployment phase.

3 THE TOSCA SPECIFICATION

TOSCA is the acronym for Topology and Orchestra-

tion Speciﬁcation for Cloud Applications. It is a stan-

dard designed by OASIS to enable the portability of

Cloud applications and the related IT services (OA-

SIS, 2013). This speciﬁcation permits to describe

the structure of a Cloud application as a service tem-

plate, that is composed of a topology template and

the types needed to build such a template. The topol-

ogy template is a typed directed graph, whose nodes

(called node templates) model the application com-

ponents, and edges (called relationship templates)

model the relations occurring among such compo-

nents. Each node of a topology can also be asso-

ciated with the corresponding component’s require-

ments, the operations to manage it, the capabilities it

features, and the policies applied to it.

TOSCA supports the deployment and manage-

ment of applications in two different ﬂavours: im-

perative processing and declarative processing. The

imperative processing requires that all needed man-

agement logic is contained in the Cloud Service

Archive (CSAR). Management plans are typically im-

plemented using workﬂow languages, such as BPMN

or BPEL. The declarative processing shifts manage-

ment logic from plans to runtime. TOSCA run-

time engines automatically infer the corresponding

logic by interpreting the application topology tem-

plate. The set of provided management functionali-

ties depends on the corresponding runtime and is not

standardized by the TOSCA speciﬁcation.

The TOSCA Simple Proﬁle is an isomorphic ren-

dering of a subset of the TOSCA speciﬁcation (OA-

SIS, 2013) in the YAML language (OASIS, 2017).

The TOSCA Simple Proﬁle deﬁnes a few normative

workﬂows that are used to operate a topology, and

speciﬁes how they are declaratively generated: de-

ploy, undeploy, scaling-workﬂows and auto-healing

workﬂows. Imperative workﬂows can still be used for

complex use-cases that cannot be solved in declara-

tive workﬂows. However, they provide less reusabil-

ity as they are deﬁned for a speciﬁc topology rather

than being dynamically generated based on the topol-

ogy content. Moreover, by default, any activity failure

of the workﬂow will result in the failure of the whole

workﬂow. Although some constructs (e.g., on failure)

allow to execute rollback operations, neither policies

nor mechanisms are deﬁned to automatically recover

from failures happening during the deployment of the

topology.

The work described in this paper heavily grounds

on the TOSCA standard and, speciﬁcally, on the

TOSCA Simple Proﬁle.

4 ANALYSIS OF FAULTS IN

SERVICE PROVISIONING

IaaS providers usually allow to create and manage

Cloud resources using web-based dashboards, CLI

clients, REST APIs, and language-speciﬁc SDKs. Al-

though all the aforementioned approaches provide ac-

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

534

cess to different Cloud services, REST APIs do it

without any restrictions whatsoever. Besides, since

REST architectural style uses well-known W3C stan-

dards, it comes with several advantages in terms of

ﬂexibility, portability, simplicity and scalability. As a

result, REST-APIs can be considered as the preferen-

tial way to access Cloud infrastructure services.

Notwithstanding that most of IaaS providers offer

a set of REST APIs, infrastructure differences often

reﬂect badly upon the semantics of interaction with

heterogeneous services. There is, therefore, a need for

models capable of masking these differences in order

to achieve a uniﬁed interaction paradigm. In particu-

lar, a process of homogenization should be carried out

for REST-API error codes and Resource status codes.

Without loss of generality, OpenStack APIs and

Amazon EC2 APIs have been taken into account

for mapping heterogeneous, platform-dependent er-

ror and status codes onto homogeneous, platform-

independent error and status codes. Speciﬁcally, map-

ping templates have been produced for the provision

of the following Cloud resources: VM, Storage, Net-

work and Subnet.

Table 1: Error and status codes mapping for VMs.

Error Code Error Mapping

IdempotentParameterMismatch

400 Bad Request

InsufﬁcientFreeAddressesInSubnet

InvalidAMIID.Malformed

InvalidAMIID.Unavailable

InvalidBlockDeviceMapping

InstanceLimitExceeded

InvalidInterface.IpAddressLimitExceeded

InvalidParameter

InvalidParameterCombination

InvalidParameterValue

MissingParameter

SecurityGroupLimitExceeded

Unsupported

UnsupportedOperation

VolumeTypeNotAvailableInZone

AuthFailure 401 Unauthorized

InvalidAMIID.NotFound

404 Not Found

InvalidGroup.NotFound

InvalidKeyPair.NotFound

InvalidNetworkInterfaceID.NotFound

InvalidSnapshot.NotFound

EC2

InvalidSubnetID.NotFound

badRequest 400 Bad Request

unauthorized 401 Unauthorized

forbidden 403 Forbidden

itemNotFound 404 Not Found

OpenStack

conﬂict 409 Conﬂict

Status Code Status Mapping

pending wip

running okEC2

terminated error

BUILD wip

ACTIVE okOpenStack

ERROR error

With regard to VM provisioning, let us consider

Table 1, which represents mappings for error codes

and status codes as well. The second column con-

tains error codes (and status codes, in that order),

that are grouped by both the APIs they refer to (as

speciﬁed in the ﬁrst column) and the HTTP error

codes (and the generic status codes, in that order) they

can be mapped onto (as speciﬁed in the third col-

umn). For instance, according to Table 1, the “In-

validAMIID.Malformed” entry identiﬁes an Amazon

EC2 APIs error code, which can be mapped onto

the HTTP “400 Bad Request” error code; the “item-

NotFound” entry identiﬁes an OpenStack APIs error

code, which can be mapped onto the HTTP “404 Not

Found” error code. Similarly, the “pending” entry

identiﬁes an Amazon EC2 APIs status code, which

can be mapped onto the “wip” (i.e., work in progress)

status code; the “ACTIVE” entry identiﬁes an Open-

Stack APIs status code, which can be mapped onto

the “ok” status code.

Table 2: Error and status codes mapping for Storage.

Storage

Error Code Error Mapping

MaxIOPSLimitExceeded

400 Bad Request

UnknownVolumeType

VolumeLimitExceeded

IncorrectState

MissingParameter

AuthFailure 401 Unauthorized

InvalidSnapshot.NotFound

404 Not Found

EC2

InvalidZone.NotFound

Status Code Status Mapping

creating wip

available okEC2

error error

Table 3: Error and status codes mapping for Networks.

Network

Error Code Error Mapping

InvalidVpcRange

400 Bad Request

VpcLimitExceededEC2

AuthFailure 401 Unauthorized

Status Code Status Mapping

pending wip

EC2

available ok

Table 4: Error and status codes mapping for Subnets.

Subnet

Error Code Error Mapping

SubnetLimitExceeded 400 Bad Request

AuthFailure 401 Unauthorized

InvalidVpcID.NotFound 404 Not Found

EC2

InvalidSubnet.Conﬂict 409 Conﬂict

Status Code Status Mapping

pending wip

EC2

available ok

In a similar way, Table 2 displays mappings for

Storage provisioning, whereas Table 3 exhibits map-

pings for Network provisioning, and Table 4 illus-

trates mappings for Subnet provisioning instead. For

the sake of brevity, it should be noted that only Table

1 shows error codes and status codes for both Open-

Stack APIs and Amazon EC2 APIs.

Exploiting BPMN Features to Design a Fault-aware TOSCA Orchestrator

535

5 DESIGN OF A FAULT-AWARE

TOSCA ORCHESTRATOR

The objective of this work is to design a TOSCA

Orchestrator which enriches the deployment process

with ad-hoc activities to deal with faults, whenever

they occur. The fault model described in Section 4

was used to design a fault-aware deploying process.

The Orchestrator is part of a bigger framework that

was designed for the provisioning of applications in

the Cloud. Section 5.1 provides a description of such

a framework and its components. In Section 5.2 the

fault-tolerant BPMN schemes enforced by the Or-

chestrator to deploy Cloud applications are discussed.

5.1 System Architecture

In (Calcaterra et al., 2017) a software framework that

automates the provision of Cloud services was dis-

cussed. In this section we brieﬂy report the descrip-

tion of the architecture of the provisioning frame-

work. Starting from the Cloud application model de-

scription, the proposed framework is capable of devis-

ing and orchestrating the workﬂow of the provision-

ing operations to execute. We have designed and im-

plemented a TOSCA Orchestrator which transforms

the YAML model into an equivalent BPMN model,

which is fed to a BPMN engine that will instantiate

and coordinate the relative process. The process will

put in force all the provisioning activities needed to

build up the application stack. The overall provision-

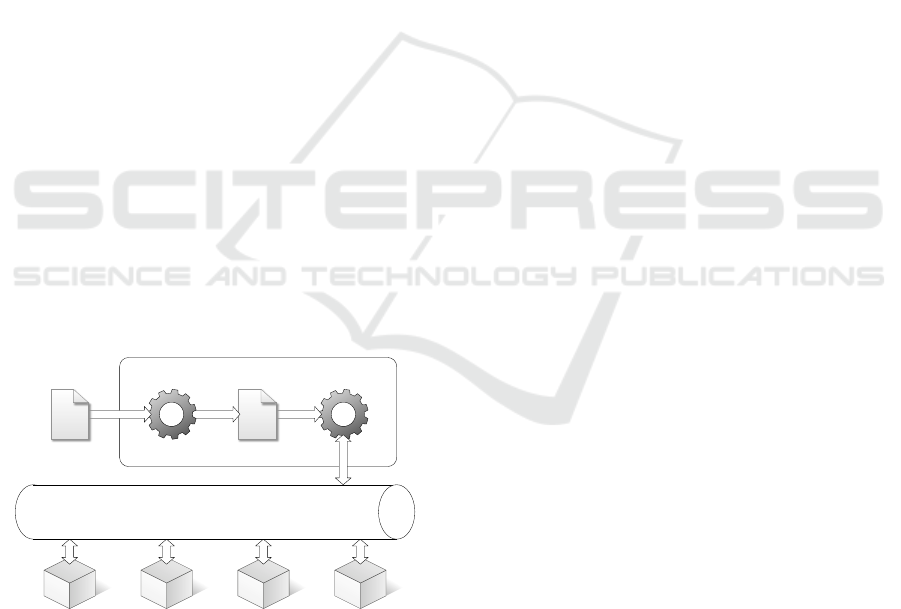

ing scenario is best depicted in Figure 1.

Cloud Orchestrator

BPMN Engine

Create VM

Service #1

Create VM

Service #2

Deploy DB

Service #1

Deploy App Container

Service #1

BPMN

Service BUS

YAML-TO-BPMN

YAML

Figure 1: Cloud Orchestrator scenario.

Providers can design their services according

to speciﬁc templates and offer them to Customers

through an Enterprise Service Bus (ESB). There are

mainly two categories of Provisioning Services that

need to be integrated in the ESB: Cloud Services and

Packet-based Services. In order to integrate all the

mentioned services in the ESB, we deploy a layer

of Service Connectors which are responsible for con-

necting requests coming from the Provisioning Tasks

with the Provisioning Services.

Figure 2 shows the ESB-based architecture. The

Connectors layer provides a uniﬁed interface model

for the invocation of the services, which allows to

achieve service location transparency and loose cou-

pling between Provisioning BPMN plans (orches-

trated by the Process Engine) and Provisioning Ser-

vices. The Service Registry is responsible for the reg-

istration and discovery of Connectors. The Service

Broker is in charge of taking care of the requests com-

ing from the Provisioning Tasks.

Cloud Services Connectors implement interac-

tions with Cloud Providers for the allocation of Cloud

resources. For each service type a speciﬁc Connector

needs to be implemented. For instance, Instantiate

VM represents the generic Connector interface to the

instantiation of Cloud resources of “Virtual Machine”

type. All concrete Connectors to real VM services

(Amazon, OpenStack, Azure, etc.) must implement

the Instantiate VM interface. Likewise, Add Stor-

age is the generic Connector interface to storage ser-

vices that concrete Connectors to real storage services

in the Cloud must implement.

Packet-based Services Connectors are meant to

implement interactions with all service providers

that provide packet-based applications. When the

YAML-to-BPMN conversion takes place, three types

of BPMN service tasks might be generated: “Cre-

ate”, “Conﬁgure” and “Start”. To each of these tasks

corresponds a generic connector interface (Create,

Conﬁgure and Start). Those interfaces are then ex-

tended in order to manage many types of applications

(DBMS, Web Servers, etc.). The latters are the ones

that concrete Connectors must implement in order to

interact with real packet-based application providers.

5.2 Fault-tolerant BPMN Schemes

The YAML-TO-BPMN component (see Figure 1) is

responsible for the conversion of the TOSCA YAML

template into the BPMN schemes that the BPM en-

gine will have to execute. Those schemes deﬁne a

workﬂow of fault-tolerant provision activities, that

can detect faults and react accordingly. All recover-

able faults are autonomously managed by the process

tasks thus minimizing the recourse to human interven-

tion (which we will refer to as escalation).

From the analysis of the most common deploy-

ment faults in Section 4, it appears that some faults

may occur on the Cloud Provider side, others are due

to bad service requests issued by the Customers. As

for the faults at the Provider side, some might turn to

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

536

Packet-based Services Connectors

Create

apache 2

Cloud Services Connectors

Enterprise Service Bus

Service

Registry

Process

Engine

Service

Broker

Instantiate

A O …

Create

Create Create Create

DB WS …

Conﬁgure

Conﬁg Conﬁg Conﬁg

DB WS …

Start

Start Start Start

DB WS …

Instantiate VM Add Storage

Add

Storage

Add

Storage

Add

Storage

A O …

…

Create

mysql

Create

…

Conﬁg

apache 2

Conﬁg

mysql

Conﬁg

…

Start

apache 2

Start

mysql

Start

…

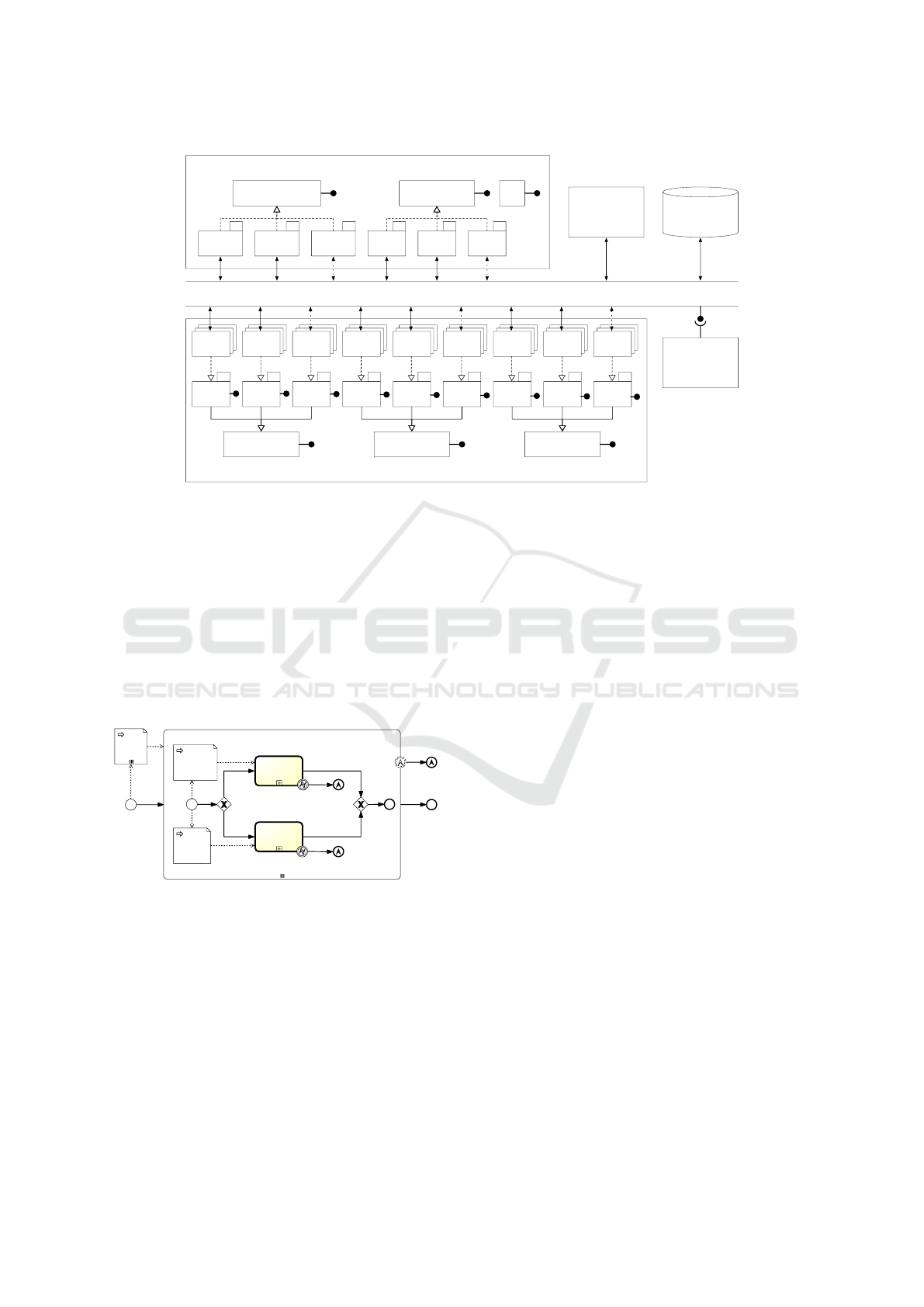

Figure 2: Enterprise Service Bus and Service Connectors.

be transient, some others are permanent and require

the intervention of an operator. When Customers is-

sue bad requests, instead, there is no way but to call

for human intervention. Also, most of Cloud service

APIs are by their nature asynchronous. The timing of

Cloud service activation is an aspect that needs to be

taken into account when pipelining the provision ac-

tivities. A faulty access to a service instance might be

mistaken for a faulty service, when instead the prob-

lem could just be that the service is being activated

and, therefore, is not yet ready for use.

begin

error

escalation

node

Instantiate Node

deploy

any error

create

any error

node

[cloud resource]

node

[package]

cloud resource

error

package

error

complete

any error

escalation

cloud resource

package

Figure 3: BPMN scheme of the service provision workﬂow.

The BPMN provisioning schemes we devised take

care of all the discussed requirements for the Cloud

services fault management. In the case of Packet-

based Services, at the moment only schemes for the

detection of faults and the subsequent escalation have

been deﬁned. The deﬁnition of more elaborated

schemes to deal with faulty packet-based services will

be object of future work. In Figure 3 the overall ser-

vice provision workﬂow is depicted. The diagram

is composed of a parallel multi-instance sub-process,

i.e., a set of sub-processes (called “Instantiate Node”)

each processing a TOSCA node in a parallel fashion.

Since a TOSCA node can be either a Cloud resource

or a software package, a sub-process will proceed to

either a “create cloud resource” or a “deploy package”

sub-process. Here, whenever an error is detected, an

escalation is thrown by the relative “escalation end

event” (“cloud resource error” or “package error”) in

the parent sub-process (“Instantiate Node”). The se-

lective escalation ends the faulty “Instantiate Node”

sub-process and keeps all other sub-processes alive

and running, while the faulty one is being recovered.

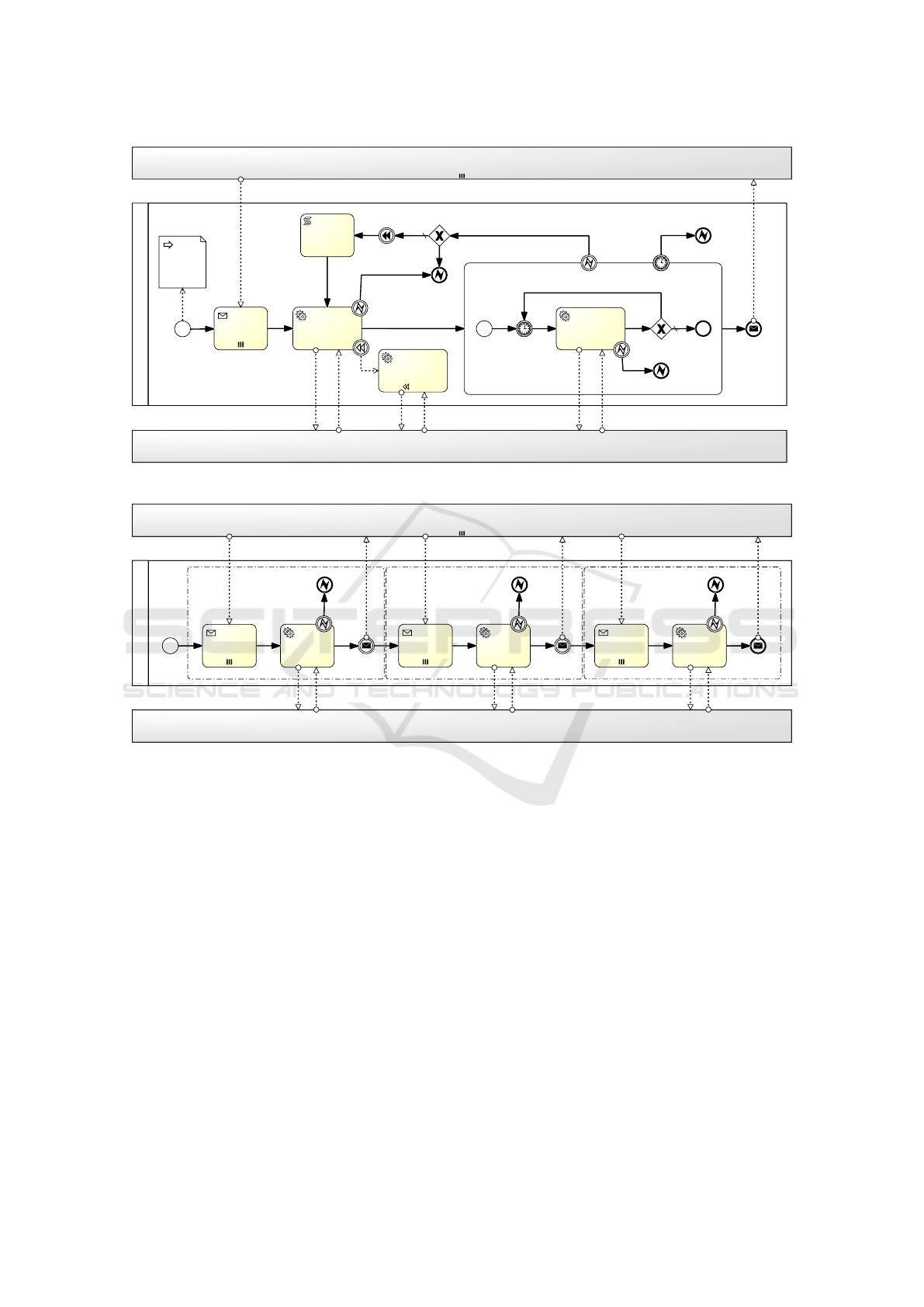

In Figure 4 the workﬂow of the “create cloud re-

source” sub-process is depicted. The top pool called

“Node Instance” represents the pool of all instances

of either the “create cloud resource” sub-process or

the “deploy package” sub-process, which are running

in parallel to the “create cloud resource” sub-process

being analysed. The bottom pool called “Cloud Ser-

vice Connectors” represents the pool of the software

connectors deployed in the ESB, which interface to

the Cloud Service APIs. In the middle pool the se-

quence of tasks carried out to create and instantiate

a Cloud resource are depicted. Interactions of the

middle pool with the “Node Instance” pool represent

points of synchronization between the multiple instal-

lation instances, that may be involved in a provision

process. The creation of a Cloud resource starts with a

task that awaits notiﬁcations coming from the preced-

ing sub-processes. A service task will then trigger the

actual instantiation by invoking the appropriate Con-

nector on the ESB. Here, if a fault occurs, it is imme-

diately caught and the whole sub-process is cancelled.

Following the path up to the parent process (see Fig-

ure 3), the escalation is engaged. If the creation step is

Exploiting BPMN Features to Design a Fault-aware TOSCA Orchestrator

537

Cloud Service Connectors

create <cloud resource>

decrement

retry counter

retry?

create error

create

wait until created

check period

check

create status

create

error

create timeout

create

error

create

timeout

dispose

error

await create

notifications

ready

create start

node

[cloud resource]

Node Instance

wip

Figure 4: BPMN scheme of the Cloud Service provision workﬂow.

deploy <package>

create

configure

start

started

created

await configure

notifications

await start

notifications

configured

await create

notifications

deploy start

create error

configure error

start error

create error

configure error

start error

Node Instance

Packet-based Service Connectors

create

configure

start

Figure 5: BPMN scheme of the Packet-based Service provision workﬂow.

successful, a “wait-until-created” sub-process is acti-

vated. Checks on the resource status are iterated until

the latter becomes available for use. The “check cloud

resource create status” service task is committed to in-

voke the Connector on the ESB to check the resource

status on the selected Provider. Checking periods are

conﬁgurable, so is the timeout put on the boundary

of the sub-process. An error event is thrown either

when the timeout has expired or when an explicit er-

ror has been signalled in response to a resource check

call. In the former case, the escalation is immediately

triggered; in the latter case, an external loop will lead

the system to autonomously re-run the whole resource

creation sub-process a conﬁgurable number of times,

before giving up and eventually calling up the escala-

tion. Moreover, a compensation mechanism (“dispose

cloud resource” task) allows to dispose of the Cloud

resource, whenever a fault has occurred.

In Figure 5 the workﬂow of the “deploy package”

sub-process is depicted. This sub-process presents

three synchronization points with the “Node In-

stance” pool. Notiﬁcations from preceding TOSCA

node instances must be awaited before executing

the “create package”, “conﬁgure package” and “start

package” tasks, respectively. Also, the sub-process

is in charge of sending out notiﬁcations when each of

the mentioned tasks successfully terminates its execu-

tion. Regarding the management of potential faults,

they are caught and handled via escalation.

6 USE CASE

The Application model taken into consideration de-

ploys a WordPress web application on an Apache web

server, with a MySQL DBMS hosting the database

content of the application on a separate server. Fig-

ure 6 shows the overall TOSCA-compliant architec-

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

538

ture (although wordpress, php and apache node types

are non-normative).

HostedOn

HostedOn HostedOn

HostedOn

ConnectsTo

wordpress

WebApplication

Properties

• context_root

Requirements

Endpoint.Database

Container

PHPModule

mysql_database

Database

Properties

• name

• user

• password

• port

Requirements

Container

Capabilities

Endpoint.Database

php

SoftwareComponent

Capabilities

PHPModule

Requirements

Container

apache

WebServer

Properties

• port

• document_root

Capabilities

Container

Requirements

Container

mysql_dbms

DBMS

Properties

• port

• root_password

Capabilities

Container

Requirements

Container

app_server

Compute

Capabilities

Container

Properties

• disk_size

• num_cpus

• mem_size

• cpu_frequency

OperatingSystem

Properties

• architecture

• type

• distribution

• version

mysql_server

Compute

Capabilities

Container

Properties

• disk_size

• num_cpus

• mem_size

• cpu_frequency

OperatingSystem

Properties

• architecture

• type

• distribution

• version

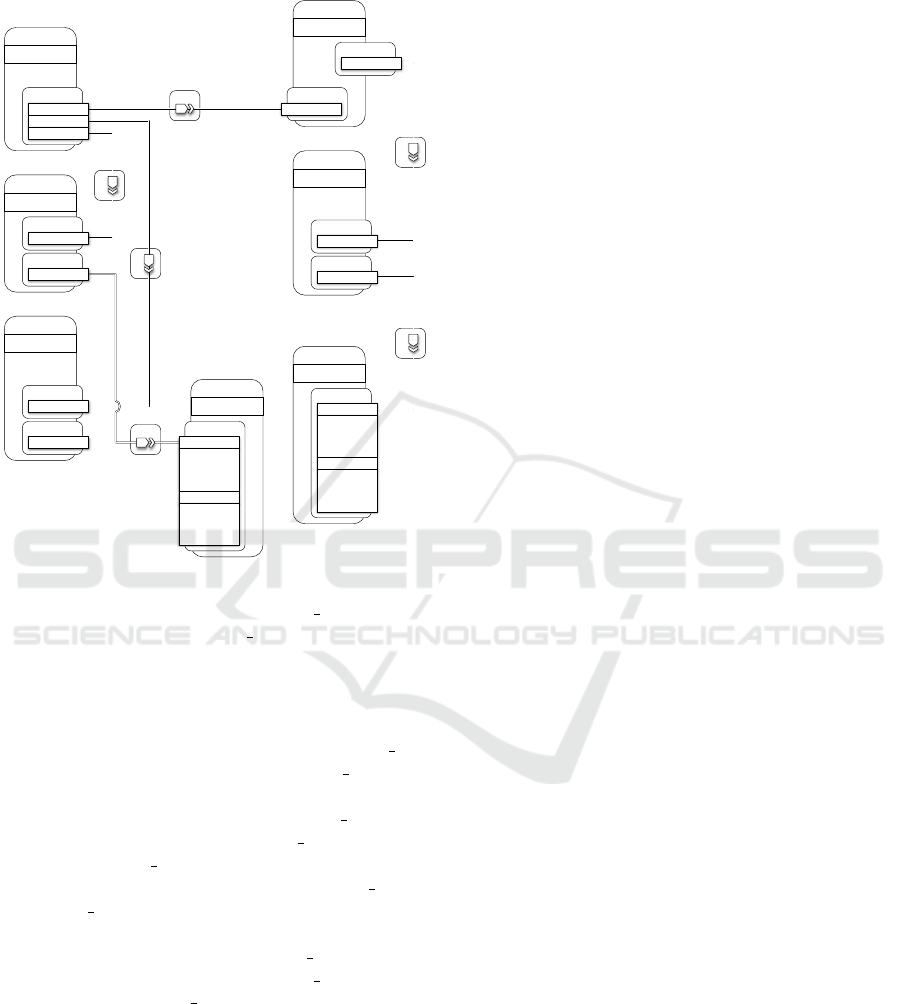

Figure 6: Wordpress Deploy - TOSCA Template.

There are two separate servers: app server for the

web server hosting and mysql server for the DBMS

hosting. Both servers are conﬁgurable on hardware

side (e.g., disk size, number of cpus, memory size

and CPU frequency) and software side (e.g., OS ar-

chitecture, OS type, OS distribution and OS version).

The apache node features port and document root

properties, and is dependent upon the app server via

a HostedOn relationship as well. In the same way,

the php node is dependent upon the app server via

a HostedOn relationship. The mysql dbms node fea-

tures port and root password properties, and a Hoste-

dOn dependency relationship upon the mysql server.

The mysql database node features name, username,

password and port properties, and a HostedOn de-

pendency relationship upon the mysql dbms. Finally,

the wordpress node features the context root property,

and depends on mysql database and php by means

of two ConnectsTo relationships and on apache by

means of a HostedOn relationship, respectively.

The TOSCA template was fed to the YAML-TO-

BPMN converter which produced the BPMN schemes

implementing the provision process. The lack of

space prevented us from reporting all the workﬂow

diagrams describing the instantiation sub-processes.

In Figure 7, instead, we have reported the BPMN

2.0 Collaboration diagram describing only the inter-

actions among sub-processes. For the sake of sim-

plicity, in all sub-processes only the synchronization

messages have been reported. Messages give a clear

idea of the precedence constraints that affect the pro-

vision. For instance, the “deploy apache” sub-process

awaits the notiﬁcation coming from the “create appli-

cation server” sub-process, which in turn awaits no-

tiﬁcations coming from both the “create private net-

work” and the “create public network” sub-processes;

the “deploy Wordpress” awaits the notiﬁcation from

the “deploy Apache” sub-process before executing

the creation task, but after that, and before starting

the conﬁgure task, it needs two further notiﬁcations

from the “deploy database” and the “deploy PHP”

sub-processes, respectively.

7 CONCLUSION

The automation of the provisioning of complex Cloud

applications is becoming a crucial factor for the com-

petitiveness of Cloud providers. Several frameworks

and standards addressing this issue have appeared:

however, as shown in this work, the resilience of the

provisioning process is not adequately dealt with. In

this work, leveraging on the TOSCA speciﬁcation, we

proposed the deﬁnition of a Cloud orchestration and

provisioning framework that automates the Cloud ser-

vice deployment, explicitly taking into account the

occurrence of failures during the provisioning pro-

cess. The resulting fault-aware orchestrator includes

speciﬁc plans to recover from those failures, mini-

mizing human intervention. In our future work, the

framework will be enhanced with more complex plans

to deal with different fault types.

REFERENCES

Agarwal, H. and Sharma, A. (2015). A comprehensive

survey of fault tolerance techniques in cloud comput-

ing. In 2015 International Conference on Comput-

ing and Network Communications (CoCoNet), pages

408–413.

Amin, Z., Singh, H., and Sethi, N. (2015). Review on fault

tolerance techniques in cloud computing. Interna-

tional Journal of Computer Applications, 116(18):11–

17.

Calcaterra, D., Cartelli, V., Di Modica, G., and Tomarchio,

O. (2017). Combining TOSCA and BPMN to En-

able Automated Cloud Service Provisioning. In Pro-

ceedings of the 7th International Conference on Cloud

Computing and Services Science (CLOSER 2017),

pages 187–196, Porto (Portugal).

Exploiting BPMN Features to Design a Fault-aware TOSCA Orchestrator

539

create "private network"

"private network"

create start

"private network"

ready

create "public network"

"public network"

create start

"public network"

ready

create "DB server"

await create

notiﬁcations

"DB server"

create start

"DB server"

ready

create "application server"

await create

notiﬁcations

"application server"

create start

"application server"

ready

deploy "MySQL"

"MySQL"

started

"MySQL"

deploy start

await create

notiﬁcations

deploy "database"

"database"

started

await

conﬁgure

notiﬁcations

"database"

deploy start

await create

notiﬁcations

deploy "Apache"

"Apache"

started

"Apache"

deploy start

await create

notiﬁcations

deploy "PHP"

"PHP"

started

await

conﬁgure

notiﬁcations

"PHP"

deploy start

await create

notiﬁcations

deploy "Wordpress"

"Wordpress"

started

"Wordpress"

created

await

conﬁgure

notiﬁcations

"Wordpress"

deploy start

await create

notiﬁcations

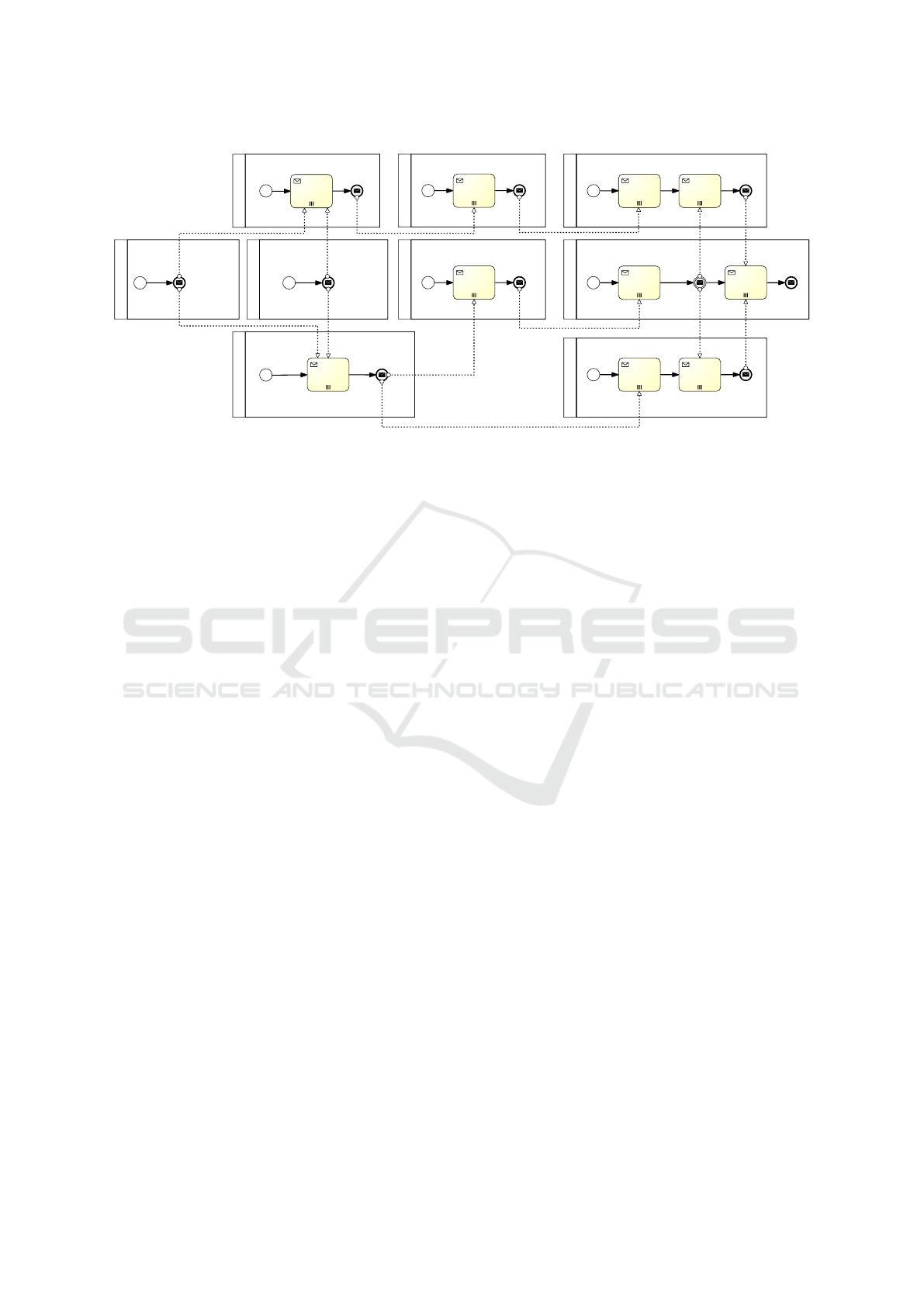

Figure 7: Wordpress Deploy - Collaboration diagram.

Cheraghlou, M. N., Khadem-Zadeh, A., and Haghparast,

M. (2016). A survey of fault tolerance architecture in

cloud computing. Journal of Network and Computer

Applications, 61:81 – 92.

Colman-Meixner, C., Develder, C., Tornatore, M., and

Mukherjee, B. (2016). A survey on resiliency tech-

niques in cloud computing infrastructures and appli-

cations. IEEE Communications Surveys Tutorials,

18(3):2244–2281.

Giannakopoulos, I., Konstantinou, I., Tsoumakos, D., and

Koziris, N. (2017). Recovering from cloud applica-

tion deployment failures through re-execution. In Al-

gorithmic Aspects of Cloud Computing: Second In-

ternational Workshop, ALGOCLOUD 2016, Aarhus,

Denmark, pages 117–130.

Hamilton, J. (2007). On designing and deploying internet-

scale services. In Proceedings of the 21st Conference

on Large Installation System Administration Confer-

ence, LISA’07, pages 18:1–18:12.

Jayasinghe, D., Pu, C., Oliveira, F., Rosenberg, F., and

Eilam, T. (2013). AESON: A Model-Driven and Fault

Tolerant Composite Deployment Runtime for IaaS

Clouds. In 2013 IEEE International Conference on

Services Computing, pages 575–582.

Leite, L., Moreira, C. E., Cordeiro, D., Gerosa, M. A.,

and Kon, F. (2014). Deploying Large-Scale Service

Compositions on the Cloud with the CHOReOS En-

actment Engine. In IEEE 13th International Sympo-

sium on Network Computing and Applications, pages

121–128.

OASIS (2013). Topology and Orchestration Speciﬁcation

for Cloud Applications Version 1.0. http://docs.oasis-

open.org/tosca/TOSCA/v1.0/os/TOSCA-v1.0-

os.html. Last accessed on 22-01-2018.

OASIS (2017). TOSCA Simple Proﬁle in YAML Version

1.2. http://docs.oasis-open.org/tosca/TOSCA-Simple-

Proﬁle-YAML/v1.2. Last accessed on 22-01-2018.

Patra, P., Singh, H., and Singh, G. (2013). Fault tolerance

techniques and comparative implementation in cloud

computing. International Journal of Computer Appli-

cations, 64:37–41.

Poola, D., Salehi, M. A., Ramamohanarao, K., and Buyya,

R. (2017). Chapter 15 - A Taxonomy and Survey

of Fault-Tolerant Workﬂow Management Systems in

Cloud and Distributed Computing Environments. In

Software Architecture for Big Data and the Cloud,

pages 285 – 320.

Sivagami, V. and EaswaraKumar, K. (2015). Survey on

fault tolerance techniques in cloud computing envi-

ronment. International Journal of Scientiﬁc Engineer-

ing and Applied Science, 1(9):419–425.

Varela-Vaca, A. J., Gasca, R. M., Borrego, D., and Pozo,

S. (2010). Towards Dependable Business Processes

with Fault-Tolerance Approach. In 2010 Third In-

ternational Conference on Dependability, pages 104–

111.

Vargas-Santiago, M., Hern

andez, S. E. P., Rosales, L.

A. M., and Kacem, H. H. (2017). Survey on Web Ser-

vices Fault Tolerance Approaches Based on Check-

pointing Mechanisms. JSW, 12(7):507–525.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

540
