A Private Gateway for Investigating IoT Data Management

Tamas Pﬂanzner and Attila Kertesz

Software Engineering Department, University of Szeged, 6720 Szeged, Dugonics ter 13, Hungary

Keywords:

Internet of Things, Cloud Computing, Simulation, Gateway.

Abstract:

By responding to the new trend represented by the appearance of the Internet of Things (IoT), several cloud

providers have started to offer speciﬁc management services. In recent years, we have already seen that cloud

computing has managed to serve IoT needs by making data generation, processing and visualization tasks

transparent to the users. In IoT Cloud systems developers do not only have to buy and conﬁgure sensor de-

vices, but they also have to develop so-called gateway applications to manage the data comings from these

devices. In this paper we show how to develop such a private gateway, and present a comprehensive simula-

tion environment, where IoT Cloud applications can be investigated without initial investments. Finally, we

evaluate the proposed gateway with real sensor data.

1 INTRODUCTION

Internet of Things (IoT) systems follow a new trend,

representing a dynamic global network infrastructure

with self conﬁguring capabilities (Sundmaeker et al.,

2010), in which things can interact and communicate

among themselves and with the environment through

the Internet by exchanging sensor data, and react au-

tonomously to events and inﬂuence them by trigger-

ing actions with or without direct human intervention.

Such systems can be utilized in many application ar-

eas, thus they may have very different properties. Ac-

cording to recent reports in the IoT ﬁeld (e.g. (Ma-

honey and LeHong, 2011)), there will be 30 billion

devices always online and more than 200 billion de-

vices discontinuously online by 2020. Such estima-

tions call for smart solutions that provide means to

interconnect and control these devices in an efﬁcient

way.

Cloud computing (Buyya et al., 2009) enables

ﬂexible resource provisions that have become hugely

popular for many businesses to take advantage of re-

sponding quickly to customers demands. There is

a growing number of cloud providers offering IoT-

speciﬁc services, since cloud computing has the po-

tential to serve IoT needs such as hiding data genera-

tion, processing and visualization tasks. With the help

of these virtualized solutions, user data can be stored

in a remote location and can be accessed from any-

where.

By realizing these capabilities, there are several,

popular cloud platform providers available offering

IoT speciﬁc services. Some of these IoT features are

unique, but every IoT cloud provider has the basic

capabilities to connect and store data from devices.

Creating and examining such applications within IoT

cloud environments represent a great challenge, since

many things have to be managed at the same time, and

a wide range of devices and data formats are available.

By addressing these needs, the main contributions

of this paper are the followings: ﬁrst, we character-

ize the problem area, then introduce how to develop

real cloud gateway services to manage the simulated

devices composing a complex semi-simulated envi-

ronment. Finally, we evaluate the performance and

scalability of the proposed solution.

The goal of our research with this proposal is to

support the proliferation of integrated IoT, mobile and

cloud technologies, and to enable experimenting with

complex systems fulﬁlling the efﬁcient management

of user applications. By using our proposed tools,

real things or devices can be substituted by mimick-

ing their behavior, thus there is no need to perform

initial investments by buying real sensors or devices

to investigate IoT applications.

The remainder of this paper is presented as fol-

lows: Section 2 discusses emerging technological

improvements clarifying the research scope and in-

troduces an overview of related works. Section 3

presents our proposed IoT Cloud simulation environ-

ment, and also discusses the development possibili-

ties of private cloud gateways for managing IoT de-

526

Pﬂanzner, T. and Kertesz, A.

A Private Gateway for Investigating IoT Data Management.

DOI: 10.5220/0006775505260532

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 526-532

ISBN: 978-989-758-295-0

vices, then it evaluates its scalability and device man-

agement features. Finally, the contributions are sum-

marized in Section 5.

2 RELATED WORK

Cloud computing has become a widespread and reli-

able solution over the past decade. Overcoming inter-

operability issues of public cloud providers and vari-

ous middleware implementations, the process of cre-

ating and managing cloud federations is clariﬁed and

applied (Kertesz, 2014). There are various reasons to

optimize resource management in such federations: to

serve more users simultaneously, to increase quality

of service, to gain higher proﬁt from resource renting,

or to reduce energy consumption or CO2 emissions.

As depicted in Figure 1, in the past decade we

experienced an evolution in Cloud Computing: the

ﬁrst clouds appeared in the form of a single virtu-

alized datacenter, then broadened into a larger sys-

tem of interconnected, multiple datacenters. As the

next step cloud bursting techniques were develop to

share resources of different clouds, then cloud feder-

ations were realized by interoperating formerly sep-

arate cloud systems. Once overall optimization is-

sues in cloud federations addressing datacenter con-

solidation, operating costs and energy efﬁciency were

developed, further research directions started to use

clouds to support newly emerging domains, such as

the Internet of Things. In the case of IoT systems,

data management operations are better placed close

to their origins, thus close to the users, which re-

sulted in better exploiting the edge devices of the net-

work. Finally, as the latest step of this evolution the

group of such edge nodes formed the fog. Dastjerdi

and Buyya deﬁned fog computing as a distributed

paradigm (Dastjerdi and Buyya, 2016), where cloud

storage and computational services are performed at

the network edge. This new paradigm enables the ex-

ecution of data processing and analytics application

in a distributed way, possibly utilizing both cloud and

near-by resources. The main goal is to achieve low la-

tency, but it also brings novel challenges in real-time

analytics, stream processing, power consumption and

security.

There are many simulators available to examine

distributed and speciﬁcally cloud systems. Neverthe-

less, there are some more speciﬁc IoT simulators ad-

dressing similar issues compared to this study. Han et

al. (Han et al., 2014.) have designed DPWSim, which

is a simulation toolkit to support the development

of service-oriented and event-driven IoT applications

with secure web service capabilities. SimIoT (Sotiri-

adis et al., 2014.) was derived from the SimIC sim-

ulation framework. It introduces several techniques

to simulate the communication between an IoT sen-

sor and the cloud, but it is limited to compute activity

models. The SimpleIoTSimulator (SimpleIoTSimu-

lator, 2017) is an IoT sensor or device simulator that

is able to create test environments made up of thou-

sands of sensors and gateways on a computer. It sup-

ports many of the common IoT protocols (e.g. CoAP,

MQTT, HTTP). Its drawback is that it needs a spe-

ciﬁc, RedHat Linux environment, while our approach

is more heterogeneous, and focuses on IoT device

simulation with mobile devices, which is easier to be

applied. The Atomiton simulator (Atomiton, 2017)

is probably the closest solutions to our concept. It

manages virtual sensors, actuators and devices with

unique behaviors. With this tool complex, dynamic

systems can be created for speciﬁc applications. Un-

like our open, mobile solution, it is a commercial,

web-based environment with very limited documen-

tation.

Kang et al. introduced the main types and features

of IoT gateways in (Kang et al., 2017). This work is a

detailed study in this regard, and presents the state-of-

the-art and research directions in this ﬁeld. In this pa-

per we does not aim to propose a generic solution for

all needs of an IoT system, but to provide a gateway

solution that can be used together with MobIoTSim

(Pﬂanzner et al., 2016) to enable a comprehensive

simulation environment for investigating IoT clouds.

3 DEVELOPING A PRIVATE

GATEWAY

3.1 A Comprehensive IoT Cloud

Simulation Environment

The architecture of our vision for simulating IoT

Cloud systems is depicted in Figure 2. Unlike tradi-

tional simulators, we try to stay as close to real world

systems as possible. We take trace ﬁles saved from

public applications, place them into an archive (I.),

and use them in MobIoTSim (Pﬂanzner et al., 2016)

(II.) to mimic real device behavior. We also develop

gateway services (III.) to process and visualize sen-

sor data and instantiate and operate them at private or

public cloud providers.

The basic usage of the simulator is to: (i) connect

the application to a cloud, where the data is to be sent,

(ii) create and conﬁgure the devices to be simulated,

and (iii) start the (data generation of the) required de-

vices. These main steps represented by three main

A Private Gateway for Investigating IoT Data Management

527

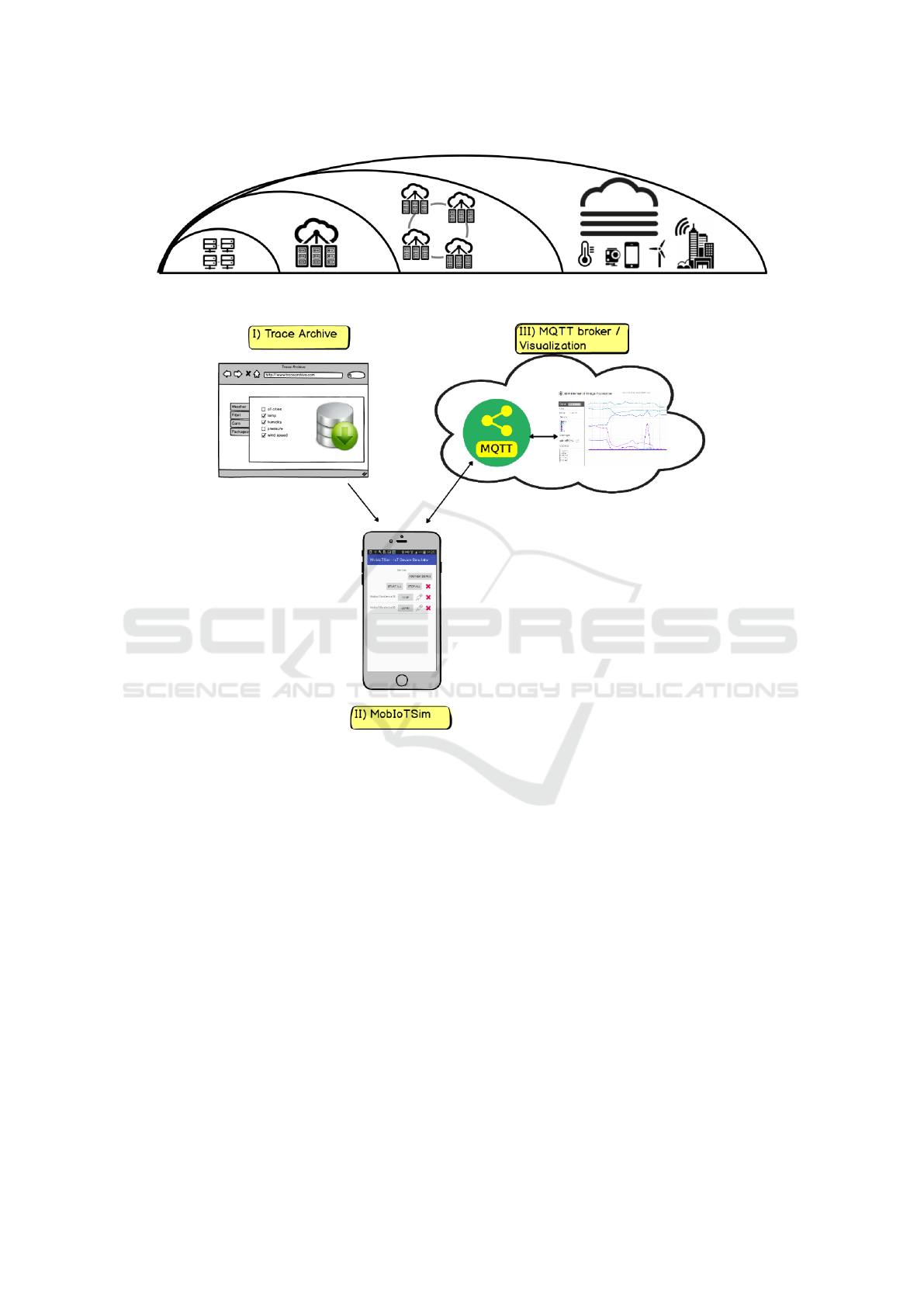

Figure 1: Evolution of cloud systems.

Figure 2: Simulating IoT Cloud systems.

parts of the application: the Cloud settings, the De-

vices and the Device settings screens.

We also developed an own, private gateway ser-

vice (available in (Private Gateway, 2017)) for the

Bluemix platform that is able to manage several de-

vices simultaneously, and can send a notiﬁcation to

the MobIoTSim device simulator by responding to

critical sensor values. This gateway service is basi-

cally an extended version of the IBM visualization

application (IBM Watson, 2017). It has a web-based

graphical interface to visualize sensor data coming

from MobIoTSim. Messages (deﬁned in JSON for-

mat) received from the simulated devices are man-

aged by an MQTT server. It can also be used to send

responses (or notiﬁcations) back to the simulated IoT

devices in MobIoTSim.

It is easy to connect the simulator to such a pri-

vate gateway. Since it has a predeﬁned template

called Bluemix, we only need to specify an organi-

zation identiﬁer and the connection type (either TCP

or TLS) to enable connection to the MQTT server. In

the case of already available templates, the necessary

URL is predeﬁned. The application ID, the authenti-

cation key and token can be retrieved by registering

to the gateway service, and these parameters can be

used later to sign in to the data visualization site of

the gateway. The simulated devices also need to be

registered to the MQTT server of the gateway service

– just like real devices –, by specifying their device

and type identiﬁers and sensor data thresholds, which

replies with their token identiﬁers (to be used for de-

vice setting). Once these settings are made, simulated

devices can be deﬁned and started in the same way as

shown previously for the demo gateway. We can cre-

ate advanced scenarios with this private gateway, such

as managing more devices and responding to critical

sensor data coming from the simulated devices.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

528

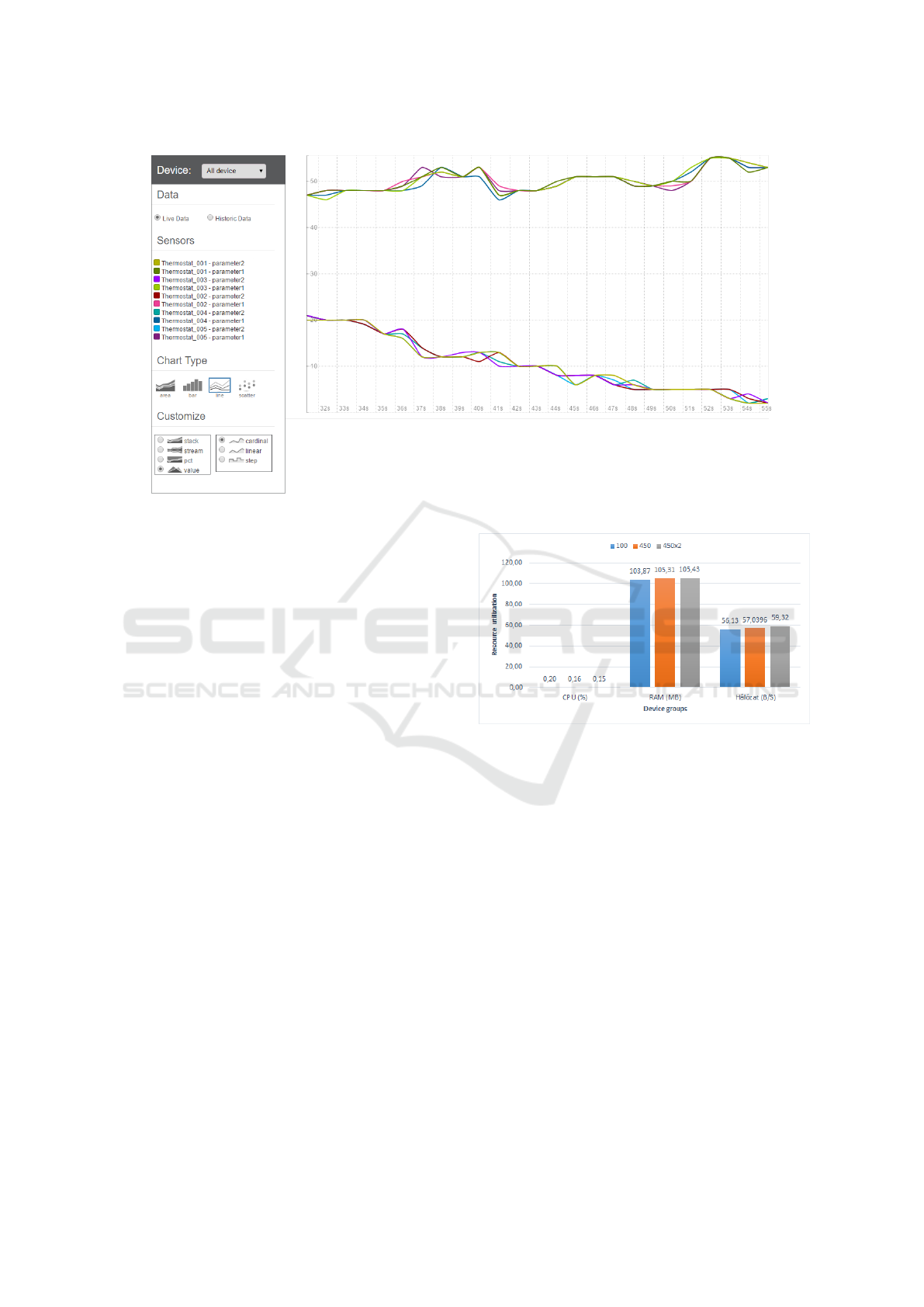

Figure 3: Visualizing the data in Bluemix sent by a group of MobIoTSim devices with the private gateway.

3.2 Evaluation

As a next step, we further revised our private gateway

for Bluemix to handle up to hundreds of devices at the

same time. This way we can see the data sent by all

devices in a single real-time chart as shown in Figure

3. The node.js application managing the chart sub-

scribes to the device topics with the MQTT protocol

and waits for the messages. In this extended gateway,

we use paging to overcome device management limi-

tations (25 devices at a time). In order to enhance and

better visualize many device data at the same time, we

introduced device grouping for the chart generation.

Though the Bluemix platform provides some

monitoring information for application services, cus-

tom Docker containers can be better monitored. For

this purpose, we created the Docker version of our pri-

vate gateway, which even became more portable this

way.

We also examined and evaluated this gateway ser-

vice. We deployed the private gateway in a Docker

container as a micro application with the following

parameters: OS - Ubuntu with Linux kernel 4.4.0,

RAM - 256 MBs, CPU - Intel Xeon E5-2690 with

48 cores.

First, as an initial evaluation, we used the Thermo-

stat template of MobIoTSim to create device groups

of 100 and 450 simulated devices. We performed the

simulations for 10 minutes and generated sensor mes-

sages in every second. We used the Grafana tool in

Bluemix to monitor the resource consumption con-

cerning CPU, memory and network usage. The re-

sults with median values can be seen in Figure 4. For

Figure 4: Initial evaluation with Thermostat devices.

the third case in the diagram we reset the message

generation interval to 0.5 seconds, therefore we got

900 (denoted by 450x2) messages in every second.

As we can see from the diagram we experienced only

little load in all cases. The reason for this is that the

gateway application only received the messages and

forwarded them to a javascript-based chart generator

run in a browser at the client side. So we performed

no real data processing tasks, though in real world we

may do that. As a result, we extended our private

gateway by introducing stressing processes to sup-

port more realistic IoT operation. For CPU stressing

we implemented a parameterizable Fibonacci number

generation. We used the setting to count the 20th Fi-

bonacci number upon each received message multi-

plied by a score representing the size of the message.

(We suppose that larger messages need more process-

ing computation.)

For the next experiment, we enabled stressing and

created 10, 100 and 250 thermostat devices in groups.

A Private Gateway for Investigating IoT Data Management

529

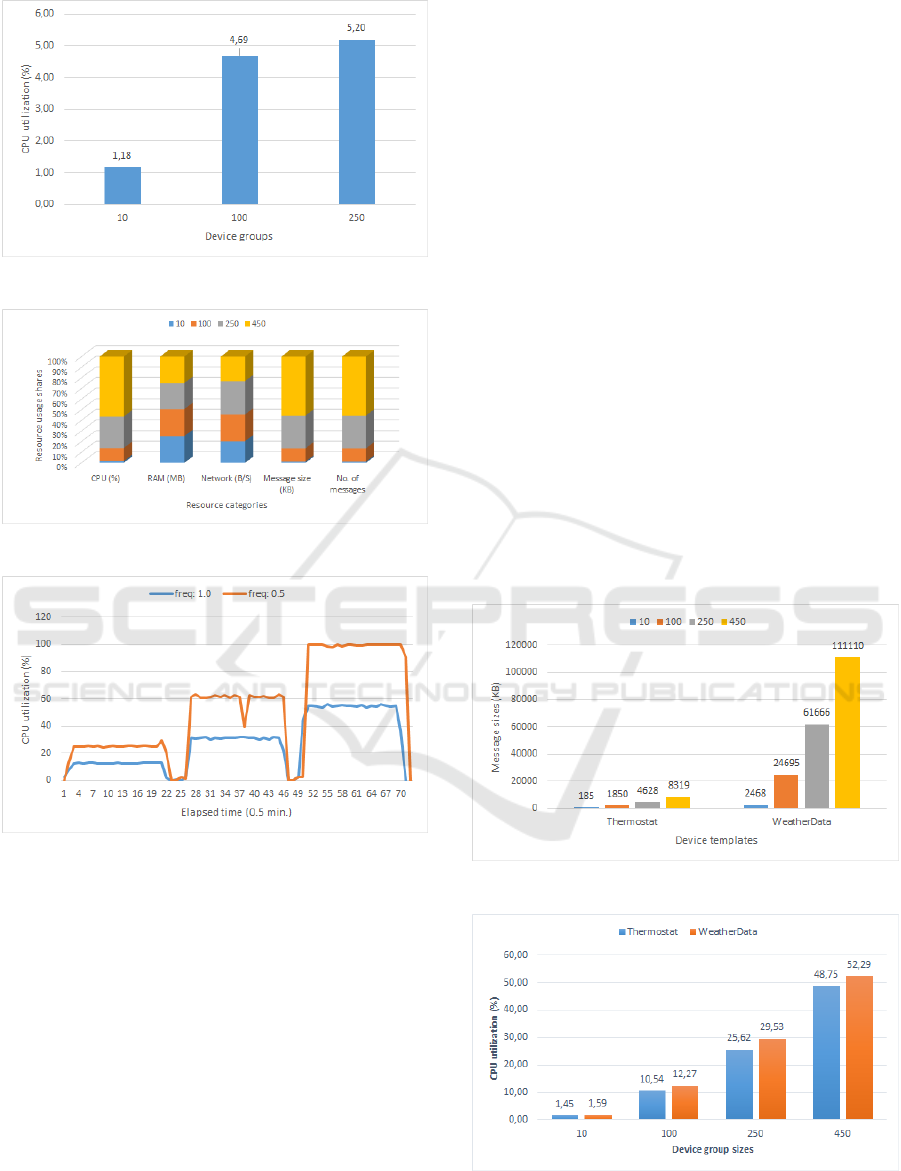

Figure 5: Evaluation results with CPU stressing.

Figure 6: Comparison of different device groups.

Figure 7: Comparison of different data generation intervals.

The averages of the measured results can be seen in

Figure 5. Now we can see that the load of the CPU is

increasing as we manage a higher number of devices

at the same time. Therefore we extended this mea-

surement and compared 10, 100, 250 and 450 devices

in groups. Figure 6 shows the average results for the

device groups and the appropriate resources. Next, we

re-executed this scenario by reducing the data gener-

ation frequency to 0.5 seconds. The comparison of

continuous measurements for 100, 250 and 450 de-

vices of the 1 and the 0.5 seconds message generation

can be seen in Figure 7.

Once we got some impression on working with

a simple thermostat device, we chose a more com-

plex one. As one of the earliest examples of sen-

sor networks are from the ﬁeld of meteorology and

weather prediction, we chose to model a meteorolog-

ical service and gathered real data from OpenWeath-

erMap (OpenWeatherMap, 2017). This service pro-

vides a global geospatial platform supporting the de-

velopment and operation of data-driven products for

agriculture, transportation and alike. It monitors and

publishes actual weather conditions and forecast for

more than 200 thousand cities using data from more

than 40 thousand weather stations. Their database

includes historical data, which is accessible through

APIs.

As a ﬁnal evaluation step, we used the Weather

template of MobIoTSim to create device groups of

100 and 450 simulated devices. By using this tem-

plate we can set up weather station parameters follow-

ing the OpenWeatherMap format, or load previously

saved OpenWeatherMap traces of certain cities. For

this experiment, we randomly picked weather data of

cities (one city for one simulated device) from earlier

traces. Figure 8 shows the difference of the applied

two templates in sizes, while Table 1 provide the de-

tailed median measurement results. We can see that as

the number of devices grows, the resource utilization

also gets higher. Figure 9 highlights CPU utilization

comparison of the two device types.

Figure 8: Comparison of message data sizes.

Figure 9: Comparison of CPU utilization of the two device

templates.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

530

Table 1: Results of measurements with the Weather template.

No. of devices 10 100 250 450

CPU util. (%) 1.59 12.27 29.53 52.29

Memory (MB) 110.07 110.22 110.35 110.05

Network (B/s) 890.66 881.34 855.16 853.60

Message size (KB) 2468 24695 61666 1 11110

No. of messages 6000 60046 149940 270165

Table 2: MQTT brokers.

VerneMQ Moquette RabbitMQ ActiveMQ JoramMQ Mosquitto

Price free free free free free free

Opensource yes yes yes yes yes yes

License Apache 2.0 Apache 2.0 Mozilla Public Apache 2.0 LGPL Apache 2.0

Custer yes no yes yes yes no

Linux yes yes yes yes yes yes

MacOS yes yes yes yes na na

Windows no yes yes yes yes yes

Language Erlang Java Erlang Java Java C

4 FUTURE EXTENSIONS

Our future plan is to create a platform-independent

gateway service, which can be later deployed to any

cloud. Such a service should contain an MQTT bro-

ker to help the communication between the IoT en-

vironment and the cloud application. A graphical

interface for a thing database is required to register

IoT devices and generate API keys for cloud applica-

tions. The device registration makes the communica-

tion more secure.

We have already started to evaluate existing, open-

source MQTT brokers, which should be the base of

a platform-independent gateway service. Our crite-

ria for the appropriate MQTT broker is to be open-

source, scalable and extendable for dynamic device

registration and management. In Table 2 we pro-

vide an overview of the most popular MQTT bro-

kers we started to investigate. These brokers are the

followings: VerneMQ (VerneMQ, 2017) (VerneMQ

source, 2017), Moquette (Moquette, 2017) (Mo-

quette source, 2017), RabbitMQ (RabbitMQ, 2017)

(RabbitMQ source, 2017), ActiveMQ (ActiveMQ,

2017) (ActiveMQ source, 2017), JoramMQ (Jo-

ramMQ, 2017) (JoramMQ source, 2017), Mosquitto

(Mosquitto, 2017) (Mosquitto source, 2017). Our fu-

ture work will continue this evaluations, and select the

most appropriate one to be incorporated to our gate-

way solution.

5 CONCLUSION

The IoT paradigm has appeared as the latest Inter-

net revolution generating a huge amount of power-

ful devices for the online world. By responding to

this trend, several cloud providers have started to offer

speciﬁc management services for this new world. In

this currently forming IoT ecosystem, users and sys-

tem developers do not only have to buy and conﬁgure

devices, but they also have to choose the right IoT

cloud provider offering the combination of protocols

and data structures ﬁtting their applications.

To support users and researchers in this ﬁeld, we

have shown how to develop a speciﬁc gateway service

to manage simulated devices composing a complex

semi-simulated environment. We have also evaluated

the performance and scalability of this IoT gateway

service. Using these solutions, researchers and devel-

opers can investigate the behavior of IoT systems, and

develop and evaluate IoT cloud applications more ef-

ﬁciently in a convenient, cost effective way.

Our future work will address the development of

fully portable gateways (deployable at different cloud

providers), and the creation of various device tem-

plates for other IoT application areas, such as smart

cities.

ACKNOWLEDGEMENTS

The research leading to these results was supported by

the UNKP-17-4 New National Excellence Program

of the Ministry of Human Capacities of Hungary,

A Private Gateway for Investigating IoT Data Management

531

and by the Hungarian Government and the European

Regional Development Fund under the grant num-

ber GINOP-2.3.2-15-2016-00037 (”Internet of Living

Things”).

REFERENCES

H. Sundmaeker, P. Guillemin, P. Friess, S. Woelfﬂe. 2010.

Vision and challenges for realising the Internet of

Things. CERP IoT, Cluster of European Research

Projects on the Internet of Things, CN: KK-31-10-

323-EN-C.

J. Mahoney and H. LeHong. 2011. The Internet of Things

is Coming. Gartner report, https://www.gartner.com/

doc/1799626/internet-things-coming.

Buyya, R., Yeo, C. S., Venugopal, S., Broberg, J., and

Brandic, I. (2009). Cloud computing and emerging

IT platforms: Vision, hype, and reality for delivering

computing as the 5th utility. Future Generation Comp.

Syst, 25(6):599–616.

A. Kertesz. 2014. Characterizing cloud federation ap-

proaches. In: Cloud computing: challenges, limita-

tions and R&D solutions. Computer communications

and networks. Springer, Cham, pp. 277-296.

A. V. Dastjerdi, R. Buyya. 2016. Fog Computing:

Helping the Internet of Things Realize Its Poten-

tial. Computer, vol. 49, pp. 112-.116, Aug. 2016.

doi:10.1109/MC.2016.245

Zeng, X.; Garg, S.K.; Strazdins, P.; Jayaraman, P.P.; Geor-

gakopoulos, D.; Ranjan, R. 2016. IOTSim: A simula-

tor for analysing IoT applications. Journal of Systems

Arch..

S. N. Han, G. M. Lee, N. Crespi, N. V. Luong, K. Heo,

M. Brut, P. Gatellier. 2014. DPWSim: A simulation

toolkit for IoT applications using devices proﬁle for

web services. In proc. of IEEE World Forum on Inter-

net of Things (WF-IoT), pp.544–547.

S. Sotiriadis, N. Bessis, E. Asimakopoulou, N. Mustafee.

2014. Towards simulating the Internet of Things. In

proc. of IEEE Advanced Information Networking and

Applications Workshops (WAINA), pp. 444–448.

SimpleSoft SimpleIoTSimulator, http://www.smplsft.com/

SimpleIoTSimulator.html, June, 2017.

Atomiton IoT Simulator, http://atomiton.com/

simulator.html, April, 2017.

H. Gupta, A. V. Dastjerdi, S. K. Ghosh, R. Buyya. 2016.

iFogSim: A Toolkit for Modeling and Simulation

of Resource Management Techniques in Internet of

Things, Edge and Fog Computing Environments.

arXiv:1606.02007, CLOUDS-TR-2016-2.

IBM Watson IoT Platform visualization application, https://

github.com/ ibm-watson-iot/ rickshaw4iot, Septem-

ber, 2017.

B. Kang, D. Kim, H. Choo. 2017. Internet of Everything:

A Large-Scale Autonomic IoT Gateway. IEEE Trans-

actions on Multi-Scale Computing Systems, vol. 3, no.

3, pp. 206–214.

Private Gateway Service for MobIoTSim, https://

github.com/sed-szeged/MobIoTSimBluemixGateway,

September, 2017.

OpenWeatherMap, http://www.openweathermap.org, June,

2017.

T. Pﬂanzner, A. Kertesz, B. Spinnewyn, S. Latre. 2016. Mo-

bIoTSim: Towards a Mobile IoT Device Simulator. In

IEEE 4th International Conference on Future Internet

of Things and Cloud Workshops (FiCloudW), pp. 21–

27.

VerneMQ website, http://vernemq.com, November, 2017.

VerneMQ source code, https://github.com/erlio/vernemq,

April, 2017.

Moquette website, http://andsel.github.io/moquette/.

November in April, 2017.

Moquette source code, https://github.com/andsel/moquette,

November, 2017.

RabbitMQ website, https://www.rabbitmq.com/, Novem-

ber, 2017.

RabbitMQ source code, https://network.pivotal.io/products/

pivotal-rabbitmq, November, 2017.

ActiveMQ website, http://activemq.apache.org, November,

2017.

ActiveMQ source code, http://activemq.apache.org/

source.html, November, 2017.

JoramMQ website, http://www.scalagent.com/en/

jorammq-33/products/overview, November, 2017.

JoramMQ source code, http://joram.ow2.org, November,

2017.

Mosquitto website, https://mosquitto.org/, November,

2017.

Mosquitto source code, https://github.com/eclipse/

mosquitto, November, 2017.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

532
