A New Crypto-classiﬁer Service for Energy Efﬁciency in Smart Cities

Oana Stan

, Mohamed-Haykel Zayani

, Renaud Sirdey

, Amira Ben Hamida

Alessandro Ferreira Leite

and Mallek Mziou-Sallami

CEA, LIST, Point Courrier 172, 91191 Gif-sur-Yvette Cedex, France

IRT SystemX, France

Keywords:

Smart City, Secure Classiﬁcation, Data Privacy, Homomorphic Encryption.

Abstract:

Smart Cities draw a nice picture of a connected city where useful services and data are ubiquitous, energy

is properly used and urban infrastructures are well orchestrated. Fulﬁlling this vision in our cities implies

unveiling citizens data and assets. Thus, security and data privacy appear as crucial issues to consider. In

this paper, we study a way of offering a secured energy management service for diagnosis and classiﬁcation

of buildings in a district upon their energy consumption. Our remote service can be beneﬁcial both for local

authorities and householders without revealing private data. Our framework is designed such that the private

data is permanently encrypted and that the server performing the classiﬁcation algorithm has no information

about the sensitive data and no capability to decrypt it. The underlying cryptographic technology used is

homomorphic encryption, allowing to perform calculations directly on encrypted data. We present here the

prototype of a crypto-classiﬁcation service for energy consumption proﬁles involving different actors of a

smart city community, as well as the associated performances results. We assess our proposal atop of real data

taken from an Irish residential district and we show that our service can achieve acceptable performances in

terms of security, execution times and memory requirements.

1 INTRODUCTION

The smart city concept is intrinsically related to the

one of energy infrastructure and of smart grids. De-

spite their advantages, the smart metering systems

and in general the monitoring of smart devices and the

services for the energy domain cause serious security

and privacy concerns. A reporting too ﬁne-grained on

a user consumption can reveal behavioral patterns and

thus may infringe on his/her privacy. For example, the

daily measurements can reveal whether a house is in-

habited or not or when the inhabitants are away. In

the same manner, the 15-minute or even the hourly

reports can reveal a person timetable and habits mak-

ing him/her vulnerable.

Therefore, in some countries and regions, privacy

concerns are the main barriers for the large scale

adoption of smart grid infrastructures (based on smart

meters) and of the associated services one could ben-

eﬁt from. These problems of privacy and more gener-

ally data protection and computer security are mak-

ing the object of various reports and recommenda-

tion documents. For example, (NIST, 2010) is ad-

vanced by the NIST (National Institute of Standards

and Technology) in the USA as well as (Cavoukian

et al., 2010) by the Canadian authorities. In France,

the CNIL (Commission Nationale de l’Informatique

et des Libert

es) has published in November 2012 a

compliancy kit for the communication meters (CNIL,

2012), conceived as a guide of best practices for the

innovation process in the electrical industry by in-

tegrating data protection directly in the deﬁnition of

new services, i.e. the “privacy by design”.

It is in this context, of a real concern of citizens

about their energy data privacy and the need of inno-

vative services, making use of modern cryptographic

primitives such as homomorphic cryptosystems, that

our work arose.

The aim of this work is to propose a new pri-

vacy preserving classiﬁcation service architecture, us-

ing homomorphic cryptography, in which the privacy

of the energy data is assured by design. The sys-

tem prototype proposed in this paper is a service for a

smart district made of residential buildinds, perform-

ing classiﬁcation and labelling remotely, without hav-

ing access to sensitive data such as energy consump-

tion or households characteristics (surface, number of

inhabitants, etc.). Since one of the main issues with

Stan, O., Zayani, M., Sirdey, R., Ben Hamida, A., Ferreira Leite, A. and Mziou-Sallami, M.

A New Crypto-classiﬁer Service for Energy Efﬁciency in Smart Cities.

DOI: 10.5220/0006697500780088

In Proceedings of the 7th International Conference on Smart Cities and Green ICT Systems (SMARTGREENS 2018), pages 78-88

ISBN: 978-989-758-292-9

homomorphic cryptosystems are their costs in terms

of applicability and performances, we are focusing

here more on the required effort needed to imple-

ment a privacy preserving service based on this kind

of technology. As such, we analyse the requirements

in terms of protocol as well as the performances when

using an additive homomorphic cryptosystem ((Pail-

lier, 1999)), more easy to use but allowing only ad-

ditions on encrypted data, and also a leveled homo-

morphic scheme (e.g. (Brakerski et al., 2011)). The

latter is more recent and more complex but allows to

execute, beside additions on the encrypted domain,

a predeﬁned number of consecutive multiplications.

Let us also insist on the fact that, in this paper, we fo-

cus only on the privacy-preserving of the second step

of a classiﬁcation process, i.e. the operational phase

of predicting the label for a given secured-through-

encryption data, based on an already acquired model.

To summarize, the main contributions in this pa-

per are: (a) the proposal of a new type of services

for the smart city and energy ﬁeld which are secured-

by-design; (b) a Gaussian classiﬁer for predicting the

class of encrypted data (here, readings of smart me-

ters); (c) the use of two appropiate homomorphic en-

cryption schemes to protect energy data and, ﬁnally,

(d) a description of a working demonstrator and a de-

tailed analysis of its performances.

This work is organized as follows. In Section 2,

we present some prior work related to the data pri-

vacy in the smart energy ﬁeld with a focus on the

privacy preserving data mining approaches. Section

3 describes the overall architecture of the classiﬁer

as well as the underlying mechanisms for performing

the required operations using homomorphic proper-

ties. The implementation of the prototype, the dataset

description and an evaluation of the associated per-

formance results are given in Section 5. Lastly, the

ﬁnal section gives some insight about future works

and perspectives.

2 RELATED WORK

Most of existing studies for energy data privacy con-

centrate on aggregation as the main application of ho-

momorphic cryptography for smart grids (e.g. (Li

et al., 2010), (Zirm and Niedermeier, 2012), (Vetter

et al., 2012)). Data aggregation is one of the core

functionalities often implemented in smart grids ar-

chitectures at various scales (neighborhood, region,

cities, etc.) and at different frequencies (every 15 min-

utes, daily, monthly, etc.). This comes with the pur-

pose of monitoring and predicting power consump-

tion, billing, reducing network load and trafﬁc, efﬁ-

ciently administrate power generation, etc.

Moreover, a large category of existing services ex-

ploits the smart meters readings based on data mining

techniques but without any guarantee on data privacy

while performing this type of algorithms. We can also

note a variety of approaches dedicated to the analysis

and data mining of individual electricity consumption

data, such as the HERS-Home Energy Rating System,

NILM - Non-Intrusive Load Monitoring approaches

(e.g., (Kim et al., 2010)) or other related literature

on pattern identiﬁcation (e.g., (De Silva et al., 2011),

(Verdu et al., 2006)). However, to our knowledge,

none of the existing work for the energy consumption

classiﬁcation has addressed the problem of assigning

a class label for a given household while protecting its

private data. For respecting the “privacy by design”

principle one has to imagine new secure services us-

ing, for example, cryptographic techniques such as

homomorphic encryption.

We consider that the application of efﬁcient data

mining techniques with underlying homomorphic

schemes for building more privacy-friendly decision

making tools in the context of smart energy could be

beneﬁcial for all the actors of this domain: the energy

providers, the transmission system operators, the end-

users, etc.

According to the mechanisms they rely on, we can

distinguish between three main categories of privacy

preserving data mining approaches:

• Data perturbation methods (e.g. (Agrawal and

Srikant, 2000), (Bayardo and Agrawal, 2005))

Before outsourcing the data to an external service

which performs the data mining, the data is per-

turbed by adding random noise such that the ﬁ-

nal distribution seems different from the one of

the actual data. Due to the addition of noise, data

mining results may be signiﬁcantly less accurate.

Additionally, the data perturbation techniques do

not offer strong cryptographic security properties

such as the semantic security (Goldwasser and

Micali, 1982).

• Data distribution or partitioning methods (e.g.

(Lindell and Pinkas, 2000), (Kantarcioglu and

Clifton, 2004))

The main disadvantage of this type of methods

is that they rely on heavy cryptographic mecha-

nisms with high computational and communica-

tion overheads.

• Other cryptography-based techniques.

In this category, we include the studies which are

also using homomorphic encryption schemes be-

side other cryptographic techniques (e.g. (Bost

et al., 2014), (Graepel and Naehrig, 2012),

A New Crypto-classiﬁer Service for Energy Efﬁciency in Smart Cities

(Samanthula et al., 2014)). Since there are only

a few existing studies and this is the particular

setting we are interested in, we will insist on this

family of studies and provide more details for de-

scribing the classiﬁcation algorithms belonging to

this class.

Most of existing studies are dedicated to preserving

privacy during the training phase in which a model

is learned (using or not homomorphic encryption ma-

chinery, e.g. (Graepel and Naehrig, 2012),(Saman-

thula et al., 2014)) and only a few address the predic-

tion step. Since, as stated previously, our approach

addresses data privacy in the operational step of the

classiﬁcation process, we will describe further on the

existing studies using homomorphic encryption dur-

ing the labeling process.

The authors in (Graepel and Naehrig, 2012) pro-

pose a machine learning conﬁdential protocol based

on homomorphic encryption in which both training

and prediction occur on encrypted data for a Linear

Means classiﬁer and a Fisher’s Linear Discriminant

Classiﬁer. The results on the Wisconsin Breast Can-

cer dataset (UCI, 2016) show a slow down of 6-7

orders of magnitude when performing on encrypted

data instead on plaintexts. For example, using a Lin-

ear Means Classiﬁer, the classiﬁcation of a test vector

with 30 attributes takes roughly 6 seconds.

In (Bost et al., 2014), only the privacy for the clas-

siﬁcation process is addressed, by ignoring how the

model has been build. As such, they are ﬁrst con-

ceiving a library with three building blocks which is

further used as support for implementing classiﬁers

such as hyperplane decision based, Naive Bayesian,

decision trees and AdaBoost. The performances vary

in function of the complexity of the classiﬁer and the

number of classes of the model (e.g. > 1600 ms for

a Naive Bayes Classiﬁer on 5 classes and 9 features)

and with an important overhead due to the communi-

cation (more than 70% of the total execution).

Here, we present a Gaussian classiﬁer with the

prediction performed on encrypted data, tailored to be

applied for the protection of smart energy data read-

ings.

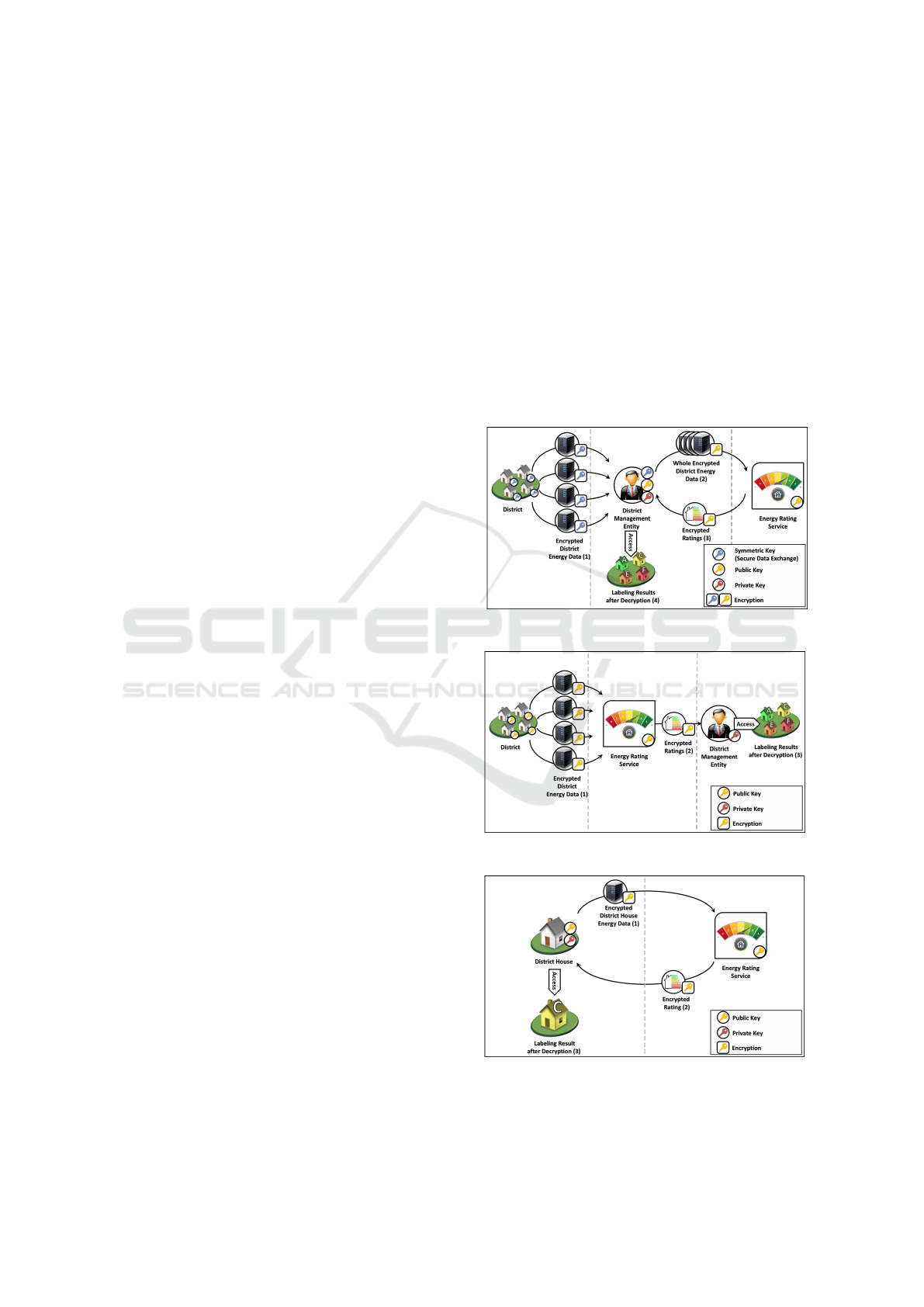

3 SERVICE ARCHITECTURE

In this section, we present different global views for

employing the classiﬁcation service while assuring

data privacy. The difference between these architec-

tures lies in the manner the service is exploited by the

actors in a smart city. In the scenario of a residen-

tial district, between the main users of such privacy-

preserving classiﬁcation energy service, one can enu-

merate:

• Owners of residential buildings, providers of en-

ergy data and other household characteristics (sur-

face, number of inhabitants, revenues, etc.)

• A district management entity. One of his main

concerns is how to ensure the district energy cost

effectiveness based on district energy data. Esti-

mating the energy efﬁciency of the district build-

ings is an interesting way towards the identiﬁca-

tion of greedy consumers. It is also a valuable

feedback for future strategic decisions. However,

for different reasons (legal or ethics, lack of re-

sources or experience in data mining, focus on his

core business) he does not perform the classiﬁca-

tion service by his own.

• A qualiﬁed remote third-party. This service

provider designates a major actor of the use

case and is able to process data, perform en-

ergy classiﬁcation and assign ratings or labels.

It can be perceived as an energy stakeholder

having a valuable experience with classiﬁcation

or an energy consulting service supported by

an energy provider/governmental programs (Ene,

2016). Typically, these services are built over

conceived metrics and deﬁned ratings (Niko-

laou et al., 2015). They are extracted from

users’ feedback, investigations, surveys and sim-

ulations about residential electricity consumption

and householders information. Thereby, shar-

ing such data with the energy rating service is

obviously necessary. Nevertheless, if sharing

plain data threatens the privacy of inhabitants, this

would compromise the rating process. The use of

the homomorphic cryptography, in this situation,

is a credible solution to overcome this constraint.

Attributing labels or ratings to the buildings, the

same way it is done for some home appliances, could

be helpful in providing synthetic indications about the

energy efﬁciency throughout the district. Many archi-

tectures can be proposed in this sense but we will de-

scribe here two kinds of architectures. On the one

hand, a three-tier architecture that involves the en-

ergy rating service, the district buildings and a district

management entity. The latter role can be assumed

by a district manager, (an) energy program adminis-

trator(s) or state/local authorities. According to the

entity right access to district energy data, two sub-

types of this architecture variant can be deﬁned. On

the other hand, if the process only concerns buildings

and the energy rating service, a two-tier architecture

fulﬁlls the use case requirements.

We address the following questions: Concretely,

SMARTGREENS 2018 - 7th International Conference on Smart Cities and Green ICT Systems

how do a district management entity or district build-

ings communicate with the energy rating service?

What are the requirements that allow the energy rating

service to process data and guarantee the exclusive ac-

cess to the plain results to the district manager?

3.1 First Variant of the Three-Tier

Architecture

As shown in Fig. 1, this architecture supposes that

the district management entity collects the data and

leads the encrypted data exchange with the energy

rating service. This requires that the district manage-

ment entity securely collects the energy data through-

out the district (for example using standard cryptogra-

phy techniques such as symmetric encryption). Then,

when the district management entity needs to rate the

energy efﬁciency of residential buildings, he launches

the encryption of the data with her homomorphic pub-

lic key.The encrypted data is sent to the third-party

service to be processed and to determine encrypted

ratings expressing the energy efﬁciency. In order to

assign a rating to residential building in a secure way,

an encrypted distance is computed between its energy

efﬁciency metric and the one of each reference rat-

ing. The reference metrics are also encrypted with

the public key of the district management entity. The

sharing of the homomorphic public key can be real-

ized by sending it from the district manager to the

third-party service or by the recourse to a public key

infrastructure (PKI). Finally, after the secure rating

process, the district management entity collects the

encrypted classiﬁcation results. Her private key en-

sures that he has the exclusive right to decrypt the out-

puts of the energy rating service and obtain the energy

efﬁciency for all the district he administrates.

3.2 Second Variant of the Three-Tier

Architecture

Fig. 2 depicts a second variant of the three-tier ar-

chitecture. In this case, the district buildings send the

encrypted data to the energy rating service to perform

the secure classiﬁcation. As for the district manage-

ment entity, he collects the encrypted ratings. The

three tiers share the same public key, meanwhile, the

district management entity possesses the private key

which enable her to decrypt the service output in order

to access the labeling results. Here, the architecture

offers a credible solution when it is preferred that the

district management entity has no visibility on plain

data.

3.3 Two-Tier Architecture

When the process does not involve a district manage-

ment entity, we head for a two-tier architecture as de-

picted in Fig. 3. A private key is possessed by each

one of the buildings in the district. In this case, a

householder who wants to obtain an energy efﬁciency

evaluation launches the sending of his own encrypted

data. Then, the energy rating service processes this

data and returns the encrypted rating to the house-

holder. Finally, he decrypts the service answer with

his private key to access his evaluation. In this case,

we assume either the existence of a PKI or that each

district building has previously sent the public key to

the energy rating service.

Figure 1: First Variant of the Three-Tier Architecture.

Figure 2: Second Variant of the Three-Tier Architecture.

Figure 3: Two-Tier Architecture.

A New Crypto-classiﬁer Service for Energy Efﬁciency in Smart Cities

4 PRIVATE CLASSIFICATION

ALGORITHM

4.1 General Description

For showing the feasibility of our approach, we have

chosen a basic Gaussian classiﬁer which was adapted

in order to execute the prediction step on encrypted

data. As such, given an encrypted attribute vector

x, the purpose is to predict its class label based on

the learning model acquired during the training step.

Remember that we focus here only on the labeling

step using private data and we suppose that the model

building was realized previously in the clear domain.

In the case of a Gaussian Classiﬁer, each class C

from the m classes deﬁned during the training phase

is assumed characterized by a Gaussian distribution

with a mean µ

and a covariance matrix Σ

The mean of a class C

is the vector µ

∈ R

: µ

[µ

,µ

,...,µ

] with µ

the mean for the components

i of the examples vectors x belonging to class C

(i.e.

∑

x(i)

For vectors with n features, the covariance matrix

of a class C

is a semi-positive n ×n matrix computed

as: Σ

= {c(a, b)} with a,b ∈ {1,...,n} and c(a, b)

the covariance between the features a and b, measur-

ing their tendency to vary together.

A feature vector x from the training set T is thus

classiﬁed by measuring a Mahalanobis distance from

x to each of the classes and by selecting the minimal

norm. The main steps of the prediction phase of the

Gaussian classiﬁcation algorithm are described in Al-

gorithm 1, Steps 4-6. The training phase realized on

, the set of training vectors x

, has been realized be-

fore, resulting in a model with m classes. After com-

puting the mean and the covariance of each class C

(Steps 1-3), a class label is predicted for each testing

vector x ∈ T .

As you can see, the prediction algorithm consists

mainly on the computation of distances between the

Algorithm 1: Gaussian classiﬁer - prediction step.

Require: T

= {x

∈ R

}; T = {x ∈ R

} ; m classes

1: for ∀C

, j ∈ {1,...,m} do

2: compute µ

and Σ

using x

3: end for

4: for x ∈ T do

5: compute d

(x,C

), ∀ j ∈ {1, . . . , m}

6: C(x) ← argmin(d

(x,C

))

7: end for

Ensure: C(x), ∀x ∈ T

attribute vector x and the classes. Let us now explain

how this distance can be evaluated on homomorphic

encrypted data.

4.2 Homomorphic Distance Evaluation

Given a vector x and a class C

, the Mahanalobis dis-

tance from x to class C

is deﬁned as:

(x,C

) = (x − µ

)

−1

(x − µ

Note that in the particular case where the features

are uncorrelated or of a unidimensional feature vec-

tor the Mahalanobis distance is equivalent to the Eu-

clidean distance.

For simpliﬁcation reasons, let us note Σ

−1

as S,

simply as µ and r = d

(x,C

). Thus, the distance

metric becomes:

r = (x − µ)

S(x − µ) = x

Sx − 2µ

Sx + µ

Sµ.

Let suppose that we want to protect x and that µ

and S were previously computed on plaintexts. Thus,

the computation of the distance has to be realized us-

ing the encrypted form of x leading to an encrypted

r. The last term is only using plaintext data so it is

easy to calculate it and to add it to the other terms

using the properties of the underlying homomorphic

scheme. Also, since µ

is a vector with the same di-

mension as x, the term µ

Sx is linear (the scalar ten-

sor between a plaintext vector and an encrypted one)

and can be computed with an additive homomorphic

scheme. The ﬁrst term α = x

Sx is a little bit more

complicated. If

∑

j=1

i j

= y then:

α =

∑

i=1

∑

i=1

∑

j=1

i j

∑

i=1

∑

j=1

i j

(1)

with z

i j

= x

. So, if we have at our disposal the n

ciphertexts x

and the n(n − 1)/2 ciphertexts z

i j

, we

can use an additive homomorphic cryptosystem. If

we want to avoid the transfer of the quadratic terms

from the client to the server, we can also make appeal

to a homomorphic cryptosystem with a multiplicative

depth of at least 1. An example is the encryption

scheme from (Catalano and Fiore, 2014), extension of

Paillier cryptosystem, allowing to perform one multi-

plication over encrypted data. One can also use the

so-called leveled homomorphic cryptosystems, such

as the Ring-LWE-based (e.g. (Brakerski et al., 2011)),

more complex but with more computing capabilities

and quantum-safe. Let us remember that the multi-

plicative depth, notion related to the number of con-

secutive multiplications one can execute on cipher-

texts, is a important characteristic of these leveled ho-

momorphic schemes, deﬁning the maximum allow-

able level of noise for a given set of parameters (the

SMARTGREENS 2018 - 7th International Conference on Smart Cities and Green ICT Systems

multiplication inducing a much bigger noise than the

addition).

In the following, for simplicity sake, we explain

the case of a classical architecture, in which the client

has some private data, a single attribute vector, and

makes appeal to a classiﬁcation service in order to ob-

tain a label for this data only. Of course, the protocols

described below still can be applied if, instead of a

single instance, we have to label k such instances, as

is the case with the district manager in the scenarios

described in Section 3.

4.3 Prediction Step on Homomorphic

Encrypted Data

Additive Homomorphic Encrypted Data. Let us

suppose that the system relies on an additive homo-

morphic cryptosystem and analyze more in details the

overall protocol required by the classiﬁcation service.

The client having the sensitive data to be pro-

tected in the form of an attribute vector x of size n,

has to encrypt, using his public key, for each vec-

tor each component x

as well as the products x

with i,k ∈ {1 . . . n} and i ≤ k. He send these en-

crypted data to the service provider which has the

model build on clear data, i.e. for the Gaussian clas-

siﬁer, the m classes mean µ

and the inverse of the co-

variance matrix Σ

for j ∈ {1,...,m}. When receiving

an encrypted vector to be labeled, the server computes

the distances as described in the previous section and

sends these encrypted m ciphertexts to the client. The

client decrypts the distances using his secret key, then

performs the sorting and selects the minimal distance,

corresponding to the classes his data belongs. More-

over, the access to all clear distances can give the

client an idea not only of the class he belongs to now

but also how far is it from the other classes and, in

some way, the needed effort in order to target a better

label. The main drawback is the communication over-

head induced by sending the quadratic terms from the

client to the server.

Leveled Homomorphic Encrypted Data. If the

underlying homomorphic scheme allows to realize at

least one multiplication on the ciphertext, there are

some slight modiﬁcations in the protocol for the label-

ing step. This time, the client having the attribute vec-

tor x of size n will encrypt only the components {x

}

and send them to the service provider. As such, the

quantity of upload information is in this case linear in

the number of attributes. The server computes the m

encrypted distances as previously, with the mention

that now it is able to compute alone the ﬁrst term α

since one multiplication is allowed. The remaining

of the protocol is similar to the previous one, on the

client side.

Moreover, this protocol can be improved due

to the batching technique (Smart and Vercauteren,

2014), allowing to pack and encode data for process-

ing it in parallel in a SIMD (Single Instruction Mul-

tiple Data) fashion without any extra cost. As such,

all the m distances can be embedded in slots and en-

crypted with a single ciphertext, computed in parallel

by the service provider, and send in a single shot to

the client (and thus reducing the download communi-

cation cost).

Threat Model. For both protocols, one could argue

that the client could infer the properties model of the

server from the information he has access to, through

repeated requests and statistical inference. We fo-

cus in this paper more on protecting the client data

from a honest-but-curious or not secured enough ser-

vice provider and one could easily imagine protection

mechanisms also for the server side (e.g. no more

than a given number of requests). Note also that the

security model we present here is not designed to as-

sure the model nondisclosure in the case of collusion

between several clients. As for the underlying homo-

morphic cryptosystems, they assure semantic security

(Goldwasser and Micali, 1982).

Let us now give some details about the homomor-

phic schemes we used for testing the feasibility of our

approach, with the remark that the general principles

remain the same if other additive or leveled homomor-

phic schemes are deployed.

4.4 Homomorphic Cryptosystems

Paillier Additive Encryption Scheme. As de-

scribed previously, it appears that an additively homo-

morphic system is enough in order to execute the clas-

siﬁcation algorithm. We have chosen Paillier cryp-

tosystem (Paillier, 1999) a well-known and popular

additively homomorphic cryptosystem. Let us recall

here some of its main characteristics allowing the dis-

tance computation in the encrypted domain.

Let p and q denote two large primes and n = pq.

Then, the cleartext domain of the Paillier system is

and the ciphertext domain is Z

. Additionally, let

λ = lcm(p −1,q − 1) and g < n

be randomly chosen

such that

gcd(L(g

mod n

),n) = 1,

with L(u) =

u−1

. The public (encryption) key is pro-

vided by n and g whereas the private (decryption) key

in given by p and q or, equivalently, λ. Then, encryp-

tion is done by computing

c = enc(m) = g

mod n

, (2)

A New Crypto-classiﬁer Service for Energy Efﬁciency in Smart Cities

where m < n is the message and r is uniformly chosen

in Z

. Letting D = L(g

mod n

) and D

−1

its multi-

plicative inverse in Z

, decryption is then performed

by evaluating

m = dec(c) = L(c

mod n

) × D

−1

mod n.

More importantly for the present purpose, this

cryptosystem has the following homomorphic prop-

erties:

1. dec(enc(m

)enc(m

)) mod n

= m

+ m

mod n (addition of two encrypted messages).

2. dec(enc(m)g

) mod n

= m + k mod n, for all

k ∈ Z

(addition of an encrypted message to a clear

integer).

3. dec(enc(m)

) mod n

= km mod n, for all k ∈

(multiplication of an encrypted message by a

clear integer).

BGV Encryption Scheme. This leveled homomor-

phic encryption scheme, based on the Ring-Learning

with Errors problem, uses a series of different inte-

ger modulus for ciphertexts evaluation, allowing the

modulus switching between these modulus in order

to reduce the noise. Let A = Z [x]/Φ

(x) be the ring

of integers modulo the m-th cyclotomic polynomial.

The ciphertext space is composed of vectors over the

polynomial ring A

= A/q where q is an odd mod-

ulus evolving during homomorphic evaluation. The

cleartext domain is the ring of polynomials A

, with

the native plaintext being t = 2 but larger modulus al-

lowing to execute operations on integers modulo t are

also possible.

In its batching version, the plaintext space ring A

is factored into sub-rings (through CRT-factorization

of Φ

(x) modulo t) such that the operations of addi-

tion and multiplication can be applied on each sub-

ring independently. As such, it is possible to pack

several several messages into the slots of a single ci-

phertext and execute the homomorphic operations in

parallel on all messages at once.

Let us enumerate some of the important homo-

morphic operations supported by this cryptosystem:

1. Keygen(1

) with λ security parameter (generation

of the secret key sk, the public key pk and of

an additional set of evaluation keys evk for key-

switching in homomorphic operations).

2. enc

(m) (encryption of the plaintext message

m ∈ A

using pk).

3. dec

(ct) (decryption of the ciphertext ct using

sk).

4. dec

(Add(ct

)) = dec

(ct

) + dec

(ct

) (ad-

dition of two encrypted messages).

5. dec

(Mult(ct

,ct

,evk)) = dec

(ct

)∗dec

(ct

)

(multiplication of two encrypted messages using

if needed key-switching for reducing the noise).

More details are to be found in the original paper

(Brakerski et al., 2011).

5 SYSTEM PROTOTYPE

5.1 Load Proﬁles Dataset and Energy

Efﬁciency Rating

In order to reproduce the scenario of the residen-

tial district, we have used the CER Smart Metering

Project dataset

. It represents a comprehensive data

source as it encompasses several residential load pro-

ﬁles (4225 load proﬁles in total) with related envi-

ronmental information. On top of proposing elec-

tricity consumption information, the dataset provides

speciﬁc indications about the householders owners.

Subsequently, we chose 40 residential load proﬁles

among the available ones to create our district. The

selected proﬁles have to fulﬁll the following condi-

tions:

• No missing data between January 1st, 2010 and

December 31st, 2010.

• Householders of the retained load proﬁles must

have completed the information about the surface

of the residential building and the number of oc-

cupants.

• Electric heating systems are installed in these

buildings.

These conditions are deﬁned so to enable us to ex-

press the energy efﬁciency of a residential building.

Regarding the ratings, we proposed to create clus-

ters from the metrics for each load proﬁle, each clus-

ter deﬁned by a label (ranged from ’A’, heavy con-

sumers, to ’F’, light consumers) and an average met-

ric (expressed in kWh/(year.m

.occupant)). For this

purpose, we simply applied a k-means (MacQueen,

1967) and we set the number of cluster at 6. This

choice proposed the maximum number of rating lev-

els where no cluster has a size of one. To determine

the category of a residential building, a distance is

computed between its metric and the ones of each

cluster using homomorphic encryption.

5.2 Performances Results

All the experiments were realized using a standard

workstation, with a processor Intel Core I7 at 2.6

www.ucd.ie/issda/data/commissionforenergyregulationcer/

SMARTGREENS 2018 - 7th International Conference on Smart Cities and Green ICT Systems

GHz, with 16 GB of RAM memory and Ubuntu 16.04

as operating system (on 64 bits). The performance

tests use a home made C++ implementation of Pail-

lier additive cryptosystem (based on GMP library)

as well as HElib (Halevi, 2013), the open-source li-

brary from IBM, implementing the BGV cryptosys-

tem. For the version based on Paillier, the code has

parallelized sections for the encryption part and the

distance evaluation (using pragma omp instructions).

For the HElib-based tests, we implemented two basic

solutions both using batching but one of them being

more optimized.

Results for Paillier-based Prototype. Our experi-

ments showed that, as expected, the size of the up-

load data increases with the number of instances we

want to label and, also, with the number of attributes

for each instance and their quadratic products. The

download data is proportional with the number of

households’ instances to classify, the dimension of

the attribute vector for each household (one dimen-

sion for our demonstrator) and the number of classes

the model presents.

Table 1 shows the size, in bytes, of one ciphertext

for different security levels (i.e. the modulus size) as

well as the latency in seconds for uploading the en-

crypted data (column “UP”) and downloading the 6

distances (column “DW”) for all of the 40 instances,

when considering a network with a throughput of 10

Mbps.

We have also been interested in measuring the pro-

cessing times of the encryption, distance computation

and decryption steps according to the size of the key.

For this evaluation we deﬁned a scenario by a cou-

ple of parameters: the key size and the step to exe-

cute. We considered 2 key sizes for this purpose, by

analyzing the execution times when using 1024- and

2048-bit keys for the encryption of the 40 residential

proﬁles, the computation of the distances for these in-

stances with regards to the 6 classes and the decryp-

tion of the results for all the households. We collected

valuable information after executing each scenario 40

times. Table 2 summarizes these execution times for

each step and each key size. As expected, the larger

the key size, the longer the execution times are, for

each of the steps. This is particularly remarkable for

the distance computation step, taking the most impor-

tant part of the overall computation. Besides its de-

pendency on the key size, the labeling is also propor-

tional with the number of instances to classify (here

40), their dimension (here 1) and the number of the

reference classes (here 6). The execution times for

the encryption depend on the number of instances to

classify and their dimension while the decryption pro-

Table 1: Data communication for different key sizes.

Bits Size/ciphertext (bytes)

Latency (sec)

UP DW

1024 617 0.03 0.12

2048 1233 0.08 0.23

Table 2: Execution times (sec) of labeling steps for different

keys.

Bits Step Avg. Min. Max.

1024

Encryption 0.76 0.42 2.25

Labeling 3.97 3.23 5.73

Decryption 0.49 0.34 1.91

2048

Encryption 3.96 3.19 5.45

Labeling 19.84 17.97 22.85

Decryption 2.69 2.47 4.34

cessing times depend on the dimension and the num-

ber of references.

Results for HElib-based Prototype. For the ﬁrst

solution based on HElib tests (named “SOL 1”) and

for a given attribute vector x with n elements, each of

the attributes x

, with i ∈ {1,...,n} is embedded in a

different plaintext slot in the form of an integer mod-

ulo p

where p is an arbitrary prime (which does not

divide m) and r a small positive integer. This allows

to encrypt all the attributes of x in the same cipher-

text. The references, i.e. the means of the classes,

are represented as m vectors of dimension n. As such,

for one instance to label, we obtain m ciphertexts cor-

responding to the encrypted distances to each class.

When such a ciphertext is decrypted, the sum on the

slots for the obtained plaintext gives the clear distance

to the associated class (modulo p

In the second solution, named “SOL 2”, we take

advantage of the free plaintexts slots (usually the

number of slots is much larger than the number of at-

tributes) and, for a single instance x of dimension n to

label with regards to m classes, we replicate it m times

and embedded into the slots of a plaintext, by padding

with 0 the remaining space. In this conﬁguration, the

means are expressed as a single array of dimension

m × n and we can compute all the distances in the

same time using a single ciphertext. Once received

and decrypted, one can obtain the clear distances by

making the sum on sub-sets of successive slots. The

necessary condition for this approach is that the num-

ber of slots has to be higher or equal to m × n.

Table 3 shows two conﬁguration of parameters for

HElib testing we chosen in order to have s, the right

number of slots, (sufﬁcient but not too large) and a

security level of at least 80.

A New Crypto-classiﬁer Service for Energy Efﬁciency in Smart Cities

Table 3: Parameters for HElib tests.

Test m p r L s Security

TEST 1 6679 2 8 3 42 180.46

TEST 2 8253 2 8 4 12 92.17

Tables 4 - 5 highlight the data size for both so-

lutions when using the ﬁrst and respectively the sec-

ond set of HElib parameters (TEST 1 and respec-

tively TEST 2). As previously, the latency is com-

puted in seconds for uploading the encrypted data

(column “UP”) and downloading the 6 distances (col-

umn “DW”) for all of the 40 instances, when consid-

ering a network with a throughput of 10 Mbps. This

time, the size of a ciphertext is much larger than the

one for a Paillier encrypted data (several thousands

of kbytes versus thousands of bytes), due to the com-

plexity of BGV cryptosystem. We also note that the

second solution allows to decrease the download la-

tency. In fact, instead of sending m ciphertexts, only

one is sent back to the client for decryption.

Table 4: Data communication for different key sizes (TEST

1).

SOL Size/ciphertext (kbytes)

Latency (sec)

UP DW

1) 290.98 9.31 55.87

2) 290.98 9.31 23.14

Table 5: Data communication for different key sizes (TEST

2).

SOL Size/ciphertext (kbytes)

Latency (sec)

UP DW

1) 204.61 6.54 98.30

2) 204.61 6.54 16.38

Tables 6 - 7 summarize the execution times ob-

tained for the ﬁrst and respectively second solution,

when using the above conﬁgurations of parameters,

for labeling the 40 households relying on 6 references.

Table 6: Execution times (sec) of labeling steps for different

key sizes (TEST 1).

SOL Step Avg. Min. Max. Context

Reading

Enc. 0.67 0.60 0.79

7Label 9.56 9.02 10.51

Dec. 27.49 25.64 31.44

Enc. 0.71 0.64 0.91

7.15Label 1.65 1.48 2.10

Dec. 4.36 4.05 5.02

Table 7: Execution times (sec) of labeling steps for different

key sizes (TEST 2).

SOL Step Avg. Min. Max. Context

Reading

Enc. 0.83 0.80 0.98

4.06Label 14.57 13.55 15.32

Dec. 9.80 9.25 10.55

Enc. 0.90 0.81 1.31

4.31Label 2.45 2.31 3.27

Dec. 1.58 1.38 2.57

We consider that the context reading (the parame-

ters and the keys reading) is realized once for all the

40 instances and, as the results indicate, depends on

the set of initial HElib parameters. The results of exe-

cution times of the second optimized solution (SOL 2)

are of better quality than for the ﬁrst solution for the

labeling and decrypting step, which looks right since

we are executing the homomorphic evaluation and the

decryption on a single ciphertext. Also, we obtain

that for the second set of parameters (TEST 2), aim-

ing a smaller security level, the processing times are

smaller that the ones for the ﬁrst set (TEST 1) which

seems quite normal.

Finally, when comparing the second optimized so-

lution with Paillier-based prototype on 2048 modulus,

we remark that in general the execution times for en-

cryption and labeling steps are faster but the decryp-

tion takes longer.

Of course, these are just some preliminary tests

using HElib and a more thoughtful analysis of the pa-

rameters setting is necessary. Moreover, we can imag-

ine several solutions for improving the performances.

One of the problems we have in the current form is

that most of the time passes in the context reading.

Also, for now, the 40 instances are executed sequen-

tial and in the future this treatment could be also par-

allelized.

6 CONCLUSION AND

PERSPECTIVES

This paper presents a demonstrator of a practical im-

plementation of a secure energy data classiﬁer to be

deployed in a Smart City. The system was tested

with a homomorphically additive cryptosystem and

a leveled homomorphic scheme and achieves perfor-

mances acceptable in a real-world setting. The re-

sults obtained attested the effectiveness of our pro-

posal and the ability of our solutions to perform pro-

cesses on data while guaranteeing privacy. This is

just a ﬁrst proposal of a secure rating energy service

SMARTGREENS 2018 - 7th International Conference on Smart Cities and Green ICT Systems

using homomorphic encryption and thus many im-

provements can be imagined. First at all, we plan to

implement and test the classiﬁcation algorithm using

other homomorphic cryptosystems (e.g., more recent

third generation homomorphic schemes such as (Gen-

try et al., 2013)). At the same time, we will focus on

the scalability of such an application and the subse-

quent impacts on processing performance. Secondly,

one could imagine a more complex classiﬁcation al-

gorithm, less naive than the Gaussian one along with

a more thorough evaluation process of the accuracy

of the proposed service. Last but not least, one has

to think of the way the labeling provided by this out-

sourced service could be usefully exploited by other

tools, such as optimization scenarios, in order to en-

dow the Program Administrator with a cost efﬁcient

overall solution.

REFERENCES

(2016). Energy rating. http://www.energyrating.gov.au/.

(2016). Uci: Machine learning repository.

Agrawal, R. and Srikant, R. (2000). Privacy-preserving data

mining. SIGMOD Rec., 29(2):439–450.

Bayardo, R. and Agrawal, R. (2005). Data privacy through

optimal k-anonymization. In Proceedings 21st In-

ternational Conference on Data Engineering, 2005.

ICDE 2005, pages 217–228.

Bost, R., Popa, R., Tu, S., and Goldwasser, S.

(2014). Machine learning classiﬁcation over en-

crypted data. Cryptology ePrint Archive, Report

2014/331. http://eprint.iacr.org/.

Brakerski, Z., Gentry, C., and Vaikuntanathan, V. (2011).

Fully homomorphic encryption without bootstrap-

ping. Cryptology ePrint Archive, Report 2011/277.

http://eprint.iacr.org/.

Catalano, D. and Fiore, D. (2014). Boosting linearly-

homomorphic encryption to evaluate degree-2 func-

tions on encrypted data. Cryptology ePrint Archive,

Report 2014/813. http://eprint.iacr.org/2014/813.

Cavoukian, A., Polonetsky, J., and Wolf, C. (2010). Smart-

privacy for the smart grid: embedding privacy into the

design of electricity conservation. Identity in the In-

formation Society, 3(2):275–294.

CNIL (2012). Pack de conformite sur les compteurs com-

municants. Technical report.

De Silva, D., Yu, X., Alahakoon, D., and Holmes, G.

(2011). A data mining framework for electricity con-

sumption analysis from meter data. IEEE Transac-

tions on Industrial Informatics, 7(3):399–407.

Gentry, G., Sahai, A., and Waters, B. (2013). Homomorphic

encryption from learning with errors: Conceptually-

simpler, asymptotically-faster, attribute-based. In

CRYPTO, pages 75–92. Springer.

Goldwasser, S. and Micali, S. (1982). Probabilistic en-

cryption and how to play mental poker keeping secret

all partial information. In Proceedings of the Four-

teenth Annual ACM Symposium on Theory of Comput-

ing, STOC ’82, pages 365–377, New York, NY, USA.

ACM.

Graepel, T.and Lauter, K. and Naehrig, M. (2012). Ml con-

ﬁdential: Machine learning on encrypted data. IACR

Cryptology ePrint Archive, 2012:323.

Halevi, S. (2013). Helib - an implementation of homomor-

phic encryption. https://github.com/shaih/HElib.

Kantarcioglu, M. and Clifton, C. (2004). Privately comput-

ing a distributed k-nn classiﬁer. In Proceedings of the

8th European Conference on Principles and Practice

of Knowledge Discovery in Databases, PKDD ’04,

pages 279–290. Springer-Verlag New York, Inc.

Kim, H., Marwah, M., Arlitt, M., Lyon, G., and Han,

J. (2010). Unsupervised disaggregation of low fre-

quency power measurements. In In Proceedings of

SIAM Interational Conference on Data Mining, pages

747–758.

Li, F., Luo, B., and Liu, P. (2010). Secure information ag-

gregation for smart grids using homomorphic encryp-

tion. In 2010 First IEEE International Conference

on Smart Grid Communications (SmartGridComm),

pages 327–332.

Lindell, Y. and Pinkas, B. (2000). Privacy preserving data

mining. In JOURNAL OF CRYPTOLOGY, pages 36–

54. Springer-Verlag.

MacQueen, J. B. (1967). Some methods for classiﬁcation

and analysis of multivariate observations. In Cam, L.

M. L. and Neyman, J., editors, Proceedings of the ﬁfth

Berkeley Symposium on Mathematical Statistics and

Probability, volume 1, pages 281–297. University of

California Press.

Nikolaou, T., Kolokotsa, D., Stavrakakis, G., Apostolou, A.,

and Munteanu, C. (2015). Review and state of the

art on methodologies of buildings’ energy-efﬁciency

classiﬁcation. In Managing Indoor Environments and

Energy in Buildings with Integrated Intelligent Sys-

tems, pages 13–31. Springer.

NIST (2010). Guidelines for smar grid cyber security. Tech-

nical report.

Paillier, P. (1999). Public-key cryptosystems based on com-

posite degree residuosity classes. In Stern, J., editor,

Advances in Cryptology - EUROCRYPT 99, volume

1592 of Lecture Notes in Computer Science, pages

223–238. Springer Berlin Heidelberg.

Samanthula, B., Elmehdwi, Y., and Jiang, W. (2014). k-

nearest neighbor classiﬁcation over semantically se-

cure encrypted relational data. CoRR.

Smart, N. P. and Vercauteren, F. (2014). Fully homo-

morphic simd operations. Des. Codes Cryptography,

71(1):57–81.

Verdu, S. V., Garcia, M., C., S., Marin, A. G., and Franco,

F. J. G. (2006). Classiﬁcation, ﬁltering, and identiﬁ-

cation of electrical customer load patterns through the

use of self-organizing maps. IEEE Transactions on

Power Systems.

Vetter, B., Ugus, O., Westhoff, D., and Sorge, C. (2012).

Homomorphic primitives for a privacy - friendly smart

metering architecture. In SECRYPT, pages 102–112.

A New Crypto-classiﬁer Service for Energy Efﬁciency in Smart Cities

Zirm, M. and Niedermeier, M. (2012). The future of ho-

momorphic cryptography in smart grid applications.

In Procedeedings of the 3rd IEEE Germany Student

Conference Passau 2012.

SMARTGREENS 2018 - 7th International Conference on Smart Cities and Green ICT Systems
