Framework for Searchable Encryption with SQL Databases

Monir Azraoui, Melek

Onen and Reﬁk Molva

EURECOM, Sophia-Antipolis, France

Keywords:

Searchable Encryption, SQL Database, Data Conﬁdentiality.

Abstract:

In recent years, the increasing popularity of outsourcing data to third-party cloud servers sparked a major

concern towards data breaches. A standard measure to thwart this problem and to ensure data conﬁdentiality

is data encryption. Nevertheless, organizations that use traditional encryption techniques face the challenge of

how to enable untrusted cloud servers perform search operations while the actually outsourced data remains

conﬁdential. Searchable encryption is a powerful tool that attempts to solve the challenge of querying data

outsourced at untrusted servers while preserving data conﬁdentiality. Whereas the literature mainly considers

searching over an unstructured collection of ﬁles, this paper explores methods to execute SQL queries over

encrypted databases. We provide a complete framework that supports private search queries over encrypted

SQL databases, in particular for PostgreSQL and MySQL databases. We extend the solution for searchable

encryption designed by Curtmola et al., to the case of SQL databases. We also provide features for evaluating

range and boolean queries. We ﬁnally propose a framework for implementing our construction, validating its

practicality.

1 INTRODUCTION

Outsourcing data storage and processing to third-

party servers, such as cloud servers, has become a

common procedure. However, when it comes to sto-

ring personal or business conﬁdential data, the usage

of cloud services is currently questioned as as po-

tentially malicious cloud servers may try to learn in-

formation from the data they store and the queries

they process or even leak them to some unauthori-

zed parties. Encryption is a standard approach to en-

sure the conﬁdentiality of data outsourced at honest-

but-curious cloud servers. However, “traditional” en-

cryption schemes deprive the users of functionalities

over the data, such as searching. In this case, to se-

arch words in encrypted outsourced data, the users

are required to retrieve the entire dataset from the

cloud, decrypt it and operate the search locally. This

naive approach poses serious performance concerns

which cancel out the beneﬁt of outsourcing. There-

fore, cloud servers should be able to perform the se-

arch operation in outsourced databases, while the ac-

tual databases are encrypted.

The problem of searching over encrypted data has

received much interest from both academia (Song

et al., 2000; Hacig

us¸ et al., 2002; Agrawal et al.,

2004; Curtmola et al., 2006; Chase and Kamara,

2010; Popa et al., 2012; Cash et al., 2013; Kamara and

Papamanthou, 2013) and industry (Bitglass

, Cipher-

Cloud

or Skyhigh

). Research on this topic mainly

focuses on the scenario of a user who outsources an

encrypted collection of documents (such as e-mails,

medical records, etc.) and would like to further se-

arch keywords over this encrypted dataset. While this

theoretical setting is valid, in practice, many organi-

zations such as governments, hospitals or companies

store data in relational databases which structure data

into tables according to a set of attributes. The po-

pular SQL language (Chamberlin and Boyce, 1974)

enables users to store, query and update their data in

a user-friendly manner. SQL databases ensure fast re-

cord search and retrieval provided that the SQL ser-

ver is able to read data content. As mentioned before,

encryption typically impedes the server from reading

data which makes search over encrypted databases

challenging. In particular, a cryptographic data pro-

tection mechanism for searching over encrypted data

stored in a SQL database should allow the server to ef-

ﬁciently process search queries without having access

to the plaintext data. Besides, querying an encrypted

SQL database should be user-friendly: protected que-

https://www.bitglass.com/ [Accessed Oct. 09, 2017].

https://ciphercloud.com/ [Accessed Oct. 09, 2017].

https://www.skyhighnetworks.com/ [Accessed Oct. 09,

2017].

Azraoui, M., Önen, M. and Molva, R.

Framework for Searchable Encryption with SQL Databases.

DOI: 10.5220/0006666100570067

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 57-67

ISBN: 978-989-758-295-0

ries should adopt the SQL syntax and simulate the se-

arch functionality as if data was not encrypted. A di-

rect application of solutions for searching an encryp-

ted collection of ﬁles to SQL databases is not straight-

forward. Indeed, existing solutions (Curtmola et al.,

2006; Chase and Kamara, 2010; Cash et al., 2013;

Kamara and Papamanthou, 2013) build an index of

the keywords. In the case of SQL, data is arranged

into tables, and records are queried based on a condi-

tion over one or more attributes. Therefore, keywords

should preserve this notion of attribute. Furthermore,

SQL allows performing comparisons of data (range

queries) which are not always addressed in existing

work.

To solve these challenges, in (Popa et al., 2012), the

authors proposed CryptDB, a framework that sup-

ports SQL queries over encrypted data. This solu-

tion relies on layers of different property-preserving

encryptions, such as deterministic (DET) and order-

preserving encryption (OPE), applied to a column

of an SQL table. To query the encrypted database,

CryptDB converts the plaintext SQL query into its

encrypted equivalent and decrypts the targeted lay-

ers. The major drawback of CryptDB lies in the fact

that whenever one layer is removed, the encryption

scheme becomes weak. In light of this, the major pro-

blem is to deliver a practical solution for searching

over encrypted databases that does not suffer from the

leakage occurring in CryptDB and that enables trans-

parent processing of complex queries over encrypted

SQL databases.

In this work, we tackle this problem and propose

a practical construction for searching over encrypted

SQL databases which limits information leakage. Our

solution builds upon the searchable encryption techni-

que designed in (Curtmola et al., 2006) which applies

to unstructured documents. This mechanism builds

an inverted search index of keywords in the database

to enable keyword search queries over encrypted data.

We make the following contributions:

• We deﬁne a solution that is SQL-compatible, so as

to empower user and server to use SQL’s operati-

ons of database creation, data insertion and search.

We propose a framework for implementing our so-

lution on the PostgreSQL backend;

• Our solution achieves practicality thanks to the use

of the cuckoo hashing technique which renders the

search in the index efﬁcient;

• Our solution supports complex queries, namely

boolean and range queries;

• We evaluate the practicality of our solution by tes-

ting it over an encrypted e-health database.

The rest of the paper is organized as follows.

Section 2 deﬁnes searchable encryption and SQL

databases. We describe our solution in Section 3.

Section 4 presents the proposed implementation fra-

mework and a performance evaluation. We review

existing work in Section 5. We conclude the paper

and give some direction for future work in Section 6.

2 PRELIMINARIES

2.1 Symmetric Searchable Encryption

We consider the following scenario: a user U wants

to store a set D = {d

,...,d

} of conﬁdential data

at a server S. D contains a list of searchable key-

words W = {ω

,ω

,..., ω

}. To preserve data conﬁ-

dentiality, U encrypts D to obtain C = {c

,..., c

which is outsourced to S. A symmetric searchable en-

cryption mechanism allows searching the keywords

directly in C , without compromising data conﬁdenti-

ality nor query privacy. In (Curtmola et al., 2006), the

authors formally deﬁne symmetric searchable encryp-

tion (SSE) schemes by the following algorithms:

KeyGen(1

) → K : It is a probabilistic algorithm

executed by user U and, given a security parame-

ter κ, outputs a secret key K .

BuildIndex(D,K ) → I : This algorithm is run by

user U to generate a search index. It takes key

K and dataset D as inputs and outputs index I .

When the execution of BuildIndex is completed,

index I is stored at server S.

Trapdoor(ω,K ) → τ

: This algorithm, executed by

user U, issues a search token, called trapdoor,

to search for a given keyword ω. It takes secret

key K and keyword ω as inputs and generates

. This trapdoor allows the cloud to perform the

search over the encrypted database for the corre-

sponding keyword ω.

Search(I , τ

) → D(ω): Run by server S, this algo-

rithm processes the search query on ω and gene-

rates the search result. It takes index I and trap-

door τ

as inputs and outputs D(ω), the list of

identiﬁers of documents containing ω.

2.2 SQL Databases

Our work focuses on data structured in SQL databa-

ses such as MySQL

or PostgreSQL

. An SQL data-

base D organizes the data in a set of two-dimensional

tables (T

,.., T

). Each table row is a record, the

columns are attributes, and each table entry a value.

https://www.mysql.com/ [Accessed Oct. 09, 2017].

https://www.postgresql.org/ [Accessed Oct. 09, 2017].

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

We assume the existence of a view V , resulting from

a query applied to the data in D, which represents a

subset of the records, selected from different tables in

D, in such a way that queries can directly be proces-

sed on V . We mainly consider the SELECT operation

that can be expressed as follows:

SELECT attributes FROM table WHERE conditions.

This query retrieves from an SQL table (or a view) the

records, and more precisely, the attributes speciﬁed

after SELECT, that match conditions. In this work,

we are interested in conditions that can be written as

a boolean expression Q : r → {0,1}, which, evalua-

ted on a record r of D, returns Q (r) = 1, if r satisﬁes

the expression or Q (r) = 0 otherwise. Q consists of

several predicates P

that express conditions over one

or more attributes in D and are combined with bool-

ean operators: OR and AND. Each of the P

involves

operators such as =,>,<,≥,≤ and relates a database

attribute to a search criterion.

Table 1: Example of table: PATIENT.

ID Name Surname Age Gender Occupation

001 David Smith 38 M Farmer

002 Mary Grant 27 F Lawyer

003 Julie David 19 F Student

004 Daniel Farmer 45 M Lawyer

For example, let us consider table PATIENT (see

Table 1). An example of predicate P

can be

h Name=‘Mary’i where Name is an attribute and Mary

the value to be searched for. In this paper, we consider

the following queries, listed in Table 2:

Simple keyword queries: They contain only one pre-

dicate Q = P

= hattr=vali. The query is

expressed as SELECT attributes FROM table

WHERE attr=val, attr is an attribute and val

any possible value.

Conjunctive queries (AND): Predicates are combined

with an AND operator: Q = P

∧ P

∧ ... ∧ P

Disjunctive queries (OR): Predicates are combined

with an OR operator: Q = P

∨ P

∨ ... ∨ P

Range queries: They involve one or two predicates

combined with an AND operator, and apply to nu-

meric data to ﬁnd value within a range.

Complex queries: They combine conjunctions, dis-

junctions and range queries.

3 OUR SSE CONSTRUCTION

FOR SQL DATABASES

To clarify the need for an SSE scheme dedicated to

SQL databases, we ﬁrst present an e-health use case

that involves medical data. From this use case, we

identify the gaps between the theoretical aspect of an

SSE scheme and the practical requirement for an en-

crypted database.

3.1 Use Case

Let us consider a hospital that collects data from their

patients. This data may consist of their personal in-

formation (names, age, etc.), their biological data

(height, weight, body temperature, etc.) or the care

they received (surgery operation, etc.). This data is

managed in an SQL database (such as in Table 1).

The hospital’s information technology (IT) depart-

ment would like to pay the service of a cloud provider

to store and enable access to the data.

However, since the e-health data is conﬁdential

and because the hospital must comply with strong re-

gulations with respect to the storage and processing

of medical data (such as the recent European Gene-

ral Data Protection Regulation (GPDR, 2016)), the IT

staff encrypts the data before its outsourcing. Nevert-

heless, the hospital does not want to lose the functio-

nalities offered by the SQL language. Therefore, the

obfuscation of the e-health database should preserve

(i) the format and the arrangement of the data, and

(ii) the SQL functionalities such as creating and sto-

ring the database, or searching and retrieving particu-

lar records based on one or more attributes. It is clear

that this use case falls into the model of searchable

encryption as deﬁned in Section 2.1.

3.2 Background

We base our work on the scheme described in (Curt-

mola et al., 2006). Unlike our use case, the authors

do not consider SQL databases but focus on an un-

structured collection of ﬁles D. To enable user U to

efﬁciently search for a keyword ω in the encrypted da-

taset C , this scheme builds an inverted search index I ,

that links each keyword ω with D(ω), the set of iden-

tiﬁers of documents containing ω. I is also obfusca-

ted so that it does not disclose any information about

the data. Only the holder of the secret key can issue

a search query. The search time is linear in the size

of D(ω), which is believed to be optimal (Curtmola

et al., 2006). Besides, the authors proved that their

scheme is secure under IND-CKA1 (security against

chosen-keyword attack). In a nutshell, this security

deﬁnition requires that an adversary should learn no-

thing from the outsourced data and the index beyond

what can be inferred from the search results and the

access pattern, even if the adversary chooses the ke-

ywords. In particular, the search tokens do not leak

information about the keywords.

Framework for Searchable Encryption with SQL Databases

Table 2: Example of queries over table PATIENT.

Query Conditions Results

Simple Surname=‘Grant’ h002, Mary, Grant, 27, F, Lawyeri

Conjunctive Name=‘Mary’ AND Surname=‘Grant’ h002, Mary, Grant, 27, F, Lawyeri

Disjunctive Gender=‘F’ OR Occupation=‘Lawyer’

h002, Mary, Grant, 27,F, Lawyeri

h003, Julie, David, 19, F, Studenti

h004, Daniel, Farmer, 45, M, Lawyeri

Range

Age<45 AND Age>=35 h001, David, Smith, 38, M, Farmeri

Age<20 h003, Julie, David, 19, F, Studenti

Complex (Gender=‘F’ OR Occupation=‘Lawyer’) AND Age<20 h003, Julie, David, 19, F, Studenti

In what follows, we outline this SSE scheme:

KeyGen(1

) → K : Key K consists of three pseudo-

randomly generated keys K

, K

and K

used for

two pseudo-random permutations

(ψ and π) and

one pseudo-random function

ϕ respectively.

BuildIndex(D,K ) → I : As shown in Algorithm 1, it

constructs three data structures:

B Linked Lists L

: For each keyword ω

∈ W,

1 ≤ i ≤ N, the list L

is an encrypted form of

D(ω

). Each node N

i, j

of L

(1 ≤ j ≤ |D(ω

)|)

contains a record identiﬁer in D(ω

), the key

i, j

used to encrypt node N

i, j+1

and the address

in array A of N

i, j+1

. Each node is encrypted

using any semantically secure symmetric en-

cryption

algorithm denoted E. Node N

i,1

is en-

crypted using key k

i,0

B Array A: It stores nodes {N

i, j

} in a pseudo-

random order. U uses key K

as input of ψ to

compute the position of each N

i, j

in A.

B Look-up table T : Each entry in T is associa-

ted to a keyword ω

∈ W and stores information

about N

i,1

, namely its address in A and the key

i,0

. This information is encrypted using a XOR

operation with a key K

= ϕ(K

,ω

). T stores

the encrypted information in a pseudo-random

order, using π seeded with key K

. In (Curt-

mola et al., 2006), the authors suggest, without

giving further details, to implement T via a

FKS dictionary (Fredman et al., 1984).

At the end of BuildIndex, index I = (A,T ) is sto-

red at server S.

Trapdoor(ω,K ) → τ

: τ

consists of the position

pos of the entry in table T associated with ω and

the key K

to decrypt T [pos]. We recall that, if

ω exists in D (without loss of generality, we as-

sume that this keyword is ω

, for 1 ≤ i ≤ N), then

A pseudo-random function is a polynomial-time function

such that any probabilistic polynomial-time adversary can-

not distinguish it from a truly random function.

Informally, a semantically symmetric encryption scheme

(E,D) is a non-deterministic encryption algorithm which

yields different ciphertexts for the same plaintext mes-

sage. (E, D) denotes the pair of encryption and decryption

functions.

T [pos

] stores the address in array A of N

i,1

and

the key k

i,0

. Therefore, τ

consists of two values:

pos = π(K

,ω) and K

= ϕ(K

,ω).

Search(I , τ

) → D(ω): As depicted in Algorithm 2,

this algorithm parses τ

as pos and K

. Then it lo-

cates entry T [pos] and XOR-decrypts it using K

It obtains the address in array A of N

i,1

and the

key k

i,0

. Starting from N

i,1

, algorithm Search can

decrypt all the nodes N

i, j

, 1 ≤ j ≤ |L

| of L

. Fi-

nally, the algorithm outputs the list D(ω

). If one

of these steps fails, then algorithm Search aborts

and indicates that the keyword was not found.

Algorithm 1: I ← BuildIndex(D,K ).

Inputs : Database D, Secret Key K

Output: Index I

1 Create dictionary W

2 for ω

∈ W do determine D(ω

)

4 Set global counter ctr = 1

// Array A creation

5 Initialize an empty array A of size m

6 for ω

∈ W do

// Build a linked list L

with nodes N

i, j

7 Generate random key k

i,0

8 for 1 ≤ j ≤ |D(ω

)| do

9 Generate random key k

i, j

10 N

i, j

= hrecordID

||k

i, j

||ψ

(ctr + 1)i

11 Encrypt N

i, j

= E

i, j−1

i, j

)

12 Store in A[ψ

(ctr)]

13 Set counter ctr = ctr +1

14 end

15 For the last node of L

, set address of next

node to NULL

16 end

17 Let m

∑

∈W

|D(ω

18 if m

< m then ﬁll the (m − m

) remaining entries

of A with random values

// Look-up table T creation

20 for ω

∈ W do

T [π

(ω

)] = haddr[A(N

i,1

)]||k

i,0

i ⊕ ϕ

(ω

)

22 Output I = (A,T )

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

Algorithm 2: D(ω) ← Search(I ,τ

Inputs : Index I , Trapdoor τ

Output: Search Results D(ω)

1 Parse τ

= (pos,K

)

2 Retrieve θ = T [pos]

3 Parse hα||ki = θ ⊕ K

4 Decrypt linked list L whose ﬁrst node is in A[α]

and encrypted under key k

5 Output each decrypted record ID

3.3 Requirements for

SQL-compatibility

Given the scenario described in Section 3.1, we iden-

tify ﬁve requirements for designing an SSE solution

that would support SQL databases:

R1: Dictionary Creation. The ﬁrst requirement

concerns the choice of the keywords W. In

(Curtmola et al., 2006), the authors only mention

to “scan D to build the set of distinct words”. In

SQL databases, the data is structured into tables,

where each record contains several attributes that

take speciﬁc values. Hence, one can imagine

that the dictionary would contain all the possible

values in D. We show in Section 3.5 that such

a dictionary does not work in the scope of SQL

databases. Therefore, we specify an algorithm

CreateDictionary to create an appropriate W.

R2: Practical Look-up Table T . The authors in

(Curtmola et al., 2006) mention the use of an

FKS dictionary (Fredman et al., 1984), without

giving much details about its implementation.

FKS dictionaries are known to be memory

expensive and ﬁnding the good hash that prevents

hash collisions (as a matter of fact, a perfect

hash function) when inserting a new item is a

demanding process. For these reasons, we opt

for another data structure, simpler to implement,

more practical and more ﬂexible, namely a

cuckoo hash table. We give an overview of this

data structure in Section 3.4.

R3: Structured-data Encryption. In the case of un-

structured datasets, each document is encrypted

independently. In the case of SQL databases,

the organization of data into SQL tables requi-

res that each value in the tables is encrypted inde-

pendently, using a semantically secure encryption

algorithm. This will preserve the functionality

of selecting speciﬁc attributes from an SQL table

using the instruction SELECT attributes. The-

refore, we will deﬁne two additional algorithms

EncryptTable and DecryptResults.

R4: Transparent SQL Queries. In (Curtmola et al.,

2006), communication details between user and

server are omitted. With SQL databases, querying

data is a well-deﬁned process that involves spe-

ciﬁc SQL instructions such as CREATE, INSERT

or SELECT. In this paper, we require that a user

transparently queries the database, meaning that

no change is needed in the user’s application pro-

gram. Even in the case of encrypted data, our SSE

scheme should respect the SQL language expres-

siveness, available in the case of plain databases.

R5: Complex Queries. Last but not least, the SSE in

(Curtmola et al., 2006) does not tackle the pro-

blem of complex queries that contain range, con-

junctive or disjunctive queries. We extend this so-

lution with this functionality.

Before delving into the details of our proposal

for a symmetric searchable encryption scheme, we

outline in the next section the deﬁnition of cuckoo

hashing.

3.4 Cuckoo Hash

In a cuckoo hash table T (Pagh and Rodler, 2004),

an item v can be stored in one of two possible

entries, each located in two different tables, as-

sociated with two independent hash functions and

a key x. The look-up operation, later denoted

CuckooLookup(T ,x), only requires to examine these

two locations. The insertion of a new element v with

key x, operation denoted CuckooInsert(T ,x,v), eva-

luates the ﬁrst hash function over x to give the ﬁrst

possible slot in the ﬁrst table. If this slot is already

assigned, then the item currently occupying this lo-

cation is “kicked out” and v can be inserted in the

emptied slot. The removed item is then moved to

its alternative location assigned with the second hash

function. This move may encounter another collision,

thus requiring another element to be kicked out from

its current location. This procedure is repeated until

the last kicked-out item ﬁnds a free slot or when an

endless loop is detected (or when the number of kick-

outs reaches a predeﬁned maximum). In the latter

case, the authors in (Pagh and Rodler, 2004) suggest

to rehash the data structure, that is, to use two new

hash functions.

3.5 Our Construction for Simple

Keyword Queries

Our solution is built upon the technique described in

(Curtmola et al., 2006), but implements several modi-

ﬁcations in order to satisfy the previously mentioned

Framework for Searchable Encryption with SQL Databases

requirements. Let us consider a database D = {T }.

Table T contains t attributes and R records. Without

loss of generality, for databases with multiple tables,

we assume that we can reason on a view V extracted

from a subset of these tables.

Our ﬁrst proposal provides a solution to sa-

tisfy requirement R1. We deﬁne an algorithm

CreateDictionary to construct a dictionary W from

D. As required by algorithm BuildIndex, the search

index, built upon W, stores information about the re-

cords that contain each of the keywords. Besides, a

basic SQL query contains a clause WHERE of the form

hattribute=valuei, meaning that we are interested

in the records where the attribute has the speciﬁed

value. Therefore, the search index must indicate that

information. Hence, the dictionary W contains ke-

ywords under the form attribute=value. We de-

note n the size of W (n ≤ t × R). Let us take the ex-

ample of the table PATIENT presented in Table 1 and

consider the query SELECT * FROM PATIENT WHERE

Name=‘David’. If W only listed the distinct words in

the table, as it is the case in (Curtmola et al., 2006),

then the index would have lost the information that

David is a possible value for the attribute Name. Note

that David is also a value for the attribute Surname.

In this case, the search over the index would have re-

turned all the records that contain the word David,

regardless of the attributes. To cope with this is-

sue, we suggest to store the keywords ω of the form

Name=‘David’ in order to preserve the information

on the attribute and to prevent the search from retur-

ning wrong results. Algorithm 3 depicts the operati-

ons to build dictionary W.

Algorithm 3: {W, {D(ω)}

ω∈W

} ← CreateDictionary(D).

Inputs : Database D

Output: Dictionary W, Sets {D(ω)}

ω∈W

1 W =

2 for record ∈ D do

3 for attribute do

4 ω ← hattribute=valuei

5 if ω /∈ W then W = W ∪ {ω}

7 end

8 end

9 for ω

∈ W do determine D(ω

)

To build index I = (A,T ), we ﬁrst permute the

rows in the database and then we follow the procedure

described in Algorithm 4. In our case, we consider the

record identiﬁer, denoted as RecordID, as an additio-

nal attribute of the considered SQL table. To improve

the efﬁciency of (Curtmola et al., 2006) and meet re-

quirement R2, we construct a cuckoo hash table T for

efﬁcient lookups as depicted in Algorithm 4.

At the end of BuildIndex, I is stored in an SQL

table called INDEX as a binary object (for example,

using the type bytea in PostgreSQL).

Algorithm 4: I ← BuildIndex(W,K ).

Inputs : Keywords W, Secret Key K

Output: Index I

1 Set global counter ctr = 1

// Array A creation: same operations as in Algorithm 1

// Cuckoo Hash Table T creation:

2 for ω

∈ W do

3 value = haddr[A(N

i,1

)]||k

i,0

i ⊕ ϕ

(ω

)

4 CuckooInsert(T , π

(ω

),value)

5 end

6 Output I = (A,T )

The next operation in our SSE construction en-

crypts the SQL table with a semantically secure en-

cryption scheme E = (E,D). As opposed to (Curt-

mola et al., 2006), we deﬁne two encryption and

decryption algorithms

(Algorithm 5). Algorithm

EncryptTable encrypts each entry in the table separa-

tely, and because of the semantically secure property

of the encryption scheme, each encrypted entry is in-

distinguishable from the others. Note that the attri-

butes and the table names are also encrypted, but the

extra attribute RecordID is left unencrypted, which

does not impact the security of our scheme. Algo-

rithm DecryptResults decrypts the encrypted records

returned by the server after the execution of Search.

These two algorithms take as input secret key K , out-

put by a modiﬁed algorithm KeyGen, that generates

an additional key K

enc

Algorithm 5: C ← EncryptTable(D,K ).

Inputs : Table T , Secret Key K

enc

Output: Encrypted table C

1 encrypted table = E(K

enc

,table name)

2 for attribute do

3 encrypted attribute =

E(K

enc

,attribute)

4 end

5 for record in T do

6 for attribute do

7 encrypted value = E(K

enc

,value)

8 end

9 end

To retrieve the records from the encrypted da-

tabase based on a search criterion denoted ω, the

user translates a plain SQL query such as SELECT *

FROM PATIENT WHERE Name=‘David’ (here ω cor-

responds to Name=‘David’) into an encrypted SQL

query, denoted SE query. This SE query requests the

Algorithm DecryptResults is the inverse of EncryptTable

showed in Algorithm 5, where encryption function E is

replaced by decryption function D.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

server to execute algorithm Search over the search in-

dex I using the search token generated with algorithm

Trapdoor. Therefore, the search procedure operates

in a challenge-response interaction between user U

and server S with the following steps:

1. U executes algorithm Trapdoor to generate the se-

arch token τ

for keyword ω. Then, U forms the

following SE query:

SELECT * FROM encrypted table WHERE

RecordsID IN Search(I, τ

) (1)

The most important and challenging part of this

SE query is RecordsID IN Search(I , τ

). The

WHERE condition requests the execution of algo-

rithm Search by the SQL server. Since this algo-

rithm outputs D(ω), the WHERE condition collects

the records whose RecordID is in the output of

algorithm Search.

2. On execution of the SE query (1), S runs algo-

rithm Search with the speciﬁed trapdoor τ

on the

indicated index. Algorithm Search is identical to

the one deﬁned in (Curtmola et al., 2006), except

the fact that we resort to algorithm CuckooLookup

to look-up table T , as depicted in Algorithm 6.

The SE query (1) outputs the encrypted records

that match the search criterion ω. The last step of

our protocol decrypts the obtained records by calling

algorithm DecryptResults.

Algorithm 6: D(ω) ← Search(I ,τ

)

Inputs : Index I , Trapdoor τ

Output: Search Results D(ω)

1 Parse τ

= (γ,η)

2 Retrieve θ = CuckooLookup(T , γ)

3 Parse hα||ki = θ ⊕ K

4 Decrypt linked list L whose ﬁrst node is in A[α]

and encrypted under key k

5 Output each decrypted record ID

Proposed Framework. In addition to the algo-

rithms we speciﬁed in the abovementioned para-

graphs, we suggest that our SSE construction follows

the framework depicted in Figure 2. Speciﬁcally, this

framework allows to run the secure search function,

namely algorithm Search, on a widely adopted SQL

server, namely PostgreSQL.

The architecture of the proposed framework con-

sists of two zones:

Trusted Zone: It includes user U with an unmodi-

ﬁed SQL client application. We deﬁne a proxy

between U and S, which executes all the user-

side functions of our protocol. The keys generated

with KeyGen are stored in a keystore.

Untrusted Zone: It consists of the untrusted cloud

server S running PostgreSQL that stores the en-

crypted database and the secure search index.

This PostgreSQL server is in charge of executing

the function Search deﬁned in Algorithm 6.

As shown in Figure 1, our implemented scheme is

divided into three phases:

Upload: The user outsources her database by exe-

cuting the CREATE and INSERT INTO queries.

The proxy receives them, generates keys, runs

CreateDictionary, BuildIndex and EncryptTables

and converts the queries into an SE query. This SE

query includes the encrypted version of CREATE

and INSERT INTO queries for the data and the

CREATE and INSERT INTO queries for storing the

index into an additional table denoted INDEX.

Query: The user executes a SELECT-FROM-WHERE

query to retrieve some records based on some

criteria (the WHERE conditions). The proxy re-

ceives this query, extracts the criteria, retrieves

the keys and executes Trapdoor for each of these

criteria. Then, the proxy forms an SE query

that converts the SQL query into its “encrypted”

version: The proxy replaces the FROM argument

with the encrypted table name and replaces the

WHERE conditions with the clause RecordID IN

Search(index, trapdoor), where Search is the

algorithm deﬁned in Algorithm 6, trapdoor is the

token generated by Trapdoor and index is retrie-

ved with SELECT index FROM INDEX.

Retrieval: Upon reception of this SE query, the

server executes Search over the index and the

trapdoor speciﬁed in the query. Thanks to the

FROM and WHERE parameters, the server retrieves

the encrypted records whose identiﬁers are output

by Search. The proxy then calls DecryptResults

and sends to the user the decrypted search results.

3.6 Boolean Queries

We propose to transform boolean queries into several

subqueries. The server operates the intersection (in

case of conjunction of keywords) or the union (in case

of disjunction of keywords) of the search results and

returns them to the user. Formally, our solution trans-

forms a plain query Q : r → {0,1} into an SE query

: r → {0,1}, where Q

consists of the predicates P

which are the “obfuscated versions” of the predicates

deﬁning Q . The P

are of the form RecordID IN

Search(index, trapdoor

) and are combined with the

same boolean operators as the P

. Here trapdoor

de-

notes the token generated by algorithm Trapdoor for

the search criteria P

. Let us consider the query

SELECT * FROM PATIENT WHERE Name=‘Mary’

AND Surname=‘Grant’.

It contains two predicates P

= hName=‘Mary’i and

Framework for Searchable Encryption with SQL Databases

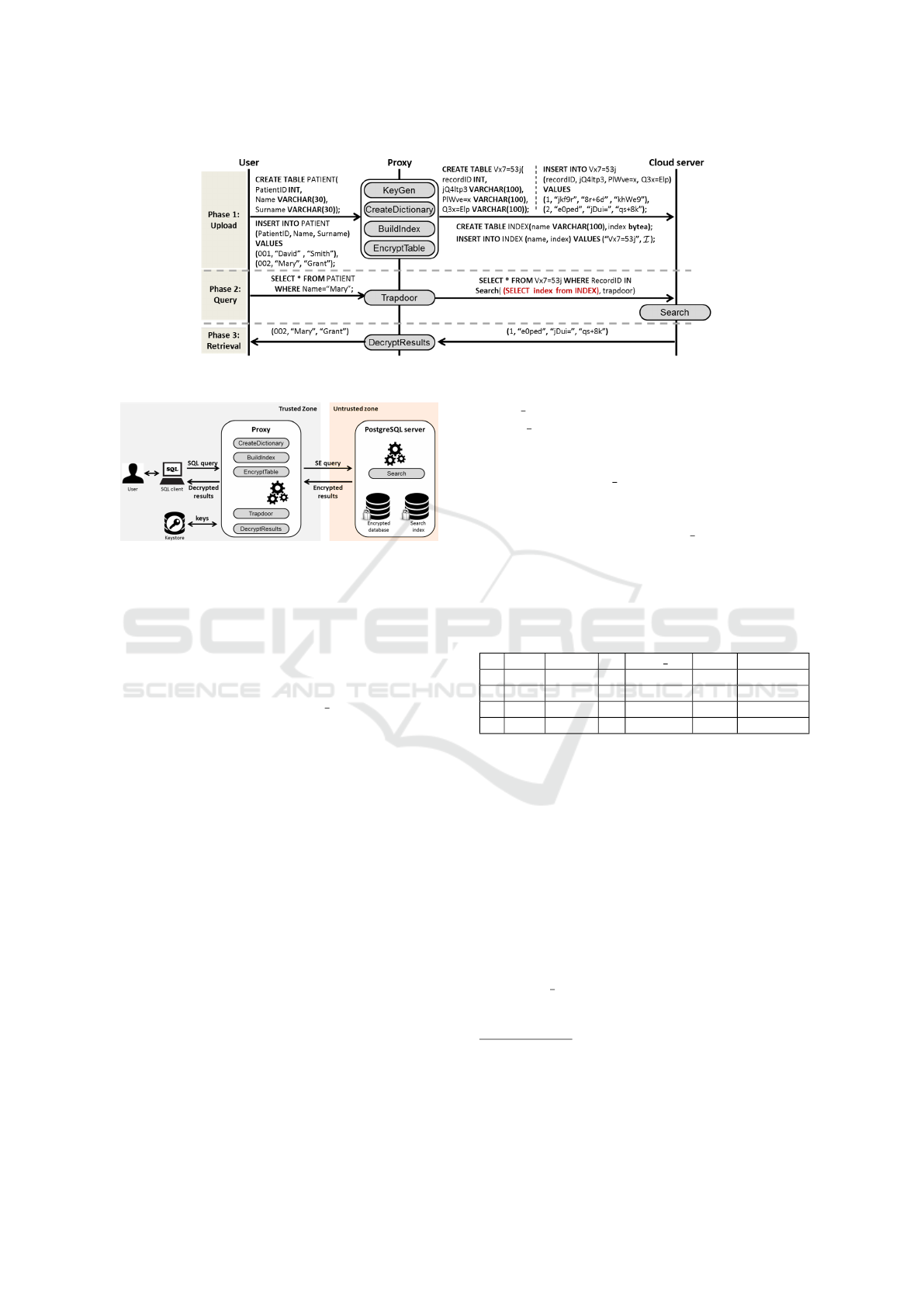

Figure 1: Workﬂow of our scheme.

Figure 2: Architecture of our SSE solution.

= hSurname=‘Grant’i, linked with the boolean

operator AND. To transform this SQL query into an

SQL-SE query, the proxy generates the two following

trapdoors: trapdoor

= Trapdoor(Name=‘Mary’) and

trapdoor

= Trapdoor(Surname=‘Grant’) and exe-

cutes the SE query:

SELECT * FROM encrypted table WHERE

RecordsID IN Search(index, trapdoor

) AND

RecordsID IN Search(index, trapdoor

3.7 Range Queries

Let us consider the attribute Age from the data-

base example depicted in Table 1 and a range query

that requests to retrieve the records where Age > 40

and Age ≤ 45. Using the SSE solution depicted in

Section 3.6, we can simply generate trapdoors for

each of the values between 41 and 45, so ﬁve trap-

doors for the keywords Age = 41, Age = 42, etc. For

each trapdoor, the server calls algorithm Search and

computes and sends back to the user the union of

the search results. In case of wider ranges (such as

Age > 18 and Age ≤ 75), this solution would not be

efﬁcient because of the execution of several instances

of Trapdoor and Search.

The idea of our solution for range queries is to re-

duce a range query problem into a keyword search

problem. To a particular value of an attribute (for

example: value 45 for attribute Age), we associate

a value (for example: [45 − 50[) to a new attribute

Range Age. Therefore, we deﬁne a new keyword

hRange Age = [45 − 50[i that will be inserted in in-

dex I during the execution of BuildIndex. As a matter

of fact, we extend the initial database D = T with a

new attribute

Range attribute. For each record r

in D, we let the user specify the range value of the

corresponding attribute. Table 3 shows table PATIENT

extended with the attribute Range

Age. Note that the

user selects its preferences on the range interval and

the initial value, based on the content of the database

and the possible queries she may issue, depending on

the use cases

Table 3: Table PATIENT with Range column.

ID Name Surname Age Range Age Gender Occupation

001 David Smith 38 [35;40[ M Farmer

002 Mary Grant 27 [25;30[ F Lawyer

003 Julie David 19 [15;20[ F Student

004 Daniel Farmer 45 [45; 50[ M Lawyer

When user U wants to retrieve the records that ma-

tch a range query, the proxy issues an SE query that

contains the trapdoor(s) associated with the speciﬁed

range. Different cases can be encountered:

1. The range query exactly corresponds to one of

the range included in the search index. If we

consider the example of Table 3, this case ap-

plies to search queries such as SELECT * FROM

PATIENT WHERE Age ≥ 35 AND Age < 40. The

range query hAge ≥ 35 AND Age < 40i exactly

matches the range we speciﬁed for the record de-

aling with patient David Smith. In this case, the

proxy calls algorithm Trapdoor for the keyword

hRange Age = [35; 40[i. This case is reduced to a

simple keyword search query.

2. The range query is different from the ranges

Practically, this column will not be stored at the server.

The speciﬁed ranges can have different interval length de-

pending on the frequency of items in the interval. We can

use statistical tools for deﬁning the range intervals but this

topic is out of scope of this paper.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

included in the search index. Let us take the fol-

lowing range query: SELECT * FROM PATIENT

WHERE Age ≥ 18 AND Age < 25. The interval

[18;25[ is not one of the ranges we included

in Table 3. Therefore, the proxy factorizes the

search range [18;25[ into a union of ranges

(inserted in the search index during the execution

of BuildIndex) and singletons of discrete values.

In our example [18; 25[= {18} ∪ {19} ∪ [20; 25[.

Hence, the proxy calls algorithm Trapdo or for

the two singletons hAge = 18i and hAge = 19i as

well as for hRange Age = [20;25[i. Therefore,

instead of 7 search tokens, our solution only

generates 3 trapdoors and the corresponding SE

query is a disjunction of clauses RecordID IN

Search(index,trapdoor).

4 IMPLEMENTATION AND

PERFORMANCE EVALUATION

Implementation. Our SSE scheme is implemen-

ted according to the architecture shown in Figure 2.

All the functions at the proxy are implemented in

Java. The server runs PostgreSQL server (version

9.5). Search is coded in Java with PL/Java

, an add-

on for server-side procedures. The code is packed into

a JAR that is further loaded into the PostgreSQL bac-

kend, so as to execute Search directly in PostgreSQL.

We tested our prototype on a single machine that si-

mulates both the proxy and the server. The machine

has four 3.20GHz Intel Core

i5-3470 processors,

32GB of RAM and runs Ubuntu 14.04 LTS.

E-Health Database. This work is done in the context

of a collaborative project named CLARUS

, which

collected data from anonymized medical records of a

hospital. This database consists of eight tables and

queries are performed over a view (in the SQL termi-

nology) called LAB. This view lists 64.440 records and

comprises eight attributes, including a patient identi-

ﬁer (pat id), a patient name (pat name), a patient

last name (composed of two parts pat last1 and

pat last2) and an identiﬁer of an episode of care

(ep id).

Results. We measured the time consumed by the pha-

ses described above over the e-health database. We

let our program automatically add range attributes for

pat id. The length of the ranges is 10: we insert

Range pat id values of the form [0,9], [10,19], etc.

We ran 100 executions of the functions, and computed

the average time, listed in Tables 4 and 6. We com-

https://tada.github.io/pljava/. [Accessed Oct. 09, 2017]

http://www.clarussecure.eu

pare these measurements with the case where upload

(resp. search) is performed without the application of

our SSE mechanism in Table 5 (resp. Table 7).

Table 4: Upload with SSE.

Operation Time (s)

Index Creation 22.1 s

Encryption 5,60 s

Server storage 4.60 s

Table 5: Upload without SSE.

Operation Time (s)

Upload 9.735 s

Server storage 1.238 s

The time needed by the server for storage is gre-

ater than the case where no encryption is performed,

since the server is required to store the index toget-

her with the encrypted data. We evaluated single ke-

yword queries (keywords with different numbers of

occurrences) and range queries. The Retrieval phase

is fast: less than 1 second to decrypt the search re-

sults. We recall that Search ﬁrst ﬁnds the entry in ta-

ble T associated with the searched keyword and then

decrypts the corresponding linked list. In average,

Search has acceptable costs, given that the data is en-

crypted. For the most frequent keyword, Search de-

crypts 4275 nodes which yields the time reported in

Table 6. In the case of range queries, we tested the

query pat id ≥ 50 AND pat id < 150, which ge-

nerates 10 trapdoors of the form hRange pat id =

[50,59]i, ..., hRange pat id = [140,149]i (since we

conﬁgured the attribute Range pat id with intervals

of size 10). Thus, Search is executed 10 times. The

Upload phase is relatively long (22 s) since BuildIndex

scans the database value by value to create the index

and involve a high amount of permutations. Nevert-

heless, these operations are performed only once for

an unbounded number of queries.

Table 6: Query and Retrieval.

Query Trapdoor |D(ω)| Search Decryption

Single Keyword

pat last2=‘GARCIA’ 2 ms 4275 122 s 0,37 s

pat name=‘RAUL’ 1 ms 178 5.6 s 0,02 s

pat name=‘MORAD’ 1 ms 11 0.8 s 0,002 s

pat last1=‘DUC’ 9 ms 0 0.5 s −

Range Query 2,0 ms 198 9.87 s 0,04 s

Table 7: SQL search without SSE.

Query SQL search

Single Keyword

pat last2=‘GARCIA’ 3.5 ms

pat name=‘RAUL’ 8.0 ms

pat name=‘MORAD’ 7 ms

pat last1=‘DUC’ 7 ms

Range Query 45 ms

Framework for Searchable Encryption with SQL Databases

5 RELATED WORK

We reviewed the literature in the area of searchable

encrypted database systems. The design of such sys-

tems always trades off between the level of security,

the query functionalities preserved in spite of encryp-

tion and the performance.

Boolean Queries. In (Hacig

us¸ et al., 2002), the

authors proposed a heuristic to execute SQL queries

over encrypted data where the querier user is requi-

red to perform a heavy processing of the search re-

sults, whereas in our case, query and retrieval are lig-

htweight operations. Besides, this solution encrypts

records as a whole whereas our construction encrypts

records attribute-wise. The authors do not provide

any security guarantee. In (Cash et al., 2013), an

SSE scheme for boolean queries, named OXT, is tes-

ted with a MySQL database. This solution builds two

indexes, which increases the storage overhead at the

server. This scheme supposes the knowledge of the

frequency of the keywords to perform efﬁcient search.

The user ﬁrst queries the least frequent keyword of a

conjunctive keyword query and then ﬁlters the results

for the other keywords. In (Pappas et al., 2014), Blind

Seer is proposed as a system which enables boolean

SQL queries via a tree-based search index. It resorts

to Yao’s garbled circuit (Yao, 1986), which requires

the user and the server to jointly parse the tree to pro-

cess the search query. Our construction only incurs a

single round of interaction between the user and the

server.

Range Queries. In (Agrawal et al., 2004), the

authors deﬁned order-preserving encryption (OPE)

which enables range queries, but reveals the order

of numeric data. Our scheme avoids this leakage

by using a semantically secure encryption algorithm.

ARX (Poddar et al., 2016) is based on a tree to evalu-

ate range queries over encrypted data, and uses Yao’s

garbled circuit to traverse the tree to respond to range

queries. Whenever such a query is computed, nodes

of the tree must be updated, which incurs complexity

overhead at the user-side. Besides, the authors tested

this solution on a NoSQL database, which does not

store structured data as in MySQL or PostgreSQL.

CryptDB. Proposed by (Popa et al., 2012), this sy-

stem allows equality, range and boolean queries over

encrypted SQL databases, thanks to onion encryp-

tion, that encrypts each attribute with one or more on-

ion layers. Each of the encryption layers preserves a

particular functionality. For simple keyword search,

CryptDB applies a deterministic encryption, disclo-

sing to the server the occurrences of a particular ke-

yword. CryptDB also preserves the functionality of

range queries by adding a layer of OPE, which also

leaks some information to adversaries. As opposed

to CryptDB, even if the same data is queried several

times, our solution preserves data and query privacy.

6 CONCLUSION

This paper proposes an SSE scheme for SQL data-

bases. The proposed solution builds upon the alre-

ady existing searchable encryption proposed by Curt-

mola et al. (Curtmola et al., 2006), which is trans-

formed to an SQL-compatible scheme. Our solu-

tion supports several query functionalities including

range and Boolean queries. Fruthermore, thanks to

the use of cuckoo hashing, the search operation beco-

mes more efﬁcient. We ﬁnally present a framework

for implementation which embeds the search algo-

rithm into PostgreSQL and that converts plain SQL

queries into “encrypted” SQL queries directly execu-

table by the Postgres server. This framework is evalu-

ated in terms of performance using an e-health data-

base.

Our future work consists in developing an optimi-

zed system for databases with million of records. We

plan to conduct an in-depth performance evaluation

including comparison with existing -comparable- im-

plementations, if any, to show its practicality in real-

world scenarios.

ACKNOWLEDGMENTS

This work was partially funded by European Com-

mission through the H2020 project CLARUS (grant

No. 644024). We particularly thank the Fundaci

ınic per a la Recerca Biom

edica (FCRB) for pro-

viding our test e-health database. The authors also

would like to thank Mr. Yiadh Tlijani for his help in

simulations.

REFERENCES

Agrawal, R., Kiernan, J., Srikant, R., and Xu, Y. (2004).

Order Preserving Encryption for Numeric Data. In

Proceedings of the 2004 ACM SIGMOD international

conference on Management of data, pages 563–574.

ACM.

Cash, D., Jarecki, S., Jutla, C., Krawczyk, H., Ros¸u, M.-

C., and Steiner, M. (2013). Highly-Scalable Searcha-

ble Symmetric Encryption with Support for Boolean

Queries. In Advances in Cryptology–CRYPTO 2013,

pages 353–373. Springer.

Chamberlin, D. D. and Boyce, R. F. (1974). SEQUEL: A

Structured English Query Language. In Proceedings

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

of the 1974 ACM SIGFIDET (Now SIGMOD) Works-

hop on Data Description, Access and Control, SIGFI-

DET ’74, pages 249–264. ACM.

Chase, M. and Kamara, S. (2010). Structured Encryption

and Controlled Disclosure. In International Confe-

rence on the Theory and Application of Cryptology

and Information Security, pages 577–594. Springer.

Curtmola, R., Garay, J., Kamara, S., and Ostrovsky, R.

(2006). Searchable Symmetric Encryption: Improved

Deﬁnitions and Efﬁcient Constructions. Cryptology

ePrint Archive, 2006:210.

Fredman, M. L., Koml

os, J., and Szemer

edi, E. (1984).

Storing a Sparse Table with 0(1) Worst Case Access

Time. J. ACM, 31(3):538–544.

GPDR (2016). General Data Protection Regulation. Ofﬁcial

Journal of the European Union, L119:1–88.

Hacig

us¸, H., Iyer, B., Li, C., and Mehrotra, S. (2002).

Executing SQL over Encrypted Data in the Database-

service-provider Model. In Proceedings of the 2002

ACM SIGMOD international conference on Manage-

ment of data, pages 216–227. ACM.

Kamara, S. and Papamanthou, C. (2013). Parallel and Dyn-

amic Searchable Symmetric Encryption. In Internati-

onal Conference on Financial Cryptography and Data

Security, pages 258–274. Springer.

Pagh, R. and Rodler, F. F. (2004). Cuckoo Hashing. Journal

of Algorithms, 51(2):122–144.

Pappas, V., Krell, F., Vo, B., Kolesnikov, V., Malkin, T.,

Choi, S. G., George, W., Keromytis, A., and Bellovin,

S. (2014). Blind Seer: A Scalable Private DBMS. In

2014 IEEE Symposium on Security and Privacy (SP),

pages 359–374. IEEE.

Poddar, R., Boelter, T., and Popa, R. A. (2016). Arx: A

Strongly Encrypted Database System. IACR Crypto-

logy ePrint Archive, 2016:591.

Popa, R. A., Redﬁeld, C., Zeldovich, N., and Balakrishnan,

H. (2012). CryptDB: Processing Queries on an En-

crypted Database. Communications of the ACM,

55(9):103–111.

Song, D. X., Wagner, D., and Perrig, A. (2000). Practical

Techniques for Searches on Encrypted Data. In Pro-

ceeding 2000 IEEE Symposium on Security and Pri-

vacy. S P 2000, pages 44–55.

Yao, A. C.-C. (1986). How to Generate and Exchange Se-

crets. In 27th Annual Symposium on Foundations of

Computer Science, 1986, pages 162–167. IEEE.

Framework for Searchable Encryption with SQL Databases
