Viability of Small-Scale HPC Cloud Infrastructures

Emmanuel Kayode Akinshola Ogunshile

Department of Computer Science, University of the West of England, Bristol, U.K.

Keywords: RDMA Networking, TCP/IP Networking, HPC Infrastructures, Cloud Platforms, Integration, Management

and Performance.

Abstract: RDMA networking has historically been linked closely and almost exclusively with HPC infrastructures.

However, as demand for RDMA networking increases in fields outside of HPC, such as with Hadoop in the

Big Data space, an increasing number of organisations are exploring methods of introducing merged HPC

and cloud platforms into their daily operations. This paper explores the benefits of RDMA over traditional

TCP/IP networking, and considers the challenges faced in the areas of storage and networking from the

perspectives of integration, management and performance. It also explores the overall viability of building

such a platform, providing a suitable hardware infrastructure for a fictional case study business.

1 INTRODUCTION

ALIGNING the expansion of IT infrastructure with

growing requirements is a challenge for many

organisations. Failure to deal with this challenge can

result in IT or server sprawl: a situation in which an

organisation ends up with a vast number of

underutilised IT resources that can wastefully

consume power and cooling resources in the data

centre and become extremely difficult to support.

The inevitabilities of this are increased utility

costs and excessive human and financial resources

required to support this bloated infrastructure.

The reasons for IT sprawl to occur are

straightforward. A small organisation may:

• Lack the budget to pre-emptively build an IT

infrastructure that can cater for planned

growth and scale beyond this, or experience

unexpected growth, making IT an entirely

reactive rather than proactive component of

the organisation;

• Lack the flexibility to re-deploy their existing

infrastructure to most efficiently

accommodate new requirements, e.g.

migrating existing infrastructure to a

virtualised environment, and thus;

• Be limited to simply adding to their existing

infrastructure as requirements grow.

As a practical example of this, a small, siloed

organisation has limited initial requirements that

may easily be fulfilled by standalone servers.

Therefore, a few servers are purchased for each

department and separate networks are built for each

department. However, the reactive nature of IT in the

organisation emphasizes the urgency of new

requirements and present computing resources are

likely to be mission critical, thus untouchable. All

that can be done is add new resources to existing

infrastructure; an approach that may be adequate for

managing a few systems, but rapidly becomes

unmanageable beyond this scale. The resulting

infrastructure will likely have a huge number of

small failure domains that will be difficult or

impossible to mitigate, a wide variety of software

and hardware platforms that may even require

external support due to internal limitations in

expertise, and may be inherently unreliable, both in

accessibility. Using virtual machines on existing

hosts, as opposed to running workloads on bare

metal, is often considered and used as a partial and

pre-emptive solution to IT sprawl. However, in itself

this only mitigates utilisation issues, the initial

investment cost of hardware and excessive utility

cost expenditures; aside from hardware deployments,

the challenges imposed by managing a vast number

of machines still exist, and network management is

potentially more difficult, traversing both physical

and virtual environments. With regards to enterprise

storage, simply running virtual machines alone does

nothing to ensure the desirable attributes of security,

Ogunshile, E.

Viability of Small-Scale HPC Cloud Infrastructures.

DOI: 10.5220/0006640802750286

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 275-286

ISBN: 978-989-758-295-0

275

integrity, accessibility and scalability. It could be

argued that localised storage for virtual machines

hampers these attributes; consolidation means fewer

components and thus an increased probability for a

particular piece of data to be impacted by a failure.

IT sprawl only represents only a subset of the

issues faced by growing organisations. Its effects are

only accentuated by our rapidly developing

capabilities in generating, processing and storing

data. It is almost inevitable that organisations

looking to take advantage of these capabilities are

going to face challenges with scale: network and

storage performance, resiliency and expansion;

infrastructure manageability; and operational and

support costs. Cloud computing is frequently viewed

as the solution to all of the previously mentioned

challenges. The term cloud computing itself is often

considered a buzzword, with many descriptions

falling under a similar degree of ambiguity; it is

common for generic definitions to include the

consolidation of compute resources, virtualisation,

simplified maintenance, and the use of remote,

outsourced infrastructure among others. However,

cloud computing is best defined by a core

characteristic: service orientation. This is represented

by the as a Service (aaS) models, the primary three

of which are:

Infrastructure as a Service (IaaS) Delivery of

typical infrastructure components as virtual

resources, such as compute, storage and

networking; extensions of these such as load

balancers; and on public cloud platforms even

virtual private clouds (VPCs) such as (Amazon

Web Services, 2017).

Software as a Service (SaaS) Delivery of software

applications or packages of any scale, ranging

from local applications, such as Microsoft

Office and its Office 365 counterpart, to multi-

user, organisation-wide applications such as

Salesforce.

Platform as a Service (PaaS) Provides a platform

with a suite of common components, such as

databases, authentication systems and

interpreters for various languages, and abstracts

virtually all infrastructure components, to allow

developers to build web-based applications or

service backends.

It’s worth noting that these models are entirely

independent of each other; IaaS relates only to IT

infrastructure while SaaS and PaaS focus on delivery

to the end user. However, there is a good degree of

interoperability; Cloud Foundry serves as a strong

example of a PaaS solution available on numerous

IaaS platforms, such as (OpenStack, 2016).

While the issues with IT sprawl are commonly

associated with more traditional IT infrastructures—

frequently those supporting business processes

directly performed by desktop clients—HPC

environments in many organisations can be

susceptible to the same issues. HPC is commonly

perceived as an entirely separate branch of the

computing industry, which is reasonable to an

extent; modern HPC environments focus on the use

of non-commodity InfiniBand (IB) fabrics for low

latency, high bandwidth inter-node communication,

compared with cloud environments that use

commodity Ethernet networks hosting virtualised

bridges, routers, virtual LAN (VLAN) and Virtual

eXtensible LAN (VXLAN) networks. However,

HPC environments can benefit from the flexibility

that cloud computing offers; rather than being

limited to a single platform and a scheduler, users

can build a virtual cluster at whatever scale they

deem suitable, with the software platform of their

choosing. It is only more recently that technologies

such as single root I/O virtualisation (SR-IOV) have

made virtualising HPC workloads viable in practice,

but there are still issues scaling such environments to

hundreds or thousands of nodes, hence why there

aren’t any HPC-oriented cloud offerings from any

major provider, nor any virtualised HPC

environments at scale.

This paper aims to explore how a small-medium

organisation could implement a hybrid HPC/cloud

environment with a fictional case study business,

EWU Engineering (EWU). It is arranged into the

following sections:

2: Case Study Overview of EWU’s current and

predicted business in addition to their

requirements.

3: Storage Provides a technical overview of the

limitations of RAID (redundant array of

independent/inexpensive disks) experienced by

EWU, and technical justification for the

recommended underlying file system, ZFS, and

distributed storage solution, GlusterFS.

4: Hardware Recommendations Focuses primarily

on the hardware suitable for implementing the

solution using the technologies covered in previous

sections.

2 CASE STUDY

EWU Engineering are an automotive consultancy

and design business based in Birmingham, England.

Established in 2011, they provides services

including, but not limited to:

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

276

• End-to-end computer-aided engineering (CAE)

for: safety testing; noise, vibration and

harshness, durability and failure mode effects

analysis using a variety of physics simulation

tools such as LS-DYNA, ANSYS or others to

conform with customer requirements

• Computer-aided design/modelling

(CAD/CAM) of a variety of components

ranging from trim pieces to entire custom

mechanisms

• CNC and manual machining: milling, turning

and facing for low volume or pre-production

components

• Thermoplastic 3D printing for rapid

prototyping

• Full project conceptual renders and designs

• Standards compliance testing on concept and

existing components

The majority of their work has primarily been in

high volume production projects under contracts

with the likes of Jaguar Land Rover, but they

occasionally do work for low volume or one-off

projects, and components for motorsport teams. The

business is segregated into four departments,

employing forty-seven workers: the accounts and

management departments have five employees each;

the machining department has seven employees; the

CAE/design department has thirty employees. Their

current turnover is around £7 million per year; they

estimate this to increase to £10 million per year over

the next two and a half years as a result of increased

demand for their end-to-end, concept to production-

ready CAE and CAD/CAM services.

2.1 Current Infrastructure

Having grown rapidly over the past three years in

particular, EWU wanted to minimise their

dependence on locally hosted services and insourced

IT staffing. As a result, they currently contract a

local business to manage their domain and Office

365 subscriptions.

Table 1: Accounts and management departments file

servers.

acctmgmt-srv{1,2}

Chassis

Intel P4304XXSHCN

Power

2x 400W, redundant, 80+ Gold

Motherboard

Intel S1200BTLR

CPU

Intel Xeon E3-1275v2

RAM

2x8GB DDR3-1600 ECC

OS storage

2x WD Blue 1TB, RSTe

RAID-5

File storage

4x WD Red 3TB, MD RAID-10,

LVM+XFS

CentOS 6.8

HA network

card

Intel X520-DA2

The accounts and management departments share

two file servers, as do the design and machining

departments. The specifications of these servers are

outlined in Tables 1 and 2 respectively. Such

departmental pairings make sense as these

departments frequently require access to the same

files. Corosync and Pacemaker are used to

implement high availability on these file servers and

DRDB is used for real-time data synchronisation

between each server. The accounts and management

file servers run virtualised domain controllers for the

entire business; the low load on these servers

deemed them suitable for the purpose.

Table 2: Design and machining departments file servers.

desmech-srv{1,2}

Chassis

Intel P4304XXSHCN

Power

2x 400W, redundant, 80+ Gold

Motherboard

Intel S1200BTLR

CPU

Intel Xeon E3-1275v2

RAM

2x8GB DDR3-1600 ECC

OS storage

2x WD Blue 1TB, RSTe

RAID-5

File storage

10x WD Red 4TB, MD RAID-6,

LVM+XFS

CentOS 6.8

HA network

card

Intel X520-DA2

The accounts and management file servers hold

both working and archive data. The designing and

machining department file servers hold

documentation and data for project milestones and

archived projects. Project files in progress are stored

on workstations and laptops, and documentation is

stored in Office 365 for collaboration within the

department and with clients.

EWU’s CAE/design department has the only

significant computational performance requirement

in the business, hence their minimalistic backend IT

infrastructure. This work is performed entirely on

workstations or laptops, the latter of which are only

issued to employees who frequently work away from

EWU’s premises. In recent months the number of

frequent remote workers has increased drastically.

The twenty workstations have been purchased and

built as and when required over a period of four

Viability of Small-Scale HPC Cloud Infrastructures

277

years. Examples of lower and higher tier

specifications of workstations purchased this year

are outlined in Table 3.

Table 3: Workstation specifications.

Lower Higher

Chassis

Fractal Design R4

Power

Corsair RM550x

Motherboard

Asus Z170-K Gigabyte X99-UD4P

CPU

Intel Core i7-6700 Intel Core i7-6800K

RAM

2x8GB DDR4-2400 4x8GB DDR4-2400

Graphics

card

Nvidia GeForce GTX950

OS storage

Crucial MX300 275GB

File storage

Western Digital Black 2TB

Windows 10 Pro

The client network is wired with CAT-6, being a

fairly new building, however they are using the

built-in Gigabit Ethernet network interface controller

(NIC) on all PCs.

2.2 Current Problems and

Requirements

EWU are finding that individual workstations and

laptops are no longer sufficient to meet its

computational performance requirements, with many

workloads taking hours to complete. During this

time, employees are finding these workstations

unusable for working on other tasks, further

impeding productivity. Additionally, the purchase of

these laptops is becoming increasingly expensive

and there is much debate as to whether they are truly

fit for purpose; expensive quad-core machines are

required for their performance, yet this amounts to

significant deficiencies in weight, size and battery

life.

The business currently use their file servers for

completed projects and milestones only, with most

active project files being downloaded from the client

companies’ servers through a variety of means

(dictated by the client). There is a genuine concern

regarding data security, integrity and accessibility of

working data following a number of hardware and

software workstation failures and the accessibility of

workstations and laptops to visitors of the EWU’s

premises. However, their current file servers do not

have the capacity, nor are they sufficiently

expandable to store all working data in the company.

Furthermore, the client network does not have the

bandwidth to adequately support all their

workstations for such usage.

EWU’s primary concern is that they have

experienced occasional data corruption on their file

servers. At worst this has required them to re-run

some workloads, or retrieve copies elsewhere; they

have been unable to determine the cause of the

corruption. Additionally, they have found RAID

array rebuilds on the design and machining

departments’ file servers to be slow and unreliable,

with significant manual intervention being required

when these rebuilds fail. Due to their highly

available configurations, these servers have not

experienced downtime. They used RAID-6 on these

servers in order to get as much usable space as

possible (32TB usable), but these servers are nearly

full despite being rebuilt six months ago, with few

options for expansion. They have used RAID-10 on

their Exchange servers due to a lack of software

RAID-6 support in Windows Server 2012, and on

their accounts and management departments’ servers

due to the low drive counts.

EWU have realised that they are experiencing

sprawl in their IT infrastructure in exactly the same

way that a data centre would, the only difference

being that their infrastructure is built almost entirely

from client machines as opposed to servers. They are

aware that their workstations are being underutilised,

therefore ruling out the purchase of replacements

entirely. However, they would like to maintain the

flexibility that workstations offer; users should be

able to spin up whatever software environment is

best suited to the task at hand, with the additional

benefit of scaling their environments appropriately

based on the size of the task. Additionally, they

would like the performance of an HPC environment,

taking tasks that require over an hour to complete

down to several minutes.

As mentioned in the opening of this section,

EWU have expectations for significant growth over

the next two and a half years. They estimate that

they will need a storage solution with around 90TB

of capacity for hot and warm data (accessed

frequently and occasionally respectively), with the

capability of expansion as and when needed. For this

initial purchase, they have a budget of £100,000.

They will be employing three full time staff

members to support the platform, with a mix of

cloud, HPC and Linux experience.

3 STORAGE

For EWU’s cloud solution, storage is likely to be the

area with the largest scope for variation. In this

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

278

instance, networking hardware choices are limited

by the requirements of the workloads run on the

cluster and their virtualisation compatibility, and the

cloud platform choices are largely dictated by cost

and documented capability: the underlying

hypervisor may be the same regardless of platform.

On the other hand, storage solutions are layered,

from a conventional underlying file system up to a

distributed storage solution; compatibility and

combining functionality need to be considered. As a

result, storage forms the bulk of this paper.

3.1 Limitations of RAID

At a single node scale, RAID (redundant array of

independent/inexpensive disks) is the de facto

solution for pooling disks. Traditional RAID

implementations as described here function at a level

in between the block devices and the file system,

with the possibility of volume management layers

such as Logical Volume Manager (LVM) and

encryption layers such as dm-crypt being used in

between. Hardware RAID implementations present a

single block device to the operating system—though

many RAID cards allow utilities such as smartctl to

see the drives connected to them with appropriate

drivers—whilst software implementations such as

Linux’s Multiple Device (md) RAID subsystem

build a virtual block device directly accessible

physical block devices. While not representative of

all available RAID levels, Table 4 outlines the

available common implementations that are used

today. Occasionally used are nested levels -10, -50

and -60, which use RAID-0 striping on top of

multiple RAID-1, -5 and -6 arrays.

RAID is a cost-effective, widely compatible

method of aggregating disk performance and

capacity. However, aside from the evident scalability

limitations of RAID to a single machine, there are

severe limitations that make all levels of RAID in

particular parity RAID unsuitable for

implementation in any high capacity or

distributed/parallel storage solution.

3.1.1 Parity RAID

RAID-5 and -6 use distributed parity—the exclusive

OR (XOR) of the blocks containing data—in order

to calculate missing data on the fly in the event of

disk failures, allowing the failure of any one or two

disks in the array respectively. On paper, parity

RAID arrays are among the most cost effective and

efficient methods of aggregating disks. However,

many incorrectly assume that even at low drive

counts, this aggregation will compensate for any

introduced overheads. A single system write

operation requires the following nonconcurrent

operations in a parity RAID array:

• Read data from disk

• Read parity blocks (one for RAID-5, two for

RAID-6)

• Recalculate parity

• Write data to disk

• Write parity to disk (one for RAID-5, two for

RAID-6)

Due to the performance of modern hardware we

can consider parity calculations to be entirely

inconsequential in practice. However, mechanical

disk performance continues to be the single largest

bottleneck in any computer system; any

amplification of write operations is highly

undesirable. A Western Digital Red WD80EFZX has

a peak sequential transfer rate of 178MiB/s. Even at

a sustained peak sequential transfer rate,

theoretically it would take over 13 hours

to fill the

disk without any additional activity; a real world

rebuild will likely be significantly longer. With 4–

8TiB drives now becoming common, building,

rebuilding or migrating data into a large parity RAID

array is infeasible. Performance serves as a

significant contributing factor in the deprecation of

parity RAID as a recommended solution for high

capacity storage. RAID-10 is the commonly

recommended alternative; with the low cost-per-

gigabyte of modern drives, 50% space efficiency to

mitigate the performance drawbacks of parity RAID

is usually deemed acceptable. The implication of this

is that the failure of a RAID-1 pair will cause the

array to fail.

3.1.2 Compatibility

There is no common implementation for RAID with

the standard defined by the Storage Networking

Industry Association (SNIA) specifying only the

functionality required of an implementation (Storage

Networking Industry, 2009). This can include the

encoding used; for example, while Reed-Solomon

encoding is commonly used for RAID-6, some

controllers use proprietary encoding schemes

(Microsemi Corporation, 2008). The implication of

this is that a softwarebased RAID array cannot be

migrated to a hardware-based array and vice versa,

and beyond controllers sharing the same controller

or controller chipset families arrays cannot be

migrated between different hardware RAID devices.

Hardware RAID card failures will require an

Viability of Small-Scale HPC Cloud Infrastructures

279

equivalent replacement to be sourced. The most

suitable solution in these circumstances is to use a

RAID card for its battery backup and possibly

caching capabilities only and to use its just a bunch

of disks (JBOD) or passthrough mode while

implementing software RAID.

3.1.3 Capacity Balancing

Current RAID implementations offer no capacity

balancing for arrays built from varying capacity

disks, with the space used on each disk matching

that of the smallest disk in the array. While it is rare

to mix disk sizes in this manner, it does mean that

replacing disks as they fail with higher capacity

disks with a lower cost per gigabyte is no longer

beneficial.

3.1.4 Disk Reliability

Disk reliability is a complex subject; manufacturers

provide basic reliability specifications such as mean

time before failure (MTBF) and bit-error rate (BER),

but these statistics don’t take real-world operational

conditions into account and may be outright false.

While there have been a number of small scale

reports on the conditions impacting disk reliability,

Google’s study of over 100,000 drives back in 2007

concluded that there was no consistent evidence that

temperatures and utilisation resulted in increased

failure rates (Pinheiro et al., 2007). Cloud storage

company Backblaze Inc. provide what are perhaps

the most current and regular (at least

1. 8(2

)MiB / 178MiB per second / 60

(seconds

to hours) = 13.09 hours yearly) reviews of hard drive

reliability. Their data suggests that the most

important factor in drive reliability is the drive

model chosen (Klein, 2016). Looking at their

separate 2015 study for the notoriously unreliable

Seagate ST3000DM001 3TB disks they deployed in

2012, it can be seen that a huge proportion of these

drives failed within the same time period, peaking at

402 failures in Q3 2014 (Backblaze Inc, 2017).

While this isn’t representative of most drives in

production today, such figures suggest that the

concurrent failure of multiple drives in an array—

failing the entire array and leaving it in an

unrecoverable state—is certainly a real danger. In

short, the failure domain for a RAID array is

extremely large, regardless of the RAID level in use.

3.2 ZFS

ZFS is a file system originally created by Sun

Microsystems. Originally open-sourced as part of

OpenSolaris in 2005, contributions to the original

ZFS project were discontinued following Oracle’s

acquisition of Sun Microsystems in 2010 (OpenZFS,

2017). The OpenZFS project succeeds the original

open-source branch of ZFS, bringing together the

ports for illumos, FreeBSD, Linux and OS X

(Welcome to OpenZFS, 2017). While OpenZFS and

ZFS are distinct projects, the term ZFS may refer to

either or both of them depending on context.

However, there are no guarantees to maintain

compatibility between the on-disk format of the two

(ZFS on Linux, 2013). In this instance and indeed

most instances, ZFS refers to the ZFS on Linux

(ZOL) port. The OpenZFS project is still in its

infancy, however its ZFS ports have already been

proven to successfully address a large number of

issues with current storage solutions.

While ZFS itself is also not scalable beyond a

single node, it is an ideal choice as the underlying

file system for a distributed storage solution. It will

mitigate the corruption issues that EWU have

experienced, offer easy low-level snapshotting and

backup for huge amounts of data as they scale their

storage infrastructure and can offer excellent

performance even at a small scale as EWU will be

building.

3.2.1 Overview

Unlike traditional file system, RAID and volume

manager layers, ZFS incorporates of these features.

Some ZFS primitives relevant to the discussion of

the proposed solution include:

Virtual Device (VDEV) Built from one or more

block devices, VDEVs can be standalone,

mirrored, or configured in a RAID-Z array.

Once created a VDEV cannot be expanded

aside from adding a mirror to a single disk

VDEV.

RAID-Z ZFS has built-in RAID functionality. In a

basic configuration it has the same caveats by

default. However,

the biggest difference is the capability of triple

parity (RAID-Z3), with an additional

performance cost still.

zpool Built from one or more VDEVs, a ZFS file

system resides on a zpool. To expand a zpool,

we can add VDEVs. ZFS will write data

proportionately to VDEVs in a zpool based on

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

280

capacity; the trade-off is space efficiency versus

performance.

Datasets A user-specified portion of a file system.

Datasets can have individual settings: block

sizes, compression, quotas and many others.

Adaptive Replacement Cache (ARC) In-memory

cache of data that has been read from disk, with

the primary benefits being for latency and

random reads, areas where mechanical disk

performance suffers greatly.

Level 2 Adaptive Replacement Cache (L2ARC)

SSDbased cache, used where additional RAM

for ARC becomes cost-prohibitive. As with

ARC, the primary benefit is performance; a

single decent SSD will be capable of random

read I/O operations per second (IOPS) hundreds

to thousands of times higher and latency

hundreds to thousands of times lower than a

mechanical disk.

ZFS Intent Log (ZIL) and Separate Intent Log

(SLOG) ZFS approximate equivalents of

journals; Other ZFS features include:

compression, recommended for most modern

systems with hardware-assisted compression

usually being of inconsequential CPU

performance cost with the benefit of marginally

reduced disk activity; dynamic variable block

sizing; ZFS send/receive, which creates a

stream representation of file system or snapshot,

which can be piped to a file or command (such

as ssh), allowing for easy and even incremental

backups.

3.2.2 Basic Operations

ZFS’ on-disk structure is a Merkle tree, where a leaf

node is labelled with the hash of the data block it

points to, and each branch up the tree is labelled

with the concatenation of the hashes of its

immediate children (Fig. 1), making it self-

validating.

During write operations, the block pointers are

updated and the hashes are recalculated up the tree,

up to and including the root node, known as the

uberblock. Additionally, ZFS is a copy-on-write

(CoW) file system—for all write operations, both

metadata and data are committed to new blocks. All

write operations in ZFS are atomic; they either occur

completely or not at all.

As detailed in the following text, these three

attributes are directly responsible for many of the

benefits in performance and data integrity that ZFS

offers.

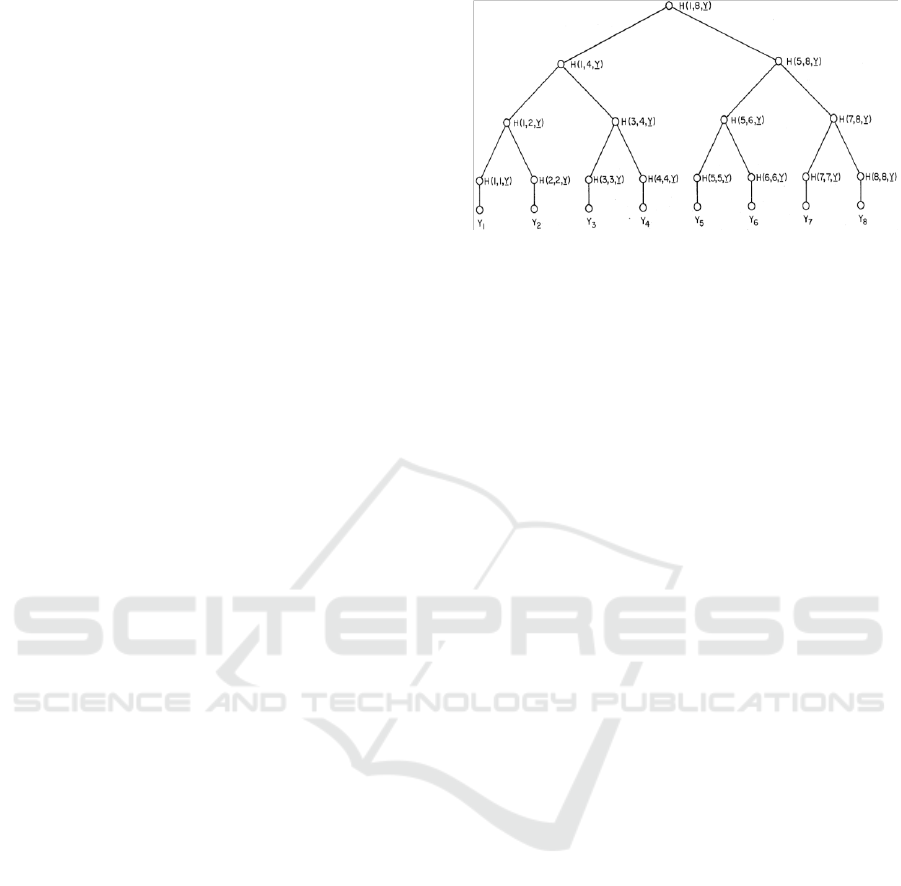

Figure 1: Merkle Tree.

3.2.3 Consistency

On modification, traditional file systems overwrite

data in place. This presents an obvious issue: if a

failure—most commonly power—occurs during

such an operation, the file system is guaranteed to be

in an inconsistent state and not guaranteed to be

repaired, i.e. brought back to a consistent state.

When such a failure occurs, non-journalled file

systems require an file system check (fsck) to scan

the entire disk to ensure metadata and data

consistency. However, in this instance, there is no

reference point, so it is entirely possible and

common for an fsck to fail.

Most of the file systems used today use

journaling in order to ensure file system consistency.

This involves writing either metadata alone or both

metadata and data to a journal prior to making

commits to the file system itself. In the occurrence

described previously, the journal can be “replayed"

in an attempt to either finish committing data to disk,

or at least bring the disk back to a previous

consistent state, with a higher probability of success.

Such a safety mechanism isn’t free, nor does it

completely avert risks. Ultimately, the heavier the

use of journalling (i.e. for both metadata and data)

the lower the risk of unrecoverable inconsistency, at

the expense of performance.

As mentioned previously, ZFS is a CoW file

system; it doesn’t ever overwrite data. Transactions

are atomic. As a result, the on-disk format is always

consistent, hence the lack of fsck tool for ZFS.

The equivalent feature to journalling that ZFS

has is the ZIL. However, they function completely

differently; in traditional file systems, data held in

RAM is typically flushed to a journal, which is then

read when its contents is to be committed to the file

system. As a gross oversimplification of the

behaviour of ZFS, the ZIL is only ever read to replay

transactions following a failure, with data still being

read from RAM when committed to disk. It is

Viability of Small-Scale HPC Cloud Infrastructures

281

possible to store replace the ZIL with a dedicated

VDEV, called a SLOG, though there are some

important considerations to be made, detailed in later

section.

3.2.4 Silent Corruption

Silent corruption refers to the corruption of data

undetected by normal operations of a system and in

some cases unresolvable with certainty. It is often

assumed that servergrade hardware is almost

resilient to errors, with errorcorrection code (ECC)

system memory on top of common ECC and/or CRC

capabilities of various components and buses within

the storage subsystem. However, this is far from the

case in reality. In 2007, Panzer-Steindel at CERN

released a study which revealed the following errors

under various occurrences and tests (though the

sampled configurations are not mentioned):

Disk Errors Approximately 50 single-bit errors and

50 sector-sized regions of corrupted data, over a

period of five weeks of activity across 3000

systems.

RAID-5 Verification Recalculation of parity;

approximately 300 block problem fixes across

492 systems over four weeks.

CASTOR Data Pool Checksum Verification

Approximately “one bad file in 1500 files" in

8.7TB of data, with an estimated “byte error

rate of 3∗10

−7

Conventional RAID and file system

combinations have no capabilities in resolving the

aforementioned errors. In a RAID-1 mirror, the array

would not be able to determine which copy of the

data is correct, only that there is a mismatch. A

parity array would arguably be even worse in this

situation: a consistency check would reveal

mismatching parity blocks based on parity

recalculations using the corrupt data.

In this instance, CASTOR (CERN Advanced

STORage manager) and it’s checksumming

capability coupled with data replication is the only

method that can counter silent corruption; if the

checksum of a file is miscalculated on verification,

the file is corrupt and can be rewritten from the

replica. There are two disadvantages to this

approach: at the time of the report’s publication, this

validation process did not run in real-time; and this

is a file-level functionality, meaning that the process

of reading a large file to calculate checksums and

rewriting the file from a replica if an error is

discovered, will be expensive in terms of disk

activity, as well as CPU time at a large enough scale.

ZFS’s on-disk structure is a Merkle tree, storing

checksums of data blocks in parent nodes. Like

CASTOR, it is possible to run a scrub operation to

verify these checksums. However, ZFS

automatically verifies the checksum for a block each

time it is read and if a copy exists it will

automatically copy that block only, as opposed to an

entire file.

All the aforementioned points apply to both

metadata and data. A crucial difference between a

conventional file system combined with RAID and

ZFS is that these copies, known as ditto blocks, can

exist anywhere within a zpool (allowing for some

data-level resiliency even on a single disk), and can

have up to three instances. ZFS tries to ensure ditto

blocks are placed at least 1/8 of a disk apart as a

worst case scenario. Metadata ditto blocks are

mandatory, with ZFS increasing the replication

count higher up the tree (these blocks have a greater

number of children, thus are more critical to

consistency).

Another form of silent corruption associated with

traditional RAID arrays is the “write hole"; the same

type of occurrence as outlined above but on power

failure. In production this is rare due to the use of

uninterpretable power supplys (UPSs) to prevent

system power loss and RAID controllers with

battery backup units (BBUs) to fix inconsistencies

by restoring cached data on power restoration.

However, the problems remain the same as Panzer-

Steindel outlined in arrays without power resiliency;

there is no way of determining whether the parity or

data is correct, or which copy of data is correct.

ZFS’ consistent on-disk format and atomic

operations mean that data will either be committed

from ZIL or won’t be committed at all, with no

corruption taking place either way.

There are additional complexities regarding ZFS’

data integrity capabilities; Zhang, Rajimwale,

Arpaci-Dusseau et al. released a very thorough study

in 2010, finding that provided a copy was held in

ARC, ZFS could actually resolve even the most

extreme metadata corruption as a secondary benefit

to performance, as it would restore consistent

metadata on commits to disk. However, they also

found that ZFS does make assumptions that memory

will be free of corruption, which could result in

issues for systems with faulty memory or non-ECC

memory. This is beyond the scope of this paper,

however the general consensus is that single-bit

errors are common enough to warrant the use of

ECC memory; most servers sold today do.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

282

All of this is of particular importance with the

gradually reducing cost of disks and proportional

reduction in power consumption as capacities

increase causing many organisations to keep “cold"

and “warm" data—accessed infrequently and

occassionally respectively—on their primary “hot"

storage appliances and clusters for longer periods of

time.

3.2.5 Snapshots

LVM snapshotting allows any logical volume to

have snapshotting capabilities by adding a copy-on-

write layer on top of an existing volume. Presuming

volume group vgN exists containing logical volume

lvN and snapshot snpN is being taken, the following

devices are created:

vgN-lvN virtual device mounted to read/write to the

volume

vgN-snpN virtual device mounted to read/write to

the snapshot This allows snapshots to be taken,

modified and deleted rapidly, as opposed to

modifying vgN-lvN and restoring later

vgN-lvN-real actual LVM volume; without

snapshots, this would be named vgN-lvN, would

be mounted directly and would be the only

device to exist

vgN-lvN-cow actual copy-on-write snapshot volume

When a block on volume vgN-lvN-real is

modified for the first time following the creation of

snapshot vgN-snpN, a copy of the original block

must first be taken and synchronously written in lvN-

cow. In other words, LVM effectively tracks the

original data in the snapshot at modification time,

and the first modification of the block guarantees a

mandatory synchronous write to disk. This is hugely

expensive in terms of write performance; some tests

yield a six-time reduction in performance, while

others claim to have “witnessed performance

degradation between a factor of 20 to 30".

Furthermore, the performance degradation

introduced by snapshots is cumulative—the

aforementioned tasks need to be performed for each

snapshot. LVM snapshots should

be considered nothing more than a temporary

solution allowing backups to be taken from a stable

point in time.

For native copy-on-write file systems such as

ZFS, snapshots are a zero-cost operation. They

simply use block pointers like any other data,

therefore there is no impact on performance.

3.3 Distributed Storage

Distributed storage solutions serve as a significant

departure from traditional storage architectures such

as storage area networks (SANs) and network

attached storage (NAS). The single most compelling

argument in favour of distributed storage is hyper-

convergence—the deployment of storage and

compute resources together on the same nodes.

There are numerous advantages:

Scalability As requirements grow, storage and

compute resources can be grown linearly and

concurrently—just add more nodes full of

drives as required. Conversely, neither compute

nor storage resources may exist in excess.

Utilisation Wastefully idle compute resources,

whether in compute or storage nodes, are no

longer present; for EWU’s infrastructure

running ZFS as an underlying file system this is

particularly beneficial as any unused main

system memory can be used for ARC caching.

Performance Bottlenecks for cross-protocol

gateways, such as Fibre Channel to Ethernet no

longer exist, and latency can theoretically be

reduced due to data locality, whether from a

geographically close node or from data being

located on the same node.

Table 4: Common RAID levels and theoretical performance.

Parity

Performance

Level

Configuration

Failure

tolerance

Usable

storage

Blocks

Write operations

Read

Write

block striping, 2+

disks

None

N/A

block mirroring, 2

disks

1 disk

None

N/A

block striping, 3+

disks

1 disk

n(d −1)

1 distributed

R{d,p}, W{d,p}

n(d −1)

nd/4

block striping, 4+

disks

2 disk

n(d −2)

2 distributed

R{d,p1,p2},

W{d,p1,p2}

n(d −2)

nd/6

Viability of Small-Scale HPC Cloud Infrastructures

283

The primary argument against hyper-convergence is

balancing the infrastructure to ensure that neither

compute nor storage performance is negatively

impacted under load. There are a huge number of

factors that could influence this: CPU performance,

the amount of system memory per node, the

requirements of the distributed storage platform, and

the client demand placed on the cluster.

For EWU’s deployment, distributed storage will

serve as a reliable, high-performance backing store

for both OpenStack Block Storage (Cinder) bootable

block devices for virtual instances and for EWU’s

working data. The latter of these use cases is the

most critical as there is a significant performance

requirement; the performance limitation for

provisioning new instances will likely be the

execution time of the setup process.

Ceph is the dominating open-source distributed

storage platform for OpenStack deployments. The

April 2016 OpenStack user survey revealed that

approximately 39% of surveyed production

deployments are running Ceph as the underlying

storage solution for OpenStack Block Storage,

versus 5% for GlusterFS. It is therefore easy and

common within the OpenStack community to

assume that Ceph is the de facto distributed storage

solution for all use cases. However, for EWU’s

implementation it is largely unsuitable.

Ceph has been primarily focused around object

storage. CephFS, its POSIX-compliant file system

layer, only reached its first stable release in April

2016 with the Jewel release of Ceph. CephFS in all

implementations is still extremely limited: only a

single CephFS file system is officially supported and

there are no snapshotting features or the use of

multiple metadata servers enabled as stable features,

both of which are potentially crucial as facilitators

for maintaining data integrity. A more significant

issue is Ceph’s performance, particularly at smaller

scale deployments. Due to the complexity of tuning

distributed storage solutions, particularly Ceph

compared to GlusterFS, many of the available

performance studies are extremely inconsistent. A

comprehensive study by Donvito, Marzulli and

Diacono found Ceph’s performance to be

significantly inferior to that of GlusterFS for all

workloads; GlusterFS was well over five times faster

than Ceph for synthetic sequential reads and writes,

with Ceph yielding 7MB/s and 12MB/s for random

writes and reads respectively, compared with

Table 5: Initial cost breakdown for EWU’s HPC-cloud platform.

Component

Selection

Cost per unit (GBP)

Line cost

(GBP)

Server

SuperMicro SuperServer 6028U-

TNR4T+

~1500

CPU

2x Intel Xeon E5-2690 v4 (2.6GHz, 14

core)

2133.98

4267.96

RAM

8x 16GB DDR4-2400 ECC

159.98

1279.84

OS storage

2x Intel DC S3510 120GB

117.98

235.96

L2ARC cache

Intel DC P3600 400GB

509.99

SLOG storage

Intel DC P3600 400GB

509.99

GlusterFS storage

6x WD Red WD80EFZX (8TB, 3.5",

5400rpm)

298.49

1790.94

RDMA HCA

Mellanox MCX313A-BCCT

(40/56GbE)

344.52

Node cost (GBP):

10453.69

8 node cost (GBP):

83629.52

RDMA switch

Mellanox MSX1036B-2BRS

9905.52

QSFP cabling (RDMA

network)

8x Mellanox MC2207128-003

75.98

607.84

Ethernet management

switch

Netgear XS716E

1103.99

Ethernet management

cabling

8x 3M CAT-6A

7.49

59.92

Total platform cost

(GBP):

95306.79

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

284

406MB/s and 284MB/s for GlusterFS. While this

may (and perhaps could) have improved, the

aforementioned limitations ultimately limit Ceph as

a viable option.

GlusterFS is the distributed storage solution of

choice for EWU. Along with its superior

performance to Ceph, it provides a stable release

RDMA transport which can be enabled on a per-

volume basis. It more closely aligns with traditional

file systems than Ceph; administrators directly deal

with the following primitives (detailed further in its

documentation), which does require more work

when creating or rebalancing volumes than Ceph:

Trusted Storage Pool (TSP) A collection of servers

configured for a GlusterFS cluster.

Bricks Directory exports that are used as parts of a

GlusterFS volume. Analogous to block devices

in a traditional file system.

Volume An aggregation of bricks, analogous to

volumes in a traditional file system.

Distributed replicated volumes are the

recommended GlusterFS volume configuration for

EWU; data is striped across bricks and volumes are

replicated, a configuration functionally the same as

RAID-10 with matching performance characteristics:

write performance matches that of a single volume,

read performance is an aggregation of all replicas.

The most suitable method of doing this would be to

have replicas on half the nodes, randomising the

servers on which bricks for each volume resides.

This minimises the chance of both copies being

taken offline during concurrent node failures (e.g. if

a common power distribution unit (PDU) fails).

This does mean that space efficiency for EWU’s

cluster is a very low 4:1, or four copies for every

piece of data; two in ZFS and GlusterFS each.

However, these copies serve different purposes: the

former protects against silent corruption and the

latter ensures consistent availability.

4 HARDWARE

RECOMMENDATIONS

Table 5 details the node specification and total initial

purchase cost of the cluster sans cabling and

switching. Note that pricing for the server itself was

estimated based on the cost of a barebone server

configuration including just the chassis,

motherboard and power supplies; actual pricing

could not be obtained, and this server is not

available in a barebones configuration.

The following sections justify the component

selection for EWU’s HPC-cloud platform.

4.1 Server

The SuperMicro SuperServer 6028U-TNR4T+

features a 2U chassis capable of holding up to eight

3.5" Serial ATA drives and four Non-Volatile

Memory Express (NVMe) devices in its hot-swap

bays; EWU’s configuration populates all but two

NVMe bays. It supports the current Broadwell Intel

Xeon-E5-2600 v4 series family of processors, and

features two 1000W, 80 Plus Titanium rated power

supplies in a redundant configuration. SuperMicro

are a top-tier hardwareexclusive vendor, unlike the

likes of Dell or HPE who typically sell complete

hardware/software solutions. As a result,

SuperMicro’s pricing is likely to be notably lower.

4.2 CPU

Computational performance of HPC systems is

typically measured in gigaflops (GFlops), and

benchmarked with High Performance Linpack

(HPL). There are three important metrics:

Rmax The theoretical maximum performance of a

system: it is the sum of CPU frequency, number

of cores, instructions per cycle (16 for the

Broadwell architecture), CPUs per node (2 in

EWU’s case) and the number of nodes.

Rpeak The peak performance achieved by the

system under testing.

Efficiency Rpeak divided by Rmax, typically

expressed as a percentage.

Intel offer three high core count, two way (dual

processor compatible) Xeon CPUs that represent

comparatively good value: E5-2680 v4 (14 core,

2.4GHz, 1075.2GFlops per node), E5-2690 v4 (14

core, 2.6GHz, 1164.8GFlops per node) and E5-2697

v4 (18 core, 2.3GHz, 1324.8GFlops per node).

Without real-world benchmarks and a genuine

workload to measure against, it is difficult to exactly

determine which is the best suited CPU. At best a

speculative estimate can be made: under light loads,

the E5-2680 v4 is better value for money. For

medium workloads, the E5-2690 v4 may perform

best due to its higher clock speed. For an extremely

heavy number of virtual clusters, the notably higher

core count of the E5-2697 v4 is likely to be the best

choice. While a middle ground has been chosen,

speculative comparisons such as Rmax are extremely

primitive: they don’t take into account the overheads

from virtualisation, network communication,

Viability of Small-Scale HPC Cloud Infrastructures

285

platform tuning and kernel and driver versions,

among others.

4.3 L2ARC and SLOG

EWU’s storage solution will rely heavily on L2ARC

caching to provide improved read performance,

particularly for random reads; increasing main

system memory quickly becomes cost prohibitive,

and doesn’t make sense with limited network

bandwidth. Intel’s P3600 NVMe SSD is capable of

2100MB/s sequential read: across 8 nodes this is

more than adequate to saturate the 56Gbps link

provided by the network.

SLOG devices function in place of on-disk ZIL

in ZFS, preventing double writes to disk. As a result,

a SLOG device will be exposed to extremely heavy

write activity exclusively. As the drive is supporting

mechanical disks and is only read from during

recovery, performance is not a priority; the key is

endurance. The P3600’s stated endurance is 2.19PB

of writes, around one hundred times higher than a

consumer solid state drive.

4.4 RDMA Networking

At a small scale pricing between FDR IB and

40/56GbE is comparable: the chosen Mellanox

SX1036 switch is around £2000 more expensive

than a comparable IB switch from the same vendor.

However, versatility is an unavoidable argument;

RoCE v2’s competitive performance against IB

coupled with hardware accelerated VXLAN

networking for traditional cloud computing usage

makes it a more compelling solution. Furthermore,

as more vendors adopt the RoCE v2 standard

(currently only offered by Mellanox), HCA/NIC

prices will continue to fall. The chosen ConnectX-3

adapter is around 60% of the price of comparable

FDR IB adapters.

5 CONCLUSIONS

The biggest limitation for converged HPC and cloud

infrastructures has been compatibility with, or the

feasibility of using RDMA networking technologies

within a cloud computing platform, and managing

RDMA networks within the framework of the

environment. While the methods described in this

paper have only be standardised recently, it is clear

to see that they are already reasonably mature.

However, at scale new methods may be required.

Over the coming years it is likely that we will see

developments in multiple root I/O virtualisation

(MR-IOV), allowing individual SR-IOV VFs to be

shared among virtual guests, and standardised

paravirtual software-based RDMA devices attached

to physical RDMA interfaces.

REFERENCES

Amazon Web Services, Inc. (2017). Amazon Virtual

Private Cloud (VPC), [Online]. Available: https : / /

aws . amazon . com / vpc/ (visited on 05/02/2017).

OpenStack Foundation. (22nd Jul. 2016). Cloud Foundry

(package), (Online). Available: https : / / apps .

openstack . org / #tab = murano - apps & asset =

Cloud % 20Foundry (visited on 06/02/2017).

Storage Networking Industry Association, ‘Common

RAID Disk Data Format Specification’, Tech. Rep.,

version 2.19, 27th Mar. 2009. (Online). Available:

https://www.snia.org/tech_activities/

standards/curr_standards/ddf.

Microsemi Corporation. (17th Mar. 2008). What are the

differences between the Adaptec RAID 6 and RAID 6

Reed-Solomon?, (Online). Available: http://ask.

adaptec.com/app/answers/ detail / a _ id / 15313 / ~ /

what - are - the - differences - between the - adaptec -

raid - 6 - and - raid - 6 - reed - solomon (visited on

26/02/2017).

E. Pinheiro, W.-D. Weber and L. A. Barroso, ‘Failure

Trends in a Large Disk Drive Population’, in 5th

USENIX Conference on File and Storage

Technologies (FAST 2007), Feb. 2007, pp. 17–29.

(Online). Available: https://research.google.com/

archive/disk_ failures.pdf.

A. Klein. (31st Jan. 2017). Backblaze Hard Drive Stats for

2016, Backblaze Inc., (Online). Available: https : / /

www. backblaze . com / blog / hard - drive -

benchmark - stats - 2016/ (visited on 15/02/2017).

CSI: Backblaze – Dissecting 3TB Drive Failure,

Backblaze Inc., (Online). Available: https : / / www .

backblaze . com / blog / 3tb - hard - drive - failure/

(visited on 21/02/2017).

OpenZFS. (27th Feb. 2017). History, [Online]. Available:

http:// open-zfs.org/wiki/History (visited on 27/

02/2017).

Welcome to OpenZFS, (Online). Available: http://open-

zfs.org/wiki/Main_Page (visited on 27/02/2017).

ZFS on Linux. (20th Jan. 2013). ZFS on Linux issue

#1225: Explain “The pool is formatted using a legacy

on-disk format." status message, (Online). Available:

https://github.com/

zfsonlinux/zfs/issues/1225#issuecomment- 12555909

(visited on 27/02/2017).

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

286
