A Reference Architecture for the IoT Services’ Adaptability

Using Agents to Make IoT Services Dynamically Reconﬁgurable

Ademir Jos

e Barba and Fernando Antonio de Castro Giorno

Department of Master’s Degree in Computer Engineering, Instituto de Pesquisas Tecnol

ogicas, IPT,

Av. Prof. Almeida Prado, 532 - Cidade Universit

aria, S

ao Paulo, Brazil

Keywords:

Internet of Things, IoT, Software Architecture, Multi-Agent Systems.

Abstract:

Internet of Things (IoT) is a concept that illustrates the technological revolution that allows the interaction

between physical things (devices) and virtual things (software) thanks to the Internet and to the evolution of

the sensing and acting devices. This interaction promotes the creation of advanced services that contribute to

society. The evolutionary maintenance of IoT services and the inclusion of new services demand a software

architecture that adapts to these changes without causing damage to the rest of the system. In this work this

requirement is called ”IoT Services Adaptability” and to propose an architecture that contributes with this

requirement is the objective of this work.

1 INTRODUCTION

According to (Vermesan et al., 2015), Internet of

Things is a concept and also a paradigm consisting

of an environment that contains the pervasive pres-

ence of things or objects capable of communicating

and cooperating with each other in order to provide

services and achieve common goals. This is done

through wireless or wired connections and unique ad-

dressing schemes. IoT uses the synergy generated by

the convergence of consumer Internet, business Inter-

net and industrial Internet to create a global, open net-

work that connects people, data, and things. In this

context it is possible to conclude that IoT Services are

services that are not obvious without the intelligence

resulting from the interaction between these elements,

which is made possible thanks to this level of connec-

tivity.

An example of a service could be the intelligent

house, where sensors scattered around the house help

in the automatic accomplishment of tasks such as ad-

justing the brightness according to the occasion, mak-

ing a purchase order in the supermarket after ﬁnding

the lack of a product in the refrigerator, etc. This con-

cept is similar to the concept of Agent of Things pro-

posed by (Mzahm et al., 2014). In their proposal, an

Agent of Things is a software agent that allows the

reasoning about the associated agents and provides

services that would be infeasible without these inter-

action.

This work is in agreement with these concepts of

IoT Services. Here, the services also contextualizes

the environment, makes decisions based on the con-

textualized data and acts over this environment.

IoT Services’ Adaptability, in the context of this

work, means to reconﬁgure IoT Services parts with-

out other Services parts stop working. It also means

adding new IoT Services without the other services

ceasing to work. All these changes are made at run-

time.

To try compose a software architecture that con-

tributes to the IoT ServicesAdaptability, a working

method was followed. The steps of this method are:

• Bibliographical review;

• Composition of the reference architecture;

• Composition of the architecture of a Railway

Management System;

• Implementation of the prototype of a Railway

Management System;

• Testing of the reference architecture;

• Generation of the conclusions of the work;

2 BIBLIOGRAPHICAL REVIEW

Before starting this work it was not known the re-

quirements that a software architecture should attend

to contribute to the adaptability of IoT Services, but

Barba, A. and Giorno, F.

A Reference Architecture for the IoT Services’ Adaptability.

DOI: 10.5220/0006577101870194

In Proceedings of the 3rd International Conference on Internet of Things, Big Data and Security (IoTBDS 2018), pages 187-194

ISBN: 978-989-758-296-7

187

it was already known that for the reconﬁguration of

IoT Services at runtime, independent pieces of soft-

ware should allow their replacement without damag-

ing the other parts. This inﬂuenced the choice of an

agent-based architecture, since agents do not expose

their internal actions and they interact with the en-

vironment through sensing and acting. The dynamic

changing and the dynamic including of IoT Services

in the system besides being part of the objective of

this work are also considered fundamental require-

ments of this architecture.

The other requirements of the reference architec-

ture proposed by this work arose from the observation

of elements that could contribute with the objective of

this architecture. These elements were selected from

the chosen works. And the chosen works were se-

lected from the works that address the following sub-

jects: Internet of Things, software architecture, multi-

agent systems.

This section lists the main contributions of the

related works for the composition of these require-

ments.

The work of (Mzahm et al., 2014) creates a con-

cept where software agents enable the reasoning, the

negotiation and the delegation of tasks to the devices

which they are associated. This concept is called

Agent of Things. The main contribution of their work

to this one was to make clear the importance of the

interaction between IoT devices in order to perform

services that would not be possible without this inter-

action. These observations gave rise to the require-

ments of decision-making by the IoT Service about

the facts collected from other agents and of acting by

the IoT Service in the environment based on the re-

sults of inferences about these facts.

(Dimakis et al., 2006) propose a middleware ar-

chitecture for the integration of services that recog-

nize the context of the environment they are inserted.

Its proposal also includes a great amount of features

that maximize the autonomy of these services. This

architecture includes components for context acquisi-

tion and components for modeling situations and ser-

vices. Many of these components are implemented

as software agents, which allows for greater auton-

omy to perform services thanks to the advantages of

the multi-agent approach. The main contribution to

this work was to make clear the need for a layer com-

posed of agents to contextualize the data provided by

IoT devices so that other agents can beneﬁt from this

data and perform their assigned actions. By this way,

the act of contextualizing the data provided by other

agents becomes one of the requirements of the IoT

Service in the reference architecture.

(Leppnen and Riekki, 2013) present an architec-

ture based on agents, on the REST principles and

on the Internet Drafts of the IETF CoRE Working

Group. In this proposal software agents describe the

state of a computational task, which is in turn dissem-

inated through messages among the system participat-

ing devices. Their work contributes to the concept of

Resource Directory, an element that exposes the re-

sources and services existing in the system.

(Leppnen et al., 2014) propose an approach in

which objects exposed on the Web offer an internal

architecture that enables the interaction of humans

with mobile software agents. These objects are called

smart objects. In this work the concept of Resource

Directory is also mentioned. The work exposes an in-

terface that users can use to interact with the system.

This highlighted the importance of having an inter-

face so that the system administrator can conﬁgure

IoT Services dynamically (at runtime). This is there-

fore another requirement of the reference architecture.

The work of (Kim et al., 2012) shows an architec-

tural approach based on FIPA’s standards, in which

it proposes a repository (Facilitator Directory) of ser-

vices provided by software agents. This repository

incorporates the feature of service context categoriza-

tion. The classiﬁcation of services into categories as-

sists in the search for IoT Services based on the con-

text of the application or based on the context of the

consumer user. Both the Resource Directory and the

Facilitator Directory concepts contribute to the exis-

tence of an agent (Facilitator Agent) that takes care of

the message routing requirement because they allow

other agents to know who is interested in their data by

consulting an element that has all system information

consolidated in one place.

(Ayala et al., 2012) propose an internal modu-

larization of IoT software agents applying Aspect-

Oriented Software Development concepts that allows

the creation of an agent that works in a lightweight

device capable of interacting with its environment and

with other agents orienting its behavior by goals and

by the recognition of the context which it is inserted.

The agent’s behaviors are encapsulated through com-

ponents and aspects. This modularization makes it

possible to enable, disable, conﬁgure, and compose

different agent properties at runtime. The identiﬁ-

cation of contexts of the environment, the decision

based on the acquired contexts and the separation of

the agent’s behavior are concepts that the IoT Ser-

vices proposed by this work will use, since it allows

their reconﬁguration. In this work the separation of

IoT Service perception, reasoning and behavior into

agents gives the inherent independence of the concept

of agent to the parts that compose this service, allow-

ing these parts to be manipulated without the others

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

188

parts of the service ceasing work. This separation

contributes, therefore, to the existence of independent

pieces of software.

Another requirement of the reference architecture

is the existence of a message structure common to

all agents for communication to be viable, as this

would establish a communication protocol among the

agents. This requirement is a based in the belief that

even independent software pieces need to know the

composition of the messages that ﬂow over the envi-

ronment if they want to communicate each other.

3 COMPOSITION OF THE

REFERENCE ARCHITECTURE

All the contributions reported in the previous section

were selected based on the beneﬁts that could bring

to the IoT Services’ Adaptability. These reported el-

ements allowed to formulate the requirements for the

construction of an architecture that contributes to this

goal. Table 1 contain these requirements.

Table 1: Reference architecture requeriments.

1. Dynamic IoT Service inclusion

(with system administrator action)

2. Dynamic IoT Service changing

(with system administrator action)

3. Existence of independent software parts

(agents)

4. Existence of an IoT Service

conﬁguration interface

5. Contextualization of the components that

serve the IoT Service (perception)

6. IoT Service decision-making capacity (reasoning)

7. IoT Service acting over environment

capacity (behavior)

8. Existence of a common language structure

9. Routing of messages and middleware

3.1 Development Model

The development method chosen to design the refer-

ence architecture and to implement a prototype based

on it was the MDA (Model Driven Architecture). This

method was created by OMG (Object Management

Group) and puts the modeling at the heart of develop-

ment. One of the reasons for choosing this method is

that it is capable of generating independent platforms

models, thus increasing the possibilities of using the

reference architecture.

(Elammari and Issa, 2013) propose the use of a

model-driven approach to the development of a MAS

(Multi-agent System) architecture. Their work shows

how to apply Use Case Maps diagrams to deﬁne the

problem domain illustrating agents and responsibili-

ties. In addition, they make use of tables that deﬁne

the roles of the agents and tables that deﬁne the rela-

tionship contracts between the agents.

The MDA has three development phases, the ﬁrst

two was used to design the reference architecture.

The deﬁnition of the reference architecture is shown

in the next subsection.

3.2 Reference Architecture Design

The ﬁrst fase of MDA is called Computational Inde-

pendent Model (CIM). This phase consists of the def-

inition of the problem domain and the description of

the system requirements. In this phase the functions

performed by the system are deﬁned by Use Case

Maps (UCM) diagrams.

Figure 1 shows the deﬁnition of the responsibili-

ties and agents that compose an IoT Service and the

deﬁnition of the agents that interact with this service.

Figure 1: Conceptual IoT Service Agent.

In the used notation each rectangle corresponds to

an agent. Circles containing X represent the respon-

sibilities of the respective agent. The diamond sym-

bol represents a stub (responsibility that may be more

detailed). The arrows represent the ﬂow of responsi-

bilities activation. It’s possible to notice bifurcations

in this ﬂow by showing alternate paths. In Figure 1 it

is possible to visualize the application of the require-

ments of the reference architecture. The IoT Service

A Reference Architecture for the IoT Services’ Adaptability

189

agent is a conceptual agent composed of at least one

Perceptual Agent, one Rational Agent and one Be-

havioral Agent. This gives ﬂexibility to change a IoT

Service since it is composed of agents that respond or

not to stimuli of the environment in which they are.

Assuming that a service has several behaviors (Be-

havioral Agents), it is possible to replace one without

the perceiving, the reasoning and the other behaviors

of the service being affected.

The interaction of the System Conﬁguration In-

terface with the Facilitator Agent by changing the

system through agent exchanges or through the in-

sertion of new agents is also portrayed in UCM dia-

grams. Once exchange or inclusion occurs, the Facil-

itator Agent informs the agents of the new addresses

of those interested in their data, in addition, the Facil-

itator updates your own database and the interface’s

database. Each agent keeps a address list in a own

database.

The second fase of MDA describes the static and

dynamic models of a system without to worry with

the platform on which the system will be developed.

The static model of the system is composed of

class diagrams that illustrate the composition of the

environment of a MAS that follows the reference ar-

chitecture. In this case, each class represents each

of the types of agents that may exist in the reference

architecture and the environment is represented by a

class that aggregates the agents that are part of this

environment.

To complement the static view of architecture, ta-

bles containing objectives, plans, tasks, and beliefs

describe the role of these agent types.

The dynamic model of the system are described

through sequence diagrams illustrating the interaction

of the IoT Service agents with the agents signed by the

service and with the service signing agents. The dy-

namic model is also described by sequence diagrams

showing the interaction of the Facilitator Agent with

the Conﬁguration Interface and with other agents. Ta-

bles containing a list of authorizations, obligations

and policies between the types of agents, which are

part of the reference architecture, establish the rela-

tionship contract between the agents.

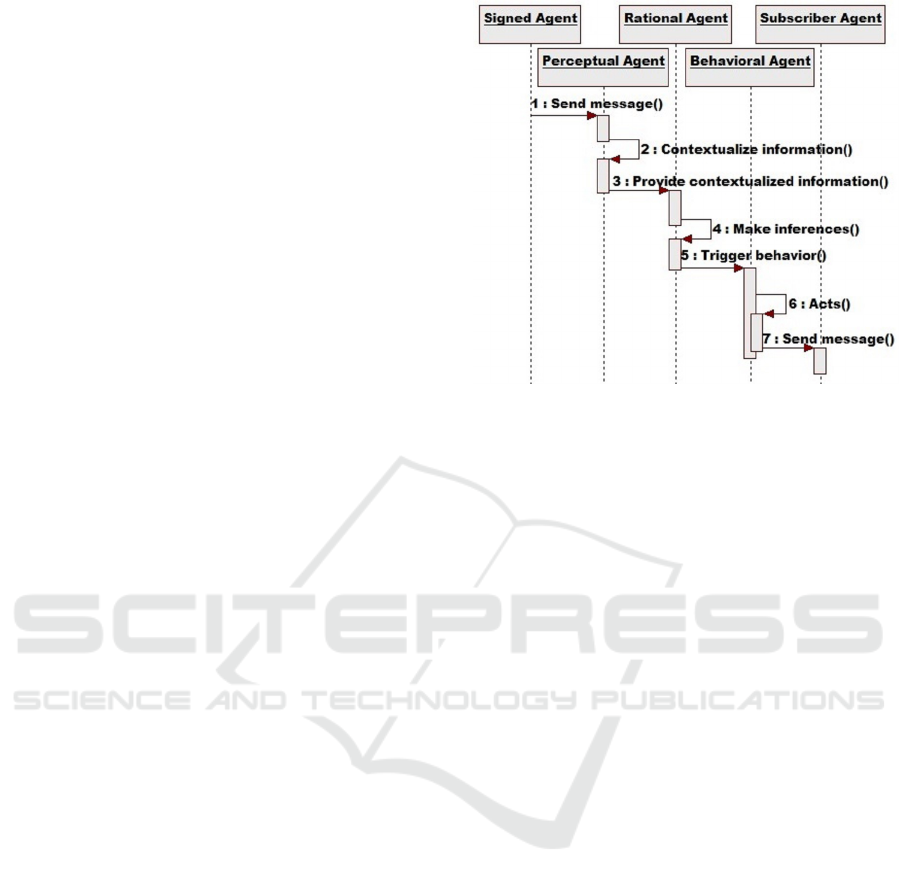

Figure 2 shows one of the sequence diagrams that

was produced. This diagram illustrates the interaction

between the agents in the realization of an IoT Service

according to the reference architecture.

After completion of the reference architecture de-

sign, a list of expected actions for its implementation

was generated. The next lines show these actions, as

well as the contributions and requirements related to

them:

• Conﬁguration interface implementation: It allows

Figure 2: Agents interacting in the realization of an IoT

Service.

the existence of a visual interface for system ad-

ministrator make the IoT Services conﬁgurations.

It works as a link between system administrator

and Facilitator Agent. Requirements met: 1, 2 and

• Facilitator Agent implementation: It allows the

adaptability of the system through conﬁgurations

changes and guides the communication between

the agents. Requirements met: 1, 2, 3 and 9.

• Perceptual Agent implementation: It enables the

contextualization of the received messages for

the Rational Agents, based on the knowledge ac-

quired about the status of the system. Require-

ments met: 3 and 5.

• Rational Agent implementation: It works as a rule

base and a inference mechanism which can be re-

moved and included dynamically in the system.

Requirements met: 3 and 6.

• Behavioral Agent implementation: It works as a

mechanism in charge of the actions performed by

IoT Service. This mechanism can be removed

and included dynamically in the system. Require-

ments met: 3 and 7.

• Implementation of the agents that represent the

devices: They are the devices themselves, with

the responsibilities deﬁned by the reference archi-

tecture for the agents of the Basic type. These

agents are actived by IoT Services or serve as data

providers for the Perceptual Agents of the IoT

Services. Requirements met: 3.

• Implementation of message structures used by

agents: It contributes to the understanding of the

message thanks to the standardization of attributes

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

190

of messages exchanged between agents. Require-

ments met: 8.

• Middleware implementation: Implementation of

the elements that make possible the communica-

tion between agents (example: sockets infrastruc-

ture). Requirements met: 9

4 COMPOSITION OF THE

RAILWAY MANAGEMENT

SYSTEM ARCHITECTURE

Once the reference architecture has been deﬁned, it

needs to be applied and tested. This section contains

a description of a concrete architecture derived from

the reference architecture. The concrete architecture

deﬁnes a prototype of a Railway Management System

that follows the principles of the reference architec-

ture.

4.1 Concrete Architecture Design

The concrete architecture deﬁnition follows the same

steps of the MDA (CIM, PIM), that were used for the

deﬁnition of the reference architecture, plus the Plat-

form Speciﬁc Model (PSM) step, that has the deﬁni-

tions’ details of the platform in which the system will

be implemented.

The deﬁnition of the railway management ser-

vices must follow the speciﬁcation of the IoT Service

agents deﬁned by the reference architecture. For this

purpose, each service deﬁned by the concrete archi-

tecture must have Perceptual Agents, Rational Agents

and Behavioral Agents that fulﬁll the responsibilities

deﬁned by the reference architecture’s diagrams. In

addition, the concrete architecture must have at least

one Facilitator Agent and one Conﬁguration Inter-

face. And these must also carry out the deﬁned re-

sponsibilities.

In the concrete architecture, agents with speciﬁc

system features were deﬁned. Some of these agents

provide the information that feeds the IoT Services

and others consume the data generated by these ser-

vices. The consumption of these data triggers actions

that modify the agents’ environment.

The artifacts generated in the CIM and PIM stages

of the MDA are similar to those generated in the com-

position of the reference architecture. In the PSM

stage were generated class diagrams describing the

basic infrastructure for the creation of agents that fol-

low the reference architecture. This means that the di-

agrams describe the existing attributes and methods of

the classes that represent the agents of Perceptual, Ra-

tional, Behavioral, Facilitator, and Basic types. The

Basic Agent is an agent that is not part of the com-

position of the IoT Service. It can be a service’s sub-

scriber or can be signed by the service.

Details of the structures used for messages and

middleware compositions (in the prototype the mid-

dleware is composed of TCP sockets) are also repre-

sented in the class diagrams.

A component diagram complements the CIM

models by displaying the executables and libraries

produced.

In MDA the transition of PIM to PSM is generally

aided by tools. In this work this approach was not

used. However, in order to guarantee the parity of

the agents’ internal actions with the responsibilities

described by the diagrams of CIM and PIM phases, it

was created a table that relates agent’s methods with

these responsibilities.

4.2 Concrete Architecture Elements

Because of the impossibility of obtaining a real en-

vironment to implement a Railway Management Sys-

tem, all physical elements of the prototype were sim-

ulated.

The agents that are part of the Railway Manage-

ment System are as follow:

• Radio-Frequency Sensors: Basic Agents that re-

ceive signals from the transponders of the rail-

way’s Trains. This information, consisting of

speed, identiﬁcation and position, is sent to the

Railway Management Services.

• Speed Radars: Basic Agents that determine the

identity, speed, and position of the Trains passing

through them. They forward this data to the Re-

dundant Railway Management Service.

• Trains: Basic Agents that interact with the Rail-

way Management Services and with other Trains.

Each Train has a radio-frequency (RF) sensor,

which receives messages from Railway Transmit-

ters and from other Trains. Each Train also has a

transponder, which sends data to Railway Sensors

and to other Trains.

• Rail Actuators: Basic Agents that are in charge

of changing the railway conﬁguration, redirecting

the Trains that travel through it. They respond to

commands sent by the Railway Management Ser-

vice.

• Radio-Frequency Transmitters: Basic Agents that

receive, through a network connection, messages

from the Railway Management Services, which

are sent to the Trains through RF signals.

A Reference Architecture for the IoT Services’ Adaptability

191

• Railway Management Service (RMS): Concep-

tual Service Agent composed of Perceptual

Agent, Rational Agent and Behavioral Agents.

This agent is aware of the railway situation thanks

to messages received from the RF Sensors that in-

habit it. Its function is to send control messages

to Trains and Rail Actuators, with the intention of

avoiding accidents (collisions). These messages

instruct the Trains to change their speed and trig-

ger the Rail Actuators redirecting the Trains if

necessary.

• Redundant Railway Management Service

(RRMS): Conceptual Service Agent with the

same function as the RMS. However, the RRMS

is aware of the railway situation through Speed

Radars messages. This service comes into action

when it is identiﬁed that the RMS is not aware

of one of the Trains that passed through one of

the RF Sensors. This failure may be caused by a

interference with the RF signal sent by the Train,

by a defect in the RF Sensor, or by a defect in the

Train’s own transponder. In order for the RRMS

to reach this conclusion, it must also sign that

it wishes to receive the notiﬁcations issued by

the RF Sensors. Thus, it becomes able to know

when a message is no longer sent by one of these

Sensors in the same window of time when a

message arrives from the corresponding Speed

Radar. The RRMS hasn’t the feature of changing

Trains’ direction, since it was only be included in

the RMS so that the exchange of the reasoning

machine and the inclusion of new behaviors can

be tested in an existing IoT Service.

• Facilitator Agent: Agent that gives access to the

information about the other agents of the system,

allowing its reconﬁguration through the inclusion

and exclusion of agents and services data in the

system. With the existence of a Conﬁguration In-

terface, the system administrator can be able to ac-

cess the Facilitator and perform these tasks, indi-

cating the agents that should express interest in the

messages sent by other agents. The Interface asso-

ciated with the Facilitator also allows the conﬁgu-

ration of the agents that will be part of the services

perception, reasoning and behaviors. The Facili-

tator sends addresses data to the system agents.

By this way, the agents are able to know where to

send their messages.

5 PROTOTYPE

IMPLEMENTATION AND

TESTS

This section shows details of the prototype implemen-

tation and the tests created to verify the reference ar-

chitecture effectiveness and the veracity of reference

architecture requirements.

5.1 Used Tools

The following list shows the tools used for design and

implementation of the Railway Management System

prototype:

• StarUM 5.0.2.1570: used for design of the ab-

stract and concrete architectures.

• Microsoft Visual Studio Community 2015: Inte-

grated Development Environment (IDE).

• Windows 7 and Windows 8: operational systems.

• Mommosoft.ExpertSystem.dll: library for inter-

action with CLIPS (tool for construction of expert

systems - used to manipulate the rules that com-

pose the reasoning of the IoT Services’ Rational

Agents).

• Transfer Control Protocol/Internet Protocol

(TCP/IP): communication protocol used for

exchange messages between agents.

5.2 Test Description

The next topics includes the tests created to validate

the reference architecture effectiveness in the accom-

plishing of IoT Services’ Adaptability:

• Test 1 - Conﬁgure the RMS, including the data of

the agents belonging to this service and the data

of Trains, Sensors and Transmitters in the system,

start the simulation and deﬁne the trains’ speeds.

• Test 2 - With the RMS conﬁgured, manipulate

Trains’ speeds so that one Train arrives at a dis-

tance between 100m and 501m from the other

Train.

• Test 3 - Conﬁgure the RRMS including the ser-

vice’s belonging agents and Speed Radar Agents

data in the system.

• Test 4 - With the RRMS conﬁgured, proceed

with the deactivation of the RF Sensors Agents

through the simulation interface, and manipulate

the Trains’ speeds so that a Train arrives at a dis-

tance between 100m and 501m from the other

Train.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

192

• Test 5 - Exchange SlowDownBehavioralAgen-

tRMS by SlowDownBehavioralAgentRMS2.

• Test 6 - With the deceleration behavior of the

RMS switched, manipulate the Trains’ speeds so

that a Train arrives at a distance between 100m

and 501m from the other Train.

• Test 7 - Exchange RationalAgentRMS by Ratio-

nalAgentRMS2 and include RailActuatorA and

RailActuatorB as RMS’ behaviors.

• Test 8 - With the exchanging of the RMS reason-

ing and with the including of the Rail Actuators

as RMS’ behaviors, manipulate the Trains’ speeds

so that a Train arrives at a distance between 100m

and 501m from the other Train.

• Test 9 - Use a distributed platform. To do so,

change the IPs of the RF Sensors and the IP of the

Conﬁguration Interface to the IP of another ma-

chine in the same network and run these agents

in this machine. Then reconﬁgure the agent’s IPs

in the Conﬁguration Interface so that other agents

know about the change.

5.3 Test Results

After the execution of the experiment, it was possi-

ble to know if the requirements raised in Table 1 of

this work really had importance for the IoT Services’

Adaptability.

Only one requirement (Existence of a common

language structure) was classiﬁed as unimportant for

the IoT Services’ Adaptability. The belief that the

knowledge of the structures of the messages ex-

changed between the agents was fundamental for

them to communicate was unfounded. This knowl-

edge helps to interpret the messages, but communi-

cation would not be possible without knowing which

are the possible data contained in these structures. So,

even if a message was a unformatted data stream, the

knowledge of the possible contents of this message

would already be sufﬁcient for the receiving agent to

make decisions based on it.

The reference architecture effectiveness corre-

sponds to the quantity of requirements in Table 1 that

were met in the execution of the tests. It was veriﬁed

that this effectiveness are 100%, because based on this

architecture it was possible to construct a system that

met all these requirements.

In this experiment, it can be said that the effort

to build a system that has the characteristics of the

reference architecture that contribute to the IoT Ser-

vices’ Adaptability was overestimated. The time and

work expended in design and implementation of the

structures that deﬁne attributes and characteristics of

the messages could be avoided, since this effort was

considered as being of no importance for the IoT Ser-

vices’ Adaptability.

Of all actions listed in the research and required

for design and construction of the prototype, 27 ac-

tions were considered necessary for creation of a sys-

tem that minimally performs the reference architec-

ture.

Two of these actions (”Design of the agents mes-

sage structures” and ”Implementation of the agents

message structures”) are related to the requirement

”Existence of a common language structure”, that was

classiﬁed as unimportant for the IoT Services’ Adapt-

ability. If we establish the relationship between the

actions that are important for the IoT Services’ Adapt-

ability and the actions that must be carried out to re-

alize the reference architecture, it is possible to verify

the effort that should be applied so that the reference

architecture contributes with the adaptability of IoT

Services:

× 100 = 92.5926%

So, of all listed actions (100%), 7.4074% of these

actions could not be executed.

6 CONCLUSIONS

The tests created to validate the architecture (Test De-

scription subsection) aim to prove that a system built

with this architecture allows the inclusion of a new

IoT Service and the changing of the reasoning and

the behavior of an IoT Service without damaging the

other unchanged services’ behaviors. All the tests re-

lated was executed and the system continued to work

as expected.

The reconﬁguration of the system’ services has

proven that the Interface works, that the conﬁgura-

tion can be done at runtime without causing system

damage (such as shutdown of a service) and that the

software parts are actually independent.

The correct system operation, decelerating, accel-

erating and changing Trains’ direction, means that the

messages was received by IoT Services, that the Per-

ceptual Agents was successful in contextualizing data

for the Rational Agents, that the Rational Agents was

successful in selecting the correct behaviors and that

the Behavioral Agents was successful in sending data

commands to the Trains.

The two paragraphs above show that IoT Services’

Adaptability was achieved by following the reference

architecture in the design and implementation of the

Railway Management System prototype. However

A Reference Architecture for the IoT Services’ Adaptability

193

there are important observations that must be taken

into account.

The scalability and security requirements were not

addressed. This means that in situations where it is

necessary to create hundreds of agents or situations

where it is necessary to assign agent access control

mechanisms and message encryption, the reference

architecture may need some adaptations.

The research tested the reference architecture

through a prototype where all physical elements, such

as sensors, actuators and trains, were simulated by

software agents. It is important to remember that in

real (non-simulated) systems, devices may have re-

strictions on their memory and processing capacities

and restrictions on the required technology (compil-

ers, programming languages, operating systems, etc.)

for the program to be embedded.

An important characteristic of the architecture

adopted is the division of IoT Service obligations into

agents with well deﬁned functions, thus separating

perception, reasoning and behavior - elements visi-

ble in the BDI (Belief-Desire-Intention) logic. This

gives ﬂexibility so that an IoT Service can be changed

without it all ceasing to work; For example: when the

RMS’ deceleration behavior was changed, the accel-

erate behavior was not impaired. If new reasoning

and new behaviors were included in the system, the

old ones would continue working and coexisting with

the new ones. This is important in cases where is de-

sirable to extend the features of an IoT Service or to

change their characteristics.

One of the resources adopted so that the behav-

ior of the IoT Service can have its independence ex-

tended in relation to the reasoning of a service is the

adoption of the concept of context. In this way, cer-

tain similar behaviors can be created using the same

context allowing its substitution without the necessity

of Rational Agent substitution. For example: assum-

ing that the system’s administrator wants to replace a

behavior that requests the speed reduction of a Train

by 10% of its speed by a behavior that requests the

reduction of that speed in 30%; in this case, it would

be necessary to replace the reasoning of the same ser-

vice if this reasoning would trigger behavior based on

behavior’s name. In the cases that the reasoning trig-

gers a behavior by its context, it would be enough to

disable the current behavior and to include the new

behavior data in the system, since the two behaviors

have the same context that, simply, can be the ”slow-

down” string.

Other element relevant of the architecture is the

Facilitator Agent. It’s plays an important role in es-

tablishing communication between agents by indicat-

ing the addresses of the subscribing agents to the

signed agents. This agent is also important because it

maintains the information of the agents that compose

the system and because it allows the system reconﬁg-

uration based on the requests of user interface.

REFERENCES

Ayala, I., Amor, M., and Fuentes, L. (2012). Exploiting

dynamic weaving for self-managed agents in the iot.

In Timm and C. Guttmann (Eds.): MATES 2012, LNAI

7598. Springer-Verlag Berlin Heidelberg.

Dimakis, N., Soldatos, J., Polymenakos, L., Schenk, M.,

Pﬁrmann, U., and Brkle, A. (2006). Perceptive

middleware and intelligent agents enhancing service

autonomy in smart spaces. In Proceedings of the

IEEE/WIC/ACM International Conference on Intelli-

gent Agent Technology (IAT06). IEEE Computer So-

ciety.

Elammari, M. and Issa, Z. (2013). Using model driven ar-

chitecture to develop multi-agent systems. The Inter-

national Arab Journal of Information Technology, Vol.

10, No. 4.

Kim, D., Lee, G., Lee, K., Heo, S., Choi, K., and Shin,

D. (2012). Design and implementation of efﬁcient di-

rectory facilitator for context-aware service discovery.

In N. T. Nguyen et al. (Eds.): KES-amsta 2007, Lnai

4496. Springer-Verlag Berlin Heidelberg.

Leppnen, T. and Riekki, J. (2013). A lightweight agent-

based architecture for the internet of things. In Tech-

nical Report, 2013. Departamento de Ciłncia da Com-

putao e Engenharia, Universidade de Oulu, Oulu,

Finlndia. IEICE - The Institute of Electronics, Infor-

mation and Communication Engineers.

Leppnen, T., Riekki, J., Liu, M., Harjula, E., and Ojala, T.

(2014). Mobile agents-based smart objects for the in-

ternet of things. In Internet of Things Based on Smart

Objects, Internet of Things, DOI. Springer Interna-

tional Publishing Switzerland.

Mzahm, A., Ahmad, M., and Tang, A. (2014). Enhancing

the internet of things (iot) via the concept of agent of

things (aot). In Journal of Network and Innovative

Computing. MIR Labs.

Vermesan, O., Friess, P., Guillemin, P., Giaffreda, R.,

Grindvoll, H., Eisenhauer, M., Serrano, M., Moessner,

K., Spirito, M., Blystad, L., and Tragos, E. (2015). Pa-

per templates. In Internet of Things beyond the Hype:

Research, Innovation and Deployment. IERC Cluster

SRIA.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

194
