Towards Context-Aware and Privacy-Sensitive Systems

Boris Shishkov

1,3

, Marijn Janssen

and Yi Yin

Institute of Mathematics and Informatics, Bulgarian Academy of Sciences, 1113 Sofia, Bulgaria

TBM - Delft University of Technology, Jaffalaan 5, 2628 BX Delft, The Netherlands

IICREST, 53 Iv. Susanin Str., 1618 Sofia, Bulgaria

b.b.shishkov@iicrest.org, {M.F.W.H.A.Janssen, Y.Yin}@tudelft.nl

Keywords: Enterprise Modeling, Software Specification, Context-Awareness, Privacy, Land Border Security.

Abstract: Current global trends push enterprises to be increasingly efficient and flexible, and at the same time compliant

with legislation regarding privacy, security, and transparency. The latest IoT (Internet-of-Things)

developments offer opportunities for enterprises but at the same time those developments lead to an increased

complexity with regard to the underlying software, this in turn leading to new risks. Hence, more advanced

modeling methods and techniques may be necessary, especially in the area of enterprise information systems

(often featured currently by enterprise-aligned IoT-enabled software systems), such that both the enterprise

needs are captured (and understood) and software features are specified accordingly. We need a common

modeling ground for this, allowing us to properly align enterprise modeling and software specification. Such

a common ground can be co-created by enterprise engineers and software engineers, featuring: (a) technology-

independent enterprise models rooted in social theories; (b) technology-specific software models rooted in

computing paradigms. An approach is needed on top of that because such an integrated enterprise-software

modeling requires to be greased by modeling guidelines and notations, such that adequate modeling

generations and transformations are possible. This means that taking as input unstructured business

information, we should be able to usefully apply a modeling and design process, such that we come through

enterprise models and reach as far as the specification and implementation of software. We argue that an

existing approach has those capabilities, namely the approach SDBC (Software Derived from Business

Components). Hence, we adopt SDBC in the current research. Further, we have opted for an explicit

consideration of context-awareness and privacy, claiming their relevance with regard to some current IoT-

related demands (mentioned above). Nevertheless, it has not yet been extensively studied how SDBC can be

used for modeling software systems with requirements on those properties. For this reason, we aim at

enriching the SDBC-rooted enterprise-modeling-driven software specification, by weaving in context-

awareness and privacy enforcement. We partially demonstrate our proposed way of modeling, by means of a

case example featuring land border security.

1 INTRODUCTION

Current global trends push enterprises to be

increasingly efficient and flexible, and at the same

time compliant with legislation regarding privacy,

security, and transparency. The latest IoT (Internet-

of-Things) developments offer opportunities for

enterprises but at the same time those developments

lead to an increased complexity with regard to the

underlying software, this in turn leading to new risks

(IoTDI, 2017). Hence, more advanced modeling

methods and techniques may be necessary, especially

in the area of EIS - Enterprise Information Systems

(often featured currently by enterprise-aligned IoT-

enabled software systems), such that both the

enterprise needs are captured (and understood) and

software features are specified accordingly; it is

important to bring together enterprise modeling and

software specification since an enterprise engineer

alone is insufficiently capable of grasping the

technical complexity of an EIS (and its reach outside

through software services), while a software engineer

would have only superficial enterprise-specific

domain knowledge (Shishkov, 2005). We need a

common modeling ground for this, allowing us to

properly align enterprise modeling and software

specification. Such a common ground can be co-

created by enterprise engineers and software

engineers, featuring: (a) technology-independent

enterprise models rooted in social theories; (b)

technology-specific software models rooted in

computing paradigms. An approach is needed on top

of that because such an integrated enterprise-software

modeling requires to be greased by modeling

guidelines and notations, such that adequate

modeling generations and transformations are

possible. This means that taking as input unstructured

business information, we should be able to usefully

apply a modeling and design process, such that we

come through enterprise models and reach as far as

the specification and implementation of software. We

argue that an existing approach has those capabilities,

namely the approach SDBC - Software Derived from

Business Components (Shishkov, 2017). Hence, we

adopt SDBC in the current research. SDBC is

consistent with the Model-Driven Architecture –

MDA (MDA, 2017) that features a life cycle starting

with computation-independent modeling and ending

up with code. Further, we have opted for an explicit

consideration of context-awareness (Shishkov and

Van Sinderen, 2008) and privacy (Hustinx, 2010),

claiming their relevance with regard to some current

IoT-related demands (mentioned at the beginning of

this section). Nevertheless, it has not yet been

extensively studied how SDBC can be used for

modeling software systems with requirements on

those properties. For this reason, we aim at enriching

the SDBC-rooted enterprise-modeling-driven

software specification, by weaving in context-

awareness and privacy enforcement. We partially

demonstrate our proposed way of modeling, by

means of a case example featuring land border

security (Shishkov and Mitrakos, 2016).

In this paper, for the sake of brevity, we are

limiting our focus to the CIM generation

(Computation-Independent Models (CIM) point to

the highest level of abstraction in MDA), noting that:

• SDBC is capable of adequately reflecting a CIM

input into lower-level software specifications;

• It is at this highest level of abstraction where

context-awareness and privacy are to be weaved

in, bringing together both an enterprise

perspective and a software perspective.

The remaining of the current paper is organized as

follows: In Section 2, we consider the SDBC-rooted

enterprise-modeling-driven specification of software,

by: (a) motivating the choice of SDBC over other

approaches, inspired by relevant features and

strengths of the SDBC approach; (b) coming through

several important SDBC modeling constructs,

limiting ourselves to those ones that are actually used

in the case example; (c) addressing the SDBC design

method. In Section 3, we address context-awareness

and privacy, and also the challenge of weaving them

in the software specification, and we address related

work as well. In Section 4, we present a motivating

application scenario in the public security domain

(and particularly, in the area of land-border security),

in which different situations are specified, such as the

monitoring of the border, the detection of illegal

crossings, and so on. In Section 5, we put forward our

case-driven modeling where we further elaborate our

ideas concerning the specification of context-aware

and privacy-sensitive software systems. Finally, in

Section 6, we present the conclusions.

2 BACKGROUND

In this section: we will firstly motivate the choice of

SDBC; secondly, we will consider several important

modeling constructs; thirdly, we will focus on the

design process.

2.1 SDBC Modeling

SDBC is a software specification approach (consistent

with MDA) that covers the early phases of the

software development life cycle and is particularly

focused on the derivation of software specification

models on the basis of corresponding (re-usable)

enterprise models. SDBC is based on three key ideas:

(i) The software system under development is

considered in its enterprise context, which not only

means that the software specification models are to

stem from corresponding enterprise models but

means also that a deep understanding is needed on

real-life (enterprise-level) processes, corresponding

roles, behavior patterns, and so on. (ii) By bringing

together two disciplines, namely enterprise

engineering and software engineering, SDBC pushes

for applying social theories in addressing enterprise-

engineering-related tasks and for applying computing

paradigms in addressing software-engineering-

related tasks, and also for bringing the two together,

by means of sound methodological guidelines. (iii)

Acknowledging the essential value of re-use in

current software development, SDBC pushes for the

identification of re-usable (generic) enterprise

engineering building blocks whose models could be

reflected accordingly in corresponding software

specification models. We refer to (Shishkov, 2017)

for information on SDBC and we are reflecting the

SDBC outline in Figure 1.

As the figure suggests, there are two SDBC

modeling milestones, namely enterprise modeling

(first milestone) and software specification (second

milestone). The first milestone has as input a case

Towards Context-Aware and Privacy-Sensitive Systems

briefing (the initial (textual) information based on

which the software development is to start) and the so

called domain-imposed requirements (those are the

domain regulations to which the software system-to-

be should conform).

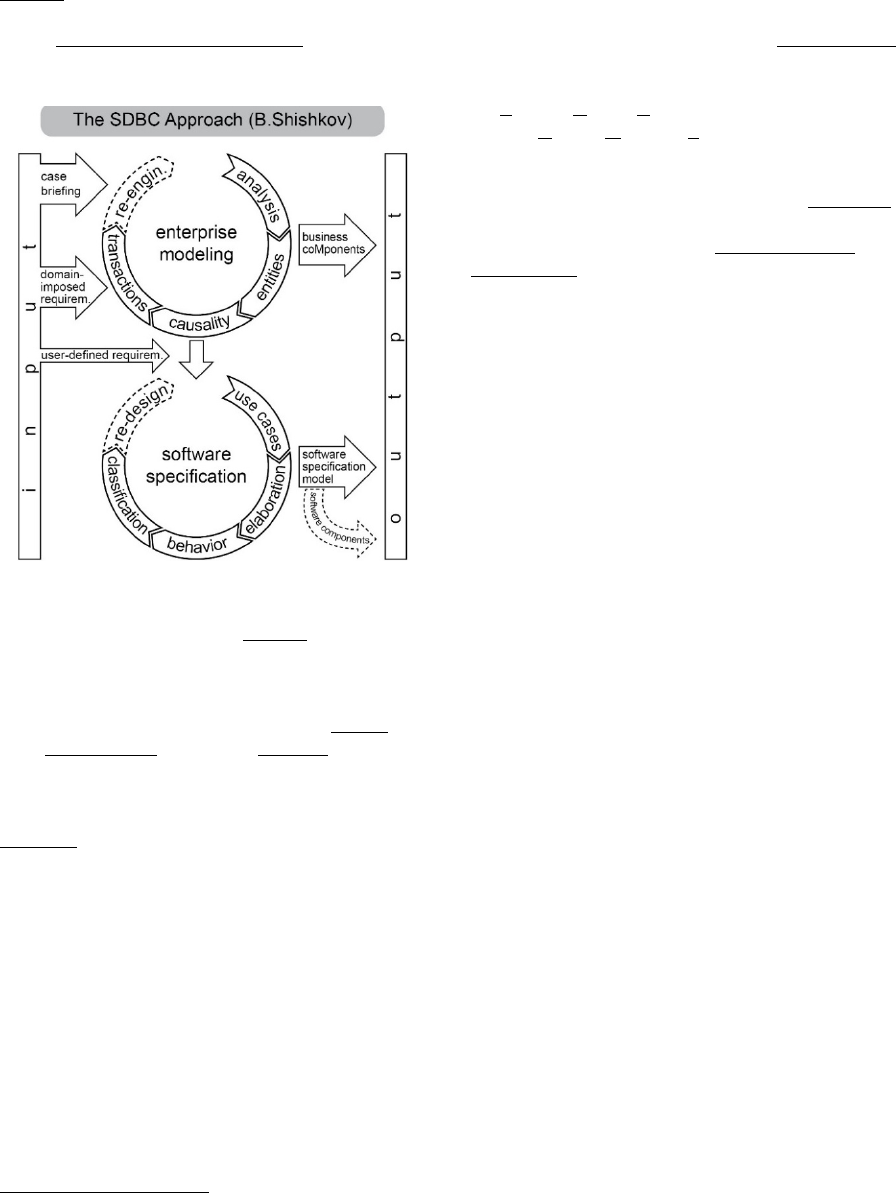

Figure 1: SDBC – outline.

Based on such an input, an analysis should follow,

aiming at structuring the information, identifying

missing information, and so on. This is to be followed

by the identification (supported by corresponding

social theories) of enterprise modeling entities and

their inter-relations. Then, the causality concerning

those inter-relations needs to be modeled, such that

we know what is required in order for something else

to happen (Shishkov et al., 2006). On that basis, the

dynamics (the entities’ behavior) is to be considered,

featured by transactions (to be addressed in the

following sub-section). This all leads to the creation

of enterprise models that are elaborated in terms of

composition, structure, and dynamics (all this

pointing also to corresponding data aspects) – they

could either feed further software specifications

and/or be ‘stored’ for further use by enterprise

engineers. Such enterprise models could possibly be

reflected in corresponding business coMponents (see

Sub-section 2.2). Next to that, re-visiting such models

could possibly inspire enterprise re-engineering

activities, as shown in Figure 1.

Furthermore, the second milestone uses as input

the enterprise model (see above) and the so called

user-defined requirements (those requirements reflect

the demands of the (future) users of the software

system-to-be towards its functioning).

That input feeds the derivation of a use case model

featuring the software system-to-be. Such a software

specification starting point is not only consistent with

the Rational Unified Process - RUP (Kruchten, 2003)

and the Unified Modeling Language – UML (UML,

2017) but is also considered to be broadly accepted

beyond RUP-UML (Cockburn, 2000; Dietz, 2003;

Shishkov, 2017). The use cases are then elaborated,

inspired by studies of Cockburn (2000) and Shishkov

(2005), such that software behavior models and

classification can be derived accordingly. The output

is a software specification model adequately

elaborated in terms of statics and dynamics. Applying

de-composition, such a model can be reflected in

corresponding software components, as shown in the

figure. Such an output could inspire software

engineers to propose in a future moment software re-

designs, possibly addressing new requirements.

As studied by Shishkov (2017), there are many

other modeling approaches, some widespread and

widely used. What justifies our considering

particularly SDBC is the following:

• SDBC is neither addressing only enterprise

modeling nor is it addressing only software

specification; instead, the approach brings both

together which is important if one needs to reflect

sophisticated (legislative) requirements in

complex software architectures.

• SDBC is not only limited to general guidelines and

proposed modeling notations but it is also a

method in the sense that different modeling

activities are carried out in a specific order – this

is to ensure that the software system being

modeled is well-aligned with the business needs.

• SDBC is empowering re-usability and traceability

which are considered essential with regard to

software development in general.

• SDBC is aligned with the UML notations

representing a de facto standard notation for

specifying software (UML, 2017) and is

consistent with MDA.

• In previous work, SDBC has been considered

particularly in the border security application

domain (Shishkov and Mitrakos, 2016).

For this reason, we have opted for adopting SDBC in

the current work.

2.2 Concepts and Modeling Constructs

There are numerous concepts and modeling

constructs underlying SDBC. For the sake of brevity

Seventh International Symposium on Business Modeling and Software Design

however, we will only address some of them in the

current sub-section, especially those ones that are

considered relevant to the challenge of weaving

context-awareness and privacy-enforcement in land-

border-security-related software specifications. For

more related information on SDBC, interested readers

are referred to (Shishkov, 2017).

Taking this into account, we firstly present the

system definition inspired by Bunge (1979) and

having fundamental importance with regard to both

SDBC milestones:

DEFINITION 1 Let T be a nonempty set. Then the

ordered triple σ = <C, E, S> is system over T if and

only if C (standing for Composition) and E (standing

for Environment) are mutually disjoint subsets of T

(i.e. C ∩ E = ∅), and S (standing for Structure) is a

nonempty set of active relations on the union of C and

E. The system is conceptual if T is a set of conceptual

items, and concrete (or material) if T ⊆ Θ is a set of

concrete entities, i.e. things.

Inspired by the system definition, we focus

particularly on enterprise systems since a

(border-security) software system would inevitably

operate in an enterprise surrounding (comprising

(organizational) entities, business processes,

regulations, and so on) and we consider an enterprise

system as being composed of human entities

collaborating among each other through actions,

driven by the goal of delivering products/services to

entities belonging to the environment of the system.

As for an EIS, it is also composed of human entities

(they are often backed by ICT (Information and

Communication Technology) applications as well as

by technical and technological facilities) but the EIS

goal is to support informationally a corresponding

enterprise system. This is functionally reflected in the

collection, storage, processing, and exchange (or

distribution) of data among users within or between

enterprises, or among people within wider society

(Shishkov, 2017).

Further, it is important to present the SDBC units

of modeling and in this regard, it is to be noted that

essentially, SDBC is focusing on the ENTITIES to be

considered and their INTER-RELATIONS. It is

desired to be able to model entities and relations

abstractly (no matter if enterprise entities or software

entities are concerned), and also to be able to

specialize such models accordingly, in an enterprise

direction or in a software direction. For this:

• We consider actors (combination of the actor-role

and the entity fulfilling the role) since often one

entity type can fulfil many role types and one role

type can be fulfilled by many entity types

(Shishkov, 2017).

• We consider a generic interaction pattern

(featuring the transaction concept – see

Definition 2) that is claimed to be helpful in

modeling any real-life interaction in an

enterprise/software context:

DEFINITION 2 A transaction is a finite

sequence of coordination acts between two actors,

concerning the same production fact. The actor who

starts the transaction is called the initiator. The

general objective of the initiator of a transaction is to

have something done by the other actor, who

therefore is called the executor (Dietz, 2006).

Hence, enterprise modeling and software

specification are both being approached by those two

essential concepts: ACTOR and TRANSACTION.

Thence, a business process is viewed as a

structure of (connected) transactions that are

executed in order to fulfil a starting transaction and a

business component is viewed as an enterprise

sub-system that comprises exactly one business

process. Further, a complete (by this we mean

elaborated in terms of structure, dynamics, and data)

model of a business component is called a

business coMponent. That is why Figure 1 is

featuring the identification of business coMponents as

an essential enterprise modeling task within SDBC.

Said otherwise, THE FIRST SDBC MILESTONE

is about the identification of business coMponents

featured in terms of actors and transactions.

Further, in bringing together the first milestone of

SDBC and the second one, we need to be aware of

possible granularity mismatches. The enterprise

modeling is featuring business processes and

corresponding business coMponents but this is not

necessarily the level of granularity concerning the

software components of the system-to-be. With this

in mind, AN ICT APPLICATION is considered as

matching the granularity level of a business

component – an ICT application is an

implemented software product realizing a particular

functionality for the benefit of entities that are part of

the composition of an enterprise system and/or a

(corresponding) EIS. Thus, the label ‘software

specification model’ as presented in Figure 1,

corresponds to a particular ICT application being

specified. Hence, software components are

viewed as implemented pieces of software, which

represent parts of an ICT application, and which

collaborate among each other driven by the goal of

realizing the functionality of the application

(functionally, a software component is a part

Towards Context-Aware and Privacy-Sensitive Systems

of an ICT application, which is self-contained,

customizable, and composable, possessing a clearly

defined function and interfaces to the other parts of

the application, and which can also be deployed

independently). Hence, a software coMponent

is a conceptual specification model of a software

component. Said otherwise, THE SECOND SDBC

MILESTONE is about the identification of software

coMponents and corresponding software

components.

In this paper, we will only address the business-

coMponent identification and its reflection in a use

case model featuring the specification of the ICT

application-to-be, weaving in context-awareness and

privacy-enforcement accordingly.

2.3 Design Method

SDBC assumes four modeling perspectives, namely:

Structural perspective that reflects entities and their

relationships; Dynamic perspective that reflects the

overall business process and corresponding to this –

the states of each entity, evolving accordingly; Data

perspective that reflects the information flows across

entities and within the business process; Language-

action perspective (Dietz, 2006) that reflects real-life

human communication and the expression of

promises, commitments, etc. as also relevant to the

challenge of soundly building an exhaustive

enterprise model. In this, SDBC is grounded in line

with: (a) Enterprise engineering and in particular,

enterprise ontology and organizational semiotics

(Dietz, 2006; Liu, 2000); (b) Software engineering

and in particular, model-driven engineering and

component-based development (Shishkov et al.,

2007; Shishkov, 2017). Next to that, software

specification models derived by applying SDBC, can

be further updated to accommodate service-

orientation (Shishkov et al., 2006).

Further, SDBC comes through several key

modeling outputs (Shishkov, 2017):

1. Building a business entity model is the first

major challenge requiring the fulfilment of many

inter-related analysis/modeling tasks including:

information structuring, gathering of additional

information, reflection of the domain-imposed

requirements, decision about the system boundary

(determining the modeling focus), identification

of actor-roles, capturing of their inter-relations,

and so on, in concert with Definition 1 and

Definition 2. Hence, the resulting model shows

the system boundary, the entities (actor-roles) that

are inside the system and the relevant entities that

remain outside the system boundary, the relations

among those entities (featuring potential

transactions), the related data aspects, and the

initiator-executor positioning as according to

Definition 2 and Dietz (2006).

2. Deriving a corresponding causality model

(Shishkov et al., 2006) abstracting from entities

and only featuring the dependencies among

corresponding transactions, such that it becomes

clear how the realization of one transaction would

possibly depend on the completion of another

one(s).

3. Making an elaboration in terms of

transactions and underlying

communicative acts (Dietz, 2006; Shishkov,

2017), such that it becomes clear how the

causalities (see above) are dynamically realized.

4. This all represents an adequate basis for

deriving use cases, as studied by Shishkov

and Dietz (2003).

For the sake of brevity, we limit ourselves to this

partial outline of the SDBC design method and its

underlying modeling / specification process – we only

cover issues that are relevant to the current case-

driven research and for the rest, interested readers are

referred to (Shishkov, 2017).

In the following section, we will address context-

awareness and privacy, and study the potentials for

their incorporation in the SDBC driven specification

of software.

3 CONTEXT-AWARENESS AND

PRIVACY

In this section, we will firstly address context

awareness and secondly, we will address privacy.

3.1 Context-awareness

Referring to Definition 1, context-awareness is

about the system environment. The system user (using

what the system is delivering) may comprise one or

more entities belonging to the environment – each of

them (or they all) could consume different services

(or they could consume together one service).

Further, not all entities belonging to the environment

should necessarily be parts of the user since it might

be that the system needs to collaborate with other

entities from the environment (different from the

user), such that the system is capable of delivering the

requested products and/or services to the user.

Hence, a user perspective is needed in order to

capture such a delivery of a product and/or a service

Seventh International Symposium on Business Modeling and Software Design

(we call this service, for short). Further, it is often that

the service delivered to the user is to be adapted to the

situation of the user. For example, a person wearing

a body-area network (AWARENESS, 2008) through

which body vital signs are captured, may appear to be

in ‘normal state’ and then, for example, vital signs are

captured and recorded as archival information, or the

person may appear to be in ‘emergency state’ and

then help would need to be urgently arranged. Thus,

one kind of service would be needed at normal state

and another kind of service would be needed at

emergency state. For this reason, the system (or a

corresponding system-internal EIS or ICT

application) should be able to: (i) identify the

situation of the user; (ii) deliver a service to the user,

which is suited for the particular situation. This is

illustrated in Figure 2:

Figure 2: Schematic representation of a context-aware

application (Shishkov and Van Sinderen, 2008).

As it is seen from the figure, a service is delivered

to the user and the user is considered within his or her

context, such that the service is adapted on the

basis of the context state (or situation) the user finds

himself/herself in. That state is to be somehow sensed

and often technical devices, such as sensors, are used

for this purpose. In the current paper, we do not go

into discussing sensor technology in detail and for

this reason, by sensor we broadly mean the

technical or other facility that helps establishing the

user situation. As mentioned before, it might be an

EIS delivering the service to the user or it might be

that just one ICT application (for example) as part of

the EIS is delivering the service – no matter whether

the former or the latter, we call it context-aware

application in the current paper. Hence, a

context-aware application adapts its behavior, in

delivering service(s) to the user, based on the actual

context state of the user, which context state is

captured by sensors and corresponding information is

sent to the context-aware application accordingly.

Nevertheless, the raw sensor data is of limited

value unless it is reflected in higher-level context

information that can be reasoned about.

It is also to be known how the application would

‘move’ from one behavior to another, when the user

situation (context state) changes.

Summarizing the above, a context-aware system

can be seen as concerning a sequence of actions that

achieve: S (sensing and capturing), I (interpretation

and state derivation), w (switching), and P

(provisioning), as shown in Figure 3:

Legend:

S: Sensing

I: Interpretation

w: Switching

P: Provisioning

= action

= dependency

Figure 3: Simplified view on a context-aware system

(Shishkov, 2017).

With regard to S: The system should be able to

sense context and capture this context as context

information. With regard to I: the system should be

able to interpret the captured context information and

derive higher-level context information that would be

used to identify context state changes (those changes

are to trigger in turn changes in the system behavior).

With regard to w: the system should be able to handle

the switching between its alternative behaviors. With

regard to P: the system should be able to provide

services covering different possible context states.

This is obviously a simplified model, since each

of the actions represents a potentially complex

process, and the dependencies between those

normally involve multiple instances of information

exchange and triggering.

Based on the above background, we propose the

following way of weaving context-awareness in the

SDBC-rooted enterprise-modeling-driven software

specification: (i) particular user context state types are

foreseen at design time and ‘stored’ in a reference

bank; (ii) corresponding system behavior types are

specified at design time; (iii) the current user context

state is captured (see above) and matched to the bank

of state types; (iv) if there is a match, then a

corresponding behavior type is instantiated

accordingly, otherwise, the system switches to ‘auto-

pilot’ in order to deliver a behavior in an exceptional

situation. This is illustrated in Figure 4, using the

notations of UML Activity Diagram (UML, 2017):

Towards Context-Aware and Privacy-Sensitive Systems

capture state

trigger ‘auto-pilot’ behavior

use corresp. behavior type

instantiate behavior

yes

state type foreseen

at design time?

Figure 4: Weaving context-awareness in the software

specification.

As it is seen from the figure, firstly the situation

of the user (the user context state) is to be captured

(as discussed already, this is usually done, facilitated

by sensors). Secondly, it is important to establish

whether or not the captured situation (state) is an

instance of one of the situation (state) types foreseen

at design time – if not, the system should switch to

‘auto-pilot’ behavior mode (by this we mean run-time

rules-based behavior adaptation to the environment).

If there is a match between the captured situation and

a corresponding situation type foreseen at design

time, then a corresponding behavior type (specified at

design time) should be instantiated accordingly.

This way of weaving in context-awareness has

been proposed inspired by the observation that: (i)

there are high-occurrence-probability context state

types suitable for consideration at design time; (ii)

there are low-occurrence-probability context state

types that are unpredictable and for this reason better

addressable at run time.

In studying RELATED WORK, we have

considered context-aware application practices. Due

to the complexity and importance of handling

context-awareness, many studies have tried to

investigate different ways of developing context-

aware applications. Many context modeling

techniques have been created to enumerate and

represent context information (Vieira et al., 2011).

Many methodologies for architectural design were

also proposed by researchers, such as: Context Toolkit

(Dey, 2001) which aggregates context information,

Context Modeling Language (Henricksen and

Indulska, 2006) and Model Driven Development

(MDD) and UML- based approaches (Ayed et al.,

2007; Simons and Wirtz, 2007) which mainly

describe the key steps and activities for modeling

context-aware applications, the Contextual Elements

Modeling and Management through Incremental

Knowledge Acquisition (CEManTIKA) that supports

the building of context-aware applications. Further,

Jan vom Brocke, Sarah Zelt and Theresa Schimiedel

have proposed a framework which consists of 4-

dimensional factors to be considered in the design of

context-aware applications, including 1) application

goals, 2) characteristics of the process, 3) internal

organizational specifications where context-aware

applications are implemented, 4) the broader or

external environment in which context-aware

applications are built (Vom Brocke et al., 2016).

Those factors can be used as guidelines when

designing a context-aware application. In general,

many current research projects are focusing on the

development of context-aware applications, touching

upon concept, networking aspects, middleware

aspects, user-interface-related concerns, services, and

so on. Still, this increasing attention has not been

enough to inspire a widely accepted agreement on the

development of context-aware applications. Hence, it

is still a question how to weave context-awareness in

the specification of software, and the current paper

offers some contribution in this direction.

3.2 Privacy

As mentioned already, with regard to the (software)

system-to-be, we are not only aiming at context-

awareness but we are also willing to weave in values,

such as privacy and transparency, for example.

Particularly in this paper, we are focusing on

privacy not only because it is one of the key

values, as according to Hustinx (2010) but also

because it is highly relevant with regard to the land-

border security application domain addressed in the

paper. Hence, in the remaining of the current sub-

section, we will firstly discuss privacy in general (still

assuming a border security focus), then we will

present our view on how to weave in privacy

enforcement in the specification of software, and

finally we will particularly focus on privacy

enforcement practices (related work) that are to be

taken into account with regard to our case-driven

modeling approach.

3.2.1 The Privacy Concept

Although the boundaries and specific contents of

privacy vary significantly in different countries, the

main definition of information privacy includes ‘the

right to be left alone’ and ‘control of

Seventh International Symposium on Business Modeling and Software Design

information about ourselves’ (Pearson,

2009). Data can have various needs of privacy,

whereas some information should always be opened

to create transparency, other information should not

be shared without proper authorization.

Although there is much information claimed to be

privacy-sensitive, we consider the following

information in border control as privacy sensitive

information by using Pearson’s privacy information

classification (Pearson, 2009):

- Personally identifiable information: information

that can be used to identify an individual:

= Data from records: name, date of birth, bio-

metrics, address, social security number, and

so on;

= Surveillance data: images, video, voice, and

so on;

= Secondary data: bank account number,

credit card number, phone number, social

media network ID, and so on;

- Demographical information: sex, age group, race,

health status, religion, education, and so on;

- Usage data:

= Networking-related data: mobile phone

history data, Internet access point data,

computer log files, and so on;

= Recorded online activities: messenger

records, contribution to social websites, and

so on;

= Travel data: ticketing / boarding pass data,

reservations, cancellations, and so on;

- Unique device identities: any information that

might be uniquely traceable to a device, e.g. IP

address, device fabric number, Radio Frequency

Identity (RFID) tags, and so on.

3.2.2 Weaving in Privacy Enforcement

Taking into account the privacy concept and the

privacy-sensitivity issue, we propose the following

way of weaving privacy enforcement in the SDBC-

rooted enterprise-modeling-driven software specifi-

cation: (i) when specified, a behavior instance is to be

matched against a bank of pre-defined behavior types,

such that it is clear what kind of behavior is that and

what corresponding (pre-defined) privacy-related

restrictions are to be weaved in; (ii) based on this, the

behavior instance is to be refined accordingly. This is

illustrated in Figure 5, using the notations of UML

Activity Diagram:

specify behavior

match behavior to a behavior type

refine behavior

Figure 5: Weaving privacy enforcement in the software

specification.

Hence, once specified, a behavior instance is to be

refined in terms of privacy-driven restrictions.

3.2.3 Privacy Enforcement Practices –

Privacy-by-Design and Related Work

Enforcement of privacy is often difficult. ICT enables

the creation of systems that ensure the privacy of data,

which is called privacy-by-design (Hustinx,

2010). Privacy-by-design has received attention

within organizations as a way to always ensure that

privacy is protected. Privacy-by-design suggests

integrating privacy requirements into the design

specifications of systems, business practices, and

physical infrastructures. In the ideal situation, data is

collected in such a way that privacy cannot be

violated. This requires that both governance aspects

(data updating processes and procedures, access

rights, decision-making responsibilities, and so on)

and technical aspects (encryption, access control,

anonymization, and so on) are covered.

Since privacy enforcement solutions differ in

different contexts, some general principles to guide

the privacy-by-design can be used or sometimes must

be compiled. For instance, the principles stated in

Article 5 of the EU General Data Protection

Regulation, need to be carefully considered,

including:

lawfulness, fairness and

transparency, purpose limitation, data

minimization, accuracy, storage limita-

tion, integrity and confidentiality, and

accountability. However, some principles would

often be in conflict with the characteristics of

implemented information systems for border control.

For instance, the continuous collection of surveillance

image data is against the principle of purpose

limitation. Therefore, technical solutions should be a

trade-off between privacy and (border-control-

related) benefits (Könings et al., 2016).

Technical solutions regarding privacy

enforcement would in general refer to PET –

Privacy-Enforcement Technologies.

Towards Context-Aware and Privacy-Sensitive Systems

Those technologies assume secure communication

and data storage by encryption, access control and

auditing, anonymization of on-line activity, detection

of privacy violators, and so on (Seničar et al., 2003;

Zhu et al., 2015). Since PET can only partially

address privacy-related problems, they need to be

combined with information governance

features in order to create comprehensive

privacy-enforcement mechanisms.

Besides PETs, PITs (Privacy-Invasive

Technologies) and privacy threats are also

frequently examined in various domains (Burghardt

et al., 2008; Huberman et al., 1999; Johnston and

Wilson, 2012; Seigneur and Jensen, 2004; Weber,

2015).

Nevertheless, there is still limited insight on how

enterprises can reduce privacy violation risks for

open data in particular, and there is no uniform

approach for privacy protection (Janssen and Van den

Hoven, 2015).

4 APPLICATION SCENARIO

Border control is one of Europe’s biggest recent

challenges, in the light of severe sea border problems

in Greece and Italy in 2015-2016 (FRONTEX, 2017)

and land border problems in Bulgaria and Croatia, for

example. This leads not only to deadly incidents for

numerous migrants who realize illegal sea/land

border crossings in severe (weather) conditions but

also to allowing terrorists mixed with regular

migrants land on Europe’s territory. According to

many reports of the European Union - EU

(www.europa.eu), this uncontrolled migration to

Europe is causing societal tension and is stimulating

extreme political views. Further, even though illegal

migration to Europe is mainly fueled by smuggling

channels, it is partially ‘facilitated’ by technical /

organizational weaknesses at the EU external borders.

In this paper, we abstract from the former and focus

on the latter. Such a focus has been justified by

numerous (current) efforts within the EU, aiming at

improving security at its external borders – for

example, new border facilities are constructed along

those borders, police officers from some Western EU

countries are sent to the Eastern EU borders to

physically help, new organizational approaches and

technical solutions are discussed, and so on (Ref.:

www.europa.eu); all those efforts are directed

towards stopping the illegal migration to the EU and

it is widely agreed that any migrant should legally

approach an EU border point where (s)he would be

treated according to the laws and values of the EU.

In that sense, we consider an application scenario

which concerns the EU land border control (our

focus is particularly on the external EU borders) and

this is about monitoring and reaction to

violations. Fulfilling this assumes human

actions because security-related decisions are always

human-centric (LBS, 2012). Still, in what they are

doing, border police officers receive useful technical

support, assuming various channels: infrared images,

visible images, proximity sensors, and so on,

followed by some kind of intelligent data fusion

algorithms (Shishkov and Mitrakos, 2016). We

acknowledge this ‘duality’ – human entities

and technical entities, and acknowledge as

well the need to orchestrate this ‘whole’ in a sound

way, allowing for objectivity and capability with

regard to any situation that is possible to occur.

Hence, we are approaching typical situations in this

regard, and also the corresponding desirable reactions

to those situations. Hence context-awareness is

relevant with respect to land border security. Further,

realizing that, the above-mentioned technology

requires, among other things, IT-based services to

recognize people (i.e. biometrics), we acknowledge

the need for a special treatment of those issues as far

as privacy is concerned because it is justified to

distribute personal details of a terrorist but it is not

justified to distribute personal details of anybody. We

thus identify and approach some privacy-sensitive

situations accordingly. In realizing all this, we take as

example the situation at the Bulgarian-Turkish land

border (Shishkov and Mitrakos, 2016); nevertheless,

we abstract from many location-specific details in

order to reach findings that are generic and widely

applicable.

Monitoring the land border is a continuous

process where: (i) There is a (wired) border fence that

is supposed to obstacle illegal migrants to get in; still,

this facility can be overcome using a ladder or by just

destroying the wire. (ii) There are border police

officers who are patrolling (possibly using vehicles);

still, no matter how many border police officers are

sent to the border, it would be physically impossible

to guarantee police presence at any time anywhere

along the border, over hundreds of kilometres. (iii)

There are sensors and other (smart) devices, as

mentioned above; they are realizing surveillance; we

assume the possibility that a device would perform

local processing + artificial reasoning – based on this,

it may generate contentful messages to be transmitted

to corresponding human agents.

There are two main situation types at any point

along the border, namely: (a) Normal Situation (NS);

(b) Alarm Situation. We realize that both context-

Seventh International Symposium on Business Modeling and Software Design

awareness and privacy enforcement are ‘under

control’ in (a) because:

• Within NS, all is just progressing according to

pre-defined rules – hence, there is no need to adapt

the system behavior with regard to surrounding

context.

• Following pre-defined rules would also assume

adequate treatment of privacy-sensitive data (for

example: the border police officers are also

monitored but it is not allowed to distribute their

facial information).

What is more interesting thus is what is done in the

case of (b) where context-awareness and related

privacy enforcement are crucial.

Approaching (b) and taking into account the case

information, we define three situation types

concerning migrants possibly attempting to illegally

cross the land border outside an official border

crossing point: 1. Human-Triggered Alarm

Situation (HTAS): when a border police officer

faces an attempt of one or more persons to illegally

cross the border. Then the officer can do ONE of

three things, namely: 1.1. Try to physically stop the

migrants from crossing, following the corresponding

EU regulations; 1.2. Connect to colleagues and ask

help; 1.3. Activate particular devices for taking

pictures and video of the violators. It is important to

note that in this situation, the person in charge has full

decision-making capacity. 2. Device-

Triggered Alarm Situation (DTAS):

when a device is ‘alarmed’ by anything and there is

no border police officer on the spot. Then, there are

two possibilities: 2.1. The detecting device is

‘passive’ in a sense that the (video) information it is

transmitting, is received in real-time and

straightforwardly ‘used’ by a distant officer who

intervenes, generating a decision and corresponding

actions; 2.2. The detecting device is ‘active’ in a sense

that based on information coming from at least

several sensing units, the information is filtered and

automated reasoning is performed, based on which a

‘hypothesis’ on what is happening is generated by the

device and sent to corresponding human agents. 3.

Outage Situation (OS): when any unexpected

(power, performance, or other) outage occurs, not

necessarily assuming illegal border crossing at the

same time. This calls for urgent system recovery both

in human and technical respect.

5 MODELING THE BORDER

SECURITY SYSTEM

A logical starting point in our case-driven modeling

is the ‘translation’ of the case briefing (see Section 4)

into better structured information that would be

featuring the original business reality and

corresponding domain-imposed requirements. As it is

well-known, this often assumes (partial) enterprise re-

engineering such that the enterprise system being

approached is adequately supportable by ICT /

software applications (Dietz, 2006).

For the sake of brevity, we are not going in detail

on how we analyze the case briefing and how we

conduct such (partial) enterprise re-engineering.

Moreover, this is not directly related to the main

challenges addressed in the current paper, namely: the

enterprise-IT alignment, with incorporation of

context-awareness and privacy enforcement. Hence,

we move directly to the textual reflection of the case

briefing, holding in itself re-engineering-driven and

requirements-driven updates:

Different situations may occur at the land

border. Law requires that each situation type is

addressed conforming to corresponding normative

acts. This points to an exhaustive list of situation

types that have to be pre-defined and stored in a

corresponding 'bank' - we consider them as

subclasses with regard to a Class 'Situation':

Subclass 'NS', Subclass 'HTAS', Subclass 'DTAS',

Subclass 'OS', and so on (see the previous section).

Hence, we should have pre-defined accordingly

legislation-driven behavior types - we consider

them as subclasses with regard to a Class

'Behavior': Subclass 'Behavior 1', Subclass

'Behavior 2', and so on. Said otherwise, we should

have behavior subclasses corresponding to

respective situation subclasses. This means that

any particular situation occurring at the land

border is to be positioned as an instance of one of

the situation subclasses, such that a system

behavior is prescribed accordingly, by

instantiating a corresponding behavior subclass. In

order to achieve this, it is necessary that:

FIRSTLY, the situation instance is captured;

SECONDLY, the captured situation instance is

positioned as relevant to a particular situation

subclass; THIRDLY, a corresponding behavior

subclass is identified and instantiated accordingly.

This represents CONTEXT-AWARENESS: the

system behavior depends on the situation at hand

(in this, we abstract from the 'auto-pilot' option -

see Figure 4). Further, it is necessary that privacy-

driven restrictions are identified, correspondin

Towards Context-Aware and Privacy-Sensitive Systems

the behavior subclass, leading to a refinement of

the instantiated behavior. This represents

PRIVACY-ENFORCEMENT: the system

behavior is refined to accommodate relevant

rivac

requi

ements.

Hence, this refined case briefing appropriately

reflecting the business needs, is our starting point.

SDBC has particular strengths on further structuring

such information: actor-roles are methodologically

identified as well as corresponding transactions, and

so on. Because of the limited scope of this paper, we

do not go in further detail here; still, for more

information on those issues, interested readers are

referred to (Shishkov, 2017).

The entities (featuring actor-roles) are:

• S (Sensor); S is capturing the occurring situations

(situation instances), for example: “all looks

normal during night time”, “two persons are

hanging over the border fence”, “one person is

running next to the patrolling vehicle”, and so on,

to give just several examples; in this,

S is

supported by sensing devices, sensor networks,

cameras, data fusion engines, and so on.

•

PE (Pattern Engine); PE is linked to two pattern

banks, namely: ‘sp’ and ‘pp’ – they hold the

subclass specifications (‘sp’ featuring situations

and ‘pp’ featuring privacy-driven restrictions).

Hence,

PE is capable of providing such

information as reference.

•

MM (Match-Maker); MM is matching an instance

to a subclass, for example: matching a situation

instance captured by

S to a subclass from Bank

‘sp’.

•

TE (Task Engine); TE is generating a desired

system behavior description (a task), by

instantiating accordingly a behavior subclass (the

bank that holds the subclass specifications

featuring behaviors is ‘bp’) corresponding to a

respective situation subclass.

• <comment> For the sake of enforcing privacy, it

is necessary to match each prescribed desired

system behavior to corresponding privacy-driven

restrictions stored in Bank ‘pp’; Thus, MM should

do a match, based on a prescribed behavior

instance (delivered by

TE) and privacy patterns

(delivered by

PE). </comment>

•

PrE (Privacy Engine); PrE delivers a refined

behavior recommendation accordingly.

•

C (Customer); C is hence fulfilled by the

corresponding border police officer(s) and/or

other team member(s) using such a task

specification (as RECOMMENDA-TION) in

order to establish their actions accordingly.

Thus, next to identifying entities (featuring

actor roles (Dietz, 2006; Shishkov, 2017)), we are to

also identify corresponding transactions (see

Definition 2): this we present as the Border Security

Business Entity Model, expressed using notations

inspired by DEMO (Dietz, 2006) – see Figure 6.

PrE

Figure 6: Business entity model for the border security case.

On the figure, the identified entities are presented

in named boxes, while the small grey boxes, one at

the end of each connection indicate the executor

entity (Shishkov, 2017). The connections indicate the

need for interactions between entities in order to

achieve the business objective of recommendation

generation – in our case, those interactions reflect

transactions. Hence, with each connection, we

associate a single transaction (

t): C- PrE (t1), PrE-

MM (t2), and so on. As for the delimitation, C is

positioned in the environment of the recommendation

generation system, and

PrE, MM, TE, PE, and S

together form the system, where we have included as

well the three data banks mentioned above, namely:

‘bp’, ‘pp’, and ‘sp’.

privacy-

enforcement

t3 t4

context-

awareness

Figure 7: Modeling the causal relationships among

transactions.

Seventh International Symposium on Business Modeling and Software Design

Further, we have to be explicit about the causal

relationships among the transactions, and

considering the business entity model, we establish

that in order for

PrE to deliver a refined task

specification as a recommendation to

C, it needs input

from MM that in turn needs input from TE and PE.

Further, in order for TE to deliver a desired system

behavior description, it needs input from

MM that in

turn needs input from S and PE. Those causal

relationships are presented in Figure 7, using the

notations of UML Activity Diagram (UML, 2007).

As it is seen from the figure: (a) capturing a

situation instance and considering corresponding

situation patterns (viewed as subclasses) go in parallel

firstly; (b) secondly goes a match between the two

that establishes the relevant subclass (featuring

situations) corresponding to a respective behavior

pattern; (c) the behavior specification and

consideration of relevant privacy-driven restrictions

go in parallel thirdly; (d) fourthly goes a match

between the two, that establishes the relevant privacy-

driven restrictions with regard to the considered

behavior; (e) finally, the refined behavior

specification is delivered to

C in the form of

recommendation.

Hence, context-awareness and privacy are

incorporated through corresponding modeling

‘building blocks’ featuring transactions 6+7 and 3+4,

respectively, as suggested by Figure 7. Further, with

regard to the SDBC modeling process, we have

identified the entity model and the causality relations.

What goes next are transactions (see Figure 1) and

with regard to this, we use the SDBC interpretation of

the transaction concept – see Figure 8:

P-act

input output

r(I) p(E)

d(E)

compromise

found?

s(E)

a(I)

d(I)

compromise

found?

P-fact

Legend

r: request

I: Initiator

p: promise E: executor

s: state

a: accept

cancel

Yes Yes

Figure 8: The SDBC interpretation of the transaction

concept (Shishkov, 2017).

SDBC interprets the transaction concept as

centered around a particular production fact (see

Definition 2). The reason is that the actual output of

any enterprise system represents a set of production

facts related to each other. They actually bring about

the useful value of the business operations to the

outside world and the issues connected with their

creation are to be properly modeled in terms of

structure, dynamics, and data.

However, considering also the corresponding

communicative aspects is important. Although they

are indirectly related to the production facts, they are

to be positioned around them. SDBC realizes this

through its interpretation of the transaction concept.

As seen from Figure 8, the transaction concept has

been adopted, with a particular stress on the

transaction’s output – the production fact. The order

phase (left side of the figure) is looked upon as input

for the production act, while the result phase (right

side of the figure) is considered to be the production

act’s output. The dashed line shows that a transaction

could be successful (which means that a production

fact has been successfully created) only if the initiator

(the one who is initiating the transaction) has

accepted the production act of the other party (called

executor). As for the (coordination) communicative

act types, grasped by an SDBC transaction, they are

also depicted in the figure. The initiator expresses a

request attitude towards a proposition (any

transaction should concern a proposition – for

example, a shoe to be repaired by a particular date and

at a particular price, and so on). Such a request might

trigger either promise or decline - the executor might

either promise to produce the requested product (or

service) or express a decline attitude towards the

proposition. This expressed decline attitude actually

triggers a discussion (negotiation), for example: ‘I

cannot repair the shoe today, is tomorrow fine?... and

so on’. The discussion might lead to a compromise

(this means that the executor is going to express a

promise attitude towards an updated version of the

proposition) or might lead to the transaction’s

cancellation (this means that no production fact will

be created). If the executor has expressed a promise

attitude regarding a proposition, then (s)he must bring

about the realization of the production act. Then the

result phase follows, which starts with a statement

expression by the executor about the requested

proposition that in his/her opinion has been

successfully realized. The initiator could either

accept this (expressing an accept attitude) or reject it

(expressing a decline attitude). Expressing a decline

attitude leads to a discussion which might lead to a

compromise (this means that finally the initiator is

going to express an accept towards the realized

production act, resulting from negotiations that have

taken place and compromise reached) or might lead

to the transaction’s cancellation (this means that no

production fact will be created). Once the realized

production act is accepted the corresponding

Towards Context-Aware and Privacy-Sensitive Systems

production fact is considered to have appeared in the

(business) reality.

Hence, one could ‘zoom in’ with regard to any of

the transactions depicted in Figure 7 and elaborate

each transaction, using the transaction pattern

presented in Figure 8. This actually means modeling

transactions at two different abstraction

levels. At the highest abstraction level, the

transaction is represented as a single action which

models the production fact that is enabled. At a lower

abstraction level, the transaction’s communicative

aspects are modeled conforming to the transaction

pattern. The transaction’s request (r), promise (p),

state (s), accept (a), decline, and the production act

are modeled as separate actions. This is illustrated in

Figure 9 (abstracting from declines and

cancellations), featuring only part of the model

depicted in Figure 7, namely, focusing only on

transactions 5, 6, and 7:

…

Figure 9: Detailed behavior aspect model featuring

transactions.

As it is seen from the figure, in order for t5 to be

realized, both the realization of

t6 and the realization

of t7 are to be fulfilled. Hence, upon requesting t5

and before the promise, it is necessary that t6 and t7

are initiated. If realized successfully, both

transactions’ output is necessary for the delivery of

the production act of

t5 (the production acts are

depicted as black boxes in the figure).

This is how transactions are elaborated.

In summary, such an enterprise modeling

featuring entities (and data aspects) and

corresponding causal relationships as well as the

behavior elaboration of respective transactions,

represents an adequate basis for specifying software

on top of it.

We now move to the specification of software -

the derivation of use cases is the first challenge – see

Figure 1. For detailed information concerning the

derivation of use cases from transactions, interested

readers are referred to (Shishkov, 2017) – for the sake

of brevity, we go directly to a partial use case model,

derived on the basis of the 7 transactions (see Figure

6 and Figure 7). The model is depicted in Figure 10:

generate privacy

restrictions

generate

behavior

specification

Customer

deliver

recommendation

perform match-making

deliver situation

patterns

capture

situation

check data

accuracy

<<include>>

apply search

Figure 10: Partial use case model for the border security

case.

As it is seen from the figure, all use cases, except

for the ones backgrounded in black and grey,

correspond to respective transactions: the SYSTEM’s

DELIVERY OF RECOMMENDATION (assuming

behavior refinement) to CUSTOMER includes

MATCHING between: (i) BEHAVIOR

SPECIFICATION and (ii) PRIVACY

RESTRICTIONS. In turn, (i) includes MATCHING

between (iii) CAPTURED SITUATION and (iv) A

SITUATION PATTERN (this matching allowing to

identify the right behavior pattern to consider).

Those are the so called essential use

cases – the ones straightforwardly reflecting

transactions (Shishkov, 2017). Those use cases

usefully drive the alignment between enterprise

modeling and software specification, guaranteeing

that the software system-to-be is stemming from

enterprise models. Then all enterprise models would

be helpful accordingly with regard to the further

software specification and elaboration, based on the

use case model.

Nevertheless, next to the essential use cases, we

have also: (a) informational use cases,

reflecting informational issues (not essential); (b)

use cases reflecting user-defined

requirements with regard to the software system-

to-be (Shishkov, 2017). An example for (a) is the use

case APPLY SEARCH - delivering situation patterns

and generating privacy restrictions are essential

business tasks requiring in turn informational

activity, namely: searching through the corresponding

data banks. An example for (b) is the use case

CHECK DATA ACCURACY - it may be required by

the user that upon match-making, the accuracy of

corresponding data is checked. Those two use cases

are only to illustrate (a) and (b). Because of the

limited scope of this paper, we have only considered

Seventh International Symposium on Business Modeling and Software Design

a partial use case model, aiming at being explicit on

the enterprise-software alignment that in turn builds

upon the weaving of context-awareness and privacy

at the enterprise modeling level.

For this reason, we are not going to address in the

current paper the elaboration of use cases as well as

the further software specification reflected in

behavior+states modeling and classification.

Interested readers are referred to (Shishkov, 2005)

where this is considered and justified by means of a

case study.

6 CONCLUSIONS

In this paper, we have considered in general the

alignment between enterprise modeling and software

specification, fueled by the SDBC Approach. In

particular, we have addressed the challenge of

weaving context-awareness and privacy in the

enterprise models, such that context-awareness and

privacy are then reflected accordingly in the

specification of software. We have partially

demonstrated our way of modeling by means of a case

example featuring land border security. Hence, the

contribution of the paper is two-fold: (i) We have

contributed to the research concerning enterprise-

software alignment, by studying how particular

desired values (such as context-awareness and

privacy) can be methodologically reflected in the

specification of software. (ii) We have directed the

current research to the border security application

domain where context-awareness and privacy are of

great importance, especially if they could be reflected

in the functionalities of the (technical) systems

facilitating the border control. As future research, we

plan to consider a large-scale border security case

study assuming software development activities.

REFERENCES

AWARENESS, 2008. Freeband AWARENESS Project.

http://www.freeband.nl.

Ayed, D., Delanote, D., Berbers, Y., 2007. MDD Approach

for the Development of Context-Aware Applications.

In International and Interdisciplinary Conference on

Modeling and Using Context.

Bunge, M.A., 1979. Treatise on Basic Philosophy, vol. 4, A

World of Systems, D. Reidel Publishing Company.

Dordrecht.

Burghardt, T., Buchmann, E., Böhm, K., 2008. Why do

Privacy-Enhancement Mechanisms Fail, After All? A

Survey of Both, the User and the Provider Perspective.

In Workshop W2Trust, in conjunction with IFIPTM.

Cockburn, A., 2000. Writing Effective Use Cases, Addison-

Wesley.

Dey, A. K., 2001. Understanding and Using Context.

Personal and Ubiquitous Computing, 5(1), 4-7.

Dietz, J.L.G., 2006. Enterprise Ontology, Theory and

Methodology, Springer. Heidelberg, 1

edition.

Dietz, J.L.G., 2003. Generic Recurrent Patterns in Business

Processes. In BPM’03, International Conference on

Business Process Management, LNCS. Springer.

FRONTEX, 2017, the website on the European Agency,

FRONTEX: http://frontex.europa.eu.

Henricksen, K., Indulska, J., 2006. Developing Context-

Aware Pervasive Computing Applications: Models and

Approach. Pervasive and Mobile Computing.

Huberman, B. A., Franklin, M., Hogg, T., 1999. Enhancing

Privacy and Trust in Electronic Communities. In EC

'99, 1

Int. ACM Conf. on Electronic Commerce. ACM.

Hustinx, P., 2010. Privacy by Design: Delivering the

Promises. In Identity in the Information Society 3(2).

Springer.

IoTDI, 2017. 2

International Conference on Internet-of-

Things Design and Implementation. ACM/IEEE.

Janssen, M., Van den Hoven, J., 2015. Big and Open Linked

Data (BOLD) in Government: A Challenge to

Transparency and Privacy? Government Information

Quarterly, 32(4).

Johnston, A., Wilson, S., 2012. Privacy Compliance Risks

for Facebook. IEEE Technology and Society Magazine,

31(2).

Könings, B., Schaub, F., Weber, M., 2016. Privacy and

Trust in Ambient Intelligent Environments. In Next

Generation Intelligent Environments: Ambient

Adaptive Systems. Springer.

Kruchten, P., 2003. The Rational Unified Process, An

Introduction, Addison-Wesley.

LBS, 2012. LandBorderSurveillance, the EBF,

LandBorderSurveillance Project: http://ec.europa.eu.

Liu, K., 2000. Semiotics in Information Systems

Engineering, Cambridge University Press. Cambridge.

MDA, 2017. The OMG Model Driven Architecture.

http://www.omg.org/mda.

Pearson, S., 2009. Taking Account of Privacy when

Designing Cloud Computing Services. In ICSE’09,

International Workshop on Software Engineering

Challenges of Cloud Computing.

Seničar, V., Jerman-Blažič, B., Klobučar, T., 2003.

Privacy-Enhancing Technologies - Approaches and

Development. Computer Standards & Interfaces,

25(2).

Shishkov, B., 2017. Enterprise Information Systems, A

Modeling Approach, IICREST. Sofia, 1

edition.

Shishkov, B., 2005. Software Specification Based on Re-

usable Business Components (PhD Thesis), TU Delft.

Delft, 1

edition.

Shishkov, B., Mitrakos, D., 2016. Towards Context-Aware

Border Security Control. In BMSD’16, 6

International

Symposium on Business Modeling and Software

Design. SCITEPRESS.

Towards Context-Aware and Privacy-Sensitive Systems

Shishkov, B., Van Sinderen, M.J., 2008. From User Context

States to Context-Aware Applications. In ICEIS’07 –

Revised Selected Papers, LNBIP 12. Springer.

Shishkov, B., Van Sinderen, M.J., Tekinderdogan, B.,

2007. Model-Driven Specification of Software

Services. In ICEBE’07, IEEE International Conference

on e-Business Engineering. IEEE.

Shishkov, B., Van Sinderen, M.J., Quartel, D., 2006. SOA-

Driven Business-Software Alignment. In ICEBE’06,

IEEE International Conference on e-Business

Engineering. IEEE.

Shishkov, B., Dietz, J.L.G., 2003. Deriving Use Cases from

Business Processes, The Advantages of DEMO. In

ICEIS’03, 5

International Conference on Enterprise

Information Systems. SCITEPRESS.

Seigneur, J. M., Jensen, C. D., 2004. Trading Privacy for

Trust. LNCS, Vol. 2995, incl. subseries Lecture Notes

in Artificial Intelligence. Springer.

Simons, C., Wirtz, G., 2007. Modeling Context in Mobile

Distributed Systems with the UML. Visual Languages

& Computing, 18(4).

UML, 2017. The Unified Modeling Language.

http://www.uml.org.

Vieira, V., Tedesco, P., Salgado, A. C., 2011. Designing

Context-Sensitive Systems: An Integrated Approach.

Expert Systems with Applications, 38(2).

Vom Brocke, J., Zelt, S., Schmiedel, T., 2016. On the Role

of Context in Business Process Management.

Information Management, 36(3).

Weber, R. H., 2015. The Digital Future – A Challenge for

Privacy? Computer Law & Security Review, 31(2).

Zhu, N., Zhang, M., Feng, D., He, J., 2015. Access Control

for Privacy Protection for Dynamic and Correlated

Databases. In SmartCity’15, International IEEE

SmartCity Conference. IEEE.

Seventh International Symposium on Business Modeling and Software Design
