Face Recognition-based Presentation Attack Detection in a

Two-step Segregated Automated Border Control e-Gate

Results of a Pilot Experience at Adolfo Suárez Madrid-Barajas Airport

David Ortega del Campo, Cristina Conde, Ángel Serrano, Isaac Martín de Diego

and Enrique Cabello

Computer Architecture And Technology, Computer Science And Artificial Intelligence, University Rey Juan Carlos,

Tulipan s/n, Madrid, Spain

Keywords: Automated Border Control, Face Biometrics, Presentation Attack Detection, Security.

Abstract: This paper presents the pilot of a new Automatic Border Control system (ABC) that is being developed in the

ABC4EU European project and that conform to the new laws established for the Schengen zone. These new

ABCs have some specific characteristics, such as a structural configuration divided into two devices: self-

enrolment kiosk and biometric gate, one for enrolment and the other one for verification, which entails two

capture stages and two weaknesses where it is possible to attack the system. The tests were carried out with a

pilot of the system, implemented at T4-S (T4 satellite) terminal of Adolfo Suárez Madrid-Barajas Airport.

Our experiments have tested the security of the system by simulating several presentation attacks, at both

stages of the system. For these attacks, different artefacts proposed in the literature about Presentation Attack

Detection have been used. We present the obtained results with each of the attacks, indicating which may be

more dangerous to the system and suggesting some countermeasure that could increase the reliability and

security of the system.

1 INTRODUCTION

In a yearly report published by Boeing company, the

foresight of the growth of aircraft passengers traffic

worldwide reaches an amount of nearly 5% in the

2015-2035 period (Boeing, 2016). This increase is

expected to double up to 9.5% for the specific area of

South Asia in the same period. These numbers

suggest that a huge effort needs to be done in the

following years in security controls at airport border

checkpoints. Other kinds of borders, such as those at

seaports and land borders, are also expected to suffer

from an important increase of traffic (Donida Labati

et al., 2016).

Customs and border officers need to be provided

with quick and effective procedures and tools to

guarantee a comfortable queueless border crossing

for passengers, while keeping control of the flow of

people across the border.

Automated Border Control systems (ABC) are

proving to be the better solution to these new

challenges. It allows controlling the crossing of

travellers in an automatic or semi-automatic way.

1.1 Automated Border Controls

With the launch of the Schengen Area in 1995, a

policy of open borders was approved so the mutual

borders of the participant states were eliminated and

only the outer borders (this is, with non-Schengen

countries) were kept. As of this writing, 26 European

states belong to this area, of which 4 are not European

Union (EU) members (this is, Norway, Iceland,

Switzerland and Liechtenstein). Four more EU

members are obliged to join in the future (Bulgaria,

Croatia, Cyprus and Romania), while the United

Kingdom and Ireland have opted to stay out. Three

European microstates, such as Monaco, San Marino

and the Vatican City, are de facto members. The

whole Schengen Area comprises a surface higher than

4.3 million square metres and a population of almost

420 million people, who can travel from one member

state to another without border controls.

On the other hand, passengers from non-member

states, or third country national passengers (TCN), do

have to cross a border control.

Since the Netherlands started a fingerprint

recognition project for frequent passengers in 1992 at

Campo, D., Conde, C., Serrano, Á., Diego, I. and Cabello, E.

Face Recognition-based Presentation Attack Detection in a Two-step Segregated Automated Border Control e-Gate - Results of a Pilot Experience at Adolfo Suárez Madrid-Barajas Airport.

DOI: 10.5220/0006426901290138

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 4: SECRYPT, pages 129-138

ISBN: 978-989-758-259-2

129

Amsterdam Schiphol Airport, several other countries

have included automated border controls (ABC). In

particular, the European Union Frontex agency was

founded in 2004 with the aim to improve the

management of the outer borders of the state

members. Frontex defines an ABC as an automatic

system that performs three fundamental operations:

(1) it authenticates the passenger’s machine readable

travel document (eMRTD, this is, electronic passport,

national ID card, etc.), (2) it verifies the identity of

the passenger as the legitimate holder of the

document by means of a biometric procedure, and (3)

it checks his/her permission to cross the border

according the predefined rules. All of this is made

with minimal or no human intervention at all

(Frontex, 2012).

ABC systems make use of electronic gates (e-

gates), which are architectural components that

control the flow of passengers at the border

automatically by means of moving or fixed elements,

document reading devices and biometric feature

capture devices. In particular, the passenger presents

the eMRTD to the system scanner, which detects and

extracts his/her personal data from the so-called

machine-readable zone (MRZ) of the document

(Figure 1). A query to the database of allowed-to-

cross passengers is made and then, if succeeded, the

biometric data of the passenger are extracted from the

document’s chip. These data can include a set of

facial pictures, fingerprints, etc. The passenger then

has to provide the ABC system with his/her biometric

features at that very moment (“live samples”), which

are compared with those read from the document. If

it is a match, then the e-gate opens the doors and the

passenger is allowed through the border.

Three possible configurations for an ABC e-gate

can be used (

Figure 2). First, one passenger at a time

is made enter a mantrap, which is a cubicle with two

doors. In this space, both the document authentication

and the biometric verification are made in parallel in

a one-step process, so this solution can be very fast.

The other two configurations use a two-step process.

On the one hand, integrated solution, on which the

document authentication takes place just outside a

mantrap, inside of which the biometric operation is

carried out.

In a third configuration, segregated solution, the

document authentication and the biometric

verification is performed in an enrolment kiosk, while

a second biometric verification is made at the one-

door e-gate.

For more information on ABC, the reader should

check Donadi Labati et al. (2016), which provide a

survey on biometric recognition in ABC systems,

while Sánchez del Río et al. (2016) specifically focus

on face recognition-based ABC systems.

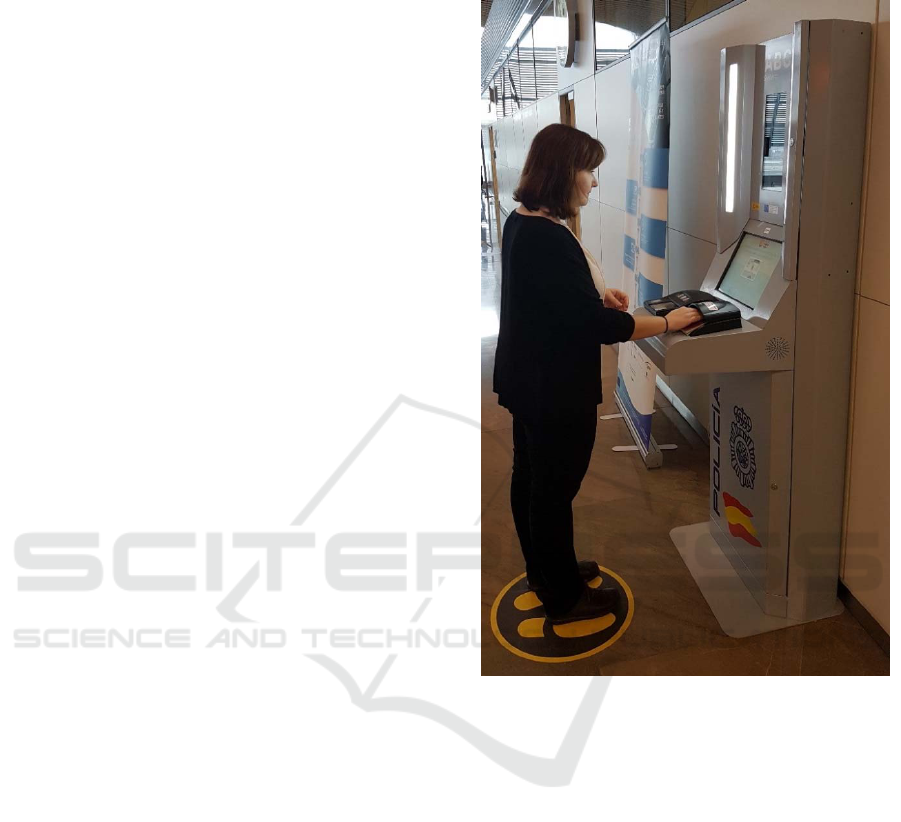

Figure 1: Example of an ABC. Picture taken from the pilot

experience at Adolfo Suárez Madrid-Barajas Airport T4-S

international arrivals terminal.

Several European projects are devoted to ABC e-

gates. The results presented in this paper belong to the

ABC4EU project (ABC4EU, 2014), from the Seventh

Framework Programme. The details will be explained

in Section 2. Other similar projects can be found in

FastPass (2016), Berglund and Karbauskaite (2008)

and Kosmerlj et al., (2006), to cite only a few.

1.2 Security Aspects in ABC Systems

Special attention has to be paid in order to guarantee

that only allowed passengers cross the border through

an ABC e-gate. There are two types of attacks on

ABC biometric subsystems:

On the one hand, there are the attacks that take

place in the eMRTD and consist of replacing or

altering the biometric data stored on the MRZ of the

passport. An example of this is the so-called

SECRYPT 2017 - 14th International Conference on Security and Cryptography

130

morphing technique (Ferrara et al., 2014), where the

biometric features (such as the face picture stored on

the passport chip) of the passenger and of the attacker

are combined to produce an intermediate image that

would deceive the system. A possible improvement

that could decrease these attacks is to step up security

measures and encryption of documents.

Another type of attack is what is known as

spoofing or presentation attack (PA). This type of

attack takes place at the capture device and is based

on the impersonation of the biometric features of the

passenger by the attacker without having to

manipulate any documents. When the passenger

provides his/her biometric features collaboratively

and interacts with the system in the expected way, this

act is called a “bona fide presentation”. On the other

hand, a PA occurs when a person tries to interfere

with the normal operation of the system (ISO/IEC,

2016a).

Our study focuses on the second type of attacks,

with genuine passports (no manipulation), where the

attacker attempts to impersonate a passenger and uses

his/her original documents.

The biometric feature or object used in the attack

is called presentation attack instrument (PAI).

Examples of PAIs include a photograph of a face

(printed in paper or displayed on a screen), a 3D face

mask, a fake finger made of plastic, or even a real

finger from a dead body.

Presentation attacks can be classified into two

classes (ISO/IEC, 2016b). In the first one,

presentation attacks make use of human-based PAIs,

including parts of a dead body, features intentionally

modified (scars, surgery, temporal changes induced

by medication), impersonation of someone else’s

feature, accidental match of someone else’s feature in

a bona fide presentation (zero effort impostor

attempt), or genuine feature presentation obtained

under coercion or menace.

A second kind of presentation attacks employ

artificial PAIs. These artefacts can be obtained

directly from the real biometric feature, for example

with a mold, or indirectly from a latent sample (a

fingerprint left on a surface). The biometric feature

can be also captured by a recording device, such as

video-camera or a photographic camera. Sometimes a

complete biometric feature can be synthetically

rebuilt from a genuine template, or can be obtained

with a specific software from another user’s feature.

Completely synthetic features generated without

resemblance to a specific user’s features can be

considered here too as an artificial presentation

attack.

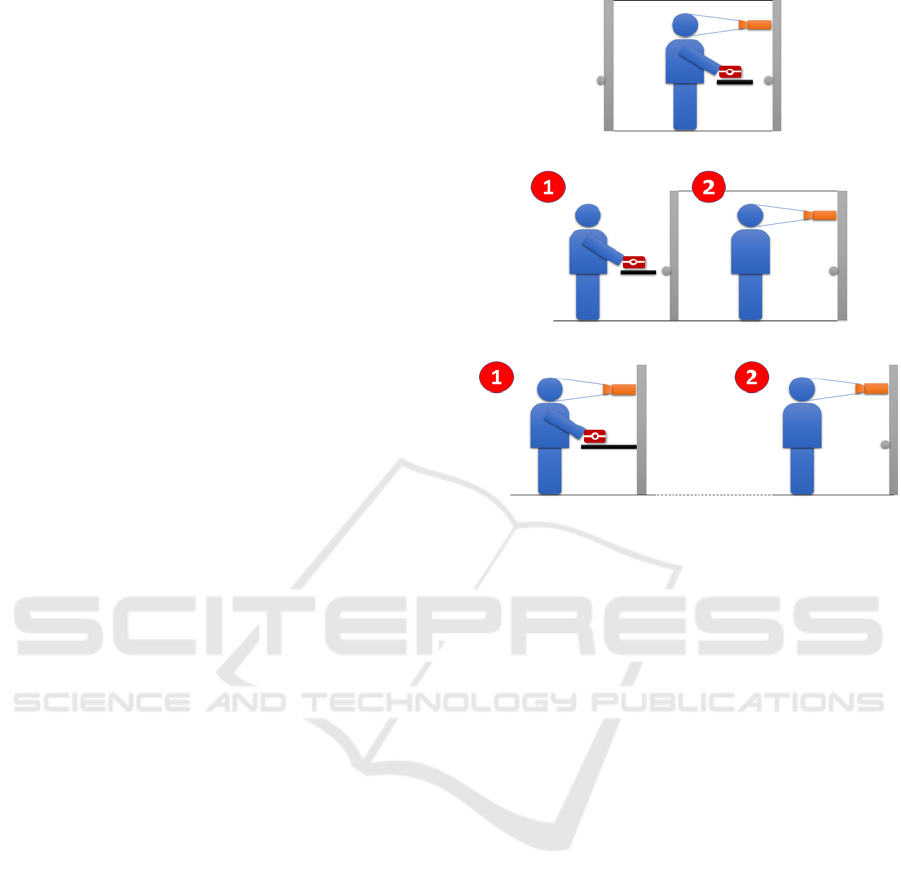

Figure 2: ABC topologies. From top to bottom: One-step

ABC, two-step integrated ABC and two-step segregated

ABC.

A “presentation attack detection” (PAD) is the

automatic recognition of presentation attacks, which

is performed by the so called PAD subsystem as a part

of the ABC system. Within the PAD, some kind of

liveness checking is needed, this is, the biometric

feature is being acquired from a live user. Examples

of liveness detection can include measuring the skin

temperature, detection of blood vessels, eye blink,

etc.

A biometric system can be attacked at different

stages of the data flow: at the sensor, at the signal

processing module, at the database, at the matching

module, at the decision module, or in the intermediate

points (Ratha et al., 2001; ISO/IEC, 2016a). For the

PAD subsystem, only attacks at the sensor level are

analyzed, this is, at the e-gate.

1.3 Evaluation of the Performance of a

PAD Subsystem

When a person tries to cross an e-gate, his/her

biometric features are provided to the PAD

subsystem. These features are analyzed by the

system’s algorithm, which has been trained in

advance in order to be able to tell apart real

passengers from attackers (identity impersonators).

The result of the PAD subsystem is a score of

confidence on whetther fact that the presentation of

Face Recognition-based Presentation Attack Detection in a Two-step Segregated Automated Border Control e-Gate - Results of a Pilot

Experience at Adolfo Suárez Madrid-Barajas Airport

131

the biometric features was genuine or fraudulent. The

final decision (response) is made by comparing this

score with a classification threshold obtained during

the training process or set as a function of security

needs.

So far, PAD have been evaluated with usual

biometric systems measures, like FMR (false match

rate) or FNMR (false non match rate), but latest

standards propose an evaluation of the performance

of the PAD subsystem computing two kinds of

metrics (ISO/IEC, 2016b). The first one is the ratio of

bona fide presentations incorrectly classified as

attacks (called “bona fide presentation classification

error rate”, BPCER). Suppose we consider N

as the

total number of bona fine presentations. Let Res

the response of the PAD subsystem to the i

presentation (1  i  N

). This value is equal to 1 if

this bona fide presentation is classified as an attack,

or 0 otherwise (it is correctly identified as a bona fide

presentation). Then BPCER can be calculated as

follows:

 

∑















(1)

The second metrics for the evaluation of the PAD

subsystem is the ratio of attacks incorrectly classified

as bona fide presentations (called “attack presentation

classification error rate”, APCER). In this case, let

PAIS

be the number of attack presentations for a

specific PAI species (PAIS), this is, for a set of PAIs

produced with the same method and based on

different biometric characteristics. In this case,

APCER can be computed with the following

equation:









∑

1















(2)

where Res

is the response of the PAD subsystem to

the i presentation (1  i  N

PAIS

). This value is 1 if this

attack presentation is classified as an attack, or 0

otherwise (it is wrongly identified as a bona fide

presentation). Bear in mind that this APCER value has

to be computed for every PAI species.

The accuracy of a system can be measured using

an Average Classification Error Rate (ACER) defined

as:



 





  

(3)

As with regular biometric systems, both kinds of

errors, BPCER and APCER, cannot be minimized at

the same time, as when one decreases, the other one

increases, and vice versa. This is due to the fact that

the response of bona fide presentations cannot be

completely separated from the response of attack

presentations.

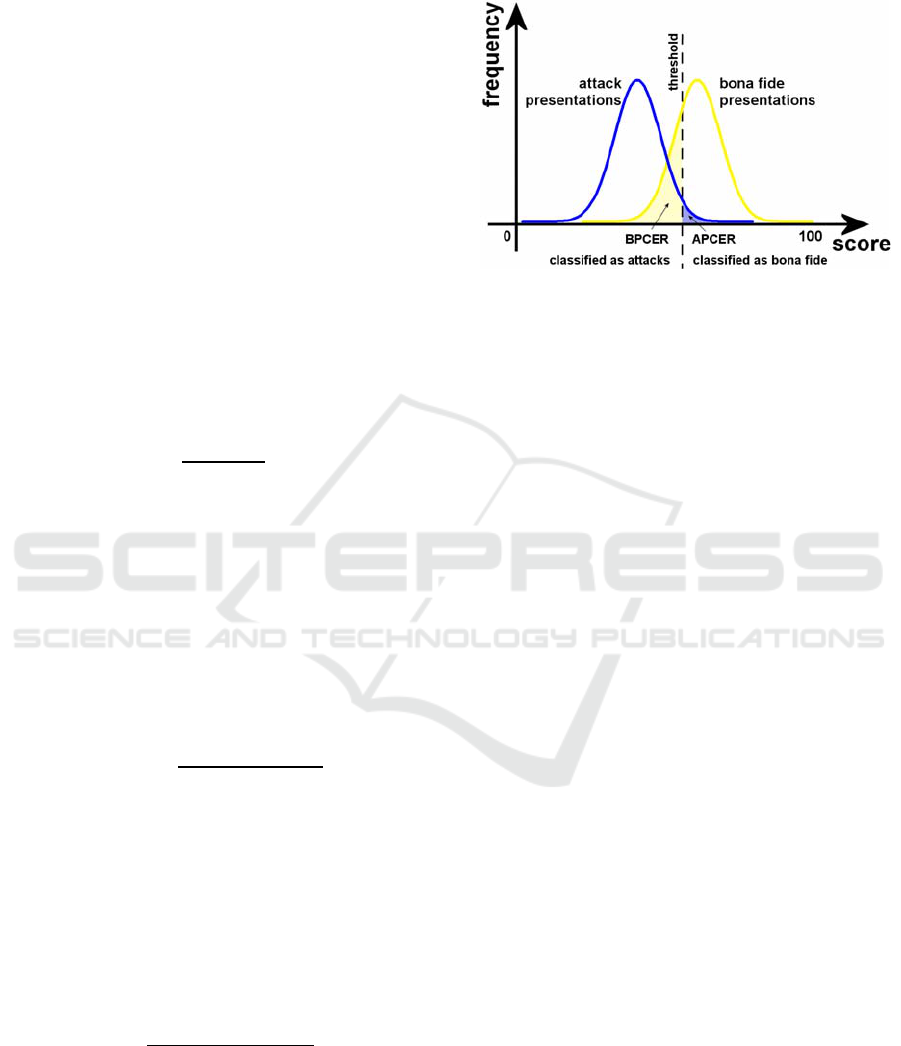

Figure 3: Histograms of classification for bona fide

presentations and attack presentations. The shaded regions

correspond to classification errors. The height of both

histograms has been drawn equal for the sake of clarity.

If we suppose that bona fide presentations tend to

receive higher classification scores from the PAD

subsystem and attack presentations tend to obtain

lower values, there is usually an overlap between both

score histograms that cannot be solved (Figure 3).

Due to the selection of a specific threshold,

classification errors occur.

As can be seen, all the bona fide presentations

with a score lower than the chosen threshold will be

incorrectly classified as attacks, and therefore they

will contribute to the BPCER computation. On the

other hand, all the attack presentations with a score

higher than the threshold will be incorrectly classified

as being bona fide presentation. In this case, they have

to be included in the APCER computation.

A good way to determine a good acceptance

threshold would be to choose the threshold in which

the BPCER and APCER values are the same. We shall

call this value the “Equal presentation classificacion

error rate” (EPCER).

The rest of this paper is organized as follows. In

Section 2, we describe the ABC4EU project and its

security peculiarities compared to the rest of the ABC

systems. In Section 3, our experimental setup in a

pilot experience performed at Adolfo Suárez Madrid-

Barajas Airport in December 2016 is explained, while

Section 4 provides our results and their analysis.

Finally in Section 5 our main conclusions are

summarized.

2 ABC4EU PROJECT

Within the Seventh Framework Programme of the

SECRYPT 2017 - 14th International Conference on Security and Cryptography

132

European Union, ABC4EU project is a four-year

collaborative effort to enhance the workflow and

functionalities of ABC e-gates for all kinds of borders

(airports, harbours and land borders), to identify the

problems of the current ABC in Europe and to define

the requirements of these systems for Schengen

passengers (ABC4EU, 2014). Several institutions of

eight European countries (Estonia, Finland,

Germany, Ireland, Italy, Portugal, Romania, and

Spain) belong to the project.

The ABC4EU project must primarily conform to

the rules defined in the Schengen Border Code (SBC),

which establishes standards, protocols and

procedures for travellers in the Schengen Area.

Although one of its main objectives is security, it also

takes into account the regulation on data protection

established by the EU and by each country in

particular, defined in the Recommendation and Data

Protection Directive 95/46/EC. The system handles

two important databases with very sensitive

information: VIS (Visa Information System), which

contains biometric information, and SIS (Schengen

Information System), with information on criminal

activities.

With the Schengen agreement, the controls were

transferred to the borders with third countries, so the

ABC4EU project focuses on TCN travellers. These

travellers may be in two legal situations: travellers

without the need of a visa (TCNVE, Third Country

National Visa Exempt), or those with a visa or a

residence permit (TCNVH, Third Country National

Visa Holder). For each of these types of travellers

there is a different procedure defined in the SBC.

2.1 ABC4EU Solution

The solution proposed by the ABC4EU project

consists of a two-step segregated ABC system, with a

self-enrolment stage that is performed in a kiosk

physically separated from the e-door, and a

verification stage that is properly performed at the e-

door.

2.1.1 Enrolment Stage

In the process of enrolment, the traveller must present

his/her eMRTD and his/her biometric features. The

system must, on the one hand, contrast the data of this

document with the corresponding databases, and on

the other hand, certify that the traveller is the true

holder of the document. To do so, the system

validates the biometric data stored on the document

(“chip sample”) with the biometric data captured at

that moment (“live enrolment sample”).

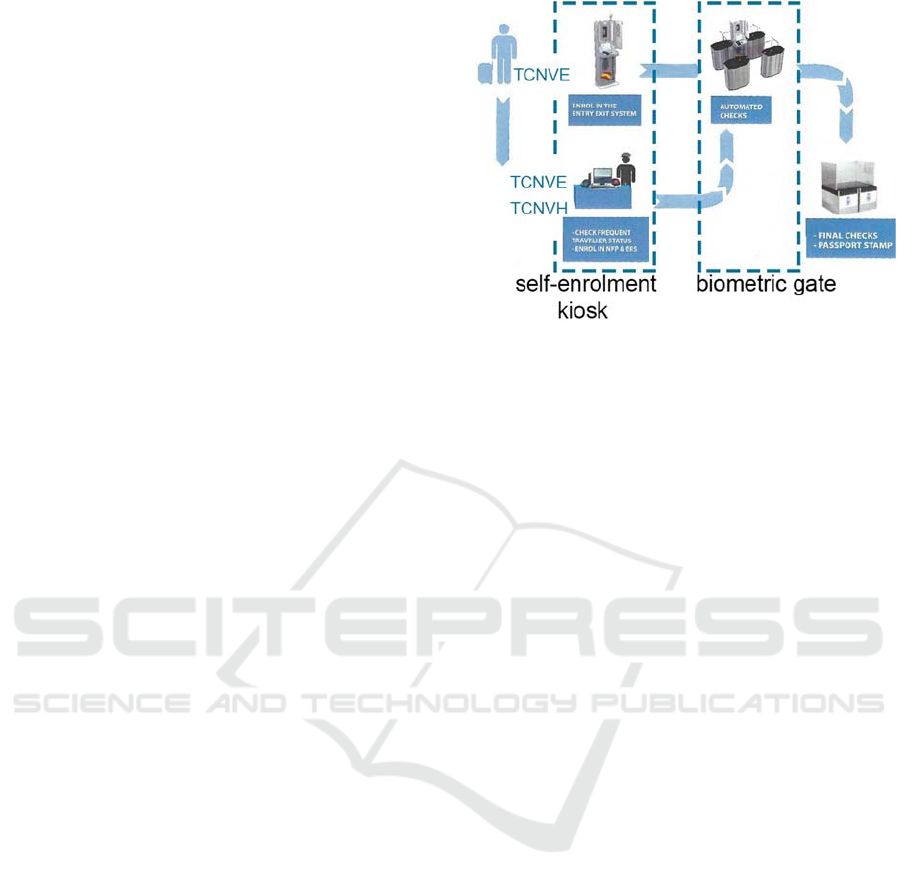

Figure 4: Simple scheme of an ABC4EU system (image

owner ABC4EU project).

After registration and when the traveller’s

document verification is a success, the system stores

the registered traveller’s data for a limited period of

time. During this time interval, the traveller can

proceed to the e-gate for the verification stage.

Two different protocols have to be applied

depending on the type of traveller. On the one hand,

TCNVE travellers can do the enrolment at the e-kiosk

when arriving at the airport before their trip. In case

they are frequent travellers, they can enrol the system

only once at their consulate, which allows them to

avoid repeating the enrolment in every trip. On the

other hand, enrolment at the airport is not available

for TCNVH travellers, so they must enrol the system

at the consulate before the verification stage at the

airport.

2.1.2 Verification Stage

The verification stage consists in comparing a new

capture of the traveller’s biometric data (“live check

sample”) with the biometric data captured at the selft-

enrolment stage (“live enrolment sample”).

The verification process always takes place at the

e-door and after the enrolment stage. Both the

TCNVE travellers and the TCNVH travellers must

pass this stage.

2.2 PAD in the ABC4EU Systems

A presentation attack occurs at the capture phase

(sensor level) of the biometric subsystem. As phases:

one at the self-enrolment and the other one at the

biometric gate, this causes the system to have two

vulnerable points to a PA.

To cover all possible scenarios, we shall consider

Face Recognition-based Presentation Attack Detection in a Two-step Segregated Automated Border Control e-Gate - Results of a Pilot

Experience at Adolfo Suárez Madrid-Barajas Airport

133

Table 1: Summary of all possible scenarios in our experimental setup.

Operation made Bona fide presentation Presentation Attac

Enrolment stage

Document

identification

A passenger presents

his/her genuine travel

document in the expected

way

An attacker presents a manipulated travel document (case not

considered here)

Biometric verification

(chip sample vs. live

enrolment sample)

A passenger presents

his/her genuine biometric

features in the expected

way

EPA: An attacker tries to cheat

the enrolment system with

someone else’s biometric

features, with manipulated

biometric features or is not

collaborative with the system

EPA + VPA: An attacker

cheats the enrolment system

with someone else’s biometric

features, with manipulated

biometric features or is not

collaborative with the system,

and does it succesfully. Then

the attacker tries to repeat the

attack with the verification

system.

Verification stage

Biometric verification

(live enrolment

sample vs. live check

sample)

A passenger presents

his/her biometric features

in the expected way

VPA: After a bona fide

enrolment made by a

passenger, an attacker tries to

cheat the verification system

with someone else’s biometric

features, with manipulated

biometrics features or is not

collaborative with the system

three different presentation attacks:

 Enrolment PA (EPA), when a presentation attack

occurs at the self-enrolment stage. For example,

an attacker provides the system with

documentation that belongs to someone else and

therefore tries to impersonate the true holder of

the documents.

 Verification PA (VPA), when a presentation

attack occurs at the verification stage. An attacker

tries to impersonate a traveller who has previously

enrolled the system. For example, a correctly

registered traveller loses or is stolen his/her

documents between the self-stage and the

verification stage. Then an attacker uses those

documents to try to pass the verification.

 Enrolment and Verification PA (EPA + VPA). In

this case, an impersonation has occurred at the

enrolment and the attacker continues

impersonating the true traveller at the verification

stage (double attack). For example, an attacker

presents travel documentation that belongs to

someone else and gets successfully enrolled. After

that, in the verification stage the attacker

continues to impersonate the true holder of the

documents in order to cross the e-gate.

These three possible scenarios complicate the

evaluation of the PAD subsystem (see Table 1).

3 EXPERIMENTAL SETUP

A pilot experience was performed at the Adolfo

Suárez Madrid-Barajas Airport T4-S international

arrivals terminal in December 2016. This airport,

which serves the capital of Spain and the centre of the

Iberian peninsula, is the busiest airport in Spain, the

fifth one in Europe and the 24th one worldwide

regarding passenger traffic. In 2015 it reached an

amount of almost 47 million passengers (ACI, 2016).

As we said above, ABC4EU systems capture the

fingerprint and an image of the face in the biometric

subsystem. Some studies have focused on fingerprint

recognition for these types of systems like Donida

Labati et al. (2016), but in our experiments, we have

focused on facial recognition for two reasons. On the

one hand, the face image is the only biometric

reference which is compulsorily present in all

passports in the world (in the Schengen zone also the

fingerprints of the left hand). And on the other hand,

the face is a feature that, in case of a false negative

system response, an agent can always contrast the

information with an easy visual inspection.

With our tests, we have analysed the attacks at the

self-enrolment stage (ESA) and at the verification

stage (VSA), both in isolation.

For the enrolment, the original passports have

always been used and all the PAIs have been built

with features of 9 people, who are also the owners of

those passports. Thus, a bona fide presentation (chip

sample) is cross-matched against one bona fide

presentation (enrolment live sample) and against 6

attacks with different PAIs.

At the verification, only those cases where the

enrolment has been made with a bona fide

presentation are used. In this way, a bona fide

presentation (enrolment live sample) is cross-

matched against one bona fide presentation

(verification live sample) and against 6 attacks with

different PAIs.

SECRYPT 2017 - 14th International Conference on Security and Cryptography

134

Figure 5: Different PAIs used to test the system. From top

to bottom and from left to right: Photo, Mask, Screen, 3D

Mask, Morphing, T-shirt.

We have selected several common PAIs found in

literature to test our facial PAD system (Figure 5),

which are summarized as follows:

1. Photo attack: It consists of presenting a printed

photograph of the traveller intended to be

impersonated.

2. Mask Attack: It consists of wearing a paper or

cardboard mask with the traveller’s face. The eyes

of the mask are trimmed to avoid blinking-based

life detection systems.

3. Screen Attack: It consists of using an electronic

device to play a video of the passenger, also to

surpass the life detection system.

4. 3D Mask: It consists of using a resin mask,

captured and printed with 3D technology. This

type of masks allows attacking more sophisticated

capture systems using Kinect cameras or 3D

scanners (Nesli Erdogmus, 2014).

5. Attack T-Shirt: It consists of wearing a T-shirt on

which a photograph of the traveller to be

impersonated has been stamped.

6. Morphing Attack: It consists of blending the face

of the traveller with the face of the attacker using

image fusion software, similarly to the work by

Ferrara et al., (2014). However, in our tests the

biometric information stored at the passport is

never modified. We present a printed morphing

image to the capture system.

Our PAD system returns a probability that the

presentation is bona fide presentation.

To verify the integrity of the system against the

attacks and to analyze the PAD obtained data, several

curves have been calculated, like the usual ROC

curves, which represent in biometrics the false

negative and false positive rates for the different

thresholds. In this case the curves present the obtained

APCER and the BPCER rates.

Because of security reasons (the pilot was

performed in a critical area with a real border

crossing), the amount of test subjects was limited.

This restriction is the reason of relatively small

number of some of the attacks.

Table 2: Amount of presentations to test at the enrolment

and verification stages.

Enrolment Verification

Bona Fide 16 Bona Fide 18

Photo 9 Photo 4

Mas

9Mas

Screen 5 Screen 6

3D Mask 6 3D Mask 6

Morphing 8 Morphing 7

T-Shirt 7 T-Shirt 2

During the self-enrolment stage, see Table 2, 61

presentations were made with 6 different travellers,

taking into account bona fide presentations attempts

and attacks with the different PAIs. At the verification

stage, 93 presentations were made in total, but we will

only use 48, those in which the enrolment was made

with a bona fide presentation. We have ignored

double attacks (EPA+VPA).

4 RESULTS

In a PAD system, as in most biometric systems,

APCER errors and BPCER errors cannot be

considered equally important. As mentioned above,

the APCER error is considered a measure of system

security while the BPCER is a measure of the

convenience of the system.

In ABC systems, we must consider security as the

most important factor against convenience, so it is

advisable to set a threshold value that returns a low

APCER value even if it increases the BPCER. Since

Face Recognition-based Presentation Attack Detection in a Two-step Segregated Automated Border Control e-Gate - Results of a Pilot

Experience at Adolfo Suárez Madrid-Barajas Airport

135

ABC systems are controlled by an agent, always a

bona fide presentation considered as an attack, in

other words a false positive, will trigger an alarm that

can be verified and corrected by an agent

In Table 4 we can see APCER, BPCER and ACER

values for different thresholds at self-enrolment and

verification stages. As we said the decrease of the

APCER entails an BPCER increase, but considering

security as our objective, a threshold of 80 at

self-enrolment and 95 at biometric gate would be the

most suitable. As seen in the table those two

thresholds are the ones that have less ACER in its

stage.

In Figure 5, the graphical representation of

APCER vs. BPCER for all threshold range is

presented in the case of self-enrolment stage. The

attacks results are presented both: individually for

each attack and globally aggregating all attacks. Same

information is present in Figure 6 for the gate stage.

In the obtained curve for the self-enrolment stage

(Figure 5), it is observed that the most dangerous

attacks for the system are the screen attacks and the

photos attacks (T-Shirt attack has more APCER but

this result cannot be generalized because data

shortage), while the other attacks like morphing

attack are easily detectable in this stage. Although at

verification most of the attacks have a higher APCER

value than in the enrolment, it is morphing attack

clearly the one that most succeeds in deceiving the

system (Figure 6). This behaviour can be explained

observing the difference between the reference image

use in the facial verification in both situations. In self-

enrolment kiosk, the reference image is the chip

passport image, in the case of the e-gate, it is the life

image acquired previously in the self-enrolment

kiosk.

The low quality of the biometric feature presented

in the facial image passport allows a less successful

detection morphing attacks than in the case of a more

recently life image used in the e-gate.

Also in the results, it is possible to see that for

most of the attacks, the BPCER in enrolment is higher

than in the verification. This indicates that the

enrolment system is less friendly and will reject more

presentations even if there are bona fide

presentations.

In general, the experiments in the enrolment have

a lower EPCER than the same ones at verification

(Table 3). This indicates that the self-enrolment stage

is more robust to attacks than the verification stage,

i.e. fewer attacks have been classified as bona fide

presentations (APCER) and fewer bona fide

presentations have been classified as attacks

(BPCER). All this shows that using is biometric

passport information to detect attacks, as done in the

enrolment (chip sample vs. live enrolment sample), is

more reliable than comparing the capture at

verification with the capture in the enrolment (live

enrolment sample vs. live check sample), two current

images of the passenger.

Table 3: EPCER (Equal presentation classification error

rate) of each of the PAIs in the self-enrolment and

verification stages.

PAI

EPCER

(enrolment)

EPCER

(verification)

Photo 0.2000 0.2071

Mas

0.0333 0.2071

Screen 0.1505 0.1714

3D Mask 0.0 0.0

Morphing 0.0 0.5000

T-Shirt 0.2583 0.0

All PAIs 0.1210 0.2106

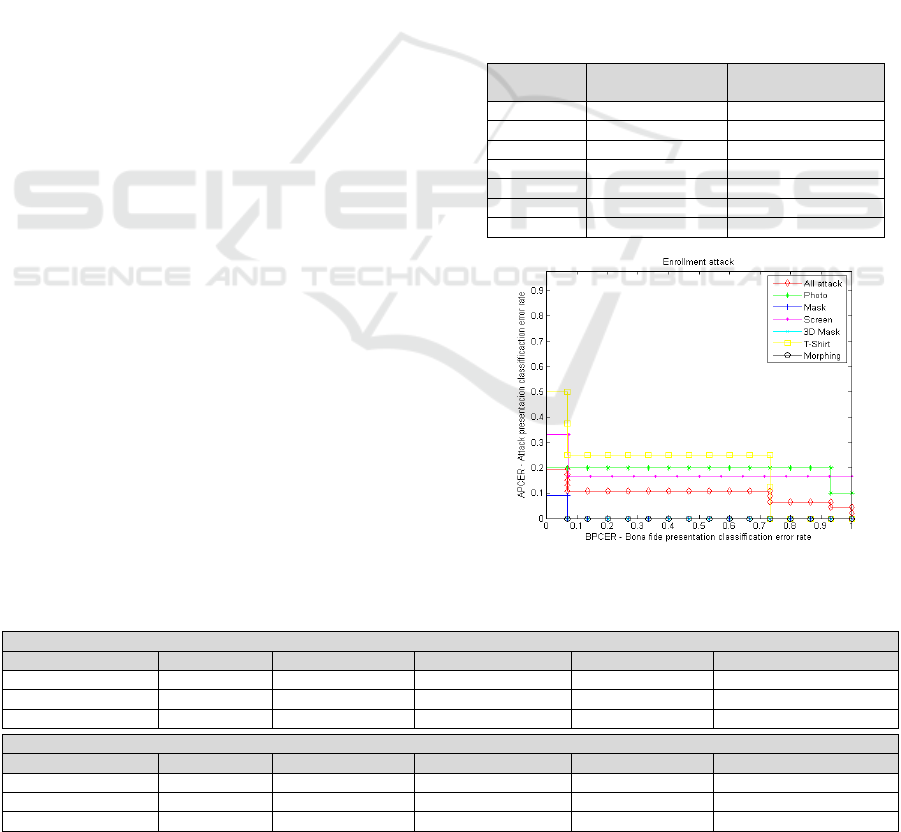

Figure 5: APCER-BPCER curve in the self-enrolment stage.

Table 4: APCER, BPCER and ACER values for different thresholds at enrolment and verification.

Self-enrolment

threshold 40 70 80 90 95

APCER 0.7609 0.3261 0.1739 0.1087 0.0217

BPCER 0.0 0.0 0.0667 0.7333 1.0

ACER 0.3804 0.1630 0.1203 0.421 0.5217

Biometric gate

threshold 40 70 80 90 95

APCER 0.8276 0.6552 0.5862 0.4483 0.2069

BPCER 0.0 0.0 0.0 0.0 0.1429

ACER 0.4138 0.3276 0.2931 0.2241 0.1749

SECRYPT 2017 - 14th International Conference on Security and Cryptography

136

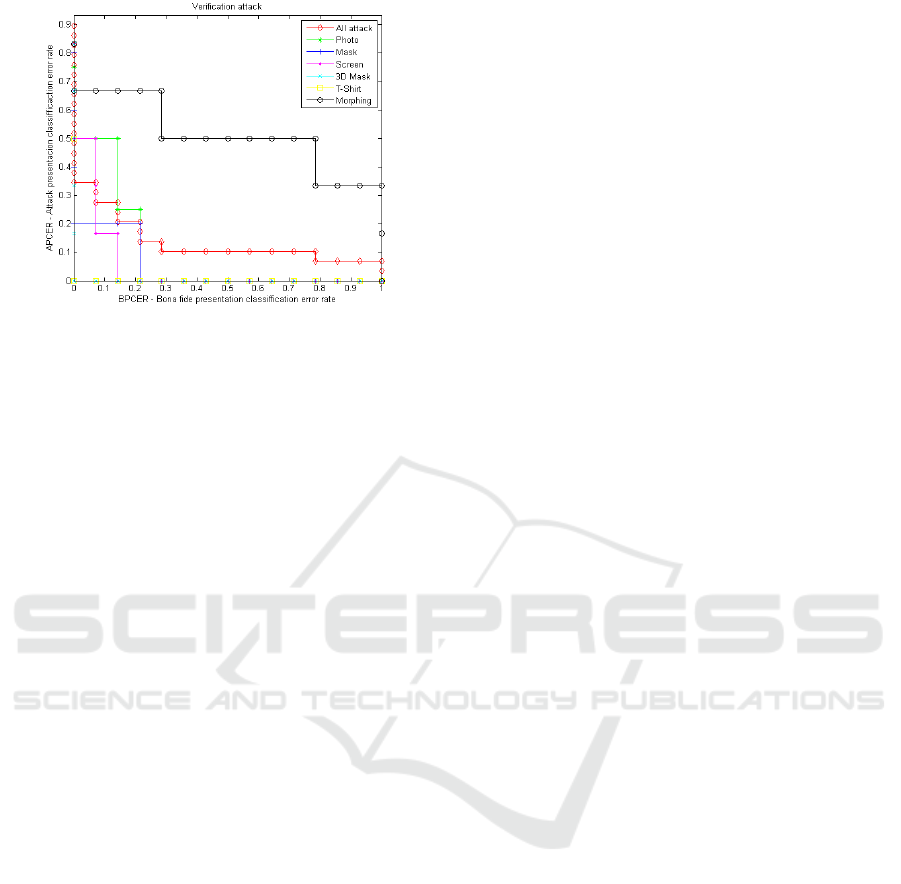

Figure 6: APCER-BPCER curve at the verification stage.

The reason for this difference is that the PAIs for

the attacks are usually built with more recent

passenger photos. For example, in our tests the PAIs

were constructed with photos taken a few days before

the tests. This means that the differences between the

PAI and the passenger appearance are added the

differences between the oldest passport image and the

current appearance of the passenger.

5 CONCLUSIONS

In this paper, we have presented the results of a pilot

experience carried out with a two-step segregated

ABC system. This pilot was performed with real ABC

e-gate developed in ABC4EU project and in a real

border crossing at T4-S terminal of Adolfo Suárez

Madrid Barajas Airport in December 2016.

The system comprises two stages that are carried

out in two different devices. On the one hand, the

self−enrolment kiosk where the passenger is register

after the system check out his/her biometric features

with the biometric features stored on submitted

passport. And on the other hand, the biometric gate

where the system verify that the passenger is the same

that made the register in the e-kiosk, comparing the

biometric features of registered passenger against the

biometric feature of the passenger present in the gate.

With our experiments, we have tested the security

of the system, especially the capture of the biometric

subsystem, testing its response to presentation

attacks. We have tested different types of attacks with

artefacts commonly used to perform impersonations,

such as photos, paper masks, video screens, 3d mask

or printed t-shirts.

The results obtained allow us to draw three

important conclusions.

First, we can say what attack are the most

dangerous for the system and against which of them

the surveillance should be increased: Video attack or

photo attack in the self-enrolment stage, while in the

biometric gate stage morphing attack is the most

effective.

Also, we have proposed the optimal thresholds

that minimize the average error (ACER) in both stages

of the system. Those thresholds are different for each

one stages, being higher the threshold in biometric

gate than in the self-enrolment stage.

And finally, we have realized that the first

verification that is carried out in the self-enrolment e-

kiosk is safer than the one that is performed in the

biometric gate. This is due to the face image in

passport is usually lower quality than the captured

face image and it is older too. These two factors have

important impact in the PAD results and make two

things clear: If the PAIs (presentation attack

instrument) were constructed with images of the

passenger very similar to those of their documents,

the verification and enrolment errors would be

comparable and the system would be more

vulnerable. And also, from the point of view of the

system security, in order to increase the detection of

attacks, a countermeasure could be that the biometric

gate should make two verifications: contrast the

captured image of the passenger with his/her image in

the self-enrolment and again with the image of the

passport.

In the pilot the system security protocols are not

yet fully established and the PAD control has not yet

been activated. In future tests, the development of the

pilot will be more advanced and the system will allow

more exhaustive experiments. For example, some

future work will be an analysis of different

possibilities of cross-match between attacks in the

self-enrolment and attacks in the biometric gate. And

another future experiment would be to check the

results if the PAIs for the attacks were made with

same images of the traveller’s documents.

ACKNOWLEDGEMENTS

This work has been part of the ABC4EU project and

has received funding from the European Union’s

Seventh Framework Program for research,

technological development and demonstration under

grant agreement No 312797. This work has been

already part of the BIOinPAD project and has

received funding from the Spanish Ministry of

Economy, Industry and Competitiveness under the

reference TIN2016-80644-P.

Face Recognition-based Presentation Attack Detection in a Two-step Segregated Automated Border Control e-Gate - Results of a Pilot

Experience at Adolfo Suárez Madrid-Barajas Airport

137

REFERENCES

ABC4EU, 2014. Automated Border Control Gates for

Europe. http://abc4eu.com.

Airports Council International (ACI), 2016. Year to date

passenger traffic DEC 2015. http://www.aci.aero/Data-

Centre/Monthly-Traffic-Data/Passenger-Summary/Ye

ar-to-date.

Berklund, E., Karbauskaite, R., 2008. Frontex perspectives

on biometrics for border checks. In Proceedings of

BIOSIG’08, pp. 107-116.

Boeing, 2016. Current Market Outlook: 2016 – 2035.

http://www.boeing.com/resources/boeingdotcom/comc

ommerc/about-our-market/assets/downloads/cmo_prin

t_2016_final_updatup.pdf.

Cuesta Cantarero, D., Pérez Herrero, D. A., Martín Méndez,

F., 2013. A multi-modal biometric fusión

implementation for ABC systems. In 2013 European

Intelligence and Security Informatics Conference.

Donida Labati, R., Genovese, A., Muñoz, E., Piuri, V.

Scotti, F., Sforza, G., 2016. Biometric Recognition in

Automated Border Control: A Survey. ACM Computing

Surveys, Vol. 49, No. 2, Article 24.

Erdogmus, N., Marcel, S., 2014. Spoofing Face

Recognition With 3D Masks. IEEE Transactions on

information forensics and security. Vol. 9, No. 7, July

2014, pp. 1084-1097.

FastPass, 2016. FastPass: a harmonized, modular reference

system for all European automated border crossing

points. https://www.fastpass-project.eu.

Ferrara, M., Franco, A., Maltoni, D., 2014. The Magic

Passport. In 2014 IEEE International Joint Conference

on Biometrics.

Frontex, 2012. Best Practice Operational Guidelines for

Automated Border Control (ABC) Systems, version

2.0. ISBN 978-92-95033-57-3.

ISO/IEC 30107-1:2016(E), 2016a. Information

Technology – Biometric Presentation Attack Detection

– Part 1: Framework.

ISO/IEC JTC 1/SC 37 N 6364, 30107-3, 2016b.

Information Technology – Biometric Presentation

Attack Detection – Part 3: Testing and Reporting

(Draft). http://isotc.iso.org/livelink/livelink?func=ll&

objId=17578675&objAction=Open&viewType=1.

Kosmerlj, M., Fladsrud, T., Hjelm, E., 2006. Face

recognition issues in a border control environment. In

Advances in biometrics Lecture Notes in Computer

Science, Ahang AKJ, D. (ed.), Springer Verlag, pp.

365-372.

Ratha, N. K., J. H. Connell, Bolle, R. M., 2001. Enhancing

security and privacy in biometrics-based authentication

systems. IBM Systems Journal, Vol. 40, no. 3, pp. 614-

634.

Sánchez del Río, J., Moctezuma, D., Conde, C., Martín de

Diego, I., Cabello, E., 2016. Automated border control

e-gates and facial recognition systems. Computers &

Security, Vol. 62, pp. 49-72.

SECRYPT 2017 - 14th International Conference on Security and Cryptography

138
