An Authoring Tool to Elicit Knowledge to be Taught without

Programming

Awa Diattara

1,2

, Nathalie Guin

, Vanda Luengo

and Amélie Cordier

Université de Lyon, CNRS, Université Lyon 1, LIRIS, UMR5205, F-69622, France

Univ. Grenoble Alpes, LIG, F-38000 Grenoble, France

Sorbonne Université, UPMC Université Paris 6, F-75005, CNRS, UMR 7606, LIP6, F-75005, Paris, France

Keywords: Authoring Tool, Knowledge Acquisition, Problem Solving Methods, Intelligent Tutoring Systems.

Abstract: Knowledge acquisition is a crucial problem for the design of Intelligent Tutoring Systems (ITSs). To

overcome this problem, authoring tools have been proposed. Over two dozen of authoring tools have been

built since the earliest days of ITS, but each of them focuses on a particular kind of ITSs such as constraint-

based tutors or model-tracing tutors. In the context of the AMBRE project, we are interested in ITSs teaching

problem-solving methods. Such ITSs enable learners to acquire a specific method in problem-solving. Despite

of the variety of existing authoring tools, these tools do not meet our needs either because approach adopted

do not match to AMBRE principle or because they do not allow to represent all knowledge needed to design

an AMBRE ITS. We propose AMBRE-KB, an authoring tool to help authors to elicit knowledge needed for

the design of AMBRE ITSs. This tool supports the acquisition of knowledge to be taught, and the description

of problems to be solved. We present the authoring process and illustrate it using French verb conjugation

domain. A preliminary evaluation shows that AMBRE-KB is successful in producing domains models but

more thorough evaluation is planned.

1 INTRODUCTION

The work we present in this paper takes its origin in

the AMBRE project (Guin-Duclosson et al. 2002)

The purpose of this project is to design Intelligent

Tutoring Systems (ITSs) for teaching problem

solving methods (Schoenfeld, A. 1988; Schoenfeld

1985). Such ITSs enable the learner to acquire a

specific method in problem-solving. In each

application domain, a method is based on a

classification of problems and solving tools.

To assist the learner in building his/her own

classification, the AMBRE project proposes a

learning process based on reasoning by analogy,

called the AMBRE cycle (Nogry et al. 2008). The

AMBRE cycle consists in showing first solved

problems (serving as cases-base initialization) to the

learner and then encouraging him/her to apply

analogical reasoning to solve other problems.

AMBRE ITSs are based on a knowledge-based

system coded in Prolog, a programming language for

knowledge representation. This knowledge-based

system relies on a problem solver and uses two main

types of knowledge: knowledge about the method to

be taught and knowledge to guide the learner when

he/she solves problems, providing assistance and

diagnosing his/her answers.

Building an AMBRE ITS, like any other ITS, is a

labor-intensive process that requires expertise in the

domain application and in programming (Murray

2003; Woolf & Cunningham 1987). Our goal is to

reduce the effort of making AMBRE ITSs by building

an authoring tool that can generate the domain

models. This tool should provide assistance to the

authors during knowledge elicitation process. Our

intention is to enable authors with no Prolog

programming expertise to build their own ITS in the

domain they are interested in.

Many authoring tools have been proposed in the

literature (Blessing et al. 2007; Mitrovic et al.;

Murray 2003a), but as far as we know, none of these

tools meet our need, because either they do not match

to AMBRE principle or do not allow to represent all

knowledge needed for the design of an AMBRE ITS.

This is why we propose to design AMBRE-KB, an

authoring tool for the AMBRE project.

This paper presents AMBRE-KB, and illustrates

the process of creating an ITS using this tool. This

Diattara, A., Guin, N., Luengo, V. and Cordier, A.

An Authoring Tool to Elicit Knowledge to be Taught without Programming.

DOI: 10.5220/0006315100820091

In Proceedings of the 9th International Conference on Computer Supported Education (CSEDU 2017) - Volume 1, pages 82-91

ISBN: 978-989-758-239-4

authoring tool assists the author in the process of

knowledge acquisition and generates a Prolog version

of this knowledge which is directly usable by the ITS.

The paper starts with a brief introduction related

to knowledge acquisition methods and techniques

used within ITSs authoring tools. Section 3 details the

AMBRE-KB authoring tool and the knowledge

acquisition process proposed. We also include a

preliminary evaluation about how AMBRE-KB can

be used to elicit knowledge needed for a given

domain of learning. Section 4 presents conclusion and

directions of future work.

2 RELATED WORK

In the literature, ITSs authoring tools have been

classified into two main groups: pedagogy-oriented

and performance-oriented (Murray 2003a).

Pedagogy-oriented systems are those that focus on

instructional planning and teach relatively fixed

content. On the other hand, performance-oriented

tools focus on providing rich learning environments

in which students can learn skills by practicing them

and receiving feedback.

REDEEM (Ainsworth et al. 2003; Ainsworth &

Grimshaw 2003), ISD-Expert (Tennyson & Breuer

1994) and DNA (Shute et al. 1998) are examples of

the first category of authoring tool. To acquire

knowledge, these systems use an interactive dialogue

box. But, one of the notorious limits of these systems

is that generally, experts feel constrained by the fixed

sequence of data entry.

Further work focused on the acquisition of

procedural knowledge. Several systems have been

developed. We may mention for example DISCIPLE

(Tecuci & Keeling 1999), DEMONSTR8 (Murray

2003b). In DEMONSTR8, for example, the system

infers production rules using programming-by-

demonstration techniques, coupled with methods to

further abstract the generated production.

Nevertheless, these systems are limited to

domains where the knowledge can be represented

step by step.

ASPIRE (Mitrovic et al. 2006), an authoring that

enables the design of constraint-based tutors, belongs

to the category of performance-oriented tools. To

acquire knowledge in this system, the authors use

ontologies: (1) construction of the domain ontology,

(2) acquisition of syntactic constraints directly from

the ontology, and (3) use of a dialog box with the

expert in order to infer semantic constraints. But, this

tool is limited to models based on constraints.

CREAM-Tools (Nkambou et al., 2003) also

belongs to the category of performance-oriented tools

since it allows the connection between skills and how

to acquire them. For example, specific learning

materials are linked to specific skills to support their

learning. But approach adopted with this tool does not

match to AMBRE principle.

Another authoring tool in this category is CTAT

(Cognitive Tutor Authoring Tools). CTAT assists

authors in the creation and the delivery of two kinds

of tutors: cognitive tutors (Koedinger & Corbett

2006) and example-tracing tutors (Aleven et al. 2009;

Aleven et al. 2016). Cognitive tutors are based on a

cognitive model with rules of production, and

concern generally tasks of problem resolution. The

resolution is led step by step, and the behavior of the

student at each stage is analyzed and corrected if it

deviates from the planned procedure. However,

cognitive tutors are limited to domain where the task

of problem resolution is made step by step and where

all the knowledge of the domain can be represented

in the form of production rules. Moreover, the design

of such tutors requires programming skills. Example-

tracing tutors, the second type of tutors built by

CTAT, have the advantage to be quickly developed

without programming. To build an example-tracing

tutor, the author builds at first the student interface

using graphic tools, then he/she defines a graph of

resolution of the strategies of resolution of the

learners and their misconceptions. Example-tracing

tutors present the same inconvenient as model-tracing

tutors concerning the resolution of problems which is

led step by step.

ITSs designed within the AMBRE project

belongs also to the category of performance-oriented

tools, since they provide a learning environment in

which students can learn how to solve problems in

various domains and receive feedback about their

answers. In particular, AMBRE ITSs are based on a

knowledge-based system coded in Prolog. This

system relies on a solver which uses two categories of

knowledge: knowledge about the method to be taught

and knowledge to guide the learner providing him/her

assistance and diagnosis of his/her answers. The

knowledge to be taught is constituted by three types

of knowledge: classification knowledge,

reformulation knowledge and resolution knowledge.

Problems are given to the system as a model we call

descriptive model (presented in section in section

3.1). To solve a problem for a given domain of

learning, the solver uses the classification knowledge

and the reformulation knowledge to (i) determine the

class of the problem and (ii) to build a new model of

the problem called operational model. Then, the

resolution itself consists in applying to the operational

An Authoring Tool to Elicit Knowledge to be Taught without Programming

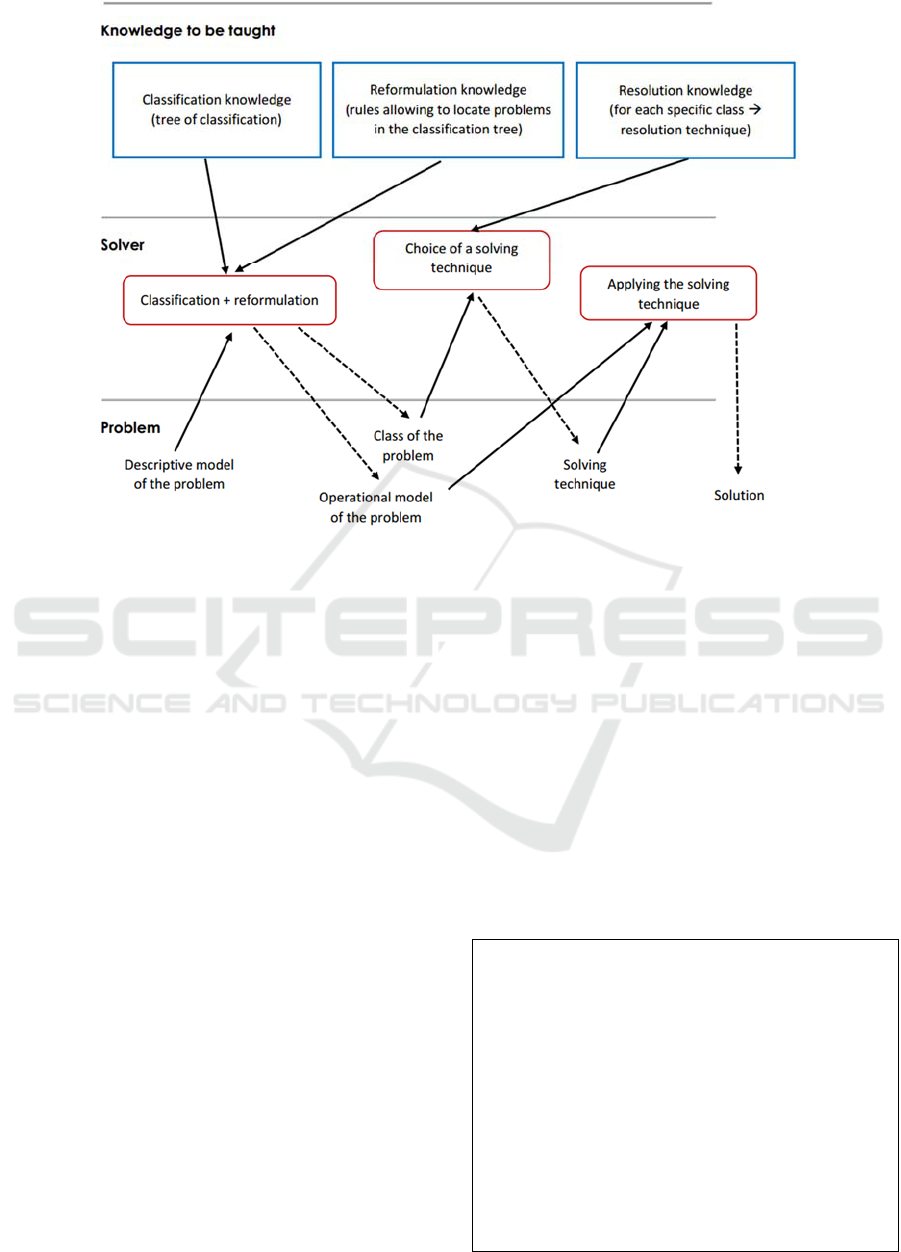

Figure 1: Functioning of AMBRE solver.

model the solving technique associated with the class,

to find the solution of the problem (Figure 1).

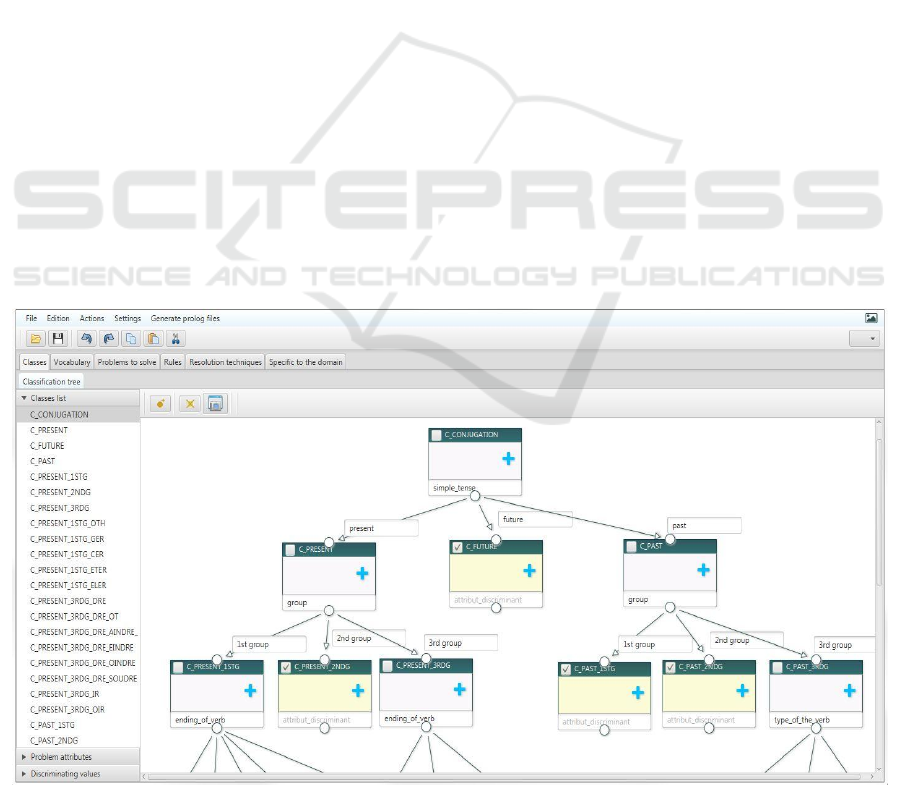

Classification knowledge is in the form of a

classification tree of problems to be solved.

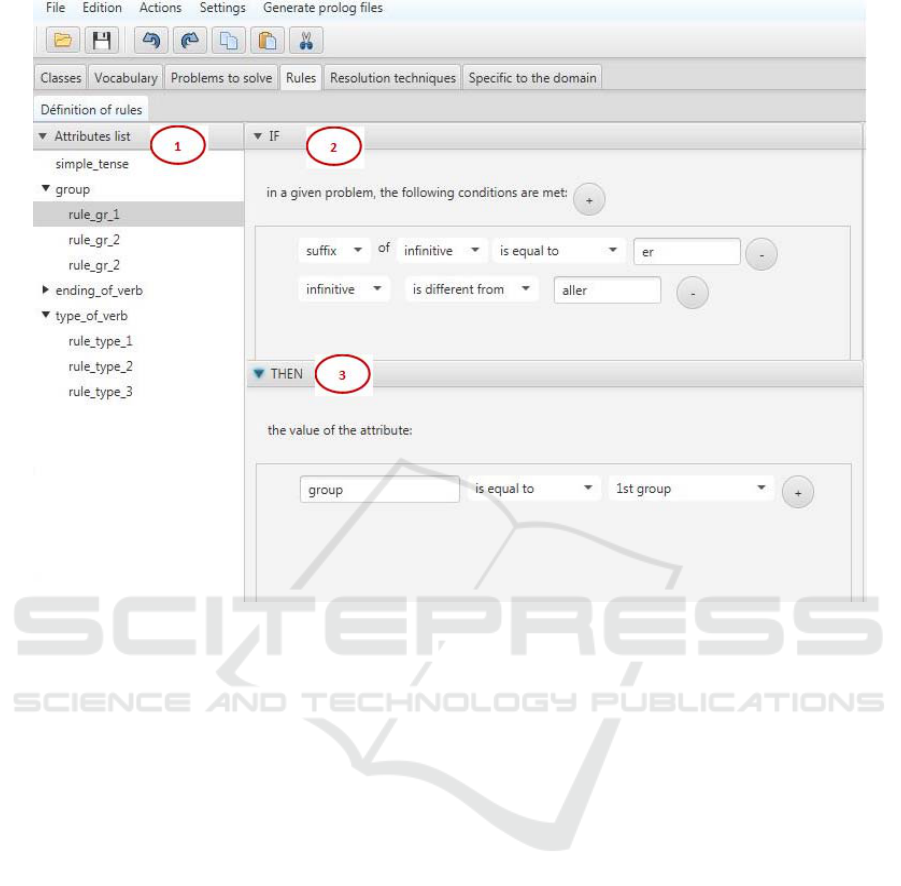

Reformulation knowledge is constituted by a set of

rules. These rules enable, from the statement of the

problem, to identify the most specific class of the

classification tree to which the problem belongs.

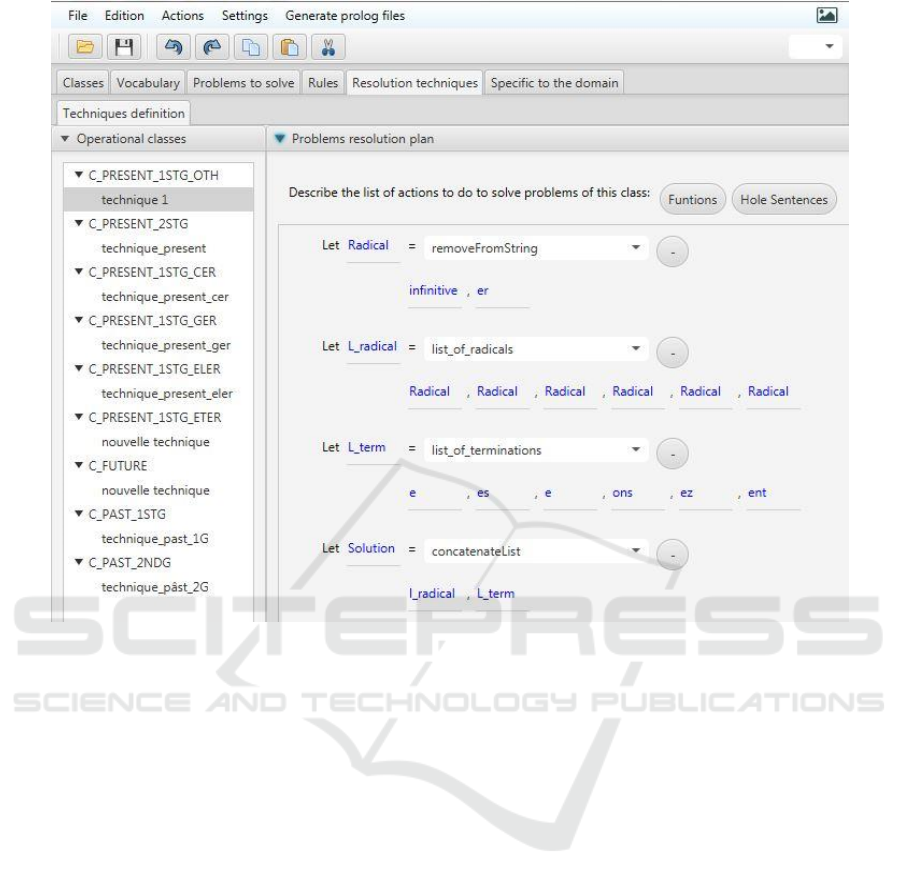

Resolution knowledge is constituted by the solving

techniques associated to each specific class of the

classification tree. We considered existing authoring

tools defined below, but they do not meet our needs

either because they do not match to AMBRE

principle or because techniques used do not enable to

represent all knowledge needed by an AMBRE ITS.

That is why we propose to define AMBRE-KB.

3 OVERVIEW OF AMBRE-KB

The goal of AMBRE-KB (AMBRE-Knowledge

Builder) is to assist authors in the in creation of ITSs

teaching problem-solving methods in the domain they

are interested in. Our intention is specially to allow

the description of knowledge needed by the system

without any Prolog programming.

AMBRE-KB enables the author to explicit

knowledge needed by an ITS and generates a Prolog

version of this knowledge in order to constitute the

knowledge bases of the ITS.

The acquisition of knowledge in AMBRE-KB is an

automated process based on meta-models. In order to

do so, we defined a meta-model for each type of

knowledge to be acquired. These meta-models define

the form of knowledge to be defined and constrain the

design process enabling to do so.

3.1 Authoring Process

The authoring process in AMBRE-KB consists of

nine steps summarized on Table 1.

Table 1: Authoring process.

1. Choice of a domain of learning

2. Choice of the types of exercises to be solved

3. Definition of the vocabulary for the domain of

learning

4. Description of problems to be solved by the system

and the learner

5. Description of knowledge to be taught (classification

knowledge, reformulation knowledge and resolution

knowledge)

6. Design of the interface for students

7. Description of knowledge to guide the learner

(proving him/her help and diagnosing his/her

answers)

8. Generation of knowledge models by AMBRE-KB

9. Test of generated models by the solver

CSEDU 2017 - 9th International Conference on Computer Supported Education

Phase 1: Choice of a Domain of Learning

The first task to do when designing an AMBRE ITS

is to choose the application domain. AMBRE ITSs

are based on a classification of problems to be solved

and solving techniques. Thus, the author has to

choose a domain in which he/she can establish a

classification of problems and solving techniques.

Figure 2 shows an example of classification for the

domain: French verbs conjugation.

Phase 2: Choice of the Types of Exercises to

be Solved

It is important before beginning the knowledge

elicitation process, that the author think about the type

of problems to propose to the learner. This second

step will help him/her to define the vocabulary (phase

3) - which play a central role in definition of

knowledge - and the classification tree (phase 4).

Phase 3: Definition of the Vocabulary for the

Domain of Learning

The third step consists in the definition of the

vocabulary. We need a vocabulary because, in the

AMBRE project, problems are given to the system as

a model we call descriptive model. This model

describes a concrete situation which is the one

represented in the statement of the problem. Objects

that appear in the statement are concrete elements that

constitute the contextual aspect of the problem. For

example, in geometry, the objects can concern the

characteristics of the geometric figure (dimensions of

the segments, angles, and so on).

The objects are connected by relations to form a

concrete situation. There are properties and relations

on those objects. Each object is characterized by an

identifier and a set of characteristics. The vocabulary

is constituted by all the objects needed to describe

problems and the question to be answered.

Phase 4: Description of Problems to be

Solved by the System and the Learner

In the fourth step, the author uses the vocabulary to

define problems to be solved by the system and the

learner. For each problem, the author has to define:

● the statement of the problem in natural language,

so that the learner can understand what to do.

● the descriptive model of the problem, for the

system. For that, he/she chooses in the

vocabulary, objects concerned, he/she then

instantiates objects (giving a name and a type for

● each characteristic of the object). He/she finally

specifies the question to be answered.

Phase 5: Description of Knowledge to be

Taught

Using AMBRE-KB, the author defines the

knowledge to be taught: classification knowledge,

reformulation knowledge, and resolution

knowledge (Diattara et al. 2016)

Classification Knowledge is in the form of a

classification tree where a class C2 is subclass of a

class C1 if any problem of C2 is also a problem of C1.

The root class is defined as the most general class, and

the leaves, the most specific ones. For each class a

discriminating attribute is defined. This attribute

must have different values in each subclass. Non-

discriminating attributes - called problem attributes –

can also be defined if they make sense for problems

Figure 2: Conjugation domain classification.

An Authoring Tool to Elicit Knowledge to be Taught without Programming

of the class. Problem attributes are useful for the

resolution and their values depend on the problem to

solve. Classes that are specific enough so that we can

assign them a resolution technique are called

operational classes.

Figure 3 shows a part of the classification graph

for conjugation, defined with AMBRE-KB.

To define the classification tree, the author can

choose to build the tree from the root to the leaves or

vice-versa. He/she has the possibility to define all

classes, and then organize them as a hierarchy. He/she

can also organize the classes into a hierarchy as the

definition of classes progresses. Some classes can be

defined adapting other classes.

The system checks that all non-operational classes

have at least one subclass. Operational classes can

have subclasses which are more specific. When two

classes have the same discriminating attribute, the

system suggests to the author to define the attribute at

the level of their lowest common ancestor class.

Reformulation Knowledge. In order to solve a given

problem, the solver needs first to determine the class

this problem belongs to. For that, the solver needs

rules allowing to calculate the value of attributes

(discriminating or not), thus enabling to locate the

problem in the classification tree. All the rules

constitute the reformulation knowledge. A rule is

defined by its name, a set of premises related to the

elements of the statement (objects of the problems),

and a set of conclusions enabling to calculate or to

modify the values of the attributes.

For example, Rule 1 enables to conclude about the

value of the attribute group.

Rule 1:

If for a given problem

- there is a verb V

- the suffix of V is “er”

- V is different from the verb “aller”

Then, the value of the attribute group is 1

group.

To define rules with AMBRE-KB, the author can

choose, for example, to define rules as the definition

of the classes progresses. In this case, for each class

defined in the tree, he/she has to define the attributes

(discriminating or not), and then the rules that enable

to first define the whole classification tree and then,

process to the definition of rules.

The system checks if the expert has associated

rules to each attribute defined in the classification tree

in order to calculate their value.

For each rule, the system also checks if the

conclusion part of the rule provides information about

the attribute.

Figure 4 is a representation with AMBRE-KB of

rule 1.

On (1) we have the list of attributes, and for each

of them the rules enabling to determine its different

values.

On (2), we have the premises of the rule.

(3) shows the conclusion of the rule which enable

to conclude about the value of the concerned attribute.

Resolution Knowledge. Each operational class in the

classification tree has an associated technique.

Figure 3: A part of conjugation tree defined with AMBRE-KB.

CSEDU 2017 - 9th International Conference on Computer Supported Education

Figure 4: Definition of rule 1 using AMBRE-KB.

These techniques constitute the resolution

knowledge. They are specific to each application

domain. For example, in the domain of arithmetic

problems, a resolution technique provides a plan for

solving an exercise and a formula for calculating its

numerical solution. For example, Technique 1 shows

the technique to apply to conjugate verbs of the class

C_present_1

G_Reg to which the problem P1

belongs.

Technique 1

- determine the radical of the verb by removing the

suffix “er” from the verb

- build a list of six elements with the [radical]

- build a list with the following elements [e, es, e, ons,

ez, ent]

- concatenate the two lists in order to find the solution.

To explicit resolution knowledge using AMBRE-

KB, the author has two possibilities: he/she can

directly associate to each operational class of the

classification tree the corresponding resolution

technique or, he/she can define all classes first, and

then define all resolution techniques, and finally

connect each resolution technique to corresponding

operational class (or classes).

Figure 5 is a representation with AMBRE-KB of

technique 1 defined on section 2.3.

Phase 6: Design of the Interface for Students

The sixth step consists in designing the interface of

the ITS, and especially the tasks the student must

perform to solve problems, based on the AMBRE

cycle. But, as AMBRE-KB does not yet support the

design of the interface, the development of this

interface must be implemented by an IT specialist.

An Authoring Tool to Elicit Knowledge to be Taught without Programming

Figure 5: Definition of Technique 1 using AMBRE-KB.

Phase 7: Description of Knowledge to Guide

the Learner

Using AMBRE-KB, and based on knowledge to be

taught defined in phase 5, and the steps of resolution

defined in phase 6, the author defines the knowledge

to guide the learner.

Phase 8: Generation of Knowledge Models

by AMBRE-KB

For each type of knowledge, AMBRE-KB generates

a Prolog version of this knowledge as a model. All the

knowledge models generated constitute the

knowledge bases of the ITS that the solver can use to

solve problems.

Phase 9: Test of Generated Knowledge

Models by the Solver

In the last phase (ninth step), the author tests if

knowledge generated by AMBRE-KB enable the

solver to solve the different problems. For each

problem, he/she tests the resolution with the solver; if

the solver is able to solve it, it gives the solution of

the problem. Otherwise, it sends an error message

which should enable the author to understand and to

correct the error.

4 PRELIMINARY EVALUATION

We conducted a first experiment to verify if AMBRE-

KB is apt to encode correctly knowledge to be taught

(classification knowledge, reformulation knowledge

and resolution knowledge) so that the solver can use

it to solve problems.

4.1 Evaluation Protocol

We choose to perform the experiment with two

existing AMBRE ITSs.

Two domains were tested: arithmetic problems

for seven-year-old to nine-year-old pupils and French

verb conjugation.

The experiment procedure consisted in three

stages. We began by describing all knowledges on

paper, independently from Prolog. For each of the

two domains, we first defined the different problems

CSEDU 2017 - 9th International Conference on Computer Supported Education

to be solved. We then proposed a vocabulary to

describe these problems. Next, we defined the

classification tree. For each problem, we defined rules

allowing to locate this problem in the classification

tree. Next, we defined the resolution technique for

each operational class of the classification tree.

In the second step, we used AMBRE-KB to elicit

these knowledges. Once we finished with knowledge

elicitation, the system generated the knowledge

models in a Prolog version. Finally, we tested each

problem with the solver. If the solver was able to

solve the problem, it showed the class the problem

belongs to, the lists of rules executed by the system

and the solution of the problem. When the solver was

not able to solve a problem, it sent an error message

enabling to know what did not work and how to

correct it.

4.2 Results and Discussion

For French verbs conjugation, we defined with

AMBRE-KB:

● 21 classes, among which 13 are operational,

● 15 rules,

● 13 solving techniques,

● 80 problems to solve.

At the end of the experiment, AMBRE-KB

generated the Prolog version of this knowledge. The

solver was able to solve 100% of the problems. We

can deduce that AMBRE-KB has correctly generated

knowledge models so that they can be used by the

solver to solve problems.

For arithmetic problems, we defined with

AMBRE-KB:

● 21 classes, among which 14 are operational,

● 18 rules,

● 14 solving techniques,

● 98 problems to solve.

For 93% of the problems, the solver was able to solve

problems correctly using generated knowledge

models. For 7% of problems, the solver first sent an

error message to explain what did not work. For 4%

of the problems, we made an error on the value of the

discriminating attribute. The solver was not able to

find a reformulation rule to use, thus it was not able

to locate the problem in the classification tree. For the

3% remaining problems, the solver sent an error

message because it failed in applying the solving

techniques, because of lack of knowledge.

Once the missed or erroneous knowledge were

fixed, the solver was able to solve the 7% remaining

problems.

The objective of this first experiment was to

ensure that AMBRE-KB was able to correctly

generate knowledge models that the solver can use to

solve problems. The next step, which is the most

important for us, is to test the utility and usability of

AMBRE-KB by authors who are not IT experts. For

this experiment, we plan to process in three steps:

● The first step will consist in presenting to the

author the principle of the AMBRE project, and

the meta-models of knowledge to be acquired

(classification knowledge, reformulation

knowledge and resolution knowledge). We will

also present the objective of AMBRE-KB. At the

end of this first step, we will invite the author to

think about the domain in which he/she wants to

design an AMBRE ITS.

● In the second step, we will ask him/her to choose

a domain. Next, based on knowledge models, we

will ask him/her to elicit all knowledge needed

on paper. He/she will begin by defining the types

of problems to be solved. Next, he/she will define

a vocabulary for the domain. He/she then will

define the problems using the vocabulary.

Finally, he/she will define the classification

knowledge, the reformulation knowledge and the

resolution knowledge. At the end of this step, the

author will have described all knowledge needed

to solve problems.

● Finally, the author will use AMBRE-KB to elicit

this knowledge. Once the knowledge elicitation

is complete, the system will generate the

knowledge models and the author will be able to

test each problem with the solver. For each of

them, the solver will send the solution if all

knowledge needed is correctly elicited,

otherwise, it will send an error message enabling

the author to understand what was wrong and to

correct or complete missed knowledge.

During the experiment, the author will be filmed and

the verbal exchanges will also be recorded. During

the third step, we will observe his/her interaction with

the software and take notes on the time passed on

every type of knowledge, the difficulties met during

the knowledge elicitation, gestures and non-verbal

behavior of the author, his/her remarks and questions.

When the questions asked by the author concern the

functioning of the tool, we will first orient him/her on

the help proposed by the system. However, if the help

proposed by the system is not sufficient, we will give

him/her the necessary information, so that he/she can

continue the process of knowledge elicitation.

If we notice that the author does not move forward in

knowledge elicitation, we will consider that he/she

feels difficulties about the functioning of the tool. In

this case, we will ask him/her a question to know what

he/she wants to do. If the answer of this question

An Authoring Tool to Elicit Knowledge to be Taught without Programming

corresponds to a feature taken into account by the

tool, we will guide him/her so that he/she can

continue the knowledge elicitation process.

Otherwise, when what he/she wants to do is not taken

into account by the tool, we will consider that the

concerned task cannot be finished, and he/she will

continue the elicitation with others types of

knowledges.

The experiment will end when the author finishes

testing all problems with the solver. He/she will

complete a questionnaire composed of many sections

about the functioning of AMBRE-KB, the proposed

interfaces, the assistance proposed during knowledge

elicitation, the feedback of the solver, and their

profile (how he/she frequently uses a computer for

example).

5 CONCLUSIONS

We provided in this article an overview of AMBRE-

KB, an authoring tool that assists authors in building

ITSs teaching problem solving methods. This tool

enables the user to elicit all knowledge needed by the

system. AMBRE-KB follows an automated process

based on knowledge meta-models. The paper presents

the knowledge acquisition process and how can

AMBRE-KB can be used to build an ITS in a given

application domain.

We conducted a first experiment to verify if

AMBRE-KB can correctly generate knowledge

models in a Prolog version, so that the solver can use

them to solve problems. The results of this

experiment were satisfactory, but thorough

evaluation is planned with non-IT experts in order to

test the usability and utility of AMBRE-KB.

This work focused on the acquisition of knowledge

about the method to be taught. The next stage will

concern the acquisition of knowledge intended to

guide the learner during his/her learning. This

knowledge will enable to propose to the learner help

and explanations of various natures according to the

step of its resolution or committed errors.

In addition, a relevant track in the continuation of

our work is the integration of features of

generalization of knowledge from cases. This feature

will enable users to define an example, rather than an

abstract knowledge, the system proposing them a

generalization of the knowledge that they can

validate. The SimStudent (Matsuda et al. 2010)

approach which is based on learning abstract

knowledge from examples would be appropriate in

the context of this work.

ACKNOWLEDGEMENTS

We thank the Auvergne-Rhône Alpes region for

granting the scholarship that supports this thesis

work.

REFERENCES

Ainsworth, S. et al., 2003. REDEEM: Simple Intelligent

Tutoring Systems From Usable Tools. In T. Murray, S.

B. Blessing, & S. Ainsworth, eds. Authoring Tools for

Advanced Technology Learning Environments: Toward

Cost-Effective Adaptive, Interactive and Intelligent

Educational Software. Dordrecht: Kluwer Academic,

pp. 205–232.

Ainsworth, S. E. & Grimshaw, S., 2003. Evaluating the

REDEEM Authoring Tool: Can Teachers Create

Effective Learning Environments? International

Journal of Artificial Intelligence in Education, 14(3/4),

pp.279–312.

Aleven, V. et al., 2009. A new paradigm for intelligent

tutoring systems: Example-tracing tutors. International

Journal of Artificial Intelligence in Education, 19(2),

pp.105–154.

Aleven, V. et al., 2016. Example-Tracing Tutors: Intelligent

Tutor Development for Non-programmers.

International Journal of Artificial Intelligence in

Education, 26(1), pp.224–269.

Blessing, S. B. et al., 2007. Authoring Model-Tracing

Cognitive Tutors. International Artificial Intelligence

in Education Society (IJAIED), 19(2), pp.189–210.

Diattara, A. et al., 2016. Towards an Authoring Tool to

Acquire Knowledge for ITSs Teaching Problem

Solving Methods. In EC-TEL, 2016, Lyon, France, pp.

575-578.

Guin-Duclosson, N., Jean-Daubias, S. & Nogry, S., 2002.

The Ambre ILE: How to Use Case-Based Reasoning to

Teach Methods. In Conference: Intelligent Tutoring

Systems, 6th International Conference, ITS 2002,

Biarritz, France and San Sebastian, Spain. Biarritz, pp.

782–791. Available at: http://link.springer.com/

10.1007/3-540-47987-2_78.

Koedinger, K. R. & Corbett, A. T., 2006. Cognitive tutors:

technology bringing learning science to the classroom.

In R. K. Sawyer, ed. The Cambridge Handbook of the

Learning Sciences. Cambridge Handbooks in

Psychology. Cambridge University Press, pp. 61–77.

Matsuda, N., Cohen, W. W. & Koedinger, K. R., 2010.

Learning by teaching SimStudent: technical

accomplishments and an initial use with students. In

Intelligent Tutoring Systems: 10th International

Conference, ITS 2010, Pittsburgh, PA, USA, June 14-

18, 2010, Proceedings, Part I. Pittsburgh, USA, pp.

317–326.

Mitrovic, A. et al., ASPIRE: An Authoring System and

Environment for Constraint-Based Tutors Deployment.

Available at: http://hdl.handle.net/10092/3478.

CSEDU 2017 - 9th International Conference on Computer Supported Education

Mitrovic, A. et al., 2006. Authoring Constraint-Based

Tutors in ASPIRE. In Springer Berlin Heidelberg, pp.

41–50.

Murray, T., 2003. An Overview of Intelligent Tutoring

System Authoring Tools: Updated analysis of the state

of the art. In Authoring tools for advanced technology

learning. Available at: http://link.springer.com/

chapter/10.1007/978-94-017-0819-7_17 [Accessed

December 12, 2014].

Murray, T., 2003a. An Overview of Intelligent Tutoring

System Authoring Tools: Updated analysis of the state

of the art. In T. Murray, S. B. Blessing, & S. Ainsworth,

eds. Authoring Tools for Advanced Technology

Learning Environments: Toward Cost-Effective

Adaptive, Interactive and Intelligent Educational

Software. Dordrecht: Springer Netherlands, pp. 491–

544. Available at: http://dx.doi.org/10.1007/978-94-

017-0819-7_17 [Accessed December 12, 2014].

Murray, T., 2003b. Authoring intelligent tutoring systems:

An analysis of the state of the art. In T. Murray, B.

Stephen, & A. Shaaron, eds. Authoring Tools for

Advanced Technology Learning Environments. Kluwer

Academic Publishers, pp. 98–129.

Nkambou, R., Frasson, C. & Gauthier, G., 2003. CREAM-

Tools: An authoring Environment for Knowledge

Engineering in Intelligent Tutoring Systems. In T.

Murray, S. B. Blessing, & S. Ainsworth, eds. Authoring

Tools for Advanced Technology Learning

Environments. Dordrecht: Springer Netherlands, pp.

269–308.

Nogry, S., Guin, N. & Jean-Daubias, S., 2008. AMBRE-

add: An ITS to Teach Solving Arithmetic Word

Problems. Technology, Instruction, Cognition and

Learning, 6(1), pp.53–61. Available at:

http://liris.cnrs.fr/publis/?id=3548.

Schoenfeld, A., H., 1988. Problem solving in context. In I.

Charles, R & A. Silver, E., eds. The teaching and

assessing of mathematical problem solving. Reston,

VA: The National Council of Teachers of

Mathematics., pp. 82–92.

Schoenfeld, A. H., 1985. Mathematical Problem Solving,

Academic Press.

Shute, V., Torreano, L. & Willis, R., 1998. DNA —

Uncorking the Bottleneck in Knowledge Elicitation and

Organization. In B. Goettl et al., eds. Intelligent

Tutoring Systems SE- 20. Lecture Notes in Computer

Science. Springer Berlin Heidelberg, pp. 146–155.

Tecuci, G. & Keeling, H., 1999. Developing an intelligent

educational agent with disciple. International Journal

of Artificial Intelligence in Education, 10(3–4), pp.221–

237.

Tennyson, R. & Breuer, K., 1994. ISD EXPERT: An

Automated Approach to Instructional Design. In R.

Tennyson, ed. Automating Instructional Design,

Development, and Delivery SE - 9. NATO ASI Series.

Springer Berlin Heidelberg, pp. 139–161. Available at:

http://dx.doi.org/10.1007/978-3-642-78389-0_9.

Woolf, B. & Cunningham, P.A., 1987. Multiple Knowledge

Sources in Intelligent Teaching Systems. IEEE Expert,

2(2), pp.41–54.

An Authoring Tool to Elicit Knowledge to be Taught without Programming
