Reentrancy and Scoping for Multitenant Rule Engines

Kennedy Kambona, Thierry Renaux

∗

and Wolfgang De Meuter

Software Languages Lab, Vrije Universiteit Brussel, Pleinlaan 2, 1050 Brussels, Belgium

Keywords:

Rule-based Systems, Multitenancy, Rule Engines, Rete Algorithm, Reentrancy, Scoping, Business Rules.

Abstract:

Multitenant web systems can share one application instance across many clients distributed over multiple

devices. These systems need to manage the shared knowledge base reused by the various users and applications

they support. Rather than hard-coding all the shared knowledge and ontologies, developers often encode this

knowledge in the form of rules to program server-side business logic. In such situations, a modern rule

engine can be used to accommodate the knowledge for tenants of a multitenant system. Existing rule engines,

however, were not conceptually designed to support or cope with the knowledge of the rules of multiple

applications and clients at the same time. They are not ﬁt for multitenant setups since one has to manually

hard-code the modularity of the knowledge for the various applications and clients, which quickly becomes

complex and fallible. We present Serena, a rule-based framework for supporting multitenant reactive web

applications. The distinctive feature of Serena is the notion of reentrancy and scoping in its Rete-based rule

engine, which is the key solution in making it multitenant. We validate our work through a simulated case

study and a comparison with a similar common-place approach, showing that our ﬂexible approach improves

computational efﬁciency in the engine.

1 INTRODUCTION

Traditionally, software systems were conceptually de-

signed to run in isolation. With cheaper network-

ing hardware and the subsequent rise of the Inter-

net, various web technologies have evolved to sup-

port dynamic, data-driven and reactive applications

that handle a massive number of users and client de-

vices. Consequently, modern software systems are in-

creasingly being deployed in the Cloud.

A distinguishing characteristic of Cloud-based

platforms is Utility Computing (Armbrust et al.,

2010) with the pay-as-you-go model that improves

cost reduction through resource sharing. Utility

Computing provides a way in which modern soft-

ware systems can simultaneously support multiple

clients and at the same time share resources through

multitenancy. A multitenant application is installed

on a single instance (rather than separate instances)

and serves all clients, or ‘tenants’ from that in-

stance (Pathirage et al., 2011). They exhibit some

advantages, including reduced maintenance and in-

creased scalability as they pertain to economies of

∗

Supported by a doctoral scholarship of the Agency for

Innovation by Science and Technology in Flanders (IWT),

Belgium

scale. However, a large number of providers have lim-

ited support for multitenancy at the application level

(i.e. native multitenancy) – only focusing on process

isolation. Partitioning and securing multitenant appli-

cation behaviour at this level is complex and requires

a huge development effort (Guo et al., 2007).

In this paper, we focus on knowledge-intensive

multitenant applications running over the web, con-

nected to different clients sending massive amounts of

events and data. These systems are required to man-

age the shared knowledge base reused by the various

tenant applications they support. In order to reason

about the data and extract higher-level knowledge it

is vital that the value of the sent data be extracted efﬁ-

ciently, its massive and intermittent nature notwith-

standing. Rather than hard-coding all the shared

knowledge and ontologies, developers often encode

this knowledge in the form of rules to program server-

side logic e.g. as business rules (Hay et al., 2000).

In such situations, a modern rule engine can be

used to accommodate the knowledge for tenants of a

multitenant web system. To this end, we have aug-

mented an event-driven web server with a forward-

chaining rule engine constituting Serena, a rule-based

multitenant framework that receives and reactively

processes data in order to detect complex events to-

Kambona, K., Renaux, T. and Meuter, W.

Reentrancy and Scoping for Multitenant Rule Engines.

DOI: 10.5220/0006283400590070

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 59-70

ISBN: 978-989-758-246-2

gether with accompanying data relevant to notify

clients. In Serena clients can install logic reactive

rules that deﬁne the complex events they are inter-

ested in and dynamically upload data. The rules spec-

ify which data to match, who to notify and what in-

formation is sent with the notiﬁcation.

Conventionally, rule engines were not conceptu-

ally designed to work in the multitenant environment.

These rule-based systems (such as production sys-

tems (Newell, 1973)) are intrinsically non-reentrant:

they are characterised by a ﬂat design space where

activations could be observed from all asserted facts

without discriminating their sources. Further distinc-

tions between clients and their data sources need to be

hard-coded within the rules, which quickly become

complex and fallible as the number of clients and the

relationships between them increase, or when the re-

lationships become complex to enforce using rule se-

mantics. In a multitenant application, failure to prop-

erly make these distinctions can cause unintended rule

activations in other clients. Rule engines therefore re-

quire orchestration within rules to discriminate or dis-

tinguish between instances of different entities. Ser-

ena provides techniques for users and developers to

specify scoped rules that detect patterns in real-time

data and to realise grouping structures in knowledge-

intensive multitenant applications.

Scoped rules are a custom rule representation

based on a formalised description. They allow deﬁ-

nition of scoped constraints that enable rule creators

to distinguish between events pertaining to different

clients, while keeping this logic cleanly separated

from the application logic. As such, the basic purpose

of the rule is not muddied with the logic required for

distinguishing clients. This leaves the logical intent

of a rule easy to understand for a rule creator. At the

same time, scoping enables us to exploit a number of

performance optimizations in the server’s rule engine

during the matching process. Our approach of encod-

ing the physical, structural or other logical organiza-

tions of multitenant applications eases the computa-

tional workload of the inference algorithm, thereby

decreasing the engine’s overall response time.

In brief, the main contributions in this work are:

• A reactive, rule-based framework for multitenant

architectures supporting knowledge-based applica-

tions (Section 3)

• A meta-extension to the Rete algorithm for infer-

ence engines to improve reentrancy by incorporat-

ing techniques from bit-vector encoding that dis-

criminate data matches as deﬁned in the rules (Sec-

tion 4.2)

• An extension to the rule-based syntax in the frame-

work to support a formalised scope-based reasoning

in multitenant systems (Section 4.3)

We begin by introducing the motivation and pro-

ceed to enumerate some requirements in Section 2.

We then present the Serena framework’s architecture

and scoping mechanism in Sections 3 and 4. We

penultimately evaluate our approach in Section 5 and

ﬁnally discuss the related work and conclusions in

Sections 6 and 7.

2 DATA-DRIVEN

MULTITENANCY

In this section we motivate the need for a data-driven

solution in a multitenant rule engine. To highlight

the requirements that such a system should meet, we

present a scenario of a service provider in the Cloud

for monitoring security systems. The service moni-

tors and logs requests in institution-wide security ac-

cess systems, e.g., in universities.

2.1 Motivating Example: University

Services Access Control

Universities in Brussels have passed a resolution that

requires monitoring accesses of students and staff all

over their campuses and report access requests that

deviate from policies in place. The universities have

installed proximity ID-card scanners at most major

access points, and students/staff scan their issued ID

cards to gain access to various locations in the cam-

puses. Some of the security monitoring policies that

the security team design are illustrated below:

1. All students at all levels have access to classrooms

during class times on weekdays

2. Only registered student and staff cars are allowed

entry to underground parking on their campuses

A common university structure consists of differ-

ent students and staff: research, administrative or ex-

ternal/outsourced; physical structures’ hierarchy; and

research department hierarchies. A simpliﬁed struc-

ture for a university is shown in Figure 1. As a result,

speciﬁc departments and units are allowed to deﬁne

custom access policies:

3. Biology department students are allowed access to

all labs in the (sub)departments in the weekends if

accompanied by senior academic staff

4. Only campus bank employees and consultants

have access to the bank back ofﬁce during work-

ing hours

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

personnel

external

other

bank

interna l

academic

administrative

jun ior

senior

physical

main 6

campus

labs

classrooms

parking

medica l6

campus6

research

science6

dept

computer6

science

software6

engineering

biology

arts6

dept

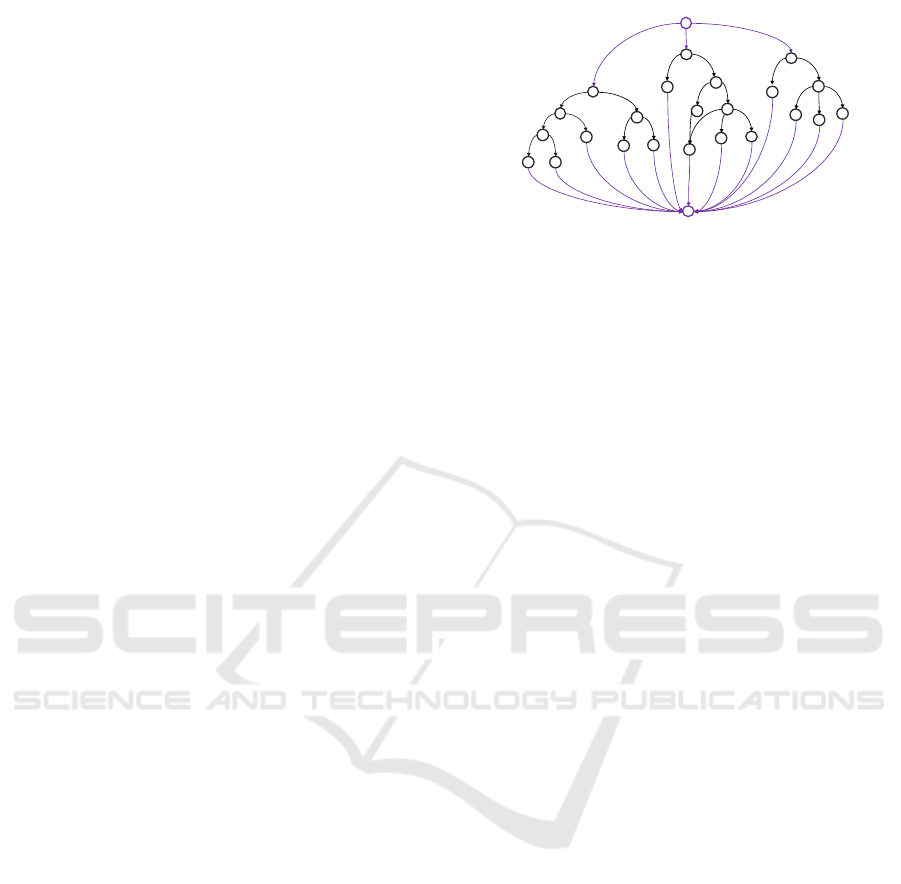

web6info6

systems

bioinformatics

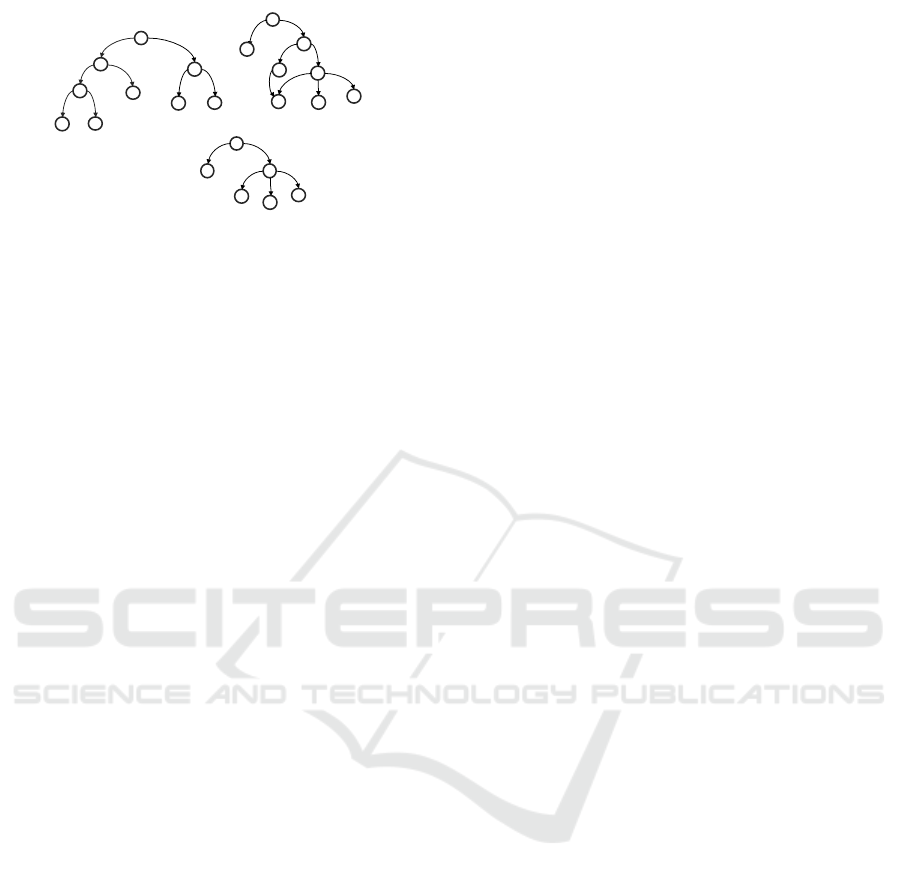

Figure 1: Example structures in a university – Client groups

are based on three hierarchical structures: physical location,

department, type of personnel. The hierarchies can be arbi-

trary DAGs and groups can have multiple parents.

For this scenario, we have enumerated around 40

security access policies. The ﬁnal model contains 3

universities and 61 faculty, administrative and phys-

ical groupings – with students, staff and devices be-

longing to one or multiple groups. Whenever an ac-

cess request is made by a student or staff the security

system of the university sends the data to the moni-

toring service. According to the policies deﬁned, the

service logs the request, computes whether the access

is within the deﬁned security policies and displays the

results on a dashboard. For instance in policy 1, when

a student on a university accesses a classroom during

class times the monitoring dashboard would show a

status to indicate whether the access is acceptable or

otherwise.

2.2 Requirements

The security monitoring service is a representative

example of a reactive multitenant application. We

particularly target the dynamic design of knowledge-

intensive, data-driven applications that continuously

stream data back and forth between clients and the

server. The scenario illustrates some of the require-

ments that such multitenant frameworks should sat-

isfy:

• Data-driven framework for instantaneous process-

ing of intermittent data streams – The framework

should be responsive to new inputs sent by tenants

by processing them in real-time or near real-time

fashion allowing the end-user application to react

to the data. For instance, in the motivating ex-

ample, the monitoring service provider should be

able to process access requests from a large number

of clients and devices promptly according to cus-

tom policies to provide immediate feedback. To

send such feedback it also needs to handle persis-

tent push-based client connections.

• Runtime support for the deﬁnition and real-time de-

tection of customisable constraints – The frame-

work should reduce the complexity of writing code

that can efﬁciently detect real-time events from a

continuous stream given a large number of crite-

ria or constraints. This is a challenge to system

developers because the intent of the developer is

transcended by the accidental complexity (Brooks,

1987) of the implementation. In the example, the

university security should be able to easily express

and upload their own current and future policy con-

straints for detection of access violations using an

expressive syntax.

• Metadata architecture for multitenant partitioning

– The framework should be able to model the struc-

tures of tenants and possible compositions or rela-

tionships between them dynamically through meta-

data deﬁnitions that will discriminate or partition

the data residing in the multitenant system. This

implies that the internal structures of tenants should

be reﬂected in the runtime in order for it to process

the requests within the conﬁnes of each client’s con-

ﬁguration: in this case the policies of each univer-

sity. In addition, the internal model should be able

to support other software applications from other

tenants e.g., other institutions or businesses.

3 SERENA: MULTITENANT RBS

We present the Serena Web-based framework which

1) eases the dynamic deﬁnition of requirements by

utilizing a rule-based approach, 2) efﬁciently pro-

cesses intermittent data giving instantaneous feed-

back by incorporating a forward-chaining rule en-

gine, and 3) ﬂexibly supports multitenancy by adopt-

ing concepts from group theory to model tenant struc-

tures. We dissect the inner workings of Serena by ﬁrst

illustrating its architecture and we later explain its ex-

ecution semantics.

3.1 Serena Architecture

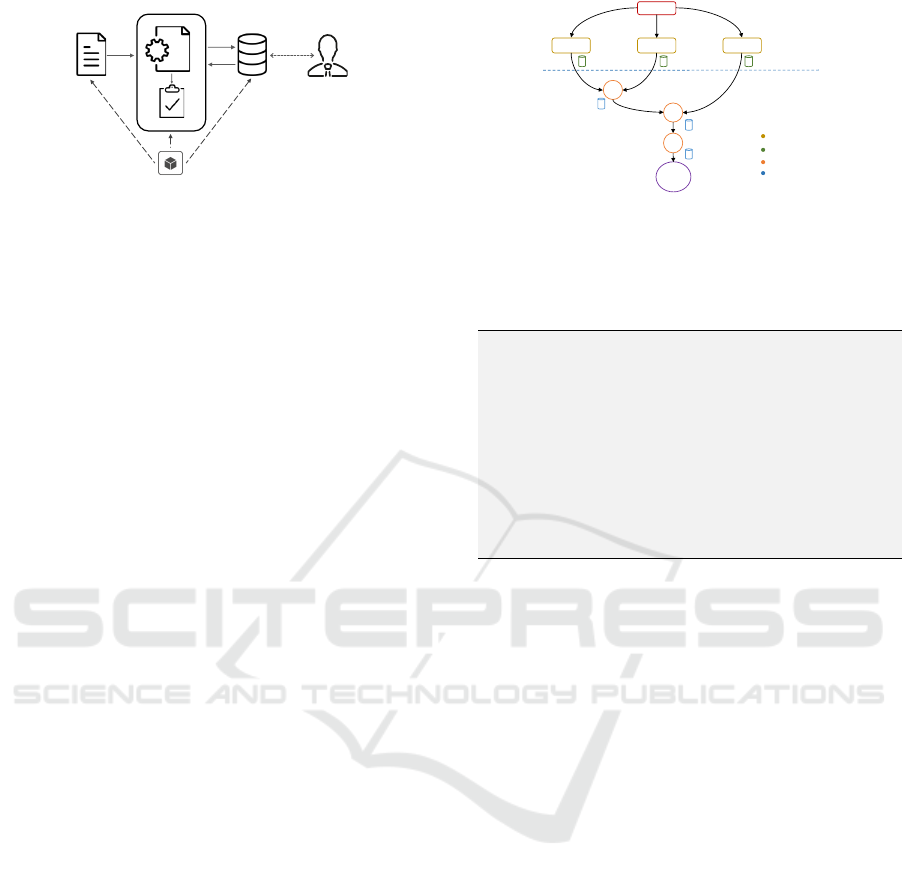

The architecture of Serena is illustrated in Figure 2.

The server is written as a Node.js package that con-

sists of ﬁve main components. The fact base main-

tains facts asserted from events and the rule base

manages addition and removal of client rules. The

inference engine is at the heart of the framework and

evaluates received data according to the deﬁned rules.

It contains the graph builder that builds a Rete graph

(Section 3.2.1) augmented with scopes, the matcher

that ﬁnds consistent bindings in the fact base, and the

activation scheduler that executes or ﬁres instantiated

rules. The scoping module builds an efﬁcient encod-

ing mechanism for scopes that will affect the match-

Reentrancy and Scoping for Multitenant Rule Engines

Rule%base

Fact%base

Pattern%Matcher

Scheduler

Inference%Engine

Scoping%module

Event%

Manager

Figure 2: Architecture of the Serena server – The scoping

module builds an efﬁcient scoping mechanism that affects

matching in the inference engine.

ing process. The event manager receives and queues

event data from clients and pushes queued notiﬁca-

tions to their recipients whenever their rules are exe-

cuted.

On the client side Serena provides a library that

initialises and maintains the (re)connections to the

server runtime. It further manages sending of web-

socket messages and reception of notiﬁcations pushed

from the server through the event manager.

3.2 Serena Execution Runtime

The Serena runtime is based on one of the most

widely-used models of knowledge representation

known as the production systems model (Newell,

1973). The distinguishing feature of production sys-

tems is the use of data-sensitive rules rather than se-

quenced instructions as the basis of computation.

Rule-based systems usually consist of a number

of unordered rules referencing a global fact base.

Similarly native multitenant architectures serve mul-

tiple clients that share a dedicated instance, accessing

global resources. To support and cope with the knowl-

edge of rules applicable to multiple clients and appli-

cations, rule engines and multitenant architectures re-

quire features for structural decomposition at the ap-

plication level. Both models can beneﬁt from modular

design and structural abstractions as the systems they

support grow in size and complexity.

We outline how the Serena framework embraces

this approach, exempliﬁed using the example sce-

nario. We ﬁrst begin by explaining the semantics of

rules in Serena.

3.2.1 Rule-based Syntax

The university policies from the scenario in Sec-

tion 2.1 can be easily expressed in a rule-based for-

mat. We illustrate such a rule to be added by a

university security staff using a customised JSON

Rules (Giurca and Pascalau, 2008) syntax in Listing 1

for the classroom policy 1. The rule object can be

root

student

access

request

access

device

Alpha Network

Beta Network

Alpha node

Alpha memory

Beta node

Beta memory

r.pe r s on

s.name

r.de v i ce

d.name

terminal

test/r.ti me

weekday

Figure 3: The Rete graph for classtime access rule – Once a

token reaches the terminal node the rule is activated.

generated from a web-based graphical UI for intuitive

rule deﬁnitions.

Listing 1: Rule for classtime access.

1 {rulename: "classtime-access",

2 conditions:[

3 {type:"student", name: "?name"},

4 {type:"accessdevice", name:"?dev", location:"classroom"},

5 {type:"accessreq", id: "?reqid", person: "?name", time:

→ "?t", device: "?dev"},

6 {type:"$test", expr:"(hourBetween(?t, 8, 20) &&

→ (isWeekday(?t) == true) )"}

7 ],

8 actions:[

9 {assert: {type: "accessrep", reqid:"?reqid", allowed:

→ true}}

10 ]

11 }

A rule consists of a name, the left-hand side (LHS)

with conditions for event detection, and a right-hand

side (RHS) for a reaction after detection. The LHS of

the deﬁnition (lines 2-6) captures the access request

from a person on an ID scanning device within the

speciﬁed time periods (line 6). In the rule the ‘?’ op-

erator denotes a variable binding (e.g. ?name in lines

3 & 5). When all the conditions speciﬁed in the LHS

are satisﬁed, then the actions deﬁned in the RHS are

activated. Here, we assert that the access request has

been granted (line 9).

In Serena clients can dynamically add rules to the

multitenant server through the framework’s client li-

brary. The rules are appended to the existing inference

engine’s graph and deﬁne the real-time detection con-

straints for that client. In general, the inference engine

will process and detect any events that clients are in-

terested in and once activated will notify the relevant

client(s). A client registers a handler that will be in-

voked once the rule has been activated.

3.2.2 The Rete Algorithm

Rules from clients are added to the server inference

engine. Inference engines perform pattern-matching,

a technique that reasons over the data to detect con-

straints that need to be fulﬁlled. Most current infer-

ence engines are based on the Rete algorithm (Forgy,

1982). Rete compiles rules (such as the one in List-

ing 1) into a data-ﬂow graph that ﬁlters facts (data)

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

!"#$%

!"#$&

!"#$'

!"#$(

!"#$)

!"#$*

!"#$+

!"#$,

!"#$-

!"#$%.

/$0 10 2) 34 15 2

/$0 10 2* 34 15 2

/$0 10 2% 34 15 2

!"#$%

!"#$&

!"#$'

!"#$(

!"#$)

!"#$*

!"#$+

!"#$,

!"#$-

!"#$%.

/$0 10 2% 3

4152

/$0 10 2* 3

4152

/$0 10 2) 3

4152

/$0102)34152

Tenant2'Rete

!"#$'

!"#$%.

!"#$(

Tenant1'Rete

!"#$%

!"#$,

/$0102%34152

!"#$&

/$0102*34152

!"#$*

!"#$-

Tenant3'Rete

!"#$+

!"#$)

(c)

(b)

(a)

Multitenant) R ete

Homogeneous'Rete

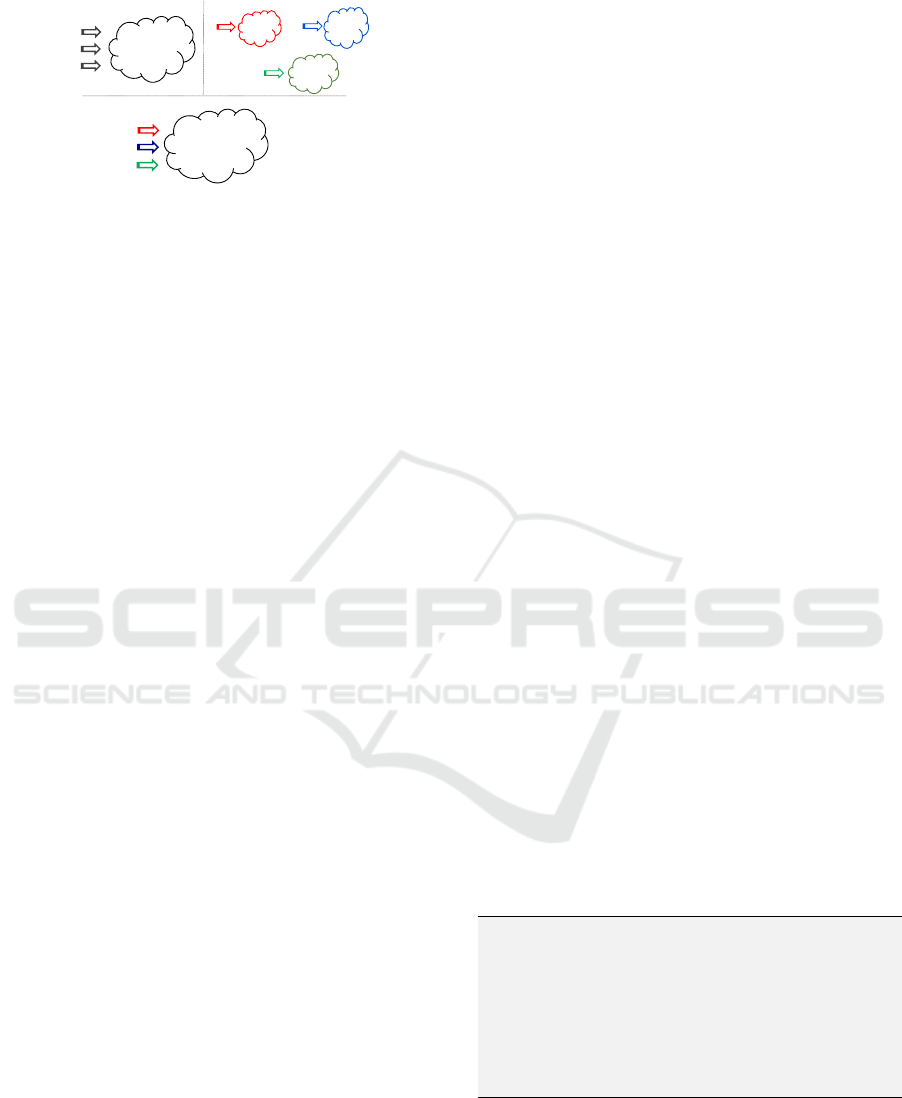

Figure 4: Conceptualizing a multitenant inference engine

showing (a) naïve, (b) module-based and (c) scoped engine

approaches.

as they propagate through nodes performing the ac-

tual matching process in the match-execute cycle. The

matching process searches for consistent bindings be-

tween the facts and the existing rules. Efﬁcient match-

ing is achieved through exploiting 1) structural simi-

larity – sharing of the nodes when building the graph,

and 2) temporal redundancy – caching of intermedi-

ate matched data tokens between cycles of incoming

results, at the price of higher memory usage.

In Figure 3 we show the Rete graph built in Serena

after addition of the classtime-access rule from

Listing 1. Facts enter the graph from the root node.

In the upper alpha network, single-input alpha nodes

perform generated type selection and intra-condition

tests with an alpha memory node holding the results.

The leftmost alpha node student ﬁlters facts of that

type and stores them in its alpha memory.

The beta network is built in the lexical order of the

condition elements forming a left-associative binary

tree. Two-input beta nodes perform inter-condition

tests or join operations on their left and right inputs

according to the corresponding conditions. A beta

memory is associated with each beta node and holds

the intermediate join results. The leftmost beta node

in Figure 3 performs joins for a student’s name

and the name of the person performing the access

request, creates a token of both facts in the result

and sends it to the next node. It also serves as left in-

put for successive nodes in the beta network. The sec-

ond beta node receives the token and performs joins

of facts from a scanning device with the device of the

accessrequest. For any beta node the right input is

always an alpha memory node.

The ﬁnal beta node in a condition sequence repre-

sents the full activation of a rule and is named a ter-

minal node. In this case the rule classtime-access

will be instantiated once a token reaches this node.

The Need for Reentrancy – In Rete rules are

technically shared in their entirety within the network.

Structural similarity promotes sharing of nodes per-

forming the same test but corresponding to different

rules.

As stated previously, clients can add rules dynam-

ically to the Serena Web server. Adding rules in a

multitenant setting is not, however, without its risks

when using the naïve approach of having a single in-

ference engine on the multitenant server (Figure 4 (a))

for all tenants. For example, a separate client in an-

other university can develop a rule similar to the one

in Listing 1. This will cause Rete to reuse the same

graph and as a result, both universities will be re-

ceiving notiﬁcations of granted accesses in their dash-

boards whenever a student in either university enters

a classroom: an undesirable result. In general, allow-

ing clients to add rules in such multitenant settings

brings about problems of unintended or spurious acti-

vations. We describe the common ways developers of

rule-based systems attempt to solve this problem.

Rule Modules: One solution provided by a num-

ber of rule engines (as we discuss in Section 6) is

to spawn a separate engine instance or module for

each client or tenant (Figure 4(b)). This resolves

the problems of unintended and spurious activations

but nonetheless comes at a heavy cost: by eliminat-

ing sharing it undermines beneﬁts of utility comput-

ing (Guo et al., 2007) and the strengths of the Rete al-

gorithm resulting in a rapid increase in resource util-

isation. Multiple separate engines make the system

prone to duplication of resources e.g., nodes, work-

ing/intermediate memories and activation queues.

Relation Facts: Another solution is by asserting

facts that indicate a belongs to relation in the univer-

sities, e.g., {belongsTo science vub} relates de-

partment science to the university vub. The entities

would then be assigned the different departments. In

this approach, the relation facts are added to the fact

base a priori. Then, the rule from Listing 1 can be

automatically modiﬁed to bind to such facts so that

we can distinguish between institutions. The rule is

modiﬁed by appending conditions 6 & 7 to the rule in

Listing 1, resulting in the modiﬁed rule in Listing2.

Listing 2: Rule for classtime access w. relation facts.

1 {rulename: "classtime-access-uni",

2 conditions:[

3 {type:"student", name: "?name", dept:"?studept"},

4 {type:"accessdevice", name: "?dev",

→ location:"classroom", dept:"?devdept"},

5 {type:"accessreq", id: "?reqid", person: "?name", time:

→ "?t", device: "?dev"},

6 {type:"belongsTo" dept:"?devdept", uni:"?uni1"},

7 {type:"belongsTo" dept:"?studept", uni:"?uni1"},

8 /

.. acti on ...

9 }

This new rule will create the rete graph shown

in Figure 5. A new alpha node for belongsTo

is added and needs to join with the student and

accessdevice alpha nodes. When an access request

is asserted it joins with the relevant student and device

in nodes 1 and 2. The token reaches the join node 3

Reentrancy and Scoping for Multitenant Rule Engines

!"#$ !% & '

%"'()$

!"*$ +, - $

*"'()$

"""

root

student

access

request

access

device

belongsTo

."*$#/

%"*$#/

."*$#/

*"*$#/

.012', 31.4 12',

Alpha node

Alpha memor y

Beta node

Beta memory

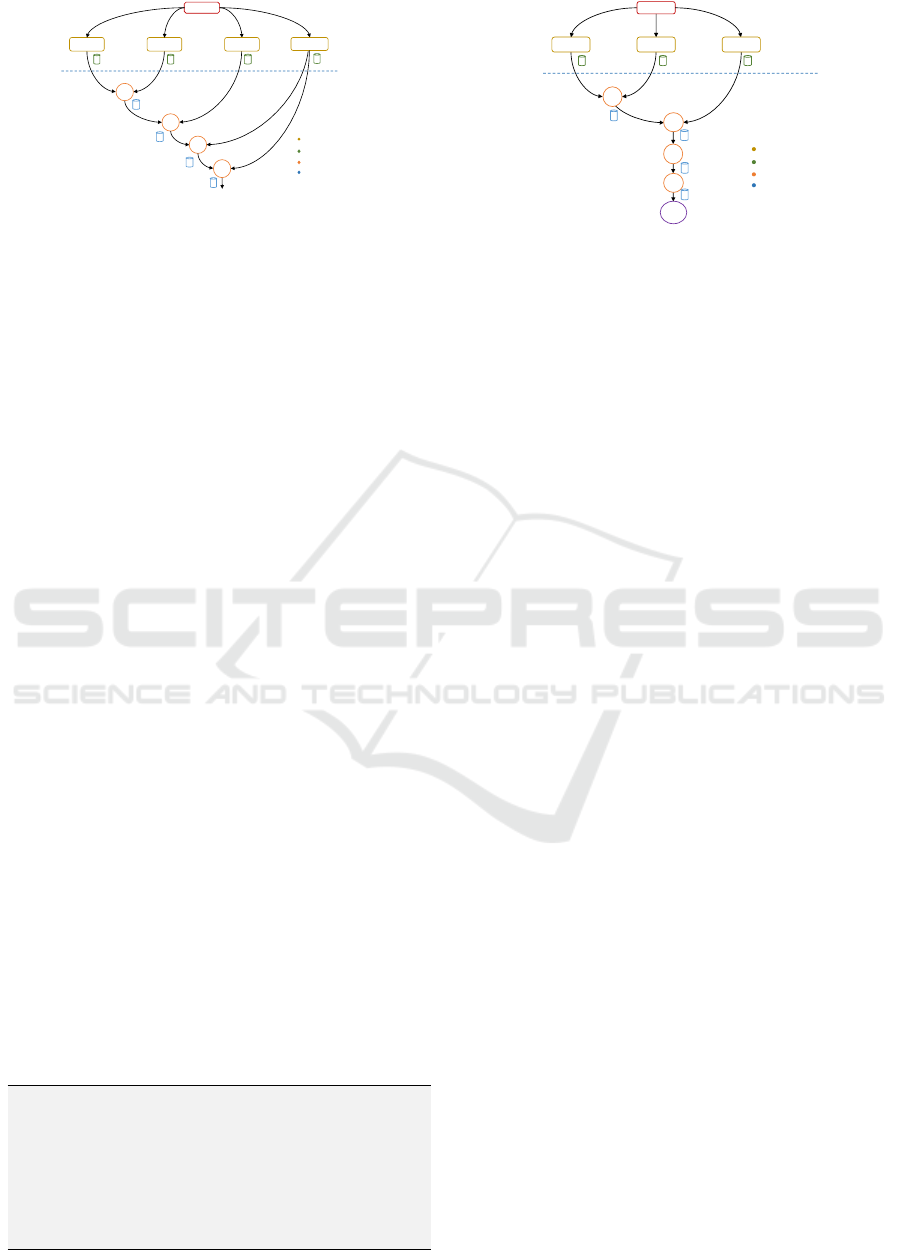

Figure 5: The Rete graph for the modiﬁed policy 1 rule –

Additional nodes for performing discrimination are added.

causing a left activation. This will initiate a scan on

the entire belongsTo alpha memory for in its right

input to ﬁnd compatible departments, which end up

in beta join 4. Here computations are also performed

for compatible departments for the device and to en-

sure that the request came from the same university

as the student and the device. Certainly, the problem

with this approach is that it increases additional nodes

and the costly joins that the inference engine needs to

perform.

Test Expressions: A better but more involved

approach would require that every rule from tenants

have additional discriminatory test conditions. We il-

lustrate with the same example as the original rule in

Listing 1. As with relation facts, we ﬁrst assign stu-

dents and devices to departments that they are part of.

This time, however, the rule contains additional ex-

pression tests that check if the student and the device

are in the same university. Line 6 of Listing 3 adds a

boolean test that checks if the student and device are

in the same university. This also results in a different

Rete graph with an additional beta test node, shown in

Figure 6. Note that at beta join node 2 the complete

cross-product joins of student and device facts are

still computed.

These last two approaches have similar limita-

tions. First, they increase rule complexity and quickly

become tedious in clients with more complex internal

structures like multiple departmental levels (see next

section). They also impact the underlying Rete graph:

additional nodes are created and more computations

are required. They further pollute the logical intent

of the rule designer by adding conditions that need to

enforce discrimination within the rules of all clients.

Listing 3: Rule for classtime access.

1 {rulename: "classtime-access-uni",

2 conditions:[

3 {$s: {type:"student", name: "?name"}},

4 {$d: {type:"accessdevice", name: "?dev",

→ location:"classroom"}},

5 {type:"accessreq", id: "?reqid", person: "?name", time:

→ "?t", device: "?dev"},

6 {type:"$test", expr:"( areInSameUni($d.dept,$s.dept) )"}

7 /

.. acti on ...

8 }

Beta Network

root

student

access

request

access

device

Alpha Network

r.pe r s on

s.name

r.de v i ce

d.name

areInSameUni(d.dept,s.dept)

test5d.time

in5weekend5

Alpha node

Alpha memory

Beta node

Beta memory

terminal

Figure 6: Rete graph for policy 1 with test expressions – A

new node is added that checks compatibility of student and

access device.

Support for multiple tenants can be improved by

making the Rete algorithm reentrant such that any

Rete graph can purely handle multiple inference states

simultaneously for different sets of client rules, as il-

lustrated in Figure 4(c).

Reentrant Rete – In order to enforce multite-

nancy during the inference engine’s match cycles, it

is imperative that an efﬁcient representation be used

to represent the hierarchy and to quickly determine

the relationships between the data being processed at

runtime. This is especially signiﬁcant in a multitenant

setup like the monitoring service where during a join

the node needs to perform an additional “is the to-

ken’s request that we want to match with the access

device originating from the same university?”-check

that is needed to determine compatible facts that ap-

ply to rules that belong to one tenant. This check tries

to ﬁnd a consistent binding for a device of the same

exact university to avoid unintended activations with

data from other tenants. Remember that the same

check is also performed when facts from a different

university are asserted into the monitoring service.

The numbers of these checks increase markedly

when the multitenant rule engine supports relation-

ships within and between tenants. For instance, pol-

icy 3 from the motivating example speciﬁed that stu-

dents from a department in the university can have

special access times to their (sub-)departmental labs.

The rule for the policy is shown in Listing 4. This

time there are two access requests (line 7, 8) from the

student and the senior academic, so we need to check

if they come from the same department and if the de-

partment is biology or bioinformatics (line 9) as

per the policy and the deﬁned structure in Figure 1

(note that the rule is more complex if the student and

academic come from different departments). The re-

sulting Rete graph for policy 3 with test expressions

is shown in Figure 7.

As identiﬁed in (Nayak et al., 1993), a major bot-

tleneck in Rete and a number of its variants is such ex-

pensive computations during the match phase. There-

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

root

student

staff

access

device

Alpha Network

r2.name

stu.name

r1.device

r2.device

d.device

Beta Networ k

[areInSameUni(d,6stu,6stf)]

[d6dept =6stu dept =6stf dept

AND d6dept =6biology6

OR6d6dept =6bioinformatics]

[stf rank6=6senior6academic]

access

request

r1.name

stf.name

...

Alpha node

Alpha memory

Beta node

Beta memory

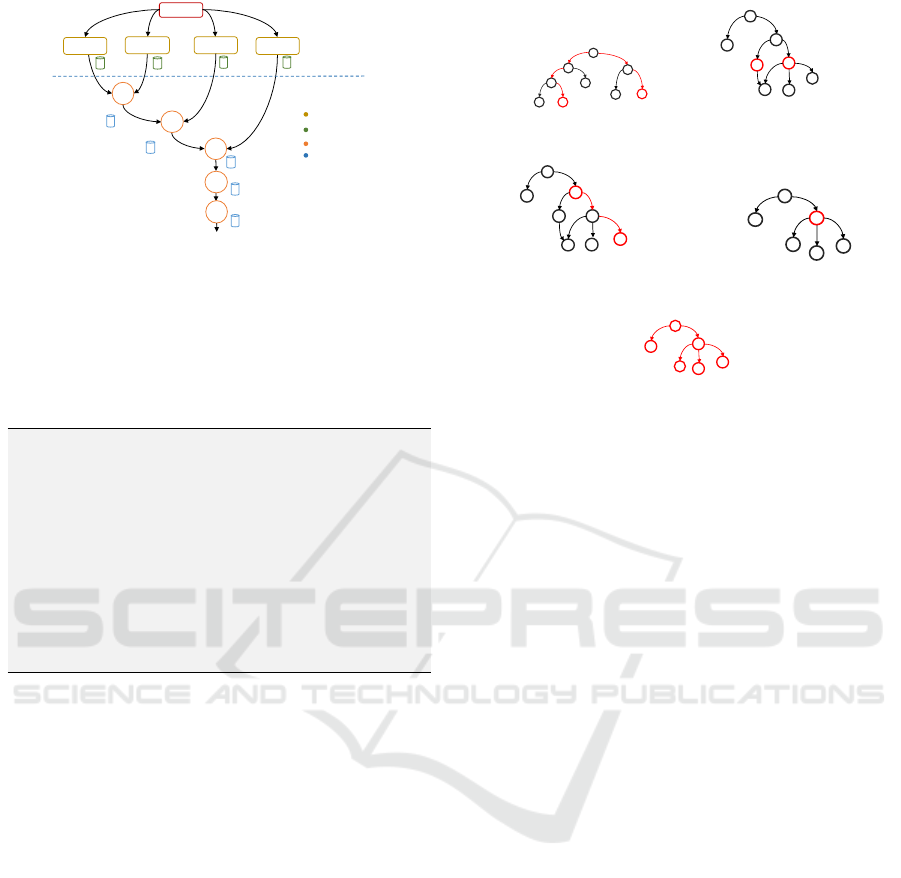

Figure 7: Rete graph for policy 3 with departmental checks

– To discriminate data from different clients additional tests

are needed.

fore any representation needs to be able to perform

these checks in a zealously efﬁcient manner. We next

show the direction that Serena takes to solve this.

Listing 4: Rule for biology dept. weekend lab access.

1 {rulename: "biology

weekend

access",

2 conditions:[

3 {$stu: {type:"student", name: "?stuname"}},

4 {$stf: {type:"staff", name: "?stfname"}},

5 {$d: {type:"accessdevice", name: "?dev",

→ location:"labs"}},

6 {type:"accessreq", person: "?stuname", device: "?dev"},

7 {type:"accessreq", person: "?stfname", device: "?dev"},

8 {type:"$test", expr:"(

→ areInSameUni($stu.dept,$stf.dept,$d.dept) )"}

9 {type:"$test", expr:"( ($stu.dept == $stf.dept) &&

→ ($stf.dept == $d.dept) && ($d.dept == ’biology’ ||

→ $d.dept == ’bioinformatics’) )"}

10 /

... action ...

11 }

4 SCOPING THE RULE ENGINE

Serena’s approach is to embrace the concepts of

physical or logical groups of tenant clients and

their relationships, common in multitenant applica-

tions (Grund et al., 2008). Examples of groups in-

clude research groups in a university, branches in an

organization, hobby categories in forums, area zones

when monitoring distributed sensor networks or user

lists in Twitter. The framework only requires tenants

to send their group hierarchies as a list of pairs and it

converts and encodes the hierarchies into an efﬁcient

representation.

4.1 Representation of Tenant Structures

Serena models groups internally with the aim of using

these representations to enforce data discrimination in

the rule engine. We describe a structural representa-

tion that uses the notion of a group as a primitive. We

showed in Figure 1 how we can conceptually struc-

ture the tenants and subtenants of the monitoring ser-

vice in groups and subgroups. Serena represents the

personnel

external

otherbank

academic

administrative

junior

senior

internal

(a) a visibleto b

software)

engineering

research

science)dept

computer)

science

biology

arts)

dept

web)info)

systems

bioinformatics

(b) a peerof b

research

science)

dept

software)

engineering

biology

web)info)

systems

bioinformatics

arts)

dept

computer)

science

physical

main+

campus

labs

classrooms

parking

medical+

campus+

(d) private a

physical

main+

campus

labs

classrooms

parking

medical+

campus+

(e) public a

Figure 8: Scopes supported in Serena – The scopes shown

are in relation to the group hierarchy from Figure 1.

group hierarchy as a directed acyclic graph with the

groups as the nodes with the clients connected to dif-

ferent groups at different levels in the graph.

One characteristic is that groups usually have

an aspect of relationships between them – research

groups can belong to (sub)departments, hobbies can

be categorised into hierarchies of interest groups and

sensor area zones can be contained in levels of ad-

ministrative units. We therefore appropriate the term

scopes to represent the common relationships be-

tween groups in the hierarchy and designate that as

a scope hierarchy. Serena adds scopes as (a series

of) edges in the group hierarchy. Serena supports the

following scope operations shown in Figure 8 on the

client groups.

• visibleto: In this scope we only capture data from

clients in groups that share the same ancestor in the

hierarchy. An example is capturing the data that

pertains to senior academic researchers collaborat-

ing with other personnel within the same university

(Figure 8a).

• peerof : Only data items that originate from peers

will be considered in this scope. The peers include

groups that are at the same level in the hierarchy.

For instance a researcher would want to create a

rule with this scope that applies to members in com-

puter science and biology departments, Figure 8b.

• subgroupof : Only the data items added by the

group or any of its subgroups are included in the

scope. This scope is ideal for a departmental rule

for computer science that will only apply to mem-

bers of that department or sub-departments (web

Reentrancy and Scoping for Multitenant Rule Engines

info systems, software engineering, bioinformat-

ics). See Figure 8c. Its dual is supergroupof .

• private: The private scope will exclusively source

data from the speciﬁed group and none else (not

even its subgroups or parent group). This scope is

well suited for data that applies to an exact group,

like in Figure 8d where we can target ID scanning

devices at the campus entrance gates and not those

in its subgroups such as the campus parking.

• public: Here we capture all data from all deﬁned

groups in the hierarchy. The universities could, for

example, collaborate in sharing security informa-

tion between them so they can be interested in data

from the devices/student/staff in all the groups and

their subgroups (Figure 8e).

4.2 Encoding the Group Hierarchy

To enforce reentrancy and to efﬁciently process the

various scopes within the match-execute cycle of the

inference engine, the Serena framework internally

converts the scopes discussed in Section 4.1 into a

more efﬁcient encoding. Our vision is to use an

encoding method that, rather than performing com-

putationally expensive scope checks such as path

traversals in a hierarchical structure, performs (near)

constant-time operations to entirely determine data

relationships in the structure. This is vital because

during the match-execute cycle, Rete can perform

combinatorial processing in its computations in the

beta network as the dataset increases: therefore ten-

ant group path traversals will dramatically affect the

performance per cycle. The basic idea is that we pre-

compute the scope check, store and maintain them ef-

ﬁciently as an encoding that will be used to expedi-

tiously process scope constraints.

We base our encoding on the transitive closure,

a signiﬁcant component modelling most relationships

in knowledge and representation systems as identi-

ﬁed in (Agrawal et al., 1989) that makes our encoding

suitable for querying binary relationships – precisely

the kinds of operations that the inference engine per-

forms when performing a scope check between left

and right inputs. We next outline the encoding pro-

cess.

The Group Hierarchy as a Lattice – Initially,

Serena captures the hierarchy as a partially-ordered

set (poset) (Habib and Nourine, 1994). The example

hierarchy in Figure 1 can be represented as a poset

(P, 6) with the binary relation 6 deﬁned as ‘is a part

of ’ (in most cases the general 6 relation ‘is subgroup

of ’ sufﬁces). The poset P has an element (a, b) iff

a is part of b, so elements include (junior, academic

physical

main +

campus

labs

classrooms

parking

…

research

science+

dept

computer+

science

software+

eng in eerin g

biology

web+in f o +

systems

bioinformatics

personnel

externa l

other

bank

interna l

academic

administrative

jun ior

senior





arts+

dept

med

campus

Figure 9: Hasse diagram of the group hierarchy as a lattice

– The lattice is the basis of encoding the group hierarchies

in a matrix.

staff), (bioinformatics, biology), (internal, personnel)

and (computer science, science dept).

To come up with an encoding, we convert the

groups poset to a lattice L with a > and a ⊥. This

leads to the hierarchy depicted as the hasse diagram

in Figure 9. Other distinct hierarchies can have their

own top-level element same as >. A lattice represents

the group hierarchy in a form that is more efﬁcient to

encode and compute than the earlier poset representa-

tion.

Encoding the Lattice – With L, Serena performs

a customised bit-vector encoding method that is based

on the method by Aït-Kaci (Aït-Kaci et al., 1989).

The result is a binary matrix encoding M

of the

group hierarchy, shown in Figure 10 for our example,

with the following properties:

i) The labels on the rows of M

represent the

groups in L; similarly for columns. The ﬁrst row

represents > and the last row represents ⊥.

ii) An entry M

(a,b)

has a 1 if group a = group b

or if group a is an ancestor of group b in L, and

0 otherwise

iii) An entry M

(b,a)

has a 1 if group a = group b

or if group a is an descendant of group b, and 0

otherwise

iv) A is a maximal iff the row M

(a,∗)

has a 1 only

at M

(a,a)

and at M

(a,>)

v) A is a minimal iff the column M

(∗,a)

has a 1

only at M

(a,a)

and at M

(⊥,a)

Additionally, the encoding process generates the

level or depth of each group, which we store as an

integer. We also store indexes for all the maximals in

the matrix. We now show how the encoding is used to

perform scoping within the inference engine.

Scoping with M

– The encoding with M

is the

basis of performing scope operations in the inference

engine. To facilitate this Serena adds scope tests at

appropriate nodes when building the Rete network,

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies



per res

phy

int sci

mai

aca

com

biol

adm

lab

clas

sen

soft bioi 



1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

per 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

res 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0

phy

1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0

int 1 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0

sci 1 0 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0

mai

1 0 0 1 0 0 1 0 0 0 0 0 0 0 0 0 0

aca 1 1 0 0 1 0 0 1 0 0 0 0 0 0 0 0 0

com

1 0 1 0 0 1 0 0 1 0 0 0 0 0 0 0 0

biol

1 0 1 0 0 1 0 0 0 1 0 0 0 0 0 0 0

adm

1 1 0 0 1 0 0 0 0 0 1 0 0 0 0 0 0

lab 1 0 0 1 0 0 1 0 0 0 0 1 0 0 0 0 0

clas

1 0 0 1 0 0 1 0 0 0 0 0 1 0 0 0 0

sen

1 1 0 0 1 0 0 1 0 0 0 0 0 1 0 0 0

soft

1 0 1 0 0 1 0 0 1 0 0 0 0 0 1 0 0

bioi

1 0 1 0 0 1 0 0 1 1 0 0 0 0 0 1 0



1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Figure 10: The group hierarchy matrix encoding M

– The

groups are labels in the rows and the columns of the matrix.

and performs scoping operations in the beta betwork’s

beta join nodes during matching.

• visibleto: To perform a scope check of a visibleto

b the runtime checks if the result of M

(a,∗)

∧

(b,∗)

is a maximal in M

as per property (iv).

• peerof: To check if a peerof b it calculates if

Level(a) = Level(b) from the encoding process of

• subgroupof: A scope check of a subgroupof b is

true if the result of M

(a,∗)

∧ M

(b,∗)

= M

(b,∗)

per property (ii). Conversely, b is a supergroupof

• private: To ﬁnd out a private b it can check if

(a,∗)

∧ M

(b,∗)

= M

(a,∗)

as per property (ii) and

(iii).

• public: For a scope check of a public b then we

calculate if M

(a,∗)

∧ M

(>,∗)

= M

(>,∗)

as per prop-

erties (ii) and (i).

With these operations, the Serena runtime can per-

form scope operations efﬁciently. It retrieves the val-

ues in the matrix and performs binary operations from

the encoding in near-constant time.

4.3 Deﬁning Scoped Rules

To expose scoped rule deﬁnitions, Serena follows a

similar direction as Allen’s work in (Allen, 1983)

that proposes rule extensions for temporal interval

constraints. Similarly, we present scope-based con-

straints by extending the normal rule syntax with

scope-based deﬁnitions that specify structural con-

straints on the groups and the relationships between

them, which we simply call scopes. The scopes sup-

ported are as in Section 4.1.

We illustrate in Listing 5, where we show how to

deﬁne policy 3 of biology students lab accesses in the

weekends from Section 2.1 using scope constraints.

Listing 5: Scoped rule for biology dept. weekend lab access.

1 {rulename: "biology

weekend

access",

2 conditions:[

3 {$stu: {type:"student", name: "?stuname"}},

4 {$stf: {type:"staff", name: "?stfname"}},

5 {$d: {type:"accessdevice", name: "?dev",

→ location:"labs"}},

6 {type:"accessreq", id: "?reqid1", person: "?stuname",

→ time: "?t1", device: "?dev"},

7 {type:"accessreq", id: "?reqid2", person: "?stfname",

→ time: "?t2", device: "?dev"},

8 {type:"$test", expr:"(hourBetween(?t, 8, 20) &&

→ (isWeekend(?t1, ?t2) == true) && isNear(?t1, ?t2) )"}

9 ],

10 scopes:[ "biology supergroupof ($stu & $stf & $d)", "$stf

→ private senior"],

11 actions:[

12 {assert: {type: "accessrep", reqid:"?reqid1", allowed:

→ true}}

13 ],

14 notify:[ "subgroupof administrative"]

15 }

The rule is similar to Listing 1, with an ad-

ditional scopes section (line 10) where the bound

condition variables in line 3, 4, and 5 are refer-

enced to check whether the student, staff and device

facts are all tagged to belong to the biology de-

partment or its subdepartments using the scope check

supergroupof. The additional scope check in line 10

enforces the constraint that the staff member has to be

in the senior academic group. The rule will there-

fore detect the constraints of policy 3, which was to

capture lab accesses made in the weekends by a stu-

dent that is accompanied by a senior academic staff

member in the biology department and any of its sub-

departments.

4.4 Scoped Execution and Notiﬁcations

Within the inference engine, the rule in Listing 5 will

be built as shown in Figure 11. The main difference is

in the beta node 3 where we now have in place a more

compact and efﬁcient way to discriminate the tokens

for the node to process. The scoping module will use

to perform the binary operations from the scope

guards in the ﬁgure denoted with angle brackets.

The algorithm is modiﬁed as follows: on a left

or right activation, we ﬁrst perform the encoded

scope check on the fact from the alpha memory or

the token’s fact respectively. If the check passes, we

proceed with the join computation. When a token

reaches beta node 3, for instance, it triggers a left ac-

tivation to ﬁnd a compatible accessdevice. Serena

will ﬁrst perform the supergroupof scope check on

the devices as deﬁned in Section 4.2. For example,

if the access request is made from a device dev in

the bioinformatics subgroup, the engine performs

the supergroup check on the alpha memory’s device

fact, which in this case succeeds:

Reentrancy and Scoping for Multitenant Rule Engines

root

student

staff

access

device

Alpha Network

r2.name

stu.name

r2.device

d.device

Beta Network

test/r1.time in/weekend/

test/r1.time/near/r2.time

access

request

r1.name

stf.name

<<biology/supergroupof (stu &/stf &/dev),

stf private senior>>

Alpha node

Alpha memor y

Beta node

Beta memory

terminal

r1.device

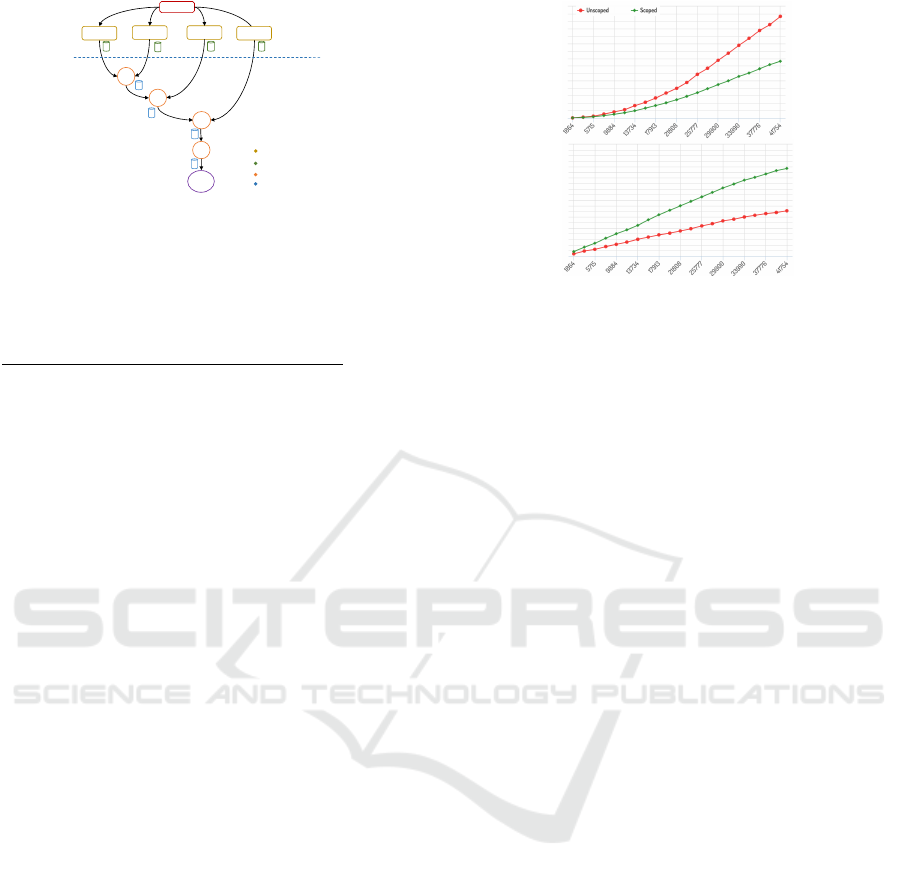

Figure 11: The scoped Rete graph for policy 3 – The ex-

pensive tests are replaced with scope tests performed by ef-

ﬁcient encoding operations.

(biology,∗)

∧ M

(bioinformatics,∗)

= M

(biology,∗)

1 0 1 0 0 1 0 0 0 1 0 0 0 0 0 0 0

& 1 0 1 0 0 1 0 0 1 1 0 0 0 0 0 1 0

1 0 1 0 0 1 0 0 0 1 0 0 0 0 0 0 0 (biology)

Similar operations are performed for the student

supergroup check and the private scope check for

the senior staff member from the academic person-

nel group using M

. If successful, we have estab-

lished the facts are compatible and proceed to the join

operation for node 3.

To decide who to notify, i.e., which group of which

tenant should receive the notiﬁcation, Serena rules

expose a notify construct that speciﬁes notiﬁcations

once the rule is ﬁred. The notiﬁcation scopes invoke

similar binary operations as in Section 4.2 to deter-

mine the groups to notify when performing a scope

check during matching. In the case of the rule in List-

ing 5 the notify construct will notify members of

administrative group and its subgroups.

5 EXPERIMENTAL EVALUATION

We evaluate our approach with the University Ser-

vices Access Control scenario detailed in Section 2.1.

We focus on investigating whether the scoping meta-

data architecture has signiﬁcant computational bene-

ﬁts over traditional techniques in current rule engines.

a) Setup: The example scenario was implemented

as a set of simulations that connect to a multitenant

web server. The ﬁnal application has a total of

61 groups in hierarchies, 39 access rules, and 73

concurrent clients across 3 sample universities. All

clients are connected to the multitenant server con-

currently through websocket connections managed by

the framework. The server runs Node.js and has an

AMD Opteron Processor 6272 at 2.1Ghz. The max-

imum RAM allocated to the entire experiment was

20GB.

b) Methodology: We categorised the general ex-

periment setup into two categories: one with tradi-

Beta joins/tests (Billions)

1.5

1.0

0.5

Time (s)

No. of activations

10k

7.5k

2.5k

Time (s)

Figure 12: Results in one simulation session – We compare

the cumulative results of one run of 12 hours.

tional rules using test expressions to enforce data dis-

crimination (unscoped), and another with Serena’s

scoped rules using Serena. We randomly generated

access requests from clients in both categories throt-

tled in ranges of between 1-5 seconds (simulating

real-world access request intervals), with one session

consisting of 12 hours of runtime. The requests model

students and staff from different departments or per-

sonnel levels randomly accessing various university

locations. We ran 35 iterations for each category,

making a total of approximately 70 sessions and 840

hours runtime. During the simulations we logged the

number of beta joins and tests, memory (RSS) used

and activations by the server.

c) Results & Discussion: Figure 12 shows the cu-

mulative number of beta computations performed and

rule activations from a single session of both scoped

and unscoped engines, and in Figure 13 we calculate

and chart box plots showing the distribution of ob-

served results of all the 70 randomised sets of simula-

tions.

From the graphs in Figure 12 we observe that

the traditional unscoped Rete graph built from manu-

ally programming data discrimination within the rules

suffers a marked increase in the number beta com-

putations compared to our scoped graph. The un-

scoped approach spent more time processing the ex-

pensive join operations and beta tests in the engine.

The scoped engine’s scope checks use the encoding,

leading to better performance, and consequently to a

higher number of activations recorded (by approxi-

mately 31%) within the same session.

The aggregated results in Figure 13 show evidence

of a better overall performance of the scoped engine.

Compared to a traditional approach, Serena on aver-

age improves the computation of scope tests and total

memory consumption, increasing the average number

of rule activations of all randomised sessions of the

experiment. The reduced memory consumption is as

a result of space optimisations of scoping metadata

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

Beta joins/tests (Billions)

Activations

Memory (RSS) (MBs)

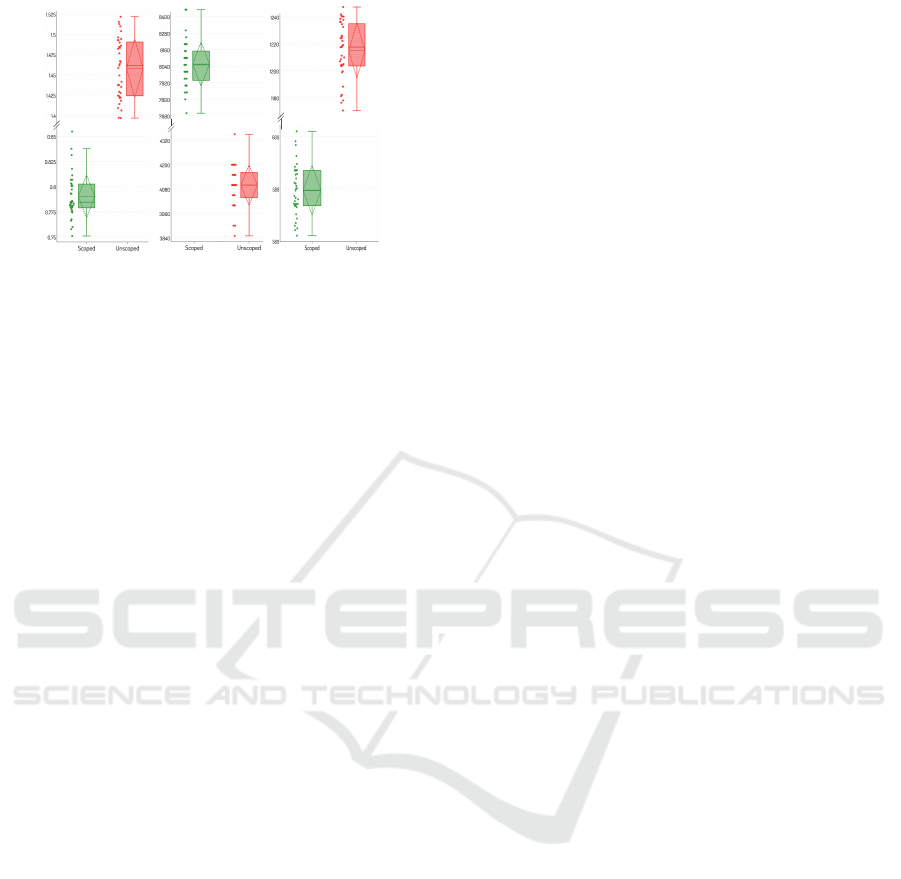

Figure 13: Aggregated results over all randomised simula-

tions – The results were collected from 70 sessions of ap-

prox. 840hrs.

internally in the framework as opposed to using fact

attributes in the traditional approach.

From the implementation and the results we ob-

serve that introducing metadata-driven reentrancy in

the engine results in simpler rule design and efﬁcient

computation in the framework’s rule engine. This in

effect means that the security monitoring system can

process a larger number of access requests at a faster

rate than the traditional rule engine approach. The

requirement is that the tenants need to specify their

group structures to fully take advantage of the Serena

framework: the groups to be encoded in the university

hierarchy have to be deﬁned and added to the engine

so that the beneﬁts provided by the encoding can be

fully realised.

6 RELATED WORK

We describe similar techniques that support the devel-

opment of multitenant applications focusing on pre-

venting unnecessary duplication of processes and re-

sources at the application level.

Decomposition in Rule-based Systems – Mod-

ern rule engines such as Drools (Proctor, 2012) and

Jess (Hill, 2003) are based on the Rete algorithm as

well and optionally provide Web server extensions.

Techniques that they use to decompose larger rule

bases into groups of rules in other engines all em-

brace the concept of rulebooks that consist of iso-

lated sets of rules with no relationships between them.

Examples are modules in Jess and ruleﬂows or event

sources in Drools. Essentially these give each ten-

ant their own Rete graphs, making them fundamen-

tally independent. Serena in contrast facilitates and

encodes scoping within a single heterogeneous Rete

graph thus taking full advantage of structural similar-

ity and temporal redundancy.

Schema Sharing in Databases – A common

technique to support multitenancy is by mapping

the context of clients into the existing patterns of

conventional databases and similar systems, since

most have limited out-of-the-box support for handling

the metadata needed for multitenancy (Jacobs et al.,

2007). Advanced schema-based techniques such as

Sparse Columns (Chu et al., 2007), Extension Ta-

bles (Copeland and Khoshaﬁan, 1985) and Multi-

tenant Shared Tables (Grund et al., 2008) exist, but

these have static and complex conﬁgurations that de-

grade in performance when ported to reactive rule en-

gines with eager incremental processing as in our ap-

proach.

Multitenant Middleware – Most dedicated mid-

dleware for multitenant architectures aim to sup-

port multiple tenants at the application level using

various techniques. The research in (Yaish et al.,

2011) and (Fiaidhi et al., 2012) achieves this through

variations of the aforementioned schema-based tech-

niques. The SaaSMT approach (Pal et al., 2015)

supports process-based tenant shareability based on

architectural layers, which is limiting when requir-

ing incremental, reactive processing. Support for

application-level middleware through platforms like

the Google App Engine/AppScale (Zahariev, 2009)

and GigaSpaces (Cohen, 2004) use approaches sim-

ilar to namespaces that partition application data

across tenants but do not intrinsically support the ﬂex-

ibility and expressiveness of our formalised scopes.

Nevertheless, with some effort they can be utilised as

foundations of its runtime.

Distributed Event-based Systems – Distributed

Event-based Systems exchange loosely-coupled data

asynchronously between producers and consumers

with notiﬁcations. Work in (Lim and Conan, 2014)

and (Fiege et al., 2006) provides custom routing of

event notiﬁcations from producers to subscribed con-

sumers. Most of existing research, however, focuses

on the existence of an overlay of brokers that ﬁlter no-

tiﬁcations before reaching the respective consumers.

In contrast, scoping in Serena is primarily for im-

proving reentrancy in the inference engine during the

matching process. Furthermore, Serena provides ﬁl-

tering of rule notiﬁcations at the event source to con-

nected clients, which does not require the use of a bro-

ker architecture.

7 CONCLUSIONS AND FUTURE

WORK

We have described Serena, a framework for reason-

ing in multitenant architectures via a Rete-based rule

engine. Our technique is useful in a number of multi-

Reentrancy and Scoping for Multitenant Rule Engines

tenant applications to deal with the problem that much

of the heterogeneous knowledge signiﬁcant when per-

forming reasoning and deductions can be structured

hierarchically within a multitenant setup. The tech-

nique uses groups and common relationships between

them to build an internal representation that captures

the scopes present in many multitenant domains by

using a hierarchy of groups. The model precisely

controls the amount of deduction or computation per-

formed automatically by the framework as informa-

tion from tenants ﬂows into the system in a both ex-

pressive and computationally effective manner.

As future work we would like to measure service

shareability to estimate cost models. We would also

like to investigate support for dynamic scopes that can

be deﬁned by the tenants during execution of the en-

gine, thus affecting the encoding and the state of the

inference engine’s intermediate memories.

REFERENCES

Agrawal, R., Borgida, A., and Jagadish, H. V. (1989). Ef-

ﬁcient management of transitive relationships in large

data and knowledge bases. SIGMOD Rec., 18(2):253–

262.

Aït-Kaci, H., Boyer, R., Lincoln, P., and Nasr, R. (1989).

Efﬁcient implementation of lattice operations. ACM

Trans. Program. Lang. Syst., 11(1):115–146.

Allen, J. F. (1983). Maintaining knowledge about temporal

intervals. Commun. ACM, 26(11):832–843.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., et al. (2010). A view of cloud computing.

Communications of the ACM, 53(4):50–58.

Brooks, Jr., F. P. (1987). No silver bullet: Essence and ac-

cidents of software engineering. Computer, 20(4):10–

19.

Chu, E., Beckmann, J., and Naughton, J. (2007). The

case for a wide-table approach to manage sparse re-

lational data sets. In Proceedings of the 2007 ACM

SIGMOD International Conference on Management

of Data, SIGMOD ’07, pages 821–832, New York,

NY, USA. ACM.

Cohen, U. (2004). Inside GigaSpaces XAP-Technical

overview and value proposition. New York, NY: Gi-

gaSpace Technologies Ltd.

Copeland, G. P. and Khoshaﬁan, S. N. (1985). A decompo-

sition storage model. SIGMOD Rec., 14(4):268–279.

Fiaidhi, J., Bojanova, I., Zhang, J., and Zhang, L. J. (2012).

Enforcing multitenancy for cloud computing environ-

ments. IT Professional, 14(1):16–18.

Fiege, L., Cilia, M., Muhl, G., and Buchmann, A. (2006).

Publish-subscribe grows up: support for management,

visibility control, and heterogeneity. IEEE Internet

Computing, 10(1):48–55.

Forgy, C. L. (1982). Rete: A fast algorithm for the many

pattern/many object pattern match problem. Artiﬁcial

intelligence, 19(1):17–37.

Giurca, A. and Pascalau, E. (2008). JSON rules. Proceed-

ings of the of 4th Workshop on Knowledge Engineer-

ing and Software Engineering, KESE, 425:7–18.

Grund, M., Schapranow, M., Krueger, J., Schaffner, J., and

Bog, A. (2008). Shared table access pattern analysis

for multi-tenant applications. In Advanced Manage-

ment of Information for Globalized Enterprises, 2008.

AMIGE 2008. IEEE Symposium on, pages 1–5.

Guo, C. J., Sun, W., Huang, Y., Wang, Z. H., and Gao,

B. (2007). A framework for native multi-tenancy ap-

plication development and management. In The 9th

IEEE International Conference on E-Commerce Tech-

nology and The 4th IEEE International Conference on

Enterprise Computing, E-Commerce and E-Services

(CEC-EEE 2007), pages 551–558.

Habib, M. and Nourine, L. (1994). Bit-vector encoding for

partially ordered sets. In Orders, Algorithms, and Ap-

plications, pages 1–12. Springer.

Hay, D., Healy, K. A., Hall, J., et al. (2000). Deﬁning busi-

ness rules – What are they really? Final Report.

Hill, E. F. (2003). Jess in Action: Java Rule-Based Systems.

Manning Publications Co., Greenwich, CT, USA.

Jacobs, D., Aulbach, S., et al. (2007). Ruminations on

multi-tenant databases. In BTW, volume 103, pages

514–521.

Lim, L. and Conan, D. (2014). Distributed event-based sys-

tem with multiscoping for multiscalability. In Pro-

ceedings of the 9th Workshop on Middleware for Next

Generation Internet Computing, MW4NG ’14, pages

3:1–3:6, New York, NY, USA. ACM.

Nayak, P., Gupta, A., and Rosenbloom, P. S. (1993). The

Soar Papers. chapter Comparison of the RETE and

TREAT Production Matchers for Soar (a Summary),

pages 621–626. MIT Press, Cambridge, MA, USA.

Newell, A. (1973). Production systems: Models of control

structures. Technical report, DTIC Document.

Pal, S., Mandal, A. K., and Sarkar, A. (2015). Applica-

tion multi-tenancy for software as a service. SIGSOFT

Softw. Eng. Notes, 40(2):1–8.

Pathirage, M., Perera, S., Kumara, I., and Weerawarana, S.

(2011). A multi-tenant architecture for business pro-

cess executions. In 2011 IEEE International Confer-

ence on Web Services (ICWS), pages 121–128.

Proctor, M. (2012). Drools: A rule engine for complex

event processing. In Proceedings of the 4th Interna-

tional Conference on Applications of Graph Trans-

formations with Industrial Relevance, AGTIVE’11,

Berlin, Heidelberg. Springer-Verlag.

Yaish, H., Goyal, M., and Feuerlicht, G. (2011). An elas-

tic multi-tenant database schema for software as a ser-

vice. In Dependable, Autonomic and Secure Comput-

ing (DASC), 2011 IEEE Ninth International Confer-

ence on, pages 737–743.

Zahariev, A. (2009). The Google App Engine. Helsinki

University of Technology.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies
