Simulating User Interactions: A Model and Tool for Semi-realistic Load

Testing of Social App Backend Web Services

Philipp Brune

University of Applied Sciences Neu-Ulm, Wileystraße 1, D-89231 Neu-Ulm, Germany

Keywords:

Model-based Testing, Load Testing, User Simulation, Mobile App Development, Mobile Social Network

Interaction, Web Services.

Abstract:

Many mobile apps today support interactions between their users and/or the provider within the app. There-

fore, these apps commonly call a web service backend system hosted by the app provider. For the implemen-

tation of such service backends, load tests are required to ensure their performance and scalability. However,

existing tools like JMeter are not able to simulate “out of the box” a load distribution with the complex time

evolution of heterogeneous, real and interacting users of a social app, which e.g. would be necessary to detect

critical performance bottlenecks. Therefore, in this paper a probabilistic model for simulating interacting users

of a social app is proposed and evaluated by implementing it in a prototype load testing tool and using it to

test a backend of new real-world social app currently under development.

1 INTRODUCTION

An increasing number of online services nowadays

offer features of social networks for their users, which

enable their users to interact with each other (like

maintaining personal proﬁle, making friends etc.).

Such online services range from multiplayer games

to business-related communities, just to name a few.

In addition, most of these services use mobile apps at

least as one of their user frontends, very often also as

the primary one. Therefore, the usage of social mo-

bile apps is strongly increasing in recent years (Hsiao

et al., 2016).

This requires the implementation and hosting of

service backends for such kind of apps, which are

typically implemented using RESTful web services.

For the quality assurance of such service backends,

load tests are required to ensure their performance

and scalability. However, existing tools like JMe-

ter

using rather static, predeﬁned load proﬁles or pu-

rely random execution of http requests are not able

to simulate a load distribution out of the box, which

models the complex time evolution of heterogeneous,

real and interacting users of an Online Social Network

(OSN) app.

In particular, the type, time and sequence of user

actions in OSN strongly depend on the current situa-

http://jmeter.apache.org

tion of the user, his or her intrinsic motivation to use

the network, friends’ activity, or external events (Xu

et al., 2012), which could be modeled by user agents

having an inner state (Bonabeau, 2002) and maintai-

ning a user session (Shams et al., 2006). This might

be required e.g. to properly size the runtime hosting

environment and to detect critical performance bott-

lenecks. Therefore, realistic load testing of online ap-

plications has been an ongoing topic of research in

web and mobile development for many years (Calza-

rossa and Tucci, 2002; Shams et al., 2006; Terevinto

et al., 2016).

However, none of the existing approaches mo-

del all these relevant aspects of real users’ behaviour.

Therefore, in this paper a more holistic probabilis-

tic model for simulating interacting users of a social

app is proposed. The approach is evaluated by imple-

menting it in a prototype load testing tool and using it

to test a backend of a new real-world social app cur-

rently under development.

The rest of this paper is organized as follows:

In section 2 the related work is analyzed in detail,

section 3 describes the design of the proposed sto-

chastic model. The proof-of-concept implementa-

tion of the prototype load testing tool is illustrated in

section 4 and its evaluation in section 5. The current

limitations of the approach are discussed in section 6

before we conclude with a summary of our ﬁndings.

Brune, P.

Simulating User Interactions: A Model and Tool for Semi-realistic Load Testing of Social App Backend Web Services.

DOI: 10.5220/0006248202350242

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 235-242

ISBN: 978-989-758-246-2

235

2 RELATED WORK

For many years, tools and techniques for the perfor-

mance evaluation and load testing of internet appli-

cations have been a topic of active and still ongoing

research (Calzarossa and Tucci, 2002; Terevinto et al.,

2016). Therefore, the synthetic generation of realistic

load proﬁles for distributed applications is a crucial

prerequisite. Various approaches to achieve this on

the network layer of the communications stack have

been proposed (Balachandran et al., 2002; Busari and

Williamson, 2002; Weigle et al., 2006).

However, for typical distributed and web appli-

cations, the generation of realistic load proﬁles in

general requires to model the user interactions with

the system (Shams et al., 2006) including the need

to maintain a user session, with “a session being a

sequence of inter-dependent requests submitted by a

single user” (Shams et al., 2006). Since each such

session requires a user-speciﬁc state, the creation of

realistic synthetic workloads on the application level

requires the simulation of a large number of inde-

pendent virtual “users” and their interactions with the

system (“’behaviour”) (Hlavacs et al., 2000; Shams

et al., 2006). In general, agent-based modeling could

be used to achieve this (Bonabeau, 2002).

Such user behaviour modeling has been used to

create synthetic workloads for various types of distri-

buted applications, ranging from multiplayer online

games (Lehn et al., 2014) to traditional web applicati-

ons (Hlavacs et al., 2000; Shams et al., 2006; Shyaa-

mini and Senthilkumar, 2015) and, more recently, so-

cial media platforms (Xu et al., 2012; Terevinto et al.,

2016). Different approaches exist to create the requi-

red large number of independent virtual user instances

(Shams et al., 2006; V

ogele et al., 2015; Terevinto

et al., 2016). As a prerequisite for modeling and pre-

dicting workloads, also the real users’ behavior of va-

rious applications has been analyzed (Yu et al., 2006;

Maia et al., 2008; Benevenuto et al., 2009; Radinsky

et al., 2012; Awad and Khalil, 2012). In addition, ty-

pical challenges regarding this kind of performance

evaluation with synthetic workloads have been dis-

cussed (Hashemian et al., 2012).

In many cases, server-side components of distri-

buted applications will be deployed in the cloud, ty-

pically using the Platform-as-a-Service (PaaS) model

(Mell and Grance, 2011). Consequently, synthetic

workload generation and performance modeling for

cloud environments became a major research focus

recently (Chen et al., 2010; Folkerts et al., 2012; Cal-

heiros et al., 2013; Moreno et al., 2013; Chen et al.,

2015; Heinrich et al., 2015; Magalh

aes et al., 2015;

Sliwko and Getov, 2016; Gonc¸alves et al., 2016). Ho-

wever, only few authors consider modeling of PaaS

environments speciﬁcally (Zhang et al., 2012). But

since elasticity is a crucial feature of cloud environ-

ments, the simulation of workload variations over

time has been considered (Albonico et al., 2016).

While approaches for synthetic workload genera-

tion for existing OSN applications have been propo-

sed (Xu et al., 2012; Terevinto et al., 2016), no solu-

tion exists yet for performance testing new OSN ap-

plications still under development, for which the user

roles and behavior are still unknown.

In this case, only stochastic or probabilistic mo-

dels could be used to model the expected user beha-

vior, based on general observations about OSN users’

behavior (Maia et al., 2008; Benevenuto et al., 2009;

Xu et al., 2012). In general, the activity of users in

OSN has been found to depend on the factors: intrin-

sic interest, breaking news (i.e. external events) and

the activity of their friends (Xu et al., 2012), which

could be used to deﬁne a generic probabilistic mo-

del of users’ behavior. In addition, users’ activities

will in general follow an overall periodic time depen-

dency due to day and night, weekends and weekdays

etc. (Radinsky et al., 2012).

Since no approach exists so far combining all

these aspects, in this paper a model and software tool

for the synthetic creation of workloads for OSN ap-

plications are proposed and evaluated, which combine

the following features:

• Virtual users modeled by ﬁnite state machines

with probabilistic transitions between the states,

where the transitions refer to different user acti-

ons,

• Users’ activity depends on their intrinsic interest,

external events in their area and their friends’ acti-

vity,

• Users are spatially distributed,

• External events are localized and have a certain

spatial impact range.

3 STOCHASTIC MODEL OF

USER INTERACTIONS WITH

SOCIAL APPS

The proposed model is based on the simulation of

actions of locally dispersed social app users. For this

purpose, user objects are generated which are loca-

lized at an equally distributed random position in a

ﬁctitious quadratic “world” with a coordinate system

of longitudinal and latitudinal coordinate values bet-

ween 0 and 100 each. This allows the simulation of

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

236

effects of locality (like e.g. by external events with a

limited regional impact).

During test execution, each user object is perio-

dically called to execute actions and send requests to

the backend web services of the app. In each of these

cycles, every user object might perform such actions

with a certain probability, which describes its activity.

In agreement with (Xu et al., 2012), this probabi-

lity p

at the time t is deﬁned by

(t) = max(p

(t) + p

(t), 1)m(t) , (1)

where p

denotes the the user’s internal (intrinsic)

activity, p

the probability of using the OSN due to

the presence of external events affecting the user’s lo-

cation, and p

the average activity of the user’s di-

rect friends’ network (with N being the number of the

user’s direct friends)

(t) =

∑

i=1

A,i

(t) . (2)

In addition, m(t) describes a time-dependent modu-

lation of the resulting probability, depending on the

time of the day (a ﬁctive day lasts for a deﬁned time

span like e.g. 24 seconds) to simulate sleep, rest or

working periods. This modulation has a daily perio-

dicity.

External events appear and vanish in the virtual

world regularly, being located at random center po-

sitions and decreasing in importance for users with

increasing distance. Therefore, the impact of external

events on using the OSN is modelled by the probabi-

lity

(t) =

(t)

∑

i=1

E,i

(t) =

(t)

∑

i=1

(t)

+ r

, (3)

where N

(t) is the current number of external events

in the virtual world, e

(t) the importancy of the event

i, a

its mean impact radius and r

the distance bet-

ween the event’s center position and the user’s loca-

tion. The importancy e

(t) of an event is decreased

every virtual hour by a deﬁned value ∆e

to limit its

impact in time. Upon creation of new events, their

center positions and all described parameters are cho-

sen as random values.

Based on this model, the calculation of the current

activity of a user and the decision whether to perform

an action are implemented by the following Java code

fragment (the variables lat and lng denote latitudi-

nal and longitudinal coordinates of a position in the

virtual world):

protected boolean isActive(int hour) {

double friendsActivity = 0;

synchronized (friends) {

if (friends.size() > 0) {

for (GenericUser f : friends) {

friendsActivity =

friendsActivity

+ f.getCurrentActivity();

}

friendsActivity

= friendsActivity /

friends.size();

}

double activity = this.activity

+ Event.getTotalImportance(

this.lat, this.lng)

+ friendsActivity;

if (activity > 1.0) {

activity = 1.0;

}

if (rand.nextDouble() <

(activity

* activityPerHour[hour])) {

return true;

}

return false;

}

If this method returns true for a user, one of the

following actions is randomly selected and perfor-

med:

• Do the next action with respect to the social app

(like e.g. login, logout, invite friends, post a com-

ment etc.), depending on the current state of the

user object. Usually this involves making a web

service call to the app’s backend server,

• create a new user at a random position, add it to

the network, link with it as a friend, and after-

wards perform the next action,

• do nothing, with a small probability for deleting

the user from the system to model a user quitting

the social network.

4 PROOF-OF-CONCEPT

IMPLEMENTATION

The proposed model has been implemented using

the Java programming language

within a proof-of-

concept (PoC) load-testing tool. In ﬁgure 1 the class

diagram of this load testing tool based on the descri-

bed stochastic model is illustrated.

There, the class GenericUser describes the vir-

tual user objects, which e.g. contain also the met-

http://www.java.com

Simulating User Interactions: A Model and Tool for Semi-realistic Load Testing of Social App Backend Web Services

237

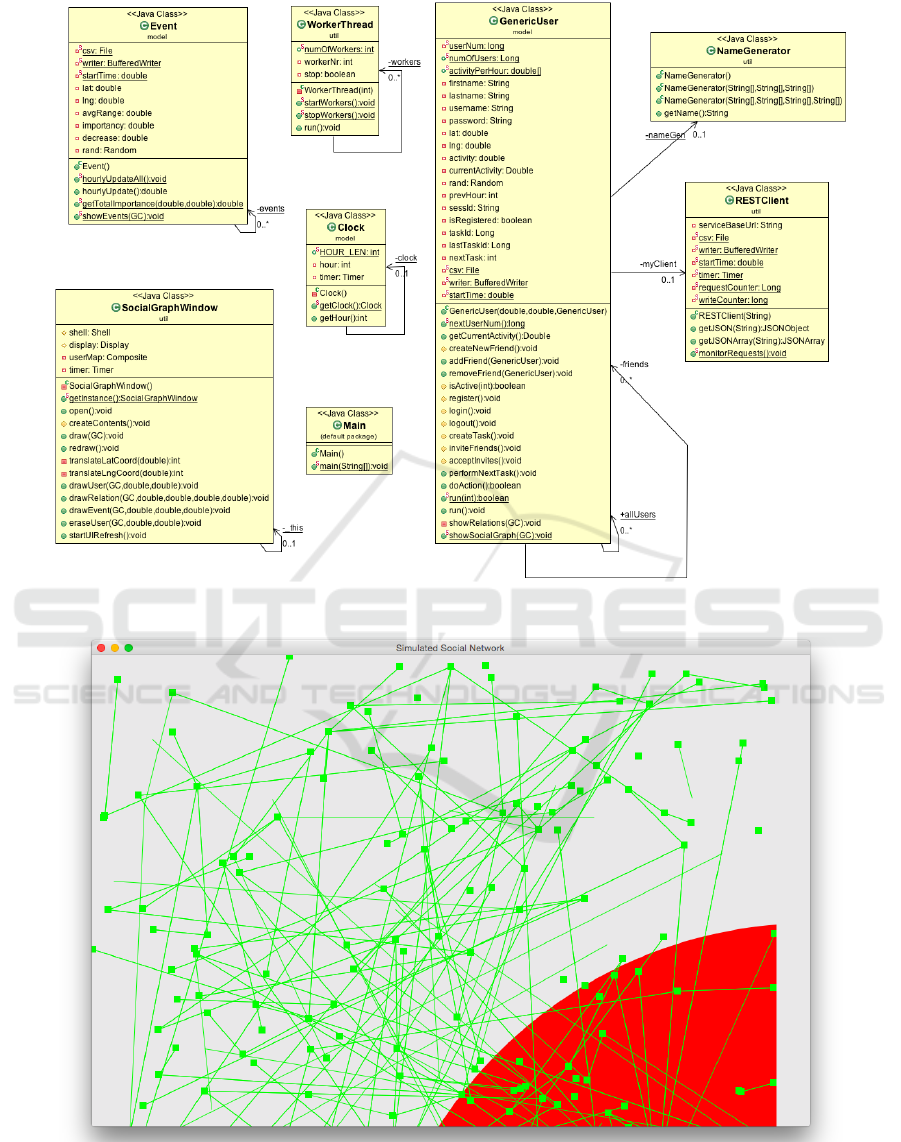

Figure 1: UML class diagram displaying the Java classes of the proposed load testing tool.

Figure 2: Runtime visualization of the simulated virtual users and their relations by the proposed load testing tool. The tool

uses the Standard Widget Toolkit (SWT) to implement the window. Green squares denote the virtual users at their locations,

green lines the friendship relations between these users (social graph), and red circles the events with their mean impact radius.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

238

hod isActive(int hour) outlined above. The class

Event models the external events taking place in the

virtual world, and the class Clock sets the current

time in the virtual world. These three classes belong

to the package model, which contains the classes re-

lated to modeling the load.

The utility classes WorkerThread and

NameGenerator describe the parallel worker threads

to call to the GenericUser objects periodically and a

string generator for unique artiﬁcial names and email

addresses, respectively. RESTClient is a helper class

for calling RESTful web services of a mobile app

backend over the network, and SocialGraphWindow

implements a Graphical User Interface (GUI) win-

dow to visualize at runtime the current state of the

simulated social graph between the virtual users on

the screen.

This GUI is implemented using the Standard Wid-

get Toolkit (SWT) originating from the Eclipse pro-

ject

. Figure 2 shows a screenshot of this window

visualizing the simulated virtual users and their relati-

ons (green squares and lines) and external events with

their mean impact radius (red circles).

The methods as inviteFriend(),

acceptInvites(), createNewFriend(), etc.

of GenericUser perform the typical actions of

participants in a social network by calling the corre-

sponding web services backend functions. Therefore,

the helper class RESTClient is used. Due to this,

it is comparably easy to adapt the described PoC

implementation to test other OSN’s web service bac-

kends by sub-classing GenericUser and overriding

or extending these methods.

Currently, this PoC implementation is multi-

threaded only and not distributable on multiple

servers, since it uses two global, static arrays,

GenericUser.allUsers and Event.event, repre-

senting the complete sets of all users and events in

the system. These need to be shared between all thre-

ads. Therefore, it needs to be run within a single Java

Virtual Machine (JVM) instance. Regarding the max-

imum number of simulatable users, it thus is only ver-

tically scalable by using a larger symmetric multipro-

cessor (SMP) server.

5 EVALUATION

The proposed model and prototype tool were evalua-

ted by testing a web service backend for a new social

mobile app currently under development for a pro-

spective internet start-up.

http://www.eclipse.org/swt

This service backend consists of RESTful web

services implemented using Java Enterprise Edition

(EE) JAX-RS API, Java Persistence API (JPA) for

object-relational mapping, a PostgreSQL database

and running on the Heroku Platform-as-a-Service

(PaaS) cloud environment

Figure 3 shows the results of a typical test run.

Here, both diagrams display measured data for a

time period of 350.000 milliseconds (corresponding

to about 14 ﬁctive days in the simulated world, with

each being 24 seconds long).

The diagram at the top ﬁrst shows the execution

times (black line) of one typical social app web ser-

vice request (namely: retrieve pending invitations to

a group) measured on the server (including database

access, without network latency, in milliseconds). Se-

cond, the cumulated intensity of the external events is

shown (red line, integrated over the whole area of the

virtual world). These intensity values are multiplied

by 1000 for displaying them together with the execu-

tion times in one diagram.

The diagram below ﬁrst shows the number of si-

mulated users (black line), and second the periodic

pattern of the activity ﬁlter values (red line). With the

latter values the calculated activity of a user is ﬁnally

multiplied to model periods of activity and inactivity

(i.e. sleep) during a day. This corresponds to the sta-

tement activity*activityPerHour[hour] at the

end of the isActive(int hour) method shown in

section 3. The pattern repeats itself for every ﬁcti-

tious day (about 14 times). The intensity values lie

in a range between 0 and 1 and are multiplied here

by 1000 for displaying them in one diagram with the

number of users.

The data indicates that the measured execution

time for processing a service request on average ri-

ses with the number of users and positively correlates

with the intensity of the external events, as one would

expect. However, these execution times are impacted

by multiple other factors (like e.g. the general rand-

omness of the model, the internal JVM state, server

load), so it could not be expected to observe a simple

direct proportionality.

Therefore, the data is in line with the intended be-

haviour for the proposed load testing tool and sup-

ports its applicability in practice. In addition, the tool

already helped to detect various design ﬂaws of the

service implementation under test (e.g. regarding the

concurrent database connection handling and hidden

dependencies between different service functions pre-

viously overlooked), so it proved to be useful also

qualitatively.

http://www.heroku.com

Simulating User Interactions: A Model and Tool for Semi-realistic Load Testing of Social App Backend Web Services

239

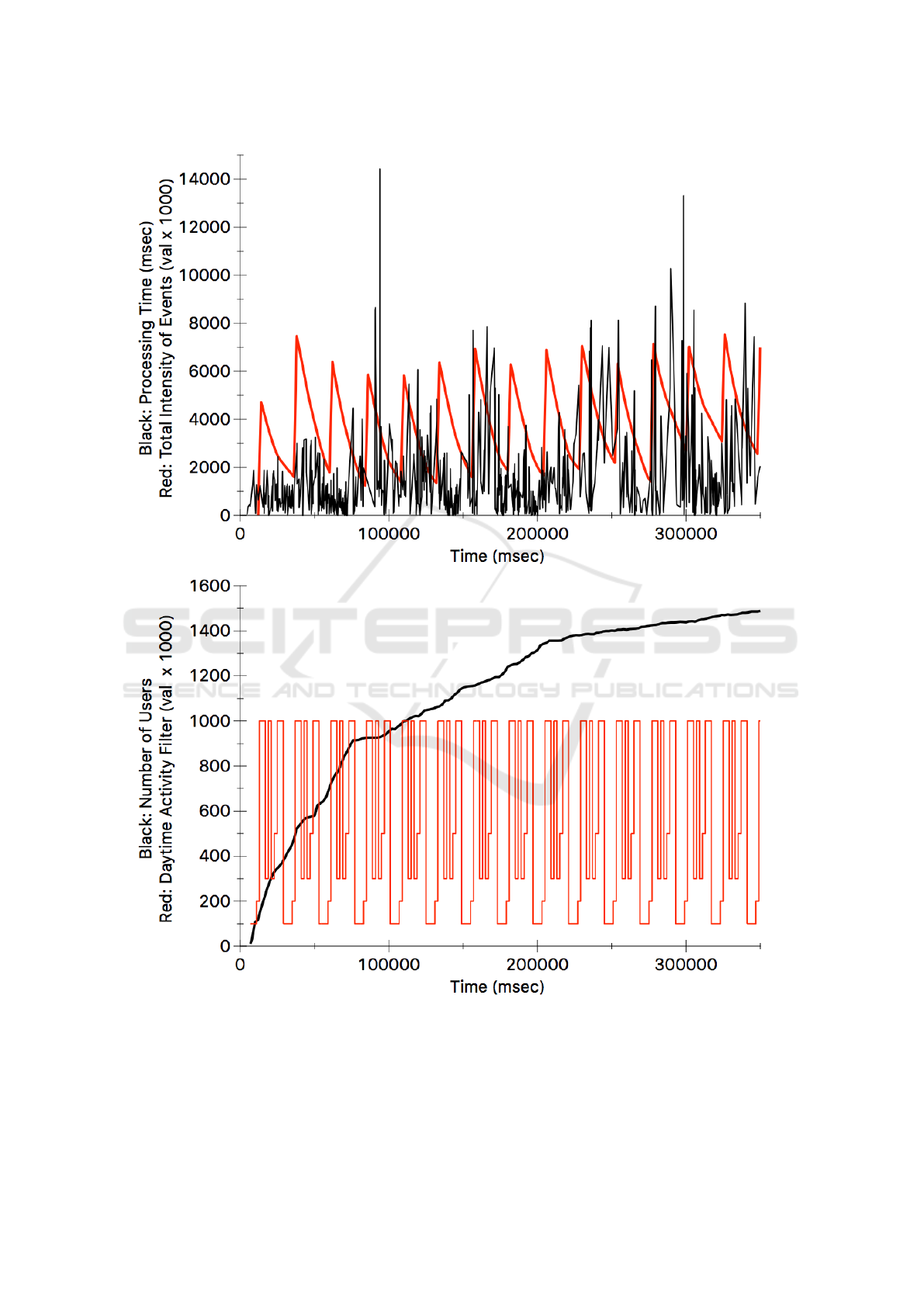

Figure 3: Measured results from running the prototype load test tool for the backend services of a new social mobile app

currently under development. For this test, the backend services were running in the Heroku PaaS cloud and the test tool

was run locally on a PC. The diagram at the top shows the cumulated intensity of the external events (red line, intgrated over

the whole area and multiplied by 1000 for displaying purposes) and the execution times of a speciﬁc frequent service request

measured inside the server (black line, in milliseconds) over time (in milliseconds). The diagram below shows the increasing

number of simulated users (black line) and the overall activity ﬁlter factor for the time of the day (red line, values between 0

and 1, multiplied by 1000 for displaying purposes) over time (in milliseconds).

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

240

6 LIMITATIONS AND FURTHER

RESEARCH

While these evaluation results in principle demon-

strate its feasibility, some open issues remain to be

addressed for evaluating the general applicability and

beneﬁts of the proposed approach in practice:

First, its adaptability to test different OSN bac-

kends needs to be demonstrated by evaluating the

tool in various scenarios, in lab tests as well as in

practice. As indicated in section 4, sub-classing of

GenericUser provides a mean to adapt the present

PoC implementation with reasonable effort to new

OSN backends.

Second, as described in section 4, the current PoC

implementation is limited to a single JVM instance

and therefore is only vertically scalable. While this

is sufﬁcient to evaluate the proposed model and the

basic feasibility of the approach, the creation of more

realistic, spatially distributed load tests requires hori-

zontal scalability using an implementation distributa-

ble over multiple servers. The presented implemen-

tation in principle could be extended to run on multi-

ple server nodes in a network by implementing a syn-

chronisation and replication mechanism between the

nodes for the two global arrays described. E.g., a mes-

sage passing communication model could be used for

this. However, further research is needed to imple-

ment and evaluate this extension.

7 CONCLUSION

In conclusion, in this paper a probabilistic model for

simulating interacting users of a social app has been

proposed and evaluated by implementing it in a pro-

totype load testing tool. The proposed approach is

capable not only of simulating the users’ activity de-

pending on their interest, external events in their area

and their friends’ activity, but also takes into account

the spatial distribution of users and external events,

which are localized and have a certain spatial impact

range within a virtual world.

While the evaluation is still preliminary, the re-

sults obtained so far are promising. Already with the

prototype tool some serious design ﬂaws of a service

backend of a new, real-world social app currently un-

der development were detected. However, further re-

search is needed to continue the evaluation of the pro-

posed approach in lab and ﬁeld tests with respect to

its possible applications, ease of use, performance and

adaptability.

REFERENCES

Albonico, M., Mottu, J.-M., and Suny

e, G. (2016). Au-

tomated workload generation for testing elastic web

applications.

Awad, M. A. and Khalil, I. (2012). Prediction of user’s

web-browsing behavior: Application of markov mo-

del. IEEE Transactions on Systems, Man, and Cyber-

netics, Part B (Cybernetics), 42(4):1131–1142.

Balachandran, A., Voelker, G. M., Bahl, P., and Rangan,

P. V. (2002). Characterizing user behavior and net-

work performance in a public wireless lan. In Procee-

dings of the 2002 ACM SIGMETRICS International

Conference on Measurement and Modeling of Compu-

ter Systems, SIGMETRICS ’02, pages 195–205, New

York, NY, USA. ACM.

Benevenuto, F., Rodrigues, T., Cha, M., and Almeida, V.

(2009). Characterizing user behavior in online so-

cial networks. In Proceedings of the 9th ACM SIG-

COMM Conference on Internet Measurement Confe-

rence, IMC ’09, pages 49–62, New York, NY, USA.

ACM.

Bonabeau, E. (2002). Agent-based modeling: Methods and

techniques for simulating human systems. Procee-

dings of the National Academy of Sciences, 99(suppl

3):7280–7287.

Busari, M. and Williamson, C. (2002). Prowgen: a synthetic

workload generation tool for simulation evaluation of

web proxy caches. Computer Networks, 38(6):779–

794.

Calheiros, R. N., Netto, M. A., De Rose, C. A., and

Buyya, R. (2013). Emusim: an integrated emula-

tion and simulation environment for modeling, evalu-

ation, and validation of performance of cloud compu-

ting applications. Software: Practice and Experience,

43(5):595–612.

Calzarossa, M. C. and Tucci, S. (2002). Performance Eva-

luation of Complex Systems: Techniques and Tools:

Performance 2002. Tutorial Lectures, volume 2459.

Springer Science & Business Media.

Chen, F., Grundy, J., Schneider, J.-G., Yang, Y., and He,

Q. (2015). Stresscloud: a tool for analysing perfor-

mance and energy consumption of cloud applications.

In Proceedings of the 37th International Conference

on Software Engineering-Volume 2, pages 721–724.

IEEE Press.

Chen, Y., Ganapathi, A. S., Grifﬁth, R., and Katz, R. H.

(2010). Towards understanding cloud performance

tradeoffs using statistical workload analysis and re-

play. University of California at Berkeley, Technical

Report No. UCB/EECS-2010-81.

Folkerts, E., Alexandrov, A., Sachs, K., Iosup, A., Markl,

V., and Tosun, C. (2012). Benchmarking in the cloud:

What it should, can, and cannot be. In Technology

Conference on Performance Evaluation and Bench-

marking, pages 173–188. Springer.

Gonc¸alves, G. D., Drago, I., Vieira, A. B., da Silva, A. P. C.,

Almeida, J. M., and Mellia, M. (2016). Workload mo-

dels and performance evaluation of cloud storage ser-

vices. Computer Networks.

Simulating User Interactions: A Model and Tool for Semi-realistic Load Testing of Social App Backend Web Services

241

Hashemian, R., Krishnamurthy, D., and Arlitt, M. (2012).

Web workload generation challenges–an empirical in-

vestigation. Software: Practice and Experience,

42(5):629–647.

Heinrich, R., Jung, R., Schmieders, E., Metzger, A., Has-

selbring, W., Reussner, R., and Pohl, K. (2015). Ar-

chitectural run-time models for operator-in-the-loop

adaptation of cloud applications.

Hlavacs, H., Hotop, E., and Kotsis, G. (2000). Workload

generation by modeling user behavior. In In Procee-

dings OPNETWORKS 2000.

Hsiao, C.-H., Chang, J.-J., and Tang, K.-Y. (2016). Ex-

ploring the inﬂuential factors in continuance usage

of mobile social apps: Satisfaction, habit, and custo-

mer value perspectives. Telematics and Informatics,

33(2):342 – 355.

Lehn, M., Triebel, T., Rehner, R., Guthier, B., Kopf, S., Bu-

chmann, A., and Effelsberg, W. (2014). On synthetic

workloads for multiplayer online games: a methodo-

logy for generating representative shooter game wor-

kloads. Multimedia Systems, 20(5):609–620.

Magalh

aes, D., Calheiros, R. N., Buyya, R., and Gomes,

D. G. (2015). Workload modeling for resource usage

analysis and simulation in cloud computing. Compu-

ters & Electrical Engineering, 47:69–81.

Maia, M., Almeida, J., and Almeida, V. (2008). Identifying

user behavior in online social networks. In Procee-

dings of the 1st workshop on Social network systems,

pages 1–6. ACM.

Mell, P. and Grance, T. (2011). The nist deﬁnition of cloud

computing.

Moreno, I. S., Garraghan, P., Townend, P., and Xu, J.

(2013). An approach for characterizing workloads

in google cloud to derive realistic resource utiliza-

tion models. In Service Oriented System Engineering

(SOSE), 2013 IEEE 7th International Symposium on,

pages 49–60. IEEE.

Radinsky, K., Svore, K., Dumais, S., Teevan, J., Bocharov,

A., and Horvitz, E. (2012). Modeling and predicting

behavioral dynamics on the web. In Proceedings of

the 21st International Conference on World Wide Web,

WWW ’12, pages 599–608, New York, NY, USA.

ACM.

Shams, M., Krishnamurthy, D., and Far, B. (2006). A

model-based approach for testing the performance of

web applications. In Proceedings of the 3rd interna-

tional workshop on Software quality assurance, pages

54–61. ACM.

Shyaamini, M. B. and Senthilkumar, M. (2015). A novel

approach for performance testing on web application

services. International Journal of Applied Engineer-

ing Research, 10(18):38679–38683.

Sliwko, L. and Getov, V. (2016). Agocs–accurate google

cloud simulator framework.

Terevinto, P. N., Pont, A., Gil, J. A., and Domenech, J.

(2016). A ﬂexible workload model based on roles of

interactive users in social networks. In 2016 IFIP Net-

working Conference (IFIP Networking) and Works-

hops, pages 524–529.

ogele, C., Robert, H., Robert, H., van Hoorn, A., and Kr-

cmar, H. (2015). Modeling complex user behavior

with the palladio component model.

Weigle, M. C., Adurthi, P., Hern

andez-Campos, F., Jeffay,

K., and Smith, F. D. (2006). Tmix: a tool for ge-

nerating realistic tcp application workloads in ns-2.

ACM SIGCOMM Computer Communication Review,

36(3):65–76.

Xu, Z., Zhang, Y., Wu, Y., and Yang, Q. (2012). Mo-

deling user posting behavior on social media. In Pro-

ceedings of the 35th International ACM SIGIR Con-

ference on Research and Development in Information

Retrieval, SIGIR ’12, pages 545–554, New York, NY,

USA. ACM.

Yu, H., Zheng, D., Zhao, B. Y., and Zheng, W. (2006).

Understanding user behavior in large-scale video-on-

demand systems. In ACM SIGOPS Operating Systems

Review, volume 40, pages 333–344. ACM.

Zhang, W., Huang, X., Chen, N., Wang, W., and Zhong,

H. (2012). Paas-oriented performance modeling for

cloud computing. In 2012 IEEE 36th Annual Compu-

ter Software and Applications Conference, pages 395–

404. IEEE.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

242
