TCP Wave Resilience to Link Changes

A New Transport Layer Approach Towards Dynamic Communication Environments

A. Abdelsalam, M. Luglio, C. Roseti and F. Zampognaro

University of Rome“Tor Vergata”, Via del Politecnico 1, 00133, Rome, Italy

Keywords:

TCP Wave, Hybrid Networks, Error Recovery, Handover.

Abstract:

In case of hybrid access networks, the selected link can suddenly change leading to a vertical handover. A

running TCP connection can experience a combination of three potential effects: a bandwidth change, a

latency change and an outage interval due to handover operations. In this context, we address a detailed

performance analysis of standard TCP, in comparison with a new TCP-based protocol, namely TCP Wave,

which mainly replaces traditional window-based transmission paradigm with a proactive burst transmission.

Previous studies demonstrate TCP Wave capability to quickly adapt its rate to dynamic link variations, so

that its application in the target scenario is considered worth. Performance assessment is carried out using

the Network Simulator (Ns-3) over a different set of possible conﬁgurations in terms of handover direction,

outage duration and selected transport protocol. The achieved results conﬁrm the TCP Wave efﬁciency in

dealing with link changes and provide a high number of interesting hints for drawing requirements of the

TCP-based transport protocols operating on future dynamic networks.

1 INTRODUCTION

The next generation networks will simultaneously

leverage on connectivity offered by multiple access

technology, including satellite, wired networks and

mobile terrestrial networks. In this view, as fostered

in an ETSI speciﬁcation (ETSI, 2015), an Intelligent

User Gateway (IUG) is installed at the user premises,

with the aim to route trafﬁc among the available ac-

cess technologies according to performance-related

policies, or to increase resiliency against potential in-

terruption of service on one or more links. At the

other end of the hybrid access network, an Intelligent

Network Gateway (ING) is installed to complement

operations executed by the IUG and provide intercon-

nection to the public network. The logic adopted in

both IUG and ING for applying routing rules can be

tailored to the user needs, but in general the criteria

adopted is one or a combination of the following:

- QoS/QoE requirements of the processed trafﬁc

and running applications;

- capabilities and availability of the access links;

- policies and contracts agreed between operator

and subscriber.

The latter two criteria are deﬁned within a pro-

cess of optimization of the overall available resources,

which is managed by an “orchestrator” agent, hav-

ing visibility on the resource allocation status of the

available links. It is then possible that the endpoints

are unaware of vertical handovers within the access

networks, while applications are running and trans-

port protocol end-to-end connections are established.

Running TCP/IP ﬂows are mainly affected by three

macro-effects:

- a possible change of the available bandwidth;

- a possible change on the end-to-end-latency;

- a possible disconnection time to execute the verti-

cal handover.

These effects, or a sub-set of them, are not lim-

ited to the target network architecture, but can be

easily faced also in other communication scenarios,

e.g.,: i) mobile ad-hoc networks (MANET), where

node mobility affects the actual end-to-end rate (de-

pending on the number of crossed hops) and leads

to varying network link characteristics together with

frequent connection losses (Yuwono, 2013); ii) hard

handovers supported in LTE networks, in which a

strong signal degradation is experienced upon the eN-

ode change, corresponding to a so-called Time To

Trigger (TTT) (Zhang et al., 2012). Therefore, it

Abdelsalam, A., Luglio, M., Roseti, C. and Zampognaro, F.

TCPWave Resilience to Link Changes - A New Transport Layer Approach Towards Dynamic Communication Environments.

DOI: 10.5220/0005966700720079

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 1: DCNET, pages 72-79

ISBN: 978-989-758-196-0

is evident that newer proposals for variants of tradi-

tional TCP/IP protocols must take into account the

handling of disconnection periods and/or sudden vari-

ations of the link physical characteristics. Inefﬁ-

ciencies are expected for the traditional TCP proto-

col (Allman et al., 2009), which has been designed

assuming communication conditions typical of con-

gested wired networks. In fact, the window-based

transmission paradigm has been designed consider-

ing losses and/or latency changes as a congestion sig-

nal. Clearly, such assumptions may result false in

all the aforementioned scenarios. Other TCP vari-

ants, such as MPTCP (Bhat and Talmale, 2014) and

SCTP (Lee et al., 2006), designed to efﬁciently tackle

multi-homed terminals do not fulﬁll target require-

ments for a threefold reason: they need modiﬁcations

on all the endpoints to manage control sessions, they

mainly aim to exploit all the available interfaces in

parallel without any centralized optimization scheme,

and they focus on endpoints handovers.

With respect to other TCP variants, the recently

introduced TCP Wave (Abdelsalam et al., 2015)

replaces the traditional window-based transmission

with a burst-based transmission, where packet send-

ing process, is decoupled by the ACKnowledgement

(ACK) reception timing. In this way, both transmis-

sion rate and packet retransmission scheduling can be

managed irrespectively from the experienced latency.

An exhaustive performance analysis in the described

scenario is proposed, through an experimental simu-

lation campaign, with reference TCPs and TCP Wave.

The tests reported in this paper aim to reproduce gen-

eral conditions of a vertical handover between links

with quite different physical characteristics, to assess

TCPs behavior and to analyze resulting performance.

2 TCP WAVE DESCRIPTION

TCP Wave (Abdelsalam et al., 2015) is the latest

vesion of a protocol family started by TCP Noord-

wijk (Roseti et al., 2010)(Patriciello et al., 2015),

which was designed to exclusively operate between

I-PEP agents at the edge of satellite links. TCP Wave

kept the “burst transmission” concept of TCP Noord-

wijk, upgraded with adaptivity to different architec-

tures and to broader target application scenario. TCP

Wave reviewed all algorithms and methods with the

aim to become a valid alternative to standard TCP ﬂa-

vors in every broadband communication environment

(including terrestrial-only links), taking into account

the requirements of nowadays trafﬁc characteristics

and network evolution. The new design principles

include the guarantee of optimal performance under

varying network and physical conditions, with adap-

tation to wide bandwidth and/or delay changes, accel-

eration of small transfers, quick achievement of high

throughput and efﬁcient handling of transmission er-

rors, also in presence of link disconnections, inter-

work with ACKs as generated by any standard TCP

receiver, to guarantee protocol interoperability in any

current and future communication scenario.

Loss recovery is compatible with the classic TCP

recovery mechanisms, referenced hereafter as “stan-

dard TCP” (Allman et al., 2009), so that the main in-

dication of lost packet is indeed the reception of dupli-

cate ACKs (DupAcks), which are generated by stan-

dard TCP receivers upon out-of-sequence received

packets. Similarly to standard TCP, TCP Wave per-

forms a packet retransmission when receiving three

DupAcks referred to the same packet but, in con-

trast, TCP-Wave sender triggers a new Fast Retrans-

mission (FR) algorithm, to retransmit the packet as-

sumed lost, without affecting the normal process of

burst transmission. To guarantee the stability of this

approach, TCP Wave also inherits and updates the

Retransmission Time Out (RTO) mechanism of stan-

dard TCP implementation. The RTO is updated tak-

ing as input RTT samples internally calculated by a

function working on a burst-basis (one sample per

burst) and, when RTO expires, the trigger is inter-

cepted by TCP Wave to perform speciﬁc timeout op-

erations. Both the new FR and RTO algorithms, fol-

lowing the principles of the TCP Wave burst-based

transmission, rely on an internal timer (Roseti et al.,

2010) instead of using ACK reception as clock, mak-

ing the actual response to losses substantially differ-

ent from standard TCP. Error recovery algorithms of

standard TCPs are widely covered in literature (All-

man et al., 2009)(Paxons et al., 2011), whereas the

description of TCP Wave error recovery methods was

not adequately addressed in previous works (Abdel-

salam et al., 2015). Therefore, the next sub-sections

provide details on the TCP Wave error recovery algo-

rithms.

2.1 Fast Retransmission (FR)

Algorithm

TCP Wave FR algorithm is designed to recover

single/multiple packet losses without incurring into

RTO expiration. Upon receiving three DupAcks, the

lost packet is immediately retransmitted, while burst

transmission scheduling is kept unaltered, except the

reduction by 1 packet to the next scheduled burst, to

keep consistent the actual overall transmission rate.

This FR algorithm does not limit in practice the max-

imum number of packet losses that can be recovered

TCPWave Resilience to Link Changes - A New Transport Layer Approach Towards Dynamic Communication Environments

without triggering RTO, because the uninterrupted

transmission of “fresh” packet bursts allows gener-

ation of all the DupAcks needed to report multiple

consecutive losses. To opposite, standard TCP dur-

ing fast retransmit is able to generate just a limited

number of “new” packets according to the Conges-

tion Window (cwnd) value, increasing the possibility

to experience an RTO before the recovery of all the

consecutive losses. The retransmitted packet success-

fully delivered will generate a cumulative ACK cover-

ing packets transmitted on multiple bursts. When this

happens, TCP Wave sender performs only a single

ACK-based statistic update, accounting the cumula-

tive ACK to complete computation related to the ACK

train partially received before the loss. As a result, ev-

ery cumulative ACK will produce at most 1 new RTT

sample.

Finally, TCP Wave disables FR during the whole

RTO recovery phase, that is until the the transmission

reaches the last packet ACKed before the RTO expi-

ration. The rationale relies on the assumption that an

RTO occurs when there is a serious problem in the

network and than it is considered preferable to in-

cur in a further RTO rather than to recover individual

packets.

2.2 Retransmission Time Out (RTO)

Retransmission Timeout (RTO) indicates how long

the TCP connection must wait for an ACK re-

lated to a transmitted packet, before performing “re-

set/recovery” actions. This mechanism is tightly cou-

pled with the FR and DupAck mechanism to ensure

a robust continuation and management of the connec-

tion. Due to the dynamic changes in the network and

to the different ways in which receiver can manage

the generation of ACKs (cumulative, delayed, etc.), it

is difﬁcult to determine the ideal value for RTO timer.

Too long RTO is bad for timely determining a ma-

jor network outage, while too short RTO can lead to

frequent unnecessary timeouts. (Paxons et al., 2011)

outlines the algorithm implemented by standard TCP

protocols to dynamically calculate RTO value. It de-

pends on the measured RTT samples, their variation

and it is lower bounded to at least 1 s. This algorithm

is implemented by all the current TCP variants and it

has been adapted within TCP Wave.

TCP Wave calculates the RTT samples once each

transmitted burst, as the time interval between the

start of the ﬁrst packet of a burst and the time of the

reception of the ﬁrst ACK of the corresponding ACK

train. When a lost packet is retransmitted through FR

algorithm, the resulting RTT value is inﬂated since

RTT is measured with respect to the ﬁrst packet trans-

mission time. Obviously, in this case, the RTT in-

crease is not a symptom of congestion. Differently

from standard TCP, all the RTT measurements includ-

ing those calculated during retransmissions, are sent

to the underlying RTT estimator, which calculates the

round-trip time variation (RTTVAR) and sets the RTO

value accordingly. This expedient ensures that the es-

timated RTO value is always consistent with the RTT

value seen by TCP Wave, also during retransmission,

avoiding unnecessary RTO expirations. Furthermore,

since TCP Wave considers an RTO expiration as an

indication of a serious problem in the network, ei-

ther severe congestion or even temporary disconnec-

tion, the sender behavior during the RTO recovery is

quite conservative. Once RTO recovery is triggered,

the sender resets the BURST size and the T xTime to

the initial values BURST

and T xTime

respectively,

assuming that network conditions are not well known

yet. Then transmission restarts in bursts from the lat-

est ACKnowledged packet before the RTO expiration.

All ACK types (normal and duplicate) are monitored

during RTO recovery, in order to skip some bursts,

if possible, if the ACK is cumulative (i.e., jump in

the transmitted sequence number), while BURST size

and T xTime are dynamically updated upon the recep-

tion of regular ACK trains. Many interactions be-

tween FR and RTO algorithm occur. For instance,

during RTO recovery, data can be lost again, or , dur-

ing a drastically changed phase RTO could expire. A

remarkable case is when a retransmitted packet is lost

again: the sender will receive a quite large number of

DupAcks associated to it. However, this will not trig-

ger any further retransmission, because in this condi-

tion it is not possible to make assumptions on the suc-

cessful or failed reception of the retransmitted packet.

Without receiving a new ACK higher than the current

DupAck, RTO will expire and TCP Wave will trigger

the RTO recovery algorithm. This behavior is con-

sistent with the need of RTO expiration in a situation

where a packet is lost twice, which can occur in bad

or drastically changed network conditions.

3 PROTOCOL VALIDATION AND

PERFORMANCE ASSESSMENT

A baseline version of TCP Noordwijk was imple-

mented in the Network Simulator Ns-3 (Ns-3, 2016)

as described in (Patriciello et al., 2015). This ver-

sion was then used as reference to implement the

newest TCP Wave version, including the error recov-

ery algorithms herein discussed. All the TCP Wave

algorithms were based on standard calls available

in Ns-3 (“TcpSocketBase”), closely resembling the

DCNET 2016 - International Conference on Data Communication Networking

Linux O.S. (Linux, 2015) TCP state-machine model.

Therefore, the burst transmission paradigm and all er-

ror recovery methods and related operations, do not

require any modiﬁcation for receiver endpoints and

TCP sender state-machine, making TCP Wave inte-

gration easily applicable to the target real networks.

3.1 Simulation Setup

A setup ﬁle written in C++ was used to conﬁgure the

sender/receiver nodes and network topology for the

transfer of application trafﬁc in Ns-3. The reference

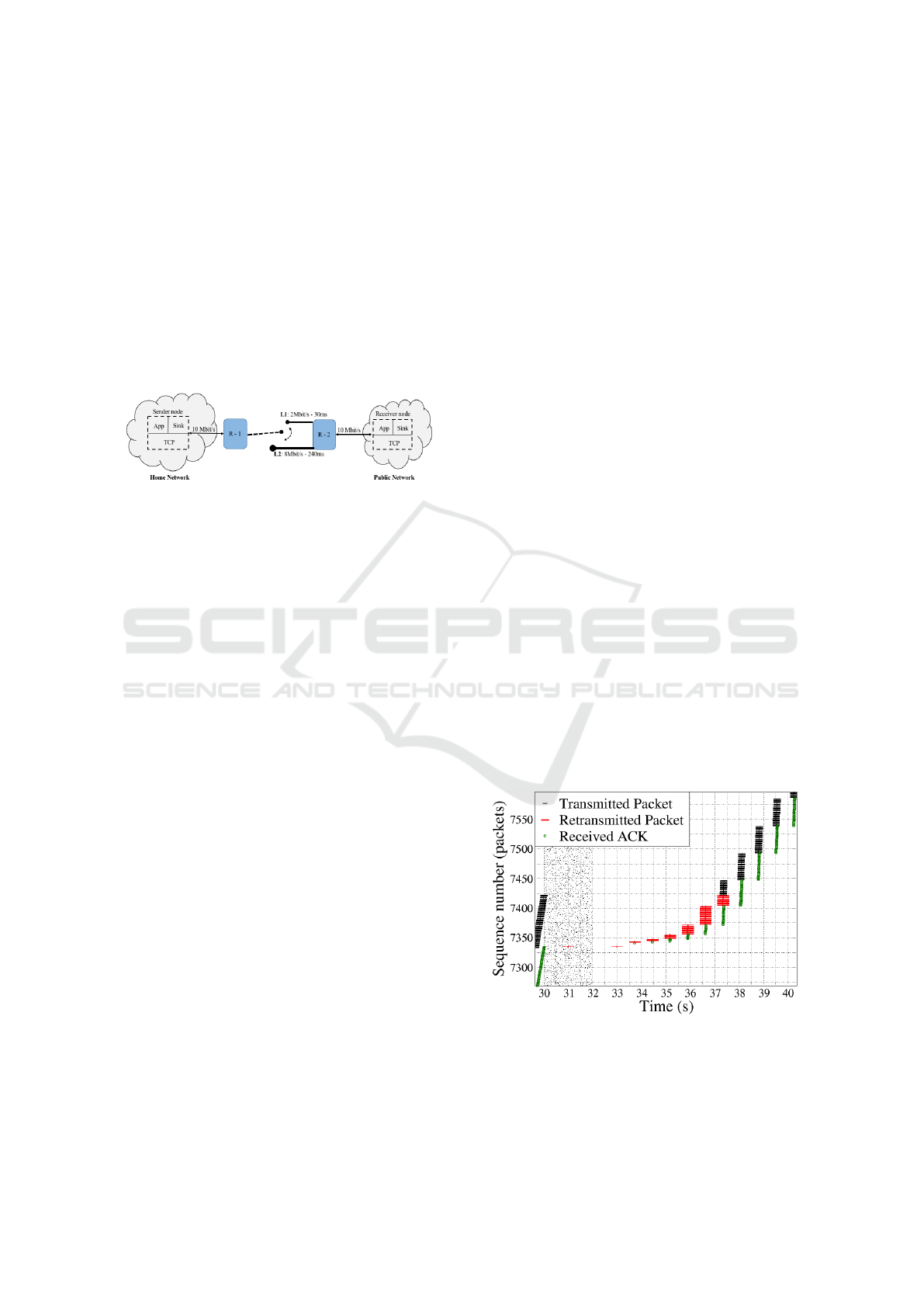

simulation scenario is shown in ﬁg. 1.

Figure 1: Ns-3 Simulation setup.

A sender/source node is connected to an interme-

diate Router 1 (R-1) through a point-to-point local

link. The source node is conﬁgured to generate in-

ﬁnite amount of raw data to the transport protocol

socket exploiting either TCP Wave or other versions

of TCP that are available in the current release of Ns-

3 (v3.23): TCP Tahoe, TCP Reno, TCP NewReno,

and TCP Westwood+. The data ﬂow is terminated

at a Sink agent conﬁgured in the receiver node, di-

rectly connected through a point-to-point local link to

Router 2 (R-2). R-1 – R-2 represents the bottleneck

point-to-point link, that can be conﬁgured with either

a L1 conﬁguration (2 Mbit/s, low latency of 30 ms) or

L2 conﬁguration (8 Mbit/s, high latency of 240 ms),

as possible consequence of network topology change.

In both cases the bottleneck buffer size is assumed

equal to 100 TCP/IP packets, which is the default

value for the conﬁguration of a queue in Ns-3. All the

conﬁguration values have been selected with the aim

to reproduce a realistic scenario, while at the same

time offering challenging conditions for the transport

layer, by changing the bottleneck link conﬁguration

(L1 or L2).

During the simulation run, handover events are

reproduced by triggering a 100% bidirectional loss

event for a so-called “handover time” (HT). This rep-

resents the lower layer switching experienced upon

a hard vertical handover that is deﬁned in the refer-

ence scenario. Simultaneously, the R-1–R-2 link con-

ﬁguration is switched from L1 to L2 conﬁgurations

or vice-versa. For a preliminary validation and per-

formance evaluation during this type of handover, the

case of an HT = 2.0 s is considered as baseline. Such

an HT value has been selected since it is compara-

ble and always larger than the RTO estimation in case

of the link with the highest latency (L2), and then

it allows the triggering of all the envisaged loss re-

covery mechanisms. TCP NewReno is considered as

reference standard TCP. In the last part of the pa-

per, a general overview comparing different values

for the HT (0.5 s, 2 s and 10 s) and using all avail-

able TCPs is provided for completeness. As a general

criterion to schedule the handover event in the simu-

lation, we consider a time where the target transport

protocol under evaluation shows the maximum eligi-

ble rate on the current link (which can be different

based on protocol and link characteristics). The ra-

tionale is to analyze the recovery dynamics from the

steady-state achieved on the “old” link until the re-

store of the steady-state on the “new” link.

The initial setup for standard TCP is a MTU of 1

kbyte, initial cwnd of 1 MSS; threshold for retrans-

mission = 3 DupAcks. In addition, the initial values

considered for TCP Wave, are a BURST

of 10 TCP

packets, a T XTime

of 0.5 s and a β of 0.35 s.

3.2 Analysis of TCP Loss Management

In the ﬁrst test a handover from L1 to L2 at 30 s is

triggered, when both TCP NewReno and Wave are in

steady-state. Thus, the sender will not receive any

ACK from 30 s to 32 s, since HT is set to 2 s. In

case of TCP NewReno, the sender stops transmission

completely at the exact moment it experiences the link

outage. This is because, in standard TCP, transmis-

sion is ACK- clocked: cwnd shifts are performed upon

new ACK reception. The complete packet transmis-

sion and ACK reception timing, as experienced by the

TCP NewReno sender, are shown in ﬁg. 2.

Figure 2: NewReno recovery after handover (L1 to L2).

After the link outage at 30 s, the sender waits

for the RTO expiration to perform a retransmission.

However, in this scenario, the RTO expires during

the outage interval, causing a further loss of the re-

TCPWave Resilience to Link Changes - A New Transport Layer Approach Towards Dynamic Communication Environments

transmitted packet. Thus, the sender doubles its RTO

time, as deﬁned in the exponential back-off algorithm

(Paxons et al., 2011), and waits for the next RTO ex-

piration. Finally, once the second RTO expires af-

ter 3 s, the channel is available. The sender resets

cwnd to 1 packet and goes into Slow Start phase (with

cwnd doubled every RTT), until overcoming the Slow

Start Theshold (ssthresh), which has been set to 1/2

of the amount of bytes in ﬂight at the RTO expira-

tion. Deﬁnitively, the overall RTO recovery strategy

of NewReno increases the outage interval unneces-

sarily, since the sender is always waiting for either an

ACK or the RTO expiration to trigger actions.

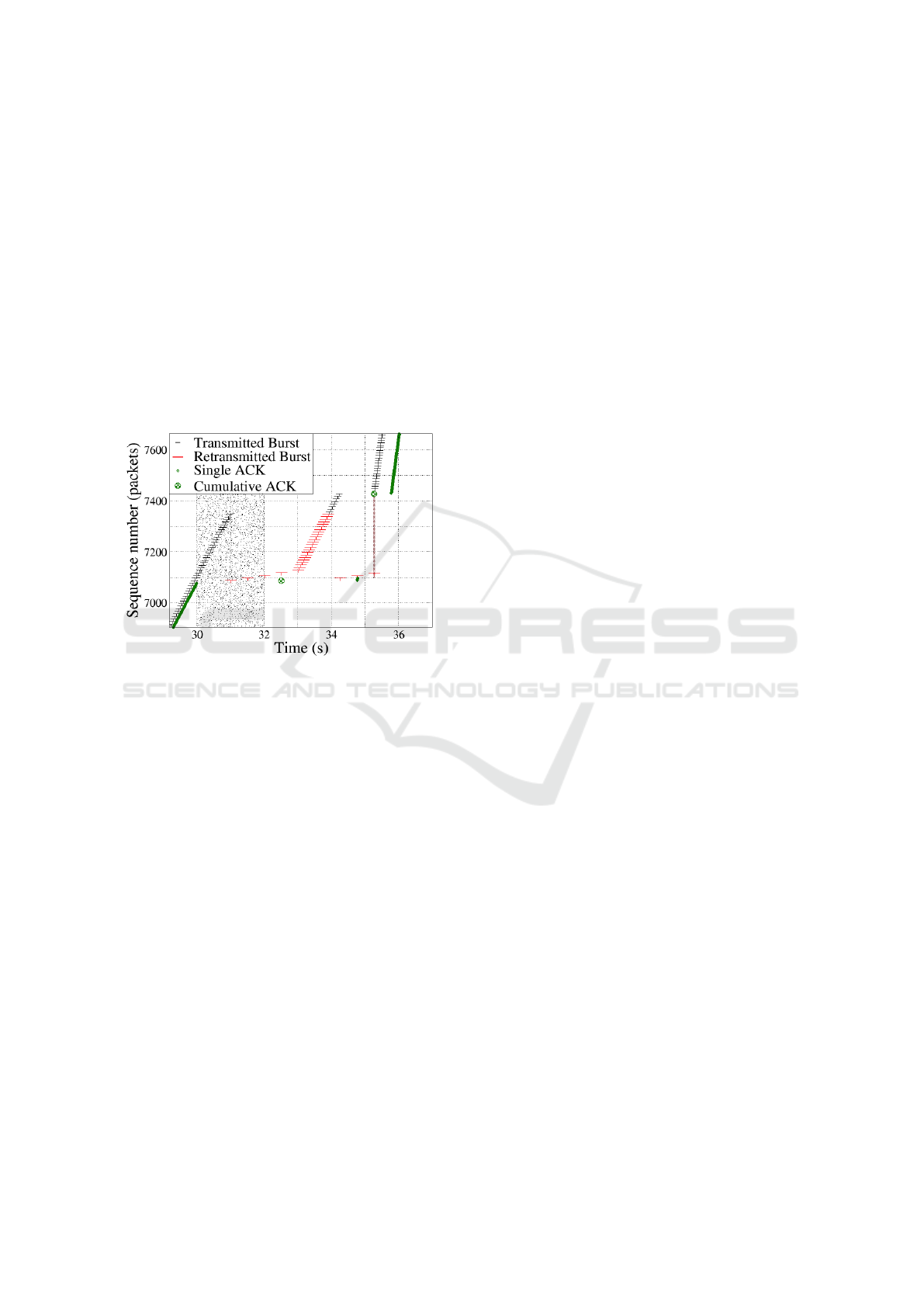

Fig. 3 shows TCP Wave behavior in the same

conditions. After disconnection at 30 s, TCP Wave

Figure 3: TCP Wave recovery after handover (L1 to L2).

continues burst transmissions, irrespective of recep-

tion of “new” ACK trains. This behavior occurs un-

til RTO expires after about 1 s from the disconnec-

tion time. Then, TCP Wave sender starts the retrans-

missions from the ﬁrst unacknowledged packet, us-

ing the initial burst setting: BURST

and T xTime

However, in the simulated scenario the ﬁrst 2 bursts

are lost again since they are retransmitted during the

HT period. Despite further losses, burst-transmission

paradigm allows to continue the burst sending. Then,

the third burst is retransmitted on the new link al-

lowing the reception of the ﬁrst cumulative ACK at

32.75 s. This cumulative ACK corresponds to a part

of the last burst transmitted before the handover event,

which was only partially acknowledged before due to

the link outage. This cumulative ACKs causes a reset

of RTO timer, avoiding further immediate RTO expi-

rations. As a cumulative ACK of a partial burst, its

reception is used as well to update TCP Wave sender

statistics. In practice, average RTT is not impacted

since it was already registered upon the ﬁrst ACK of

the target ACK train, producing a value consistent

with the old link latency. Instead, ACK dispersion

sample results higher than currently computed aver-

age RTT (around 60 ms, since computed on the old

link), and under this condition the new sample is dis-

carded. As a consequence, T xTime is still similar to

that used on the old link. Therefore, at 33 s retrans-

mission of burst continues at an updated rate close to

the L1 bandwidth. In this phase, also “fresh” pack-

ets are transmitted just after the retransmission of all

those lost during outage (at 33.8 s and exceeding se-

quence number 7400). Again, at 34.25 s, RTO ex-

pires due to loss of the ﬁrst two bursts sent during

HT period. The RTO recovery is then re-executed,

starting-off from packets acknowledged at 32.75 s by

the cumulative ACK. Differently from ﬁrst RTO, re-

transmissions are all successfully received, generat-

ing ACK trains such as the one at 34.75, which al-

lows a ﬁrst update of the ACK-based statistics for

the new link. However, the effect of such an up-

date is not applied on the next burst, since it was al-

ready scheduled. Afterwards, two main effects are ev-

ident: 1) a cumulative ACK referred to the large num-

ber of burst proactively transmitted with success be-

tween the two RTO expirations is received, leading a

huge “jump” in the transmission sequence number; 2)

T xTime is updated according to ACK-based statistics

previously computed. The latter effect allows to sud-

denly achieve the maximum rate allowed on the new

link, as conﬁrmed in section 3.3. Comparing packet

sequence number of ﬁg. 2 and ﬁg. 3, it is possible

to notice that after the activation of the new link at

32 s, TCP NewReno transmits about 250 packets over

8 s, while TCP Wave transmits more than 500 pack-

ets in less than 4 s, obtaining an evident performance

improvement.

In the second simulation setup, the link handover

is from L2 to L1. In this event, the new link is char-

acterized by a bandwidth-delay product much smaller

than the old one, increasing the risk to overload the

new link during the recovery operations. For TCP

NewReno, the handover occurs at 300 s, instead than

30 s, since it requires longer time to achieve the max-

imum allowed rate (8 Mbit/s) due to the large latency

affecting the cwnd increases. On the other hand, for

TCP Wave the handover time is scheduled at 30 s as

before, since it is able to achieve the maximum rate

upon the reception of the ﬁrst ACK trains (1-2 RTT),

which allow a proper update of the TxTime variable.

Fig. 5 shows the TCP NewReno behavior when

recovering from the outage event at 300 s. As in

the previous handover case, the stop of ACK recep-

tion implies the corresponding interruption on send-

ing new packets, waiting for the RTO expiration. RTO

expires at 301 s when outage is still in place, so that

retransmission of the ﬁrst unacknowledged packet

fails. Therefore, RTO value is doubled and it ex-

DCNET 2016 - International Conference on Data Communication Networking

pires again as in the previous test, at 303 s. As usual,

TCP NewReno reacts to RTO resetting cwnd to 1 and

ssthresh to half of the bytes in ﬂight when ﬁrst RTO

was triggered. In this second attempt, the retrans-

mission of the ﬁrst unacknowledged packet is suc-

cessfully performed, leading to a twofold effect: 1) it

triggers a cumulative ACK accounting all packets re-

ceived before handover (which in turn causes a jump

in the transmission sequence number); 2) it causes a

doubling of cwnd, since Slow Start algorithm is run-

ning. The latter effect recursively occurs until cur-

rent cwnd overcomes the ssthresh value. In the target

scenario, ssthresh is set to a value proportional to the

bandwidth delay product of the old link (L2), which

is much higher than the one of the new link (L1). As

a consequence, TCP NewReno performs an exponen-

tial increase of cwnd on RTT basis, which leads at ex-

ceeding the bandwidth-delay product of the new link,

causing a signiﬁcant bottleneck buffer overﬂow and

consequently the loss of multiple TCP packets.

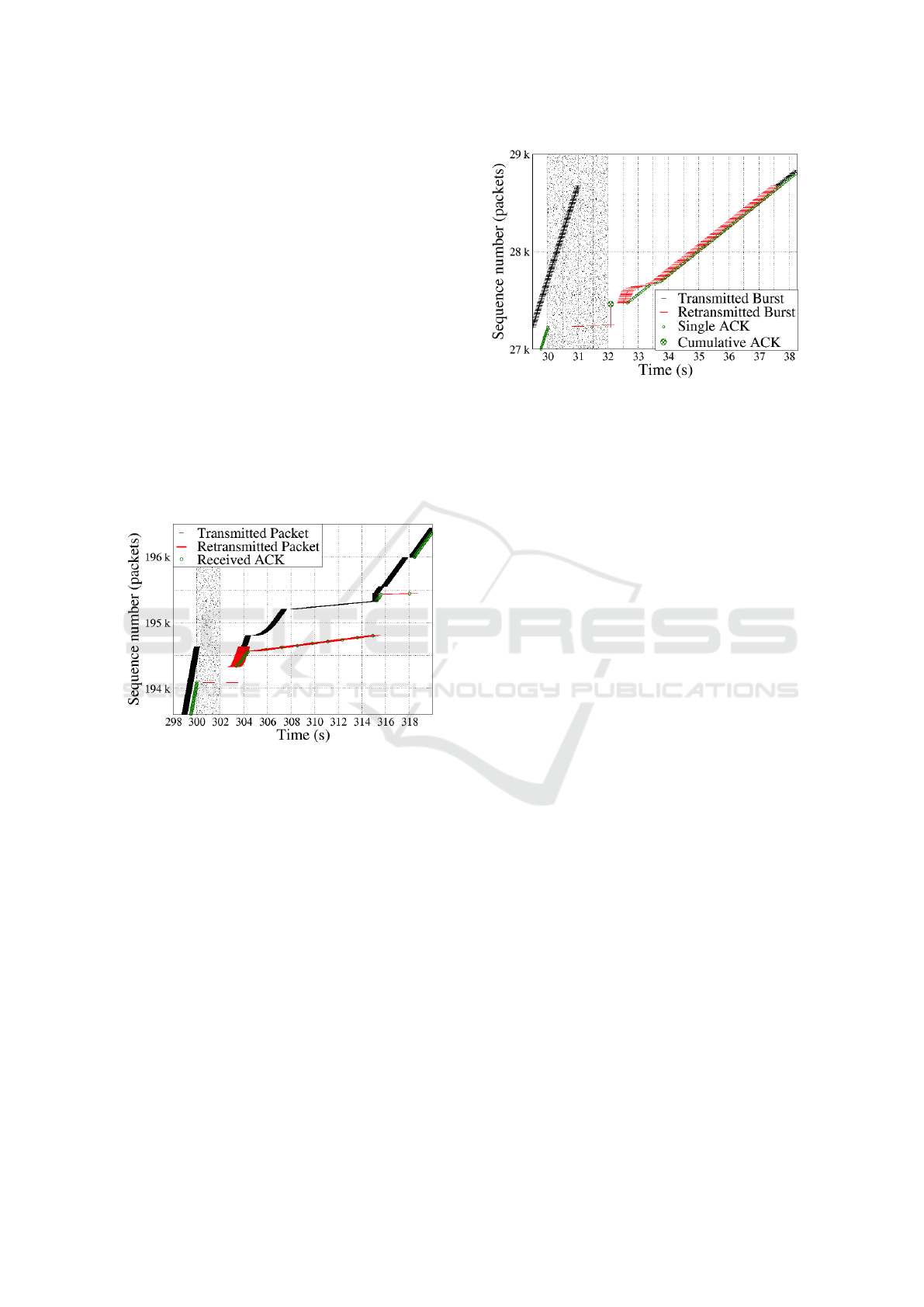

Figure 4: NewReno recovery after handover (L2 to L1).

Then, TCP NewReno enters in Fast Retransmit

and Fast Recovery phase (Allman et al., 2009), where

lost packets are recovered one by one as soon as the

corresponding DupAcks are received. As a result,

TCP NewReno is able to recover 1 lost packet per

RTT. This phase covers the time interval from about

305 s to 315 s in ﬁg. 4. Fast Retransmit and Fast

Recovery envisages the halving of the current cwnd,

although it can be temporary inﬂated upon the recep-

tion of DupAcks. This process allows the transmis-

sion of new packets in parallel to the retransmissions

according to cwnd inﬂation/deﬂation. At 315 s, when

all the losses due to the buffer overﬂow are recovered,

TCP NewReno resets cwnd to the value computed at

the beginning of the Fast Retransmit and Fast Recov-

ery. Again, such a value is still too big with respect to

the new bandwidth delay product, then causing a fur-

ther buffer overﬂow, with a lower number of losses.

In deﬁnitive, the new steady-state is recovered after

Figure 5: TCP Wave recovery after handover (L2 to L1).

about 17 s from the activation of the new link.

TCP Wave behavior during the same handover

scenario is reported in ﬁg. 5. As observed in the pre-

vious handover scenario (ﬁg. 3), TCP Wave transmis-

sions continues also after the old link outage, because

it is not dependent on the ACK reception. However,

the absence of ACKs leads to a unavoidable RTO ex-

piration at 31 s. TCP Wave then behaves as well as

during handover from L1 to L2: initial settings are

restored and used to retransmit bursts, starting from

the ﬁrst unacknowledged packet, and the ﬁrst two re-

transmitted bursts are lost again since they are sent

during outage. Again, as in the previous case, the

third retransmitted burst arrives to the destination trig-

gering a cumulative ACK. Such a cumulative ACK

completes the reception of an ACK train partially re-

ceived before handover, covering also several sub-

sequent ACK trains related to bursts successfully re-

ceived. Therefore, it leads to a signiﬁcant jump in the

transmission sequence number, updating ACK train

dispersion and RTT with values compliant with the

characteristics of the old link. As a consequence,

at 32.5 s, the burst retransmissions are performed at

a rate similar to that experienced over the old link,

which is too high for the new link bandwidth-delay

product. Differently from TCP NewReno, TCP Wave

is able to promptly adjust the rate monitoring RTT

increases (details are provided in (Abdelsalam et al.,

2015)). Therefore, after just 1.5 s from the activation

of the new link, TCP Wave achieves the steady-state

and in less than 6 s recovers from all the losses.

3.3 Analysis of the TCP rate

This sub-section complements the analysis provided

in the previous one, showing trends of the rate as mea-

sured at the sender side transport layer in the same

simulation setup. To support the result comparison,

time scale has been normalized at the handover time

TCPWave Resilience to Link Changes - A New Transport Layer Approach Towards Dynamic Communication Environments

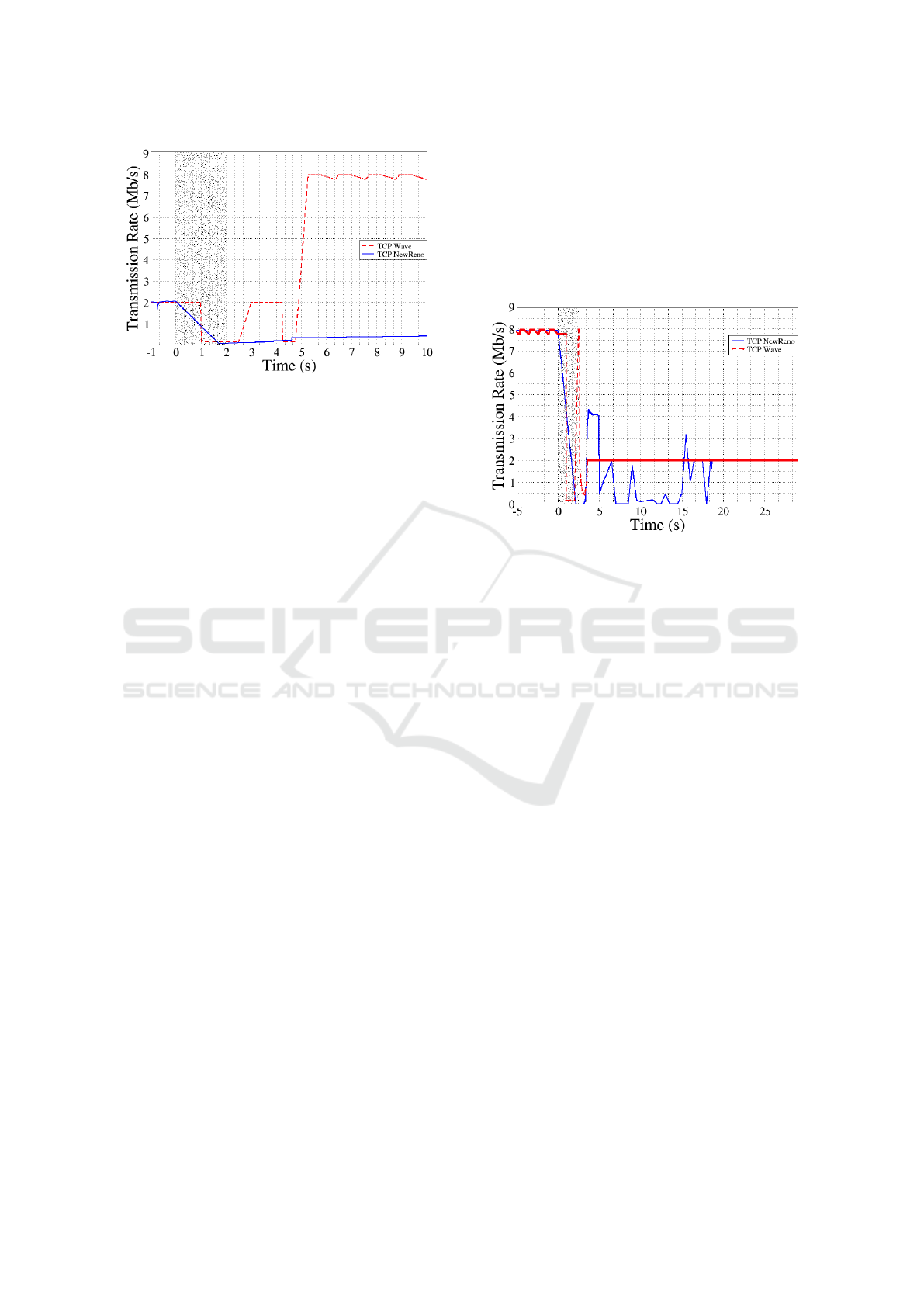

Figure 6: TCP transmission rate: handover from L1 to L2.

(t = 0) in a signiﬁcant time range. Fig. 6 compares

TCP NewReno and TCP Wave during handover from

L1 to L2.

After the handover and the triggering of the sec-

ond RTO, TCP NewReno rate is reset to a minimum

value corresponding to a cwnd = 1 and its growth

is ﬁrst exponential (Slow Start) and then linear once

cwnd > ssthresh (Congestion Avoidance). The effect

on the rate is a very slow growth towards the max-

imum available bandwidth of 8 Mbit/s (more than 4

minutes from L2 activation are needed to achieve the

new steady-state). To opposite, TCP Wave exhibits

the capability to quickly recover from RTO thanks to

the proactive generation of bursts also during the out-

age period. The ﬁrst cumulative ACK received (see

ﬁg. 3) allows to restore the transmission over the new

link allowing at glance 2 Mbit/s rate, while the sec-

ond cumulative ACK allows to properly estimate the

new available bandwidth with a rapid ramp-up to 8

Mbit/s. Deﬁnitively, the maximum rate over the new

link is achieved within 3.2 s from its activation, which

is a great improvement if compared with the 4 min-

utes needed by NewReno.

Fig. 7 shows the rate comparison in case of han-

dover from L2 to L1, when a shrinkage of the avail-

able bandwidth is experienced by the transport pro-

tocol after the outage period. After L1 activation,

TCP NewReno restarts running Slow Start algorithm

with a ssthresh set to half of the amount of bytes in

ﬂight before handover, which is too big if compared

to L1 bandwidth-delay product. The consequence

is a quick growth of the rate much above the avail-

able bandwidth with inevitable multiple losses due

to buffer overﬂow. TCP NewReno starts recovery

of such losses one by one through the Fast Retrans-

mit Fast Recovery (FR-FR) algorithm. This implies a

halving of the cwnd that limits the actual rate. Simul-

taneously, the reception of DupAC Ks within the re-

covery phase allows a temporary inﬂation of the cwnd

allowing the transmission of new packets accordingly

at a very low rate. Therefore, At 45 s the recovery

phase ends with the successful retransmission of the

lost packets and TCP NewReno performs a shift of

cwnd together with its resetting at the values set at

the beginning of FR-FR (still oversized for L1). This

causes further losses and a new FR-FR phase. As a

result, the ﬁnal steady-state is achieved around 48 s

(16 s after the L1 activation).

Figure 7: TCP transmission rate: handover from L2 to L1.

During the outage period, TCP Wave instead con-

tinues its proactive burst transmission although the

lack of ACKs, until the RTO expires and then burst

transmission is resumed using initial setting. Initially,

TCP Wave restore transmission at the rate computed

for the old link (8 Mbit/s) on the reception of the ﬁrst

cumulative ACK (at about 2.5 s). Then, the next ACK

train report information on the new link characteris-

tics and allows to properly set transmission parame-

ters to achieve the new optimal rate (2 Mbit/s). Even-

tually, the new steady-state is achieved within only

1.5 s since the L1 activation.

3.4 Performance Summary

To complete performance analysis carried out in the

previous sub-sections, test conﬁgurations have been

extended with more TCP variants and different out-

age values for handover. In particular, the tests have

been repeated with TCP Reno, TCP Tahoe and TCP

Westwood+ (all implemented in the Ns-3 core) and

conﬁguring HT with two additional values: 0.5 s and

10 s. The latter values have been selected with the

aim to assess the efﬁciency of the transport protocol

recovery procedures in case of short network discon-

nections with short-term loss events (HT = 0.5 s), and

with severe channel outages (HT = 10 s). As a syn-

thetic performance indicator, the recovery time is con-

sidered, intended as the time between the reactivation

of the new link after handover and the achievement of

the steady-state. Result summary is presented in the

DCNET 2016 - International Conference on Data Communication Networking

Table 1: Recovery time of different TCP Versions vs. dis-

connection period.

HT=0.5 s HT=2 s HT=10 s

TCP variants L1→L2 L2→L1 L1→L2 L2→L1 L1→L2 L2→L1

Wave 81* 327** 3.2 1.6 5.6 1.6

Reno 271 6.7 270 7.6 270 10.7

NewReno 272 16 267 17 275 21

Tahoe 274 5.5 291 3.6 295 7.3

Westwood+ 282 5 282 5.6 287 32

Table 1.

In case of medium and long HT, TCP Wave sig-

niﬁcantly outperforms all the other TCP variants. To

opposite, in case of short HT, TCP Wave recovery

time drastically increases, although in case of L1→L2

handover (*) it still outperforms all the other TCP ver-

sions. In the L2→L1 handover case, TCP Wave per-

formance (**) is affected by a relevant impairment,

showing a recovery time much higher than in the other

cases, including also conﬁgurations with longer out-

ages. The rationale relies on the fact that HT=0.5 s

still leads to multiple losses (all the burst in ﬂight),

while TCP Wave does not fall into timeout since its

proactive burst transmission, irrespective of the out-

age duration, allows the generation of DupACKs over

the new link before the RTO expiration. In other

words, differently from the ACK-clocked protocols,

TCP Wave triggers a timeout only when HT is higher

than RTO. Therefore, in this condition, TCP Wave

triggers Fast Retransmit algorithm to recover one by

one all the packets lost at once during HT. This im-

plies the recovery of one lost packet per RTT and ex-

plains why the worst performance is experienced with

L2→L1 handover: the number of burst transmitted

during outage and then lost is higher over L2. As a

conclusion, we can state that in this particular case, an

RTO expiration brings performance advantages. Fur-

thermore, the sooner RTO expires the higher is perfor-

mance beneﬁt, as demonstrated by the fact that TCP

Tahoe or TCP Reno, which have limited (or no) capa-

bility to recover from multiple losses without trigger-

ing RTO, outperforms TCP NewReno in these condi-

tions.

4 CONCLUSION

The work presented in this paper provides a detailed

analysis of TCP performance during a vertical han-

dover where bottleneck physical characteristics can

suddenly change. As a general conclusion, traditional

window-based TCP is not suited to efﬁciently face

such communication scenarios showing impaired per-

formance overall the simulated conﬁgurations. The

new TCP Wave, exploiting a novel communication

paradigm based on a proactive burst transmission,

demonstrated its ability to quickly adapt its rate to net-

work changes, greatly outperforming the other TCP

implementations in most of simulated conﬁgurations.

The only issue for TCP Wave is in the case of outage

intervals shorter than RTO value. The proactive TCP

Wave transmission also during outage avoids timeout

expiration and leads to recover from a high number

of losses exploiting Fast Retransmission algorithm,

which has been tailored for efﬁciently managing net-

work congestion events, and then results inefﬁcient to

manage the considered loss scenario.

REFERENCES

Abdelsalam, A., Luglio, M., Roseti, C., and Zampognaro,

F. (2015). A burst-approach for transmission of TCP

trafﬁc over dvb-rcs2 links. In 2015 IEEE 20th Inter-

national Workshop on Computer Aided Modelling and

Design of Communication Links and Networks.

Allman, M., Paxson, V., and Blanton, E. (2009). TCP con-

gestion control. In Network Working Group, RFC

5681.

Bhat, P. and Talmale, G. (2014). MPTCP combining con-

gestion window adaptation and packet scheduling for

multi-homed device. In 2014 International Confer-

ence for Convergence of Technology (I2CT).

ETSI, ciao, c. (2015). Satellite Earth Stations and Systems

(SES); Hybrid FSS satellite/terrestrial network archi-

tecture for high speed broadband access. TR 103 272.

Lee, K., Nam, S., and In-Mun, B. (2006). SCTP efﬁcient

ﬂow control during handover. In IEEE Wireless Com-

munications and Networking Conference.

Linux (2015). Programmer’s manual, http://man7.org.

Ns-3 (2016). Ns-3 web page, https://www.nsnam.org/.

Patriciello, N., Casoni, M., Grazia, C. A., and Klapez, M.

(2015). Implementation and validation of TCP op-

tions and congestion control algorithms for ns-3. In

Workshop on Ns-3 (WNS3) 2015.

Paxons, V., Allman, M., Chu, J., and Sargent, M. (2011).

Rfc 6298, computing tcp’s retransmission timer.

Roseti, C., Luglio, M., and Zampognaro, F. (2010). Analy-

sis and performance evaluation of a burst-based TCP

for satellite DVB RCS links. In IEEE/ACM Transac-

tions on Networking, Vol. 18, Issue 3.

Yuwono, A. (2013). Performance analysis of cubic and

yeah TCP implementation using BATMAND over

MANET. In 2013 IEEE International Conference on

Robotics, Biomimetics, and Intelligent Computational

Systems (ROBIONETICS).

Zhang, L., Okamawari, T., and Fujii, T. (2012). Experimen-

tal analysis of TCP and UDP during LTE handover. In

IEEE 75th Vehicular Technology Conference (VTC).

TCPWave Resilience to Link Changes - A New Transport Layer Approach Towards Dynamic Communication Environments
