Multi-factor Authentication for Improved Efficiency in ECG -

Based Login

Pedro Neves

1,3

, Luís Nunes

1,3

and André Lourenço

2,3

Instituto Universitário de Lisboa (ISCTE), Lisboa, Portugal

Instituto Superior de Engenharia de Lisboa (ISEL), Lisboa, Portugal

Instituto de Telecomunicações, Lisboa, Portugal

Keywords: Biometrics, Authentication, Bluetooth, Internet of Things.

Abstract: Electrocardiogram (ECG) based biometrics have proven to be a reliable source of identification. ECG can

now be measured off-the-person, requiring nothing more than dry electrodes or conductive fabrics to acquire

a usable ECG signal. However, identification still has a relatively poor performance when using large user

databases. In this paper we suggest using ECG authentication associated with a smartphone security token in

order to improve performance and decrease the time required for the recognition. This paper reports the

implementation of this technique in a user authentication scenario for a Windows login using normal

Bluetooth (BT) and Bluetooth Low Energy (BLE). This paper also uses Intel Edison’s mobility features to

create a more versatile environment. Results proved our solution to be feasible and present improvements in

authentication times when compared to a simple ECG identification.

1 INTRODUCTION

This paper addresses a problem reported in the

literature concerning electrocardiogram (ECG)

authentication. The problem is that it presents a

significant time delay associated with identification

performance when using larger databases (Carreiras et

al., 2014). We suggest using a smartphone, as security

token, to improve the performance of the process.

In this paper we describe the experiments leading

to the implementation of a multi-factor authentication

scheme, in a Windows environment, capable of

joining ECG and mobile-phone security token

authentications to improve identification efficiency.

Also, in order to guarantee a battery-friendly scheme

we propose and test a communication protocol

between the smartphone and the computer using

Bluetooth Low Energy (BLE).

2 BACKGROUND

2.1 Authentication Methods

User authentication is based on three commonly used

factors: what you know (passwords), what you have

(security tokens) and what you are (biometrics) (De

Zheng, 2011). Biometric automated authentication

methods have been growing in the last years,

transferring security to factors which are difficult to

replicate – such as fingerprint, retina scan or face

pattern.

2.2 Electrocardiogram Authenticaton

ECG information can be used as a biometric method.

The ECG reading consists of a difference of electrical

potential between two limbs, and represents an

external measure of the electrical activity of the heart.

The intrusiveness of ECG data acquisition can be

classified as: (1) In-the-person, which means

implanting devices (e.g. pacemakers) and is highly

intrusive,; (2) On-the-person, meaning the devices that

work by being attached to the person; (3) Off-the-

person, which includes devices capable of acquiring

ECG signals without any preparation, simply by

maintaining contact for a few seconds with the

acquisition device.

One approach to this method is an off-the-person

approach (Silva et al., 2013), that collects ECG data

from the hand (palms and fingers), facilitating large

scale acquisition of ECG signals. Authors propose a

solution for ECG acquisition by reading signals on

Neves, P., Nunes, L. and Lourenço, A.

Multi-factor Authentication for Improved Efﬁciency in ECG: Based Login.

DOI: 10.5220/0005936500670074

In Proceedings of the 3rd International Conference on Physiological Computing Systems (PhyCS 2016), pages 67-74

ISBN: 978-989-758-197-7

hand palms with dry Ag/AgCL (silver chloride)

electrodes, which are types of reference electrodes

known for their stability and electrode potential.

2.3 Smartphone as Token

Smartphones have been used in authentication

contexts before. A solution based on a mobile phone

is suggested in (Tanvi et al., 2011). This source refers

hardware cost as a relevant drawback of the traditional

approach to security tokens (which includes individual

tokens and authentication server costs) and proposes

the use of phones as an alternative.

The authors presented a scheme consisting of: a

user (trying to gain access to the application), a

dynamic password generator for each identification

process, a SMS server, responsible for sending

dynamic passwords to the user, and a “Visitor

password Register” (VPR), temporarily registering

session’s username and password. Also, these authors

suggest using the IMSI (International Mobile

Subscriber Identity) number to strengthen the

authentication.

This paper also refers an extension of this

approach to Bluetooth, labeled “Laptop-user

Authentication Based Mobile phone” (LABM)

(Abdelhameed et al., 2005), suggesting a java solution

for laptop user authentication focused on proximity-

based login. This work consists of a scheme for

authenticating an individual by approaching the

computer with a Bluetooth-enabled phone. This

device acts as an authentication token, by

continuously communicating with the laptop through

a wireless link.

2.4 Custom Authentication in Windows

Windows 7 and later use Credential Providers (CP) to

manage credentials input. This architecture replaces

the old GINA (Graphical Authentication and

Identification) present in previous versions. These

CPs result in alternative logon tiles that may or may

not refer to the same user account, meaning that one

user may have several distinct logon methods through

a number of different logon tiles. The new approach

taken by Microsoft, however, won’t allow a full

replacement of logon UI (Microsoft, 2013). Tiles are

processed by the logon UI. It requests all credential

types provided by each CP and displays them. One CP

may have more than one associated tile, and can

specify one of them as default.

Windows authentication system can also be

managed through pGina (Wolff, 2014). This tool

replaces the default credential provider (CP) used by

Windows Vista and later (XP and above used the

GINA framework instead). It is a plugin-ready, open

source, application that allows an end user to manage

his own way of logging into Windows.

A typical logon (Figure 1) involves the following

process: 1) user providing credentials to pGina using

its GUI or any other credential provider; 2) pGina’s

CP sends credentials to pGina service; 3) pGina

service sends the logon attempt result (Boolean

answer along with the credentials) to pGina’s CP after

being processed by the installed plugins; 4) if the

logon attempt returns true, pGina sends credentials to

Windows and the latter performs logon.

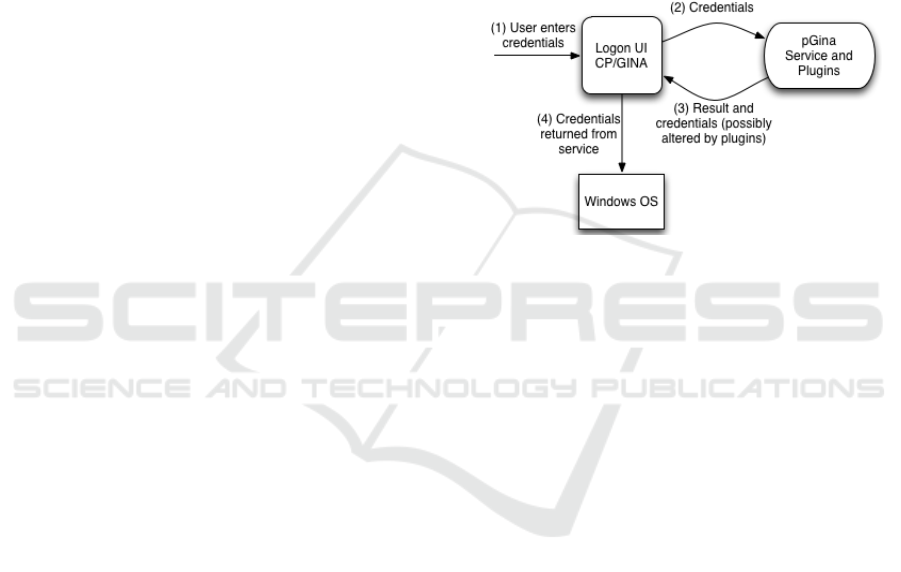

Figure 1: Diagram showing the main pGina systems

interacting in a common logon, adapted from (Wolff,

2014).

2.5 Intel Edison

Intel Edison consists of a small board (35.5x25.0x3.9

mm) capable of running a Linux environment (Intel,

2015).

This board opens a wide range of opportunities

related with the Internet of Things. In this paper we

develop a custom authentication system in Windows;

however, Edison opens a number of alternatives. The

dual-core CPU provides significant processing power,

and the Wi-Fi and Bluetooth Low Energy adapters

provide low power consuming connectivity.

Edison was already used in applications such as

Jimmy, a humanoid prototype. It is an 18 inches tall

robot, 3D printable (Landau, 2015). Their creators,

Trossen Robotics, intend to make it work in a similar

way to smartphones – install an app, and make it

capable of doing more activities.

3 IMPLEMENTATION

We intended to implement a scheme where a

Windows Phone would send its owner’s identification

through Bluetooth Low Energy when within a certain

range of a computer. This computer would advertise a

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

Generic Attribute Profile (GATT) server, which

would be accessed and wrote into by the phone, and

would have an ECG keyboard plugged in.

However, implementing a GATT advertisement in

Windows has proven to be a limitation, as it only

provides APIs to act as a GATT client (Social.msdn,

2013). Given this hurdle, we decided to implement a

similar scheme using classic Bluetooth. Afterwards,

we also implemented a solution using BLE, with a

Linux system acting as a connection enabler between

a BLE device and a Windows computer.

3.1 Classic Bluetooth Communication

Initially, we created an example plugin for pGina. This

plugin was written in C# and intended to enable a

Bluetooth interaction resulting in a successful logon.

We used a laptop with a Bluetooth 4.0 Dual Mode

dongle and a Windows tablet with Bluetooth 4.0. This

implementation was based on the 32feet.net Bluetooth

(32feet.NET, 2012).

In this preliminary version, we implemented the

authentication stage of pGina only, starting with a

Bluetooth interaction. We experienced problems

implementing a Bluetooth connection between 32feet

and Windows Phone API, so we were constrained to

use Bluetooth scan to get nearby MAC addresses,

even without establishing a connection. In this version

we verify user identity through the MAC address

associated to the users’ mobile device. This

verification only discovers devices, and has no other

interaction. Other unique identifiers were used

previously, such as IMSI (International Mobile

Subscriber Identity), consisting of the ID associated to

a SIM card (Tanvi et al., 2011).

It is relevant to mention that, although the security

of such solution is low, this solution is fast as requires

no specific operating system on the mobile phone. In

fact, any discoverable Bluetooth device would work,

and requires no previous pairing.

Initially, we implemented a solution that would

trigger Bluetooth discovery when the user attempted

logon through regular Windows GUI by clicking a

button on logon interface, with both username and

password fields hidden (configured in pGina). pGina

did not offer any solution to completely automate this

process at the time, i.e., skip the button pressing. This

proved to slow down the process, requiring around 10s

to return the result in an environment containing three

discoverable devices. A significantly higher number

of devices could expand this time frame (Chakraborty

et al., 2008).

Afterwards, we started developing a Windows

Phone (WP) 8.1 app for Lumia 530 that connected to

a Windows desktop application server using

32feet.NET. The connection was established using

classic Bluetooth instead of Bluetooth Low Energy

(BLE) due to the, previously mentioned, lack of APIs

to perform discovery and pairing with BLE in

Windows environment (Social.msdn, 2015). This time

we achieved the goal of connecting both devices and

communicating strings between them, allowing us to

build a prototype of Bluetooth-based login. This

prototype consisted of a WP app that, by pressing a

button, would send a string message (unencrypted) to

the desktop server. The server side –which was a

pGina plugin also managing a BL connection – would

then release the hardcoded user credentials to

Windows when asked for. This prototype was a

significant increase in performance when compared to

the time it would take to detect user presence/absence

in the first scenario. However, this solution requires

user interaction. Also, the connection was not reliable

– it would randomly connect, or throw an exception.

Similar problems were reported by other developers

(Social.msdn, 2015).

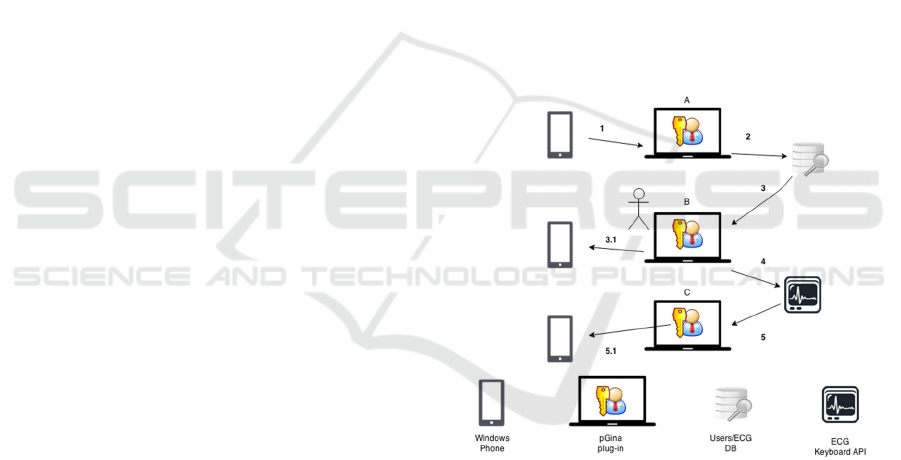

Figure 2: Communication scheme: 1) process is started by

interacting with WP app; 2) pGina processes username; 4)

ECG is read; 5) logon is successful/unsuccessful).

In order to avoid requiring user interaction with

mobile phone to perform login, we tried to execute the

connection as a background task. Additionally, while

trying to solve the unstable connection, we concluded

that the exact same code would work every time when

compiled to WP8.0, but was unstable when compiled

to WP8.1, as was also reported in (Social.msdn,

2015).The use of an external Bluetooth trigger (for

example, the presence of a Bluetooth server nearby) in

Windows Phone was, however, only available in 8.1

version at the time. This conflict forced us to choose

connection stability over functionality. Therefore, the

Multi-factor Authentication for Improved Efﬁciency in ECG: Based Login

use of a background task was not further considered

and we backtracked to WP8.0.

Figure 2 refers to the communication scheme in

which this scenario was based. The main actors are:

Windows Phone, the pGina plugin working as BL

connection point, a database storing credentials

information and the ECG authentication accessed

using API. In 1, the WP app would send a message to

our server containing the username; in A, pGina

confirms the username with a database (2). A

feedback might be implemented, although we

considered at this point it would unnecessarily

increase the process complexity (3.1 and 5.1). Action

is suspended before 4, while waiting for Windows

logon; then, if ECG authentication is successful (5),

pGina allows logon and, possibly, returns feedback to

WP.

We also considered sending Bluetooth MAC

address from WP to pGina, in order to confirm the

identity of the phone itself – but WP will only allow

BL communication in-app with previously paired

devices, meaning no unpaired device could connect

with the server.

We chose to give the initiative of the

communication to WP and store all passwords in a

computer located database because: 1) the necessity of

asking for an explicit user interaction ruled out the

initiative being on server side; 2) in order to avoid

sending full credentials (user and password) through

Bluetooth we decided to store passwords on the server

side, and then identify the smartphone based on

username received and associated Bluetooth address,

both previously stored as well.

This solution worked by receiving a one-time

logon message from WP, which the server would

based on proximity. The process is the following: 1),

user is approaching the computer and sending the

logon message via Bluetooth. Then, the server

recognizes the phone as one authorized to logon in the

following hours (or any other predefined time range);

2) when no phone can be found nearby, logon is

denied; in 3) when the phone is again present, a logon

with the credentials associated to that user is allowed.

This means that, starting from 1), the computer itself

will search for the presence of the authorized phone;

the search will not require establishing a connection.

In fact, this search is different from the one stated

in the first scenario. Previously, we scanned for all

devices nearby and then verified the identity of each

one in search of a particular phone; with this new

approach, we tested the presence of a specific device

using a pre-stored address. In terms of time required,

a loop testing for a list of one phone changed logon

status in less than 2 seconds after turning off Bluetooth

in WP.

After implementing the Bluetooth side, we

approached the introduction of the ECG-reader

keyboard on the existing scheme. To better understand

the advantage of using a smartphone combined with

an ECG authentication, one must explain the latter.

This method works by first identifying a heart beat and

then authenticating the individual. Both processes can

take several seconds, thus leading to a delay in logon

process. Also, the authentication itself can be based on

different confidence levels. These two characteristics

bring a relevant improvement related to the use of a

smartphone as token – the computer is able to receive

the identification of the individual beforehand,

skipping the identification process and also being able

to use a better confidence level. The keyboard does its

own autonomous processing. It requires installing

VitalidiType (Technologies, 2015), the software that

allows interaction with the keyboard. The interaction

between the pGina plugin and this system is made

using its C# APIs, vitalidiAPI.

The ECG reader is the final step in our entire logon

scheme, taking advantage of the previously sent

information from the individual’s mobile phone.

In summary, the whole sequence is: 1), an

individual gets in the area covered by a Bluetooth

scanner in the computer; 2) this proximity triggers a

process of getting the ECG authentication username

associated with the detected mobile phone ready for

authentication; 3) a person attempts logon and the

keyboard uses the previously received username to

start authentication, reading the users’s heartbeat; 4)

the user is granted access if both authentications are

consistent with each other and succeeded.

3.2 Bluetooth Low Energy

As a solution to the GATT server role limitation in

Windows, we decided to implement a “middle point”

between the smartphone and Windows desktop. This

system was running Linux and, therefore, capable of

advertising a GATT service. In this scenario we also

changed from Windows Phone to Android to avoid

more limitations associated with their APIs.

The Linux system was capable of using BLE

through BlueZ, which provides support for this

technology. Also, in order to keep this a mobile, more

versatile and independent point, we used Intel Edison.

This board allowed us to create a GATT server,

listening for BLE messages from a smartphone, and

redirect them to our adapted pGina plugin running in

a Windows computer through Wi-Fi.

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

All the following scenarios maintain the working

scheme associated to the keyboard, i.e., ECG

keyboard expects a contact (hands on keyboard) after

pGina plugin acknowledges the presence of a valid

smartphone token. They are an improvement from the

classic Bluetooth scheme as Android API 19 (KitKat)

allowed to read the RSSI (Received Signal Strength

Indication) value associated with a BL signal.

Although several studies indicate that RSSI is not an

exact measure of device proximity, it may suggest the

distance if carefully handled (Parameswaran et al.,

2009), (Al Alawi, 2011). Also, our scheme is not

dependent on an exact read of distance, but only in a

definition of “proximity”. In order to understand the

variation in RSSI values depending on distance, we

executed a series of tests (see section Tests).

Figure 3: The phone subscribes a GATT characteristic

advertised by Edison and, when notified, writes a

characteristic. After the message is forwarded to pGina,

user should start ECG authentication by clicking the arrow

button on Windows GUI.

First, we started developing a GATT server in

Edison’s Linux. This scheme worked by advertising a

GATT service, and the provided characteristic could

be written by a BLE peripheral (an Android phone

specifically). The first issue we found when

implementing a similar message system to the one

previously implemented in our classic Bluetooth

scheme was the message size limit of 20 bytes (Gomez

et al., 2012). This would prove impossible to send both

username and password in most cases. So, we created

a third username, associated with the pair Windows

username/ECG username, represented by a smaller

string. Also, we eliminated any overhead associated

with the messages, being “login”, “logout” or

“register”, because: 1) register is now a process started

in the pGina plugin configuration dialog; 2) this

scheme is proximity-based, thus requiring no “log

out”, the device is either present or absent.

After the message is received on Edison (meaning

the GATT characteristic is written), it is forwarded to

the pGina plugin via Wi-Fi, and from there it is treated

as it would in the Bluetooth classic method. Notice

that this message is only sent by the phone if it is

within the RSSI margin predefined, so this validation

was already done by the phone itself.Referring to the

implementation on Android, we changed the initiative

of the communication from the phone to the server

side. Also, we used a partial device MAC address

(excluding two characters due to the limitation of 20

bytes per message. This new scenario requires a one-

time subscribe to a GATT characteristic. After this,

the timer implemented on Edison associated to the

characteristic notifies the subscribed phone within a

certain time interval (2 seconds in this prototype).

Each time a phone receives this notification, it replies

with its RSSI and partial MAC address. An attempt to

use the accelerometer to detect user’s (in)activity was

not.

4 TESTS

4.1 Signal Strength Reliability

Given the uncertainty about how reliable could RSSI

be for detecting proximity, we performed the test

whose results are shown in Table 1.

Table 1: RSSI values depending on distance.

RSSI

(dB)

Distances

30cm 1M 2M 3M 4M 5M

Best -27 -42 -47 -52 -54 -55

Worst -43 -49 -52 -56 -59 -60

Avg. -34,9 -44,4 -48,8 -54 -56,1 -56,5

The tests with the mobile phone as the single

Bluetooth device in our environment; the phone was

placed in the referred distances, with no obstacles

between it and the Bluetooth scanner connected to a

laptop. The adapter was a CSR851 (CSR, 2015) and

the phone was a Wiko Darkmoon (Wiko, 2015).

Higher RSSI values mean better signal. We obtained

10 readings with 1s interval for each distance.

Analyzing the results, we can see a decrease in

average, minimum and maximum values of RSSI with

the increase of distance between both devices. Also,

the clearest difference in RSSI values is seen when the

distance varies the least – when we step from 30

centimeters to 1 meter. However, 30 centimeters is the

situation where the phone is actually in a similar

distance to the one where a person carrying it

Multi-factor Authentication for Improved Efﬁciency in ECG: Based Login

approaches his computer. These results provide a

more substantiated way of defining a threshold value

for phone detection and logon authorization.

For implementation purposes, we defined a

threshold of -49dB. Even in a situation of random

minimum peaks where a phone is incorrectly detected

as being out of proximity, the consequence is likely to

be obfuscated by the loop timer of RSSI reading – the

value is so often retrieved that a single value is not

likely to impact a common interaction with the system

4.2 Bluetooth Performance

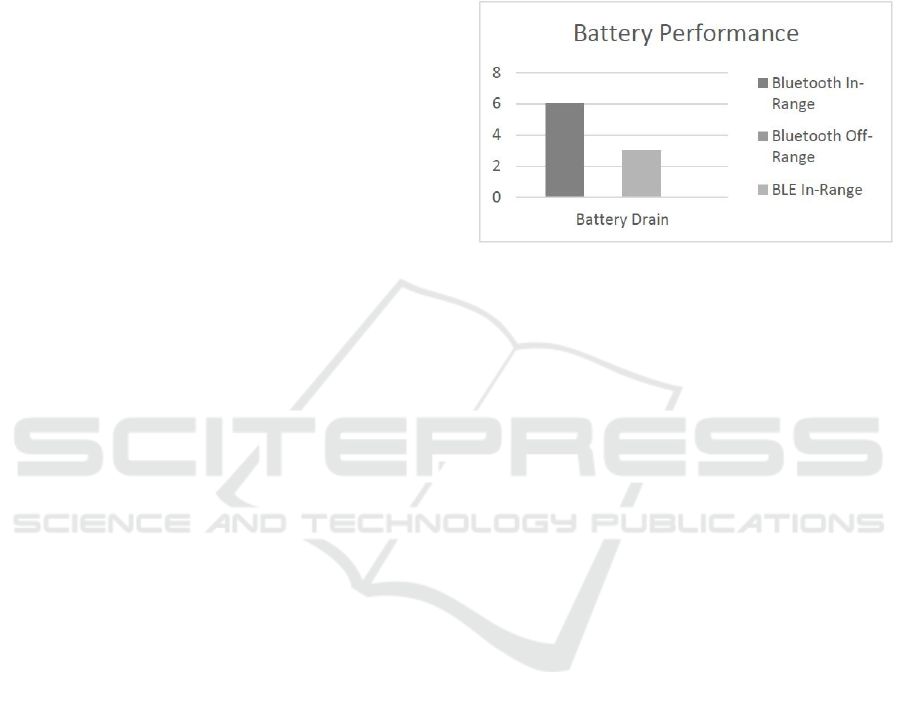

We also conducted a series of tests aiming to analyze

the performance of both classic Bluetooth and

Bluetooth Low Energy scenarios, in terms of battery

and reliability. All tests were executed using a Wiko

Darkmoon Android phone – the Windows Phone

scenario was tested in Android by tweaking the server

side implementation, in order not to require a login

message and just detect the pre-stored MAC address

associated to the phone (as mentioned before, this

scenario did not require an app being in execution).

The phone was put in airplane mode, only with

Bluetooth on. It was 100% charged for each test, and

standing still about 30cm from the laptop. For

comparison, we tested the phone in airplane mode,

with Bluetooth and apps off and concluded that in 1

hour, 0% battery is lost.

We tested for the following parameters (Figure 4):

Phone battery drain in-range; phone battery drain off-

range; pGina false negative (not detecting an in-range

phone). Regarding in-range performances, we can

conclude is that the classic Bluetooth scenario was less

battery efficient than all other scenarios. Although in

this scenario the phone is supposedly passive -

meaning no app is working and it is only detected by

the server’s BL scan – these results may indicate that

the scan actually involves waking the scanned

peripherals, and doing some work associated with the

Bluetooth scan itself.

Off-range results show us that the battery

performance is better in the classic Bluetooth and

server based BLE scenario. This is explained by the

fact that in both scenarios the phone is not required to

be awake – in the BL scenario, the phone is passive

and no server is scanning; in the BLE scen7ario, the

phone only replies when contacted by server’s

notifications. On the other two scenarios, the app is

attempting connection in a loop, explaining battery

usage.

In another test we measure the difficulty in

detecting the phone when in range (false negatives). In

the BL scenario there are no false negatives because it

is not using RSSI values. This has a down-side, the

fact that a phone is considered near even if its several

meters away. In BLE scenarios, on the other hand, a

phone is only considered in-range if the RSSI reads -

49dB or better. So, there is a tradeoff between distance

detection and false negatives. Tests showed a minor

(0,416%) false negative rate.

Figure 4: Percentage of battery loss in each scenario.

Although we could consider the number of false

negatives excessive, one must consider the fact that

the position is updated every second, sometimes more

(or even less) due to connection inconstancies (both in

Bluetooth and Wi-fi). This means that these results are

not likely to affect user interaction. Also, by analyzing

the logs we concluded that they are sorted in long

moments of correct readings and short moments of

incorrect readings (thus showing peaks of bad

readings and, most of the time, stable correct

readings). Additionally, we used a value for RSSI

threshold (-49db) that requires close proximity to the

computer, leading to the possibility of more false

negatives.

4.3 Token/ECG Vs ECG Comparison

In order to better understand the delay associated with

identifying vs authenticating a person we ran a

(necessarily) limited number of tests to confirm the

conclusions of previous studies published in

(Carreiras et al., 2014). This study shows an increase

in identification delay and decrease in accuracy when

the number of subjects in database increases.

We executed two series of tests. In the first series

(Table 2), we tested ECG identification (the classical

ECG-based authentication scenario) and ECG

authentication (the scenario we suggest, where the

individual’s identity is previously known and the ECG

confirms it) times with an 8 user ECG database; in the

second series (Table 3), we tested the same with a 68

user database. Both tests were performed with a group

of five persons (an arbitrary small number, to simplify

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

the tests). The smaller database was generated by

measuring and registering the volunteers ECG; the

bigger database was provided by the authors’ of

(Carreiras et al., 2014) complemented by the five

testing individuals of the smaller data-base.

It is relevant to mention that all times include the

ECG acquisition. Vitalidi collects eight heartbeats,

therefore an increased heartbeat will result in a faster

read. For the tested individual – five young healthy

males – a 60 beats per minute heart rate is considered

the average (Malina et al., 2004). Consequently, we

assumed an average value of 8 seconds in acquisition

time, which were subtracted to the results.

Results confirm the advantage of using a

smartphone as a security token in an ECG

authentication context. Identification is unnecessary,

thus comparing the readings with every user in a large

database is avoided. Instead, the readings can be

compared to a single, previously known, individual’s

registered ECG.

Table 2: Identification and authentication times using an 8

user ECG database (in seconds).

Individual Identification Authentication

1 9,51 9,33

2 9,76 9,59

3 9,32 9,23

4 9,75 9,60

5 9,80 9,49

In a more safety demanding environment, false

negatives would be preferable to false positives; on the

other hand, a less demanding approach opens the door

for more false positives if that would increase the

overall performance. With this logic in mind, the fact

that the system knows the person’s identity before

ECG authentication allows it to have a better

confidence level, possibly allowing more false

positives to increase overall performance. In other

words, our solution offers the possibility of regulating

the threshold point.

5 CONCLUSION

In this paper, we proposed the use of a second element

in ECG-based authentication. We tested the

techniques in a Windows login scenario, introducing

an unconventional multi-factor authentication in an

everyday system. Our suggestion consists mainly of

an approach using an Android phone and an ECG

reader keyboard. In this scheme, we took advantage of

Bluetooth Low Energy technology, now emerging in

the commercial scene mostly with peripherals, in

order to take a more battery-friendly approach. As a

part of our work, we also suggested the use of classic

Bluetooth in a Windows-Windows Phone scheme. In

both schemes, our system is capable of working in a

single-factor mode (using the phone only), or in a

multi-factor mode (using the phone and the ECG

keyboard).

Table 3: Identification and authentication times using a 68

user ECG database (in seconds).

Individual Identification Authentication

1 12,83 9,12

2 12,54 9,86

3 11,33 9,54

4 12,87 9,89

5 12,20 9,14

In the classic Bluetooth approach, we struggled

with a number of limitations associated with Windows

environments – both in desktop Windows and

Windows Phone. Although we created a working

prototype in this context, it did not correspond to our

expectations, leading us to a different approach.

In the Bluetooth Low Energy approach, we used

mostly Linux on an Edison board which allowed us to

create a BLE server and test the scenario we initially

intended. Also, the use of Edison proves that this

approach is feasible for small embedded devices. In

this case Edison functioned as a middle worker,

forwarding BLE messages from the phone through

Wi-Fi to a computer running pGina. Also, Android

allowed us to work with more stable Low Energy

connections. The BLE approach allowed us to read

RSSI, giving us a hint of how close the phone actually

was from the computer. This gave us the opportunity

to be stricter concerning the individual’s proximity,

thus denying the identification if the person is in the

room but not in front of the computer.

Figure 5: Identification vs. Authentication times, in

seconds, referring to the five tested individuals, using a 68

user DB. Comparison between a typical ECG

authentication with our multi-factor approach.

Multi-factor Authentication for Improved Efﬁciency in ECG: Based Login

We also analyzed, although limited by the number

of tests performed, the improvement in authentication

performance comparing to identification based on

ECG readings alone. We went from a situation where

one had to be identified and authenticated (adding the

delay associated to each), to a situation where the

system is previously informed about user’s foressen

identity, requiring the authentication delay only. This

translated in faster authentication, as well as decreased

identification error rates.

REFERENCES

32feet.NET, 2012. 32feet.NET - user’s guide / tutorial /

examples. [Online] Available at:

http://32feet.codeplex.com/documentation. [Accessed

13 Jan 2015].

Abdelhameed, R., Khatun, S., Ali, M. B. & Ramli, A. R.,

2005. Authentication model based bluetooth-enabled

mobile phone. J. Comput. Sci..

Al Alawi, R., 2011. RSSI based location estimation in

wireless sensors networks. s.l., s.n., p. 118–122.

Carreiras, C., Lourenço, A., Fred, A. & Ferreira, R., 2014.

ECG signals for biometric applications are we there

yet?. s.l., s.n.

Chakraborty, G. et al., 2008. Analysis of the bluetooth

device discovery protocol. Wirel. Networks, 16(2), p.

421–436.

CSR, 2015. BlueCore® CSR8510TM A10 WLCSP.

[Online] Available at: http://www.csr.com/products/

bluecore-csr8510-a10-wlcsp [Accessed 28 May 2015].

De Zheng, J., 2011. A framework for token and biometrics

based authentication in computer systems. J. Comput.,

6(6), p. 1206–1212.

Gomez, C., Oller, J. & Paradells, J., 2012. Overview and

evaluation of bluetooth low energy: an emerging low-

power wireless technology. Sensors, 12(12), p. 11734–

11753.

Intel, 2015. Intel® Edison—one tiny platform, endless

possibility. [Online] Available at: https://www-

ssl.intel.com/content/www/us/en/do-it-yourself/edison.

html [Accessed 6 Apr 2015].

Landau, D. M., 2015. My robot is cuter than your robot.

[Online] Available at: http://iq.intel.com/my-robot-is-

cuter-than-your-robot [Accessed 18 May 2015].

Malina, R. M., Bouchard, C. & Oded, B.-O., 2004. Growth,

Maturation, and Physical Activity. In: J. P. Wright, ed.

Human Kinetics. s.l.:s.n.

Microsoft, 2013. Credentials management in windows

authentication. [Online] Available at:

http://technet.microsoft.com/en/library/dn169014(v=w

s.10).aspx [Accessed 19 Dec 2014].

Parameswaran, A. T., Husain, M. I. & Upadhyaya, S., 2009.

Is RSSI a reliable parameter in sensor localization

algorithms – an experimental study. F. Fail. Data Anal.

Work., p. 5.

Sandeepmistry, 2015. Bleno. [Online] Available at:

https://github.com/sandeepmistry/bleno [Accessed 25

Apr 2015].

Silva, A. P. et al., 2013. Check your biosignals here : a new

dataset for off-the-person ECG biometrics. Comput.

Methods Programs Biomed.

Social.msdn, 2013. GATT server role on Windows 8.

[Online] Available at: https://social.msdn.microsoft.

com/Forums/windowsapps/en-US/b89e673b-38b5-4ac

4-b9e9-47e634d668fc/gatt-server-role-on-windows-8?

forum=wdk [Accessed 6 Apr 2015].

Social.msdn, 2015. RFCOMM connection fails. [Online]

Available at: https://social.msdn.microsoft.com/

Forums/en-US/62de78de-b6f1-4c8a-bc2d-b88c77c6dd

4d/rfcomm-connection-fails?forum=winappswithcshar

p [Accessed 6 Mar 2015].

Stackoverflow, 2015. RFCOMM connection works

unstable. [Online] Available at: http://stackoverflow.

com/questions/27122484/rfcomm-connection-works-

unstable [Accessed 6 Mar 2015].

Tanvi, P., Sonal, G. & Kumar, S. M., 2011.

Token based

authentication using mobile phone. s.l., s.n., pp. 85-88.

Technologies, C., 2015. VitalidiType, s.l.: s.n.

Wiko, 2015. Darkmoon. [Online] Available at:

http://pt.wikomobile.com/m131-DARKMOON

[Accessed 28 May 2015].

Wolff, D., 2014. How pGina works. [Online] Available at:

https://github.com/pgina/pgina/wiki/How-pGina-

Works [Accessed 20 Dec 2014].

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems
