Multi-variant Model Transformations — A Problem Statement

Felix Schw

agerl, Thomas Buchmann and Bernhard Westfechtel

Applied Computer Science I, University of Bayreuth, Universit

atsstr. 30, 95440 Bayreuth, Germany

Keywords:

Model-Driven Software Engineering, Software Product Lines, Model Transformations, Code Generation.

Abstract:

Model Transformations are a key element of Model-Driven Software Engineering. As soon as variability

is involved, transformations become increasingly complicated. The lack of support for variability in model

transformations impairs the acceptance of approaches to organized reuse such as software product lines. In

this position paper, the general problem of multi-variant model transformations is formulated for MOF-based,

XMI-serialized models. A simplistic case study is presented to specify the input and the expected output

of such a transformation. Furthermore, requirements for tool support are deﬁned, including a standardized

representation of both multi-variant model instances and variability information, as well as an execution spec-

iﬁcation for multi-variant transformations. A literature review reveals that the problem is weakly identiﬁed and

often solved using ad-hoc solutions; there exists no tool providing a general solution to the proposed problem

statement. The observations presented here may serve for the future development of standards and tools.

1 INTRODUCTION

In Model-Driven Software Engineering (MDSE)

olter et al., 2006), models are developed as higher-

level abstractions of software systems using well-

deﬁned modeling languages such as the Uniﬁed Mod-

eling Language (UML) (OMG, 2011d). The Object

Management Group (OMG) have developed the stan-

dard Meta Object Facility (MOF) (OMG, 2011b) for

the deﬁnition of metamodels, which describe the ab-

stract syntax and the static semantics of modeling lan-

guages. XML Metadata Interchange (XMI) (OMG,

2011c) serves as a standardized serialization format

for MOF models, making them compliant with dif-

ferent modeling tools. The Eclipse Modeling Frame-

work (EMF) (Steinberg et al., 2009) provides a basis

for many model driven tools and is built around the

Ecore metamodel, which implements a MOF subset.

Model Transformations (MT) are an indispensable

building block for model-driven applications. They

describe how a source model, represented as an in-

stance of an input metamodel, is to be converted to

a target model, conforming to the output metamodel.

Depending on the models’ representation, there ex-

ist model-to-model (M2M) and model-to-text (M2T)

transformations. The OMG have approved several

standards for MTs: Queries-Views-Transformations

(QVT) (OMG, 2011a) is a family of M2M transfor-

mation standards, containing, e.g., the imperative lan-

guage QVT Operational and its declarative counter-

part QVT Relational. The MOFM2T standard (OMG,

2012b) has been implemented, e.g., by the EMF-

based tool Acceleo. Apart from standardized trans-

formation languages, several alternatives exist, e.g.,

ATL (Jouault and Kurtev, 2006).

In the context of Model-Driven Architecture

(MDA) (Mellor et al., 2004), MTs are often chained.

In MDA, a platform independent model (PIM) is re-

ﬁned to a platform speciﬁc model (PSM), from which

runnable application code is generated. MDA’s long-

term goal is to completely remove the necessity of

writing application code manually, considering mod-

eling languages as an additional layer on top of as-

sembly and programming languages.

Variability is a more and more important property

of software to be developed, in order to meet require-

ments such as customizability, platform independence

and maintainability. At source code level, variabil-

ity is mostly realized by preprocessor languages such

as the C preprocessor. Software Product Line Engi-

neering (SPLE) systematically exploits variability to

achieve organized reuse (Pohl et al., 2005). Core as-

sets of different products are provided as a platform.

Commonalities and differences among products are

captured in variability models, e.g., feature models

(Kang et al., 1990). These features are then connected

to the underlying software by traceability links. The

combination of MDSE with SPLE is subject to many

Schwägerl, F., Buchmann, T. and Westfechtel, B.

Multi-variant Model Transformations — A Problem Statement.

In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 203-209

ISBN: 978-989-758-189-2

203

Graph

+ label : String

Labeled

Vertex

+ weight : Double

Edge

WeightedEdge

labeledVertices or

labeledEdges

labeledVertices

labeledEdges

not

startContainsEdge

directedEdges and

startContainsEdge

not weightedEdges

weightedEdges

has vertices u

has edges u

starts at u

ends at u

directedEdges

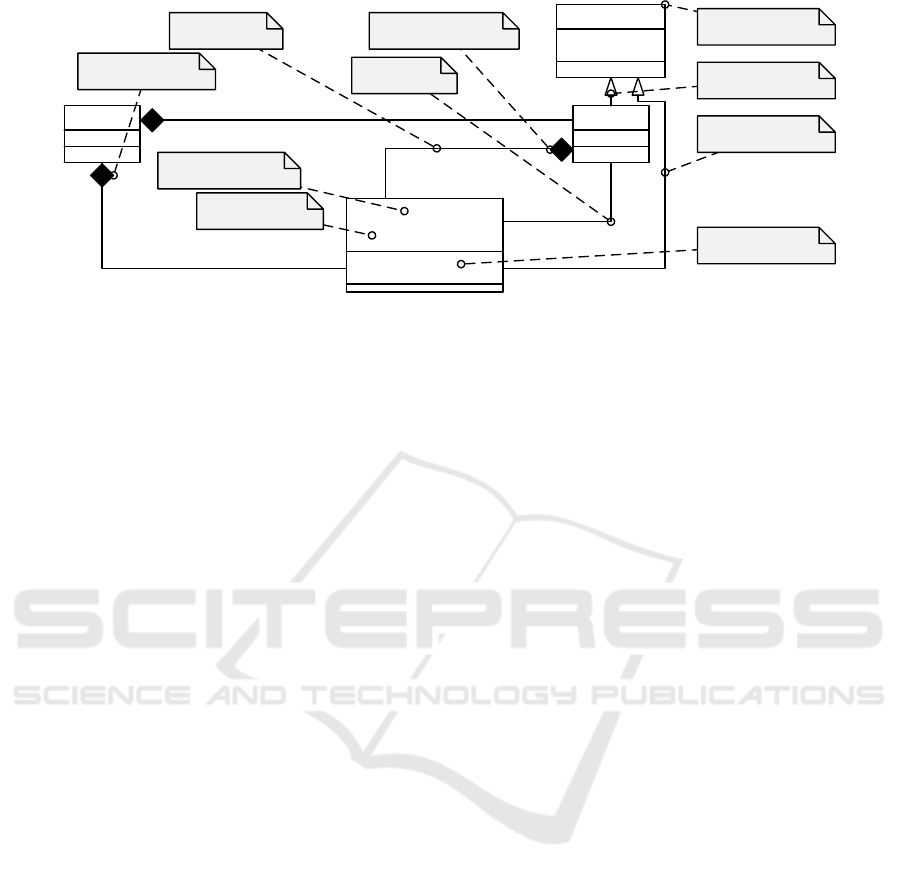

Figure 1: Example source model: multi-variant UML class diagram with traceability links attached as comments. For the

reason of clarity, member end names and multiplicities have been omitted.

research activities, resulting in the integrating disci-

pline Model-Driven Product Line Engineering (MD-

PLE) (Gomaa, 2004). In MDPLE, traceability links

are realized by annotating model elements, e.g., using

presence conditions (Czarnecki and Kim, 2005).

In this position paper, we investigate limitations

and potentials of Multi-Variant Model Transforma-

tions (MVMT), which assume that the source model

contains variability that shall be transferred to corre-

sponding elements of the target model in an adequate

way. Our core contribution is the identiﬁcation of the

following requirements being disregarded in current

MDSE/M2M standards and tools:

R1. Interchange of multi-variant model instances.

R2. Representation of variability information.

R3. Execution speciﬁcation of multi-variant model

transformations.

The paper does not intend to present complete solu-

tions for these requirements. Instead, we motivate

their importance by an example and provide a short

literature review where partial solutions are aligned

with the problem statement.

Section 2 motivates the problem statement using a

simplistic example, a M2T transformation for a multi-

variant UML class diagram. In Section 3, the require-

ments outlined above are detailed. Section 4 contains

the literature review. The paper is concluded in Sec-

tion 5, which also addresses future research.

2 EXAMPLE

In this section, we present a simple example for a

multi-variant model transformation, assuming that the

requirements deﬁned in the problem statement have

already been met. We consider a model-to-text trans-

formation, where the source model is a multi-variant

UML class diagram that represents a cut-out of the

static model of a Graph library – a standard exam-

ple in SPLE literature (Lopez-Herrejon and Batory,

2001). Variability is expressed by comments attached

to respective model elements. A multi-variant M2T

transformation is applied to the source model. The

expected outcome is provided as multi-variant Java

code, where variability information is expressed by

preprocessor-like constructs.

2.1 Source Model

Figure 1 shows the source model of the example

MVMT, a multi-variant class diagram for graphs. In

all variants, it is assumed that a Graph combines a

Vertex and an Edge set. Edges connect a start with an

end vertex. Furthermore, the model is connected to

the following options by traceability links:

directedEdges. If selected, the associations starts at

and ends at are included in the product. For

the reason of clarity, the realization of undirected

edges is not shown in the diagram. It could have

been realized by an unspeciﬁc association con-

nects with multiplicity 2.

labeledVertices. If selected, vertices have a string-

valued label assigned. This is realized by an ab-

stract class Labeled, which is specialized by Ver-

tex only in case this option is active.

labeledEdges. Realizes labeled edges in analogy.

weightedEdges. If selected, the attribute weight of

the edge class is visible. Furthermore, the class

name depends on this option: if deselected, it is

simply Edge, if selected WeightedEdge.

startContainsEdge. If selected, class Vertex will be

the container for outgoing edges, otherwise class

Graph will contain all edges.

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

204

2.2 Generated Code

Listing 1 shows the expected output of the exam-

ple multi-variant model-to-text transformation. UML

classes were mapped to Java classes; UML attributes

and associations correspond to Java object variables,

where special collection types are used to represent

multi-valued non-containment and containment as-

sociation ends. Furthermore, the traceability links

were translated into corresponding preprocessor di-

rectives

1 public class Graph {

2 public ContainmentList<Vertex> vertices;

3 public

4 #if startContainsEdge

5 ContainmentList<Edge>

6 #else

7 List<Edge>

8 #endif

9 edges;

10 }

12 #if labeledVertices or labeledEdges

13 public abstract class Labeled {

14 public String label;

15 }

16 #endif

18 public class Vertex

19 #if labeledVertices

20 extends Labeled

21 #endif

22 {

23 public Graph graph;

24 #if directedEdges

25 public

26 #if directedEdges and

startContainsEdge

27 ContainmentList<Edge>

28 #else

29 List<Edge>

30 #endif

31 outgoing;

32 public List<Edge> incoming;

33 #else ...

34 #endif

35 }

37 public class

38 #if weightedEdges

39 WeightedEdge

40 #else

41 Edge

42 #endif

43 #if labeledEdges

Unlike C/C++, Java does not provide a built-in prepro-

cessor. For this example, without the loss of generality, we

assume that conditional compilation is performed by an ex-

ternal tool that understands preprocessor directives contain-

ing boolean combinations (and/or/not) of options.

44 extends Labeled

45 #endif

46 {

47 public Graph graph;

48 #if directedEdges

49 public Vertex start;

50 public Vertex end;

51 #else ...

52 #endif

53 #if weightedEdges

54 public double weight;

55 #endif

56 }

Listing 1: Expected output of the example MVMT

in a condensed Java syntax using preprocessor-like

directives for conditional elements.

2.3 Desired Properties

From the example provided above, we may infor-

mally derive three properties to be satisﬁed in a best

possible way by MVMT: reuse of transformation

speciﬁcations, orthogonality of transformed models

and traceability links, and commutativity of the trans-

formation and a ﬁlter operation.

P1: Reuse. Above, we have tacitly assumed that

the expected output has been produced based upon an

existing MOFM2T speciﬁcation, which describes the

transformation of UML class diagrams into Java code.

Thus, we argue that every MT should be reusable as

a MVMT. Reuse does not refer to the speciﬁc trans-

formation engine, which is in general not aware of

variability, but only to the transformation speciﬁca-

tion itself. Thus, to enable reuse, a variability-aware

transformation engine is desirable.

P2: Orthogonality. Furthermore, we assume that

there exists an additional M2T transformation to con-

vert traceability links of the source model into a form

understood by the target model, e.g. preprocessor-

like directives. This transformation is referred to as

tracelink transformation below. We assume that the

tracelink transformation is orthogonal to the source-

to-target transformation: Different modeling lan-

guages and variability languages can be mixed arbi-

trarily, without affecting each other.

P3: Commutativity. The third property is con-

cerned with the interaction of the MVMT itself and

a ﬁlter operation (which may be considered as and

realized by another model transformation). When as-

suming the special case of SPL using negative vari-

ability, the ﬁlter operation takes as input a multi-

variant model and a conﬁguration, which binds each

Multi-variant Model Transformations — A Problem Statement

205

Multi-variant

source model

Multi-variant

target model

Single-variant

source model

Single-variant

target model

transform

filter(conf) filter(conf)

Figure 2: Commutativity of MVMT and product derivation.

option/feature to a boolean selection value, and pro-

duces a single-variant model where those elements

are ﬁltered out whose tracelinks evaluate to a negative

value when applying the conﬁguration. The property

of commutativity states that the order of application

of transformation and ﬁlter, always assuming an equal

conﬁguration, is immaterial (cf. Figure 2). In SPLE,

it is preferable to ﬁlter the product as late as possible,

since ﬁltering marks the transition from domain to ap-

plication engineering. The later the ﬁlter is applied,

the more reusable the applied reﬁnement steps are.

3 REQUIREMENTS

Obviously, the example presented in Section 2 can-

not be conducted using state-of-the-art model trans-

formation languages and tools. In this section, we

discuss the missing pieces, i.e., requirements, which

must be addressed by future research in order to main-

tain the properties P1 until P3 listed above. These re-

quirements include a standard for the interchange of

multi-variant model instances (R1, see Section 3.1), a

standard for representation of variability information

(R2, Section 3.2), and MVMT execution speciﬁcaton

(R3, Section 3.3). This section details those require-

ments without aiming to propose a standard at this

early stage of understanding the problem of MVMT.

3.1 Interchange of Multi-variant Model

Instances (R1)

With XMI (OMG, 2011c), the OMG have issued an

XML-based standard for the serialization of MOF-

based model instances. XMI is understood by the

majority of modeling tools, allowing to interchange

model instances across them. Listing 2 shows a cut-

out of the XMI-serialization of the example class

Edge, excluding traceability links.

Listing 2 ignores one detail shown in Figure 1:

The alternative class name WeightedEdge. Basically,

when using XMI, we are constrained by the meta-

model. In our example, the UML2 metamodel as-

signs the upper bound 1 to the multiplicity of the

attribute name of uml:Class. We argue that single-

variant modeling restrictions such as cardinality or

1 <packagedElement xmi:type="uml:Class"

name="Edge">

2 <generalization general="Labeled"/>

3 <ownedAttribute name="graph"

type="Graph" association="has edges"/>

4 <ownedAttribute name="start" type="Edge"

association="starts at"/>

5 <ownedAttribute name="end" type="Edge"

association="ends at">

6 </ownedAttribute>

7 </packagedElement>

Listing 2: XMI serialization of class Edge using the

Eclipse UML2 metamodel.

1 <packagedElement xmi:type="uml:Class"

name="Edge,WeightedEdge">

2 ... </packagedElement>

Listing 3: Multiple alternative values for a class.

typing constraints must be weakened when serializ-

ing multi-variant model instances. In our example,

the assignment shown in Listing 3 should be allowed.

Generally, multi-variant models will comply only

with tools understanding the multi-variant format.

However, single-variant tools may transparently ac-

cess multi-version models through a ﬁlter.

3.2 Representation of Variability

Information (R2)

Let us assume that the problem of multi-variant XMI

serialization has been solved. Then, there is still no

variability deﬁned in XMI documents. The problem

of representing variability information, i.e., traceabil-

ity links, must be treated as a separate requirement.

Different tools capable of variability management

handle traceability links in a non-uniform way, e.g.,

using UML comments (as in the example above),

UML proﬁles and/or distinct mapping models (see

literature review in Section 4). We argue that vari-

ability information must be serialized in a uniform

and standardized way, which should be independent

of the concrete modeling language used. In Listing 4,

we suggest a tentative solution based on a new meta-

attribute mvxmi:tracelink

. The range of this attribute

must be precisely deﬁned in future research. Here, we

stick to the “least common denominator” of proposi-

tional logical expressions.

By intention, we have omitted the multi-variant at-

tribute name, which raises an additional challenge:

How to attach traceability links to attribute values,

which are considered as atomic strings in the low-

level XMI serialization? Among others, this technical

question must be answered by future research.

mvxmi would stand for multi-variant XMI.

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

206

Source

Metamodel

Target

Metamodel

MT Specification

Language

Multi-Variant

Source Model

Multi-Variant

Target Model

Source To Target

Transformation

Tracelink

Transformation

MVMT

Engine

<<multivariant

instanceof>>

<<multivariant

instanceof>>

<<instanceof>>

source target

input output

<<uses>>

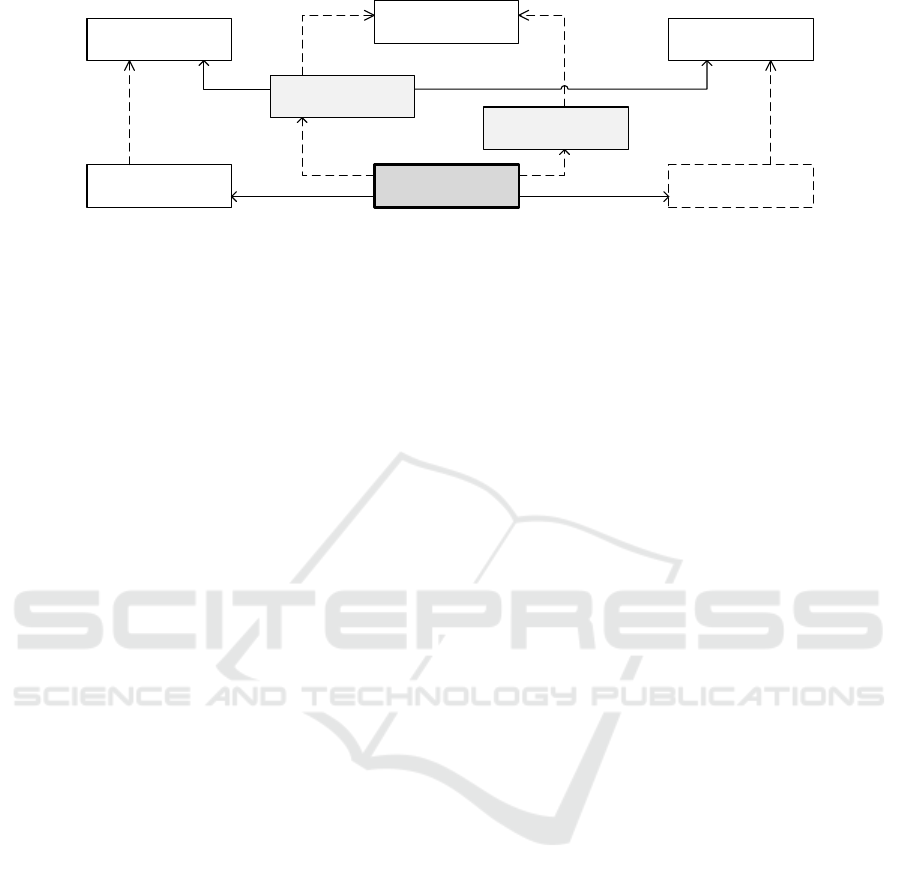

Figure 3: Sketch of a multi-variant model transformation engine.

1 <generalization general="Labeled"

mvxmi:tracelink="labeledEdges"/>

2 <ownedAttribute name="graph" type="Graph"

association="has edges"/>

3 <ownedAttribute name="start" type="Edge"

association="starts at"

mvxmi:tracelink="directedEdges"/>

4 <ownedAttribute name="end" type="Edge"

association="ends at"

mvxmi:tracelink="directedEdges">

5 </ownedAttribute>

6 </packagedElement>

Listing 4: Multi-variant XMI serialization of class

Edge, including variability information as traceability

links.

3.3 MVMT Execution (R3)

Only after having found solutions for requirements

R1 and R2 may we ask the question of execution

semantics: How to produce the target model from

the source model while ensuring the desired proper-

ties P1 until P3 listed in Section 2.3? Obviously,

MVMT support may only be achieved by a (partial)

re-implementation of an existing MT execution en-

gine. The interface of such a hypothetical MVMT en-

gine is sketched in Figure 3.

The engine takes as input a multi-variant instance

of the input meta-model and produces a multi-variant

instance of the output metamodel. The relationship

<<multivariantinstanceof>> must be speciﬁed in ac-

cordance with Requirement R1. As in a single-variant

MT, the transformation engine processes the input us-

ing a transformation speciﬁcation which refers to the

source and target metamodels. In addition, in the

multi-variant case, a transformation speciﬁcation for

the traceability links is needed, e.g., in order to deﬁne

how traceability links originating from several source

elements are merged. Both transformation speciﬁca-

tion are described by means of an existing MT lan-

guage speciﬁcation, which need not be aware of its

instances being executed in a multi-variant context.

4 LITERATURE REVIEW

In this section, we outline state-of-the-art solutions to

parts of our problem statement, structured by the re-

quirements R1 until R3 identiﬁed in Section 3.

R1: Multi-Variant Model Interchange. Since

there exists no standard for the representation of

multi-variant model instances, different tools dealing

with MDSE and variability apply custom solutions.

An established compromise in the context of MDPLE

is that the multi-variant domain model must be in-

stance of the single-variant metamodel. This removes

the necessity of an explicit multi-variant interchange

format but constrains variability; for instance, alterna-

tive class names as shown in Figure 1 would be disal-

lowed. Nevertheless, this approach is realized in the

majority of MDPLE approaches, including (Gomaa,

2004; Heidenreich et al., 2008).

The approach presented in (Buchmann and

Schw

agerl, 2015a) mitigates this restriction by mov-

ing alternative values into a distinct mapping model,

which also contains traceability links. However, this

solution is speciﬁc to the concrete tool.

Another category of MDPLE tools relying on pos-

itive variability (Zschaler et al., 2010; V

olter and Gro-

her, 2007) describe multi-variant models as a set of

model transformations to be conditionally applied to

a core model, a valid single-variant model instance.

This approach lacks generality since speciﬁc transfor-

mation tools are needed.

The problem of multi-version model representa-

tion also arises in model versioning (Altmanninger

et al., 2009). In approaches relying on directed deltas,

different versions are described by means of condi-

tional graph modiﬁcations (Taentzer et al., 2014). In

(Schw

agerl et al., 2015), versioned model graphs are

introduced as a form of representation for symmetric

deltas. These approaches, however, lack generality,

since they are restricted to version control and not de-

signed as interchange format, but merely for internal,

tool-speciﬁc representation.

Multi-variant Model Transformations — A Problem Statement

207

R2: Variability Representation. Many SPLE

tools, including (Buchmann and Schw

agerl, 2015a;

Heidenreich et al., 2008), use their own, non-

standardized tools to represent variability and trace-

ability links. Variability itself is commonly repre-

sented by feature models (Kang et al., 1990), for

which many derivatives can be found in literature,

leading to a quite heterogeneous tool landscape. The

expressiveness of approaches trying to unify trace-

ability links ranges from simple conjunctions (Go-

maa, 2004) over propositional logic (Westfechtel and

Conradi, 2009) to feature logic, which has been sug-

gested as a foundation for SCM in (Zeller and Snelt-

ing, 1997).

With the Common Variability Language (CVL)

(OMG, 2012a), the OMG are working on a standard

for representing variability information within mod-

els. In contrast to multi-variant models as deﬁned

here, CVL assumes that variation points are explic-

itly included in the model and expressed by speciﬁc

modeling constructs. This is in contradiction with the

desired property P2 (orthogonality). However, CVL’s

OCL

-based variability constraints provide a higher

expressiveness than all approaches mentioned above.

R3: MVMT Execution. Specialized forms of

MVMT have been realized within SPLE tools.

Though, we haven’t found a general solution having

the qualities of our proposed MVMT engine.

The solution presented in (Buchmann and

Schw

agerl, 2015b) is speciﬁc to transformations from

Ecore models to Java source code. A MVMT is sim-

ulated by applying single-variant code generation to

the multi-variant model and then propagating back

generated code into the source model. This way,

lower-level source code elements such as object vari-

ables and accessor methods are provided with the

same variability information as their higher-level cor-

respondences, e.g., Ecore references. However, this

solution does not address applied occurrences of vari-

able parts in manually implemented method bodies.

(Salay et al., 2014) agree with our observation

that MDPLE is currently impeded by the lack of sup-

port for variability in model transformations. They

propose a lifting algorithm which interprets existing

model transformation rules, which are assumed to be

based on a graph rewriting formalism, on a model

that contains variability. Properties P1 (reuse) and P3

(commutativity) are guaranteed. The solution is fully

variability-aware; However, variability is constrained

by single-version metamodels, disallowing “uncon-

strained” input/output models (e.g., Figure 1).

Object Constraint Language (OMG, 2014)

An approach combining the aforementioned CVL

with domain speciﬁc languages is presented in (Hau-

gen et al., 2008). As required by CVL, variation

points are contained in the abstract syntax tree of

model instances. However, the approach does not in-

clude a transfer of variability information to the target

model as requested by our problem statement.

5 CONCLUSION AND OUTLOOK

This position paper has asked initial questions refer-

ring to the problem of multi-variant model transfor-

mations, including a discussion of the requirements

of a standardization of (R1) multi-variant model in-

terchange, (R2) representation of variability infor-

mation and (R3) execution semantics. The long-

term research goal is to develop a variability-aware

model transformation engine that (P1) reuses existing

single-variant transformation speciﬁcation, (P2) sepa-

rates the core transformation from the transformation

of variability information, and (P3) maintains as well

as possible the intuitively desirable property of com-

mutativity with a ﬁlter operation. Furthermore, we

have provided a simple yet challenging example for

MVMT, which may serve as a starting point for the

evaluation of an eventual MVMT engine.

From a literature review, we have learned that all

of the three requirements deﬁned here have already

been addressed by existing tools and approaches, but

not to a satisfactory extent. Most solutions lack gen-

erality and do not identify MVMTs as an explicit re-

search problem. However, we are convinced that a

general solution for MVMTs may raise the accep-

tance of disciplines such as Model-Driven Product

Line Engineering, which explicitly deﬁnes the goal

of organized reuse. An MVMT engine would lift the

goal of organized reuse up to the tooling level, allow-

ing to more easily adapt single-variant tool chains to

multi-variant scenarios. Especially when combined

with reverse or round-trip engineering, new chal-

lenges will soon arise for MVMT, e.g., support for

bidirectional or incremental model transformations.

Furthermore, the requirement of being “variability-

aware” is not restricted to model transformations, but

will gain importance in, e.g., model validation or ver-

sion control.

REFERENCES

Altmanninger, K., Seidl, M., and Wimmer, M. (2009). A

survey on model versioning approaches. Interna-

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

208

tional Journal of Web Information Systems (IJWIS),

5(3):271–304.

Buchmann, T. and Schw

agerl, F. (2015a). Developing het-

erogeneous software product lines with FAMILE — a

model-driven approach. International Journal on Ad-

vances in Software, 8(1 & 2):232 – 246.

Buchmann, T. and Schw

agerl, F. (2015b). On A-posteriori

Integration of Ecore Models and Hand-written Java

Code. In Pascal Lorenz, M. v. S. and Cardoso, J.,

editors, Proceedings of the 10th International Con-

ference on Software Paradigm Trends, pages 95–102.

SCITEPRESS.

Czarnecki, K. and Kim, C. H. P. (2005). Cardinality-based

feature modeling and constraints: a progress report.

In International Workshop on Software Factories at

OOPSLA’05, San Diego, California, USA. ACM.

Gomaa, H. (2004). Designing Software Product Lines with

UML: From Use Cases to Pattern-Based Software Ar-

chitectures. Addison-Wesley, Boston, MA.

Haugen, O., Møller-Pedersen, B., Oldevik, J., Olsen, G. K.,

and Svendsen, A. (2008). Adding standardized vari-

ability to domain speciﬁc languages. In Proceedings

of the 2008 12th International Software Product Line

Conference, SPLC ’08, pages 139–148, Washington,

DC, USA. IEEE Computer Society.

Heidenreich, F., Kopcsek, J., and Wende, C. (2008). Fea-

tureMapper: Mapping features to models. In Compan-

ion Proceedings of the 30th International Conference

on Software Engineering (ICSE’08), pages 943–944,

Leipzig, Germany.

Jouault, F. and Kurtev, I. (2006). Transforming mod-

els with atl. In Proceedings of the 2005 Interna-

tional Conference on Satellite Events at the MoD-

ELS, MoDELS’05, pages 128–138, Berlin, Heidel-

berg. Springer-Verlag.

Kang, K. C., Cohen, S. G., Hess, J. A., Novak, W. E.,

and Peterson, A. S. (1990). Feature-oriented do-

main analysis (FODA) feasibility study. Technical Re-

port CMU/SEI-90-TR-21, Carnegie-Mellon Univer-

sity, Software Engineering Institute.

Lopez-Herrejon, R. E. and Batory, D. S. (2001). A stan-

dard problem for evaluating product-line methodolo-

gies. In Proceedings of the Third International Con-

ference on Generative and Component-Based Soft-

ware Engineering, GCSE ’01, pages 10–24, London,

UK. Springer.

Mellor, S. J., Kendall, S., Uhl, A., and Weise, D. (2004).

MDA Distilled. Addison Wesley Longman Publishing

Co., Inc., Redwood City, CA, USA.

OMG (2011a). Meta Object Facility (MOF) 2.0

Query/View/Transformation Speciﬁcation, Version

1.1. Object Management Group, Needham, MA.

OMG (2011b). Meta Object Facility (MOF) Core. Object

Management Group, Needham, MA.

OMG (2011c). OMG MOF 2 XMI Mapping Speciﬁcation,

Version 2.4.1. Object Management Group, Needham,

MA.

OMG (2011d). UML Infrastructure. Object Management

Group, Needham, MA.

OMG (2012a). Common Variability Language (CVL) OMG

Revised Submission. Object Management Group,

Needham, MA.

OMG (2012b). MOF Model to Text Transformation Lan-

guage, Version 1.0. Object Management Group,

Needham, MA.

OMG (2014). Object Constraint Language (OCL). Object

Management Group, Needham, MA.

Pohl, K., B

ockle, G., and van der Linden, F. (2005). Soft-

ware Product Line Engineering: Foundations, Princi-

ples and Techniques. Berlin, Germany.

Salay, R., Famelis, M., Rubin, J., Sandro, A. D., and

Chechik, M. (2014). Lifting model transformations

to product lines. In 36th International Conference on

Software Engineering, ICSE ’14, Hyderabad, India -

May 31 - June 07, 2014, pages 117–128.

Schw

agerl, F., Uhrig, S., and Westfechtel, B. (2015). A

graph-based algorithm for three-way merging of or-

dered collections in EMF models. Science of Com-

puter Programming, 113, Part 1:51 – 81. Selected and

Revised Papers from MODELSWARD 2014.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Boston, MA, 2nd edition.

Taentzer, G., Ermel, C., Langer, P., and Wimmer, M.

(2014). A fundamental approach to model versioning

based on graph modiﬁcations: From theory to imple-

mentation. Software & Systems Modeling, 13(1):239–

272.

olter, M. and Groher, I. (2007). Handling variability in

model transformations and generators. In Companion

to the Annual ACM SIGPLAN Conference on Object-

Oriented Programming, Systems, Languages, and Ap-

plications (OOPSLA 2007). ACM.

olter, M., Stahl, T., Bettin, J., Haase, A., and Helsen, S.

(2006). Model-Driven Software Development: Tech-

nology, Engineering, Management. John Wiley &

Sons.

Westfechtel, B. and Conradi, R. (2009). Multi-variant mod-

eling - concepts, issues and challenges. In Mezini,

M., Beuche, D., and Moreira, A., editors, Proceedings

of the 1st International Workshop on Model-Driven

Product Line Engineering (MDPLE 2009), pages 57–

67. CTIT Proceedings.

Zeller, A. and Snelting, G. (1997). Uniﬁed version-

ing through feature logic. ACM Trans. Softw. Eng.

Methodol., 6(4):398–441.

Zschaler, S., S

anchez, P., Santos, J., Alf

erez, M., Rashid,

A., Fuentes, L., Moreira, A., Ara

ujo, J., and Kulesza,

U. (2010). VML* - A Family of Languages for Vari-

ability Management in Software Product Lines. In

van den Brand, M., Gaevic, D., and Gray, J., edi-

tors, Software Language Engineering, volume 5969

of Lecture Notes in Computer Science, pages 82–102.

Springer Berlin / Heidelberg, Denver, CO, USA.

Multi-variant Model Transformations — A Problem Statement

209
