Process Extraction from Texts using Semantic Uniﬁcation

Konstantin Sokolov

1,2

, Dimitri Timofeev

and Alexander Samochadin

Mobile Device Management Systems Lab, Peter the Great St. Petersburg Polytechnic University, St. Petersburg, Russia

Department of Mathematical Linguistics, St. Petersburg State University, St. Petersburg, Russia

Institute of Computer Science and Technology, Peter the Great St. Petersburg Polytechnic University, St. Petersburg, Russia

Keywords:

Business Process Management, Process Extraction, Text Mining, Natural Language Processing.

Abstract:

In order to extract a process model from natural language sources, process elements such as agents, resources

or actions have to be identiﬁed across one or multiple texts. Natural language descriptions tend to provide

only partial and potentially contradictory information. Inability to systematically reconcile partial information

signiﬁcantly limits capabilities of current systems. We propose to address this problem by means of semantic

uniﬁcation integrated in the common text processing pipeline.

1 INTRODUCTION

Providing a formal speciﬁcation of a business process

requires substantial work and high qualiﬁcation from

the analyst. While the role of human experts in analy-

sis and modeling of business processes is crucial, their

activity may be substantially automated. It is espe-

cially important when business process modeling is

performed in the enterprise environment. Large or-

ganizations have lots of processes but, typically, the

processes are already speciﬁed textually in the form

of instructions, user guides, manuals, and standards.

Using text documents as a source of process models

lowers the cost of business process management. It

can also give new insights into the existing processes

by introducing new sources of knowledge, such as

customers claims, reviews, user stories, or other user-

generated content on corporate websites and in social

media.

Our interest in applying process extraction tech-

niques to natural language texts is motivated by the

task of development of process-oriented mobile ser-

vices. This class of services includes:

• specialized step-by-step guides that inform users

on actions that should be performed to achieve a

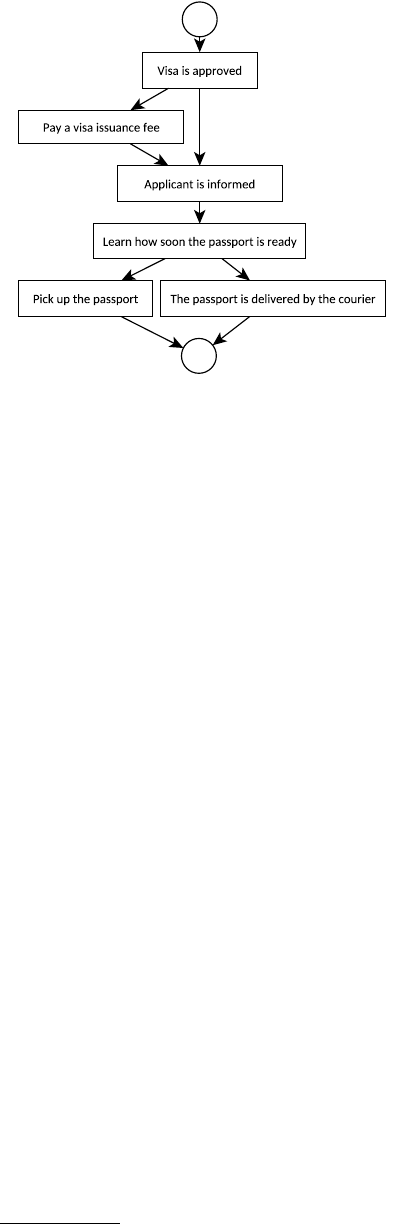

goal (e.g., to obtain a visa, or to apply to the uni-

versity);

• enterprise-level business process supporting soft-

ware;

• mobile assistants that use procedural knowledge

to answer questions and schedule events.

This research is part of a project aiming to design

and implement a service platform based on a mobile

device management system. The platform provides

a set of process-oriented services, which require de-

velopment of process models. Automated process ex-

traction can greatly simplify service deployment, es-

pecially in organizations like universities, where most

processes are speciﬁed in normative documents, but

formal process models are rarely available. Besides

that, users of process-oriented mobile services may

beneﬁt from the ability to share their knowledge of

processes and to use these community contributions.

In this position paper we discuss the limitations

of existing text processing pipelines used for process

extraction, especially with respect to handling multi-

ple documents, and propose an approach to systemati-

cally overcome these limitations. The rest of the paper

is structured as follows. In Section 2 existing methods

of process extraction from text are reviewed. In Sec-

tion 3 we discuss the limitations of current approaches

and propose a way to overcome them by using seman-

tic uniﬁcation. Section 4 describes the core ideas be-

hind our method. Section 5 discusses how semantic

uniﬁcation ﬁts into the text processing pipeline, and

provides an example. The section 6 concludes.

2 RELATED WORK

A method of building a process model from a set of

unstructured documents should provide solutions to

the following problems: how to decide what entities

254

Sokolov, K., Timofeev, D. and Samochadin, A..

Process Extraction from Texts using Semantic Uniﬁcation.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 3: KMIS, pages 254-259

ISBN: 978-989-758-158-8

should go into the model, how superﬁcially unrelated

data dispersed in the texts should be combined, and

how to obtain a formal model of a process.

The CREWS model (Achour, 1998) is often used

to formulate a conceptual description of a process.

The model speciﬁes two kinds of building blocks, ob-

jects (agents or resources) and actions (atomic actions

or action ﬂows). In a text objects are generally repre-

sented by noun phrases, and actions by verb phrases.

Extraction of entities and relations is a standard topic

of natural language processing, therefore it is rather

straightforward to integrate both technologies in or-

der to match a process with a text that describes it. In

the R-BPD framework prototype (Ghose et al., 2007),

constituents of a process model are extracted with

a combination of template matching, part-of-speech

tagging, and phrase chunking. Other systems take ad-

vantage of more sophisticated natural language pro-

cessing techniques. The use case analysis engine by

Sinha et al. (2008) implements a pipeline that in-

volves lexical processing, parsing, dictionary-based

concepts annotation, anaphora resolution, context an-

notation, and building of process models. A similar

method is implemented by Gonc¸alves et al. (2009,

2011). Both rely on problem-oriented grammars for

shallow parsing. Friedrich et al. (2011) use a wide-

coverage Stanford parser (Manning, 2003), and utilize

WordNet (Miller, 1995) and FrameNet (Baker et al.,

1998) databases to obtain information about semantic

relations, including synonymy. Ackermann and Volz

(2013) describe a prototype system based on recur-

sively deﬁned templates which is able to extract do-

main models from text. They adopt feature structures

to model both the templates and the results of natu-

ral language analysis, and apply a variant of uniﬁca-

tion algorithm to perform the matching between the

two. This approach allows to map text fragments to

elements of an intended domain model and to inter-

actively modify templates based on user feedback. In

general, their system is pattern-based and uses uniﬁ-

cation techniques for comparison of tree structures of

syntactic nature.

3 LIMITATIONS

It should be obvious from the above, that the ability

of such systems to cope with intricacies of natural lan-

guage is limited by the tools that are used to produce

representations of entities and events that comprise a

process. Common approaches to extraction of a pro-

cess model from a document rely on a typical text

processing pipeline, which includes text normaliza-

tion, segmentation, tokenization, morphological anal-

ysis, named entity recognition, and syntactic parsing.

Some systems additionally perform semantic parsing

to produce trees labeled with semantic roles of the

constituents. In order to handle pronouns an anaphora

resolution step may be added to the pipeline. All sys-

tems process each sentence independently.

A serious limitation of current approaches is their

inability to consistently handle multiple descriptions

of the same process. Process descriptions supplied by

users contain errors due to the lack of proof-reading

and tend to describe only those parts of processes that

their authors are aware of or interested in. Documents

by different authors can be inconsistent with respect

to their vocabulary. As a result, these systems are gen-

erally designed to extract a model of a single process

from a single document. Currently, processing multi-

ple sources requires generation of models for each of

the documents with a subsequent merging by a human

expert, which should be automated. The common vo-

cabulary is even more important in an enterprise en-

vironment, where other knowledge-based systems are

available. The process extraction system should be

able to align extracted entities with existing ontolo-

gies.

To create a formal model of a process, a set of

hand-crafted rules is used by each system. This ap-

proach is perfectly valid for building models with a

known structure. However, the facts that do not ﬁt

into the structure are ignored, making such systems

less convenient for exploratory analysis, and restrict-

ing the number of texts that can be processed. Further,

a known limitation of systems that use explicit rules

is the difﬁculty of rule modiﬁcation. It is desirable to

have simpler rules that could be learned from corpora,

and to be able to combine them with higher-level pro-

cess analysis algorithms.

In sum, to overcome the limitations of the current

approaches it should be made possible to automati-

cally construct entity and event representations that

could easily integrate in the existing natural language

processing pipelines, support easy alignment with ex-

ternal knowledge bases and ontologies, be expressive

enough to allow for ﬂexible data integration across the

limits of a sentence, and be formally compatible with

existing frameworks of process extraction. To achieve

this we propose a method of semantic uniﬁcation for

entity resolution and data reconciliation based on fea-

ture structures. To build a process model, we adopt

the methods of process mining (van der Aalst, 2011),

where the text is translated into a sequence of ordered

events, and a process mining algorithm is invoked to

infer a model that ﬁts this sequence.

Process Extraction from Texts using Semantic Uniﬁcation

255

4 SEMANTIC UNIFICATION

4.1 Feature Structures

The theoretical background of using feature structures

for semantic representation is the situation semantics

of Barwise and Perry (1983). This approach requires

that some extralinguistic knowledge be included in

the context of an utterance for it to be coherent and

non-contradictory. This follows from the fact that in-

terpretation is impossible without relating to contex-

tual information, like time and place of an utterance,

propositional attitude of the speaker, etc. Instead of

linguistic production it is rather the context of obser-

vation of linguistic performance that has to be taken

into account during interpretation. This approach dif-

fers from the traditional model-theoretic view of for-

mal semantics in that the meaning is not related to the

whole information about the world, but instead it is

understood as a structured representation, which only

partially describes the world and consequently is pro-

vided with a partial interpretation. The situation is

thus only a fragment of the model structure, which

should be merged with other such fragments in the

presence of extralinguistic data. Following Pollard

and Sag (1987), the formal description of situations

is given in the form of feature structures, for which an

operation of uniﬁcation is deﬁned, where uniﬁcation

serves as a means of obtaining a full description from

partial ones by combining linguistic information and

extralinguistic knowledge as long as it is possible to

do so without falling into contradiction.

Feature structures is a well-known formalism

which has been applied to knowledge representa-

tion and formulation of various grammatical theories

based on uniﬁcation, including Head-driven Phrase

Structure Grammar (Pollard and Sag, 1994) and Lexi-

cal Functional Grammar (Kaplan and Bresnan, 1982).

Feature structures are recursively deﬁned and can sup-

port internal references. They can be represented

in multiple forms, the traditional attribute-value ma-

trix (AVM) notation of computational linguistics and

the direct rendering of an underlying graph struc-

ture, which is a natural representation for conceptual

graphs, RDF, etc. A number of extensions is com-

monly used, including support for disjunctive features

and typing constraints. Standard deﬁnitions of typed

feature structures (TFS) can be found in (Copestake,

2000), and the more extended treatment of formal as-

pects of the underlying theory in (Carpenter, 2005)

and (Francez and Wintner, 2011). Here we limit our-

selves to a few examples.

The following AVM represents an object of type

(or sort) noun, which has two attributes, a number and

an orthography.







noun

NUMBER sg

ORTHOGRAPHY foot







The other AVM represents another possible de-

scription which differs from the ﬁrst one in that it has

a different set of attributes.







noun

CASE nom

ORTHOGRAPHY foot







Note, however, that the values of common at-

tributes are the same, so the information contained

in both descriptions can be combined (or uniﬁed) to

result in a single description.







noun

CASE nom

NUMBER sg

ORTHOGRAPHY foot







The uniﬁcation process is restricted by the types

that are assigned to particular feature structures. The

types form a pre-order, so that a more speciﬁc type

can license combination of a number of more general

partial descriptions of subsuming types. Thus a set of

typed feature structures resembles a system of objects

provided with a mechanism of multiple inheritance.

Feature structures can be regarded as abstract

entities and be given a formal logical description,

which is similar to the knowledge representation ap-

proach of Semantic Web. The earliest proposals along

these lines are the Kasper-Rounds logic (Kasper and

Rounds, 1986), which is close to the constraint-based

system PATR-II, and an approach of Gazdar et al.

(1988). Johnson (1991a,b) uses a decidable frag-

ment of ﬁrst order logic (Bernays–Sch

onﬁnkel class),

whereas Blackburn (1993) builds a formalism based

on hybrid logic, an extension of modal logic. The

latter approach was used by Baldridge and Krui-

jff (2002) for Hybrid Logic Dependency Semantics

(HLDS), a semantic representation formalism used in

the OpenCCG

system. A connection with descrip-

tion logics is also well established. Blackburn (1993)

notices that both feature logics and description log-

ics are in essence modal logics with superﬁcial differ-

ences of the way they are formulated. What is com-

mon to all these approaches is the property of decid-

ability, that the authors of corresponding logics strive

to maintain.

http://openccg.sf.net

KMIS 2015 - 7th International Conference on Knowledge Management and Information Sharing

256

4.2 Semantic Uniﬁcation

Feature structures can serve as a basic formalism in

the entity resolution task for the following reasons.

The type pre-order of TFS provides the means

of relating feature-based descriptions to an ontology.

Krieger and Sch

afer (2010) describe a method of

translating an OWL ontology into TFS and vice versa.

There an additional knowledge is used to improve re-

call and precision of named entity recognition algo-

rithms. In general, domain knowledge can be used

in the process of text analysis, whereas the results of

entity resolution can be exported to an ontology.

Feature structures allow for incremental construc-

tion of a full description of an object based on its

partial descriptions. Semantic representations based

on feature structures have been used in many ap-

proaches in computational linguistics, including Min-

imal Recursion Semantics (Copestake et al., 2005),

formal representations of lexical semantics in Gen-

erative Lexicon (Pustejovsky, 1991), Hybrid Logic

Dependency Semantics (Baldridge and Kruijff, 2002)

and others. In these approaches the process of uniﬁ-

cation is used to model semantic composition.

A serious limitation of the symbolic uniﬁcation

approach of the aforementioned proposals is its in-

ability to account for the variations of values present

in the corresponding semantic representations. Mi-

nor modiﬁcations of spelling may result in failure

of determining whether multiple realizations of the

same attribute correspond to the same value and

thus block the uniﬁcation process. Analogously, in

cases of inter- and intrasentential anaphora pronouns

should be linked to the expressions they refer to in

other segments of text, which is problematic to do at

the purely symbolic level. Recently Abramsky and

Sadrzadeh (2014) adopted an approach similar to ours

for anaphora resolution using discourse representa-

tion structures as their semantic formalism. An im-

portant aspect of their work is that instead of main-

taining global coherence of semantic structures they

propose to consider semantic coherence locally, mod-

eling it with sheaf theory, where data integration is

regarded as gluing of semantic representations. This

process generally results in multiple variants of data

combination, each of which can be assigned a prob-

ability based on its realization in a corpus. By intro-

ducing an empirically sound quantitative measure of

appropriateness of particular way of combining par-

tial semantic information it is possible to alleviate the

problems of purely symbolic uniﬁcation.

An apparent discrepancy between the traditional

feature structure uniﬁcation and the semantic uniﬁ-

cation approach based on sheaf theory can be made

clear by analogy with the general uniﬁcation theory

(Baader and Snyder, 2001), where a distinction is

made between purely syntactic and equational uniﬁ-

cation. Whereas the former relies on unconditioned

term substitution, the latter requires that the possibil-

ity of term substitution be controlled by certain ex-

ternal conditions, thus resulting in uniﬁcation modulo

an equational theory. The semantic uniﬁcation pro-

cess as applied to entity resolution can be viewed as

an extension of the traditional symbolic uniﬁcation of

feature structures augmented with a form of empiri-

cally motivated corpus-based equational theory.

5 PROCESS EXTRACTION

To build a description of a business process, we ex-

tract from each text a set of relations that represent

actions and events. In the simplest case these rela-

tions have the form hNP, VPi, where the noun phrase

NP correspond to the agent, and the verb phrase VP

describes the action. More complex relations include

other semantic roles such as theme or goal. For exam-

ple, an argument structure for the sentence “The seller

gives the invoice to the customer” can be described as

follows.







ACTION give

AGENT seller

THEME invoice

RECEPIENT customer







Technically, attribute values are not plain text

segments, but rather references to feature structures

attached to corresponding segments of parsed text.

These structures may contain both semantic and syn-

tactic attributes.

The model is inferred from a log, a sequence of

actions grouped by case. Process logs are built from

the relations extracted during the previous step. To

do so, we take all relations that describe actions, and

sort them by time under the heuristic that the corre-

sponding actions are performed in the order of their

mention in the text, which is a plausible assumption

for descriptions of processes. Explicit time attributes

may change this order according to speciﬁed rules.

We use these attributes to generate a set of cases. If

all actions are mandatory, and there are no alterna-

tives, a single linear case is generated. Each optional

action doubles the quantity of the cases, so that one

half of the resulting cases does not contain the action

as it never occurs. Alternatives are handled similarly.

The model may be inferred from the resulting set of

cases using process mining algorithms (currently we

Process Extraction from Texts using Semantic Uniﬁcation

257

Figure 1: A graph of the inferred process.

use the ProM tool

As an example, consider a paragraph from a guide

for obtaining the United States visa.

“When the visa is approved, you may pay a visa

issuance fee if applicable to your nationality, and will

be informed how your passport with visa will be re-

turned to you. Review the visa processing time, to

learn how soon your passport with visa will generally

be ready for pick-up or delivery by the courier.”

Suppose the following actions have been ex-

tracted.

1. Visa is approved (mandatory).

2. Pay a visa issuance fee (optional).

3. Applicant is informed (mandatory).

4. Learn how soon the passport is ready (manda-

tory).

5. Pick up the passport (alternative).

6. Passport is delivered by the courier (alternative).

There are one optional action and one action with

two alternatives, so we get four process cases: (1, 2,

3, 4, 5), (1, 2, 3, 4, 6), (1, 3, 4, 5), and (1, 3, 4, 6).

The inferred process is presented in Figure 1.

6 CONCLUSION

In this paper we described an approach of extraction

of process models from texts. Currently we consider

English texts only. The method itself is not limited

to one language, but linguistic resources, especially

http://www.promtools.org

grammars and lexical databases, are required to sup-

port other languages. Our main goal is to handle mul-

tiple documents with partial descriptions of a process.

We propose to add to the processing pipeline an entity

resolution step implemented as the semantic uniﬁca-

tion of typed feature structures. This approach also

allows for integration of text processing algorithms

with domain knowledge represented as ontologies.

The work presented is in the early stage of devel-

opment, and we are currently working on a prototype

and on the evaluation of our method.

ACKNOWLEDGEMENTS

This research is a part of the joint project by IBS

(Moscow, Russia) and Peter the Great St. Petersburg

Polytechnic University (St. Petersburg, Russia). This

work is ﬁnancially supported by the Ministry of Ed-

ucation and Science of the Russian Federation (state

contract 02.G25.31.0024 from 12.02.2013).

REFERENCES

Abramsky, S. and Sadrzadeh, M. (2014). Semantic uniﬁ-

cation. In Categories and Types in Logic, Language,

and Physics, pages 1–13. Springer.

Achour, C. B. (1998). Guiding scenario authoring. In

European-Japanese Conference on Information Mod-

elling and Knowledge Bases, page 1.

Ackermann, L. and Volz, B. (2013). model [nl] generation:

natural language model extraction. In Proceedings of

the 2013 ACM workshop on Domain-speciﬁc model-

ing, pages 45–50. ACM.

Baader, F. and Snyder, W. (2001). Uniﬁcation theory. Hand-

book of automated reasoning, 1:445–532.

Baker, C. F., Fillmore, C. J., and Lowe, J. B. (1998). The

Berkeley FrameNet project. In COLING-ACL ’98:

Proceedings of the Conference, pages 86–90, Mon-

treal, Canada.

Baldridge, J. and Kruijff, G.-J. M. (2002). Coupling CCG

and Hybrid Logic Dependency Semantics. In Pro-

ceedings of the 40th Annual Meeting of the Associ-

ation for Computational Linguistics (ACL), Philadel-

phia, July 2002, pages 319–326.

Barwise, J. and Perry, J. (1983). Situations and attitudes.

Blackburn, P. (1993). Modal logic and attribute value struc-

tures. Springer.

Carpenter, B. (2005). The logic of typed feature structures:

with applications to uniﬁcation grammars, logic pro-

grams and constraint resolution, volume 32. Cam-

bridge University Press.

Copestake, A. (2000). Appendix: Deﬁnitions of typed

feature structures. Natural Language Engineering,

6(01):109–112.

KMIS 2015 - 7th International Conference on Knowledge Management and Information Sharing

258

Copestake, A., Flickinger, D., Pollard, C., and Sag, I. A.

(2005). Minimal recursion semantics: An introduc-

tion. Research on Language and Computation, 3(2-

3):281–332.

Francez, N. and Wintner, S. (2011). Uniﬁcation grammars.

Cambridge University Press.

Friedrich, F., Mendling, J., and Puhlmann, F. (2011). Pro-

cess model generation from natural language text.

In Advanced Information Systems Engineering, pages

482–496. Springer.

Gazdar, G., Pullum, G. K., Carpenter, R., Klein, E., Hukari,

T. E., and Levine, R. D. (1988). Category structures.

Computational Linguistics, 14(1):1–19.

Ghose, A., Koliadis, G., and Chueng, A. (2007). Process

discovery from model and text artefacts. In Services,

2007 IEEE Congress on, pages 167–174. IEEE.

Gonc¸alves, J. C. A. R., Santoro, F. M., and Bai

ao, F. A.

(2009). Business process mining from group stories.

In Proceedings of the 2009 13th International Con-

ference on Computer Supported Cooperative Work in

Design.

Gonc¸alves, J. C. A. R., Santoro, F. M., and Bai

ao, F. A.

(2011). Let me tell you a story — On how to build

process models. Journal of Universal Computer Sci-

ence, 17(2):276–295.

Johnson, M. (1991a). Features and formulae. Computa-

tional Linguistics, 17(2):131–151.

Johnson, M. (1991b). Logic and feature structures. In IJ-

CAI, pages 992–996.

Kaplan, R. M. and Bresnan, J. (1982). Lexical-functional

grammar: A formal system for grammatical represen-

tation. Formal Issues in Lexical-Functional Grammar,

pages 29–130.

Kasper, R. T. and Rounds, W. C. (1986). A logical se-

mantics for feature structures. In Proceedings of

the 24th annual meeting on Association for Compu-

tational Linguistics, pages 257–266. Association for

Computational Linguistics.

Krieger, H.-U. and Sch

afer, U. (2010). DL meet FL: a bidi-

rectional mapping between ontologies and linguistic

knowledge. In Proceedings of the 23rd International

Conference on Computational Linguistics: Posters,

pages 588–596. Association for Computational Lin-

guistics.

Manning, D. K. C. D. (2003). Natural language parsing. In

Advances in Neural Information Processing Systems

15: Proceedings of the 2002 Conference, volume 15,

page 3. MIT Press.

Miller, G. A. (1995). Wordnet: a lexical database for en-

glish. Communications of the ACM, 38(11):39–41.

Pollard, C. and Sag, I. (1987). Information-based syntax

and semantics, vol. 1.

Pollard, C. and Sag, I. A. (1994). Head-driven phrase struc-

ture grammar. University of Chicago Press.

Pustejovsky, J. (1991). The generative lexicon. Computa-

tional linguistics, 17(4):409–441.

Sinha, A., Paradkar, A., Kumanan, P., and Boguraev, B.

(2008). An analysis engine for dependable elicitation

on natural language use case description and its appli-

cation to industrial use cases. IBM Research Report

RC24712 (W0812-106).

van der Aalst, W. M. P. (2011). Process Mining, Discov-

ery, Conformance and Enhancement of Business Pro-

cesses. Springer-Verlag, Berling Heidelberg.

Process Extraction from Texts using Semantic Uniﬁcation

259
