Towards Vocabulary Development by Convention

Irl

an Grangel-Gonz

alez, Lavdim Halilaj, G

okhan Coskun and S

oren Auer

Enterprise Information Systems, University of Bonn, Bonn, Germany

Keywords:

Vocabulary Development by Convention, Convention over Conﬁguration.

Abstract:

A major bottleneck for a wider deployment and use of ontologies and knowledge engineering techniques

is the lack of established conventions along with cumbersome and inefﬁcient support for vocabulary and

ontology authoring. We argue, that the pragmatic development by convention paradigm well-accepted within

software engineering, can be successfully applied for ontology engineering, too. However, the deﬁnition of

a valid set of conventions requires broadly-accepted best-practices. In this regard, we empirically analyzed a

number of popular vocabularies and ontology development efforts with respect to their use of guidelines and

common practices. Based on this analysis, we identiﬁed the following main aspects of common practices:

documentation, internationalization, naming, structure, reuse, validation and authoring. In this paper, these

aspects are presented and discussed in detail. We propose a set of practices for each aspect and evaluate their

relevance in a study with vocabulary developers. The overall goal is to pave the way for a new paradigm

of vocabulary development similar to Software Development by Convention, which we name Vocabulary

Development by Convention.

1 INTRODUCTION

Standards are powerful means to realize interoperabil-

ity among heterogeneous systems. The process of

deﬁning them is usually as follows. Interested stake-

holders come together and decide to deﬁne a new

standard for a given case. They build a consortium

which drives this process and they create a standard-

ization organization or they create a subgroup within

an existing one. In periodic meetings, representatives

from the different stakeholders come together, com-

municate their particular needs, and try to ﬁnd a con-

sensus. If the outcome, which can be e.g a protocol, a

component speciﬁcation, or a vocabulary

, is at a sat-

isfying maturity level a speciﬁcation document will

be released. The adopters will implement this stan-

dard. Possibly, they need to adapt their already exist-

ing systems and the overall process is generally cum-

bersome and long lasting. The more stakeholders are

involved and the more existing proprietary products

are affected the more is this process exacerbated.

The dynamic World Wide Web, on the contrary,

demonstrates that with a minimalistic standard set and

ﬂexible de facto standards interoperability is also pos-

sible to some extend. This is mainly enabled by fo-

In this paper, we will use both terms ‘vocabulary’ and

‘ontology’ interchangeably.

cused applications and well documented speciﬁcation

pages. In some cases these de facto standards become

real standards. However, the main idea is that they

are not created in a top-down approach as in tradi-

tional standardization activities. Concretely, the im-

plementation is not based on a predeﬁned standard,

but the standard is based on the adoption and the ex-

perience with existing implementations. That makes

them more practical and avoid overly engineered stan-

dards like CORBA (Common Object Request Broker

Architecture), CAMEL (Customised Applications for

Mobile networks Enhanced Logic), etc. We consider

this as a bottom-up approach for deﬁning a standard.

Even within the Web context the danger of overly

engineered standards is also given. The vision of the

Semantic Web for example, caused the enthusiastic

creation of standards like the Web Ontology Language

and the Rule Interchange Format to represent knowl-

edge and rules. It remains questionable if and when

this standards will be really broadly adopted and if

they are really practical enough to be used in various

information systems. In contrast, positive examples

likes Schema.org

clearly demonstrate that a practice-

oriented approach is very effective. The deﬁnition,

implementation and the usage is integrated pragmati-

cally and not organized sequentially. In fact, the au-

http://schema.org/

334

Grangel-González, I., Halilaj, L., Coskun, G. and Auer, S..

Towards Vocabulary Development by Convention.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 2: KEOD, pages 334-343

ISBN: 978-989-758-158-8

thors of this paper are convinced that being practice-

oriented is the key success factor in this regard.

Therefore, we investigated into the applicability of

the Convention over Conﬁguration paradigm, which

is very well-known and broadly adopted in software

engineering, to vocabulary development. It aims at re-

ducing the number of decisions that developers need

to make, so they can focus on the main development.

Inspired by this paradigm and the broad adoption of

vocabularies like Schema.org, we propose a set of

practices. These practices will represent the Con-

vention which will be part of a new paradigm called

Vocabulary Development by Convention. We derive

these practices from the study of well-known vocabu-

laries as well as our own experience in vocabulary de-

velopment process. The bottom-up and pragmatically

best-practice oriented technique which we applied in

this study is presented in detail. In addition, we vali-

date our approach by means of a survey with experts

on the ﬁeld.

The remainder of this paper is organized as fol-

lows. In section 2 we derive a set of practices to be

applied in vocabulary development. In section 3 an

analysis of the most widely vocabularies is presented.

In section 4 we propose our set of best-practices for

vocabulary engineering. We validate the impact of

our approach by gathering opinions of vocabulary de-

velopers section 5 and compare our work with the cur-

rent state of the art section 6. We conclude in sec-

tion 7, shedding light on the critical aspects presented

and providing an outlook to meaningful extensions of

this work.

2 METHOD

Approaching a task can be done in two different ways.

Top-down starts from the abstract and elaborates the

concrete. Whereas bottom-up starts from the concrete

level and continues towards the abstract. From a logic

perspective, the former corresponds to deductive rea-

soning. It starts with known facts that are considered

as premises and seeks for conclusions. The latter, on

the contrary, starts with a given set of statements and

looks for premises that caused them.

In the context of deﬁning a methodology for vo-

cabulary development, a top-down approach starts

with the facts that are known about the expected out-

come, namely the vocabulary. From the different

characteristics of it, a possible creation process is de-

rived. In the next steps, a list of roles is created and

a set of tools are developed or selected, which can

be used within the different steps of the overall pro-

cess. In fact, most ontology engineering methodolo-

gies have been created by applying this approach.

On the contrary, Convention over Conﬁguration is

a bottom-up software development paradigm, which

aims at reducing the number of decisions that devel-

opers need to make. This approach inspired other

works (Fiorelli et al., 2015; Meenakshi, 2015) due

to its ﬂexibility and success. A bottom-up approach

to derive practices is supposed to start from the cur-

rent state of practice and look for evidences that ex-

plain why people are doing what they are doing. The

most common activities of the successful outcomes

are then compiled as a set of best-practices. This is in

fact the method we applied in this work. We advocate

that there is no need for just another comprehensive

methodology that is designed in detail in a top-down

approach. Rather, we claim that in the meanwhile

there are sufﬁcient good examples to be analyzed and

learnt from. For that reason, we empirically analyzed

a number of popular vocabulary and ontology devel-

opment efforts.

3 ANALYSIS OF WIDELY USED

VOCABULARIES

We compiled a list of the 20 most widely used vo-

cabularies. The selection was based on the follow-

ing criteria. Firstly, a usage rate of more than 5%

in all datasets of the Linked Data Cloud (Schmacht-

enberg et al., 2014) was considered. Based on this,

13 vocabularies were chosen. Secondly, we looked

for recognized ontologies that contain best practices

regarding documentation, dereferenceability and are

used by independent data providers

. In this case, 3

ontologies were added. Finally, Linked Open Vocabu-

laries (LOV)

was observed for mostly reused vocab-

ularies. The outcome of this observation was 4 vo-

cabularies. We considered these as the most success-

ful vocabularies that build the ground for our anal-

ysis. We deﬁned them as authoritative vocabular-

ies. Therefore, authoritative vocabularies have been

revised and used for many years and also the com-

munity recognized that they are built on good prac-

tices (Schober et al., 2009). For that reason we be-

lieve that studying them will provide a better under-

standing of the common features and best practices

of current vocabulary development. In this regard, we

wanted to understand important aspects of vocabulary

creation such as reuse, internationalization, documen-

tation and naming as well as the implicit structure of

these vocabularies (e.g. use of logical axioms, prop-

http://www.w3.org/wiki/Good Ontologies

http://lov.okfn.org/dataset/lov/

Towards Vocabulary Development by Convention

335

erty domain/range deﬁnitions).

With respect to Reuse, 80% of the vocabularies

make use of vocabulary elements deﬁned elsewhere

and 57% reuse elements from at least two external

ontologies. This shows a considerable presence of the

reuse aspect in the studied cases. One of the most im-

portant aspects of Internationalization (I18n) is the

support for multi-linguality. In vocabularies this can

be implemented by providing textual values for prop-

erties such as rdfs:label, rdfs:comment in differ-

ent languages (using different language tags for RDF

string literals). In 70% of the vocabularies we en-

countered explicit English literals (@en). In 15% of

cases we found a translation of the terms into other

languages and the remaining 15% there were no ex-

plicit language tags used at all. Consequently, despite

I18n being important for existing ontologies we dis-

covered that the most common practice is to support

only English.

Documentation refers to the addition of human

readable labels and descriptions (using the properties

rdfs:label, rdfs:comment) to the vocabulary ele-

ments (i.e. classes, properties and individuals). We

encountered that rdfs:label or rdfs:comment are

present in 86% of the cases. It is worth noting that

the combination of the two above mentioned elements

with rdfs:isDefinedBy is used with a frequency of

57%. Only in one case (i.e. 5%) we did not ﬁnd any

form of documentation. This shows that documenta-

tion (i.e. rdfs:label, rdfs:comment for comment-

ing, and rdfs:isDefinedBy for linking deﬁnitions)

is widely used by existing vocabularies.

Another important practice in vocabulary creation

is the convention for Naming elements. The Camel-

Case notation was with 60% of the cases the most

used one. In all other cases (i.e. 40%) no homoge-

neous naming convention could be identiﬁed. A com-

bination of CamelCase notation, underscore or dash

sign were used instead.

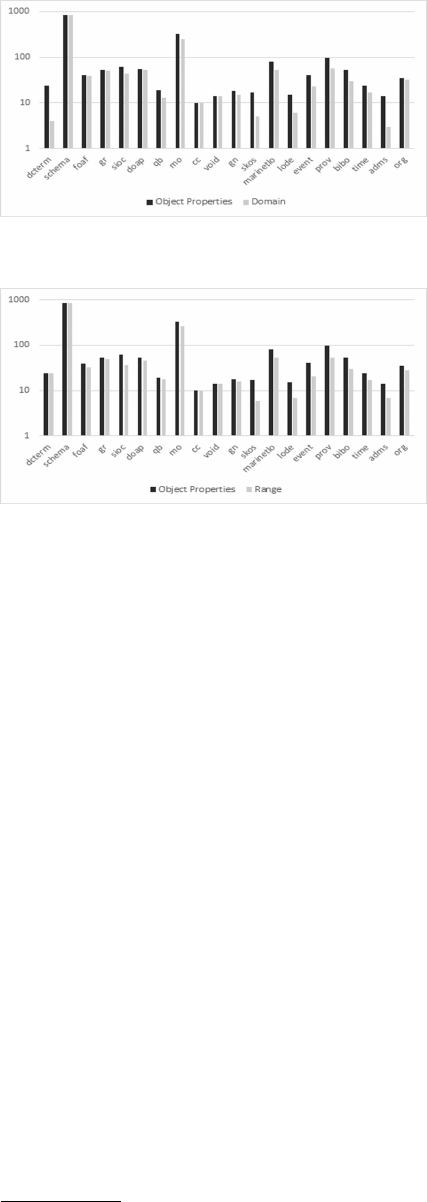

We performed an statistical analysis regarding the

inclusion of domain and range axioms for proper-

ties. By using the Shapiro-Wilk test over the observa-

tions of the object properties, domain and range ax-

ioms we encountered that the data do not follow a

normal distribution for these variables. Our hypoth-

esis was that there is a correlation in the obtained data

regarding the amount of object properties and the do-

main and range axioms. To check for a correlation,

we computed the Spearman rank coefﬁcient. For the

amount of object properties and domain as well as

range axioms we obtained a value of 0.91 and 0.95

respectively. This indicates a strong correlation be-

tween object properties as well as domain and range

axioms. The results for various vocabularies are illus-

Figure 1: Relation of the amount of object properties and

domain axioms.

Figure 2: Relation of the amount of object properties and

range axioms.

trated in Figure 1 and Figure 2. The y-axis is trans-

formed to log scale for a better comprehension. We

performed the same process between data properties

and domain as well as range axioms. In this case,

we obtained 0.93 for both. These observations favor

the conclusion that object properties and data prop-

erties should contain domain and range axioms. We

also calculate the percentage for inverse properties

(60%) and class disjointness (50%). These data indi-

cate that the above mentioned axioms should be more

carefully analyzed regarding the domain but are still

important when building a vocabulary.

4 VOCABULARY

DEVELOPMENT PRACTICES

In this section, we provide a comprehensive

list of practices for vocabulary development.

These practices are also available at http://eis-

bonn.github.io/vdbc/. We derived this list from

our own experience in creating vocabularies like

SCORVoc

and MobiVoc

in combination with the

results of the aforementioned analysis in section 3.

Documentation, structure and validation aspects are

mainly derived based on our experience. The other

http://purl.org/eis/vocab/scor

http://www.mobivoc.org/

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

336

Table 1: Authoritative Vocabularies.

Name Preﬁx Domain

Friend Of A Friend http://xmlns.com/foaf/0.1/ foaf Terms related to Persons (i.e. Agent, Document, Organization, etc).

Dublin Core ontology Terms http://purl.org/dc/terms/ dcterms General metadata terms (i.e. Title, Creator, Date, Subject, etc).

WGS84 Geo Positioning http://www.w3.org/2003/01/geo/wgs84 pos# geo Represents longitude and altitude information in the WGS84 geodetic refer-

ence datum.

Socially Interconnected Online Communities ontology

http://rdfs.org/sioc/ns#

sioc Aspects of online community sites (i.e. Users, Posts, Forums, etc).

Simple Knowledge Organization System Namespace

http://www.w3.org/2004/02/skos/core#

skos Data model for sharing and linking knowledge organization systems.

Vocabulary of Interlinked Datasets http://rdfs.org/ns/void# void Metadata about RDF datasets (i.e. Dataset, Linkset, etc).

Biographical information http://vocab.org/bio/0.1/.html bio Biographical information about people, both living and dead.

Data Cube Vocabulary http://purl.org/linked-data/cube# qb Statistic data (i.e. Dimensions, Attributes, Measures, etc).

Vocabulary for Rich Site Summary http://purl.org/rss/1.0/ rss Models the declaration for Rich Site Summary (RSS) 1.0.

Vocabulary for modeling abstracts things for people

http://www.w3.org/2000/10/swap/pim/contact#

w3con General concepts about people everyday life (i.e Address, Phone, etc).

Description of a Project http://usefulinc.com/ns/doap# doap Terms for Open Source Projects (i.e. Version, Repository, etc).

Bibliographic Ontology http://purl.org/ontology/bibo/ bibo Citations and bibliographic references (i.e. quotes, books, articles, etc).

Data Catalog Vocabulary http://www.w3.org/ns/dcat# dcat Facilitate interoperability between data catalogs published on the Web.

Schema.org http://schema.org schema Broad schema of concepts (i.e. Events, Organization, Person, etc).

GoodRelations http://purl.org/goodrelations/v1 gr E-Commerce related terms (i.e. Products, Services, Locations, etc).

Music Ontology http://purl.org/ontology/mo/ mo Terms related to music (i.e. Artists, Albums, Tracks, etc).

Creative Commons schema http://creativecommons.org/ns cc Describes copyright licenses (i.e. License Properties, Work Properties, etc).

GeoNames http://www.geonames.org/ontology gn Geospatial semantic information (i.e. Population, PostalCode, etc).

MarineTLO ontology http://www.ics.forth.gr/isl/ontology/MarineTLO/ marinetlo Marine domain (i.e. Species, Marine Animal, etc).

Event Ontology http://purl.org/NET/c4dm/event.owl event Describes reiﬁed events (i.e. Event, location, time, ect).

Figure 3: Main aspects of Vocabulary Authoring.

aspects are obtained from the conducted analysis in

combination with the state of the art. These practices

will serve as guidelines that help to focus on the most

important aspects of vocabulary creation process.

Therefore, it is expected to increase the efﬁciency of

the collaboration and to improve the overall quality

of the vocabulary. Figure 3 depicts the main aspects

of our approach, which are described in detail in the

remainder of this section. However, these guide-

lines are independent of the concrete development

environment. They can be applied within various

circumstance.

4.1 Reuse

Currently, in vocabulary construction, the reuse of ex-

isting terms is an aspect of vital importance (Poveda-

Villal

on, 2012; Pedrinaci et al., 2014). The main idea

is not to create new terms but to utilize those that are

present in the existing vocabularies and to avoid re-

dundant work. Apart from saving time and investment

costs, ontology reuse is expected to ensure a certain

level of quality. The reason for this is that the longer

an ontology exists and is reused, the more review pro-

cesses it has gone through. Additionally, according

to (Heath and Bizer, 2011) reuse is considered to be a

best-practice in vocabulary construction. Therefore,

in the following we discuss important practices re-

garding reuse.

P-R1 Reuse of Authoritative Vocabularies. We

deﬁne authoritative vocabularies as vocabularies (cf.

section 3) which are: (1) published by renowned stan-

dardization organizations; (2) used widely in a large

number of other vocabularies; and (3) deﬁned in a

more domain independent way addressing more gen-

eral concerns. Reusing authoritative vocabularies will

increase the probability that data can be consumed by

applications (Schober et al., 2009). Hence, these most

widely used vocabularies should be considered as a

ﬁrst option for reuse (cf. Table 1).

P-R2 Reuse of Non-authoritative Vocabularies.

Search online resources, such as vocabulary registries

like LOV

and LODStats

or ontology search engines

http://lov.okfn.org/dataset/lov/

http://lodstats.aksw.org/

Towards Vocabulary Development by Convention

337

like Swoogle

and Watson

to ﬁnd terms to reuse.

The output of this process is a set of terms. For in-

stance, by searching in LOV for a speciﬁc term the

following information can be derived: (1) the number

of datasets that uses it; (2) the number of occurrences

of the term in all datasets; and (3) the reuse frequency

of the vocabulary to which the term belongs (Pedri-

naci et al., 2014). Also, the semantic description and

deﬁnition of the term should be checked in order to

verify whether it ﬁts the intended use. The above in-

formation supports the decision process regarding to

which terms are better candidates for reusing.

P-R3 Avoid Semantic Clashes. If the term has a

strong semantic meaning for the domain, different

from the existing ones, then a new element should be

created.

P-R4 Individual Resource Reuse. Especially el-

ements from authoritative vocabularies should be

reused as individual vocabulary elements. For non-

authoritative vocabularies a reuse of individual iden-

tiﬁers is less recommendable and the creation of own

vocabulary elements with a possible alignment (cf. P-

R6) or the reuse of larger modules (cf. P-R5) should

be considered.

P-R5 Vocabulary Module Reuse. (Opposite of P-

R4) Often vocabularies require certain basic struc-

tures such as addresses, persons, organizations, which

are already deﬁned in non-authoritative vocabularies.

Such structures comprise usually the deﬁnition of one

or several classes and a number of properties. If

the conceptualizations match the complete reuse of a

whole module should be considered.

P-R6 Establishing Alignments with Existing

Vocabularies. Instead of the strong seman-

tic commitment of reusing identiﬁers from

non-authoritative vocabularies, alignments us-

ing owl:sameAs, owl:equivalentClass,

owl:equivalentProperty, rdfs:subClassOf,

rdfs:subPropertyOf can be established.

4.2 Vocabulary Structure

When a vocabulary grows in size and complexity the

difﬁculty in the development and the maintenance

processes increase. In this regard, modularization is

a possible solution because it allows to divide huge

vocabularies in logical and convenient way. Modular-

izing ontologies is an important aspect of vocabulary

development (Suarez-Figueroa et al., 2012). (Poveda-

Villal

on, 2012) describes an ontology module as a

loosely coupled and self-contained component of an

http://swoogle.umbc.edu/

http://watson.kmi.open.ac.uk/

ontology that keeps relationships with other ontol-

ogy modules. Even though in some cases ontology

modules are considered to be independent ontolo-

gies (dAquin et al., 2008), from the development per-

spective components are not treated as independent

elements. Organizing a vocabulary in ﬁles where each

ﬁle represents a module, is a way of managing mod-

ularity within the development process. Furthermore,

some reports show that a module in a mid-sized vo-

cabulary should contain between 200 and 300 lines

of code (Schlicht and Stuckenschmidt, 2006). Since

modularity depends on the overall size of the vocab-

ulary, we propose the following three possibilities to

structure and organize the ﬁles with respect to modu-

larity.

P-S1 One File for the Whole Vocabulary. When the

vocabulary is small (e.g. contains less than 300 lines

of code) and represents a domain which cannot be di-

vided in sub domains, it should be saved within one

single ﬁle. If the number of contributors is relatively

small and the domain of the vocabulary is very fo-

cused, organizing it into one single ﬁle might be pos-

sible, even if it exceeds 300 lines of code. However, if

the comprehensibility is exacerbated, splitting it into

different ﬁles should be considered (P-S2).

P-S2 Multiple Files. If the vocabulary contains more

than 300 lines of code or if it covers a more complex

domain, it should be organized into different subdo-

mains. When the subdomains themselves are small

enough they should be represented by different ﬁles

within the parent folder. In this case, domain experts

can contribute independently by modifying modules

according to their ﬁeld of expertise.

P-S3 Multiple Files and Folders. In case of

very large vocabularies comprising complex domains,

splitting the whole vocabulary into ﬁles is not suf-

ﬁcient. This would lead to a large amount of ﬁles

within a single folder. Therefore, the subdomains

should be represented by folders if they are large

enough to be split into different components repre-

sented by different ﬁles. In this case, the folder and

ﬁle structure should reﬂect the complex hierarchy of

the overall domain.

4.3 Naming Conventions

Following naming conventions has a high impact in

vocabulary development (Schober et al., 2012). Nam-

ing conventions help to avoid lexical inaccuracies and

increase the robustness and exportability, speciﬁcally

in cases when vocabularies should be interlinked and

aligned with each other (Schober et al., 2009). The

utilization of meaningful names increases the robust-

ness of context-based text mining for automatic term

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

338

recognition and ease the manual and automated inte-

gration of terminological artifacts (i.e. comparison,

checking, alignment and mapping) (Sv

atek and

ab-

Zamazal, 2010; Schober et al., 2012).

Considering the literature on this topic (Schober

et al., 2009; Montiel-Ponsoda et al., 2011) and the

results of section 3 we propose some practices to be

followed in the process of naming elements in vocab-

ularies. For vocabulary construction, the use of the

CamelCase notation is a considered as a best prac-

tice (Sv

atek et al., 2009). Our study also indicated the

presence of this notation in 62% of the cases. There-

fore, we propose the observation of this speciﬁc nota-

tion to be used in vocabulary construction.

P-N1 Concepts as Single Nouns. Name all concepts

as single nouns using CamelCase notation (i.e. Plan-

Return).

P-N2 Properties as Verb Senses. Name all prop-

erties as verb senses also following CamelCase ap-

proach. The name of an property should not normally

be a plain noun phrase, in order to clearly distinct

from class names (i.e. hasProperty or isPropertyOf ).

P-N3 Short Names. Provide short and concise names

for elements. When natural names contain more than

three nouns, use the rdfs:label property with the

long name and a short name for the element. For

instance, for ManageSupplyChainBusinessRules use

BusinessRules and set the full name in the label. In

order to explain the context (i.e. Supply Chain), com-

plement this label with the skos:altLabel (cf. sub-

subsection 4.7.1).

P-N4 Logical and Short Preﬁxes for Names-

paces. Assign logical and short preﬁxes to names-

paces, preferable, with no more than ﬁve letters (i.e.

foaf:XXX, skos:XXX).

P-N5 Regular Space as Word Delimiters for La-

beling Elements. For example, rdfs:label "A

Process that contains..".

P-N6 Avoid the Use of Conjunctions and Words

with Ambiguous Meanings. Avoid names with

“And”, “Or”, “Other”, “Part”, “Type”, “Category”,

“Entity” and those related to datatypes like “Date” or

“String”.

P-N7 Use Positive Names. Avoid the use of nega-

tions. For instance, instead of NoParkingAllowed use

ParkingForbidden.

P-N8 Respect the Names for Registered Products

and Company Names. In those cases is not recom-

mended the use of CamelNotation. Instead, the name

of the company or product should be used as is (i.e.

SAP, Daimler AG).

4.3.1 Dereferenceability

One of the four rules to be followed during vocabulary

development is naming things with HTTP URIs

Adopting HTTP URIs for identifying things is appro-

priate due to the following reasons: (1) it is simple to

create global unique keys in a decentralized fashion

and (2) the generated key is not used just as a name

but also as an identiﬁer.

By combining dereferenceability with content ne-

gotiation

, the server will provide adequate content

for a resource based on the type of request. There are

three different strategies to make URIs of resources

dereferenceable: (1) slash URIs; (2) hash URIs and

(3) a combination between them

P-D1 Use Slash URIs. When the client request a

resource from server by providing its URIs, the server

response will be 303 see other. Slash URI should be

used when dealing with large datasets. This makes the

server to response only with requested resource. For

example, the ChargingPoint resource is identiﬁed as

follows http://purl.org/net/mobivoc/ChargingPoint.

The URI of turtle representation of above resource

is http://purl.org/net/mobivoc/ChargingPoint.ttl

and the URI of html representation is

http://purl.org/net/mobivoc/ChargingPoint.html.

In order to get information about ChargingPoint, the

client provides URI and specify request type. In turn

server response will be 303 see other by redirecting

to appropriate representation.

P-D2 Use Hash URIs. This solution is formed by

including a fragment to the URIs as in the following

format URI#resource. Use hash URIs when dealing

with small datasets. This will reduce number of

HTTP round trips. For instance, the URI of the Scor-

Voc

vocabulary is http://purl.org/eis/vocab/scor.

The URI of the Process resource is

http://purl.org/eis/vocab/scor#Process.

P-D3 Use Combination between Slash and Hash

URIs. This allows a large dataset to be split into

multiple fractions. Use this solution when datasets

may grow to some point where it is not practi-

cal to serve all resources in single document(e.g.

http://purl.org/eis/vocab/scor/Process#this).

4.4 Multilinguality

Providing multilingual ontologies is desirable but not

an straightforward issue (Gracia et al., 2012). Ac-

cording to our empirical analysis in section 3 and with

http://www.w3.org/DesignIssues/LinkedData.html

http://www.w3.org/Protocols/rfc2616/rfc2616-sec12.html

http://www.w3.org/TR/cooluris

http://purl.org/eis/vocab/scor

Towards Vocabulary Development by Convention

339

the aim to keep things simple we propose the follow-

ing best-practices.

P-M1 Use English as the Main Language. Use En-

glish for every element and explicitly set with the

@en notation.

P-M2 Multilinguality for other Languages. In or-

der to add another language, use another line adding

the same format for every element. The following ex-

ample illustrates this practice with translations for the

class SupplyChain.

scor:SupplyChain rdf:type owl:Class ;

rdfs:label "SupplyChain"@en;

rdfs:comment "A Supply Chain is a ..."@en ;

rdfs:label "Lieferkette"@de;

rdfs:comment "Eine Lieferkette ist ..."@de.

This approach should be followed with all the ele-

ments starting from the basics ones like rdfs:label

and rdfs:comment but also for the external annota-

tion properties (i.e. skos:prefLabel).

4.5 Documentation

Providing user friendly view of vocabularies for non-

experts is crucial for integrating Semantic Web with

everyday Web (Peroni et al., 2013). It facilitates con-

tribution of domain experts during the development

process. In addition, it helps other interested parts

for easy use of vocabulary in later phases as well.

There exists different tools for documentation gener-

ation. Basically, these tools requires that following

information should be present for each resource to en-

able generation process.

P-Do1 Use of rdfs:label and rdfs:comment. Add

a rdfs:label to every element setting the main

name of the concept that is being represented and

rdfs:comment to describe the context for which the

element is created.

P-Do2 Generate Human-readable Documentation.

Easy-to-use documentation is critical for the wide

adoption of the vocabulary. There exist two differ-

ent types of URIs (c.f. 4.3.1). If during vocabulary

creation slash URIs are used for identifying resources

then tools like Schema.org documentation generation

should be used for documentation generation. Tools

like Parrot

are appropriate if hash URIs or combi-

nation between slash and hash URIs are used for iden-

tifying resources.

4.6 Validation

Validation is an important aspect in the ontology de-

velopment process (Poveda-Villal

on et al., 2012). It

https://bitbucket.org/fundacionctic/parrot/wiki/Home

analyzes whether ontology correctly represents the

knowledge domain in accordance to user require-

ments and best practices (G

omez-P

erez et al., 2006;

Kezadri and Pantel, 2010). Criteria used for valida-

tion activity are: (1) correctness; (2) completeness

and (3) consistency (Su

arez-Figueroa, 2010). With

the purpose of addressing the above mentioned crite-

ria, we propose the following practices.

P-V1 Syntax Validation. When collaborating di-

rectly on the vocabulary source code, syntax checking

is of paramount importance. Ideally, syntax checking

is directly integrated into the editor and committing

the code with errors is not possible. For example,

tools like Rapper

or Web-based services such as the

RDF Validation Service

or OWL2 Validator

can

be used for ﬁnding common typos and syntax errors.

P-V2 Code-Smell Checking. Code smells are symp-

toms in the software source code that possibly in-

dicate deeper problems. Similarly tools such as

OOPS

can be used for vocabulary smell checking.

OOPS is a Web-based tool for detecting common on-

tology pitfalls such as: (1) missing relationships; (2)

using incorrectly ontology elements and (3) missing

domain and range properties. The complete list of

pitfalls that are detected by OOPS is presented in

(Poveda-Villal

on et al., 2012).

P-V3 Consistency Checking. Since we deal with

lightweight ontologies it is not very likely to have ax-

ioms that produce semantic inconsistencies. Never-

theless, our analysis in section 3 showed that in au-

thoritative vocabularies there are cases that lead to se-

mantic inconsistencies (i.e. class disjointness). Han-

dling inconsistencies impacts the quality of ontolo-

gies (Abburu, 2012). Tools like Pellet

, Fact++

Racer

, HermiT

or the Web based tool ConsVI-

Sor

should be used for consistency checking.

P-V4 Linked Data Validation. Tools such as

Vapour

verify whether data are correctly published

according Linked Data principles and the best pub-

lishing practices

http://librdf.org/raptor/rapper.html

http://www.w3.org/RDF/Validator/

http://mowl-power.cs.man.ac.uk:8080/validator/

http://oops.linkeddata.es/

http://clarkparsia.com/pellet

http://owl.man.ac.uk/factplusplus/

https://github.com/ha-mo-we/Racer

http://hermit-reasoner.com/

http://vistology.com/OLD/www/consvisor.shtml

http://validator.linkeddata.org/vapour

http://http://www.w3.org/TR/swbp-vocab-pub/

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

340

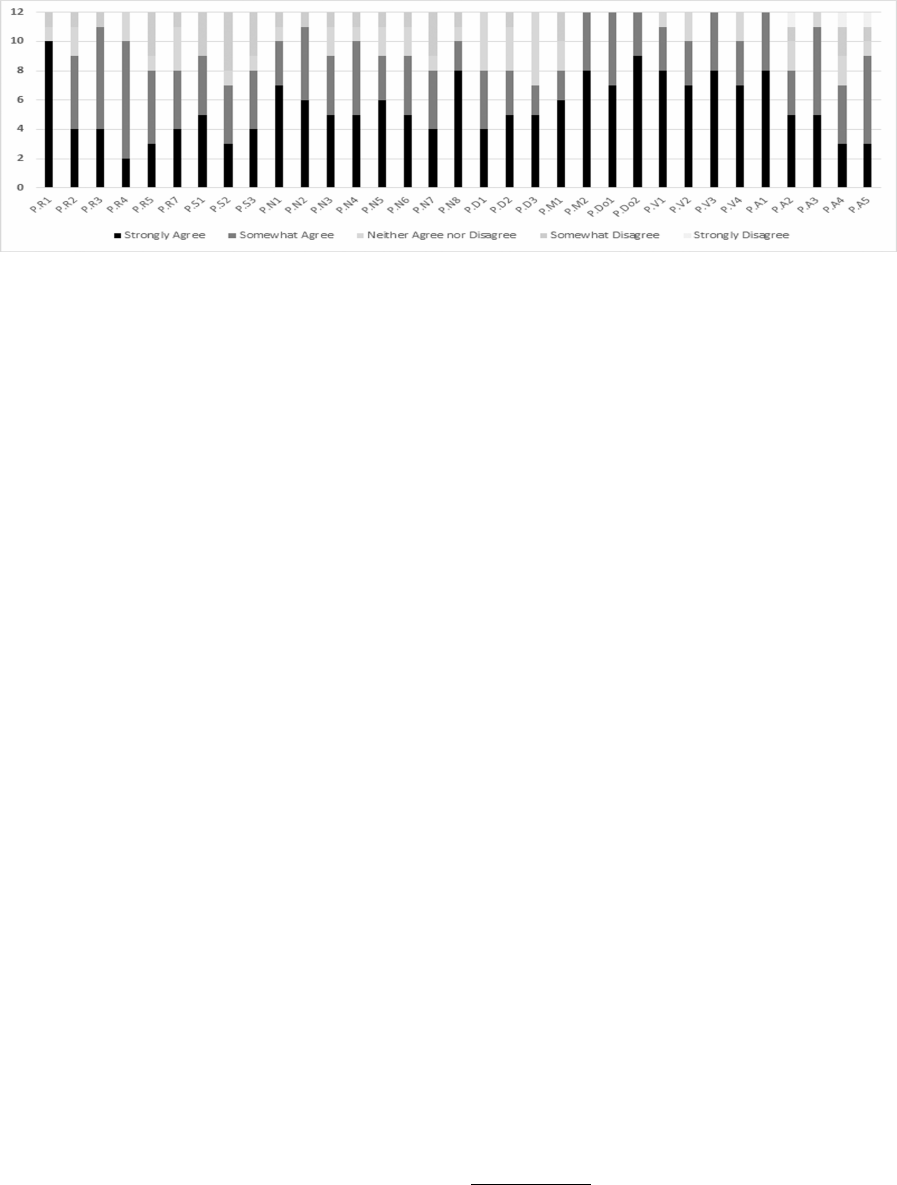

Figure 4: Evaluation results for the practices in Vocabulary Development Process.

4.7 Authoring

In section 3 we analysed common practices followed

by vocabulary engineers (i.e. the creation of object

properties and their associated domain and range ax-

ioms). Those practices are always domain dependent,

but still can serve as general guidelines to be followed

in the process of designing vocabularies.

P-A1 Domain and Range Deﬁnitions for Proper-

ties. When creating a property, consider to provide

the associated domain and range deﬁnitions. This

also means that in case of object properties the cor-

responding classes should be deﬁned. In case of

datatype properties, the range should be a suitable

datatype.

P-A2 Avoid Inverse Properties. Create inverse

properties only if it is strictly necessary to have

bidirectional relations (i.e. invalidated and

wasInvalidatedBy). Inverse properties affect the

size as well as the complexity of the vocabulary.

P-A3 Use of Class Disjointness. Use class disjoint-

ness to logically avoid overlapping classes. Even

though disjointness has been used in authoritative vo-

cabularies, it should be carefully examined because it

can easily lead to semantic inconsistencies.

4.7.1 Utilization of SKOS Vocabulary

The Simple Knowledge Organization System SKOS

is a W3C recommendation for modeling vocabularies

in the Web. SKOS is currently used by at least 478

vocabularies (Haslhofer et al., 2013). The utilization

of some SKOS constructs is considered a best prac-

tice for declaring and documenting indexing terms

(i.e. skos:prefLabel) and alternatives terms (i.e.

skos:altLabel) (Manaf et al., 2012; Baker et al.,

2013). Both above mentioned properties are subprop-

erties of rdfs:label. SKOS provides a more detailed

notion of the labeling concept, which can be useful for

better descriptions of the terms.

P-A4 Provide skos:prefLabel to Complement

the Labeling of Concepts. Use skos:prefLabel

in combination with rdfs:label to complement

the semantic label of the element. For instance,

skos:prefLabel might describe a shorter deﬁnition

for a concept than rdfs:label.

P-A5 Use skos:altLabel to Describe Varia-

tions of the Elements. Add complementary descrip-

tions for the elements such as acronyms, abbrevia-

tions, spelling variants, and irregular plural/singular

forms by using skos:altLabel.

5 SURVEY AND RESULTS

DISCUSSION

With the goal to validate the proposed practices we

performed a survey for vocabulary developers.

The

experience in the selected group is as follows, 58%

have up to two years and 41% from two to ﬁve years.

The Likert Scale (Boone and Boone, 2012) was used

to collect the opinions. Figure 4 depicts the results

of the survey. Generally, all practices have received

good evaluations regarding to the opinion of experts.

The authoring aspect was the most controversial one.

The practice P-A2, received some negative opinion

due to the existing debate regarding the use of inverse

properties

. The results of P-A4, P-A5 show that

even SKOS as a generally accepted standard still is

not well received for a certain group of vocabulary

developers.

6 RELATED WORK

Currently, there exist several methodologies for de-

https://goo.gl/X8otxe

https://lists.w3.org/Archives/Public/public-vocabs/

2014Apr/0200.html

Towards Vocabulary Development by Convention

341

Table 2: Comparison with existing approaches regarding the Aspects for Collaborative Vocabulary Development.

Reuse Structure Naming i18n Documentation Validation Authoring

METHONTOLOGY(Fern

andez-L

opez et al., 1997) Yes No No Yes Yes Yes No

Constructing Reusable Ontologies (Annamalai and Sterling, 2003) Yes No No No No No No

DILIGENT (Pinto et al., 2004) Yes Yes Yes No No No No

On-To-Knowledge (Sure et al., 2004) No Yes Yes No No Yes No

RapidOWL (Auer and Herre, 2007) No No Yes No No No Yes

JEOE (Di Maio, 2011) Yes No No No Yes Yes Yes

Linked Data Patterns (Dodds and Davis, 2011) Yes No No Yes Yes No Yes

NeOn Methodology (Su

arez-Figueroa, 2010) Yes Yes No Yes No Yes No

Methodology for semantic model development (Zeginis et al., 2013) Yes No No No No Yes No

veloping ontologies (Fern

andez-L

opez et al., 1997;

Pinto et al., 2004; Auer and Herre, 2007; Di Maio,

2011; Suarez-Figueroa et al., 2012; Zeginis et al.,

2013). Generally, the methodologies cover the main

aspects for ontology development with a top-down

approach. Speciﬁc practices to address how to per-

form the ontology engineering process regarding the

reusing, multilinguality, modularization are still miss-

ing. On the other hand, there exist some guidelines

and best practices for vocabulary development (An-

namalai and Sterling, 2003; Dodds and Davis, 2011).

Despite these guidelines follow a bottom-up approach

they do not cover all the aspects mentioned in this pa-

per. One central characteristic of our practices is that

they will support the developers when taking design

decisions for vocabulary creation. Thus, they can be

seen as pragmatic design criteria to build vocabular-

ies. Despite we recognized the design criteria pre-

sented in (Gruber, 1995) our goal is to support the de-

velopment process by deﬁning speciﬁc tasks and how

those task can be realized. Table 2 shows some of

the existing guidelines and methodologies for devel-

oping vocabularies regarding the aspects covered in

our approach. To the best of our knowledge, there

is no existing work that comprises all the mentioned

aspect for Vocabulary Development in a usable and

pragmatic way.

7 CONCLUSION

In this paper, we considered creating standards

through heavyweight processes within standardiza-

tion organizations as the legacy approach to tackle

the problem of data integration among heterogeneous

systems. Driven by the success of the Web vocab-

ularies and the ever-increasing awareness of the im-

portance of data, we advocate that it is now time to

rethink how this problem should be addressed. For

this reason, we identiﬁed the most important vocab-

ularies, which we call authoritative vocabularies. We

analyzed their commonalities in terms of the key as-

pects reuse, structure, documentation, multilingual-

ity, naming, validation and some practices regarding

authoring. These aspect were identiﬁed as the most

important ones during our own work on vocabulary

creation. The rationale for this analysis was to de-

rive best-practices and conventions for vocabulary de-

velopment. The overall goal is to pave the way for

a new paradigm of vocabulary development similar

to Software Development by Convention, which we

name Vocabulary Development by Convention. The

applied bottom-up approach is in contrast to related

work in the ﬁeld of knowledge and ontology engineer-

ing. Usually, methodologies are designed in a top-

down approach, without considering guidelines that

are used to realize speciﬁc aspects in the development

process. In this regard, they are similar to standardiza-

tion activities which tend to be over-engineered and

lead to the wasting resources. Regarding future work,

we plan to extend the results presented in this paper

in various directions. Initially, we envision to study

all existing vocabularies in LOV. The purpose is to

generalize our results as well as to include different

indicators related to vocabulary structure like the cor-

relation with respect to number of classes, properties

etc. This action will lead us to a better understanding

of the existing practices of vocabulary creation and,

as an outcome, derive better conventions. Addition-

ally, we plan to create a tool to automatically support

some of the practices that we have proposed in this pa-

per. Finally, we want to create a light-weight Vocab-

ulary Development by Convention methodology that

includes practices for collecting the domain knowl-

edge.

ACKNOWLEDGEMENTS

This work has been supported by German BmBF

project LUCID (http://www.lucid-project.org).

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

342

REFERENCES

Abburu, S. (2012). A survey on ontology reasoners and

comparison. Int. Journal of Computer Applications,

57(17):33–39.

Annamalai, M. and Sterling, L. (2003). Guidelines for con-

structing reusable domain ontologies. In OAS, pages

71–74.

Auer, S. and Herre, H. (2007). Rapidowlan agile knowledge

engineering methodology. In Perspectives of systems

informatics, pages 424–430. Springer.

Baker, T., Bechhofer, S., Isaac, A., Miles, A., Schreiber, G.,

and Summers, E. (2013). Key choices in the design of

simple knowledge organization system (skos). Jour-

nal of Web Semantics, 20:35–49.

Boone, H. N. and Boone, D. A. (2012). Analyzing likert

data. Journal of Extension, 50(2):1–5.

dAquin, M., Haase, P., Rudolph, S., Euzenat, J., Zimmer-

mann, A., Dzbor, M., Iglesias, M., Jacques, Y., Carac-

ciolo, C., Aranda, C. B., et al. (2008). Neon for-

malisms for modularization: Syntax, semantics, alge-

bra. Deliverable D1, 1.

Di Maio, P. (2011). ’just enough’ontology engineering. In

Int. Conf. on Web Intelligence, Mining and Semantics,

page 8. ACM.

Dodds, L. and Davis, I. (2011). Linked data patterns. On-

line: http://patterns.dataincubator.org/book.

Fern

andez-L

opez, M., G

omez-P

erez, A., and Juristo, N.

(1997). Methontology: from ontological art towards

ontological engineering.

Fiorelli, M., Pazienza, M. T., and Stellato, A. (2015). A

ﬂexible approach to semantic annotation systems for

web content. Intelligent Systems in Accounting, Fi-

nance and Management, 22(1):65–79.

omez-P

erez, A., Fern

andez-L

opez, M., and Corcho, O.

(2006). Ontological Engineering: with examples from

the areas of Knowledge Management, e-Commerce

and the Semantic Web. Springer Science & Business

Media.

Gracia, J., Montiel-Ponsoda, E., Cimiano, P., G

omez-P

erez,

A., Buitelaar, P., and McCrae, J. (2012). Challenges

for the multilingual web of data. Journal of Web Se-

mantics, 11:63–71.

Gruber, T. R. (1995). Toward principles for the design of

ontologies used for knowledge sharing? Int. journal

of human-computer studies, 43(5):907–928.

Haslhofer, B., Martins, F., and Magalh

aes, J. (2013). Us-

ing skos vocabularies for improving web search. In

22nd Int. Conf. on World Wide Web companion, pages

1253–1258.

Heath, T. and Bizer, C. (2011). Linked data: Evolving the

web into a global data space. Synthesis lectures on the

semantic web: theory and technology, 1(1):1–136.

Kezadri, M. and Pantel, M. (2010). First steps toward a

veriﬁcation and validation ontology. In KEOD, pages

440–444.

Manaf, N. A. A., Bechhofer, S., and Stevens, R. (2012).

The current state of skos vocabularies on the web. In

The Semantic Web: Research and Applications, pages

270–284. Springer.

Meenakshi, S. (2015). Ruby on rails

a [euro]” an agile de-

veloper’s framework. Int. Journal of Computer Appli-

cations, 112(1).

Montiel-Ponsoda, E., Vila Suero, D., Villaz

on-Terrazas, B.,

Dunsire, G., Escolano Rodr

ıguez, E., and G

omez-

erez, A. (2011). Style guidelines for naming and

labeling ontologies in the multilingual web.

Pedrinaci, C., Cardoso, J., and Leidig, T. (2014). Linked

usdl: a vocabulary for web-scale service trading. In

The Semantic Web: Trends and Challenges, pages 68–

82. Springer.

Peroni, S., Shotton, D., and Vitali, F. (2013). Tools for

the automatic generation of ontology documentation:

a task-based evaluation. Int. Journal on Semantic Web

and Information Systems (IJSWIS), 9(1):21–44.

Pinto, H. S., Staab, S., and Tempich, C. (2004). Dili-

gent: Towards a ﬁne-grained methodology for dis-

tributed, loosely-controlled and evolving engineering

of ontologies. In 16th European Conf. on Artiﬁcial

Intelligence (ECAI 2004), volume 110, page 393.

Poveda-Villal

on, M. (2012). A reuse-based lightweight

method for developing linked data ontologies and vo-

cabularies. In The Semantic Web: Research and Ap-

plications, pages 833–837. Springer.

Poveda-Villal

on, M., Su

arez-Figueroa, M. C., and G

omez-

erez, A. (2012). Validating ontologies with oops!

In Knowledge Engineering and Knowledge Manage-

ment, pages 267–281. Springer.

Schlicht, A. and Stuckenschmidt, H. (2006). H.: Towards

structural criteria for ontology modularization. In

ISWC 2006 Workshop on Modular Ontologies. Cite-

seer.

Schmachtenberg, M., Bizer, C., and Paulheim, H. (2014).

Adoption of the linked data best practices in differ-

ent topical domains. In ISWC 2014, pages 245–260.

Springer.

Schober, D., Smith, B., Lewis, S. E., Kusnierczyk, W.,

Lomax, J., Mungall, C., Taylor, C. F., Rocca-Serra,

P., and Sansone, S.-A. (2009). Survey-based naming

conventions for use in obo foundry ontology develop-

ment. BMC bioinformatics, 10(1):125.

Schober, D., Tudose, I., Svatek, V., and Boeker, M. (2012).

Ontocheck: verifying ontology naming conventions

and metadata completeness in prot

e 4. J. Biomedi-

cal Semantics, 3(S-2):S4.

arez-Figueroa, M. C. (2010). NeOn Methodology for

building ontology networks: speciﬁcation, scheduling

and reuse. PhD thesis, Informatica.

Suarez-Figueroa, M. C., G

omez-P

erez, A., and Fernandez-

Lopez, M. (2012). The neon methodology for ontol-

ogy engineering. In Ontology engineering in a net-

worked world, pages 9–34. Springer.

Sure, Y., Staab, S., and Studer, R. (2004). On-to-knowledge

methodology (otkm). In Handbook on ontologies,

pages 117–132. Springer.

atek, V. and

ab-Zamazal, O. (2010). Entity naming in

semantic web ontologies: Design patterns and empir-

ical observations. Znalosti.

atek, V.,

ab-Zamazal, O., and Presutti, V. (2009). On-

tology naming pattern sauce for (human and com-

puter) gourmets. In Workshop on Ontology Patterns,

pages 171–178.

Zeginis, D., Hasnain, A., Loutas, N., Deus, H., Fox, R., and

Tarabanisa, K. (2013). A collaborative methodology

for developing a semantic model for interlinking can-

cer chemoprevention linked-data sources. Semantic

Web Journal.

Towards Vocabulary Development by Convention

343
