SuperMod — A Model-Driven Tool that Combines

Version Control and Software Product Line Engineering

Felix Schw

agerl, Thomas Buchmann and Bernhard Westfechtel

Applied Computer Science I, University of Bayreuth, Universit

atsstr. 30, 95440 Bayreuth, Germany

Keywords:

Model-Driven Software Engineering, Software Product Lines, Version Control, Version Models, Software

Conﬁguration Management, Tool Support.

Abstract:

Version control (VC) and Software Product Line Engineering (SPLE) are two software engineering disciplines

to manage variability in time and variability in space. In this paper, a thorough comparison of VC and SPLE

is provided, showing that both disciplines imply a number of desirable properties. As a proof of concept for

the combination of VC and SPLE, we present SuperMod, a tool realizes an existing conceptual framework

that transfers the iterative VC editing model to SPLE. The tool allows to develop a software product line in

a single-version workspace step by step, while variability management is completely automated. It offers

familiar version control metaphors such as check-out and commit, and in addition uses the SPLE concepts of

feature models and feature conﬁguration the deﬁnition of logical variability and to deﬁne the logical scope

of a change. SuperMod has been implemented in a model-driven way and primarily targets EMF models as

software artifacts. We successfully apply the tool to a standard SPLE example.

1 INTRODUCTION

Version control (VC) has become indispensable for

software engineers to control software evolution and

to coordinate changes among a team. Version control

systems (VCS) such as Git (Chacon, 2009) or Subver-

sion (Collins-Sussman et al., 2004) propose an itera-

tive three-stage editing model (cf., Figure 1): (1) A

developer checks out a revision of a software project

from a repository. A copy of the project is created

in the local workspace. (2) In the workspace, the

developer modiﬁes the project by implementing new

functionality or by ﬁxing bugs. (3) To make these

modiﬁcations visible to others, the developer com-

mits his/her changes to the repository. For the in-

ternal representation of version differences within the

repository, two distinct approaches exist. Symmetric

Repo

sitory

Work

space

1. check-out

2. modify

3. commit

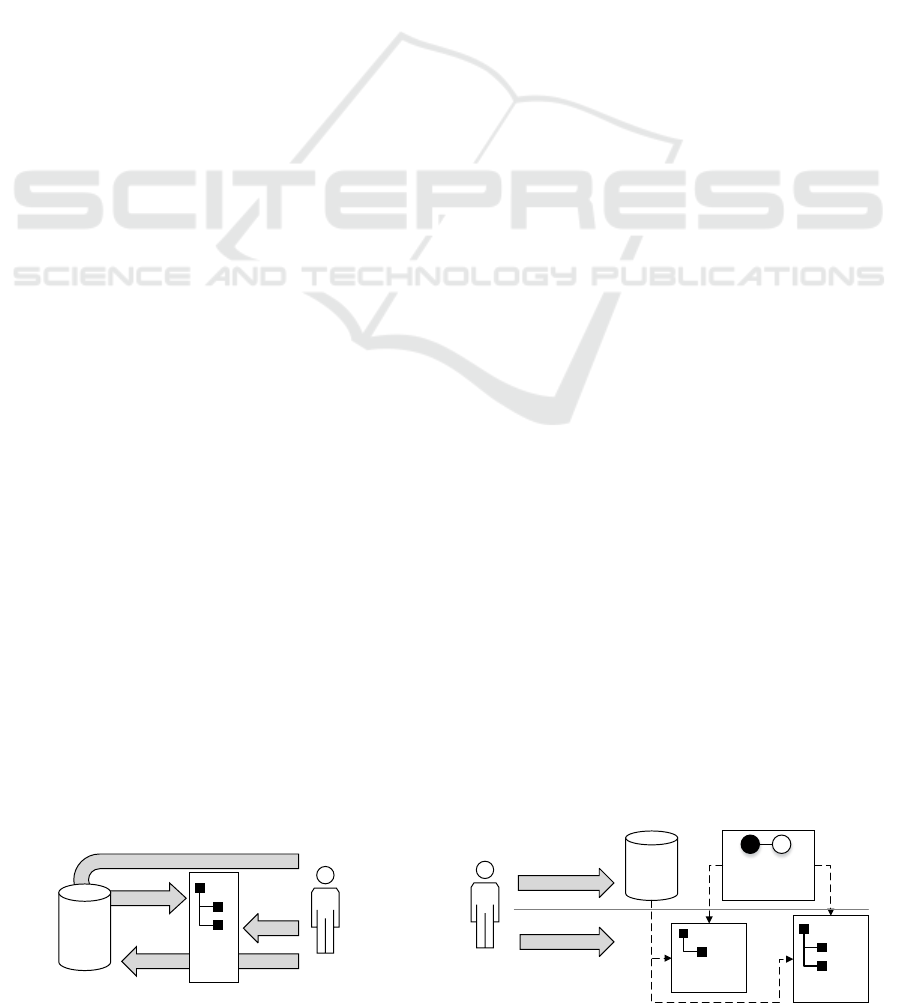

Figure 1: The iterative three-stage editing model proposed

by version control systems.

deltas (Rochkind, 1975) comprise a superimposition

of all existing revisions, assigning version identiﬁers

to each element. Using directed deltas (Tichy, 1985),

change sequences reconstruct product revisions on

demand, ensuing form a baseline revision, which is

fully persisted.

Software Product Line Engineering (SPLE) aims

at a systematic development of a family of software

products by exploiting the variability among members

thereof (Clements and Northrop, 2001; Pohl et al.,

2005). Core assets of different products are provided

as a platform. Commonalities and differences among

products are captured in variability models, e.g., fea-

ture models (Kang et al., 1990). In literature, a two-

stage SPLE process is proposed (cf., Figure 2): (1)

During domain engineering, platform and variability

model are deﬁned. A mapping, e.g., presence condi-

Plat

form

Prod. 1

1. domain

engineering

Prod. n

2. application

engineering

Variability

Model

...

Figure 2: The usual two-stage SPLE process.

Schwägerl F., Buchmann T. and Westfechtel B..

SuperMod — A Model-Driven Tool that Combines Version Control and Software Product Line Engineering.

DOI: 10.5220/0005506600050018

In Proceedings of the 10th International Conference on Software Paradigm Trends (ICSOFT-PT-2015), pages 5-18

ISBN: 978-989-758-115-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

tions (Czarnecki and Kim, 2005), speciﬁes which part

of the platform realizes which feature(s). (2) In ap-

plication engineering, variability is resolved, e.g., by

speciﬁcation of a feature conﬁguration, and a prod-

uct with the desired features is derived in a preferably

automated way. For the deﬁnition of the platform,

two distinct approaches exist: Using positive variabil-

ity, a common core is deﬁned to which speciﬁc fea-

tures may be added, e.g. by composition (Apel and

astner, 2009). Negative variability means to spec-

ify the platform as superimposition of product vari-

ants, from which elements must be removed to obtain

a speciﬁc product. This is realized, e.g., by prepro-

cessor languages (K

astner et al., 2008).

Model-Driven Software Engineering (MDSE)

olter et al., 2006) considers models as ﬁrst-class

artifacts, using well-deﬁned languages such as the

Uniﬁed Modeling Language (UML) (OMG, 2011).

Many model-driven applications are built upon the

Eclipse Modeling Framework (EMF) (Steinberg et al.,

2009). The combination of MDSE with VC or SPLE

is subject to many research activities, resulting in the

integrating disciplines Model Version Control (Alt-

manninger et al., 2009) and Model-Driven Product

Line Engineering (MDPLE) (Gomaa, 2004), which

promise increased productivity by raising the abstrac-

tion level of the artifacts subject to variability.

In (Schw

agerl et al., 2015), we have elaborated a

conceptual framework for the integration of MDPLE,

SPLE, and VC. The framework addresses the incre-

mental development of a model-driven software prod-

uct line in a single-version workspace using a ﬁltered

editing model that fully automates variability man-

agement. In addition to a revision graph, which de-

scribes the evolution of the product, a feature model

and feature conﬁgurations are used to express logical

variability and to deﬁne the logical scope of a change.

The current paper presents SuperMod, a model-

driven tool that realizes the conceptual framework in

order to integrate temporal and logical versioning.

The tool allows to develop a software product line

in a single-version workspace step by step using the

familiar version control metaphors update and com-

mit. The product line may contain arbitrary model

and non-model artifacts. The feature model plays a

dual role, being subject to evolution and providing

an additional (logical) variability model for the prod-

uct line. Our integrated solution signiﬁcantly reduces

the versioning overhead, since a manual mapping of

product line artifacts becomes unnecessary. The tool

integrates well with existing Eclipse editors.

The paper is structured as follows: After introduc-

ing a motivating example, a comparison of VC and

SPLE concepts is performed in Section 3. Next, in

Section 4, the implementation and user interface of

SuperMod are sketched and the operations check-out

and commit are formalized. Subsequently, the exam-

ple is reconsidered. Section 6 outlines related work,

before the paper is concluded.

2 MOTIVATING EXAMPLE

We introduce as running example a product line of

different domain models for graphs, a common ex-

ample in SPL literature (Lopez-Herrejon and Batory,

2001). In this section, we conduct the example us-

ing a “traditional” tool chain: A state-of-the-art VCS

supports the development of the platform in multiple

iterations. Next, a feature model is deﬁned, and an

MDPLE tool based on negative variability is used to

annotate domain model elements with variability in-

formation. During application engineering, we derive

one example product.

Variability Model. Figure 3 shows the underly-

ing feature model, which consists of a root feature

Graph with two mandatory sub-features Vertices

and Edges. Vertices may optionally be colored.

For edges, the optional sub-features weighted and

labeled are deﬁned. Furthermore, the features

directed and undirected are mutually exclusive.

Platform. The superimposition is deﬁned in the

form of a multi-variant domain model (MVDM) (Go-

maa, 2004). We realize the platform in multiple VC

iterations, after each of which a commit is carried out.

In Table 1, the performed modiﬁcations are listed.

When referring to the feature model in Figure 3, one

feature has been realized at a time. Figure 4 shows

the resulting MVDM.

Feature Mapping. After having deﬁned the vari-

ability model and the platform, they need to be con-

nected. In an MDPLE approach based on negative

variability, this requires assigning feature expressions

to MVDM elements. A mapping for the example

mandatory

feature

optional

feature

XOR feature

group

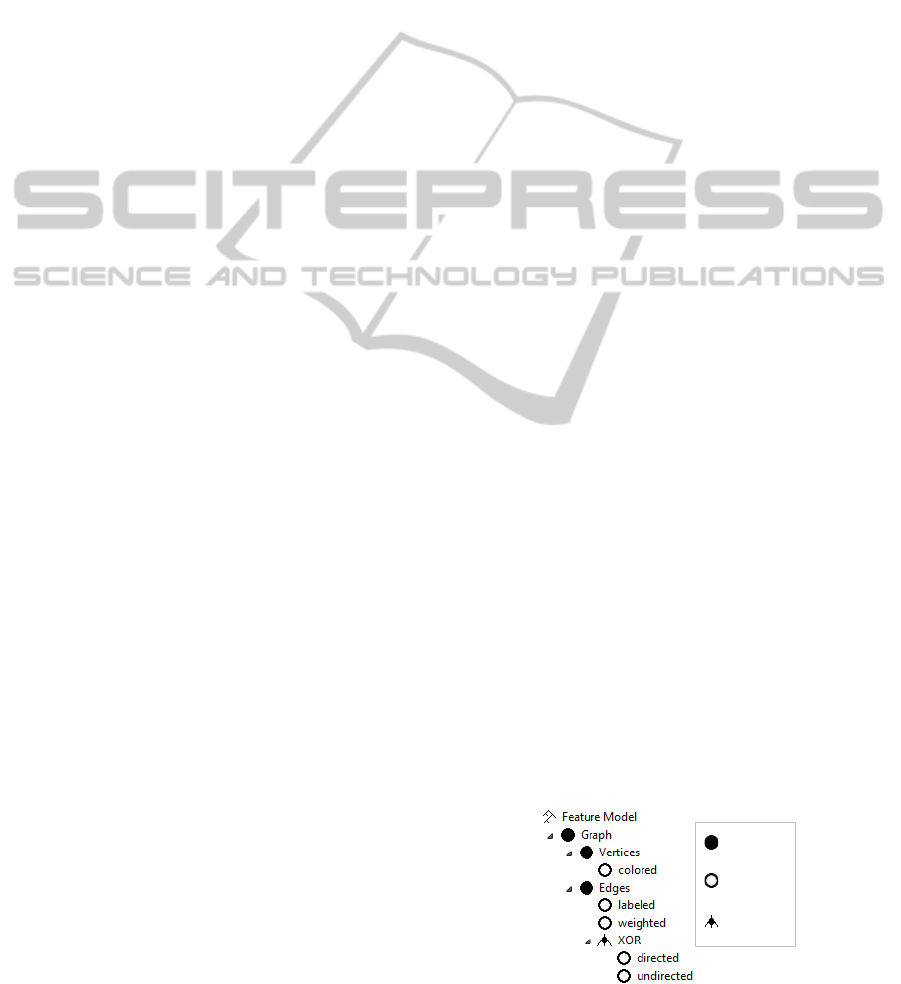

Figure 3: Feature model for the graph product line, shown

in the tree diagram syntax provided by SuperMod.

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

Table 1: History of the developed multi-variant domain model for the graph product line. Within each revision, the inserted

elements are listed by their respective qualiﬁer. For all associations, the corresponding member ends have been inserted in the

same revision.

Inserted elements Commit message

1 — “Initial commit.”

2 Class Graph “Realization of root feature Graph.”

3 Class Vertex, association has vertices “Realization of feature Vertices.”

4 Class Edge, association has edges “Realization of feature Edges.”

5 Property Edge::label “Realization of feature labeled.”

6 Property Edge::weight “Realization of feature weighted.”

7 Association connects “Realization of feature undirected.”

8 Association starts at and ends at “Realization of feature directed.”

9 Class Color, property Color::name, association has color “Realization of feature colored.”

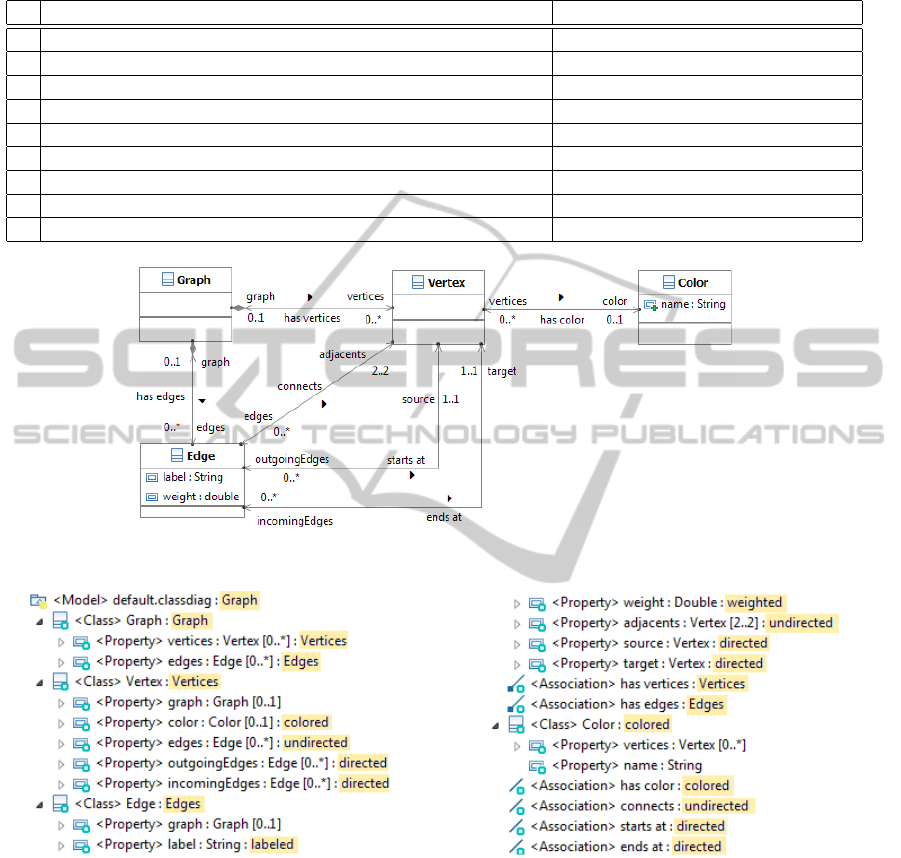

Figure 4: Multi-variant domain model, which realizes all features of the graph product line as a superimposed UML class

diagram. The diagram has been created using the EMF-based UML modeling tool Valkyrie (Buchmann, 2012).

Figure 5: Mapping between the multi-variant domain model and the feature model, realized by feature expressions, logical

expressions on the set of feature variables deﬁned in the feature model in Figure 3. The mapping has been realized with the

help of the MDPLE tool FAMILE (Buchmann and Schw

agerl, 2012), where the mapping is deﬁned on the abstract syntax tree

of the MVDM. Feature expressions are highlighted.

product line is shown in Figure 5. where a total of

22 feature annotations is necessary.

Application Engineering. To automatically derive

speciﬁc products from the product line, feature con-

ﬁgurations are speciﬁed which bind each feature to a

selection (either selected or deselected). For instance,

the feature conﬁguration from Figure 6 produces the

product shown in Figure 7, a directed and weighted

graph.

Drawbacks. Although having successfully applied

an “off-the-shelf” combination of VC and MDPLE in

the initial example, we raise several issues.

• Variability in time and variability in space are

managed by means of two different mechanisms.

Therefore, the user has to repeatedly specify ver-

sioning information (i.e., feature expressions) for

SuperMod—AModel-DrivenToolthatCombinesVersionControlandSoftwareProductLineEngineering

selected

mandatory

selected

optional

deselected

optional

selection

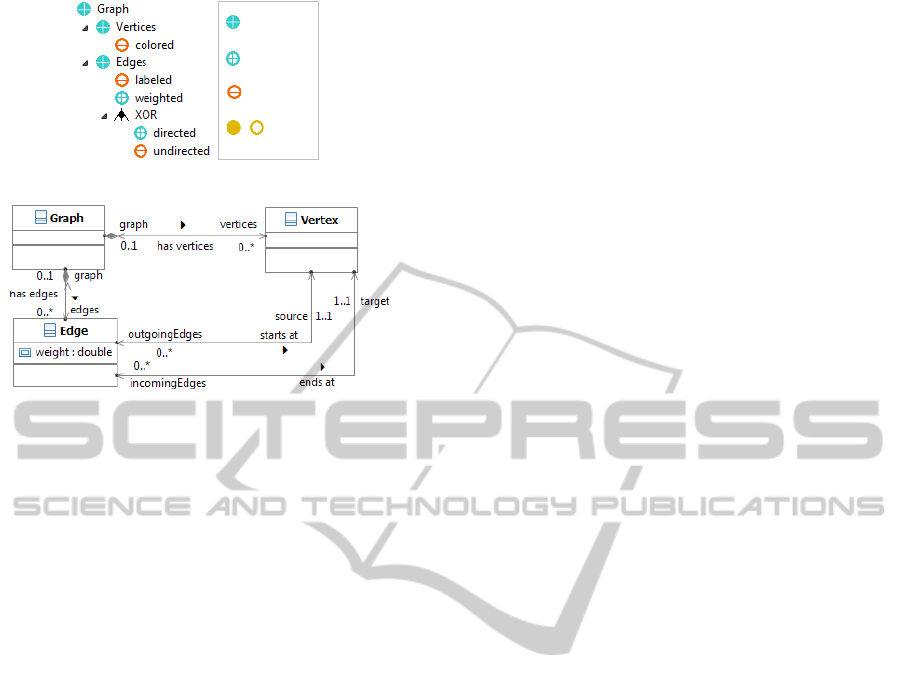

Figure 6: An example feature conﬁguration.

Figure 7: An example product that corresponds to the fea-

ture conﬁguration shown in Figure 6.

the same change. All manually provided map-

ping information (see Figure 5) could have been

inferred from commit messages.

• In the case of product speciﬁc adaptations, the

connection to the product line gets lost. When

SPL developers ﬁnd a bug in a product, the ques-

tion arises, whether it is transferred from the

MVDM or due to mistakes in the mapping. In

case the MVDM is erroneous, the bug must be

ﬁxed twice, in the product and in the platform.

There is no mechanism for propagating product

changes back into the product line.

• For the development of the multi-version plat-

form, developers are constrained by single-

version rules. E.g., it is impossible to specify

an alternative name DirectedEdge for the class

Edge in case the feature directed is selected.

This restriction is not imposed on the evolution

of the platform: It is possible to change the class

name within subsequent revisions.

In Section 4, the tool SuperMod is presented,

which allows to overcome the presented drawbacks.

We will revisit the graph example in Section 5.

3 COMPARISON: VC AND SPLE

In this section, we compare terms and notions of VC

and SPLE that have been used in the previous two

sections. This comparison motivates the prototype

SuperMod, which is described in Section 4. Table 2

summarizes the discussion below.

Equivalent Concepts. Both VC and SPLE provide

an abstraction for the entirety of product versions. In

VC, this is a repository, whereas in SPLE, this corre-

sponds to the platform. For single product versions,

the terms workspace and product (conﬁguration) are

used, respectively. As mentioned in the introduction,

in both disciplines, there exist two distinct represen-

tations. On the one hand, it is possible to store all

variants as a superimposition, which corresponds to

symmetric deltas in VCS and to negative variability

in SPLE. On the other hand, only a minimal core may

be deﬁned, which is then extended. This is realized

by directed deltas in VC and by positive variability in

SPLE. In both cases, it is necessary to assign visibili-

ties either to program fragments or to transformations.

These correspond to version identiﬁers (sets or ranges

of revisions), and to presence conditions, respectively.

Similar Concepts. In both disciplines, there is an

abstraction for the set of available versions. In VC, re-

vision graphs describe the commit history. In SPLE,

feature models organize mandatory and/or optional

features of a product line within a tree. The spec-

iﬁcation of a single version is done by selection of

a revision, or by a feature conﬁguration, which in

turn describes a product variant. In both disciplines,

a ﬁlter operation is realized. In VCS, it populates

the workspace after a revision has been selected for

check-out. In SPLE, ﬁltering is applied as product

derivation during application engineering.

Differences. Both disciplines deal with different

kinds of variability. Version control manages vari-

ability in time, i.e., the fact that a software project is

subject to evolution. SPLE, in contrast, deals with

variability in space, using variability models to de-

scribe commonalities and differences among related

variants explicitly. In SPLE, it is intended that sev-

eral conﬁgurations of a software project co-exist. This

kind of variability has to be planned in advance by

suitable variation points in the platform. Most SPLE

tools require the platform to be free of context-free

or context-sensitive conﬂicts, e.g., a syntactically cor-

rect program that is accepted by the respective com-

piler, or a valid instance of the metamodel in the case

of MDPLE. In VC, there are no restrictions concern-

ing product variability: Neither a superimposition

nor directed deltas need to be syntactically meaning-

ful; constraints are merely imposed to single-version

products. VC and SPLE also differ in terms of ver-

sion speciﬁcation. Typically, a VCS ﬁxes the set of

versions available for selection (extensional version-

ing, see (Conradi and Westfechtel, 1998)). In SPLE,

versions may be described by a combination of fea-

tures, allowing to create versions that have not been

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

Table 2: Differences and commonalities among the terms and notions of VC and SPLE.

Aspect / Generalization Version control SPLE

Equivalent Concepts All Product versions Repository Platform

Single Product version Workspace Product conﬁguration

Superimposition Symmetric deltas Negative variability

Transformations Directed deltas Positive variability

Visibilities Version identiﬁers Presence conditions

Similar Concepts Variability model Revision graph Feature model

Version Revision Feature conﬁguration

Filter Check-out Product derivation

Differences Variability kind Variability in time Variability in space

Variation points Hidden Explicit

Product variability Unconstrained Constrained

Version speciﬁcation Extensional Intensional

Editing model Filtered Unﬁltered

Visibility management Manual Automatic

Version membership Immutable Mutable

No Equivalence Automatic visibility update Commit —

Manual visibility update — Edit feature mapping

committed earlier (intensional versioning). In VC, ﬁl-

tered editing is applied. After a check-out, the devel-

oper sees and may modify only elements belonging to

the selected revision. As soon as a commit is issued,

changes are detected in the local workspace, and writ-

ten back to the repository, while visibilities are up-

dated automatically. In contrast, SPLE typically re-

quires the user to edit a multi-version view (unﬁltered

editing) and to manage visibilities (i.e., presence con-

ditions) manually. VCS guarantee the immutability of

version membership of an element: Once committed,

it is not possible to remove an element from a revi-

sion. In contrast, it is allowed to modify the visibility

of an element arbitrarily in SPLE.

No Equivalence. VCS and SPLE tools both offer

operations that are not realized by the opposite. Ta-

ble 2 lists two of each. The VCS operation com-

mit detects differences in the workspace in order to

write changes back to the repository automatically.

No equivalent operation exists in SPLE tools, which

would, e.g., allow to propagate product speciﬁc mod-

iﬁcations back to the platform. Conversely, in SPLE,

it is possible to directly modify the mapping between

the variability model and the platform, i.e., the vis-

ibilities. To the best of our knowledge, there exists

no VCS that would allow to retrospectively modify

version identiﬁers (which would, indeed, destroy the

property of immutable version membership).

Bottom Line. VC and SPLE share an unexpectedly

large amount of similarities, particularly with respect

to underlying data structures. Most differences are

due to the underlying editing models. As we will ex-

plain within the subsequent section, SuperMod elimi-

nates these differences by transferring the ﬁltered VC

editing model to SPLE. In the workspace, the dis-

tinction between variability in time and variability in

space is blurred, offering the user new ways of ver-

sioning, such as committing a change against a ded-

icated feature. In particular, the desirable properties

of unconstrained variability, intensional versioning,

automatic visibility management, and immutability of

(temporal) version membership are transferred.

4 THE TOOL SuperMod

This section sketches the model-driven implementa-

tion of SuperMod. First, we explain theoretical foun-

dations developed in advance. Thereafter, the archi-

tecture is described at a coarse-grained level, before

we detail the speciﬁcation by means of a metamodel.

Next, the operations check-out, modify and commit

are speciﬁed. Last, we discuss current limitations and

address future tool improvements. The tool is avail-

able for evaluation purposes as an Eclipse plug-in (see

installation instructions at the end of this paper).

4.1 Underlying Principles

SuperMod realizes the conceptual framework pre-

sented in (Schw

agerl et al., 2015), which aims at the

integration of MDPLE, SPLE, and VC. The frame-

work in turn is built upon the uniform version model

SuperMod—AModel-DrivenToolthatCombinesVersionControlandSoftwareProductLineEngineering

1. check-out

2. modify

3. commit

Repository

Multi

-Version

Domain Model

Multi

-Revision

Feature Model

Revision

Graph

Revision

Feature

Configuration

Choice

Feature

Configuration

Ambition

Workspace

Chosen Domain

Model Version

Chosen Feature

Model Revision

Visibility

Forest

Metadata

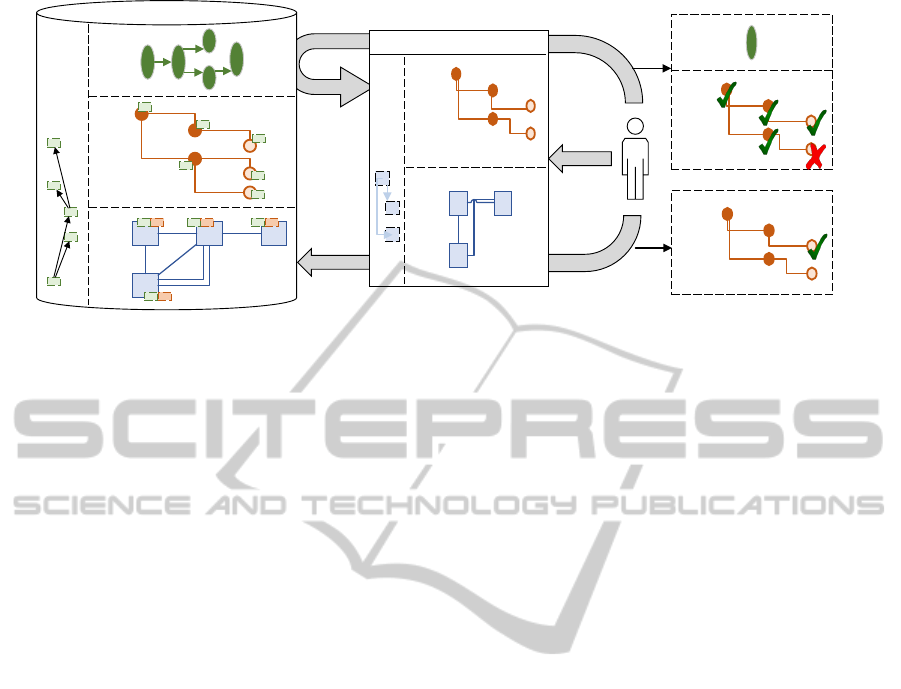

Figure 8: SuperMod tool architecture and editing model.

(Westfechtel et al., 2001), adding higher-level repre-

sentations for both the version space (by feature mod-

els and revision graphs) and the product space (by

the use of EMF models). Below, the core concepts

of UVM and its extensions are described informally,

deﬁning the general notions in Table 2 more precisely.

Options. An option is a temporal or logical property

of a software system, which may or may not be

included in a speciﬁc version. In SuperMod, two

kinds of options exist: revision options and fea-

ture options (see below).

Choices. A choice denotes a single version by as-

signing a selection (selected, deselected) to each

of the existing options. Choices are used as read

ﬁlters, i.e., they describe versions visible in the

workspace.

Ambitions. An ambition denotes a set of versions

as a subset of all available versions. Ambitions

are used as write ﬁlters in order to delineate the

scope of a change performed in the workspace. In

contrast to a choice, an ambition may contain un-

bound options, to which the change is immaterial.

Version Rules. The set of available choices and am-

bitions is constrained by a set of version rules,

logical expressions over the option set. Version

rules are used, e.g., in order to implement con-

straints such as mutual exclusion within feature

models, or to designate subsequent revisions.

Visibilities. A visibility is a logical expression over

the option set, which is attached to an element of

the feature or domain model. In order to test an

element’s presence in a speciﬁc version, the bind-

ings speciﬁed by the respective choice are applied.

Visibilities are modiﬁed automatically during the

commit operation (see below).

4.2 Tool Architecture/ Editing Model

Both the architecture and the editing model of Su-

perMod are inspired by distributed VCS such as Git

(Chacon, 2009). The tool offers the traditional ver-

sion control metaphors check-out and commit and ad-

ditionally offers SPLE concepts such as feature mod-

els and feature conﬁgurations for the deﬁnition of the

version space and speciﬁc versions. The traditional

VCS architecture is extended: (1) The feature model

is an additional, temporally variable, versioned arti-

fact. (2) The domain model varies along two dimen-

sions, the revision graph and the feature model. Fig-

ure 8 illustrates the remarks below.

Repository. A repository is a persistent storage

linked to a software project under VC. Developers

communicate with their private repository by means

of the operations check-out and commit. A SuperMod

repository consists of three layers.

• The revision graph is a directed acyclic graph

that describes the temporal history of a SuperMod

project. The graph is extended automatically each

time a new revision has been committed. For each

revision, a revision option is introduced transpar-

ently. Furthermore, version rules ensure that revi-

sion selections amend all predecessor revisions.

• The multi-version feature model plays a dual role:

Firstly, its evolution is controlled by the revision

graph. Secondly, each feature is mapped to a fea-

ture option, such that the feature model provides

an additional version model. Feature model con-

straints are mapped to version rules transparently

(Schw

agerl et al., 2015).

• The multi-version domain model describes the su-

perimposition of the versioned project. Although

the term “domain model” is used here, the project

may comprise a ﬁle hierarchy containing model

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

or non-model resources. Within the visibilities of

domain model elements, revision and feature op-

tions may occur.

Technically, the repository is an instance of the

SuperMod metamodel (see Section 4.3), representing

multi-version models (and non-model artifacts) as a

superimposition. Thus, from the VC perspective, Su-

perMod uses symmetric deltas, and from the SPLE

perspective, it is based on negative variability.

Visibilities are represented in a memory-

optimized way using a global data structure, the

visibility forest. It contains each visibility occurring

on any model element at most once. Furthermore,

visibilities may reference each other to form several

tree-like structures (hence, a forest). The visibility

forest is updated during a commit transparently.

Workspace. A SuperMod workspace contains the

currently selected version of the domain model, i.e.,

the derived product, in its domain speciﬁc representa-

tion within an ordinary ﬁle system. EMF models are

represented as instances of their custom Ecore-based

metamodel(s). Plain text and XML ﬁles are repre-

sented in their custom format. This allows SuperMod

users to utilize their single-version editing tools they

are familiar with.

During the sub-process modify, the user may also

edit the feature model arbitrarily, e.g., by introducing

new features or constraints. For this purpose, the cho-

sen revision of the feature model is made available

for modiﬁcation in the workspace. Technically, the

feature model is represented as an instance of the Su-

perMod Feature metamodel (Schw

agerl et al., 2015).

In addition to the single-version resources, meta-

data are managed transparently to the user. They

augment workspace resources with VC details, such

as the versioning state (versioned, non-versioned,

added, removed, etc.). Furthermore, the current

choice is persisted.

Choices and Ambitions. As mentioned above, fea-

ture conﬁgurations are used to specify choices and

ambitions in addition to revision graphs as known

from state-of-the-art VCS. A feature conﬁguration is

always speciﬁed on the current revision of the feature

model. When speciﬁed as an ambition, the feature

conﬁguration may be partial and typically binds only

few features. The effective choice/ambition is formed

during check-out/commit as conjunction of the tem-

poral and logical component, e.g., rev4 and labeled.

4.3 The SuperMod Metamodel

SuperMod has been developed in a model-driven way

using the Eclipse Modeling Framework (Steinberg

et al., 2009). Furthermore, the tool has been imple-

mented modularly; it is is not restricted to the three-

layer architecture shown in Figure 8, but ﬂexible with

respect to the underlying version space space model.

The metamodel realizes the sub-set of concepts

presented in Sections 3 and 4.1, which are relevant

to the repository. As shown in Figure 9, a Super-

Mod repository consists of a version space, a product

space, and a visibility forest. The version space in turn

is composed of several version dimensions, and the

product space comprises a number of product dimen-

sions, which in turn contain a hierarchy of versioned

elements. These may reference a visibility, which is

organized within a visibility forest. A visibility may

be an option reference or a composed expression (e.g.,

and, or, not). Choices and ambitions, which occur

in SuperMod as temporary data structures (except for

the choice in the metadata section), are represented by

OptionBinding, which maps options to selections.

On the right hand side of the class diagram,

the three dimensions discussed in this paper are de-

picted. Obviously, the revision graph is a subclass

of VersionDimension. Due to its dual role, the fea-

ture model is both a version and a product dimension.

The metamodel of the primary product space, the ver-

sioned ﬁle system, is decomposed into three differ-

ent resource types: EMF, plain text, and XML. As

a representative for VersionedElements, the class

Object represents multi-version EMF objects. More

details on the EMF and Feature multi-version meta-

models are provided in (Schw

agerl et al., 2015).

4.4 Repository Operations

The user interface of SuperMod has been realized us-

ing the Eclipse Team Provider API. In this section, we

sketch the available UI commands.

Check-Out. For check-out, the UI offers two dis-

tinct commands: Switch prompts the user for a choice

in both the revision graph and the feature model,

whereas Update automatically generates a new choice

whose temporal component is updated to the latest

available successor of the current revision. In general,

the operation check-out has been realized as follows:

• The speciﬁed choice is recorded in the metadata.

• The feature model is ﬁltered by the temporal com-

ponent of the selected choice and copied into the

local workspace.

• The domain model is ﬁltered by the effective

choice and exported into the local workspace.

The export transformation has been implemented

for each speciﬁc resource type to translate a

SuperMod—AModel-DrivenToolthatCombinesVersionControlandSoftwareProductLineEngineering

Repository ProductSpaceVersionSpace

VisibilityForest

VersionedElementOptionExpr

ProductDimensionVersionDimension

And

Not

Ref

OptionBinding

sel: Selection

Entry

Rule Option

selected

unselected

unbound

<<enumeration>>

Selection

* *

** *

0..1

... ...

core

file

text

xml

VersionedFileSystem

feature

FeatureModel

revision

RevisionGraph

emf

Object

visibility

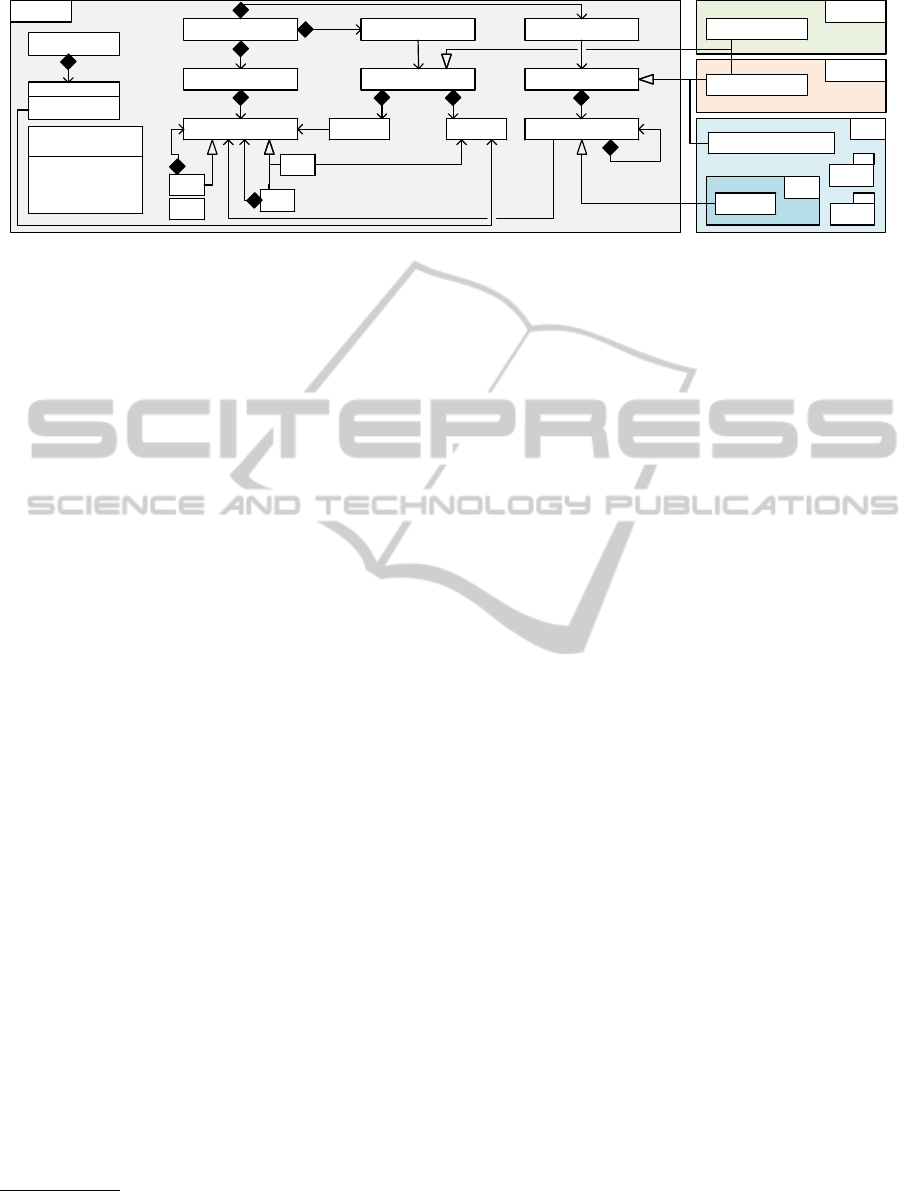

Figure 9: The SuperMod Core metamodel and three extensions as simpliﬁed Ecore class diagram.

multi-version representation into its correspond-

ing single-version representation.

Modify. The user may modify both the feature

model and the domain model within the workspace.

For domain model resources, arbitrary editors avail-

able in the current Eclipse installation may be used.

For the feature model, the command Edit Version

Space is offered by SuperMod, which opens an EMF

tree editor for the current feature model revision. In

addition to the modiﬁcation of versioned resources,

the commands Add/Remove to/from Version Control

are provided, which adjust the corresponding entries

within the metadata section accordingly.

Commit. The Commit command is deﬁned as a

counterpart to the check-out operation as follows.:

• A new revision is created as the successor of the

revision speciﬁed for the choice. Within the given

revision of the feature model, the ambition is user-

speciﬁed as a partial feature conﬁguration. For

consistency reasons, it is required that the ambi-

tion implies the previously speciﬁed choice.

• The original state of the workspace version is tem-

porarily restored by applying the recorded choice

to the repository. The new state is generated

by importing (the inverse of export) the current

workspace into its multi-version representation.

• Differences are computed by comparing both ver-

sions, the original and the new state.

• Inserted elements are copied into the repository.

• The visibilities of inserted/deleted feature

model elements are updated automatically by

adding/subtracting the temporal component of

the ambition to/from the existing visibility.

In the case of EMF models, the export transformation

is generic, i.e., there is no necessity to deﬁne a custom trans-

formation for each metamodel used.

• The visibilities of inserted/deleted domain model

elements are updated by adding/subtracting the ef-

fective ambition.

As proposed in (Schw

agerl et al., 2015), the up-

date operations add and subtract have been imple-

mented by the operators ∨ and ∧¬.

4.5 Current Limitations and Outlook

The current version of SuperMod allows to answer re-

search questions referring to the added value of trans-

ferring the VC editing model to SPLE. However, there

are some questions that remain to be answered by fu-

ture work:

• Currently, SuperMod is restricted to single-user

operation — the repository is persisted locally.

After having evaluated and improved the tool, it

is planned to realize support for multi-user oper-

ation. A multi-user version of SuperMod will of-

fer commands similar to the Push/Pull operations

as deﬁned in the distributed VCS Git (Chacon,

2009). With the number of its users, the size of

the repository will grow, concerning both the fea-

ture and the domain model. A transactional stor-

age will be necessary that scales with large model

instances.

• Concurrent modiﬁcations will lead to conﬂicts

in the domain/feature model, which must be re-

solved by a speciﬁc three-way merging compo-

nent for models, e.g., (Schw

agerl et al., 2013).

• The evolution of the feature model remains to be

further evaluated. For instance, how does the

deletion of a feature affect existing variants in the

workspace?

• From the SPLE perspective, domain engineering

and application engineering are not clearly sepa-

rated. SuperMod does not allow to design a multi-

variant domain model from scratch and switch to

ﬁltered editing in a later phase. Furthermore, de-

rived products are currently considered as volatile

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

artifacts in the workspace, which disappear as

soon as the choice is changed. It may be desir-

able to derive several products in a batch mode.

• The concepts of choices and ambitions are hard

to grasp for VCS users. Concerning user interac-

tion, there is still room for improvement. For in-

stance, a default ambition might be inferred from

the choice and newly introduced features.

5 EXAMPLE REVISITED

To demonstrate the added value of SuperMod, we re-

consider the example from Section 2. Now, we de-

velop the platform, consisting of the domain model

and the feature model (and the mapping in between,

which is hidden now) together in multiple iterations,

using feature conﬁgurations to describe the scope of

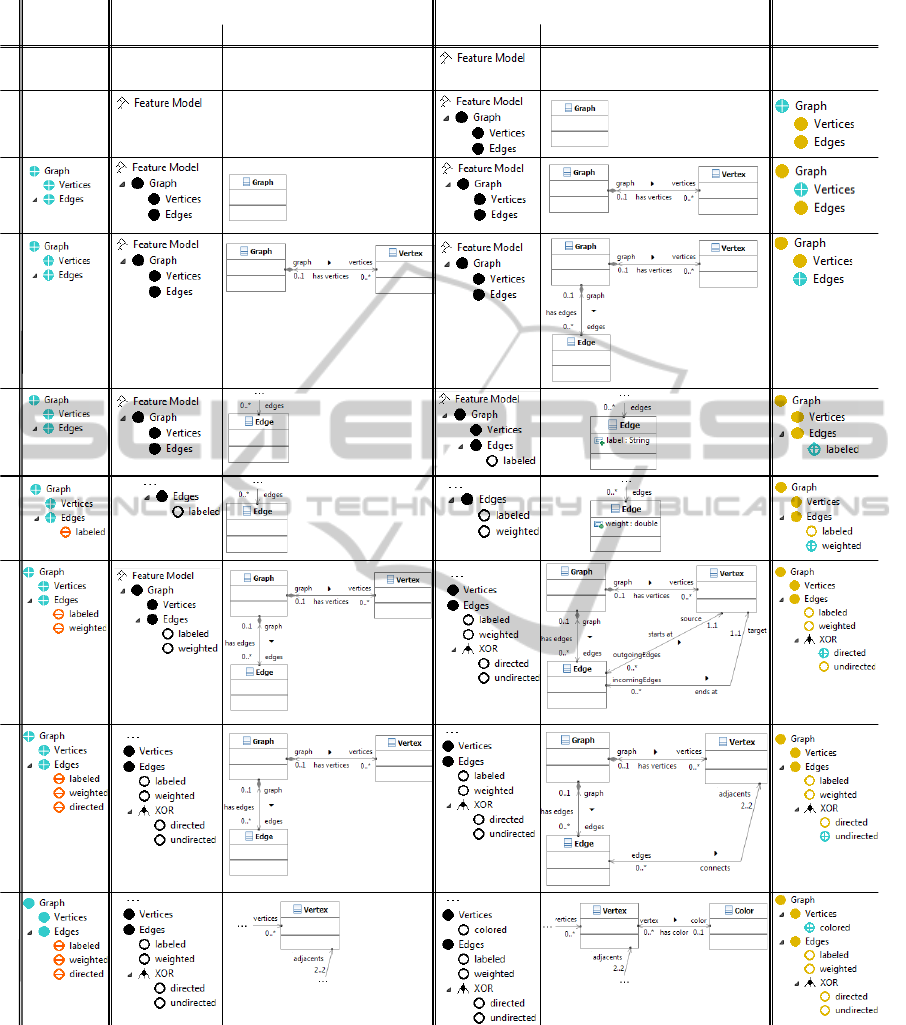

changes to the domain model. Figure 10 shows the

subsequent iterations in which the model-driven prod-

uct line is developed as described below. In each

step i, revision i − 1 is evolved to revision i.

Initialization. We create an empty Eclipse project

and invoke the Share command, which puts it under

SuperMod version control. Next, we create an empty

UML class diagram and add it to version control. Ini-

tially, the feature model is empty. The project is com-

mitted to the repository as revision 1. Since there is

no variability deﬁned in the feature model yet, the

user is not prompted for a feature conﬁguration — the

change is universal.

Realization of Common Parts. In step 2, both the

feature model and the domain model are evolved. We

add the root feature Graph and its mandatory sub-

features Vertices and Edges to the feature model.

Within the domain model, a class Graph is created.

Since this class realizes the identically named feature,

we specify as ambition a partial feature conﬁguration

where Graph is selected. Transparently, the visibil-

ity of the added features is set to rev2, whereas the

visibility of the class Graph is set to rev2 and graph.

Similarly, realizations of the mandatory features

Vertices and Edges are provided in steps 3 and 4,

where the feature model remains unmodiﬁed. The

performed commit operations result in the visibilities

rev3 and vertices for the class Vertex and the asso-

ciation has vertices, and rev4 and edges for Edge

and has edges.

Realization of Optional Parts. In steps 5 and 6,

the optional features labeled and weighted are in-

troduced. In addition, their realization is provided

by performing the following changes in the local

workspace: the feature labeled is realized as an at-

tribute label, and the feature weighted as weight,

both located in the class Edge. The change performed

in step 6 would also have been applicable in a fea-

ture conﬁguration where labeled is selected, since

the features weighted and labeled are mutually in-

dependent.

Within two subsequent steps, we commit alter-

native realizations for edges, being directed and

undirected. In step 7, a corresponding XOR-group

is introduced to the feature model. In the domain

model, a realization for directed edges is added: two

associations starts at and ends at with multiplic-

ity 1 at the Vertex end. The realization for undi-

rected edges is committed in step 8 under the ambition

undirected: an unspeciﬁc association connects with

multiplicity 2 at the Vertex end. Since the features

directed and undirected are mutually exclusive, it

is ensured that no version containing both realizations

may be derived.

In step 9, the optional feature colored is intro-

duced and realized by a class Color and an associa-

tion has color between Vertex and Color.

Re-Combination of Independent Features. In the

original version of our example, we have derived an

example product by specifying the feature conﬁgura-

tion shown in Figure 6 in the application engineer-

ing phase. Since the operations check-out and prod-

uct derivation are similar (see Table 2), this step may

be “simulated” by checking out a choice that consists

of the latest revision and the same feature conﬁgura-

tion. As a consequence, the workspace is populated

with the domain model version shown in Figure 7.

This version may be reﬁned with product speciﬁc

adaptations (by specifying an ambition that equals the

choice) or by changes that inﬂuence related products

(by specifying as ambition a partial feature conﬁgu-

ration that delineates the set of logical versions where

the change shall be visible).

Inspecting the Repository. During the described

check-out/modify/commit iterations, the management

of visibilities has been completely automated by the

mechanisms described in Section 4.4. As a conse-

quence, a SuperMod user never has to inspect or mod-

ify visibilities manually, as it had been necessary in

the initial example. Nevertheless, it is interesting to

inspect the superimposition and the visibilities de-

ﬁned in the repository for a comparison with the man-

ually deﬁned mapping. Figure 11 depicts the inter-

nal state of the repository after step 9. Visibilities of

SuperMod—AModel-DrivenToolthatCombinesVersionControlandSoftwareProductLineEngineering

workspace before workspace after

feature m. domain model feature m.

domain model

choice

feature c.

ambition

feature c.

Figure 10: Summary of all performed check-out/modify/commit iterations during the example. For the reason of compactness,

certain parts of the feature model and domain model have been elided (. . . ). For the development of the domain model,

Valkyrie (Buchmann, 2012) has been used again. All feature models and feature conﬁgurations are represented in the tree

representation provided by SuperMod.

the multi-version feature model only contain revision

options, since the feature model is only versioned by

the revision graph and not by itself. Visibilities of

the MVDM are hybrid: they contain a revision part

(which corresponds to the version history shown in

Table 1) and a feature part (which is equivalent to the

mapping shown in Figure 5).

Outlook. The presented example has only

scratched the surface of SuperMod. Performed

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

Graphr1

Verticesr2

Edgesr3

labeledr4

weigh.r5

coloredr8

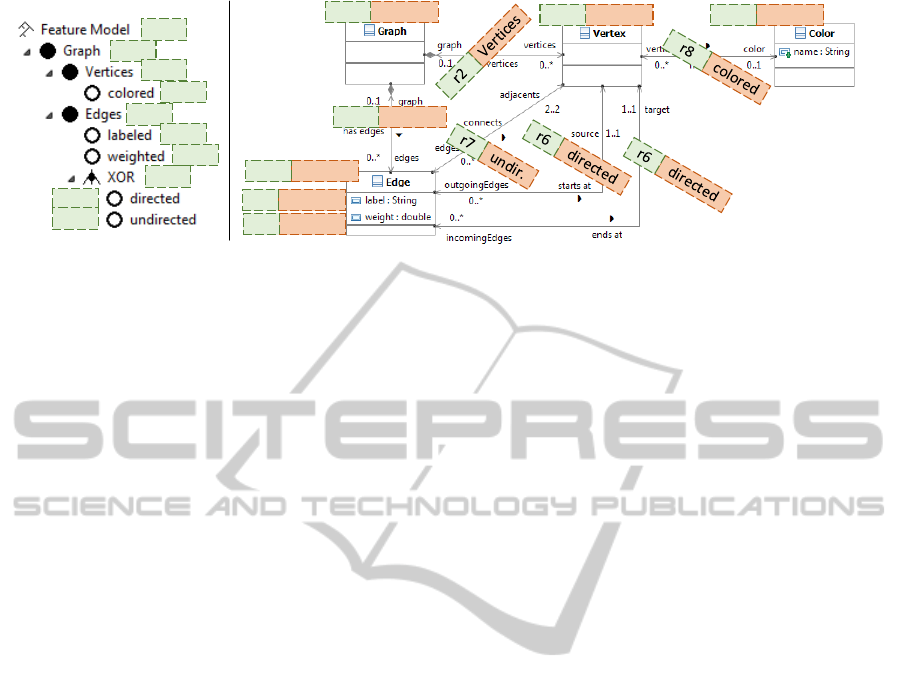

Figure 11: Internal representation of the repository, consisting of the multi-version representations of feature model and

domain model, in its state after the example has been conducted. Visibilities of elements are attached using dashed boxes.

modiﬁcations were restricted to element insertions,

and the speciﬁed ambitions always include one

selected feature. These simpliﬁcations have been

applied for the reason of comprehensibility. We infor-

mally sketch a couple of extensions to the example,

where SuperMod is used in a more advanced way:

• We may add different constructors for the class

Edge, depending on the combination of features

labeled and weighted. As shown in Figure 12,

the features selected in the ambition match the

corresponding parameters in different versions of

the constructor.

• Hyper graphs are a generalization of graphs

whose edges connect a number of vertices greater

than two. For this purpose, we may add a feature

hyper below Edge. The realization would consist

in renaming of the class Edge to HyperEdge and

changing the association name and multiplicities

as shown in Figure 13. The co-existence of dif-

ferent class names is only allowed due to Super-

Mod’s property of unconstrained variability.

• A universal change may be retrospectively

mapped to a new feature by reverting the change

(i.e., by deleting all added elements and vice

versa) and specifying the negation of the new fea-

ture in the ambition. An example is provided in

(Schw

agerl et al., 2015, Section 5).

• Our example has been restricted to a single class

diagram. SuperMod can handle complete Eclipse

projects, including interconnected EMF model re-

sources, and non-model resources such as plain

text or XML ﬁles. For instance, we may add gen-

erated Java code to version control, which would

enable for variability in behavioral aspects.

Added Value. When compared to the ﬁrst version

of the example, the cognitive complexity of feature

mapping has been signiﬁcantly reduced. The domain

model and the feature model have been developed

step by step, while realizations for each feature have

been speciﬁed directly in the workspace. This is en-

abled by the uniform version mechanism for temporal

and logical variability in SuperMod, which removes

the necessity of repeated annotations. For realizing

changes, the developer has used an arbitrary single-

version editor. This is in contrast to many SPLE

tools, which require custom multi-variant editors or

additional composition languages, which both disrupt

the developers’ workﬂow. The additional advantage

of unconstrained variability has been demonstrated

above. In sum, SuperMod removes the drawbacks and

limitations that have been identiﬁed for an “off-the-

shelf” approach to combined VC/SPLE in Section 2.

6 RELATED WORK

In (Schw

agerl et al., 2015), concepts and theory used

for the realization of SuperMod have been described,

including a comparison with the integrating disci-

plines Model-Driven Product Line Engineering (MD-

PLE), Model Version Control, and Software Product

Line Evolution. The current paper describes the added

value from the end user’s perspective. Subsequently,

we compare SuperMod to other tools and approaches

that partially share VC and SPLE concepts.

With branches, many contemporary version con-

trol systems, e.g., Git (Chacon, 2009) and Subversion

(Collins-Sussman et al., 2004) offer logical variants

to a limited extent. However, the current state of the

art only allows to restore variants that have been com-

mitted earlier (extensional versioning), but not to re-

combine new variants based on predicates similar to

feature conﬁgurations (intensional versioning).

In (Reichenberger, 1995), an approach for or-

thogonal version management is proposed. A ver-

sion cube is formed by product, revision, and vari-

ant space. Albeit, this approach does not consider the

variant space to be subject to temporal evolution.

SuperMod—AModel-DrivenToolthatCombinesVersionControlandSoftwareProductLineEngineering

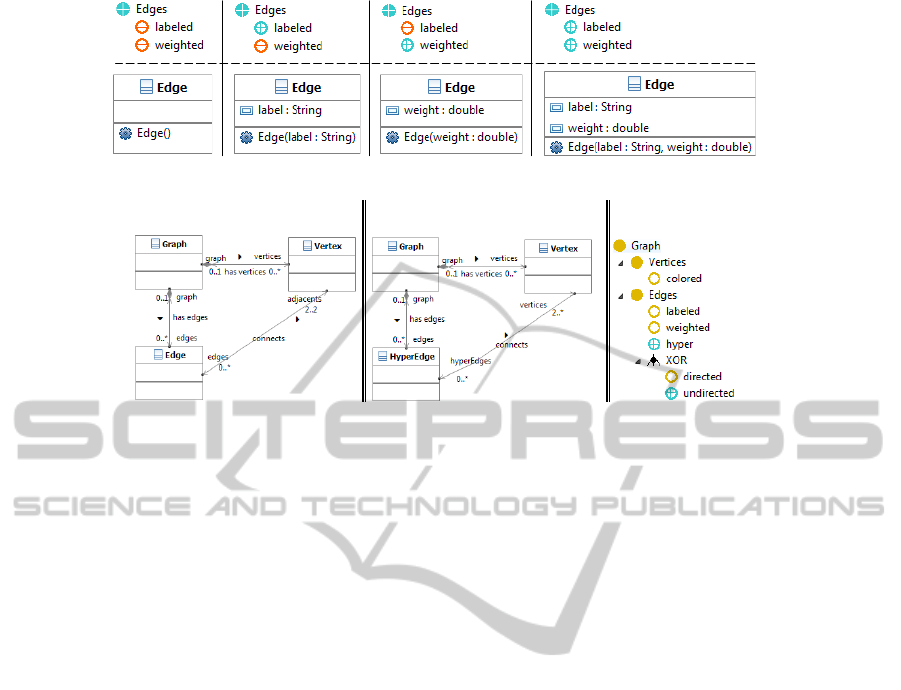

Figure 12: Four additional changes, which add different constructors to the class Edge, each with a corresponding ambition.

workspace before

workspace after

domain model

ambition

feature c.

Figure 13: Additional change realizing the feature hyper, associated with a corresponding ambition.

The tool SuperMod presented in this paper builds

upon the uniform version model (UVM) presented in

(Westfechtel et al., 2001). UVM’s basic concepts (op-

tions, visibilities, constraints) have been initially in-

troduced in the context of change-oriented versioning

(CoV) (Munch, 1993). The tool EPOS-DB is an im-

plementation of CoV concepts. In contrast to Super-

Mod, both the version space and the product space are

represented at a low level of abstraction (propositional

formula and text ﬁles, respectively).

In (Zeller and Snelting, 1997), an approach to uni-

ﬁed versioning based on feature logic is presented.

Versions of text ﬁles are stored with selective deltas;

visibilities are controlled by feature-logical expres-

sions. Constraints on feature combinations are ex-

pressed by (low level) version rules.

In (Walkingshaw and Ostermann, 2014), an ap-

proach to ﬁltered (projectional) editing of multi-

variant programs is described. Like in our work, the

motivation is a reduction of complexity gained by hid-

ing variants not important for a speciﬁc change to a

multi-variant model. Visibilities are managed auto-

matically, but in contrast to our approach, the choice

always equals the ambition. Furthermore, the restric-

tion of a completely bound choice does not exist since

the user operates on a partially ﬁltered product which

still contains variability. Our tool presented in this pa-

per ensures a relaxed form of the edit isolation princi-

ple discussed in (Walkingshaw and Ostermann, 2014,

Section 4): a change may affect only those variants

that are included in the speciﬁed ambition.

Using Stepwise and Incremental Software Devel-

opment (Apel and K

astner, 2009), a sub-discipline of

Feature-Oriented Software Development, features are

described as reﬁnements or layers. This replaces the

necessity of an explicit mapping in the form of pres-

ence conditions, but the increments need to be speci-

ﬁed in a form that deviates from the “normal” imple-

mentation language, e.g., model transformations. In

contrast, SuperMod enables for SISD using a familiar

development environment.

The source-code centric tool CIDE (Colored IDE)

astner et al., 2008) generalizes preprocessors using

a colored representation to distinguish features. CIDE

is based on negative variability and offers the possi-

bility to temporarily restrict a variational project to

views on a speciﬁc feature or variant. Then, irrelevant

source code fragments are hidden. The performed

changes only affect the selected feature or variant, i.e.,

choice and ambition must be equal.

The MDPLE tool Feature Mapper (Heidenreich

et al., 2008), which is based on negative variability,

offers the possibility of change recording during do-

main engineering. Having selected one or several fea-

tures and invoked the record operation, all changes

performed are associated with a feature expression

derived from the provided feature selection. However,

only insertions are supported, and change recording is

restricted to GMF-based editors.

7 CONCLUSION

In this paper, we have presented SuperMod, a model-

driven tool that combines the management of vari-

ability in time and variability in space, i.e., version

control (VC) and Software Product Line Engineer-

ing (SPLE). Typical SPLE processes distinguish be-

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

tween domain engineering, where a platform and a

variability model are deﬁned, and application engi-

neering, where variability is resolved to automatically

derive speciﬁc products. In contrast, in VC, software

is developed iteratively. SuperMod bridges this gap

by transferring VC metaphors to SPLE. For the selec-

tion of versions during check-out and commit, feature

conﬁgurations are speciﬁed in addition to a selection

among the revision graph. The mapping between the

platform and the variability model is managed auto-

matically.

In a running example, where a product line of

graph domain models has been developed, we have

demonstrated many advantages of the VC/SPLE in-

tegration. Due to the ﬁltered editing model, the ver-

sioning overhead is notably small when compared to

existing SPLE approaches. For workspace modiﬁca-

tions, the developer is not restricted by single-version

constraints. Furthermore, a familiar development en-

vironment can be used. Intensional version speciﬁ-

cation allows for the deﬁnition of feature conﬁgura-

tions as version descriptions. These advantages are

boosted by using models as higher-level descriptions

of the versioned software system.

Future work will address the development of a

multi-user component, which will advance SuperMod

to a full-ﬂedged distributed VCS. The evolution of the

feature model will be subject to research. Further-

more, a detailed evaluation against SPLE tools will be

conducted, using a real-world example. The obtained

results will be important to understand the impact of

the ﬁltered SPL editing model on the underlying de-

velopment processes and tool chains.

TOOL AVAILABILITY

The research prototype SuperMod is available as a set

of Eclipse plug-ins under the Eclipse Public License.

The plug-ins may be installed into a clean Eclipse

Luna Modeling distribution using the following up-

date site (Help — Install new Software):

http://btn1x4.inf.uni-bayreuth.de/

supermod/update

In order to reproduce the example provided in

this paper, at least the items SuperMod Core and

SuperMod Revision+Feature Layered Version Model

should be selected for installation.

After having installed the plug-ins, SuperMod

version control may be added to arbitrary Eclipse

projects using the operation Team — Share Project

and selecting the SuperMod repository connector. Af-

ter that, the operations Team — Commit and Team

— Update/Switch are available in order to communi-

cate with the locally persisted repository. The feature

model may be edited by Team — Edit Version Space.

REFERENCES

Altmanninger, K., Seidl, M., and Wimmer, M. (2009). A

survey on model versioning approaches. Interna-

tional Journal of Web Information Systems (IJWIS),

5(3):271–304.

Apel, S. and K

astner, C. (2009). An overview of feature-

oriented software development. Journal of Object

Technology, 8(5):49–84.

Buchmann, T. (2012). Valkyrie: A UML-based model-

driven environment for model-driven software engi-

neering. In Hammoudi, S., van Sinderen, M., and

Cordeiro, J., editors, Proceedings of the 7th Interna-

tional Conference on Software Paradigm Trends (IC-

SOFT 2012), pages 147–157. SCITEPRESS Science

and Technology Publications, Portugal.

Buchmann, T. and Schw

agerl, F. (2012). FAMILE: tool

support for evolving model-driven product lines. In

orrle, H., Botterweck, G., Bourdells, M., Kolovos,

D., Paige, R., Roubtsova, E., Rubin, J., and Tolvanen,

J.-P., editors, Joint Proceedings of co-located Events

at the 8th European Conference on Modelling Foun-

dations and Applications, CEUR WS, pages 59–62,

Building 321, DK-2800 Kongens Lyngby. Technical

University of Denmark (DTU).

Chacon, S. (2009). Pro Git. Apress, Berkely, CA, USA, 1st

edition.

Clements, P. and Northrop, L. (2001). Software Product

Lines: Practices and Patterns. Boston, MA.

Collins-Sussman, B., Fitzpatrick, B. W., and Pilato, C. M.

(2004). Version Control with Subversion. O’Reilly,

Sebastopol, CA.

Conradi, R. and Westfechtel, B. (1998). Version models for

software conﬁguration management. ACM Computing

Surveys, 30(2):232–282.

Czarnecki, K. and Kim, C. H. P. (2005). Cardinality-based

feature modeling and constraints: a progress report.

In International Workshop on Software Factories at

OOPSLA’05, San Diego, California, USA. ACM.

Gomaa, H. (2004). Designing Software Product Lines with

UML: From Use Cases to Pattern-Based Software Ar-

chitectures. Addison-Wesley, Boston, MA.

Heidenreich, F., Kopcsek, J., and Wende, C. (2008). Fea-

tureMapper: Mapping Features to Models. In Com-

panion Proceedings of the 30th International Confer-

ence on Software Engineering (ICSE’08), pages 943–

944, New York, NY, USA. ACM.

Kang, K. C., Cohen, S. G., Hess, J. A., Novak, W. E.,

and Peterson, A. S. (1990). Feature-oriented do-

main analysis (FODA) feasibility study. Technical Re-

port CMU/SEI-90-TR-21, Carnegie-Mellon Univer-

sity, Software Engineering Institute.

astner, C., Trujillo, S., and Apel, S. (2008). Visualizing

software product line variabilities in source code. In

SuperMod—AModel-DrivenToolthatCombinesVersionControlandSoftwareProductLineEngineering

Proceedings of the 2nd International SPLC Workshop

on Visualisation in Software Product Line Engineer-

ing (ViSPLE), pages 303–313.

Lopez-Herrejon, R. E. and Batory, D. S. (2001). A stan-

dard problem for evaluating product-line methodolo-

gies. In Proceedings of the Third International Con-

ference on Generative and Component-Based Soft-

ware Engineering, GCSE ’01, pages 10–24, London,

UK. Springer.

Munch, B. P. (1993). Versioning in a Software Engineering

Database — The Change Oriented Way. PhD thesis,

Tekniske Høgskole Trondheim Norges.

OMG (2011). UML Infrastructure. Object Management

Group, Needham, MA, formal/2011-08-05 edition.

Pohl, K., B

ockle, G., and van der Linden, F. (2005). Soft-

ware Product Line Engineering: Foundations, Princi-

ples and Techniques. Berlin, Germany.

Reichenberger, C. (1995). VOODOO - a tool for orthogonal

version management. In Estublier, J., editor, SCM,

volume 1005 of Lecture Notes in Computer Science,

pages 61–79. Springer.

Rochkind, M. J. (1975). The source code control sys-

tem. IEEE Transactions on Software Engineering,

1(4):364–370.

Schw

agerl, F., Buchmann, T., Uhrig, S., and Westfech-

tel, B. (2015). Towards the integration of model-

driven engineering, software product line engineer-

ing, and software conﬁguration management. In Ham-

moudi, S., Pires, L. F., Desfray, P., and Filipe, J., edi-

tors, Proceedings of the 3rd International Conference

on Model-Driven Engineering and Software Develop-

ment (MODELSWARD 2015), pages 5–18, Angers,

France. SCITEPRESS Science and Technology Pub-

lications, Portugal.

Schw

agerl, F., Uhrig, S., and Westfechtel, B. (2013).

Model-based tool support for consistent three-way

merging of EMF models. In Proceedings of the work-

shop on ACadeMics Tooling with Eclipse, ACME ’13,

pages 2:1–2:10, New York, NY, USA. ACM.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Addison-Wesley, Upper Saddle River,

NJ, 2nd edition edition.

Tichy, W. F. (1985). RCS — a system for version con-

trol. Journal of Software: Practice and Experience,

15(7):637–654.

olter, M., Stahl, T., Bettin, J., Haase, A., and Helsen, S.

(2006). Model-Driven Software Development: Tech-

nology, Engineering, Management. John Wiley &

Sons.

Walkingshaw, E. and Ostermann, K. (2014). Projectional

editing of variational software. In Generative Pro-

gramming: Concepts and Experiences, GPCE’14,

Vasteras, Sweden, September 15-16, 2014, pages 29–

38.

Westfechtel, B., Munch, B. P., and Conradi, R. (2001).

A layered architecture for uniform version manage-

ment. IEEE Transactions on Software Engineering,

27(12):1111–1133.

Zeller, A. and Snelting, G. (1997). Uniﬁed versioning

through feature logic. ACM Transactions on Software

Engineering and Methodology, 6(4):398–441.

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends
