A Language for Transforming the RDF Data on the Basis of Ontologies

Pavel Shapkin and Leonid Shumsky

Department of Cybernetics and Information Security,

National Research Nuclear University MEPhI (Moscow Engineering Physics Institute),

31 Kashirskoe Shosse, Moscow, Russian Federation

Keywords:

RDF, OWL, Transformations, Ontology.

Abstract:

Languages such as XSLT are used to transform XML documents based on their syntactical structure. The

emergence of Semantic Web technologies brings new languages such as RDF and OWL which are able to

represent the semantics of data. Currently there is no data transformation language which is capable of using

this semantic information. In this paper a language is described which is aimed at transforming the RDF data.

Like XSLT, it is based on templates. The transformation is driven by ontologies. Among the features of this

language is the ability to check the validity of template systems, which guarantees that the transformation

will terminate successfully without raising any errors. In order to prove this property the formal model of the

language is studied.

1 INTRODUCTION

The development of web technologies resulted in the

appearance of new languages, such as RDF and OWL,

which are aimed at representing the semantics of data

(Lassila et al., 1998; Smith et al., 2004). These lan-

guages form the basis of the Semantic Web — a Web

of “Linked Data” accompanied with ontologies which

enable to capture the meaning of data and expose it in

machine-readable form.

As a universal data representation language RDF

is suitable for solving data integration tasks. An inter-

esting use case for RDF occurs with the proliferation

of cloud computing and SaaS (Software as a Service)

applications. Being an open Web standard RDF suits

very well for integrating SaaS applications, which op-

erate in the Web environment. Since RDF is not used

in every system it is often needed to generate the RDF

representation from other formats and to transform

RDF graphs to different representations.

Among the systems that are suitable for RDF data

transformations we should mention the systems de-

scribed in (Furche et al., 2004). There also exist

a number of systems which adopt an XSLT-like ap-

proach to the RDF transformations (Kawamoto et al.,

2006; Davis, 2003). A major drawback of existing

systems is inability of inference on ontologies. More

to say, most of these systems do not even use OWL

documents as knowledge bases. There exist ontology

manipulation languages such as OPPL (Egana et al.,

2008) which is designed to automate routine knowl-

edge engineering tasks but is not suitable to develop

end-user ontology-based applications. Another ap-

proach to RDF transformation is to rely on SPARQL

CONSTRUCT statements (Corby et al., 2014; Alkha-

teeb and Laborie, 2008), but since SPARQL is origi-

nally a general-purpose query rather than data manip-

ulation language these transformations are not struc-

tured very well comparing to our approach that orga-

nizes transformations around ontology classes.

Our main idea is to structure transformation tem-

plates around ontology classes the same way as

methods for object manipulation in object-oriented

languages are structured around classes of objects.

Thereby the whole transformation process could be

modularized and driven by the structure of corre-

sponding ontologies. At the same time we gain pos-

sibilities to check templates for well-formedness and

validate them: these features prevent run-time errors

in the transformation process.

The paper is organized as follows: in section 2 we

give an example to illustrate the problems that can be

solved using the described language; section 3 deﬁnes

semantic templates — a formalism used for process-

ing the RDF data using ontologies; section 4 describes

the resulting language; in section 5 we give and dis-

cuss a series of template systems; the last section dis-

cusses some additional features of the template lan-

guage.

504

Shapkin P. and Shumsky L..

A Language for Transforming the RDF Data on the Basis of Ontologies.

DOI: 10.5220/0005479505040511

In Proceedings of the 11th International Conference on Web Information Systems and Technologies (WEBIST-2015), pages 504-511

ISBN: 978-989-758-106-9

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

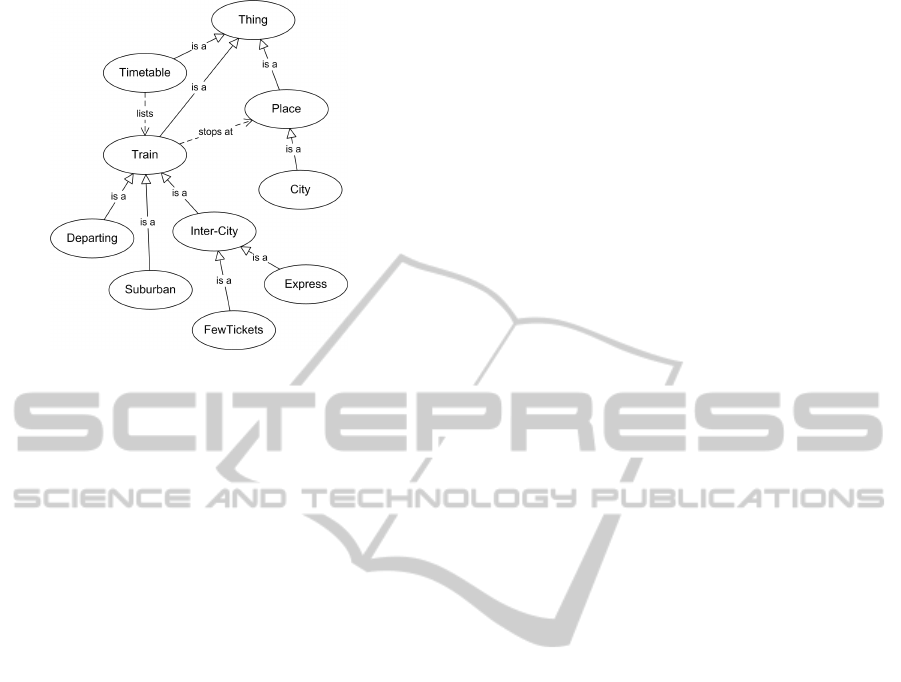

Figure 1: Train ontology.

2 MOTIVATING EXAMPLE

First we would like to introduce an example which

will be used later to illustrate how the language works.

Consider the task of generating a train timetable.

The source data is represented in the form of an RDF

document which corresponds to the ontology illus-

trated on ﬁgure 1. The ontology is presented in OWL.

This ontology is a simpliﬁed one used for exam-

ple. Let’s consider its classes. Trains are listed in the

timetable. Each train is described by a number, the de-

parture time and the list of stops. Trains stop at differ-

ent places, described by their names. A place might

be a city. Trains are divided into inter-city and sub-

urban, which are disjoint classes. Inter-city trains are

those that stop at least at one city, all the other trains

are considered suburban. Moreover, an inter-city train

is called express train if it stops only in cities. We

would like to be able to render an HTML representa-

tion of the timetable, which contains a list of trains.

Each type of train has to be represented differently.

Additionally, we would like to mark trains that are

departing in an hour (Departing concept). Also, inter-

city trains have a limited number of tickets and we

would like to highlight those for which there are less

than 10 tickets left (FewTickets concept).

The natural way to describe the transformation

given is to bind the transformation rules to ontology

classes. Then the transformer has to execute atomic

transformations for the RDF resources contained in

the source document, choosing the most suitable rules

basing on the classes that correspond to these re-

sources and the subsumption relations between them.

To compute the subsumption hierarchy and do in-

stance checking an OWL reasoner might be used.

We will represent such transformation rules in

form of “templates”, and the whole transformation

will be deﬁned by the “template system”. We will get

back to this example after introducing the language

proposed. We will start with some formal deﬁnitions,

then we will proceed to the syntax for the language,

and in the end we will show the solution of this prob-

lem.

3 A FORMAL MODEL FOR THE

TEMPLATE-BASED RDF

TRANSFORMATION

LANGUAGE

3.1 Basic Ideas

We will use an approach similar to XSL (Clark et al.,

1999). Every transformation is deﬁned as a set of

templates — a template system . Each template is

bound to a class in the ontology and can transform

only its instances. By doing so we make the whole

transformation process ontology-driven. We involve

the hierarchy of concepts in the computational pro-

cess. Moreover, if an OWL reasoner is used, we can

leverage the decidability of subsumption. It enables

us to dynamically compute the subsumption hierar-

chy of concepts and thus to dynamically change the

transformation process in response to the changes in

the ontology.

When a template system is applied to an RDF re-

source that represents an individual this resource is

processed using the “best matching template”. The

best matching template is a template which corre-

sponds to the most speciﬁc concept for that individ-

ual. Situations might occur in which the best match-

ing template cannot be chosen unambiguously, e.g.

when there are two templates and each of them cor-

responds to a concept that has the input object as an

instance. To avoid such situations we will introduce

additional limitations on the structure of template sys-

tems. We call these limitation “well-formedness”.

3.2 Template Matching Algorithm

First, we will introduce the concept of template sys-

tem base and well-formedness. We will use conven-

tional notation for description logic terms and opera-

tions (Baader et al., 2007). Because our language is

aimed at OWL, we will mostly use the term “class”

for “concept” and “property” for “role” throughout

the paper.

ALanguageforTransformingtheRDFDataontheBasisofOntologies

505

Deﬁnition 1. If ts is a template system then its base

base(ts) is a set of concepts which correspond to the

templates in that system.

Deﬁnition 2. The template system ts is well-formed

iff the following conditions hold:

1) ts contains at most one template for each concept;

2) the set of concepts extbase = base(ts)∪{⊥} forms

a lower semilattice, i.e. for every C, D ∈ extbase

their intersection C u D is also in extbase.

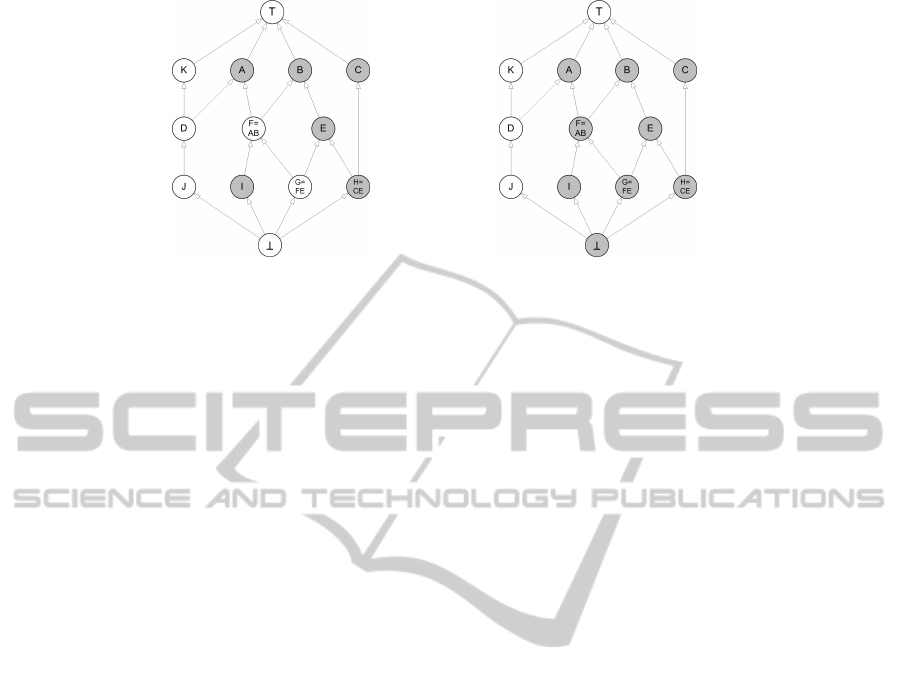

Figure 2 illustrates the semilattice conditions. As-

sume that none of the concepts involved is empty (i.e.

not equal to ⊥). In this case the concepts marked on

the ﬁgure 2(a) form a set that is not a lower semilat-

tice: e.g. it contains concepts A and B, but does not

contain their nonempty intersection F. On the con-

trary, the set of concepts marked on the ﬁgure 2(b) is

a lower semilattice: all intersections of its concepts

are also included in this set, as well as the empty con-

cept which is an intersection of disjoint concepts.

Well-formedness has to guarantee that if the tem-

plate system is applicable to an RDF resource, i.e.

there is a template suitable for the individual that this

resource represents, this template can be chosen un-

ambiguously. Consider an individual i which is an

instance of A u B, but is not an instance of I or E. We

cannot choose the most speciﬁc concept for i from the

concepts marked on the ﬁgure 2(a): both A and B are

candidates for it. On the other hand, concepts marked

on the ﬁgure 2(b) contain the concept F which is the

most speciﬁc concept for i.

We will call the process of checking a template

system for well-formedness the veriﬁcation.

In order to construct the template matching algo-

rithm we have to introduce the notion of the template

depth.

Deﬁnition 3. The depth of a template τ with a con-

cept C in template system ts is the value of function

depth(τ, T ). The function is evaluated by the follow-

ing rules:

1. If there is no template in ts with a concept D such

that C @ D then

depth(τ, ts) = 0.

2. If there is a number of templates t

{

i∈1..n

}

in ts

which correspond to concepts D

{

i∈1..n

}

such that

C @ D

for any i, then

depth(τ, ts) = max

i∈1..n

(depth(t

, ts)) + 1.

The depth shows how deep the concept of a tem-

plate lies in the subsumption hierarchy of the template

system concepts. The following theorem is relatively

easy to prove:

Theorem 1. For a well-formed template system T

and individual i if τ ∈ θ(T ) has a maximum depth

among the templates for which i is an instance of the

corresponding concept, then

1) such τ is unique in ts;

2) this template concept is most speciﬁc of concepts

from ts for i, that is there is no template in the tem-

plate system with more speciﬁc concept that has i

as an instance.

The proof of this theorem is pretty straightfor-

ward and we will omit it here. This theorem en-

ables to construct the algorithm for choosing the best

matching template for an individual. The main idea

is that templates must be traversed in the descending

order of depth. By the stated theorem the ﬁrst tem-

plate whose concept has the given individual as an in-

stance is the best matching template. This algorithm

relies on the subsumption relation, therefore the cor-

responding function that chooses the matching tem-

plate for a given individual is computable as long as

the subsumption is decidable. Thus if the ontology

used in a template system is deﬁned in OWL DL and

the system is well -formed there is a guarantee that

the transformations will be unambiguous.

4 THE RESULTING LANGUAGE

4.1 Syntax

We would like to give a detailed description only for

the “core language”, i.e. the part of our language that

is responsible for binding transformations to concepts

and leveraging the subsumption hierarchy. Besides

this part our language also includes different expres-

sions which are needed to make the transformations

useful: conditional expressions, counting and sort-

ing expressions, value processing expressions such as

string manipulating functions etc.

We will use BNF notation to describe the syntax

of our XML-based transformation language. The syn-

tax of the transformation language is shown on ﬁg-

ure 3. Only the mandatory attributes are included,

the optional ones are omitted. The root element

(templates) contains a list of template elements.

A single template system is interpreted as a spe-

ciﬁc transformation. Often a single transformation

combines different representations of the same ob-

jects: e.g. in our example with train timetable we

might have one template to generate train informa-

tion and another template that generates “outer” ap-

pearance to mark departing trains. For these purposes

we will need two different template systems that act

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

506

(a) Marked concepts do not

form a lower semilattice

(b) Marked concepts do

form a lower semilattice

Figure 2: Concepts semilattice example (AB denotes A u B)

templates ::= template — template templates

template ::= <template class="class-uri" mode="system-id"> individual-exprs </template>’

individual-exprs ::= individual-expr — individual-expr individual-exprs

individual-expr ::= apply-templates — for-each — common-expr

common-expr ::= content — <uri/> — annotation-value

annotation-value ::= <annotation-value prop="annotation-uri" />

for-each ::= <for-each prop="object-property-uri"> individual-exprs </for-each> —

<for-each prop="datatype-property-uri"> for-each-value-exprs </for-each>

for-each-value-exprs ::= for-each-value-expr — for-each-value-expr for-each-value-exprs

for-each-value-expr ::= <value/> — content

apply-templates ::= <apply-templates mode="system-id"/>

Figure 3: The RDF transformation language syntax.

as different “modes” of the same transformation. To

handle this situation we added a possibility to com-

bine different template systems in one transformation:

each template element has a mode attribute which con-

tains an identiﬁer of the corresponding template sys-

tem.

The transformation process is understood as a re-

cursive application of templates. Each template ap-

plication is substituted by its result. The resource to

which the template currently applies is called the cur-

rent resource. Places where the next application has

to occur are marked with the apply-templates tag.

In its mode attribute contains the identiﬁer of the tem-

plate system that has to be applied. Besides this ele-

ment contents of templates might include some com-

mon expressions and the for-each element.

By common expressions we mean

• arbitrary XML elements or text content;

• special elements that are used to extract URI of

the current resource and to extract the values of

annotation properties.

The for-each element is used to traverse the

properties of the current individual. When a

for-each element is processed all the values of the

corresponding property of the current individual are

extracted; afterwards this element is substituted by

the concatenation of the results of processing each of

these values. The contents of the for-each element

differ depending on whether an object or a datatype

property is speciﬁed. When an object property is

used, the element may have the same contents as tem-

plate elements, in other cases its contents are limited

to static content or the value element that extracts the

current value.

It is possible to use the construct

as a shortcut for

<for-each

prop="property-uri"><value/></for-each>

4.2 Validating Templates

The same way as the XML documents might be ver-

iﬁed for well-formedness and validated against the

XML Schema, we would like to have an opportu-

nity to validate templates against a given ontology.

The validation process is pretty simple and is used to

guarantee that whenever a template is applicable to an

individual this individual will have all the properties

ALanguageforTransformingtheRDFDataontheBasisofOntologies

507

used in this template. In turn, it guarantees that appli-

cation of valid templates to suitable individuals will

not raise any “property does not exist” errors.

Suppose that we would like to check the validity

of a template which corresponds to a class C. We have

to traverse the body of that template and check every

access to the properties of the current individual (e.g.

by means of the for-each construct). If for every

property p accessed the assumption

C v ∃p.>

holds then the template is valid. This assumption

guarantees that every instance of C will have at least

one property p with a value belonging to a top concept

(Thing class) — e.g. any individual. This assumption

does not depend on the range of p, because we only

have to check the existence of this property. If the

ontology is consistent and the property exists, it will

point to an object from its range.

A special case is when we check property acces-

sors that occur inside a for-each element. In this

case we have to use a concept that corresponds to the

range of the property used in this for-each element

instead of C in the above mentioned assumption.

4.3 Executing Transformations

To execute the transformations one has to supply the

following parameters to the transformation processor

• a set of RDF documents representing the ontology

and the input data;

• the URI of a resource to start the transformation

with.

The execution of a template system should solve

an important problem of processing cycling links. In

order to avoid inﬁnite computations we have to detect

these situations. The algorithm for solving this prob-

lem uses the notion of context:

1. The transformation starts from an empty context.

2. Whenever a template is applied to an individual

we add this individual to the context of that tem-

plate.

3. When the template ﬁnishes processing the pro-

cessed individual is removed from that templates’

context.

4. If a template is applied to an individual and this

individual is already in the context for that tem-

plate, we conclude that a cycle is encountered.

When a loop is detected the transformation stops

with an error.

<apply-templates prop="lists"/>

</body></html>

</template>

</template>

<value prop="departsAt"/> -

#<value prop="hasNumber" />

<div class="info"><apply-templates

mode="info"/></div>

</template>

<count-of prop="stopsAt" /> stops

</template>

to <apply-templates prop="stopsAt" />

with <count-of prop="stopsAt"

class="NotCity"/> stops

(<value prop="ticketsLeft" /> tickets left)

</template>

<template mode="info"

class="Place"></template>

<value prop="hasName"/>,

</template>

<b>express to <apply-templates

prop="stopsAt" /></b>

(<value prop="ticketsLeft"/> tickets left)

</template>

</templates>

Figure 4: Transformation example.

5 TEMPLATE SYSTEM

EXAMPLE, VERIFICATION

AND VALIDATION

Now we can construct the template systems needed to

solve our example task. These templates are shown

on ﬁgure 4. To count the number of stops of a train

a counting expression count-of is used. We omitted

the code that is used to format dateTime-typed val-

ues of departure times and the deﬁnitions of URI pre-

ﬁxes. Using these templates to transform an input we

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

508

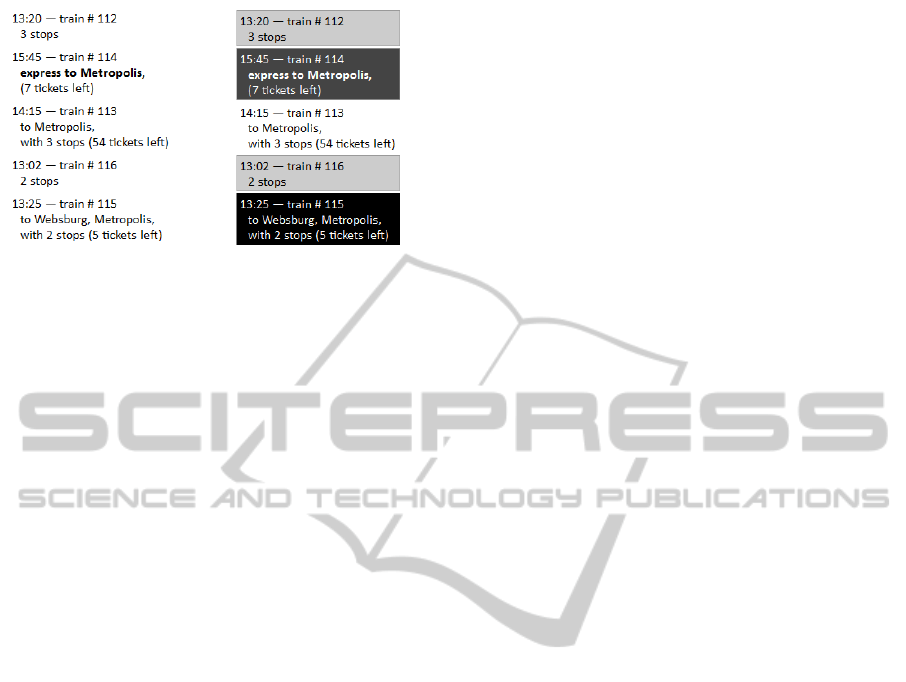

(a) (b)

Figure 5: Renderings of example transformation results.

<div class="light"><apply-templates

mode="header"/></div>

</template>

<div class="dark"><apply-templates

mode="header"/></div>

</template>

Figure 6: Example 2.

can obtain an HTML document rendering of which is

shown on ﬁgure 5(a).

By constructing the templates shown on ﬁgure 4

we have not solved our task completely. Originally,

we also needed to mark trains that are departing dur-

ing the next hour (suppose that the current time is

13:00) and trains that are running out of tickets. As-

sume that we have to mark these trains with different

colors: departing trains have to be rendered with a

light-gray background, trains that are have tickets left

— on a dark background.

We already separated “outer” templates that gen-

erate outer appearance of a train record, so we have

to include two additional outer templates for corre-

sponding classes. These templates are shown on ﬁg-

ure 6. Now trains # 111, 114, 115, 116 will be

marked. Nevertheless there is an inconsistency in

the resulting template system: there are less than 10

tickets left for train # 115 and it is departing in an

hour, but we have no template to deal with this situa-

tion. This inconsistency is exactly the one that can be

caught using the veriﬁcation.

In fact the “outer” template system in our example

is not well formed: there are templates for Departing

and FewTickets classes, but no template for their inter-

section is present. At the same time this intersection

is not empty: train # 115 is an instance of this inter-

section concept.

When we add the missing template for the inter-

<class>

<owl:Class>

<owl:intersectionOf

rdf:parseType="Collection">

<rdf:Description

rdf:about="Departing"/>

<rdf:Description

rdf:about="FewTickets"/>

</owl:intersectionOf>

</owl:Class>

</class>

<div class="black"><apply-templates

mode="header"/></div>

</template>

Figure 7: Example 2.

section, all template systems will be well formed. The

template that we have to add is shown on ﬁgure 7, it

renders a train on a black background. The ﬁnal ren-

dering is shown on ﬁgure 5(b).

In this template we do not use a predeﬁned class,

we give its deﬁnition in the class element of the tem-

plate instead. This is a feature of the transformation

language that uses the power of OWL as an algebraic

language for class deﬁnitions: every class deﬁnition is

an algebraic expression and we can use these expres-

sions instead of predeﬁned classes. Combined with a

reasoner we can compute subsumption relations for a

class that corresponds to an expression “on-the-ﬂy”.

In addition to veriﬁcation we can also validate

our template systems according to the procedure de-

scribed in the section 4.2. The templates are valid

and this guarantees that transformations will be car-

ried out without errors.

6 ADDITIONAL FEATURES

As it was mentioned before we described here only

the “core language” that leverages the beneﬁts of on-

tology model in order to operate the transformations.

The language has additional constructs that improve

the expressiveness of transformations which we omit

in this article. However there are some constructs that

correspond to several features of OWL that we would

like to mention. Some of them are already imple-

mented, others are in development.

Besides the class subsumption hierarchy, OWL

supports the subsumption of properties and same-as

relationships. Currently we have support for these

features in our language.

To leverage subsumption of properties one can

write special templates for property values. These

templates apply whenever a value of the correspond-

ALanguageforTransformingtheRDFDataontheBasisofOntologies

509

ing property or its subproperty is processed using

the value tag. Inference of property subsumption

granted by the reasoner makes it possible to select

the most suitable template in every case and to verify

property templates. Property templates can be under-

stood as reusable snippets that reduce repeatable code

for property value processing.

The same-as reasoning is used in another variant

of templates — individual templates. These templates

are bound to concrete individuals in the ontology.

Provided that there is a same-as relation between indi-

viduals i and i

and the individual template is present

for i then this template is used whenever a template

needs to be applied to i

. We can validate an individ-

ual template using known assumptions about this in-

dividual and by computing the most speciﬁc concept

for it.

Another feature that is currently under develop-

ment are class and property templates. These tem-

plates apply directly to classes and properties in con-

trast to previously mentioned templates that apply to

class instances and property values. Class templates

can be used to render a description of a class which

can be based on the values of annotation properties.

These templates could also be used to process (i.e.

apply templates to) the set of known instances of the

corresponding class as well as the sets of its known

subclasses or superclasses.

A class template is applicable to all the classes that

subsume the corresponding class. The same holds for

property templates. Class and property template sys-

tems might be veriﬁed in the same way as other tem-

plate systems.

7 CONCLUSIONS AND FUTURE

WORK

We described a language for ontology-driven trans-

formations of the RDF data. Transformations consist

of templates. Each template is bound to a class from

an ontology and is suitable to transform its instances.

Template bodies can be veriﬁed and validated against

the corresponding class deﬁnition in order to to elimi-

nate possible run-time transformation errors. We have

shown an example which illustrates the process of

veriﬁcation.

The transformation syntax is based on XML but

the transformation result can be of any text-based

format; thus, one can deﬁne RDF to XML, RDF to

HTML, RDF to plain text or even RDF to RDF trans-

formations and so on. The language is currently im-

plemented on the Java platform using the Scala lan-

guage. Jena framework in conjunction with Pellet rea-

soner are used for ontology processing.

Utilization of the reasoner helps to transform doc-

uments relying upon their semantic structure:

• the transformation process will pick up the right

templates not only for individuals that state their

type explicitly but also for individuals that are im-

plicitly classiﬁed by the reasoner;

• the transformation result for different documents

which are semantically equivalent will be the

same, e.g. if the ontology states that p

is the

inverse of property p then documents containing

a p b and b p

a will be equally transformed.

There is a number of extensions that we plan to

implement in our future work, e.g. the possibility

to bind templates to “anonymous” classes expressed

as description logic formulas (‘married people’, ‘mar-

ried people with kids’ etc.): right now it is only pos-

sible to bind to “named” classes by their URI.

The principles of ontology-based template trans-

formations are utilized in a more general framework

for the processing of RDF data. Whereas the tem-

plate language is suitable only to generate different

representations, i.e. construct some strings, from the

RDF resources, the framework is suitable to execute

arbitrary operations. This result is achieved by sub-

stituting templates with functions whose return type

is not limited to strings. Interesting point is that this

framework might be considered as a means of object

oriented programming (OOP) on ontologies. Instance

templates correspond to instance methods and class

templates — to static methods. This enables to use

ontologies as class hierarchies in OOP programs with-

out losing reasoning capabilities.

REFERENCES

Alkhateeb, F. and Laborie, S. (2008). Towards extending

and using SPARQL for modular document generation.

In Proceedings of the eighth ACM symposium on Doc-

ument engineering, pages 164–172. ACM.

Baader, F., Calvanese, D., McGuinness, D., Nardi, D., and

Patel-Schneider, P. (2007). The Description Logic

Handbook: Theory, Implementation, and Applica-

tions. Cambridge University Press.

Clark, J. et al. (1999). XSL transformations (XSLT) ver-

sion 1.0. W3C Recommendation 16 November 1999.

Corby, O., Faron-Zucker, C., and Gandon, F. (2014).

SPARQL template: A transformation language for

RDF. report, Inria RR-8514.

Davis, I. (2003). RDF template language 1.0. Speciﬁcation

Draft.

Egana, M., Antezana, E., and Stevens, R. (2008). Trans-

forming the axiomisation of ontologies: The ontology

pre-processor language. Proceedigns of OWLED.

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

510

Furche, T., Bry, F., Schaffert, S., Orsini, R., Horroks, I.,

Kraus, M., and Bolzer, O. (2004). Survey over exist-

ing query and transformation languages. REWERSE.

Kawamoto, K., Kitamura, Y., and Tijerino, Y. (2006).

Kawawiki: A semantic wiki based on RDF templates.

In Proceedings of the 2006 IEEE/WIC/ACM interna-

tional conference on Web Intelligence and Intelligent

Agent Technology, pages 425–432.

Lassila, O., Swick, R. R., Wide, W., and Consortium,

W. (1998). Resource Description Framework (RDF)

Model and Syntax Speciﬁcation. World Wide Web

Consortium.

Smith, M. K., Welty, C., and McGuinness, D. L. (2004).

OWL web ontology language guide. W3C Recommen-

dation 10 February 2004, 10.

ALanguageforTransformingtheRDFDataontheBasisofOntologies

511
