Towards Enhanced Presentation-based Teaching of Programming

An Interactive Source Code Visualisation Approach

Reinout Roels, Paul Mes¸tereag

a and Beat Signer

Web & Information Systems Engineering Lab, Vrije Universiteit Brussel, Pleinlaan 2, 1050, Brussels, Belgium

Keywords:

Slideware, Presentation-based Teaching, Programming.

Abstract:

The teaching of programming concepts and algorithms very much depends on the mental models developed

by scholars when learning how to program. There is a rich body of research on how to best teach program-

ming. Nevertheless, many instructors follow a presentation-based approach where existing slideware such as

PowerPoint or Keynote is used to show a sequential series of slides with static pieces of source code. Such a

presentation-based approach based on existing slideware tools might not be optimal for the authoring as well

as the delivery of programming courses. We outline how presentation-based eduction in programming can be

improved by paying attention to existing research on how to best teach programming. We derive a number

of requirements for more efﬁcient source code visualisation in presentation tools and present an architecture

as well as an extensible prototype for enhanced presentation-based teaching of programming. The presented

interactive source code visualisation plug-in for the MindXpres presentation tool can be seen as a step towards

enhancing existing slideware in order to achieve a more efﬁcient and interactive teaching of programming

concepts and algorithms. The ultimate goal of the presented approach is to present source code in a way that

reinforces a user’s mental model and thereby increases the knowledge transfer of presentations delivered in

programming courses.

1 INTRODUCTION

The teaching of programming concepts and algo-

rithms is a fundamental aspect of any Computer

Science and Engineering degree. However, grasp-

ing the concepts taught in programming courses is

far from trivial and has been proven to be a chal-

lenge for both students as well as teachers (Jenkins,

2001b; Bennedsen and Caspersen, 2007; Gomes and

Mendes, 2007; Jenkins, 2002; Lahtinen et al., 2005;

McCracken et al., 2001). Research from the early

1980s highlights the importance of mental models

when learning how to program (Mayer, 1981). As

deﬁned by Mayer (Mayer, 1981), a mental model is

“a mental representation of the components and the

operating rules of the system” and the completeness

of this representation may vary. An incomplete rep-

resentation that differs from the actual characteristics

of the system results in an incomplete understanding

of how the computer works and will cause the novice

programmer to have difﬁculties in writing correct pro-

grams (Ma et al., 2007). This is further conﬁrmed

by Milne and Rowe (Milne and Rowe, 2002) who

state that students who are not able to create a mental

model of the program execution do not have the abil-

ity to comprehend what is happening to the program

in memory. Hence the importance of students being

able to retell the learned concepts in their own words

was also ﬁrst brought up by Mayer (Mayer, 1981). It

is widely accepted that by having access to a more

complete mental model of the system, the learning

and practising of programming can be achieved in a

more effective way (Ca

nas et al., 1994).

Given the importance of such a mental model, it

is not surprising that researchers aim to develop tools

and methods in the form of visual aids for reinforcing

the mental model of students (Ma et al., 2007; Smith

and Webb, 1995). In a procedural programming lan-

guage, the program becomes a sequential process.

This process is represented by various changes of

states after an expression has been executed. There-

fore, Mayer (Mayer, 1981) states that a possible solu-

tion for providing an effective mental model is to use

visuals and show to the user the changes in state—

such as variable changes—while the program is exe-

cuted. In terms of teaching methods, Jenkins (Jenk-

ins, 2001a) argues that the main role of a teacher in

programming courses should be the one of a motiva-

Roels R., Me¸stereag

a P. and Signer B..

Towards Enhanced Presentation-based Teaching of Programming - An Interactive Source Code Visualisation Approach.

DOI: 10.5220/0005445300980107

In Proceedings of the 7th International Conference on Computer Supported Education (CSEDU-2015), pages 98-107

ISBN: 978-989-758-107-6

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

tor. In many other areas of computing the teacher is

mainly a communicator of information. However, the

teaching of programming based on just presenting in-

formation such as syntax and structure in a lecture is

not enough as it is not immediately clear how states

change and thus there is a lack of contribution to a

student’s mental model.

Nevertheless, the majority of programming

courses are at least partially taught via lectures ac-

companied by slide decks which is not in line with

the research in the domain of teaching how to pro-

gram that has been mentioned before. In fact, these

slide decks often form a major part of the study ma-

terial. To make matters worse, slides that have been

created by slideware such as PowerPoint or Keynote

are a particularly unsuitable medium for presenting

source code. As argued by Tufte (Tufte, 2003), slide

decks have evolved from physical counterparts such

as photographic slides or transparencies for overhead

projectors and therefore also share the limitations of

these physical media types. Content is presented in

a strictly linear way, is fairly static and spatially re-

stricted by the boundaries of the physical slides. In

addition to the consequences on knowledge transfer

during a lecture, these tools also impose a number of

issues during the authoring phase by a presenter who

would like to show some source code. In program-

ming environments, source code is usually indented

and colour coded via syntax highlighting in order to

improve the readability. However, when source code

is copy and pasted into a presentation, this formatting

is often lost and presenters are required to manually

format the code. Furthermore, even simple examples

of algorithms result in lengthy blocks of source code

and spatial restrictions make code less understand-

able. Due to these spatial restrictions, the presenter

is forced to spread their code examples over multi-

ple slides. In addition, they have to jump back and

forth as programming concepts such as methods, con-

ditional statements or loops cause the program to be

executed in an order that is different from how it is

written down.

We introduce an approach to present source code

in a way that reinforces a user’s mental model and

thus helps to increase the knowledge transfer of pre-

sentations delivered in programming courses. In addi-

tion, our solution allows presenters to include source

code in their presentations without the hassle usually

associated with existing slideware tools. We start by

discussing some related work in Section 2. Based on

the existing body of work and some of the shortcom-

ings of current solutions, we derive and formulate a

number of requirements for a more efﬁcient source

code visualisation in presentation tools in Section 3.

We then detail our proposed solution in Section 4 and

present the technical details of our prototype which

has been implemented as a plug-in for the MindXpres

presentation tool (Roels and Signer, 2013; Roels and

Signer, 2014b) in Section 5. Some concluding re-

marks are provided in Section 6.

2 RELATED WORK

In the context of presentation tools, there exists lit-

tle to no academic work trying to improve upon the

issues associated with the presentation and visualisa-

tion of source code. At authoring time, one can see

that state-of-the-art presentation tools do not make

any attempt to support the authoring and integration

of source code. As mentioned before, the indenta-

tion and syntax highlighting of source code is lost

when copy and pasting from the programming envi-

ronment to a presentation tool such as PowerPoint.

Common workarounds include the use of command

line tools such as pygmentize

or web-based tools like

ToHTML

in order to convert source code to a repre-

sentation that preserves the formatting when copy and

pasted (e.g. HTML or RTF). While this approach ad-

dresses the issue of manual formatting, it remains a

tedious workaround.

When broadening our view beyond the domain

of presentations, we can ﬁnd research that builds on

the principles outlined in the previous section. In

all cases these are stand-alone desktop applications

that use visualisations to help users build a mental

model of a program. One of the earliest tools is

the Bradman tool (Smith and Webb, 1995) for the

C programming language. It mainly relies on showing

state changes after the execution of each line of code

and an evaluation of the tool revealed an improved

understanding of the code by its users (Smith and

Webb, 2000). Another solution is the VIP tool (Virta-

nen et al., 2005) for a subset of the object-oriented

C++ programming language. While the VIP tool

also focusses on visualising state changes, it dis-

tinguishes itself by making the concept of pointers

and references—which is considered to be a difﬁcult

concept to grasp for students—more understandable.

Jeliot 3 (Moreno et al., 2004) is a tool for visualising

the object-oriented Java language. Given the nature

of Java, the tool also visualises the objects and their

relationships in an UML-like notation in addition to

state changes while the program is executed. How-

ever, an evaluation of Jeliot highlighted that the ani-

mations were hard to interpret and apply for students,

http://pygments.org/docs/cmdline/

http://tohtml.com

TowardsEnhancedPresentation-basedTeachingofProgramming-AnInteractiveSourceCodeVisualisationApproach

making the evaluation inconclusive (Moreno and Joy,

2007). Another notable feature of Jeliot is the extensi-

ble visualisations, allowing potential new third-party

visualisations to be added at a later stage.

The notional machine (Berry and K

olling, 2013)

is another recent tool for visualising Java programs

which bases itself on the work of Boulay (Boulay,

1986). While being similar to Jeliot, the notional ma-

chine intentionally limits the stepping granularity for

state changes to the level of method invocations and

method returns rather than to single statements. Ad-

ditionally, the notional machine also allows methods

to be invoked interactively (on demand) in contrast to

the other tools where the execution is only possible in

the order of the logical execution ﬂow.

Finally, there is a category of tools that focusses

on a speciﬁc aspect of program execution. For in-

stance, RGraph (Sa and Hsin, 2010) is a solution that

generates a static visualisation of recursion graphs for

Java programs in order to help students with under-

standing recursion.

Note that we intentionally limited ourselves to the

tools built for supporting students during the learning

process. There are plenty of commercial products that

visualise code characteristics such as the amount of

lines or dependencies, performance metrics or editing

history, but these solutions serve an entirely different

purpose than the aforementioned tools.

3 REQUIREMENTS

Based on a detailed analysis of the related work

presented in the previous section, we derived a

number a requirements for more efﬁcient source

code visualisation in presentation tools. While these

requirements overlap with the requirements for

stand-alone desktop tools, the use in the context of a

lecture requires some further thought. For instance,

the typical traditional lecture mainly consists of a

unidirectional ﬂow of information as students are not

as involved as, for example, in lab sessions.

R1: Automatic Indentation and Syntax High-

lighting. A ﬁrst step towards making source code

understandable is to make it more readable. Inden-

tation and syntax highlighting are well-established

methods to improve the readability of source code as

they help to interpret scope and syntactic structures.

Additionally, the indentation and syntax highlighting

of source code in a presentation makes the code

similar to what students are used to in their program-

ming environments. However, in contrast to existing

practices in presentation tools, the formatting of

code should not be a burden to the presenter and

should be done automatically by the presentation tool.

R2: Efﬁcient Navigation of Source Code. When

explaining the working of a piece of source code,

it is necessary to display the code as part of a

presentation. However, even simple programs consist

of more lines of code than would ﬁt on a single slide.

Additionally, programs rarely execute sequentially

and may jump back and forth between different

pieces of code, not necessarily in the order in which

they were written. This forces presenters to jump

back and forth between slides making it difﬁcult for

both the audience as well as the presenter to follow

the program ﬂow.

R3: Visualise the Working of the Code. From

related work we learn that the mental model of a

program can be built much easier when accompanied

by visual aids. In addition to showing the code of

the program, the tool might for instance display state

changes or illustrate concepts such as pointers or

recursion in order to make it clearer what is actually

happening when the program executes. The idea

of visualising source code in a dynamic way is

supported by recent studies showing that the use of

dynamic media brings measurable improvements

in knowledge transfer over the use of static me-

dia (Holzinger et al., 2008).

R4: Integration in Presentation Tools. As slide

decks are often used during lectures, it makes sense

to integrate the interactive visualisations directly into

our presentation rather than relying on a stand-alone

application. If the interactive source code visualisa-

tion is not integrated into the presentation tool, the

presenter is forced to switch between applications

which takes time and breaks the ﬂow of the presenta-

tion.

R5: Extensible Support for Multiple Lan-

guages. Even though there are a few more commonly

used programming languages in the list of all existing

languages, there is no consensus on what language to

teach in introductory programming courses. While

each of the stand-alone tools presented in Section 2

only focusses on a single language, we believe that

a tool for use in presentations should be able to deal

with more than one language. By supporting only a

single language, the tool would automatically be ex-

cluded from being used in the larger share of lectures

that use other languages. Additionally, we claim that

the set of supported programming languages should

be extensible by third parties instead of limiting

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

100

ourselves to a ﬁxed set of languages.

R6: Extensible Visualisation Choices. It has been

shown that graphical representations of programming

concepts have an important role in the construction

of a mental model (George, 2000; Vel

azquez-Iturbide

and P

erez-Carrasco, 2010). However, different

visualisations are needed for different scenarios. Not

only do programming languages have different char-

acteristics (e.g. object-oriented versus procedural) but

also the topic may inﬂuence the type of visualisations

required for the program. Related work shows that

customised visualisations help with the teaching

of speciﬁc concepts such as memory pointers or

recursion (Dann et al., 2001). It therefore makes

sense to allow the presenter to select the desired

visualisation apart from just showing some source

code. Additionally, it should be possible that the pool

of visualisations can be extended, especially when

considering the previous requirement R5.

R7: Interactive Program Execution. Next to visu-

alising a program, the execution might also be made

more interactive and controllable by the presenter.

For instance, the presenter might want to show how

the same program reacts to different kinds of input,

or they may wish to execute different parts of the

program based on different scenarios or feedback

from the students.

4 INTERACTIVE SOURCE CODE

VISUALISATION

Based on the requirements presented in the previous

section, we now introduce our approach towards pre-

senting source code in a more accessible and efﬁcient

way. In order to fulﬁl requirement R4, it is obvious

that our solution should integrate into an existing pre-

sentation tool. As the most basic feature the presenter

should be able to include any piece of source code in

a presentation and the tool should present it in a read-

able manner. From a technological standpoint there

is no reason why a presentation tool could not auto-

matically handle formatting issues such as indenta-

tion and syntax highlighting. A user can either explic-

itly specify the language or simple techniques such as

Bayesian ﬁlters can be applied to automatically detect

the programming language of a piece of source code.

Since a programming language’s syntax is formally

deﬁned, the parsing and syntax highlighting is hardly

a challenge. Nevertheless, to the frustration of many

presenters this simple feature is not present in current

presentation tools and should therefore be provided

by our tool as demanded by requirement R1. In order

to break free of spatial restrictions, we suggest that

source code should be scrollable if it does not ﬁt on a

single slide rather than presenting isolated chunks of

code spread across slides. This allows the presenter

to illustrate source code more coherently as it is eas-

ier for audience members to grasp the bigger picture.

Making the code scrollable contributes to the naviga-

tion of the source code and therefore also addresses

requirement R2.

While these aesthetic improvements enhance

knowledge transfer, related work indicates that the vi-

sualisation of program execution may be one of the

most important techniques to help students in build-

ing a mental model of a program. Therefore our solu-

tion should not only display the static source code but

one should also be able to step through the execution

of the program in forward or backward order. This

does not only help in illustrating the program ﬂow,

but also state changes can be shown simultaneously

to highlight how each line of code inﬂuences the state

of the program as described in requirement R3. Since

the presenter does not always want to step through

the program execution from the very beginning to the

end, it also makes sense to provide a means of manu-

ally jumping to the relevant parts of the source code.

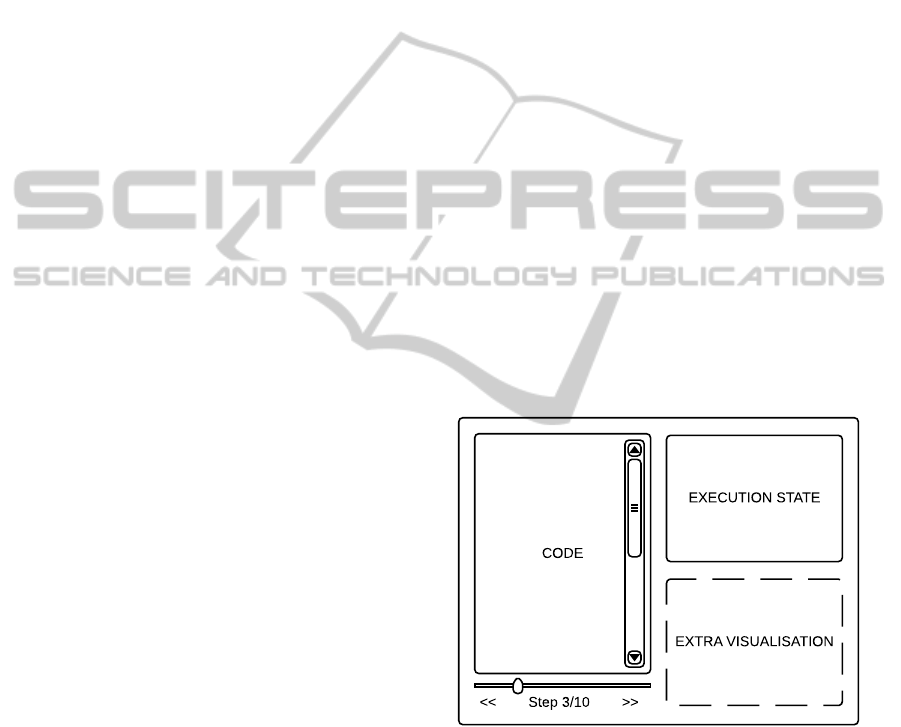

Figure 1: Source code visualisation mock-up.

In order to fulﬁl requirement R5, an interactive

source code visualisation solution should not limit

itself to a single programming language. The tool

should be able to handle different languages and

the resulting code visualisation and execution should

work in the same way, regardless of the language.

However, the execution and interpretation of pro-

grams is language dependant and therefore it is im-

possible to offer a generic implementation that is

guaranteed to work for all languages. We address

this challenge by offering modular language support.

TowardsEnhancedPresentation-basedTeachingofProgramming-AnInteractiveSourceCodeVisualisationApproach

101

Language-speciﬁc functionality should be bundled to-

gether as a module with a predeﬁned interface so that

the tool can select the corresponding module based on

the detected language. The language-speciﬁc module

is then responsible for interpreting the execution of

the program and translating it to a generic representa-

tion that is understood by the visualiser. This way, the

tool can support a wide variety of languages regard-

less of technical differences and even allows the set of

supported languages to be extended by third parties.

Finally, in addition to the visualisation of the

source code and state changes we deem it meaning-

ful to provide some further optional graphical visu-

alisation. As discussed in Section 2, visualisations

have been developed to provide a better understand-

ing of concepts such as memory pointers or recur-

sion. These extra visualisations should also be imple-

mented as interchangeable modules in order that they

can be extended. They can make use of the generic

execution representation provided by the language-

speciﬁc modules and are thus language independent.

The visualisation module gets the execution data such

as state changes and method invocations in the com-

mon format and does not have to deal with language-

speciﬁc details. Note that this also means that visual-

isation modules can be reused for different languages

since, for example, recursion is a concept available in

many languages.

A mock-up of our proposed solution is shown Fig-

ure 1. Based on the real estate available on a slide, the

left half of the slide is dedicated to the visualisation of

the source code. Note that the source code is properly

indented, syntax highlighted and scrollable if neces-

sary. The slider below the code allows the presenter

to quickly move to a particular point in the execution

and the buttons underneath allow them to go through

the code one step at a time, either forwards or back-

wards. The right-hand side is dedicated to visuali-

sations that adapt as the presenter steps through the

code. The upper right part shows the state of relevant

variables whereas the lower right part can optionally

be used for context-speciﬁc visualisations.

While the goal is that our tool should do as much

as possible automatically, there are also cases where

a presenter might want to conﬁgure the tool before-

hand. For instance, in larger programs it makes no

sense to visualise the changes of every single vari-

able. In these cases, the presenter may choose to se-

lect those variables that contribute to the understand-

ing of a program and the rest will not be displayed.

The presenter might also want the execution to start

at a speciﬁc point instead of having to manually ﬁnd

the right spot they want to discuss. Furthermore, the

presenter may also choose which additional visualisa-

tion to use or decide to not show any additional visu-

alisation at all and use the full width of the slide for

displaying the source code.

5 IMPLEMENTATION

In this section, we present our implementation of the

concepts discussed in Section 4. Before describing

the implementation of the prototype, we outline the

overall architecture of our interactive source code vi-

sualisation for the MindXpres presentation tool.

5.1 Architecture

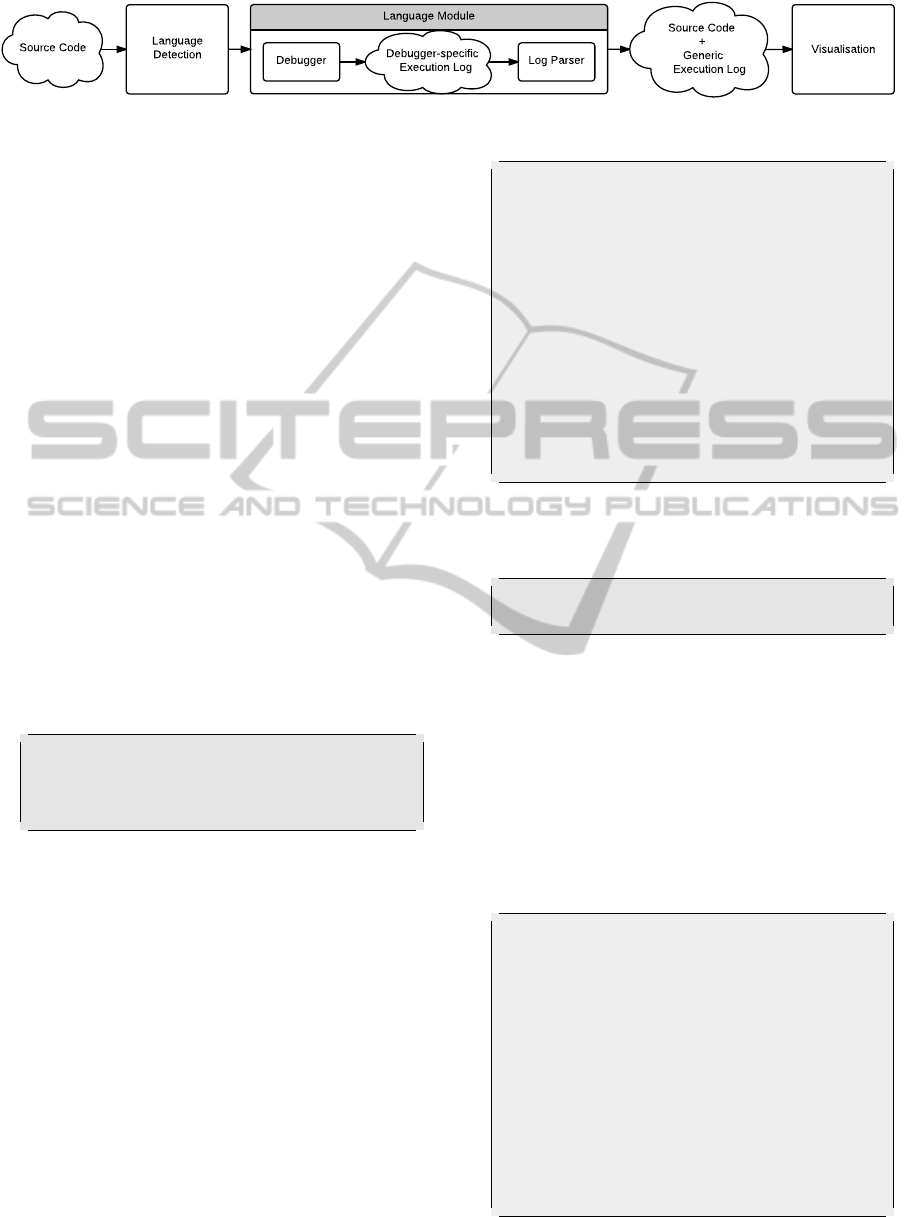

As brieﬂy mentioned in Section 4, special measures

need to be taken in order to support multiple lan-

guages. The main reason is that in order to ful-

ﬁl requirement R3 we need to execute the provided

source code to extract events, such as state changes

or method invocations, from its execution. Unfor-

tunately, this process is different for each program-

ming language which makes it impossible to provide

an all-in-one solution. As detailed before, we bun-

dle language-speciﬁc functionality in interchangeable

modules making it possible to add new languages.

The architecture chosen to support this functional-

ity is shown in Figure 2. When source code is given to

our tool by the presenter, the language can automati-

cally be detected. The tool then searches its collection

of language modules for the detected language. In the

case that no matching module is found, the tool limits

itself to just displaying the source code without any

interactive features. However, if a matching module

is found, it is passed the source code. The language

module is then responsible for extracting the relevant

information from the running program and translat-

ing it to a generic representation that is understood by

the visualisation engine. One of the beneﬁts of iso-

lating language-speciﬁc features is that the modules

can make use of existing applications and libraries in-

stead of having to implement everything from scratch.

For example, we found existing debuggers to be par-

ticularly useful. A debugger is a tool that examines

a running application and offers functionality to pro-

vide insights about the program ﬂow and for ﬁnding

unwanted behaviour in the form of bugs. Debuggers

are hard to use and they make no real effort to re-

inforce a mental model (Smith and Webb, 1995), but

their output, a so-called execution trace, can be turned

into something more meaningful by our tool. Never-

theless, debuggers are standalone applications dedi-

cated to a speciﬁc language only and different debug-

gers produce output in different formats. Therefore,

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

102

Source Code

Source Code +

Generic Application

Execution Log

Source Code Plug-in

Language

Detection

Language-specific Plug-in

Debugger

Debugger-specific

Execution Log

Log Parser

Visualiser

CODE

EXECUTION STATE

EXTRA VISUALISATION

<< Step 3/10 >>

Source Code

Language

Detection

Language Module

Debugger

Debugger-specific

Execution Log

Log Parser

Visualisation

Source Code

Generic

Execution Log

Figure 2: Architecture for extensible language support.

when the language module invokes the debugger and

gets an execution trace, it also translates the resulting

trace into a generic format ensuring that the output

of each language module has the same format. This

generic execution log is then transferred to the visual-

isation engine together with the source code so it can

display the source code and provide additional inter-

active functionality such as the visualisation of state

changes while the presenter steps through a piece of

source code.

5.2 Generic Execution Log

As explained before, the generic execution log is the

key to supporting multiple languages in an extensi-

ble manner. We have chosen the JavaScript Object

Notation (JSON), a lightweight data interchange for-

mat for representing the execution log. For each

programming language, a language module translates

the language-speciﬁc execution log into this JSON-

based representation. This means that the visualisa-

tion tool only needs to be able to process the generated

JSON format and does not need to be aware about the

speciﬁcs of a particular programming language.

 

1 int sum = 0 ;

2 for(int i = 0; i < 2; i+ +) {

3 sum = add(sum, i) ;

4 }

 

Listing 1: A small C program.

From the language-speciﬁc execution logs the lan-

guage module needs to extract events such as variable

deﬁnitions, variable state changes as well as function

invocations. For example, Listing 2 shows the JSON

output resulting from the execution of the C program

shown in Listing 1.

The C programming language is a purely proce-

dural programming language but in order to support

object-oriented languages the details speciﬁc to ob-

jects can also be expressed in the generic log format.

This includes, for instance, method invocations and

changes in object ﬁelds. While we could have used

the same representation as for function invocations

and variable changes, there are languages such as C++

that can have both functions and methods and there-

fore a separate representation is needed.

 

1 [ {" li n e " : 1 , " typ e " : " V a r D efinit i o n " ,

2 " details ": {" n ame ": " sum " ,

3 " val u e " : " 0 "}},

4 {" li ne " : 2 , " typ e " : " V a r D efinit i o n " ,

5 " details ": {" n ame ": "i" ,

6 " val u e " : " 0 "}},

7 {" li ne " : 3 , " typ e " : " F u n c t ionCall " ,

8 " details ": {" n ame ": " add " }},

9 {" li ne " : 3 , " typ e " : " S t a t e C hange " ,

10 " details ": {" n ame ": " sum " , " old " : "0"

11 , " n ew ": "0"}},

12 {" li ne " : 2 , " typ e " : " S t a t e C hange " ,

13 " details ": {" n ame ": "i" , " ol d " : " 0 "

14 , " n ew ": "1"}},

15 {" li ne " : 3 , " typ e " : " F u n c t ionCall " ,

16 " details ": {" n ame ": " add " }},

17 .. .

 

Listing 2: JSON execution log for Listing 1.

Listing 4 shows the JSON execution log generated

for the Java program illustrated in Listing 3.

 

1 Person person = new Person( " Jo hn " ) ;

2 person.setAge(1 9) ;

 

Listing 3: A small Java program.

Note that a speciﬁc line of code may need multiple

entries in the execution log. For instance, a line of

code may deﬁne a new variable, invoke a method and

use the returned value to set its state. Even though

they all occur on the same line of code, the execution

log should contain separate entries for each of these

events. The visualisation tool may combine them into

a single step for the visualisation, but at least it has

access to the ﬁner details in case certain visualisation

plug-ins should need them.

 

1 [

2 {" li ne " : 1 , " typ e " : " V a r D efinit i o n " ,

3 " details ": {" n ame ": " pe r s o n " ,

4 " ini t i a l V a lue ": " nu l l "}},

5 {" li ne " : 1 , " typ e " : " C o n s t r uctor " ,

6 " details ": {" c l ass ": " Perso n " }},

7 {" li ne " : 1 , " typ e " : " S t a t e C hange " ,

8 " details ": {" n ame ": " pe r s o n " ,

9 " old ": " nu ll " , " new ": " Pers o n " }},

10 {" li ne " : 2 , " typ e " : " M e t h o d C a ll ",

11 " details ": {" n ame ": " se t A g e " ,

12 " objec t " : " p e r s o n " }},

13 {" li ne " : 2 , " typ e " : " O b j S tateC h a n g e ",

14 " details ": {" n ame ": " pe r s o n . age " ,

15 " old ": "0 " , " new " : " 1 9"}}

16 ];

 

Listing 4: JSON execution log for Listing 3.

TowardsEnhancedPresentation-basedTeachingofProgramming-AnInteractiveSourceCodeVisualisationApproach

103

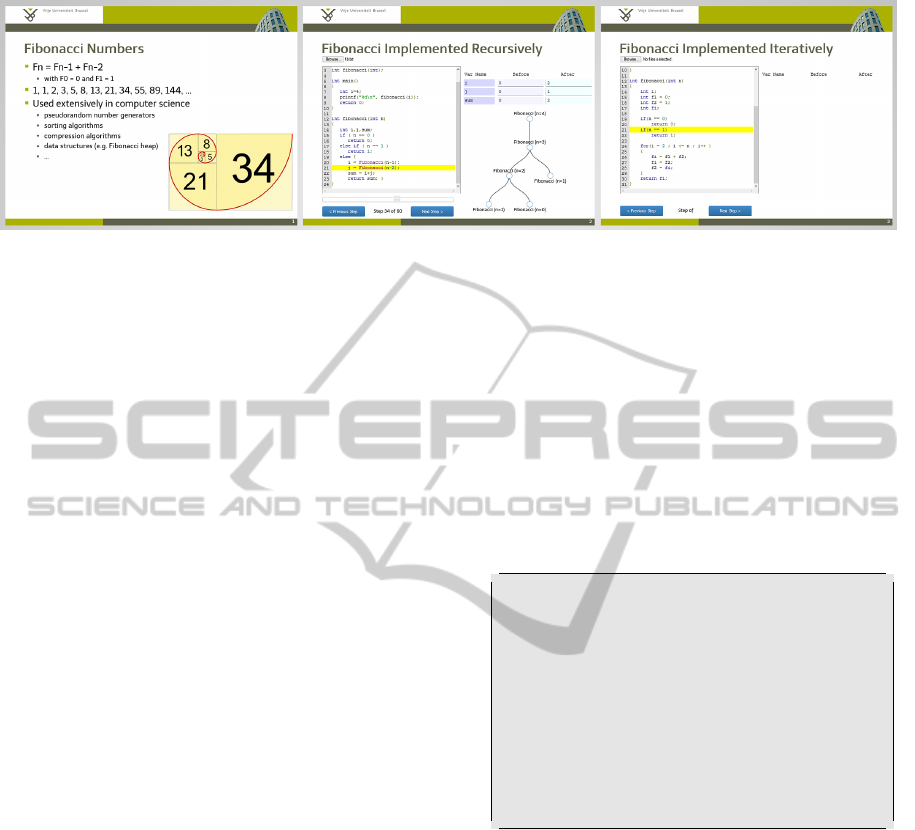

Figure 3: A MindXpres presentation with the source code plug-in.

5.3 MindXpres Source Code Plug-in

Our interactive source code visualisation proto-

type has been implemented as a plug-in for the

MindXpres presentation tool (Roels and Signer,

2014b). MindXpres has been developed to over-

come the limited extensibility of well-known slide-

ware tools such as PowerPoint or Keynote and to

offer a rapid prototyping platform for novel presen-

tation ideas. The motivation behind this is that al-

though PowerPoint offers an API (application pro-

gramming interface) for creating extensions, it still

enforces the usage of linear sequences of slides with

relatively static content. Therefore it is often not pos-

sible to extend PowerPoint with radically new func-

tionality. The highly modular MindXpres architecture

allows any component to be replaced and new com-

ponents and functionality can easily be added. For

instance, users may choose to use a plug-in that visu-

alises content using a zoomable user interface (ZUI)

or can use a plug-in that visualises the same con-

tent in a classic linear fashion like in existing slide-

ware. The core MindXpres engine provides various

abstractions that allows plug-in creators to focus on

their ideas instead of having to reimplement the ba-

sics every time. For instance, the graphics engine

provides functionality related to the visualisation of

content which drive features such as the ZUI and in-

teractive rich media visualisation plug-ins. The com-

munication engine allows instances of a MindXpres

presentation to form networks which allows plug-

ins to communicate across devices, enabling plug-

ins for various audience-driven functionality such as

polls, quizzes or screen mirroring (Roels and Signer,

2014a). MindXpres uses HTML5 and related tech-

nologies for enhanced portability and plug-ins are

written entirely in JavaScript. Although a graphi-

cal editor is under development, MindXpres presen-

tations are currently deﬁned in a XML-like declara-

tive language similar to the L

X language used for

text documents. The reasoning behind this is also

similar; let the user focus on content and let the tool

worry about the layout and styling. While MindXpres

comes with a default set of plug-ins for basic compo-

nents such as images, bullet lists, videos or slides, it is

easy to add new plug-ins for new content types. Plug-

ins also extend the vocabulary used in the MindXpres

document format. More speciﬁcally, a plug-in can

add new XML tags for usage in the document for-

mat. A plug-in that introduces new tags then takes

responsibility for visualising content placed within

these tags.

 

1 <presentation>

2 <slide ti tl e =" F i b ona c ci Num b ers " > . .. < /slide>

3 <slide ti tl e =" F i b ona c ci - R e c urs i ve " >

4 <code>

5 in t fib o n acc i ( int n )

6 {.. .}

7 </code>

8 </slide>

9 <slide ti tl e =" F i b ona c ci - I t e rat i ve " >

10 <code so u rce = " f i b_i t .c" > </code>

11 </slide>

12 < /presentation>

 

Listing 5: MindXpres presentation in XML.

We have realised our approach by creating a code

visualisation plug-in for MindXpres that introduces

the code tag to the vocabulary. Source code can be

included in a presentation in two ways. Either the pre-

senter refers to an external ﬁle containing source code

via an attribute of the code tag, or the presenter just

pastes the code between code tags. Listing 5 shows

a shortened snippet of a MindXpres presentation that

uses both ways to include source code. The resulting

presentation can be seen in Figure 3.

When the MindXpres document format is com-

piled into a portable presentation, a MindXpres plug-

in can be invoked if it contains compile-time trig-

gers. In this case, the code plug-in will detect the

language and let the correct language module gener-

ate the generic execution log. The log is then bundled

in the presentation together with the code plug-in that

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

104

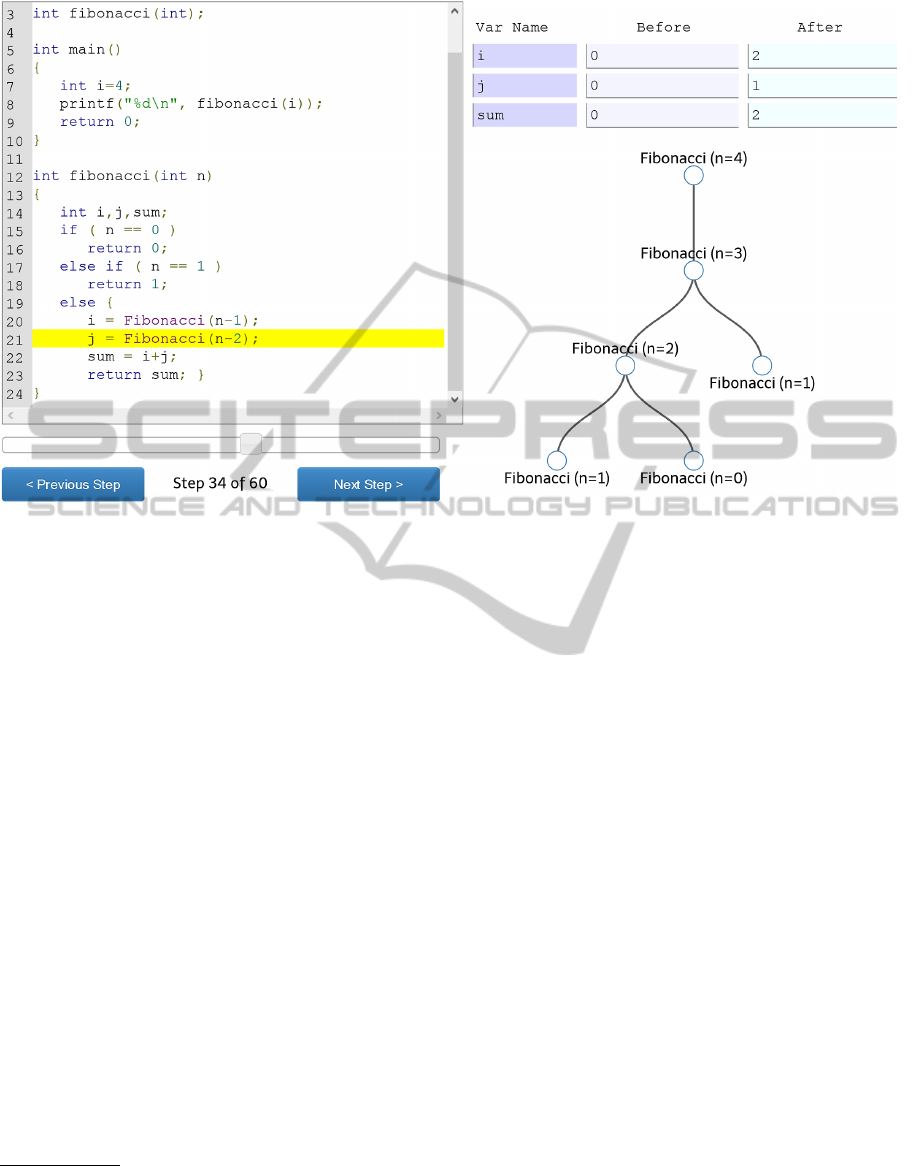

Figure 4: MindXpres source code plug-in example.

will visualise it at run-time (when the ﬁnal presen-

tation is opened for viewing). Because MindXpres

plug-ins are written in JavaScript, we are free to use

some of the powerful existing libraries offering the

corresponding functionality. For code formatting and

syntax highlighting we use Google’s prettify

library.

Furthermore, the plug-in uses the D3

visualisation li-

brary for some of its optional visualisations. For this

prototype implementation we have implemented two

language modules, namely one for C and one for Java.

For the creation of the execution traces, the C mod-

ule uses the GDB

debugger while the Java version

uses JDB, a debugger included with the Java Develop-

ment Kit

. Creating a language module requires some

programming but the provided abstractions make the

process fairly straightforward. The language module

itself is implemented as a folder containing at least

two ﬁles. A manifest ﬁle provides some metadata

and speciﬁes the programming language the mod-

ule can process. The second ﬁle contains JavaScript

code that implements a single method which accepts

source code as input and returns a generic execu-

tion log. This code is executed if the compiler de-

tects that a given piece of source code was written in

the programming language mentioned in the manifest

https://code.google.com/p/google-code-prettify/

http://d3js.org

http://www.gnu.org/software/gdb/

https://www.oracle.com/java/

ﬁle. Because the compiler is based on Node.js, the

JavaScript code can make use of libraries and binaries

placed alongside the two required ﬁles. In most cases,

it is sufﬁcient for a language module to include an ex-

isting debugger, have it create an execution log and

translate this log into the generic execution format.

Note that there are alternative ways how a language

module might obtain an execution log, such as the di-

rect interpretation of the given code via the JavaScript

code.

An example of the MindXpres source code plug-

in in use is shown in Figure 4. In this case a recur-

sive implementation of the Fibonacci function is il-

lustrated. The highlighted line indicates what line of

code is being executed in the current step. As men-

tioned before, the buttons can be used to go forwards

or backwards in the execution and the presenter may

also use the slider to jump to a particular point of in-

terest. On the right-hand side the state changes for the

variables i, j and sum are shown. This includes their

old value (Before) and the new value (After) that was

assigned to them at that point of execution. As the

Fibonacci function is a classic example for demon-

strating recursion, we included the recursion tree as

the optional extra visualisation. The tree shows a his-

tory of recursive function calls up to that point making

it clearer what has happened in the previous steps. In

this case the viewer can see that the recursion is per-

formed depth-ﬁrst and has just ﬁnished the backtrack-

TowardsEnhancedPresentation-basedTeachingofProgramming-AnInteractiveSourceCodeVisualisationApproach

105

ing phase for the calculation of the third Fibonacci

number. A new branch is about to be added under the

top node for the calculation of the second Fibonacci

number, which will be added to the result of the exist-

ing branch to form the fourth Fibonacci number.

While the example in Figure 4 shows purely pro-

cedural code, the same visualisation can be used for

object-oriented code. For instance, the execution of

the code presented in Listing 3 would ﬁrst show a

state change in the variable person, from null (not ini-

tialised) to a new instance of a Person. The second

line would then result in a state change in person.age

from 0 to 19. If more details are required, the recur-

sion tree could be replaced with another optional vi-

sualisation that shows the object and relevant changes

in more detail. Similarly, state changes in arrays can

also be shown. In the current implementation the

complete array is shown in the Before and After

columns. However, if the presented code is centered

around arrays—for example in a sorting algorithm—

it makes sense to replace the recursion tree visuali-

sation with another more efﬁcient array visualisation

making use of colours and animations to show how

array elements are moved in each step.

6 DISCUSSION &

CONCLUSIONS

The presented interactive source code visualisation

prototype provides a framework for future exten-

sion and experimentation with innovative forms of

presentation-based teaching of programming. So far

we have implemented language modules for the C and

Java programming language but the architecture al-

lows for the addition of new languages with mini-

mal effort. In its current form, our tool is suitable

for presenting code written in the major program-

ming languages but there are some languages that

will need further investigation. For instance, func-

tional programming languages such as Haskell avoid

state changes and mutable data which implies that

most of our additional visualisations will be useless

for these types of languages. Furthermore, there ex-

ist declarative programming languages based on logic

(e.g. Prolog) where programs are not constructed out

of sequentially executed instructions but rather con-

sist of rules that are queried and triggered in a differ-

ent manner. Programs in these two categories of pro-

gramming languages beneﬁt less from the proposed

way of navigating and visualising source code. Fur-

ther investigation is therefore needed in order to also

help students in enhancing their mental model for

these types of languages.

We currently allow presenters to navigate longer

pieces of source code by scrolling. However, by

letting the visualisation plug-in reason over the pre-

sented source code, further enhancements might be

made to navigate through larger pieces of source code

in a more efﬁcient way. For instance, the presenter

could click on a function or method call to jump to the

deﬁnition of the function or method if the tool would

be aware of these concepts. The current version of our

source code visualisation plug-in further only allows

the presenter to step through the code as it has been

included in the presentation but no modiﬁcations are

possible. As a future improvement, we would also

like to make the execution of programs more interac-

tive. For instance, the presenter might want to exe-

cute the same algorithm multiple times with different

start parameters to illustrate the resulting effect. The

possibility to modify values at any point during the

execution of an algorithm is also something to be in-

vestigated in future work.

The MindXpres presentation tool also provides

abstractions to implement features commonly found

in audience response and classroom systems (Roels

and Signer, 2014a). By involving the students through

active learning we can increase the effectiveness of

the visualisation of algorithms even more as discussed

by Hundhausen et al. (Hundhausen et al., 2002). A

ﬁrst step could be to allow the students to interactively

navigate through the source code which might later be

extended to small exercises that force the students to

reason over the presented program.

So far we have only evaluated the technical side of

the proposed architecture by implementing language

modules for the C as well as Java programming lan-

guage. While parts of the presented functionality is

based on earlier research in the domain of how to

teach programming concepts that we have applied in

the domain of presentation tools, we plan to do a user

evaluation with the presented interactive source code

visualisation MindXpres plug-in. Based on available

teaching material from universities around the world,

we can infer that many teachers of programming

courses still use static source code examples spread

over multiple slides managed by traditional slideware

solutions. We see our approach as a step towards en-

hancing the omnipresent presentation-based teaching

of programming by providing better tools for the au-

thoring of source code slides as well as for the interac-

tive presentation of code examples. Last but not least,

we hope that other researchers might be inspired to

investigate new forms of presentation-based teaching

of programming concepts and algorithms that go be-

yond the presentation of a series of slides containing

static source code snippets.

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

106

REFERENCES

Bennedsen, J. and Caspersen, M. E. (2007). Failure Rates

in Introductory Programming. ACM SIGCSE Bulletin,

39(2):32–36.

Berry, M. and K

olling, M. (2013). The Design and Im-

plementation of a Notional Machine for Teaching In-

troductory Programming. In WiPSE 2013, 8th Work-

shop in Primary and Secondary Computing Educa-

tion, pages 25–28. ACM.

Boulay, B. D. (1986). Some Difﬁculties of Learning to Pro-

gram. Journal of Educational Computing Research,

2(1):57–73.

nas, J. J., Bajo, M. T., and Gonzalvo, P. (1994). Mental

Models and Computer Programming. International

Journal of Human-Computer Studies, 40(5):795–811.

Dann, W., Cooper, S., and Pausch, R. (2001). Using Visual-

ization to Teach Novices Recursion. 33(3):109–112.

George, C. E. (2000). Experiences with Novices: The Im-

portance of Graphical Representations in Supporting

Mental Models. In PPIG 2012, 12th Annual Workshop

of the Psychology of Programming Interest Group,

pages 33–44.

Gomes, A. and Mendes, A. J. (2007). Learning to Program

- Difﬁculties and Solutions. In ICEE 2007, Interna-

tional Conference on Engineering Education, pages

53–58.

Holzinger, A., Kickmeier-Rust, M. D., and Albert, D.

(2008). Dynamic Media in Computer Science Educa-

tion; Content Complexity and Learning Performance:

Is Less More? Educational Technology & Society,

11(1):279–290.

Hundhausen, C. D., Douglas, S. A., and Stasko, J. T. (2002).

A Meta-Study of Algorithm Visualization Effective-

ness. Journal of Visual Languages & Computing,

13(3):259–290.

Jenkins, T. (2001a). Teaching Programming - A Journey

From Teacher to Motivator. In 2nd Annual Confer-

ence of the LSTN Center for Information and Com-

puter Science.

Jenkins, T. (2001b). The Motivation of Students of Pro-

gramming. 33(3):53–56.

Jenkins, T. (2002). On the Difﬁculty of Learning to Pro-

gram. In 3rd Annual Conference of the LTSN Cen-

tre for Information and Computer Sciences, volume 4,

pages 53–58.

Lahtinen, E., Ala-Mutka, K., and J

arvinen, H.-M. (2005).

A Study of the Difﬁculties of Novice Programmers.

37(3):14–18.

Ma, L., Ferguson, J., Roper, M., and Wood, M. (2007).

Improving the Viability of Mental Models Held by

Novice Programmers. In 11th Workshop on Pedago-

gies and Tools for the Teaching and Learning of Ob-

ject Oriented Concepts. Springer.

Mayer, R. E. (1981). The Psychology of How Novices

Learn Computer Programming. ACM Computing Sur-

veys (CSUR), 13(1):121–141.

McCracken, M., Almstrum, V., Diaz, D., Guzdial, M., Ha-

gan, D., Kolikant, Y. B.-D., Laxer, C., Thomas, L.,

Utting, I., and Wilusz, T. (2001). A Multi-national,

Multi-institutional Study of Assessment of Program-

ming Skills of First-year CS Students. In ITiCSE-

WGR 2001, Working Group Reports from ITiCSE on

Innovation and Technology in Computer Science Ed-

ucation, pages 125–180. ACM.

Milne, I. and Rowe, G. (2002). Difﬁculties in Learn-

ing and Teaching Programming - Views of Students

and Tutors. Education and Information Technologies,

7(1):55–66.

Moreno, A. and Joy, M. S. (2007). Jeliot 3 in a Demanding

Educational Setting. Electronic Notes in Theoretical

Computer Science, 178:51–59.

Moreno, A., Myller, N., Sutinen, E., and Ben-Ari, M.

(2004). Visualizing Programs With Jeliot 3. In

AVI 2014, Working Conference on Advanced Visual

Interfaces, pages 373–376. ACM.

Roels, R. and Signer, B. (2013). An Extensible Presenta-

tion Tool for Flexible Human-Information Interaction.

In Demo Proceedings of BCS HCI 2013, 27th BCS

Conference on Human Computer Interaction, page 59.

British Computer Society.

Roels, R. and Signer, B. (2014a). A Uniﬁed Communica-

tion Platform for Enriching and Enhancing Presenta-

tions with Active Learning Components. In ICALT

2014, 14th IEEE International Conference on Ad-

vanced Learning Technologies, pages 131–135. IEEE.

Roels, R. and Signer, B. (2014b). MindXpres: An Exten-

sible Content-driven Cross-Media Presentation Plat-

form. In WISE 2014, 15th International Conference

on Web Information System Engineering, pages 215–

230. Springer.

Sa, L. and Hsin, W.-J. (2010). Traceable Recursion

with Graphical Illustration for Novice Programmers.

InSight: A Journal of Scholarly Teaching, 5:54–62.

Smith, P. A. and Webb, G. I. (1995). Reinforcing a

Generic Computer Model for Novice Programmers. In

ASCILITE 1995, 7th Australian Society for Computer

in Learning in Tertiary Education.

Smith, P. A. and Webb, G. I. (2000). The Efﬁcacy of a Low-

level Program Visualization Tool for Teaching Pro-

gramming Concepts to Novice C Programmers. Jour-

nal of Educational Computing Research, 22(2):187–

216.

Tufte, E. R. (2003). The Cognitive Style of PowerPoint:

Pitching Out Corrupts Within. Graphics Press.

Vel

azquez-Iturbide, J.

A. and P

erez-Carrasco, A. (2010).

InfoVis Interaction Techniques in Animation of Re-

cursive Programs. Algorithms, 3(1):76–91.

Virtanen, A. T., Lahtinen, E., and J

arvinen, H.-M. (2005).

VIP, a Visual Interpreter for Learning Introductory

Programming with C++. In 5th Koli Calling Confer-

ence on Computer Science Education, pages 125–130.

TowardsEnhancedPresentation-basedTeachingofProgramming-AnInteractiveSourceCodeVisualisationApproach

107
