On Languages for Conceptual Data Modeling in Multi-disciplinary

Space Systems Engineering

Christian Hennig

, Harald Eisenmann

, Alexander Viehl

and Oliver Bringmann

Intelligent Systems and Production Engineering, FZI Research Center for Information Technology, Karlsruhe, Germany

TSOEC3, Space Systems, Airbus Defence and Space, Friedrichshafen, Germany

Wilhelm-Schickard-Institute for Computer Science, Eberhard-Karls-University of Tübingen, Tübingen, Germany

Keywords: Systems Engineering, Model-based Systems Engineering, Conceptual Data Modeling, UML, Ecore, OWL,

ORM.

Abstract: The engineering of complex systems is more and more supported through computer-based models that rely

on a comprehensive specification of their underlying data. This paper reflects on extensive industrial experi-

ence with a sophisticated application of conceptual data modeling, addressing requirements as they arise in

the context of space systems engineering. For this purpose identified needs for conceptual data modeling in

the scope of Model-Based Systems Engineering are formulated. Established and evolving approaches and

technologies for building conceptual data models are characterized, analyzed, and discussed regarding their

suitability for modeling engineering data. Based on this analysis of the state of the art, recommendations for

the future evolution of conceptual data modeling are formulated.

1 INTRODUCTION

Building systems such as satellites, launch vehicles

or other spacecraft requires the interaction of nu-

merous engineering disciplines. Each of these disci-

plines, such as mechanical engineering, software

engineering, or verification engineering, uses their

very own computer-based models such as CAD

models, UML models, or verification matrices. In

the scope of Model-based Systems Engineering

(MBSE) a tendency can be observed to integrate

critical pieces of data from all of these models in a

central engineering database. One fundamental mo-

tivation for this evolution towards digitally shared

models is the ability to interlink the domain-specific

models in order to enable early multi-disciplinary

analyses, early verification and validation, and find-

ing model inconsistencies. For integrating these

models one approach that can be pursued is the in-

troduction of a central system database, containing a

system model. For specifying the engineering con-

cepts that are contained inside the system model, a

conceptual data model (CDM) is used. The CDM, in

this context, provides a common, resilient, and com-

prehensive definition of engineering data, incorpo-

rating discipline-specific as well as system-level

aspects.

A variety of approaches exist for building such

models. On the one hand there are approaches

strongly driven by the implementation technologies

that are used for producing engineering applications,

relying on data models specified in UML or Ecore.

On the other hand there are techniques almost ex-

clusively focused on representing knowledge that

can also be used to specify data, such as the Web

Ontology Language OWL or Object Role Modeling

ORM. Each of these approaches has its own charac-

teristics with both shortcomings and unique benefits.

Figure 1 consolidates the setting detailed in this

paragraph using a couple of examples. The bottom

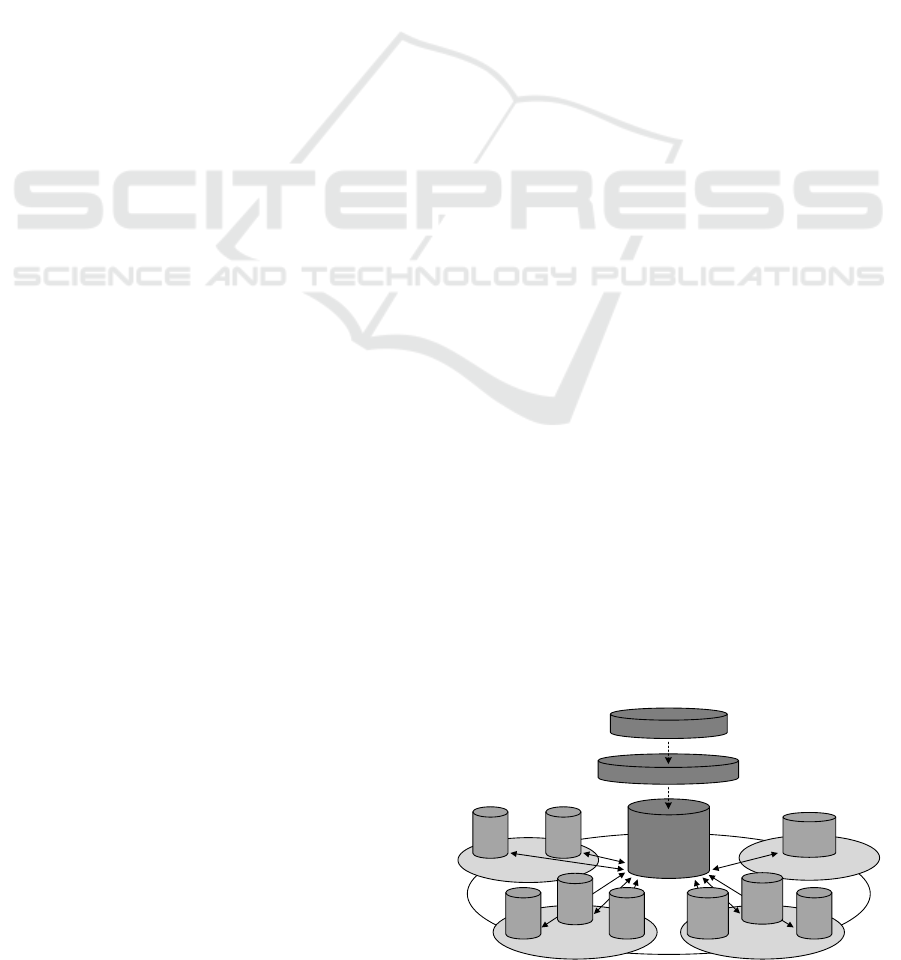

Figure 1: The relation between domain-specific models,

system model, CDM, and data modeling language.

System Model

Mech anical

Engineering

Requirements Engineering

DOORS

Requirements

Repository

PATRAN

Analysis

Model

Mission Design

STK

Orbit

Model

SysML

Mission

Model

Simulator

Engineering

MATLAB

Analysis

Model

Modelica

Analysis

Model

Excel

Mass

Budget

Conceptual Data Model

Data Modeling Language

CATIA

CAD

Model

Simulator

Database

384

Hennig C., Eisenmann H., Viehl A. and Bringmann O..

On Languages for Conceptual Data Modeling in Multi-disciplinary Space Systems Engineering.

DOI: 10.5220/0005329003840393

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 384-393

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

level describes the system model or user model

along with domain-specific models that perform

some kind of information exchange. For specifying

the concepts that make up the system model a CDM

is used, forming the system model’s metamodel.

This CDM is described using a data modeling lan-

guage.

In the following sections, selected languages for

conceptual data modeling are evaluated. Industrial

requirements on such a language that arise in the

context of MBSE are identified and an examination

regarding how well each of these languages is able

to fulfill the functions specified in the requirements

is performed. Based on this examination, an over-

view of the state of the art in conceptual data model-

ing for MBSE is sketched, highlighting present

shortcomings, and a proposal for future evolution is

given.

2 BACKGROUND

This section explains the nature of systems engineer-

ing, its relation to models, and how system-wide

models are described in the context of MBSE.

2.1 Systems Engineering

In many industrial engineering projects today, a

multitude of disciplines is involved in building the

systems of interest. For space projects such as satel-

lites, launch vehicles, and resupply spacecraft these

disciplines involve, only to name a few, mechanical

engineering, electrical engineering, thermal engi-

neering, requirements engineering, software engi-

neering, verification engineering, and their respec-

tive sub-disciplines. Each of these disciplines speci-

fies their designs and verifies specific aspects of the

system. In order to provide an all-encompassing

understanding of the system of interest, the unique,

yet complementary views from every involved dis-

cipline are combined. The science and art of inte-

grating different views on one system towards sys-

tem thinking is called Systems Engineering. As

NASA (2007) elegantly puts it: “Systems engineer-

ing is a holistic, integrative discipline, wherein the

contributions of structural engineers, electrical engi-

neers, mechanism designers, power engineers, hu-

man factors engineers, and many more disciplines

are evaluated and balanced, one against another, to

produce a coherent whole that is not dominated by

the perspective of a single discipline.”

2.2 Systems Engineering and Models

Many of the engineering activities performed inside

these discipline domains are already well supported

by computer-based models. Mechanical design

models built with tools such as CATIA V5 (Dassault

Systemes, 2014), mechanical analysis models built

with tools such as PATRAN (MSC Software, 2014)

and thermal analysis models built with tools such as

ESATAN-TMS (ITP Engines UK, 2014) are well

established in the space engineering community

today. Furthermore, there are requirements models

based on DOORS, software design models specified

in the Ecore language (Eclipse Foundation, 2014)

using the Eclipse Modeling Framework (Eclipse

Foundation, 2014), as well as mission design models

specified in SysML (OMG, 2012) with tools such as

MagicDraw (No Magic, 2014) Furthermore, “tradi-

tional” tools such as Excel or Visio are used on a

regular basis for building models. The practice of

supporting engineering activities with models is

called Model-based Engineering (MBE) or Model-

driven Engineering (MDE).

These tools and the models they produce differ

significantly from each other. They are provided by

different vendors, rely on different implementation

technologies and are based on different formats

(Kogalovsky and Kalinichenko, 2009). Each model

and the associated design methodology follow their

own principles and paradigms and define their very

own semantics. As a result of this heterogeneity,

these models and tools are not yet integrated with

each other and with the multi-domain systems engi-

neering process (INCOSE, 2014). For a truly multi-

disciplinary representation of a system, relevant

aspects from all involved domains and their models

have to be combined on the model level (Eisenmann,

2012).

2.3 Describing System-wide Models

A computer-based model consists of two basic parts.

The layer directly visible to the user is the instance

model or user model, where the user enters his data

and works with it. In order to specify what bits of

information can be described in the user model, a

data model or metamodel is required that specifies

the concepts of the user model (Hong and

Maryanski, 1990). It is worthy to note at this point

that metamodel is a relative term. It describes con-

cepts one abstraction level above the model that is

currently the focus of interest.

OnLanguagesforConceptualDataModelinginMulti-disciplinarySpaceSystemsEngineering

385

2.3.1 The System Model

For such models in engineering the “working level”

is represented by the system model or user model. In

this model the system of interest is described. This

includes domain-specific aspects of the system and

the data relevant to systems engineering activities.

Examples for such data are all requirements that are

specified for the system, its logical decomposition,

or the entirety of the functions the system performs.

2.3.2 The Conceptual Data Model

In order to be able to specify the system model, the

concepts that make it up have to be specified some-

how. This happens in the CDM, forming the meta-

model of the user model. In this model, the defini-

tion about what a requirement is, how requirements

relate to other requirements, how requirements relate

to the system decomposition and how the system

structure relates to system functions is taking place,

for example. All in all the CDM describes the enti-

ties, conceptual structures, and characteristic rela-

tionships of the Universe of Discourse (UoD)

(Kogalovsky and Kalinichenko, 2009) (Halpin and

Morgan, 2008).

A significant amount of information exchange

occurs between the system model and existing disci-

pline-specific models. Consequently the system

model’s metamodel, the CDM, specifies how these

models interface with each other. The approach of

using a CDM to interface between domain models

on the one side and physical databases on the other

side has already been described in 1975 in the inter-

im report of the ANSI/X3/SPARC Study Group on

Data Base Management Systems (1975). The CDM

in this context is used for specifying the concepts

that come from the domains, interfacing with the

domain disciplines and forming the basis for an

implementation of a system-wide database. Conse-

quently, the conceptual data model can be seen as

the backbone of MBSE (Eisenmann, 2012).

It is worthy to note that the currently predomi-

nant approach in most engineering domains is to

exchange knowledge between all discipline-specific

models in a document-based fashion. This means

that the knowledge stored in a computer model of a

specific domain is written in a document which is

then handed to another domain. Engineers from the

other domain then extract their required bits of in-

formation from the document and employ it accord-

ingly. It is evident that this document-based ex-

change of information is a tedious process prone to

errors and inconsistencies, often resulting in a signif-

icant amount of unnecessary overhead. Consequent-

ly, a large tendency to support such engineering

processes with models, making the information

accessible in an automated way, can be observed. It

is expected that model-based information exchange

significantly reduces the effort and consequently the

costs involved in inter-disciplinary and inter-domain

information exchange. Moreover, engineering pro-

cesses relying on MBSE are expected to benefit

from improved quality, increased productivity, and

reduced risk (Friedenthal, et al., 2009).

2.3.3 The Data Modeling Language

Being the center of MBSE-based activities the CDM

can be specified in a number of languages. For de-

veloping relational databases, the conceptual model

is often specified in Entity–relationship models

(Halpin and Morgan, 2008) or MS Access database

schemas. For furthering tool integration, the EX-

PRESS language (ISO, 2004) was developed. Other

approaches directly rely on languages that are usual-

ly employed for specifying software, such as UML

or Ecore (Kogalovsky and Kalinichenko, 2009)

(Olivé, 2007) while knowledge-focused modeling

languages such as Gellish (Van Renssen, 2005)

Object Role Modeling (ORM) models (Halpin and

Morgan, 2008) and the Web Ontology Language

(OWL) (W3C, 2012) have also been employed for

specifying a wide variety of UoDs.

Some of those languages did not deliver the

hoped for results (EXPRESS), others meanwhile

reached their limits (ER, Access, Gellish, UML)

while yet others are rather gaining momentum than

losing ground (Ecore, ORM, OWL) in the context of

MBSE.

3 TECHNOLOGY EVALUATION

In this section requirements on a CDM language are

formulated, and selected modeling languages are

evaluated against a defined evaluation scheme.

3.1 Requirements on a CDM Language

The requirements on languages for conceptual data

modeling explained in this section are based upon

extensive experience employing CDMs in the con-

text of MBSE. They incorporate a large amount of

facets derived from lessons learned in past projects

(ESA, 2012) (ESA, 2013) (Fischer, et al., 2014).

These requirements have been partitioned into five

categories. Explaining every required function of

each category in equal detail would go beyond the

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

386

scope of this paper. Instead, an emphasis is given on

specific, not so obvious, or difficult to understand

language functions and properties. These categories

and requirements are listed in Error! Reference

source not found..

3.1.1 Semantic Relevance for MBSE

In this category very specific requirements that arise

from using the modeling language in the scope of

MBSE are consolidated.

Ability to Work with Closed World Facts:

One specific requirement in this context is the ability

of the language to produce models based upon the

Closed World Assumption. This principle implies

that everything that is not explicitly stated as true is

false. For instance, if a model of a satellite would

state that the satellite has mounted four solar arrays

on it and a query would be made, asking for the

number of solar arrays, the result would be “four”.

In contrast to the Closed World Assumption stands

the Open World Assumption that is common for

ontology languages. The same query asking for the

number of solar arrays would return the result “un-

known” since it is not explicitly stated that there are

exactly four solar arrays. It is evident that such be-

havior can become problematic when producing

engineering models (Hennig, 2012). Some ontology

extensions allow “closing down” such facts, ena-

bling the correct answer of such queries, but result-

ing in a significant amount of additional modeling

effort (Mehdi and Wissmann, 2013).

Understandability of Language for Non-

modeling Experts: CDMs are often produced in

accordance with experts of the UoD. These people

are mostly mechanical engineers, electrical engi-

neers, or software engineers, not modeling experts.

Consequently it is desirable for the modeling lan-

guage to be able to be understood by non-modeling

experts.

Ability to Separate between Tool-development

and Tool-customization Concepts: A common

activity in space engineering is the practice of tailor-

ing. Tailoring means that an existing model, proce-

dure, or application is being customized in order to

exactly fit the needs of a specific project or mission.

In case of applications based on a CDM, that would

imply adapting the CDM. However, especially for

larger projects, it is often not feasible to alter the

CDM to every mission that is conducted, since it

would result in also altering every application built

upon it. Consequently, solutions have been proposed

that introduce a secondary part to the CDM that is

used for tailoring, being able to be adapted during

model runtime (ESA, 2012) (ESA, 2013).

Ability to Integrate Knowledge from other

Resources and existence of a Transformation

Mechanism: Since one of the focal points of CDMs

is information exchange between different models, it

should also be possible to map different CDMs to

each other, i.e. to integrate another CDM as a re-

source, including model transformations, should

they become necessary after the mapping is defined.

Existence of

a Language extension Mechanism:

For introducing custom concepts to the language,

some kind of extension mechanism is highly desira-

ble (Eisenmann, 2012).

3.1.2 Adequacy for Developing MBSE

Applications

The second category deals with the aspects related to

producing pieces of software that implement the

CDM, as it is commonly done in MBSE. One exam-

ple for such an application is an engineering data-

base intended for storing the system model.

Independence from Implementation Technol-

ogy: In order to ensure maximum flexibility for

implementing applications it is desirable for the

CDM language to be independent from any imple-

mentation technology.

Low effort to get from CDM to Software

Structure Specification: If the language used for

modeling the CDM is suited for modeling software,

specifying a piece of software is less effort com-

pared to a case where the CDM is specified in a

language that cannot be used for describing soft-

ware.

Suitability for Code Generation: Code genera-

tion has shown to significantly reduce development

costs (Eisenmann, 2012) and is seen as a key ele-

ment for producing software intended for MBSE.

3.1.3 Adequacy for MBSE Data Modeling

A number of activities are usually performed when

producing CDMs. Such activities include deriving

the CDM from an engineering process, producing a

specification, and validating the CDM.

Support by a CDM Engineering Method: One

requirement for a data modeling language is that it is

supported by a method that helps in knowledge

acquisition, configuration management, knowledge

integration, and similar activities guiding the model-

er through the process of building the CDM. These

methods are common in the area of knowledge engi-

neering (Halpin and Morgan, 2008) (Sure, et al.,

2004) (Suárez-Figueroa, 2010).

Ability to Describe Process Activities and

Process Artefacts: In model-based space systems

OnLanguagesforConceptualDataModelinginMulti-disciplinarySpaceSystemsEngineering

387

engineering a convenient starting point for building

the CDM of a UoD is examining the engineering

processes it should support. The CDM has to be able

to represent the data of the input and output artefacts

to the process activities (Hennig and Eisenmann,

2014). Such processes are usually documented in

UML activity diagrams or BPMN diagrams. It is of

benefit for the modeling language to provide means

for modeling the engineering process and its arte-

facts together with the CDM and to provide map-

pings between the process artefacts and the elements

of the CDM, bridging the gap between both models.

Ability to Provide Validation Instances: An-

other requirement is the ability to cultivate valida-

tion instances while the CDM is still in production,

aiding the modeler by providing examples or even

letting the modeler create own examples. Using

examples together with the model has been shown to

make the CDM more tangible (Halpin and Morgan,

2008).

Suitability for Verbalization: Verbalization of

model elements is the process of representing

knowledge stored in the model available in a sen-

tence. These sentences are usually formed using a

subset of a natural language, e.g. English, made up

by a controlled vocabulary and syntax (Halpin and

Wijbenga, 2010).

Employment of Surrogate Names for Rela-

tions: Some modeling languages require a unique

name for each relation between model entities. This

can become problematic once a lot of relations exist

or once a number of commonly occurring relations

is used. For instance a satellite might have the rela-

tions “has Designation”, “has UniqueID”, and “has

Abbreviation”, whereas “has” is the reference and

occurs multiple times. Although “has” is not a well-

formed relation in many cases, it is used frequently.

For circumventing this problem, a surrogate name

can be used for describing relations, e.g. “Satel-

liteHasDesignation” as unique name for the refer-

ence, but only displaying “has” to the user, acting as

a surrogate for the actual reference.

3.1.4 Richness of Data Structures

Data structures form the central building blocks of a

CDM. A modeling language for MBSE should be

able to describe elements such as classes, attributes,

and data types. The most basic relations between

classes are binary relationships. Sometimes ternary

relationships are needed for describing elementary

facts of the UoD and some languages even support

n-ary relationships between classes. It might become

necessary to objectify a relation between classes for

the purpose of handling it more like a class instead

of a relation later on. Furthermore the data modeling

language has to be able to modularize the data mod-

el, i.e. dividing it up into several packages and sub-

packages for the purposes of structuring and ena-

bling de-coupled definition with subsequent integra-

tion. The language should also be able to specify an

explicit hierarchical structure apart from the taxo-

nomic structure of classes.

3.1.5 Richness of Constraint Structures

The most basic category of constraints are the cardi-

nalities of attributes and references that specify

whether e.g. a reference is mandatory or optional,

and how many references of one type can exist at the

same time. Other constraints related to references

include subsets (a reference can only exist if it is

already represented by another specific reference)

exclusion constraints (if reference A exists in the

user model, reference B cannot exist), equality con-

straints (if reference A exists then reference B must

also exist), or ring constraints (for cyclic references,

e.g. a reference cannot reference the same instance it

originated from). Some languages support more

specific constraints, e.g. a maximum limit on the

number of instances that can exist of one class at the

same time, and some set theory constraints between

subtypes of classes. Some languages also permit the

specification of entirely user-defined consistency

checks.

3.2 Definition of an Evaluation Scheme

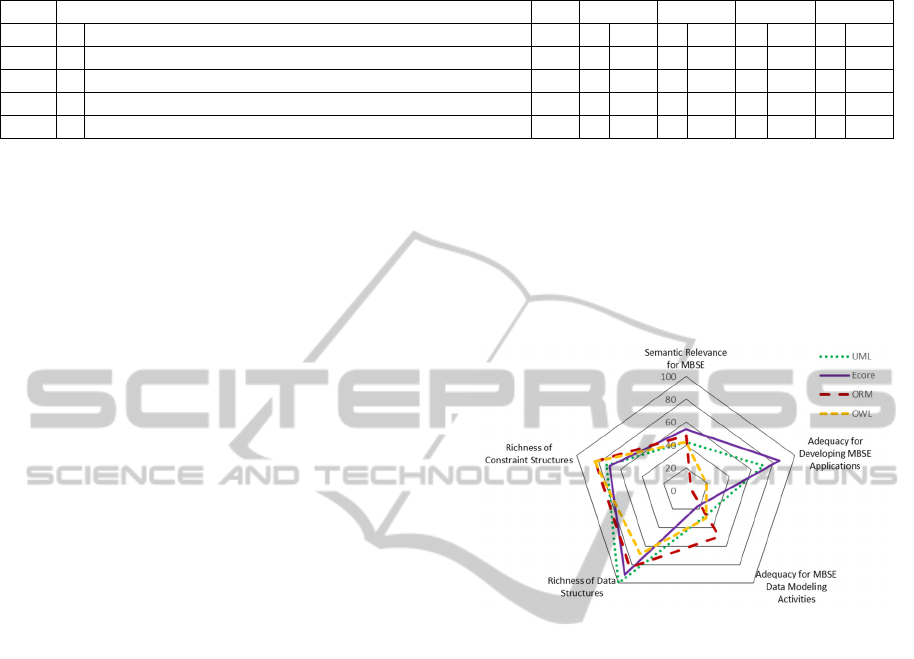

The evaluation presented in Table 1 is based upon

identified necessities derived from past experience

using CDMs in the context of MBSE. The analysis

employs weighted score evaluation and consists of

two dimensions. The first dimension is made up of

the requirements on the data modeling language.

These requirements are assigned a weight (column

“W”) with a value of either 1, 3, or 9, determining

how important the requirement is in the context of

MBSE for space systems. A 1 states that the feature

stated in the requirement is nice to have, a 3 means

that the feature is definitively helpful while 9 marks

a critical feature. The second dimension determines

how well each of the modeling languages can cope

with the feature stated in the requirement. The lan-

guage columns can take values of 0 (not possible/not

available/not publicly documented), 1 (possible, but

with limitations), and 3 (fully supported). The lan-

guage evaluation consists of two columns for each

language. The first column contains the score, the

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

388

second column contains the product of score and

requirement weight.

In the row of each category the maximum attain-

able score is given, along with the total score of the

language in said category.

While the detailed and comprehensive evaluation

is presented in Table 1. The paragraphs below ex-

plain some specifics of the evaluation that might not

directly be traceable without explanation

3.3 Evaluation of Selected Languages

While all data modeling languages outlined previ-

ously in 2.3.3 are using the same basic building

blocks (classes, attributes, and references, although

sometimes named differently) for specifying

knowledge structures at first sight, they exhibit en-

tirely different nuances when closer examined. For

closer examination UML, Ecore, ORM, and OWL

have been selected.

3.3.1 The Unified Modeling Language UML

UML has been established as the de-facto standard

for describing software systems for quite some time

and forms the current mainstream approach for data

modeling (Kogalovsky and Kalinichenko, 2009)

(Olivé, 2007).

UML models by default are based on the Closed

World Assumption (3 points). However, data models

in UML are considered difficult to understand for

people not trained in software design with regard to

specifying knowledge (0 points). An extension

mechanism is given by introducing custom stereo-

types through profiling, but has been shown to be

not sufficient for many data modeling efforts in

MBSE (Eisenmann, 2012) (1 point). A lot of meth-

ods exist for producing pieces of software with

UML, but these methods do not provide guided,

prescriptive instructions for modeling the data struc-

ture of the UoD and do not cater to the needs of

CDMing in MBSE (1 point). Processes can be mod-

eled using UML activity diagrams, but this approach

also does not completely fit the needs for MBSE (1

point). UML contains all of the basic data structures,

can objectify relations using association classes,

modularize models through packages, and describe

explicit hierarchical structures using the composition

and aggregation elements. UML has a limited num-

ber of constraints built in, such as the cardinalities of

associations and subsets between associations. Other

constraints, such as exclusion constraints, equality

constraints, or ring constraints, are not directly built-

in and have to be asserted using OCL. However,

OCL, due to its highly technical nature, is not desir-

able for modeling domain knowledge, only yielding

a value of 1 point for each these constraints.

3.3.2 Ecore

The Eclipse Modeling Framework EMF is gaining

considerable momentum in the area of model-driven

software engineering. EMF comes with a dedicated

modeling language called Ecore that picks up some

model elements of UML. The capability for code

generation, an agile software reuse process and so-

phisticated tool support have shown to considerably

reduce costs for developing data model-intensive

applications while still retaining high functionality

and flexibility (Eisenmann, 2012).

Ecore models are also by default based upon the

Closed World Assumption (3 points) and require

equal technical understanding as UML models (0

points). A tailoring mechanism does also not exist (0

points). Similar to UML Ecore supports integrating a

multitude of resources and performing model trans-

formations (3 points each). Ecore is highly depend-

ent on the Eclipse Modeling Framework for imple-

menting software (0 points). The effort to get from

the CDM to the specification of the software imple-

menting the CDM is equally manageable compared

to UML. Code generation is one of the main selling

points of EMF and Ecore (3 points). Ecore focuses

solely on modeling structures and consequently does

not model behavior such as processes (0 points). A

limited mechanism for providing validation in-

stances exist by creating dynamic instances, but still

needs considerable improvement to cater to the

needs of MBSE (1 point). Ecore can describe clas-

ses, attributes, data types, and pack-ages (3 points

each). An explicit hierarchical structure can be spec-

ified using the containment property of references (3

points). Ecore supports binary relations (3 points),

but none of higher arity (0 points). Objectification is

also not directly sup-ported (0 points). Specification

of constraints is similar to UML with the exception

that the subset constraint is not directly built into

Ecore (1 point), relying on OCL for specifying such

semantically rich constraints.

3.3.3 Object Role Modeling ORM

For designing relational databases a data modeling

language called ORM (Halpin and Morgan, 2008)

has gained importance. This language offers a wide

variety of built-in constraints, such as subset con-

straints, uniqueness constraints, and constraints

regarding possible combinations of model entities.

ORM is a kind of Fact Based Modeling (Halpin and

Morgan, 2008). Due to the focus on business

OnLanguagesforConceptualDataModelinginMulti-disciplinarySpaceSystemsEngineering

389

Table 1: Evaluation of Conceptual Data Modeling Languages.

ID Data Modeling Language Requirement W UML Ecore ORM OWL

1 Semantic Relevance of Modeling Language for MBSE 162 69 87 78 69

1.1 Ability to work with closed world facts 9 3 27 3 27 3 27 1 9

1.2 Understandability of language for non-modeling experts 9 0 0 0 0 3 27 1 9

1.3 Ability to represent aspects in a granular manner 3 0 0 0 0 0 0 3 9

1.4 Ability to ensure the logical coherence of aspects 3 1 3 1 3 3 9 3 9

1.5 Ability to specify business rules of the UoD 3 1 3 1 3 1 3 1 3

1.6

Ability to separate between tool-dev. and -customization con-

cepts

9 0 0 0 0 0 0 0 0

1.7 Ability to integrate knowledge from other resources 3 3 9 3 9 0 0 3 9

1.8 Existence of transformations of the CDM into other languages 3 3 9 3 9 1 3 1 3

1.9

Existence of mechanism for specifying queries on the user

model

3 3 9 3 9 3 9 3 9

1.10 Existence of a language extension mechanisms 9 1 9 3 27 0 0 1 9

2 Adequacy for Developing MBSE Applications 63 45 54 3 12

2.1 Independence from implementation technology 3 3 9 0 0 0 0 3 9

2.2 Low effort to get from CDM to software structure specification 3 3 9 3 9 1 3 1 3

2.3 Suitability for code generation 9 1 9 3 27 0 0 0 0

2.4 Tight integration of language into tool chain 3 3 9 3 9 0 0 0 0

2.5 Free availability of end-to-end development tool chain 3 3 9 3 9 0 0 0 0

3 Adequacy for MBSE Data Modeling Activities 111 31 19 55 33

3.1 Support by a CDM engineering method 9 1 9 1 9 3 27 1 9

3.2 Ability to describe process activities and process artefacts 9 1 9 0 0 0 0 0 0

3.3 Support for data model specification and verification activities 9 0 0 0 0 0 0 0 0

3.4 Ability to provide validation instances 3 3 9 1 3 3 9 3 9

3.5 Ability to propagate data model changes to the user model 1 1 1 1 1 1 1 3 3

3.6 Suitability for verbalization 3 1 3 1 3 3 9 1 3

3.7 Employment of surrogate names for relations 3 0 0 1 3 3 9 3 9

4 Richness of Data Structures 159 159 144 132 108

4.1 Ability to describe classes 9 3 27 3 27 3 27 3 27

4.2 Ability to describe attributes 9 3 27 3 27 3 27 3 27

4.3 Ability to describe data types 9 3 27 3 27 3 27 3 27

4.4 Ability to describe binary relations 9 3 27 3 27 3 27 3 27

4.5 Ability to describe ternary relations 3 3 9 0 0 3 9 0 0

4.6 Ability to describe n-ary relations 1 3 3 0 0 3 3 0 0

4.7 Ability to objectify relations 1 3 3 0 0 3 3 0 0

4.8 Ability to modularize the data model 3 3 9 3 9 0 0 3 9

4.9 Ability to describe an explicit hierarchical structure 9 3 27 3 27 1 9 0 0

5 Richness of Constraint Structures 213 155 149 177 178

5.1 Ability to specify internal uniqueness 9 3 27 3 27 3 27 3 27

5.2 Ability to specify external uniqueness 1 1 1 1 1 3 3 0 0

5.3 Ability to specify simple mandatory roles 9 3 27 3 27 3 27 3 27

5.4 Ability to specify internal frequency constraints 9 3 27 3 27 3 27 3 27

5.5 Ability to specify external frequency constraints 1 1 1 1 1 3 3 3 3

5.6 Ability to specify subsets of relations 3 3 9 1 3 3 9 3 9

5.7 Ability to specify sub-relation chains 3 1 3 1 3 0 0 3 9

5.8 Ability to specify exclusion constraints 3 1 3 1 3 3 9 3 9

5.9 Ability to specify exclusive or constraints 1 1 1 1 1 3 3 3 3

5.10 Ability to specify inclusive-or constraints 3 1 3 1 3 3 9 3 9

5.11 Ability to specify equality constraints 1 1 1 1 1 3 3 1 1

5.12 Ability to specify ring constraints 3 1 3 1 3 3 9 3 9

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

390

Table 1: Evaluation of Conceptual Data Modeling Languages (Cont.).

ID Data Modeling Language Requirement W UML Ecore ORM OWL

5.13 Ability to specify subtype constraints 9 1 9 1 9 3 27 1 9

5.14 Ability to specify object cardinality constraints 3 1 3 1 3 3 9 0 0

5.15 Ability to specify role cardinality constraints 1 1 1 1 1 3 3 0 0

5.16 Ability to specify user-defined constraints 9 3 27 3 27 0 0 3 27

5.17 Ability to specify textual constraints 3 3 9 3 9 3 9 3 9

modeling ORM is built with the principle in mind

that the model and the information stored in it

should be read in a “natural way”, enabling the do-

main experts that model and the information stored

in it should be read in a “natural way”, enabling the

domain experts that are usually not modeling experts

to understand and work with the model.

Models specified using Object Role Modeling

are also based upon the Closed World Assumption

(3 points). The language was designed with readabil-

ity and understandability for non-modeling experts

in mind (3 points). A tailoring mechanism as re-

quired for MBSE does not exist (0 points). The same

is true for a mechanism to integrate different ORM

resources towards one CDM (0 points). Some trans-

formations exist, but are mainly focused on trans-

forming ORM models into relational database

schemes (1 point). An interface for extending the

language does not exist (0 points). Directly develop-

ing software from ORM schemes is out of scope of

the language, yielding considerably low scores in the

whole category. However, ORM has substantial

support through modeling methods such as

NIAM2007 (Lemmens, et al., 2007) and the Con-

ceptual Schema Design Procedure CSDP (Halpin

and Morgan, 2008) (3 points). Modeling processes is

out of ORM’s scope (0 points). Using validation

instances for designing the CDM is an integral part

of ORM (3 points). Furthermore ORM is suited for

verbalization and has a mechanism for surrogate

names (3 points each). ORM supports all of the main

building blocks, along with n-ary relations (3 points

across the board), but a partitioning mechanism does

not exist (0 points). A hierarchical structure cannot

be explicitly described, but the semantic prerequi-

sites for it exist (1 point). ORM scores considerably

high in the constraint structure category, but misses

out on user-defined constraints (0 points).

3.3.4 The Web Ontology Language OWL

In the context of the Semantic Web (Hendler, et al.,

2002), OWL has proven its applicability for provid-

ing a logical sub-structure of data made available

through the Internet. It is standardized by the W3C

(2012) and forms one of the backbones of semantic

information exchange between web resources. OWL

is based upon the Open World Assumption (Hennig,

2012) and is focused on integrating vast amounts of

knowledge across a variety of sources. OWL is also

based upon a set theory principle called Description

Logics that enables functions such as automatic

classification of new knowledge and inference.

Figure 2: Language Evaluation per Category.

OWL is based upon the Open World Assumption.

Some parts of the model can be locally closed down

using workarounds (Mehdi and Wissmann, 2013),

but resulting in substantial additional modeling ef-

fort (1 point). The basic structures of OWL ontolo-

gies are not hard to be understood, but the semanti-

cally rich structures are often difficult to grasp for

non-ontology experts (1 point). A tailoring mecha-

nism as required for MBSE does not exist (0 points).

Different OWL ontologies can be integrated with

each other (3 points) and some transformation capa-

bilities exist (1 point). OWL can be extended by

adding custom concepts, but running the risk of

losing decidability (1 point). Developing applica-

tions is not really a focus of the OWL language,

resulting in a low score in the software engineering

category. The structure of the OWL language allows

dynamic handling of (validation) instances in paral-

lel to the CDM (3 points). OWL supports the basic

data structures, but does not support object proper-

ties with an arity other than 2. (0 points). Further-

more an explicit hierarchical structure, apart from

the class taxonomy, is not part of the language (0

points).The OWL language specifies many con-

OnLanguagesforConceptualDataModelinginMulti-disciplinarySpaceSystemsEngineering

391

straints related to set theory through restrictions and

axioms. User defined constraints can be asserted

using language extensions such as SPARQL or

SWRL (3 points).

4 CONCLUSIONS

This section summarizes the evaluation and sketches

a picture of how to approach identified shortcom-

ings.

4.1 Summary of Language Evaluation

The analysis made evident that the ideal language

for conceptual data modeling does not exist. Each of

the discussed languages stands out when regarding

characteristic aspects.

Due to the very specific requirements on the

modeling languages in the semantic relevance cate-

gory no language is able to fulfil all of the require-

ments. Some features, such as the separation be-

tween tool-development and tool-customization

concepts are not supported by any language. In the

software engineering category, both UML and Ecore

score well, but Ecore comes out with the highest

score due to the extremely tight integration and

attunement with EMF, compensating for the low

score at implementation-independence. The third

category dealing with CDM engineering activities,

also due to very specific requirements, is not well

supported by any of the languages. ORM comes

closest to fulfilling them, but misses out on the pro-

cess aspects. Regarding data structures UML fulfills

all of the requirements, with Ecore and ORM scor-

ing a bit lower and OWL coming out last. No lan-

guage is able to fulfill all requirements in the con-

straint category, but both of the knowledge-oriented

modeling languages, OWL and ORM, attain a simi-

larly adequate score. Figure 2 visualizes the results

of the evaluation by presenting the performance of

the languages per category. A value of 100 expresses

that the language has attained the highest possible

score in a category.

4.2 Necessity for Future Development

Since the ideal modeling language does not exist,

significant improvement is becoming necessary. A

combination of each of the language’s strong suits is

one possible course of action in order to cope with

the requirements needed for effective and efficient

MBSE. One possible approach for bringing together

the advantageous features of these languages is us-

ing Ecore with its meta-modeling mechanism for

leveraging its software engineering capabilities. An

Ecore metamodel extension based on ORM can

serve as abstract and concrete syntax for CDMs,

utilizing ORM’s capability for producing semanti-

cally rich data and constraint structures. Ontological

concepts derived from OWL are used for employing

additional knowledge-management functions while

avoiding the Open World Assumption. In addition a

number entirely newly developed functional aspects,

including a tool-customization mechanism and a

connection of the CDM to its originating engineer-

ing processes has to be included. Only such a har-

monized approach, merging the strong suits of each

of these modeling languages, combined with new

aspects, is able to facilitate genuinely cost-efficient,

effective and consistent MBSE across a wide variety

of engineering domains as required for space sys-

tems engineering.

REFERENCES

ANSI/X3/SPARC Study Group on Data Base

Management Systems, 1975. Interim Report. FDT,

ACM SIGMOD bulletin. Volume 7, No. 2, s.l.: s.n.

Dassault Systemes, 2014. CATIA Version 5-6

Release 2012. [Online]

Available at:

http://www.3ds.com/products/catia/portfolio/ catia-

v5/latest-release/

Eclipse Foundation, 2014. Eclipse Modeling

Project. [Online]

Available at: http://www.eclipse.org/modeling/emf/

Eclipse Foundation, 2014. org.eclipse.emf.ecore

(EMF Documentation). [Online]

Available at:

http://download.eclipse.org/modeling/emf/emf/javad

oc/2.9.0/org/eclipse/emf/ecore/package-

summary.html

Eisenmann, H., 2012. VSD Final Presentation.

[Online]

Available at: http://www.vsd-

project.org/download/presentations/VSD_P2_FP_20

12-05-15_v3.pdf/

ESA, 2012. The Virtual Spacecraft Design

Project. [Online]

Available at: http://vsd.esa.int/

ESA, 2013. EGS-CC - European Ground

Systems - Common Core. [Online]

Available at: http://www.egscc.esa.int/

Fischer, P. M., Eisenmann, H. and Fuchs, J.,

2014. Functional Verification by Simulation based

on Preliminary System Design Data. 6th

International Workshop on Systems and Concurrent

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

392

Engineering for Space Applications (SECESA), 8-10

October.

Friedenthal, S., Griego, R. and Sampson, M.,

2009. INCOSE Model-Based Systems Engineering

Workshop. [Online]

Available at:

http://www.incose.org/Chicagoland/docs/SanDiego/

3-18-

09%20INCOSE%20Model%20Based%20Systems%

20Engineering%20(MBSE)%20Workshop.pdf

Halpin, T. and Morgan, T., 2008. Information

Modeling and Relational Databases. 2nd ed.

Burlington: Morgan Kaufmann.

Halpin, T. and Wijbenga, J. P., 2010. FORML 2.

In: I. Bider, et al. eds. Enterprise, Business-Process

and Information Systems Modeling. Berlin: Springer,

pp. 247-260.

Hendler, J., Berners-Lee, T. and Miller, E., 2002.

Integrating Applications on the Semantic Web.

Journal of the Institute of Electrical Engineers of

Japan, 122(10), pp. 676-680.

Hennig, C., 2012. Evaluating Ontologies for Use

in Model-Based Systems Engineering, München:

Technische Universität München.

Hennig, C. and Eisenmann, H., 2014. Applying

Selected Knowledge Management Technologies and

Principles for Enabling Model-based Management

of Engineering Data in MBSE. 6th International

Workshop on Systems and Concurrent Engineering

for Space Applications (SECESA), 8-10 October.

Hong, S. and Maryanski, F., 1990. Using a Meta

Model to Represent Object-Oriented Data Models.

6th International Conference on Data Engineering,

5-9 Febuary, pp. 11-19.

INCOSE, 2014. Systems Engineering Vision

2025. [Online]

Available at:

http://www.incose.org/ProductsPubs/products/sevisi

on2025.aspx

ISO, 2004. ISO 10303-11: Industrial automation

systems and integration – product data

representation and exchange – Part 11: Description

methods: The EXPRESS language reference

manual.. s.l.:s.n.

ITP Engines UK, 2014. ESATAN-TMS: Home.

[Online]

Available at: https://www.esatan-tms.com/

Kogalovsky, M. R. and Kalinichenko, L. A.,

2009. Conceptual and Ontological Modeling in

Information Systems. Programming and Computer

Software, 35(5), pp. 241-256.

Lemmens, I., Nijssen, M. and Nijssen, S., 2007.

A NIAM2007 Conceptual Analysis of the ISO and

OMG MOF Four Layer Metadata Architectures. In:

R. Meersman, Z. Tari and P. Herrero, eds. On the

Move to Meaningful Internet Systems 2007: OTM

2007 Workshops. Berlin: Springer, pp. 613-623.

Mehdi, A. and Wissmann, J., 2013. EQuIKa

System: Supporting OWL Applications with Local

Closed World Assumption. GI-Jahrestagung,

Volume 220 of LNI, pp. 1943-1948.

MSC Software, 2014. Patran. [Online]

Available at: http://mscsoftware.com/product/patran

NASA, 2007. NASA Systems Engineering

Handbook (NASA-SP-2007-6105) Rev1, s.l.: s.n.

No Magic, 2014. MagicDraw. [Online]

Available at:

http://www.nomagic.com/products/magicdraw.html

Olivé, A., 2007. Conceptual Modeling of

Information Systems. Berlin: Springer.

OMG, 2012. OMG Systems Modeling Language

(OMG SysML), Version 1.3. s.l.:s.n.

Suárez-Figueroa, M. C., 2010. NeOn

Methodology for Building Ontology Networks,

Madrid: Universidad Politécnica de Madrid.

Sure, Y., Staab, S. and Studer, R., 2004. On-To-

Knowledge Methodology (OTKM). Handbook on

Ontologies, pp. 117-132.

Van Renssen, A. S. H. P., 2005. Gellish - A

Generic Extensible Ontological Language, Delft:

Technische Universiteit Delft.

W3C, 2012. OWL 2 Web Ontology Language

Primer (Second Edition). [Online]

Available at: http://www.w3.org/TR/owl2-primer/

OnLanguagesforConceptualDataModelinginMulti-disciplinarySpaceSystemsEngineering

393
