Virtual Agents and Multi-modality of Interaction in Multimedia

Applications for Cultural Heritage

A Case Study

ao Neto

1,2

, Claudia Ribeiro

1,2

, Jo

ao Pereira

1,2

and Maria Jo

ao Neto

INESC-ID, Lisbon, Portugal

Instituto Superior T

ecnico, Universidade T

ecnica de Lisboa, Lisbon, Portugal

Faculdade de Letras da Universidade de Lisboa, Lisbon, Portugal

{joao.neto, claudia.soﬁa.ribeiro, joao.madeiras.pereira}@ist.utl.pt, mjneto@ﬂ.ul.pt

Keywords:

Cultural Heritage, Multimedia Applications, Multi-modal, Embodied Conversational Agents, Multidisci-

plinary Approach, Immersive and Interactive Experience.

Abstract:

Cultural Heritage encompasses a set of traditions and commodities inherited from our ancestors, and it is

vital to convey and preserve them for the next generation. Cultural Multimedia applications and Serious

Games form an important pedagogical and didactic medium, mainly for a young demography, which can

learn while playing. In this paper is presented an innovative platform, named EI

VA (Engine for Immersive

Interaction with Virtual Agents), in which a virtual character, endowed with facial, corporal and behavioural

animation can be integrated in multimedia applications. These multimedia applications, derived from the Fala

Comigo project, which set the example for a possible use of this technology, preserving the historical and

cultural contents indispensable for the users, based on a multi-modality of evident interaction. The resulting

multimedia applications were used in a case study conduct with three different user groups (experts and non-

experts) in different settings including classroom, museum and scientiﬁc conference.

1 INTRODUCTION

Nowadays, Cultural Heritage has been a vastly dis-

cussed subject (Petrelli et al., 2013; Antonaci et al.,

2013). Like no other area, Cultural Heritage demands

a multidisciplinary organization and effort in order

to achieve its crucial goal - user learning (Anderson

et al., 2010).

Without a solid foundation of contents, Cultural

Heritage applications are just attractive pieces of soft-

ware with no real educational use for the visitor. On

the other hand, without a coherent and structured sci-

entiﬁc approach, the technological systems will not

meet the demanding requirements for this type of me-

dia. Moreover, this area demands a unique visual

presentation, that engages visitors. The success of

Cultural Heritage systems deeply relies on balancing

these three core areas.

To achieve this, there must be a commitment pro-

duce renewed content. Is necessary to develop new

cultural discourses, aimed at different age groups and

that create awareness of how important it is to pre-

serve artistic heritage. These studies must be pre-

sented according to the modern lines of dissemina-

tion, based on emerging technologies that capture the

attention of these audiences, establishing a framework

that allows both the dissemination and the enjoyment

of heritage.

Exploring these new potentials, the Fala Comigo

project

(Rego, 2004) explored different multime-

dia applications which, combined several technolo-

gies with a well-structured historical narrative, taking

as a common factor the usage of interactive virtual

agents. The main aim was to create something dis-

tinctive that entices and fascinates the public.

Consequently, the work described in this paper fo-

cused on the implementation of and innovative ani-

mation framework, named EI

VA (Engine for Immer-

sive Interaction with Virtual Agents), designed to op-

timize the performance of embodied conversational

agents and their integration in multimedia systems.

The scope and potential success of the EI

VA frame-

work was the object of a careful analysis using the

environment of the Palace of Monserrate, in Sintra

Portugal which served as a case study for the project.

We evaluated how multimedia applications can inﬂu-

http://www.falacomigo.pt/en/

446

Neto J., Ribeiro C., Pereira J. and Neto M.

Virtual Agents and Multi-modality of Interaction in Multimedia Applications for Cultural Heritage - A Case Study.

In Proceedings of the 10th International Conference on Computer Graphics Theory and Applications (VISIGRAPP 2015), pages 446-453

ISBN: 978-989-758-087-1

ence the assimilation of cultural contents and make an

impact of the visitors’ experience and immersion. In

this sense, tests with different types of users, such as

interviews, questionnaires and in-situ demonstrations

were made.

Section II describes the case study conducted as

well as user characterization where as the results and

discussion presented in section III. We ﬁnalize with

conclusions and future work (Section IV).

2 EI

VA SYSTEM

The aim of this work was to create an innovative

framework for virtual agents, completely integrated in

a spoken dialogue system, where the purpose was to

take the user on an immersive and multi-modal jour-

ney, where realism and interactivity are crucial fac-

tors.

2.1 Architecture

The organization of the EI

VA framework is divided

into three main blocks: Application, Animation En-

gine and Spoken Dialogue System. The Application

Block can be seen as a standard multimedia support,

with its features, functionality, and isolated objec-

tives. In this manner it was intended to add a new in-

teractive and communicative paradigm. This change

forced the introduction of an innovative tool, where

the inclusion of Embodied Conversational Agents, re-

alistically animated and communicatively supported

by an SDF, presents itself as a differentiating qual-

ity factor. Thus, the Animation Engine is responsi-

ble for conceding the realism by creating credible fa-

cial, emotional and bodily animations. The Spoken

Dialogue System block is responsible for managing

the interaction and knowledge domains of the virtual

agent.

2.1.1 Application Block

From the high-level architectural introduction made

previously, it is possible to identify the existence of

three main functional blocks. Each of these blocks

has a set of internal modules that contribute to the in-

tegration of the EI

VA framework into any multime-

dia application.

Beginning with the Application Block, which has

two essential management components: Client Appli-

cation Manager and Recognition Manager. The Client

Application Manager is the entry point for the sys-

tem’s execution. As primary responsibility, it makes

the connection between the application, the Anima-

tion Engine and Spoken Dialogue System, control-

ling all activity of this environment. In addition to

the features of communication management and en-

forcement, this module has other important responsi-

bilities. Speciﬁcally, it serves as a trigger to the in-

teractive process. As such, after creating the user’s

session structure, it initiates all the remaining compo-

nents of the Application Layer. First it signals if the

application is properly initiated and ready to start the

recognition process, transferring the execution ﬂow to

the Recognition Manager.

The Recognition Manager is responsible of coor-

dinating the whole recognition process. Speciﬁcally,

when the Client Application Manager completes the

initialization process, changes its state and informs

the Recognition Manager that the recognition pro-

cess can begin. The recognition process is continuous

and cross-framework, always active, and only stopped

when the agent is speaking, being restarted immedi-

ately when it ﬁnishes. This module is therefore sepa-

rated from the animation engine, since their operation

is independent of the activity of the later.

2.1.2 Animation Engine

Regarding the Animation Engine block, it consists of

a set of unique modules, responsible for the entire an-

imation aspects of the EIVA framework. In particu-

lar, this engine is formed by the following functional

components: Visemes Manager; Emotions Manager,

Facial Expressions Manager, Human Gestures Man-

ager, Body Animations Manager, Non-verbal Be-

haviour Manager; Data Persistence Manager and Ani-

mation Module. The Visemes Manager prime respon-

sibility of mapping the phonemes of any supported

language into visemes. Then, it takes the resulting

viseme set and converts it to visual animations be-

longing to the virtual agent. As input data, this com-

ponent receives a data structure composed by the list

of phonemes and their duration times, sent directly by

the Spoken Dialogue System.

The Emotions Manager is responsible of mapping

a set of human emotions into visual animations of the

virtual agent. As input data, this module receives a

data structure containing three separate lists: a list of

emotions to generate; a list with the respective dura-

tion of each of these emotions and a list with particu-

lar intensities of each of the above poses.

The Facial Expressions Manager primary function

is to map a set of facial expressions into visual anima-

tions that can be used by the virtual agent. As input

data, this module receives a data structure containing

three separate lists: a list of the facial expressions to

generate; a list with the respective duration of each of

Virtual Agents and Multi-modality of Interaction in Multimedia Applications for Cultural Heritage - A Case Study

447

these expressions and a list with particular intensities

of each of the above poses.

The Human Gestures Manager, in its turn, maps

a set of human gestures in visual animations that can

be used by the virtual agent. As input data, this mod-

ule receives a data structure containing three separate

lists: a list of the human gestures to generate; a list

with the respective duration of each of these gestures

and a list with particular intensities of each of the

above poses.

The Body Animations Manager has the responsi-

bility of deﬁning a set of uncharacterised animations,

which can be used at alternate times of the interactive

process. Here we ﬁnd oratory animations or anima-

tions of complex human movements. Currently there

is no concrete and generally accepted speciﬁcation to

indicate which set of essential bodily animations a vir-

tual agent should have. This led us to separate this

module functionally and structurally. In this manner,

its control is independent from any other animation

manager.

The Non-verbal Behaviour Manager takes the re-

sponsibility of recreating non-verbal behaviours and

associates them with text responses to be reproduced

by the virtual agent. These behaviours can be created

to encompass any of the animations related to emo-

tions, gestures or facial expressions.

Any previously described animation can be de-

ﬁned as an interactive event which occurs over a pe-

riod of time, being connected to a given sequence of

facial or body animations and persisted in the Data

Persistent Manager. As such, it must be possible to

reference these animations easily through a standard

speciﬁcation. This abstract description is the solution

to simplify the structural mapping between what is

sent by the Spoken Dialogue System and what is fea-

tured in each of the presented managers. Thus, to bet-

ter reference the different data structures received in

each behavioural animation module, the descriptive

language for virtual human animations VHML - Vir-

tual Human Markup Language

was used.

2.1.3 Spoken Dialogue System

The Spoken Dialogue System consists of a set of

components that enhance the multi-modal and inter-

active facets of the system. Through the integration

of semantic processing tools, speech recognition and

synthesis engines, it is possible to transform a vir-

tual agent in an educational and communicative ve-

hicle. To achieve an interactive form of communi-

cation it was necessary to innovate in different as-

pects, mainly in the creation and structuring of the

http://www.vhml.org/

Relational Knowledge Base. Speciﬁcally, it was nec-

essary to develop something more prominent than a

simple database, associating questions with respec-

tive answers. This layer is generally coordinated by

the management module - Dialogue Manager, which

takes the responsibility of structuring all communi-

cation and processing ﬂow, liaising with the Anima-

tion Engine and the Client Application. The Speech

Recognition Engine integrates the AUDIMUS which

is a hybrid speech recogniser that combines the tem-

poral modelling capabilities of Hidden Markov Mod-

els, with the discriminative pattern classiﬁcation ca-

pabilities of multilayer perceptrons. This automatic

recogniser can be used for distinctive tasks, based

on a common structure, with different components.

The acoustic models were adapted for a microphone

input device. The system is using a different lan-

guage model for each speciﬁc application scene in

order to have a limited number of words in the vo-

cabulary. With this approach the recognition percent-

age is much higher. However, the language model

can have an increased complexity for each knowledge

base driven interactions.

The Language Interpretation Module is respon-

sible for extracting the intentions of the user’s ut-

terances. The visitor can interact with the applica-

tions by touching the screen or by speech commands.

When real-time interaction is intendant, a suggestion

table of questions is shown to the user to help her/him

steer in the right direction. In a cultural exhibition

case study is normal for a virtual agent interaction

framework to receive many questions not stored in the

current knowledge base. To avoid quick user detach-

ment, we suggest possible questions to boost the in-

teraction sequence. The visitor can choose a speciﬁc

question using the touch screen interface or by read-

ing the question. When this module receives input on

the touch screen, it sends the chosen question to the

Relational Knowledge Base module.

The Relational Knowledge Base maps questions

to the appropriated answers. When a question arrives

to the module, an answer is chosen and then sent to

the Dialogue Manager.

The Dialogue Manager consists of several main

modules, including the Behavioural Agent (BA)

which has the responsibility of managing all the di-

alogue process. Frames are used to represent both

the domain and the information collected during the

interaction with the users. The Speech Synthesizer

Engine integrates a TTS module (DIXI) which is a

concatenated based synthesiser. This framework sup-

ports several voices and two different types of unit:

ﬁxed length units (such as diaphones), and variable

length units. This latter data-driven approach can be

GRAPP 2015 - International Conference on Computer Graphics Theory and Applications

448

ﬁne-tuned to a limited domain of applications scenes,

by altering the design of the corpus.

2.2 Information Flow

Given the previous structural division, we can sum-

marize the interactive ﬂow organization through a

state machine (see Fig 1) that mirrors the different

presented phases.

At the beginning of the execution the system is

in INIT state, where the different modules managers

are initiated, beginning with the Application Block

soon followed by the spoken dialogue layer. After

this phase, the system is ready to start the recogni-

tion process, reaching the LOAD state. When this

loading process is complete, the client application is

ready to receive requests, going to the ACTIVE state.

When the user interacts with the system in the form

of a question, this is done transferring the execution

ﬂow to the Spoken Dialog System. The system enters

a processing phase in which the current state - PRO-

CESSING - reﬂects that. When this process ends, the

result is sent to the Animation Engine that will gen-

erate an animated - ANIMATING state. The Appli-

cation layer is responsible for initiating the display of

the prior sequence to the user. When the agent ﬁnishes

its response, the system waits for a new interaction

returning to the ACTIVE state. When the interaction

ends, the system returns to its initial state- INIT. The

following image shows this same state machine.

Figure 1: State Machine of the EI

VA Framework.

3 FALA COMIGO PROJECT A

CASE STUDY

It was decided to conduct an appraisal of this work,

which consisted in evaluating in an integrated way,

each of its components. This evaluation was based

in a set of structural methodologies introduced by

Figure 2: At the time of the Cook Famiy Room example.

(Bernsen and Dybkjær, 2004) and (Fonseca et al.,

2012). Collecting this information allowed doing a

deeper reﬂection on fundamental aspects of the mul-

timedia system produced for the Fala Comigo project

(Rego, 2004).

With the reference of Monserrate Palace in Sintra,

the Fala Comigo project

(Rego, 2004) created dif-

ferent multimedia products, assuming as common de-

nominator the virtual agents. These products obeyed,

in terms of content, to a selection of information

which is relevant to different types of audiences using

different levels of language. Enhancing content ac-

cessibility increases the potential of one of the most

fundamental objective of a Cultural Heritage appli-

cation - user learning. By using complementary cul-

tural contents, a simple user interface was designed,

where the contents can be clearly conveyed and ab-

sorbed. These applications are group by three distinc-

tive types: Multi-touch Informative, Multi-touch In-

teractive and Serious Games (Abt, 1970; Michael and

Chen, 2006; Susi et al., 2007; Ribeiro et al., 2013).

An example of one of the multimedia applications can

be depicted in Figure 2.

The ﬁrst important step of the evaluation process

was to correctly identify the user groups that should

test the system in its development phase. Following

this premise, we formed an evaluative group for each

of the functional areas presented in this work. This

structure proved to be of utmost importance when

drawing conclusions about the developed functional

environment.

3.1 User Characterization

This step was conducted in a structured and method-

ological way, since it is crucial to select the right

users to test the system. In particular, special steps

were taken throughout this process, selecting hetero-

geneous assessment groups, skilled and unskilled, fo-

http://www.falacomigo.pt/en/project/

Virtual Agents and Multi-modality of Interaction in Multimedia Applications for Cultural Heritage - A Case Study

449

cused on examining particular parts of the system

(Taras, 2005).

Follow-up Groups

Since the start of the development phase, both the

Animation Engine and the Spoken Dialogue System,

needed a specialized follow-up group responsible for

analysing each iteration of these two parts. Sepa-

rately, another team was assigned to monitor the mul-

timedia applications creation process, as mentioned

previously. The group responsible for the structural

and functional analyse of the evolution of the Anima-

tion Engine and Spoken Dialogue System had the fol-

lowing composition: (a) 1 specialist in animation; (b)

1 specialist in spoken dialogue systems; (c) 2 expert

users; (d) and, 3 non-expert users.

In parallel, the group with the task of verifying

that aesthetic and functional evolution of the multi-

media applications was composed as follow: (a) 1

specialist in historical and artistic contents; (b) 1 spe-

cialist in spoken dialogue systems; (c) 2 expert users;

(d) and, 3 non-expert users.

From the organizational structure presented, is

possible to observe that the two groups were com-

prised of three categories of users. This approach

promotes the possibility of receiving different types

of opinions and getting a better perspective on the

strengths and weaknesses of the system. On both

groups there are specialists, focused on matters di-

rectly related to fundamental aspects of the exposed

functional blocks. Additionally, two experts users

were assigned to each team that had both an academic

and professional experience in this context. Due to

their background, this users were able to provide a

distinct and constructive view of all the environment.

To promote a new critical and impartial vision about

the various functional components, we also selected

three non-experts users with no previous knowledge

of the areas in question.

During the development stage, the two groups col-

laborated with us through different stages of forma-

tive evaluation, analysing the main functional aspects

of the created system. In all these analytical moments,

technical and design ﬂaws were found. This itera-

tive discussion process resulted in the improvement

of the components discussed above. At the end of this

step, the history log build during the different analy-

sis phase was reviewed. This resulted in a summative

evaluation of the complete process.

System Users

After concluding the development phase, it was nec-

essary to ﬁnd new users, without any knowledge of

the work in progress. The selection of users followed

the same methodological principles of the develop-

ment phase. In terms of analysis, the focus was on

the quality and effectiveness of the transmission of

educational and historical content as well as the soci-

ological ability of the virtual agent as a teaching and

guiding vehicle during a cultural visit.

Given the interactive facet of the Fala Comigo

project

(Rego, 2004), it was decided to validate

the capabilities of this system in different environ-

ments. Initially, the system was presented at the

international conference: ECLAP2013, 2nd Interna-

tional Conference on Information Technologies for

Performing Arts, Media Access and Entertainment,

Porto, 8-10 April 2013. Here, the main focus of the

evaluation was the Animation Engine and the Spoken

Dialogue System, via the technical skills of the partic-

ipants. In short, with this demonstration, we sought

the opinion and acceptance of people with expertise

in the identiﬁed areas.

In a second phase, the pedagogical capabilities of

the interactive agent were analysed. The presenta-

tion and use of educational multimedia content alone,

very often has a low receptivity in the target audience.

Without a well-structured conductive line, where the

virtual agent assumes the role of a guide, it is difﬁcult

to achieve a correct transmission and assimilation of

historical contents. As such, it was necessary to as-

sess the actual pedagogical relevance of the produced

applications. Therefore, it was decided to test the dif-

ferent applications with two groups of students, one

of basic education (8th grade) and other higher edu-

cation (3rd year of the degree in Art History). The

context, the mode and manner of this assessment will

be explained in the next section.

To complete this important step, the applications

were also evaluated in-situ. The Monserrate Palace is

a monument with very particular characteristics and is

visited by many foreign tourists. Almost empty today,

the historical contents need to be the bridge between

the past and the present. The virtual agents, as recre-

ated historical ﬁgures, are responsible for guiding the

visit, on one hand, and for being storytellers, on the

other. This phase lasted a week and we were able

to collect all the information necessary regarding the

created applications.

4 RESULTS AND VALIDATION

In this section is summarized the results of the evalu-

ation process. In order to maintain a descriptive con-

http://www.falacomigo.pt/en/project/

GRAPP 2015 - International Conference on Computer Graphics Theory and Applications

450

Figure 3: Technical Analysis Results.

sistency, we begin with the description and analysis

of the results obtained in the international conference

ECLAP, followed by the assessment of the student

groups test phase and ending with the assessment of

in-situ tests.

4.1 Technical Analysis

The international conference ECLAP was chosen to

be the ﬁrst demonstration attempt, disseminating the

Fala Comigo project

(Rego, 2004) in a scientiﬁc en-

vironment, paying particular attention to the interac-

tion with the Virtual Agent. The questionnaire used

to collect information was administered to 15 users

and was focused on the evaluation of the Animation

Engine and the Spoken Dialogue System. Particu-

larly, the objective was to obtain new opinions and

also validate the chosen implementation options. The

questionnaire was divided into three distinct and well

deﬁned sections: demographic analysis, analysis An-

imation Engine and analysis of Spoken Dialogue Sys-

tem.

The ﬁrst phase of the evaluation comprehended a

group of demographic questions for better character-

ization and contextualization of the respondents. The

high level of education and technical skills of the par-

ticipants provided a new vision in the two previous

highlighted components. Moreover, the wide vari-

ety of participants nationalities was signiﬁcant when

assessing the quality of the communicative message

of the virtual agent, with only three available lan-

guages, including Portuguese, English and Spanish.

After answering the demographic questionnaire each

user was submitted to guided interaction with each of

the multimedia applications. At the end of interac-

tion, each user answered a questionnaire composed

of seven likert-scale questions focused on analysing

the real impact of the virtual agent on their experi-

ence. Speciﬁcally, it was requested feedback in terms

of visual credibility, both facial and emotional anima-

tion wise. The summary of the results obtained in this

questionnaire are presented in Figure 3.

http://www.falacomigo.pt/en/project/

93% of respondents consider that these animations

reproduced faithfully and, with excellent quality, the

expressions and emotions of a human being. The

communicative importance of the virtual agent is an-

other relevant aspect to take into consideration. The

agent, many times, needs to be a communicator and a

disseminator of cultural contents in a historical envi-

ronment. The text-to-speech engine needs to have ac-

cess to realistic voices. Each virtual agent should have

a particular voice that needs to be convincing and feel

natural. 80% of respondents qualiﬁed this qualitative

aspect with Very High and 20% believe that the cred-

ibility conveyed by the virtual character to High. The

used voice, together with a spoken discourse carefully

outlined, is fundamental in this interactive process.

Overall, the receptivity of respondents was quite ac-

ceptable, with 87% of respondents to rate the over-

all experience with the Virtual Agent with Very High.

Finally, the last section of the analysis focused on is-

sues related to Spoken Dialogue System. The ECLAP

conference provided an environment suitable to test

aspects concerning communicative quality of virtual

agent dialogues, mainly the contents of the Relational

Knowledge Base. Again, 87% of the inquired users

were very satisﬁed with the assertiveness of the vir-

tual agent’s cultural message.

4.2 Sociological Analysis

After ECLAP, we looked for different points of view

outside of the academic context. Speciﬁcally,the sys-

tem was tested by two distinct groups of respondents.

The main aim was to analyse the sociological, ed-

ucational and communicative ability of the virtual

agent. In this respect, the multimedia applications

were tested with a group of students from the 8th

grade (total of 20 students) and with a university class

from the Art History course (total 28 students). This

test was comprehended in two distinct phase: ﬁrstly

the user listened to an oral presentation of cultural

contents of the Palace of Monserrate and its history.

After, the students answered to a quiz regarding ed-

ucational questions about the presentation. On the

Virtual Agents and Multi-modality of Interaction in Multimedia Applications for Cultural Heritage - A Case Study

451

second phase, the students interacted with the mul-

timedia applications for a period of 15 minutes. Fi-

nally, they answered to a quiz similar to the one they

answer previously. These knowledge questionnaires

were provided by experts and pre-test and post-test,

although different, had the same level of difﬁculty.

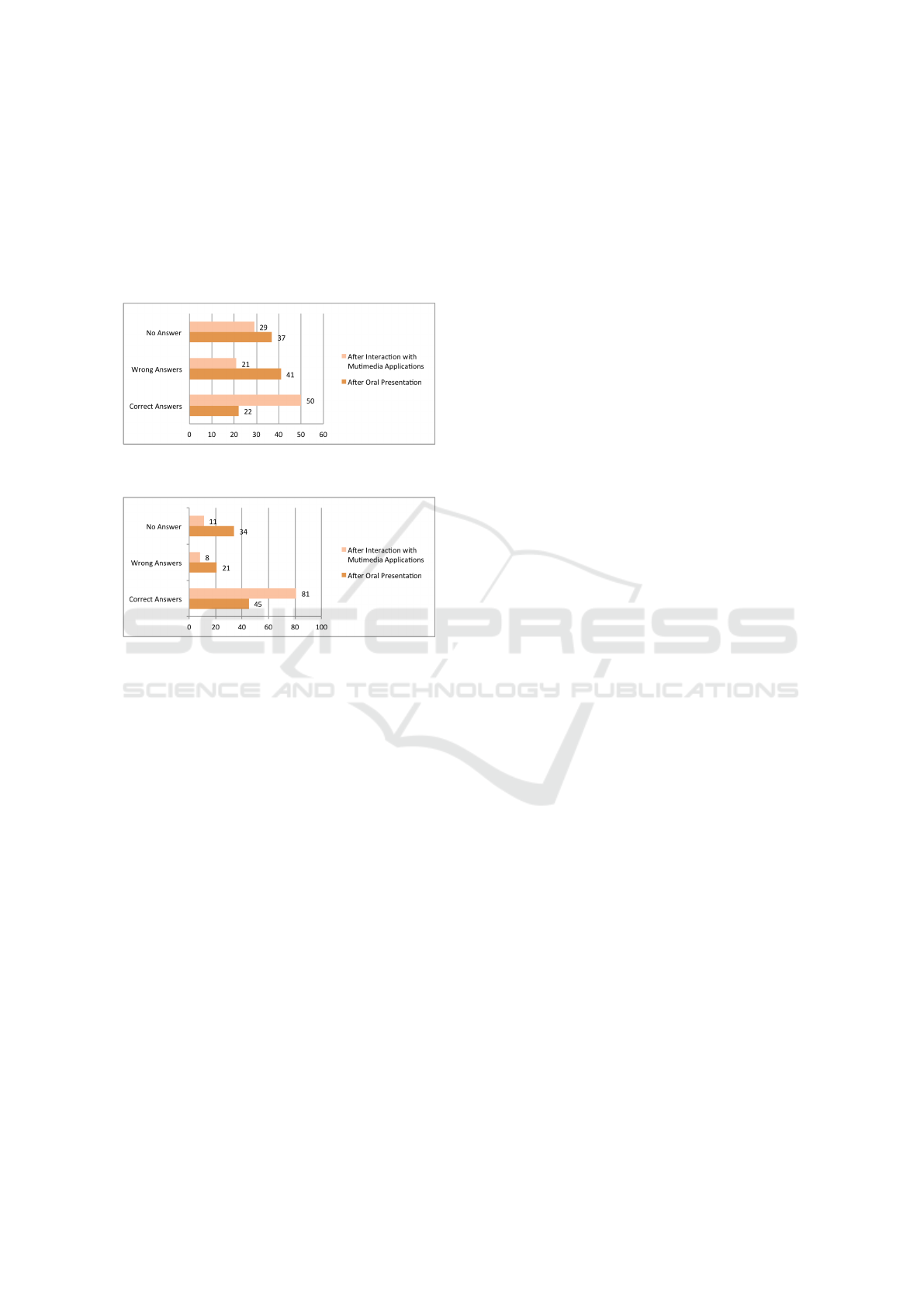

The summary of the results can be depicted in Fig-

ure 4 and Figure 5.

Figure 4: Art History Course Undergraduate Students Re-

sults.

Figure 5: 8th Grade Results.

First, we have to point out an important aspect in

relation to the environment in which the tests were

conducted. Regarding the university students group,

the underling process was conducted in the class-

room. On the other hand, with the 8th grade students

group the tests were conducted at the monument dur-

ing a study visit. Even with speciﬁc knowledge in art

history, the results of the undergraduate class show

that the user location paradigm of is a factor to take

into account. Only 22% correct and 41% wrong an-

swers, adding up to 37% of unanswered questions.

The initial results of 8th grade class were a little

more balanced with 45% correct answers.These re-

sults indicate that the presence of the visitor at the

historical site has a measurable impact in the assimi-

lation of the historical and educational contents. Par-

ticularly, this is reﬂected in the lower percentage of

wrong answers and not answered, 21% and 34% re-

spectively of the 8th grade students group. After the

interaction phase, the second quiz showed a clear im-

provement of the respondents. In the 8th grade stu-

dents we can see a 34% increment for the correct an-

swers to 81%. In the undergraduate students, the cor-

rect answers percentage was maximized by 28 points

to 50%. These are positive results that show some

promise in terms of the sociological, educational and

communicative capacities that the virtual agent offers.

4.3 In-Situ Analysis

To conclude the test phase, it was decided to conduct

a week of ﬁeld-testing at the Palace of Monserrate.

Both visitors and monument’s staff were invited to

experience the multimedia applications. Here, with

a sample of 47 elements, we aimed to test, not only

the technical aspects of the Animation Engine and the

Spoken Dialogue System, but also aspects related to

the usability and design of the applications. In terms

of the lastly referred aspects, the results were very in-

teresting, which revealed the importance of the vir-

tual characters being directly integrated in multime-

dia applications. The summary of the results can be

depicted in Figure 6.

After the normal demographic analysis phase,

feedback was requested regarding the Design and Us-

ability facets of the multimedia applications. Speciﬁ-

cally, the aim was to hear the user’s opinion in terms

of the presented cultural knowledge and the acqui-

sition process of those historical contents. 77% and

68% of respondents scored as Excellent the structural

aspects of Design and Usability, respectively. In terms

of exposure and apprehension of knowledge 72% and

57% indicated as Excellent how the historical and ed-

ucational contents are presented and acquired, in that

order.

Regarding the evaluation of the Animation En-

gine, the respondent’s views support the results ob-

tained during the evaluation process carried out at the

ECLAP conference. Speciﬁc technical aspects, such

as the visual impact of the facial animations (Very

high - 74%), communicative importance (Very High -

63%) or voices quality (Very high - 77%) were quite

interesting in a non-specialized public. The results are

less positive in the visual evaluation of the body an-

imations, with 44% of respondents to evaluate these

as Very High and 29% as High. 89% of respondents

indicated with Very High the visual credibility of the

virtual characters, higher value than 80% registered at

the ECLAP conference. Finally, 63% of respondents

scored as Very High the overall quality of the anima-

tion engine.

The ﬁnal evaluation phase included the quality of

the verbal message conveyed by the virtual characters,

structured in the Relational Knowledge Base. 63%

and 23% of users consider this as Very High and High

respectively.

GRAPP 2015 - International Conference on Computer Graphics Theory and Applications

452

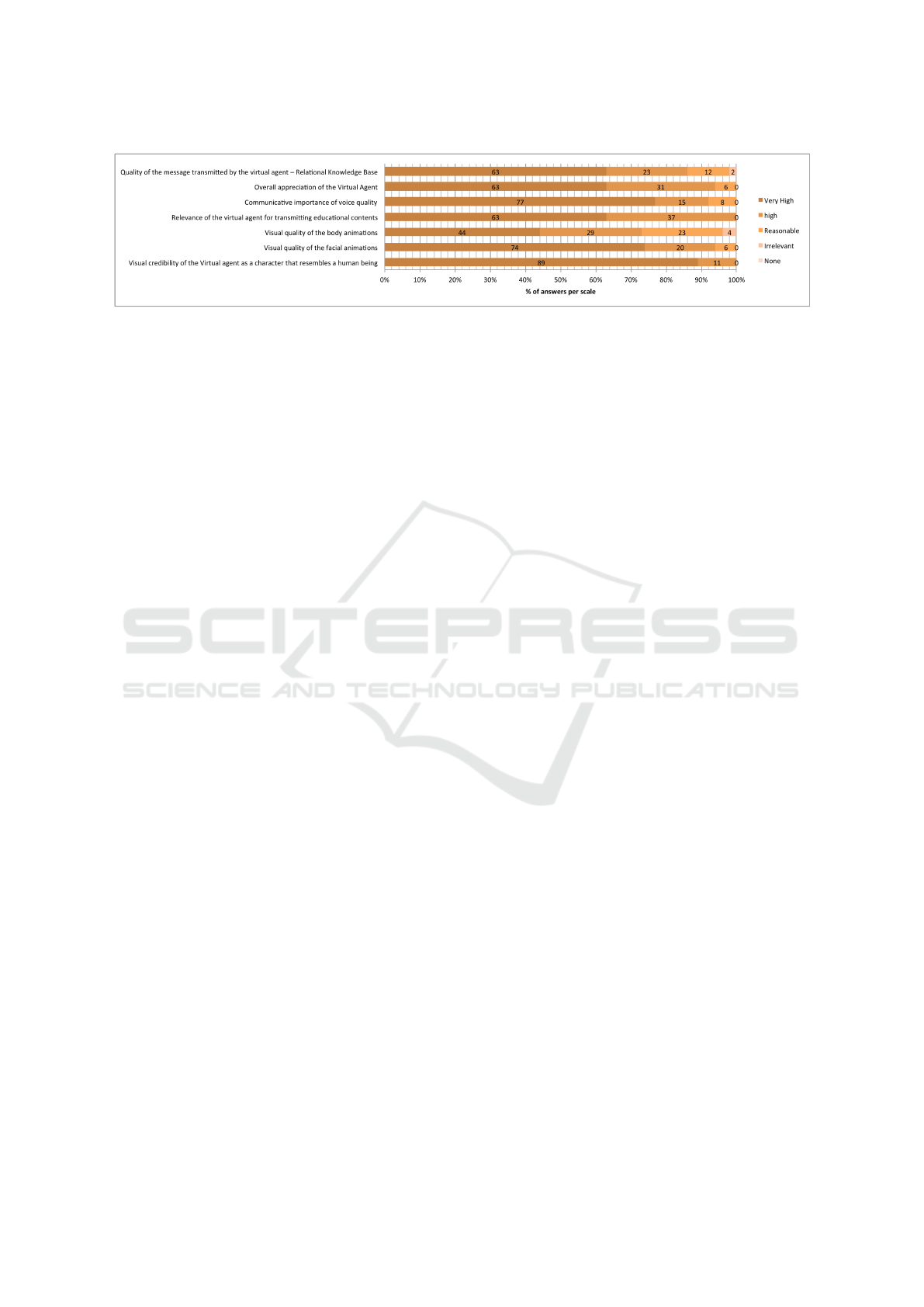

Figure 6: In-Situ Analysis Results.

5 CONCLUSIONS

In conclusion, it is necessary to highlight the current

high demand for promoting Cultural Heritage. There

is a ﬁrm belief that for a proper and attractive transfer

of cultural information, the development of multime-

dia applications that heavily rely on realistic Embod-

ied Conversational Agents is mandatory. This is an

on-going research project, since in the past the deliv-

ery of the cultural message was compromised due to

poor design and simplistic agents.

In general users believe that the agent animations

and dialogue interaction was very credible. In partic-

ular, both experts as well as non-experts expressed the

importance of the virtual agent to convey cultural her-

itage. Moreover, the level of learning was higher both

among 8th grade students as well as undergraduate

students after interacting with the multimedia appli-

cations.

Finally, as a future direction for this work we be-

lieve that developing a centralized library of virtual

agents and respective animations that could be re-used

by different application for different contexts could

help lower the cost of developing this kind of applica-

tions.

ACKNOWLEDGEMENTS

This work was supported by FCT (INESC-ID

multiannual funding) under the project PEst-

OE/EEI/LA0021/2013. The authors also would

like to acknowledge to the European funded Project

Games and Learning Alliance (FP7 258169) the

Network of Excellence (NoE) on Serious Games.

REFERENCES

Abt, C. (1970). Serious Games. University Press of Amer-

ica.

Anderson, E., McLoughlin, L., Liarokapis, F., Peters, C.,

Petridis, P., and de Freitas, S. (2010). Developing se-

rious games for cultural heritage: a state-of-the-art re-

view. Virtual Reality, 14(4):255–275.

Antonaci, A., Ott, M., and Pozzi, F. (2013). Virtual mu-

seums, cultural heritage education and 21st century

skills. Learning & Teaching with Media & Technol-

ogy, page 185.

Bernsen, N. O. and Dybkjær, L. (2004). Evaluation of

spoken multimodal conversation. In Proceedings of

the 6th International Conference on Multimodal Inter-

faces, ICMI ’04, pages 38–45, New York, NY, USA.

ACM.

Fonseca, M., Campos, P., and Gonc¸alves, D. (2012).

Introduc¸

ao ao Design de Interfaces. FCA - Editora

de Inform

atica.

Harlen, W. and James, M. (1997). Assessment and learn-

ing: differences and relationships between formative

and summative assessment. Assessment in Education,

4(3):365–379.

Michael, D. and Chen, S. (2006). Serious games: games

that educate, train and inform. Thomson Course

Technology.

Petrelli, D., Ciolﬁ, L., van Dijk, D., Hornecker, E., Not,

E., and Schmidt, A. (2013). Integrating material and

digital: a new way for cultural heritage. interactions,

20(4):58–63.

Rego, S. (2004). Fala comigo agente virtual conversa-

cional e emocional. Master’s thesis, Instituto Superior

ecnico, Lisbon, Portugal.

Ribeiro, C., Antunes, T., Monteiro, M., and Pereira, J.

(2013). Serious games in formal medical education:

An experimental study. In Games and Virtual Worlds

for Serious Applications (VS-GAMES), 2013 5th In-

ternational Conference on, pages 1–8.

Susi, T., Johannesson, M., and Backlund, P. (2007). Serious

games - an overview. Technical Report HS-IKI-TR-

07-001, School of Humanities and Informatics, Uni-

versity of Sk

ovde, Sweden.

Taras, M. (2005). Assessment–summative and formative–

some theoretical reﬂections. British Journal of Edu-

cational Studies, 53(4):466–478.

Virtual Agents and Multi-modality of Interaction in Multimedia Applications for Cultural Heritage - A Case Study

453
