Test-Driven Migration Towards a Hardware-Abstracted Platform

Wolfgang Raschke

, Massimiliano Zilli

, Johannes Loinig

, Reinhold Weiss

, Christian Steger

and Christian Kreiner

Institute for Technical Informatics, Graz University of Technology, Inffeldgasse 16/I, Graz, Austria

Business Unit Identiﬁcation, NXP Semiconductors Austria GmbH, Gratkorn, Austria

Keywords:

Software Reusability, Test-Driven Development.

Abstract:

Platform-based development is one of the most successful paradigms in software engineering. In embedded

systems, the reuse of software on several processor families is often abandoned due to the multitude of compil-

ers, processor architectures and instruction sets. In practice, we experienced that a lack of hardware abstraction

leads to non-reusable test cases. We will demonstrate a re-engineering process that follows test-driven devel-

opment practices which ﬁts perfectly for migration activities. Moreover, we will introduce a process that

provides trust for the test cases on a new hardware.

1 INTRODUCTION

Engineering in the ﬁeld of Smart Card development

faces several challenges, such as the demand for a

high level of security (Mostowski and Poll, 2008),

low memory footprint, power consumption and run-

time performance (Rankl and Efﬁng, 2003). All these

requirements are interrelated and in fact, the multi-

tude of dependencies hinders Smart Card suppliers

and issuers from deploying a great deal of diversiﬁed

customizable products. Rather, there are only a few

standard products available on the market. These do

not meet the needs of today’s customers who are in-

creasingly demanding tailor-made products.

Principles of platform-based development and Soft-

ware Product Line Engineering (SPLE) (Pohl et al.,

2005)(Clements and Northrop, 2002) are a success-

ful paradigm in software engineering. SPLE aims at

systematic reuse where possible and provides a con-

ceptual framework for the diversiﬁcation of products.

In the domain engineering process the purpose is not

to develop single products but to develop a base of

related systems in respect to the product family. Ded-

icated rules of composition are deﬁned. In the appli-

cation engineering process, the engineers assemble a

product out of the product familythat corresponds to

these rules of composition.

Products are based on several processor families (PF)

which have different implications regarding compil-

ers, byte endianness and architecture. Test cases are

not platform-independent per se, even if they are writ-

ten in Junit

, a Java based unit test framework.

The migration to a product line has to be accom-

plished during operation: a Smart Card system is un-

der construction on PF A. The plan to transition to-

wards a hardware-abstracted software is to track the

development of the Smart Card system on a second

PF B as a proof of concept. The way of working

is as follows: ﬁrst, take existing test cases and ab-

stract them from PF A. Second, build conﬁdence for

platform-abstracted test cases. Third, use test cases

on PF B in order to port the software in a test-driven

development process.

2 REQUIREMENTS

2.1 Requirements in the Industrial

Context

It is intended to port as many software components

as possible to several PF. Initially, it was deemed

appropriate to elicit a set of coding guidelines in

order to keep the source code platform-abstracted.

Once a pilot project had been conducted to validate

our approach, it became apparent that the tests, in

particular, create a bottleneck. Porting the source

code has worked without much refactoring of the

code. Unfortunately, it turned out that most of the

http://junit.org/

261

Raschke W., Zilli M., Loinig J., Weiss R., Steger C. and Kreiner C..

Test-Driven Migration Towards a Hardware-Abstracted Platform.

DOI: 10.5220/0005216302610267

In Proceedings of the 5th International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS-2015), pages

261-267

ISBN: 978-989-758-084-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

test cases needed to be refactored manually. This was

not acceptable for the following reasons: ﬁrst, the

Software Product Line is intended to run on several

PF. Industrial embedded systems are usually tested

by several thousands of test cases. So, porting test

cases manually is not economically feasible in the

long run.

Second, manual porting activities are a source of

possible defects. The test cases inhibit a high amount

of memory dumps. Manually processing this data

is error-prone to some degree. Thus, the test cases

introduce an additional risk for each migration to a

new hardware.

Third, in order to achieve platform-abstraction, we

decided to allow no code change for different PF,

neither in source code nor in test code. A code

change for a speciﬁc PF would signiﬁcantly decrease

the reusability of the code.

2.2 Requirements Due to Variability

Drivers

The Java Card (Oracle, 2011b)(Oracle, 2011a) oper-

ating system under analysis is basically built up as

depicted in Figure 1. At the bottom of the system, the

variability stems from the utilization of the different

PF A or B. Both of them introduce several facets of

variability: ﬁrst, each PF enforces the utilization of a

separate tool chain which usually includes compiler,

linker and simulator. This facet of variability propa-

gates to the hardware abstraction layer. A consider-

able portion of it has to be written in assembler and

code which is not ANSI-C compliant.

Second, each PF may have a different byte endian-

ness and pointer size. For instance, a 32 bit pointer on

processor A corresponds to a 16 bit pointer on proces-

sor B. We experienced these factors as the major im-

pediments for test case reuse over several PF. These

drivers affect the process in all layers except for the

Java Card application layer.

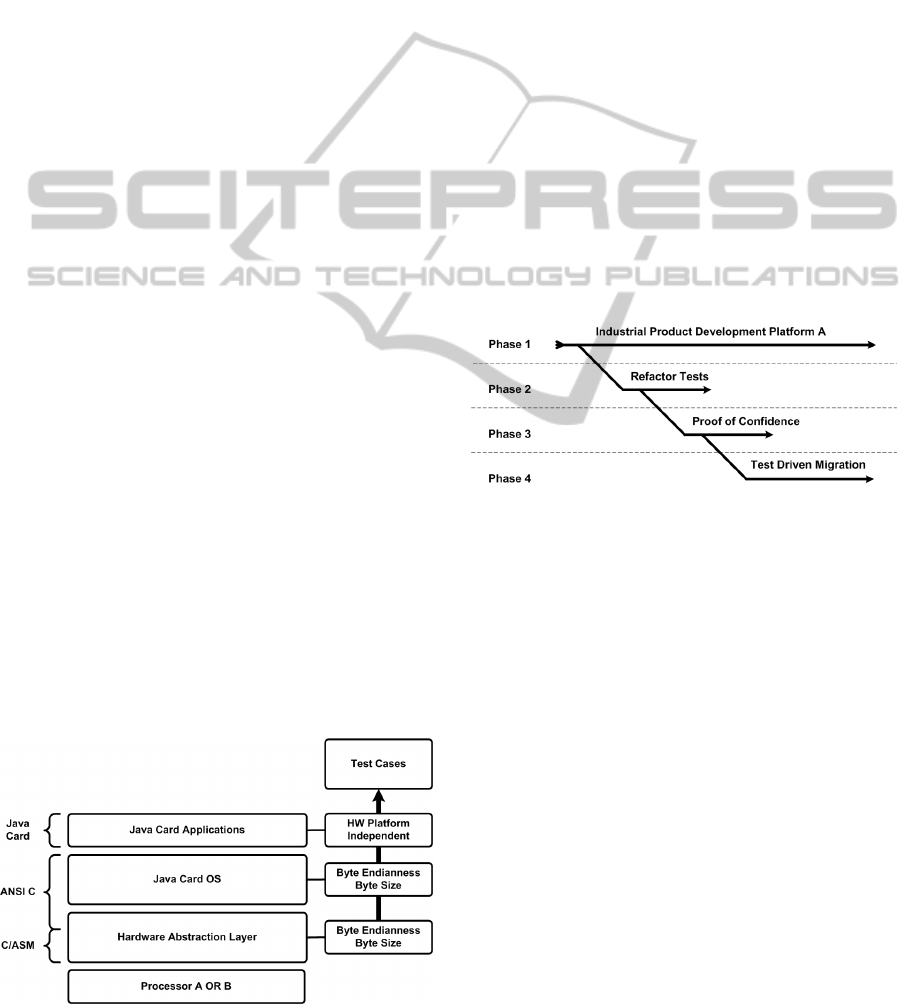

Figure 1: Variability Drivers for Test Cases.

2.3 Platform Lifecycle: Product 1 -

Reengineering - Platform, Product 2

The major constraint of the refactoring process is that

the industrial product development for PF A may not

be disturbed. The continuing industrial development

is shown as phase 1 in Figure 2. The pilot study is

intended to demonstrate and prove the feasibility of a

platform-abstracted SPL. If the study is a success we

will transform the development to a platform. In or-

der to fullﬁll the dedicated requirements, the process

is structured as follows:

Phase 1 is the ongoing industrial product develop-

ment process which may not be disturbed.

Phase 2 is intended to refactor the tests to be

hardware-abstracted.

Phase 3 is a dedicated phase where conﬁdence of the

tests on all PF must be demonstrated.

Phase 4 uses the abstracted tests to refactor the code

base. Daily test runs keep the feedback cycle accu-

rate for early detection of defects. This will help to

mitigate the inﬂuence of the hardware abstraction ac-

tivities on the industrial product development process.

Figure 2: Test Refactoring and Proof of Conﬁdence are the

Precondition for Test-Driven Migration.

3 TECHNICAL BACKGROUND

The existing test infrastructure is basically split up

into two parts: off-card and on-card. Off-card, Ju-

nit is used as a test framework.

Junit launches a test case which then has the responsi-

bility to serialize the test data within a transmit buffer.

This buffer is then transmitted via packets to the on-

card side.

On-card, the In System Test Framework (ISTF)

stores the test data within a receive buffer. The dis-

patcher then analyzes the address which denotes the

intended caller stub. Then, the caller stub is launched.

It has access to the receive buffer. The test data has to

be de-serialized, which means that it is retrieved from

the buffer and stored in variables. These variables are

used as parameters for calling functions of the Mod-

ule Under Test (MUT). The response is collected by

the stub module and propagated to the ISTF and then

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

262

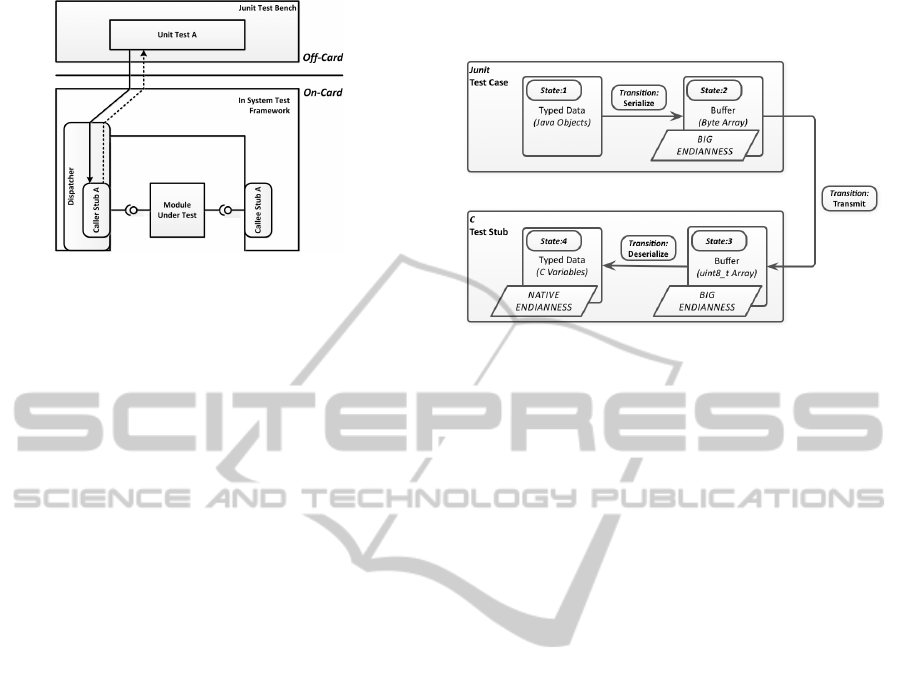

Figure 3: The Test System is Contains Two Parts: The Junit

Test Bench and the In System Test Framework (ISTF).

to the Junit test bench. At that point, the test response

is evaluated and a corresponding test report is gener-

ated. The callee stub is not connected directly to the

Junit test bench. It substitutes the other modules the

MUT usually calls but which are not present in unit

testing. This stub has to provide the MUT with the

appropriate responses.

4 METHOD

The method of handling hardware dependencies

within tests is similar to that of Model-Based Testing

(MBT) (Pretschner and Philipps, 2005). The latter

methodology aims to abstract the system to a model

in order to generate abstract tests and test speciﬁca-

tions. Nevertheless, the goal of MBT is different to

Test-Driven Development (TDD). In TDD, tests basi-

cally represent pure functional requirements.

A reasonable synthesis between MBT and TDD is

to raise the level of functional test cases to an ab-

straction where the following conditions are fullﬁlled:

ﬁrst, developers are easily able to formulate the test

cases without the need of a formal model. Second,

the tests need to abstract all hardware speciﬁcs that

impede portability.

4.1 Abstraction Method

Abstract test cases need to abstract two issues: ﬁrst,

the endianness of the target PF has to be abstracted.

This is accomplished by deﬁning big endianness as a

rule for implementing abstract test cases. Fortunately,

the Java byte endianness is big endian, by deﬁnition.

Second, the data (usually a memory dump) has to be

abstracted in order to be reusable for several PF. Com-

plementing the data with data types is a reasonable

abstraction of a binary representation and meets the

previously stated requirements.

The basic methodology of test case abstraction is

shown in Figure 4. The methodology constitutes of

4 states and 3 transitions.

Figure 4: The Method of Handling Tests on Different Pro-

cessors Contains 4 States and 3 Transitions.

The process starts at State 1, where the data is

bound to types. These types are Java classes. When

they are instantiated by objects they are initialized

with the test data. In order to send these objects to the

Java Card, they have to be serialized which is shown

in Figure 4 as a transition. Afterwards, the data is

stored without any type information in a Java Byte

Array in State 2. The serialized data is organized in

the buffer with big endianness. In the next transition

the data is transmitted from the Junit framework to the

Java Card. Thereafter, in State 3 the data is available

in a buffer. Here, the byte order is still big endian,

regardless of the processor. In the following transi-

tion the data has to be de-serialized. Finally, in State

4 the endianness is resolved and the data is stored in

variables. These variables are usually parameters for

calling the MUT. The test case is now determined and

executable.

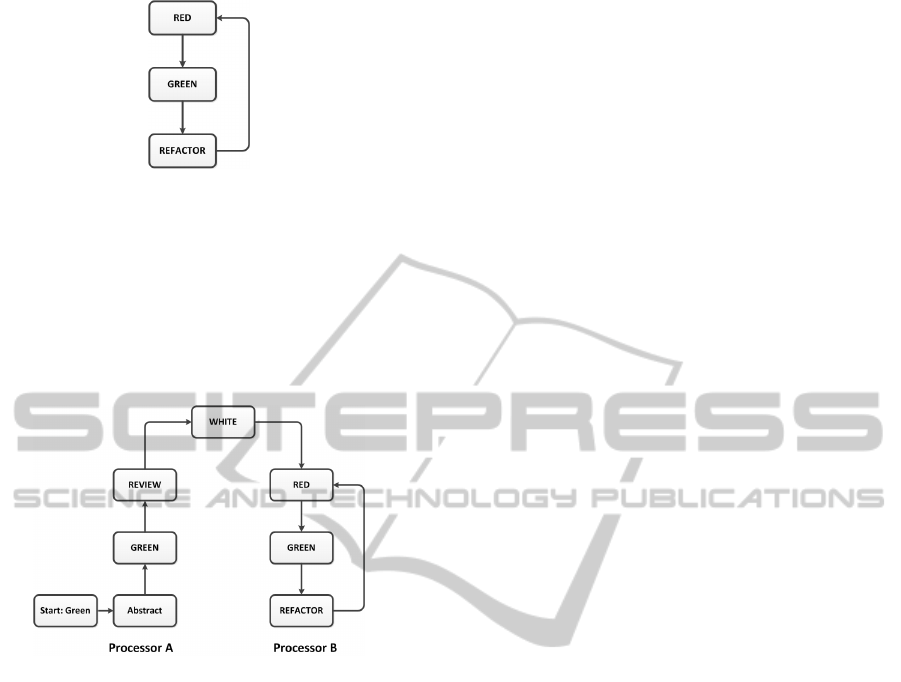

4.2 Traditional TDD Process

The traditional red-green-refactor process (Beck,

2002) for TDD is shown in Figure 5. Basically, a

test is ﬁrst written which covers a certain functional

feature. In the red step, this test is executed without

the implementation of this feature. This then results

in the test failing, which shall be demonstrated in this

step. If the test does not fail, it indicates that there is

something wrong. Then follows the green step where

code is written in order to allow the test to pass. If

this is achieved, the next phase is refactoring. Here

the code is rewritten until it also meets the deﬁned

non-functional requirements, such as maintainability,

reliability and the like.

Test-DrivenMigrationTowardsaHardware-AbstractedPlatform

263

Figure 5: Red-Green-Refactor Process of Test-Driven De-

velopment (Beck, 2002).

4.3 Inverted U Process

Due to the high number of test cases, it is not eco-

nomically feasible to review each and every test case.

Thus, we developed a dedicated process (Figure 6) for

providing conﬁdence in the abstracted test cases.

Figure 6: Inverted U Process to Provide Conﬁdence for Ab-

stract Test Cases on PF A and B.

The inverted U process is used to port the tests and

provide conﬁdence in them. Because this process em-

braces two processors, it has a right and a left branch.

The process has a dedicated starting point on the left

hand side. A green (passed) test case on processor A

is the starting condition. If it has passed once, it can

be abstracted, as described previously. After the ab-

straction, the test case needs to pass again to show that

no ﬂaws have been introduced. There is now evidence

that the test case is correct on processor A. Still there

needs to be assurance that it also works on processor

B. Thus, the next step is a review, where the abstracted

test case is investigated for potential pitfalls, such as

the utilization of pointers.

In the white step the test case passes on processor A

and there is some conﬁdence for it on processor B.

Nevertheless, the level of conﬁdence here is not high

enough, so the process continues on the right hand

side.

Here, the test ﬁrst enters the red phase. Until the test

passes, there remains uncertainty about its correct-

ness. So, in the green step, the code is ported to run on

processor B. If the test did not go green before, con-

sideration is given to investigating and rewriting the

test. After the test has turned green for the ﬁrst time,

there is conﬁdence that the test makes sense on pro-

cessor B. Nevertheless, it should always be checked

that the test is compatible with other hardware plat-

forms.

From now on, on the right branch the process is in the

traditional TDD refactoring loop, as described previ-

ously.

5 IMPLEMENTATION

In the following, we will explain the implementation

of our method with a sample test case at hand. This

test case sets the Java Card program counter pc to a

certain value. For the explanantion, we will follow

the abstraction reference process which we deﬁned in

Section 4.1 and in Figure 4.

5.1 Implementation of the Test Case

and the Test Stub

The previously mentioned reference process starts in

the Junit test case implementation which is shown

in Figure 7 and continues in the C test stub (see

Figure 8). The states and transitions of the reference

process are indicated within the comments. In the

following, we will describe the implementation of the

states and transitions.

State 1: In State 1 (see line 3-8 in Figure 7) ﬁrst, a

new object of the type pointer is created. In line 5 the

pointer address is set to this object. In the next step,

the buffer is allocated with the correct length (see line

7).

Transition - Serialize: In line 10-11 the object is

serialized and stored within the buffer. Each class

which can be serialized has to implement its own

serialize function.

State 2: After the serialization, the objects data is

now stored within the buffer in big endianness. This

state is indicated by comments in line 13-15.

Transition - Transmit: In line 18 the send function

transmits the buffer to the Java Card.

State 3: In State 3 (see line 3-5 in Figure 8), the

In System Test Framework has already stored the

transmitted data in a buffer, which is located on-card.

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

264

01 public void setPC(address addr)

02 {

03 //State 1

04 pointer pc = new pointer();

05 pc.setAddress(addr);

07 ByteBuffer txBuffer = ByteBuffer

08 .allocate(pc.getLength());

10 //Transition: Serialize

11 txBuffer.put(pc.serialize());

13 //State 2

14 //serialized data are now stored

15 //off-card in the buffer

17 //Transition: Transmit

18 send(txBuffer.array());

19 ...

20 }

Figure 7: Junit Test Case: It Sets the Java Card Program

Counter (pc) to a Value.

00 static ErrorCode StubJvmSetPc(void)

01 {

02 ...

03 //State 3

04 //serialized data are now stored

05 //on-card in the buffer

07 //Transition: De-Serialize

08 pc = GET_INT_PTR

10 //State 4

11 //Data are now stored

12 // in the variable pc

14 //increment buffer index

15 // by pointer length

16 idx += PTR_INT_LEN;

18 // call module function

19 returnCode = setJvmPC(pc);

20 ...

21 }

Figure 8: C Test Stub: It Sets the Java Card Program

Counter (pc) to a Value.

Transition - De-Serialize: In line 8 a de-serializion

macro is used to retrieve the pointer and store it

in a variable. The de-serialization method will be

explained in more detail in Section 5.2.

State 4: In State 4, the buffer index idx is incremented

by the pointer size (line 16). Finally the function

of the MUT is called with the currently calculated

pointer. The MUT returns a value which can be used

to evaluate the test response.

5.2 Implementation of the

De-serialization Macro

The de-serialization macro is called in line 8 in Fig-

ure 8. For each PF, there is a separate implementation

of it. Figure 9 is a variant for an architecture with

3 byte integer pointers and big endianness. First, in

line 0, the constant PRT INT LEN is set to 3 accord-

ing to the pointer size. The pointer is reconstructed

by shifting and concatenating the bytes with an or in

the appropriate order. It can be seen that the ﬁrst byte

is not shifted. So, the ﬁrst byte is the smallest which

is the case for little endian byte order. The following

bytes are then shifted by increments of 8. Finally, the

resulting value has to be casted to the relevant pointer.

00 #define PTR_INT_LEN 3

02 //Get Little Endian Pointer

03 #define GET_INT_PTR (uint8_t *)(

04 (uint32_t)(rxBuffer[0 + idx]) |

05 (uint32_t)(rxBuffer[1 + idx]) << 8 |

06 (uint32_t)(rxBuffer[2 + idx]) << 16);

Figure 9: De-Serialization Macro for Resolving 3 Byte

Pointers From the Buffer.

In Figure 10 the same principle is applied for a

processor with 4 byte integer pointers and big endian-

ness. The principle is the same but in contrast, in line

0 the PRT INT LEN is set to 4. Regarding the recon-

struction of the pointer, the lowest byte is shifted by

24 bits. Thus, the ﬁrst byte is the highest which is true

for big endian byte order. The next bytes are shifted

by increments of -8.

00 #define PTR_INT_LEN 4

02 //Get Big Endian Pointer

03 #define GET_INT_PTR (uint8_t *)(

04 (uint32_t)(rxBuffer[0 + idx]) << 24 |

05 (uint32_t)(rxBuffer[1 + idx]) << 16 |

06 (uint32_t)(rxBuffer[2 + idx]) << 8 |

07 (uint32_t)(rxBuffer[3 + idx]));

Figure 10: De-Serialization Macro for Resolving 4 Byte

Pointers From the Buffer.

Test-DrivenMigrationTowardsaHardware-AbstractedPlatform

265

6 RESULTS

6.1 Identiﬁcation of Variability Within

Junit Tests

When we started the porting of the software, we were

not aware that Junit tests incorporate that high a de-

gree of variability. Most of the tests have not been

written with portability in mind which, in the begin-

ning, made our approach difﬁcult.

6.2 Initiative Came from a Programmer

The initiative for changing the legacy testing system

came from a programmer who was involved in the

porting of the software. For those who were involved

in these activities it was initially almost impossible to

keep up with the porting of the test cases. The guide-

lines for writing test cases which we developed helped

a lot.

6.3 There is a Need for Training

We experienced that the appropriate coding of test

cases requires the training of programmers. Other-

wise they are not aware of the problems and do not

create platform-independent tests. We created a set

of guidelines and provided training to the program-

mers. The resulting awareness mitigated many prob-

lems during the porting.

6.4 Low Overhead

The overhead of the methodology is low, if it is ad-

justed at the start of a project. The overhead is then

limited to training programmers and keeping to the

coding guidelines. If the methodology is introduced

at a later stage, the additional work is higher because

all tests have to be refactored and it usually takes some

time for people to become familiar with it.

6.5 High Beneﬁt

If the embedded software is used on more than one

hardware platform, the beneﬁt of the methodology is

high. In embedded systems, there are usually several

hundred or thousand tests that could be reused. With

the number of supported PF the beneﬁt also increases

with comparably little overhead.

7 RELATED WORK

Software Product Line Engineering (Pohl et al.,

2005)(Clements and Northrop, 2002) aims at system-

atically reusing software. For this purpose, a base

of reusable software components, the product family

is maintained. Rules of aggregation are explicitly

deﬁned for code and tests.

Platform-based methodologies for embedded systems

are given in (Sangiovanni-Vincentelli and Martin,

2001). The authors discuss the speciﬁc reuqirements

of a reuse strategy for embedded systems, including

hardware and software. They provide a vision and a

conceptual framework for platform-based software

which starts with a high-level system description.

This description is then reﬁned incrementally.

TDD is part of agile development practices (Cock-

burn, 2006) which are lightweight processes

that make use of feedback methodologies.

Greene (Greene, 2004) gives insight to the ap-

plication and requirements of agile practices on

embedded systems development. He discusses

several facets of XP and Scrum and their adoption of

embedded systems design. He concludes that there is

a positive effect of most of the applied practices.

Grenning (Grenning, 2007) describes special chal-

lenges of TDD in embedded systems. These

challenges are addressed with the embedded TDD

cycle that embraces several stages of testing which

are applied with different frequency. The ﬁve stages

range from testing on a workstation to manual testing

in the target. This approach has the beneﬁt that the

most simple testing approaches are applied most fre-

quently. Finally, Greening discusses issues regarding

compiler compatibility and hardware dependencies

and possible solutions regarding TDD.

Karlesky et al. (Karlesky et al., 2007) present the

so-called Model-Conductor-Hardware design pattern

in order to facilitate testing in hardware-dependent

software. This design pattern is adopted from the

Model-View-Presenter (MVP) and the Model-View-

Controller (MVC) patterns. Both patterns address

issues regarding the development and interaction

with Graphical User Interfaces (GUI). A GUI has

similar challenges for programming and testing as

hardware (event-handling, asynchronous communi-

cation and accessibility). Furthermore, a four-tier

testing strategy is presented which deals with issues

in automation, hardware and communication testing.

In (Bohnet and Meszaros, 2005) a case study of

porting software using TDD is presented. The legacy

application is a business software which was ported

to adapt to a new database system. In order to port

the system, the test cases served as a template and

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

266

speciﬁcation for the required functionality. It turned

out that the application of TDD resulted in less code

on the target platform because unused code was not

ported. Moreover, the authors showed that defect

test cases are a severe problem because the process

suggests searching for problems within the code and

not within the tests.

8 CONCLUSION AND FUTURE

WORK

We challenged the problem of porting a legacy system

to a new hardware platform. In order to do this eco-

nomically, a high number of tests had to be rewritten

to be platform-independent. We experienced that this

is possible with a relatively low overhead. A major

problem of the proposed test-driven migration process

is that the correctness of the tests on the new hardware

needs to be shown. A dedicated process helps to es-

tablish the necesary conﬁdence. The challenges can

only be addressed successfully, if the technical real-

ization of the porting parallels the proposed process.

Additional training and guidelines for programmers

are neccessary.

For further work, it would be interesting to add type-

speciﬁc information to the serialized data which can

be reused during the de-serialization. Going further, a

domain-speciﬁc language for testing would allow the

generation of both, the Junit tests and the C test stubs

from one description of a test case.

ACKNOWLEDGEMENTS

Project partners are NXP Semiconductors Austria

GmbH and TU Graz. The project is funded by

the Austrian Federal Ministry for Transport, Innova-

tion, and Technology under the FIT-IT contract FFG

832171. The authors would like to thank pure systems

GmbH for support.

REFERENCES

Beck, K. (2002). Test-driven Development. Addison-

Wesley Professional.

Bohnet, R. and Meszaros, G. (2005). Test-Driven Porting.

In AGILE, pages 259–266. IEEE Computer Society.

Clements, P. C. and Northrop, L. (2002). Software Product

Lines: Practices and Patterns. SEI Series in Software

Engineering. Addison-Wesley.

Cockburn, A. (2006). Agile Software Development. Pearson

Education.

Greene, B. (2004). Agile methods applied to embedded

ﬁrmware development. In Agile Development Con-

ference, pages 71–77.

Grenning, J. (2007). Applying test driven development to

embedded software. Instrumentation & Measurement

Magazine, IEEE, 10(6):20–25.

Karlesky, M., Williams, G., Bereza, W., and Fletcher, M.

(2007). Mocking the embedded world: Test-driven

development, continuous integration, and design pat-

terns. In Proc. Emb. Systems Conf, CA, USA.

Mostowski, W. and Poll, E. (2008). Malicious Code on

Java Card Smartcards: Attacks and Countermeasures.

pages 1–16. Springer.

Oracle (2011a). Runtime Environment Speciﬁcation. Java

Card Platform, Version 3.0.4, Classic Edition.

Oracle (2011b). Virtual Machine Speciﬁcation. Java Card

Platform, Version 3.0.4, Classic Edition.

Pohl, K., B

ockle, G., and van der Linden, F. J. (2005). Soft-

ware Product Line Engineering: Foundations, Princi-

ples and Techniques. Springer.

Pretschner, A. and Philipps, J. (2005). 10 Methodological

Issues in Model-Based Testing. In Model-Based Test-

ing of Reactive Systems, pages 281–291. Springer.

Rankl, W. and Efﬁng, W. (2003). Smart Card Handbook.

John Wiley & Sons, Inc., 3 edition.

Sangiovanni-Vincentelli, A. and Martin, G. (2001).

Platform-based design and software design methodol-

ogy for embedded systems. Design Test of Computers,

IEEE, 18(6):23–33.

Test-DrivenMigrationTowardsaHardware-AbstractedPlatform

267
