Ontologies + Mock Objects = Runnable Knowledge

Iaakov Exman, Anton Litovka and Reuven Yagel

Software Engineering Department, The Jerusalem College of Engineering - Azrieli

POB 3566, Jerusalem, 91035, Israel

Abstract. Ontologies constitute the highest abstraction level in software

systems. But in order to obtain runnable and testable software knowledge we

can supplement ontologies with mock objects. This work formulates a basic

Generation Algorithm to actually obtain testable high level code. The

Generation Algorithm has been implemented in a system by means of existing

tools. The approach has been tested with several case studies. We then examine

fundamental issues, say whether the supplementary mock objects are essential

in all cases, or can be substituted by perfect ontologies.

Keywords. Ontologies, Mock objects, Runnable knowledge, Testing, Software

knowledge, Generation algorithm.

1 Introduction

Our work is based upon a few assumptions. First, any software system can be

described by a set of hierarchical abstractions, in which the level of abstraction

increases in a bottom-up direction. Second, the highest level of abstraction is a set of

ontologies, from which one can derive the next level, viz. a UML design model. This

assumption is the basis of what we call KDE (Knowledge Driven Engineering) [29].

We have been developing a KDE infrastructure [12], [29], in which we have

gradually solved theoretical and practical problems of design and implementation.

In this paper, we specifically deal with the issue of supplementing classes and

objects derived from the ontologies, by means of mock objects, to allow actually

running and locally testing a high-level code/design for a software system.

There are two possible ways to arrive at the starting set of ontologies for a given

software system. Either one manually proposes the set as we have done in [29], or one

tries to derive the system ontologies from domain ontologies, as recently investigated.

In both ways, one often gets an incomplete set of ontologies that must be

supplemented by mock objects to be run and tested.

In the remaining of the paper we formulate the basic Generation Algorithm of

runnable and testable code starting from ontologies and scenarios (section 2),

overview the system which implements the Generation Algorithm (section 3),

illustrate the approach with case studies (section 4) and conclude with a discussion

(section 5).

Exman I., Litovka A. and Yagel R..

Ontologies + Mock Objects = Runnable Knowledge.

DOI: 10.5220/0005178500710078

In Proceedings of the 5th International Workshop on Software Knowledge (SKY-2014), pages 71-78

ISBN: 978-989-758-051-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

1.1 Related Work

Ontologies in the software context are reviewed by Calero et al. [7]. Several papers

about ontology-driven software development are collected in Pan et al. [20]. Model

Driven Engineering with ontology technologies is discussed in Parreiras [21].

In recent years, testing methods were put into wide practice through the works of

Beck [4] end others. New terms were coined, such as TDD (Test Driven

Development). In these methods, scripts demonstrate system behaviors, besides

specifying the interface. Scripts’ execution can be automated, thus called automated

functional testing. The Agile software movement has emphasized early testing

methods, e.g. Freeman and Pryce [13]. Its main goal is faster understanding of the

software being developed by means of short feedback loops.

Scenarios appear naturally in various methods that implement TDD practices and

their extensions. FitNesse by Martin (cf. [1]) is a wiki-based web tool for non-

developers to write formatted acceptance tests, viz. tabular example/test data.

BDD (Behavior Driven Development) (North [18]), is an extension aiming at

understanding requirements by stakeholders. The Cucumber (Wynne and Hellesoy

[27]) and SpecFlow [26] tools accept stories written in a somewhat constrained

natural language, directly supporting BDD. They are easily integrated with unit

testing and user/web automation tools. Yagel [28] reviews these practices and tools.

ATDD (Acceptance Test Driven Development), is another extension of TDD, also

known as Agile Acceptance Testing (Adzic [2]). Further extensions are Story Testing,

Specification with examples (Adzic [3]) or Living/Executable Documentation (Brown

[6], Smart [25]).

2 The Generation Algorithm

The Generation Algorithm which generates runnable knowledge test scripts [29] is

composed of two intermingled techniques: ontologies as sources of classes, objects

and their properties; scenarios which are run in a step-wise fashion.

Overall Generation Algorithm

The overall structure of the Generation Algorithm in our system is a set of loops,

starting with ontologies and scenarios provided by the user.

The first important step is to look for term matches between the ontologies and the

scenarios. If there is no ontology match for scenario objects, mock objects are

generated for them. Mock objects have the same interfaces as real objects, but lack

real implementation: their outputs are synthetically obtained, just to enable testing.

Then, for each step in the scenario's order one looks for the following parts:

 Given – an initial context;

 When – an event that occurs;

 Then – specific outcomes that must occur.

Finally, the algorithm fills the test steps with generated code.

The overall Generation Algorithm is displayed as pseudo-code in Fig. 1.

Fig. 1. Generation Algorithm – displayed as pseudo-code.

We now focus on the ontologies and mock objects of the Generation Algorithm, as

seen in Fig. 2. One observes that the main interactions between ontologies and

scenarios in the Generation Algorithm are to check their consistency, expressed by the

shared terms. Any lack of consistency is solved by adding mock-objects.

Fig. 2. Generation Algorithm focused on ontologies and scenarios. In bold blue fonts the

positive actions shared among ontologies and scenarios. In bold red fonts the non-shared terms,

causing generation of mock objects.

Run the Program with given Ontology and Scenarios.

Run Tool for running tests on scenarios file and save output

Search for matches between terms from the Ontology and the scenarios.

for each found match in a concrete step search for properties of those terms.

for each step gotten from test tool

Find objects which are not included in ontology.

Generate mock objects for them.

for each step returned by test tool in scenario’s order

if part is “Given”

for each found objects

Generate global instance of objects.

Update attributes values, call to function using parameters

and generated mock objects.

if part is “When”

for each object that is not common in Given part of Scenario

Generate new instance.

Update attributes values, call to function using parameters

and generated mock objects.

for each object that is common in Given part of Scenario

Update attribute values, call to function using parameters,

generated mock objects and objects created in this step.

if part is “Then”

for each object that is not common in Given part of Scenario

Generate new instance.

Update attributes values, call to function using parameters

and generated mock objects.

for each global objects found

Check object attribute values and methods' returned values

using given step parameters and created in this step objects.

Fill test steps with generated code.

Create test files.

End.

Run the Program with given Ontology, Scenarios.

Run Tool for running tests on scenarios file and save output

Search for matches between terms from the Ontology and the scenarios.

for each found match in a concrete step search for properties of those terms.

for each step gotten from test tool

Find objects which are not included in ontology.

Generate mock objects for them.

3 Runnable Software Knowledge Generation System

Here we concisely describe the Generation System that outputs the runnable Software

Knowledge. First we refer to the system design, then to its implementation.

The Generation System is composed of especially developed classes with existing

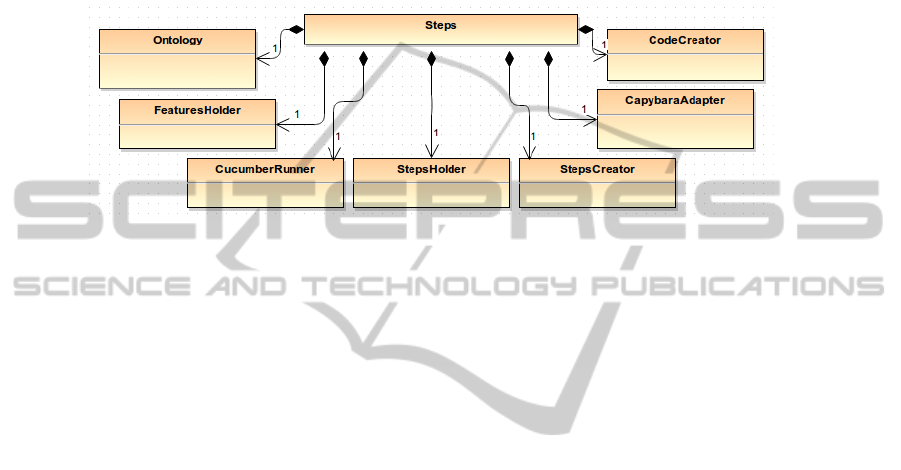

external tools. The desing is shown as a UML class diagram in Fig. 3. The main class,

‘Steps’ alludes to the main loop steps of the Generation Algorithm.

Fig. 3. Generation System class diagram – ‘Steps’ is the main class. The external tools are

Cucumber and Capybara. Special classes deal with: ontologies, steps, features and code creator.

The generic classes in the Generation System are as follows: a- Ontology – it

inputs and reads ontology files, finds matching terms in ontologies and in scenarios;

b- FeaturesHolder – manages test files and connects between their lines and steps; c-

CodeCreator – generates the tests’ code for individual matches; d- StepsHolder –

manages the generated tests’ code; e- StepsCreator – distributes the generated code

lines within steps.

The classes related to the external tools are: f- Cucumber runner – executes

Cucumber and analyses its output; g- Capybara adapter – finds matches with

methods that control UI.

The Generation System was implemented with the Ruby language. Ruby is a

dynamic, object oriented, cross-platform and interpreted language with open source

code [10]. Ruby was chosen due to several important reasons such as high

development rate, rich meta-programming possibilities, and being supported by a

large set of public available solutions. A most important factor is the initial

orientation of the Ruby community toward development through behavior (BDD),

since BDD is the basis of this work.

Different (gem) libraries supplied by the Ruby community were used. One of them

is the Nokogiri library for xml files [17], [22], here used for reading ontologies.

The Generation System itself is implemented as an additional (gem) library

designed for the MVC-Framework Ruby on Rails [14]. The tests are generated using

APIs from the RSpec [18], and Capybara [8] libraries.

4 Case Studies

We have tested our system by various case studies. Two of them are presented here:

the “email account login” case study, fully compatible with the input ontology. 2

the “post-to-blog” case study, demanding an extra mock object.

4.1 The Email Account Login Ontology

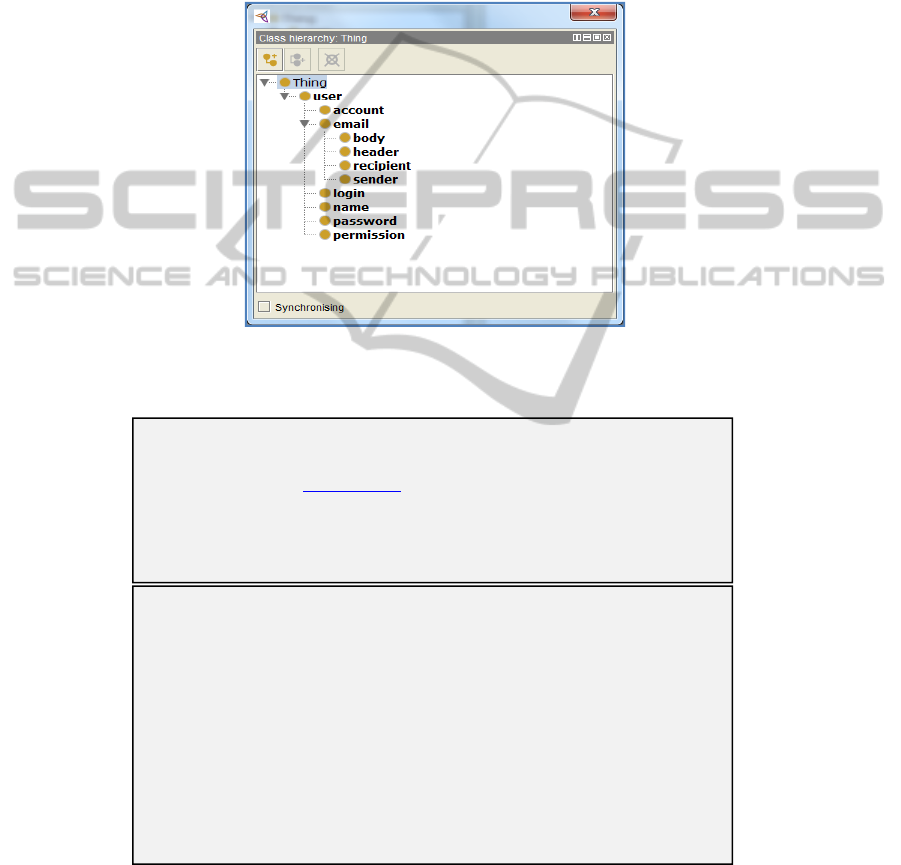

The account login system ontology is seen in Fig. 4. It is a print-screen from the

ontology editor tool Protégé [30].

Fig. 4. Email Account Login Ontology – It displays a class hierarchy, in which ‘thing’ is the

top concept (class). The next sub-class is ‘user’, which in turn has account, email, login, name,

password and permission sub-classes. Email has 4 sub-classes.

Fig. 5. Successful Account login sample – Above, the scenario written in a Gherkin

specification. Below, the corresponding generated test.

Scenario: Successful login

Given the following user records

Given I am on the signin page

Given I fill in "session_email" with "alice@gmail.com"

Given I fill in "session_password" with "secret"

When I press "Log in"

Then I should see "Welcome alice"

Generated Test: Given /^the following user records$/ do |table|

table.hashes.each do |hash|

User.create(hash).save

end

Given /^I on the signin page$/ do

visit '/signin'

end

Given /^I fill in "(.*?)" with "(.*?)"$/ do |arg1|

element = page.find_by_id(arg1)

end

When /^I press "(.*?)"$/ do |arg1|

click_on arg1

end

Then /^I should see "(.*?)"$/ do |arg1|

page.should have_content(arg1)

end

A successful login case is shown in Fig. 5. Here, all the scenario terms, viz. name,

email, password, are found in the ontology. So, there is no need for any mock object.

4.2 Post-to-Blog: Added Mock Objects

Here we consider a scenario for post-to-blog, as shown in Fig. 6. In this second study

case, the term “Text” found in the scenario does not match any term in the ontology.

Therefore, a mock object is needed to supplement the ontology terms.

Fig. 6. Successful Post-to-Blog sample – also written in a Gherkin specification.

The corresponding generated test for the above scenario is shown in Fig. 7.

Fig. 7. Successful Post-to-Blog generated test – corresponding to the scenario in Fig. 6. But

note the mock object inserted in the 2

line (marked by bold red font).

5 Discussion

This work has described a system to implement the Generation Algorithm to produce

Runnable Software Knowledge that is testable. It starts from sets of ontologies and

scenarios, and has recourse to mock objects if there are terms in the scenario that do

not match any ontology term.

Scenario: Post-to-Blog

Given I have written Text

And Text name is "Hello"

And Text contains is "Hello World"

And I on the article page

When I fill in "article_title" with Text name

And I fill in "article_body" with Text contains

When I press "Publish"

Then I should see "Article was successfully created"

Generated Test: Given /^I have written Text$/ do

@text = mock('Text')

end

And /^Text name is "(.*?)"$/ do |arg1|

allow(@text).to receive(:name).and_return(arg1)

end

And /^Text contains is "(.*?)"$/ do |arg1|

allow(@text).to receive(:contains).and_return(arg1)

end

And /^I on the article page$/ do

visit '/article'

end

When /^I fill in "(.*?)" with Text name$/ do |arg1|

element = page.find_by_id(arg1)

element.set(@text.name)

end

And /^I fill in "(.*?)" with Text contains$/ do |arg1|

element = page.find_by_id(arg1)

element.set(@text.contains)

end

Then /^I should see "(.*?)"$/ do |arg1|

page.should have_content(arg1)

end

Some of the external tools, such as Capybara, may contain concepts in addition to

those in the ontologies’ input set. In principle, the concepts of the external tools are

based on additional ontologies in the tool domain. These additional ontologies could

be explicitly input to the Generation System, but it would be a superfluous repetition.

The source code for the described tool can be found here [15].

5.1 Future Work: Perfect Ontologies or Essential Mock Objects?

A deep issue to be investigated is whether one can in general formulate perfect

ontologies, including all possible terms found in the scenarios. Or the most common

situation is that all input ontologies are typically incomplete, and must be

supplemented by mock objects.

It also could be the case that perfect ontologies would be so extensive, as to

demand an excessive efficiency price.

Other issues of interest open to investigation are: a- extensive examples of a

variety of software systems and their respective sets of ontologies and scenarios; b-

systematic composition of larger systems from smaller components that have already

been tested by the current approach.

5.2 Main Contribution

The main contribution of this work is an approach to Knowledge Driven Engineering

of software systems from the highest abstraction levels. The approach uses only

ontologies, scenarios and mock objects, which constitute a sort of complete input set

to software development.

References

1. Adzic, G., Test Driven .NET Development with FitNesse, Neuri, London, UK, 2008.

2. Adzic, G., Bridging the Communication Gap: Specification by Example and Agile

Acceptance Testing, Neuri, London, UK, 2009.

3. Adzic, G., Specification by Example – How Successful Teams Deliver the Right Software,

Manning, New York, USA, 2011.

4. Beck, K., Test Driven Development: By Example, Addison-Wesley, Boston, MA, USA,

2002.

5. Boehm, B.W.: “Software Engineering Economics”, IEEE Trans. Software Eng., 1984.

6. Brown, K., Taking executable specs to the next level: Executable Documentation, Blog

post, (see: http://keithps.wordpress.com/2011/06/26/taking-executable-specs-to-the-next-

level-executable-documentation/), 2011.

7. Calero, C., Ruiz, F. and Piattini, M. (eds.): Ontologies in Software Engineering and

Software Technology, Springer, Heidelberg, Germany, 2006.

8. Capybara Library - https://github.com/jnicklas/capybara.

9. Chelimsky, D., Astels, D., Dennis, Z., Hellesoy, A., Helmkamp, B., and North, D,: The

RSpec Book: Behaviour Driven Development with RSpec, Cucumber, and Friends,

Pragmatic Programmer, New York, USA, 2010.

10. Cooper, P.: Beginning Ruby: From Novice to Professional,II ed., Apress, Berkeley, USA,

2009.

11. Exman, I, Llorens, J. and Fraga, A.: "Software Knowledge", pp. 9-12, in Exman, I.,

Llorens, J. and Fraga, A. (eds.), Proc. SKY'2010 Int. Workshop on Software Engineering,

2010.

12. I. Exman and R. Yagel, “An Approach to Self-consistency Verification of a Runnable

Ontology Model”, in Fred, A., Dietz, J.L.G., Liu, K. and Filipe, J. (eds.) Knowledge

Discovery, Knowledge Engineering and Knowledge Management, Revised Selected Papers

of the 4

Int. Joint Conference, IC3K’2012, Barcelona, Spain, October 2012, pp. 271-283,

Vol. 415 of Communications in Computer and Information Science, Springer Verlag,

Berlin, 2013. DOI = 10.1007/978-3-642-54105-6_18.

13. Freeman, S., and Pryce N.: Growing Object-Oriented Software, Guided by Tests, Addison-

Wesley, Boston, MA, USA, 2009.

14. Hartz, M.: Ruby on Rails Tutorial: Learn Web Development with Rails, online tutorial at

http://www.railstutorial.org/book, 2013.

15. Test Generation Tool, 2014: https://github.com/AntonLitovka/tgt

16. Moq – the simplest mocking library for .NET and Silverlight: (see

http://code.google.com/p/moq/), 2012.

17. Nokogiri –an HTML, XML, SAX, and Reader parser at http://nokogiri.org/.

18. North, D.: "Introducing Behaviour Driven Development", Better Software Magazine, (see

http://dannorth.net/introducing-bdd/), 2006.

19. NUnit: (see http://www.nunit.org), 2012.

20. Pan, J.Z., Staab, S., Assmann, U., Ebert, J. and Zhao, Y. (eds.): Ontology-Driven Software

Development, Springer Verlag, Heidelberg, Germany, 2013.

21. Parreiras, F.S.: Semantic Web and Model-Driven Engineering, John Wiley, Hoboken, NJ,

and IEEE Press, USA, 2012.

22. Powers, H.: Instant Nokogiri, Packt Publishing, Birmingham, UK, 2013.

23. Robbins, M.: Application Testing with Capybara, Packt Publishing, Birmingham, UK,

2013.

24. RSpec mocks library: (see: https://github.com/rspec/rspec-mocks), 2013.

25. Smart J. F.: BDD in Action Behavior-Driven Development for the whole software lifecycle,

Manning, 2014 (expected).

26. SpecFlow – Pragmatic BDD for .NET: (see http://specflow.org), 2010.

27. Wynne, M. and Hellesoy, A.: The Cucumber Book: Behaviour Driven Development for

Testers and Developers, Pragmatic Programmer, New York, USA, 2012.

28. Yagel, R.: "Can Executable Specifications Close the Gap between Software Requirements

and Implementation?", pp. 87-91, in Exman, I., Llorens, J. and Fraga, A. (eds.), Proc.

SKY'2011 Int. Workshop on Software Engineering, SciTePress, Portugal, 2011.

29. Yagel, R., Litovka, A. and Exman I.: KoDEgen: A Knowledge Driven Engineering Code

Generating Tool, The 4th International Conference on Knowledge Discovery, Knowledge

Engineering and Knowledge Management (IC3K) - SKY Workshop, Vilamoura, Portugal,

2013.

30. Protégé. A free, open-source ontology editor and framework for building intelligent

systems, http://protege.stanford.edu/
