The GDR Through the Eyes of the Stasi

Data Mining on the Secret Reports of the State Security Service of the former

German Democratic Republic

Christoph Kuras

, Thomas Efer

, Christian Adam

and Gerhard Heyer

Natural Language Processing Group, Department of Computer Science, University of Leipzig, Leipzig, Germany

Agency of the Federal Comissioner for the Records of the State Security Service of the former German Democratic

Republic, Berlin, Germany

Keywords:

GDR, Digitization, Humanities, Visualization, Named Entity Recognition.

Abstract:

The conjunction of NLP and the humanities has been gaining importance over the last years. As part of this

development more and more historical documents are getting digitized and can be used as an input for estab-

lished NLP methods. In this paper we present a corpus of texts from reports of the Ministry of State Security

of the former GDR. Although written in a distinctive kind of sublanguage, we show that traditional NLP can

be applied with satisfying results. We use these results as a basis for providing new ways of presentation and

exploration of the data which then can be accessed by a wide spectrum of users.

1 INTRODUCTION

As reaction to the June crisis in 1953 the Ministry of

State Security in the GDR (the Stasi) set up informa-

tion groups. Their task was to collect information and

to write “mood reports”. On the basis of these re-

ports the Leadership of the GDR wanted to be able to

react fast on future uprisings. Since 1953 the ”Cen-

tral Evaluation and Information Group” (ZAIG) of

the Ministry of State Security was compiling informa-

tion for the party and state leadership. These secret

reports were completed in different forms and with

varying frequency for more than 36 years – and are

today a contemporary source of great historical value.

They reveal the Stasi’s speciﬁc view of the GDR: they

contain references to real and perceived oppositional

conduct as well as to economic and supply problems.

They also include statistics on currency exchanges,

”illegal” emigration and border violations. Trivial in-

formation is presented alongside discussions of both

minor and major ”difﬁculties” created by the effort to

institute and maintain SED rule and to establish ”actu-

ally existing socialism”. In order to provide an over-

all impression of the different types of sources and

their importance to scholarly research, the publication

started with one year from each of the four decades

of the GDR under the title: ”The GDR through the

Eyes of the Stasi. The Secret Reports to the SED

Leadership” (dt.: Die DDR im Blick der Stasi. Die

geheimen Berichte an die SED-F¨uhrung), (M¨unkel,

09ff). At the completion of the pilot phase, the other

years will be published in irregular order. The educa-

tion and research department of the BStU

decided to

publish these documents in a hybrid edition. A year

after the publication of a volume, the respective year

will be presented online at www.ddr-im-blick.de. By

now the volumes of 1953, 1961, 1976, 1977 and 1988

are available online (open access). The documents

(between 800 and 1500 pages per year) are presented

in chronological order. The texts are transcripts of

the original ﬁles, processed in Microsoft Word and for

the ﬁnal publication converted in XML and published

cross media. The digital version of the documents can

be accessed by a full-text search, while no further in-

dices are provided, since their creation would cause

too much expenses in the manual editing workﬂow.

The edition includes annotations, explanations of ab-

breviations and an introduction to each year. Each

document contains a list of recipients (including per-

sonal names, e.g. of ministers, or departments). Due

to the Stasi Records Act personal data shall not be

published unless they are obvious, they concern em-

ployees or beneﬁciaries of the State Security Service.

That’s why some personal data has to be blackened

Agency of the Federal Commissioner for the Records

of the State Security Service of the former German Demo-

cratic Republic

360

Kuras C., Efer T., Adam C. and Heyer G..

The GDR Through the Eyes of the Stasi - Data Mining on the Secret Reports of the State Security Service of the former German Democratic Republic.

DOI: 10.5220/0005136703600365

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2014), pages 360-365

ISBN: 978-989-758-048-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

out in the edition. At the end of the publication pro-

cess 37 volumes will be available, approximately 50

000 pages of documents, offering an inside-view of

more than three decades of the East German History

as seen through the eyes of the Stasi. The cooper-

ation with the Natural Language Processing Group,

Department of Computer Science at the University of

Leipzig is an attempt to get more, innovativeand long

term approaches to these important data.

2 THE COOPERATION

The perspective of the BStU is mainly historical and

political aiming for the reappraisal of the past whereas

the NLP group provides methods and technical re-

sources to process text automatically and to extract

information from it. This is a result of different fo-

cuses. We see a lack of automation and use of in-

formation systems concerning the editorial process on

the part of the BStU - a lack of historical expertise and

a constant need of data available to apply classic auto-

matic language processing methods on the part of the

NLP Group. We believe, that by combining the com-

petences of each partner we are able to create added

value on both sides.

The beneﬁt of this cooperation has effects in two

directions: on the one hand there are improvements

of the existing workﬂow. The introduction of automa-

tion and support systems during the editorial process

can lead to a more efﬁcient workﬂow and can also re-

duce errors and redundancies. On the other hand there

are applications that would not be possible without

the use of NLP methods, e.g. when the effort is too

high to be done with human resources only. Further-

more the NLP group is able to develop new methods

and to solve new problems on real world data. There-

fore we believe, a cooperation is neccessary for ad-

vancing in the reappraising of the past as well as in

NLP. In the following we present ﬁrst results of pro-

cessing these data with advanced NLP methods. In

particular, applying methods for latent semantic in-

dexing when analysing recipients yields highly inter-

esting and promising results.

3 DATA AND STRUCTURE

As a result from the digitization process we get dig-

ital documents which does not mean that they are

structured in a way that is best for NLP. The original

documents are stored in an XML-like format which

is optimized for printing thus containing also layout

information. This format can be considered semi-

structured in the common XML-sense. The tags used

do not support the semantics of the document struc-

ture but the semantics of layout and printing. Retriev-

ing information from those documents is associated

with high search costs. In addition to the documents’

contents there are metadata stored for each document.

Those include the date, the subject, a list of recipients

of that document and other information. To create a

format that is less complicated concerning querying

and ﬂexible to use for a wider range of applications

we parsed the original documents and designed a new

XML schema to which we transfered them. Transfer-

ring the documents to a database seems natural, how-

ever we found designing a new XML schema to be the

ﬁrst step in that direction since it makes further pro-

cessing easier. The whole collection is categorized by

year. Table 1 lists the available XML-formatted docu-

ments we extracted from the original format for each

year.

Table 1: Currently available Stasi documents by year.

Year #Documents

1953 198

1961 260

1976 320

1977 337

1988 279

Total 1394

The transformed documents are structured in a

way that the document contents, possible attachments

and the different metadata elements have their own

tags. New annotations can be added easily, for exam-

ple POS tags or named entities which then can be used

as features for advanced NLP methods. Some prob-

lems still remain after the transformation. The list of

recipients is a plain string list which can contain infor-

mation annotated during the editorial process. This

makes it difﬁcult to split the list into individual re-

cipients which is needed for tasks like automatic in-

dexation. We extracted the recipients from the list

by applying regular expressions on the string which

works in most cases. However, it was not possible to

use exactly the same regular expressions on the docu-

ments of every volume so a more reﬁned approach is

required to improve the quality of the extracted data.

Despite existing challenges, the transformation was a

ﬁrst step to structure the data. Still, further work is

necessary.

Without previous attempts to digitally analyse the

ZAIG reports, only little is known about the quan-

tity, coverage and relations of certain topics and about

the feasibility of employing certain NLP methods.

This can be illustrated by Figure 1. It shows the fre-

quency of the words ”Sozialismus” (eng. socialism)

TheGDRThroughtheEyesoftheStasi-DataMiningontheSecretReportsoftheStateSecurityServiceoftheformer

GermanDemocraticRepublic

361

Figure 1: Sentence occurrences of ”Freedom” (blue) and

”Socialism” (red) from 1953 to 1988.

and ”Freiheit” (eng. freedom) from 1953 to 1988.

We can clearly see patterns which need to be inter-

preted. Analyses like this would hardly be possible

without the use of information systems. Therefore it

is expedient to begin with a series of explorative and

transdisciplinary approaches. Visual Analytics (Keim

et al., 2010) provides a methodological framework for

ﬁnding abstractions from the numerical statistics, for

aiding the interpretation of its results and for the semi-

automatic extraction and reﬁnement of knowledge in

an interdisciplinary context.

4 CLASSIC NLP

The transformation process described above focused

on the generation of the raw material which can be

handled by classic NLP applications. This section fo-

cuses on the further processing. As the result of the

transformation described above we are now able to

process the content of the documents themselves. We

process all documents in the same way deﬁned by our

chain of tools. At ﬁrst, each document is segmented

into sentences. After that we tokenize the sentences

After tokenization it seems natural to do POS tagging

as it is a good basis for more complex tasks, such as

parsing.

4.1 POS-Tagging and NER

For POS-tagging we use the Stanford POS-Tagger

described in (Toutanova and Manning, 2000) and

(Toutanova et al., 2003). We use a pre-trained ger-

man model that comes with the tagger. The accuracy

is estimated by manually reviewing a sample of 250

words from randomly chosen sentences. It can be

estimated between 94% and 96%. For named entity

recognition we used the Stanford named entity tag-

ger described in (J. R. Finkel and Manning, 2005).

To estimate the accuracy and to see whether problems

arise we also evaluated the result on a random sam-

ple of 250 named entities. The accuracy can be es-

timated between 82% and 88% which is higher than

we expected as the data contains many speciﬁc phras-

These two steps are done by tools developed by the

NLP group in Leipzig.

ings and the model was trained on completely differ-

ent data. Table 2 shows examples of correctly recog-

nized named entities. Even MISC-entities like ”SED-

Genosse” (Member of the SED party) are recognized.

These are of particular interest concerning our data as

they could be used to extract social networks.

Table 2: NER Evaluation.

Sequence Tag

Großhennersdorf I-LOC

Potsdamer Platz I-LOC

VEB Blechbearbeitung Berlin I-ORG

MfS I-ORG

Walter Ulbricht I-PER

Bischof Sch¨onherr I-PER

SED-Genosse I-MISC

deutsch I-MISC

It is characteristic for the data to contain a large

number of location and person names since most doc-

uments report about speciﬁc events or persons. This

can also be a challenge when applying NER. The next

section describes some problems we could already

identify.

4.2 Speciﬁc Problems of Named Entity

Recognition

For the task of named entity tagging it is even more

difﬁcult to validate the result than in POS tagging be-

cause expert knowledge may be required. In some

cases it is not obvious, even for human readers, to

identify the correct tag. Common problems when tag-

ging the documents are listed below.

• different levels of granularity

– ”Staatsgrenze West” (engl. ”western country

border”) vs. ”Berlin” as locations.

– street names vs. city names

• incomplete sequences due to speciﬁc phrasings

– only ”VEB” is tagged instead of ”VEB Blech-

bearbeitung Berlin”

• anonymization

– anonymous entities (e.g. ”[Name 1]”) are not

being recognized yet

• same names for different persons

– some of the persons have identical last names

(e.g. relatives)

– ”Herbert Krolikowski” vs. ”Werner Kro-

likowski” (his brother), both were active politi-

cians in overlapping time periods

These challenges could be faced by adding extra

knowledge before or after the tagging or by training

KDIR2014-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

362

the tagger on a different tagset. However, it is very

important to map the sequences to the right persons

as errors could make the data unusable. Despite that,

the recognition of entities works reasonably well and

even other tasks that make use of the tagger are pos-

sible. The next section describes an approach for tag-

ging another kind of entities.

4.2.1 Tagging Politically Motivated Phrases

Using the Stanford Named Entity Tagger it is possi-

ble extract other information than named entities. By

manually creating training data we were able to ex-

ploit the tagger to identify common phrases which are

often found in contexts where persons are accused of

acting against the regime. Some reports contain spe-

cial phrasings like ”provokativ”(eng. ”provoking”)or

”Hetze” (eng. ”agitation”) which appear in a number

of different combinations. A person can act provok-

ing as well as a pamphlet may be provoking, resulting

in ”defamatory publications”. To ﬁnd many of those

combinations automatically we trained the Stanford

NE-Tagger on manually annotated training data taken

from about 30 documents. Table 3 shows the most

frequent combinations we extracted from documents

of the year 1976 automatically.

Table 3: Top 5 political motivated phrases for the year 1976.

Phrase

ungesetzlichen Grenz¨ubertritts

(engl. ”illegal” border crossing)

Hetze

(engl. agitation)

Einmischung in innere Angelegenheiten

(engl. intervention in internal affairs)

provokatorischen Handlungen

(engl. provoking actions)

politisch-ideologischen Diversion

(engl. political-ideological diversion)

This approach enables us to access political opin-

ions directly in the documents. Such phrasings can

then be brought into context with other named entities

and recipients. Figure 2 is an example of an interac-

tive graph showing relations between political phras-

ings, documents, recipients and different persons.

This graph representation can answer many dif-

ferent questions at the same time: Which documents

contain most phrasings of this kind? Which per-

sons are involved most in documents with reference

to such phrasings? Is it possible that there may be a

protagonist-antagonist-relationship between speciﬁc

person entities and individual recipients? - just to

name a few. The interactive viewing of data can also

be considered inspiring as new research questions

may arise when exploring the graph. After tagging the

Figure 2: Interactive graph of political phrasings, docu-

ments and recipients.

named entities it may be obvious to ask which topics

the documents deal with and which documents belong

to the same topic. For this task we applied clustering

which is described in the next section.

4.3 Clustering Similar Documents

Especially after the long time period passed since

these documents were written it is impossible for con-

temporay readers to instantly overview their topics.

One way of bringing more structure to the collection

is ﬁnding similar documents. We decided to chose a

simple approach ﬁrst and clustered the documents us-

ing the k-means algorithm. There are at least three

possible feature sets describing a single document.

One possibility is to use the recipients of the doc-

ument to cluster the documents. Another approach

could be to use the set of named entities that oc-

cur in a document or to combine both approaches.

In our case, each document is solely described by a

Table 4: K-means clustering of documents (1976) by recip-

ients.

Cluster Documents possible description

1 52 currency exchange

2 108 ﬂeeing, border violation

3 84 church

4 32 border trafﬁc

5 44 catastrophes

binary-valued vector of recipients where each value

represents whether the recipient has received the doc-

ument or not. Table 4 shows the clustering by re-

cipient vectors with manually added descriptions. By

this mere example we can already get an overview of

the data and even identify different spheres of com-

petence which then could be assigned to a group of

recipients. There is, of course, a challenge of choos-

ing the right number of clusters which has to be con-

sidered in further work. As an alternative approach a

TheGDRThroughtheEyesoftheStasi-DataMiningontheSecretReportsoftheStateSecurityServiceoftheformer

GermanDemocraticRepublic

363

graph clustering algorithm like the chinese whispers

algorithm proposed in (Biemann, 2006) can be used

to achieve comparable results, in a more visual way.

Focusing more on the recipients, we consider it useful

to analyse their characteristics and the network struc-

tures among these. As a ﬁrst step we are able examine

recipients that often appear together. The next section

describes a ﬁrst approach to recipient analysis.

5 RECIPIENT ANALYSIS

Since every document has a list of recipients assigned

to it we can apply different techniques to analyse the

characteristics of individual recipients or to extract

networks. For example, we determined which recipi-

ents occur together remarkably frequent.

5.1 Frequent Recipient Sets

Therefore, we consider each recipient an item of a

basket we want to analyse to get frequent item sets.

For this task we use the FP-Growth algorithm pro-

posed in (Han et al., 2000). The top ﬁve frequent re-

cipient sets with a minimal support of 0.2 for the year

1976 can be seen in Table 5.

Table 5: Frequent sets of recipients for the year 1976 with

min. support 0.2.

Rank Set

1 HA XX, Schorm

2 Mittig, Schorm

3 Mittig, Mittag

4 HA XX, Verner

5 Mittig, Verner

This is a way of detecting cohesion between dif-

ferent recipients and to reveal underlying structures

which can be expected or even new to historians. Ta-

ble 5 shows that there are HA (Hauptabteilung, engl.

main department) in the list. Further processing is

needed to split the recipients into organizational units

and individual persons. Then, the algorithm can be

applied to the group of persons and the group of or-

ganizational units individually. Again, this method

could also be applied to the named entities alone or

the sets of recipients and named entities together.

All these approaches target the fact that there are

properties describing the recipients and that individ-

ual recipients have different properties. The follow-

ing section proposes another approach to extract those

properties.

5.2 Extracting Recipient Properties

Regarding the document-recipient-matrix which con-

tains information about which recipient received

which documents, we assume that there is knowledge

about both recipients and documents encoded in the

matrix. The extraction of this information can be ac-

complished by decomposing the document-recipient

matrix. The matrix is binary-valued and has the form

m,n







1,1

1,2

·· · d

1,n

2,1

2,2

·· · d

2,n

m,1

m,2

·· · d

m,n







(1)

where n are the recipients and m the documents.

This matrix is factorized into a factor containing in-

formation about the addressees (matrix A), a factor

containing information about the reports (matrix R)

and the logistic function. This can be seen in Equation

2 where σ is the logistic function which constrains

values to lie in the range [0,1].

D = σ(A· R) (2)

We deﬁne a cost function (Equation 3) which is then

optimized. By optimization we minimize the differ-

ence between data and prediction. The cost function

is the sum of differences for every element of the pre-

diction and data matrix. In our case we set the number

of features to 5. The logistic function is chosen since

the input is a binary-valued matrix.

Cost =

∑

(D− σ(A· R)) (3)

This is similar to other matrix factorization techniques

like non-negative matrix factorization or principal

components analysis (Lee and Seung, 1999; Tipping

and Bishop, 1999).

We found that the factorized matrices contain in-

formation about speciﬁc properties of individual re-

cipients and documents. Given these properties, we

can sort the matrix along the properties axis to ﬁnd

members with the highest rank in that dimension. The

semantics of those properties can be determined by a

manual analysis. However, this task may require a

high level of expert knowledge about the persons re-

viewed. Looking at the top-ranked recipients of one

property it is possible to get an idea of what is de-

scribed by that property. Figure 3 shows a cluster

resulting from the application of k-means to the re-

cipients’ property vectors. There are negative val-

ues for some recipients in dimension 5. Looking

at the individual recipients, ”KGB Berlin-Karlshorst”

(representation of the KGB in Berlin) has the lowest

value. Taking into account that ”Ungarn” (Hungary),

”Geheimdienste Polen” (security services of poland)

KDIR2014-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

364

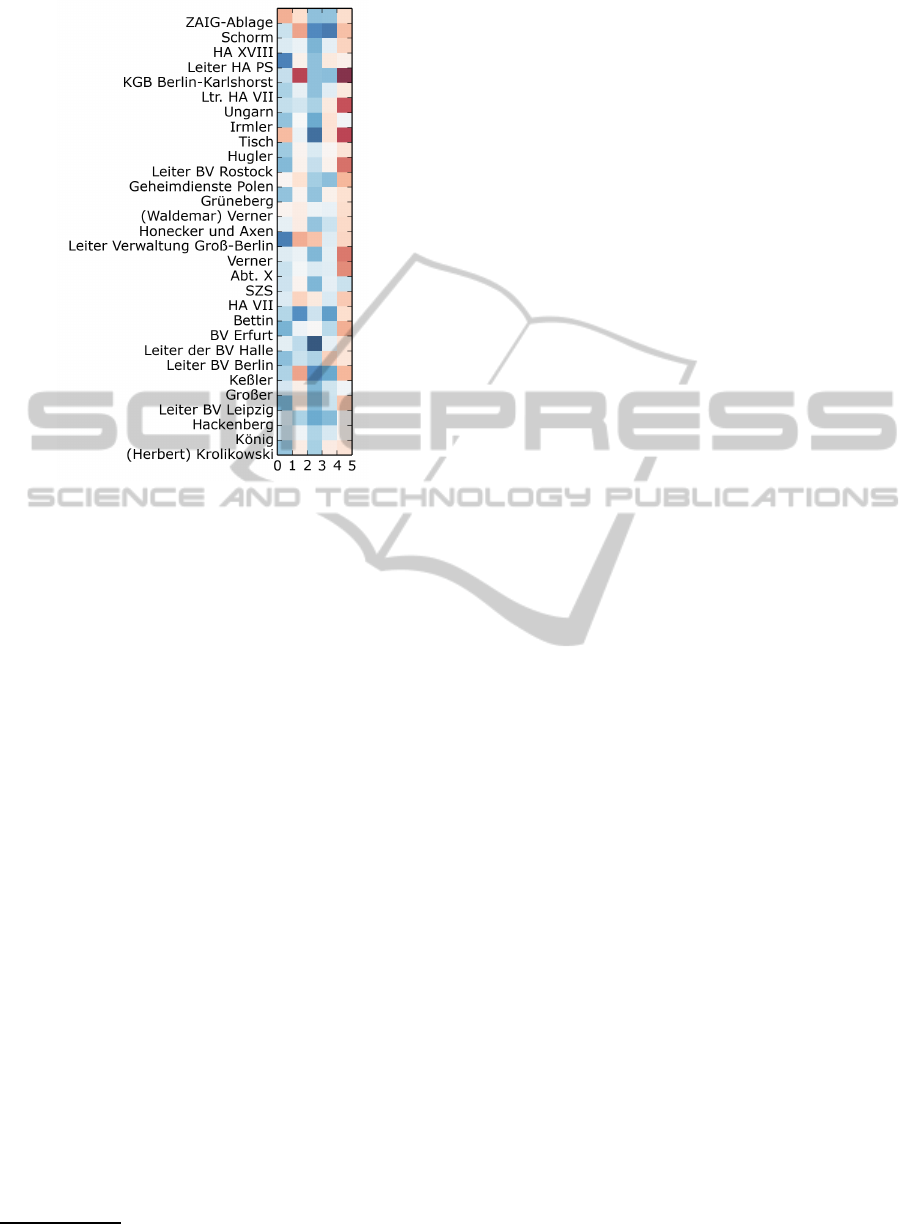

Figure 3: Visualization of a cluster of the addressee-matrix.

Positive values are blue, negative values are red.

and ”Abt. X” (department for international alliances)

also appear in that cluster, we may suppose this di-

mension describes the intensity of some kind of ”in-

ternational involvement”. We believe these methods

are a possibility to ﬁnd latent structure in the data and

to summarize the roles of recipients and document

contents.

6 CONCLUSION

We believe that NLP methods yield the potential to

play an ever important role in the edition, enrichment

and publication of historical documents for scientiﬁc

and public audiences. As shown in this publication,

there are a lot of previously untapped possibilities

to process the texts and metadata entries in order to

create alternative perspectives and novel navigational

means. With all that, our work is meant to comple-

ment existing digitization and edition projects. Sev-

eral institutions are now beginning to evaluate and

incorporate (in most cases rather basic but still very

helpful) NLP methods to enrich their digital editions.

One can for example look at the thematically match-

ing portal ”DDR-Presse”

, where a viewer for OCR-

transformed newspaper articles from the GDR era is

augmented with links to norm data, editorial articles

and the like, when certain keywords appear in the text.

http://zefys.staatsbibliothek-berlin.de/ddr-presse

Lastly, it becomes apparent, that through visual

and interactive means, historians are enabled to verify

the NLP methods’ quality while understanding both,

the hidden structures in the data and the inﬂuences

of methodological choices on the results. That leads

to valuable feedback for the computer scientists and

furthermore allows to deﬁne new (and alter existing)

research questions while reviewing intermediate re-

sults. As an outlook, those visual interfaces also con-

stitute an engaging mode of presentation for the gen-

eral public since these techniques can remove entry

barriers, provide navigational guidance and improve

the overall user experience. We are looking forward

to conjointly develop such NLP powered systems and

to make tangible the nature of the ZAIG reports for a

broad audience.

REFERENCES

Biemann, C. (2006). Chinese whispers - an efﬁcient graph

clustering algorithm and its application to natural lan-

guage processing problems. In Proceedings of the

HLT-NAACL-06 Workshop on Textgraphs-06, New

York, USA.

Han, J., Pei, J., and Yin, Y. (2000). Mining frequent pat-

terns without candidate generation. In ACM SIGMOD

Record, volume 29, pages 1–12. ACM.

J. R. Finkel, T. G. and Manning, C. (2005). Incorporating

non-local information into information extraction sys-

tems by gibbs sampling. In Proceedings of the 43rd

Annual Meeting of the Association for Computational

Linguistics (ACL 2005), pages 363–370.

Keim, D. A., Kohlhammer, J., Ellis, G., and Mansmann, F.

(2010). Mastering The Information Age-Solving Prob-

lems with Visual Analytics. Florian Mansmann.

Lee, D. D. and Seung, H. S. (1999). Learning the parts of

objects by non-negative matrix factorization. Nature,

401(6755):788–791.

M¨unkel, D., editor (2009ff). Die DDR im Blick der

Stasi 1953–1989. Die geheimen Berichte an die SED-

F¨uhrung. www.ddr-im-blick.de.

Tipping, M. E. and Bishop, C. M. (1999). Probabilistic prin-

cipal component analysis. Journal of the Royal Sta-

tistical Society: Series B (Statistical Methodology),

61(3):611–622.

Toutanova, K., Klein, D., Manning, C. D., and Singer, Y.

(2003). Feature-rich part-of-speech tagging with a

cyclic dependency network. In Proceedings of HLT-

NAACL.

Toutanova, K. and Manning, C. D. (2000). Enriching the

knowledge sources used in a maximum entropy part-

of-speech tagger. In Proceedings of the Joint SIGDAT

Conference on Empirical Methods in Natural Lan-

guage Processing and Very Large Corpora.

TheGDRThroughtheEyesoftheStasi-DataMiningontheSecretReportsoftheStateSecurityServiceoftheformer

GermanDemocraticRepublic

365
