An Integrated Approach for Designing and Validating REST Web

Service Compositions

Irum Rauf, Faezeh Siavashi, Dragos Truscan and Ivan Porres

Abo Akademi University, Dept. of Information Technologies, Turku, Finland

Keywords:

REST, Web Service Composition, Model-based Testing, UPPAAL, TRON.

Abstract:

We present an integrated approach to design and validate RESTful composite web services. We use the

Uniﬁed Modeling Language (UML) to specify the requirements, behavior and published resources of each

web service. In our approach, a service can invoke other services and exhibit complex and timed behavior

while still complying with the REST architectural style. We show how to transform service speciﬁcations into

UPPAAL timed automata for veriﬁcation and test generation. The service requirements are propagated to the

UPPAAL timed automata during the transformation. Their reachability is veriﬁed in UPPAAL and they are

used for computing coverage level during test generation. We validate our approach with a case study of a

holiday booking web service.

1 INTRODUCTION

Web services have machine-readable interfaces that

automate the task of communicating information be-

tween machines and reduce time and human efforts.

They are being increasingly used in the industry in

order to automate different tasks and offer services to

a bigger audience. REST architectural style aims at

producing scalable and extensible web services using

technologies that play well with the existing tools and

infrastructure of the internet. This has encouraged no-

table enterprizes to use REST web services to meet

their needs. REST interfaces offer a CRUD interface

(create, retrieve, update and delete) to its users via a

set of standard HTTP methods. They offer stateless

behavior that facilitates scalability and requires that

no hidden session or state information be carried be-

tween method calls.

Different web services published over the internet

can be composed to form a composite web service

such that the composed web service fulﬁlls new ser-

vice goals using the functionality of partner web ser-

vices. Automated systems, for example hotel reser-

vation systems, are often built as stateful composite

services that require a certain sequence of method in-

vocations that must be followed in order to fulﬁll ser-

vice goals. Designing and developing such stateful

composite services with REST features is not a trivial

task and requires rigorous approaches that are capable

of creating reliable web services.

Thus, with the use of web services in businesses

and critical applications, there is an increasing need

for a) design approaches to develop web service com-

positions that support complex scenarios and timed

behavior while complying with the REST architec-

tural style and b) validation approaches to effectively

and efﬁciently detect faults in speciﬁcations and im-

plementations of such services.

In this article, we present a design and valida-

tion approach that facilitates the service developer to

create reliable, timed and stateful composite REST

web services. As a ﬁrst contribution, we introduce

an approach in which we use the Uniﬁed Modeling

Language (UML) (UML, 2009) to model our service

speciﬁcations via an extension of our previous work

in (Porres and Rauf, 2011). We use UML since it has

emerged as a standard modeling language at indus-

trial level (Budgen et al., 2011) and has sophisticated

tools due to large user base. This can make adoption

of the approach easier in the industry.

The service design models and their implementa-

tions should be validated for their correct behavior in

order to build trust on the service functionality. We

have used the model checking approach for this pur-

pose. Model checking is a way to exhaustively and

automatically check if a ﬁnite-state model of a pro-

gram satisﬁes its speciﬁcations (Clarke et al., 1994).

The UML-based service design models represent the

system graphically and are comprehensible for a hu-

man user. In order to make the models amenable

104

Rauf I., Siavashi F., Truscan D. and Porres I..

An Integrated Approach for Designing and Validating REST Web Service Compositions.

DOI: 10.5220/0004949601040115

In Proceedings of the 10th International Conference on Web Information Systems and Technologies (WEBIST-2014), pages 104-115

ISBN: 978-989-758-023-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

for model checking we suggest, as a second contribu-

tion, a set of reversible mechanized steps for translat-

ing UML-based service speciﬁcations into UPPAAL

timed automata (UPTA) (Larsen et al., 2009). UP-

PAAL is a commonly used model checking tool for

verifying real time systems through modeling and

simulation (Larsen et al., 1997). We verify basic

properties of our design models such as reachabil-

ity, liveness and safety using the UPPAAL model-

checker tool. UPTA are updated (if needed) based on

the veriﬁcation results and transformed back to UML.

From the UML models, a skeleton of the composite

service is generated automatically in the Django web

development framework (Holovaty and Kaplan-Moss,

2009) using our partial code generation tool.

In our approach, a service can invoke other ser-

vices and exhibit complex and timed behavior while

still complying with the REST architectural style. We

need to check if the service implementation is func-

tioning correctly along with partner services and if the

service goals and timed constraints are being fulﬁlled.

Thus, as a third contribution, we show how we vali-

date the implementation of the RESTful web service

composition with a model-based testing (MBT) ap-

proach using the UPPAAL TRON tool (Larsen et al.,

2009). By using MBT, test cases can be automatically

generated with an increased probability of test cover-

age and with an ease of test case maintenance.

Requirements traceability is an important compo-

nent of our integrated approach. The requirements

of the composition are included in the UML speci-

ﬁcations and then propagated to UPTA speciﬁcations.

They are used for both verifying the reachability of

those model elements implementing them and for rea-

soning about their coverage after the tests are exe-

cuted. Upon detecting failures, traced requirements

can be used to localize the errors either in the models

or in the speciﬁcations.

We exemplify and validate our integrated ap-

proach with a relatively complex case study of a hol-

iday booking composite REST web service from in-

dustrial context. The case study shows how stateful

and timed web services offering complex scenarios

and involving other web services can be constructed

using our approach.

The paper is organized as follows: Section II gives

an overview of our approach, while tool support is

discussed in section III. The case study is presented

in section IV and the evaluation of the approach is

presented in section V. The related work is discussed

in section VI and the section VII concludes the paper.

2 OUR APPROACH

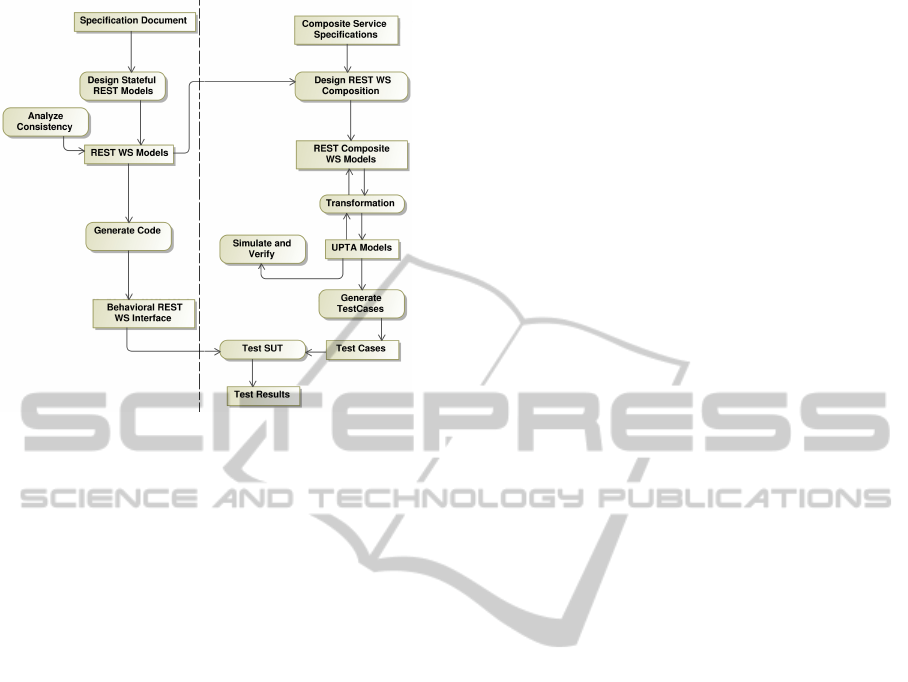

An overview of our integrated design and validation

approach is given in Figure 1. The left side of the ﬁg-

ure shows our previous work, whereas the right side

shows the contribution of this paper and how it is con-

nected to the previous work.

In our previous work (Figure 1–left), we de-

signed behavioral interfaces for web services that

were RESTful by construction (Porres and Rauf,

2011). These design models were implemented in the

Django web framework using our partial code gener-

ation tool (Rauf and Porres, 2011) which generated

code skeletons with pre- and post-conditions for ev-

ery service method. The design models were also an-

alyzed for their consistency (Rauf et al., 2012).

In the current work, we focus on designing, veri-

fying and testing composite REST web service (Fig-

ure 1–right) as follows:

Design: First of all we extend our design approach

to create composite REST web services with UML.

Our approach takes as input the behavioral interface

speciﬁcations of the partner REST web services and

the business requirements. With these inputs, we con-

struct models for composite web service using our de-

sign approach.

Veriﬁcation: We then provide veriﬁcation of the

design models by reasoning on the basic proper-

ties of models like deadlock, liveness, reachability

and safety with the UPPAAL model-checker. To

achieve this, we transform the service design mod-

els to UPTA, which are simulated and veriﬁed. Based

on veriﬁcation results, the UML-based service design

models are updated.

Transformation: Transformation step generates two

types of automata from service design models. One

of the types corresponds to service design models and

the other type represents the environment model. The

environment model simulates the behavior of service

user to invoke the interface service methods in order

to facilitate test generation.

Code Generation: The code skeletons are generated

from UML service design models to Python-based

Django web framework using our code generation

tool (Rauf and Porres, 2011) that are completed man-

ually by the developer.

Testing: For model-based testing of the service imple-

mentation, we have used online conformance testing

tool UPPAL-TRON that validates the service imple-

mentation against its UPTA speciﬁcation models at

runtime.

Evaluation: In the end, we have evaluated our valida-

tion approach for its efﬁciency using mutation testing

and benchmarked.

AnIntegratedApproachforDesigningandValidatingREST WebServiceCompositions

105

Figure 1: Activity Diagram of Design and Validation Ap-

proach for REST CWS.

2.1 REST Composition Models

We require that a composite REST web service in-

terface should exhibit the REST interface features,

i.e. addressability, connectivity, statelessness and uni-

form interface. We have modeled our composite

REST web service interfaces with a resource model,

a behavioral model and a domain model that exhibit

these features.

This work extends our previous work on creat-

ing behavioral interface speciﬁcations of individual

REST web services (Porres and Rauf, 2011). For the

details of the design approach, readers are referred to

(Porres and Rauf, 2011).

The concept of resource is central to the structure

of REST web service. It represents a piece of infor-

mation (Richardson and Ruby, 2008). We respresent

the static structure of REST web service with resource

model which is modeled with a UML class diagram.

Each class represents a resource deﬁnition. We have

used the term resource deﬁnition to deﬁne a resource

entity such that its instances are called resources. This

is analogue to the relationship between a class and its

objects in the object-oriented paradigm.

The direction of the association between resource

deﬁnitions gives the navigability direction between

them while their role names give the relative URI of

resources (addressability). The collection resource

deﬁniton without the incoming transitions is termed

as root such that every resource deﬁnition in the re-

source model should be reachable via root and the

graph formed should be connected (connectivity).

A behavioral model represents the dynamic struc-

ture of the service and it is modeled by a UML State

Machine (SM). Each state represents the service state

and the trigger methods of transitions are restricted to

the side-effect methods of HTTP, i.e., PUT, POST and

DELETE (uniform interface). The statelessness fea-

ture of the REST interface is preserved while build-

ing stateful REST web service by deﬁning state in-

variants as boolean expression of states of different

resources. The state of a resource is given by its rep-

resentation retrieved by invoking a GET on it. We are

thus able to deﬁne service states as predicates over the

resources without maintaining any hidden session or

state information (statelessness). The state invariants

in the SM are written as Object Constrain Language

(OCL) expressions. OCL is commonly used to deﬁne

constraints in UML models, including state invariants

(Birgit Demuth, 2009).

For modeling a service composition, the models

are required to represent method invocations on the

partner services. The service invocations to partner

services are modeled as effects on the transitions. The

composite web service requirements, inferred from

the speciﬁcation document, are added as UML com-

ments on the transitions that satisfy them. These re-

quirements should be met by the implementation of

the service in order to fulﬁll the service goals.

The domain model of the composite service is rep-

resented with a class diagram. It represents inter-

faces between the composite service and its partner

services. The required and provided interface meth-

ods between the composite and its partner services are

modeled with required and provided interfaces in the

domain model, respectively.

2.2 Veriﬁcation

Model veriﬁcation is a process of determining

whether the models are designed correctly and repre-

sent the developer’s conceptual descriptions and spec-

iﬁcations. Model checking is one of the ways to ex-

haustively check the models automatically. The ser-

vice design models of composite REST web service

should be veriﬁed for their basic properties in order to

build conﬁdence of the service designer on the models

before implementing them. This allows one to elimi-

nate design errors that can be expensive to detect and

correct at later stage of the development cycle.

UPPAAL model-checker is used for modeling,

simulation and veriﬁcation of real-time systems

(Larsen et al., 1997). It consists of set of timed

automata (TA), clocks, channels that synchronize

the systems (automata), variables and additional ele-

ments. A real-time system is modeled as a closed net-

work of TA. Each automaton in the network is speci-

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

106

ﬁed via a template, which can be instantiated as pro-

cess. A template in UPTA is composed of locations,

edges, clocks and variables representing all properties

of the system. Synchronization between different pro-

cesses can be provided using channels. Two edges in

different automata can synchronize if one is emitting

(denoted as channel name!) and the other is receiv-

ing (denoted as channel name?) on the same chan-

nel. Guards are the conditions that enable a transition

when they are satisﬁed. Similarly, the conditions as-

sociated to locations, called invariant, specify that the

system can stay in the location if and only if the in-

variant is satisﬁable.

The query language used in UPPAAL is a simpli-

ﬁed version of TCTL (Alur et al., 1990) that consists

of state formulae and path formulae. State formulae

(ϕ) is an expression that describes an individual state,

while path formulae can be classiﬁed into reachabil-

ity, safety and liveness properties. Deadlock is ex-

pressed using state formulae. The syntax of TCTL

path formulae that are used in UPPAAL is deﬁned as

follows:

• A  ϕ - for all paths, the property ϕ is always

satisﬁable.

• A ♦ ϕ- for all paths, the property ϕ is eventually

satisﬁable.

• E  ϕ - there is at least a path in the automata such

that property ϕ is always satisﬁable.

• E♦ ϕ - there is at least a path in the automata such

that property ϕ is eventually satisﬁable.

• ϕ φ - when ϕ holds, φ must hold.

If there is a location in the model that has no out-

going transition, then the model is said to be in a

deadlock. Reachability properties validate the basic

behavior of the model by checking whether a certain

property is possible in the model with the given paths.

The safety property checks that something bad will

never happen and the liveness property is veriﬁed to

determine that something will eventually happen.

However, before using UPPAAL model-checker

to verify these properties we need to give our service

design models in UML formal foundations that are

understandable by the veriﬁcation tool. This has to

be done in an automated manner to avoid extra efforts

from the service developer. In section 3, we present

our tool support for this and explain in detail the trans-

formation from UML to UPTA.

2.3 Model-Based Test Generation

Model-based testing (MBT) is a method that provides

an abstract model of a system under test (SUT) and

preforms automatic test case generation based on the

speciﬁcations of the SUT (Utting and Legeard, 2007).

In MBT, modeling the environment of a system is

important since the environment generates test cases

from whole or some parts of the model to satisfy the

test criteria. Environment models help in automation

of testing in three ways: the automation of test case

generation from a simulated environment, the selec-

tion of test cases, and the evaluation of their test re-

sults. Our UML to UPTA transformation tool gener-

ates both the SM of SUT and the environment model.

We provide automatic test generation using UP-

PAAL TRON, which is an extension of UPPAAL for

online model-based black-box conformance testing

(Larsen et al., 2009). During test generation, the envi-

ronment model randomly selects test cases and com-

municates to the test adapter.

A test adapter is used by UPPAAL TRON to ex-

pose the observable I/O communication between the

test environment model and the SUT model, as shown

in Figure 2. Our adapter implements the communi-

cation with the SUT by converting abstract test in-

puts into HTTP request messages and HTTP response

messages into abstract test outputs. The TRON tool

generates tests via symbolic execution of the speciﬁ-

cations using randomized choice of inputs. Based on

the timed sequence of input actions from the simula-

tion, the adapter preforms input actions to Implemen-

tation Under Test (IUT) and waits for the response.

Output from IUT is monitored and generated as out-

put actions for the simulation. The conformance test-

ing is achieved by comparing outputs of IUT to the

behavior of the simulation.

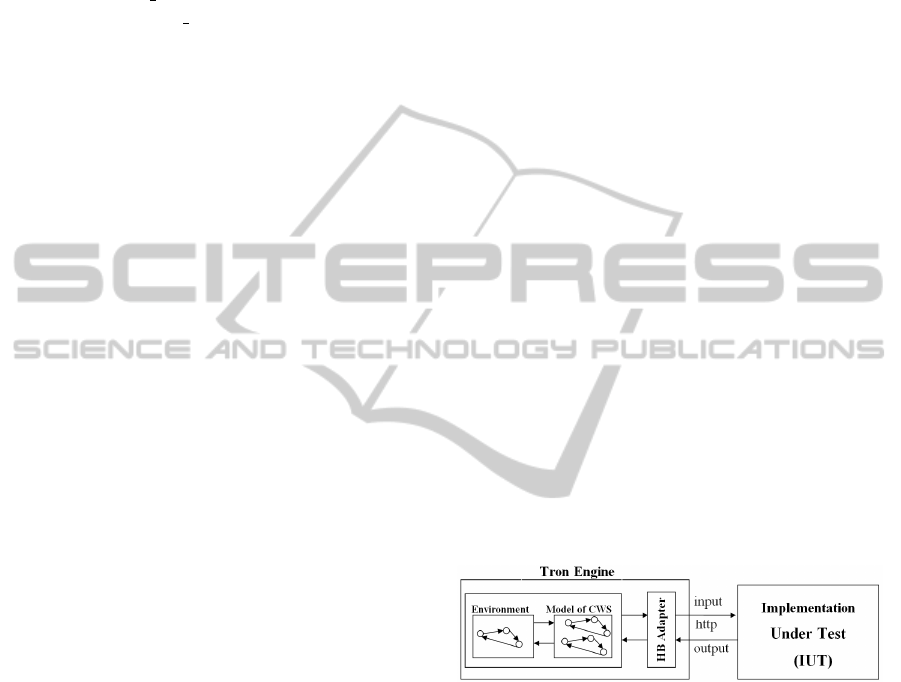

Figure 2: UPPAAL TRON test setup.

2.4 Requirements Traceability

Service requirements can be inferred from the spec-

iﬁcation document and they serve as service goals.

A service should be checked for its service goals in

order to validate that the service does what it is re-

quired to do. By catering to the service requirements

at the design phase and propagating them to the val-

idation stage, we provide a mechanism by which a

service requirement can be validated for its goals and

the unfulﬁlled requirements can be traced back to the

design phase to ﬁnd faults in the design. Service re-

quirements are generally domain-speciﬁc since they

are inferred from the speciﬁcations. We infer func-

tional and temporal requirements from the speciﬁca-

tion document into a table and number them. These

AnIntegratedApproachforDesigningandValidatingREST WebServiceCompositions

107

requirements are attached to the SM as comments on

the transitions and are propagated to UPTA such that

the links between requirements and the model ele-

ments are preserved. These requirements are included

in all the models and traced throughout the process,

i.e., at UML, UPTA and test level, respectively.

The requirements are formulated as reachability

properties in UPTA with the purpose of verifying

them during simulation. Each requirement label is

translated into a boolean variable (initialized to False)

and attached to the corresponding edge in the UPTA.

This mapping is explained in more detail in the Sec-

tion 3 on the UML to UPTA transformation.

We require that our testing approach must validate

that these requirements are met by IUT, in order to

build conﬁdence of the developer that the system is

doing what it is required to do. Thus, their coverage

level is monitored during test generation and execu-

tion. Once the test report is available, we can check

which requirements have been validated and which

have failed.

3 TOOL SUPPORT

Modeling in UML. The design models are modeled

using MagicDraw (Mag, 2013). Static validation of

models is done via OCL using the validation engine of

Magic Draw. We rely on predeﬁned validation suites

for UML contained in MagicDraw for the basic val-

idation of the model. These validation suites contain

rules that check that the designed UML model con-

forms to UML meta-model speciﬁcations and prevent

the developer from doing basic modeling mistakes.

Code Generation. The code-skeleton of the up-

dated service design models of REST composite web

service can be generated using our tool presented in

(Rauf and Porres, 2011). The tool generates code

skeleton for design models in Django that is a high

level Python web framework (Holovaty and Kaplan-

Moss, 2009). The generated code also has behavioral

information such that the pre and post conditions for

each method are included and the developer just has

to write the implementation of the operations.

UML→UPTA Transformation. The transforma-

tion from UML design models to UPTA is an exten-

sion of our approach presented in (Nobakht and Tr-

uscan, 2013). The extension of transformation gener-

ates several artifacts: UPTA model, test environment

model and a skeleton for test adapter depicting the

testable interfaces of the composite web service.

Resource Model. In UPTA the resource model is rep-

resented as a template. The resource deﬁnitions in the

resource model are speciﬁed as variables with 1 or 0

Academic Version for Teaching Only

Commercial Development is strictly Prohibited

state machine smachine smachine[ ]

[self.b -> size() =1 and self.c -> size() = 0

and self.d -> size() = 0]

[self.b -> size() =0 and

self.c -> size() = 0 and

self.d -> size() = 1]

[self.b -> size() =0 and

self.c -> size() = 1 and

self.d -> size() = 0]

[self.a -> size() =1]

POST(d)

POST(c)

POST(a)

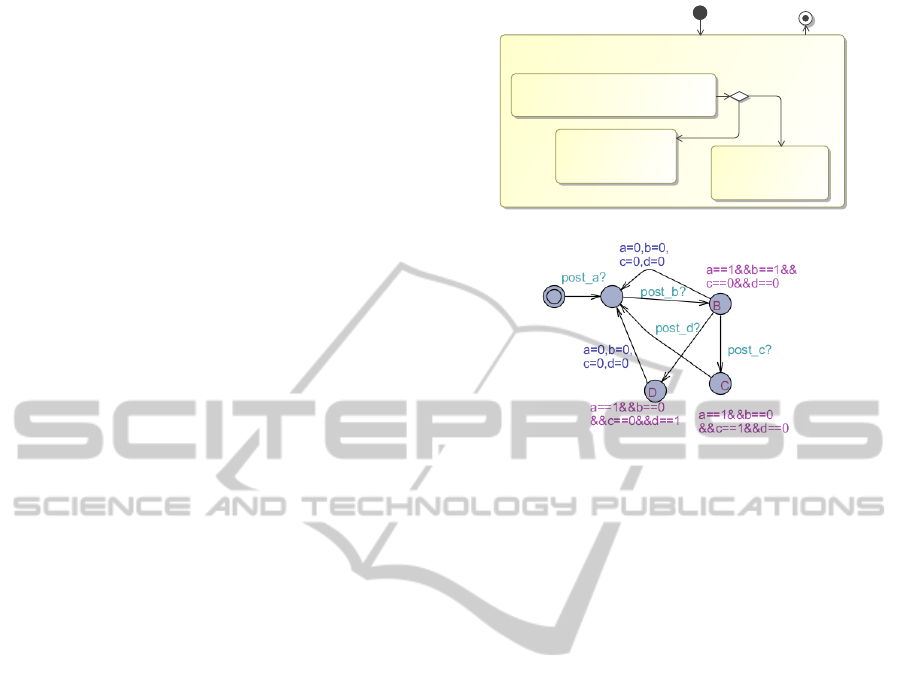

Figure 3: (Left) Composite State in UML State Machine.

(Right) Flattened locations in timed automaton.

value, specifying if a resource exists or not, respec-

tively. The attributes of resource deﬁnitions are in-

spected and for each integer attribute, an integer vari-

able is declared in the UPPAAL model. Similarly, the

boolean attributes are declared as integer arrays of 0

and 1.

Domain Model. The domain model shows set of op-

erations offered and required by the composite web

service and its partner web services. The correspond-

ing communication between templates in UPPAAL is

represented by channel synchronizations. Two edges

in different automata in UPPAAL can synchronize if

one is emitting and the other is receiving on the same

channel. The operations in an interface are thus trans-

lated into a binary synchronization channel in UP-

PAAL. The template of the service that realizes the in-

terfaces acts as the receiving automaton and the send-

ing automaton is speciﬁed by the template of the ser-

vice that uses the interface.

Behavioral Model. The SM of the REST web

service is encoded to TA that are represented by

templates, which are instantiated as processes. Figure

3 shows an example of transformation from the SM

to TA.

States. A state is mapped to a location in UPTA,

and a state invariant is mapped to corresponding

location invariant. The subclauses of the state

invariant are translated to variables corresponding to

the respective resource deﬁnition. For example, in

Figure 3, sel f .a− > size() = 1 is translated as a = 1

and sel f .b− > size() = 0 as b = 0. The initial state

corresponds to the initial location. The ﬁnal states are

translated by having an edge from the corresponding

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

108

location to initial location and updating all the

variables to their initial values, as shown in Figure 3.

The choice state in the SM is replaced by two edges

in the TA model that are originating from the same

source location to different target locations.

State Hierarchy. The SM may contain composite

states for better representation of speciﬁcations.

UPTA, however, does not support the notion of

location hierarchy. We ﬂatten the composite states

into several simple states by including the state

invariant of super states in the contained states that

are then mapped to the respective locations in UPTA.

For example, in Figure 3, the top ﬁgure contains a

SM with a composite state that is ﬂattened to UPTA

model shown at the bottom. States B, C and D in the

SM correspond to the locations B, C and D of UPTA,

respectively. Note that all the locations contain the

state invariant of superstate A in the SM.

Transitions. A transition in the SM is mapped

to an edge in UPTA and guards on the transition

are mapped to guards on the corresponding edge in

UPTA. In Figure 4, we shows how the transitions in

the SM (top) are translated to UPTA (bottom right).

The locations L1 and L5 correspond to states S1

and S2 of SM, respectively, and locations L0, L2,

L3, and L4 are the extra locations created during

the transformation process as explained below. The

state invariants are translated to location invariants

and represented as boolean functions for the purpose

of diagram clarity. The transition between states S1

and S2 is triggered by POST(b) after 10 minutes as

speciﬁed in the guard. In UPTA, this is represented

as guard over the clock variable cl.

Trigger Methods. The trigger methods from the SM

are translated in to receiving channels in UPTA. This

receiving channel is in sync either with the automaton

of the partner service or with the environment model.

Time Events. The time events in behavioral diagram

are replaced by clocks in UPTA. The clock is reset

in the incoming edge to the location (L1) and is

also included in the location invariant. Thus, the

guard after(10m) is translated to cl > 10 on the

corresponding UPTA edge.

Effects. The effect on the transition, i.e., POST (c)

shows invocation to the partner service. The com-

munication between two web services is established

by using a unique channel synchronization. For

instance, emitting a request from a web service

to the other one can be replaced by synchronizing

a channel in an UPPAAL process, and the other

process is the receiver of the synchronization. The

effect of the transition that invokes a remote service

is represented with two edges and an urgent location

(marked with U in the circle) in between, i.e., edges

e2 and e3 and urgent location L3. An urgent location

in UPTA does not allow any delays (Larsen et al.,

1997). Thus, the ﬁrst edge (e1) is synchronized with

the environment model and the second edge (e2)

synchronizes with the partner automaton. The third

edge (e3) is synchronized to receive acknowledgment

response from the partner (as we model asynchronous

service) and the sending channel on the fourth edge

(e4) is synchronized with the environment to indicate

the completion of transition.

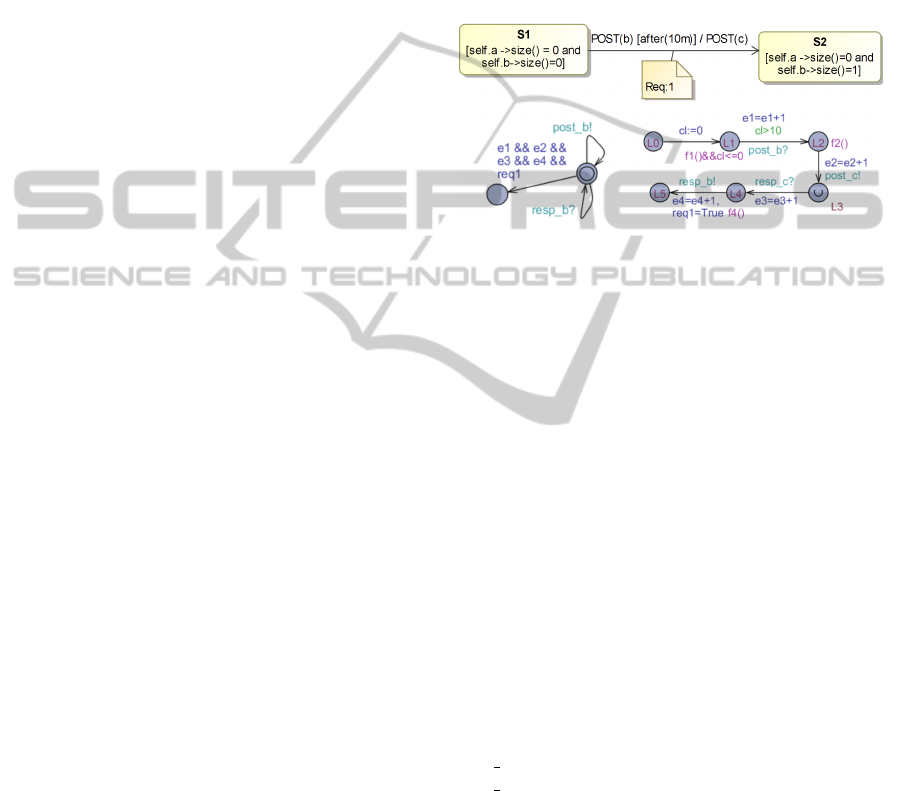

Figure 4: Example of SM (top) Corresponding Environment

Model (bottom left) and Flattened TA (bottom right).

Requirements. The requirement on the transitions are

translated into a boolean variable (initialized to False)

and attached to the corresponding edge which updates

it to True. This is shown in Figure 4 with Req1=

True on edge e4. This implies that whenever this edge

would be traversed, this requirement will be met. This

can be formulated as reachability properties to attain

requirement coverage and tracked during test genera-

tion and execution.

Environment Model. The environment model in

UPTA has sending channels that are received by the

composite web service automaton as inputs to trig-

ger the process. This is similar to interface method

calls in the SM. All the interface methods of the ser-

vice speciﬁed in the state machine are mapped to the

sending channels in the environment model and the

response of successful transition is received from the

composite web service via receiving channels. This is

also shown in Figure 4: the environment model initi-

ates the automaton (bottom right) by sending channel

post b! and the process completes when the channel

resp b? is received.

A Python script is currently used to create the en-

vironment model, from a given UPTA model by ana-

lyzing the channels observable from the environment.

The original idea has been discussed in (Hessel et al.,

2008). This will be merged in the ﬁnal version of the

UML→UPTA transformation script.

Test Coverage Information. In order to enable

rigorous test coverage in UPPAAL TRON, a second

Python script (discussed in more detail in (Koskinen

et al., 2013)) is used to automatically add counter

AnIntegratedApproachforDesigningandValidatingREST WebServiceCompositions

109

variables for each edge of a given automaton in a

UPTA model and a corresponding update of the given

variable on the corresponding edge. Whenever the

edge is visited during the simulation or execution, the

variable is incremented, allowing thus to track which

edges have been visited and how many times. This

enables one to track coverage level wrt. e.g., edge

coverage or edge pair coverage. This script will also

be integrated in the ﬁnal version of the UML→UPTA

transformation script.

4 CASE STUDY

Our case study is a Holiday Booking (HB) composite

REST web service that is built on inspiration from the

housetrip.com service, with the purpose of having a

case study similar in complexity to real services. This

service is a holiday rental online booking site, where

one can search and book an apartment in the destina-

tion country.

The user of the service searches for a room in a ho-

tel from the list of available hotels at HB before travel.

He books the room (if it is available) and that book-

ing is reserved by HB with the hotel for 24 hours. The

user must pay for the booking within 24 hours. If the

user does not pay within this time then the booking is

canceled. If the booking is paid, then the HB service

invokes a credit card veriﬁcation service and waits for

the payment conﬁrmation. When the payment is con-

ﬁrmed, HB invokes the hotel service to conﬁrm the

booking of the room. If the hotel does not respond

within 1 day or it does not conﬁrm at all, the book-

ing is canceled and the user is refunded. If the hotel

service conﬁrms, then a booking is made with the ho-

tel. The payment is not released to the hotel until the

user checks in. When the user checks in, HB releases

the money to the hotel and the booking is marked by

the hotel as paid. Due to space limitation, we only

show some of the models and information here. The

detailed case study is available at (Rauf et al., 2013)

Design Models. The design of HB composite REST

web service is modeled with resource, behavioral and

domain models. The state machine of HB composite

service is shown in Figure 5.

Requirements Traceability. We have inferred func-

tional and temporal requirements from speciﬁcation

document for our case study. Table 1 shows the re-

quirements for Booking and Payment Release. These

requirements should be fulﬁlled by the IUT in order

to satisfy the service goals. They are added as com-

ments to the model in Figure 5.

Veriﬁcation. The design models of Holiday Booking

(HB) composite REST web service are translated to

Table 1: Requirements of Holiday Booking CWS (excerpt).

Req Sub-Requirements

1- Booking 1.1 - A booking should be paid

1.1.1 - A booking should be paid within 24 hours of the booking.

1.1.2 - If a booking is not paid within 24 hours of the booking,

then it is canceled by the system

1.1.3 - A conﬁrmed paid booking, waits for user check in

2- ... 2.1 - ...

4- Payment 4.1 - If the user checks in then the payment must be released

Release to the hotel.

4.2 - When the payment is released to the hotel, HB CWS must

notify the hotel about release of the payment

UPTA with the help of transformation tool. Here, we

only show an excerpt of UPTA in Figure 6. The de-

tailed model and the speciﬁcations of the partner web

services are available in (Rauf et al., 2013).

The veriﬁcation properties are specialized for our

case study and some of them are mentioned below.

Deadlock Freeness. The HB Service, the hotel ser-

vice and the payment service models are all deadlock

free. This means that the composite service is never

reach to a state that cannot preform a transition (i.e.,

A[] not deadlock). Note that the following queries are

made for complete model and only some of them can

be traced in Figure 6.

Reachability. All the locations in the HB service

are reachable. This means that the model receives

and sends messages to the partner services smoothly

and the model is validated for its basic behavior (i.e.,

E ♦CompService.r), where r is the last location in the

TA model and indicates that all processes for certain

booking is completed.

Safety. Some of the safety properties in our model are:

a) Payment should be released iff the user has checked

in, i.e., (E CompService.h2 imply CardService.c2),

where c2 is the location after check-in and h2 is

the location after payment release, b) If the pay-

ment is released by the HB service then the Hotel

service is paid, i.e., (E  CompService.h2 imply

HotelService. p), where p is the location in Hotel ser-

vice model for hotel payment.

Liveness. Some of the liveness properties in the model

are: a) When the payment is not paid within 24 hours,

the booking is canceled (i.e., CompService.c and

compService.cl > 24 CompService.b1), where c

indicates waiting for the payment, cl indicates clock

of the model and b1 indicates the booking request is

going to cancel due to the delay, b) If the Hotel Ser-

vice does not conﬁrm within 3 days then the booking

is considered not conﬁrmed (i.e., CompService.o and

CompService.cl > 3 CompService.n), where o is

the location for waiting for the hotel response and n is

the location for canceling.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

110

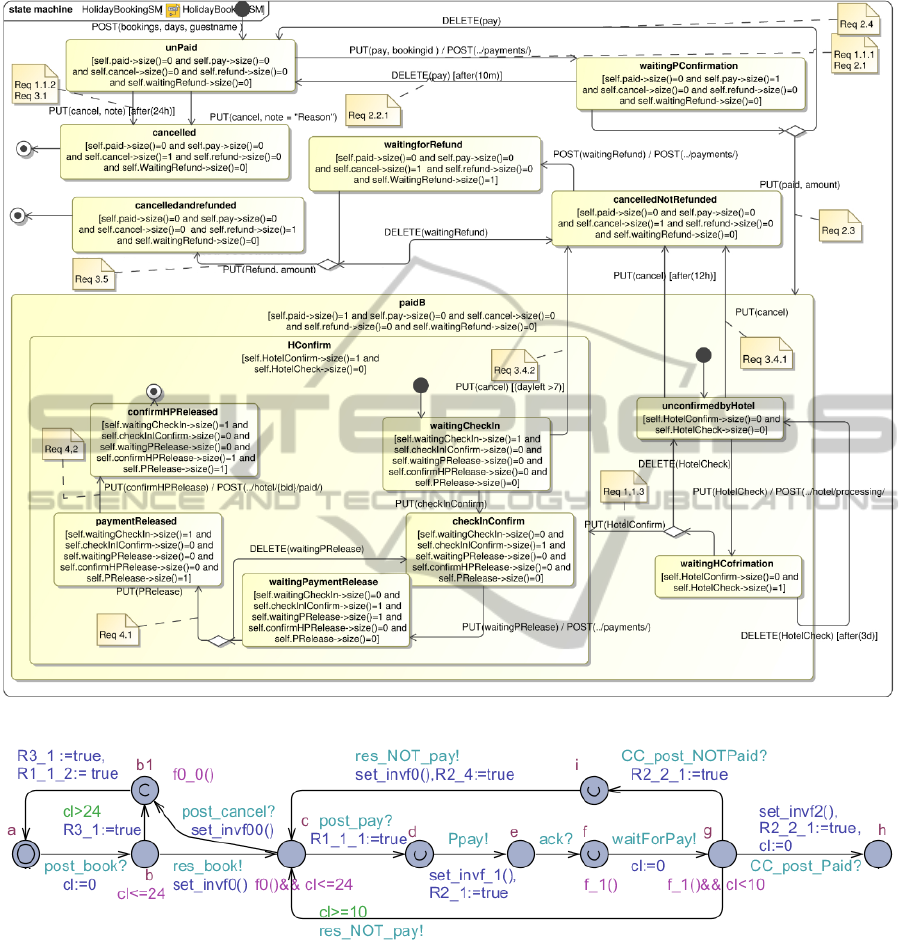

Figure 5: UML State Machine of Holiday Booking Composite REST Web Service.

Figure 6: Excerpt of UPTA model of Holiday Booking Composite REST Web Service.

Test Environment. The environment model speci-

ﬁes the user actions, such as booking, canceling a

reservation, requesting for the payment, paying, re-

funding and checking in. These are created from the

observable channel synchronizations of the compos-

ite web service. The automaton in Figure 7 shows

the environment model satisfying edge and require-

ments coverage. In Figure 7 they are encoded in

the guard as a verdict() boolean function in the

form: r

&&. . . r

&&e

. . . &&e

where r

and e

are

variables corresponding to requirements and, respec-

tively, to edges of the composite web service in Fig-

ure 6. Whenever the verdict function evaluates to

TRUE environment model can go to the ﬁnal location.

Test Setup. Similar to Figure 2, the test setup

comprises the TRON engine, the adapter, and the

IUT. The IUT is a web service composition of three

web services: Holiday Booking, Hotel and Payment

Services. The test adapter composed of a set of test

cases which satisfy the test requirements that are

listed in Table1.

AnIntegratedApproachforDesigningandValidatingREST WebServiceCompositions

111

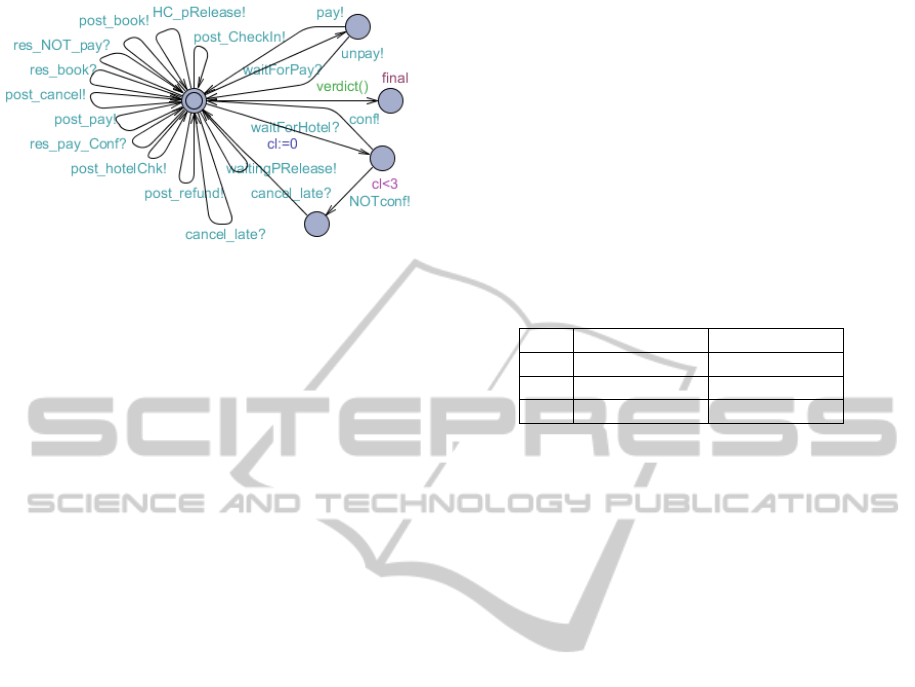

Figure 7: Environment model.

5 EVALUATION

The UML state machines of the HB composite REST

web service had 14 states and 25 transitions. These

were translated into a UPTA model with 34 loca-

tions and 46 edges. Similarly, the state machines of

Payment service had 3 states and 4 transitions which

transformed in to a UPTA model with 5 locations and

6 edges. The Hotel service had 4 states and 5 transi-

tions that were translated into 7 locations and 9 edges.

In addition, the environment model created had 4 lo-

cations and 13 edges.

One issue with using formal tools like UPPAAL

for veriﬁcation and test generation, is the scalability

of the approach, due to the state space explosion. In

contrast to ofﬂine test generation, where the entire

state space has to be computed, in online test gen-

eration only the symbolic states following the cur-

rent symbolic states have to computed. This reduces

drastically the number of symbolic states making the

test generation less prone to space explosion and thus

more scalable. For instance, the number of explored

symbolic states when generating, with the verifyta

tool, traces satisfying complete edge coverage (i.e.,

. . . &&e

, where e

are tracking variables cor-

responding to all m edges of the HBS models) was

974. In the contrast, the maximum number of sym-

bolic states reported by TRON during a test session

achieving complete edge coverage was 12 (see Fig-

ure11).

For benchmarking the veriﬁcation process, we

have used the verifyta command line utility of

UPPAAL for veriﬁcation of the speciﬁed 5 proper-

ties. We have used the memtime tool to measure the

time and memory needed for veriﬁcation. The result

showed in average 0.20 seconds and 54996 KB of

memory being used. Although the memory utilization

depends heavily on the symbolic state space, it shows

that the current size models leave room for scalability

of the approach. A known limitation of UPPAAL is

that the maximum memory size it can use is close to

4GB due to its 32-bit architecture. Figure 11 plots the

evolution of the number of symbolic states for 10000

model time units (20 seconds).

In order to evaluate the efﬁciency of our approach,

we compared the speciﬁcation coverage with the code

coverage yielded by a given test run. Since we had

access to the source code of the IUT, we used the cov-

erage tool for Python (pyt, 2013) to report the code

coverage for each test session. The Table 2 lists re-

sults of several measurements:

Table 2: Correspondence between code coverage and edge

coverage.

Run Edge Coverage Code Coverage

1 64 % 55%

2 80% 67%

3 100% 78%

Although many of the errors were caused by mod-

eling mistakes, testing revealed some errors in the im-

plementation as well. For instance, in the HB service,

there was an error in sending cancel request and an-

other error found in the POST header in refund re-

quest. Also in the Hotel service, the conﬁrmation was

sent by the wrong method, so it was rejected by Holi-

day Booking service.

In order to evaluate the fault detection capabili-

ties of our approach, we have manually created 30

mutated versions of the original HB service program

code. Each mutation had one fault seeded in the code,

for instance replacing POST with DELETE, remov-

ing one line of the source code, change of logical con-

ditions, etc. The faults were always seeded in those

parts of the code that is covered when achieving 100%

edge coverage of the model. We assumed that the

original version of the composite web service is the

correct one, as we were able to run the 100 test ses-

sions in TRON against it. For each mutated version

of the composite web service, we set the TRON to

execute 100 test sessions against it. When a fault was

discovered, the mutant was considered as killed. If the

mutated statement has been covered by the test runs

but no failure was detected, we mark it as alive. Out

of the 30 mutated programs, 28 mutants were killed

and 2 were alive. This resulted into a mutation score

of 93.3%.

6 RELATED WORK

There is already a large body of work on using model

checking techniques for validation and veriﬁcation of

web service compositions. Overviews of such works

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

112

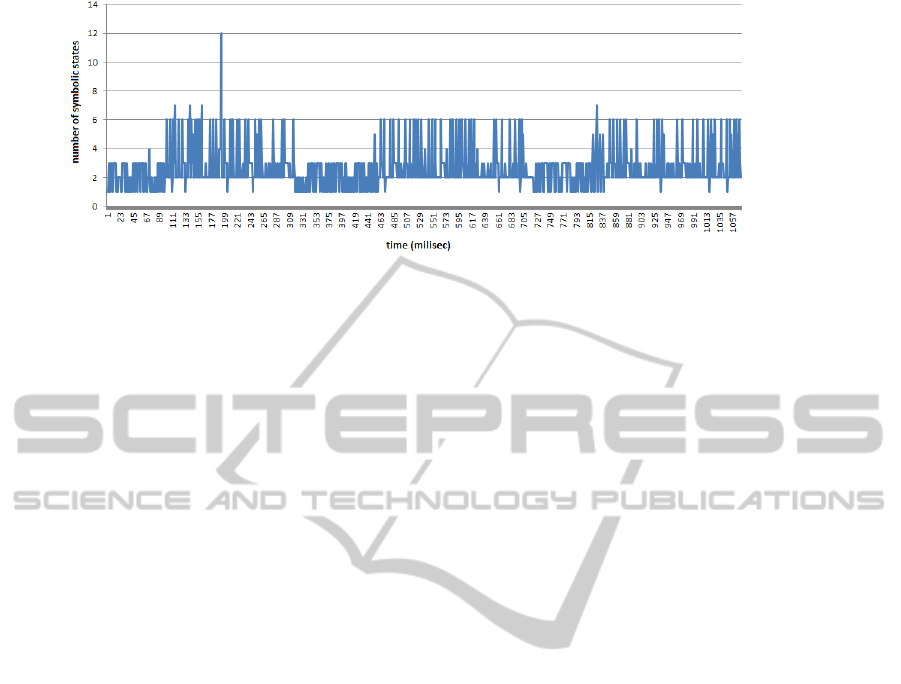

Figure 8: Evolution of symbolic states.

can be found in (Rusli et al., 2011) and (Bozkurt and

other, 2010). Mostly authors have used web service

speciﬁc speciﬁcation languages as their starting point

and converted the speciﬁcations to an intermediate

language that is accepted by model checking tools.

Then, by taking advantage of the model checking tool

capabilities they performed simulation, veriﬁcation or

test generation via model-checking. Most of these

works use the selected model-checking tool only for

simulation and veriﬁcation; only a handful generate

abstract tests from the veriﬁcation conditions, and in

most cases it is not clear how the abstract test cases

(i.e., the counterexample traces) are transformed into

executable ones and executed. In the following, we

will revisit those works which are most similar to

ours.

We can distinguish roughly two approach cate-

gories: those that target the PROMELA language

(Part and Peschke, 2003) which is the input language

for the SPIN model-checker (Holzmann, 1997), and

those that target the UPPAAL timed automata which

is the input language for the UPPAAL model-checker

(Behrmann et al., ).

In the ﬁrst category, the vast majority of ap-

proaches have used BPEL or OWL-S(Martin et al.,

2004) for the speciﬁcation of the web service com-

position. For instance, Garcia (Garc

ıa-Fanjul et al.,

2006) generates test cases using test case speciﬁca-

tions created from counterexamples that are obtained

from model checking. The transition coverage crite-

rion is used to identify transitions in BPEL speciﬁ-

cation that deﬁne the test requirements for producing

test cases. These transitions are mapped to the model

and expressed in terms of LTL property expressions.

Transition coverage is obtained by repeatedly execut-

ing the tool with each previously identiﬁed transition.

Fu. et al. (Fu et al., 2005) provide framework for

analyzing, designing and verifying web service com-

positions. Their work provides both bottom-up and

top-down approach to analyze the interaction between

web services. In top-down approach, the desired con-

versation of a web service is speciﬁed as guarded au-

tomaton that are converted to PROMELA and used

as input to SPIN model-checker. The bottom-up ap-

proach translates BPEL to guarded automaton and

then used with SPIN model-checker after translating

guarded automaton to PROMELA. The web service

conversations are analyzed for synchronization in or-

der to verify their compatibility.

One distinct approach is given by Huang et al.

(Huang et al., 2005). They automatically translate

OWL-S speciﬁcation of composite web service into

a C-like speciﬁcation language and PDDL through an

integrated process. These can be processed with the

BLAST model-checker which can generate positive

and negative test cases during model checking of a

particular formula and test the web service using the

test cases.

These works focus on BPEL processes and OWL-

S, this makes them dependent on speciﬁc execution

languages for SOAP based services whereas our work

is not dependent on implementation and supports

REST architectural style. In addition, their work does

not support requirement traceability and is not clear

how tests are generated and executed. Furthermore,

the works that use the PROMELA language for spec-

iﬁcation do not address real-time properties, due to

the limited support for time in PROMELA.

In the second category, researchers have targeted

timed automata speciﬁcations. In (Cambronero et al.,

2011), Cambronero et al. verify and validate web

services choreography by translating a subset of WS-

CDL into a network of timed automata and then use

UPPAAL tool for validation and veriﬁcation of the

described system. They also capture capture require-

ments by extending KAOS goal model and implement

them. The work is supported by WST tool that pro-

vides model transformation of timed composite web

services (Cambronero et al., 2012). In (Dıaz et al.,

2007), Diaz et. al also provide a translation from WS-

BPEL to UPPAAL timed automata. Time properties

are speciﬁed in WS-BPEL and translated to UPPAAL.

AnIntegratedApproachforDesigningandValidatingREST WebServiceCompositions

113

However, requirements are not traced explicitly, while

veriﬁcation and testing are not discussed.

Ibrahim and Al-Ani (Ibrahim and Al Ani, 2013)

transform BPEL speciﬁcation to UPAAAL. The spec-

iﬁcation includes safety and security non-functional

properties which are later formulated into guards in

the UPPAAL model which could be similar to our

veriﬁcation of requirements. They do not consider

neither real-time properties nor test generation.

In (Guermouche and Godart, 2009), Nawal and

Godart deal with checking the compatibility of web

service choreography supporting asynchronous timed

communications using model checking based ap-

proach. They use model-checker UPPAAL and

present compatibility checking distinguishing be-

tween full and partial compatibility and full incom-

patibility of web services. Our work is somewhat

similar to their work as we support time critical state-

ful REST webs service compositions using UPPAAL,

however, in addition to veriﬁcation we use UPPAAL

with TRON to validate the implementation of the web

services.

Zhang (Zhang et al., 2011) suggest the use of

the temporal logic XYZ/ADL language (Zhu and

Tang, 2003) for specifying web server compositions.

They transform the speciﬁcations into a timed asyn-

chronous communication model (TACM) which are

veriﬁed in UPPAAL.

In (Lallali et al., 2008), uses BPEL speciﬁcations

as a reference speciﬁcation and transform them to an

Intermediate Format (IF) based on timed automata

and then propose an algorithm to generate test cases.

Similar to our approach, tests are generated via sim-

ulation in a custom tool, where the exploration is

guided by test purposes. One noticeable difference

is that time properties are added manually to the IF

speciﬁcation, while we specify them at UML level.

These works provide approaches to verify and

validate the service speciﬁcations by checking the

properties of interest using UPPAAL tool, however

our work, in addition to model checking the proper-

ties also performs conformance testing of the service

composition via online model-based testing with the

TRON tool and provides requirement traceability for

non-deterministic systems.

7 CONCLUSION

We have presented an integrated approach to design

and validate RESTful composite web services. In our

approach, a service can invoke other services and ex-

hibit complex and timed behavior, while still comply-

ing with the REST architectural style. We showed

how to model the service composition in UML, in-

cluding time properties. We modeled communicating

web services and explicitly deﬁne the service invoca-

tions and receiving service calls.

We use model checking approach with UPPAAL

model-checker to verify and validate our design mod-

els. From the veriﬁed speciﬁcation, we generate tests

using an online model-based testing tool. The use of

online MBT proved beneﬁcial as our system under

test exhibits non-deterministic behavior due to con-

currency and real-time domain.

With the help of requirements traceability mech-

anism we traced requirements to UML models and,

via the UML→UPTA transformation to timed au-

tomata models. Their reachability is veriﬁed in UP-

PAAL and they are used as test goals during test

generation. Linking requirements to generated tests

allowed us to quickly see which requirements have

been validated and which have not. In addition, it al-

lows us to identify from which parts of the speciﬁca-

tion/implementation the detected error has originated.

We exempliﬁed our approach with a relatively

complex case study of a holiday booking web service

and we provided preliminary evaluation results.

REFERENCES

(2013). Code coverage measurement for Python – cov-

erage, v. 3.6. Online at https://pypi.python.org/pypi/

coverage. retrieved: 20.08.2013.

(2013). Nomagic MagicDraw webpage at http://

www.nomagic.com/products/magicdraw/.

Alur, R. et al. (1990). Model-checking for real-time sys-

tems. In Logic in Computer Science, 1990. LICS’90,

Proceedings., Fifth Annual IEEE Symposium on e,

pages 414–425. IEEE.

Behrmann, G. et al. Uppaal 4.0. In QEST ’06 Proceedings

of the 3rd international conference on the Quantitative

Evaluation of Systems, pages 125 – 126. IEEE Com-

puter Society Washington, DC, USA.

Birgit Demuth, C. W. (2009). Model and Object Veriﬁ-

cation by Using Dresden OCL. In Proceedings of

the Russian-German Workshop Innovation Informa-

tion Technologies: Theory and Practice,, pages 81–

89.

Bozkurt, M. and other (2010). Testing web services: A sur-

vey. Department of Computer Science, Kings College

London, Tech. Rep. TR-10-01.

Budgen, D., Burn, A. J., Brereton, O. P., Kitchenham, B. A.,

and Pretorius, R. (2011). Empirical evidence about the

uml: a systematic literature review. Software: Prac-

tice and Experience, 41(4):363–392.

Cambronero, M. et al. (2012). Wst: a tool supporting timed

composite web services model transformation. Simu-

lation, 88(3):349–364.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

114

Cambronero, M. E. et al. (2011). Validation and veriﬁca-

tion of web services choreographies by using timed

automata. Journal of Logic and Algebraic Program-

ming, 80(1):25–49.

Clarke, E. M., Grumberg, O., and Long, D. E. (1994).

Model checking and abstraction. ACM Transactions

on Programming Languages and Systems (TOPLAS),

16(5):1512–1542.

Dıaz, G. et al. (2007). Model checking techniques applied to

the design of web services. CLEI Electronic Journal,

10(2).

Fu, X. et al. (2005). Synchronizability of conversations

among web services. Software Engineering, IEEE

Transactions on, 31(12):1042–1055.

Garc

ıa-Fanjul, J. et al. (2006). Generating test cases speciﬁ-

cations for BPEL compositions of web services using

SPIN. In International Workshop on Web Services–

Modeling and Testing (WS-MaTe 2006), page 83.

Guermouche, N. and Godart, C. (2009). Timed model

checking based approach for web services analysis. In

Web Services, 2009. ICWS 2009. IEEE International

Conference on, pages 213–221. IEEE.

Hessel, A. et al. (2008). Testing Real-Time systems using

UPPAAL. In Formal Methods and Testing, pages 77–

117. Springer-Verlag.

Holovaty, A. and Kaplan-Moss, J. (2009). The deﬁni-

tive guide to Django: Web development done right.

Apress.

Holzmann, G. J. (1997). The model checker SPIN. Software

Engineering, IEEE Transactions on, 23(5):279–295.

Huang, H. et al. (2005). Automated model checking

and testing for composite web services. In Object-

Oriented Real-Time Distributed Computing, 2005.

ISORC 2005. Eighth IEEE International Symposium

on, pages 300–307. IEEE.

Ibrahim, N. and Al Ani, I. (2013). Beyond functional ver-

iﬁcation of web services compositions. Journal of

Emerging Trends in Computing and Information Sci-

ences, 4, Special Issue:25–30.

Koskinen, M. et al. (2013). Combining Model-based Test-

ing and Continuous Integration. In Proceddings of

the International Conference on Software Engineer-

ing Advances (ICSEA 2013). IARIA. TO APPEAR.

Lallali, M. et al. (2008). Automatic timed test case genera-

tion for web services composition. In on Web Services,

2008. ECOWS’08. IEEE Sixth European Conference,

pages 53–62. IEEE.

Larsen, K. G. et al. (1997). UPPAAL in a nutshell. In-

ternational Journal on Software Tools for Technology

Transfer (STTT), 1(1):134–152.

Larsen, K. G. et al. (2009). UPPAAL Tron user manual.

CISS, BRICS, Aalborg University, Aalborg, Denmark.

Martin, D. et al. (2004). OWL-S: Semantic markup for web

services. W3C member submission, 22:2007–04.

Nobakht, M. and Truscan, D. (2013). An Approach for

Validation, Veriﬁcation, and Model-Based Testing of

UML-Based Real-Time Systems. In Lavazza, L.,

Oberhauser, R., Martin, A., Hassine, J., Gebhart, M.,

and Jntti, M., editors, ICSEA 2013, The Eighth In-

ternational Conference on Software Engineering Ad-

vances, pages 79–85. IARIA.

Part, I. and Peschke, M. (2003). Design and validation of

computer protocols.

Porres, I. and Rauf, I. (2011). Modeling behavioral REST-

ful web service interfaces in UML. In Proceedings

of the 2011 ACM Symposium on Applied Computing,

pages 1598–1605. ACM.

Rauf, I. et al. (2012). Analyzing Consistency of Behavioral

REST Web Service Interfaces. In Silva, J. and Tiezzi,

F., editors, The 8th International Workshop on Auto-

mated Speciﬁcation and Veriﬁcation of Web Systems,

Electronic Proceedings in Theoretical Computer Sci-

ence, page 115. EPTCS.

Rauf, I. and Porres, I. (2011). Beyond CRUD. pages 117–

135.

Rauf, I., Siavashi, F., Truscan, D., and Porres, I. (2013).

An Integrated Approach to Design and Validate REST

Web Service Compositions. Technical Report 1097.

Richardson, L. and Ruby, S. (2008). RESTful web services.

O’Reilly.

Rusli, H. M. et al. (2011). Testing Web services composi-

tion: a mapping study. Communications of the IBIMA,

2007:34–48.

UML, O. (2009). 2.2 Superstructure Speciﬁcation. OMG

ed. http://www.omg.org/spec/UML/2.2/.

Utting, M. and Legeard, B. (2007). Practical Model-Based

Testing: A Tools Approach. Morgan Kaufmann Pub-

lishers Inc., San Francisco, CA, USA.

Zhang, G. et al. (2011). Model checking for asynchronous

web service composition based on xyz/adl. In Web

Information Systems and Mining, pages 428–435.

Springer.

Zhu, X.-Y. and Tang, Z.-S. (2003). A temporal logic-based

software architecture description language xyz/adl.

Journal of Software, 14(4):713–720.

AnIntegratedApproachforDesigningandValidatingREST WebServiceCompositions

115
