SocialSearch

A Social Platform for Web 2.0 Search

Claudio Biancalana, Fabio Gasparetti, Alessandro Micarelli and Giuseppe Sansonetti

Department of Engineering, Artiﬁcial Intelligence Laboratory, Roma Tre University,

Via della Vasca Navale, 79, 00146 Rome, Italy

Keywords:

Query Expansion, Social Bookmarking Services, Personalization.

Abstract:

In the last decade, social bookmarking services have gained popularity as a way of annotating and categoriz-

ing a variety of different web resources. The idea behind this work is to exploit such services for enhancing

traditional query expansion techniques. Speciﬁcally, the system we propose relies on three-dimensional co-

occurrence matrices, where the further dimension is introduced to represent categories of terms sharing the

same semantic property. Such categories, named semantic classes, are related to the folksonomy mined from

social bookmarking services such as Delicious, Digg, and StumbleUpon. The paper illustrates a comparative

experimental evaluation on real datasets, such as the one collected by the Open Directory Project and the

TREC 2004. We also include the results of a speciﬁc disambiguation analysis aimed to evaluate the effective-

ness of our approach in comparison with state-of-the-art techniques when satisfying queries characterized by

polysemic and ambiguous terms.

1 INTRODUCTION

The Social Semantic Web combines together the core

principles of the Semantic and Social Web: it in-

cludes, on the one hand, the idea of associating a se-

mantic description with web resources for enabling

machines to access and process them, on the other

hand, the idea of exploiting social content information

for that purpose. This development, however, leads to

the need to revise the classical techniques for the tra-

ditional Web (Micarelli et al., 2006; Lops et al., 2007;

Gentili et al., 2001; Gasparetti and Micarelli, 2003),

as they could not be more efﬁcient in the new Web

design.

Automatic query expansion (QE) is a well-known

technique for enabling users to better characterize

their search domain by supplementing the original

query with additional terms that are somehow linked

to the frequency of the term the user speciﬁed in his

query (Bai et al., 2005). This method can signiﬁcantly

improve the performance of information retrieval sys-

tems. However, traditional QE techniques, even those

providing users with personalized results, may suffer

from some drawbacks if extended to the Social Se-

mantic Web. In particular, additional terms can (i)

be simple synonyms, (ii) not consider the existence

of different lexicons, given that each user has his own

custom dictionary. As a result, QE process may fail to

contextualize the research domain of interest if multi-

ple users annotate the web content.

Our research objectives include (i) to ﬁnd a solu-

tion to the lack of expression of the candidate terms

for query expansion, (ii) to customize the search re-

sults taking into account the semantic domain of the

user interests, (iii) more generally, to explore novel

approaches combining semantic, social, and adaptive

aspects.

The proposed system - named SocialSearch - is

an extension of the traditional QE techniques, which

are based on the computation of two-dimensional co-

occurrence matrices (Biancalana and Micarelli, 2009;

Biancalana et al., 2012). Our approach makes use of

three-dimensional co-occurrence matrices, where the

added dimension is represented by semantic classes

(i.e., categories comprising all the terms that share

a semantic property) related to the folksonomy ex-

tracted from social bookmarking services (Musto

et al., 2009) such as Delicious

, Digg

and Stum-

bleUpon

. These web sites allow users to store, or-

ganize, share, and search bookmarks associated with

web resources, through the input of additional data

delicious.com

digg.com

www.stumbleupon.com

Biancalana C., Gasparetti F., Micarelli A. and Sansonetti G..

SocialSearch - A Social Platform for Web 2.0 Search.

DOI: 10.5220/0004943000700081

In Proceedings of the 10th International Conference on Web Information Systems and Technologies (WEBIST-2014), pages 70-81

ISBN: 978-989-758-023-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

(e.g., tags or short summaries), freely available to the

entire community of users. In our approach, the ex-

pansion process takes place by analyzing multiple oc-

currences divided into categories related to semantic

classes, which are analyzed in the folksonomy. The

full process is entirely transparent to the user, implic-

itly occurring based on his past choices related to the

terms of the submitted queries and the corresponding

visited pages. The input queries are analyzed accord-

ing to collected data, and if they reﬂect the interests

already shown by the user in previous searches, the

system returns different QEs, before performing the

search phase. All of these QEs are related to the terms

of the user query, but each of them involves a different

semantic ﬁeld. The ﬁnal results are displayed in dif-

ferent blocks - each one classiﬁed through keywords

- thereby supporting the user in determining what is

most relevant to him (Acampora et al., 2010). This

way, our system provides the contextualization and

categorization of the information by analyzing and

extracting the semantic domain of the user interests.

A comparative analysis of our ﬁndings with those

obtained through some state-of-the-art techniques,

such as relevance feedback, shows that our approach

is able to achieve better results. This reveals that our

system can offer a stronger correlation with the actual

user interests, which conﬁrms the validity and useful-

ness of their categorization in semantic classes.

The rest of the paper is structured as follows. Sec-

tion 2 reviews some related works, Section 3 illus-

trates the system architecture. The main algorithms

are detailed in Section 4, while Section 5 is devoted

to the presentation and discussion of the experiments

we performed. Finally, Section 6 concludes the paper

and highlights some future directions.

2 RELATED WORK

Automatic query expansion (QE) has been widely

used in Information Retrieval (Carpineto and Ro-

mano, 2012; Biancalana et al., 2013b). Among

the various QE approaches proposed in literature,

some of them take advantage of the implicit rele-

vance feedback through pseudo-relevance feedback

(PRF) (Manning et al., 2008). All these methods

follow the basic assumption: documents classiﬁed

higher by an initial search contain many useful terms

that can help discriminate relevant documents from

irrelevant ones. Despite the large number of studies,

a crucial issue is that the expansion terms identiﬁed

through traditional methodologies from the pseudo-

relevant documents may not be all useful (Cao et al.,

2008).

Bilotti et al. (Bilotti et al., 2004) analyze the effect

of some QE approaches on document retrieval in the

context of question answering, mainly targeted to the

so-called “factoid” questions, namely, fact-based, nat-

ural language questions that usually can be answered

by a short noun phrase. More speciﬁcally, the authors

describe a quantitative comparative analysis between

two different strategies for tackling term variation: i)

employing a stemming algorithm at indexing time, or

ii) carrying out a morphological query expansion at

retrieval time. The ﬁndings show that, when com-

pared to the baseline (no stemming nor expansion),

stemming yields a lower recall, while morphological

expansion results in higher recall. However, higher

recall is paid at the cost of retrieving more irrelevant

documents and ranking relevant documents at lower

positions.

One of the failure reasons of the query expan-

sion has been identiﬁed in the lack of relevant doc-

uments in the local collection. Consequently, some

works advance the use of an external resource for

query expansion in order to improve the effective-

ness of query expansion, such as thesaurus (Nanba,

2007), Wikipedia (Xu et al., 2009), key-phrases from

corpus of documents (Biancalana et al., 2013a; Bian-

calana et al., 2011), browsed web pages (Gasparetti

et al., 2014) and search engine query logs (Cui et al.,

2003). Abouenour et al. (Abouenour et al., 2010)

point out that the adoption of a thesaurus, typically

constructed through statistical techniques, poses sev-

eral drawbacks. First of all, the construction of a the-

saurus is time-consuming because of the great deal of

data to process. Effective semantic QE techniques can

also rely on ontologies instead of thesauri. Indeed,

ontologies describe both semantic and concept rela-

tions, and enable semantic reasoning as well as cross-

language information retrieval. The authors speciﬁ-

cally deal with the enhancement of question answer-

ing in Arabic, a complex language for its peculiarities.

They propose an approach that implements a seman-

tic QE based on the WordNet

ontology in Arabic. As

a result, the described QE method bears the follow-

ing semantic relations: synonymy, hypernymy (su-

pertypes), hyponymy (subtypes), and the Super Up-

per Merged Ontology (SUMO)

concept deﬁnition.

SUMO is a top-level ontology that deﬁnes general

terms and can be used as a foundation for middle-

level and more speciﬁc domain ontologies. The docu-

ments retrieved through the previous process are then

re-ranked using a structure-based approach based on

the Distance Density n-gram model.

Recently, several authors have focused on social

wordnet.princeton.edu

www.ontologyportal.org

SocialSearch-ASocialPlatformforWeb2.0Search

annotations as external resource, largely motivated by

their increasing availability through many Web-based

applications. Among these, Carman et al. (Carman

et al., 2009) explore how useful tag data may be to

improve search results, but they focus primarily on

data analysis rather than retrieval experiments. Zhou

et al. (Zhou et al., 2012) propose a query expansion

framework relied on user proﬁles extracted from the

annotations and resources bookmarked by users. The

main difference with our approach is that the selec-

tion of expansion terms for a given query is not based

on semantic classes, but on the assumption that they

are likely to have similar weightings inﬂuenced by the

documents best ranked for the original query.

3 SYSTEM ARCHITECTURE

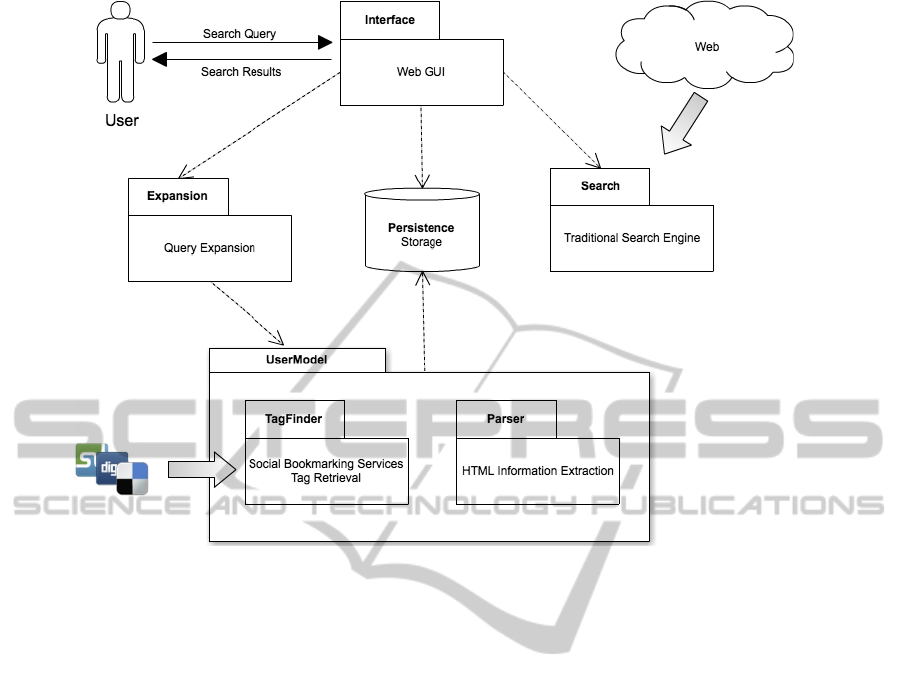

In this section we present the architecture of the sys-

tem we propose (see Fig. 1), describing the function-

alities of each module and the modalities which they

actively collaborate through.

• Interface: the mail role of the this module is read-

dressing external requests to the specialized mod-

ules and processing the achieved results so as to

show them in a more understandable form;

• Expansion: after the user has submitted his

search query, this module is responsible of the

query expansion process. To perform multiple ex-

pansions, this module has to access the user inter-

ests stored in the user model;

• Search: this module is in charge of the real search

process, receiving (possibly expanded) queries in

input and returning the corresponding results;

• Persistence: all the necessary information is re-

tained in this module: login data, encountered

terms (both before and after stemming), tags, co-

occurrence values between terms, tag relevance,

and URLs of documents visited by the user; it in-

teracts mainly with the interface (for user login

and saving URLs) and the user model (for data

needed for the construction and analysis of the

user model);

• UserModel: this is the largest module in that it

has to constantly update the user proﬁle realized

as a three-dimensional co-occurrence matrix. The

interaction with the persistence module is the ﬁrst

step for achieving data (visited URLs and corre-

sponding queries) from which to infer informa-

tion for the model update. Before the necessary

processing, this module makes use of two other

sub-modules: Parser and TagFinder;

– Parser: its main role is to ﬁlter out the unnec-

essary information related to the user interests

collected by the system, and to provide the user

model with a sorted set of terms for the three-

dimensional matrix computation. It includes

parsing functionalities (i.e., ﬁltering the HTML

pages visited by the user), stemming, and stop-

word removal;

– TagFinder: it is devoted to the search of tags

to be associated with the pages visited by the

user. It interacts with external resources (social

bookmarking services) to extract complete tags

of a relevance index, in order to supply them to

the user model.

Results obtained in each search session are then pre-

sented to the user so as to underline the different se-

mantic categories of each group of them. The search

of the tags associated with the pages visited by the

user is performed by analyzing the information pro-

vided by main sites that offer social bookmarking ser-

vices. In this case, data collection occurs directly by

parsing the HTML pages containing the necessary in-

formation. In order to model the user visits, the sys-

tem employes matrices based on co-occurrence at the

page level: terms highly co-occurring with the is-

sued keywords have been proven to increase preci-

sion when appended to the query (Biancalana et al.,

2009). The generic term t

is in relation with all other

n terms t

(with i = 1, . . . , n) according to a coefﬁ-

cient c

representing the co-occurrence measure be-

tween the two terms. In a classical way, we can con-

struct the co-occurrence matrix through the Hyper-

space Analogue to Language approach (Burgess and

Lund, 1995): once a term is given, its co-occurrence is

computed with n terms to its right (or its left); in par-

ticular, given a term t and considered the window f

n terms w

to its right f

= {w

, . . . , w

}, we have co-

oc(t, w

) =

, i = 1. .. , n. A pair (a, b) is equal to pair

(b, a), that is, the co-occurrence matrix is symmetri-

cal. For each training document a co-occurrence ma-

trix is generated, whose lines are then normalized to

the maximum value. The matrices of the single docu-

ment are then summed up, thus generating one single

co-occurrence matrix representing the entire corpus.

The limit of this structure lies in the latent am-

biguity of collected information: in presence of poly-

semy of the terms adopted by the user, the result of the

query expansion risks to misunderstand the interests,

so leading to erroneous results. In order to overcome

this problem, in our system the classical model of co-

occurrence matrix has been extended. The user model

consists of a three-dimensional co-occurrence matrix.

Each term of the matrix is linked to an intermediate

level containing the relative belonging classes, each

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

Figure 1: The system architecture.

accompanied by a relevance index. This way, each

term is contextualized before being linked to all the

other terms present in the matrix, and led to well

determined semantic categories that are identiﬁed by

tags.

4 SOCIAL SEARCH

In this section we describe in detail the two main al-

gorithms of our approach. The former is designed

for the user model creation and update (discussed in

Section 4.1), the latter for the query expansion pro-

cess (discussed in Section 4.2). With reference to

the pseudocode shown below, we notice that the co-

occurrence matrix is represented through a map of

maps for encoding knowledge and connecting such

knowledge to relevant information resources. Maps

of maps are organized around topics, which repre-

sent subjects of interest; associations, which express

relationships between the subjects; and occurrences,

which connect the subjects to pertinent information

resources.

4.1 User Model Creation and Update

The creation and update of the user model are based

on the pages chosen by the user while searching.

Starting with an empty model, every time the user

clicks on a result after typing a search query, the sys-

tem records the visited URL, together with the query

originally submitted for the search. Our system per-

forms the analysis of the visited URLs in incremental

way, according to the following algorithm (see Algo-

rithm 1, where capital deltas (∆) denote comments):

• a temporary map M is initialized, where it is pos-

sible to store the extracted data, before updat-

ing the pre-existent model (empty at ﬁrst execu-

tion). The map keys are the encountered tags,

the values are the relative two-dimensional co-

occurrence matrices;

• for each visited URL, the corresponding HTML

page is obtained, from which the textual informa-

tion is extracted through a parser, as a list of terms;

• the list of terms is ﬁltered in order to eliminate

stopwords (i.e., all those terms that are very fre-

quent in all documents, so irrelevant to the cre-

ation of the user model);

• the list of terms undergoes a stemming process by

means of the Porter’s algorithm (Porter, 1980). At

the same time the system retains the relations be-

tween stemmed terms and original terms;

• the co-occurrence matrix corresponding to the

most relevant k

term

keywords is evaluated. The

relevance is measured by counting the occur-

SocialSearch-ASocialPlatformforWeb2.0Search

Algorithm 1: User Model Creation and Update.

begin

∆ Initialize the global co-occurrence matrix M (map of maps);

M ← Map([]);

∆ Analyze training documents;

for (doc, query) in D do

∆ Parse the document (stemming and stopword removal);

doc = parse(doc);

∆ Initialize the co-occurrence matrix of different terms;

terms ← Map([]);

∆ Compute the co-occurrence value of every term;

terms = f requency occurrences(doc);

∆ Initialize the co-occurrence matrix of document;

co occ ← Map([]);

∆ Compute the co-occurrence matrix of document;

co occ = co occurrences(terms);

∆ Get the site list of social bookmarking for tag search;

sites = get social bookmarking sites();

∆ Initialize URL list tags;

tags ← Set([]);

∆ Retrieve tags by URL;

for i = 0; i < sites.size() & tags.size() = 0; i + + do

tags = retrieve tags(url, sites[i]);

∆ Update the matrix M;

update(M, tags, terms);

∆ Initialize all terms in documents;

all terms ← Set([]);

∆ Get unique terms set;

all terms = get term set(M);

∆ Get subset of user model;

user matrix ← get user matrix(all terms);

∆ Update user model by the intermediate matrix;

update(user matrix, M, all terms);

∆ Store updated user model;

save(user matrix);

rences within the document itself, with the excep-

tion of terms used in the query (retained by the

system together with the corresponding URL), to

which is assigned the maximum weight;

• tags concerning the visited URLs are obtained by

accessing different sites of social bookmarking.

Each extracted tag has a weight which depends

on its relevance (i.e., the number of users which

agree to associate that tag to the visited URL);

• the update of the temporary map M is performed

by exploiting all the information derived from the

co-occurrence matrix and the extracted tags in a

combined fashion. For each tag

the system up-

dates the co-occurrence values just calculated, ac-

cording to the tag relevance weight. After that, the

vectors M

tag

related to each term t

are updated

by inserting the new (or summing to the previous)

values;

• the set terms is calculated, which contains all the

terms encountered during the update of the tem-

porary map M;

• from the persistence module a subset UM

terms

the user model is obtained as a three-dimensional

matrix of co-occurrences, corresponding only to

the terms contained in terms;

• the matrix UM

terms

is updated with the values of

M. For each t

belonging to terms, the set of keys

(tags) is extracted from M, which points to values

corresponding to t

. For each tag

belonging to

tags, the vector M

tag

is added to the pre-existent

vector UM

,tag

, updating the values for the terms

already present and inserting new values for the

terms never encountered.

4.2 Query Expansion

The query expansion process is performed beginning

from the original terms entered into the search en-

gine by accessing the information collected in the user

model. The result is a set of expanded queries, each

of them associated with one or more tags. This way,

it is possible to present the user with different sub-

groups of results grouped in categories. Using low

level boolean logic, every expansion assumes the fol-

lowing form:

(

OR . . . OR

) AND (

OR . . . OR

) . . .

AND (

OR . . . OR

)

where t

represents the generic term x corresponding

to the stemmed root y. The different terms coming

from the same root undergo OR operation amongst

them, since the result has to contain at least one of

them. (see examples in Table 1).

Table 1: Example of multiple expansions.

Original query Categorization tags Expansions

amazon e-commerce, shopping: buy

AND

(books OR book)

AND

amazon

amazon nature: (rivers OR river)

AND

amazon

The algorithm of multiple expansion is the following

(see Algorithm 2):

• let us suppose that the query Q is given, which

consists of n terms q

(with i = 1, . . . , n). For each

of them the system evaluates the corresponding

stemmed term q

′

, so obtaining the new query Q

′

as a new result;

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

• for each term belonging to Q

′

, the correspond-

ing two-dimensional vector q

is extracted from

the three-dimensional co-occurrence matrix. Each

of those vectors may be viewed as a map, whose

keys are the tags associated with the terms q

′

(which have a relevance factor), and the values are

themselves

co-occurrence vectors

between q

′

and

all the other encountered terms;

• for each encountered tag the relevance factor is

recalculated, adding up the single values of each

occurrence of the same tag in all two-dimensional

vectors. This way, the result is a vector T in which

tags are sorted according to the new relevance fac-

tor;

• amongst all tags contained in T , only the higher

tag

are selected and considered for the multiple

expansions;

• for each selected tag t

the vector sum

is com-

puted, which represents the sum of the co-

occurrence values of the three-dimensional ma-

trix, corresponding to all terms q

′

of the query Q

′

;

• for each vector sum

, the most relevant terms

(corresponding to higher values) are selected.

Combining the extracted terms with those of the

query Q, a new query EQ

′

(made up of stemmed

terms) is initialized;

• for each expanded query EQ

′

, the correspond-

ing query EQ is calculated through the substitu-

tion of stemmed terms with all the possible orig-

inal terms stored into the system, exploiting the

boolean logic according to the scheme previously

shown;

• the query EQ and the original tag t

are entered

into the map M

, whose keys are expanded

queries and values are sets of tags. If M

already

contains an expanded query identical to the input

one, the tag t

is added to the corresponding set of

tags.

5 EVALUATION

We now present the experimental results of the pro-

posed approach. Speciﬁcally, we describe a compar-

ative evaluation analysis between SocialSearch, our

social-based search engine, and some state-of-the-art

techniques.

A number of different aspects must be evaluated

in order to assess the real effectiveness of search en-

gines, such as index coverage, search capabilities,

presentation, and user effort in seeking tasks. In this

Algorithm 2: Multiple Query Expansion.

begin

∆ Initialize the query to be expanded (a list of n terms);

query ← [q

, q

, ..., q

];

∆ Stemming of query terms;

query ← stemming(query);

∆ Get the subset of the user model related to the query;

user matrix = get user matrix(query);

∆ Initialize the tag map for multiple query expansion;

expansion tags ← Map([]);

∆ Compute tags for multiple expansion;

expansion tags = f ind expansion tags(query, user matrix);

∆ Initialize the expanded query map related to tags;

exp queries ← Map([]);

∆ Compute expanded queries for every tag;

for (tag,ranking) in expansion tags do

∆ Compute the expanded query by choosing most

relevant terms;

exp query = select relevant terms(query, user matrix);

∆ Enter the result in the expanded query map;

insert expanded query(exp query, tag,ranking, exp queries);

return exp queries;

evaluation, we are particularly interested in the stan-

dard relevance measures to evaluate the efﬁcacy of the

retrieval of web documents and the quality of the re-

sults. Several relevant factors make this comparative

analysis somewhat difﬁcult. Personalized search aims

at enhancing user interaction by understanding the

user needs, the context, and the applications and infor-

mation being used, typically across a wide set of user

goals. Usage data that might be of potential interest

for recognizing and assessing information consump-

tion patterns of each user and the various informa-

tion foraging strategies must be accurately collected.

Moreover, personalization is inﬂuenced by the selec-

tion of particular topics on which the evaluation is to

be performed. It can create an authoring bias where

the topics selected by a group of peers inﬂuence the

relative results of one approach when compared with

others. For example, one approach might exploit a

topic characterized by a wealth of documents and ref-

erences, while a different one is critically affected

by the presence of several polysemous words in the

query set. In spite of these issues, implementing an

experimental evaluation of personalized approaches

in a real setting is still the most signiﬁcant method

to measure the scalability and the overall quality of

search effectiveness, in terms of both coverage and

accuracy of the produced search results. While cov-

erage measures the ability of engines to produce all

the references that are likely to be visited by the user,

accuracy is essential in evaluating the quality of such

references.

SocialSearch-ASocialPlatformforWeb2.0Search

Five different search engines have been included

in the comparative analysis: Google (denoted sim-

ply as Google in ﬁgures), the personalized version of

Google (PersGoogle), a query expansion search en-

gine based on co-occurrence data (CoOcc), a tradi-

tional search engine with Relevance Feedback (RF),

and our system (SocialSearch). In the ﬁrst person-

alized version of Google back in 2004, the search

engine showed a directory like category drop-down

menu, where users could select the categories that

matched their interests. During the search process,

the search engine adapts the results according to each

user needs, assigning a higher score to the resources

related to what the user has seen in the past. A slider

in the graphic user interface allows the user to control

the level of personalization in the results. For exam-

ple, if the user earlier chose the category of Comput-

ers as one of his interests, results such as Apple, Acer

or HP would rank among the ﬁrst positions. Unfor-

tunately, no details or evaluations are presently avail-

able for the algorithms exploited for the re-ranking

process, except the ones contained in the patent ap-

plication ﬁled in 2004 (Zamir et al., 2004). Our com-

parative evaluation takes into account the current ver-

sion of personalized Google. It basically reorders the

search results based on gathered usage data, such as

previous queries, web navigation behavior and, pos-

sibly, visited sites that serve Google ads, computers

with Google Applications installed, such as Desktop

Search and personal information, which may be im-

plicitly or explicitly provided by the user.

Relevance feedback aims at modifying the ini-

tial query using words extracted from top-ranked

or identiﬁed relevant documents. If both docu-

ments and queries are represented in a vector space

model (Salton and Buckley, 1997), the Rocchio feed-

back approach alters the initial query by combining

the vectors of the relevant documents increasing the

recall of the search engine, and possibly its precision

as well (Manning et al., 2008).

Query expansion based on co-occurrences is a

well-known approach that collects the correlations be-

tween pairs of terms in a given corpus. It is a straight-

forward approach that limits the computational com-

plexity through the idea of associating contexts to the

current user needs. The two fundamental problems

of information retrieval, namely, synonymy and pol-

ysemy, are addressed during the construction of the

query vector. Ambiguous words have only one lemma

for all their meanings. If one meaning is mentioned in

a query, the documents in which the term appears with

the other meanings are also retrieved and estimated as

closer to the query. In case of polysemy there will be

terms associated to more than one meaning, but if the

query is composed by a number of keywords, the in-

tended meaning is more likely to be referenced. These

terms and their associated terms will form a cluster,

which is associated to the intended meaning and out-

weighs the unintended meanings. Several studies in

the literature have proven the effectiveness of this ap-

proach, but have also raised some doubts on its real

improvements in the performance of document re-

trieval systems, because of the following potential is-

sues:

• Weighting terms that occur more frequently in the

whole dataset, so favoring the more popular (see,

for example, (Peat and Willett, 1991));

• Expanding each single term in the query in iso-

lation, ignoring the potential meaning of the all

terms as a whole;

• Co-occurrences data extracted from small collec-

tions of documents;

• Collection of documents not including relevant

concepts and information during the query expan-

sion.

In order to play down those issues mainly related

to the documents selected for the initial dataset, the

co-occurrence matrix used for expansion is built on

the corpus of documents retrieved during the learning

process. In this way, it is certain that enough relevant

documents for the expansion are included and there

are less chances to see several common terms that

cover several different topics of interests. The com-

parative analysis consists in the following two evalu-

ations:

• TREC corpus-based evaluation;

• ODP corpus-based evaluation;

Corpus-based evaluations have the advantage of

showing a zero test-retest variability if the same

closed corpus is employed in future experiments that

include different approaches. We also include a spe-

ciﬁc disambiguation analysis in order to measure the

efﬁcacy of the search engines to tackle queries char-

acterized by polysemic and ambiguous terms.

5.1 TREC Corpus-based Evaluation

In the ﬁrst evaluation, we consider the TREC

2004

Robust Track on TREC disks 4 and 5. It contains

over 500K documents, a subset of them marked rel-

evant or irrelevant according to a given topic. On av-

erage, each document consists of 467 terms. All the

249 queries are included in the evaluations. The ap-

proaches considered in this evaluation are RF, CoOcc,

trec.nist.gov/data.html

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

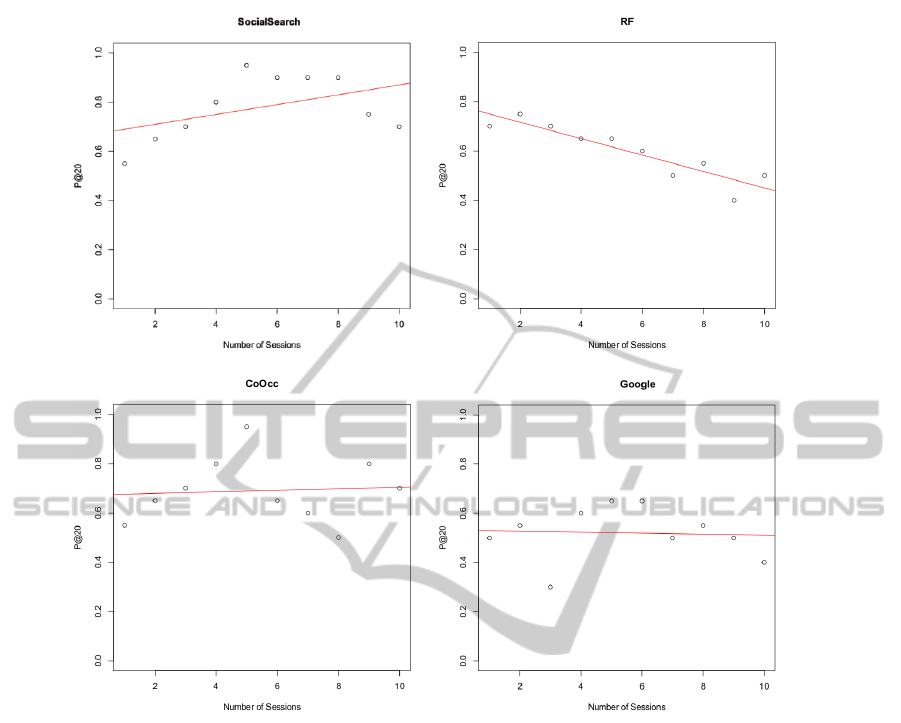

Figure 2: P@20 average values after a certain number of feedbacks.

Google, and SocialSearch. The closed nature of this

corpus has not allowed us to include PersGoogle in

this comparative analysis as well. The precision at 20

(P@20) measures the performance of the retrieval. It

evaluates the fraction of the retrieved documents that

are relevant to the user information needs. The aver-

age number of result pages viewed by a typical user

for a query is 2.35 (Jansen et al., 2000), and a more

recent study (Jansen et al., 2005) reports that about

85.92% of users view no more than two result pages.

For these reasons, the precision is evaluated at a given

cut-off rank, considering only the top 20 results re-

turned by the system. Figure 2 shows the P@20 after

collecting a certain number of feedbacks (Biancalana

et al., 2013b).

Google approach shows the worst outcomes with

a low average precision. This is an expected result

because Google does not exploit the suggestions that

feedbacks might provide. Better average outcomes

are obtained by employing the relevance feedback,

even though the slope of the linear model of data is

negative. That is to say that the amount of infor-

mation collected by means of the relevance feedback

negatively affects the precision by including irrele-

vant keywords during the expansion of the queries.

Better outcomes are obtained through both CoOcc

and SocialSearch approaches. It must be noted how

several web references included in the corpus do not

ﬁnd a correspondence in the sites of social bookmark-

ing services such as Delicious. For this reason, So-

cialSearch is put in a unfavorable position in com-

parison with CoOcc trained on the collection of doc-

uments related to the relevant topics. The same is-

sue also affects the ODP corpus-based evaluation (see

Sect. 5.2).

5.2 ODP Corpus-based Evaluation

Our goal is to build proﬁles of users that show inter-

ests in some speciﬁc topics. Each topic must be asso-

ciated with more than one document, whose content

is extracted by personalized search engines and used

SocialSearch-ASocialPlatformforWeb2.0Search

to build a user proﬁle representation.

Open Directory Project

(ODP) is a multi-

language directory of links belonging to the Web.

ODP has a hierarchic structure: the links are grouped

into categories and subcategories, also known as top-

ics. It is therefore possible to identify a level-

based organization within the hierarchy. An exam-

ple of topic is Top/Business/Forestry and Agricul-

ture/Fencing; excluding the Top level common to all

the topics, we have:

• Level I: Business;

• Level II: Forestry and Agriculture;

• Level III: Fencing.

Given the large quantity of links contained in

ODP, we have decided to limit to the third level the

links taken into consideration for the evaluation. The

pages corresponding to such links are retrieved from

the Web and indexed. The obtained index consists of

131,394 links belonging to 5,888 topics. Thereafter,

ten topics are randomly chosen, ﬁve of which corre-

sponding to potential user information needs, and ﬁve

whose function is exclusively that of representing the

pages visited by the user whose content is not rele-

vant, that is, transient needs. The links of each topic

were then subdivided into a training set, correspond-

ing to 25% of the links, and the remaining links for

test sets. The ten topics are summarized in Table 2.

It is clear now that this methodology allows us

to build several different proﬁles of potential users.

Once these proﬁles are built, it is possible to com-

pare the precision of the search engines. In this eval-

uation, Google, RF and SocialSearch approaches are

compared in terms of F1 score (or F-measure), a stan-

dard statistical measure that combines both the preci-

sion and the recall of the test to compute the resulting

score. A query is built for each topic belonging to the

user needs. The query is composed by the terms that

form the topic name in ODP (e.g., query: “shopping

craft papers”). The evaluation aims at measuring the

fraction of document retrieved by the search engine

from the whole collection of indexed documents that

are also included in the test set for each need. Table 3

shows the variation of F1 score for the three engines.

In this evaluation, RF engine does not take any sensi-

ble advantage of the content extracted from the train-

ing documents. SocialSearch outperforms the other

approaches, even though several links in the train-

ing set do not have any reference in the sites of so-

cial bookmarking services. Part of the training docu-

ments are indeed very old or not very popular, there-

fore users are not likely to attach metadata to these

resources.

www.dmoz.org

5.3 WordNet-based Disambiguation

Analysis

Personalization has an important role when users sub-

mit ambiguous queries, that is, consisting of terms

with multiple different meanings. Past and cur-

rent contexts might help disambiguate polysemous

words and improve result accuracy. For this reason,

this evaluation aims at gathering ambiguous queries

and performs a comparison of how the different ap-

proaches behave in correctly disambiguating their

meanings.

A straightforward methodology that involves the

analysis of the WordNet

lexical database has been

deﬁned. Brieﬂy, WordNet is a collection of synsets,

namely, groups of nouns, adjectives and adverbs all

expressing a common concept (e.g., house, home,

dwelling, habitation, etc.) (Fellbaum, 1998). Synsets

are interlinked by means of semantic and lexical re-

lations. In this way, it is very easy to ﬁnd terms that

have potentially several different meanings (Hirst and

Budanitsky, 2005).

A random choice of these ambiguous terms enables

us to focus on the 12 keywords shown in Table 4.

For each term, two synsets (or semantic contexts) are

identiﬁed by the ones included in the database. For-

mally, it is possible to deﬁne a triple as follows:

< T, X

where T is a polysemic term with different meanings

depending on its context, for example, T = dra f t; X

and Y

are two sets of tags, each of which consists of

ﬁve tags that brieﬂy describe a semantic context, for

example

= {beer, k egerator, homebrew, k eg,brewing}

and

= {nba dra f t, basketball, nbadra f t, nba, basket};

of course, T gets a different meaning in each of the

two semantic contexts X and Y.

Table 4 summarizes the set of triples used in this

evaluation.

For every triple, we collected 400 documents from the

Web, subdivided into:

• 100 documents for each of the two contexts X and

Y . These two collections are divided into two

parts of 50 documents each one, which we used

for training and test;

• 200 “noisy” documents, namely, that belong to

both of the two semantic classes;

wordnet.princeton.edu

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

Table 2: Benchmark statistics: ODP topic, number of links for test and training, and if topic is part of user needs.

Topic Test links Training links Need

Sports/Cycling/Human Powered Vehicles 15 5 +

Computers/Home Automation/Products and Manufacturers 27 7 +

Business/Mining and Drilling/Consulting 74 18 +

Games/Roleplaying/Developers and Publishers 52 14 +

Business/Agriculture and Forestry/Fencing 100 27 +

Shopping/Crafts/Paper 35 7

Arts/Performing Arts/Magic 25 6

Science/Publications/Magazines and E-zines 26 7

Science/Social Sciences/Linguistics 13 5

Recreation/Guns/Reloading 15 5

382 101

Table 3: Comparison in terms of F1 score.

Topic PersGoogle RF SocialSearch

Computers/Home Automation/Products and Manufacturers 0.05 0.08 0.16

Sports/Cycling/Human Powered Vehicles 0.09 0.13 0.09

Games/Roleplaying/Developers and Publishers 0.10 0.18 0.18

Business/Mining and Drilling/Consulting 0.19 0.14 0.19

Business/Agriculture and Forestry/Fencing 0.05 0.14 0.57

Average F1 0.10 0.13 0.24

Table 4: Terms and semantic contexts.

Term Tags A context Tags B context

amazon [geography, south america, rivers, cruise,

river]

[shop, books, bargains, shopping, deals]

cancer [horoscopes, tarot, zodiac, horoscope, as-

trology]

[medical, medicine, health, disease, re-

search]

capital [dc, washington, washingtondc, washing-

ton dc, capitolhill]

[marxism, communism, economics, social-

ism marx]

depression [neuroscience, mentalhealth, psychology,

health, science]

[recession, ﬁnancialcrisis, economy, imf,

thegreatdepression]

draft [beer, kegerator, homebrew, keg, brewing] [nba draft, basketball, nbadraft, nba, bas-

ket]

hamilton [lewishamilton, formula1, racing, mclaren,

f1]

[urban canada, canadian, ontario, city]

harrison [ﬁlm, harrisonford, indianajones, movies,

ford]

[george, beatles, guitar, rock, the beatles]

lee [kungfu, brucelee, martial, martialarts,

karate]

[wii, wiimote, interaction, interface, multi-

touch]

mercury [msn, java, chat, im, linux] [planets, nasa, solarsystem, space, astron-

omy]

oxford [elearning, university, courses, education,

academic]

[words, language, dictionary, english refer-

ence]

porter [5forces, marketing, strategy, management,

business]

[stemmer, programming, stemming, algo-

rithms, language]

victoria [guide, melbourne, australia, tourism,

travel]

[waterfall, safari, zambia, falls, africa]

so obtaining a collection of 4800 documents. The

documents of the three collections related to the two

contexts

and

and the noisy collection are retrieved

by submitting to Delicious the following queries, re-

spectively:

•

q: T (tag:x1 OR tag:x2 ... tag:x5)

-tag:y1 -tag:y2 ... -tag:y5

•

q: T -tag:x1 -tag:x2 ... -tag:x5

(tag:y1 OR tag:y2 ... tag:y5)

•

q: T -tag:x1 ... -tag:x5 -tag:y1 ...

-tag:y5

Each document retrieved by Delicious is annotated

with a set of tags. As might be expected, two pro-

ﬁles U

and U

are built by analyzing the documents

and tags of the context X and Y , respectively. Also

the noisy collection is included in both the proﬁles.

SocialSearch-ASocialPlatformforWeb2.0Search

At the end of the training phase, the initial terms T

are submitted to the search engines. For each term,

the following measures are evaluated for both the pro-

ﬁles U

and U

: P precision , R recall and F1 F-

measure. Table 5 summarizes the results. While

the order of the topics that obtain better results are

similar among the considered approaches, the aver-

age precision and recall measures differ signiﬁcantly.

Topics such as draft, mercury, lee and amazon are

clearly easier to disambiguate while cancer, capital

and depression need more sophisticated approaches.

The average precision favors SocialSearch and the

approach based on co-occurrences. In terms of av-

erage recall and F1 score SocialSearch outperforms

both RF and CoOcc. In particular, the average of the

two standard deviation measures of F1 score over the

contexts a and b shows that SocialSearch is able to

disambiguate the same term over both the considered

contexts, while CoOcc obtains more dispersion from

the average precision.

Table 5: Average measures over all topics: Precision, Re-

call, F1, and its Standard Deviation.

RF CoOcc SocialSearch

Avg P 0.5 0.58 0.60

Avg R 0.41 0.45 0.50

Avg F1 0.39 0.44 0.51

0.26 0.29 0.23

6 CONCLUSIONS

User generated content represents a unique source of

information that can be exploited for different pur-

poses. In this paper we have described a novel ap-

proach that takes advantage of social bookmarking

services for enhancing classic query expansion tech-

niques. Speciﬁcally, we rely on web sites such as De-

licious, Digg and StumbleUpon in order to deﬁne se-

mantic classes, namely, categories of terms sharing

the same semantic property, based on which to cat-

egorize multiple occurrences of the query expansion

process. The results of a comparative experimental

evaluation conﬁrm that the proposed approach makes

for a stronger correlation among expansion terms and

real user interests, thereby providing an effective so-

lution to deal with term ambiguity.

This study shows the beneﬁts of categorizing user

interests in semantic classes related to the folksonomy

extracted from social bookmarking services. As fu-

ture work we plan to devise ways of integrating more

social knowledge, such as social structures, in our ap-

proach. A further research effort will also concern the

use of natural language processing techniques to bet-

ter classify the user interests in semantic classes.

REFERENCES

Abouenour, L., Bouzouba, K., and Rosso, P. (2010).

An evaluated semantic query expansion and

structure-based approach for enhancing arabic

question/answering. International Journal on

Information and Communication Technologies,

3(3):37–51.

Acampora, G., Loia, V., and Gaeta, M. (2010). Exploring

e-learning knowledge through ontological memetic

agents. IEEE Comp. Int. Mag., 5(2):66–77.

Bai, J., Song, D., Bruza, P., Nie, J.-Y., and Cao, G. (2005).

Query expansion using term relationships in language

models for information retrieval. In Proceedings of

the 14th ACM International Conference on Informa-

tion and Knowledge Management, pages 688–695.

Biancalana, C., Flamini, A., Gasparetti, F., Micarelli, A.,

Millevolte, S., and Sansonetti, G. (2011). Enhanc-

ing traditional local search recommendations with

context-awareness. In Proceedings of the 19th In-

ternational Conference on User Modeling, Adap-

tion, and Personalization, UMAP’11, pages 335–340,

Berlin, Heidelberg. Springer-Verlag.

Biancalana, C., Gasparetti, F., Micarelli, A., and Sansonetti,

G. (2012). Enhancing query expansion through folk-

sonomies and semantic classes. In Privacy, Security,

Risk and Trust (PASSAT), 2012 International Confer-

ence on and 2012 International Conference on Social

Computing (SocialCom), pages 611–616.

Biancalana, C., Gasparetti, F., Micarelli, A., and Sansonetti,

G. (2013a). An approach to social recommendation

for context-aware mobile services. ACM Trans. Intell.

Syst. Technol., 4(1):10:1–10:31.

Biancalana, C., Gasparetti, F., Micarelli, A., and Sansonetti,

G. (2013b). Social semantic query expansion. ACM

Trans. Intell. Syst. Technol., 4(4):60:1–60:43.

Biancalana, C., Lapolla, A., and Micarelli, A. (2009).

Personalized web search using correlation matrix for

query expansion. In Cordeiro, J., Hammoudi, S., and

Filipe, J., editors, WEBIST (Selected Papers), vol-

ume 18 of Lecture Notes in Business Information Pro-

cessing, pages 186–198. Springer.

Biancalana, C. and Micarelli, A. (2009). Social tagging

in query expansion: A new way for personalized

web search. In Computational Science and Engineer-

ing, 2009. CSE ’09. International Conference on, vol-

ume 4, pages 1060–1065.

Bilotti, M. W., Katz, B., and Lin, J. (2004). What works

better for question answering: Stemming or morpho-

logical query expansion? In Proceedings of the In-

formation Retrieval for Question Answering (IR4QA)

Workshop at SIGIR 2004, Shefﬁeld, England. ACM

SIGIR.

Burgess, C. and Lund, K. (1995). Hyperspace analog to

language (hal): A general model of semantic repre-

sentation. In Proceedings of the annual meeting of the

Psychonomic Society.

Cao, G., Nie, J.-Y., Gao, J., and Robertson, S. (2008).

Selecting good expansion terms for pseudo-relevance

feedback. In Proceedings of the 31st Annual Interna-

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

tional ACM SIGIR Conference on Research and De-

velopment in Information Retrieval, SIGIR ’08, pages

243–250, New York, NY, USA. ACM.

Carman, M. J., Baillie, M., Gwadera, R., and Crestani, F.

(2009). A statistical comparison of tag and query logs.

In Proceedings of the 32nd International ACM SIGIR

Conference on Research and Development in Informa-

tion Retrieval, SIGIR ’09, pages 123–130, New York,

NY, USA. ACM.

Carpineto, C. and Romano, G. (2012). A survey of auto-

matic query expansion in information retrieval. ACM

Comput. Surv., 44(1):1:1–1:50.

Cui, H., Wen, J.-R., Nie, J.-Y., and Ma, W.-Y. (2003).

Query expansion by mining user logs. IEEE Trans.

on Knowl. and Data Eng., 15:829–839.

Fellbaum, C. (1998). WordNet. An Electronic Lexical

Database. MIT Press, Cambridge, MA.

Gasparetti, F. and Micarelli, A. (2003). Adaptive web

search based on a colony of cooperative distributed

agents. In Klusch, M., Ossowski, S., Omicini, A.,

and Laamanen, H., editors, Cooperative Informa-

tion Agents, volume 2782, pages 168–183. Springer-

Verlag.

Gasparetti, F., Micarelli, A., and Sansonetti, G. (2014). Ex-

ploiting web browsing activities for user needs iden-

tiﬁcation. In Proceedings of the 2014 International

Conference on Computational Science and Computa-

tional Intelligence (CSCI’14). IEEE Computer Soci-

ety, Conference Publishing Services.

Gentili, G., Marinilli, M., Micarelli, A., and Sciarrone, F.

(2001). Text categorization in an intelligent agent for

ﬁltering information on the web. IJPRAI, 15(3):527–

549.

Hirst, G. and Budanitsky, A. (2005). Correcting real-word

spelling errors by restoring lexical cohesion. Nat.

Lang. Eng., 11(1):87–111.

Jansen, B. J., Spink, A., and Pedersen, J. (2005). A tempo-

ral comparison of altavista web searching: Research

articles. J. Am. Soc. Inf. Sci. Technol., 56(6):559–570.

Jansen, B. J., Spink, A., and Saracevic, T. (2000). Real life,

real users, and real needs: a study and analysis of user

queries on the web. Inf. Process. Manage., 36(2):207–

227.

Lops, P., De Gemmis, M., and Semeraro, G. (2007). Im-

proving social ﬁltering techniques through wordnet-

based user proﬁles. In Proceedings of the 11th In-

ternational Conference on User Modeling, UM ’07,

pages 268–277, Berlin, Heidelberg. Springer-Verlag.

Manning, C. D., Raghavan, P., and Schtze, H. (2008). In-

troduction to Information Retrieval. Cambridge Uni-

versity Press, New York, NY, USA.

Micarelli, A., Gasparetti, F., and Biancalana, C. (2006).

Intelligent search on the internet. In Stock, O. and

Schaerf, M., editors, Reasoning, Action and Inter-

action in AI Theories and Systems, volume 4155 of

Lecture Notes in Computer Science. Springer-Verlag,

Berlin, Heidelberg, and New York.

Musto, C., Narducci, F., Lops, P., De Gemmis, M., and

Semeraro, G. (2009). Content-based personalization

services integrating folksonomies. In Proceedings of

the 10th International Conference on E-Commerce

and Web Technologies, EC-Web 2009, pages 217–

228, Berlin, Heidelberg. Springer-Verlag.

Nanba, H. (2007). Query expansion using an automati-

cally constructed thesaurus. In Kando, N. and Evans,

D. K., editors, Proceedings of the Sixth NTCIR Work-

shop, pages 414–419, 2-1-2 Hitotsubashi, Chiyoda-

ku, Tokyo 101-8430, Japan. National Institute of In-

formatics.

Peat, H. J. and Willett, P. (1991). The limitations of term

co-occurrence data for query expansion in document

retrieval systems. Journal of the American Society for

Information Science, 42:378–383.

Porter, M. (1980). An algorithm for sufﬁx stripping. Pro-

gram, 14(3):130–137.

Salton, G. and Buckley, C. (1997). Readings in information

retrieval, chapter Improving retrieval performance by

relevance feedback, pages 355–364. Morgan Kauf-

mann Publishers Inc., San Francisco, CA, USA.

Xu, Y., Jones, G. J., and Wang, B. (2009). Query depen-

dent pseudo-relevance feedback based on wikipedia.

In Proceedings of the 32nd International ACM SIGIR

Conference on Research and Development in Infor-

mation Retrieval, SIGIR ’09, pages 59–66, New York,

NY, USA. ACM.

Zamir, O. E., Korn, J. L., Fikes, A. B., and Lawrence, S. R.

(2004). Us patent application #0050240580: Person-

alization of placed content ordering in search results.

Zhou, D., Lawless, S., and Wade, V. (2012). Improving

search via personalized query expansion using social

media. Inf. Retr., 15(3-4):218–242.

SocialSearch-ASocialPlatformforWeb2.0Search
