On Multi-view Texture Mapping of Indoor Environments using

Kinect Depth Sensors

Luat Do, Lingni Ma, Egor Bondarev and Peter H. N. de With

Eindhoven University of Technology P.O. Box 513, 5600 MB, Eindhoven, The Netherlands

Keywords:

Muli-view Processing, Texture Mapping, Kinect, 3D Reconstruction.

Abstract:

At present, research on reconstruction and coloring of 3D models is growing rapidly due to increasing avail-

ability of low-cost 3D sensing systems. In this paper, we explore coloring of triangular mesh models with

multiple color images by employing a multi-view texture mapping approach. The fusion of depth and color

vision data is complicated by 3D modeling and multi-viewpoint registration inaccuracies. In addition, the

large amount of camera viewpoints in our scenes requires techniques that process the depth and color vision

data efﬁciently. Considering these difﬁculties, our primary objective is to generate high-quality textels that

can also be rendered on a standard hardware setup using texture mapping. For this work, we have made

three contributions. Our ﬁrst contribution involves the application of a visibility map to efﬁciently identify

visible faces. The second contribution is a technique to reduce ghosting artifacts based on a conﬁdence map.

The third contribution yields high-detail textels by adding the mean color and color histogram information

to the sigma-outlier detector. The experimental results show that our multi-view texture mapping approach

efﬁciently generates high-quality textels for colored 3D models, while being robust to registration errors.

1 INTRODUCTION

With the growing availability of low-cost depth sens-

ing devices, 3D scanning platforms are rapidly be-

coming broadly accepted in the consumer market.

This trend has accelerated research and development

in the area of serious gaming, 3D printing and photo-

realistic 3D models. The most popular 3D scanning

device nowadays is the Kinect depth sensor, which

can create reasonably accurate 3D models despite its

low cost. To build a color 3D model of the sur-

roundings, a common approach is to employ multiple

color images that are captured at various viewpoints

and map parts of these images onto the depth signal

(range) generated by this sensor. This fusion of range

and color vision data to provide colored 3D models

is a challenging task due to various undesirable er-

rors. First of all, textures are usually of low-quality,

caused by the limited camera resolution, slight motion

blur and lens distortion. Secondly, it is difﬁcult to ob-

tain perfect intrinsic and extrinsic camera calibration

due to modeling and related algorithmic inaccuracies.

Thirdly, the obtained 3D model contains modeling in-

accuracies because of the limitations in sensor quality

and scanning procedures.

Bearing these errors in mind, we aim at exploring

a multi-view texture mapping (Heckbert, 1986) ap-

proach, where textures from various viewpoints are

blended to create a photo-realistic textured model

of indoor environments. We have adopted the re-

ferred texture mapping, since it is a well-known tech-

nique in computer graphics supported by hardware-

accelerated processing. Speciﬁcally, this technique

assigns a texture patch (textel) to every polygon (face)

by deﬁning a one-to-one mapping from the 2D im-

age to the 3D (TIN) model (mesh). For meshes with

large-sized polygons, such mapping efﬁciently cre-

ates textured models. Unfortunately, the separation

between geometry and appearance complicates the

reuse of color information for other processing tasks,

such as object segmentation and classiﬁcation. There-

fore, other methods have been developed to obtain a

colored model with more ﬂexibility by directly asso-

ciating colors to the geometry. Point-based render-

ing (Zwicker et al., 2001; Sainz and Pajarola, 2004)

and mesh colors (Yuksel et al., 2010) are two recent

techniques that associate colors to the vertices. In

the case of mesh colors, also color samples are in-

terpolated for edges and faces such that their appear-

ance can be better presented even with large triangles.

However, both techniques require much denser ver-

tices than the referred texture mapping to yield a high-

739

Do L., Ma L., Bondarev E. and de With P..

On Multi-view Texture Mapping of Indoor Environments using Kinect Depth Sensors.

DOI: 10.5220/0004875107390745

In Proceedings of the 9th International Conference on Computer Vision Theory and Applications (PANORAMA-2014), pages 739-745

ISBN: 978-989-758-004-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

quality visualization.

At present, high-quality visualization based on

texture mapping is obtained mostly for small objects

and/or manually registered images from a few camera

viewpoints. It is our objective to create high-quality

mapping for large indoor environments with auto-

matic camera pose estimation. In literature, multi-

view texture mapping consist of two major steps.

First, the visible faces are determined for each view.

Then, for each face a texture patch is generated by

weighted blending of the available views. The multi-

view texture mapping approaches in (Rocchini et al.,

1999; Rocchini et al., 2002; Alshawabkeh and Haala,

2005; Grammatikopoulos et al., 2007) selects ﬁrst a

master image for each face using the smallest inter-

section angle between the face normal and the image

ray. Faces that are partly projected onto different im-

ages are blended to reduce the discontinuity in color

differences of the images. The image views are man-

ually registered to the 3D model, so that registration

errors are rather small. To test the visibility of faces

ray-casting (Whitted, 2005) or Z-buffering (Catmull,

1974) is used.

For 3D reconstruction in larger spaces, the liter-

ature is limited. For example, Whelan et al (Whe-

lan et al., 2012) and Bondarev et al (Bondarev and

Heredia, 2013) employ the Kinect depth sensor to

scan a (large) room. In their process, color images

are captured from various viewpoints (25–33 views)

and automatically registered to the 3D model. For

further improvements towards photo-realism, our ap-

proach need to handle many more views with larger

registration errors. In addition, in contrast to render-

ing small objects, rendering 3D indoor scenes shows

background/foreground ghosting. Furthermore, since

the light conditions of the viewpoints are severely dif-

ferent from each other, it is not possible to employ a

master image. Given these difﬁculties, the major is-

sues that now need to be addressed are (1) the selec-

tion of visible faces for each viewpoint, (2) the color

bleeding especially at object boundaries due to reg-

istration errors and (3) the photo-realistic blending of

the multiple viewpoints. Our experimental results will

show that visually appealing colored models can be

obtained by employing efﬁcient Z-buffering and ap-

plying simple outlier selection using only the geomet-

ric and color properties of the faces.

The remainder of this paper is organized as fol-

lows. Section 2 gives an overview of our off-line

multi-view texture mapping approach which consists

of the visibility test and the texture blending proce-

dure. In Section 3, we describe our visibility test with

Z-buffering and introduce the conﬁdence map which

is used as a weight during the texture blending. In

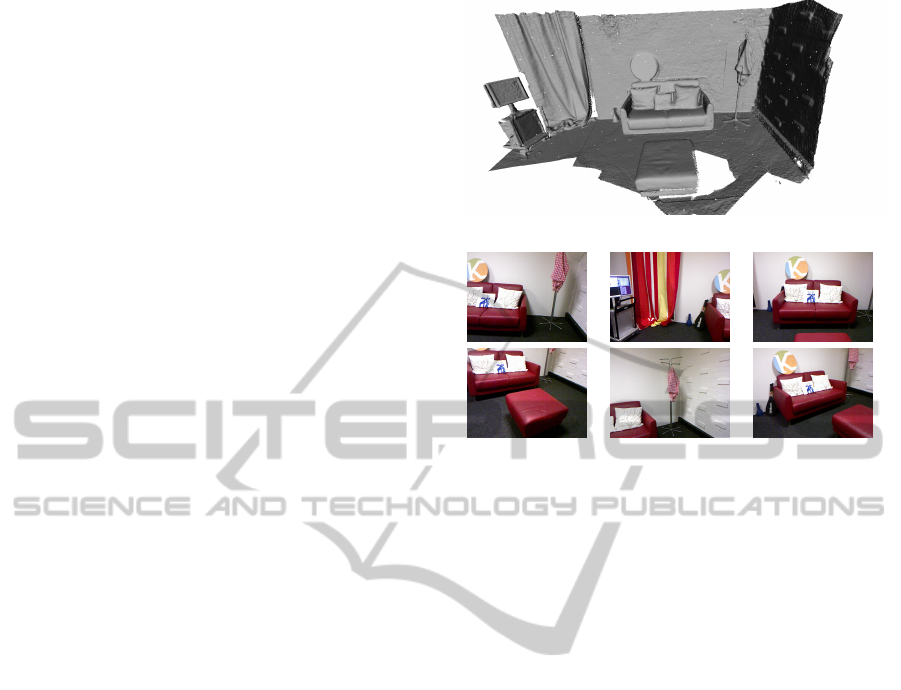

(a) 3D model of the ‘Basement’ scene

(b) Multi-view textures (6 samples out of 33 in total).

Figure 1: Example of input data (Basement) for our system.

Section 4, we analyze the selection procedure for each

face and the texture blending process. The experi-

mental results are visually presented in Section 5 and

ﬁnally, Section 6 discusses the conclusions and rec-

ommendations for improving the multi-view texture

mapping of indoor environments.

2 OVERVIEW SYSTEM

In this work, we assume that the input of our multi-

view texture mapping consists of a triangular mesh

and a set of multi-view textures with calibration pa-

rameters. Fig. 1 depicts an example of an input

dataset. To color the 3D model, we generate for

each face an appropriate texture patch (textel) from

the multi-view textures and store it in a larger tex-

ture image. For high-quality model generation, the

textels must be such that the effects of registration er-

rors are less visible and that the 3D textured model is

contiguous and contains no seams. Since each face is

processed individually and the visual registration er-

rors are small, the smoothing between adjacent faces

is not performed explicitly. Our proposed multi-view

texture mapping approach is depicted in Fig. 2 and

consists of three stages. In the ﬁrst stage, the visi-

ble faces for each camera view are identiﬁed by ex-

ploiting a visibility map using Z-buffering. Within

the same process, we create a conﬁdence map, which

serves as a weighting during texture blending. In the

second stage, we select the most reliable views for

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

740

- Depth map

- Visibility map

- Conﬁdence map

- Outlier w/ area size

- Outlier w/ rgb/hist

- Weighted average

- Textels storing

mv cameras

+ 3D model

3D model

+ textels

Visibility and Weight

View Selection

Texture Blending

Figure 2: Multi-view texture mapping approach with processing stages and principal functions enclosed.

blending from the visible faces using outlier detec-

tion. Ideally, faces have a large projected area size,

having a small angle with respect to the camera ray, so

that more details are available and less texture distor-

tion exists. In the ﬁnal stage, the remaining views af-

ter outlier selection are blended using the conﬁdence

as a weight. The previous aspects and functions are

captured as principal functions and listed in each pro-

cessing stage within Fig. 2. In the next Sections, these

functions are described in more detail.

3 FACE VISIBILITY AND

WEIGHT LABELING WITH

Z-buffering

To color the 3D model, the faces are projected onto

the 2D image and color values are extracted from it.

To prevent background or occluded faces from being

projected onto the 2D image, the visibility of each

face needs to be determined for each camera view. A

very effective method is to employ Z-buffering. This

entails the creation of a depth map by projecting the

depth values of the faces to the camera viewpoint.

When multiple 3D points are projected onto the same

2D coordinates, we only keep the nearest value to the

camera, thereby creating a so-called Z-buffer for that

camera view. To this end, we have implemented an ef-

ﬁcient algorithm to identify visible faces, extract pro-

jected area sizes of faces and create a conﬁdence map

using Z-buffering.

To determine the visibility of a face, we could test

if this face resides on the surface of the depth map.

However, this is a costly process, since we would

have to iterate through multiple faces and compare

the depth values of the vertices of the face with the

depth map. Instead, we adopt an approach to create a

visibility map in parallel to the depth map, by writing

the face number into the image. Having this visibility

map, it is only required to iterate through every pixel

of the map. If a face number exists on the visibility

map, we label this face as visible for this camera view.

This method is deﬁnitely more efﬁcient, because the

number of pixels is usually much lower than the num-

ber of faces. Moreover, the test whether a face resides

on the surface of the depth map can be fully omitted.

As a bonus, the projected area size of each visible face

can be easily determined by simply accumulating the

number of pixels of each visible face.

From the visible faces, new textels need to be gen-

erated. Since not every projected face is equally reli-

able, we need to assign a weight value to each face.

We consider a face as reliable when (1) it has a large

projected area size, and (2) if its angle (θ) with respect

to the camera ray is small. A smaller θ usually re-

sults in less texture distortion. For assigning weights

to visible faces efﬁciently, we create a conﬁdence map

similar to the visibility map, by using the Z-buffer as a

guide. Instead of depth values, we append the value of

cos(θ) of each face to this map as a unity-interval re-

liability indication. Since the camera viewpoints have

registration errors, it is desirable to lower the weight

of the faces that are projected near object boundaries.

This is performed by dilating the conﬁdence map with

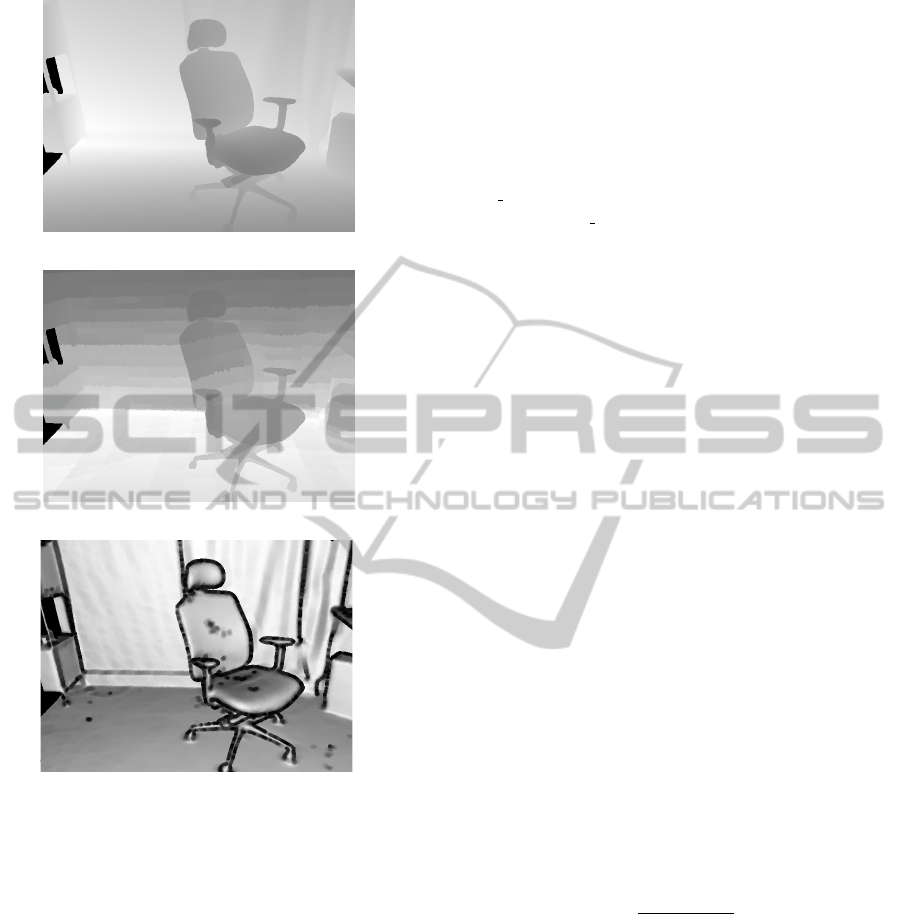

a structural element of 7 × 7 pixels. In Fig. 3 an ex-

ample of the depth, visibility and conﬁdence map are

depicted. The values are scaled to [0–255] gray val-

ues. The depth map (Fig. 3(a)) represents the visi-

ble surface. The visibility map (Fig. 3(b)) is used to

identify visible faces and to extract the area size of

those faces. The conﬁdence map (Fig. 3(c)) is used

to assign weights to faces. We can clearly observe

that faces projected to objects boundaries are assigned

lower weights (darker), as is desired. To extract the

weight for a particular face, we project this face on to

the 2D image and calculate the average value of the

projected face in the conﬁdence map.

4 VIEW SELECTION AND

TEXTURE BLENDING

In the previous section, we have identiﬁed the visi-

ble faces for each view and extracted their geometric

properties such as the projected area size and weight

(angle). However, due to registration and 3D model-

ing inaccuracies, not all visible faces are projected to

the correct position in the 2D image. Therefore, we

purposely select for each face a set of reliable views

from the set of views in which this face is visible. We

ﬁrst use the projected area size as the selection metric.

In the following step, we add the color information to

OnMulti-viewTextureMappingofIndoorEnvironmentsusingKinectDepthSensors

741

(a) depth map

(b) visibility map

Figure 3: Example of depth, visibility and conﬁdence

map for the ‘Desk’ scene.

our selection process.

Let us now describe our two-step selection proce-

dure in more detail. In the ﬁrst step, we use a sigma-

outlier detection (Hodge and Austin, 2004) to remove

small faces. With this approach a value is identiﬁed

as outlier if it is clearly outside a predetermined in-

terval about the mean, i.e. the mean ± n×the stan-

dard deviation of that variable. Small faces contain

less details and/or are distorted due to a small angle

(θ). Therefore, the use of these faces for generating

a texture patch results in more blurring and distor-

tion artifacts during rendering. In the second step, the

color information of the faces is applied for outlier

detection, considering that blending faces with sim-

ilar visual appearances results in less blurring. We

employ two methods for color outlier detection. The

ﬁrst outlier detection method uses the mean color of

the face (C

). Similar to the ﬁrst step, we employ

a sigma-outlier but now with the mean C

within

predetermined interval of the criterion. For the sec-

ond outlier detection, we extract the color histogram

hist

) for each projected face. Then for all his-

tograms of the visible faces, we calculate the distance

between each histogram and the average histogram

hist avg

). For the calculation of the distance of two

histograms (C

hist dist

), we have experimented with the

correlation coefﬁcient (Imamura et al., 2011), the

chi-square (Pele and Werman, 2010) and the Bhat-

tacharyya distance (Bhattacharyya, 1943).

Ideally, the view selection procedure provides for

each face a set of reliable views. However, due to

different lighting conditions of the camera views, the

color values can vary greatly. In addition, variations

in the area size of the selected faces result in texture

patches with different levels of detail. To reduce the

variance in color and detail, we apply weighted av-

eraging. Most previously mentioned multi-view tex-

ture mapping approaches use the projected area size

of a face as a weight. This is logical, considering

that a larger projected area size contains more detail.

However, this approach does not consider the registra-

tion and 3D modeling errors which occur when per-

forming automated camera pose estimation. Our ap-

proach employs the conﬁdence map to assign weights

to faces, as described in the previous section. The

angle θ serves equally well in comparison to the pro-

jected area size, since cos(θ) is proportional to the

area size. In addition, using the conﬁdence map,

color bleeding between background and foreground

will be reduced considerably due to the lower weights

of faces near boundary objects. With the selected

faces and their weights, we now can generate the new

textel for each face. Given N valid color patches, the

blending function is deﬁned by

C =

∑

i=1

× C

∑

i=1

, (1)

where w

denotes the weight extracted from the conﬁ-

dence map and C represents the (R, G, B) color patch.

With this blending function, we assume that a color

patch is more reliable when the local surface is more

orthogonal to the viewpoint and not near an object

boundary. Since the projected patches of the cam-

era views vary in size and position, it is necessary

to generate a new textel on a pixel by pixel basis.

This can be easily achieved with barycentric coordi-

nates (Bradley, 2007). In our implementation, Equa-

tion (1) is performed for every pixel of the textel and

the color value C

of each camera view is retrieved us-

ing barycentric transformation. To reduce blurring, it

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

742

is attractive to upper bound the number of valid cam-

era views for blending. Once a new textel is gener-

ated, we store this textel in a larger texture ﬁle where

they are packed in ascending face number.

5 EXPERIMENTAL RESULTS

To evaluate our multi-view texturing approach for in-

door environments, we have performed a series of ex-

periments on three scenes which differ in complex-

ity and number of camera views. The input datasets

are acquired from an extended RGB-D (Whelan et al.,

2012; Bondarev and Heredia, 2013) reconstruction

system with a Kinect sensor, which provides a trian-

gular mesh and a set of 640×480-pixels textures with

calibration parameters. In the ﬁrst series of experi-

ments, we have generated textels using only geomet-

ric properties of the scene. To show the effectiveness

of our conﬁdence map, we have compared rendered

views (using software rendering) with the projected

area size as a weight, against rendered views with a

conﬁdence value as a weight. Fig. 4(c) shows that

employing a conﬁdence map reduces ghosting errors.

However, blurring and ghosting artifacts are still no-

ticeable.

In the second series of experiments, we have sup-

plied the color information to our outlier detector and

the conﬁdence term is used as a weight for texture

blending. Let us now examine these rendering results

and compare them with the previous results. From

Fig. 5, we can observe that by adding color informa-

tion the ghosting errors are reduced drastically. We

have also found that the rendered views are sharper,

giving the impression of more details. The usage

of color histograms (5(b)) instead of the mean color

value (5(a)) yields a slightly sharper image. However,

the perceptual improvements are marginal. This can

be readily understood, since the projected area size of

the average face is very small, consisting of only a

few pixels. For such small faces, the outlier detector

for histograms and mean values have almost identi-

cal performance. From the previous experiments and

results, we can distinguish three ways of textel gen-

eration: (1) using only geometric properties, (R

geo

(2) using outlier detection of the mean color value

rgb

) and (3) using outlier detection of the color his-

togram (R

hist

) with three variations in histogram dis-

tance measurement. In Fig. 6, these three ways of

textel generation are compared side by side, for the

‘Couch’ scene. We can observe that the differences

in textel generation methods show a similar trend to

that of the ‘Desk’ scene. Textures from the R

hist

method (Fig. 6(c)) contain more detail than the other

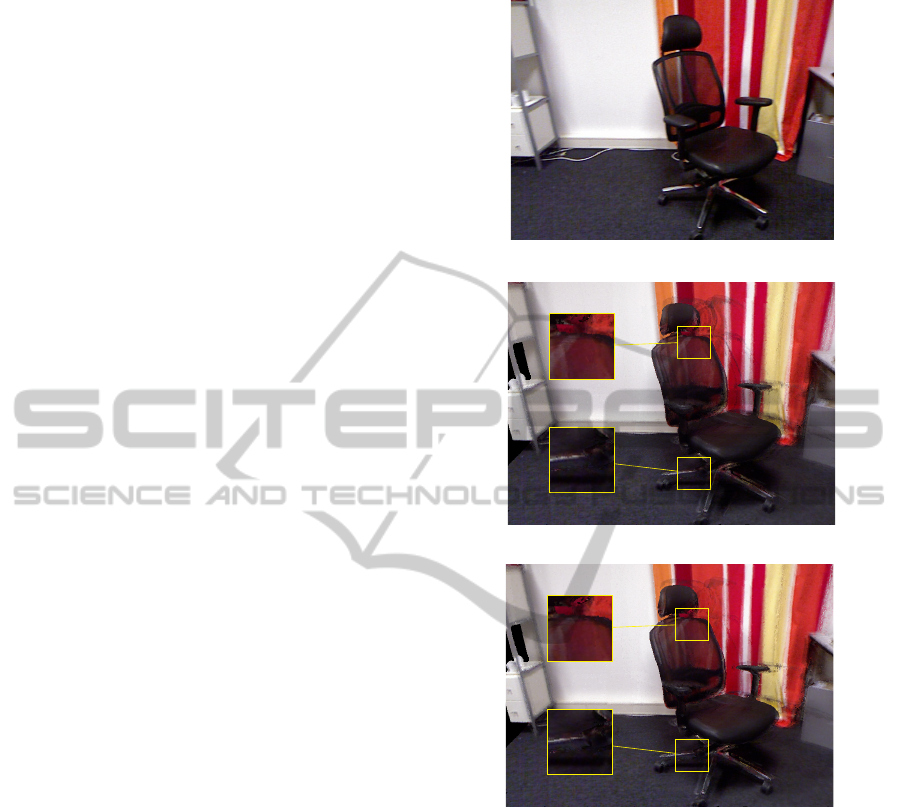

(a) reference view, camera 4

(b) rendered view with projected area size as weight

Figure 4: Comparison of rendered views for the ‘Desk’

scene (29 camera views) using only geometric properties.

two methods. However, this method also introduces

slightly more noise (left side of the couch). In Table 1,

we have summarized the average PSNR quality of the

three scenes using R

geo

, R

rgb

and R

hist

. The average

PSNR is obtained by ﬁrst rendering the views at the

identical position as the reference camera views and

then calculate the average PSNR over all the views.

We can observe that the three methods for calculat-

ing the histogram distance perform (almost) equally

well. The overall obtained average PSNR quality is

relatively low, which is explained by the distributed

amounts of blurring and the 3D modeling and reg-

istration errors. By inspecting the depth maps and

color images of the individual scenes more closely,

we have observed that the ‘Couch’ scene contains the

OnMulti-viewTextureMappingofIndoorEnvironmentsusingKinectDepthSensors

743

Table 1: Average PSNR quality measured for three scenes and various metrics.

Scene # faces # views R

geo

(dB) R

rgb

(dB) R

hist

(dB) R

hist

(dB) R

hist

(dB)

correlation chi-square Bhattach.

Desk 500,000 29 20.1 20.0 19.5 19.8 19.7

Couch 2,109,558 25 24.9 24.8 24.4 24.7 22.5

Basement 1,634,591 33 20.4 20.4 19.8 20.2 20.0

least amount of registration errors. This results in

a higher average PSNR score compared to the other

two scenes. The relatively low PSNR values also in-

dicate that the realism of the scene is deteriorated.

This could be expected in advance because the view-

dependent color values of each camera are replaced

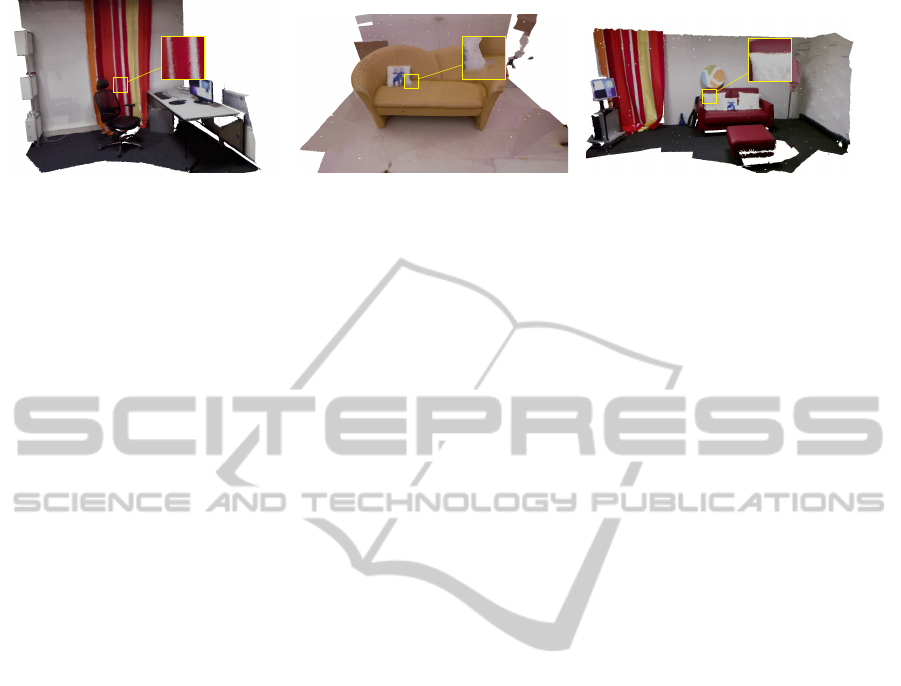

by the weighted average values. The 3D visualization

of the three scenes using meshlab is illustrated in In

Fig. 7. We can clearly observe that our colored mod-

els give natural appearance representations.

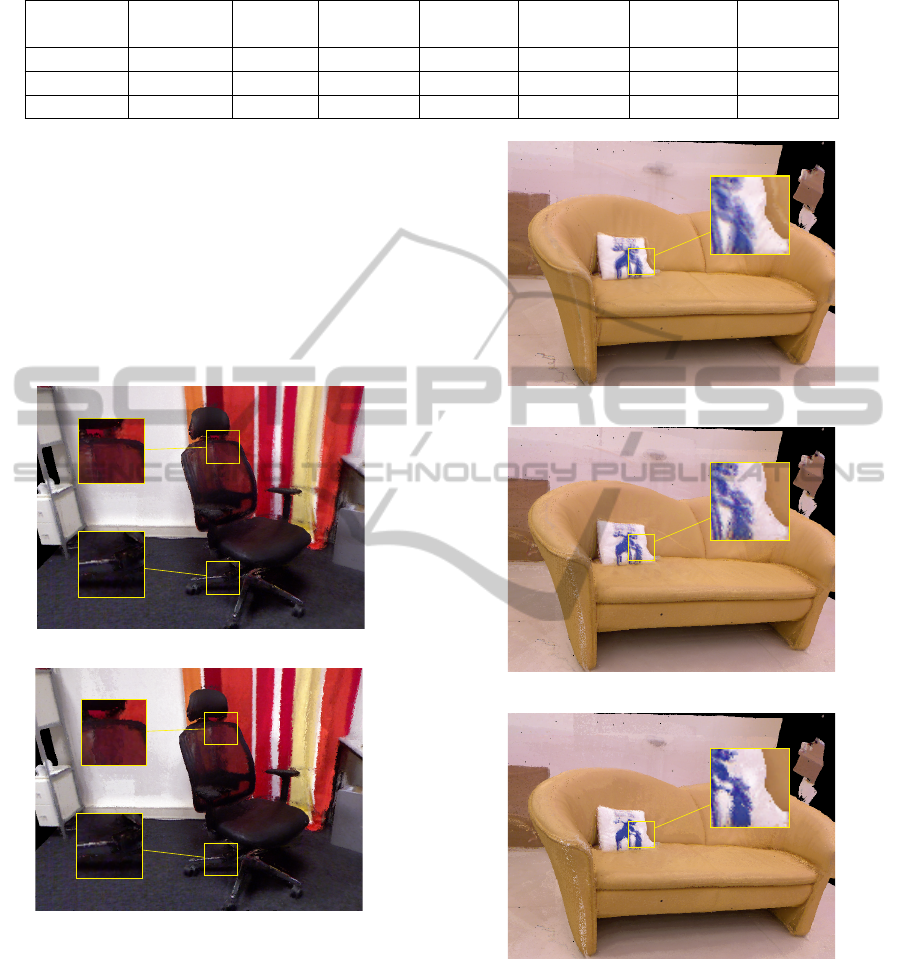

(a) rendered view with C

(b) rendered view with C

hist

and correlation coefﬁcient

Figure 5: Comparison of rendered views for the ‘Desk’

scene with C

and C

hist

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we have explored the problem of gener-

ating colored 3D models of indoor scenes using multi-

view texturing, with a focus on inexpensive recon-

struction platforms. We have developed algorithms

(a) rendered view using R

geo

(b) rendered view using R

rgb

hist

and correlation coefﬁcient

Figure 6: Comparison of rendered views for the ‘Couch’

scene w/o color information.

for colored 3D models of indoor scenes that: (a) can

effectively process a large number of camera views,

(b) are robust to multi-viewpoint registration errors

and 3D modeling inaccuracies. Our contribution is

threefold. Firstly, we have applied a visibility map

to efﬁciently identify and extract the visible faces.

Secondly, a conﬁdence map is employed to assign

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

744

(a) ‘Desk’ scene with R

rgb

(b) ‘Couch’ scene with R

rgb

Figure 7: Meshlab 3D visualization using method R

rgb

weights to faces with an additional function to re-

duce ghosting errors at object boundaries. Thirdly,

color histograms are used in combination with sigma-

outlier detectors to remove unreliable generation is

obtained with high details, so that this leads to a

sharper rendering quality. However, from the over-

all low PSNR quality we can conclude that the tex-

tel quality is highly dependent on the 3D modeling

and registration errors. For our scenes, the visual

difference of textel quality between the use of color

histogram and mean color is minimal, because the

average projected area size of a face is rather small

(a few pixels). For such scenes, the beneﬁt of em-

ploying color histograms does not out weight the in-

volved extra computational costs. To improve textel

quality, we could explore the concept of super resolu-

tion (Goldluecke and Cremers, 2009), employ a dis-

tributed weighting scheme (Wang and Kang, 2001) or

perform local matching of the faces (Rocchini et al.,

2002). For improving registration and thereby re-

ducing blurring originated from registration errors,

image-based camera calibration prior to textel gener-

ation is recommended.

REFERENCES

Alshawabkeh, Y. and Haala, N. (2005). Automatic multi-

image photo-texturing of complex 3D scenes. XVIII

CIPA Int. Symposium, Torino, 27 Sept, pages 1–6.

Bhattacharyya, A. (1943). On a measure of divergence

between two statistical populations deﬁned by their

probability distributions. Bulletin of Cal. Math. Soc.,

35(1):99–109.

Bondarev, E. and Heredia, F. (2013). On photo-realistic

3D reconstruction of large-scale and arbitrary-shaped

environments. pages 621–624.

Bradley, C. (2007). The Algebra of Geometry: Cartesian,

Areal and Projective Co-Ordinates. Highperception

Limited.

Catmull, E. (1974). A subdivision algorithm for computer

display of curved surfaces.

Goldluecke, B. and Cremers, D. (2009). Superresolution

texture maps for multiview reconstruction. IEEE In-

ternational Conference on Computer Vision (ICCV).

Grammatikopoulos, L., Kalisperakis, I., Karras, G., and

Petsa, E. (2007). Automatic multi-view texture map-

ping of 3d surface projections. 3D Virtual Reconstruc-

tion & Visualization of Complex Architectures, pages

12–13.

Heckbert, P. (1986). Survey of texture mapping. In IEEE

Computer Graphics and Applications, pages 56–67.

Hodge, V. and Austin, J. (2004). A Survey of Outlier De-

tection Methodologies. Artiﬁcial Intelligence Review,

22(2):85–126.

Imamura, K., Kuroda, H., and Fujimura, M. (2011). Image

content detection method using correlation coefﬁcient

between pixel value histograms. In Signal Process-

ing, Image Processing and Pattern Recognition, vol-

ume 260, pages 1–9. Springer Berlin Heidelberg.

Pele, O. and Werman, M. (2010). The quadratic-chi his-

togram distance family. ECCV, (1):1–14.

Rocchini, C., Cignoni, P., and Montani, C. (1999). Mul-

tiple Textures Stitching and Blending on 3D Objects.

Eurographics Rendering Workshop.

Rocchini, C., Cignoni, P., Montani, C., and Scopigno, R.

(2002). Acquiring, stitching and blending diffuse ap-

pearance attributes on 3D models. The Visual Com-

puter, 18(3):1–24.

Sainz, M. and Pajarola, R. (2004). Point-based rendering

techniques. Computers & Graphics, 28(6):869–879.

Wang, L. and Kang, S. (2001). Optimal texture map recon-

struction from multiple views. Computer Vision and

pattern recognition (CVPR), pages 1–8.

Whelan, T., Kaess, M., and Fallon, M. (2012). Kintinuous:

Spatially Extended KinectFusion.

Whitted, T. (2005). An improved illumination model

for shaded display. Communications of the ACM,

23(6):343–349.

Yuksel, C., Keyser, J., and House, D. H. (2010). Mesh col-

ors. ACM Transactions on Graphics, 29(2):1–11.

Zwicker, M., Pﬁster, H., van Baar, J., and Gross, M. (2001).

Surface splatting. Proceedings of the 28th annual con-

ference on Computer graphics and interactive tech-

niques - SIGGRAPH ’01, pages 371–378.

OnMulti-viewTextureMappingofIndoorEnvironmentsusingKinectDepthSensors

745
