Evaluating Web Service QoE by Learning Logic Networks

Natalia Kushik

1,2

, Nina Yevtushenko

, Ana Cavalli

, Wissam Mallouli

and Jeevan Pokhrel

2,3

Department of Information Technologies, Tomsk State University, Tomsk, Russia

Department of Network Software, TELECOM SudParis, Evry, France

Montimage, Paris, France

Keywords: Web Service, Quality, QoE, Logic Network/Circuit.

Abstract: This paper is devoted to the problem of evaluating the quality of experience (QoE) for a given web service

based on the values of service parameters (for instance, QoS indicators). Different self-learning algorithms

can be used to reach this purpose. In this paper, we propose to use self-learning logic networks, called also

circuits, for evaluating the QoE of web services, since modern software tools can efficiently deal with very

large logic networks. As usual, for machine learning techniques, statistics are used to design the initial

circuit that accepts service parameter values as inputs and produces the QoE value as an output. The circuit

is self-adaptive, i.e., when a new end-user provides a feedback of the service satisfaction the circuit is

resynthesized in order to behave properly (if needed). Such resynthesis (circuit learning) can be efficiently

performed using a number of tools for logic synthesis and verification.

1 INTRODUCTION

As the number of web services increases quickly,

more methods and tools are needed to evaluate their

quality. Moreover, there exist a number of service

repositories (Directory of Public SOAP Web

Services; Online community for the Universal

Description, Discovery, and Integration OASIS

Standard). Thus, a question arises of choosing the

best service among the set of services with the same

functionality. In order to effectively perform such a

service selection, a ‘selection criteria’ need to be

formalized. As usual, such formalization is based on

the service quality that is defined with respect to

different metrics or indicators.

One of most common metrics to evaluate a web

service quality is a QoS (Quality of Service). The

QoS is usually represented as a set of attributes or

parameters of this service (Khirman and Henriksen,

2002; Al-Masri and Mahmoud; Kim et al., 2008;

Morais and Cavalli, 2012). Those parameters could

be the service response delay, packet loss rate,

reliability, etc. Such parameters are rather objective

and the value of each parameter can be

automatically measured relying on specific tools.

Nevertheless, the main objective of every web

service is the satisfaction of end-users and thus,

other subjective parameters need to be taken into

account when estimating the QoE (Quality of

Experience).

As the QoE is used to measure the end-user

satisfaction, the problem of its evaluation is much

more complicated than the QoS evaluating problem.

In other words, in order to evaluate QoE it is

necessary to ‘guess’ how much an end-user would

like or dislike the web-service. Thus, the problem

arises of modeling the user perception, that is

nowadays one of most popular problems in the

artificial intelligent area where self-adaptive models

are used for this purpose. A self-adaptive model

usually accepts service parameter values as inputs

and returns the QoE value as an output. If a model

behaves in a wrong way for some newly emerged

input/output pairs the model can be trained by itself

or by an external ‘teacher’ that could be a service

provider. The most popular of these self-adaptive

models are discussed in the section on related work.

In this paper, we are focusing on a novel self-

adaptive model approach for evaluating and

‘predicting’ the QoE value of web services. In fact,

we extend an approach based on decision tree

learning (Mitchell, 1997) to logic network (circuit)

learning. As a decision tree can be represented as a

disjunctive form where each conjunction represents

a path to the leaf, we are looking forward to a

168

Kushik N., Yevtushenko N., Cavalli A., Mallouli W. and Pokhrel J..

Evaluating Web Service QoE by Learning Logic Networks.

DOI: 10.5220/0004855801680176

In Proceedings of the 10th International Conference on Web Information Systems and Technologies (WEBIST-2014), pages 168-176

ISBN: 978-989-758-023-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

scalable representation and manipulation of such

Boolean formula. One of possible ways to

effectively represent such formula is to use a logic

circuit. Similar to a decision tree, the initial logic

network is derived based on statistics that are

gathered from experts, developers and those end-

users who agreed to provide a feedback about the

service quality. The circuit accepts the service

parameter values encoded as Boolean vectors and

outputs the Boolean vector that corresponds to the

encoded QoE value. The circuit is a self-learning

machine, i.e., when new statistical data appear the

circuit is checked to have the corresponding

behavior and if the behavior does not correspond to

newly emerged data the circuit is resynthesized.

Such resynthesis can be efficiently performed using

various tools. In this paper, we use the ABC

(Berkeley Logic Synthesis and Verification Group,

ABC) tool for logic synthesis and verification to

train the corresponding circuit in a scalable way. The

main contribution of this paper is the proposal of a

machine learning technique for automatic evaluating

QoE of web services, in which a machine is

represented by a logic circuit and a learning operator

corresponds to the circuit resynthesis.

An iterative approach is known to be efficient for

logic circuit optimization. Given a circuit under

optimization, the circuit is incrementally improved

at each optimization step. In this paper, we consider

a special optimization criterion, namely, the circuit

QoE ‘prediction’ ability, and illustrate that an

iterative learning of the circuit under construction is

promising.

The rest of the paper is organized as follows.

Section 2 contains the preliminaries and basic

concepts related to logic network paradigm, while a

state of the art of using self-adaptive models for the

QoE evaluation is given in Section 3. The approach

on using logic networks for the QoE evaluation is

presented in Section 4. Section 5 contains an

algorithm for the corresponding logic network

learning procedure and a brief discussion of a

proposed approach. Section 6 contains preliminary

experimental results while Section 7 concludes the

paper.

2 PRELIMINARIES

A web service can be described as a software system

designed to support interoperable machine-to-

machine interaction over a network (Booth et al.,

2004). The Quality of a web Service (QoS) is

defined as a vector with components which are

values of given attributes (parameters), such as time

delay, packet loss rate, etc. The QoS is a metrics that

represents some objective service parameter values

that can be effectively measured, for example, based

on the traffic analysis (Khirman and Henriksen,

2002). The QoE metrics is more complicated, since

it represents a user satisfaction (Winckler et al.,

2013) with a web service. Generally, the QoE also

relies on different service parameters that are rather

subjective than objective, those can be service

design, comfort of proposed solutions, etc. In spite

of the fact that the QoE is more difficult to evaluate,

this metrics is more close to adequate description of

the service quality, since the main purpose of each

web service is to satisfy an end-user. In other words,

the algorithm for the QoE evaluation has to be

adapted to a human’s brain in order to ‘predict’ what

a user likes/dislikes. That is the reason why different

self-adaptive models and algorithms are now used

for this purpose. The advantage of a self-adaptive

model is that it can be learnt or trained by a ‘teacher’

or by itself according to the feedback from people

who use the service. As usual, an initial

model/machine is derived based on some statistics

that contain a number of user opinions about the

service. Afterwards, the model can ‘predict’ a user

satisfaction of the service for given values of service

parameters. The more statistics are gathered the

better is such ‘prediction’. Moreover, as a model is

self-adaptive, when new statistical data appear for

which the model does not behave in an appropriate

way, the model is adjusted to this new data and this

process is the model training.

Given a self-adaptive model, different service

parameters might be considered. One of most often

case is to use QoS parameters, as those values can be

measured automatically. On the other hand, for the

QoE prediction the values of more subjective

parameters, for instance, related to the business or

trust quality should be considered as well.

In this paper, we are focusing on logic networks

to be learnt for the QoE ‘prediction’ and we further

briefly sketch the necessary definitions related to

logic synthesis.

Definition 1. A logic network (circuit) consists

of logic gates. Each logic gate has input (-s) and a

single output. Outputs of some gates are connected

to inputs of the others. The inputs of some gates that

are not connected to any other gate output are

claimed to be primary inputs while the outputs of

some gates are claimed as primary outputs. In this

paper, we consider combinational circuits, i.e.,

feedback-free circuits which have no latches.

Each gate implements a Boolean function. Most

EvaluatingWebServiceQoEbyLearningLogicNetworks

169

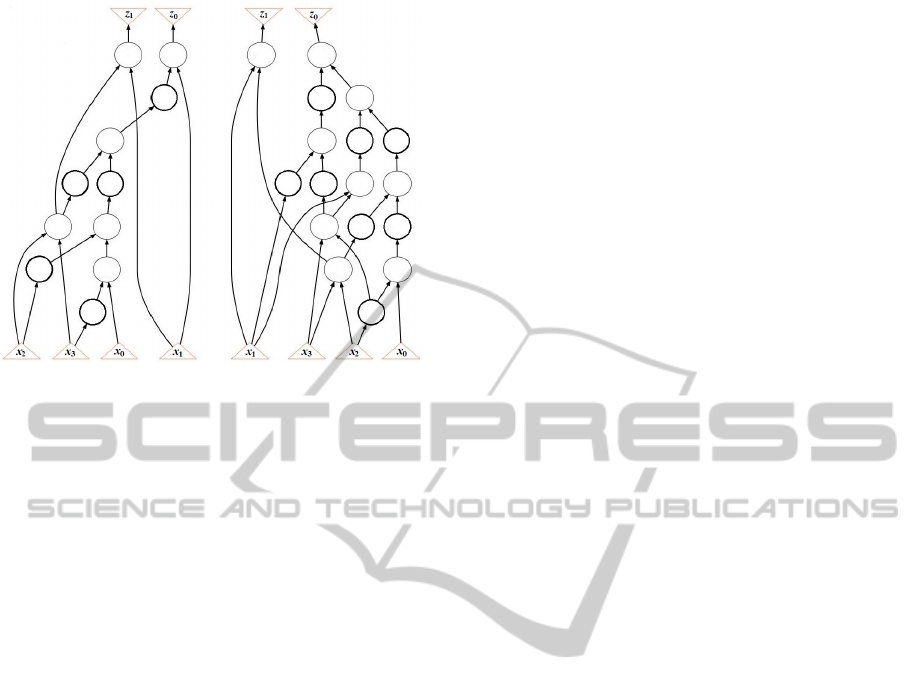

Figure 1: a) A circuit S, b) A circuit S.

common 2-input gates are

AND/OR/XOR/NAND/NOR/XNOR that implement

conjunction/disjunction/xor and their inversions.

There are also 1-input gates such as NOT/BUFF that

implement the inversion and the equality function,

correspondingly.

As an example, consider a combinational circuit

in Fig. 1a with a set X = {x

, x

} of inputs, a

set Z = {z

, z

} of outputs and 11 AND and NOT

gates. Hereafter, we assume that NOT nodes are

taken in bold.

Definition 2. By definition, a logic circuit

implements or represents a system of Boolean

functions. A circuit accepts a Boolean vector as an

input and produces the Boolean vector as an output

according to the corresponding system of Boolean

functions. Each logic circuit can be described by a

Look-up-Table (LUT). A LUT contains a set of

input/output pairs of a given circuit: if for the input i

the circuit produces an output o, then the pair i/o is

included into the LUT (see, for example, Table 2).

A LUT can be used as the specification when

deriving a logic network that implements the system

of Boolean functions, and there exist a number of

methods how to synthesize a logic network that

implements a given system of functions.

If this system is completely specified then 2-

level network can be synthesized based on

corresponding Disjunctive Normal Form (DNF) or

Sum of Products (SoP) (McCluskey, 1965);

otherwise, if the system of Boolean functions is only

partially specified, then other methods are used for

logic synthesis (see, for example, Kuehlmann,

2003). In this case, each input pattern where the

circuit behavior is not specified is usually treated as

a ‘Don’t_Care’ pattern, i.e., a circuit under design

can produce any output to this input.

Correspondingly, the circuit behavior is specified for

such ‘Don’t_Care’ patterns according to the

designer’s needs. It can be guarded by optimal

criteria of a circuit under design, such as number of

logic gates, time needed to produce an output, etc. In

this paper, we are interested in deriving a circuit that

models the QoE evaluation of web services, thus,

one of optimal criteria could be the accuracy of the

circuit prediction.

3 RELATED WORK

As mentioned above, the main priority of each web

service is to satisfy an end-user, thus a service

provider is trying to ‘guess’ what the end-user would

like and what will be disliked. Therefore, the

problem arises of modeling user perception that is

nowadays one of most popular problems in the

artificial intelligent area. A number of continuous

and discrete models are developed for this purpose

but nevertheless, no one can prove or disprove the

accuracy of these models. Since a human mind is

known to be non-deterministic, just now it is not

possible to get an algorithm of the human behavior.

That is the reason why researchers are focused on

the study of self-adaptive models. Several self-

adaptive models have been experimentally proven to

behave similarly to a human being under certain

conditions. In this paper, we do not discuss all the

self-adaptive models that are developed in this

artificial intelligent research area, instead we focus

on those self-adaptive models that can be used to

evaluate a user satisfaction of a given web service.

Almost all self-adapting models for evaluating

the quality of web services rely on pre/post

conditions that can be expressed as IF-THEN

operators. In order to analyze a set of such

conditions, machine learning algorithms can be of a

big help. One of such algorithms is based on a

Decision Tree (Mitchell, 1997; Pokhrel et al., 2013)

that can be usually represented as a Boolean

formula, i.e., a disjunction of conjunctions (cubes).

Nevertheless, the size of a decision tree grows

exponentially w.r.t. the number of parameters to be

verified and thus, other more compact learning

models that can be derived on the IF-THEN

conditions should be considered.

One of popular models is a model of an Artificial

Neural Network (see, for example, Ahmed et al.,

2012; Al-Masri and Mahmoud Qusay, 2009) that

accepts inputs and produces outputs depending on

hidden nodes, their weights and connections. Neural

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

170

networks are widely used in various applications,

such as modeling company marketing, oil flows, etc.

Meanwhile, a number of methods for evaluating the

QoE of web services are based on various kinds of

neural networks. This network can be trained by an

external ‘teacher’ or by itself to produce more

precise results, i.e., it can be somehow adapted to the

statistics being gathered from end-users of the

service.

Another interesting model that can be used for

the QoE evaluation is a fuzzy logic formula (Zadeh,

1965) where the operands do not have precise values

but belong to some intervals which can be rather

informal. In this case, a fuzzy logic formula

represents a degree of a user satisfaction with the

service. One may turn, for example, to papers (Lin et

al., 2005; Torres et al., 2011) to see how fuzzy logic

formulae can be used for evaluating QoE of web

services.

Neural network and fuzzy logic formulae are

experimentally proven to provide a reasonably

accurate prediction of the user satisfaction.

Nevertheless, when using these models for the QoE

evaluation of web services as well as for the learning

process a researcher faces a number of

computational problems. The reason is that both

models deal with continuous variables and thus,

when evaluating the QoE floating-point numbers

with a lot of decimal points are involved. As the

discrete model, a decision tree does not have this

drawback. On the other hand, a decision tree with

the high prediction ability requires exponential

memory and correspondingly needs a scalable

representation. Such scalable representations for

Boolean formulae include logic circuits, and in this

paper, the Boolean formula corresponded to a

decision tree is represented by a logic network that

can ‘predict’ the QoE value even for patterns that are

not specified in the provided statistics.

4 USING LOGIC NETWORKS

FOR QOE PREDICTION

In this section, an approach for automatic

evaluation/‘prediction’ of the QoE value for web

services is proposed. Since the approach relies on

logic circuit learning we first discuss how this

(initial) circuit can be derived and then turn to a

learning procedure itself.

Consider a web service W and a collection of

parameters p

, p

, …, p

that are used for the QoE

evaluation. For the sake of scalability, we consider

each parameter p

value as a nonnegative (unsigned)

integer, bounded by the maximal value

M ,

_value  {0, …,

M - 1}. In order to evaluate the

QoE of the service W, written QoE(W), a logic

circuit S is derived. Inputs of the circuit S

correspond to service parameters p

, p

, …, p

which

values are encoded as Boolean vectors of length

]log

M [, where ]t[ denotes the minimal integer

that is not less than t; thus, the number of primary

inputs of S equals





[log] . The circuit

calculates the QoE(W) value for given integers

_value, p

_value, …, p

_value and QoE(W) that is

bounded by the maximal value

QoE

M , QoE(W)  {0,

…,

QoE

M - 1}, that is also represented as a Boolean

vector. The length of a corresponding Boolean

vector is ]log

QoE

M [, as ]log

t[ bits are needed to

represent an unsigned integer t. Therefore, the circuit

S has





[log] primary inputs and ]log

QoE

M [

primary outputs.

4.1 Using Statistics for Circuit

Learning

In order to derive the initial circuit S, we use

statistics gathered from web service experts, from

the automatic evaluation of service parameters

and/or from end-users, who have experience of

using a web service W. A running example is used

for illustrating how such statistics can be utilized for

logic synthesis.

Example. Let us consider an electronic service

for booking a student dormitory. When entering the

web site a student is asked for his personal

information such as his/her name and family name

and at the second step he/she indicates dates of the

desired stay. The booking system checks the

availability for the student to stay at the dormitory

and outputs the result.

After using such electronic service, a student is

asked whether he/she is willing to evaluate its

quality and to provide his/her feedback to the service

provider. If the student agrees then he/she is asked

for evaluating the design quality of the system as

well as the speed of it. Thus, two parameters p

and

are considered where p

represents the service

design while p

represents its speed. In this toy

example, we assume that each parameter is

evaluated as an integer between 0 and 3. The overall

user satisfaction which value belongs to the same

EvaluatingWebServiceQoEbyLearningLogicNetworks

171

interval is also asked for the student evaluation. To

sum it up, the student is asked three questions:

1. How do you find the design of the electronic

service? Please evaluate the design by an integer

between 0 and 3 (0 means that the service design is

very bad and 3 means that the service design is

excellent).

2. How do you find the speed of electronic

service interaction? Please evaluate the speed by an

integer between 0 and 3.

3. What is your overall User Satisfaction within

this electronic service? Please evaluate your

satisfaction by an integer between 0 and 3.

A student can ignore the above questions but if a

student replies then new statistical data are retrieved

about the service quality.

Consider three users who have already left their

scores. The user A evaluates the design quality and

the speed of the service by the highest score and

thus, the QoE evaluation is 3 (excellent). The user B

gives the same evaluation for speed while he/she

does not like the design (the score is 1) that does not

influence his/her overall satisfaction that equals 3.

The last user C that gives a feedback likes the design

(the score is 3) while the speed is scored as 0, and

the overall satisfaction is 2 (Table 1).

Table 1: Statistics gathered for dormitory booking

electronic service.

User identifier Design score

Speed

score

User

Satisfaction

A 3 3 3

B 1 3 3

C 3 0 2

The statistics described above are converted into

input/output vectors for the circuit S. The circuit has

two inputs for representing the value of the

design_score, two inputs for representing the value

of the speed_score and two outputs for representing

the QoE (dormitory_booking). Based on statistics in

Table 1 we derive a LUT (Look-up-Table) for a

system of two output functions z

, z

, depending on

four input variables denoted as x

, x

, i.e., we

partially specify the behavior of the circuit S (Table

2). Table 2 describes the system of partially

specified Boolean functions and thus, it can be used

as the specification for designing a corresponding

logic circuit.

Table 2: LUT for the statistics from Table 1.

1 1 1 1 1 1

0 1 1 1 1 1

1 1 0 0 1 0

4.2 Designing a Logic Circuit by ABC

We have derived the circuit S for the system of

partially specified Boolean functions in Table 2

using the software tool ABC (Berkeley Logic

Synthesis and Verification Group, ABC) that is a

growing software system for synthesis and

verification of binary synchronous sequential logic

circuits. ABC provides scalable logic synthesis and

optimization based on And-Inverter Graphs (AIGs)

and other internal circuit representations. Moreover,

ABC includes a number of commands for synthesis,

resynthesis, optimization and verification of logic

circuits as well as for printing the circuit statistics

and parameters. The ABC can be easily downloaded

from its official web site and run against a LUT for

web service W to synthesize a corresponding circuit

S. We have run the ABC tool against the LUT

corresponded to Table 2. For this purpose, we have

presented the set on input/output vectors in the PLA

format. The resulting circuit S with 11 gates is

shown in Fig. 1a. This circuit computes the QoE

value of the dormitory booking service based on

statistics in Table 1. If a service provider wants to

‘predict’ the overall user experience then the output

of the circuit S can be automatically calculated for a

corresponding input vector.

The logic circuit S that is derived based on the

provided statistics, evaluates and ‘predicts’ the QoE

value of web service W for any values of input

parameters. The Don’t_Care patterns can be used in

a proper way when deriving the initial circuit for the

QoE evaluation and below we present an algorithm

for deriving the initial circuit S.

Algorithm 1 for deriving an initial logic

circuit to evaluate the QoE value

Inputs: Service parameters p

, p

, …, p

with

nonnegative (unsigned) integer values bounded by

M ,

M , …,

M ; maximal value of the QoE

QoE

M ;

Statistics, i.e., feedbacks from users U

, …, U

represented as a list of patterns p

_value, p

_value,

…, p

_value, UserSatisfaction_value.

Output: a logic circuit S

1. Determine the number of primary inputs and

primary outputs of S:

The number of primary inputs equals





[log] while the number of primary outputs

equals ]log

QoE

M [.

2. Derive a LUT

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

172

2.1 For each user U

, i  {1, …, r}, convert

its statistic scores p

_value, p

_value, …,

_value, UserSatisfaction_value into Boolean

vectors and add the corresponding line to LUT.

3. Synthesize the circuit S from a partial system

of Boolean functions and Return S.



Given an integer x, let B(x) denote a

corresponding Boolean vector for x. Due to steps 2

and 3 of the algorithm, the following statement

holds.

Proposition 1. Given a service W and a statistic

pattern p

_value, p

_value, …, p

_value,

UserSatisfaction_value, a circuit S returned by

Algorithm 1 produces the output

B(UserSatisfaction_value) when the concatenation

B(p

_value)  B(p

_value)  …  B(p

_value) is

applied as an input vector.

Once a circuit S is derived, the circuit can be

used for evaluating the QoE of the web service. As

in this paper we are interested in self-adaptive

models, we discuss how such circuit can be modified

if the circuit behavior does not match new statistical

data.

5 LOGIC NETWORK LEARNING

PROCEDURE

A circuit S derived in the previous section has to be

self-adaptive, i.e., when a new end-user agrees to

leave his/her feedback about the service quality the

circuit behavior has to be modeled under a

corresponding input i and if the result produced by

the circuit differs significantly from the expected

then the circuit has to be resynthesized. To evaluate

the difference between the circuit output and the

user satisfaction value we introduce some value 

that represents a confidence interval, i.e., the

QoE(W) produced by the circuit S has to belong to

the interval [UserSatisfaction_value – ,

UserSatisfaction_value + ]. This fact can be

considered as an optimization step when

constructing a logic network for

evaluating/‘predicting’ QoE of web services. Given

a new pattern i/o where o represents the

UserSatisfaction_value and QoE(W) is an integer

that corresponds to the S output for the input i, if

|QoE(W) – UserSatisfaction_value|   then the

circuit S is not resynthesized.

The confidence interval [UserSatisfaction_value

– , UserSatisfaction_value + ] specifies the

permissible distance between circuit behavior and

new statistical data. If the QoE(W) value produced

by the circuit S does not belong to this interval

several cases are possible:

1) The input part

i of a new statistical pattern i/o

where o is a Boolean vector for the expected

UserSatisfaction_value, was not in the initial LUT

(not described in the previous statistics); and thus,

the circuit S was not correctly synthesized for a

Don’t_Care input i. In this case, the new input

pattern i/o is added to the LUT for the circuit and a

circuit is resynthesized.

2) The output of the circuit S for the input i was

defined in the initial LUT but the output is not

within the confidence interval. If this mismatching is

caused by an expert error that provides initial

statistics, we consider an end-user as an expert and

resynthesize the circuit w.r.t. the new output for the

input i.

3) The output of the circuit S for the input i is

not within the confidence interval and this

mismatching is due to different end-user opinions. In

other words, for the same service parameter values,

two different users specify the user satisfaction

values with the difference greater than the constant

. In this case, a problem arises of solving a conflict

of user opinions. In this paper, we do not go deep

into solving this problem, since the probability of

such situation is very low when the number of

service parameters is large enough. Thus, we again

rely on the last end-user opinion and resynthesize

the circuit in a corresponding way.

Algorithm 2 for learning the logic circuit that

evaluates/ ‘predicts’ the QoE value for web

service

Inputs: QoE parameters p

, p

, …, p

with

nonnegative values bounded by

M ,

M , …,

M ; maximal value of the QoE

QoE

M ;

The circuit S that evaluates the QoE value for web

service W;

A new user feedback p

_value, p

_value, …,

_value, UserSatisfaction_value;

Maximal difference  for corresponding confidence

interval.

Output: a modified logic circuit S

1. Integers p

_value, p

_value, …, p

_value,

UserSatisfaction_value are converted into Boolean

vectors v_p1, v_p2, …, v_pk, v_us.

2. The output QoE(W) of the circuit S is computed

for the input v_p1, v_p2, …, v_pk.

3. If | QoE(W) - UserSatisfaction_value | >  then

3.1 If the line v_p1, v_p2, …, v_pk is specified

as input in the LUT, then change the corresponding

output into v_us,

EvaluatingWebServiceQoEbyLearningLogicNetworks

173

Otherwise

Add the new line v_p1, v_p2, …, v_pk, v_us to

the LUT.

3.2 Synthesize the new circuit S; assign S = S

and Return S.



Similar to Proposition 1, the following statement

holds.

Proposition 2. Given a service W, a statistic

pattern p

_value, p

_value, …, p

_value,

UserSatisfaction_value and the length  of a

confidence interval, a circuit S returned by

Algorithm 2 produces the output B(x), such that | x –

UserSatisfaction_value |   when the concatenation

B(p

_value)  B(p

_value)  …  B(p

_value) is

applied as an input vector.

In the running example, consider another user D

that agrees to provide a feedback about using the

electronic service of the dormitory booking system,

and an output of the circuit S is computed according

to his/her feedback. If S provides the output that

does not belong to the user D confidence interval

with  = 1, then the circuit should be resynthesized.

Suppose the user D has scored the service design by

2 and its speed by 1 while the overall user

satisfaction he/she has evaluated as 2, thus the QoE

value is 2. These scores converted into Boolean

vectors are equal to (1001)/(10). The circuit S in Fig.

1a outputs (00) which corresponds to 0 score when

an input (1001) is applied, thus it has to be

resynthesized taking into account this new

input/output pair. We have performed such

resynthesis using ABC and obtained another circuit

S with 17 gates (Fig. 1b).

As soon as necessary statistics is gathered,

Algorithm 1 can be applied to synthesize the initial

circuit S. In this case, the initial LUT contains r lines

where r is number of feedback patterns. As it is well

known, the problem of gathering such statistics as

well as the problem of possible future circuit

resynthesis are hard computational problems. Thus,

we need appropriate heuristics in order to minimize

the number of ‘hard’ operations. One of possible

solutions could be to specify some Don’t_Care

patterns before applying Algorithm 1 according to

the value  related to the output confidence interval.

In other words, a confidence interval can be

considered for inputs as well, and all patterns that

are close enough (with respect to this input

confidence interval) can correspond to the same

output. The latter means that for each input v_p1,

v_p2, …, v_pk, a set of ‘close’ inputs can be

determined and every input of this set is added to the

LUT with the same v_us output. The procedure can

be simple enough if such confidence interval is

represented by a corresponding conjunction (cube)

but this issue needs more research. Additional

experimental research is also needed to evaluate the

optimal length of confidence intervals for different

services, since the length of confidence intervals

significantly influences both, the accuracy of

predictions and the computational complexity

contradicting each other. The bigger is the  value

the less resynthesis steps are needed, along with

reducing the accuracy of circuit predictions.

Studying optimal values for the length of input and

output confidence intervals remains one of

challenging topics for future work.

6 EXPERIMENTAL RESULTS

We applied the logic circuit learning approach for

evaluating the quality of media services using the

statistics gathered by an innovative French company

Montimage (more details about the company at

montimage.com). In order to collect the statistical

data for the QoE estimation of media services,

Montimage researchers have conducted a subjective

test with 25 end-user participants. This test involves

a video service QoE evaluation based on network

perturbations. Different video clips have been

presented to the participants and according to the

perceived video impairment, participants have

evaluated each video clips quality as an integer from

1 to 5. The test had twenty seconds videos of

different types (sports, movie, animation, and

interview). To perform experiments, video clips

have been streamed from a server to a client and

corresponding perturbation has been added into an

emulated network. Packet loss and jitter have been

selected for perturbation where jitter corresponds to

the variation in video packet delays and packet_loss

is the percentage of packets being lost during video

transmitting. In the subjective test, video clips were

randomly provided for participants which had five

minutes break after watching 20 video clips. Given

statistics gathered as described above, we have

randomly extracted a sample of 17 user statistical

data (Low number of users since we are only dealing

a proof of concept experimentation). In this sample,

the jitter ranges between 2 ms and 20 ms while the

packet_loss ranges from 0,02% to 0,25%. The latter

means, five circuit inputs can be used to represent

each parameter scores. To represent the QoE value,

the corresponding circuit under construction has

three outputs. We also mention that during the

experiment we considered the output confidence

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

174

difference  = 1. Moreover, in this sample we also

consider the corresponding confidence interval for

each input with the same  = 1 difference.

The current sample has been divided into three

parts. At the first step, we have used 13 patterns to

derive the initial circuit. Each pattern has been

converted into a Boolean vector of length 13. We

have run the ABC system against the corresponding

system of partial Boolean functions represented in

the PLA format. The obtained circuit S contains 121

gates while the maximal length of the path from

primary inputs to primary outputs equals 22.

Following the given statistics, we have randomly

chosen two more input patterns and simulated the

behavior of the circuit S for new patterns. The

simulation results coincide with the given statistical

data for the user satisfaction with respect to the

output confidence interval. Therefore, the circuit

was not resynthesized.

Furthermore, we have added two additional

patterns to the corresponding PLA file. We have

simulated the circuit behavior on corresponding

inputs and for one input the difference between

expected and produced outputs has reached two.

Correspondingly, the circuit has been resynthesized

according to the new statistical data. Finally we have

obtained the combinational circuit with 154 AIG

nodes and with the maximal length from primary

inputs to primary outputs being equal 29.

Preliminary experimental results show that

updating the circuit with respect to new statistical

data does not significantly increase the length of the

path from primary inputs to primary outputs that can

influence the speed of simulation procedure. In fact,

given statistical data for the media service, the ABC

system has produced the logic synthesis results

almost immediately. This allows to claim that our

proposed approach is promising, as the simulation

procedure for the QoE calculation can be efficiently

performed.

Further experimental research is needed to

estimate the efficiency of this approach for different

types of web services and their parameters.

7 CONCLUSIONS

In this paper, we have discussed different self-

adaptive models for automatic QoE

evaluation/‘prediction’ of web services. Extending

the decision tree approach we have proposed a

scalable approach for learning corresponding

Boolean formulae using logic circuits for their

representation. Two algorithms are proposed in the

paper, namely an algorithm for deriving an initial

logic network based on statistics being gathered, and

an algorithm for logic network learning based on

new statistical data. As the future work, we plan to

perform more experiments with different web

services.

ACKNOWLEDGEMENTS

The work is partially supported by ANR PIMI

project (France) and by RFBR grant № 14-08-31640

мол_а (Russia).

REFERENCES

Ahmed, S., Begum, M., Hasan Siddiqui, F., Abul Kashem,

M., 2012. Dynamic Web Service Discovery Model

Basedon Artificial Neural Network with QoS Support.

International Journal of Scientific & Engineering

Research Volume 3, Issue 3, pp. 1-7.

Al-Masri, E., Mahmoud, Q. H. Quality of web services

dataset. url:

http://www.uoguelph.ca/~qmahmoud/qws/.

Al-Masri, E., Mahmoud Qusay, H., 2009. Discovering the

Best Web Service: A Neural Network-based Solution.

SMC 2009, pp. 4250-4255.

Berkeley Logic Synthesis and Verification Group, ABC:

A System for Sequential Synthesis and Verification,

url: http://www.eecs.berkeley.edu/~alanmi/abc/.

Booth, D., Haas, H., McCabe, F., Newcomer, E.,

Champion, M., Ferris, C., Orchard, D., 2004. Web

services architecture. W3C Working Group Note, W3C

Technical Reports and Publications, url:

http://www.w3.org/TR/ws-arch/.

Directory of Public SOAP Web Services, url:

http://www.service-repository.com.

Khirman, S., Henriksen, P., 2002. Relationship between

Quality-of-Service and Quality-of-Experience for

public Internet service. In Proc.of PAM 2002.

Kim, H. J., Lee, D. H., Lee, J. M., Lee, K. H., Lyu, W.,

Choi S.G., 2008. The QoE evaluation method through

the QoS-QoE correlation model. In Proc. of NCM 08,

vol. 2, pp. 719-725.

Kuehlmann, A. (ed.), 2003. The Best of ICCAD. 20 Years

of Excellence in Computer-Aided Design. Kluwer

Academic Publishers.

Lin, M., Xie, J., Guo, H., Wang, H., 2005. Solving QoS-

driven web service dynamic composition as fuzzy

constraint satisfaction. EEE 2005, pp. 9-14.

McCluskey, E. J., 1965. Introduction to the theory of

switching circuits. McGraw-Hill Book Company, NY.

Mitchell, T.M., 1997. Machine learning. McGraw Hill

series in computer science, McGraw-Hill.

Morais, A., Cavalli, A., 2012. Deliverable D2.1 – State of

the art of SQM/CEM technology, tools, and

EvaluatingWebServiceQoEbyLearningLogicNetworks

175

standartization. IPNQSYS European project, url:

http://projects.celtic-initiative.org/ipnqsis/IPNQSIS-

D21.pdf.

Online community for the Universal Description,

Discovery, and Integration OASIS Standard, url:

http://uddi.xml.org.

Pokhrel, J., Mallouli, W., Montes de Oca, E., 2013. QoE

Prediction and Self-Learning Mechanisms. Technical

report on the PIMI Project.

Torres, R., Astudillo, H., Salas, R., 2011. Self-Adaptive

Fuzzy QoS-Driven Web Service Discovery. In IEEE

SCC 2011, pp. 64-71.

Winckler, M. A., Bach, C., Bernhaupt, R., 2013.

Identifying user experience dimensions for mobile

incident reporting in urban contexts. IEEE

Transactions on Communications, vol. 56, no. 2, pp.

40-82.

Zadeh, L. A., 1965. Fuzzy sets. Information and Control,

8 (3), pp. 338–353.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

176
