A SWRL Bridge to XACML for Clouds Privacy Compliant Policies

Hanene Boussi Rahmouni

1,3

, Marco Casassa Mont

, Kamran Munir

and Tony Solomonides

1,4

Department of Computer Science and Creative Technologies, Faculty of Environment and Technology,

University of the West of England, Coldharbour Lane, Bristol, BS16 1QY, U.K.

Hewlett-Packard Labs, Cloud & Security Lab, Bristol, U.K.

Higher School of Communication, University of Carthage, Tunis, Tunisia

Center for Clinical and Research Informatics, North Shore University Health System, Illinois, U.S.A.

Keywords: Privacy Policies, OWL, SWRL, XACML, Cloud.

Abstract: The management of privacy and personal information within multi-cultural domain such as clouds and other

universal collaborative systems requires intrinsic compliance-checking and assurance modules in order to

increase social trust and acceptance. Focusing mainly on medical domains, this issue is particularly

important due to the sensitivity of health related data in international data protection law. The use of

ontologies and semantic technologies can provide relatively easy interpretation of legislation at run time,

and can allow the logging of data access events to serve for future audits. However, the enforcement of

semantic web rules (SWRL rules) on complex and heterogeneous architectures is expensive and might

present runtime overheads. We believe a mapping of our semantic web privacy policies to a standard access

control language such as XACML would be a useful alternative. A translation to XACML, would allow the

integration of these policies with existing security and privacy policies being adopted on clouds

environments. This paper describes a mathematical formalism for mapping SWRL (Semantic Web Rule

Language) privacy rules to XACML policies and also explains the underline implementation requirements

of this formalism.

1 INTRODUCTION

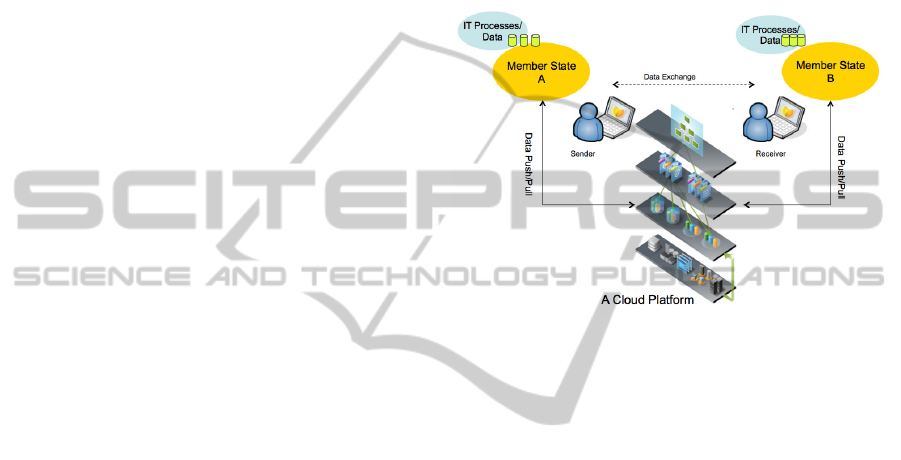

The protection of patients’ privacy in a pan-

European cloud infrastructure is challenging and

requires combined solutions from legislation,

organisational and social frameworks. In this

regards, a European public cloud infrastructure is

still a challenging goal to attend (Brandic et al.,

2010), but necessary for those nations wishing to

collaborate for the advancement of medical research

and public health. This challenge arises primarily

due to the lack of harmonisation in legal frameworks

governing privacy and data protection in Europe, not

least the European Data Protection directive

95/46/EC (EC Directive, 1995), (McCullagh, 2006),

(Beyleveld et al., 2004). For example, consent is not

handled in the same way in Italy as in the UK. In

Italy, consent could be provided for a broad purpose

of data processing; whereas in the UK, obtaining a

specific consent is a legal obligation (Iversen et al.,

2006), (Italian Personal Data Protection Code,

2003). On top of this, there are significant

conceptual and technical issues in-particular when

expressing, interpreting and deriving operational

consequences out of high-level policies. Finally,

despite the attention that has been paid to security

concerns for public and private clouds; such as

infrastructure integrity and access control (typically

authentication and authorization), this does not

naturally extend to cover privacy concerns (often

requiring context and purpose specification).

Although they are newly emerging paradigms,

clouds are very similar in many aspects to other

distributed computing environments. Particularly,

clouds are similar to large-scale systems that are

based on virtualised technologies such as Grid

systems (OCSI, 2010). These systems have high

capabilities for sharing data and resources through

the Internet. However they often fall short of

providing measurable proof of compliance, which is

required throughout the complete data sharing

process. This is different than the case of traditional

centralised systems, where the data security focus

was directed only towards data access transactions.

As such, it is an on-going challenge to search for

ways to narrow the gaps between the various legal,

Boussi Rahmouni H., Casassa Mont M., Munir K. and Solomonides T..

A SWRL Bridge to XACML for Clouds Privacy Compliant Policies.

DOI: 10.5220/0004853900270037

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 27-37

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

technical, social and organizational aspects of the

problem.

The approach presented in this paper is an

attempt to show that the use of Semantic Web

technologies (Horrocks et al., 2004) can allow both

the specification and enforcement of privacy

requirements that traditional access control

languages and mechanisms cannot achieve. We start

from the high-level regulations that govern privacy

and data protection in Europe and we progress

towards the integration of privacy constraints

interpreted from them within access controls

specifications. For this matter, policies’ decisions

cannot be deduced from data identifiers and access

control conditions that are evaluated against their

attributes’ values. Instead, the evaluation of privacy

policies requires more information about resources;

and hence, we face the need to record metadata

about the protected resources in a computational

infrastructure. We believe, the existing access

control solutions for the cloud need to evolve in

order to allow for such integration and in order to

enable enforcement of the full range of privacy

constraints.

Although semantic based languages can

adequately capture and conceptually specify the

contexts, facts and rules necessary for reasoning

about data manipulation obligations, it is rather not

suitable for implementation in a cloud context. This

is due to the necessity for answering two major

clouds requirements namely performance and

standardisation. In order to enable better

interoperability, while exchanging data in the cloud,

it is important to use standard data management

languages and services. This includes both standard

access control and security languages (OCSI, 2006).

Moreover, the use of semantic access control

languages requires customised enforcement

architectures that are different from the ones adopted

on the cloud infrastructure and that are designed to

enforce policies specified in a standard format. A

similar change might be very expensive from the

point of view of clouds services and infrastructure

providers. In order to be easily enforced at the

cloud’s system-level, we suggest that the presented

policies should eventually be specified in a way that

conforms to a widely adopted policy language or

standard. In particular, a standard that has proven

efficiency in the enforcement of privacy policies.

Our choice is the eXtensible Access Control Mark-

up Language (XACML) (OASIS XACML, 2005). It

is worth mentioning; and in order to eliminate

confusion, that in the context of this work, we do not

claim that XACML can handle privacy constraints in

exactly the same way as it handles security

constraints. The limitations of XACML, both as a

policy language and as an enforcement mechanism,

have been detailed in the literature (Casassa et al.,

2007), (Sommer et al., 2008), (Casassa, 2010). Also

additional limitations are presented in Section 3 of

this paper. In this work, we seek to overcome some

of these limitations. For a note to the readers,

additional effort was also made in later version of

XACML (OASIS XACML, 2013).

The remaining paper is organised as follows:

Section 2 starts by clarifying the theory presented in

this paper in comparison and continuation to the

allied work that we have been doing previously in

this domain. This Section also clarifies the major

contributions presented in this paper. Section 3

presents a synopsis of the main technologies on

which we have based our privacy specification and

enforcement approach, which are presented in later

Sections 4, 5 and 6. In particular, Section 4 discusses

the SWRL-based privacy policies specification and

Section 5 shows how they could be rewritten in a

syntax conforming to the XACML standard. In

Section 6, a formalism for mapping SWRL privacy

rules into XACML access controls is presented. This

is followed by the requirements and

recommendations for implementing the projected

formalism in Section 7; and finally, the conclusion

and relevant future orientations are presented in

Section 8.

2 PAPER CONTRIBUTION AND

RELATION TO PREVIOUS

WORK

In (Rahmouni et al., 2010) and (Rahmouni et al.,

2011), we have described how Semantic Web

technologies have been used to classify the resources

that we would like to protect. At that stage the

resources were specified using the metadata

captured within an ontology. We have also shown in

this existing work that how different scenarios of

data/resource sharing have been modelled within the

same ontology. In this paper, we describe extensions

to the previous model (with necessary metadata

added) and extend the data sharing scenarios to

include privacy policy contexts. We then show how

this allows the specification and editing of privacy

and access control policies in terms of existing

concepts within the ontology. There is research

reported in the literature; such as (Muppavarapu and

Chung, 2008), (Gowadia et al., 2008) and (Matteucci

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

et al., 2010), that has looked at the use of ontologies

and Semantic Web technology in order to allow a

better specification and enforcement of security and

authorisation policies. Among these, only the

“Consequence” project has looked at an approach

that integrates requirements from high-level policies

through the means of controlled natural language

(Matteucci et al., 2010). This approach translates

high-level policies extracted from data sharing

agreements into a natural language-like formalism in

order to allow enforceability. This work did not stop

at the control of access to data, but has rather

focussed on ways of controlling any type of data

usage even after the data were shared with a party

belonging to an external domain. This functionality

is worth further consideration and is discussed in the

future work section of this paper. In comparison, the

actual status of our approach allows the disclosure of

data handling policies to external parties receiving

personal data, but does not enforce these policies

within the receiver’s domain. However, the work in

(Matteucci et al., 2010) included little effort to

integrate within access control policies, privacy

requirements that are interpreted from primary

legislation (text law). It made rather a focus only on

traditional security services such as authorisation

and the trust aspect of it. Hence this approach

couldn’t fit in a solution aiming for the big picture of

regulatory compliance. This is because usually

traditional security requirements covers only a very

specific subset of jurisdictional requirements that are

not general enough to cover any case of data sharing

that might arise in the future.

3 SWRL AND XACML

In this section, an overview of the semantic web rule

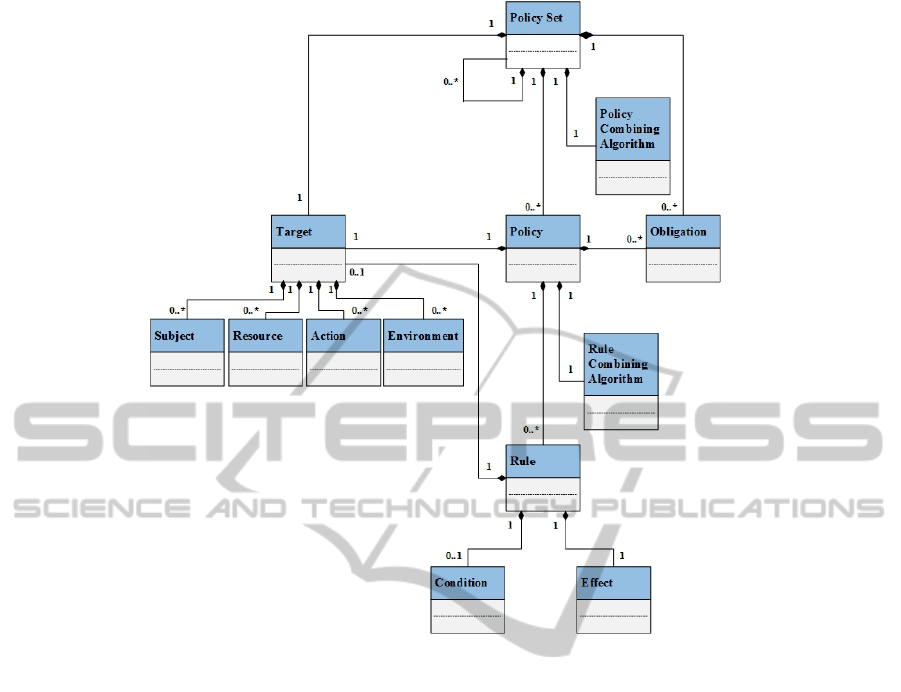

language (SWRL) and the extensible access control

markup language XACML is presented. In this

regard, an analysis of their expressiveness

capabilities and utility for enforcing privacy policies

in a cloud environment is also elaborated.

SWRL, the Semantic Web Rule Language

(SWRL) (Horrocks et al., 2004) is based on a

combination of the OWL-DL (Matteucci et al.,

2010) and some sublanguages of the Rule Mark-up

Language (RuleML) (Boley et al., 2010). SWRL

includes a high-level abstract syntax for Horn-like

rules in both the OWL-DL and OWL-Lite

sublanguages of OWL (Bechhofer et al., 2004). The

proposal extends the set of OWL axioms to include

Horn-like rules. It thus enables the rules to be

combined with an OWL knowledge base. Some

model-theoretic semantics are given to provide the

formal meaning for OWL ontologies, including rules

written in an abstract syntax. With the combination

of an XML syntax based on RuleML, the OWL

XML Presentation Syntax and an RDF (Bechhofer et

al., 2004) concrete syntax based on the OWL

RDF/XML exchange syntax, SWRL presents an

illustration of the extension of description logic into

defeasible description logic (Wang et al., 2004).

This makes it a promising technology for the

modelling of regulations.

The proposed rules are of the form of an

implication between an antecedent (body) and a

consequent (head). The intended meaning can be

read as: whenever the conditions specified in the

antecedent hold, then the conditions specified in the

consequent must also hold. Both the antecedent

(body) and consequent (head) consist of zero or

more atoms. An empty antecedent is treated as

trivially true (i.e. satisfied by every interpretation),

so the consequent must also be satisfied by every

interpretation; an empty consequent is treated as

trivially false (i.e., not satisfied by any

interpretation), so the antecedent must also not be

satisfied by any interpretation. Multiple atoms are

treated as a conjunction. Note that rules with

conjunctive consequents could easily be transformed

into multiple rules, each with an atomic consequent

(Gruber, 1995). Atoms in these rules can be of the

form C(x), P(x,y), sameAs(x,y) or differentFrom(x,y),

where C is an OWL description class, P is an OWL

property, and x,y are either variables, OWL

individuals or OWL data values. It is easy to see that

OWL DL becomes undecidable when extended in

this way as rules can be used to simulate role value

maps (Gruber, 1995).

XACML (OASIS XACML, 2005) is an XML

specification and syntax for expressing policies

controlling the access to information through the

Internet. It provides the enterprises with a flexible

and structured way of managing access to resources.

The specification language is based on a subject-

target-action-condition policy syntax specified in an

XML document. As specified in the Fig. 1 (OASIS

XACML, 2005) a Policy is composed of a

Target,

which identifies the set of capabilities that the

requestor must expose along with a set of rules

varying from one to many. Every Rule contains the

specific facts needed for the access control decision-

making. It also has an evaluation Effect, which can

be either Permit or Deny. At policy evaluation time

a policy combining algorithm is used to deal with

(permit/deny) conflicts which might arise in the rule

decisions. A Target is composed of four sub-

ASWRLBridgetoXACMLforCloudsPrivacyCompliantPolicies

Figure 1: XACMLv2’s data flow model.

elements: Subjects, Actions, Resources, and

Environments. Beyond what is described in the Fig.

1, each target category is composed of a set of target

elements, each of which contains an attribute

identifier, a value and a matching function. Such

information is used to check whether the policy is

applicable to a given request. This could be specified

in the condition section of a rule.

In most of the cases the language defines controls

as a collection of attributes relevant to a principle. It

includes both conditional authorisation policies and

other policies to specify post conditions such as

notifications to data subject. Like other policy

languages that are based on XML, XACML lacks the

required semantics to handle heterogeneity and

permits interoperability, especially when managing

data access within environments that involve

multiple organisations. The different data access

requests coming from users in different organisations

might refer to the same data item with different

naming. Additional semantics are needed in order to

allow semantic alignment to the different terms used

to describe the same data item (Muppavarapu and

Chung, 2008). Moreover dealing with dynamic

attributes such as the user’s age or hierarchical

attributes for example the user’s role requires some

additional semantics and integrated reasoning

(Demchenko et al., 2008), (Priebe et al., 2006),

(Damiani et al., 2004).

4 A SWRL-BASED PRIVACY

POLICY SPECIFICATION

We have examined the legal privacy rules and

obligation dictated in many jurisdictional texts and

we have noted that the rules are specified according

to a specific vocabulary describing many conceptual

entities. These entities are usually associated together

in different combinations in order to build generic

rules that could be modelled in the form of if-then

rule template. Following this assumption and

similarly to the work done in (Powers et al., 2004)

that simplifies policies dictated by the Ontario’s

Freedom of Information and Protection of Privacy

Act (FIPAA) (Ontario, 2008), we have expressed the

policies specified in European data protection text

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

law in a more simplified way using the different

concepts that constitute its vocabulary. These

concepts were captured in an OWL ontology that we

have described in previous work (Rahmouni et al.,

2010) and (Rahmouni et al., 2011). The policies were

then matched to the rule template.

Privacy-Rule-Template:

[Context] and [Condition on User], [Condition

on data], [Condition on Purpose], [Condition on

Other] (including checking for privacy

requirements)

Then

Allow [action] and Impose [Obligation]

The rule privacy-rule-template could be adapted and

specialised, according to the context of application,

in order to represent privacy requirements in a case

based manner. On this basis, we have rewritten

privacy policies interpreted from text law as SWRL

rules using OWL classes and properties specified in

our privacy ontology. The rule conforms

syntactically to the SWRL human readable syntax:

Antecedent Clause implies Consequence Clause

Or, in a different notation:

Antecedent → Consequent

Adapting the rule to an access control policy

format, it must conform to the following template:

Rule := Target  Conditions → Effect 

Obligations

Here we explain our SWRL privacy policies

specification through a concrete rule example and a

cloud data sharing scenario:

Example: Purpose Compatibility Rule

In order to clearly explain our approach we start

by specifying an example of high-level policy

extracted from European privacy legislation. The

policy is further taken trough series of

transformations towards an operational status in the

format of XACML syntax. In this example, we show

how we model the privacy policy stating (Iversen et

al., 2006) that:

“A user may access a patient mammogram for a

stated purpose provided that the patient has given

informed consent for a specific processing purpose

and the stated processing purpose is compatible with

the purpose consented for”.

We present below the application of the generic

template of SWRL privacy rules to this rule example.

For this we adopt a human readable SWRL syntax.

We denote by (R, T, Con, E and Ob)

respectively the Rule elements (Rule, Target,

Conditions, Effect and Obligations)

described in the abstract syntax of privacy rules given

above. The rule template is therefore rewritten as

follows:

R := T  Con → E  Ob

In order to implement our rule example, we need

to apply it to a concrete data sharing scenario. For this

we present the example of data sharing in the cloud

described in Fig. 2:

Figure 2: A cloud data sharing scenario.

The scenario we have chosen describes a case of

data sharing in the health domain. We assume that

two medical doctors belonging each to a different

hospital in different European member states for

example UK and Italy form the two data sharing

parties. To be more precise, one of the medical

doctors would like to get a second opinion on a

patient’s Mammogram.

The data will be exchanged on a cloud platform

and it is required that the cloud security services could

identify the right policy to apply in order to allow the

sharing of the data, but in a lawful way. Since we are

looking at a pan-European context, it wouldn’t be

always the case that the data processing law is

interpreted and implemented in one member state in

exactly the same way as in another. Stating as an

example, when processing health data for the purpose

of medical research, the patient consent must be a

specific consent when referring to the law in the UK

or France. However consent could be broad or

general consent when referring to an Italian law.

For this more context information should be

provided in the privacy rules specification for the

cloud security processes in order to be able to make

the right decision. It is therefore essential to indicate

in the rule implementation the sender and receiver’s

locations and the member state from which the shared

data comes. An instantiation of R in the context of the

ASWRLBridgetoXACMLforCloudsPrivacyCompliantPolicies

rule example and the cloud data sharing scenario is

then interpreted in the Fig. 3.

hasSender(?x, ?s)

 hasReceiver(?x, ?r)

 hasPurpose(?x, ?p)

Con:

 locatedIn(?s, UK)

 locatedIn(?r, Italy)

 concerning(?x, ?m)

 belongsTo(?m, UK)

 isForPatient(?m, ?pt)

 provided(?pt, InformedConsent)

 hasCollectionPurpose(?m,

CollectionPurpose)

 compatibleWith(?p,

CollectionPurpose)

E: hasSharingDecision(?x, allow)

Ob: hasObligation(?x,

attachSecondaryUsePolicy)

Figure 3: Instantiation of the privacy rule template.

In this SWRL rule example OWL properties and

classes were used to describe the different elements

of the privacy rule target T, for example hasSender is

an owl object property specifying the sender s

involved in the data sharing ?x. Other properties are

also used to declare T including hasReceiver,

hasPurpose for specifying the receiver of the data

and the purpose of sharing respectively. The OWL

property concerning is used to capture the resource

being shared. Since the scenario involves the sharing

of patient

?pt mammograms we have denoted the

shared resource/object as ?m.

The second part of the rule antecedent are the

conditions section and it shows constraints the target

elements should satisfy in order to infer the effect

and obligations shown in the rule consequent section.

5 MAPPING AN ACCESS

CONTROL SWRL RULE TO AN

XACML CONFORMING SWRL

RULE

For easy mapping to an XACML rule, the SWRL

rule has to be specified in terms of attributes of only

the generic entities that constitute an XACML Rule

Target (see above) and other elements that are used

to specify the general policy that the rule in question

belongs to, e.g. the purpose of processing. In this

regard, the OWL property:

provided(Patient, Informed Consent)

is a property of the patient whose data is to be shared

and indicates that the patient has provided informed

consent. The patient or the data subject is not one of

the XACML “Rule Target” components; therefore,

we express the same condition in terms of property

of the class “O” (the resource or object. In our case it

is the data the subject is requesting access to). The

result is presented in Table 1:

Note: we do not need to translate provided (?pt,

InformedConsent) as we are not keeping constraints

about patients in the XACML version of the rule. For

example, in the XACML conforming SWRL Rule,

the consent is an attribute of the object and not of the

patient any more.

The rule described above is an extension or privacy

aware version of traditional access control rules that

pays no significant attention to privacy constraints

and obligations. If specified in SWRL syntax, an

Table 1: Mapping from SWRL rule to XACML conforming SWRL rule.

Initial SWRL Privacy-Aware access control rule XACML Conforming SWRL Privacy-Aware access control rule

dataSharing(?x)

 hasAction(?x, ?ac)

hasRuleContext(?r, ?rc)

 hasContextAction(?rc, ?ac)

 hasSender(?x, ?s)  hasContextSubject(?rc, ?s)

 hasReceiver(?x, ?r)  hasReceiver(?ac, ?rec)

 concerning(?x, ?m)  hasContextObject(?rc, ?o)

 hasPurpose(?x, ?p)  hasContextPurpose(?rc, ?p)

 action(?ac, send)  action(?ac, send)

 locatedIn(?s, UK)  locatedIn(?s, UK)

 belongsTo(?m, UK)  consent(?o, true)

 hasConsentType(?o, InformedConsent)

 compatibleWith(?p,CollectionPurpose)  compatibleWith(?p, ?cp)

Rule Implication

hasSharingDecision(?x, allow) hasRuleEffect(?r, allow)

 hasObligation(?x,

attachSecondaryUsePolicy)

 hasObligation(?r, attachSecondaryUsePolicy)

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

example of this traditional access control rule would

look as shown in Fig. 4.

hasRuleContext(?r, ?rc)

 hasContextSubject(?rc, ?s)

 hasContextObject(?rc, ?o)

 hasContextAction(?rc, send)

 hasContextPurpose(?rc, ?p)

 hasRole(?s,doctor)

 isForPatient(?o,?pt)

 isDoctorOf(?s,?pt)

 hasRuleEffect(?r, allow)

Figure 4: Instantiation of the privacy rule template.

The only constraints the rule above tests for

before allowing the disclosure of the data is the role

of the subject or requestor. In this case, the role of

the subject must be a medical doctor of the patient

whose data is to be disclosed.

XACML was designed to notate access control

policies and to provide a reference framework for

their enforcement. Its major focus is on security

policies, although privacy is mentioned in the

specification of version 2.0 (OASIS XACML, 2005).

It is verbose and complex and still lacks

expressiveness. The XACML version 3.0 however,

seems to provide a better privacy specification

profile (OASIS XACML, 2013). We have also

noticed that some examples included in the XACML

privacy profile, which were supposed to specify a

policy compliant with the “specific and compatible

purpose” privacy principle, in fact test for equality or

matching of purposes rather than compatibility of

purposes. We believe this is due to the language’s

lack of semantics and reasoning ability with regards

to privacy constraints on protected data. If this lack is

not addressed, a straightforward mapping from

SWRL policies to XACML will not be possible.

From the examples of the SWRL access control and

privacy rules presented earlier in this paper, we

conclude that privacy obligations should be specified

for each rule as they are matched according to the

data sharing context that we declare to be unique for

each rule. This is different from the way obligations

are specified in XACML. Obligations in XACML

are related to a policy and not to the individual rules

that a policy is made up of. We have resolved this

problem by allowing each policy to include only one

rule and its applicable obligations. Indeed, this

decision was already implicit at the time we designed

our SWRL privacy aware access control policies. For

it, we decided to include one rule per policy. In fact,

dealing with more than one privacy obligation at

once might require a large amount of contextual

information. Therefore, the equivalent SWRL rule

would become too long and less readable.

6 MAPPING AN XACML

CONFORMING SWRL RULE TO

AN XACML POLICY

In this section, we present an attempt to formalise a

mapping of a SWRL rule to an XACML policy.

There is some existing work that has looked at

formalisms of XACML with many purposes in mind

such as in (Kolovski et al., 2006), (Kolosvki et al.,

2008), (Kolovski and Hendler, 2008), (Masi et al.,

2012) and (Jeremy et al., 2007). In particular, the

work presented in (Kolovski et al., 2006) and

(Kolosvki et al., 2008) has started from a BNF

representation of an XACML rule and has produced

a DL formalism that allows the mapping of an

XACML rule to DL syntax. Our approach takes into

consideration the syntactic difference between DL

and SWRL. SWRL is an extension of OWL-DL that

can be mapped to DL syntax. It has inherited Horn-

like propositional logic syntax from RuleML and this

characteristic would influence the deviation from a

DL formalism provided in (Kolovski et al., 2006)

and (Kolosvki et al., 2008). The mapping process

has already started from the previous section when

we have transformed our SWRL access control rule

into an XACML conforming representation. This

was done by translating all the properties occurring

in the antecedent and consequent to properties

applied only on concepts that could be identified in

the set of entities that occur in the XACML language

model. After the transformation, we suggest that our

SWRL access control rules can be generalised under

the following formalism.

Formalism1:

Rule := Target

∧

Conditions

→ Effect

∧

Obligations

R := Tgt

∧

Con → Eft

∧

We denote by:

 R: an OWL concept representing an access

control rule.

 Tgt: the target of a rule R that usually constitutes

of the elements Subject, Object, Action and

Purpose.

 Con: the constraints to be imposed on the

different elements of a target and that should be

satisfied in order for the decisions specified in the

consequence clause to be satisfied.

 Eft: the effect of a rule R that could be a Permit

ASWRLBridgetoXACMLforCloudsPrivacyCompliantPolicies

or Deny

 Ob: the set of obligations that could be associated

with the rule R

Formalism 1 may be mapped to Formalism 2 as

described below:

Formalism 2:



Rule R



[



i0

R, pd



][



i3,kn

, pc



] 

Eft R,e





[

j0

R,ob







]



Where i, j and k are natural numbers ranging,

respectively, over the number of rule target elements

(0..3), the number of properties in our ontology

(0..n), and the number of obligations that would be

associated with the rule R (0..m), and where:

  with limits is the symbol for multiple

conjunctions;

 Pd denotes an OWL property used for declaration

of the target elements of a rule R;

 Pc denotes an OWL property used for specifying

constraints on the elements constituting a target

of a rule;

 C represents a given class of our ontology with

C0, C1, C2 and C3 representing respectively the

entities constituting the elements of a target of a

rule in the order: Subject, Object, Action and

Purpose;

 Eft is an OWL property specifying the effect of a

rule R, its value is a literal e where e belongs to

{permit, deny}.

Table 2 provides a one to one mapping of the entities

Table 2: Logical formalism of SWRL access control rules.

Entity SWRL formalism

SWRL Rule:



 



03, 0

Rule(R) [ Pd R, pd R ] [ Pc C , C ] Eft R,e [ Ob R, ]

 

  

iijn j

ii kiki jj

pc ob R



Effect

Eft(R, e) e ::= Permit | Deny

Target

Subject(R,Sub) Object(R,Obj) Action(R,Act) Purpose(R,Pur)

::=



Pd R, pd R







Conditions

Conditions(Sub)  Conditions(Act)  Conditions(Res)

Conditions(Pur)::=



Pc C , C

 



ijn

ki ki

Obligations

πOb::=



Ob R,





ob R

Table 3: SWRL to XACML mappings.

Entity SWRL formalism XACML formalism

Rule

Formalism 2 R ::= (Rule Tgt Eft)

Effect

Eft(R, e)

e ::= Permit | Deny

Eft ::= Permit | Deny

Target

Subject(R,Sub) Object(R,Obj) 

Action(R, Act)  Purpose (R,

Purpose)

::=



Pd R, pd R





Tgt ::= ((Sub) (Act)(Res) (Pur))

Condition

Clause

πConditionsπ Sub) 

Conditionsπ(Act) 

Conditionsπ(Res) 

Conditionsπ(Pur)

::=



Pc C , C

 



ijn

ki ki

Each Pc(C, Pc(C)) :=

Sub |Act | Res| Pur ::= Any | Fn

Fn::= AV | Fn \ Fn | Fn

[Fn | ¬ Fn

AV::=(attr-id attr-val)

attr-id

attr-value

Obligations

πOb::=



Ob R,





ob R

Each Ob(R, ob(R))::= AV

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

constituting an XACML rule and Formalism 2.

In order to be able to translate our SWRL rules to

XACML rules we suggest allowing a one to one

mapping between our SWRL Formalism 2 and the

BNF formalism of an XACML rule provided in

(Kolovski et al., 2006) and (Kolosvki et al., 2008).

To achieve this, we have extended the XACML BNF

notation with the purpose element of a rule target and

the rule obligations clause. The mapping is described

in Table 3.

Based on the above one to one mapping, we

mapped the purpose compatibility SWRL rule

produced earlier to the XACML Rule presented in

Fig. 5. In this rule, we have chosen to name the

sender and receiver specified previously in the cloud

scenario (Section 4) as Dr_House and Dr_Casa

respectively. Other context variables describing the

objet to be shared and the sharing purpose were also

replaced with concrete values. We have chosen M1

to indicate the mammogram being sent by Dr_House

and the sending purpose were specified as

SecondOpinionOnTreatment.

<AttributeValue> Dr_House </attributeValue>

< Attribute AttributeId = “Location” DataType= “String”>

< Attribute AttributeId = “Receiver-Id” DataType= “String”>

< Attribute AttributeId = “Receiver-Location” DataType= “String”>

<AttributeValue> Italy </attributeValue>

< Attribute AttributeId = “Role” DataType= “String”>

<AttributeValue> Doctor </attributeValue>

</Subjects>

< Attribute AttributeId = “Consent” DataType= “Boolean”>

</Resources>

<AttributeValue> SecondOpinionOnTreatment</AttributeValue>

</Attribute>

</Attribute>

</Purpose>

</Target>

<Condition

-- Consent-Purpose is the purpose for which the data subject has consented or the purpose for which the data (Resource) is

legally stored on the grid database we have specified this purpose as an attribute of the resource in question--

<ResourceAttributeDesignator attributeId= Consent Purpose DataType = “string”/> BreastCancerDiagnosisAndTreatment

</ResourceAttributeDesignator>

</Apply>

<Apply>

</Apply>

</Condition>

</Rule>

Figure 5: Privacy aware XACML rule.

ASWRLBridgetoXACMLforCloudsPrivacyCompliantPolicies

7 SEMI-AUTOMATED MAPPING

OF SWRL RULES TO XACML

RULES

In order to further automate the mapping of SWRL

rules to XACML rules, we rely on mapping

templates where we can specify for each OWL

property an equivalent XACML attribute ID.

Furthermore, we need a detailed one to one mapping

between the OWL axioms specifying

conditions/constraints on the different elements of a

rule target and the standard XACML functions that

could be used as alternatives to these axioms once

applied on XACML attribute-ids.

In most of the cases, an XACML equality

function/predicate would be the relevant function to

allow the translation of an OWL property constraint.

The two operands of the equality are first, the

attribute_id that should hold the name of the OWL

property and second the attribute value that should be

the same as the OWL property value. XACML

distinguishes between several equality checking

functions depending on the data types of the

operands. The equality functions in XACML include

string-equal, Boolean-equal, Integer-equal and other

types. Deciding on which one we need to select is

based on a mapping between the OWL data type of

the property value and XACML data types. If the

property value is determined by an object property

then an XACML attribute matching function of type

string should be used. If the property value is

determined by a data type property, then the

XACML attribute matching function should have the

same type as the data type property value. The work

presented in (Kolovski et al., 2006) and (Kolosvki et

al., 2008) provides a detailed mapping of XACML

data types to OWL data types. A reverse mapping is

needed in our case, since we are interested in

mapping OWL axioms to XACML conditions

instead.

8 CONCLUSIONS AND FUTURE

WORK

In this paper, we have modelled high level policies

interpreted from European and national data

protection law as privacy aware access control

policies. The use of Semantic Web technologies such

as OWL and SWRL allowed the integration of

privacy requirements highlighted in text law such as

requirements of consent and other safeguards of

patient rights as policy constraints. Towards an easy

enforcement in the security architecture of highly

distributed infrastructures such as clouds, we have

used mapping templates to transform the Semantic

Web access control policies to a de facto and highly

portable standard of access control notably XACML.

The work is validated through the use of examples

and scenarios of data processing and one of them is

selected and presented in this paper i.e. “Medical

Images Exchange”. This permitted to conclude that

the use of ontologies and semantic technologies

could provide relatively easy interpretation of

legislation at an operational level. Few challenges

were faced when conducting this work that we have

overcome by mapping the SWRL privacy policies to

XACML policies. An interesting future work in this

area for us is to produce an extended XACML

enforcement architecture that is able to adequate the

added semantic layer for the SWRL to XACML

mapping task. This will require both an

implementation of the mapping formalism and

testing it on the extended enforcement architecture.

REFERENCES

Brandic, I. and Dustdar, S. and Anstett, T. and Schumm, D.

and Leymann, F. and Konrad, R., 2010. Compliant

Cloud Computing (C3): Architecture and Language

Support for User-Driven Compliance Management in

Clouds, IEEE 3rd International Conference on Cloud

Computing.

Bechhofer, S. et al., 2004. OWL Web Ontology Language

Reference, [Online] W3C Available at: http://

www.w3.org/ TR/owl-ref/ [Accessed 2013].

Beyleveld D, Townend D., Rouillé-Mirza S., Wr ight J.,

2004. Implementation of the Data Protection Directive

in relation to medical research in Europe, Ashgate

Publishing Limited, ISBN-10: 0754623696.

Boley, H. et al., 2010. Schema Specification of RuleML

1.0, [Online] Available at: http://ruleml.org/1.0/

[Accessed 2012].

Casassa Mont, M., Crosta, S., Kriegelstein, T. & Sommer,

D., 2007. PRIME Architecture V2, Deliverable

D14.2.c. [Online] Available at: https://www.

primeproject.eu/prime_products/reports/arch/pub_del_

D14.2 .c_ec_WP14.2_v1_Final.pdf [Accessed 2013].

Casassa Mont, M., Shen, Y., Kounga, G. & Pearson, S.,

2010. EnCoRe Project Deliverable D2.1. Technical

Architecture for the first realized Case Study. [Online]

(1.0) Available at: http://www.encoreproject.info

[Accessed June 2013].

Damiani, E., di Vimercati, S. D. C., Fugazza, C. &

Samarati, P., 2004. Extending Policy Languages to the

Semantic Web, in Proceedings of the 4th International

Conference of Web Engineering, Springer.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

Demchenko, Y., Koeroo, O., de Laat, C. & Sagehaug, H.,

2008. Extending XACML authorisation model to

support policy obligations handling in distributed

applications. In Proceedings of the 6th International

Workshop on Middleware for Grid Computing, ACM.

EC.Directive 95/46/ECofthe European Parliament and of

the Council.,1995 (cited 2010). Available online from:

http://ec.europa.eu/justice/policies/privacy/law/index_e

n.htm#directive.

Gowadia, V., Scalavino, E., Lupu, E. & Aziz, B., 2008.

The Consequence Project, Deliverable D3.1: Models

and framework for Meta-data generation and policy

infrastructure. [Online] Available at: http://www.

consequenceproject.eu/ Deliverables_Y1/D3.1.pdf.

Gruber, T. R., 1995. Toward principles for the design of

ontologies used for knowledge sharing. International

Journal of Human-Computer Studies, 43(4-5),pp. 907--

928.

Horrocks, I. et al., 2004. SWRL: A Semantic Web Rule

Language Combining OWL and RuleML. [Online]

W3C Available at: http://www.w3.org/Submission

/SWRL/ [Accessed 2013].

Italian Personal Data Protection Code, 2003. Legislative

Decreeno. 196 of 30 June 2003. Online; 2003 (cited

2012). Available from: http://www.privacy.it/

privacycode-en.html.

Iversen A., Liddell K., Fear N., Hotopf M., Wessely S.

Consent, 2006. Confidentiality and the Data Protection

Act, British Medical Journal (Clinical Research Ed),

332 (7534):165–169.

Jeremy W. Bryans, John S. Fitzgerald, 2007. Formal

engineering of XACML access control policies in

VDM++, Proceedings of the formal engineering

methods 9th international conference on Formal

methods and software engineering, November 14-15,

Boca Raton, FL, USA.

Kolosvki, V. 2008. Logic-based Framework For Web

Access Control Policies, PhD Thesis, Digital

Repository at the University of Maryland, College

Park, Md.

Kolovski, V. & Hendler, J., 2008. XACML policy analysis

using description logics, [Online] Available at:

http://www.mindswap.org/kolovski/KolovskiXACM

LAnalysis- JCSSubmission.pd [Accessed 2012].

Kolovski, V., 2006. Formalizing XACML Using

Defeasible Description Logics. Technical Report TR-

233-11, University of Maryland, College Park.

Masi, M., Pugliese, R., Tiezzi, F., 2012. Formalisation and

Implementation of the XACML Access Control

Mechanism, In ESSoS. LNCS 7159, 60-74, Springer.

Matteucci, I., Petrocchi, M. & Sbodio, M.L., 2010.

CNL4DSA – a Controlled Natural Language for Data

Sharing Agreements, In Proceedings of the 2010 ACM

Symposium on Applied Computing, Sierre, Switzerland,

ACM.

McCullagh, K., 2006. Study of data protection:

harmonization or confusion? In Proceeding of the 21st

BILETA Conference: Globalisationand Harmonisation

in Technology Law, Malta.

Muppavarapu, V. & Chung, S.M., 2008. Semantic-Based

Access Control for Grid Data Resources in Open Grid

Services Architecture - Data Access and Integration

(OGSA-DAI), in 20th IEEE International Conference

on Tools with Artificia lIntelligence (ICTAI 2008),

Dayton, Ohio, USA, 2008. IEEE Computer Society.

OASIS XACML, 2005. eXtensible Access Control Markup

Language (XACML), Version 2.0 (2005), Available

online at http://docs.oasisopen.org/xacml/2.0/XACML-

2.0-OS NORMATIVE.zip.

OASIS XACML, 2013. eXtensible Access Control Markup

Language (XACML), Version 3.0, http://docs.oasis-

open.org /xacml/3.0/xacml-3.0-core-spec-os-en.pdf

[Accessed 2013].

OCSI: The Open Cloud Standards Incubator, 2010.

Architecture for Managing Clouds, White Paper from

the Open Cloud Standards Incubator 1.0, DMTF DSP-

IS0102, [Online] Available at: http://www.dmtf.org/

standards/published_ documents/DSP-IS0101_1.0.pdf.

Ontario, 2008. Freedom of Information and Protection of

Privacy Act, [Online] Available at: http://www.elaws.

gov.on.ca/html/statutes/english/elaws_statutes_90f31_e

.htm [Accessed 2013].

Powers, C., Adler, S. & Wishart, B., 2004. EPAL

Translation of the Freedom of Information and

Protection of Privacy Act, White Paper IBM Tivoli and

Information and Privacy Commissioner, Ontario.

Priebe et al., 2006. Mitigate Content-Related Risks With

Enterprise Rights Management. Trends. Forrester

Research.

Rahmouni H. B. , Solomonides T., Casassa Mont M, Shiu

S., 2010. Privacy compliance and enforcement on

European Healthgrids: an approach through ontology.

Philosophical Transactions of the RoyalSociety, 368:

pp 4057–4072.

Rahmouni H. B., Solomonides T., Mont M. Casassa, Shiu

S, Rahmouni M. A., 2011, Modeldriven Privacy

Compliance Decision Support for Medical Data

Sharing in Europe. Methods Inf Med. 2011 Aug

15;50(4):326–36.

Rahmouni, H. B., Solomonides, T., Casassa Mont, M. &

Shiu, S., 2011. Ontology Based Privacy Compliance

for Health Data Disclosure in Europe. PhD Thesis,

University of the West of England, Bristol, UK.

Sommer, D., Casassa Mont, M. & Pearson, S., 2008.

PRIME Architecture V3. Deliverable 14.2.d. [Online]

Available at: https://www.primeproject.eu/prime_

products/reports/arch/pub_del_D14.2.d_ec_WP14.2_v

3_Final.pdf [Accessed 2013]

Wang, K., Billington, D., Blee, J. & Antoniou, G., 2004.

Combining Description Logic and Defeasible Logic for

the Semantic Web. In Rules and Rule Markup

Languages for the Semantic Web: Third International

Workshop, RuleML. Hiroshima, Japan, Springer.

ASWRLBridgetoXACMLforCloudsPrivacyCompliantPolicies
