Automatic Software Development as a Service (ASDaaS)

Hind Benfenatki

, Catarina Ferreira Da Silva

, Nabila Benharkat

and Parisa Ghodous

Universit

e Lyon 1, LIRIS, UMR5205, F-69622, Lyon, France

INSA Lyon, LIRIS, UMR5205, F-69621, Lyon, France

Keywords:

Cloud Computing, Business Applications, Requirement Expression, Linked-Data.

Abstract:

Cloud-based services have become a norm for business application development. With Cloud Computing

and the convergence toward Everything as a Service (XaaS), we no longer consider the classical context of

application development, where IT teams or integrators are solicited. Current approaches in Cloud environ-

ments are usually designed for a speciﬁc Cloud platform; moreover, they are only designed for technical

users. To overcome the lack of generic and complete methodology for business application development,

we propose a methodology for Automatic Software Development as a Service (ASDaaS), which is designed

for non-technical users and promotes services reuse. In this paper, we focus on the phase of business soft-

ware requirement gathering of our methodology. We deﬁne the requirement vocabulary based on linked data

principles, and extend the Linked-USDL language to describe business stakeholder requirements as service

functions, business constraints, user preferences and QoS parameters. Our approach is illustrated with an

e-commerce example.

1 INTRODUCTION

Web and Cloud services are a popular medium

for application development and deployment on the

Cloud. Modern enterprises are moving towards Cloud

service-oriented architectures to promote reuse and

interoperability of services; and to beneﬁt from the

Cloud Computing advantages, such as small initial

investment, no license acquisition, accessibility from

everywhere and every time, high availability and so

on.

With Cloud Computing and the convergence to-

ward Everything as a Service, we no longer con-

sider the classical context of application development,

where IT teams or integrators are solicited to perform

software development. We propose a business appli-

cation development process that minimizes business

stakeholder intervention and meets Cloud character-

istics.

Let us consider an e-commerce scenario in which

a business stakeholder in a European company ”A”

would automate the IT hardware acquisition pro-

cess. The business stakeholder wants to make avail-

able to its staff a Cloud hosted business applica-

tion that allows the following functions: (i) to se-

lect products with the edition of purchase orders,

(ii) to proceed to the online purchase, (iii) and to

make delivery of the product. The business stake-

holder has to describe functional and non-functional

requirements. Functional requirements include ap-

plication business functions and business constraints.

One of the business constraints is the budget, and

for this ”A” imposes a maximum purchase order

value equal to 1000 euros. Non-functional require-

ments include user preferences and QoS Parameters.

The business stakeholder prefers to use ”PayPal Ser-

vice” for the online purchase. For the deployment

of the business application, the company ”A” relies

on previous good experience using ”Amazon EC2”

(http://aws.amazon.com/fr/ec2/) and prefers to deploy

its business application on this same platform. Com-

pany ”A” prefers to pay deployment costs with the

European currency ”euro”. This scenario requires

great caution with respect to data privacy and data in-

tegrity due to the online payments service. For main-

taining the conﬁdentiality of their data, ”A” prefers

invoked services be located in European region.

Based on our scenario, we identify the follow-

ing three challenges, which are addressed in the pa-

per: (i) how to develop a Cloud business application

that meets the business stakeholder requirements with

minimal intervention and that leverages the Cloud

Benfenatki H., da Silva C., Benharkat N. and Ghodous P..

Automatic Software Development as a Service (ASDaaS) .

DOI: 10.5220/0004844400950102

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 95-102

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

beneﬁts. Nowadays, there is a lack of a standard ap-

proach for Cloud applications development, as this re-

search aspect is still in progress, (ii) how to specify

and model the functional and non-functional business

requirements. There is a need for a model that pro-

vides explicit description of requirements to ensure

then the correct selection of services, and (iii) how to

adapt or extend service description languages to facil-

itate services selection that meet user’s requirements.

In this paper, we propose a methodology for

business application development for Cloud environ-

ments allowing business stakeholders to perform the

automatic development of those applications. This

methodology is called Automatic Software Develop-

ment as a Service (ASDaaS) and promotes the discov-

ery and the composition of Cloud services that match

functional and non-functional business application re-

quirements. Functional requirements describe service

features and business constraints. Non-functional re-

quirements describe user preferences and Quality of

Service (QoS) parameters.

The originality of our work presented in this paper

lies in the business application requirement descrip-

tion phase of the methodology. We deﬁne the require-

ment vocabulary based on the linked data principles

(http://www.linkeddata.org/), and extend the Linked

USDL language (http://www.linked-usdl.org/) so that

it can describe business stakeholder’s requirements

as service functions, business constraints, user pref-

erences and QoS parameters.

The rest of this paper is organised as follows.

Section 2 describes the works related to existing

Cloud software development methodologies. Section

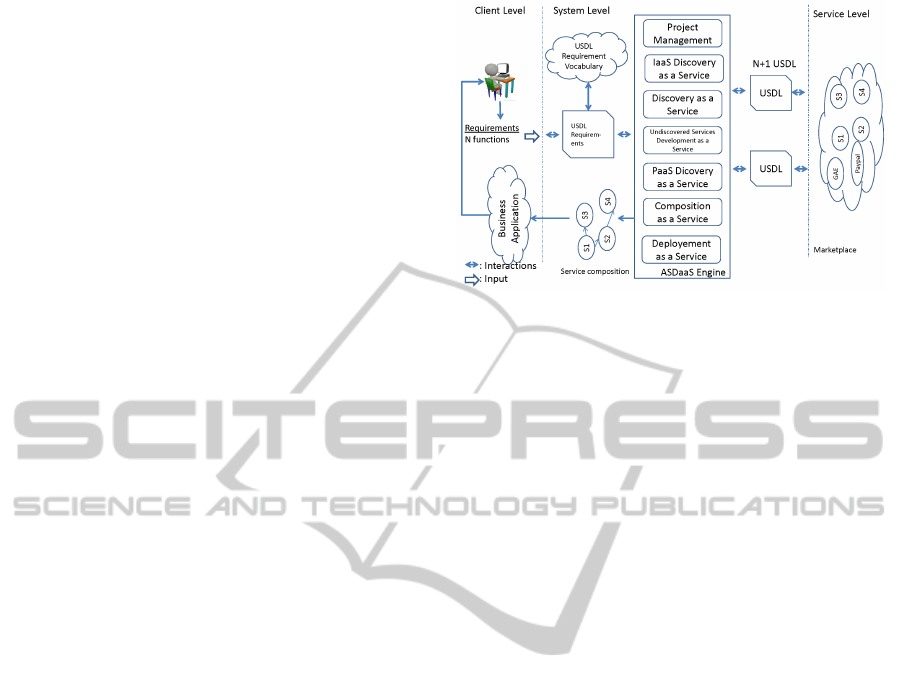

3 presents the proposed ASDaaS methodology. Sec-

tion 4 introduces ASDaaS’s architecture. We describe

the implementation and evaluate our work in section

5. Section 6 draws ﬁnal conclusions and describes our

future work.

2 RELATED WORKS

In Cloud Computing paradigm, there is a lack of com-

plete application development methodologies. How-

ever, several partial approaches for the development

of applications exist in literature. In (Sledziewski et

al., 2010), the authors propose an approach based on

Domain Speciﬁc Languages (DSL) within the devel-

opment process. The main inconvenient with this ap-

proach is the huge time that consumes the DSL devel-

opment in early phase of their approach.

Giove and colleagues (Giove et al., 2013) propose

a library called CPIM (Cloud Provider Independent

Model) abstracting from the details that are speciﬁc

of the underlying PaaS provider; and allowing an ap-

plication developer to implement his application in a

PaaS independent way. At deployment time, the de-

veloper speciﬁes the PaaS to be used. At runtime,

CPIM library acts as a mediator between the appli-

cation code and the services offered by the PaaS. Our

work will reuse and integrate this interesting approach

for developing undiscovered services.

In (Ardagna et al., 2012), the authors propose

the MODACLOUDS system, a European project

(http://www.modaClouds.eu/.) that uses the principle

of MDD (Model Driven Development) for the devel-

opment of applications on the Cloud. Applications

are designed at a high level of abstraction of the target

Cloud, making them capable of operating on multiple

Cloud platforms. The main lack in this work is that

the PaaS Cloud services selection is only taking into

account QoS parameters to the detriment of the plat-

form’s Application Programming Interfaces (APIs).

The work proposed by (Kommalapati et al., 2011)

describes a SaaS Development Life Cycle (SaaS-

DLC). The authors present an approach that promotes

evaluation of the Cloud provider based on capabili-

ties of a platform. The SaaSDLC does not consider

reuse of Cloud services. It promotes the development

to a speciﬁc platform, making application portability

more difﬁcult.

In (Guha et al., 2010), the authors advocate the

intervention of Cloud provider in the Agile eXtreme

Programming software development process, espe-

cially in planning, designing, building, testing and de-

ployment phases to mitigate the challenges associated

with Cloud software development, and make it more

advantageous. These authors integrate the notion of

roles for the various stakeholders in the agile develop-

ment process for Cloud applications, but do not con-

sider the other characteristics of Cloud applications

that can inﬂuence the development process.

In (Sun et al., 2010), the authors describe Service-

Oriented Software Development Cloud (SOSDC), a

Cloud platform for developing service-oriented soft-

ware and a dynamic hosting environment. The

SOSDC adopts an architecture covering the three lev-

els of Cloud services. The IaaS level is primar-

ily responsible for providing infrastructure resources.

The PaaS level provides App Engine for testing, im-

plementing and monitoring the deployed application

without having to consider the technical details. SaaS

level aims to provide ”Online Service-Oriented Soft-

ware Development Environment”. This approach

aims to supply a dynamic development environment

by providing on demand appliance for developers, it

is dedicated to a speciﬁc platform and does not exploit

public Cloud platforms.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

In summary, the state of the art analysis shows

there is a need for a complete methodology that

guides Cloud-based developers to perform the de-

velopment of Cloud service-oriented business appli-

cations, considering the constraints and beneﬁts of

Cloud environments.

The methodology we propose in the next section,

(i) obeys the SOA principles and techniques that pro-

mote the reusability, the loose coupling and the com-

posability of the underlying XaaSs; (ii) meets the re-

quirements of the distributed nature of Cloud; (iii)

aims to make software development more accessible

for non IT-professionals; and (iv) is independent of a

particular platform.

3 AUTOMATIC SOFTWARE

DEVELOPMENT AS A SERVICE

METHODOLOGY (ASDaaS)

Our methodology for Automatic Software Develop-

ment as a Service (ASDaaS) is aimed at business

stakeholders who need a business application to au-

tomate a frequent task. In this section, we describe

the ASDaaS methodology through the described sce-

nario.

The originality of our approach lies in the follow-

ing: (i) it allows selection of a development platform

(PaaS) according to user preferences and restrictions

of available Cloud services, such as suitable APIs,

and (ii) it allows selection of IaaS for deployment that

meets the predeﬁned user preferences and QoS pa-

rameters.

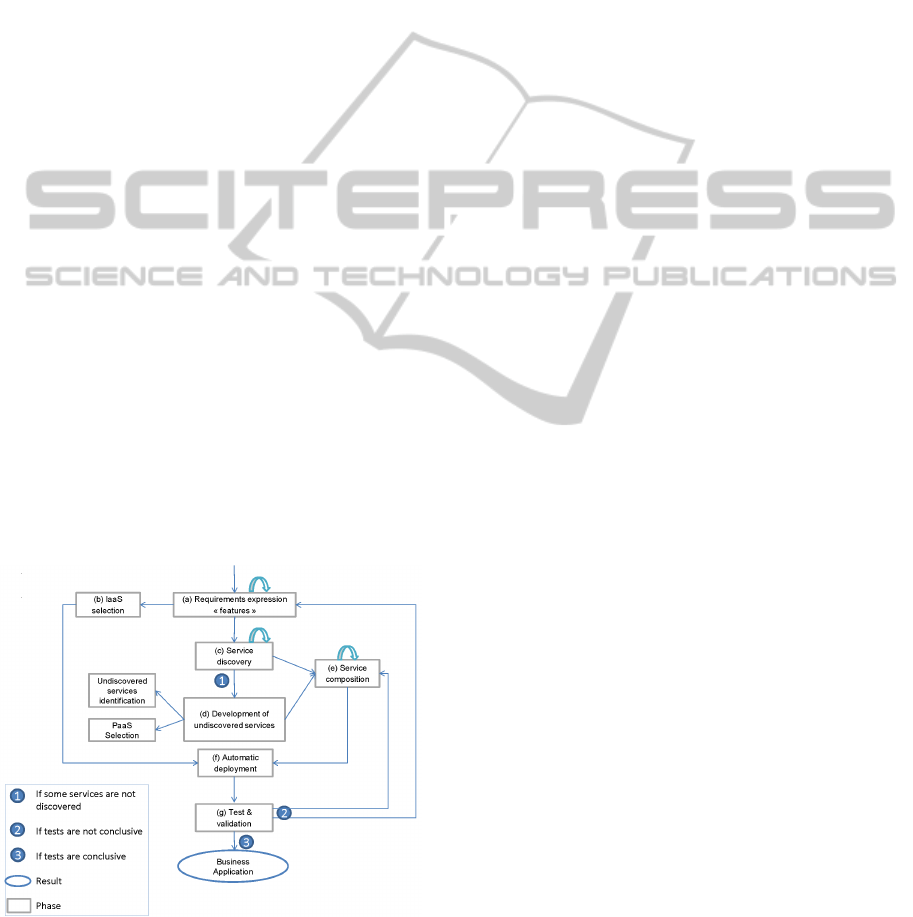

Figure 1: Automatic Software Development as a Service

methodology (ASDaaS).

Figure 1 illustrates the different phases of the

methodology, which are the following:

a) Requirements expression;

b) IaaS selection for application deployment;

c) Service discovery;

d) Development of undiscovered services;

e) Service composition;

f) Automatic deployment of business application;

g) Tests and Validation of the deployed business ap-

plication.

These phases are explained in the next sections. In

this paper we focus on business application require-

ment expression, i.e. the initial phase of the ASDaaS

methodology.

3.1 Requirements Expression

Services description languages such as WSDL (Web

Service Description Language) focus on the descrip-

tion of functional aspects of software component in-

terfaces (Coulouris et al, 2011) to the detriment of

non-functional aspects.

The USDL (Uniﬁed Service Description Lan-

guage) was created to address WSDL shortcomings

by describing business, operational and technical as-

pects in services description. Linked USDL consists

on reuse of existing vocabularies and ontologies for

services description. The rationale behind the use of

Linked Data is the requirement that USDL descrip-

tions should be shared between interested parties and

linked to other descriptions, standards and formats

(Cardoso et al, 2013).

We extend Linked USDL with a new module en-

abling to describe business application requirements.

This way it will be easier to match business stake-

holder’s requirements with Cloud services described

in Linked USDL.

The business stakeholder describes his/her busi-

ness application requirements (functional and non-

functional). Functional requirements are the appli-

cation features and the business constraints imposed

by the stakeholder’s organization. Non-functional re-

quirements are the QoS parameters and stakeholder

preferences. The latter describes, among others, the

location of services an payment means. The QoS

parameters describe the stakeholder’s business appli-

cation requirements in terms of quality of service of

Cloud platforms and infrastructures.

Following the predeﬁned scenario, the stakeholder

deﬁnes his/her business application requirements as

follows:

• Application functions:

- Laptop review service,

AutomaticSoftwareDevelopmentasaService(ASDaaS)

- Computer purchase service,

- Delivery service.

• Business constraints:

- Purchase cost max value = 1000 Euros.

• QoS parameters: in order to describe its priorities

regarding QoS parameters, he/she should assign

coefﬁcients to QoS parameters so that the sum of

all the coefﬁcients does not exceed 10. As busi-

ness application integrates online payment, the

stakeholder prefers to value data privacy and in-

tegrity more than service response time with the

following coefﬁcients:

- Data privacy: 3,

- Data integrity: 3,

- Availability: 3,

- Response time: 1.

• Stakeholder preferences:

- Services location: Europe,

- Currency: Euro,

- Cost max value: 500,

- Preferred deployment provider: ”Amazon”,

- Preferred provider for the purchase service:

”Paypal”.

Figure 2: USDL-requirement vocabulary.

The existing USDL modules

(https://github.com/linked-usdl.) are not sufﬁcient

to describe non-functional aspects of stakeholder

business requirements, such as the preference for

invoking a business provider rather than another.

To achieve the goal of providing a uniﬁed language

to describe business application requirements, we

propose to extend the Linked USDL language

by deﬁning a ”USDL-requirement” vocabulary,

which will allow matching the business applica-

tion requirements with the Linked USDL Cloud

service descriptions. Multiple vocabularies exist

(http://lov.okfn.org/dataset/lov/); we will reuse some

of their classes and properties following linked

data principles. The USDL-requirement vocabulary

describes business application requirements in terms

of stakeholder preferences, QoS parameters, service

functions, and business constraints. Figure 2 illus-

trates classes and properties that we deﬁne in the

USDL-requirement vocabulary. Rectangles represent

classes, and the circles represent the properties. For

example, the property 7 illustrates that a requirement

comprises functions, and the property 8 shows that

the stakeholder can deﬁne his preferred provider for

a given function. The gr:BusinessEntity is a Good

Relation’s (Hepp 2011) class that describes, in our

context, a service provider.

Figure 3: Requirements to USDL translation.

Figure 3 illustrates the matching process from

Linked USDL-requirement business application de-

scription to Linked USDL Cloud services. Once the

stakeholder expresses its business application require-

ments, these are formalized according to the template

of our ”USDL-requirement” vocabulary. This pro-

cess generates a ﬁle that is further divided into several

USDL ﬁles, each one describing a desirable Cloud

service. These USDL ﬁles provide input for the Cloud

service discovery process. If the USDL-requirement

ﬁle describes ”N” functions, the USDL-requirement

to USDL mapping engine generates ”N+1” USDL

ﬁles describing abstract services. ”N” USDL ﬁles cor-

respond to the ”N” functions, plus one USDL ﬁle de-

scribing the deployment platform.

Listing 1 illustrates the functions expression us-

ing USDL-requirement vocabulary in our scenario.

Line 3 presents the hasFunctions property for describ-

ing several functions needed by the stakeholder (from

line 4 to 6). Lines 8 to 10 show that the stakeholder

prefers invoking the paypal service for the computing

purchase function. From this listing ﬁle, four USDL

service ﬁles are generated, corresponding to the re-

quirements description of abstract services, which are

the products review service, the computer purchase

service, the delivery service and the IaaS deploy-

ment platform. The service discovery process re-

ceives these USDL ﬁles as input.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

1: @prefix rq: <usdl-requirements vocabulary>.

3: rq: hasfunctions

4: :laptop review service,

5: :computer purchase service,

6: :delivery service.

8: :computer_purchase_service a rq:function

9: rq:hasPreferedProvider

10: [a gr:BusinessEntity :Paypal]

Listing 1: Functions expression with USDL Require-

ment vocabulary.

3.2 Service Discovery

The process of service discovery starts from the

USDL ﬁles describing abstract services for outputting

a business service or a composite business service.

In this phase, through a business services search

engine, we have to discover business services corre-

sponding to several required functions and meeting

location, currency and preferred provider criteria. For

each service, several services can be discovered and

have to be ranked. The advantage of this phase is to

reduce the workload and improve reusability of busi-

ness services. If no business services are discovered

for some abstract services, we move on to the phase

of service automatic development.

We have to discover services in a Cloud market-

place by matching the USDL describing abstract ser-

vices and the marketplace’s USDL Cloud services.

Table 1 illustrates discovered services for the require-

ments described in our scenario with their QoS indi-

cators and cost. Where Q1 represents data privacy,

Q2 is data integrity, Q3 data loss, Q4 access control,

Q5 availability, Q6 response time. Values of Q1 to

Q5 represent satisfaction percentage of each indica-

tor. We assume that these values are retrieved from a

history of invoking these services.

Table 1: Scenario’s discovered services.

Needed

func-

tions

Disco

vered

ser-

vices

(%)

(ms)

Cost

(e/

month)

Products

review

S1 90 85 0 100 90 10 20

S2 100 95 2 98 80 20 40

Computer

pur-

chase

Paypal N.A. N.A. N.A. N.A. N.A. N.A. 32

Delivery S3 60 50 5 70 60 30 100

S4 85 90 3 90 50 5 59

IaaS Amazon N.A. N.A. N.A. N.A. N.A. N.A. 26

Currently, for the discovery of existing services,

we apply a syntactical matching. The next section de-

scribes how the services selection and their composi-

tion are done.

3.3 Service Selection and Composition

The service selection phase translates as a multi-

criteria decision making problem (Figueira, 2005).

Based on stakeholder’s preferences and QoS param-

eters, we weight the discovered services to select a

service that meets most requirements and preferences

of the user. The service provider with the highest rank

will be selected. The rank is calculated based on the

coefﬁcients associated to QoS attributes. Two scenar-

ios are available: Let S

be a service and Q

an indica-

tor.

R(S

, Q

) =

(

upper

lower

(1)

Case 1: the higher the value of the attribute is, better

is the service, for instance, the service availability. In

this case the rank associated with this attribute for a

given provider is calculated as follows:

upper

Value

Max

∗Coe f f icient (2)

Where: Value is the value of the attribute for a given

provider, Max is the maximum value of the attribute

among all providers, Coefﬁcient is the coefﬁcient pre-

viously assigned to the attribute by the stakeholder.

The sum of several coefﬁcients for all attributes does

not exceed 10.

Case 2: the smaller the value of the attribute is, for

instance, the response time, better is the service. In

this case the rank associated with this attribute for a

given provider is calculated as follows:

lower

= (1 −

Valeur

Max

) ∗Coe f f icient (3)

Let R(S

) be the global ranking regarding the whole

indicators for a service S

. The IaaS provider with the

highest rank is selected.

R(S

) =

∑

j=1

R(S

, Q

) (4)

In our scenario, the service discovery phase gener-

ates a list of services corresponding to different func-

tions described by the user. For each function, the

service with the highest rank is selected. The cost is

considered as a global criterion. Table 2 illustrates

cost and rank calculation for each selected service in

our running scenario. Service S1 is selected for the

laptop review service requirement. Service S4 is se-

lected for the delivery service requirement. In our

scenario, the stakeholder has chosen ”Amazon” as an

AutomaticSoftwareDevelopmentasaService(ASDaaS)

IaaS provider. The ﬁnal composition includes the ser-

vices S1, S4, Paypal and Amazon.

Table 2: Service costs and ranks.

Services Services rank Service

cost

(e/month)

S1 R(S1)=(90/100)*3+(85/95)*3 20

+(90/90)*3+(1-(10/20))*1

=8.88

S2 R(S2)=(100/100)*3 40

+(95/95)*3+(80/90)*3

+(1-(20/20))*1=8,66

Paypal / 32

S3 R(S3)=(60/85)*3+(50/90)*3 100

+(60/60)*3+(1-(30/30))*1

=6.78

S4 R(S4)=(85/85)*3+(90/90)*3 59

+(50/60)*3+(1-(5/30))*1

=9.33

Amazon / 26

The service composition research domain has

been subject of several surveys explaining method-

ologies, approaches and composition languages (Mi-

lanovic, 2004), (Srivastava, 2003).

In our methodology the service composition phase

combines the selected and the developed services.

The composition of services is a continuous process,

which does not stop even after the deployment of the

business application. A VCS (Version Control Sys-

tem) will manage different versions of compositions

for each business application in order to allow back-

tracking, if necessary. If a new service S1’ is discov-

ered, with the same functionalities as S1 and better

QoS, S1’ replace S1 and a new composition with S1’

instead of S1 is made, then a new version of the busi-

ness application is generated.

3.4 IaaS Selection for Application

Deployment

A Cloud infrastructure is either chosen by business

stakeholder or automatically selected for the deploy-

ment of the business application, according to perfor-

mance indicators required by the user and the QoS pa-

rameters characterizing the Cloud Infrastructure. IaaS

selection is performed by ranking different IaaS, ac-

cording to QoS indicators (response time, availability,

accessibility, security, etc.) and following the ranking

and selection processes described in section 3.3.

3.5 Development of Undiscovered

Services

In traditional systems of service discovery, the discov-

ery process will output the discovered business ser-

vices, and gives no output if no services are discov-

ered. In our methodology, when the service discov-

ery algorithm does not return a result, we propose a

development of the service. Undiscovered services

are developed from UML (Uniﬁed Modelling Lan-

guage) models. This phase identiﬁes and develops the

features described in the stakeholder’s business appli-

cation requirements that have not been discovered as

business services. This involves three key steps:

1. Undiscovered Services Modeling. Services are

modeled in UML without imposing a particular

platform, in order to allow automatic generation

of their code for a targeted Cloud platform with

full knowledge of the tools it offers. Our work will

reuse and integrate the CPIM library proposed by

Giove and colleagues (Giove et al, 2013) for de-

veloping the undiscovered services.

2. Discovery and Selection of Development Plat-

forms (PaaS) for each service. This phase allows

to select the platform based on the service to be

developed and the technologies allowed by the

PaaS, as well as on the QoS requirements. This

creates a distributed multi-platform development.

The selection of platforms is the same as for the

selection of infrastructure, with the only differ-

ence that we consider the APIs offered by differ-

ent providers. The beneﬁts of choosing a PaaS

for each service development are: (i) the develop-

ment is custom made to each service, (ii) depen-

dencies of a particular PaaS are reduced, because

a speciﬁc PaaS deployment is based on a MDD

approach, (iii) addressing the distributed nature of

the Cloud, thus increasing the availability of the

ﬁnal application.

3. Automatic Deployment and Publication of New

Developed Services. After the development of

new undiscovered services, these are deployed

and published in a marketplace of services.

3.6 Automatic Deployment

The automatic deployment phase consists in automat-

ically deploying the resulted business application on

the IaaS preferred by the business stakeholder or on

the one automatically selected by our system accord-

ing to stakeholder’s preferences and QoS parameters.

The deployment occurs until achieving stake-

holder satisfaction. If after the tests and validation

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

100

phase, tests are not conclusive and/or the stakeholder

does not validate results of the composition, IaaS

resources are freed, and another composition is se-

lected and deployed until stakeholder’s satisfaction is

achieved. Or the stakeholder can proceed to the re-

ﬁnement of its requirements.

3.7 Tests and Validation

The acceptance tests phase occurs after the business

application deployment, where the stakeholder tests

the deployed business application and veriﬁes appli-

cation features and the respect of business constraints,

with the aim of validating or bringing modiﬁcations to

the requirements expression.

If tests are conclusive, the stakeholder validates

the deployed application. Else, other services are se-

lected from the service marketplace, composed and

deployed, or, the stakeholder introduces changes in

his/her requirements expression for the business ap-

plication, after, he/she has to test and validate the new

deployed business application.

In the next section, we describe the architecture

for ASDaaS. This architecture applies the previously

explained methodology.

4 ARCHITECTURE FOR

AUTOMATIC SOFTWARE

DEVELOPMENT AS A SERVICE

The ﬁgure 4 illustrates the architecture for business

application development as a service, which consists

of three levels: client level, system level and service

level. The client level allows to describe the applica-

tion requirements (business functions, business con-

straints, QoS parameters and stakeholder preferences)

via a web form; and to access to the deployed business

application via internet.

The system level describes the core of the archi-

tecture and is the focus of the remainder of this sec-

tion. It consists of the following services: project

management, discovery as a service, PaaS discovery

as a service, IaaS discovery as a service, undiscov-

ered services development as a service, composition

as a service and automatic deployment as a service.

The project management service is in charge of

managing several projects. The discovery as a ser-

vice is responsible for the service discovery opera-

tion based on service functions, QoS parameters and

stakeholder preferences. The undiscovered services

development as a service provides development of

undiscovered services from models, on the Cloud

Figure 4: Automatic Software Development as a Service

Architecture.

platform selected by the service PaaS discovery as

service. This module generates the code exploiting

the PaaS APIs and respecting the Cloud provider ar-

chitecture. The developed services are then deployed.

The ”PaaS Discovery as a Service” module enables

to ﬁnd PaaS platform where each new developed ser-

vice will be deployed. The IaaS discovery as a service

enables the choice of an IaaS infrastructure for the

deployment of the business application. This phase

needs to match the QoS characteristics of different

IaaS with those desired by the stakeholder. The de-

ployment as a service consists of automatically de-

ploying the generated business application on a se-

lected infrastructure.

The service level includes the marketplace in

which our system selects services for composition.

5 IMPLEMENTATION &

VALIDATION

In order to validate and evaluate our proposal, we are

implementing a prototype for ASDaaS using Java lan-

guage. The phases of requirements expression, ser-

vices discovery and IaaS selection are implemented.

We use the Apache Jena Library for modeling and

manipulating the USDL ﬁles and the SPARQL Query

Language for querying them. We have implemented

an IT history service that is responsible for returning

the QoS parameters values for each discovered ser-

vice.

Due to the early stage of implementation, few tests

have been done. We have evaluated the service dis-

covery execution time variation with the number of

services in the marketplace. Figure 5 depicts these re-

sults obtained for the service discovery phase for our

running scenario.

AutomaticSoftwareDevelopmentasaService(ASDaaS)

101

Figure 5: Variation of the service discovery execution time

versus the marketplace’s number of services.

6 CONCLUSIONS

With Cloud computing, the application development

is changing, providing environments enabling to em-

power business stakeholders and to automatize the

software development activities. In this paper, we

have described a methodology for Cloud-based col-

laborative software development, and then presented

the ASDaaS architecture that addresses the challenges

of interoperability, independency to a speciﬁc plat-

form, and respects the distributed nature of the Cloud

environment. ASDaaS generates a business appli-

cation based on discovered and developed on-the-ﬂy

business Cloud services.

Currently we are implementing the business

Cloud service composition module. In the future,

we will deploy the ASDaaS architecture in the Cloud

Platform of the Lyon 1 University for evaluating and

testing this work with a large set of cloud services.

REFERENCES

Amazon. (2013). Available: http://aws.amazon.com/fr/ec2/

Ardagna, Danilo., Di Nitto, Elisabetta., Casale, Giu-

liano., Petcu, Dana., Mohagheghi, Parastoo., Mosser,

Sbastien., Matthews, Peter., Gericke, Anke., Bal-

lagny, Cyril., DAndria, Francesco., Nechifor, Cosmin-

Septimiu., and Sheridan, Craig. (2012). MODA-

CLOUDS: A Model-Driven Approach for the Design

and Execution of Applications on Multiple Clouds.

ICSE Workshop on Modeling in Software Engineering

(MISE), 2012. pp 50-56.

Cardoso, J. (2013). A Uniﬁed Language For Ser-

vice Description: A Brief Overview. Available:

http://www.issip.org/2013/04/26/a-uniﬁed-language-

for-service-description-a-brief-overview/

Cardoso, J. B. (2010). Towards a uniﬁed service description

language for the internet of services: Requirements

and ﬁrst developments. IEEE International Confer-

ence on Services Computing, Florida, USA (2010).pp

602 - 609.

Cardoso, J., Pedrinaci, C., Leidig, T., & Rupino, P. a.

(2012). Open semantic service networks. International

Symposium on Services Science 2012 (ISSS 2012).

pp 141-154.

Coulouris, G. D., Dollimore, J., Kindberg, T., and Blair,

G., (2011). Distributed Systems: Concepts and De-

sign. Fifth Edition, published by Addison Wesley,

May 2011.

Figueira, J.; Greco, S. and Ehrgott M.,. (2005). Multiple

Criteria Decision Analysis: State of the Art Surveys.

Springer, 2005.

Giove, Filippo., Longoni, Davide., Shokrolahi Yanchesh-

meh, Majid., Ardagna, Danilo. and Di Nitto, Elisa-

betta. (2013). An Approach for the Development of

Portable Applications on PaaS Clouds. CLOSER 2013

- 3rd International Conference on Cloud Computing

and Services Science, 2013. pp 591- 601.

Hepp M. (2011). GoodRelations Language

Reference. Available: http://www. hepp-

netz.de/ontologies/goodrelations/v1.html

Guha, Radha. and Al-Dabass, David. (2010). Impact of Web

2.0 and Cloud Computing Platform on Software En-

gineering. IEEE, International Symposium on Elec-

tronic System Design, 2010. pp 213-218.

Kommalapati, Hanu., and Zack, William H. (2011).

The SaaS Development Lifecycle. 2011. Available:

http://www.infoq.com/articles/SaaS-Lifecycle.

Linked Data - Connect Distributed Data across the Web.

(2013). Available: http://www.linkeddata.org/

Linked Open Vocabularies (LOV). (2013). Available:

http://lov.okfn.org/dataset/lov/

Linked USDL. (2013). Available: http://www.linked-usdl.

org/

Milanovic, N. a. (2004). Current Solutions for Web Service

Composition. IEEE Internet Computing. Vol 8. pp 51-

59.

Linked USDL modules. (2013). Available: https://

github.com/linked-usdl.

MODACLOUDS. Available: http://www.modaClouds.eu/.

Sledziewski, Krzysztof., Bordbar, Behzad., and Anane,

Rachid. (2010). A DSL-based Approach to Software

Development and Deployment on Cloud. 24th IEEE

International Conference on Advanced Information

Networking and Applications, 2010. pp 414-421.

Srivastava, B. a., Koehler, J., (2003). Web service

composition-current solutions and open problems.

Workshop on Planning for Web Services. page 28-35.

Sun, Hailong., Wang, Xu., Zhou, Chao., Huang, Zicheng.,

Liu, Xudong.,. (2010). Early Experience of Building

a Cloud Platform for Service Oriented Software De-

velopment. 2010 IEEE International Conference on

Cluster Computing Workshops and Posters (CLUS-

TER WORKSHOPS). pp 1-4.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

102
