Visual Analysis of Perceptual and Cognitive Processes

Michael Raschke

, Tanja Blascheck

, Marianne Richter

, Tanja Agapkin

and Thomas Ertl

Institute for Visualization and Interactive Systems, University of Stuttgart, Universit

atsstrasse 38, 70569 Stuttgart, Germany

EXC Simulation Technology, University of Stuttgart, Pfaffenwaldring 5a, 70569 Stuttgart, Germany

Keywords:

Visual Analysis, Perception Processes, Cognition Processes, Visualization.

Abstract:

The success of visualization techniques depends on their support of perceptual and cognitive processes to

perceive the graphically represented information. Apart from measuring accuracy rates of correctly given

answers and completion times in user studies, eye tracking experiments provide an additional technique to

analyze perceptual and cognitive processes of visual tasks. This paper presents an interdisciplinary approach

for studying structures of scan paths by visual means. We propose to annotate graphical elements with semantic

information. This annotation allows us to analyze the ﬁxation sequences on these annotated graphical elements

with respect to reading processes, visual search strategies, and visual reasoning.

1 INTRODUCTION

A key factor for the success of a visualization tech-

nique is the efﬁciency of how users perceive infor-

mation using this visualization technique. Apart

from measuring completion times and recording

accuracy rates of correctly given answers during task

performances, eye tracking experiments provide an

additional technique to analyze how the attention of a

visualization observer is changing on a presented stim-

ulus. Therefore, gazes on the stimulus are recorded

and afterwards aggregated to ﬁxations and saccades

for measuring which areas on the stimulus have been

focused on. These scan paths show ﬁxations dur-

ing a moment-by-moment processing of a visual

task (Koerner, 2011), (Rayner, 1998) and therefore

are most suitable to identify or differentiate between

comprehension processes (Grant and Spivey, 2002).

To better study cognitive and perceptual processes

during a visual task, we propose to annotate task

relevant areas (areas of interest) on the stimulus with

information about the semantic meaning of graphi-

cal elements inside these areas. As an appropriate

visualization technique to study both declarative

and procedural cognitive processes we are using the

parallel scan path visualization technique (Raschke

et al., 2012). By mapping semantic information to

the area of interest axes in the parallel scan path

visualization our approach allows us to study mental

processes such as visual search, visual reasoning as

well as cross-checking behavior.

2 RELATED WORK

Eye tracking is used in a wide ﬁeld of user experi-

ments in psychology, cognitive science, marketing,

visualization, human-computer, and human-machine

interaction. This paper will focus on the analysis of

eye tracking experiments in the visualization research

domain. One example of an eye tracking study in

visualization research is the comparison of different

types of graph layouts such as radial, orthogonal

and traditional conducted by Burch et al. (Burch

et al., 2011). We will later use this eye tracking

experiment for a demonstration of our approach.

Another example is the eye tracking experiment by

Huang et al. Their results show that graphs are read

following a geodesic-path tendency. As a result, links

which go towards the target node are more likely

to be searched ﬁrst (Huang et al., 2009). Kim et al.

investigate the inﬂuence of peripheral vision during

the perception of visualizations (Kim et al., 2012).

Different approaches have been developed to

analyze eye tracking data. One approach is to an-

alyze eye tracking results with statistical methods

to ﬁnd correlations between different dimensions

in the recorded eye tracking data (Holmqvist et al.,

2011). These correlations can later be identiﬁed with

metrics such as cognitive workload. The statistical

analysis can be supported by techniques from visual

analytics as discussed by Andrienko et al. (Andrienko

et al., 2012). If the deﬁnition of areas of interest is

possible, string editing algorithms can be used to ﬁnd

284

Raschke M., Blascheck T., Richter M., Agapkin T. and Ertl T..

Visual Analysis of Perceptual and Cognitive Processes.

DOI: 10.5220/0004687802840291

In Proceedings of the 5th International Conference on Information Visualization Theory and Applications (IVAPP-2014), pages 284-291

ISBN: 978-989-758-005-5

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

patterns in eye movements between these areas of

interest (Duchowski et al., 2010).

Classical visualization approaches for eye tracking

data are heat map (Wooding, 2002) and scan path visu-

alizations (Spakov and Miniotas, 2007). Different ap-

proaches of eye tracking data visualizations have been

developed to satisfy various kinds of experimental set-

ups and research questions. One implementation of an

eye tracking data visualization is eSeeTrack by Tsang

et al. that combines a time line and a tree-structured

visual representation to extend current eye-tracking vi-

sualizations by extracting patterns of sequential gaze

orderings (Tsang et al., 2010). A method, which can

be classiﬁed in-between visual and statistical analysis

techniques, is presented by Ponsoda et al. The authors

use transition matrices for analyzing eye movement

recordings during free viewing (Ponsoda et al., 1995).

Opportunities and challenges for developing new vi-

sualization techniques for eye tracking data analysis

have been discussed by Ramloll et al. (Ramloll et al.,

2004).

Although many approaches have been developed

to analyze eye movements, the interpretation of one

or more scan paths with respect to focused areas on

the stimulus and relating cognitive and perceptual

processes is complicated and there is no common way

of interpretation. To ﬁll this gap between statistical

results or visualizations of eye-tracking data and their

interpretation, Conversy et al. present a descriptive

model of visual scanning (Conversy et al., 2011).

The authors have developed a method to describe an

idealized scanning of visual representations. Where

the assumption of an idealized scan path is useful

for designing visualizations or simulation models

of cognition processes, typical scan paths from eye

tracking experiments do not show this ideal behavior.

Therefore, common patterns of eye movements have

to be extracted in order to formulate ideal scan paths.

Additionally, these ﬁndings can also be used to set

up models for simulating perceptual and cognitive

processes of visual understanding (Pinker, 1990;

Lohse, 1993; Shah, 1997). In our work we propose

to annotate areas on a visualization with semantic

information to better analyze the scan paths on the

stimulus with respect to procedural and declarative

knowledge processes. Besides using only simple

word lists of identiﬁers for graphical elements our

approach goes further and allows us to annotate areas

on visualizations with more complex information

from ontological models about graphical knowledge

as presented by Pinker et al. in his visual search

modeling algorithms.

Finally, an adequate visualization technique is

missing, that both graphically shows ﬁxation se-

quences on annotated areas on a stimulus and allows

to study cognitive and perceptual processes. In this

work we will use the parallel scan path visualization

technique that maps gaze durations and ﬁxations

inside areas of interest to vertical axes in one dia-

gram (Raschke et al., 2012). Areas of interest are

deﬁned on the stimulus and are mapped to vertical

coordinate axes in the parallel scan path plot. The

leftmost axis indicates time, starting from the bottom

of the diagram with the start time of the eye tracking

measurement. The orientation of the parallel scan

path visualization is arbitrary. In the following we

use a vertical time axis from bottom (start of the

scan path recording) to top (end of the scan path

recording) as introduced in the original work. The

horizontal axis displays all selected areas of interest

as independent values. Saccades between areas of

interest are indicated with dashed lines. Ascending

lines indicate ﬁxations outside given areas of interest.

Using the parallel scan path visualization for our

approach, areas of interest axes in the parallel scan

path visualization will be identiﬁed with semantically

annotated areas on the stimulus.

3 MOTIVATION AND CONCEPT

Our concept is based on three assumptions according

to ﬁndings during eye tracking user studies and to the

literature:

To perform a given task using a visualization,

task relevant areas on the stimulus are focused

on in serial order. We assume that the sequence

of ﬁxations on these areas represent perceptual

and cognitive processes (Koerner, 2011), (Rayner,

1998), (Grant and Spivey, 2002).

For the analysis of perception and knowledge

processes we are dividing up knowledge into

declarative knowledge and procedural knowledge

according to standard classiﬁcation of psychology

and cognitive sciences (Anderson et al., 2004a).

Based on this deﬁnition we classify an information

seeking method on a stimulus using two kinds

of visual tasks: 1) Visual search and reading

processes without drawing a conclusion - the

semantic meaning of graphical elements and

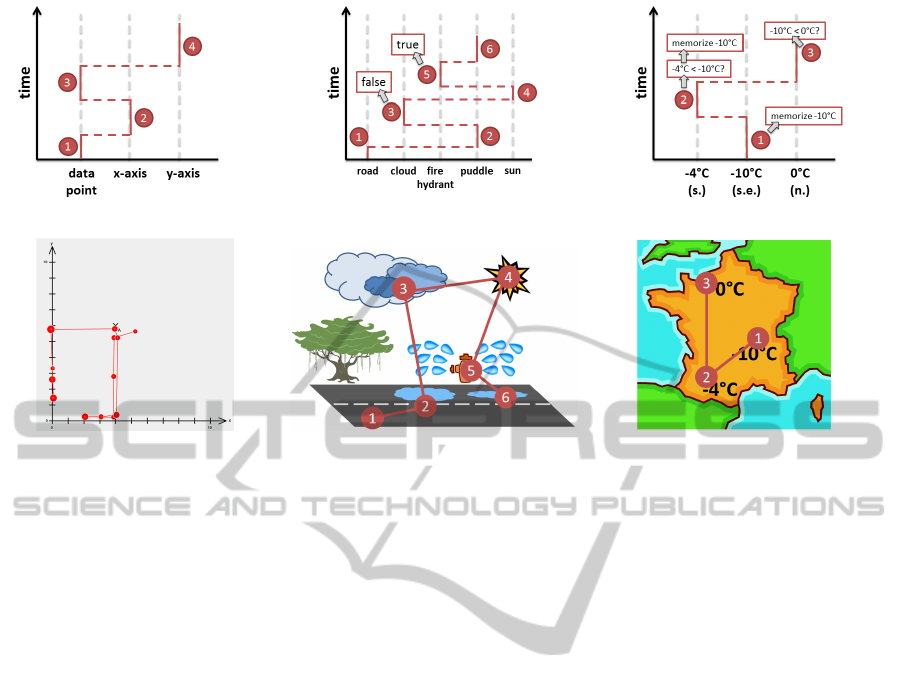

declarative knowledge is of interest - (cf. Fig-

ure 2a+d) and 2) tasks where the observer of

a visualization has to draw a conclusion - the

syntactical relations of graphical elements are of

additional interest. Declarative knowledge as well

as procedural knowledge play an important role

(cf. Figure 2b+c,e+f).

VisualAnalysisofPerceptualandCognitiveProcesses

285

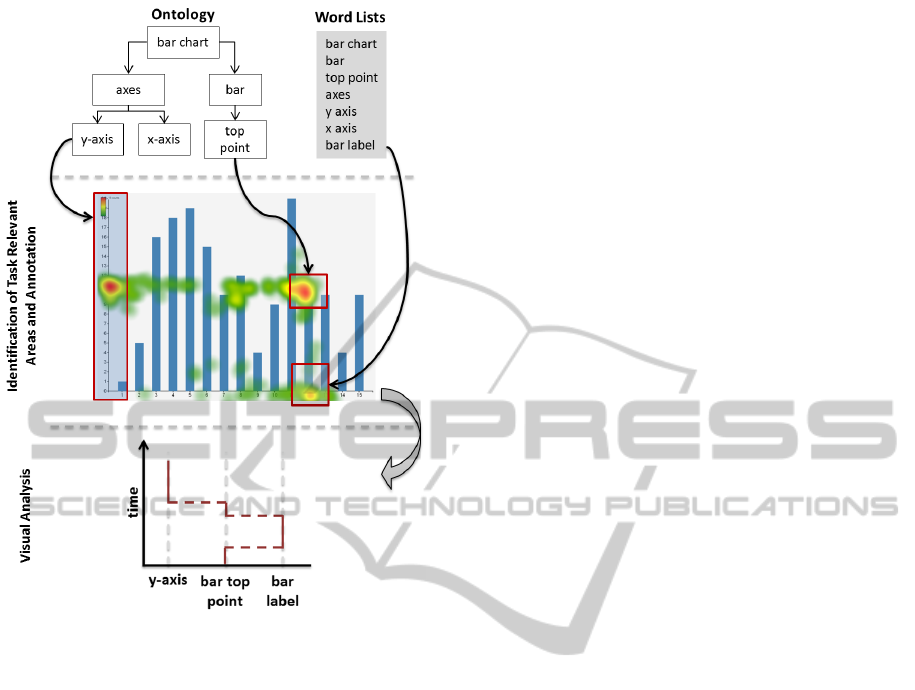

Figure 1: Graphical elements are annotated with semantic

information either from an ontology or by using identiﬁers

from word lists. The ﬁxation sequence is analyzed with the

parallel scan path visualization technique.

Based on these three assumptions this paper con-

tributes an analysis concept with three steps (cf. Fig-

ure 1):

Task relevant areas on the stimulus have to be iden-

tiﬁed.

These areas have to be semantically annotated with

respect to the meaning of graphical elements inside

these areas. This annotation can either be done

classically with identiﬁers from word lists or with

links to elements from an ontology that describes

graphical elements and their relations for a given

visualization concept.

Finally, saccades between these areas as well as

ﬁxation durations and summarized ﬁxation dura-

tions outside these areas are visually analyzed.

In the following we will describe these three steps

in more detail.

3.1 Identiﬁcation of Task Relevant

Areas

In most cases, areas with a high density of ﬁxations of

one or more participants indicate graphical elements

which are relevant to perform a given task. These ar-

eas can simply be identiﬁed with heat maps (cf. Fig-

ure 1, middle). After relevant graphical elements of

the stimulus are identiﬁed, areas of interest are deﬁned

which contain these graphical elements.

3.2 Annotation of Task Relevant Areas

Areas of interest are annotated with information about

their semantic meaning (cf. Figure 1, top). The se-

mantic information could be the type of the graphical

element, its name, or a reference to another resource

that contains further information about this graphical

element depending on the research question. An

adequate naming of the graphical elements is crucial

for the syntactic and semantic analysis of the scan

paths (Perini, 2005), (Pinker, 1990). If an ontology

or a model of visualization knowledge is available,

additional information such as the relationship of

focused graphical elements can be used during the

analysis.

3.3 Visual Analysis

Figures 2a-c show three exemplary parallel scan

path visualizations for a) visual search and reading

processes, b) visual reasoning, and c) mixed pro-

cesses representing different types of perceptual and

cognitive processes.

Figure 2a shows an idealized scan path for reading

the position of a given point in a Cartesian coordinate

system (Figure 2d shows the stimulus). An idealized

ﬁxation sequence could be the following: focus on the

data point (1), on the x-axis to read the corresponding

x-value (2), on the data point again (3), followed by a

reading of the vertical position on the y-axis (4). At

this moment, all task relevant graphical elements have

been focused on at least one time to answer the task.

Figure 2b shows the idealized scan path for the task

“Why is the road wet?” (cf. Figure 2e) that could be to

ﬁrst focus on the road (1), then on the puddle (2), on

the cloud (3), on the sun (4), and on the ﬁre hydrant

(5). Finally, the attention could move to the puddle

again (6). This ﬁxation sequence shows single steps

of logical reasoning: The solution is to verify, if there

is rain coming from the cloud (false), or if the ﬁre

hydrant is sprinkling (true), or if both is true (false).

Finally, Figure 2c shows an ideal scan path for the task

“Is the lowest temperature of all given temperatures in

IVAPP2014-InternationalConferenceonInformationVisualizationTheoryandApplications

286

(a) (b) (c)

(d) (e) (f)

Figure 2: Idealized scan paths which show simple examples of scan paths to illustrate the visual analysis approach presented in

this paper: visual search processes (a+d) and reading of plotted values in a diagram, an exemplary reasoning task (b+e) and an

exemplary visual analysis of a simple mixed task with visual search, reading, and reasoning (c+f).

southern France lower than the given temperature in

northern France?” (cf. Figure 2f). The idealized scan

path shows a ﬁrst ﬁxation on the

−10

◦

C label in the

south east of France (1), then on the

−4

◦

C label in the

south (2). The next step is to move the attention to the

northern part of France to read the

◦

C label (3). By

memorizing the lower temperature from the south and

comparing it with the one in the north the answer to the

question can be given. This ﬁxation sequence indicates

that declarative knowledge has to be memorized and

processed. Times for reading the temperature values

and memorizing them as well as restoring them again

from memory can be directly seen in the visualization.

4 CASE STUDIES

In this section we will demonstrate how the presented

approach can be applied to four case studies using

data from real eye tracking experiments. Due to our

work aiming at demonstrating the presented approach,

we will concentrate on showing ﬁxation sequences of

some exemplary stimuli and participants. The ﬁrst

three case studies are based on a pilot study with ten

participants. With this pilot study we tested the exper-

imental design and set-up for a future eye tracking

experiment with forty participants to study perception

and cognition processes in different visualization

scenarios. For every scenario, we have designed a

separate experiment with a within-subject study de-

sign. At the beginning of every scenario, participants

were given a short tutorial with instructions to the

following task. Afterwards the actual experiment was

started. Before every measurement in a scenario, we

calibrated the eye tracker system Tobii T60 XL with

the calibration algorithm implemented in Tobii Studio

2.7. To further conﬁrm this calibration of all stimuli

during a run of a task, we showed a black cross in the

center of the screen between every stimulus. Subjects

had to focus on this marker. To start a task in a sce-

nario, participants had to press a key on the keyboard.

Then, the stimulus was presented. Subjects had to

press a key on the keyboard again, if they were sure to

answer the given question. The stimulus disappeared

and the black cross was presented again. Then, the

participants had to give their answer. The fourth

case study is based on a an experiment conducted by

Burch et al. Due to space limitation we will refer to

the original work (Burch et al., 2011) for a detailed

description of the experiment.

4.1 Fixation Loops during a Visual Task

Twenty-four different bar charts were used in the

ﬁrst task block and have synthetically been generated

with randomized values for each category. To study

different visual search strategies we have used four

types of labels of the x-axis: alphabetically, non-

alphabetically, with increasing numbers, and with

randomized numbers. Participants had to perform two

VisualAnalysisofPerceptualandCognitiveProcesses

287

classes of tasks: 1) read the value of a bar for a given

category and 2) compare the values of two bars of two

given categories with each other and state the value

of the higher one. In this sub section, we will show

results of an analysis of one stimulus and recorded

ﬁxations of one participant who has performed a

task of the ﬁrst task class. A demonstration of an

analysis for a result from the second task class will

be given in the next sub section. Figure 3a shows a

stimulus presenting a bar chart. In this example we

have used a numerical labeling of the bar categories

with continuous, increasing, natural numbers. The

participant had to read the value of the bar with

category “7”. Figure 3b shows a heat map over all

ten participants for this task. The annotated areas on

the stimulus are presented in c). We have deﬁned

four areas of interest: one for the label indicating

bar category “7”, one at the top point of the bar and

one at the corresponding value label on the y-axis.

A fourth area of interest was used to check, if the

participant had focused on the black cross at the

beginning of the task. Figure 3d shows the parallel

scan path visualization of the ﬁxation sequence for

one participant. The completion time for this task

and this participant was approximately 4.5 seconds.

First, the participant focused on the black cross, then

searched for the bar label. Afterwards, his attention

alternately moved from the bar top to the bar value

and back, followed by a short check of the correct

category. At this moment, he has focused on all task

relevant graphical elements on the stimulus and thus

could have answered the task. However, he did not

state the answer, but performed another reading of the

bar value to cross-check his answer. This second loop

of ﬁxations can clearly be seen in the ﬁxation plot

starting at 3 seconds.

4.2 Visual Search

Figure 4a shows one stimulus for the second class of

tasks of the ﬁrst task block with a heat map of all par-

ticipants (b), the areas of interest with the annotations

(c), and the parallel scan path plot of one participant

from the experiment (d). The task was to compare the

values of the bars of category “H” and category “B”

and to give the value of the higher one. The visualiza-

tion shows, that the participant at ﬁrst searched for the

labels of category “H” and “B” starting from the label

“I”. This process is shown by an ascending plot line

from left to right in the parallel scan path plot starting

from the bottom with two ﬁxations on label “H”. The

completion time for this visual search process is ap-

proximately 4.5 seconds. Once, the location of the bar

for the categories “H” and “B” were found, the par-

ticipant compared the height of the top points of the

bar. This is graphically represented by an alternating

attention between “top point bar B” and “top point bar

H”. Finally, the participant read the bar value for bar

“H” by moving his attention to the area of interest on

the y-axis with the bar values.

4.3 Visual Analysis of Reasoning

Processes

In a second task block we studied reasoning processes

using Venn diagrams. We presented ten Venn dia-

grams with different numbers of elements to study

different levels of logical complexity. One stimulus

is shown in Figure 5a. In this task block partici-

pants had to answer logical questions such as “How

many people have a high school graduation (in Ger-

man “Abitur”) or got their dream job (in German

“Traumjob”) solely by absolving an apprenticeship (in

German “Ausbildung”)?”, see Figure 5. These ques-

tions represent logical reasoning processes based on

logical AND, OR, NAND, NOR, and XOR relations.

A heat map over all participants’ ﬁxations is shown in

Figure 5b, annotated areas of interest on the stimulus

are presented in c), and the parallel scan path of one

participant in d). In total, we have deﬁned seven areas

of interest. Three areas of interest represent the three

labels for the plotted categories on the right side of the

stimulus, and four areas of interest show task relevant

information such as the number of people with high

school graduation, dream jobs, and apprenticeship

(numbers inside ellipses).

The parallel scan path visualization shows, that in

the ﬁrst two seconds of the experiment, the participant

focused on the labels on the right side of the diagram.

Once these three categories were identiﬁed and men-

tally memorized the participant alternatively moved

his attention between the areas of interest “Number of

people with high school graduation and dream job”,

“Number of people with a dream job”, and “Number

of people with a dream job and apprenticeships”. This

second phase represents the logical reasoning process.

In the last third of the experiment the participant

checked the category labels again and ﬁnally stated

the answer.

4.4 Visual Analysis of Cross-Checking

in a Complex Visualization Scenario

Burch et al. evaluated traditional, orthogonal, and

radial tree diagrams and compared accuracy, com-

pletion times, and exploration behavior to test six

hypotheses for the task: “Find the least common

ancestor from a set of marked leaf nodes.” (Burch

IVAPP2014-InternationalConferenceonInformationVisualizationTheoryandApplications

288

(a) (b) (c) (d)

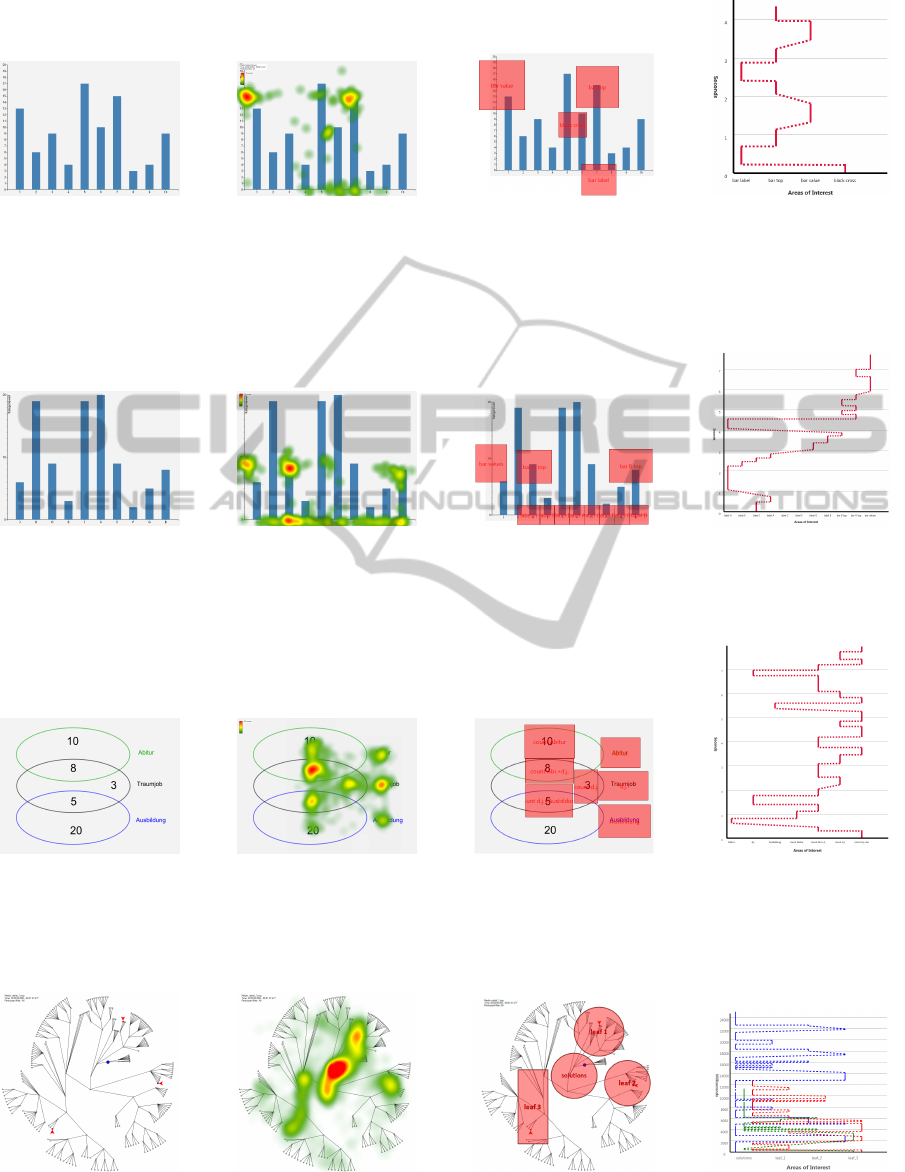

Figure 3: We have studied how participants read values of a bar of a given category in our pilot study. This example shows

the task “Please, read the value of bar ’7’.”. The stimulus for this task is shown in a), a heat map of all participants in b), the

annotated areas of interest on the stimulus in c), and ﬁnally, the parallel scan path visualization of one participant in d). The

analysis shows, that this participant performed one “ﬁxation loop” in the second half of the experiment before stating the

answer.

(a) (b) (c) (d)

Figure 4: This example shows results of the task “Compare the value of category ’H’ with the value of category ’B’ and state

the value of the higher one.”. In d) the ascending parallel scan path from left to right in the ﬁrst half of the experiment shows

the ﬁxations of the visual search process for ﬁnding the two labels “H” and “B” followed by comparing the bar heights.

(a) (b) (c) (d)

Figure 5: In a second task block we have studied reasoning processes using Venn diagrams. These ﬁgures show results of the

analysis of the task “How many people have a high school graduation (in German “Abitur”) or got their dream job (in German

“Traumjob”) solely by absolving an apprenticeship (in German “Ausbildung”)?”. For a detail description of the analysis we

refer to the text in section “Case Studies”.

(a) (b) (c) (d)

Figure 6: These four ﬁgures show results of the fourth case study where we demonstrate how the presented approach can be

used to analyze processes of cross-checking during performing a given task, as discussed by Burch et al.

VisualAnalysisofPerceptualandCognitiveProcesses

289

et al., 2011). For a demonstration of our approach we

will concentrate on the second part of their ﬁfth hy-

pothesis “[...] cross-checking is used more frequently

in the radial layouts.”. In the case of their experiment

“cross-checking” means, that participants ﬁnd a so-

lution for the task and verify this solution several

times. In a follow up work Burch et al. proved this

hypothesis using visual analytics techniques (Burch

et al., 2013). We can verify their results using our

approach. Figure 6a shows a radial tree diagram

stimulus from the experiment together with the heat

map of all participants (Figure 6b). Relevant graphical

elements are the solutions (on the left, below the blue

point which indicates the root node of the tree) given

by the participants and three marked leaf nodes 1,

2, and 3 (marked by three red arrows in the original

experiment), see Figure 6c. The parallel scan path

visualization is presented in Figure 6d for the time

interval between

and

24s

. It shows three selected

participants (blue, red, and green) from the exper-

iment. The ﬁxation sequence of the green subject

shows, that he at ﬁrst focused on leaf node 3, then on

the solution, and then on leaf node 3 again. Next, his

attention moved to the other two leaf nodes and the

solution. He did not perform a cross-checking and

answered the question after approximately

11s

. At

this moment he has focused on all relevant semantic

graphical elements for this task. This eye movement

pattern can be interpreted as an ideal scan path. The

blue subject performed cross-checking after having

focused on all relevant graphical elements during

approximately the ﬁrst

of the measurement. The

red participant ﬁrst shifted his attention between leaf

node 3 and 1, then between leaf node 2 and 1.

5 LIMITATIONS AND

IMPROVEMENTS FOR

FUTURE WORK

()A crucial question for analyzing eye tracking results

is whether the recorded eye movements reﬂect mental

processes? There has been a long discussion going

on about this question and it is not yet clearly an-

swered. Some works argue that mental processes and

eye movements are not correlating (e.g. (Anderson

et al., 2004b)), others argue that eye movements

reﬂect mental activities which they call the “Eye-Mind

Hypothesis” (e.g. (Just and Carpenter, 1980) and

(Rayner, 1998)). Results of our eye tracking experi-

ments show that ﬁxations and sequences of ﬁxations

on a stimulus correlate with cognitive processes. We

think, that this question cannot be answered with a

deﬁnite “yes” or “no”. It depends on the complexity

of the visualization, the visual task and the required

mental processes. But we believe, that the presented

approach can be helpful for discussing this question.

The second step of our analysis approach is to an-

notate graphical elements with information about their

semantic meaning. In this step an adequate naming

of the graphical elements is extremely important for

a goal oriented analysis and correct interpretation of

the ﬁxation sequences. The question how an adequate

naming can be found is an open question and has

to be investigated in future work. In our work, we

have proposed to either use identiﬁer from word lists

according to standard approaches in eye tracking

research or to link areas of interest to elements of an

ontology. This ontology can then be used during the

eye tracking analysis and for the set-up of a cognitive

model about declarative knowledge of graphical

elements. Another issue about the annotation concept

is, that the parallel scan path visualization technique

only allows non-overlapping areas of interest. Thus,

we cannot annotate graphical elements which are

overlapping. This overlapping of several semantic

annotation areas additionally leads to further questions

about knowledge modeling as in our case it is not

clear which semantic meaning of an area of interest

on the stimulus is relevant.

During the analysis of the pilot study results we

found limitations of the parallel scan path visualiza-

tion technique. The fourth case study shows, that

the higher the number of visualized participants is,

the more difﬁcult it becomes to ﬁnd common eye

movement patterns due to visual clutter of the parallel

scan path visualization technique. To reduce this

visual clutter, we propose to implement ﬁltering,

aggregation, and contextual focusing algorithms into

the visualization tool. Additional pattern recognition

algorithms such as Levenshtein distance can be used

to pre-process the eye tracking data. Thus, only

ﬁxation sequences will be shown which are relevant

for a certain research question. If two participants

strongly vary in their completion times, their comple-

tion times could be scaled in order to plot them on

the same axis length. This would make it possible to

better compare different ﬁxation time stamps with

each other and thus, compare different visual search

strategies. Another limitation is caused by the limited

number of vertical axes which can be presented in the

visualization. Additionally, an optimal ordering of

these axes can positively inﬂuence the analysis. An

automatic ordering could be done using information

from transition matrices.

IVAPP2014-InternationalConferenceonInformationVisualizationTheoryandApplications

290

6 CONCLUSION

This paper contributes an approach to visually analyze

eye tracking data with respect to perceptual and cog-

nitive processes based on a semantic annotation of

graphical elements inside the visualization. To be able

to use the concept in practice we have implemented

a prototype and have presented four case studies

covering reading processes, visual search strategies,

visual reasoning and cross-checking. Finally, we have

discussed limitations of this approach and presented

possible improvements for future work. Besides

tackling limitations in future work, we are planning

to use the analysis concept during the development

of cognitive models for visual search and visual

reasoning.

REFERENCES

Anderson, J. R., Bothell, D., Byrne, M. D., Douglass, S.,

Lebiere, C., and Qin, Y. (2004a). An integrated theory

of the mind. Psychological Review, 111:1036–1060.

Anderson, J. R., Bothell, D., and Douglass, S. (2004b). Eye

movements do not reﬂect retrieval processes. Psycho-

logical Science.

Andrienko, G. L., Andrienko, N. V., Burch, M., and

Weiskopf, D. (2012). Visual analytics methodology for

eye movement studies. IEEE Transactions Visualiza-

tion Computer Graphics, 18(12):2889–2898.

Burch, M., Andrienko, G. L., Andrienko, N. V., H

oferlin,

M., Raschke, M., and Weiskopf, D. (2013). Visual

task solution strategies in tree diagrams. In Proc. IEEE

PaciﬁcVIS 2013, pages 169–176.

Burch, M., Konevtsova, N., Heinrich, J., Hoeferlin, M., and

Weiskopf, D. (2011). Evaluation of traditional, orthog-

onal, and radial tree diagrams by an eye tracking study.

IEEE Transactions Visualization Computer Graphics,

17(12):2440 –2448.

Conversy, S., Chatty, S., and Hurter, C. (2011). Visual scan-

ning as a reference framework for interactive represen-

tation design. Information Visualization, 10(3):196–

211.

Duchowski, A. T., Driver, J., Jolaoso, S., Tan, W., Ramey,

B. N., and Robbins, A. (2010). Scanpath compari-

son revisited. In Proceedings of the 2010 Symposium

on Eye-Tracking Research and Applications (ETRA),

pages 219–226, New York, NY, USA. ACM.

Grant, E. R. and Spivey, M. J. (2002). Guiding attention

produces inferences in diagram-based problem solving.

In Proceedings of the Second International Confer-

ence on Diagrammatic Representation and Inference,

Diagrams 2002, pages 236–248, London, UK, UK.

Springer-Verlag.

Holmqvist, K., Nystrom, M., Andersson, R., Dewhurst, R.,

Jarodzka, H., and van de Weijer, J. (2011). Eye Track-

ing. A comprehensive guide to methods and measures.

Oxford University Press.

Huang, W., Eades, P., and Hong, S.-H. (2009). A graph

reading behavior: Geodesic-path tendency. In Proc.

IEEE PaciﬁcVIS 2013, PACIFICVIS ’09, pages 137–

144, Washington, DC, USA. IEEE Computer Society.

Just, M. A. and Carpenter, P. A. (1980). A theory of reading:

from eye ﬁxations to comprehension. Psychological

review, 87(4):329.

Kim, S.-H., Dong, Z., Xian, H., Upatising, B., and Yi, J. S.

(2012). Does an eye tracker tell the truth about visual-

izations?: Findings while investigating visualizations

for decision making. IEEE Transactions Visualization

Computer Graphics, 18(12):2421–2430.

Koerner, C. (2011). Eye movements reveal distinct search

and reasoning processes in comprehension of complex

graphs. Applied Cognitive Psychology, 25(6):893–905.

Lohse, G. L. (1993). A cognitive model for understanding

graphical perception. Human-Computer Interaction,

8(4):353–388.

Perini, L. (2005). The truth in pictures. Philosophy of

Science, 72(1):262–285.

Pinker, S. (1990). Artiﬁcial Intelligence and the Future of

Testing, chapter A Theory of Graph Comprehension,

pages 73–126. Lawrence Erlbaum Assoc Inc.

Ponsoda, V., Scott, D., and Findlay, J. (1995). A probability

vector and transition matrix analysis of eye movements

during visual search. Acta Psychologica, 88(2):167 –

185.

Ramloll, R., Trepagnier, C., Sebrechts, M., and Beedasy, J.

(2004). Gaze data visualization tools: Opportunities

and challenges. In Proceedings of the Information Vi-

sualization, Eighth International Conference, pages

173–180, Washington, DC, USA. IEEE Computer So-

ciety.

Raschke, M., Chen, X., and Ertl, T. (2012). Parallel scan-

path visualization. In Proceedings of the Symposium

on Eye Tracking Research and Applications, ETRA

’12, pages 165–168, New York, NY, USA. ACM.

Rayner, K. (1998). Eye movements in reading and informa-

tion processing: 20 years of research. Psychological

bulletin, 124(3):372–422.

Shah, P. (1997). A model of the cognitive and perceptual

processes in graphical display comprehension. In Proc.

American Association for Artiﬁcial Intelligence Spring

Symposium, AAAI Technical Report FS-97-03. Stan-

ford University.

Spakov, O. and Miniotas, D. (2007). Visualization of eye

gaze data using heat maps. Electronics and Electrical

Engineering / Elektronika ir Elektrotechnika, pages

55–58.

Tsang, H. Y., Tory, M., and Swindells, C. (2010). eSeeTrack–

visualizing sequential ﬁxation patterns. IEEE Trans-

actions on Visualization and Computer Graphics,

16(6):953–62.

Wooding, D. S. (2002). Fixation maps: quantifying eye-

movement traces. In Proceedings of the 2002 sympo-

sium on Eye tracking research & applications, ETRA

’02, pages 31–36, New York, NY, USA. ACM.

VisualAnalysisofPerceptualandCognitiveProcesses

291
