Towards Security Awareness in Designing Service-oriented
Architectures
Pascal Bou Nassar
1
, Youakim Badr
2
, Frédérique Biennier
2
and Kablan Barbar
3
1
Agence Universitaire de la Francophonie, Mathaf, Beirut, Lebanon
2
Université de Lyon, INSA-Lyon, LIRIS-CNRS, Villeurbanne, France
3
Faculty of Sciences, Lebanese University, Fanar, Beirut, Lebanon
Keywords: Security Management, Risk Management, Service-Oriented Architecture, Reference Models and Design
Method.
Abstract: Many information security approaches deal with service-oriented architectures by focusing on security
policies, requirements and technical implementation during service design, specification and
implementation phases. Nevertheless, service-oriented architectures are increasingly deployed in open,
distributed and dynamic environments, which particularly require an end-to-end security at each phase of
the service’s lifecycle. Moreover, the security should not only focus on services without considering the
risks and threats that might be caused by elements from business activities or underlying hardware and
software infrastructure. In this paper, we develop a model highlighting the dependency between elements at
business, service and infrastructure levels, defining the design context. In addition, we develop a holistic
approach to define a security conceptual model, including services, security risks and security policies and
guides all phases in a typical design method for service-oriented architectures.
1 INTRODUCTION
Changes in economic environments and business
opportunities impose new organizational strategies
and require interoperable information systems to
facilitate collaboration between enterprises. In
addition, the exponential growth of services
accessible via the Web enable the emergence of the
service-oriented architecture (SOA) as de facto
architectural style to build agile information systems
and support the interconnection of collaborative
business processes by virtue of composing processes
from distributed services. Although SOA ensures
business and information systems alignment, it
requires the establishment of security constraints
that entirely cover the information system and is not
only being limited to service design and composition
levels. That is to say that information security should
not be limited to technological solutions and has to
simultaneously take into account business,
organizational and technological dimensions. Given
the fact that services (i.e., Web services) are not
isolated from their environments, but are instead a
part of an evolving ecosystem and depend on
business and organizational elements such as
partners, actors and organizational structure to
mention a few. Moreover, services depend on their
hosting infrastructure elements, including Web
containers, application servers, operating systems,
and networking devices. Dependencies between
different elements should be explicitly identified and
security objectives must be defined and attached to
these elements to cover the whole SOA lifecycle and
optimize security investments as well as the
sustainability of security measures.
The SOA lifecycle comprises a series of phases,
including domain analysis, service design,
development, testing, deployment and
administration (Erl, 2005). These phases are aligned
with Oracle’s SOA lifecycle model that clearly
separates the design-time by identifying business
processes, service design, build and development,
and the run-time by managing service publish and
provision, integration and deployment (Wall, 2006).
Papazoglou proposes a complementary service
model that starts with an initial phase of planning,
followed by a series of phases iteratively repeated
such as analysis and design, construction and testing,
provisioning, deployment, execution and monitoring
(Papazoglou and Van Den Heuvel, 2006). The
347
Bou Nassar P., Badr Y., Biennier F. and Barbar K..
Towards Security Awareness in Designing Service-oriented Architectures.
DOI: 10.5220/0004454103470355
In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 347-355
ISBN: 978-989-8565-61-7
Copyright
c
2013 SCITEPRESS (Science and Technology Publications, Lda.)
planning phase as a preparatory phase aims to
streamline and organize the remaining phases.
During the planning phase, the project feasibility,
goals, rules and procedures are established and
requirements are gathered.
The integration of security concerns in the
planning phase will ensure security awareness in the
services’ design throughout the service lifecycle.
Establishing an end-to-end security in SOA design
methods requires a common model or a reference
model to identify all relevant security concepts (i.e.,
security objectives, risks, security measures, etc.) in
the SOA lifecycle and ensure a coherent guideline to
design SOA as well as tie all elements at business,
service and infrastructure levels. Based on our
survey in section 2, current service reference models
do not fully cover an end-to- end security strategy
through the service lifecycle and consider
information security in a context that goes beyond
services to cover business, service and infrastructure
levels and potential dependencies between their
elements.
In this paper, we overcome these limitations by
introducing a security reference model to be used in
the planning phase in order to reduce gaps between
actors involved in SOA design. We also propose a
dependency model to establish causal relationships
between business, service and infrastructure
elements. These models also extend our previous
work (Bou Nassar et al., 2012), by which we have
proposed a secure SOA design method that tackles
security from a risk management perspective by
integrating risk management and SOA design steps
and incorporating both technological and
organizational levels (e.g., infrastructure and
business level).
The remaining sections of the paper are
organized as follows: In section 2, we discuss work
related to reference models in service-oriented
architectures. We discuss how current reference
models underestimate security requirements in open
environments (i.e., end-to-end security) and could
not identify risks and vulnerable assets and their
impact on security policies. To overcome these
limitations, we propose in section 3 a dependency
model and a secure service’s conceptual model. In
section 4 we introduce the conceptual model,
comprising three distinct models; the service’s
conceptual model (section 4.1), the risk’s conceptual
model (section 4.2) and the security policy’s
conceptual model (section 4.3). In section 5, we
conclude our work and provide future trends.
2 RELATED WORK
Given a domain of interest, a conceptual model is
defined as an abstract representation of basic
concepts, their main characteristics and relationships
among these concepts. In service-oriented
architectures, conceptual models can be used to
present the structure and relationships between
different service elements.
In SeCSE’s project (Colombo et al., 2005), a
conceptual model has been proposed to provide a
clear definition of the service’s concepts such as
publication, discovery, composition, execution and
supervision. This model was designed to be a
common reference for the involved partners
describing the actors and relevant activities as well
as the relationships between them. The model
presented in (Emig et al., 2008) aims to associate the
concepts of business process and services and
highlights the dependencies between the design and
deployment phases’ of the service lifecycle. This
allows, in a model driven approach, to transform the
business processes into deployed services.
Standards organizations like OASIS, the Open
Group and OMG have developed complementary
reference models and architectures, showing a broad
consensus on the basic concepts:
The reference model proposed by OASIS
(Matthew et al., 2006) focuses on the fundamental
concepts of SOA: service, description, visibility,
interaction and execution context. This abstract
model does not consider the services’ deployment.
The reference document “SOA Ontology" (The
Open Group, 2010) developed by the Open Group
emphasizes on the services’ description and creates
a common language for describing SOA concepts.
The reference architecture proposed by OASIS
(Estefan et al., 2008) describes how to implement a
service oriented architecture, provides guidance
and helps manage SOA with several partners. In
addition, this architecture defines a trust model for
secure collaboration. This reference architecture
can be used along with The SoaML Modeling
Language (OMG, 2009) for services’ modeling.
The Open Group Service Integration Maturity
Model (The Open Group, 2009) can be used to
assess the services’ maturity to start a SOA
project.
The "SOA Governance Model" (The Open Group,
2009) can be used to define the service oriented
architecture governance.
The OASIS reference model highlights the
models’ relations (Matthew et al., 2006). The
ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems
348
concepts defined by reference models are intended
to be the basis for describing references architectures
and patterns. Concrete architectures arise from a
combination of reference architectures, architectural
patterns and additional requirements. Another work,
carried out in (Kreger and Jeff, 2009), compares the
above listed models and shows how they
complement each other.
In the literature, it is possible to point out that the
reference models have gained a high maturity’s level
in the design, deployment and governance of service
oriented architectures. However, we note that:
None of the models mentioned above have been
developed with the aim of designing secure service
oriented architectures.
In models that tackles security aspects and trust
networks, such as OASIS’s reference architecture,
business and organizational security aspects are
not taken into account.
None of these models could be used to develop
security patterns.
For these reasons, we consider that security
awareness should be improved by developing a
model highlighting the dependencies between the
elements defining the service’s design context and a
secure service’s conceptual model that could be used
to develop security patterns.
Security management standards and methods
highlight the concepts of dependency modeling in
order to leverage an end-to-end security. As an
example the ISO 27001 specifications (ISO/IEC
27001, 2005) which employ a PLAN-DO-CHECK-
ACT (PDCA) model are based on finding
dependencies between assets following a top down
approach. The risk management method EBIOS
(ANSSI, 2010) base its analysis on assets’
dependencies. OCTAVE (Alberts, 2003) and
CORAS (Lund, 2010), two other risk assessment
methods are based on threat modelling with focuses
on dependency modelling as well. However, these
standards and methods target assessing risk in static
information systems and should be adapted to meet
dynamic services’ environments. To fill this gap, a
dependency model was proposed in (Hafner, 2009).
The model details the dependency between the
service and the hosting infrastructure. However, it
pays less attention to the business, organizational
and legal elements.

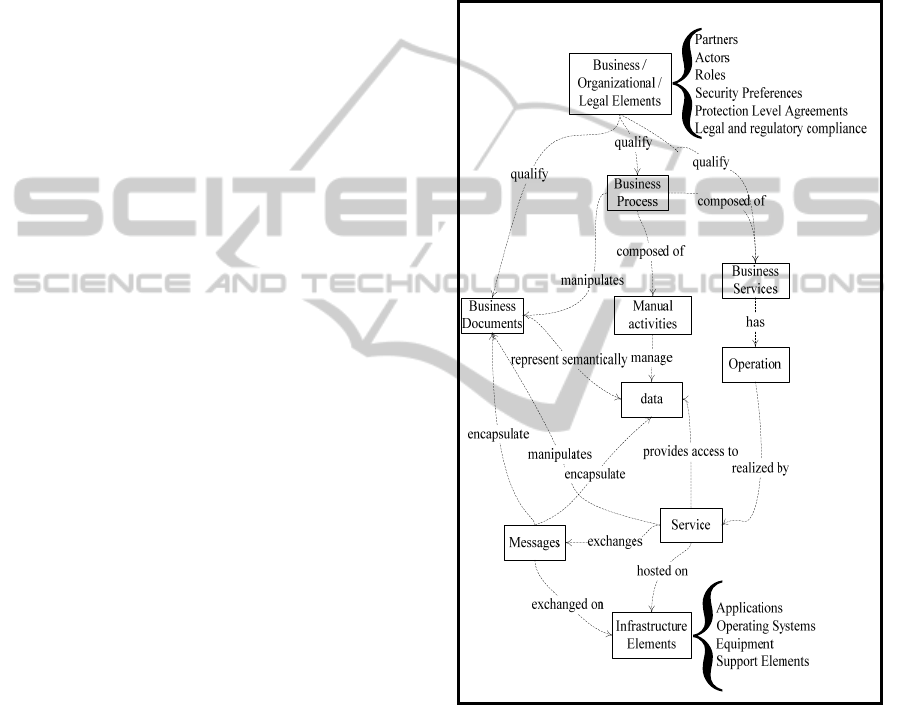

3 DEPENDENCY MODEL
To meet users’ requirements, services’ composition
provides a new perspective in creating applications
by using existing distributed services. In order to
highlight the dependency between the elements
defining the design context, we have introduced the
concept of “essential elements” which highlight the
fact that the service is not isolated and that its
security depends on the essential elements’ security.
The dependency model (Figure 1) shows the "top-
down" approach in identifying those elements.
Figure 1: Dependency model.
The essential elements are:
The business elements, describing the business,
organizational and legal context include the
business processes, business documents, partners,
actors, roles, protection level agreements, security
preferences and legal and regulatory compliance
The atomic or composite services that implement
the operations of business services
The data that can be stored or exchanged by
services
The message exchanged between services
TowardsSecurityAwarenessinDesigningService-orientedArchitectures
349
containing business documents and data necessary
to perform a particular activity
The infrastructure’s elements, describing the
services’ hosting context, consist of the
applications, systems and infrastructure’s nodes
We start by identifying the business elements, which
conceive the business processes, business services
and business documents followed by the elements
associated with the service (offered operations,
exchanged messages, encapsulated data) up to the
infrastructure’s elements hosting the services. The
dependency model is used to develop the service’s
conceptual model in the next section.
4 SECURE SERVICE’S MODEL
The conceptual secure service’s model that we
propose is built from three distinct models:
a service’s conceptual model that it built from the
dependency model and that highlights the essential
elements associated with the service.
a risk’s conceptual model putting in evidence
different types of security risk.
a security policy’s conceptual model associating
security objectives to security measures.
In the following sections, we will describe these
models and create the association between them in
order to leverage the conceptual secure service’s
model.
4.1 Service’s Conceptual Model
The service’s conceptual model (Figure 2) associates
the essential elements identified in the dependency
model: the business process is composed of business
services (automatic and semi-automatic activities)
and manual activities. Each business service
provides operations that are realized by one or more
services.
A business service exchanges messages
encapsulating business documents or data and is
implemented by services that are hosted by the
infrastructure’s elements.
To manage relationships between the provider
and the client (dotted line), we added the association
class 'contract'. The contract specifies the interface
which defines the operations, security assertions and
quality of service protection. The contract includes
the functional and non-functional description of the
service. We present in the following section the
security policy’s conceptual model associating
security objectives to essential elements and security
measures.
4.2 Security Policy’s Conceptual Model
A service is a member of an ecosystem; it has
capacities, a clearly defined role, responsibilities and
rights. The frequent changes in a service
environment, requires new strategies to secure
resources. Similarly, security solutions must be
adaptable to change.
A security policy is an efficient security measure
that could be used to define the service’s
requirements and the usage constraints. For these
reasons, we develop a security policy’s model by
associating security objectives to the business,
organizational and technological essential elements.
In fact, security should not be limited to securing
the transmission or stock of data and therefore to a
technological view. For this reason, we integrate
classification of information assets and partners,
management of access rights. The security policy
must address both the business security objectives
(information classification and resources’ usage) and
technological security objectives (e.g. security
assertions implementing security requirements).
Figure 3 presents our security policy’s
conceptual model in which we combine business,
technology and support security objectives.
In this model:
Security objectives are achieved by applying the
constraints imposed by the contract and the
security policy.
Constraints apply to essential elements and
accomplish security objectives.
Security policy depends on the context defined by
the identified essential elements.
Moreover, in this model we have defined three
generic security objectives to cover the business
aspects of security in a service’s ecosystem:
The ‘management’ of essential business elements
is the creation and administration of contracts,
rights and obligations, e.g. the management of
access rights to business documents, the
management of the agreements on the quality of
protection offered during the service’s delivery,
etc.
The ‘classification’ of business processes and
business documents by assigning them a
sensitivity level while adopting the scale proposed
by (Badr et al., 2010): Black for private data, gray
for data requiring a standard level of protection
and white for public data.
‘Trust’ associated with the classification of actors
and the establishment of a sharing network based
on specific security policies. Trust networks allow
ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems
350

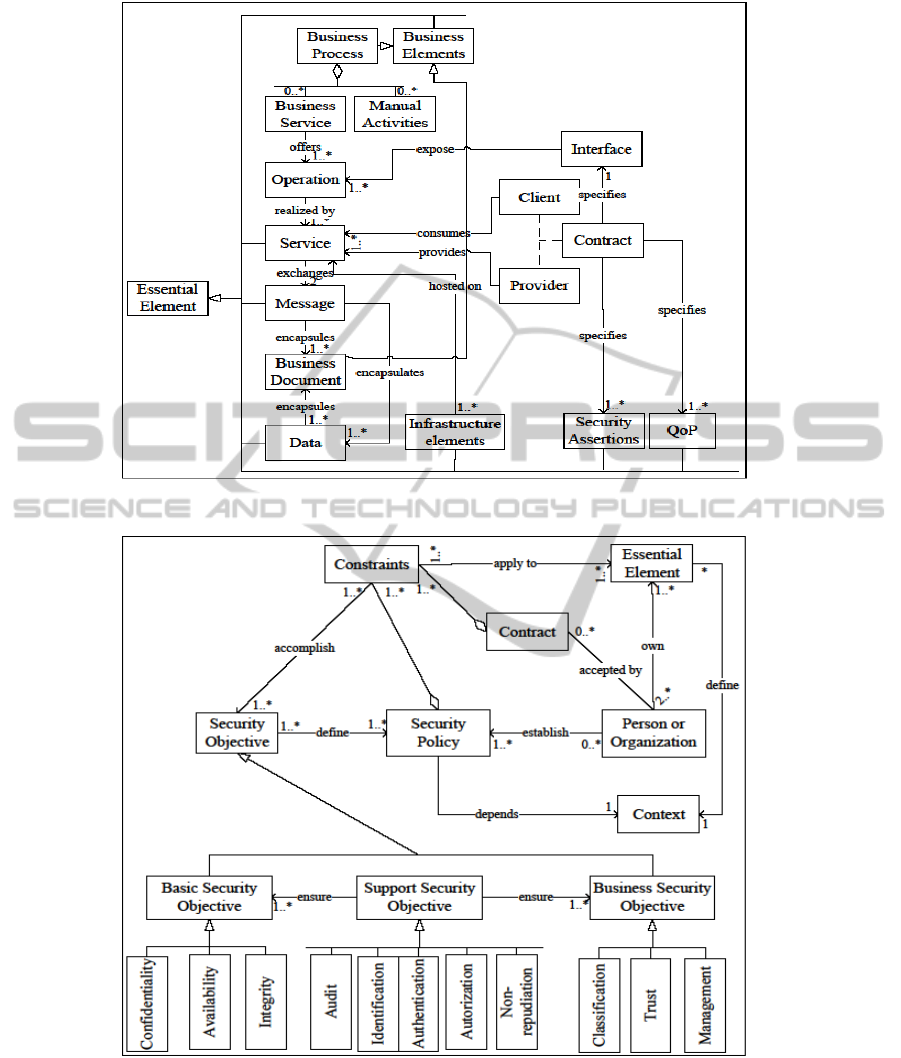

Figure 2: Service’s conceptual model.
Figure 3: Security policy’s conceptual model.
identity propagation across different domains and
management of collaboration between actors.
We present in the following section the risk’s
conceptual model by defining risks at different
levels of abstraction (business, organizational and
technological risks). This model also considers the
dynamic environments; given that the risks vary
depending on the context.
4.3 Risk’s Conceptual Model
To leverage the risk’s conceptual model (Figure 4),
TowardsSecurityAwarenessinDesigningService-orientedArchitectures
351

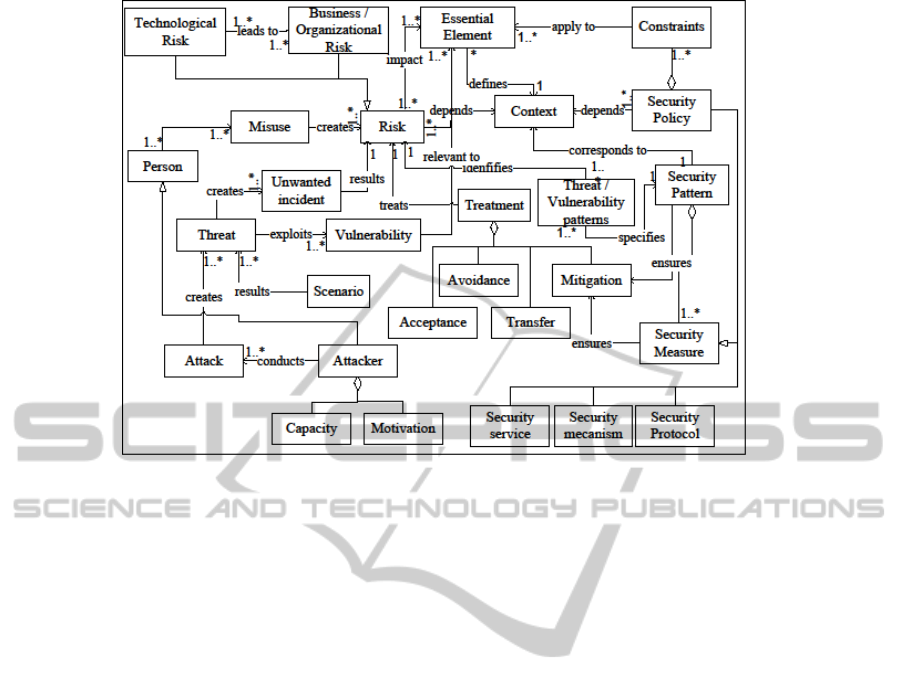

Figure 4: Risk’s conceptual model.
we highlighted the following concepts:
Identification of different risks’ types of risk
(business, organizational and technological)
impacting the essential elements, eg :
o Unavailability of the business essential element
“business process” is a business risk.
o Modification of the organizational essential
element “access rights” is an organizational
risk.
o Unavailability of the technological essential
element “router” is a technological risk.
The classification of risk types leads to an
improved risk identification in brainstorming
sessions carried by the business and technical
leaders. Besides, the integration of risks’
relationships can include causal chains in the model
and thus simplify the identification process. For
example, a business risk may result from technical
problems (the unavailability of a router may cause
the unavailability of a business process) or the
opposite (an 'business' denial of service attack on a
business process can lead to overloading the
infrastructures’ elements and therefore the router)
Association of the risk to the context defined by
the essential elements e.g, the risk level differs if
the service is hosted within the company or is
outsourced.
Definition of a treatment category (acceptance,
avoidance, transfer or reduction).
Creation of a relationship between risk and
security measures reducing risks. A security
measure can be a security policy, a security
protocol, a security mechanism or security service
(In a service ecosystem, a security service is a
service implementing a security objective, e.g. an
authorization service.
In the following section, we establish associations
between the service, security policy and risk
conceptual models to leverage the secure service’s
model.
4.4 Secure Service’s Conceptual Model
In the three models developed previously, we have
identified the following common elements: essential
element, risk, context, constraints and security
measures. We rely on those elements to create the
associations between the models and build the
conceptual secure service’s model (Figure 5),
focusing on the following factors:
The service is not isolated: its security depends on
the essential elements (business, organizational
and technological) defining the context.
Risk identification is accomplished by identifying
the unwanted incidents that may harm the essential
elements while referring to threats and
vulnerabilities patterns.
Security patterns defined from threats’ and
vulnerabilities’ generic patterns are used to
mitigate the identified risks.
Creating instances of this model is done in three
steps:
ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems
352
Figure 5: Secure service conceptual model.
Context Establishment: Identification of the
essential elements forming the context (concepts
framed in blue).
Risks Identification: Identification of risks that
may harm the identified essential elements
(concepts framed in red).
Risks Treatment: Identification of security
measures to treat risks and meet the security
objectives (concepts framed in green)
As for the context establishment, we start by
identifying the business, organizational and legal
essential elements related to business processes.
Second, we identify services that compose the
identified business processes and specify their
interfaces (offered operations, exchanged messages
and data). In turn, the services are used to identify
the infrastructure’s elements that host them. This top
down approach improves a secure services’ design
while aligning security to business needs.
To illustrate the use of our model, we propose
the example of a travel agency offering online
booking services. We start by establishing the
context and identifying the partners (hotels and
airlines), the business processes (travel reservation,
online assistance, quality management), the actors
(personnel, clients), their roles and access rights.
In our example and for purposes of brevity, we
will focus on the ‘travel reservation’ business
process, which is composed of the following
services:
The ‘trip’ service is used to book flight tickets
through the ‘bookTicket’ operation. This operation
returns the reservation result to the process and
manipulates the “reservation” business document.
The ‘hotel’ service is used to reserve rooms by
calling the ‘reserveRoom’ operation which returns
a confirmation message and the room number
(data).
The ‘transportation’ service is used to rent a car by
calling the ‘rentCar’ operation which returns a
confirmation message and the car type.
These services are hosted on the following
infrastructure components:
Glassfish Application server.
Apache2 web server.
MySql Database.
Linux / Debian Operating System.
Servers with redundant disks (Raid5)
TowardsSecurityAwarenessinDesigningService-orientedArchitectures
353
The combination of the above listed business and
technological essential elements forms the design
context.
Once the context is established, we identify the
business and technological risks that may harm the
essentials elements. For example, the ‘unavailability
of the travel reservation business processes’ risk can
result from various unwanted events caused by the
unavailability of:
Partners (partners prefer other travel agencies or
stop providing specific services)
Trip, hotel, or transportation services (due to
denial of service attacks e.g. XML-DOS)
Components of the infrastructure (due to denial of
service attacks).
Finally, the identified risks are assessed based on
their likelihood and consequences. In fact, the risk
analysis process provides information on whether
risk needs to be treated as well as the most
appropriate cost-effective treatment. Given that, high
availability of the ‘travel reservation’ business
process is needed, the unavailability of this process
should be treated by implementing security
measures to reduce the impact and / or probability of
occurrence of unwanted incidents, for example, we
implement:
Protection level agreements specifying the
availability of services between partners (business
level)
Security pattern 'Message inspector gateway
pattern’ to intercept the traffic and filter the
requests at the service’s level.
Filtering mechanisms (firewall, routers, etc.) at the
infrastructure level.
5 CONCLUSIONS
Securing collaborative business processes from the
early design phases is highly necessary. Security
parameters must be taken into account as any other
functional parameter. In this work, we have
presented a service security conceptual Model for
improving security awareness in service design
methods. As a reference model to manage
information security in service-based infrastructures,
it also can be used to develop security design
patterns.
In our future work, we are working to support the
service security conceptual with the development of
ontologies, defining the essential elements and their
relationships and the development of a risk treatment
reasoning system to simulate risks and infer security
measures, with respect to global security objectives.
REFERENCES
Alberts, C., 2003. Managing Information Security Risks :
the OCTAVE Approach, Boston: Addison-Wesley.
ANSSI, 2010. EBIOS: Expression des Besoins et
Identification des Objectifs de Sécurité. Available at:
http://www.ssi.gouv.fr/
Badr, Y., Biennier, F., and Tata, S., 2010. The Integration
of Corporate Security Strategies in Collaborative
Business Processes. IEEE Transactions on Services
Computing, 4(3), pp. 243–254.
Bou Nassar, P., Badr, Y., Biennier, F., Barbar, K., 2012.
Securing Collaborative Business Processes: A
Methodology for Security Management in Service-
Based Infrastructure. Advances in Production
Management Systems (APMS), pp. 480-487
OASIS, 2006. OASIS Reference Model for Service
Oriented Architecture 1.0. Available at:
http://docs.oasis-open.org/soa-rm/v1.0/.
Colombo, M., Di Nitto, E., Di Penta, M., Distante, D.,
Zuccalà, M, 2005. Speaking a Common Language: A
Conceptual Model for Describing Service-Oriented
Systems. Service-Oriented Computing, 2005, p.48–60.
Emig, C., Krutz, K., Link, S., Momm, C., and Abeck, S.
2008. Model-Driven Development of SOA Services.
Cooperation and Management, Universität Karlsruhe
(TH), Internal Research Report.
Erl, T., 2005. Service-Oriented Architecture : Concepts,
Technology, and Design, Upper Saddle River NJ:
Prentice Hall Professional Technical Reference.
OASIS, 2008. OASIS Reference Architecture for Service
Oriented Architecture Version 1.0. Available at:
http://docs.oasis-open.org/soa-rm/soa-ra/v1.0/.
Hafner, M., 2009. Security engineering for service-
oriented architectures, Berlin: Springer.
ISO/IEC 27001, 2005. Information Technology, Security
Techniques, Information Security Management
Systems and Requirements.
Kreger, H., Jeff, E., 2009. Navigating the SOA Open
Standards Landscape Around Architecture.
OMG, 2009. SOA Modeling Language (SoaML).
Available at: http://www.omg.org/spec/SoaML/
Lund, M., 2010. Model-Driven Risk Analysis : the
CORAS Approach, Berlin: Springer.
Papazoglou, M. P., Van Den Heuvel, W. J., 2006. Service-
Oriented Design And Development Methodology.
International Journal of Web Engineering and
Technology, 2(4), p.412–442.
The Open Group, 2010. Ontologies for SOA. Available at:
http://www.opengroup.org/projects/soa-ontology.
The Open Group, 2009. SOA Integration Maturity.
Available at: http://www.opengroup.org/projects/
osimm.
ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems
354
Wall, Q., 2006. SOA Service Lifecycle Design. Available
at: http://www.oracle.com/technetwork/articles/entar
ch/soa-service-lifecycle-design-096035.html
TowardsSecurityAwarenessinDesigningService-orientedArchitectures
355
