Architecting a Large-scale Elastic Environment

Recontextualization and Adaptive Cloud Services for Scientific Computing

Paul Marshall

, Henry Tufo

1,2

, Kate Keahey

3,4

, David La Bissoniere

3,4

and Matthew Woitaszek

Department of Computer Science, University of Colorado at Boulder, Boulder, CO, U.S.A.

Computer Science Section, National Center for Atmospheric Research, Boulder, CO, U.S.A.

Computation Institute, University of Chicago, Chicago, IL, U.S.A.

Mathematics and Computer Science Division, Argonne National Laboratory, Argonne, IL, U.S.A.

Keywords: Infrastructure-as-a-Service, Cloud Computing, Elastic Computing, Recontextualization.

Abstract: Infrastructure-as-a-service (IaaS) clouds, such as Amazon EC2, offer pay-for-use virtual resources on-

demand. This allows users to outsource computation and storage when needed and create elastic computing

environments that adapt to changing demand. However, existing services, such as cluster resource managers

(e.g. Torque), do not include support for elastic environments. Furthermore, no recontextualization services

exist to reconfigure these environments as they continually adapt to changes in demand. In this paper we

present an architecture for a large-scale elastic cluster environment. We extend an open-source elastic IaaS

manager, the Elastic Processing Unit (EPU), to support the Torque batch-queue scheduler. We also develop

a lightweight REST-based recontextualization broker that periodically reconfigures the cluster as nodes join

or leave the environment. Our solution adds nodes dynamically at runtime and supports MPI jobs across dis-

tributed resources. For experimental evaluation, we deploy our solution using both NSF FutureGrid and

Amazon EC2. We demonstrate the ability of our solution to create multi-cloud deployments and run batch-

queued jobs, recontextualize 256 node clusters within one second of the recontextualization period, and

scale to over 475 nodes in less than 15 minutes.

1 INTRODUCTION

Utilization of resources, such as a batch-queued

cluster, fluctuates as users gather data, setup their

applications and simulations, execute them, and

analyze the results. Demand for resources typically

bursts when users are actively debugging their appli-

cations and running simulations to generate results

for a deadline. Demand often decreases between

deadlines when users focus on gathering data or

writing code. Physical resource deployments, how-

ever, only provide static capacity. If a resource is

under-utilized, compute cycles that could be used to

run scientific simulations are effectively wasted. At

other times, demand for the resource may surpass

the capacity of the static physical resource, resulting

in increased queue wait times and possibly missed

deadlines.

With the recent introduction of infrastructure-as-

a-service (IaaS) clouds (Armbrust, 2009), users can

choose to outsource computation and storage when

needed. IaaS clouds offer pay-for-use virtual

infrastructure resources, such as virtual machines

(VMs), to users on-demand. On-demand resource

provisioning is an attractive paradigm for users

working toward deadlines or responding to

emergencies. Users in the scientific community, in

particular, have begun to adopt IaaS clouds for their

workflows (Juve 2010; Rehr 2010; Wilkening 2009;

Jackson, 2010). Additionally, the pay-for-use

charging model means that a resource provider can

choose to reduce his initial purchase of capital

equipment, selecting a resource that meets the needs

of his users the majority of the time, and opt to

budget for future outsourcing costs. When the

demand of the physical resource exceeds its

capacity, the resource provider can elastically extend

the static resource with IaaS resources or deploy a

standalone elastic environment in the cloud to

process excess demand. In previous work we

developed a cloud charging model for high-

performance compute (HPC) resources (Woitaszek,

2010), allowing a resource provider to analyze the

cost of cloud resources in the context of physical

409

Marshall P., Tufo H., Keahey K., La Bissoniere D. and Woitaszek M..

Architecting a Large-scale Elastic Environment - Recontextualization and Adaptive Cloud Services for Scientiﬁc Computing.

DOI: 10.5220/0004081704090418

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 409-418

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

HPC resource deployments. The virtual nature of

IaaS clouds is another advantage for users. With

virtual resources, users can customize the entire

software stack, from the operating system (OS)

upward, often a key requirement for complex

scientific workflows.

IaaS clouds provide the underlying building

blocks for elastic computing environments.

However, policies are needed to ensure the

environment adjusts appropriately to demand; tools

to deploy and manage the environments are also

needed. In (Marshall, 2012) we propose policies for

elastic environments that balance user and

administrator requirements; we evaluate them using

workload traces and a discrete event simulator. In

(Marshall, 2010) we developed a prototype elastic

IaaS environment that extended a PBS/Torque

(Bode, 2000) queue with Nimbus (Keahey 2005;

Nimbus, 2012) and Amazon EC2 clouds (Amazon

Web Services, 2012). However, the prototype had a

number of limitations. It was not sufficiently

scalable, scaling to 150 nodes in 60 minutes. It also

lacked the ability to recontextualize, preventing the

environment from executing parallel jobs. And it

could not leverage multiple clouds simultaneously.

In this paper we address these limitations of our

previous prototype. We present an architecture for a

large-scale elastic computing environment that is

highly available, scalable, and adapts quickly to

changing demand. We extend an open-source elastic

IaaS manager to support the Torque batch-queue

scheduler, allowing existing scientific workflows to

integrate with elastic IaaS environments for minimal

software engineering cost. To support parallel jobs,

we develop a lightweight REST-based

contextualization broker that recontextualizes the

cluster (e.g. exchanges host information between

nodes) as nodes join and leave the environment. For

evaluation, we deploy our solution using NSF

FutureGrid (FutureGrid, 2012) and Amazon EC2.

Our solution leverages multiple clouds

simultaneously, recontextualizes 256 node clusters

within one second of the recontextualization period,

and scales to over 475 nodes in less than 15 minutes.

2 APPROACH

In previous work (Marshall, 2010) we discuss the

specifics required to extend a physical cluster with

IaaS resources. Therefore, in this paper we will only

briefly discuss our previous prototype and its limita-

tions before presenting our large-scale architecture

and implementation.

2.1 Initial Prototype

Our initial prototype (Marshall, 2010) implemented

a standalone service that created elastic IaaS envi-

ronments, providing valuable insight into the

challenges faced by large-scale elastic computing

environments. The prototype elastic manager service

monitored a Torque queue and responded by launch-

ing cloud instances, which joined the cluster and

executed jobs, and then terminating idle instances

once all jobs completed. The Nimbus context broker

(Keahey, 2008) contextualized the cloud nodes with

the head node, exchanging host information and

SSH keys. However, the prototype contained a num-

ber of design and implementation limitations that

prevented it from scaling appropriately, using multi-

ple cloud providers simultaneously, and

recontextualizing the environment.

In particular, the prototype elastic manager ser-

vice called Torque commands directly to gather

information about the queue, requiring that both the

service and Torque run on the same system. It also

called the Java-based Nimbus cloud client, which

polls continuously for updates (sometimes taking up

to a few hundred seconds), to perform the actual

launches and terminations. This meant the system

could only launch approximately a dozen nodes

every few hundred seconds. Additionally, the initial

prototype used a single cluster image with prein-

stalled software for each cloud provider. Due to VM

image compatibility differences between cloud pro-

viders, adding support for a new cloud required

installing and configuring the cluster software from

scratch in a base image on the new cloud. The proto-

type deployment also used the Nimbus context

broker, which facilitates the exchange of host infor-

mation between nodes in a context, for

contextualization. The Nimbus context broker, how-

ever, does not allow additional nodes to join the

context after the initial launch. This meant that each

node exchanged host information and SSH keys with

the head node but not with each other, preventing

the system from running parallel jobs. Lastly, the

prototype elastic manager service was not highly

available; it did not contain any self-monitoring or

self-repairing capabilities.

2.2 Large-scale Elastic Computing

Environments

In this section we build on our prototype architecture

in (Marshall, 2010) and present an updated architec-

ture for large-scale elastic computing environments.

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

410

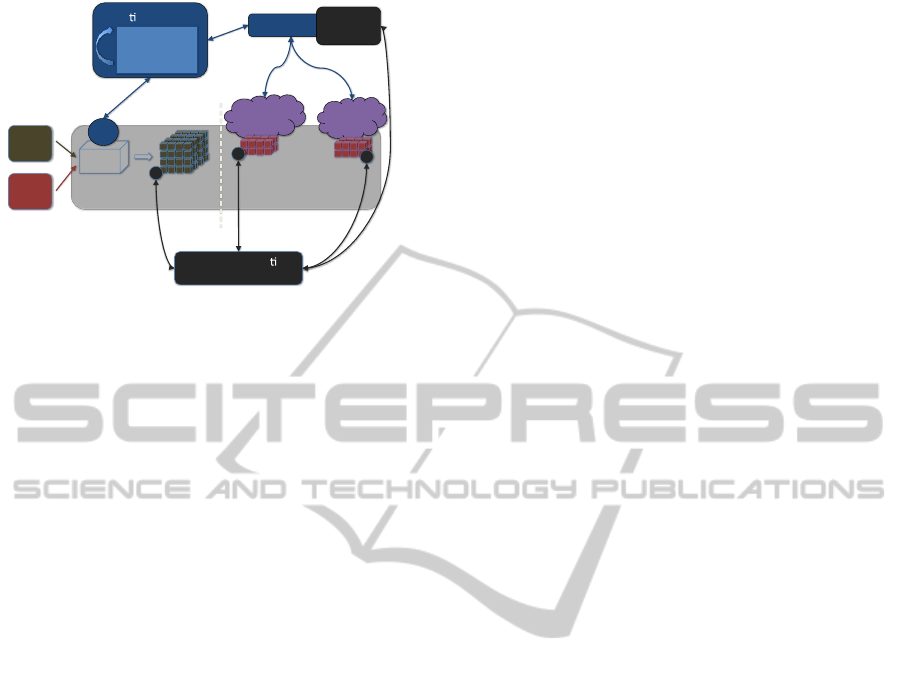

Figure 1: Example elastic Torque deployment.

We address the challenges discussed in the previous

section, focusing primarily on improving scalability,

leveraging multiple clouds, and developing a solu-

tion for recontextualization.

2.2.1 Elastic Management

Instead of tightly integrating the application sensor

with the elastic manager service, we select a distrib-

uted design as shown in Figure 1.

We extend an open-source elastic manager ser-

vice, the Elastic Processing Unit (EPU) (Keahey,

2012), under development by the Ocean Observato-

ries Initiative (OOI) (OOI EPU, 2012). The EPU

aims to be a highly available and scalable service. It

is publicly available on GitHub (GitHub EPU, 2012)

as an alpha release for initial testing. It contains the

necessary framework and functionality to create

elastic computing environments. The EPU consists

of three major components that we leverage for our

elastic environments: sensors to monitor application

demand, a decision engine that responds to sensor

information, and a provisioner that interfaces with

various cloud providers to launch, terminate, and

manage the instances. The provisioner interfaces

with IaaS clouds using their REST APIs. Unlike the

Java-based cloud client, these operations return

quickly, typically within a second or two. The deci-

sion engine loops continually, processing sensor

information and executing a policy that elects to

launch or terminate a specific number of instances.

We refer to each loop iteration as a policy evaluation

iteration. The sensors are deployed throughout the

environment and monitor demand (e.g. jobs in a

queue).

In the EPU’s current implementation, however, it

only supports a “pull” queue model where individual

workers request tasks from a central queue. There-

fore, we extend the OOI EPU model to support a

“push” queue model where a central scheduler, such

as a batch-queue scheduler, monitors worker in-

stances and dispatches single-core or parallel jobs to

workers in the environment. In our model, the sen-

sors both monitor demand and execute commands

on behalf of the decision engine.

2.2.2 Automating Deployment and

Configuration

To support multiple cloud providers seamlessly, the

installation and configuration of worker nodes

should be automated using a system integration

framework, such as Chef (Jacob, 2009), instead of

preinstalling and preconfiguring VM images manu-

ally. With this approach, a base image that is likely

available on any cloud (e.g. a Debian 5.0 image) can

be used. When a new worker boots the base image,

the system integration framework downloads the

cluster software, installs it, and configures the work-

er to join the cluster head node automatically. This

can be a lengthy process if a lot of software needs to

be installed, therefore, software packages can either

be cached on the node or they can be completely

installed, allowing nodes to boot quickly and be

appropriately configured.

2.2.3 Contextualization

Creating a shared and trusted environment, or con-

text, is a key requirement for elastic computing

environments. To support parallel jobs, all resources

in the environment need to exchange information

and data. However, with elastic computing environ-

ments, contextualization is a continual process since

demand fluctuates constantly with nodes joining and

leaving the environment. Perhaps the most salient

example is a context where nodes exchange SSH

keys to support SSH host-based authentication. In

this case, all nodes must add the hostname, IP ad-

dress, and SSH key of all other nodes in the context

to its ssh_known_hosts file. Existing contextualiza-

tion solutions, such as the Nimbus context broker,

provide mechanisms to exchange host information

between all nodes that are launched at the same

time. However, the Nimbus context broker does not

support recontextualization of existing contexts, that

is, it doesn’t allow additional nodes to join the con-

text at a later time.

We propose a recontextualization service that pe-

riodically exchanges information between all nodes

in the context. The recontextualization service main-

tains an ordered list of nodes in the context. The list

includes hostnames, IP addresses, SSH keys, and a

generic data field for all nodes. As nodes join or

FutureGrid

(hotel)

Launchor

Terminate

Compute

Nodes

Torque

HeadNode

Elas cManager

64-core

job

32-core

job

Decision

Engine

(Policy)

Provisioner

Amazon

EC2

Sensor

CloudCompute

Nodes

Recontextualiza on

Broker

A

Recontext

Client

Architecting a Large-scale Elastic Environment - Recontextualization and Adaptive Cloud Services for Scientific

Computing

411

leave the context, the recontextualization service

updates the ordered list. Every node in the context

periodically checks in with the recontextualization

service. If there are updates to the context, the recon-

textualization service sends the updated section of

the list to the node, which applies the updates in

order (e.g. adding the SSH keys of nodes that joined

the context to the SSH known hosts file).

3 IMPLEMENTATION

For our elastic cluster implementation we extend the

EPU to support the Torque batch-queue scheduler.

We also create a set of scripts to setup and configure

worker nodes automatically. Lastly, we develop a

service for recontextualization that periodically

exchanges host information between all nodes in the

environment. An example deployment, shown in

Figure 1, consists of the main EPU components (a

sensor, decision engine, and provisioner), our recon-

textualization service, and a deployment across

multiple IaaS clouds.

3.1 EPU Extensions

The EPU uses the Advanced Message Queuing

Protocol (AMQP) (Vinoski, 2006) to communicate

between its various components. In the EPU's cur-

rent implementation it only implements sensors for

AMQP queues, which use a “pull” queue model.

Many scientific workloads would need a significant

investment in software engineering to support

AMQP natively. Therefore, we develop a custom

EPU sensor to integrate with a widely used cluster

resource manager, Torque, thereby allowing any

Torque-based workload to use the elastic environ-

ment seamlessly. We also develop a custom decision

engine to respond to the Torque sensors.

The Torque sensor, written in Python, monitors

the queue and sends information to the decision

engine. The pbs_python package (pbs_python,

2012), a Python wrapper class for the Torque C

library, is used to gather Torque information. This

includes job information, e.g., the total number of

queued jobs and the total number of cores requested

by queued jobs. It also includes node information,

e.g., a list of Torque worker hostnames along with

the current state of the node (free, busy, offline,

down, etc.). The Torque sensor also executes com-

mands sent to it by the decision engine. For

example, when the EPU service launches a new

instance, it sends the hostname to the sensor on the

Torque head node and instructs it to add the node to

Torque’s host file. Other commands include marking

a Torque node as offline and removing the node.

The custom EPU decision engine elects to launch

or terminate instances. At each policy evaluation

iteration, the decision engine performs a number of

actions: it determines whether or not to launch in-

stances based on queued jobs and available workers,

instructs the Torque sensor to add any recently

launched instances to Torque, instructs the sensor to

mark any idle Torque workers as offline in prepara-

tion to terminate them, and finally, it terminates any

nodes that were previously marked offline. To de-

termine the number of instances to launch, the

decision engine first calculates the total number of

available workers, that is, the number free Torque

instances plus the number of pending instances

(those that have launched but have not yet joined the

Torque environment). The number of instances

launched by the decision engine is then simply the

total number of cores requested by queued jobs

minus the number of available workers. If the result

is a positive integer, the decision engine notifies the

provisioner of the number of instances to launch.

The decision engine also replaces stalled instances

after 10 minutes (a configurable option). Pending

instances are considered stalled if there are no

changes to them within 10 minutes.

3.2 Automated Worker Deployment

After the EPU launches worker instances, software

packages need to be installed, the instances need to

be configured as Torque worker nodes, and they

need to join the cluster. We use the Chef (Jacob

2009; Chef 2012) systems integration framework to

download, install, and configure cluster and user

software. Chef uses “recipes” to automate system

administration tasks, such as downloading Linux

packages, installing software, or running bash

scripts. For our elastic environment we develop a set

of Chef recipes to download, compile, and install

Torque, the pbs_python package, and user software.

This allows us to use any base Linux image on any

IaaS cloud as a worker image, greatly reducing the

time required to support additional clouds. When the

base Linux node boots, a simple Python agent, bun-

dled in the image ahead of time, automatically

retrieves the Chef recipes from a GitHub repository

and then executes them, installing and configuring

the node from scratch. To speed up the deployment

and limit possible points of failure, the recipes and

software can be cached in the base image.

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

412

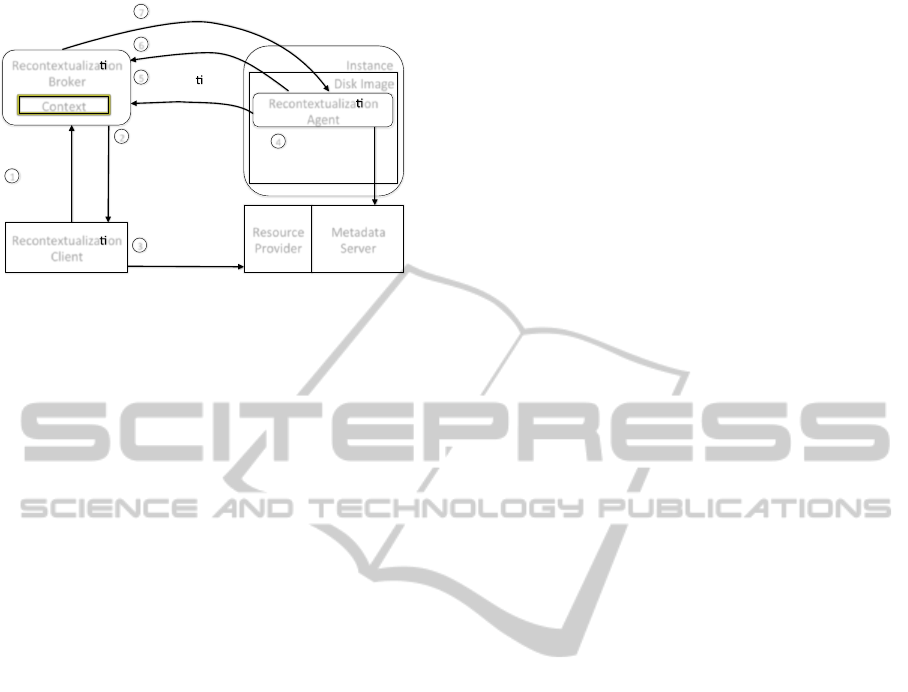

Figure 2: The recontextualization process.

3.3 Recontextualization Broker

The recontextualization broker is the final compo-

nent of our large-scale elastic computing

environment. It is a lightweight, REST-based recon-

textualization service that securely exchanges host

information between all nodes in the same context. It

is also important to note that while our recontextual-

ization solution was developed specifically for use

with IaaS clouds and VMs, it can also be used on

physical resource deployments.

All components of our recontextualization solu-

tion are written in Python and use representational

state transfer (REST) over HTTPS for communica-

tion; symmetric keys are used for both user and

context security. Our solution consists of three com-

ponents: a client for managing contexts, an agent

that runs on all nodes in the context, and a central

broker service to facilitate the secure exchange of

host information between agents. The information

exchanged by nodes in the context includes the short

hostname, full hostname, IP address, SSH public

host key, and a generic text data field. In the current

implementation, the broker stores this information in

a RAM-based SQLite database, although this could

easily be changed to a more robust database solu-

tion. The agent contains a set of scripts (e.g. bash),

typically written by the administrator deploying the

agent, which allows the administrator to customize

how the agent should process updates to the context

(e.g. by adding other node’s SSH keys to the

ssh_known_hosts file). The scripts are grouped into

four categories: initialization scripts that are called

by the agent only once, when it first starts, “add

node” scripts that are called by the agent when it is

processing an update for a node that has been added

to the context, “delete node” scripts that are called

by the agent when it is processing an update for a

node that has left the context, and restart scripts that

are called for all updates.

The recontextualization process is shown in Fig-

ure 2. Recontextualization begins when a user

creates a context with the client, which sends a re-

quest to the broker service. The broker responds

with the newly generated context ID, a uniform

resource identifier (URI) for the context (e.g. context

1 would have the following URI: https://hostname:

port/ctx/1), and a unique context key and secret. The

context key and secret are simply random strings

and allow only those that know them to join the

context. When the user launches a cloud instance,

this information is passed to the instance via the IaaS

cloud’s userdata field. The agent starts when the

instance boots and reads the instance’s userdata field

to get the context information. The agent then sends

its node information (hostnames, etc.) to the broker.

The broker maintains an ordered list of nodes that

join or leave a context, beginning with list ID 0,

signifying no updates. Each entry in the list denotes

whether the node joined or left the context.

After the agent sends its information to the bro-

ker, it enters into a loop referred to as the

recontextualization period, requesting updates from

the broker and applying them. To request updates,

the agent sends its current ID in the ordered list,

beginning at 0, to the broker. The broker compares

the node’s current list ID to the latest list ID for the

context. If they do not match, the broker sends the

updated portion of the list to the requesting agent.

The agent then applies the updates, in order, by

calling its scripts for each entry in the list of updates.

After the agent applies the updates, it calls the restart

scripts to restart any services impacted by the up-

dates and then sleeps for a short time before looping

again. The amount of time the agent sleeps between

loop iterations determines the frequency that the

environment recontextualizes. Highly adaptive envi-

ronments should loop frequently whereas relatively

stable environments would loop less often.

4 EVALUATION

For evaluation, we examine the reactivity of the

environment, its ability to recontextualize quickly,

and its scalability. We do not compare the perfor-

mance of different cloud providers or instance types,

which are tied directly to the performance of the

underlying hardware and software configuration of

the particular cloud. Other studies have examined

the performance of virtual environments and IaaS

clouds (Huang 2006, Gavrilovska 2007, Ostermann

2010, He 2010, Ghoshal 2011). And in November

2011, Amazon EC2 ranked #42 on the Top500

Recontextualiza on

Client

Resource

Provider

Metadata

Server

Recontextualiza on

Broker

Instance

DiskImage

1

Create

Context

Recontextualiza on

Agent

2

3

4

5

6

7

Contextcreated,

respondswith:

• ContextID

• ContextURI

• Contextkey

• Contextsecret

Launch

resources

(ID,URI,key,secret)

Context

Readuserdata

(ID,URI,key,secret)

Provide

informa on

(IPaddress,etc.)

Queryforupdates

Sendupdates

Architecting a Large-scale Elastic Environment - Recontextualization and Adaptive Cloud Services for Scientific

Computing

413

(Top500, 2012). Users with applications that have

strict performance requirements should select appro-

priate clouds for their deployment.

NSF FutureGrid and Amazon EC2 are used for

the evaluation. On FutureGrid we use the Hotel (fg-

hotel) system, at the University of Chicago (UC),

and Sierra (fg-sierra), at the San Diego Supercom-

puter Center (SDSC). Both systems use Xen

(Barham, 2003) for virtualization. We deploy the

recontextualization broker and cluster head node in

separate VMs on Hotel for all tests. The recontextu-

alization broker runs inside a VM with 8 2.93 GHz

Xeon cores and 16 GB of RAM. The head node runs

on a VM with 2 2.93 GHz Xeon cores and 2 GB of

RAM. The head node contains the Torque 2.5.9

server software, Maui 3.3.1 (Jackson 2001, Maui

2012), as well as the EPU provisioner and decision

engine. The setup process for the head node is com-

pletely automated using the cloudinit.d tool

(Bresnahan, 2011). We created a cloudinit.d launch

plan to deploy a base VM on Hotel and then install

and configure the software, allowing us to repeated-

ly deploy these environments with a single

command. Worker nodes are deployed on both Hotel

and Sierra and consist of 2 2.93 GHz Xeon cores

with 2 GB of RAM. For EC2 worker nodes we use

64-bit EC2 east micro instances, primarily due to

cost, since Amazon only charges two cents per hour.

Micro instances use Elastic Block Storage (EBS)

and contain up to 2 EC2 compute units with 613 MB

of RAM. (An EC2 compute unit is defined as the

equivalent CPU capacity of a 1.0-1.2 GHz 2007

Opteron or 2007 Xeon processor.) Deployment and

configuration of worker nodes is completely auto-

mated as well. Worker nodes use a base Linux

image on each cloud and Chef installs and config-

ures the software, specifically, the Torque 2.5.9

worker software (pbs_mom) and an EPU sensor.

Worker nodes also use NFS to mount the /scratch

directory on the head node.

For all tests, the EPU sensor queries Torque eve-

ry 60 seconds to gather job and worker information.

The EPU decision engine executes every 5 seconds,

querying IaaS clouds for changes in instance state

and executing its policy. Recontextualization agents

send their information to the broker when they first

launch and query the broker every 120 seconds for

updates. For batch-queued workloads, we believe

that a 120 second recontextualization period is suffi-

ciently adaptive. Many scientific workloads contain

jobs that run for hours, if not days.

As a metric, we define the reactivity time to be

the time from when the first job is submitted until

the time the last job begins running for a group of

jobs submitted at the same time. In the case of MPI

jobs, enough cores must be available to run all tasks

for all jobs. We also define the metric recontextual-

ization time to be the time from when a new node

attempts to join a context by sending its information

to the broker until the time when all nodes in the

context have received and applied the update for the

new node. For example, if 256 nodes are running

and all 256 nodes are aware of each other and have

exchanged information, and then a new node at-

tempts to join the context, the recontextualization

time is the amount of time from when the new node

sends its information until the time the other 256

nodes receive the update and apply it. In addition to

these metrics, we examine the ability of the elastic

environment to leverage multiple clouds simultane-

ously and scale to hundreds of nodes, shown with a

series of traces.

For the reactivity and recontextualization tests,

the workloads consist of a simple MPI application

that sleeps for 60 minutes. For the recontextualiza-

tion test, 60 minutes is more than enough time for

the initial nodes to stabilize and wait for an addition-

al node to launch and join the context. For the multi-

cloud and scalability tests, the workloads consist of

individual “sleep” jobs that sleep for 30 minutes,

demonstrating the ability of the environment to scale

up and down as demand changes.

4.1 Understanding System

Responsiveness

To understand system responsiveness we consider

two metrics. First, we examine the reactivity time.

This includes the time to detect the change in de-

mand, execute the policy, request instances from an

IaaS provider, and wait for the instances to boot.

Once the instances boot, they must then install and

configure worker software and join the cluster. To

measure reactivity time, we configure the EPU to

launch EC2 east micro worker nodes (single core).

We perform a series of tests, beginning with 2 node

clusters, increasing to 256 nodes, shown in Figure 3.

For each test we submit a simple MPI sleep job for

the desired number of nodes, causing the environ-

ment to launch the needed number of nodes. We run

each test 3 times for each cluster size.

As we can see in Figure 3, small cluster sizes,

from 2 nodes through 16, all have relatively similar

reactivity times. However, interestingly, 32 and 64

node clusters each have one test with a reactivity

time similar to smaller clusters while the other 2

tests are much higher. The reason for this is related

to the fact that our decision engine detects and re-

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

414

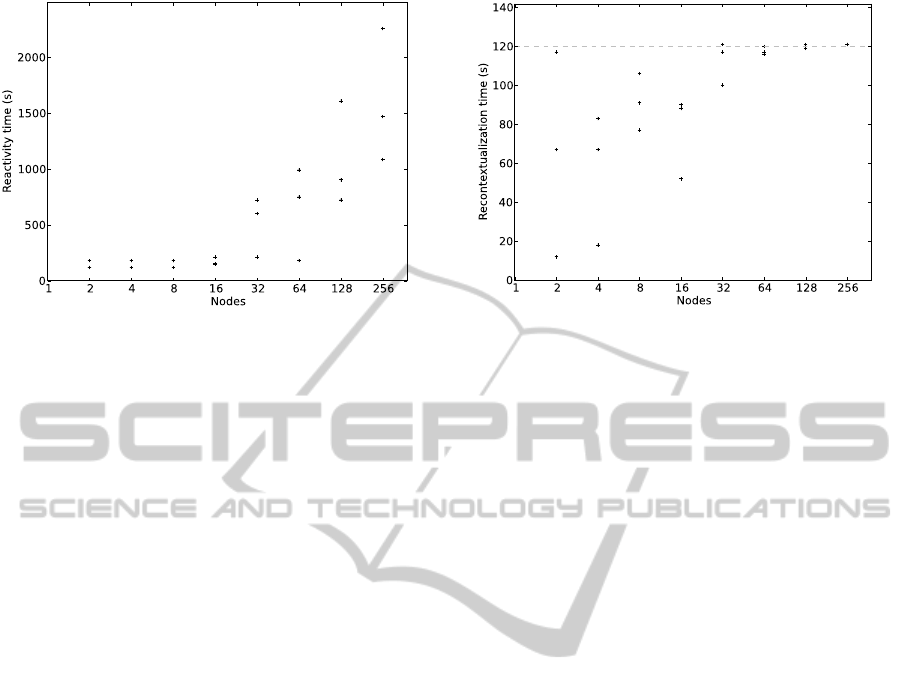

Figure 3: Reactivity time, showing three data points for

each cluster size (those showing fewer are cases where

values overlap).

places stalled nodes after 10 minutes. In our evalua-

tion we observed that EC2 micro instances would

periodically fail (most often the instance failed to

boot or access the network). Because larger cluster

sizes boot more instances, they are more likely to

encounter these failed instances, even when booting

replacements. It should be noted that a small cluster

could encounter a failed instance even though we

didn’t experience this in our evaluation.

The second area we explore is the recontextual-

ization time where all nodes in the context must

query the broker for updates, receive the updates and

apply them. To measure the recontextualization

time, we again configure the EPU to use EC2 east

micro instances (single core). Similar to the reactivi-

ty tests, we perform a series of tests from 2 nodes

through 256, running 3 tests for each cluster size.

We submit a simple MPI sleep job that requests the

appropriate number of cores and allow the cluster to

boot, contextualize, and begin running the job. Once

the cluster stabilizes, we submit another single-core

sleep job, causing an extra instance to launch and

join the cluster. We measure the time from when the

new instance sent its information to the broker until

the time when all nodes in the environment receive

and apply the update. We rely on Amazon’s ability

to synchronize the clocks of instances, which is done

through NTP, for our time-based measurements.

As we can see in Figure 4, all clusters fully re-

contextualize within 1 second of the 120-second

recontextualization period. The tests that recontextu-

alize before the 120 second period do so simply

because all of the existing nodes in the environment

check in with the broker shortly after the new node

has sent its information to the broker. The three 2-

node cluster tests are perhaps the most interesting

case. For one of the tests, both nodes check in with

Figure 4: Recontextualization time, showing three data

points for each cluster size (those showing fewer are cases

where values overlap).

the broker shortly after the new node joined the

context and contextualize in less than 20 seconds,

whereas with another 2-node test, at least one of the

nodes waits almost the full 120 second period before

it queries the broker again. This is simply the result

of the random timing of when nodes boot and install

the required software. As the number of nodes in a

context increases, the likelihood that at least one of

the nodes will query the broker 120 seconds after the

additional node joins the context increases.

4.2 Multi-cloud and Scalable Elastic

Environments

In addition to system responsiveness, we also exam-

ine the ability of the elastic environment to scale up

and down as demand fluctuates. For our first test, we

configure the EPU to launch workers on Hotel and

then we submit 256 single-core jobs that sleep for 30

minutes (not shown). Hotel’s workers are dual core

instances with 2 GB of RAM. The elastic environ-

ment scales up to over 100 VMs, however, it doesn’t

quite reach 128 VMs (or 256 cores), because Hotel’s

underlying hardware is unable to deploy 128 VMs

within 30 minutes. As the first jobs begin to com-

plete, those instances become free and run the

remaining jobs.

In our second test, we configure the EPU to dis-

patch workers on both Hotel and Sierra, shown in

Figure 5. Both Hotel and Sierra deploy dual core

workers with 2 GB of RAM. The workers from both

clouds are configured to trust each other and process

the same jobs from the main queue. (However, it

should be noted that if the jobs or workflow are not

amenable to multi-cloud environments (typically

connected over the Internet with relatively high

Architecting a Large-scale Elastic Environment - Recontextualization and Adaptive Cloud Services for Scientific

Computing

415

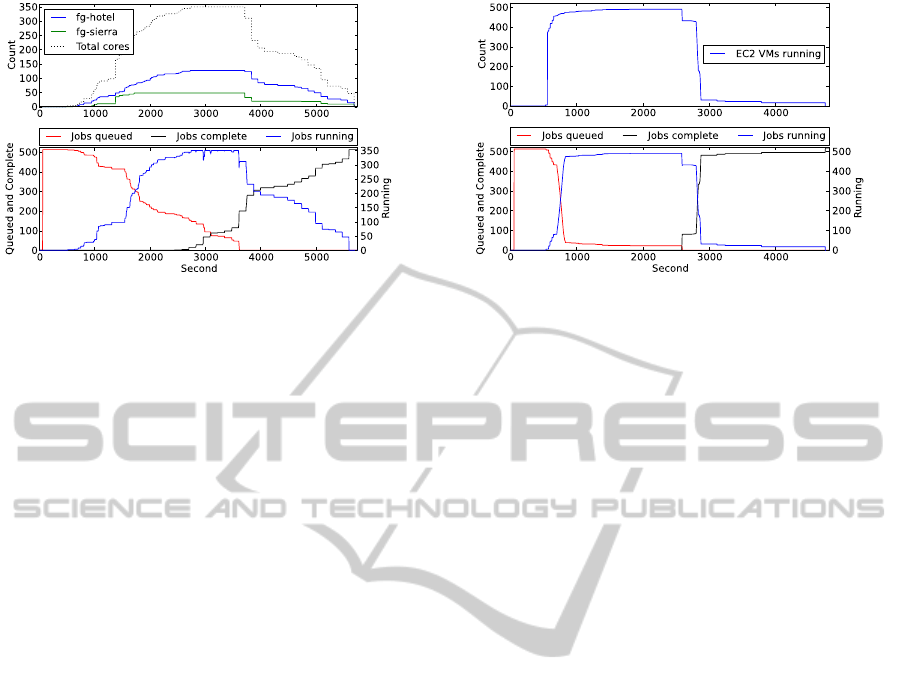

Figure 5: Multi-cloud trace running 512 single-core jobs.

latencies), that it is possible to configure the envi-

ronment to restrict parallel jobs to individual

resource infrastructures using either node attributes

or multiple queues with routing.) For evaluation, we

submit 512 single-core jobs that sleep for 30

minutes. In this case we observe the limited scalabil-

ity of private clouds (likely due to other users on the

cloud). Hotel and Sierra are not able to provide 512

cores, as both clouds reach the maximum number of

instances that they can deploy at the time, shown by

the horizontal line for VMs running on each cloud.

Sierra reaches this point just before 2,000 seconds

into the evaluation while Hotel reaches this point

just before 3,000 seconds.

In our final test, we configure the EPU to deploy

single-core EC2 east micro instances, shown in

Figure 6. We submit 512 jobs that each request a

single core and sleep for 30 minutes. The environ-

ment scales to 476 instances in less than 15 minutes.

The key difference in the ability of the EC2 test to

scale quickly, compared to the FutureGrid tests, is

related to the underlying hardware and software

configuration differences between EC2 and Fu-

tureGrid. Unfortunately, EC2 was not able to reach

512 instances within the first 30 minutes of the eval-

uation. While the environment scales quickly, it

begins to trail off around 400 instances, only reach-

ing a total of 490 instances. The remaining 22

instances simply fail to boot completely on EC2,

even after the EPU detects stalled instances and tries

to replace them, multiple times. To date we have not

been able to diagnose the reason, however, we have

not observed any problems with the EPU or recon-

textualization broker. (Our EC2 instance limit is set

well beyond 490.) Finally, it is worth noting that

while we use cheap single-core EC2 micro instances

for these tests (only running sleep jobs) because of

their cost, all of our software and evaluation is run

on a per-node basis. For example, our 490-node

scalability test would result in a 5,880-core cluster if

Figure 6: Scalability test on EC2 running 512 single-core

jobs.

12-core worker nodes were deployed. A 512-node

cluster on Amazon with their largest cluster instance

size, cc2.8xlarge, would cost $1,228.80 for one hour

compared to $10.24 for a 512-node cluster of micro

instances for one hour.

5 RELATED WORK

Prior to the introduction of IaaS clouds, several

projects developed dynamic resource managers that

adjust resource deployments based on demand (Ruth

2005, Ruth 2006, Murphy 2009). More recently,

applications have begun to add support for IaaS

clouds. Specifically, Sun Grid Engine (Gentzsch,

2001), now Oracle Grid Engine contains support for

Amazon EC2 resource provisioning (Oracle Grid

Engine, 2012). Evangelinos et al. (Evangelinos,

2008) use Amazon EC2 to support interactive cli-

mate modeling. In both cases these applications only

include support for Amazon EC2, and they both

bundle support for EC2 directly into the application.

Application-specific approaches, such as these,

require that each individual application include

support for all cloud providers that users may need.

Amazon CloudWatch (Amazon CloudWatch, 2012)

is a cloud-specific approach for elastic resource

provisioning. CloudWatch can scale environments

based on demand; however, it only uses Amazon

EC2. OpenNebula (Sotomayor, 2009), an IaaS

toolkit, also provides a cloud-specific approach,

bundling support for Amazon EC2. Our solution is

more general than cloud-specific and application-

specific approaches, allowing any application to

share a single service and code base for IaaS re-

source provisioning.

Juve et al. (Juve, 2011) present a generic IaaS

management solution, Wrangler, that provisions

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

416

IaaS resources across multiple clouds and deploys

applications on those resources. Wrangler, however,

is not an elastic management solution that adapts the

environment based on changing demand; instead,

Wrangler focuses on deploying relatively standalone

environments for users. The University of Victoria’s

Cloud Scheduler (Armstrong, 2010) is perhaps the

most similar to our solution. Cloud Scheduler moni-

tors a Condor queue and provisions resources across

Nimbus clouds and Amazon EC2. Currently, Cloud

Scheduler does not contain a mechanism for recon-

textualizing nodes, and instead it focuses on high

throughput computing (HTC) jobs.

6 FUTURE WORK

In future work we will investigate additional data

movement solutions. Efficient data movement is a

key requirement for elastic IaaS environments where

cloud providers may charge (either with allocation

credits or actual money) for data transfers. Data

movement solutions should avoid sending excessive

amounts of data or duplicate datasets to cloud re-

sources. However, data movement solutions must

also be easy to use or, if possible, completely auto-

mated.

We will also extend a physical batch-queued

cluster with our elastic resource manager and exam-

ine its impact on a wide variety of workloads. The

environment will integrate physical cluster resources

with resources distributed across multiple cloud

providers. Because some applications may have

strict requirements, such as latency sensitive applica-

tions, users will be able to specify basic

requirements related to application placement on the

resources (e.g. specifying whether to run the applica-

tion on local physical resources vs. distributed

across all resources).

7 CONCLUSIONS

In this work we present an architecture for a large-

scale elastic computing environment. We extend an

open source elastic resource manager, the Elastic

Processing Unit (EPU), to support the Torque

scheduler. We also develop a lightweight REST-

based recontextualization broker to exchange host

information between nodes in a context, which al-

lows the environment to support parallel jobs.

We evaluate our elastic environment by examin-

ing its ability to scale rapidly and recontextualize

quickly as resources join and leave the environment.

We demonstrate an environment that is able to lev-

erage multiple clouds, recontextualize 256 nodes

within one second of the recontextualization period,

and scale to over 475 nodes within 15 minutes.

ACKNOWLEDGEMENTS

We would like to thank the Nimbus team, including

John Bresnahan, Tim Freeman, and Patrick Arm-

strong for their help and advice with this work.

REFERENCES

Amazon CloudWatch. Amazon, Inc. [Online]. Retrieved

January 8, 2012, from: http://aws.amazon.com/

cloudwatch/

Amazon Web Services. Amazon.com, Inc. [Online]. Re-

trieved January 8, 2012, from: http://

www.amazon.com/aws/

Armbrust M., et al., “Above the clouds: A berkeley view

of cloud computing,” EECS Department, University of

California, Berkeley, Tech. Rep., February 2009.

Armstrong P., et al., “Cloud scheduler: a resource manager

for distributed compute clouds,” CoRR, vol.

abs/1007.0050, 2010.

Barham P., et al., Xen and the art of virtualization. SI-

GOPS Oper. Syst. Rev., 37:164--177, October 2003.

Bode B., et al. The Portable Batch Scheduler and the Maui

Scheduler on Linux Clusters. Usenix, 4th Annual

Linux Showcase and Conference, 2000.

Bresnahan J., et al., Managing Appliance Launches in

Infrastructure Clouds. Teragrid 2011. Salt Lake City,

UT. July 2011.

Chef. Opscode. [Online]. Retrieved January 8, 2012, from:

http://www.opscode.com/chef/

Evangelinos C., Hill C., “Cloud Computing for Parallel

Scientific HPC Applications: Feasibility of Running

Coupled Atmosphere-Ocean Climate Models on Ama-

zon’s EC2,” The First Workshop on Cloud Computing

and its Applications (CCA’08), October 2008.

FutureGrid. [Online]. Retrieved February 29, 2012, from:

http://futuregrid.org/

Gavrilovska A., et al., “High-Performance Hypervisor

Architectures: Virtualization in HPC Systems,” In 1st

Workshop on System-level Virtualization for High

Performance Computing (HPCVirt 2007).

Gentzsch W., “Sun grid engine: towards creating a com-

pute power grid,” in Cluster Computing and the Grid,

2001. Proceedings. First IEEE/ACM International

Symposium on, 5 2001, pp. 35 –36.

Ghoshal D., et al., I/O performance of virtualized cloud

environments. In Proceedings of the second interna-

tional workshop on data intensive computing in the

clouds, DataCloud-SC '11, 71--80, New York, NY,

USA, 2011. , ACM.

Architecting a Large-scale Elastic Environment - Recontextualization and Adaptive Cloud Services for Scientific

Computing

417

GitHub EPU. GitHub. [Online]. Retrieved January 8,

2012, from: https://github.com/ooici/epu

He Q., et al. Case study for running hpc applications in

public clouds. In Proceedings of the 19th acm interna-

tional symposium on high performance distributed

computing, HPDC '10, 395--401, New York, NY,

USA, 2010. , ACM.

Huang W., et al. A Case for High Performance Computing

with Virtual Machines. In Proceedings of the 20th An-

nual International Conference on Supercomputing,

Queensland, Australia, 2006.

Jackson D., et al., Core algorithms of the maui scheduler.

In D. Feitelson and L. Rudolph, editors, Job schedul-

ing strategies for parallel processing, volume 2221,

page 87-102. Springer Berlin / Heidelberg, 2001.

Jackson K. R., et al., “Seeking supernovae in the clouds: a

performance study,” in Proceedings of the 19th ACM

International Symposium on High Performance Dis-

tributed Computing, ser. HPDC ’10. New York, NY,

USA: ACM, 2010, pp. 421– 429.

Jacob A., “Infrastructure in the cloud era,” in Proceedings

at International O’Reilly Conference Velocity, 2009.

Juve G., Deelman E.,“Automating application deployment

in infrastructure clouds,” Cloud Computing Technolo-

gy and Science, IEEE International Conference on,

vol. 0, pp. 658– 665, 2011.

Juve G., et al., “Data sharing options for scientific work-

flows on amazon ec2,” in Proceedings of the 2010

ACM/IEEE International Conference for High Per-

formance Computing, Networking, Storage and

Analysis, ser. SC ’10. Washington, DC, USA: IEEE

Computer Society, 2010, pp. 1–9.

Keahey K. and Freeman T., Contextualization: Providing

One-Click Virtual Clusters, eScience 2008, Indianapo-

lis, IN. December 2008.

Keahey K., et al., Virtual Workspaces: Achieving Quality

of Service and Quality of Life in the Grid. Scientific

Programming Journal, vol 13, No. 4, 2005, Special Is-

sue: Dynamic Grids and Worldwide Computing, pp.

265-276.

Keahey, K., et al., “Infrastructure Outsourcing in Multi-

Cloud Environments,” submitted to XSEDE 2012,

Chicago, IL.

Marshall P., Keahey K., and Freeman T., “Elastic Site:

Using clouds to elastically extend site resources,” in

IEEE/ACM International Symposium on Cluster,

Cloud and Grid Computing (CCGrid), May 2010.

Marshall P., Tufo H., and Keahey K., Provisioning Poli-

cies for Elastic Computing Environments, 9th High-

Performance Grid and Cloud Computing Workshop

(HPGC), Proceedings of the 26th International Parallel

and Distributed Processing Symposium (IPDPS 2012),

Shanghai, China, May 2012 (to appear).

Maui. [Online]. Retrieved February 29, 2012, from:

http://www.clusterresources.com/pages/products/maui

-cluster-scheduler.php

Murphy M., et al., "Dynamic Provisioning of Virtual

Organization Clusters" 9th IEEE International Sympo-

sium on Cluster Computing and the Grid, Shanghai,

China, May 2009.

Nimbus. [Online]. Retrieved January 8, 2012, from:

http://www.nimbusproject.org

OOI EPU. [Online]. Retrieved February 29, 2012, from:

https://confluence.oceanobservatories.org/display/syse

ng/CIAD+CEI+OV+Elastic+Computing

Oracle Grid Engine. Oracle. [Online]. Retrieved January

8, 2012, from: http://www.oracle.com/us/products/

tools/oracle-grid-engine-075549.html

Ostermann S., et al. A performance analysis of ec2 cloud

computing services for scientific computing. In cloud

computing, volume 34, page 115-131. Springer Berlin

Heidelberg, 2010.

pbs_python. [Online]. Retrieved January 8, 2012, from:

https://subtrac.sara.nl/oss/pbs_python

Rehr J., et al., “Scientific computing in the cloud,” Com-

puting in Science Engineering, vol. 12, no. 3, pp. 34 –

43, may-june 2010.

Ruth P., et al. Autonomic live adaptation of virtual compu-

tational environments in a multi-domain infrastructure.

IEEE International Conference on Autonomic Compu-

ting, 2006.

Ruth P., et al., VioCluster: Virtualization for Dynamic

Computational Domains, Cluster Computing, 2005.

IEEE International, pages 1-10, Sept. 2005.

Sotomayor B., et al., “Virtual infrastructure management

in private and hybrid clouds,” Internet Computing,

IEEE, vol. 13, no. 5, pp. 14 –22, sept.- oct. 2009.

Top500 List. [Online]. Retrieved February 29, 2012, from:

http://top500.org/list/2011/11/100

Vinoski S., “Advanced message queuing protocol,” Inter-

net Computing, IEEE, vol. 10, no. 6, pp. 87 –89, 2006.

Wilkening J., et al., “Using clouds for metagenomics: A

case study,” in Cluster Computing and Workshops,

2009. CLUSTER ’09. IEEE International Conference

on, 31 2009-sept. 4 2009, pp. 1 –6.

Woitaszek M. and Tufo H., “Developing a cloud compu-

ting charging model for high-performance computing

resources,” in 10th IEEE International Conference on

Computer and Information Technology, Bradford,

UK, June 2010.

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

418
