Traceability Support for MDE Development of Home Automation

Systems

Francisca Rosique, Pedro Sánchez, Diego Alonso and Manuel Jiménez

DSIE Research Group, Technical University of Cartagena, Campus Muralla del Mar s/n, Cartagena E-30202, Spain

Keywords: Traceability, Model-driven Development, Home Automation Systems.

Abstract: Traceability is a technique to ease determining the impact of changes in the design of software, to support

their integration, to preserve knowledge, and to assure the quality and accuracy of the overall system. In this

paper, an approach that considers traceability in the context of model-driven development of Home

Automation (HA) systems is presented. This combination enables the development of tools with techniques

for improving the quality both of the process and of the models obtained. To obtain these advantages we

have developed a tool that provides users with traceability reports after applying model transformations.

These reports enable developers to study whether all requirements have been considered, the impact of

changes, and how they are considered both in architectural decisions and code implementations.

1 INTRODUCTION

The Model Driven Approach (MDE) (Selic, 2003),

promotes the use of models as the main artefact in

software development. A model is an abstract

representation of reality that only shows those

aspects that are of interest for a given purpose. A

model is defined according to a meta-model that in

turn defines the abstract syntax of a modelling

language and establishes the concepts and the

relationships among them. Since a system can be

described by means of different models with

different levels of abstraction, model

transformations are one of the key issues of this

approach (Mens and Van Gorp, 2006), since they

encourage models to evolve towards other models

that use concepts of a specific technology and in this

way obtain executable code.

In a MDE process, traceability is crucial due to

the extensive use of transformations (i.e. automated

creation of artefacts). Traceability becomes central

to be able to understand how and why an artefact

was created (Kolovos et al, 2006). Traceability

refers to “the ability to describe and follow the life

of artefacts, in both a forward and backward

direction” (Lagos et al., 2009) Forward traceability

traces the software devices that are obtained in the

normal development process. Backward traceability,

on the other hand, aims to link each software

element with the devices involved in its creation.

The traceability of software artefacts offers much

more detailed information on the adaptation of the

developed system as well as the implications that

any change may have. In (Behrens, 2007) Thomas

Behrens defines several key goals of traceability in

software development. We can summarize these

capacities in the following items:

(i) To validate whether the different requirements

have been taken into account.

(ii) To validate whether the obtained

implementation complies with requirements

and whether they have been satisfied.

(iii) To identify the impact that any requirements

modification may have.

In this context, MDE transformations may record

links (traces) between source and target elements.

These traces can be useful in performing impact

analysis, synchronization between models, model-

based debugging and determining the source or

target of a transformation. Traces make it easier to

validate whether transformations are properly

carried out, obtain support for an integrated

management and evaluation of the impact of

changes at different levels of abstraction

(requirements, architectural design, detailed design

and code).

The DSIE research group at the Universidad

Politécnica de Cartagena has experience in the

development of reactive software systems such as

224

Rosique F., Sánchez P., Alonso D. and Jiménez M..

Traceability Support for MDE Development of Home Automation Systems.

DOI: 10.5220/0004081302240229

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 224-229

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

tele-operated service robots (Alonso et al., 2008),

(Iborra et al., 2009), wireless sensors and actuators

networks, and home automation (HA) (Jimenez et

al., 2009). The proposal for HA systems

development uses the Model-Driven Architecture

(MDA) (Mellor et al, 2004) for organizing the

software development in three layers: (1) a

computation-independent model (CIM) represented

by the syntax and part of the semantics of the

defined DSL, (2) a platform-independent model

(PIM) built as a component model and (3) a HA

platform-specific model (PSM). The developer

elicits requirements through the DSL in the CIM

layer. Models from this level are automatically

transformed into architectural components in the

PIM layer. This level is a junction point for different

reactive systems (wireless sensor networks, robotic

systems, artificial vision, etc.). Consequently, the

elements of HA systems designed in this manner can

be integrated as components of a more complex

reactive system. The tool then transforms the

components into executable models for specific

platforms.

The possibility to augment all the models

involved in this process with traceability

mechanisms has motivated the present paper. The

rest of this paper is organized as follows: Section 2

introduces our previous experience with MDE and

HA. Section 3 details the proposed framework for

HA systems. Section 4 describes the integration of

traceability in a MDE framework. Section 5 analyses

other related papers and finally Section 6 presents

the conclusions and further work.

2 TRACEABILITY SUPPORT

FOR HOME AUTOMATION

SYSTEMS

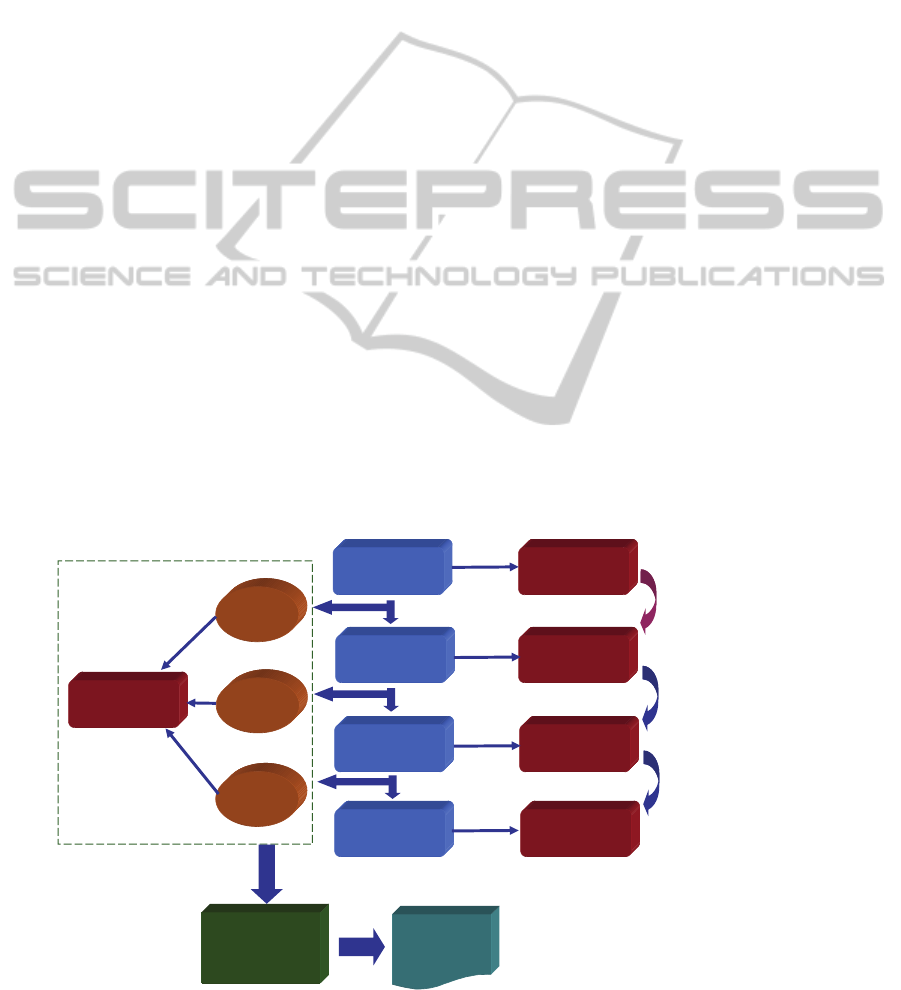

Figure 1 shows the proposed development

framework of HA systems following the MDE

approach, and its extension to include traceability.

As can be seen on the right hand side, the different

MDE levels corresponds to (1) HA requirements, (2)

domain specific languages, (3) a component based

level, and (4) executable code for a specific

platform. Traceability support includes the artefacts

shown in the dashed square on the left hand side of

the figure. As can be seen in the figure, the

correspondences between the requirements and the

DSL level are established manually. In this way, the

partial solutions for each HA requirement are

catalogued. When building a new application, the

user should inspect this catalogue identifying the

requirements that can be reused from previous

applications. From the DSL level, a set of model

transformation automatically generate (1) code

implementation of the application (at the moment

only for the KNX/EIB platform), and (2) a set of

traceability models (left-hand side of Figure 1) of

the whole process. These traceability models are

later processed by TRT (Trace Report Tool) that

provides the user with reports which are useful in

different situations as will be described below.

Home Automation

requirement

model

Requirements

meta-model

conforms to

DSL

model

DSL meta-model

V3CM

model

V3 component

meta-model

Home automation

platform-specific

model

Home automation

platform-specific

meta-model

Reuse of DSL

solutions (user guided)

Traceability

meta-model

Traceability

model #2

Traceability

model #3

Traceability

report

Requirement

Tracer Tool (RTT)

generates

analyses

DSL to component

transformation rules

(automatic with EMT)

Component to execution

infrastructure

transformation rules

(automatic with EMT&JET)

conforms to

Traceability

model #1

Figure 1: Framework for home automation model driven development.

Traceability Support for MDE Development of Home Automation Systems

225

A detailed description of each of the meta-

models falls outside the aim of this paper.

Nevertheless, the relevant details can be consulted in

(Jimenez et al., 2009).

To be able to save and later process the links of

the defined traceability it is necessary to have a

repository of traces among the different software

artefacts generated. In (Kolovos et al, 2006) there

are two main approaches to deal with traceability in

a model based environment. One is to keep the

traceability information embedded in the model

itself as new model elements e.g. as stereotypes. The

other is to keep the traceability information in an

external model. This approach has the advantage of

keeping models clean by facilitating loose couplings

between models and links. The software

development framework presented in this paper

considers the second approach.

2.1 A Meta-model for Traceability

The traceability meta-model detailed in Figure 2 has

been inspired by other works such as (Melby, 2007).

This meta-model contains a Link pointing to any

ModelElement via two references: a source element

and multiple target elements. The ModelElement is

required here because our traceability meta-model

must be able to link to elements of other meta-

models. The idea of the CompositeLink is to be able

to define different granulated levels to arrange Links

in others of more complexity, according to the

overall purpose that is being referred to. The

linkType attribute allows developers to categorize

the existing relationships and to distinguish on what

level of the development process the trace is located.

The process takes into account a traceability

model between each two consecutive levels of

abstraction, as is shown in Figure 1. For example, in

the particular case of the traceability between HA

requirements and the DSL, the Link element is

defined as:

x A ModelElement (source) which references an

element of the HA requirements meta-model.

x A ModelElement (target) which references an

element of the DSL.

Figure 3 shows all the possible combinations of

traceability links supported by the meta-model

between two consecutive levels of abstraction (for

instance, from requirements to design, from design

to elements of the programming language, etc.). As

can be observed, it is possible to integrate the one-

to-many relationships into one Link. At the same

time, a target can be the destination of diverse traces

with different origins.

Figure 2: A meta-model for traceability.

traceable elements at

abstraction level N+1 (sources)

traceable elements at

abstraction level N (targets)

1-to-n

link

two links with

same target

composite link

source model element

without trace

target model element

without trace

Figure 3: Examples of traces that can be represented with

the proposed traceability meta-model.

2.2 Traces Generation

Trace links between source and target artefacts of a

transformation may be created in implicit or explicit

way. The first traceability model (between HA

requirements and the corresponding DSL model) is

created manually by the user. From the DSL until

the final generated code, all the traces are obtained

automatically as part of each of the model-to-model

transformations. Transformations are defined using a

graph grammar-based approach (Mens, 2006) (in

particular the EMT plug-in for the Eclipse

environment). The fact that models are usually

represented as graphs makes graph grammars more

suited than other approaches.

In order to populate the traceability model at the

same time the transformation is being executed, the

rules must be extended by generating a new

TraceLink element each time a rule is executed.

Each TraceLink collects the necessary information

(name, description) for the Link type instances of the

traceability meta-model as well as the matches

between source and target.

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

226

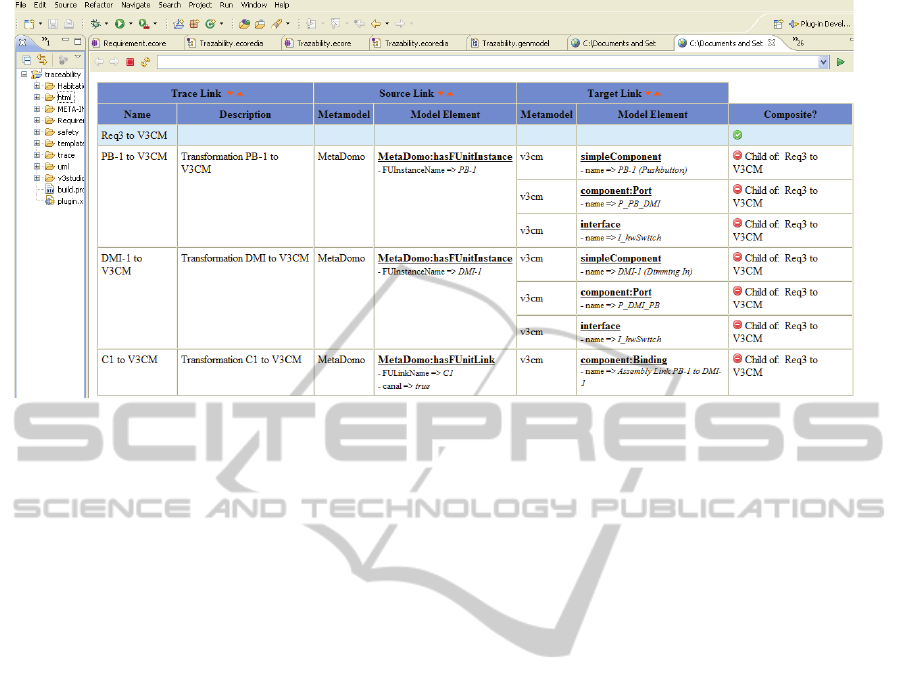

Figure 4: Traceability report created by TRT: from Home Automation requirements to DSL.

2.3 The Trace Report Tool (TRT)

Several authors give recommendations about the

issues that should be taken into account when

designing a tool for managing traceability (Melby,

2007), (Oldevik and Neple, 2006), such as (1) to be

able to manage models at different abstraction

levels, (2) to consider the same meta-model for all

the abstraction levels, (3) to store the traces in a

persistent medium, (4) to be able to identify when a

trace was created and the location of the referenced

element(s), (5) to be able to integrate the tool with

external applications, and (6) to be able to generate

the traces both manually and automatically. With

these issues in mind we have developed the Trace

Report Tool (TRT) which allows developers to

generate detailed reports from the trace models.

Trace inspection can be used to retrieve all

generated artefacts, the transformation responsible

for creating them, analyse how a requirement has

been taken into account in the process of automatic

code generation as well as including information on

the solution adopted. For each one of the traces,

details of name and description are given, as well as

information related to the source and the target of

the traced elements.

Figure 4 shows the traceability report

corresponding to the “Traceability Model #2” (see

Figure 1). It is generated automatically as part of the

transformation process from the DSL to the

component-based model.

The traceability report can help the analyst to

check which requirement each element is associated

to and to verify if the inclusion of new elements or

the alteration in their associations can affect the

correct implementation of other requirements. For

instance, if an external light detector for the

automatic power on of lights is added it will be

necessary to: add new elements that might already

be present in the system to satisfy other

requirements and to modify the associations of, for

example, PIR (presence detection). This PIR can be

associated to other DSL elements to implement other

requirements. Therefore, when modifying their

associations you may be altering the models

corresponding to other requirements.

3 RELATED WORK

The work presented here, as has been seen, support

the traceability of software artefacts linked to HA

requirements within a MDE framework. In this

section the related work is analysed. This deals

totally or partially with the three concepts that

concern this paper: MDE, HA systems and

traceability.

The literature offers few examples of work

which tries to reach in an integrated way the

development of HA systems using an MDE

approach. Among these, it is important to highlight

the works of (Muñoz and Pelechano, 2006) and

(Voelter, 2007) that outline the necessity of using a

MDE approach in HA systems. The aim is to

increase the level of abstraction, the productivity and

the quality of the software, besides maintaining the

independence of the implementation platform. These

proposals represent a good example of the

Traceability Support for MDE Development of Home Automation Systems

227

advantages that the use of MDE offers in the

development of HA systems, but they also present

some drawbacks. In the first place, J. Muñoz uses

the UML notation for requirement capturing, which

is not very intuitive for experts in the field of HA. In

the work of M. Voelter it is necessary to build a new

meta-model for each application using the Tree

Editor tool provided by EMF the plug-in for Eclipse.

Secondly, in both proposals the code generation is

oriented to obtain OSGi (Open Service Gateway

Initiative) components for a server or middleware

platform (normally implemented in Java), and not to

the programming of the HA devices. Therefore, it

will always be necessary for an expert of the specific

platform to program these devices. Contrary to the

previous examples, in our environment the level of

abstraction and usability of the requirement

modelling rises with the use of a graphic DSL that

uses specific concepts of the HA domain. In

addition, our work guides the code generation to the

automatic programming of the devices of the HA

technology. In this way the need for specific

knowledge of each platform is avoided, as well as

the intervention of an expert in the technology.

On the other hand, there are various papers that

successfully approach traceability within the MDE

framework (Winkler and von Pilgrim, 2010).

(Melby, 2007) presents a traceability tool that is

capable of defining and handling semantically rich

traceability information in MDE, allowing

traceability classification schemes to be generically

defined, and which can be used to populate trace

repositories with traceability information. Similar

approaches are suggested in (Ramesh and Jarke,

2001), where a general purpose meta-model for

requirements traceability that covers the most basic

aspects of traceability is presented. These

contributions coincide with the proposal presented in

this paper, in which traceability models are obtained

from the transformations integrated in an MDE

environment. They also use a traceability tool that

generates reports that allows the exploration of the

elements of origin and destination of all the

transformations carried out.

Contributions that deal with traceability of

software devices for HA requirements within a MDE

framework in an integrated way are hard to find.

Markus Voelter (Voelter, 2007) proposes a generic

Aspect-Oriented and Model-Driven Software

Development (MDSD-AOSD) approach for product

line implementation. This approach supports

variability implementation, management and

traceability throughout the development lifecycle.

The paper presents a case study of the HA domain

which demonstrates the viability of the

methodology. In addition, techniques to incorporate

the traceability and the prospective benefits of their

application are presented. However, in terms of a

generic approach, these ideas are not totally

adaptable to all the requirements of HA applications.

They also fail to explicitly validate traceability in

concrete scenarios.

Our work differs from all the previous work in

the following ways: (1) we provide a requirement

meta-model that properly considers the HA

requirements in the development of these

applications; (2) we provide a model oriented

framework to (semi) automatically derive

implementations from HA requirements using a

DSL; and (3) we provide a tool (TRT) that generates

a traceability report from model transformations.

With these results, the developer is offered an

integrated environment which encourages the re-use

of the software devices generated in the construction

process of HA systems. In addition, by offering an

environment for traceability, the quality of the built

systems is increased, since it facilitates both

modification as well as the impact analysis of the

changes in the requirements.

4 CONCLUSIONS

The approach described in this paper focuses on

tracing HA requirements to design, and design to

implementation through different model

transformations. We have shown the usefulness and

value of combining a MDE approach with

traceability capabilities when designing HA systems.

This work represents a contribution that integrates in

one solution the use of MDE and traceability in the

development of HA systems.

The defined transformations represent the main

artefacts on which the traceability relationships have

been defined. By proceeding in this manner, the

incorporation of traceability elements has been

simplified notably between the source and target

models, allowing the representation of this

information in different traceability models that are

generated throughout the whole process. In addition,

a traceability report generated with the tool TRT is

automatically obtained. This tool provides an

interesting and flexible mechanism of inspection for

the automation of traceability in MDE allowing (1)

bringing together the whole information in a report,

(2) supporting decision making throughout the

whole process, and (3) checking the relationship

among the software devices involved. With this

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

228

approach, it has been relatively simple to incorporate

traceability throughout the whole development

process since the meta-model used has dealt

orthogonally and externally with the rest of the

resources used.

The benefits of using the traces for concrete

situations will represent a decrease in time and effort

needed in the process. Although the case study this

paper deals with is a simplified system, the results

can be extrapolated to larger systems provided that

certain improvements are carried out in the TRT. In

this case, the main problem would be the necessity

of managing a larger quantity of data. The possible

inconveniences of this increase in data could be

solved by adding to the tool advanced filtering

features.

As further work, we plan to complete the model

transformations for several HA platforms and to

provide developers a user friendly framework which

integrates all the involved tools in a single

development system. In addition, work is currently

underway to improve the TRT: to facilitate advanced

filtering features, to extend the traceability

framework with statistical information of elements

generated in each level, to allow orphan analysis to

find elements that are not the target of any trace link

of a specific type (a typical use of this is to find

elements that are not required by the system, e.g. a

feature that was not described in the requirements)

and, lastly, to allow the integration of the tool in

environments other than Eclipse.

ACKNOWLEDGEMENTS

This work has been partially supported by the

Spanish CICYT Project EXPLORE (ref. TIN2009-

08572) and the Region of Murcia's Government

Project MISSION-SICUVA (ref. 15374/PI/10).

REFERENCES

Alonso, D.; Vicente-Chicote, C. & Barais, O. "V3Studio:

A Component-Based Architecture Modeling

Language" 15th Annual IEEE International

Conference and Workshop on Engineering of

Computer Based Systems, IEEE, 2008, pp. 346-355,

doi:10.1109/ECBS.2008.9

Behrens, T. 2007. Never Without a trace: Practical advice

on implementing traceability, Available at: http://

www.ibm.com/developerworks/rational/library/feb07/

behrens.

Eclipse Consortium, Java Emitter Templates (JET).

http://www.eclipse.org/modeling/m2g/?project=jet .

Iborra, A., Alonso, D., Ortiz, F.; Franco, J.; Sánchez, P. &

Álvarez, B. 2009. "Design of service robots" IEEE

Robotics & Automation Magazine, Special Issue on

Software Engineering for Robotics, , vol. 16, pp. 24-

33, doi:10.1109/MRA.2008.931635

Jimenez, M., Rosique, F., Sánchez, P., Álvarez, and B.,

Iborra, A. 2009. Habitation: A Domain-Specific

Language for Home Automation, IEEE Software, vol.

26(4), pp. 33-38.

Kolovos, D., Paige, R. And Polack, F.2006. On-demand

merging of traceability links with models, in:

Proceedings of the 2nd EC-MDA Workshop on

Traceability.

Lago, P., Muccini, H., van Vliet, H. 2009. A scoped

approach to traceability management. System and

Software. vol 82 (1), pp. 168-182.

Mellor, S., Scott, K., Uhl, A., Weise, D. 2004. MDA

Distilled. Object Technology. 1st ed., Addison-Wesley,

Boston.

Melby, S. 2007. Traceability in Model Driven

Engineering. Master Thesis. University Of Oslo,

Norway, Available at: http://urn.nb.no/URN:NBN:no-

18721.

Mens, T. and Van Gorp, P, 2006. A taxonomy of model

transformation, Electronic Notes in Theoretical

Computer Science. vol. 152 pp. 125–142.

Muñoz, J. and Pelechano, V. 2006. Implementing a

Pervasive Meetings Room: A Model Driven

Approach, in: Proceeding of the 3rd International

Workshop on Ubiquitous Computing, pp.13-20.

Oldevik, J. and Neple, T.2006. Traceability in Model to

Text Transformations, in: 2nd European Conference

on Model-Driven Architecture Foundations an

Applications (ECMDA’06).

Ramesh, B.and Jarke, M. 2001. Toward Reference Models

for Requirements Traceability. IEEE Transactions on

software engineering,vol. 27, nº 1, pp: 58 - 93.

Selic, B., 2003. The Pragmatics of Model-Driven

Development, IEEE Software, vol. 20, pp. 46–51.

Voelter, M. 2007. Product line implementation using

aspect-oriented and model-driven software

development, in: Proceedings of the 11th

International Software Product Line, pp.233-242.

Winkler, S and von Pilgrim, J. 2010. "A survey of

traceability in requirements engineering and model-

driven development," Software and Systems Modeling,

vol. 9, no. 4, pp. 529-569.

Traceability Support for MDE Development of Home Automation Systems

229
