Secure File Allocation and Caching in Large-scale Distributed Systems

Alessio Di Mauro

, Alessandro Mei

and Sushil Jajodia

DTU Informatics, Technical University of Denmark, Lyngby, Denmark

Department of Computer Science, Sapienza University of Rome, Rome, Italy

Center for Secure Information Systems, George Mason University, Fairfax, U.S.A.

Keywords:

Load Balancing, Distributed Systems, Secure File Allocation.

Abstract:

In this paper, we present a ﬁle allocation and caching scheme that guarantees high assurance, availability,

and load balancing in a large-scale distributed ﬁle system that can support dynamic updates of authorization

policies. The scheme uses fragmentation and replication to store ﬁles with high security requirements in a

system composed of a majority of low-security servers. We develop mechanisms to fragment ﬁles, to allocate

them into multiple servers, and to cache them as close as possible to their readers while preserving the security

requirement of the ﬁles, providing load-balancing, and reducing delay of read operations. The system offers a

trade-off between performance and security that is dynamically tunable according to the current level of threat.

We validate our mechanisms with extensive simulations in an Internet-like network.

1 INTRODUCTION

The ever-increasing resources and performances of

modern technological systems have massively con-

tributed to the development of applications that allow

for resources to be easily and widely distributed. Sce-

narios where contents are pervasively shared, ubiqui-

tously accessible and always available have become

more and more common. Grid computing and cloud

computing solutions make intensive use of these con-

cepts in order to provide high-performance and scal-

able services.

Security aspects have therefore become even more

important, conﬁdentiality issues can make or break

commercial applications. Resources such as ﬁles

should be readily and constantly available from any-

where to whoever has the right to access them, and

safely kept from those who do not have such rights.

Distributed ﬁle systems such as OceanStore (Kubi-

atowicz et al., 2000), PASIS (Wylie et al., 2000) or

Tahoe (Wilcox-O’Hearn and Warner, 2008) try to sat-

isfy these properties. Different approaches and tech-

niques are used to address different security aspects.

Conﬁdentiality is usually achieved through encryp-

tion, ﬁles are enciphered before being stored. Avail-

ability is generally obtained through replication of en-

crypted replicas of the ﬁle. However, ﬁle encryption

makes it difﬁcult to get high security and support for

updates to the authorization policy at the same time.

Indeed, if the encryption is performed with a single

key only, either every user has a complete view of the

ﬁles stored in the system or costly re-encryptions are

needed at every change of the authorization policy.

Moreover, if a legitimate user leaves the system, re-

keying and (again) re-encryption are needed to pro-

vide forward-security. In order to avoid such prob-

lems and maintain good performance, dynamic poli-

cies are often not allowed, in this way operations like

re-encryption are not needed. The price of this is paid

in terms of ﬂexibility. For example not being able to

dynamically redeﬁne the access policy for a ﬁle re-

quires a more accurate planning when the access lists

are created and, in any case, makes it impossible to

cope with emergencies in critical applications.

In this paper we present a model for ﬁle alloca-

tion in large-scale distributed systems that addresses

these problems. We provide provable assurance in a

system that guarantees ﬂexibility of the authorization

policy. In our system, ﬁles are fragmented and stored

in the clear at several nodes (or, similarly to what is

done in (di Vimercati et al., 2007), stored with a base

encryption layer whose key is known to all the pos-

sible legitimate users of the system). We character-

ize the system as highly heterogeneous, composed by

elements whose characteristics and performance can

vary signiﬁcantly.

We then present a fragmentation and allocation

scheme for storing ﬁles within the system. This

scheme is compliant to our provable assurance model

and produces overall load balance. The allocation

182

Di Mauro A., Mei A. and Jajodia S..

Secure File Allocation and Caching in Large-scale Distributed Systems.

DOI: 10.5220/0004074201820191

In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2012), pages 182-191

ISBN: 978-989-8565-24-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

procedure is efﬁcient in the sense that very few and

locally obtainable information are needed to perform

the task. Furthermore, we allow the existence of ﬁles

with assurance requirements much greater than the re-

silience guaranteed by each single node in the system.

Lastly, we introduce a read-based, threat-adaptive,

caching system that guarantees good load-balancing

and high availability (i.e. low delay) for the readers.

2 RELATED WORK

Distributed ﬁle allocation has been addressed in many

different ways. The Cooperative File System (CFS)

(Dabek et al., 2001) uses DHT to provide provable

efﬁciency, robustness and load-balance in a read-only

context. FarSite (Adya et al., 2002) achieves Byzan-

tine fault tolerance, secrecy, and scalability by adding

an encryption layer and local ﬁle caching. Similarly

OceanStore (Kubiatowicz et al., 2000) allows the ex-

istence of untrusted servers and yields continuous ac-

cess thanks to encryption and redundancy. It also

allows to improve performances and avoid DOS at-

tacks by monitoring the usage patterns. Again, PA-

SIS (Wylie et al., 2000) is a Survivable Storage Sys-

tem that builds on decentralized storage infrastruc-

tures to offer conﬁdentiality, integrity, and availabil-

ity. In (Tu et al., 2010) the authors use partitioning

and replication in a two-level topology context. They

propose an algorithm to ﬁnd a subset of servers to al-

locate replicas to that would minimize the number of

exchanged messages. The work in (Ye et al., 2010)

instead focuses on a scenario that does not make use

of a pure data partitioning approach in order to min-

imize the propagation latency and consistency veri-

ﬁcation messages. They provide a two-level storage

system where servers are divided into groups accord-

ing to their location and use secret sharing schemes

to spread the shares within a group and lazy update

to propagate the information within different groups.

The authors in (Lakshmanan et al., 2003) present a

distributed data store system that makes use of secret

sharing and replication. This allows for the existence

of a partial number of compromised nodes (Byzan-

tine failures). Nevertheless the shares are not allowed

to be moved and optimal allocation is not considered.

3 SYSTEM MODEL

We consider a distributed system D . The system is

hierarchically organized in a set S of subnets, each

subnet s ∈ S consisting of a number of nodes. The set

of nodes of a subnet s is denoted by N

, and the set

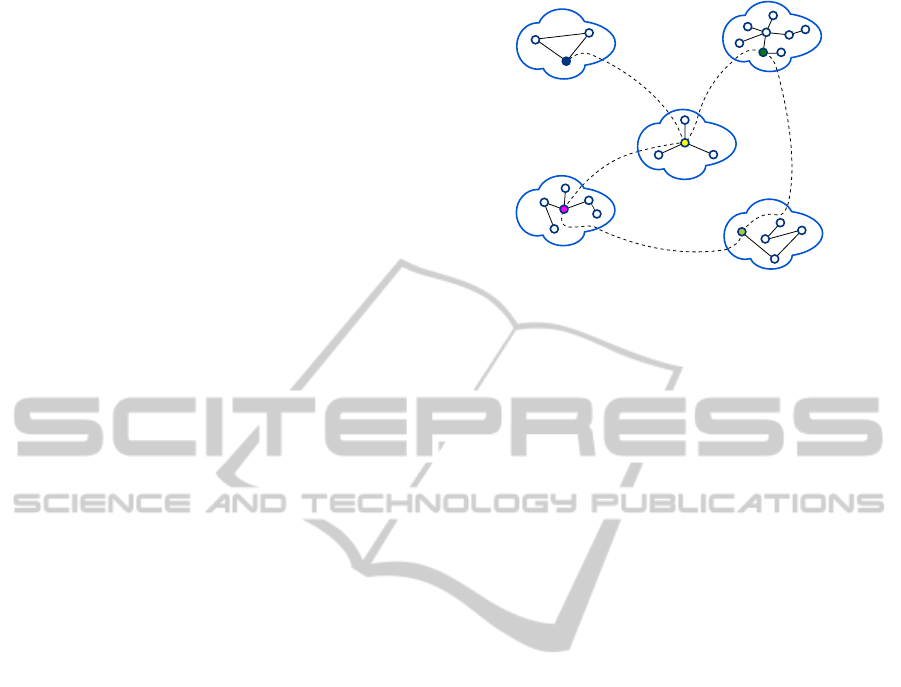

Figure 1: System structure.

of all the nodes of the system is denoted by N . The

system is Internet-like for both size and typical usage.

The concept of node can be assimilated to a generic

host, while we can picture a subnet as a collection of

hosts under the same administration domain and with

local resources (e.g. ﬁrewalls). At a much greater

scale, we can use the same model to represent a sys-

tem in which subnets are autonomous systems with

their own border routers and access policies.

The nodes in each subnet are internally intercon-

nected. We assume that every two nodes of the same

subnet can communicate directly by exchanging mes-

sages within the subnet itself. Subnets are also in-

terconnected according to a graph of subnets. Two

nodes of different subnets can communicate as well,

but messages have to traverse the links of the graph

of subnets and get into the subnet of the destination

by going through its ﬁlters and protections (like, for

example, a ﬁrewall). Both nodes and subnets have

their own unique id, just like their Internet counter-

parts have a unique IP address. Figure 1 summarizes

the structure of the distributed system.

Nodes and subnets are entities able to store and

protect resources. In order to formalize this concept,

we introduce the function R which deﬁnes the re-

silience provided by a node or by a subnet. For each

node u, R (u) is a numeric value that represents the

quantity of (ideal) effort needed by an attacker to

crack node u. We assume that the system is hetero-

geneous, consisting in nodes with different resilience.

A subnet is not just an hypothetical component cre-

ated only for convenience, it is a real part of the sys-

tem. If we recall the comparison between subnets

and AS, we can see that a subnet could for example

deny unauthorized incoming connection or spot iden-

tity theft attempts. Shortly we can say that subnets

have a rather active role in the whole system dynam-

ics. For this reason we add a resilience value to every

subnet. For ease of work we chose this value R (s)

to be the same for every subnet. Furthermore, we do

SecureFileAllocationandCachinginLarge-scaleDistributedSystems

183

not provide a real implementation of R as it would

be too much system speciﬁc, anyway we think that

such function could be deﬁned by taking into account

all the parameters of a given system such as the hard-

ware equipment of a node, the procedural security of

the site where the nodes are, the IT security aspects

(e.g. ﬁrewalls, network organization, ...), etc.

Another main component of our model are the

ﬁles, deﬁned by the set F . We assume that the ﬁles

are read-only and that different ﬁles have different

requirements in terms of conﬁdentiality. To express

this idea we introduce the function H . For each ﬁle

f ∈ F , the value H ( f) is deﬁned as the assurance re-

quirement of ﬁle f. In other words, we want the sys-

tem to guarantee that the adversary cannot compro-

mise ﬁle f unless it spends at least effort H ( f). Files

are created by the users of the systems. Users can be

servers of a cloud, mobile users that connect to the

system to read shared ﬁles, or any similar entity de-

pending on the application scenario. We assume that

users log into one of the nodes of the system, typically

one node in the closest subnet. When a user creates a

ﬁle, it assigns the ﬁle an assurance requirement H ( f),

an access policy that depends on the application, and

stores the ﬁle in the system.

Nodes and users have access to a trusted public

key cryptography infrastructure. Therefore, we as-

sume that every node and every user have a certiﬁed

public key and the corresponding private key.

3.1 The Adversary

The adversary has the goal of compromising one or

more ﬁles in the system. To achieve this goal, the

adversary can break into subnets and compromise

nodes. However, the adversary has to pay effort R (s)

to break into subnet s, and effort R (u) to compro-

mise node u. When a subnet or a node are compro-

mised, they are so forever—there is no recovery pro-

cedure. We also assume that the adversary has a com-

plete knowledge of ﬁle allocation—if it has the goal

of compromising ﬁle f, it knows which nodes are

used to store f. The adversary compromises all the

fragments that are stored, even temporarily, in nodes

that are currently under its control. A ﬁle is compro-

mised when at least one copy of every fragment if has

been divided into, is compromised.

3.2 The Problem

The problem that we consider in this paper is to de-

sign a ﬁle allocation and caching scheme with the fol-

lowing goals:

1. We should be able to securely store ﬁles whose

resilience requirement is larger than the resilience

of any subnet and of any node in the system;

2. performance of read operations should be maxi-

mized;

3. the system load should be balanced;

4. the adversary cannot compromise ﬁle f by mak-

ing an effort smaller than R ( f ).

To get Property 2, ﬁles can be dynamically replicated

in more than one node in the system or moved from

one node to another according to the read activities

of the users. The challenge is to preserve security re-

quirements and, at the same time, to perform efﬁcient

caching and load-balancing.

4 ALLOCATION AND

FRAGMENTATION

One of the ideas in this study is to design a ﬁle al-

location and caching mechanism that can obtain con-

stantly high standards of security from a system with

many weak nodes, a few stronger ones, and a very

small number of high resilience nodes. To do so

we push the limits of the system by accepting situ-

ations where the assurance required for a ﬁle is much

greater than the resilience offered by a single node

(H ( f) ≫ R (u) for most ﬁles f and nodes u) as de-

scribed by Property 1. Doing so has the consequence

that it is not possible to directly allocate a whole ﬁle

over a single node. Every ﬁle f will have to with-

stand a fragmentation process and each fragment f

will have to be rated with an assurance value H ( f

4.1 Allocation Security

Let us assume that ﬁle f has been fragmented into g

fragments f

,... , f

, and that all fragments are neces-

sary to reconstruct the ﬁle (we will see that there are

many efﬁcient mechanisms to achieve this goal when

we describe the fragmentation process). Each frag-

ment f

is assigned a required assurance H ( f

). Then,

we allocate the fragments into nodes with appropriate

resilience and guarantee the assurance of the ﬁle by

means of providing assurance to the fragments. To

get this results, we impose a few constraints on the al-

location process. With these constraints, it is easier to

reason about the assurance provided by the allocation.

The ﬁrst constraint is very intuitive. If frag-

ments f

and f

are allowed to be hosted on the same

node u, we would be in a situation in which the ad-

versary can compromise node u and instantaneously

SECRYPT2012-InternationalConferenceonSecurityandCryptography

184

gain access to both f

and f

with effort R (u). This

can reduce the assurance that the system is providing

to ﬁle f. Therefore, we introduce the single fragment

constraint.

Constraint 1 (Single fragment). No two fragments of

a same ﬁle can be hosted on the same node at any

time.

A second constraint deals with the number of

nodes allowed into every subnet. We deﬁne the sys-

tem parameter κ as the maximum number of frag-

ments of the same ﬁle that any subnet can hold. This

is called the κ-constraint and is formally described as

follows.

Constraint 2 (κ-constraint). No more than κ frag-

ments of the same ﬁle can be kept by the same subnet

at any time.

This constraint is not crucial for the correct func-

tioning of the system, but allows for a trade-off be-

tween security and performance. Intuitively, smaller

values of κ force the allocator to use a greater number

of subnets for the fragments of the same ﬁle. There-

fore, assurance is higher since the adversary has to

break into more subnets to compromise the ﬁle, while

performance of read operations is poorer, since the

ﬁle is more spread and getting all the fragments takes

longer. High values of κ, instead, produce the exact

opposite results. To complicate the analysis, a smaller

value of κ allows the system to generate fewer frag-

ments to get the same ﬁle assurance, therefore, the

trade-off is not obvious.

The third constraint is the eligibility constraint

and it has to be satisﬁed for a fragment to be allocated

to a node.

Constraint 3 (Eligibility). A fragment f

can be allo-

cated to a node u

if and only if R (u

) ≥ H ( f

An allocation A

for fragments f

,. .. , f

of ﬁle f

is a function A

: {1,. .. ,g} → P (N ), where P (N )

is the set of all subsets of N . Subset A

(i) is the

subset of nodes that store a replica of fragment f

. An

allocation is valid if it satisﬁes Constraints 1, 2, and 3.

If the adversary is willing to compromise ﬁle f al-

located with valid allocation A

, the effort to be paid

is composed by two factors: One to break into enough

nodes that store fragments of the ﬁle, and one to break

into the subnets that host those nodes. Thanks to Con-

straint 1, the ﬁrst factor is at least equal to the effort

needed to compromise the weakest node in A

(1), the

weakest node in A

(2), and so on, up to the weakest

node in A

(g). Moreover, thanks to Constraint 2, the

adversary has to break into at least ⌈g/κ⌉ subnets. To

summarize, we can introduce function J (A

) as the

assurance achieved by f through A

J (A

) ≥

· R (s) +

∑

min

u∈A

(i)

{R (u)}. (1)

If the amount of assurance required for f is grater than

the resilience offered by any valid allocation, we say

that the allocation is unsatisﬁable.

4.2 The Fragmentation Process

One of the most important point to address is ﬁnding

an appropriate number of fragments to use for each

ﬁle in accordance to its assurance requirement. The

fragmentation process for a ﬁle f can be implemented

as a (g,g) Shamir’s secret sharing scheme (Shamir,

1979), where again g is the number of fragments that

f is divided into, or with faster erasure codes (whose

security is not information-theoretic) such as Tornado

codes (Byers et al., 1998), Turbo codes (Berrou et al.,

1993), or Reed-Solomon codes (Reed and Solomon,

1960) among many others.

The challenge here is to perform the fragmenta-

tion process in such a way that the assurance of the

ﬁle is guaranteed and that fragments can later be allo-

cated to nodes in such a way that the load is balanced.

Since the system is very large, we just assume to know

what is the distribution of the resilience of the nodes.

This information does not depend on the size of the

network.

Let f ∈ F be a generic ﬁle and, as usual, let us as-

sume that it has already been divided into g fragments.

Let A

be a valid allocation and let us assume that ev-

ery fragment is stored in one single replica. That is,

for all i |A

(i)| = 1. In this case, we will refer to such

an allocation as initial allocation and function J (A

)

is simply

J (A

) =

R (s) +

∑

i=1

R (u

) (2)

where u

is the only node in A

(i). Let Y be the ran-

dom variable that models the resilience provided by

the nodes. We assume that this distribution has a ﬁ-

nite expectation. It is then possible to say that, on

average, each node will contribute with a resilience

of E(Y ). Hence, we can compute the average number

of fragments needed to make the achieved assurance

at least H ( f) as follows:

J (A

) =

R (s) + gE(Y ) ≥ H ( f) (3)

Let

∗

g be the smallest value for which the 3 is true.

Then, we can expect that the average number of frag-

ments of ﬁle f needed in our system is

∗

SecureFileAllocationandCachinginLarge-scaleDistributedSystems

185

The actual fragmentation process consists in iter-

atively sampling from random variable Y the assur-

ance requirement for each fragment of ﬁle f . Every

κ fragments, we know that one more subnet will be

used when allocating the ﬁle and that one more subnet

has to be broken by the adversary to compromise the

ﬁle. As a consequence, additional subnet resilience

R (s) is taken into account. The process is stopped

when the number of fragments is enough to guarantee

the required assurance of ﬁle f. Of course, the actual

number of fragments for the ﬁle can be different from

the average computed in the previous section. Finally,

we can state the following simple result.

Proposition 1. The fragmentation process guaran-

tees that: 1. The distribution of the assurance re-

quirement of the fragments is equal to the distribution

of the resilience of the nodes; and 2. if A

is a valid

allocation, then J (A

) ≥ H ( f).

Of course, this result holds only if the allocation is

static. With caching, allocation changes dynamically

and therefore we have to take particular care to guar-

antee that the adversary cannot compromise the ﬁle

with smaller effort.

4.3 Distribution of Node Resilience

The random distribution we use for node resilience

is the Bounded Pareto distribution described as

BPa(min, max,α) where [min,max] is the interval of

values and α is the shape. We use two different

random variables, both following the aforementioned

distribution, albeit with different parameters. The

variable Y has already been introduced, the second

one is X and we will use it in our experiments to gen-

erate the assurance required by the ﬁles generated in

the system.

Thanks to this it is possible to perform various ex-

periments. For instance in Figure 2 we can see an ex-

ample of the fragmentation of 100 ﬁles. On the x axis

there is the id of the ﬁles (we have sorted the ﬁles ids

according to increasing assurance requirement), while

on the y axis there is the number of fragments the ﬁle

has been divided into. In blue we have the expected

number of fragments as computed above and in red

there is the actual number of fragments obtained via

the fragmentation process. For this experiment we

used the distribution BPa(100,200,2.0). The aver-

age difference between expected and real is 0.01 frag-

ments.

4.4 File to Subnet Allocation

After a ﬁle has been created and fragmented, every

fragment must be assigned a subnet to create an initial

0 20 40 60 80 100

Number of fragments

File id (increasing security requirements)

Real # of fragments

Expected # of fragments

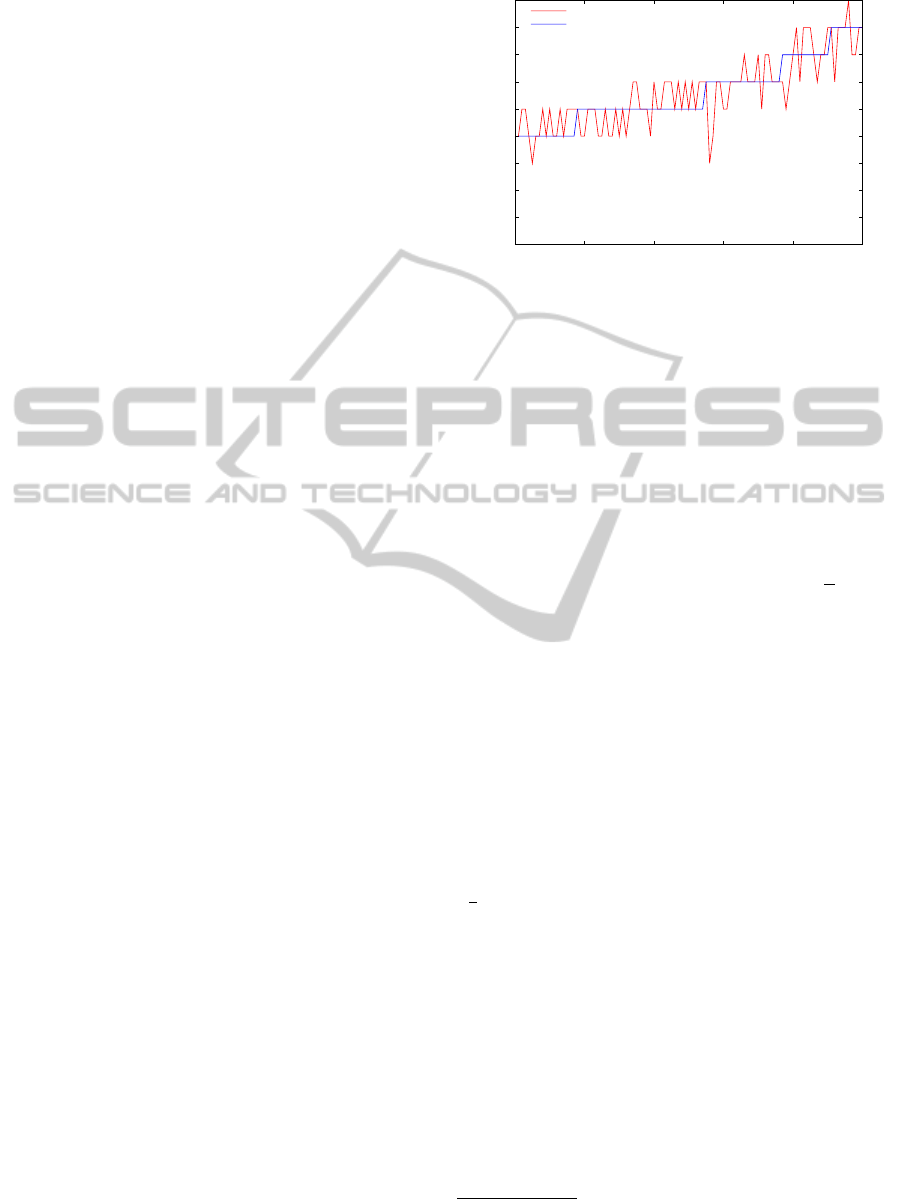

Figure 2: Expected number of fragments (blue) and Real

number of fragments (red).

allocation. We call this the ﬁle to subnet allocation.

The goal of this phase is to create a list of eligible

subnets for each fragment and then to select the “best”

element out of this list. It is in this phase that the κ-

constraint is enforced.

Our design choice is to enforce a static matching

between the fragments and the eligible subnetworks.

Formally, given a fragment f

, we say that

s is eligible for f

⇐⇒ H

(s| f) ≡ f

mod

(4)

where H

: N → N is an arbitrarily chosen hash func-

tion

and | is the juxtaposition operator. The hash

function is not used for security purposes, but rather

as a randomizer (any quasi-random function could be

used). This means that properties like collision re-

sistance, pre-image resistance and second pre-image

resistance are not crucial.

With this mechanism, no compromised subnet can

attract more fragments then it is supposed to store.

This limits the possible damage that the adversary can

perform by compromising a particular subnet.

By using this technique we are actually deﬁning





= t colors {0,...,t − 1} for all the subnets. We

are then assigning one color c to everyfragment f

and

saying that all and only the c-colored subnets are eli-

gible for f

. Furthermore we are also assuring that the

κ-constraint is satisﬁed because for any given subnet,

at most κ fragments of the same ﬁle will be eligible.

In Equation 4 the hash function is applied to s juxta-

posed to the ﬁle id f. We use this expedient to even

out the unbalance due to the fact that g is not a mul-

tiple of κ. Furthermore, this also has the effect that

every ﬁle induces a different coloring on the system.

This procedure does not guarantee that every color

is used, but we can show that with high probability

Not to be confused with function H , the assurance re-

quirement.

SECRYPT2012-InternationalConferenceonSecurityandCryptography

186

this holds true if |S | ≫ t. If we assume that the func-

tion H

is uniformly distributed over its codomain, we

are actually assigning |S | fragments to t colors and, if

|S | = Ω(t logt) (which is the case in a large network

since it is reasonable that





is much smaller than

|S |), we can also show that colors are well balanced.

This is done by using well-known results on a famous

problem referred to as balls and bins (Mitzenmacher,

2001).

The second concept that we need to introduce has

to do with the resilience associated to a subnet. We

deﬁne the function Q : S × F

′

→ {0,1} as follows

Q (s, f

) :=

(

1 if ∃ u ∈ N

| R (u) ≥ H ( f

0 otherwise.

(5)

Basically this function assumes value 1 when the sub-

net s contains at least one node that can provide a re-

silience value equal to or greater than the assurance

value required by the fragment f

and assumes value

0 otherwise.

In general, multiple subnets are eligible for a given

fragment, introducing the need for a tie-breaker. The

subnet chosen among all the eligible is the one closest

to the subnet where the ﬁle has been created, where

we measure distance in terms of hops. In the case that

two or more subnets have this property one is chosen

uniformly at random. We call this method min path.

So if we call G(S ,E) the graph associated to the

underlying network infrastructure of subnets, we can

say that a fragment f

is allocated to the subnet s ∈ S

if: s is eligible for f

, Q (s, f

) = 1, s has the minimal

shortest path in G from the subnet of creation of ﬁle f.

4.5 Fragment to Node Allocation

Once the subnet for fragment f

has been selected, we

must choose the node where to actually store the frag-

ment. Similarly to what we did before, we introduce

a node-fragment eligibility notion: Given a fragment

and a node u ∈ N we say that

u is eligible for f

⇐⇒ H

(u| f) ≡ f

mod κ (6)

By doing this we have a practical way of enforcing the

single fragment constraint. Brieﬂy, we are again col-

oring fragments and nodes and saying that it is legal

to allocate a fragment within a node only if the colors

match. Since we are using the mod operator we will

have κ contiguous different colors in {0, .. ., κ − 1}.

Thanks to the fact that we can not have more than κ

fragments of the same ﬁle in a subnet, there cannot be

two fragments of the same color.

To perform the real allocation we take advantage

of the fact that the distribution used for the nodes re-

silience and the fragments assurance is the same. For

this reason we decided to use a best-ﬁt type of alloca-

tion. The nodes of a subnet are partitioned into a set

of equivalence classes C. All the nodes with the same

resilience belong to the same class. After that, we

choose the class c ∈ C that has the smallest amount of

resilience and that can provide the assurance required

by f

. After that a speciﬁc class has been picked up,

one eligible node is taken uniformly at random in the

class.

5 FILE HANDLING

In this section we describe the procedure needed to

create a ﬁle, to retrieve it, and to improve the perfor-

mance of read operations by caching.

5.1 File Creation

File creation is performed by a user logged in the sys-

tem at a node. The user chooses the assurance require-

ment of the ﬁle, performs the fragmentation process,

computes the allocation, and sends the fragments to

the nodes by encrypting each fragment with the pub-

lic key of the proper node (after checking that the re-

silience of the node on its certiﬁcate). Note that com-

puting the ﬁle allocation is a local process—the client

has to know only the nodes in the subnet and in the

close neighborhood (just enough to have at least one

subnet per color). The nodes store the fragment in

the clear, or with a base encryption known to all the

potential users of the system.

5.2 File Retrieval

File retrieval requests are issued from the users to ac-

cess a ﬁle in the system. Whenever a read request is

issued, the ﬁrst thing needed to perform the retrieval is

the list of nodes storing a replica of the fragment, one

for each fragment. This part is performed by a dedi-

cated underlying protocol (e.g. Chord, Pastry). Once

the list has been obtained a fragment request is sent to

the closest node storing the fragment, for every frag-

ment. Upon receiving a fragment request, the node

performs the authorization checks (that is, the node

checks that the user has the right to read the ﬁle ac-

cording to the policy associated to the ﬁle itself) and,

in case, sends the fragment back encrypted with the

client public key. Note that this mechanism supports

dynamic changing of access policies, as, for exam-

ple, the mechanisms described in (di Vimercati et al.,

2007). When the user has obtained all the fragments,

it can reconstruct the ﬁle. A ﬁle request is an ex-

change of control messages (like the request message)

SecureFileAllocationandCachinginLarge-scaleDistributedSystems

187

and payload messages, which are also used as unit of

measurement to determine the request’s cost. A pay-

load message is a message exchanged between two

subnets and containing a ﬁle fragment. Retransmis-

sions of payload messages are of course payload mes-

sages. The cost of a ﬁle request is the total number of

payload messages needed to complete it. Thanks to

this we have that the cost of a single ﬁle request is the

sum of the shortest paths from the requiring subnet

to every fragment. With regards to the cost of a re-

quest, we also introduce the delay as the length of the

longest path from a reader to one of the fragments.

5.3 Caching

In order to reduce the cost of a ﬁle request, we intro-

duce caching. In our system, caching is designed in

such a way to preserve the assurance of the ﬁle. Upon

receiving a fragment as a response of a fragment re-

quest, if it is a ﬁrst time read, the user also issues a

cache request. Cache requests can be considered as

brand new allocations originated at the subnet where

the user is logged in. This means they undergo the

same procedures described for a regular allocation.

This technique produces the migration of a ﬁle toward

its readers and will improve subsequent reads issued

by the same reader or by one of its neighbor. More-

over, since caching replicates the fragments following

the same rules of the initial allocation, we still guar-

antee that the adversary needs H ( f) effort to compro-

mise ﬁle f. Indeed, when a node is compromised, the

adversary can get at most one fragment of a given ﬁle,

even over time and during dynamic re-allocations.

6 LOAD BALANCE

Load balance is a fundamental property to make a

caching system efﬁcient. Given our system model,

there are two independent load balance problems, one

at the node level and one at the subnet level. The ﬁrst

problem, at the node level, is easy to understand—we

do not want to overload strong nodes compared with

weaker nodes. We have designed the fragmentation

process exactly with this goal in mind. The second

problem, at the subnet level, is less intuitive. Caching

tends to allocate fragments close to the readers. How-

ever, even if the readers are uniformly distributed in

the network, fragments tend to be allocated to a few

“hub” subnetworks. This is intimately related to the

scale-free property of the Internet. Let us discuss the

ﬁrst problem ﬁrst.

We knowthat the nodes’ resilience and fragments’

assurance are distributed with a Pareto’s law denoted

0 100 200 300 400 500

Fragments kept

Node id

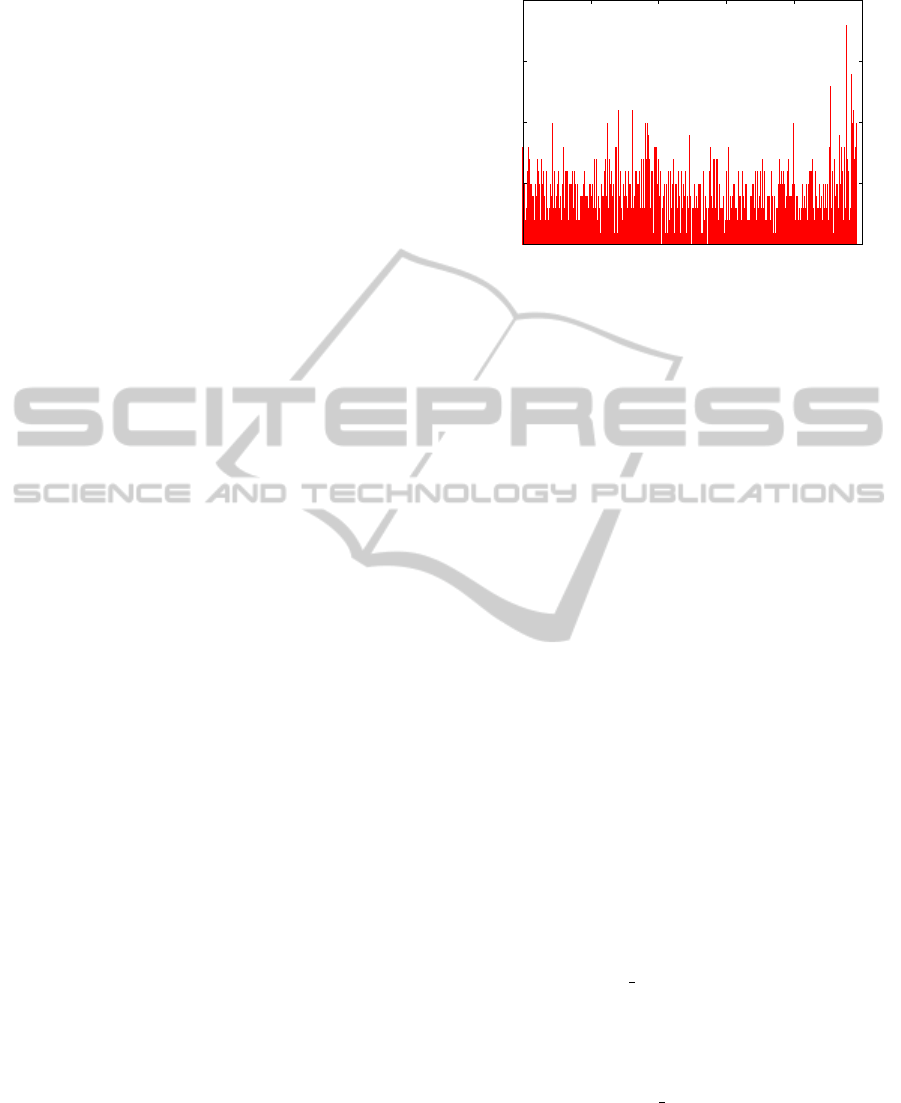

Figure 3: Fragments kept by a node. Example with 500

nodes per subnet and 10,000 ﬁles. Load is balanced.

by the variable Y . Using a best ﬁt policy, the alloca-

tor partitions the nodes of s into equivalence classes

based on their resilience. The best ﬁtting class is then

selected and one node is chosen from such class uni-

formly at random. Since both nodes’ resilience and

fragments’ assurance are identically distributed, we

can expect that fragments are well balanced over the

nodes. In Figure 3 there is an example of an actual

allocation. As we can see the load is evenly balanced

among the nodes. Note that, according to our de-

sign, the best balance we can get at the node level

is the same balance achieved by a uniform distribu-

tion. The load shown in Figure 3 has standard devia-

tion 2.3, compared with the standard deviation of the

same random process according to the uniform dis-

tribution which is 2.0. Therefore, the balance is very

close to optimality.

Let us now approach load balancing at the subnet

level. As said before, the topology of the system is

modeled to be Internet-like. This means that there are

typically few hub subnets with a very high number of

connections, and lots of subnets with very few links.

The method used to establish the eligibility of a sub-

net for a given fragment is unaware of such a structure

(just like many allocation mechanisms in the litera-

ture). This, combined to the fact that the best eligible

subnet chosen by min path is the one connected to the

subnet where the ﬁle was created, through the short-

est available path, makes the allocation highly biased

toward the hubs as shown in Figure 4.

In order to avoid this phenomenon, we developed

a method called maxmin path+1. Let f be a ﬁle to

be allocated, D the set of distances from the subnet of

creation of f and the subnet used to allocate the frag-

ments according to the initial allocation, and d

max

the

greatest element in D. This method consists of allo-

cating every fragment by uniformly choosing an eli-

gible subnet whose distance from the subnet of cre-

SECRYPT2012-InternationalConferenceonSecurityandCryptography

188

0 10000 20000 30000 40000

Fragments kept

Subnet id

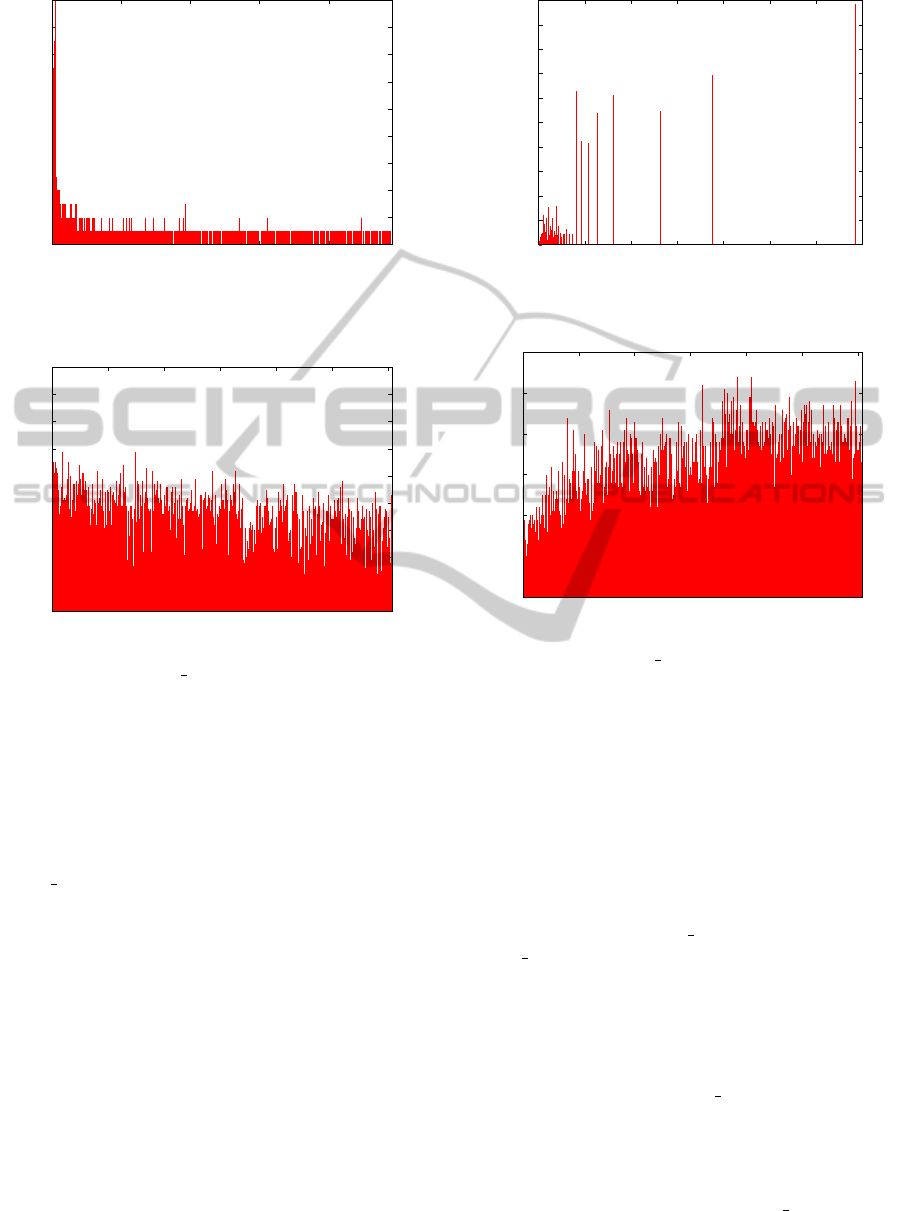

Figure 4: The load among different subnets is not balanced,

hub subnets hold more fragments.

0 500 1000 1500 2000 2500 3000

Fragments kept

Subnet id

Figure 5: Method maxmin path+1. Load is balanced, but

delay is increased approximately by one.

ation is in the interval [0 : d

max

+ 1]. Since the di-

ameter of the whole subnet graph is not high (being

a scale-free network), a plus one increment allows

many more subnets to be reached. Furthermore, by

choosing a subnet at random from a larger set, the

hub problem is greatly mitigated. As show in Figure 5

maxmin path+1 yields a very good load balance. On

the other hand this method has the disadvantage of in-

creasing the average delay. The number of eligible

subnets after the plus one increment is much larger.

Since the ﬁnal subnet is chosen uniformly at random,

with high probability at least one fragment will be al-

located at distance d

max

+ 1. This will turn into a plus

one increment of the average longest path which, by

deﬁnition, is the delay.

6.1 Load-degree Correlation

In order to address the delay increase we designed

a third method. As said before the load is unbal-

anced toward the subnets with the highest degree. We

designed an experiment to determine whether or not

200

400

600

800

1000

1200

1400

1600

1800

2000

0 100 200 300 400 500 600 700

Load

Degree

Figure 6: There is a direct correlation between load and

degree.

0 500 1000 1500 2000 2500 3000

Fragments kept

Subnet id

Figure 7: Method maxmin path. Good load balance and

delay is unchanged.

there is a relation between the load of a subnet and its

degree. Let C be a ﬁxed set of colors, c a color in C,

and s a c-colored subnet. We deﬁne the degree of s as

the number of edges connected to it, while the load is

the number of subnets the would choose s as the des-

ignated subnet to allocate a c-colored fragment. As

we can see from Figure 6 there is a direct correlation

between load and degree.

After observing this property, we implemented

a method called maxmin path. Similarly to

maxmin path+1 this new method uses the interval

[0 : d

max

] for the list of eligible subnets (without in-

creasing the delay, this time). The actual node used

to store the fragment is then chosen from such list at

random with a probability of 1/deg(s), where deg(s)

is the degree of subnet s. Taking advantage of the

load-degree correlation, maxmin path, can restrict the

interval. This means that the average delay is left un-

changed, only the average number of messages ex-

changed is slightly increased. We will present results

on delay and trafﬁc in the following sections. Figure 7

shows the load obtained through maxmin path, as can

be seen, it is still excellent.

SecureFileAllocationandCachinginLarge-scaleDistributedSystems

189

7 SIMULATION RESULTS

In order to test our system, we used an ad-hoc simu-

lator and run several experiments. The generator used

to create the subnet graph is Inet 3.0 (Jin et al., 2000)

(Winick and Jamin, 2002). Inet can generate graphs

that approximate the topology of the Internet at the

autonomous system level and has already been used

for similar works (Tu et al., 2010) (Kaune et al., 2009)

(Xiao et al., 2010). The authors of Inet suggest to

generate networks with a node number of no less than

3037 nodes in order to achieve a valid graph.

7.1 Simulation Design

We designed a simple test environment. Multiple

ﬁles are allocated by nodes chosen uniformly at ran-

dom. Once the allocation is completed, the read phase

starts. Reads are organized into two rounds, every ﬁle

is assigned to a reader node and during a round each

subnet sends out a read request for its designated ﬁle.

The ﬁrst round is used to warm up the caching

system, here all the caching requests are sent by ev-

ery subnet, and the ﬁles spread over the entire system

by getting closer to whoever has performed a read op-

eration. During the second round the system is al-

ready running at full stretch and the readers can take

full advantage of the vicinity of a ﬁle. Since cached

fragments are kept indeﬁnitely, adding more rounds

would have been useless. The following experiments

were run in a system with 3037 subnets, 500 nodes

per subnet and 10,000.

7.2 Simulation Results

The ﬁrst experiment that we are going to describe is

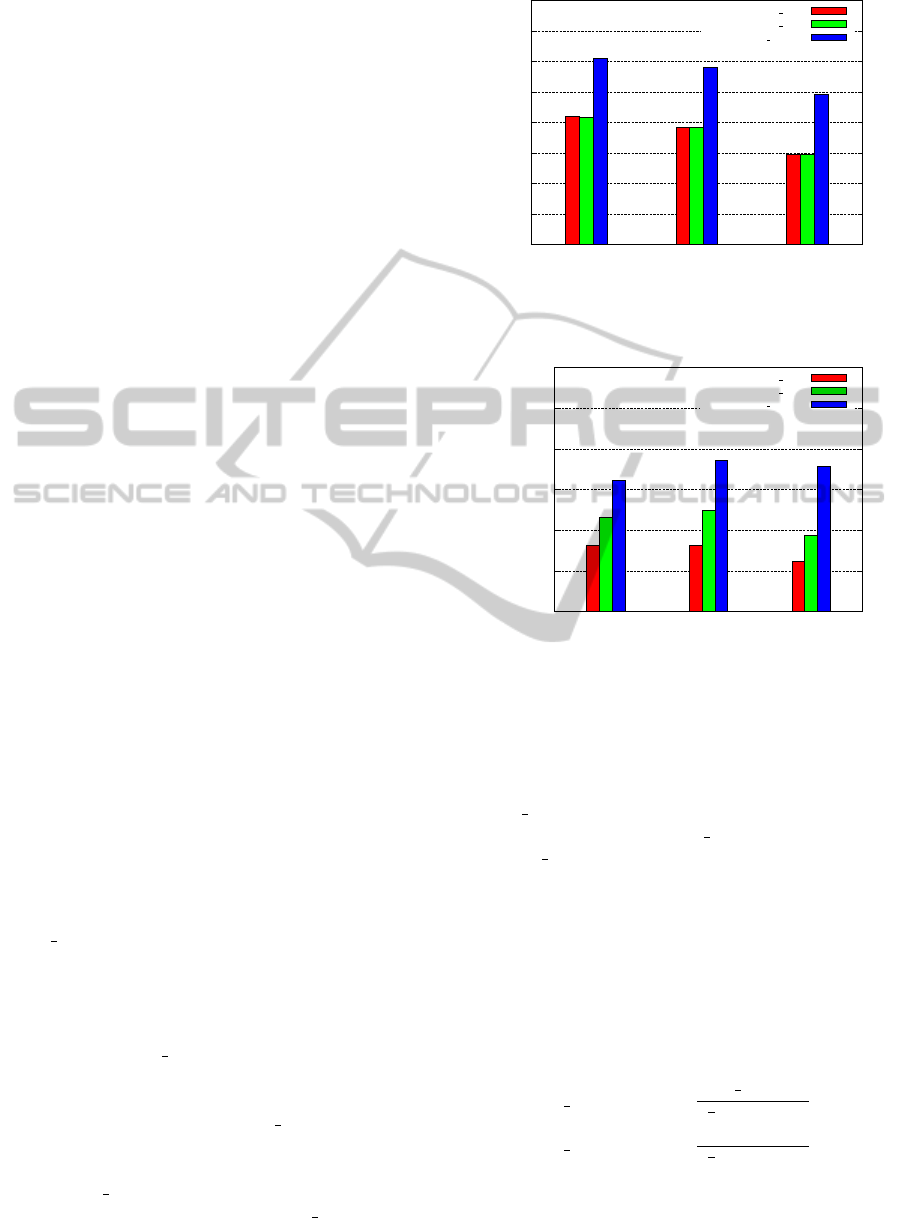

about delay. As we can see from Figure 8, by in-

creasing the value of κ, the delay decreases. This

happens because the subnets close to who issued the

request can hold more fragments. As expected, the

maxmin path+1 method approximately produces a

plus one increase on the delay.

Then, we show how κ inﬂuences the total number

of messages exchanged in the system. Again, in this

case we observe a general behavior depending on the

method used. For min path, by increasing κ the num-

ber of messages goes down. As before this is caused

by a more intensive use of the closest subnets. On the

other hand we can see that maxmin path+1 presents

almost the opposite pattern, it achieves worse per-

formances due to the use of random choices. While

whenever min path can put more fragments into a

close subnet it will always do so, maxmin path+1 will

do that much more seldom because for ﬁxed values of

0.5

1.5

2.5

3.5

1 2 4

Delay

min path

maxmin

path

maxmin

path+1

Figure 8: κ vs Delay. Increasing values of κ produce a

decreasing delay.

50000

100000

150000

200000

250000

300000

1 2 4

Number of messages

min path

maxmin

path

maxmin

path+1

Figure 9: κ vs number of messages.

κ it has many more available choices, choices that are

made uniformly at random. Therefore, the inﬂuence

of the fact that smaller κ yields a smaller number of

fragments is dominating the performance. Ultimately

maxmin path places in the middle, it will always have

more eligible subnets than min path, but not as many

as maxmin path+1, and its decisions are biased by the

degree of the subnets.

Another interesting value is assurance composi-

tion. As the name suggests it is used to show how

much of the assurance achieved by a ﬁle is issued by

the actual nodes and how much is issued by the sub-

nets. We already showed that the total amount of as-

surance achieved by an allocation is given by the 3.

By using that we can calculate the subnet assurance

and the node assurance:

subnet assurance :=

⌈

⌉

R (s)

⌈

⌉

R (s)+gE(Y )

(7)

node assurance :=

gE(Y )

⌈

⌉

R (s)+gE(Y )

(8)

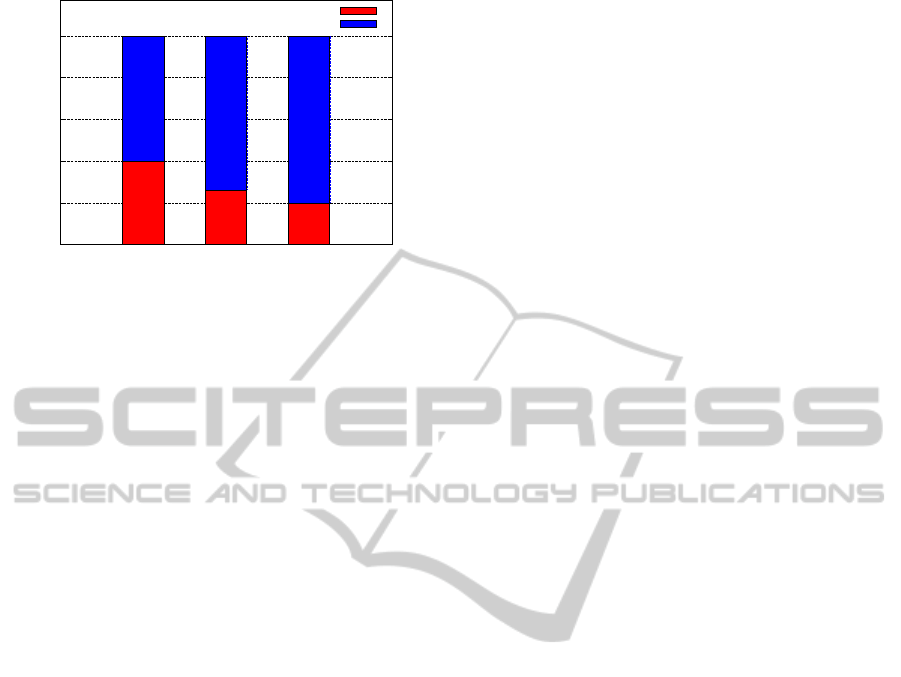

As we can see from Figure 10, with κ = 1 more than

40% of the assurance is issued by the subnets. By

increasing κ that percentage gets lower while the node

SECRYPT2012-InternationalConferenceonSecurityandCryptography

190

100

1 2 4

Percentage of provided assurance

Subnet

Node

Figure 10: κ vs subnet assurance (red) and node assurance

(blue). Subnet assurance decreases as κ increases and is

compensated by node assurance.

security increases. This is a further demonstration of

the importance of κ.

8 CONCLUSIONS

This paper introduced a model that provides guaran-

teed assurance, while achieving good load balancing

both at node and subnet level and good trafﬁc perfor-

mance. The proposed model is dynamically adaptable

through the parameter κ that can react to ongoing at-

tacks and balance the system between higher security

and better performance. We explained how our sys-

tem can store ﬁles whose requirement exceed single

nodes capabilities. Future research might focus on

caching replacement policies, ﬁle-size driven alloca-

tors and reconﬁgurable networks.

ACKNOWLEDGMENTS

Alessandro Mei is supported by a Marie Curie Outgo-

ing International Fellowship funded by the European

Union Seventh Framework Programme (FP7/2007-

2013) under grant agreement n. 253461.

REFERENCES

Adya, A., Bolosky, W. J., Castro, M., Cermak, G., Chaiken,

R., Douceur, J. R., Howell, J., Lorch, J. R., Theimer,

M., and Wattenhofer, R. P. (2002). Farsite: fed-

erated, available, and reliable storage for an incom-

pletely trusted environment. SIGOPS Oper. Syst. Rev.,

36.

Berrou, C., Glavieux, A., and Thitimajshima, P. (1993).

Near shannon limit error-correcting coding and de-

coding: Turbo-codes. In ICC 93 IEEE international

conference on Communications, volume 2. IEEE.

Byers, J. W., Luby, M., Mitzenmacher, M., and Rege, A.

(1998). A digital fountain approach to reliable distri-

bution of bulk data. In SIGCOMM ’98.

Dabek, F., Kaashoek, M. F., Karger, D., Morris, R., and

Stoica, I. (2001). Wide-area cooperative storage with

cfs. In SOSP ’01.

di Vimercati, S. D. C., Foresti, S., Jajodia, S., Paraboschi,

S., and Samarati, P. (2007). Over-encryption: man-

agement of access control evolution on outsourced

data. In VLDB ’07.

Jin, C., Chen, Q., and Jamin, S. (2000). Inet: Internet topol-

ogy generator. Technical Report UM-CSE-TR-433-

00, EECS, U. of Michigan.

Kaune, S., Pussep, K., Leng, C., Kovacevic, A., Tyson, G.,

and Steinmetz, R. (2009). Modelling the internet de-

lay space based on geographical locations. PDP.

Kubiatowicz, J., Bindel, D., Chen, Y., Czerwinski, S.,

Eaton, P., Geels, D., Gummadi, R., Rhea, S., Weath-

erspoon, H., Weimer, W., Wells, C., and Zhao, B.

(2000). Oceanstore: an architecture for global-scale

persistent storage. SIGPLAN Not., 35(11).

Lakshmanan, S., Ahamad, M., and Venkateswaran, H.

(2003). Responsive security for stored data. IEEE

Transactions on Parallel and Distributed Systems, 14.

Mitzenmacher, M. (2001). The power of two choices in

randomized load balancing. IEEE Trans. PDS, 12.

Reed, I. S. and Solomon, G. (1960). Polynomial codes over

certain ﬁnite ﬁelds. Journal of the Society for Indus-

trial and Applied Mathematics, 8(2).

Shamir, A. (1979). How to share a secret. Communications

of the ACM, 22(11).

Tu, M., Li, P., Yen, I.-L., Thuraisingham, B. M., and Khan,

L. (2010). Secure data objects replication in data grid.

IEEE Trans. Dependable Secur. Comput., 7(1).

Wilcox-O’Hearn, Z. and Warner, B. (2008). Tahoe: the

least-authority ﬁlesystem. In Proc. of the 4th ACM

international workshop on Storage security and sur-

vivability, StorageSS ’08.

Winick, J. and Jamin, S. (2002). Inet-3.0: Internet topol-

ogy generator. Technical Report UM-CSE-TR-456-

02, EECS, U. of Michigan.

Wylie, J. J., Bigrigg, M. W., Strunk, J. D., Ganger, G. R.,

Kilic¸c¸¨ote, H., and Khosla, P. K. (2000). Survivable

information storage systems. Computer, 33.

Xiao, L., Ye, Y., Yen, I.-L., and Bastani, F. (2010). Evalu-

ation and comparisons of dependable distributed stor-

age designs for clouds. High-Assurance Systems En-

gineering, IEEE International Symposium on, 0.

Ye, Y., Xiao, L., Yen, I.-L., and Bastani, F. (2010). Cloud

storage design based on hybrid of replication and data

partitionnig. ICPADS.

SecureFileAllocationandCachinginLarge-scaleDistributedSystems

191
