DATA ACCESS THROUGH A DYNAMIC DATA MODEL

A Concept for Accessing Heterogenic Data Structures in RDF Databases

Alexander Wendt, Benjamin Dönz and Dietmar Bruckner

Institute of Computer Technology, Vienna University of Technology, Gusshausstrasse 27-29, A-1040 Vienna, Austria

Keywords: Data model, Ontology, OWL, RDF, Graph, Triple-store, Query, Concept, SPARQL, Protégé.

Abstract: This paper introduces an alternative method for using ontologies to create a dynamic data model for RDF

databases or other schema-less databases. The main challenge is how to continuously adapt the data model

and its queries to new data, which may be imported with any given structure.

1 INTRODUCTION

When using schema-less NoSQL databases (Levitt,

2010), (Stonebraker, 2010), the possibility to import

data in its original structure is opened. Often, this

data is imported from flat tables without further

normalization. The advantage of such an import is

that any type of data can be imported and that the

effort of pre-processing data is reduced. Instead, this

work is transferred from the import phase to the data

access. The challenge in building a relational data

model is to create a model, which is robust and

general enough to be able to accommodate new data.

The challenge in building systems with schema-less

databases is to find a way to give the user access to

all the data in a heterogenic structure within a single

request to the system.

The dynamic data model introduced in this paper

provides a method for implementing ontologies as

an additional layer between the user interface and a

database with heterogenic structure. The challenge

and the motivation for developing such a model can

be summarized by five requirements:

 For a schema-less database, where it is possible

to import data in its original structure.

 It shall be possible to access all data by the user

with a simple query.

 The data model shall be exchangeable and

expandable at any time.

 It shall be possible for the user to adapt and

create new queries if new sources are added or

new demands emerge.

 It shall be investigated how ontologies can be

used to classify and sort the data in a schema-

less database.

2 BACKGROUND

Evaluation of the concept will be done by

implementing the dynamic data model on a system,

where the mentioned requirements are present.

2.1 System Environment and Data

Sources

The evaluation system can be categorized as a

decision support system (Shim et al., 2002). Its goal

is to provide the user with an overview of the

situation of a geographical region in the hypothetical

case of a disaster. This will make it possible to

estimate consequences of a disaster as well as

providing insights for strategic planning.

The system is a web-based solution, where a

common data store is accessible by several users via

a web interface. The user interface provides

possibilities to execute queries and display the

results on a map (Google Maps, (n. d.)) and in

tabular form. New sources and data structures can be

added during operation. For this system, the RDF

(Resource Description Framework) database

Allegrograph (AllegroGraph, (n. d.)) was used. It

supports geospatial queries and several

programming interfaces, e.g. Java Jena, Java

Sesame, Python and Lisp.

Typical questions in case of an epidemic, which

should be answered by combining different data

sources in this system are: “In a certain region, how

many hospitals are there per inhabitant?” or “What

could be the potential economic loss for companies

in the grocery branch in a given region, when all

fowl in another region would be lost?”. Such

439

Wendt A., Dönz B. and Bruckner D..

DATA ACCESS THROUGH A DYNAMIC DATA MODEL - A Concept for Accessing Heterogenic Data Structures in RDF Databases.

DOI: 10.5220/0003873704390444

In Proceedings of the 4th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2012), pages 439-444

ISBN: 978-989-8425-95-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

questions are answered by combining several data

sources and by performing calculations within the

queries.

The available data sources can be categorized

into the following four domains: Political regions,

demography, company data and branch data for

categorizing companies. The original data sources

are collected in six tables. Additionally, political

maps are available as shape-files (ESRI, 1998). They

are imported from csv files, where each row defines

the subject URI, each column the predicate URI and

the cell value the object literal. The cell value can

also be converted to an own URI.

In this paper, the dynamic data model will be

explained with an example of the domain “Company

data”. Companies have provided financial data like

profit, asset and revenue. The example is based on

the querying of some attributes of that company

data. In the original input table, revenue is available

as pairs of “year1” and “revenue1”, “year2” and

“revenue2” and so on. “Asset” and “Profit” refer to

the latest year of revenue, which is “year1”.

2.2 Potential Usage of Ontologies

The source data structure uses several predicates and

subjects for the same thing, in this case pairs of

attributes like “year1” and “revenue1”. One of the

advantages of ontology-based models is the potential

use of reasoners for classifying data. In projects like

HarmonISA (HarmonISA, (n. d.)) the task is to

classify land types (grassland, forest, sea). The main

task for the reasoner is to classify new data from

different sources into a skeleton ontology, see

(Peedell et al., 2005) based on its attributes. This is

used to merge data sources and models and to query

the whole system, which contains several models

with a single query. In the query, everything that

fulfills certain criteria is queried independent of the

reference model.

Another application of reasoners is presented in

(Fallahi et al., 2008, p. 354). In this service oriented

architecture, the reasoner is used for matchmaking

of requests to services. Each available service is

modeled in an ontology. The requests, which are

also modeled in the ontology, are more specialized

than the services and are classified into classes by

the inference engine. From the potential services,

which could fulfill the request, the best match is

used for the task.

In our system and in the example with company

data, the reasoner could be used to classify

companies into e. g. small, middle and large sized

companies depending on certain defined criteria. A

company could be defined as anything that has some

values from the classes “address”, “employees” and

“revenue”. However, in order to do that, the

“address” of a company must not be a literal of the

class “company”, which happens at the import of flat

tables (unprocessed in its original form), but it has to

be assigned its own class “address”. A new layer of

hierarchy has to be inserted between the company

URI and the actual address values. The flat data

structure in the database would have to be

normalized like in relational databases; i.e. literals

would have to be transformed to URIs. Otherwise,

an ontology model would be highly populated with

only a few subjects and several predicates

connecting them to objects or in this case to literals.

As long as the data is not processed, this type of

classification does not make much sense here. In

order to still be able to combine the heterogenic data

sources in flat tables, the dynamic data model was

developed.

3 CONCEPT

This data model is based on two main concepts: The

creation of artificial classes and the creation of

database queries by combining elements of subject-

predicate relations. If the content of the model is

queried, a new query is generated with the concepts

of the model and used for the actual database. The

main function of the data model is to provide a

flexible way to automatically generate queries for

the database by considering the requests of the user.

This is done by defining a meta-ontology, which

consists of the following classes: Class,

SubjectClass, QueryConcept, SubQueryConcept,

Group, AtomQuery. The classes and instances in the

meta-model are completely separated from the

classes and instances in the actual database. The

only thing they share is the RDF-database as a

storage medium. In Figure 1, the database is shown

to the left with a class “Class1”, an instance

“Instance1”, two literals “Literal1” and “Literal2”,

which are connected with “Instance1” via the

predicates “Predicate1” and “Predicate2”.

Within the meta-ontology, on the right side of

Figure 1, instances of Class (Meta-Ontology classes

are written in italic) are created, which represent

subdomains in the database and are usually defined

from the predicates in the database, i.e. the

predicates in the actual databases are transferred into

instances of Class in the model. The instances of

Class are independent of the real classes in the

database (to the left in Figure 1). In Figure 1, the real

ICAART 2012 - International Conference on Agents and Artificial Intelligence

440

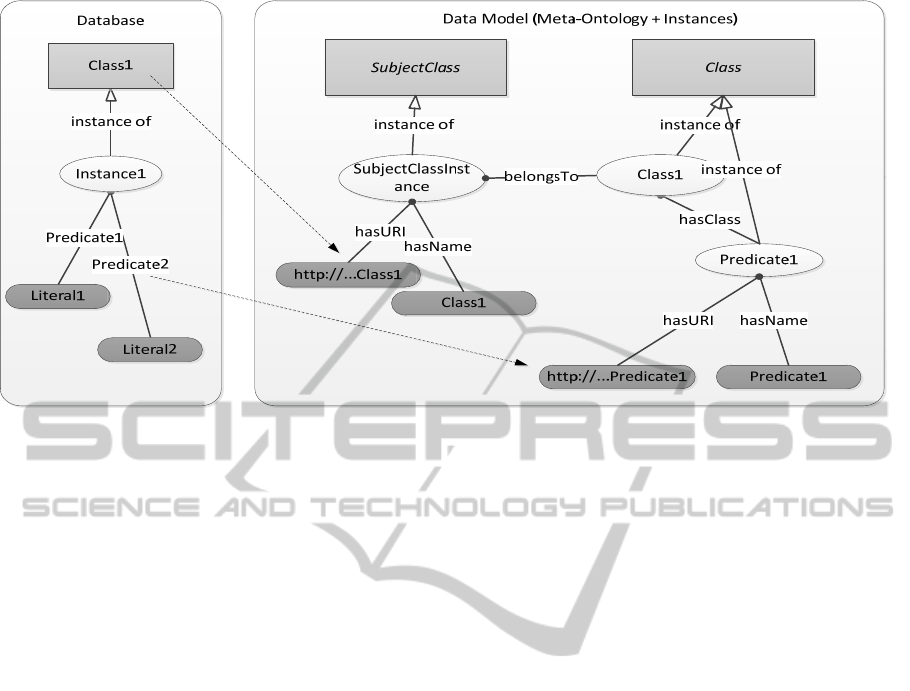

Figure 1: Creation of artificial classes for the data model.

class “Class1” is created as “Class1”, which is an

instance of Class. SubjectClass instances are

created, which are mapped to the real existing

classes in the database. “Class1” in the database is

represented here by the SubjectClass instance

“SubjectClassInstance”. This is done by adding the

URL and name of “Class1” to

“SubjectClassInstance”. SubjectClass instances are

then mapped to the instances of Class with the

predicate “belongsTo”. In that way, the data model

is independent of the existing classes. Further, the

predicates in the database e. g. “Predicate1” can also

be created as classes. This is useful when bundling

data. The instances of Class are directly accessible

on the user interface. By selecting an instance from

Class the possibility to execute queries assigned to

these instances, is given. The instances of Class can

be seen as categorizer for queries.

In the company data example, the following

instances are created in Class: “Organization”,

“Finance”, “Revenue”, “Profit” and “Asset”. In the

database, the class “Organization” can be found, but

not the class “Finance”. “Finance” is created as a

new hierarchical layer between the “Organization”

and its attributes “Revenue”, “Profit” and “Asset”.

“Revenue” is made an instance of Class, as it

contains pairs of “revenue1” and “year1” and so on.

Although the database is flat, the user interface gets

a hierarchical structure.

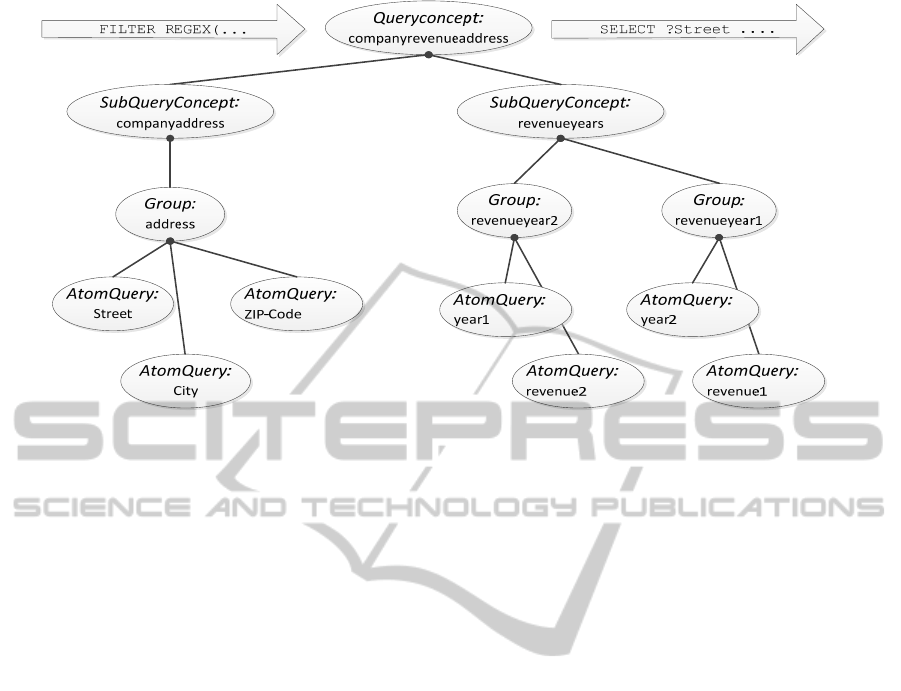

In order to query the data, QueryConcepts are

defined and assigned to the corresponding instances

of Class. A QueryConcept is a template of the

structure of a query for the database. It works like a

function with filter parameters as inputs and a

SPARQL-query string as output.

The idea of using QueryConcepts origins from

(Lutz, 2007), (Klien et al., 2004) and (Bügel et al.,

2007), where a concept with the same name is

applied for service discovery. Services in systems

and requirements stated by the user can be described

using ontologies. It is possible to compare service

descriptions with the requirements’ descriptions of a

certain operation. According to (Lutz, 2007, p. 14),

domain ontologies contain the primitives of a

domain and provide a shared vocabulary for services

in the system. Application ontologies, which are

derived from a domain ontology, contain necessary

constraints for a certain operation of the system.

They allow the creation of semantic queries (Lutz,

2007, p. 21), which contain information about

requirements and conditions from a certain user

request. Semantic advertisements are equivalent to

the semantic queries, but are created for each

provided service. The semantic queries and semantic

advertisements are matched against each other, in

order to select the best fitting service for a selected

operation. It is possible for a user to select a domain,

choose an operation and set constraints for that

operation via a QueryConcept. In the dynamic data

model, only the idea to define a domain and then to

select an operation is used.

A QueryConcept can be explained bottom-up,

starting with the smallest element, the AtomQuery.

An AtomQuery

is a representation equal to an

SPARQL statement of one subject and predicate (see

below). The subject is related to one instance of

SubjectClass. This is a subject-predicate relation.

The constraints for the object are set by filters. An

DATA ACCESS THROUGH A DYNAMIC DATA MODEL - A Concept for Accessing Heterogenic Data Structures in

RDF Databases

441

Figure 2: The structure of a QueryConcept.

example of the structure of a QueryConcept is

shown in Figure 2.

In the company data example, the predicate

“revenue1” and its domain instance “Company” is

represented as an instance of SubjectClass, forming

such an AtomQuery. The AtomQuery additionally

contains information about the data type of the

predicate for use in filters. As seen in the result

section, the order of the SPARQL-Statements plays

a major role for the performance of the system.

Therefore, it is also possible to define a certain order

for a statement, which can be adapted for each

QueryConcept.

One or more AtomQueries are assigned to a

Group. Within a Group, each AtomQuery is

connected by a logical conjunction (AND, in

SPARQL “.”).

The purpose of the Group is to allow parallel

querying of the same thing, which is addressed by

different predicates.

One or more Groups define a SubQueryConcept.

Within the SubQueryConcept, the Groups are

connected with a logical disjunction (OR, in

SPARQL “UNION”). In this way, several Groups

are queried in parallel but with common result

columns. This process simulates the use of a higher

normal form in the database. The result format and

column names of the executed queries for each

group are the same for all groups.

Finally, the SubQueryConcepts define the

QueryConcept, where the SubQueryConcepts are

connected with a logical conjunction (AND, in

SPARQL “.”). It allows adding common predicates

of parallel groups to the query without having to

include them in each group.

The construction of a QueryConcept can be

demonstrated with the company data example. An

AtomQuery contains the predicates “year1” and

“revenue1”. The subject of the statement is an

instance of the real class “Company” (in the

database). The AtomQueries are assigned the Group

“revenueyear1”. The next Group “revenueyear2” is

made up of “year2” and “revenue2”. The

SubQueryConcept “revenueyears” is a union of the

Groups “revenueyear1” and “revenueyear2”.

Another SubQueryConcept is the company address

“companyaddress”, which contains one Group. This

Group contains the AtomQueries for “Street”, “ZIP-

Code” and “City”. The SubQueryConcepts

“companyaddress” and “revenueyears” now define

the

QueryConcept “companyrevenueaddress”. The

result of the executed QueryConcept contains the

following columns: “Street”, “ZIP-Code”, “City”,

“year” and “revenue”. The code parts below, show

how a standalone Atomquery, Group,

SubQueryConcept and QueryConcept could look

like:

Atomquery:

SELECT ?year WHERE {?company x:year1

?year}

Group:

SELECT ?year ?revenue WHERE {?company

x:year1 ?year; x:revenue1 ?revenue}

SubQueryConcept:

SELECT ?year ?revenue WHERE {{?company

x:year1 ?year; x:revenue1 ?revenue} UNION

{?company x:year2 ?year; x:revenue2

?revenue}}

ICAART 2012 - International Conference on Agents and Artificial Intelligence

442

QueryConcept:

SELECT ?name ?revenue ?year WHERE

{?company x:name1 ?name. {?company

x:year1 ?year; x:revenue1 ?revenue} UNION

{?company x:year2 ?year; x:revenue2

?revenue}}

As a consequence of the independence from the

actual database structure, it enables the use of

several different data models at the same time. The

data model is customizable for each user. It allows

data to be imported in its original structure. After the

import of the original data, where flat tables are

imported, the data model can be generated in an

OWL-editor like Stanford Protégé (Stanford

Protégé, (n. d.)). There, the data model has to be

manually adapted for the new data sources.

Afterwards, it can be imported into its own

namespace and context in the database.

4 IMPLEMENTATION AND

RESULTS

The dynamic data model was implemented with an

Allegrograph RDF database on a set of about

300 000 Austrian companies. A Java Sesame API

was used to access the database. In the software,

each class of the meta-ontology was equally

modeled in Java. From these classes, the user

interface was automatically generated based on the

data model. In order to use the model, inputs are

given. In the user interface (see Figure 3), the user

selects the class (here equivalent to a domain),

which contains the requested query. After getting the

class of interest, all available QueryConcepts are

shown. The user selects a QueryConcept, fills out

the constraints and generates the query. The query is

executed in the database returning a result table

and/or geographic structures on the map.

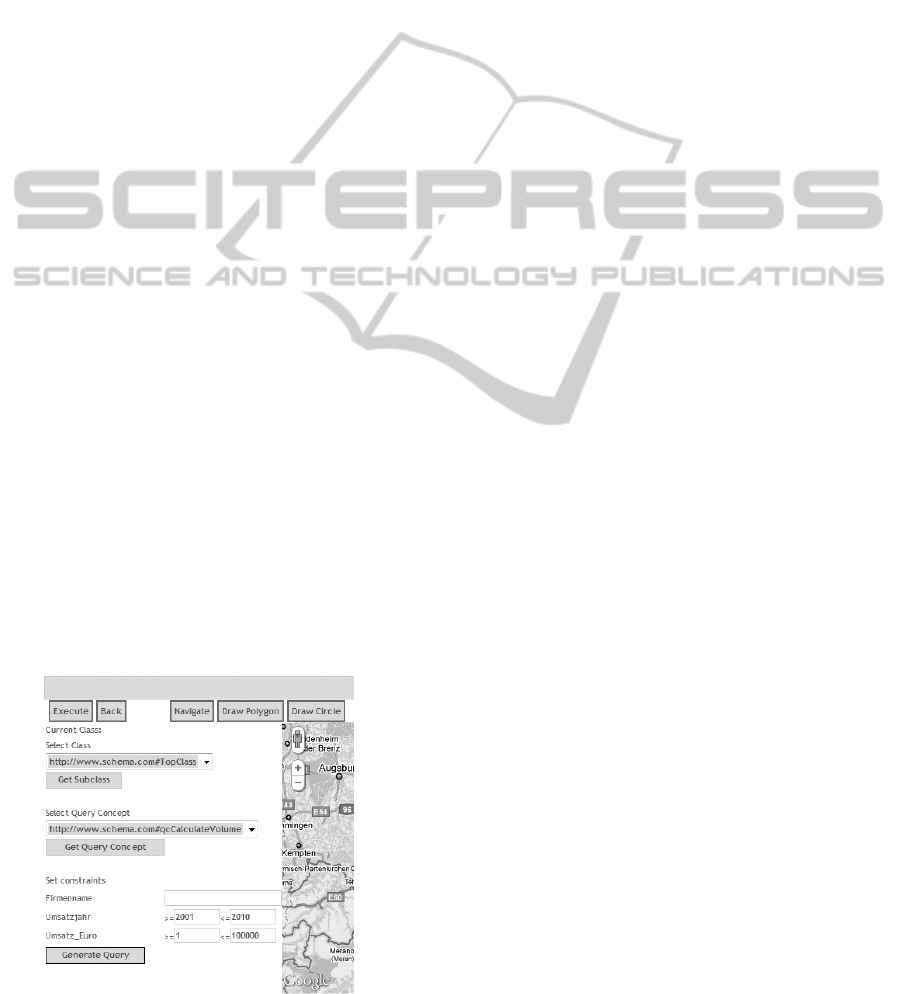

Figure 3: A screenshot of the user interface.

Tests on an Intel® Xeon® 3.0 GHz processor

with 4 GB RAM did show that it was possible to

construct several types of SPARQL queries, by

combining the “building blocks”. Also JOINs can be

created efficiently. The main issue when using the

dynamic data model was performance, but that is an

issue for SPARQL and triple stores in general.

Often, due to the long query times, the execution

time was not satisfactory and the query did not

complete. Here, the query complexity was too high

due to the use of several joins as well as keywords

like ORDER BY. In order to be able to complete a

query, the LIMIT keyword had to be used.

Furthermore, one of the most important performance

factors, which is can be optimized, is the order of the

single statements within the query (Stocker et al.,

2008), (Vidal et al., 2010). Therefore, statement

ordering was considered within the data model. For

instance, if the order of the statements was

considered, a certain query did complete within 2 s,

else it did not complete before execution time-out (4

min). This shows the impact of wrong statement

ordering.

The usage of Stanford Protégé as a data model

editor has both advantages and drawbacks. Users,

which are supposed to modify the model, complain

about the large effort, in order to understand how to

use the editor and to create queries. On the other

side, for a person with basic knowledge about

ontologies, Stanford Protégé provides a very fast

method for constructing database queries. It is done

by populating the data model with instances without

the need of knowing SPARQL.

5 CONCLUSIONS AND

OUTLOOK

The purpose of the dynamic data model was to fulfil

the requirements stated in Section 1. Results showed

that it is possible to adapt the data model on a

running system when new data is imported into the

schema-less database. The user just needs to add the

new structure to the model and creates new

SubQueryConcepts for the corresponding

QueryConcepts replacing the model in the database.

This way, the model is exchangeable and

expandable at any time. A user who knows Stanford

Protégé or any other OWL editor can add and

modify each query by manipulating the instances of

the meta-model. Finally, it could be shown that it is

not useful to implement the reasoner for this type of

data but this approach provides an alternative for

accessing data. The main issue is the performance

DATA ACCESS THROUGH A DYNAMIC DATA MODEL - A Concept for Accessing Heterogenic Data Structures in

RDF Databases

443

and the high effort to understand how to use

Stanford Protégé. It is possible to optimize the

queries by changing the order of the statements.

Further development of the dynamic data model

would be to involve functions from other programs

or databases, i.e. to let the result table of a

QueryConcept be the input of another QueryConcept

containing functions. An AtomQuery could contain

the link to an operation instead of the link to a

predicate in the database. That way, the dynamic

data model would be more powerful in calculation

and simulation tasks. Another use could be to

transport the dynamic data model to a relational

database instead of the RDF-Triple store and use it

as a query editor. The queries would not be

SPARQL, but SQL. This would solve the

performance problem and the RDF-Triple store

would only be used as storage of the data model.

ACKNOWLEDGEMENTS

This work was partly supported by the FFG

(Austrian Research Funding Organization) [819065].

REFERENCES

AllegroGraph (n. d.), AllegroGraph® RDFStore 4.2.1.

Retrieved June 14, 2011, from http://www.franz.com

/agraph/allegrograph

Bügel, U., Hilbring, D., Denzer, R. (2007). Application of

Semantic Services in ORCHESTRA, at the

International Symposium on Environmental Software

Systems (ISESS), Prague, May 22-25, 2007, Czech

Republic

ESRI, Environmental Systems Research Institute, Inc.

(1998). ESRI Shapefile Technical Description, an

ESRI White Paper—July 1998. Retrieved June 21,

2011, from http://www.esri.com/library/whitepapers/

pdfs/shapefile.pdf, USA

Fallahi, G. R., Frank, A. U., Mesgari, M. S., Rajabifard, A.

(2008). An ontological structure for semantic

interoperability of GIS and environmental modeling,

in International Journal of Applied Earth Observation

and Geoinformation 10 (2008) 342–357, doi:10.1016/

j.jag.2008.01.001

Goolge Maps (n. d.), Google Maps. Retrieved June 21,

2011, from http://maps.google.com

HarmonISA (n. d.), HarmonISA. Retrieved June 21, 2011,

from http://www.isamap.info/html/harmonisa.html

Klien, E., Lutz, M., Kuhn, W. (2004), Ontology-based

discovery of geographic information services—An

application in disaster management, in Computers,

Environment and Urban Systems 30 (2006) 102–123,

doi:10.1016/j.compenvurbsys.2005.04.002

Levitt, N. (2010). Will NoSQL Databases Live Up to

Their Promise? in Computer 43 Issue:2, doi:10.1109/

MC.2010.58

Lutz, M. (2007). Ontology-Based Descriptions for

Semantic Discovery and Composition of

Geoprocessing Services, in Geoinformatica, 11:1-36,

doi:10.1007/s10707-006-7635-9

Peedell, S., Friis-Christensen, A., Schade, S. (2005).

Approaches to Solve Schema Heterogeneity at the

European Level, 11

EC GI & GIS

Shim, J. P., Warkentin, M., Courtney, J. F., Power, D. J.,

Sharda, R., Carlsson, C. (2002). Past, present, and

future of decision support technology, in Decision

Support Systems 33 page 111 –126, doi:10.1016/S0

167-9236(01)00139-7

Stanford Protégé. (n. d.). welcome to protégé. Retrieved

June 21, 2011, from http://protege.stanford.edu

Stocker, M., Seaborne, A., Bernstein, A., Kiefer, C.,

Reynolds, D. (2008). SPARQL Basic Graph Pattern

Optimization Using Selectivity Estimation, in

Proceeding of the 17th international conference on

World Wide Web WWW 08 (2008), page 595-604,

ACM Press, ISBN: 9781605580852, doi: 10.1145/136

7497.1367578

Stonebraker, M. (2010). SQL databases v. NoSQL

databases, in Communications of the ACM Volume 53

Issue 4, New York, NY, USA

Vidal, M., Ruckhaus, E., Lampo, T., Martínez, A., Sierra,

J., Polleres, A. (2010). On the efficiency of joining

group patterns in SPARQL queries, in Proceedings of

the 7th European Semantic Web Conference

(ESWC2010), Heraklion, Greece. Springer

ICAART 2012 - International Conference on Agents and Artificial Intelligence

444
