A COMPREHENSIVE ANALYSIS OF HUMAN MOTION CAPTURE

DATA FOR ACTION RECOGNITION

Valsamis Ntouskos, Panagiotis Papadakis and Fiora Pirri

ALCOR, Vision, Perception and Cognitive Robotics Laboratory, Department of Computer and System Sciences,

University of Rome ”La Sapienza”, Rome, Italy

Keywords:

Motion Analysis, Motion Capture, Action Recognition.

Abstract:

In this paper, we present an analysis of human motion that can assist the recognition of human actions irrespec-

tive of the selection of particular features. We begin with an analysis on the entire set of preclassiﬁed motions

in order to derive the generic characteristics of articulated human motion and complement the analysis by

a more detailed inter-class analysis. The statistical analysis concerns features that describe the signiﬁcance-

contribution of the human joints in performing an action. Furthermore, we adopt a hierarchical analysis on the

human body itself in the study of different actions, by grouping joints that share common characteristics. We

present our experiments on standard databases for human motion capture data as well as a new commercial

dataset with additional classes of human motion and highlight certain interesting results.

1 INTRODUCTION

Research interest has been largely stimulated by the

analysis of human motion as it constitutes a key com-

ponent in a plurality of disciplines. Common applica-

tions range from human action recognition, human-

machine interaction, skill learning and smart surveil-

lance to applications within the entertainment indus-

try such as character animation, computer games and

ﬁlm production.

As manifested by earlier research (Mihai, 1999),

(Kovar and Gleicher, 2004), (Thomas et al., 2006),

(Poppe, 2010) the study of human motion is not a new

research ﬁeld, however, most of the focus has so far

been directed towards 2D image-based human motion

representations. In contrast, with the evolution of mo-

tion capture hardware-software and recently with the

advent of affordable depth acquisition devices such

as the Kinect (Microsoft, 2010), part of research is

shifting towards 3D (spatial) representations of hu-

man motion extracted from a hierarchical represen-

tation of the human pose, i.e. a skeletal structure.

Motion capture data (MOCAP) contain informa-

tion of the human pose as recorded during the exe-

cution of an action that is organized into a collection

of 3D points-joints together with the spatial position

or rotation of the corresponding coordinate frames.

These points comprise a skeletal representation of the

human pose wherein the motion of the points has been

acquired either directly from body sensors (optical or

magnetic) or tracked along the action sequence.

Previous studies on the characteristics of articu-

lated human motion such as (Fod et al., 2002), (Pullen

and Bregler, 2002), (Jenkins and Mataric, 2003),

(Barbi

c et al., 2004), (Okan, 2006) have been con-

ducted within various contexts, namely, 3D animation

compression, motion synthesis and motion indexing-

classiﬁcation or segmentation. However, experiments

are usually performed on relatively small collections

of human motions with relatively limited variability

in the classes of motion.

In this work, we provide a comprehensive study

of human motion, through a statistical analysis of a

diverse set of human action categories using MOCAP

databases. Our experiments are performed on stan-

dard databases (CMU, 2003), (Muller et al., 2007)

and further extended on a commercial database (mo-

capdata.com, 2011), altogether highlighting impor-

tant characteristics of articulated human motion re-

lated to the correlation of human motion and hierar-

chy of the human kinematic chain in terms of body

part contribution. In particular, we perform a statisti-

cal analysis on various abstraction levels of the joint

representation of the human skeleton across different

datasets and investigate the variance within the in-

herent dimensionality of simple and complex actions.

The motivation of our study is to provide a deeper in-

sight into the characteristics of articulated human mo-

647

Ntouskos V., Papadakis P. and Pirri F..

A COMPREHENSIVE ANALYSIS OF HUMAN MOTION CAPTURE DATA FOR ACTION RECOGNITION.

DOI: 10.5220/0003868806470652

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 647-652

ISBN: 978-989-8565-03-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

tion in order to assist the process of machine recogni-

tion of human actions.

The remainder of the paper is organized as fol-

lows: in Section 2 we unfold the necessary formu-

lations with respect to the experimentation set-up, in

Section 3 we present the results of the human motion

analysis within various datasets and across different

classes and ﬁnally, in Section 4, we summarize the

conclusions.

2 HUMAN MOTION

REPRESENTATION

Commonly used representations for human motion

capture include the ASF/ACM, C3D and the BVH ﬁle

format (adopted in this work) that describes in plain

text the structure of the actor’s skeleton along with the

data acquired during the motion capture. In order to

avoid inconsistencies in the order of rotation angles,

for each joint within the BVH structure, we obtain a

structure built on top of the corresponding unit norm

quaternions. In detail, a quaternion q ∈ H is speciﬁed

as follows:

q = (a + ib + jc + kd) (1)

where (a,b,c,d) ∈ R and i, j and k form the basis of

H. The quaternion norm is given by ||q|| =

√

where q

= (a −ib− jc −kd) is the quaternion conju-

gate. We use unit-norm quaternions q

to indicate the

rotation of the w-th joint by an angle θ around a unit

vector

= (cos





usin





) (2)

An action A is described by n frames F

, j =

1,..., n, wherein each frame F

of the motion capture

sequence captures the pose of the human skeleton (as

shown in Figure 1) that consists of m joints .

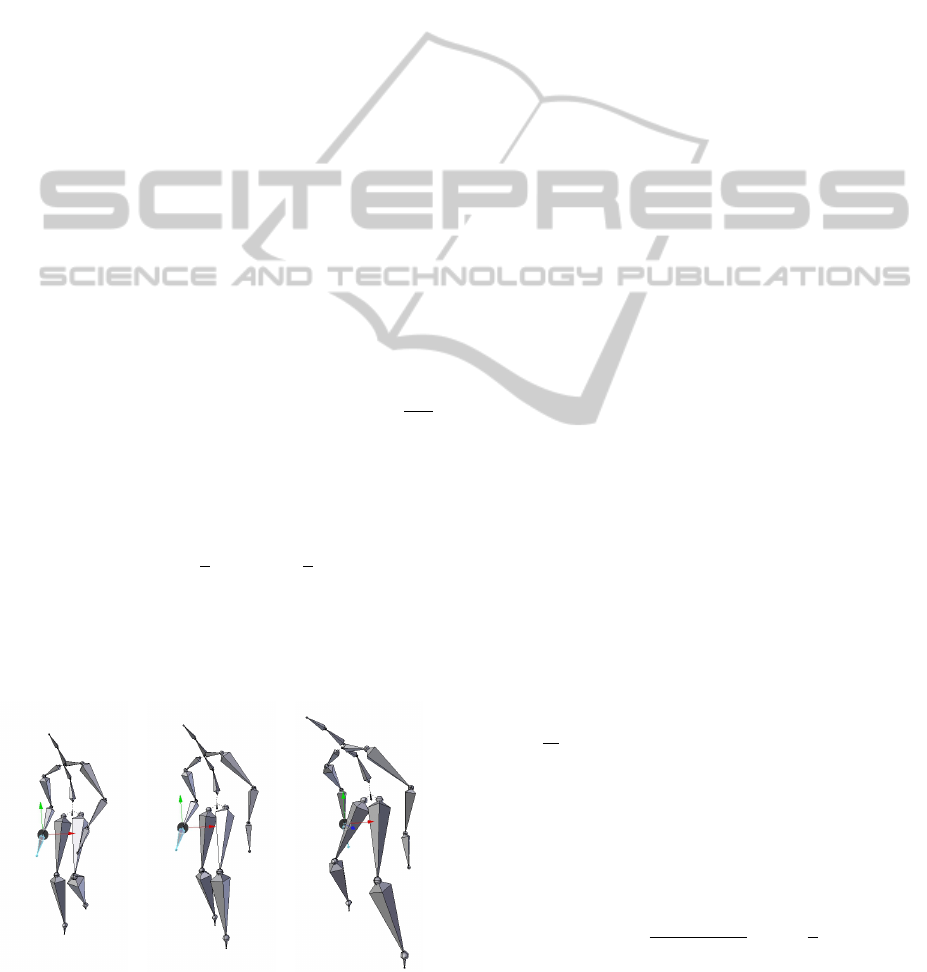

Figure 1: The skeletal representation of human joints for a

subset of frames of a MOCAP sequence.

We note here that for our experimental analysis,

we have considered only actions for which n > 4m,

that is, only action sequences with sufﬁcient time du-

ration. Our goal is to study inter as well as intra-class

variations in the dimensionality of human actions, in

order to establish the conditions for classiﬁcation.

The ﬁrst step is to obtain a covariance matrix of

the pose for each frame F

based on the quaternion

structure. To this end we follow both (Cheong Took

and Mandic, 2011) and (Ginzberg and Walden, 2011)

to establish a correspondence between the domain of

a quadrivariate random variable in R

and the quater-

nion domain H.

Let us consider the real components of the quater-

nion q as q

= [a, b,c, d]. Then, for a given pose in

a frame F

, for example of m joints, we can set the

real quaternion values of the joints as real-valued m-

dimensional jointly Gaussian random variables as fol-

lows.

Let the values a,b,c,d be m-dimensional columns

vectors, then for each frame F

we obtain a 4m dimen-

sional Gaussian vector:

r =

, b

, c

, d

(3)

The real covariance E(rr

) = Σ

of this vector is de-

ﬁned as usual:













(4)

is a 4m ×4m matrix of the covariance of all the real

valued quadrivariate vectors in R

associated with the

quaternions speciﬁed by the m joints in the pose of

the action at F

. Looking at Σ

as a block matrix then

is a m ×m matrix. In particular, if we subtract

the mean value µ

from r then, from the eigen decom-

position of Σ

= UΛU

, we obtain the 4m directions

of the hyper-ellipsoid speciﬁed by Σ

. In particular,

= I, Λ is the matrix of positive eigenvalues, re-

turning the length of the axes of the hyper ellipsoid,

namely, the length l

of the i-th hyper ellipsoid axis is

= 2

√

, λ

the i-th eigenvalue of Λ, and its direction

is speciﬁed by u

the i-th eigenvector of U.

Since the hyper ellipsoid is centered, according to

the transformation, the n-variate Gaussian distribution

associated with each centered pose of action A can be

speciﬁed as follows, where x is a real valued vector

4m ×1 of a pose:

N (x|0

4m×1

,Σ

) =

2π

n/2

|Σ

1/2

exp{−

−1

(5)

Therefore several distance transforms can be used to

verify both intra and inter classes distances, like the

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

648

Mahalanobis distance or the Kullback-Leibler diver-

gence for the Gaussian pdf related to different poses

or different actions.

According to (Cheong Took and Mandic, 2011)

and (Ginzberg and Walden, 2011) the second-order

information carried by the random vector quaternion

valued q are not fully speciﬁed by the above covari-

ance matrix, hence the following transformation is in-

troduced:

A =







I iI jI kI

I iI −jI −kI

I −iI jI −kI

I −iI −jI kI







(6)

Here I is a m ×m identity matrix. However to obtain

the transformation the quaternion vector needs to be

augmented with its involutions, namely self-inverse

mapping −iqi,−jq j, and −kqk (see (Cheong Took

and Mandic, 2011)), thus q = Ar, where q =

[q,q

] and q

= −iqi, q

= −jq j and q

−kqk. Then the covariance of a m dimensional Gaus-

sian random variable q is:

= E(qq

) = AΣ

conversely

(7)

Here q

is the conjugate transpose of q. We note

that the covariance Σ

of the random variate q com-

prise the above mentioned involutions. It turns out

that a quaternion is not correlated with its vector in-

volutions, hence the covariance Σ

can be simpli-

ﬁed yielding Σ

= diag{Σ

,Σ

}, Σ

E{qq

},Σ

= E{qq

}, Σ

= E{qq

} and Σ

E{qq

}. Therefore, ﬁnally, the Mahalanobis dis-

tance for a multivariate quaternion-valued random

vector q, augmented with its involutions, is:

−1

q (8)

For each pose of any action A we have obtained

the covariance parameter of the 4m-variate Gaussian

random variate associated with it, both in terms of the

real values of the pose and of its augmented quater-

nion values.

Now, it is easy to see that the above representation

of a pose is independent of the length of an action,

and it depends only on the number of joints, namely

on the pose at each frame F

. Clearly this turns out to

be a problem only for comparison between different

data sets, as in the same data sets all poses have the

same number of joints.

Therefore, in order to suitably compare actions A

k = 1,.., across different datasets it is necessary to

align two poses with respect to the number of joints.

In order to obtain the number of joints whose quater-

nions have to be combined we proceed as follows.

First we compute the distribution of joints across

two poses, say X and Y and then we compute the av-

erage quaternion about the exceeding joints. We re-

call that the average quaternion can be estimated by

solving the following optimization problem (Markley

et al., 2007):

q = argmax

q∈S

with: M =

∑

and

denoting the unit 3-sphere

(9)

A solution to this problem can be computed by

taking the eigenvector of M which corresponds to its

largest eigenvalue. All weights w

were taken equal

to 1 for the successive analysis. In this process joints

corresponding to ﬁngers and toes were not consid-

ered mainly due to the high noise level which de-

graded the quality of these joint measurements in all

datasets. These average quaternions have been suc-

cessively treated analogously to what has been shown

previously by computing the covariance matrix and

performing its eigen decomposition.

Let J be the number of joints of a pose X of action

and let W be the number of joints of a pose Y of

action B. Assume that J < W (the same reasoning can

be applied in the inverse case), then let δ j =W /J, and

let:

C = d(1,..., J)δ je (10)

Here d·e is the ceiling operator, and C is the cumula-

tive number of joints that should be combined so as

to map W joints onto J joints. Further, to obtain the

inverse cumulative operation C

−1

we deﬁne

= [C

, C

−C

,...,C

W −1

−C

W −2

]

(11)

Hence the length of both C and C

is J. It is easy to

see that:

∑

= W (12)

Now, for each joint j, the graph of its connecting

joints is deﬁned, then C tells which joint j is inter-

ested in the average, and C

tells how many joints of Y

needs to be averaged at j, so as two obtain two poses

with the same number of joints.

For example if J = 7 and W = 19

then C = (3, 6, 9, 11, 14, 17, 19)

and

= (3, 3, 3, 2, 3, 3, 2)

, hence at the joint

j = C(4) = 11, we have that C

(4) = 2, hence two

joints of the graph of j = 11 will be averaged as

indicated in (9).

A COMPREHENSIVE ANALYSIS OF HUMAN MOTION CAPTURE DATA FOR ACTION RECOGNITION

649

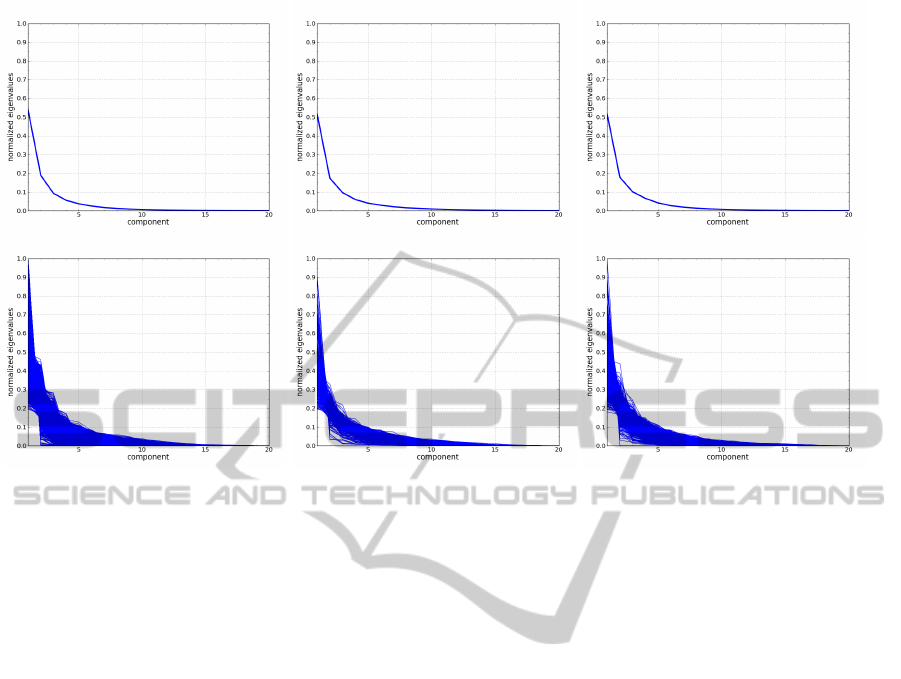

Figure 2: Top row: Eigenvalues of the CMU, HDM05 and MEJ datasets respectively. Bottom row: Eigenvalues of all the

sequences of the CMU, HDM05 and MEJ datasets respectively.

3 EXPERIMENTS

In this section we present our experiments regard-

ing the analysis of the human motion across different

MOCAP datasets and highlight the signiﬁcance of the

results in the context of action recognition. The anal-

ysis was performed on the following, publicly avail-

able, MOCAP datasets:

- The Carnegie Mellon University (CMU) dataset

(CMU, 2003).

- The Hochschule der Medien (HDM05) dataset

(Muller et al., 2007).

- The Mocapdata Eyes Japan (MEJ) dataset (mocap-

data.com, 2011).

whose characteristics are given in Table 1:

Table 1: Characteristics of MOCAP datasets used in the

experiments.

Dataset actors classes motions fps joints

CMU 144 23 2605 120 31

HDM05 5 28 293 120 31

MEJ 3 18 675 30 19

The classes of human motion within the datasets

capture an extensive range of human actions, from

common and simple actions such as walking and

jumping to more complex such as sporting, danc-

ing, martial arts, manipulation actions and gestures.

Figure 3: Covariance coverage w.r.t. the number of dimen-

sions considered.

Figure 4: Limbs level: Covariance coverage w.r.t. the num-

ber of dimensions considered.

The motion sequences differ in the number of skeletal

joints considered as well as the frame rate, however

the results are not biased by these factors.

In Figure 2 the covariances of all the individual

motion sequences as well as the resulting mean eigen-

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

650

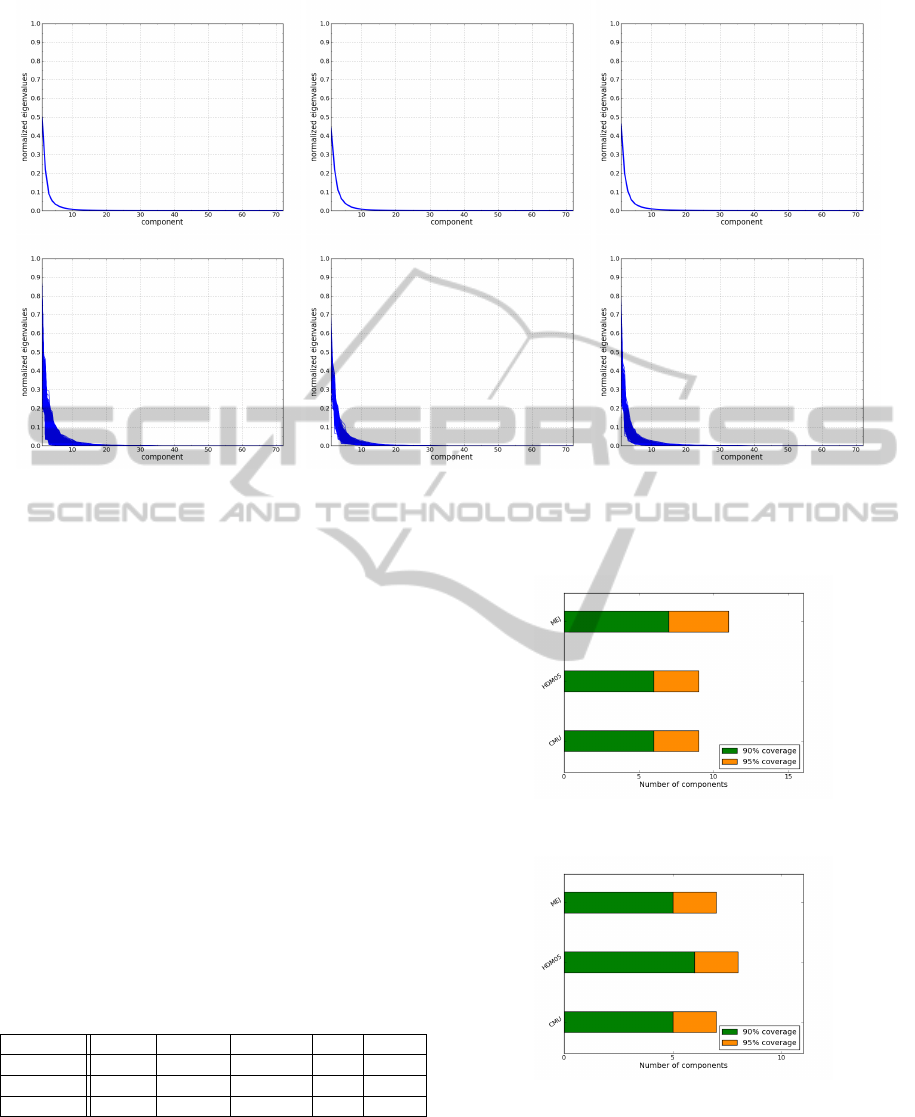

Figure 5: Limbs level: Top row: Average eigenvalues of the CMU, HDM05 and MEJ datasets respectively. Bottom row:

Eigenvalues of all the individual sequences of the CMU, HDM05 and MEJ datasets respectively.

values of the real valued poses q

(see Section 2) is

presented for the three aforementioned datasets.

It is evident that the variances of the motion se-

quences follow a speciﬁc pattern irrespectively of the

particular action being performed. In particular, we

observe a high degree of correlation of human motion

that is quantitatively demonstrated in Figure 3, that

presents the number of dimensions necessary to cover

90% and 95% of the pose variances for each dataset.

Figure 4 shows the number of dimensions necessary

to cover 90% and 95% of the variance, by grouping

joints that belong to the same skeletal limb.

Figure 5 shows the variance of the motion se-

quences for each dataset by performing the analysis

on the limbs level. One can note that also in this case

a small portion of the overall dimensions carries most

of the information with the eigenvalues decreasing ex-

ponentially like before.

Besides considering motion sequences from dif-

ferent datasets we have also analysed the variances

and the real valued eigenvalues of sequences of differ-

ent actions taken from the same dataset. For each of

the datasets, Figure 6 shows the two actions for which

the respective eigenvalues decay with the lowest rate,

in other words, the most complex actions, as well as

the two actions for which the eigenvalues decay with

the highest rate, i.e. the simplest actions. Figure 6

also presents the average eigenvalues obtained from

all the sequences of the respective dataset for compar-

ison. Semi-logarithmic scaling has been used in order

to highlight the differences in the eigenvalues distri-

bution. Finally, in Figure 7, we show the number of

dimensions necessary to cover 90% and 95% of the

variances for the respective action classes within each

dataset. These results indicate that, as intuitively ex-

pected, the correlation in the dimensions describing a

human motion is lower for more complex actions and

higher for simple actions like gestures or manipula-

tion of objects. However, even for the most complex

actions, the necessary dimensionality remains rela-

tively low.

4 CONCLUSIONS

In this work we have considered several motion

sequences taken by various available datasets. As has

been experimentally shown, an analysis of the cor-

relation of the motion sequences shows that the ma-

jority of the information regarding the human mo-

tion resides in a lower dimensional space. Moreover,

the trend by which the amount of information carried

by the components is decreasing in the ﬁne resolu-

tion level (considering all the joints) is similar to the

coarse resolution level, i.e. at the limb level. Finally,

we also highlighted that individual actions which are

considered as more semantically ”complex” give a

spectrum that decays with a lower rate compared to

the one resulting from ”simpler” actions. These con-

siderations further support the argument that human

A COMPREHENSIVE ANALYSIS OF HUMAN MOTION CAPTURE DATA FOR ACTION RECOGNITION

651

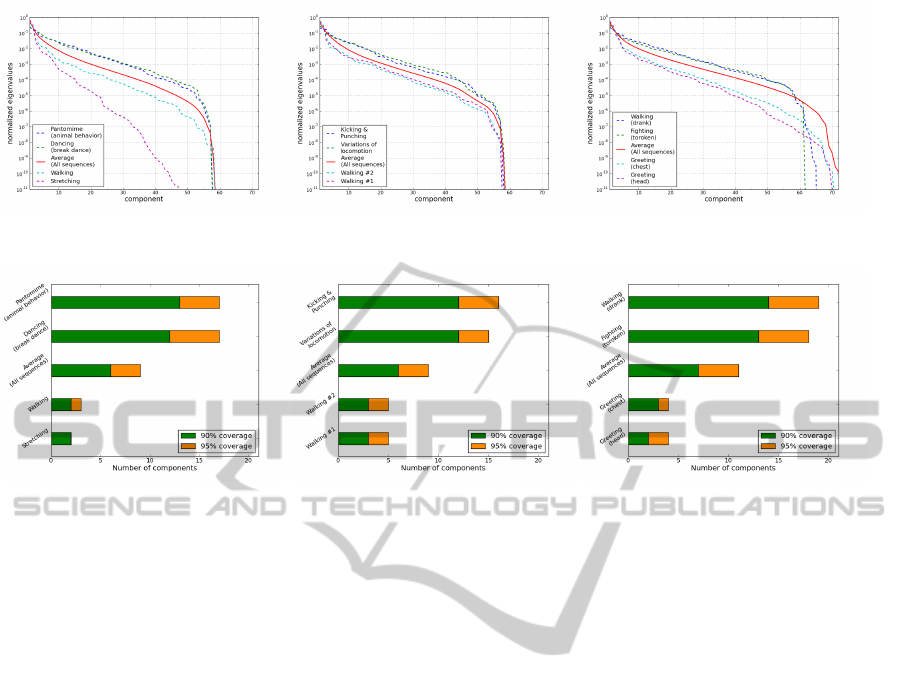

Figure 6: Eigenvalues of different actions for the CMU, HDM05 and MEJ datasets respectively (semilogarithmic scale).

Figure 7: Covariance coverage of different actions for the CMU, HDM05 and MEJ datasets respectively.

motion can be classiﬁed using a representation which

considers a relatively low number of dimensions.

ACKNOWLEDGEMENTS

We would like to thank mocapdata.com, Eyes,

JAPAN Co. Ltd. for providing the full bundle of the

MOCAP sequences. This paper describes research

done under the EU-FP7 ICT 247870 NIFTI project.

REFERENCES

Barbi

c, J., Safonova, A., Pan, J.-Y., Faloutsos, C., Hodgins,

J., and Pollard, N. (2004). Segmenting motion cap-

ture data into distinct behaviors. In Proc. Graphics

Interface 2004, pages 185–194.

Cheong Took, C. and Mandic, D. P. (2011). Augmented

second-order statistics of quaternion random signals.

Signal Process., 91:214–224.

CMU (2003). Carnegie-mellon mocap database.

http://mocap.cs.cmu.edu/.

Fod, A., Matari, M., and Jenkins, C. (2002). Automated

derivation of primitives for movement classiﬁcation.

Autonomous Robots, 12:39–54.

Ginzberg, P. and Walden, A. (2011). Testing for quaternion

propriety. Signal Processing, IEEE Transactions on,

59(7):3025 –3034.

Jenkins, C. and Mataric, M. (2003). Automated derivation

of behavior vocabularies for autonomous humanoid

motion. In AMAS, pages 225–232. ACM.

Kovar, L. and Gleicher, M. (2004). Automated extraction

and parameterization of motions in large data sets. In

ACM SIGGRAPH 2004, pages 559–568.

Markley, F. L., Yang, C., Crassidis, J. L., and Oshman, Y.

(2007). Averaging quaternions. Guidance, Control,

and Dynamics, 30(4):1193 – 1196.

Microsoft, C. (2010). Kinect. http://www.xbox.com/en-

US/kinect.

Mihai, G. D. (1999). The visual analysis of human move-

ment: A survey. Computer Vision and Image Under-

standing, 73(1):82 – 98.

mocapdata.com (2011). Eyes, japan co. ltd.

http://www.mocapdata.com/.

Muller, M., Roder, T., Clausen, M., Eberhardt, B., Kr

uger,

B., and Weber, A. (2007). Documentation mocap

database hdm05. Technical Report CG-2007-2, Uni-

versit

at Bonn.

Okan, A. (2006). Compression of motion capture databases.

ACM Transactions on Graphics, 25:890–897.

Poppe, R. (2010). A survey on vision-based human action

recognition. Image and Vision Computing, 28(6):976

– 990.

Pullen, K. and Bregler, C. (2002). Motion capture assisted

animation: texturing and synthesis. In Proc. of the

29th annual conf. on Computer graphics and interac-

tive techniques, pages 501–508. ACM.

Thomas, M., Adrian, H., and Volker, K. (2006). A survey of

advances in vision-based human motion capture and

analysis. Computer Vision and Image Understanding,

104(2-3):90 – 126.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

652
