A WEB APPLICATION FOR MAKING MOSAIC ART IMAGES

Tefen Lin, Jie Wang

Department of Computer Science, University of Massachusetts, Lowell, MA 01854, U.S.A.

Pei-Yu Huang, Yan-Ping Tung, Hsiao-Yun Huang, Kai-Wen Yu

Lunghwa University of Science and Technology, Taoyuan Country, Taiwan

Keywords: TMA, Mosaic art image, Dithering algorithm, FWD-FSD, Ajax, Web service, XQuery.

Abstract: This paper presents Tile Mosaic Art (TMA), an e-commerce Web application system for making mosaic art

images from regular pictures. TMA makes it possible for ordinary users to produce high-quality mosaic art

images with tiles without special training. We describe how TMA resolves color bandings caused by current

technologies of tile industries, where only a limited color palette for tiles is available. In particular, TMA

uses the FWD-FSD error diffusion algorithm (Lin and Wang, 2011) to maintain the original structure of the

input image and produce high-quality mosaic images. TMA also develops Ajax, Web Service, and XQuery

technologies to save and modify mosaic images and obtain the effect of what-you-see-is-what-you-get

mosaic picture. Our experiments show that TMA not only produces high-quality mosaic images but also is

efficient in terms of response and request time.

1 INTRODUCTION

Becoming an artist of mosaic art may be a dream of

many people. Realizing this dream, however, would

require extensive training. This paper presents a

Web application system that allows ordinary people

to become seasoned mosaic artists using tiles.

Traditional mosaic artists create mosaic arts with

small pieces of colored glass, stone, china, or other

materials. Mosaic art today provides sophisticated

decorations for floors, walls, and ceilings. Mosaic

art images are composed manually by artists.

We design and develop an e-commerce Web

application system called Tile Mosaic Art (TMA) to

produce mosaic art images from regular pictures,

where a mosaic art image consists of a grid of small

square tiles of one square centimetre. In particular,

the user uploads the original picture to TMA, which

then converts it to a mosaic art image using a given

color tablet. Users can obtain a what-you-see-is-

what-you-get mosaic art image, modify it, and

display it in their blogs and other places. Users may

also choose to a sheet of grids for a mosaic image

produced by TMA, where each cell has a unique

number corresponding to a specific tile (see Figure 1

(c)), making it easy to piece the tiles together to

form the image. TMA combines techniques of

digital photographic image (as shown in Figure 1

(a)) and mosaic image (as shown in Figure 1 (b))

together to produce a mosaic image (as shown in

Figure 1 (d)). The mosaic art can be framed and

hung on the wall. The size of a typical frame is 50

cm wide, with its height determined by the

width/height ratio of the original image.

Listed below are two major problems in creating

a mosaic art application:

1. Confined by current tile making technology,

there are only limited colors available for tiles.

For example, the tile manufacturers we work

with can only make tiles with 48 different colors.

2. Both of the user request and system response

time must be reasonable to make the system

user friendly.

Applying graphic dithering algorithms to enlarge

original image is a common technique in the field of

graphic design and graphic art. We devise a fast

dithering algorithm to produce mosaic images using

a given set of tiles with limited colors while

maintaining high quality. The final output of our

Web application is a sheet of grids (as shown in

Figure 1 (c)) for a mosaic image, where each cell is

appropriately numbered, which corresponds to a

641

Lin T., Wang J., Huang P., Tung Y., Huang H. and Yu K..

A WEB APPLICATION FOR MAKING MOSAIC ART IMAGES.

DOI: 10.5220/0003483706410644

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WSPA-2011), pages 641-644

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

particular type of tile (as shown in Figure 1 (c)).

Using this printout and a supply of tiles, everyone

can assemble the tiles to produce, with little artistic

talent, a nice-looking mosaic art image (shown in the

Figure 5).

We use a number of Web technologies to shorten

the request and response time in our system,

including Web Service, DOM, XML, Ajax, and

XQuery, in addition to the fast dithering algorithm

we developed. In this paper we will describe how to

convert the original image to a digital tile mosaic

image and how to transfer each pixel in an image

between the browser and the Web server.

The rest of the paper is organized as follows. In

Section 2 we will describe how to produce a mosaic

image with high quality from a given photo provided

by the user. In Section 3 we will present our mosaic

image editor using several Web technologies, which

allows users to modify their mosaic images. In

Section 4 we will explain the architecture of the

TMA system. We will conclude the paper in Section

5. In Appendix we will provide a number of

examples of mosaic art images.

(a) (b) (c) (d)

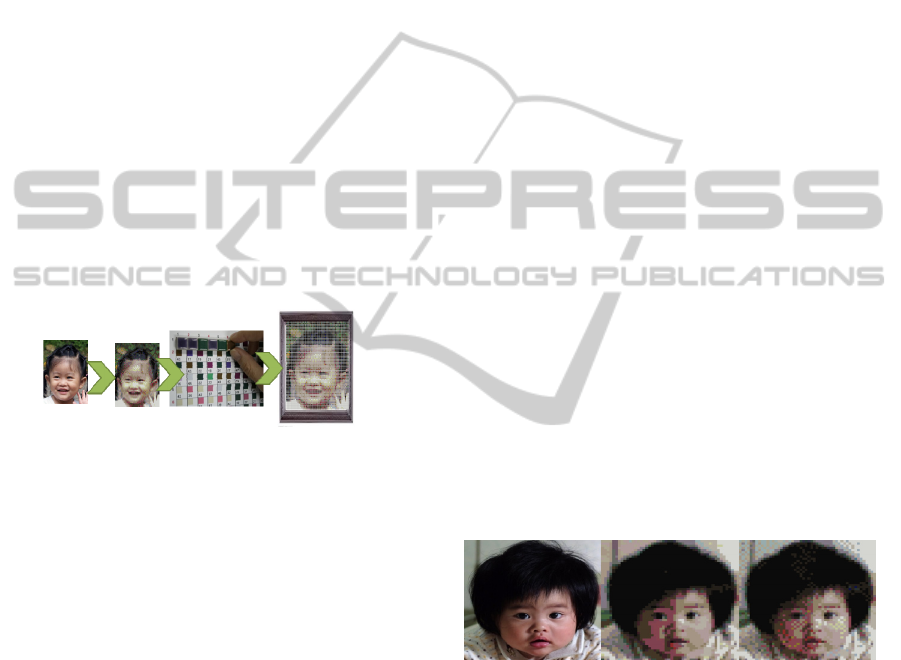

Figure 1: Our procedure of making a mosaic image: (a)

Image uploaded by the user. (b) The mosaic image

produced by our dithering algorithm. (c) A sheet of grids

for putting tiles to produce a mosaic image. (d) The final

mosaic art product.

2 MOSAIC IMAGE PROCESSING

Our Tile Mosaic Art Web system (TMA) consists of

the following four major components:

1. Resize the original image.

2. Apply the FWD-FSD error diffusion dithering

algorithm [LW11] to the resized image and

produce a mosaic image with high quality.

3. Edit the mosaic image.

4. Print the sheet of grids for placing tiles.

2.1 Resize the Original Image

After the user uploads the orignial image, TMA first

resizes it to fit in a standard picture frame (see

Figure 1(d)). A typical picture frame is 50 cm wide

with its height determined by the width/height ratio

of the original image. In particular, TMA first

resizes the original image of size w × h pixels to the

desired size of w’ pixels wide and w’h/w pixels high,

where w represents width and h represents height.

For example, the original image of a little girl (see

Figure 1) is 413 × 523 pixels . TMA resizes it by

retrieving its own embedded thumbnail and scales it

to the size of 50 × 63 pixels .

2.2 Color Mapping

After the original image is resized appropriatly,

TMA analyzes the color of each piexl and maps it

to the cloest color in the given pallate of limited tile

colors. The tile manufacturer we work with can

only produce tiles with 48.

TMA allows the following four image formats to

be uploaded:GIF, JPG/JPEG, PNG,, and BMP. The

GIF format supports up to 8 bits per pixel, allowing

a single image to reference a palette of up to 256

distinct colors chosen from the 24-bit RGB color

space. The JPEG files embed an ICC color profile

(color space). Commonly used color profiles include

sRGB and Adobe RGB of 24 bits, resulting in 16

million colors. The PNG and BMP formats support

32 bit colors, resulting in about 4 billion clolors.

Every input image needs to reduce its colors to 48

colors. After color reduction, the resulting output

image will lose image quality and detail information,

and color banding will appear (see Figure 2 (b)). We

use the FWB-FSD Error diffusion dithering

algorithm (Lin and Wang, 2011) to achieve a nice

visual quality of the image.

(a) (b) (c)

Figure 2: Size of these images: 50 pixels wide and 55

pixels high. (a) Input image. (b) The image with reduced

colors using the limited color palette of 48 colors. (c) The

image produced by the FWB-FSD dithering algorithm.

FWB-FSD is a better algorithm on mosaic art

images and other types of images that require

enlargement of pixels. For the sake of completeness,

we will briefly describe in Section 2.3 the FWB-

FSD dithering algorithm. After running FWB-FSD,

the system produces a mosaic image as shown in

Figure 2 (c).

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

642

2.3 FWB-FSD Dither

FWB stands for “Four-Way Block” and FSD stands

for Floyd-Steinberg Dither. FSD is a effective

dithering error diffusion algirithm. In an error

diffusion algorithm, each pixel in the original image

will disffuse its quatization error to its neigboring

pixels. It was shown that FWB-FSD is a better

algorithm on mosaic art images and other types of

images that require enlargement of pixels (Lin and

Wang, 2011). In particular, FWB divides the input

image into blocks of an equal size with each block

consisting of four sub-blocks such that the size of

each sub-block is suitable for an underlying FSD

error-diffusion algorithm. Scanning blocks from left

to right and from top to bottom, for each block being

scanned, FWB starts from the center of the block

and diffuses errors along four directions on each

sub-block.

The quantization error of each pixel, which is the

difference between the RGB value of the pixel in the

input image and the closest color in the limited color

palette, will be distributed to its neighbour pixels by

the coefficient error diffusion matrix when system is

scanning the sub block. FWB uses the coefficient

matrix developed from Floyd and Steinberg

dithering (FSD). The FSD method diffuses a pixel’s

quantization error to its four neighbour pixels with

the coefficient error diffusion matrix shown in (1),

where x is the pixel being processing.





× 

000

07

153



(1)

3 MOSAIC IMAGE EDITOR

We have developed a useful Web tool to allow users

to modify mosaic images with the effect of “what

you see is what you get” efficiently. This tool is

based on AJAX, XML, Web Service and XQuery

technologies.

AJAX (Asynchronous JavaScript and XML) is a

powerful Web development mode for browser-based

Web applications. Technologies that form the AJAX

mode, such as JavaScript, HTTP, and XHTML, have

each been widely used and well known. AJAX

combines these technologies to allow Web pages to

retrieve small amounts of data from the server

without having to reload the entire page. This

capability makes it possible to update Web pages

between the server and the client smoothly and

interactively (Lei and Duan, 2007).

For raster images, Languages like XHTML

which does not have such a structural feature in their

environment. Instead, XML provides image

elements’ means such as pixel and RGB for the

incorporation of raster images in text-based files

(Hur, Lee and Kim, 2006). In the TMA, we

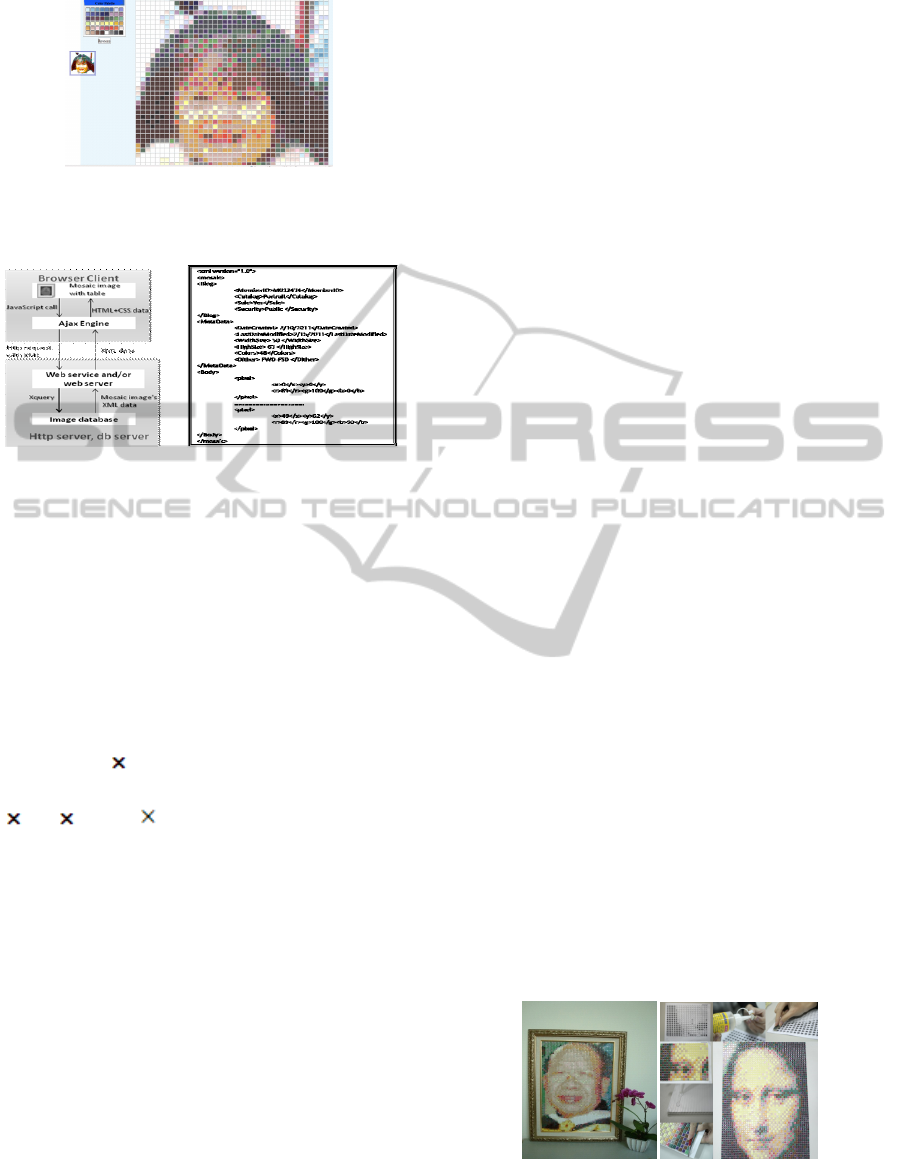

developed the XML (see Figure 4 (b)) to present

mosaic image which is raster image and presented

by XHTML to display the mosaic image. Converting

a raster formatted image into XML enables the user

to utilize the information residing in the image and

select, read and manipulate the parts of the XML file

or the file as a whole in a number of ways in

accordance with the pixel and its color space

(Antoniou and Tsoulos, 2006). This section

elaborates on the technological environment, which

can be utilized for the XML encoding of raster

mosaic images and the transmitting information to

the existing datasets using Ajax and web service

methods. In the TMA system, mosaic images,

formed by the XML (see Figure 4 (b)) and saved in

the database, are useful for editing, researching,

retrieving and copyright checking the copyright.

XQuery, an XML query language, a query

language that uses the structure of XML intelligently

can express queries across all these kinds of data,

whether physically stored in XML or viewed as

XML via middleware. The XQuery is designed to be

broadly applicable across many types of XML data

sources (W3C, 2010). Mosaic image editor

developed the XQuery to access the mosaic image in

the image database and return the XML data of

mosaic image.

The mosaic image editor, one of application in

the TMA system, allowing users to modify mosaic

image in the browser (see Figure 3), retrieved the

mosaic image which XML formatted in the database

by the XQuery. In Figure 3, there are three images

are displayed. Image (a) represents the current

mosaic art image, formed as a table of XHTML and

CSS that retrieves the RGB values from the image

database. The user is allowed to choose the colors in

the color palette (shown in Figure (c)) to modify

each cell’s color in Figure (a). Simultaneously, the

icon in Figure (b) will be changed according to the

modification in the biggest image to get the overall

image. When the user saves the modified mosaic

image, the system will send the modified coordinate

values and the RGB values to the server. AJAX and

Web Service are used to store the image into

database.

A WEB APPLICATION FOR MAKING MOSAIC ART IMAGES

643

Figure 3: (a) The largest image, which is the current

mosaic art in the main page. (b): The smaller portrait icon.

(a) (b)

Figure 4: (a) The architecture of mosaic image editor;

(b) XML data in (a).

4 IMPLEMENTATION AND

TESTING

After mosaic image process, the mosaic image is

saved both the bmp format and formed XML data in

the database. The amount of disk storage required

for any bitmap is easy to calculate, given the bitmap

dimensions (N

M) and colour depth in bits (B).

The formula for the file size in KBytes is

M B / 8 1024. We set up the mosaic

image width size 50 cm and high with the ration of

original image. The size of a mosaic image should

be less than 19 Kbytes (we use the image 50 × 100

and color depth is 32 bits). By the way, the TMA

system was built on an Hp Proliant ML150 G5 Hot

Plug Server with Dual-Core Intel Xeon Processor

E5502 and 16 GB memory using an SQL Server

2008 database system. The C# programming

language in the .NET

framework was used to

implement the system. As an experimental, the

response and request time of mosaic image is fast, it

means mosaic image is very easy to transmit.

5 CONCLUSIONS

This paper presents design and implementation of a

feasible mosaic image solution. It uses an effective

dithering algorithm and these technologies of Ajax,

Web services and XQuery. TMA system provides

mosaic image developers with sense to create their

own mosaic art used by tiles. In order to let user to

modify their own mosaic image, we used the Ajax,

web service and XQuery to transmit the modified

RGB values only portion of image data will be sent

to web service and modify the mosaic image saved

in the database. Total solution is feasible. Author not

only can get high quality of mosaic image, but also

fasten to finish the creation of mosaic image. We

present two examples of mosaic art images using

FWB-FSD (see Figure 5).

REFERENCES

R. Floyd and L. Steinberg, 1975. An adaptive algorithm

for spatial grey scale, SID Intl. Svmp. Dig. Tech.

Papers VI, 36—37.

Terfen Lin and Jie Wang, 2011. Producing Automated

Mosaic Art Images of High Quality with Restricted

and Limited color palettes, SciTePress

Byron Antoniou and Lysandros Tsoulos, 2006, The

potential of XML encoding in geomatics converting

raster images to XML and SVG, Computers &

Geosciences Volume 32, Issue 2, March 2006, Pages

184-194.

Lihui Lei and Zhenhua Duan, 2007, Integrating AJAX and

Web Services for Cooperative Image Editing, IEEE

Electronic Library Vol.9, Iss.3; p.29-29

Wonchang Hur, Jaebum Lee and C. Young Kim, 2006,

Web-based Diagnostic Imaging Service Using XML

Forms, Journal of Digital Imaging Volume 19,

Number 4, 328-335

APPENDIX

Demonstration of Mosaic Art and e-Commerce

Process

We present two examples of mosaic art images

using FWB-FSD (see Figure 5).

(a) (b)

Figure 5: (a) A retired professor. (b) The process of

piecing tiles together to create the mosaic art.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

644
