ACCESS ISOLATION MECHANISM BASED ON VIRTUAL

CONNECTION MANAGEMENT IN CLOUD SYSTEMS

How to Secure Cloud System using High Perfomance Virtual Firewalls

Alexey Lukashin, Vladimir Zaborovsky and Sergey Kupreenko

Saint-Peterburg State Polytechnical University, Polytechnicheskaya street 29, Saint-Petersburg, Russia

Keywords: Security, Firewall, Cloud system, Virtualization, Virtual connection.

Abstract: The paper describes the access isolation model based on virtual connection management and proposes the

mechanism of traffic filtering in transparent mode, invisible to other components. New level of complexity

of information security tasks was observed in the distributed virtualized systems. The paper proposes a

specialized firewall solution for implementing access isolation and information security in hypervisors and

entire distributed cloud system.

1 INTRODUCTION

Virtualization of distributed computational resources

and development of heterogeneous virtual machine

environments are a very popular and fast growing

area in information technologies. Various

components belonging to this area are usually

denoted by the term “cloud computing”. A lot of

service providers offer such solutions, from IaaS to

SaaS layers. There are not only public cloud

providers such as Amazon, Google, and others.

Private clouds are becoming very popular and there

are a lot of solutions based on Eucalyptus, Open

Nebula, VmWare, or Microsoft technologies.

Therefore, ensuring information security of cloud

systems is a vital problem (Cloud Security Alliance,

2010). The present paper introduces a virtual

connection as an emergence essence and describes

the access isolation in virtual networks based on the

virtual connection management. The network traffic

is described as an aggregation of virtual connections.

The distributed virtual environment (cloud system)

provides heterogeneous computing resources;

therefore, it would be reasonable to use these

resources to protect the information security of the

system. Virtual connections function separately of

each other and do not have any shared resources, so

it is possible to establish parallel traffic filtering

within the security domain. This security domain

would exist in the hypervisor, would use the amount

of resources (cores, memory) that is required for

current information security tasks, and would be

scalable and adaptable to different situations. The

paper highlights the promising (perspective)

approaches to information protection in the

distributed computing environments. These

approaches use the high-performance virtual

firewalls, that operate in stealth mode in the

virtualization nodes of the computing environment

and provide consistency of security policies through

a centralized management. Applying the methods of

formalizing security to automate the generation of

filtering rules in combination with hardware and

software platforms based on multicore

microprocessors can deliver high performance

firewall. This firewall implements the filtering

functions in the operating system kernel based on

the application network management models in the

Netgraph subsystem.

2 INFORMATION SECURITY IN

CLOUD SYSTEMS

Today, many companies, including leading

universities and government institutions, are

transferring their computing resources to the virtual

infrastructures, using both open systems

(Eucalyptus, Open Nebula) and commercial

solutions (VmWare, Citrix, IBM). Due to this trend,

the information security of cloud systems becomes

an acute problem. The major differences between

371

Lukashin A., Zaborovsky V. and Kupreenko S..

ACCESS ISOLATION MECHANISM BASED ON VIRTUAL CONNECTION MANAGEMENT IN CLOUD SYSTEMS - How to Secure Cloud System using

High Perfomance Virtual Firewalls.

DOI: 10.5220/0003433803710375

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 371-375

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

the cloud systems and the distributed networks are

the following:

o Information processing takes place on the

virtual machines under full hypervisor’s control;

the hypervisor has access to all data processed by

its virtual machines;

o Cloud software controls the resource planning

and provision; it is a new entity in the information

environment which has to be protected from the

information security threats;

o Traditional information security components

such as hardware firewalls cannot control the

internal virtual traffic between virtual machines in

one hypervisor;

o In virtualized environments, files serve as

virtual storage devices; these files are located in

the network storages and are more exposed to

threats than hard disks;

o Transfer of instance memory occurs when

migrating virtual machines between hypervisors;

this memory may contain confidential

information.

Therefore, due to the above-listed specifics, new

information security threats appear, including:

o Attacks against the virtual machines

management tools, controllers of the computing

environment (cloud controller), or cluster and data

storage, where the virtual machine images and

user data are located;

o Unauthorized access to the virtualization node;

o Using virtual network for data transfer not

allowed by the information security policy.

The major specifics of the virtual infrastructure

is that an attack or an attempt of unauthorized access

can come from the virtual network, where such

devices as switches, hardware firewalls, and

physical connections are absent. This specifics

hampers applying the exiting methods and tools for

ensuring information security in computer networks

and GRID systems to the information security

protection of cloud systems.

The distributed and virtual computing environments

do not have effective methods of information

security protection. One of the problems is the lack

of firewalls, which can operate in virtual

environment as efficiently as the existing on the

market software and hardware solutions for

protection of information resources and reflection of

cyber attacks. For a number of cloud solutions, for

example, free and open source cloud environment

Eucalyptus, based on hypervisors XEN or KVM,

there are no efficient solutions for the virtual

machines’ protection, despite of the rapidly growing

popularity of this environment due to its

compatibility with the interfaces of Amazon

(Amazon EC2, Amazon S3) products.

3 VIRTUAL CONNECTION

MANAGEMENT IN THE

ACCESS CONTROL TASKS

Virtual connection (VC) is a logically ordered

exchange of messages between the network nodes.

(Silinenko, 2009). Computer network is a set of

virtual connections. Virtual connections are

classified as technological virtual connections

(TVC) and information virtual connections (IVC).

(Figure 1).

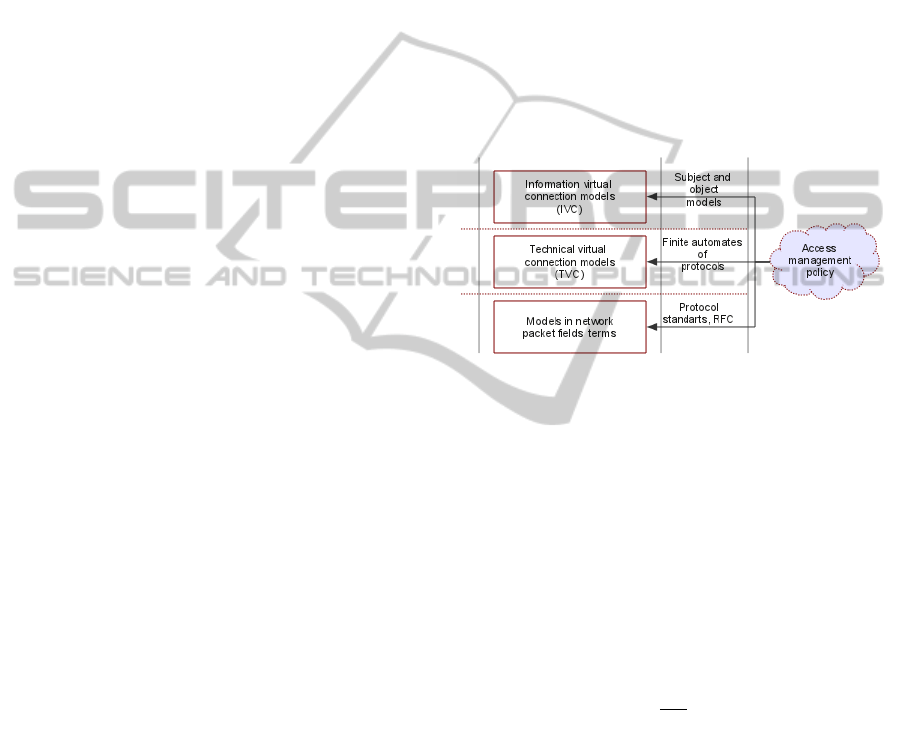

Figure 1: Layers of access control policies.

To implement the policy of access control, the

filtering rules are decomposed in the form of TVC

and the IVC. These filtering rules can be configured

for different levels of data flows description based

on the network packet fields on the levels of

channel, transport, and application protocols. In

terms of the access control, the TVC model can be

defined as a stream of packets generated by the

network applications during communication. The

TVC model is presented in the form of potentially

countable subset of the Cartesian product set of

packets P and timestamp T (1).

TPNNipTVC

×⊂∞∈

),1[,,1},{

(1)

This model is characterized by a finite set of

parameters that describes the access subject and the

access object, as well as action between them in the

form of packet stream within the interconnection.

The model parameters are the identifiers of the

subject and the object, such as addresses, ports, and

other characteristics of network protocols. For

efficient traffic classification, the IVC model is used

along with the TVC model. The IVC model

describes the interaction between the access object

and the access subject at the application services

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

372

level. The IVC model is a set of technical virtual

connections (TVC); the number and characteristics

of these TVCs are determined by the Cartesian

product of the information interaction access model

(IIM), the access subject model (IMS), and the

access object model(IMO) (2).

)(,1},{ IMOIMSIIMNiTVCIVC

××⊂==

(2)

This formalization allows representing the access

IIM as a finite subset. The size of this subset is

determined based on the description of

interconnection subjects permitted within the given

access control policy. IMO is characterized by a

finite subset of information and network resources,

the access to which is This formalization allows

representing the access IIM as a finite subset. The

size of this subset is determined based on the

description of interconnection subjects permitted

within the given access control policy. IMO is

characterized by a finite subset of information and

network resources, the access to which is permitted

in accordance with the access control policies. IMS

describes the operations performed by the access

subject within the bounds of IMO. In accordance

with the access control policies, IMS describes the

operations performed by the access subject within

the bounds of IMO.

4 PARALLEL PROCESSING OF

VIRTUAL CONNECTIONS

Virtual connection (VC), as some abstract, exists in

parallel to and independently from other virtual

connections. Virtual connections do not share any

resources, which allows parallel processing of

virtual connections. (Zaborovsky, Lukashin,

Kupreenko, 2010). The suggested approach to the

network traffic filtering is based on the concept of a

virtual connection and allows extracting the

connection context. The connection context can be

represented as a vector Y

, of parameters, for

example, source and destination addresses, port,

connection status (for TCP protocol), etc.

Controlling the virtual connection is calculating the

indicator function F, which requires resources such

as computing processors and operating memory (3).

,*}0,1{}( =

(3)

The indicator function F takes the following

values: 1 – if VC is allowed, 0 – if VC is forbidden,

* – if at the current moment it is impossible to

clearly determine whether connection is prohibited

or not, the decision is postponed and VC is

temporarily allowed.

Computing problems could be divided into two

groups:

1. Stream-related tasks that can be calculated with

SIMD processing elements (for example, using

graphic processors and CUDA technology).

2. Computational problems solved on the standard

multicore computers MIMD.

Because the distributed environment is

heterogeneous with respect to the available

processing elements, both the streaming SIMD

processors and the classic MIMD multicore

processors can be used for the firewall tasks in the

cloud systems. Firewalls that protect the hypervisor

operate in the virtualized environment; thus, the

configuration (computing cores, memory, streaming

processing elements) of the protection device can be

changed depending on the loading options, access

policies, and the amount of available resources.

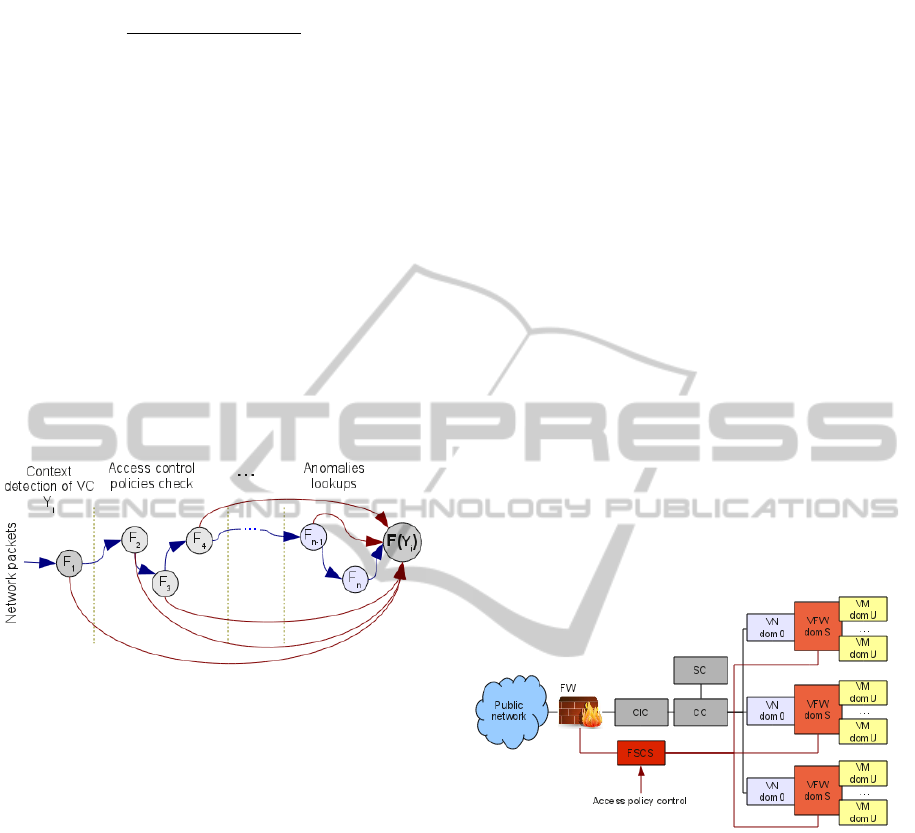

Calculation of the indicator function F can be

decomposed into multiple computing processes –

}. In this case, the problem of VC control can be

described using the graph G(Q,X), which is called

the VC control information graph (you can find the

detailed description of stream tasks by graph in

(Kaliaev, Levin, Semernikov and Shmoylov, 2008)).

The VC control information graph consists of the set

of nodes; each of these nodes is attributed with the

operation F

. If two nodes q

and q

i+1

are connected

with an arc, then result of operation F

is the input

for the operation F

i+1

. Each node has an arc, which

corresponds to the case when F

= 0. Then VC is

considered as prohibited and no further analysis is

performed.

The multiprocessor computing system that solves

the firewall problems can be presented as a full mesh

computation system graph with MIMD and stream

computers as its nodes. This graph is a full mesh,

because the communications between CPUs are

provided by hardware and operating system, and

there is no predefined path between the cores, data

can pass directly from one node to another. Usually

the computation system graph and the control

information graph do not match each other, because

of amount of computing resources is limited and is

less than the amount of computational processes.

We can split the VC control graph in N non-

crossing subgraphs and, thus, build a VC operating

pipeline. Because the virtual connections exist

separately from each other, we can process them in

parallel. With the C compute nodes of MIMD type,

the operating time of VC processing would be

limited by (4).

ACCESS ISOLATION MECHANISM BASED ON VIRTUAL CONNECTION MANAGEMENT IN CLOUD SYSTEMS

- How to Secure Cloud System using High Perfomance Virtual Firewalls

373

)max())(max(

⋅

≤

(4)

z(f

) – number of CPU clocks, required for

calculation, τ

– real time of CPU clock.

The inequality appears in the given formula

because the decision on the VC classification

(allowed/forbidden) can be made before the passing

all nodes of the graph.

Due to the heterogeneity and reconfigurability of

the computing environments, in some cases the

configuration of the firewall can be adapted to the

access control tasks being solved at the current

moment of time. This can be achieved by using the

graph models for network traffic processing and

Netgraph (Cobbs, 2003) technology. This

technology allows organizing the network traffic

processing in the context of the operating system

kernel (Zaborovsky, Lukashin, Kupreenko, 2010).

Figure 2: Information graph of the virtual connection

management.

Figure 2

shows an example of the virtual

connections information control graph with

decomposition of the indicator control function into

components. The presented approach, in the

combination with using the virtualization resources

technology, allows improving performance of the

network traffic monitoring and using only those

computing components that are required to solve

current access control problems.

5 ARCHITECTURE OF A

SECURE CLOUD COMPUTING

ENVIRONMENT

A distributed computing environment (cloud system)

consists of the following software and hardware

components:

o virtualization nodes;

o storage of virtual machines and user data;

o cluster controller; and

o cloud controller.

The distributed computing environment intended

for solving scientific and engineering problems is a

set of various computing resources such as virtual

machines, and has the following features (Lukashin

and Roshupkin, 2010):

o The environment is used by a wide range of

users, who are solving problems of different

classes;

o Virtual machines of different user groups can

operate within one hypervisor;

o Wide range of software components

(CAD/CAE applications, development tools) and

operating systems is used;

o Different hardware configurations are used,

including virtual multicore computing machines

and virtual machines, that allow performing

computations using the streaming technology

CUDA.

Virtualization node is powerful multicore system

with hypervisor installed, on which the domain level

0 (dom0 in terms of hypervisor XEN or service

console in terms of other hypervisors) and virtual

computing machines (domain level U, domU)

operate.

Figure 3: Secure cloud architectrure.

For information security and access control (AC)

between the virtual machines that operate under a

single hypervisor, the internal (“virtual”) traffic and

the external traffic (incoming from other hypervisors

and from public networks) must be controlled. The

solution of the access control problem could be

achieved through the integration of a virtual firewall

into the hypervisor; this firewall would functions

under the hypervisor, but separately from the user

virtual machines. The virtual firewall domain can be

defined as “security domain” (domS). Invisible

traffic filtering is an important aspect of the network

monitoring; the firewall must not change the

topology of the hypervisor network subsystem. This

can be achieved by using “Stealth” (Zaborovsky and

Titov, 2009) technology – a packet traffic control

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

374

(Figure 3) invisible to other network components.

Figure 3 shows the common architecture of a

distributed cloud system with integrated AC

components. Abbreviations: FW – hardware

firewall; VFW – virtual firewall; FSCS – the central

control system of all firewalls in the cloud VM –

virtual machine; ClC – cloud controller; CC –

cluster controller SC – storage controller.

The FSCS distributes the access control policies

to all firewalls in the system. When the information

security policy changes, new access rules are

replicated to all components. The security domain

isolates virtual machines from the hypervisor, which

prevents the possibility of attack against the

hypervisor inside the cloud. The hardware firewall

isolates the private cloud components from the

external threats.

6 CONCLUSIONS

The presented architecture is a distributed

heterogeneous computing environment that provides

computing resources of different configurations; this

allows arranging the information protection for this

system in the form of a dedicated security domain

(domS). The security domain can be quickly adapted

to the current situation in the cloud. The traffic

filtering process in kernel shows good scalability

and can be linearly scaled up to eight cores. A secure

cloud prototype, based on Eucalyptus and adopted

for CAD/CAE computation tasks (Lukashin and

Roshupkin, 2010), was created and is currently

functioning at the Telematics department of the

Saint-Petersburg Polytechnical University.

REFERENCES

Cloud Security Alliance, Top Threats to Cloud

Computing, 2010. URL: http://www.cloudsecurity

alliance.org/topthreats/csathreats.v1.0.pdf

Silinenko A., 2010. Access control in IP networks based

on virtual connection control models: phd thesis

05.13.19: / Saint-Petersburg, Russia.

Zaborovsky V., Lukashin A., Kupreenko S., 2010.

Multicore platform for high performance firewalls.

High performance systems // Materials of VII

International conference – Taganrog, Russia.

Kaliaev A., Levin I., Semernikov E., Shmoylov I., 2008.

Reconfigurable multipipe computation systems. –

Rostov-na-Donu, Russia.

Cobbs A., 2003. All about Netgraph URL:

http://www.daemonnews.org/200003/netgraph.html

Lukashin A., Roshupking I., 2010. Methods and strategies

of developing distributed computation systems for

CAD/CAE problems solving // ХХХIX week of science

SPbSTU, Materials of Russian conference for

students, Part XV, p. 13-15. – Saint-Petersburg,

Russia.

Zaborovsky V., Titov A., 2009. Specialized Solutions for

Improvement of Firewall Performance and Conformity

to Security Policy. Proceedings of the 2009

International Conference on Security & Management.

v. 2. p. 603-608. July 13-16, 2009.

ACCESS ISOLATION MECHANISM BASED ON VIRTUAL CONNECTION MANAGEMENT IN CLOUD SYSTEMS

- How to Secure Cloud System using High Perfomance Virtual Firewalls

375
