AN ARCHITECTURE FOR COLLABORATIVE DATA MINING

Francisco Correia, Rui Camacho

LIAAD & DEI, Faculdade de Engenharia da Universidade do Porto, Porto, Portugal

ao Correia Lopes

INESC-Porto & Faculdade de Engenharia da Universidade do Porto, Porto, Portugal

Keywords:

Collaborative Data Mining, Web Services.

Abstract:

Collaborative Data Mining (CDM) develops techniques to solve complex problems of data analysis requiring

sets of experts in different domains that may be geographically separate. An important issue in CDM is the

sharing of experience among the different experts. In this paper we report on a framework that enables users

with different expertise to perform data analysis activities and proﬁt, in a collaborative fashion, from expertise

and results of other researchers. The collaborative process is supported by web services that seek for relevant

knowledge available among the collaborative web sites.

We have successfully designed and deployed a prototype for collaborative Data Mining in domains of Molec-

ular Biology and Chemoinformatics.

1 INTRODUCTION

Multi-Relational Data Mining (MRDM) (Dzeroski,

2001) is a very active research ﬁeld that strives to

construct complex models for data. One ﬂavour of

MRDM is Inductive Logic Programming (ILP) (Mug-

gleton and De Raedt, 1994). ILP systems can con-

struct complex models, represented in a First Order

Logic language, using relevant background knowl-

edge provided by domain experts.

The success of MRDM/ILP applications depends

often on the collaboration between domain (e.g

Molecular Biology) and ILP experts. The former

provides the background knowledge whereas the

later knows how to encode the provided background

knowledge and how to use the algorithms to construct

the models. Also a key point in Data Mining (and

ILP) applications in similar domains is that there may

proﬁt from sharing information. Sharing information

may speed up new DM (ILP) tasks in similar domains.

As in the CRISP-DM methodology (CRISP-DM,

2007), where pre-processing the data takes a signiﬁ-

cant percentage of the whole DM process, deploying

the background knowledge is a signiﬁcant part of an

ILP-based Relational Data Mining process. Sharing

components (predicates) of the background knowl-

edge may provide a considerable speedup in the de-

ployment of an ILP application an reduce the depen-

dency on the ILP expert.

There have been several successful CDM experi-

ences as reported in (Lavrac et al., 2004; Blockeel and

Moyle, 2002; Moyle et al., 2003).

In this paper we report on a Service Oriented Ar-

chitecture (SOA), implemented as SOAP Web Ser-

vices (Papazoglou and Georgakopoulos, 2003), that

provides a framework for Collaborative Data Mining.

The Web services provide a mechanism that makes

completely transparent for users the sharing of infor-

mation (data sets, background knowledge predicates

and papers) among the participant sites.

The rest of the paper has the following structure.

In Section 2 we describe the data analysis method we

use and explain its advantages and also the advan-

tages of using a collaborative approach. In Section 3

we describe the web application we have developed.

The use of Web services in the Service Oriented Ar-

chitecture is described in Section 4. A case study in

domains of Molecular Biology and Chemoinformat-

ics is described in Section 5. We ﬁnally present our

conclusion and point out future work in Section 6.

467

Correia F., Camacho R. and Lopes J..

AN ARCHITECTURE FOR COLLABORATIVE DATA MINING.

DOI: 10.5220/0003097504670470

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2010), pages 467-470

ISBN: 978-989-8425-28-7

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

2 ILP-BASED MRDM

In order to understand our application and the use-

fulness of the SOA architecture proposed we explain

brieﬂy how an ILP system is used in a MRDM task.

An ILP system requires two main ingredients: a set

of examples (the data to be analysed) and; a set of

predicates called the background knowledge that en-

code knowledge that the domain expert thinks is rel-

evant for the analysis process. The result of the data

analysis process is a model encoded as a set of rules

(clauses). Each of these rules (clauses) use the pred-

icates in the background knowledge as their basic

blocks for the conditional part of the rule (literals in

the body of a clause).

To solve a problem with ILP we require a domain

expert or team of domain experts to deﬁne the prob-

lem and provide the data (examples) and we need an

ILP expert to “frame” the domain problem into an

ILP problem and run the data analysis experiments.

We also need a tight collaboration between domain

and ILP experts in the development of the background

knowledge. Development of background knowledge

is a very time consuming stage of the whole MRDM

process. We have speed up the whole process of back-

ground knowledge development in three ways: i) re-

using existing predicates available at other web sites;

avoiding experiments that lead to bad results and;

ii) starting off with an existing (in another web site)

background knowledge and try to improve it.

3 A WEB-BASED APPLICATION

FOR MULTI-RELATIONAL

DATA MINING

The application reported in this paper is deployed as

a set of collaborative sites supporting the proposed

SOA architecture shown in Figure 1 (a).

Each site is devoted to the active collaborative

work of a group of researchers, that may be geograph-

ically distributed. At each site the different kinds of

used/produced items of information are classiﬁed as

private or public. Public information are accessible to

groups in other sites via Web services (passive collab-

orative work). We now describe in detail each of the

sites architecture and the functionalities provided for

its users.

At each web site we have adopted the architecture

shown in Figure 1 (b). It uses a standard n-tire model:

user interface, business logic, data access. The imple-

mentation details will be provided in Section 4.

The Data Base underlying each web site stores

(a) (b)

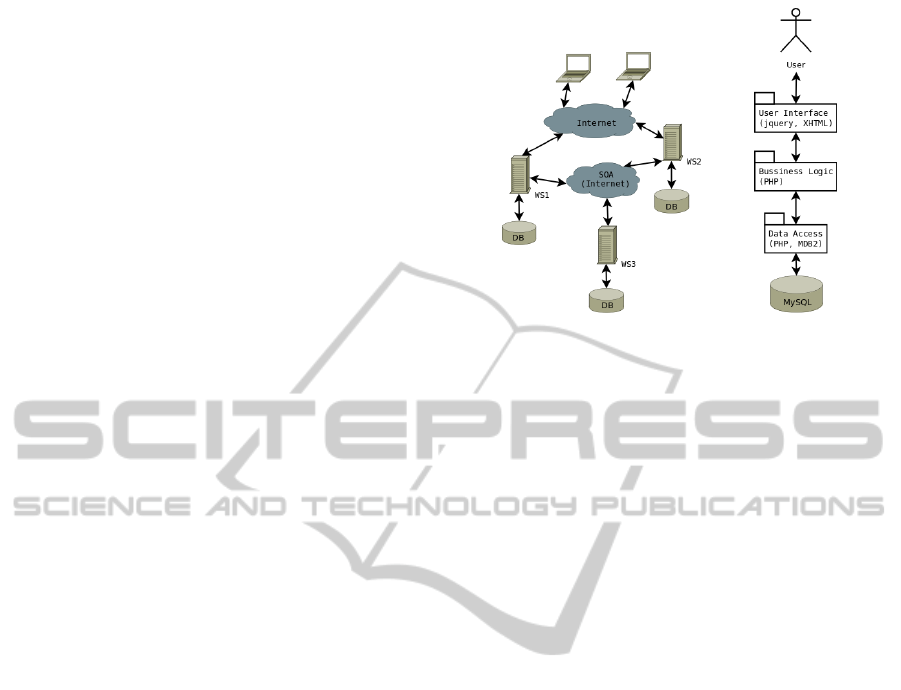

Figure 1: (a) SOA Architecture for CDM. (b) Implementa-

tion Architecture for each Site.

three types of information: data sets upon which data

analysis experiments are performed; libraries of pred-

icates for the background knowledge; papers related

to the stored data sets; and lots of relevant informa-

tion concerning the traces of ongoing and past exper-

iments.

The data analysis task is performed by running an

ILP system (Aleph (Srinivasan, 2003)) on the work-

ing data set. The User Interface (UI) allows any user

to run several data analysis tasks. At any time the user

may access the status of his tasks using the UI to the

tasks server that manages a set of machines available

in a campus LAN.

Each site includes usage scenarios for different

users: the administrator, the ILP expert and the Do-

main expert.

The implemented administrative tasks, available

after authentication by an administrator, include the

following: to inspect the details about user actions on

web site by checking the log ﬁle of actions done; to

manage user accounts and access control; to setup the

general conﬁguration of the application (e.g. manag-

ing the available ILP algorithms; and to manage the

list of available web sites (supporting the architecture)

that are used transparently to look for information by

the Business Logic of the site.

The roll of the ILP expert is mainly to encode the

required predicates that are part of the background

knowledge. He also is able to manage the hierarchy of

categories of such predicate libraries. The ILP expert

may perform data analysis tasks with direct control of

the ILP system. That is, he may directly control the

values of the ILP system parameters.

A domain expert can upload new data sets and pa-

pers. He can also manage the meta data: hierarchi-

cal categories of papers, of data sets, and of existing

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

468

Figure 2: Interface to compose the background knowledge

for a data set. Library of predicates may also be searched

for externally using web services.

predicates. The domain expert may also perform data

analysis tasks on personal data.

Access to the Web services (Papazoglou and

Georgakopoulos, 2003) is processed at the Web appli-

cation Business Logic level. According to each user

information need request, the business logic layer

sends the request to the set of participant sites to get

and collect the requested information. Web services

are not used to change any information stored in the

web sites, they are only used to retrieve information.

4 IMPLEMENTATION DETAILS

In Section 3 the functional and non-functional re-

quirements of the proposed SOA architecture were

presented. This section will give implementation de-

tails regarding the User Interface (UI), Business Logic

(BL) and Database.

User Interface

The interface in Figure 2, shows an example of the

provided User Interface. In this example a list of data

sets is provided and there are some external data sets

(located in the ILPWS1 machine). The options are

also different for a local and an external data set. The

simplicity and usability are the main points in this ap-

plication.

The user may choose to access external data sets.

If that is the case then the Business Layer will trans-

parently use the registered Web Services to retrieve

related information. The user will state his informa-

tion needs in a special purpose UI and the Business

Logic layer will retrieve local information from the

database and calls the appropriate Web services to re-

trieve information from the other participant sites. All

that information, coming from different sources, will

then be presented to the user in a consistent way.

Business Logic

When the request for information arrives from the

XHTML UI in the Browser, the BL layer will query

its own database and uses the Web services imple-

mented to retrieve information from other participant

sites.

The Web services are used to share/access infor-

mation (data sets, papers, background knowledge)

publicly available at the different web sites that im-

plement the collaborative framework. Communi-

cation with the Web service and the answer re-

sult is implemented through eXtensible Markup Lan-

guage (XML) (Moller and Schwartzbach, 2006) and

uses the standard Simple Object Access Protocol

(SOAP) (Mitra and Lafon, 2007). All possible op-

erations are described in a Web Services Description

(WSDL) (Booth and Liu, 2007), where all services

provided by the application are listed.

For data sets, papers and background knowledge

each site provides services to list all (e.g. data sets),

get information about one resource given the ID,

download the resource to the local ﬁle system and get

and import the resource (e.g. data sets) into the site

database.

For data sets the implementation provides the calls

to: return the list of data sets that exist in the site;

return the stored information about a data set; return

the content of a data set; and returns all information

related with the dataset in a format that can be used to

be inserted in the local site database

Because some information may be very large (e.g.

the data sets) we give the option to the user to see if its

really what he wants before retrieving the ﬁles. The

requests to a speciﬁc information is done only when

it’s needed.

The advantages of using a Web service instead of

direct access to the database of the remote Business

Logic layer, are that Web services implementation

works over different platforms. This way each site

may be using different Operating Systems and differ-

ent implementation languages may be used.

5 THE ILP-WS FRAMEWORK

We have implemented and deployed a prototype of

the framework described in the previous sections. The

application domains of this case study are Structure-

Activity Relationship (SAR) problems in chemoin-

formatics and problems in genomic and proteomic in

Molecular Biology. Our prototype has two web sites

For papers and background knowledge is similar.

AN ARCHITECTURE FOR COLLABORATIVE DATA MINING

469

where biologists, biochemists and ILP experts may

solve the referred kind of problems. The ILP system

available for the experiments is Aleph.

Each site running the application allows domain

and ILP experts to implement active Collaborative

Data Mining tasks. Domain experts provide problems

and data (examples) and the ILP experts develop the

background knowledge predicates for those problems.

Each site has libraries of available predicates organ-

ised in a hierarchical fashion and according to a hi-

erarchical structure deﬁned by domain experts. Each

stored predicate has an English description of its func-

tion and the detailed implementation is hidden from

the domain expert.

We have provided an interface (see Figure 2)

where the domain expert may assemble the back-

ground knowledge by searching and choosing pred-

icates from this hierarchically organised library of

predicates. At this stage Web services are used to

search other web sites where the application is de-

ployed, looking for predicates of the required cate-

gory. This procedure may save time in the develop-

ment of the background knowledge. An ILP expert is

required only when the domain expert decides to use

some knowledge that is not encoded as a predicate lo-

cally neither available using the Web services.

Before starting the data analysis experiments the

user may use the UI to inspect existing results of

other experiments on the data set, if publicly avail-

able. This will give him an idea of what background

knowledge have been tried and what were the corre-

spondent results and therefore avoid repeating useless

experiments or avoid choosing predicates that seem to

be of no use for the analysis of the data.

The expert may undergo a sequence of experi-

ments where models are constructed and shown to

the expert. Each step of the experimental process is

recorded so the expert may inspect previously con-

structed models and in the end he may decide which

models to store as ﬁnal results of the analysis process.

He may also decide which information to make pub-

lic.

6 CONCLUSIONS

In this paper we have described a framework for Col-

laborative Data Mining. At each site the framework

enables the solving of domain problems with the help

of ILP experts that develop the background knowl-

edge and use ILP systems. Web services look at other

sites for publicly available information that are rele-

vant for the solving of problems.

The use of Web services extended the traditional

approach to Collaborative Data Mining possibilities

implementing a passive Collaborative Data Mining

that searches web sites for relevant information.

ACKNOWLEDGEMENTS

This study was funded by FCT project “ILP-Web-

services” (PTDC/EIA/70841/2006).

REFERENCES

Blockeel, H. and Moyle, S. (2002). Collaborative data

mining needs centralised model evaluation. In Pro-

ceedings of the ICML-2002 Workshop on Data Mining

Lessons Learned, pages 21–28.

Booth, D. and Liu, C. K. (2007). Web services description

language (WSDL) version 2.0 part 0: Primer. Tech-

nical Report Second Edition, W3C Recommendation.

http://www.w3.org/TR/wsdl20-primer.

CRISP-DM (2007). Cross industry standard process for

data mining. http://www.crisp-dm.org/.

Dzeroski, S. (2001). Relational Data Mining. Springer-

Verlag New York, Inc., Secaucus, NJ, USA.

Lavrac, N., Motoda, H., Fawcett, T., Holte, R., Langley,

P., and Adriaans, P. (2004). Introduction: Lessons

learned from data mining applications and collabora-

tive problem solving. Machine Learning, 57(1-2):13–

41.

Mitra, N. and Lafon, Y. (2007). SOAP version 1.2 part 0:

Primer. Technical Report Second Edition, W3C Rec-

ommendation. http://www.w3.org/TR/soap12-part0/.

Moller, A. and Schwartzbach, M. I. (2006). An Introduction

to XML and Web Technologies. Addison Wesley.

Moyle, S., McKenzie, J., and Jorge, A. M. (2003). Col-

laboration in a data mining virtual organization. In

Data Mining and Decision Support: Integration and

Collaboration, The International Series in Engineer-

ing and Computer Science, chapter 5, pages 49–62.

Springer.

Muggleton, S. and De Raedt, L. (1994). Inductive logic

programming: Theory and methods. Journal of Logic

Programming, 19/20:629–679.

Papazoglou, M. P. and Georgakopoulos, D. (2003). Service-

oriented computing. Communications of the ACM,

46(10):2528.

Srinivasan, A. (2003). The Aleph Manual. Available

from http://web.comlab.ox.ac.uk/oucl/research/areas/

machlearn/Aleph.

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

470
