QUANTUM CRYPTOGRAPHY BASED KEY DISTRIBUTION IN

WI-FI NETWORKS

Protocol Modifications in IEEE 802.11

Shirantha Wijesekera, Xu Huang and Dharmendra Sharma

Faculty of Information Sciences and Engineering, University of Canberra, ACT 2601, Canberra, Australia

Keywords: Quantum Key Distribution (QKD), Wi-Fi, IEEE 802.11, Wireless Security.

Abstract: Demand for wireless communications around the world is growing. IEEE 802.11 wireless networks, also

known as Wi-Fi, are one of the popular wireless networks with over millions of users across the globe.

Hence, providing secure communication for wireless networks has become one of the prime concerns. We

have proposed a Quantum Key Distribution (QKD) based novel protocol to exchange the encryption key in

Wi-Fi networks. In this paper, we present the protocol modifications done in the existing IEEE 802.11

standard to implement the proposed QKD based key exchange.

1 INTRODUCTION

Wireless Local Area Networks (WLAN) brings

great benefit to people due to their enhanced

mobility, low cost and capabilities of rapid

development etc. IEEE 802.11, is the wireless local

area network standard (IEEE 802.11, 2003)

developed by the IEEE LAN/MAN Standards

Committee. It specifies an over-the-air interface

between a wireless client and a base station or

between two wireless clients. Wi-Fi (Wireless

Fidelity) is a term for certain types of WLAN that

use specifications of the 802.11 family.

The security of 802.11 is defined by Wired

Equivalent Privacy (WEP). WEP was identified by

cryptanalysts to have severe security weaknesses in

the way it handles authentication and privacy. As a

result, an amendment to the IEEE 802.11 standard

called IEEE 802.11i (IEEE 802.11i, 2004) was

approved in 2004.

Due to its popularity and the nature of the

communication being wireless, Wi-Fi networks are

vulnerable to security attacks than its wired

counterparts. Therefore it is possible for an attacker

to snoop on confidential communications or modify

them to gain access to the wireless networks more

easily.

In our previous research work (Xu Huang, et al,

2009), (Shirantha W. et al, 2009), (Xu Huang, et al,

2008), we have described a novel protocol based on

Quantum Cryptography for the exchange of key that

used to encrypt data in IEEE 802.11i networks. The

key exchange of IEEE 802.11i is done by the

process called 4-way handshake. In this new

protocol, we have replaced this 4-way handshake

with QKD to exchange the key and obtain the key

hierarchy that used for subsequent secure data

communication.

In order to accomplish this, we have proposed

some modifications to the existing IEEE 802.11i

protocol. In doing so, a special attention has been

paid to minimise the impact on the existing protocol.

Thus, in our changes, we reuse some of the existing

fields of frames to represent new values for QKD.

This paper describes the implementation of QKD

based key exchange process by using the same

frame formats of existing IEEE 802.11i protocol.

This paper comprises of 6 sections. This section

gives an overview of the project. Sections 2 discuss

the advantages of using QKD in Wi-Fi networks.

Proposed QKD based protocol is described in

section 3. Section 4 describes the required protocol

changes and new fields, their parameters etc.

Experimental results are given in section 5, while we

conclude the paper in section 6. Acknowledgements

and references follows.

146

Wijesekera S., Huang X. and Sharma D. (2010).

QUANTUM CRYPTOGRAPHY BASED KEY DISTRIBUTION IN WI-FI NETWORKS - Protocol Modiﬁcations in IEEE 802.11.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 146-151

DOI: 10.5220/0003008901460151

 SciTePress

2 USE OF QKD IN IEEE

802.11 NETWORKS

As mentioned earlier, wireless networks are

vulnerable to various types of security attacks. Some

of the common types of attacks against wireless

networks are; Denial of Service (DoS) attack,

Identity theft (MAC spoofing), Man-in-the-middle

attack, ARP poisoning, Network injection, Caffe

Latte attack etc.

Based on the laws of physics, quantum

cryptography allows exchange of cryptographic key

between two remote parties with unconditional

security. The foundation of quantum cryptography

lies in the Heisenberg uncertainty principle, which

states that certain pairs of physical properties are

related in such a way that measuring one property

prevents the observer from simultaneously knowing

the value of the other. The process of using quantum

cryptography to distribute the key is known as

Quantum Key Distribution (QKD). Several QKD

protocols such as BB84 (Bennett, C. H., et al, 1984),

B92 (C.H. Bennett, 1992), SARG04 (Valerio

Scarani, et al., 2004) and six-state (Dagmar B.,

1998) etc exists as of now. There is lots of research

work in progress in QKD area and even commercial

fibre optic QKD networks exits as of now (HP -

Quantum Cryptography, 2009), (Computer World,

2004), (SECOQC, 2008).

Since QKD offer unconditional secure key

distribution, it is worthwhile investigating the

possibility of using QKD in wireless networks. In

IEEE 802.11i networks, 4-way handshake process is

used to exchange the secrete key and obtain the key

hierarchy to establish secure communication. It was

found that 4-way handshake process is subject to

security attacks (Floriano De Rango, et al, 2006),

(Changhua He, et al, 2005). The exact place to get

QKD involved in the key exchange of Wi-Fi

networks is the 4-way handshake process.

In QKD, the transmitter (Alice) sends the key as

a series of polarized photons via quantum channel

towards the receiver (Bob). Bob measures these

photons using randomly selected bases to generate

his version of the key. Once the photon transmission

is over, the rest of the communication takes place in

public channel (eg: internet, wireless). This process

has been split into 4 main stages: Sifting, error

estimation, reconciliation and privacy amplification.

These 4 stages help Alice and Bob to recover

identical “unconditionally” secure key to be used for

the subsequent data encryption. This process is

shown in Figure 1. Full explanation of the key

recovery process of QKD is not in scope of this

paper.

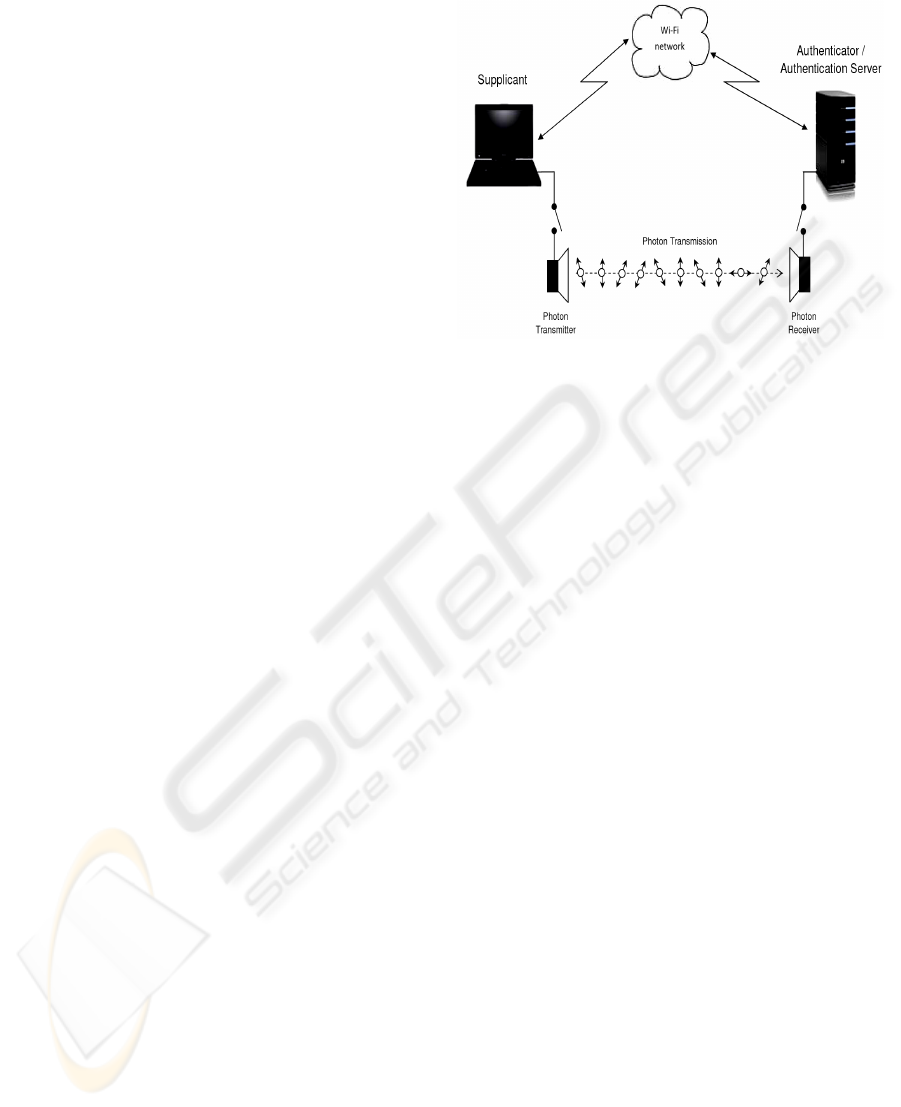

Figure 1: Quantum Key Distribution in Wi-Fi.

3 THE PROPOSED PROTOCOL

In this approach, our aim is to introduce quantum

key transmission soon after the 802.1X

authentication is completed. The proposed protocol

is shown in figure 2.

At the end of the IEEE 802.1X authentication in

IEEE 802.11i, both supplicant and authenticator

hold a key known as Pairwise Master Key (PMK).

Our aim is to obtain the IEEE 802.11i key hierarchy

as shown in Figure 3. In the existing IEEE 802.11i, a

Pseudo Random Function (PRF) is applied by the 4-

way hand shake process to obtain Pairwise Transient

Key (PTK). The PTK is then divided into three keys.

The first key is the EAPOL-key confirmation key

(KCK). The KCK is used by the EAPOL-key

exchanges to provide data origin authenticity. KCK

is also used to calculate Message Integrity Code

(MIC). The second key is the EAPOL-key

encryption key (KEK), which is used to provide data

confidentiality. KEK is also used to encrypt the

Group Temporal Key (GTK). The third key is the

Temporal Key (TK), which is used by the data-

confidentiality protocols to encrypt unicast data

traffic.

The last message of IEEE 802.11X authentication is

the EAPOL message giving the EAP Key from

Authenticator to Supplicant. Since the two parties

are mutually authenticated at this stage, we know

that this message is genuine.

We use this message as the starting point of

quantum transmission. By this way we can safely

start the quantum key exchange. As soon as the

Supplicant receives the EAP Key message, the

QUANTUM CRYPTOGRAPHY BASED KEY DISTRIBUTION IN WI-FI NETWORKS - Protocol Modifications in

IEEE 802.11

147

communication switches to quantum channel.

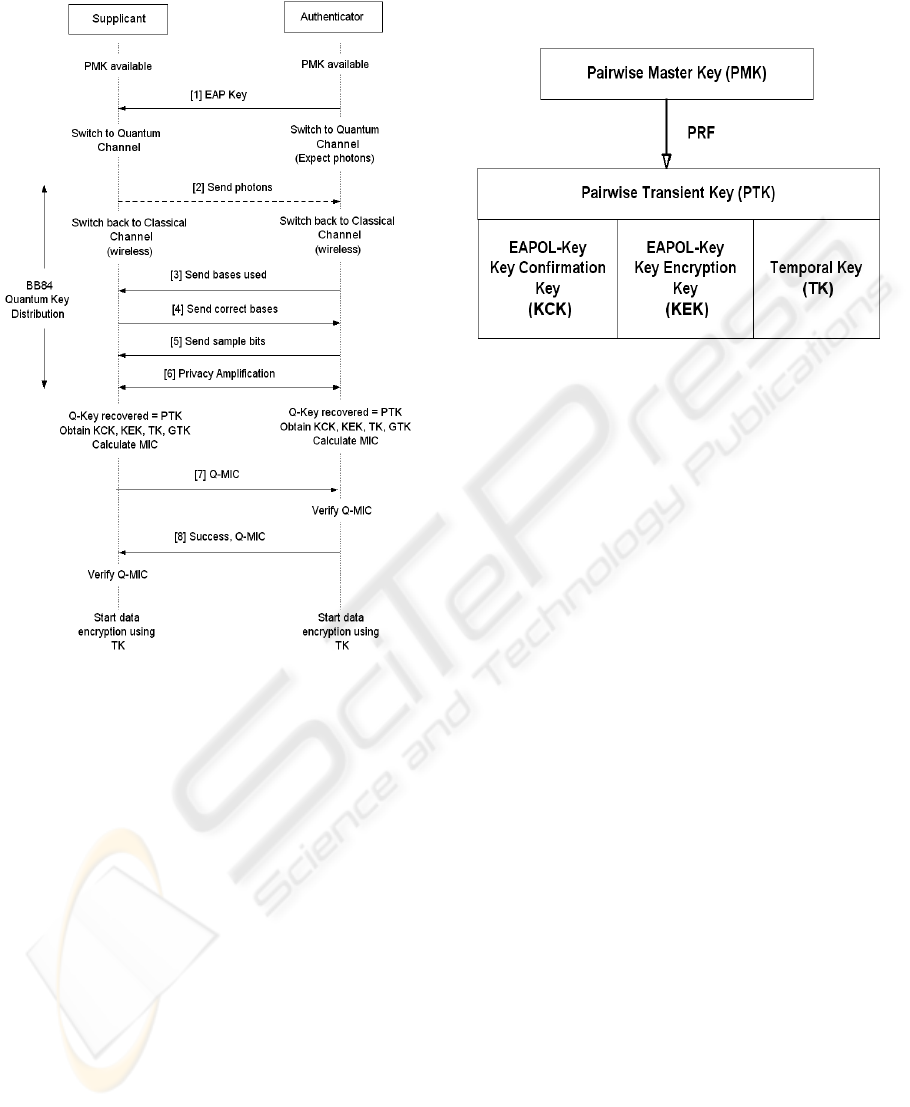

Figure 2: The QKD Based Wi-Fi Proposed Protocol.

Supplicant starts QKD by sending series of photons

towards the Authenticator. Once the photon

transmission finishes, the communication switches

back to classical wireless channel. Afterwards they

complete the rest of the QKD process as shown in

flows 3 to 6 in Figure 2. At the end of the QKD

process, both Supplicant and Authenticator hold a

unique common key (Bennett, C. H., et al, 1984),

which we call as Quantum Key (Q-Key).

In QKD, the length of the final key cannot be

known before the quantum transmission. Therefore

the final key derived will be of varying length. Our

aim is to set the length of Q-Key equal to the length

of PTK. The IEEE 802.11i standard uses two

encryption protocols known as Counter-mode/CBC-

MAC Protocol (CCMP) and Temporal Key Integrity

Protocol (TKIP). For CCMP, PTK is 256 bits, while

TKIP occupies 384 bits for PTK. Therefore, we have

to make sure the derived Q-Key will contain bits

greater than or equal to the number of bits of PTK.

Thus, at this stage we strip the extra bits of Q-Key

so that it will have same length as PTK. We get this

stripped Q-Key as the PTK. Once PTK is known, the

IEEE 802.11i key hierarchy, as in figure 3, can be

retrieved.

Figure 3: Key Hierarchy of IEEE 802.11i.

We use the derived MIC in our subsequent protocol

messages to implement data integrity. At this stage,

Supplicant performs XOR operation with the MIC

and PMK. We call this resulted MIC as Quantum

MIC (Q-MIC).

Q-MIC = (MIC) XOR (PMK)

The Supplicant then sends the Q-MIC to

Authenticator as shown in flow 7 of Figure 2.Since

the Authenticator is in possession of all the keys, it

can calculate its own Q-MIC and compares with the

one came from the Supplicant. If they match, the

Supplicant is authenticated.

The Authenticator then sends Success message

along with Q-MIC to the Supplicant as shown in

flow 8 of Figure 2. Supplicant verifies the Q-MIC to

authenticate the Authenticator, thus achieving the

mutual authentication. From now on both parties use

TK to encrypt the data and start secure

communication and also the GTK for multicast

applications.

4 MODIFICATIONS

TO EXISTING PROTOCOL

IEEE 802.11 standard specifies changes in physical

and MAC layers of OSI protocol stack. Hence our

proposed modifications to implement QKD too are

applied to the same two layers. Special attention has

been made to minimise impact to the existing IEEE

802.11i protocol. Careful analysis of the existing

IEEE 802.11i protocol shows that the

communication flows of 4-way handshake process

can be altered to implement the QKD based key

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

148

exchange. Some of the fields used by 4 way

handshake in EAPOL frames are altered to occupy

QKD information. The changes are made to the

IEEE 802.11i standard without interrupting the

existing frame formats.

IEEE 802.11 uses EAPOL-Key frames to

exchange information between Supplicants and

Authenticators. Hence the proposed modifications to

implement QKD too are done through EAPOL-Key

frames. Since we are not using 4-way handshake

process, the fields used for the same have been

modified to carry QKD specific information. In

addition some of the unused fields too have been

used. Figure 4 shows the modified EAPOL packet

frame.

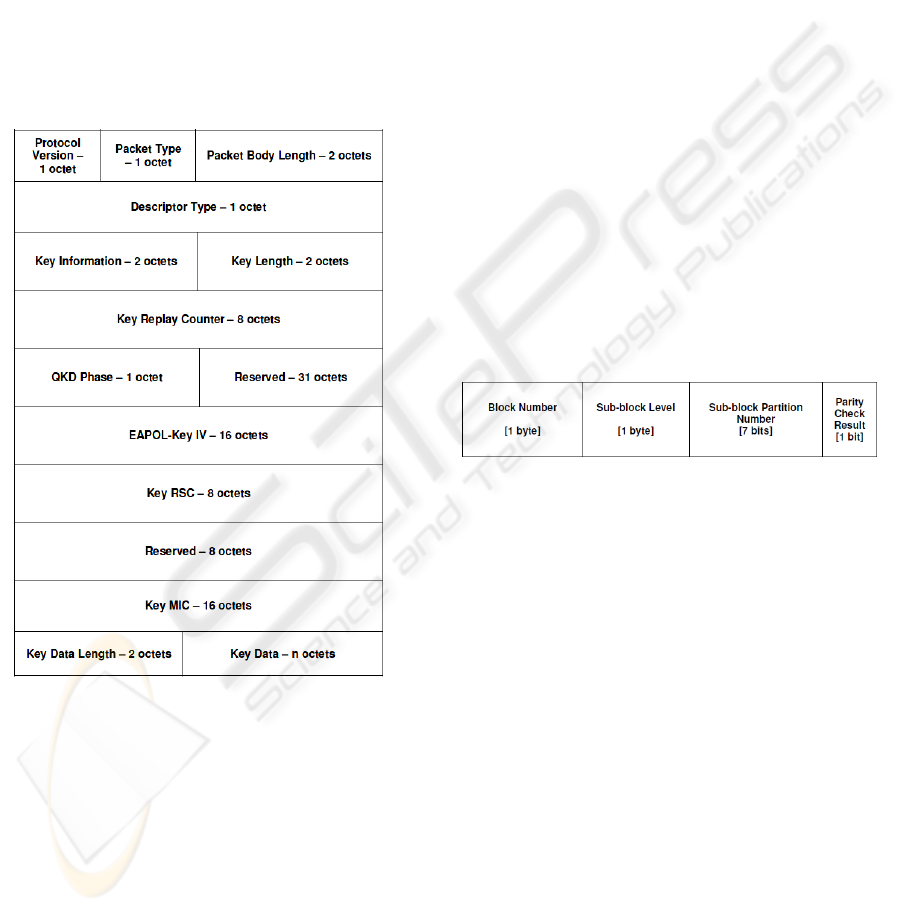

Figure 4: EAPOL-Key Frame with QKD changes.

The “Key Nonce” field used in IEEE 802.11 has

been renamed as “QKD Phase”. It is used to indicate

4 phases of QKD processes in progress at a given

instance.

Below are the values that this “QKD Phase” field

can have.

0000 0001: Sifting

0000 0011: Error estimation

0000 0101: Reconciliation

0000 0111: Privacy Amplification

Bulk of the processing happens during reconciliation

phase. In this phase, the raw key is divided into

several blocks to perform parity checks. The QKD

Phase field is set to 0000 0101 and the Key Data

field carries the parity check information.

The format of Data field:

<Block Number | Sub-Block Level |

Parity Check Results>

Where:

Block Number. Number of the main block.

Sub-block Level: If the parity check of main block

failed, it will be bisected and perform parity check

on each sub-block. The “Sub-block Level” field

specifies the level of bisection of each main block. If

the main block is bisected once, Sub-block Level =2

and so on.

Sub-block Partition Number. Whenever a mismatch

in parity of block/Sub-block is observed, that

particular block/Sub-block is bisected. This Sub-

block Partition Number field holds the partition

number of each sub-block.

Parity Check Result. This field holds the result of

parity check.

0: parity result (odd parity).

1: parity result (even parity).

Figure 5 shows the allocation of bytes within the

Key Data field.

Figure 5: Key Data field values of EAPOL frame during

reconciliation phase of QKD.

5 EXPERIMENTAL RESULTS

IEEE 802.11 standard defines Medium Access

Control (MAC) and Physical Layer (PHY)

Specifications for Wireless LANs (IEEE Std 802.11,

2007). Since the changes we made under the new

QKD protocol are directly on the Physical and MAC

layers, it is really difficult to rewrite those layers

from scratch to reflect the changes within the

research time frame. Therefore, the best possible

way of implementing the new protocol is by

simulation. The QKD processing has been coded

using C++ language. For simulation, we have

chosen Simulink as it provides S-Functions to

incorporate C++ programs to provide simulations.

5.1 The Simulink Model

As mentioned, the QKD implementation in our

QUANTUM CRYPTOGRAPHY BASED KEY DISTRIBUTION IN WI-FI NETWORKS - Protocol Modifications in

IEEE 802.11

149

model has been done in C++. We use Simulink S-

-Functions to implement and simulate the results.

The main functionalities of each of the four

phases of QKD have been identified in programming

point of view as below:

Sifting: Construct a buffer containing the bit stream

once the photon transmission is finished, Supplicant

to inform the bases it used, Authenticator to

reconstruct its buffer contents that matches the bases

received from Supplicant.

Error Estimation: Supplicant to send a set of sample

bits from its key, Authenticator to compare those

bits and calculate the error rate, Authenticator to

decide if the error rate is acceptable or not (based on

the threshold level), Inform Supplicant about the

decision, Proceed to next phase if the error rate is

acceptable, reattempt photon transmission otherwise.

Reconciliation (Assuming “parity check” is used as

the reconciliation method): Split the key into blocks,

compare parity of each block, Split those blocks

whose parity is mismatched, Perform parity check

on those sub blocks until the error is found,

Continue till all the errors are located and

eliminated.

Privacy Amplification: Apply pre-defined hash

function to the remaining key to eliminate possible

leak of bits to outsiders.

For each phase, these functionalities have been

implemented using C++ as several subsystems.

During each phase, the communication is carried out

between respective peer sessions of Authenticator

and Supplicant.

During Sifting, Error Estimation and Privacy

Amplification phases of QKD, the new protocol

consumes fewer resources as it only needs few

comparisons to be done. Bulk of the processing

happens during Reconciliation phase. It needs few

additional communication flows to obtain the final

secured key. The number of additional steps depends

on the type of reconciliation method such as

CASCADE (Gilles B et al, 1994), WINNOW

(Buttler W.T., 2003) etc, used.

In addition, we shall save several key refresh

cycles that happens during existing IEEE 802.11

communication. In this new protocol, key refreshing

is not required as the key obtained via QKD is

proven to be unconditionally secure.

5.2 Analysis of QKD Solution for Key

Exchange

In addition to the unconditional security achieved,

the simulation analysis of QKD approach shows

several other advantages. Main area of modifications

applied to the existing protocol is the 4-way hand

shake process. The first stage of QKD (sifting) only

requires single EAPOL communication flow

involving STA informing AP about the bases it used.

Results show that there is no significant amount of

processing needed as opposed to the nonce value

calculations involved in the existing protocol.

The second stage of QKD process (error

estimation) is implemented by two EAPOL

communication flows. The first flow is to transmit

bit sample while the second to inform the result. In

this step too results shows that both STA and AP

consume only small amount of processing power. At

AP side it only performs simple bit comparison on a

bit stream of small length.

The third stage (Reconciliation) is the stage

where majority of processing takes place. The

number of communication flows happen in this stage

is depending on the reconciliation protocol used. We

have implemented the parity check method. Parity

check method involves more computations when

compared to other existing reconciliation protocols

such as Cascade or Winnow. Our choice of parity

check method is to see the results in the worst case

scenario.

The final stage of QKD (privacy amplification)

involves just a single EAPOL frame, which does not

requires much processing power at either end.

When compared to the existing protocol, it could

be seen that only the reconciliation process is taking

few additional EAOPL flows. However, the key

exchanged in the existing protocol needs to be

refreshed at regular intervals to maintain security of

data encryption. But in the QKD based protocol,

such key refresh cycles are not needed as the key

exchanged provide unconditional security. Hence

with this new protocol significant amount of

processing time could be saved. Overall, this can

compensate to the extra cycles of flows taken during

the reconciliation process.

6 CONCLUSIONS

In this work, the changes to accommodate QKD

have been done with extreme care so that it will

have minimum impact to the existing IEEE 802.11

protocol. The main advantage of this protocol

modification is that no major frame level changes

are needed. QKD modifications use fields of the

existing frames. Both Supplicant and Authenticator

are able to identify if they can implement QKD for

key exchange at the early stages (by listening to

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

150

Beacon). In case, any of the participants are not

supporting QKD, they can still move on with the

existing protocol.

Further, since the key obtained via this new

protocol offer unconditional security, there is no

need to refresh keys time to time during

communication session. This improves the

efficiency of the overall management and control

communication significantly.

We regret that we are unable to provide readers

with more description on quantum cryptography,

QKD process, Wi-Fi network protocols etc due to

the page limitations enforced by the conference

guidelines.

ACKNOWLEDGEMENTS

We would like to take this opportunity to appreciate

University of Canberra, Australia for the URG

supports.

REFERENCES

IEEE 802.11 (2003), Part 11: Wireless LAN Medium

Access Control (MAC) and Physical Layer (PHY)

Specifications.

Xu Huang, Shirantha Wijesekera, and Dharmendra

Sharma, 2009. “Quantum Cryptography for Wireless

Network Communications,” IEEE International

Symposium on Wireless and Pervasive Computing,

Melbourne, Australia, ISBN: 978-1-4244-2966-0,

Security pp.1-pp5.

Shirantha Wijesekera, Xu Huang, and Dharmendra

Sharma, 2009. “A Novel Protocol using Quantum

Cryptography for Secure Communication in 802.11

Networks,” IEEE International Symposium on a

World of Wireless Mobile and Multimedia Networks

(WoWMoM 2009), Kos, Greece.

Xu Huang, Shirantha Wijesekera, and Dharmendra

Sharma, 2008. “Implementation of Quantum Key

Distribution in Wi-Fi (IEEE 802.11) Wireless

Networks,” IEEE the 10th International Conference

on Advanced Communication Technology, Korea.

Proceedings ISSN 1738-9445, ISBN 978-89-5519-

135-6, Vol. II, p865.

IEEE Std 802.11i (2004), IEEE Standard for Information

Technology – Telecommunication and information

exchange between systems – Local and metropolitan

area networks – Specific requirements. Part 11:

Wireless LAN Medium Access Control O(MAC) and

Physical Layer (PHY) specifications, Amendment 6:

Medium Access Control (MAC) Security

Enhancements.

Bennett, C. H. and Brassard, G. (1984), "Quantum

cryptography: Public-key distribution and coin

tossing", Proceedings of IEEE International

Conference on Computers, Systems and Signal

Processing, Bangalore, India, December 1984, pp. 175

– 179.

C.H. Bennett (1992), Phys. Rev. Lett. 68, 3121.

Valerio Scarani, Antonio Acin, Grégoire Ribordy and

Nicolas Gisin (2004), Quantum cryptography

protocols robust against photon number splitting

attcks.

Dagmar Bruß (1998), Optimal Eavesdropping in Quantum

Cryptography with Six States, Physical Review

Letters, 81.3018.

Computer World (2004), Quantum cryptography gets

practical,

http://www.computerworld.com/s/article/96111/Quant

um_cryptography_gets_practical.

Hewlett-Packard - Quantum Cryptography (2009),

http://www.hpl.hp.com/research/about/quantum_crypt

ography.html.

SECOQC (2008) , Development of a Global Network for

Secure Communication based on Quantum

Cryptography, http://www.secoqc.net/.

Floriano De Rango, Dionogi Lentini, Salvatore Marano

(2006) , Static and Dynamic 4-Way Handshake

Solutions to Avoid Denial of Service Attack in Wi-Fi

Protected Access and IEEE 802.11i .

Changhua He, John C. Mitchell (2005), Security Analysis

and Improvements for IEEE 802.11i.

IEEE Std 802.11 (2007), IEEE Standard for Information

Technology – Amendment 6: Medium Access Control

(MAC) Security Enhancements.

Gilles Brassard, Louis Salvail, Secret-Key Reconciliation

by Public Discussion, SBN 978-3-540-57600-6, 1994.

W. T. Buttler, S. K. Lamoreaux, J. R. Torgerson, G. H.

Nickel, C. H. Donahue, and C. G. Peterson, Fast,

Efficient error reconciliation for quantum

cryptography,2003.

QUANTUM CRYPTOGRAPHY BASED KEY DISTRIBUTION IN WI-FI NETWORKS - Protocol Modifications in

IEEE 802.11

151
