ON THE IMPORTANCE OF ONE-TIME KEY PAIRS IN

BUYER-SELLER WATERMARKING PROTOCOLS

David M. Williams, Helen Treharnea and Anthony T. S. Ho

∗

University of Surrey, GU2 7XH, Guildford, U.K.

Keywords:

Buyer-seller watermarking, Protocol, Security, Unbinding, Customers’ rights, One-time key pair.

Abstract:

In this paper we emphasize the importance of unique certiﬁed one-time key pairs in Buyer-Seller Watermark-

ing (BSW) protocols. We distinguish between reactive unbinding attacks, in which the seller reacts to illicit

ﬁle sharing by fabricating further evidence of such activity, and pre-emptive unbinding attacks, in which the

seller gains an advantage by taking action that pre-empts the ﬁle being shared. We demonstrate the importance

of certiﬁed one-time key pairs in the BSW protocol by Lei et al., for protecting against pre-emptive unbinding

attacks, and subsequently reveal a new attack on a recently published BSW protocol due to its omission of

unique key pairs.

1 INTRODUCTION

Copy deterrence mechanisms discourage illicit dupli-

cation and dissemination of copyrighted material by

embedding an imperceptible identifying mark within

content to trace any illicit ﬁle sharing back to the orig-

inal owner (Barni and Bartolini, 2004).

However, the buyer must be assured that the copy-

right owner has proof if and only if an illegal act has

taken place. The assurance that evidence cannot be

fabricated against a buyer is known in the literature as

customers’ rights (Qiao and Nahrstedt, 1998).

Qiao and Nahrstedt observed that previous

schemes, in which the seller chose the watermark,

failed to protect the copyright. Even if a seller had

acted honestly, and is convinced of the buyer’s illegal

activity, the seller remains unable to prove that it was

not they that had leaked the watermarked content.

Memon and Wong proposed a Buyer-Seller Wa-

termarking (BSW) protocol that aimed to resolve this

customers’ rights issue by withholding knowledge

of the watermark or watermarked content from the

seller (Memon and Wong, 2001). However, Lei et al.

later uncovered an issue present in the Memon-Wong

(MW) protocol that they termed the unbinding prob-

lem (Lei et al., 2004). They subsequently proposed

their own protocol, their approach to prevent unbind-

ing was twofold: bind a watermark to content using

some signed message; and use one-time key pairs to

∗

The authors’ work is sponsored by an EPSRC Thales

CASE Award.

avoid outdated information being used in subsequent

transactions.

In this paper we distinguish between two forms of

unbinding, reactive and pre-emptive, and emphasise

the importance of one-time key pairs in preventing the

latter of these.

In Section 2 we provide background material on

the MW protocol and the unbinding problem pre-

sented by Lei et al. and then distinguish between

two forms of unbinding in Section 3. The importance

of one-time key pairs is demonstrated in Section 4,

subsequently a pre-emptive unbinding attack on a re-

cently published protocol is presented in Section 5.

Finally we discuss the danger in entrusting buyer’s to

randomly generate key pairs in Section 6 before draw-

ing conclusions in Section 7. The Appendix provides

a summary of the notation used throughout this paper.

2 THE UNBINDING PROBLEM

In this section we describe the protocol proposed

in (Memon and Wong, 2001) and the associated un-

binding problem presented in (Lei et al., 2004).

The approach taken in (Memon and Wong, 2001)

to resolve the customers’ rights issue, was to restrict

the seller to conduct the watermark embedding in the

encrypted domain, using the properties of homomor-

phic encryption. Knowledge of the watermark and

watermarked content are withheld from the seller dur-

ing embedding and thus the buyer cannot claim that a

441

M. Williams D., Treharnea H. and T. S. Ho A. (2010).

ON THE IMPORTANCE OF ONE-TIME KEY PAIRS IN BUYER-SELLER WATERMARKING PROTOCOLS.

In Proceedings of the International Conference on Security and Cryptography, pages 441-446

DOI: 10.5220/0002978704410446

 SciTePress

copy was released by the seller.

During the watermark generation phase of the

protocol, the buyer receives encrypted watermarks

from a trusted third party, signed to certify they are

well-formed. The third party need not be involved in

transactions between the buyer and seller thus he is

said to be ofﬂine (Poh and Martin, 2007). Further-

more, the third party is not required to store any data.

In the watermark insertion phase of the protocol,

the buyer initiates a transaction sending to the seller

some encrypted watermark, S

(w)), generated

and signed by a trusted third party during the water-

mark generation phase. The seller must also receive

an indication of what cover material the buyer wishes

to purchase, arg(c), and certiﬁcation of the buyer’s

public key. The encrypted watermark signed by the

certiﬁcation authority is also sent to the seller.

As the seller is now in possession of the encrypted

watermark E

(w) and can calculate the encrypted

content E

(c), they construct the encrypted digi-

tal content E

(c, w)) by performing the em-

bedding in the encrypted domain

. The seller pro-

duces E

(c, w)) without ever knowing the wa-

termark or the watermarked content in the clear.

It should be possible, once an illicitly shared ﬁle

is intercepted by the seller, for the original owner to

be traced and this proven to an arbitrator. The proto-

col relies on the buyer participating in the arbitration

process, however if a buyer refuses to do so it is con-

sidered admission of guilt.

The protocol was shown to be ﬂawed in (Lei et al.,

2004). Lei et al. presented an unbinding problem

apparent once the user has illicitly shared content.

Should a single ﬁle be shared by a buyer, the seller

may react by embedding this watermark into any

other content in order to fabricate evidence of further

illicit ﬁle sharing against the buyer.

Upon completion of a transaction in which they

purchase the content C

with watermark W, the

buyer B receives the encrypted watermarked content

, W)). Should B upload the decrypted

content W

, W) onto some ﬁle sharing network

the seller S may later download the content and ex-

tract W in order to trace the piracy back to B. How-

ever, once S has extracted W they may embed it

within some other contentC

to produceW

, W).

Thus the evidence of illicit ﬁle sharing of C

(i.e.,

, W) and S

(W))) can be obtained by

S at a time when C

has not been shared.

An indexing watermark v is ﬁrst embedded to avoid an

exhaustive search being performed. A permutation function

σ is then applied whilst embedding the watermark c in the

encrypted domain such that the buyer cannot know the sig-

nal embedded.

3 REACTIVE AND PRE-EMPTIVE

UNBINDING

Lei et al. also describe another form of unbinding

attack in which the seller gains an advantage by taking

action that pre-empts a ﬁle being shared.

Upon completing a transaction in which they

purchase the content C

with watermark W

, the

buyer B receives the encrypted watermarked con-

tent E

, W

)). However, during a sec-

ond transaction, in which B wishes to purchase the

content C

with watermark W

, the seller S may

choose to distribute the encrypted watermarked con-

tent E

, W

)) to B. Should B ever share

the latter content then S may extract the watermark

and embed it within the content C

. Thus the ev-

idence of illicit ﬁle sharing of C

(i.e., W

, W

)

and S

))) can be obtained by S at a time

when C

has not been shared.

In the ﬁrst attack scenario, described in Section 2,

the malicious seller reacts to the ﬁle sharing ma-

liciously by subsequently extracting the watermark

from the shared ﬁle and embedding it within another.

This is only possible after the ﬁle sharing event has

occurred. In this paper we shall refer to such an un-

binding attack as Reactive Unbinding. This is as op-

posed to what we shall refer to as Pre-emptive Un-

binding in which the seller gains an advantage by tak-

ing action that pre-empts the ﬁle being shared. The

two attacks are only subtly different in the MW pro-

tocol, but we shall see that Lei et al. adopt different

mechanisms to prevent each of the two forms of un-

binding.

4 THE IMPORTANCE OF

ONE-TIME KEY PAIRS

The approach taken in (Lei et al., 2004) to prevent un-

binding, as illustrated in Figure 1, was twofold: bind

a watermark to content using some signed message;

and use one-time key pairs to avoid outdated infor-

mation being used in subsequent transactions.

The one-time key pairs were proposed as a mech-

anism to prevent pre-emptive unbinding, although

other papers refer to them as anonymous keys such

as (Deng and Preneel, 2008), (Ju et al., 2003) and

(Shao, 2007). It is out of the scope of this paper to

consider anonymity; instead we will demonstrate the

importance of one-time key pairs for the overall secu-

rity of the scheme.

SECRYPT 2010 - International Conference on Security and Cryptography

442

A, PK, sk

, C

(pk

), {arg(c)|c ← CV}, KP

∗

Buyer b

A, PK, sk

, wk

, CV

Seller s

A, PK, sk

, WM

TTP t

arg ∈ {arg(c)|c ← CV}

(pk

∗

, sk

∗

) ∈ KP

∗

(pk

), C

(pk

∗

)

arg, S

∗

(arg)

(pk

∗

), char(c)

arg, S

∗

(arg)

w ∈ WM

∗

(w), E

(w)

∗

(w), pk

∗

, S

∗

(arg))

∗

(c, w))

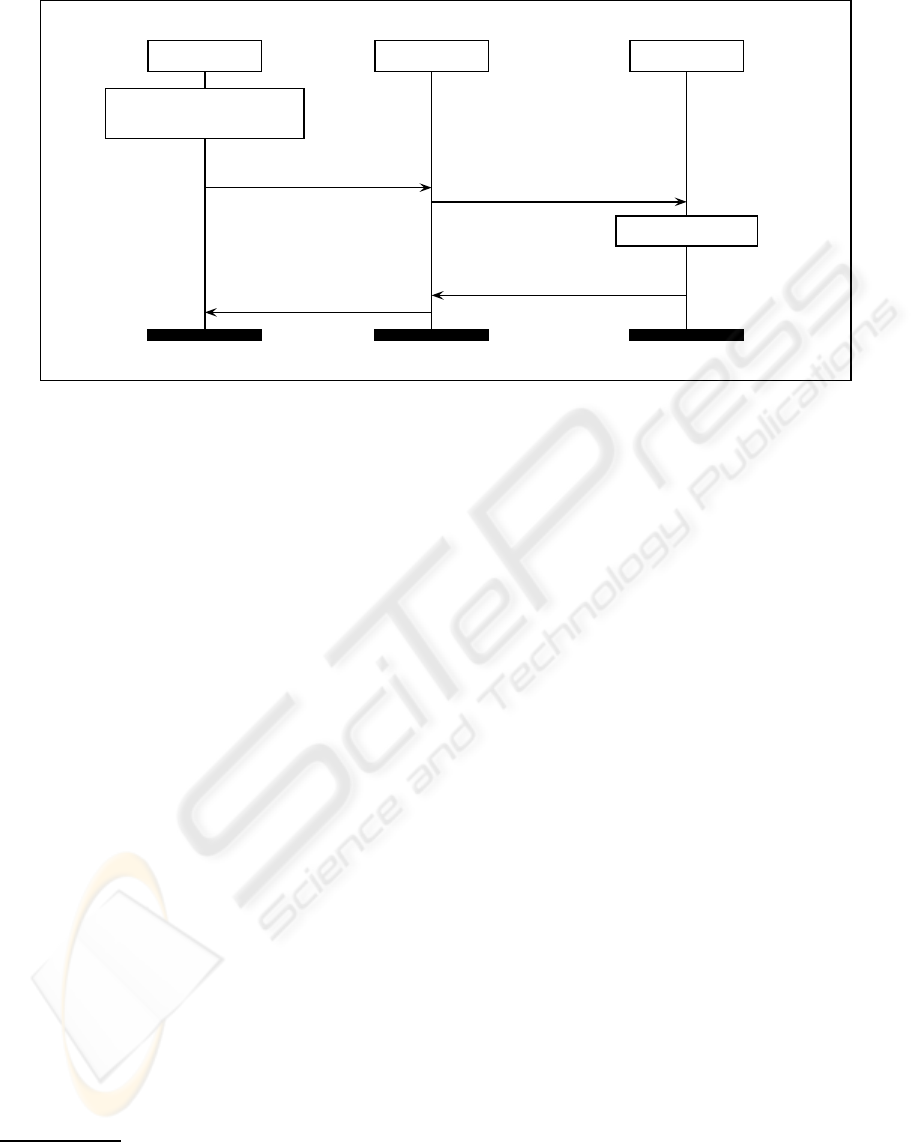

Figure 1: LYTC protocol.

4.1 Lei-Yu-Tsai-Chan (LYTC) Protocol

Figure 1 illustrates the LYTC protocol. The trusted

third party is online during each run of the proto-

col, generating a unique watermark for each trans-

action. The buyer initiates the protocol by sending

∗

(arg(c)) to the seller, indicating the content they

wish to receive. An anonymous certiﬁcate, signed by

a certiﬁcation authority, is sent from the buyer to the

seller to certify the buyer’s public key, C

(pk

), al-

though a standard digital certiﬁcate may be used if

privacy is not a concern.

The buyer constructs a one-time public-secret key

pair (pk

∗

, sk

∗

) as the unique key pair used during

the current transaction. This ensures that outdated in-

formation cannot be used in subsequent transactions

and thus prevents pre-emptive unbinding. The buyer

certiﬁes the public key by constructing a second digi-

tal certiﬁcate C

(pk

∗

). The key pk

∗

is immediately

used to verify the signed agreement sent by the buyer.

Upon veriﬁcation of the signed agreement, the

seller forwardsC

∗

, pk

∗

) and E

∗

(arg(c)) to the

third party. In order to ensure the watermark is suit-

ably robust the seller also sends some characteristics

char(c) of the cover material

The trusted third party then constructs a robust

watermark that is unique to this transaction. They

use the public key received in the digital certiﬁcate

(pk

∗

) to encrypt the watermark ready for use by

Lei et al. state that the seller may send the content c if

unconcerned about doing so. Evidence of illicit ﬁle sharing

can be fabricated by any agent in possession of the cover

material and watermark. Hence, the third party must not

know the cover material as they choose the watermark.

the seller. It is sent along with the public key used to

encrypt it and bound to the signed agreement by the

trusted third party by signing a message constructed

of all three components. It is this message that pre-

vents reactive unbinding. They also encrypt the wa-

termark under their own secret key in case they need

to verify the watermark in the arbitration process.

Finally, the seller constructs the watermarked con-

tent in the encrypted domain. Once the buyer has re-

ceived the encrypted, watermarked content they are

able to decrypt in order to gain the useful water-

marked content that they wished to purchase.

4.2 Omitting One-time Key Pairs

By binding the watermark to the cover material via the

signed message S

∗

(w), pk

∗

, S

∗

(arg)), Lei

et al. prevent the malicious seller from performing

a reactive unbinding attack. However, this message

alone does not protect against pre-emptive unbinding.

Let us suppose that the key pair need not be

unique, then a buyer B may use the same key pair

(pk

∗

, sk

∗

) in multiple transactions. Consider the

ﬁrst piece of content C

purchased as more ex-

pensive than a second piece of content C

−

. In

the ﬁrst transaction the seller S receives the signed

message S

∗

(W), pk

∗

, S

∗

(arg(C

))) be-

fore distributing the encrypted watermarked content

∗

, W)) to B.

Subsequently in a second run of the protocol B

purchases C

−

using the same key pk

∗

. As such, S

omits the communication with the trusted third party

T and instead embeds the same encrypted watermark

∗

(W) as in the ﬁrst transaction.

Should S ever intercept an illicitly shared

ON THE IMPORTANCE OF ONE-TIME KEY PAIRS IN BUYER-SELLER WATERMARKING PROTOCOLS

443

copy of the less expensive watermarked content

−

, W) then W can be extracted and em-

bedded into the higher priced content to produce

, W). This, along with the signed message

received signed message from the ﬁrst transaction

∗

(W), pk

∗

, S

∗

(arg(C

))), is then consid-

ered sufﬁcient evidence of illicit ﬁle sharing of the

more expensive content, when in fact the less expen-

sive watermarked content was illicitly shared.

Should the encryption key pk

B∗

be unique to each

transaction then it is not possible for the seller to per-

form the watermark embedding using an outdated en-

crypted watermark associated with a previous trans-

action. Hence, the uniqueness of the one-time key

pairs must be assured for the LYTC protocol is not

vulnerable to pre-emptive unbinding.

Before discussing how this impacts other BSW

protocols in Section 6, we ﬁrst present a pre-emptive

unbinding attack on a recently published protocol.

5 A PRE-EMPTIVE UNBINDING

ATTACK ON THE HU-ZHANG

(HZ) PROTOCOL

Lei et al. included one-time key pairs to prevent pre-

emptive unbinding. In this section we shall identify,

for the ﬁrst time, a pre-emptive unbinding attack on

the Hu-Zhang (HZ) protocol due to the omission of

one-time key pairs, as illustrated in Figure 2.

5.1 Hu-Zhang (HZ) Protocol

In (Hu and Zhang, 2009) a protocol was proposed

aiming to increase the efﬁciency of multiple transac-

tions. The trusted third party is not required to be on-

line during a transaction between the buyer and the

seller. As such the HZ protocol is subject to two

phases, similar to the MW protocol: the watermark

generation phase; and the watermark insertion phase.

In the watermark generation phase, Hu and Zhang

propose the novel idea of enabling the buyer to re-

quest multiple signed encrypted well-formed water-

marks at once. Upon receipt of the buyers digital cer-

tiﬁcate C

(b, pk

) and the quantity n of watermarks

required, the trusted third party randomly generates

n unique watermarks w

, w

, . . . w

∈ WM. Each is

encrypted using the public key pk

of the buyer and

signed, along with the same public key. Thus for each

watermark w

a message E

), S

(pk

, E

))

is sent from the trusted third party to the buyer along

with certiﬁcation of the buyer’s public key.

In the watermark insertion phase the buyer

chooses which watermark from the generation phase

to use for the current transaction. The buyer sends to

the seller a common agreement, along with a signa-

ture used to bind the watermark to the cover material,

in the message arg, S

(w), arg). This is sent

with messages m

and m

, received in the watermark

generation phase. The seller veriﬁes the signatures

and embeds the watermark in the encrypted domain,

sending the result E

(c, w)) to the buyer.

5.2 A Pre-emptive Unbinding Attack

One-time key pairs are not used in (Hu and Zhang,

2009) and no alternative mechanism for preventing

pre-emptive unbinding is provided, which leads to the

following attack:-

Upon completing a transaction in which they

purchase the content C

with watermark W, the

buyer B receives the encrypted watermarked content

, W)). During a second transaction, in

which the B purchases less expensive content C

−

the

seller S ignores the watermark received but instead

embeds W received in the ﬁrst transaction. Finally,

the seller distributes the encrypted watermarked con-

tent E

−

, W)).

Should the buyer share the less expensive content,

S may extract W and embed it within the more expen-

sive content C

. Thus evidence of illicit ﬁle sharing

of C

(i.e., W

, W), S

(W), arg(C

))

and S

(pk

, E

(W))) can be obtained by the seller

at a time when C

has not been shared.

This attack closely follows the pre-emptive un-

binding attack on the MW protocol described in Sec-

tion 3. It differs only in what constitutes sufﬁcient

evidence of ﬁle sharing. It demonstrates that signing

a message to bind the watermark to the cover mate-

rial does not alone prevent unbinding as a mechanism

also needs to be adopted to avoid outdated informa-

tion being used in subsequent transactions.

Any BSW protocol that fails to adopt a mecha-

nism for avoiding pre-emptive unbinding is vulnera-

ble to attack. It has been demonstrated in (Poh and

Martin, 2008) and (Deng and Preneel, 2008) that the

protocol proposed in (Ibrahim et al., 2007) is ﬂawed,

however it is also vulnerable to the pre-emptive un-

binding attack described in this section.

6 ASSURING KEY PAIRS ARE

USED ONLY ONCE

From the customers’ right issue, Qiao and Nahrst-

edt observed that watermarking schemes in which the

seller chose the watermark to be embedded failed

SECRYPT 2010 - International Conference on Security and Cryptography

444

A, PK, sk

, WM

TTP t

A, PK, sk

, C

(b, pk

), {arg(c)|c ← CV}

Buyer b

A, PK, sk

, wk

, CV

Seller s

Watermark Generation Phase

n ∈ N

n, C

(pk

)

, w

, . . . w

∈ WM

:= E

), S

(pk

, E

))

, E

(b, pk

)),

(pk

, E

(b, pk

)))

, m

, . . . m

, m

Watermark Insertion Phase

w ∈ {w

, w

, . . . w

}

arg ∈ {arg(c)|c ← CV}

:= arg, S

(w), arg)

, m

(c, w))

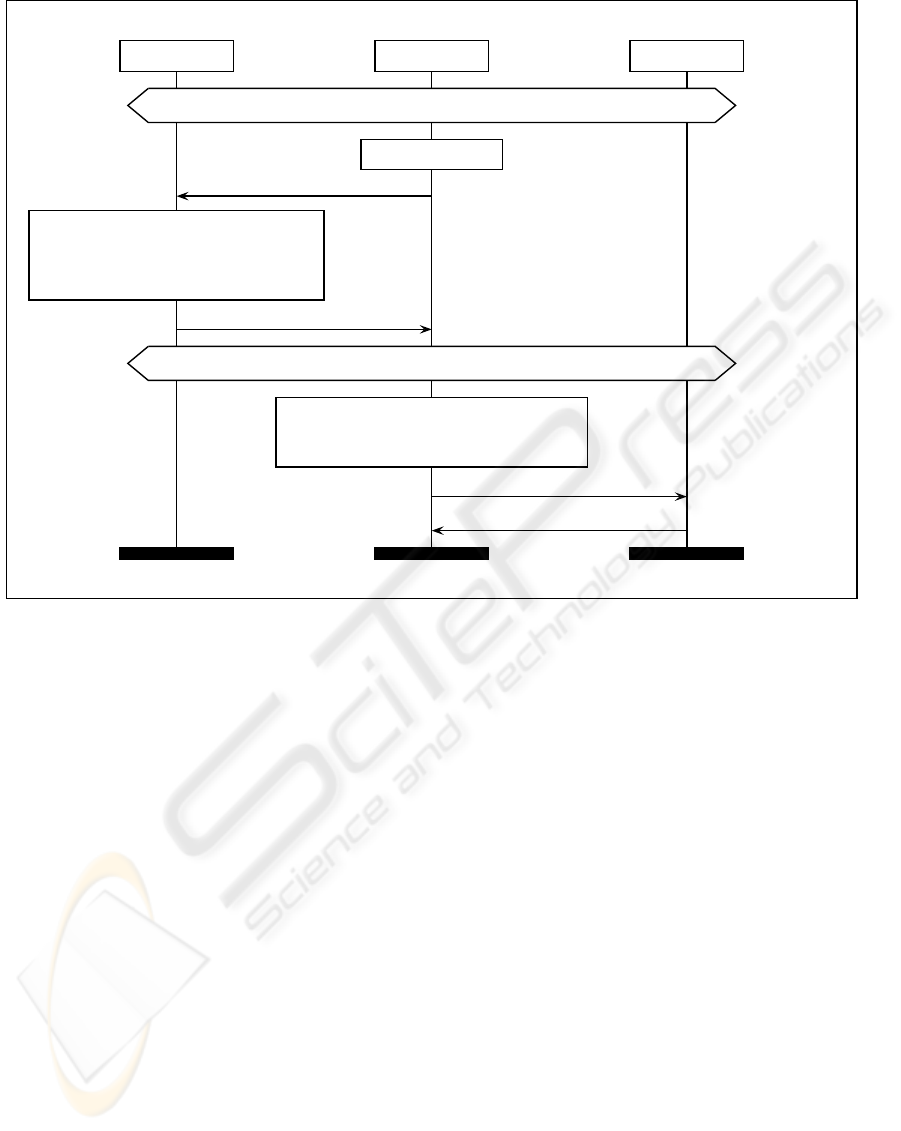

Figure 2: HZ protocol.

Should the seller fail to address this issue an arbitra-

tor is unable to discern whether it is the buyer or seller

that has acted maliciously. Thus, it is in the inter-

est of a dishonest buyer to act in a manner that ren-

ders themselves vulnerable to an attack as they may

as a consequence construct a plausible denial of the

illicit ﬁle sharing they wish to perform. In (Williams

et al., 2008a), the protocol proposed in (Ibrahim et al.,

2007) was shown to be vulnerable to unbinding if the

buyer leaves himself open to attack. The buyer can

then share ﬁles without the seller being able to prove

precisely which ﬁles were shared and escape prosecu-

tion. Although unbinding is only possible once a ﬁle

is shared, the fabrication of evidence implies a failure

to resolve the customers’ rights issue.

As it is in the interest of the buyer for the protocol

to fail to protect their rights, this implies it is in their

interest to leave themselves vulnerable to unbinding.

We demonstrated in Section 4.2 that the resolution of

the customers’ rights issue in (Lei et al., 2004) is de-

pendent upon the uniqueness one-time key pairs. An

unbinding attack is possible on the LYTC protocol

should the same key pair be used in multiple trans-

actions. A similar vulnerability in (Shao, 2007) was

presented in (Williams et al., 2008b) As preventing

pre-emptive unbinding is dependent upon the unique-

ness of the one-time key pairs it is apparent that en-

trusting the random generation of one-time key pairs

to the buyer puts the protocol’s security at risk.

A natural choice of whom ensures the uniqueness

of key pairs thus becomes the seller. The digital cer-

tiﬁcate C

(pk

∗

) must be checked against all other

certiﬁcates used in previous transactions. Duplicate

certiﬁcates must be rejected and the seller may later

be required to prove this action to the arbiter. These

may not be trivial tasks if the protocolis deployed on a

large scale e-commerce system in which a great num-

ber of certiﬁcates must be stored and cross referenced

in each transaction.

7 CONCLUSIONS

One time key pairs are the mechanism adopted by Lei

et al. to avoid pre-emptiveunbinding attacks in which

the seller gains an advantage by taking action that pre-

empts the ﬁle being shared. We have demonstrated

that the omission of one time key-pairs from a BSW

protocol leaves it vulnerable to a pre-emptive unbind-

ON THE IMPORTANCE OF ONE-TIME KEY PAIRS IN BUYER-SELLER WATERMARKING PROTOCOLS

445

ing attack. This led to our discovery of an attack on

the recently published HZ protocol that had not pre-

viously been identiﬁed, as described in Section 5.

In Section 6 we justiﬁed why the buyer must not

be left to ensure that a unique key pair is used in each

transaction as it is in their interest to use duplicates.

We therefore conclude that the seller must verify the

uniqueness of key pairs unless such action becomes

unmanageable wherein an alternative approach to as-

suring key uniqueness must be proposed.

REFERENCES

Barni, M. and Bartolini, F. (2004). Watermarking Systems

Engineering. Marcel Dekker, Inc.

Deng, M. and Preneel, B. (2008). Attacks on two buyer-

seller watermarking protocols and an improvement for

revocable anonymity. Electronic Commerce and Secu-

rity, International Symposium, 0:923–929.

Hu, Y. and Zhang, J. (2009). A secure and efﬁcient buyer-

seller watermarking protocol. Journal of Multimedia,

4(3):161–168.

Ibrahim, I. M., El-Din, S. H. N., and Hegazy, A. F. A.

(2007). An effective and secure buyer seller water-

marking protocol. In Third International Symposium

on Information Assurance and Security, pages 21–28.

Ju, H. S., Kim, H. J., Lee, D. H., and Lim, J. I. (2003). An

anonymous buyer-seller watermarking protocol with

anonymity control. In International Conference on In-

formation Security and Cryptology, pages 421–432.

Lei, C. L., Yu, P. L., Tsai, P. L., and Chan, M. H. (2004).

An efﬁcient and anonymous buyer-seller watermark-

ing protocol. IEEE Transactions on Image Process-

ing, 13(12):1618–1626.

Mauw, S. and Bos, V. (2001). Drawing Message Sequence

Charts with L

X. TUGBoat, 22(1-2):87–92.

Memon, N. and Wong, P. W. (2001). A buyer seller water-

marking protocol. IEEE Transactions on Image Pro-

cessing, 10(4):643–649.

Poh, G. S. and Martin, K. M. (2007). A framework for

design and analysis of asymmetric ﬁngerprinting pro-

tocols. In Third International Symposium on Informa-

tion Assurance and Security, pages 457–461.

Poh, G. S. and Martin, K. M. (2008). On the (in)security

of two buyer-seller watermarking protocols. In SE-

CRYPT 2008 - International Conference on Security

and Cryptography, pages 253–260.

Qiao, L. and Nahrstedt, K. (1998). Watermarking schemes

and protocols for protecting rightful ownership and

customer’s rights. Journal of Visual Communication

and Image Representation, 9(3):194–210.

Shao, M. H. (2007). A privacy-preserving buyer-seller wa-

termarking protocol with semi-trust third party. In

Trust, Privacy and Security in Digital Business, pages

44–53.

Williams, D. M., Treharne, H., Ho, A. T. S., and Culnane, C.

(2008a). Using a formal analysis technique to identify

an unbinding attack on a buyer-seller watermarking

protocol. In 10th ACM Workshop on Multimedia and

Security, pages 205–214.

Williams, D. M., Treharne, H., Ho, A. T. S., and Waller, A.

(2008b). Formal analysis of two buyer-seller water-

marking protocols. In 7th International Workshop on

Digital Watermarking, pages 278–292.

APPENDIX

The following notation is used throughout.

• A set of all agents

• WM, CV sets of all watermarks and cover material re-

spectively

• PK set of all public keys

• KP

∗

set of all one-time key pairs

• b, s, t, ca variables to model agents, respectively buyers,

sellers, trusted third parties and certiﬁcation authorities

• w, c variables to model watermarks and content taken

from the set of all watermarks WM and set of all digital

content CV, respectively

• (pk

, sk

) public-secret key pair belonging to agent a

• wk

watermarking key belonging to seller s

• arg(c) common agreement identifying content c

• C

(a, pk

) digital certiﬁcate binding an agent to their

public key signed under sk

• C

(pk

) anonymous certiﬁcate signed under sk

• S

(m) message m signed under sk

• E

(m) message m encrypted under pk

• W

(c, w) watermark w embedded within c using wa-

termarking key wk

Lowercase values are considered variable whereas

those in uppercase are concrete. Protocols are pre-

sented as message sequence charts (Mauw and Bos,

2001) in conjunction with this notation.

SECRYPT 2010 - International Conference on Security and Cryptography

446
