ON USING THE NORMALIZED COMPRESSION DISTANCE TO

CLUSTER WEB SEARCH RESULTS

Alexandra Suzana Cernian, Liliana Dobrica, Dorin Carstoiu and Valentin Sgarciu

Faculty of Automatic Control and Computer Science, University Politehnica of Bucharest

313 Splaiul Independentei, Bucharest, Romania

Keywords: Organizing Web Search Results, Clustering by Compression, Normalized Compression Distance (NCD),

Clustering Methods.

Abstract: Current Web search engines return long lists of ranked documents that users are forced to sift through to

find relevant documents. This paper introduces a new approach for clustering Web search results, based on

the notion of clustering by compression. Compression algorithms allow defining a similarity measure based

on the degree of common information. Classification methods allow clustering similar data without any

previous knowledge. The clustering by compression procedure is based on a parameter-free, universal,

similarity distance, the normalized compression distance or NCD, computed from the lengths of compressed

data files. Our goal is to apply the clustering by compression algorithm in order to cluster the documents

returned by a Web search engine in response to a user query.

1 INTRODUCTION

Current Web search engines return long lists of

ranked documents that users are forced to browse

through to find relevant documents. Most of today's

Web search engines (e.g., Google, Yahoo) follow

this paradigm, thus making it difficult for users to

find the information they are looking for.

This paper introduces a new approach for

clustering Web search results, based on the notion of

clustering by compression. On the one hand,

compression algorithms allow defining a universal

similarity measure based on the degree of common

information shared by a number of documents. On

the other hand, classification methods allow

clustering similar data without any previous

knowledge.

Our goal is to apply the clustering by

compression algorithm (Cilibrasi and Vitanyi, 2005)

for clustering the documents returned by a Web

search engine in response to a user query. The

method is based on the fact that compression

algorithms offer a good evaluation of the actual

quantity of information comprised in the data to be

clustered, without requiring any previous processing.

It defines the normalized compression distance

(NCD), which can be used as distance metric with

the clustering algorithms. The most important

characteristic of the NCD is its universality.

The rest of the paper is structured as follows: in

Section 2 we make a short review of some related

work, in Section 3 we introduce some thematic

aspects related to our work, in Section 4 we present

the test platform we have set up in order to

exemplify our solution, in Section 5 we present and

validate our results and in Section 6 we draw a

conclusion.

2 RELATED WORK

In recent years, link information began to play a key

role in some web applications. Nowadays, the

applications of clustering Web objects (including

web-pages, purchase items, queries, users, and etc.)

use the link information at different levels.

Traditional clustering methods ignore the link

information and cluster objects based on content

features. However, some of them treat link

information as additional features. (Su et al., 2001)

described a correlation-based document clustering

method, which measures the similarity between

web-pages based on their simultaneous visits. The

agglomerative clustering approach described in

293

Cernian A., Dobrica L., Carstoiu D. and Sgarciu V. (2010).

ON USING THE NORMALIZED COMPRESSION DISTANCE TO CLUSTER WEB SEARCH RESULTS.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 293-298

DOI: 10.5220/0002926102930298

 SciTePress

(Beeferman and Berger, 2000) is another approach,

which uses the "click-through data" method, forming

a bipartite graph of queries and documents.

However, it does not take into account the content

features of both query and document, leading to an

ineffective clustering.

So far, several Web search results clustering

systems have been implemented. We can mention

four of them. Firstly, (Cutting et al., 1992) have

created the Scatter/Gather system to cluster Web

search results. This system is based on two

clustering algorithms: Buckshot – fast for online

clustering and Fractionation – accurate for offline

initial clustering of the entire set. This system has

some limitations due to the shortcomings of the

traditional heuristic clustering algorithms (e.g. k-

means) they used. Secondly, (Zamir and Etzioni,

1998) proposed in an algorithm named Suffix Tree

Clustering (STC) to automatically group Web search

results. STC operates on query results snippets and

clusters together documents with large common

subphrases. The algorithm first generates a suffix

tree where each internal node corresponds to a

phrase, and then clusters are formed by grouping the

Web search results that contain the same “key”

phrase. Afterwards, highly overlapping clusters are

merged. Thirdly, (Stefanowski and Weiss, 2003)

developed Carrot

, an open source search results

clustering engine. Carrot

can automatically

organize documents (e.g. search results) into

thematic categories. Apart from two specialized

document clustering algorithms (Lingo and STC),

Carrot

provides integrated components for fetching

search results from various sources including

YahooAPI, GoogleAPI, MSN Live API, eTools

Meta Search, Lucene, SOLR, Google Desktop and

more. Finally, (Zhang and Dong, 2004) proposed a

semantic, hierarchical, online clustering approach

named SHOC, in order to automatically group Web

search results. Their work is an extension of O.

Zamir and O. Etzioni's work. By combining the

power of two novel techniques, key phrase

discovery and orthogonal clustering, SHOC can

generate suggestive clusters. Moreover, SHOC can

work for multiple languages: English and oriental

languages like Chinese.

3 THEORETICAL FOUNDATION

Clustering is one of the most useful tasks in the data

mining process for discovering groups and

identifying interesting distributions and patterns in

the underlying data. The clustering problem is about

partitioning a given data set into groups (clusters), so

that the data points in a cluster are more similar to

each other than points in other clusters. The

relationship between objects is represented in a

Proximity Matrix (PM), in which rows and columns

correspond to objects. This idea is applicable in

many fields, such as life sciences, medical sciences,

engineering or e-learning.

3.1 Clustering by Compression

In 2004, Rudi Cilibrasi and Paul Vitanyi proposed a

new method for clustering based on compression

algorithms (Cilibrasi and Vitanyi, 2005). The

method works as follows. First, it determines a

parameter-free, universal, similarity distance, the

normalized compression distance or NCD, computed

from the lengths of compressed data files (singly and

in pair-wise concatenation). Second, it applies a

clustering method.

The method is based on the fact that compression

algorithms offer a good evaluation of the actual

quantity of information comprised in the data to be

clustered, without requiring any previous processing.

The definition of the normalized compression

distance is the following: if x and y are the two

objects concerned, and C(x) and C(y) are the lengths

of the compressed versions of x and y using

compressor C, then the NCD is defined as:

NCD(x,y) =

)}(),(max{

)}(),(min{)(

yCxC

yCxCxyC

−

(1)

The most important advantage of the NCD over

classic distance metrics is its ability to cluster a large

number of data samples, due to the high

performance of the compression algorithms.

The NCD is not restricted to a specific

application. To extract a hierarchy of clusters from

the distance matrix, a dendrogram (ternary tree) is

determined by using a clustering algorithm.

Evidence of successful application has been reported

in areas such as genomics, virology, languages,

literature, music, handwritten digits, and astronomy.

The quality of the NCD depends on the

performances of the compression algorithms.

3.2 Classification Methods

The goal of the classification methods is to group

elements sharing the same information.

Classification methods can be divided into the

following three categories: distance methods,

characters methods and quadruplets methods.

In order to achieve the objective of this work,

only the methods of distance and the methods of

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

294

quadruplets (which also use criteria based on the

notion of distance) were considered for analysis and

implementation, for the reason that the normalized

compression distance (NCD) can only be used with

methods based on distance.

3.2.1 Distance Methods

Distance methods are based on the initial calculation

of a distance matrix, which contains information

about the resemblance between the elements to be

classified. The matrix is built by using a distance

metric and by calculating the similarity distance

between all the elements, taken two by two.

Afterwards, the classification algorithm uses the

information contained in the distance matrix to build

a binary tree or to group the elements into distinct

groups. The two best known types of distance

methods are the hierarchical methods of

classification and the nonhierarchical methods of

classification (K-Means) (Delahaye, 2004). In order

to reach the goal of this work, only hierarchical

methods were of interest. The disadvantage of the

nonhierarchical methods consists in the fact that the

number of classes must be known “a priori”, which

is big inconvenient when talking about queries

launched on search engines.

The hierarchical methods of classification

generate binary trees by unifying at each stage the

two closest elements into a new partition. The

elements to be classified will be the leaves of the

resulting tree, while the internal nodes represent a

network, which models the relationship between the

elements. The closest elements are always children

of same parents within the tree.

The most popular algorithm of the hierarchical

classification is UPGMA ("Un-weighted Pair Group

Method with Arithmetic Mean") (Carrot

, 2002). It

represents the reference method against which all

new classification methods are compared.

3.2.2 Quadruplet Methods

The name of these methods comes from the

structures called topologies of quadruplets (or

simply quadruplets). A topology of quadruplet is a

binary tree with 4 leaves and 2 internal nodes. These

trees present some interesting properties which can

be exploited in the process of classification. Given a

set of 4 elements u, v, w, x there are always 3

possible distinct topologies of quadruplets which

include these four elements in various

configurations: uv|xw, ux|vw and uw|xv. A set of

quadruplet topologies can be aggregated into a tree

of quadruplets, which preserves the properties of the

quadruplet topology: n leaves and (n-2) internal

nodes, each internal node has exactly 3 neighbors,

each leaf has exactly one neighbor (its parent), the

tree is not rooted.

The methods of quadruplets are usually

implemented in two stages (Boley et al., 1999)

called the stage of inference and the stage of

recombination or aggregation. The most known

quadruplet methods are “Addtree” and “Quartet

Puzzling”.

4 TEST PLATFORM FOR

CLUSTERING WEB PAGES

In order to evaluate the performance of the proposed

method for clustering Web documents, we have

developed a Java application which automatically

organizes (clusters) small collections of documents,

namely the search results, into thematic categories.

The workflow of actions in the application is the

following. By using Google SOAP Search API, the

application retrieves the first 50 results returned by

the Google search engine in response to a user

request. These 50 Web pages are saved as text files,

which will be further processed: stopwords are

eliminated, a stemming algorithm is applied and

HTML tags are removed. The processed files are

then clustered using the Java actors we have

implemented in order to test the clustering by

compression technique. In order to assess the results,

we have used manual clustering and Carrot

1. Manual clustering. We have launched a search

on the Google search engine using the Rosetta

keyword. Then, we looked at the first 50 results to

see what was their thematic: space mission, famous

stone, Unix software application, movie etc. We

opened each link, looked at their content, and then

decided into which group they fall. In our opinion,

we distinguished the following groups: Stone (5),

Space mission (9), Proteins (4), Software (6),

Genomics (2), Music (2), Company (4), language

learning (6), Movie (3), Books (2), Bio-software (2),

Others (5).

After applying the clustering by compression

technique to the Web search results, we compared

the obtained clusters against the clusters deduced

from the manual clustering.

2. Carrot

. As described in Section 2, Carrot

is an

Open Source search results clustering engine

(Stefanowski and Weiss, 2003). It can automatically

organize documents (e.g. search results) into

thematic categories.

ON USING THE NORMALIZED COMPRESSION DISTANCE TO CLUSTER WEB SEARCH RESULTS

295

After applying the clustering by compression

technique to the Web search results, we compared

the clusters obtained against the clusters produced

by Carrot

4.1 Google SOAP Search API

The SOAP Search API (Google SOAP API, 2006)

was created for developers and researchers who are

interested in using Google Search as a resource in

their applications. By integrating Google SOAP

Search API Web service into their applications,

software developers can access billions of Web

pages directly from their own applications.

Communication is performed via SOAP, an XML-

based mechanism for exchanging information.

4.2 The Actors

For our current work, we have implemented in Java

the following actors: DistanceMatrixComputerActor

– depending on two parameters: (1) the compression

algorithm to be used and (2) the distance metric to

be used (Ionescu, 2005). The tests performed

focused on ZIP and BZIP2 as compression

techniques and on the normalized compression

distance (NCD) for the second parameter.

ClusterTreeConstructorActor - determining the type

of classification method to be used. In order to

conduct the tests, two classification algorithms have

been chosen: UPGMA – belonging to the

hierarchical class and MCQP (“Maximum

Consistency based Quartet Puzzling”) (Ionescu,

2005) – method based on the quadruplet topology.

ClusterTreeScoreActor - having as input the distance

matrix and issuing a value within the range 0 and 1,

describing the quality of the binary tree obtained

(Ionescu, 2005). PresentationActor – showing the

graphical representation of the obtained binary tree,

from which clusters will be identified (Ionescu,

2005).

These actors have been integrated into the Kepler

Project (Altintas et. al., 2004), an open-source

scientific system which allows scientists to design

scientific workflows and execute them. The

functionality of Kepler is based on the notion of

actors. The actors are re-usable components which

communicate with other actors through

communication channels.

4.3 Techniques of Automatic Text

Processing

The first text processing technique we have used is

the elimination of stopwords., such as articles (e.g.

"the"), prepositions (e.g. "for", "of") and pronouns

(e.g. "I", "his"). The second text processing

technique we have used is stemming (Porter

stemming, 2006), reducing different grammatical

forms of a word to their base form. When using the

entire Web pages for the clustering process, we also

use regular expressions to eliminate HTML tags and

punctuation marks, which could represent a source

of noise when identifying the informational content

of a document.

5 EXPERIMENTAL RESULTS

This section is a discussion regarding our experience

when we performed clustering snippets and

clustering entire Web pages.

5.1 Clustering Snippets

Since Google SOAP Search API allows launching a

request on Google and retrieving the snippets

returned by the Google search engine, the first thing

we considered was clustering the Web pages based

on these snippets (Table 1).

So, at this stage, the application performed the

following actions:

 Launch a query on the Google search engine

through the Google SOAP Search API. The

keyword for our search was Rosetta (space

mission, famous stone, Unix software

application, movie etc);

 Retrieve the snippets for the first 50 Web

documents returned by the search engine;

 Generate thematic clusters with the clustering by

compression technique, using the ZIP and BZIP2

compression algorithms in conjunction with the

UPGMA and MCQP classification methods.

Table 1: Clustering snippets.

ZIP +

UPGMA

BZIP2 +

UPGMA

ZIP +

MCQP

BZIP2

MCQP

Speed 1s 1.2s 1.4s 1.5s

similarity

with the

manual

clustering

72%

74%

71%

72%

similarity

with

Carrot

66%

69%

67%

70%

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

296

After this first round of experiments, using the

snippets returned by the search engine, the results

were not satisfactory. We noticed that the clustering

by compression algorithm did not seem to

distinguish very precisely the thematic of the

documents. We found that, for instance, our

platform managed to gather the pages treating the

Rosetta space mission, but, on the other hand, it

mixed web pages about the Rosetta software with

web pages about Rosette music band. Compared to

our empirical evaluation, the number of clusters did

not differ much, but the content of each cluster was

not the one we had expected.

The main difference between Carrot

and our test

platform is that Carrot

can place a Web page in

several clusters, whereas our platform places each

page in only one cluster. So, for our evaluation, we

considered that the 2 clusterings are similar if they

contain a certain Web page in clusters treating the

same subject (for instance, Rosetta stone).

The problem now is to identify the cause of this

unsatisfactory result. We considered using the factor

analysis, which provides a classification of data and

is recognized by the researchers for the relevance of

its results. Factor analysis (Morrison, 1990) is a

technique for data reduction. It tries to find a new set

of variables, which can express the "common"

information among the original variables. Widely

used in applied statistics, these techniques are

powerful tools for analysis. In our case, factor

analysis has played the role of the classification

algorithm, since it was based on the distance matrix,

which it had to "translate" and project in a plane.

The results obtained are as follows (figure 1):

Figure 1: Factor analysis for snippets.

In the above representation, one can easily see that

groups are not precisely formed, so we can now

appreciate that the problem in the clustering we have

obtained is due to the distance matrix and not the

classification algorithm. But originally, this matrix is

calculated using the sample of 50 snippets, on which

we apply the compression algorithms chosen, as

described by the NCD in Section 2. So, the problem

could be generated either by the compression

algorithm, or by the input data. Since the previous

tests (Ionescu, 2005) have shown that ZIP and

BZIP2 algorithms have good performance with the

clustering by compression technique, compressors

have been eliminated as a possible cause of the

malfunction. Therefore, at this point, we can say that

the cause of misclassification is the input data.

5.2 Clustering Web Pages

The next approach will use the entire Web page, not

just a snippet, as input for the clustering procedure.

From the textual information point of view, a Web

page consists of: HTML tags, code entities (&amp),

special characters ( #, &, %), meaningful

information and stop words.

So, our goal right now is processing Web pages

in order to keep only meaningful words. Thus, using

regular expressions, HTML tags will be removed.

Stop words are removed from text using a Java

implementation for eliminating stop words from

documents written in English. The final processing

step will be to apply the Porter stemming algorithm.

Afterwards, we apply the clustering by compression

technique on the processed files. At this point, we

expect this process to be rather time consuming, due

to the fact that the Web search results are processed

before clustering. However, for the moment, we are

interested in the clustering performances.

The results we have obtained in this case are

depicted in the following table (Table 2):

Table 2: Clustering Web pages.

ZIP +

UPGMA

BZIP2 +

UPGMA

ZIP +

MCQP

BZIP2

MCQP

Speed 2.7s 2.4s 3s 3.1s

similarity

with the

manual

clustering

92%

94%

95%

similarity

with

Carrot2

87%

89%

88%

The projection in the plan of the matrix of distances

calculated using the BZIP2 compressor and the

UPGMA classification algorithm shows that specific

groups are formed by thematic criteria (figure 2).

ON USING THE NORMALIZED COMPRESSION DISTANCE TO CLUSTER WEB SEARCH RESULTS

297

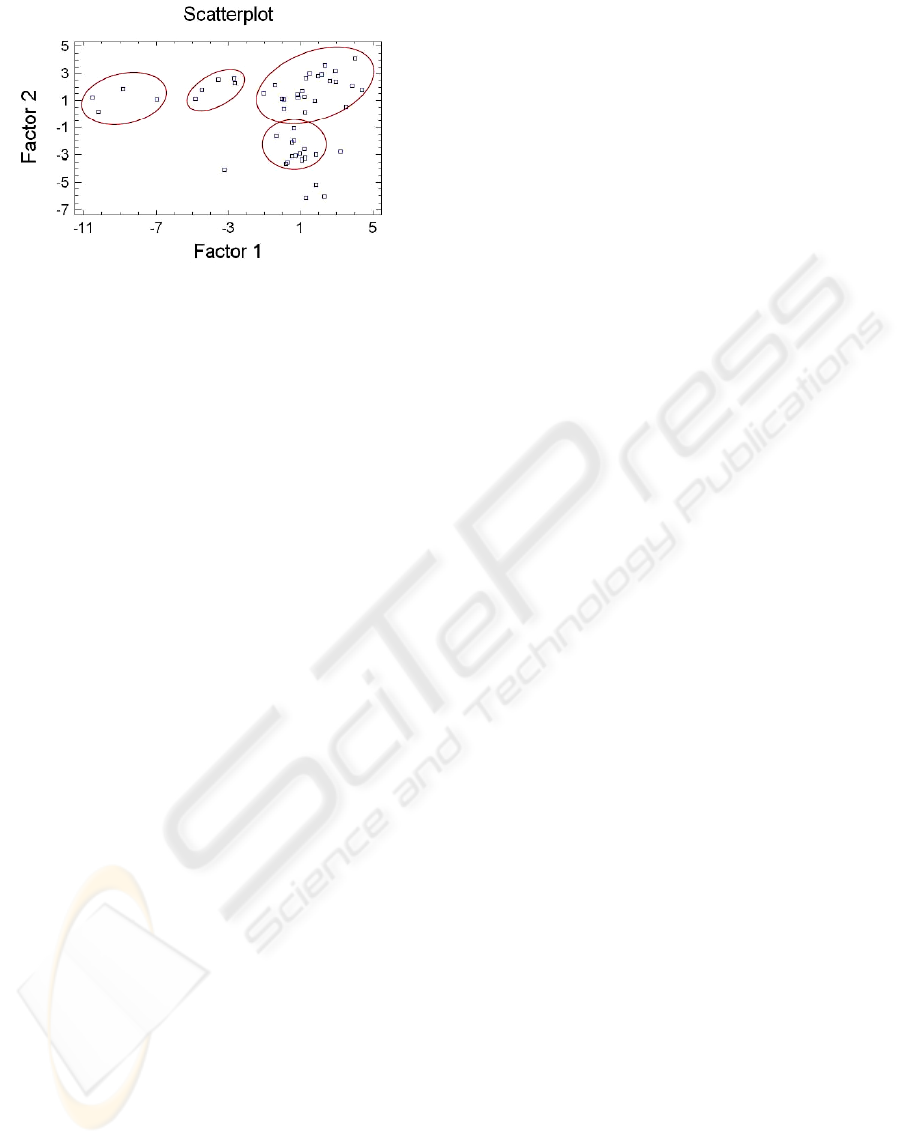

Figure 2: Factor analysis for Web pages.

Regarding the two compressors (ZIP and BZIP2)

and the two classification algorithms used (UPGMA

and MCQP), we can conclude the following:

 The BZIP2 compressor provided better results

than ZIP.

 The MCQP algorithm is slower than UPGMA

and the results are very similar.

 The best speed/performance ratio is provided

by the BZIP2 + UPGMA combination.

6 CONCLUSIONS

Clustering by compression produced good results

during our tests conducted in order to improve the

relevance of the results of queries launched on the

Web. The application can correctly classify Web

documents without any “a priori” information. The

NCD proved its capacity to objectively evaluate the

distance between objects of various types by

approximating the informational content. The best

speed/performance ratio is provided by the BZIP2 -

UPGMA combination. However, the results proved

that the quality and the robustness of the process of

clustering Web pages by compression depend on the

pre-processing techniques applied to the Web

documents. Consequently, as perspectives, we are

considering finding better techniques to process the

Web documents, in order to improve the speed of

the clustering process, as well as to implement a

Web interface which will allow the users to visualize

the clustered data.

ACKNOWLEDGEMENTS

This work was supported by CNCSIS – UEFISCSU,

project number PNII - IDEI 1238/2008.

REFERENCES

Cilibrasi, R., Vitanyi, P., 2005. Clustering by

compression. IEEE Transactions on Information

Theory, Vol. 51, No. 4, pp 1523–1545.

Grunwald, P., Vitanyi, P., 2004. Shannon Information and

Kolmogorov Complexity.

Ionescu, T., 2005. Etude des méthodes de classification

par compression , Supélec Gif-sur-Yvette, France.

Delahaye, J., 2004. Classer musique, langues, images,

textes et genomes, Pour la science, n°317.

Altintas. I., Berkley, C., Jaeger E., Jones, M. Ludascher,

B. and Mock, S., 2004. Kepler: an extensible system

for design and execution of scientific workflows,

Proceedings of the 16th International Conference on

Scientific and Statistical Database Management, p:

423-424.

Morrison, D. F., 1990. Multivariate Statistical Methods.

New York: McGraw-Hill.

Carrot2, 2002: http://project.carrot2.org/

Zamir, O., Etzioni, O., 1998. Web document clustering: A

feasibility demonstration. Proceedings of SIGIR '98,

pp. 46--53.

Su, Z., Yang, Q., Zhang, H. J., X,u X., Hu, Y. H., 2001.

Correlation-based Document Clustering using Web

Logs, In Proceedings of the 34th Hawaii International

Conference On System Sciences(HICSS-34).

Beeferman, D., Berger, A., 2000. Agglomerative

clustering of a search engine query log, In

Proceedings of the Sixth ACM SIGKDD, pp. 407-416.

Google SOAP API, 2006: http://

code.google.com/apis/soapsearch/

Porter stemming algorithm, 2006: http://

tartarus.org/~martin/PorterStemmer/

Cutting, D., Karger, D., Pedersen, J., Tukey, J. W., 1992.

Scatter/Gather: A Cluster-based Approach to

Browsing Large Document Collections.

Proceedings of the 15th Annual International

ACM/SIGIR Conference, Copenhagen.

Stefanowski, J., Weiss, D., 2003. Carrot

and Language

Properties in Web Search Results Clustering. In:

Lecture Notes in Artificial Intelligence: Advances in

Web Intelligence, Proceedings of the First

International Atlantic Web Intelligence Conference,

Madrid, Spain, vol. 2663 (—), pp. 240—249

Zhang, D., Dong, Y., 2004. Semantic, Hierarchical, Online

Clustering of Web Search Results. In Proceedings of

the 6th Asia Pacific Web Conference (APWEB),

Hangzhou, China

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

298
